Description

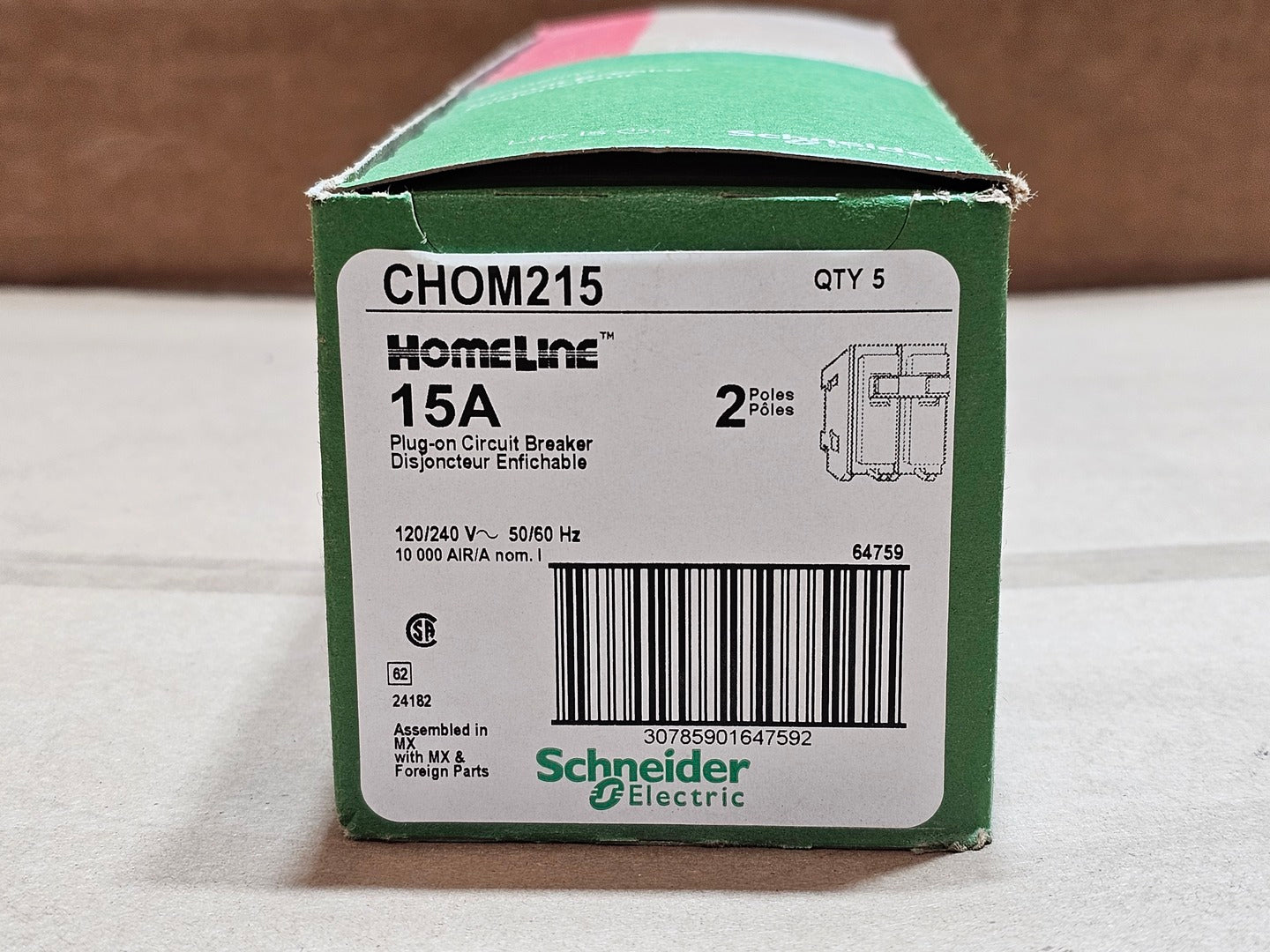

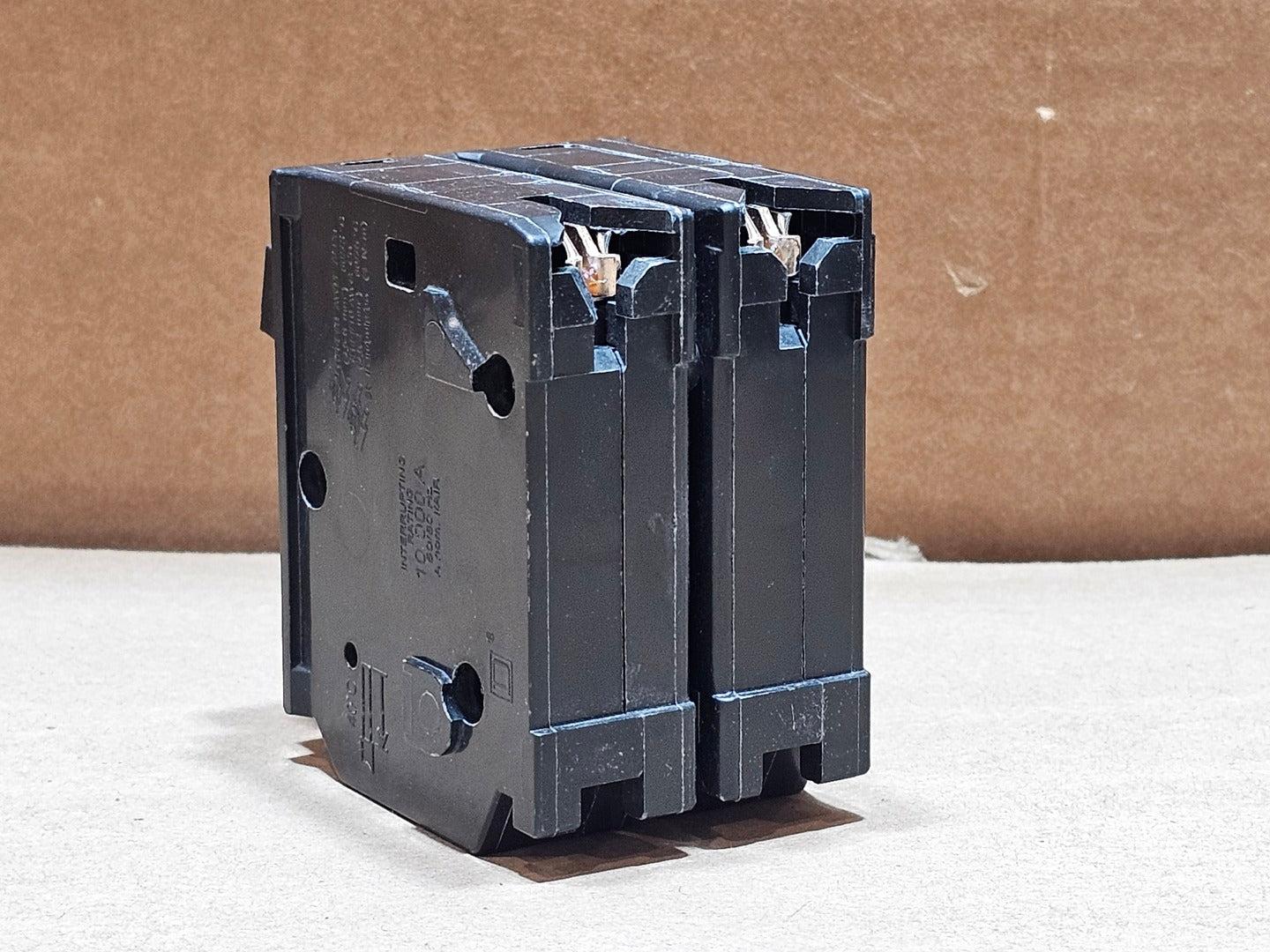

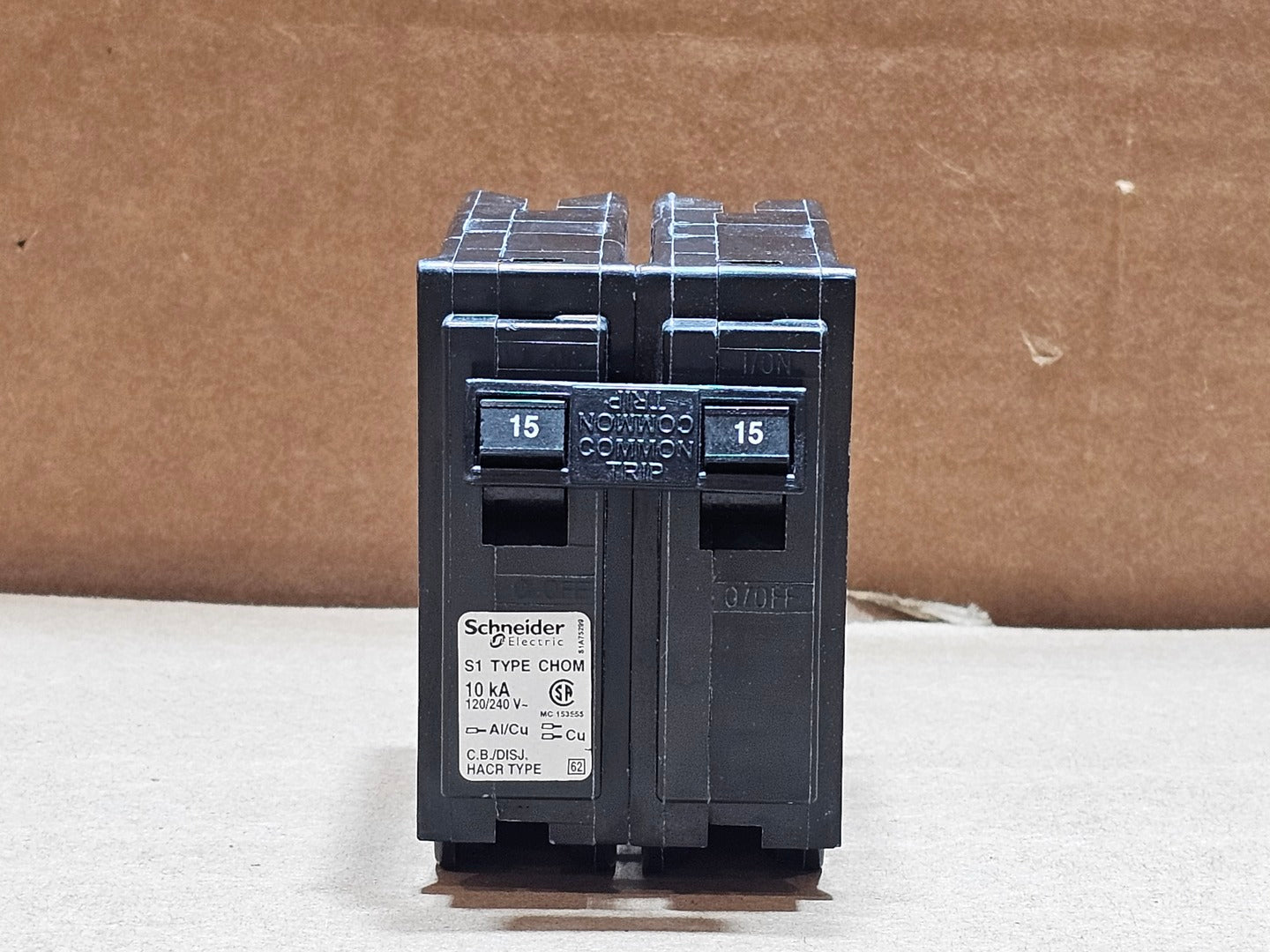

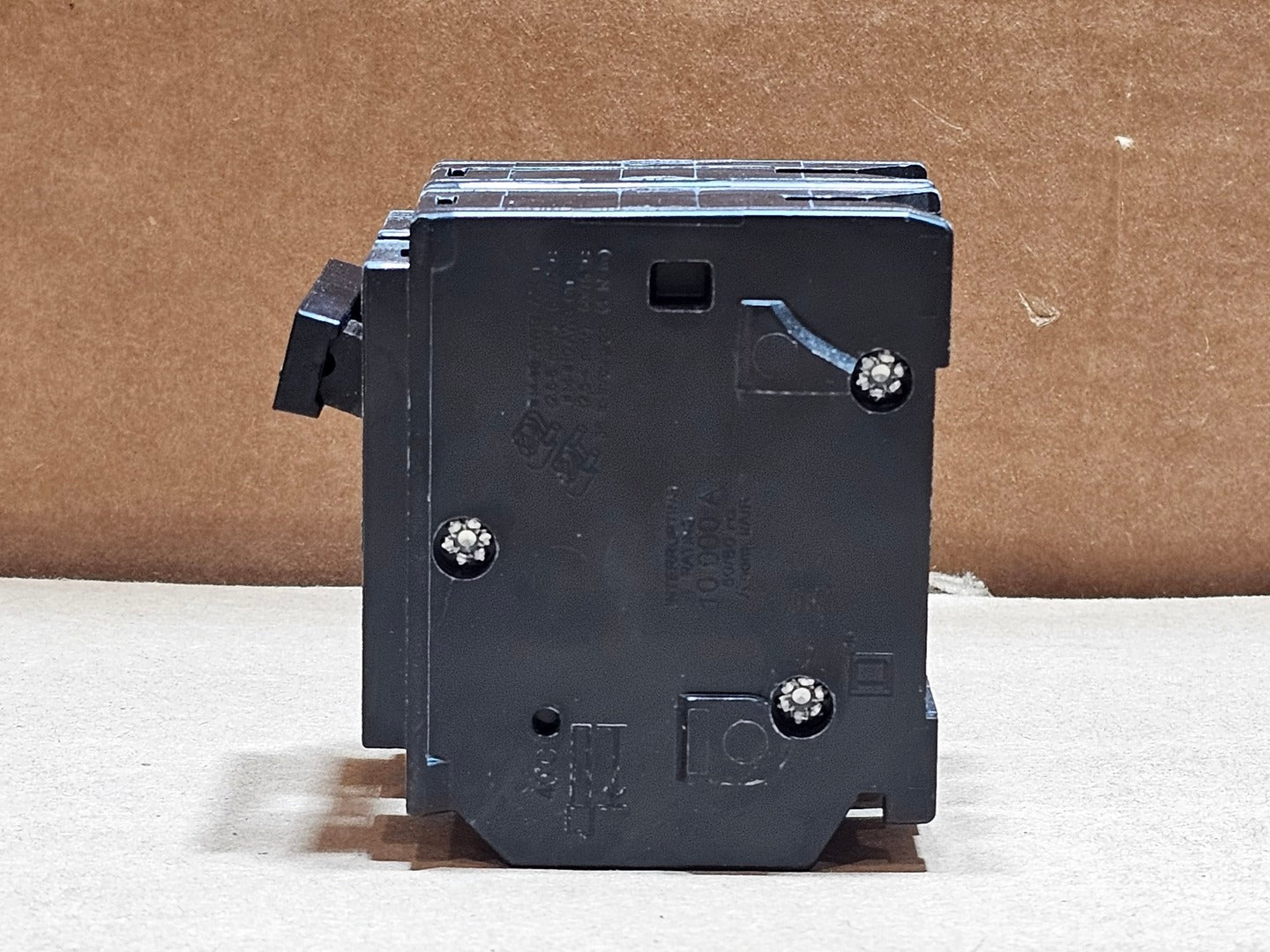

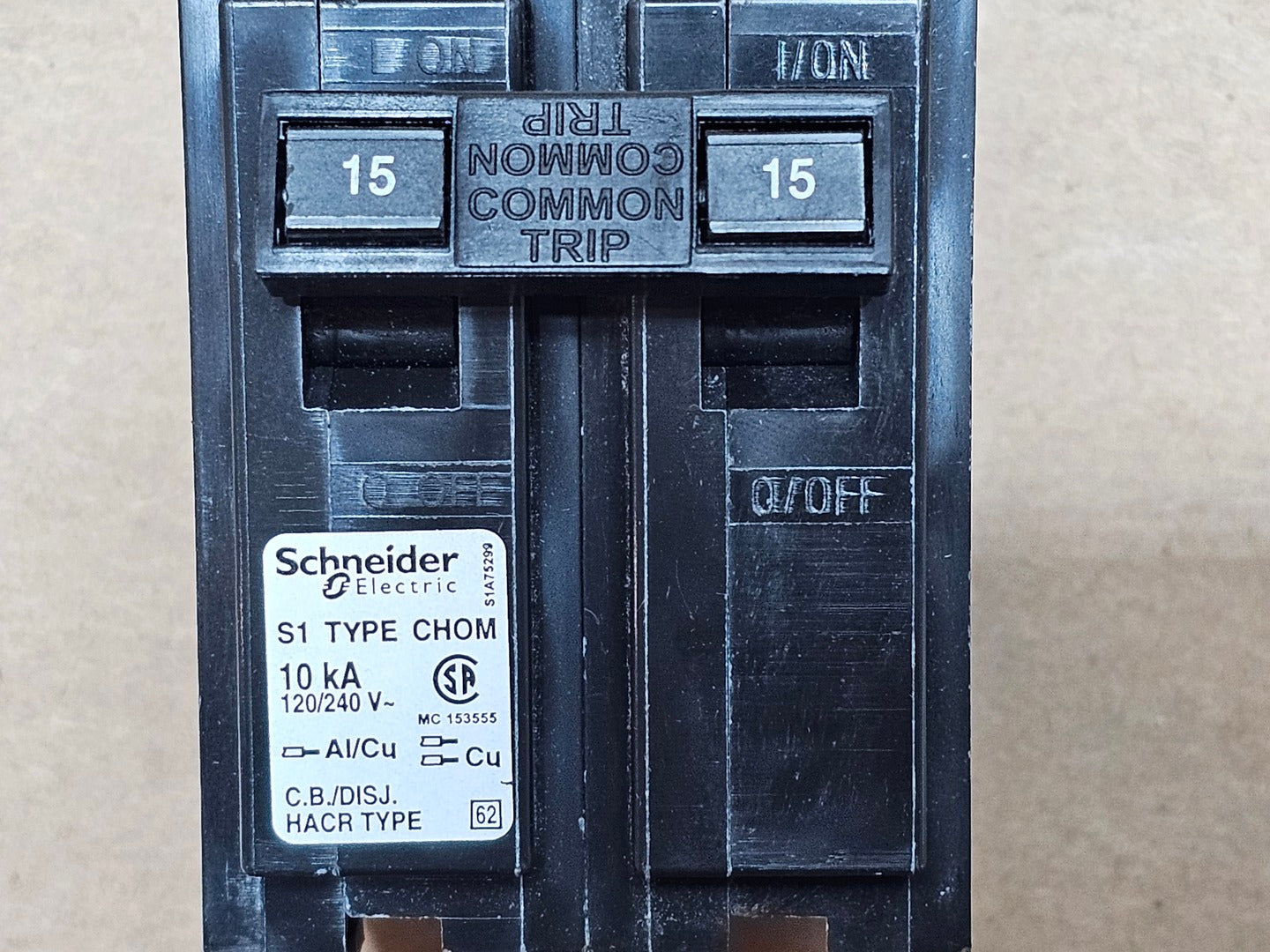

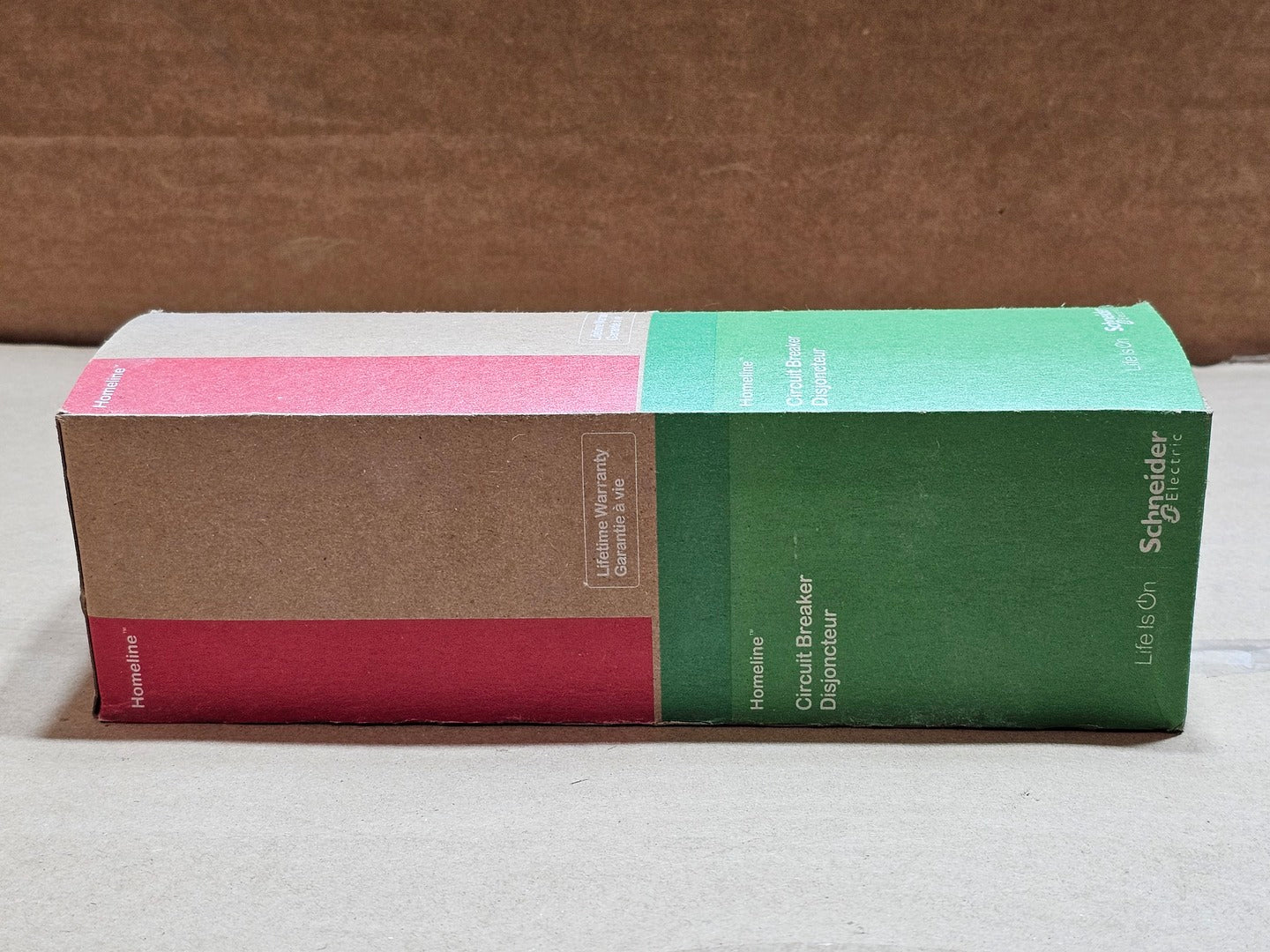

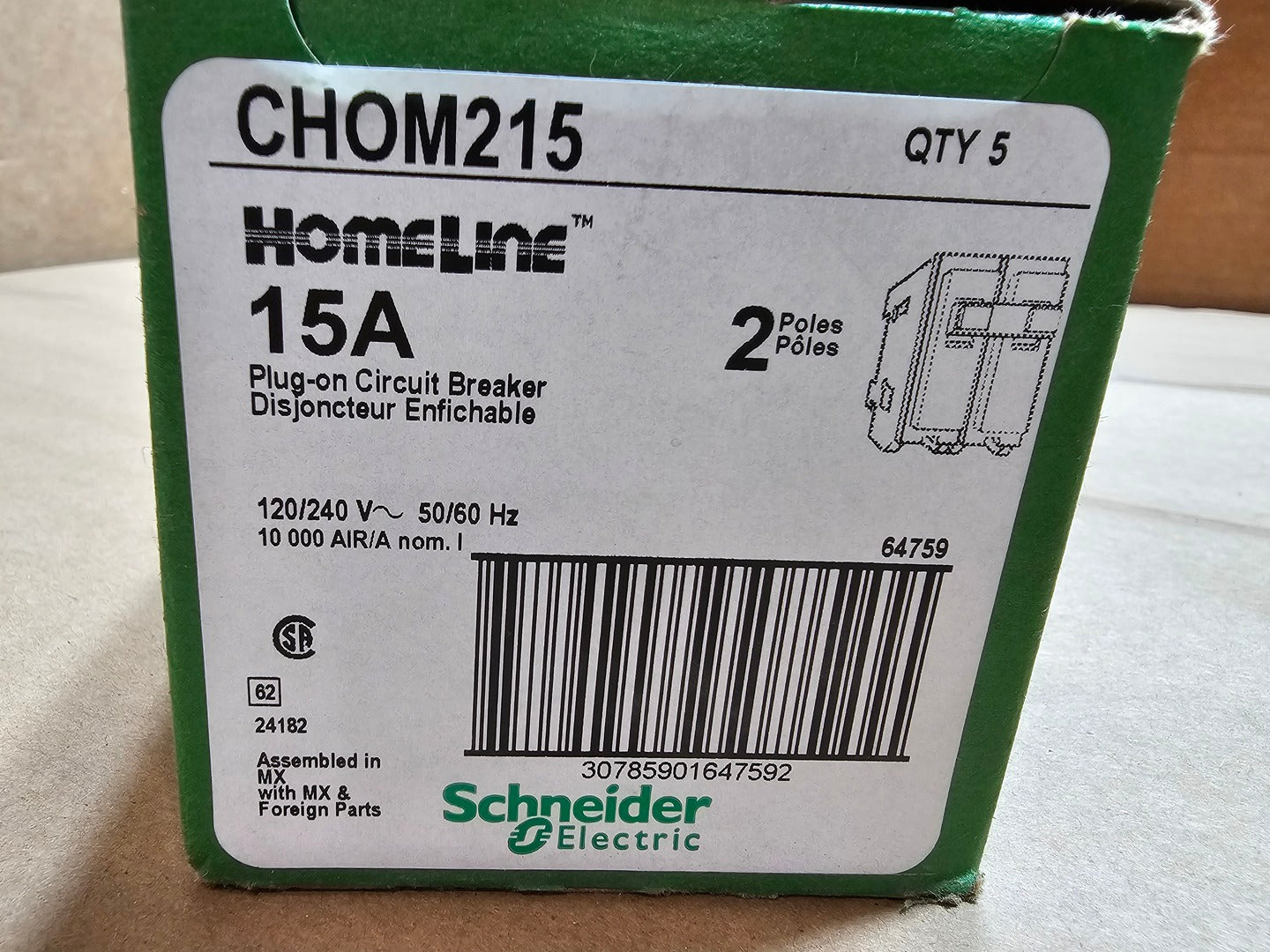

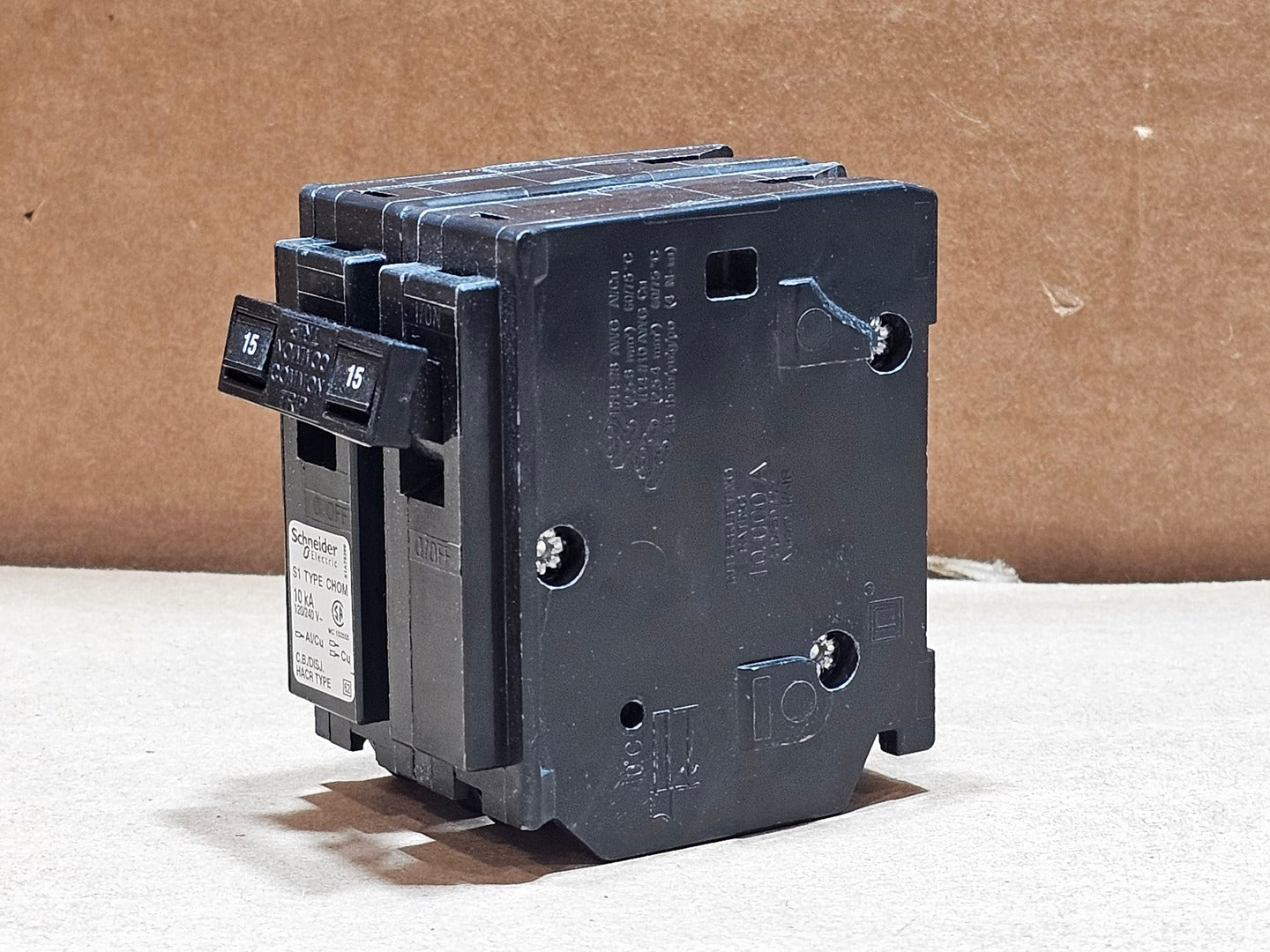

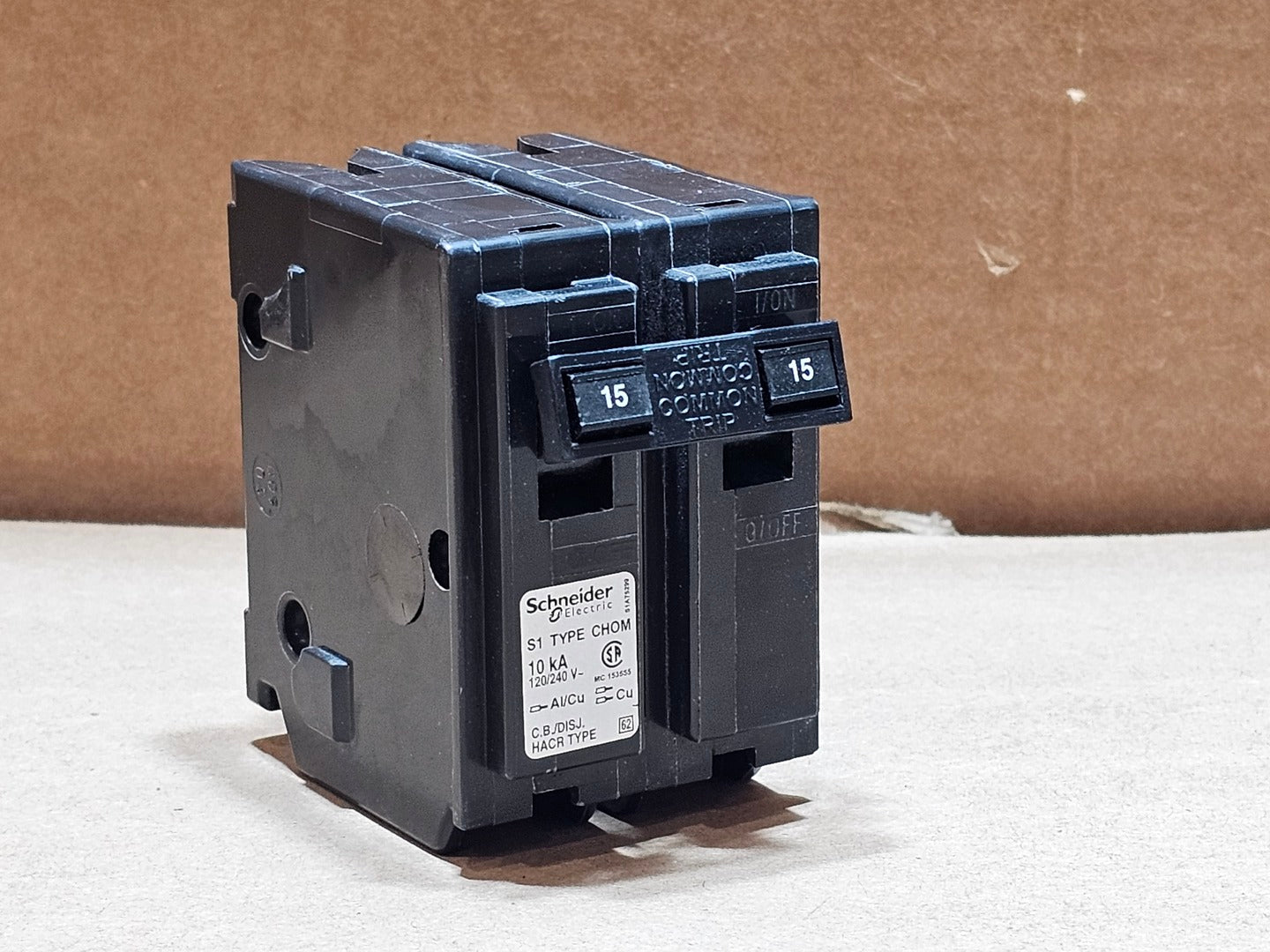

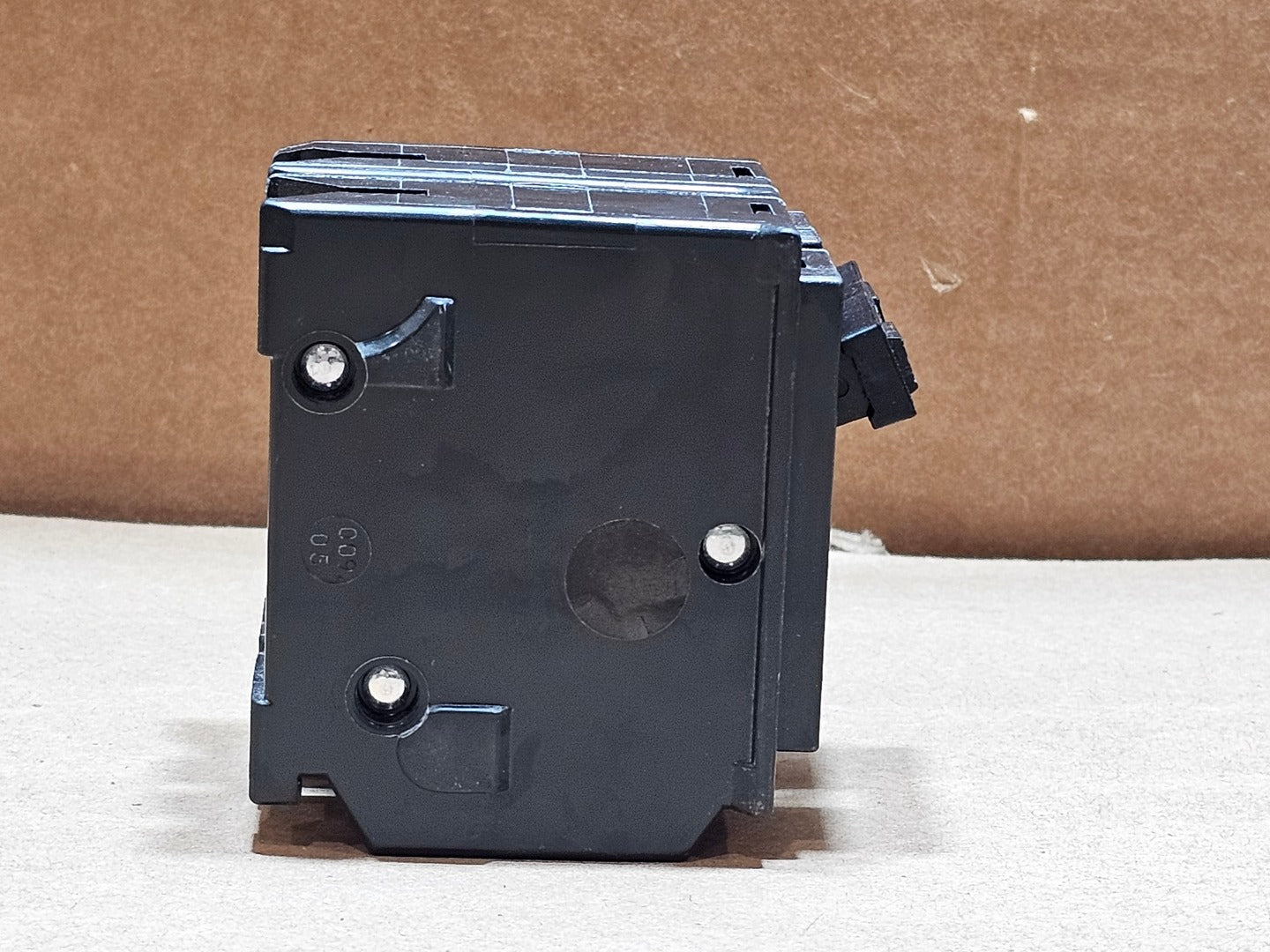

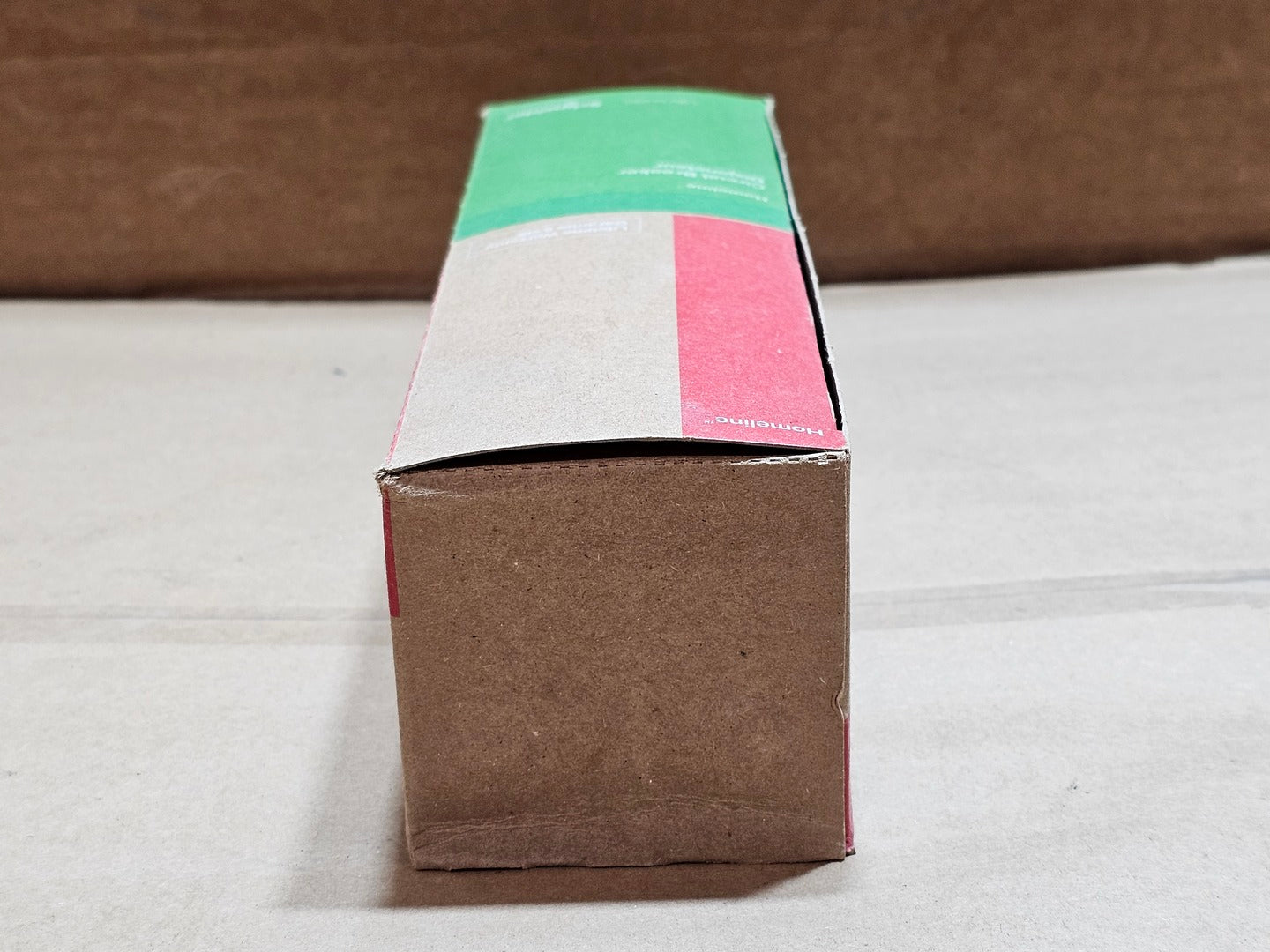

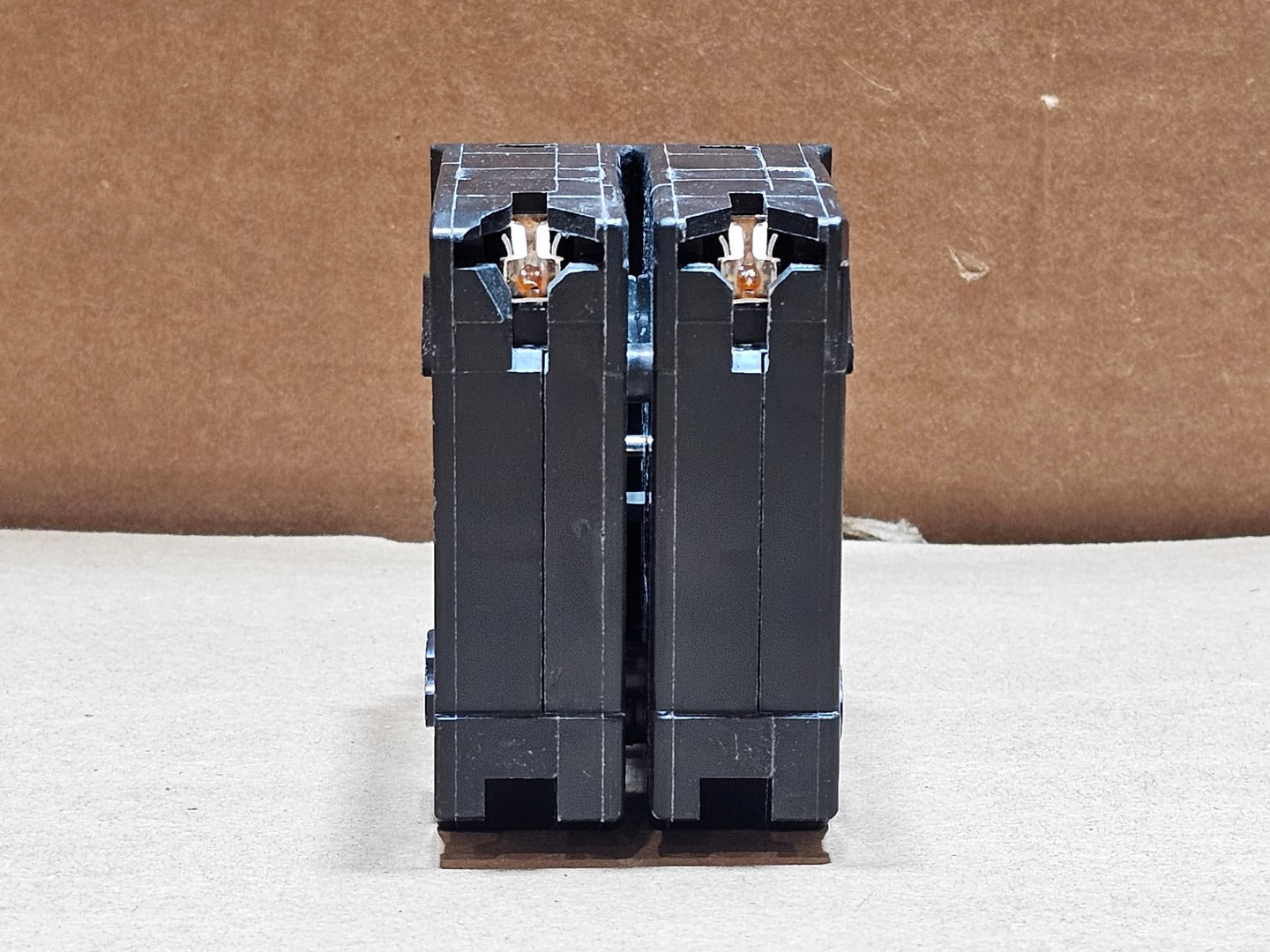

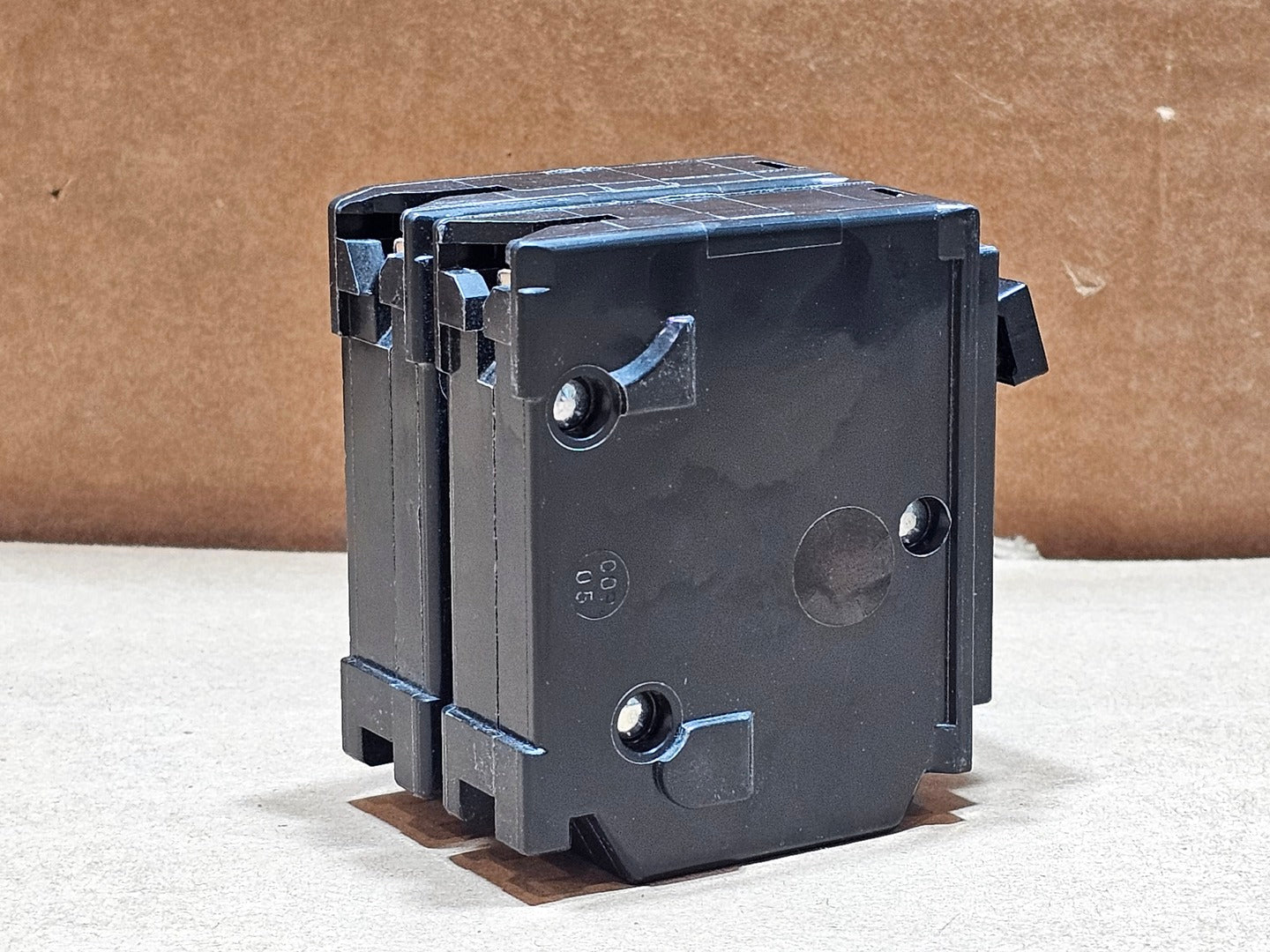

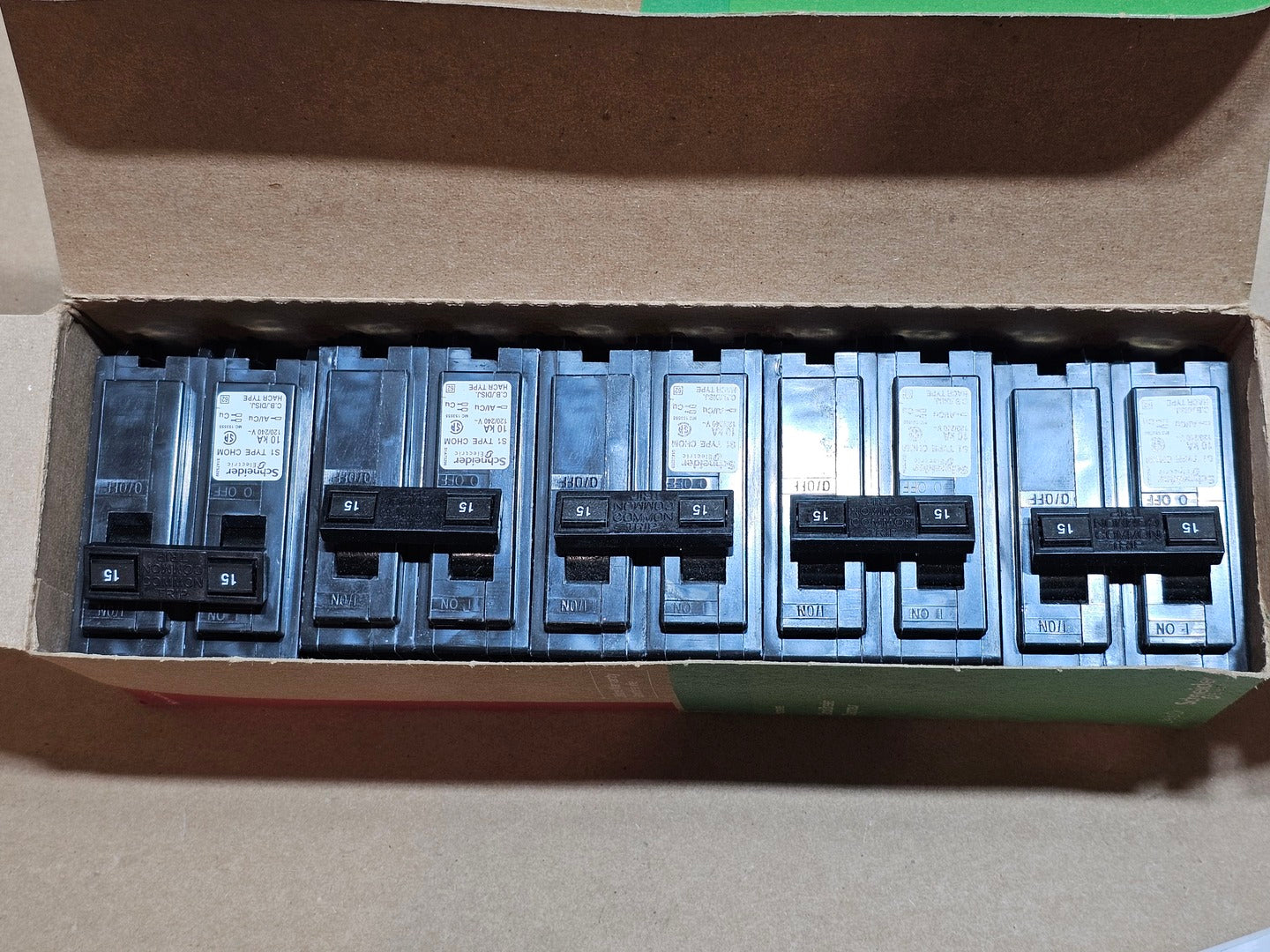

Schneider Electric Homeline CHOM215 15A 2-pole plug-on circuit breaker rated for 120/240 VAC, 50/60 Hz service with a 10 kA interrupting rating. Features common-trip operation and HACR rating. The supplied photos show 5 matching breakers in a Schneider Electric carton marked QTY 5.
| Specifications | |
|---|---|
| Model | CHOM215 |
| Made In | MEXICO |
| Condition | Surplus New | General |
| Amps | 15 amps |
| Series | CHOM |
| # of Poles | 2 |
| Mounting Style | Plug-In |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

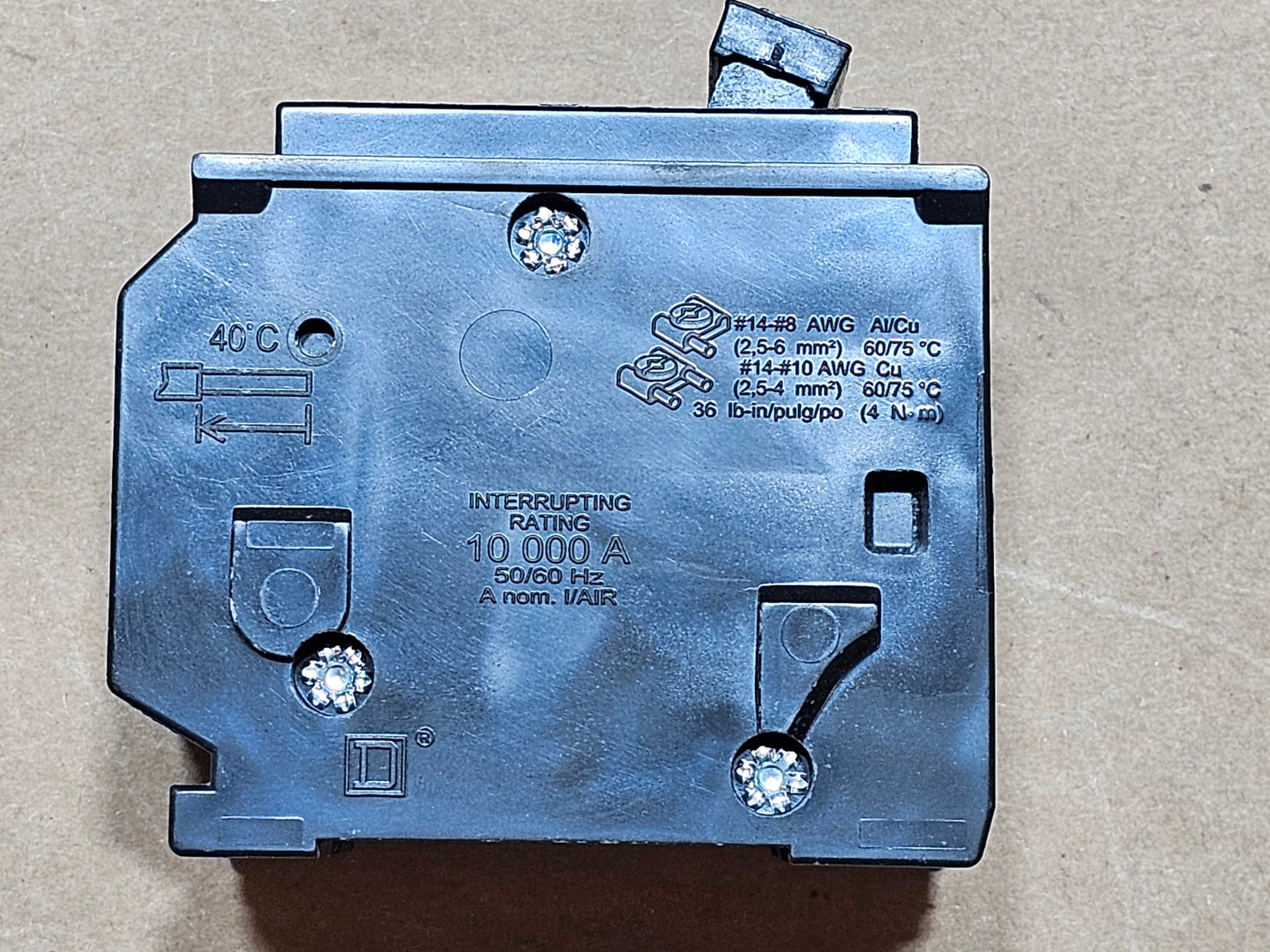

Frequency: 50/60 Hz Interrupting Rating: 10,000 A / 10 kA Trip Configuration: Common Trip HACR Rated: Yes Conductor Compatibility: Aluminum/Copper and Copper markings visible Al/Cu Wire Range: #14-#8 AWG (2.5-6 mm2) Cu Wire Range: #14-#10 AWG (2.5-4 mm2) Terminal Torque: 36 lb-in (4 N-m) Conductor Temperature Rating: 60/75°C Certification: CSA marking visible |
