Description

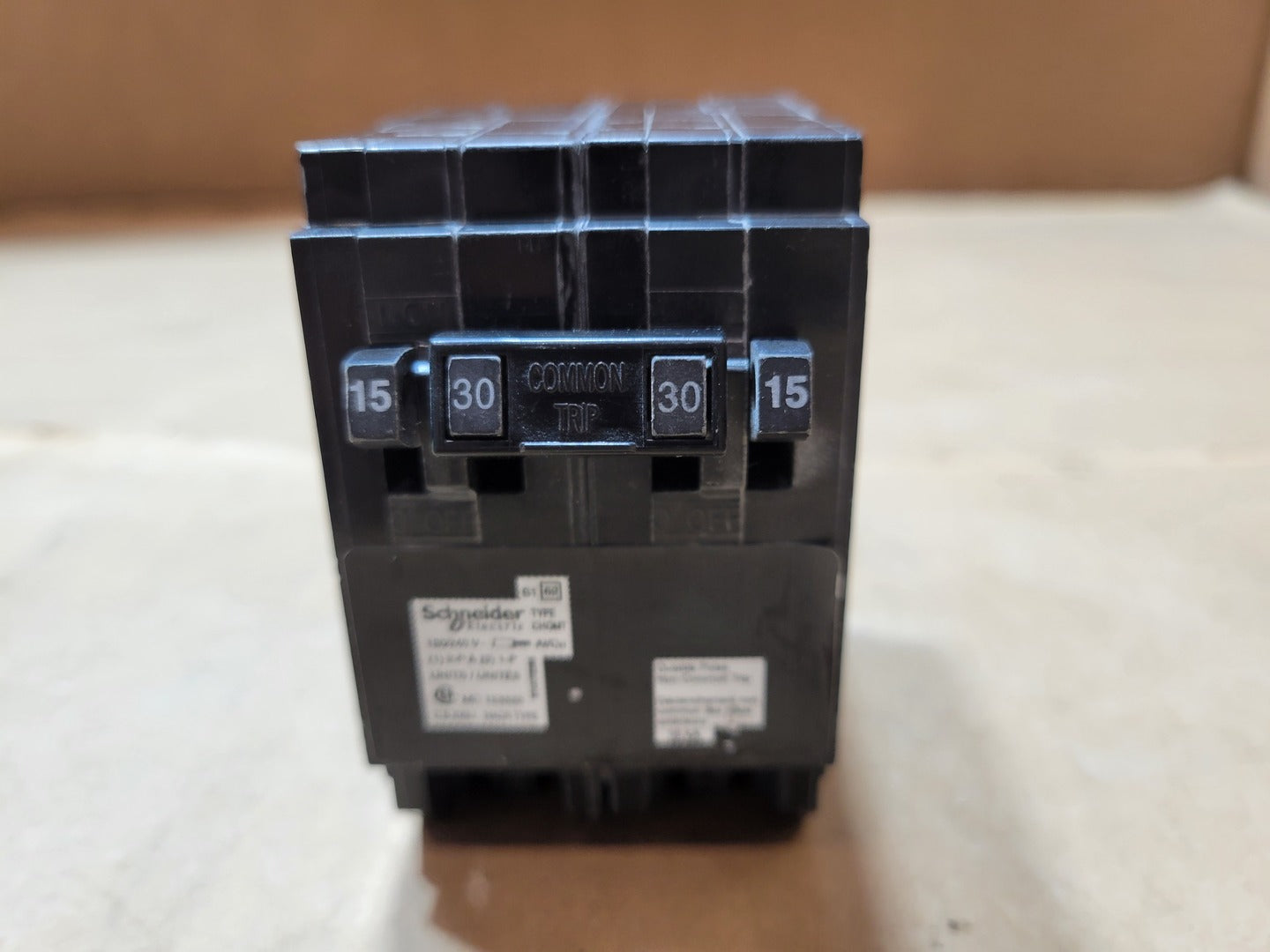

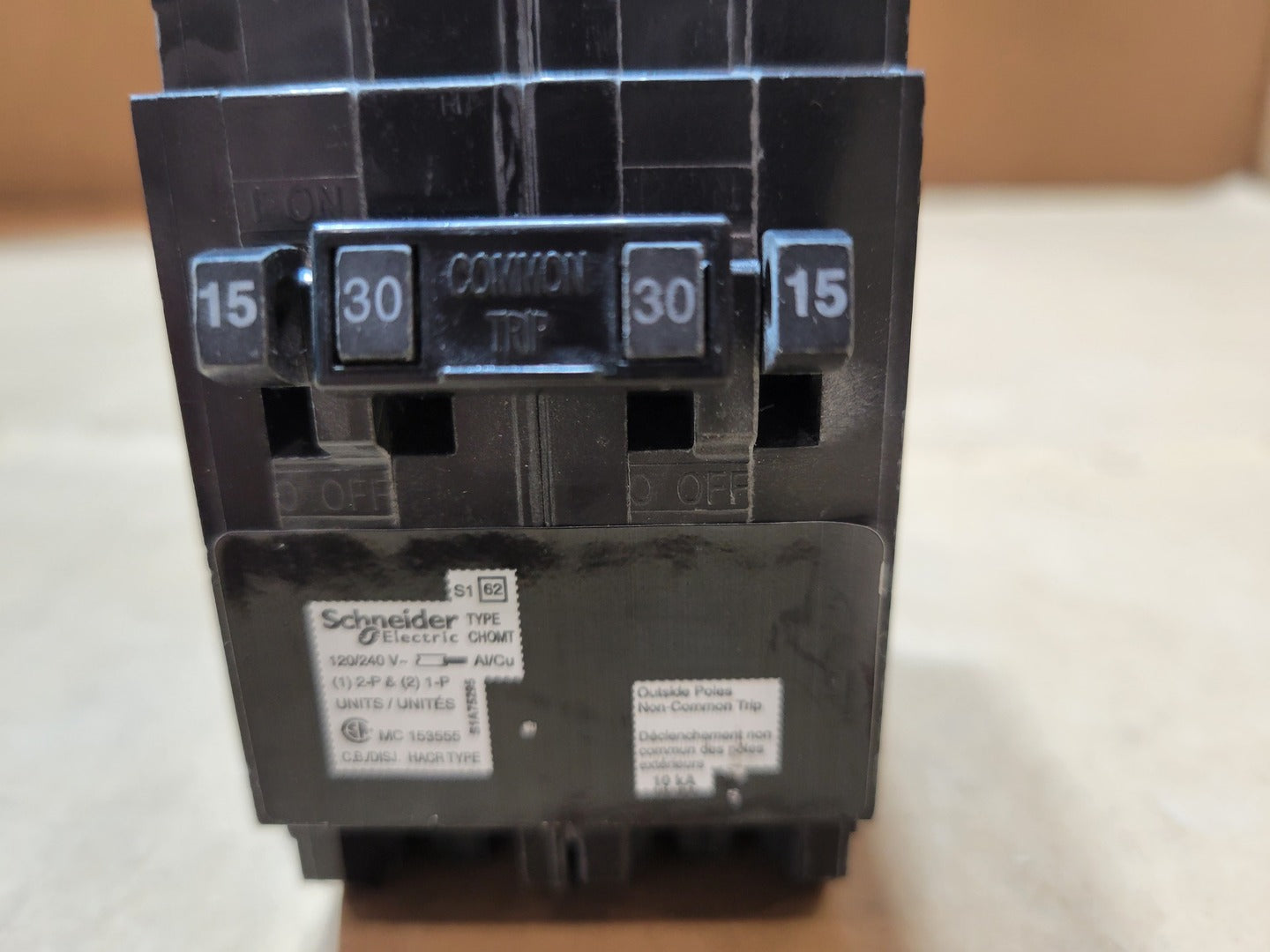

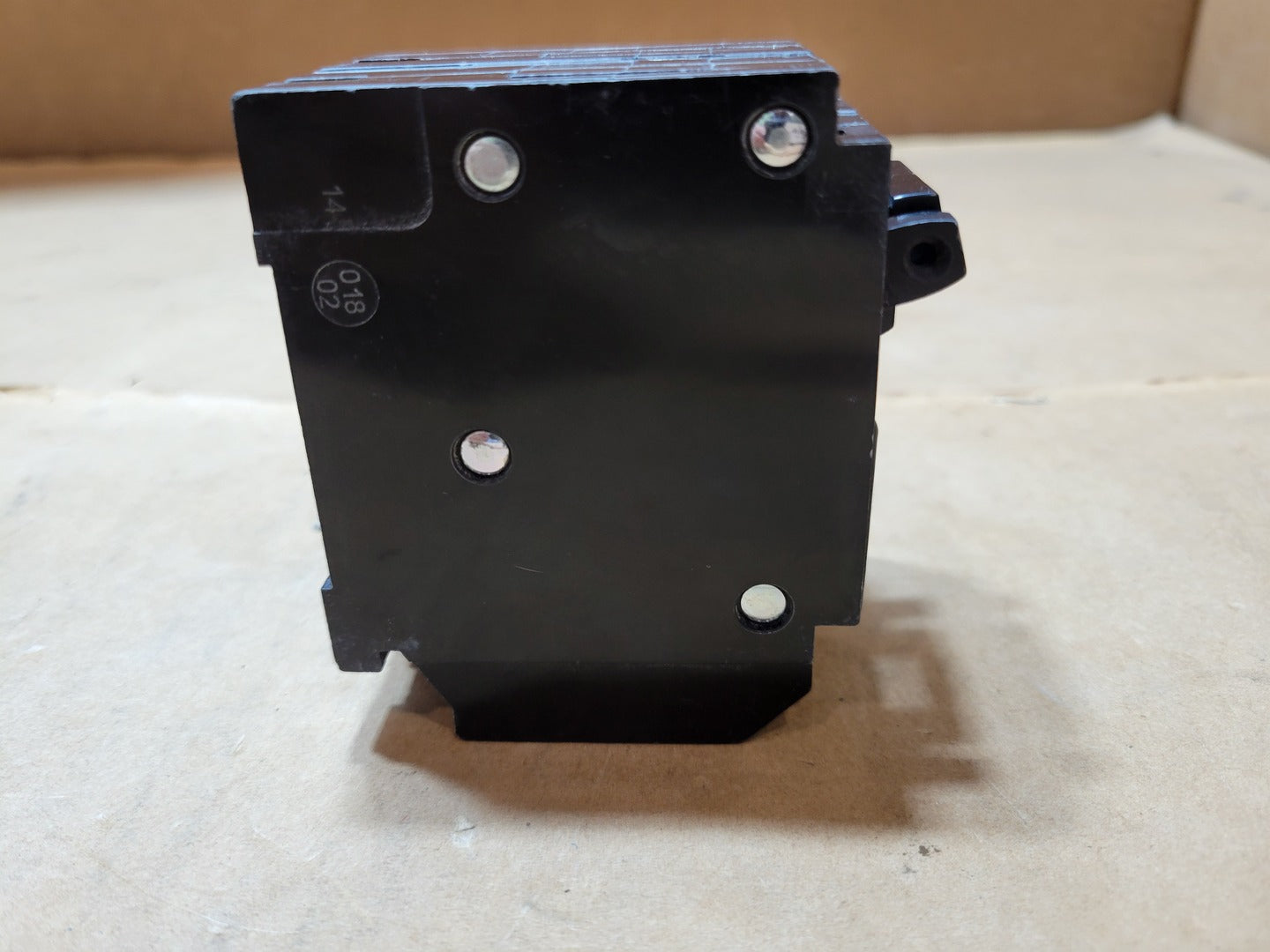

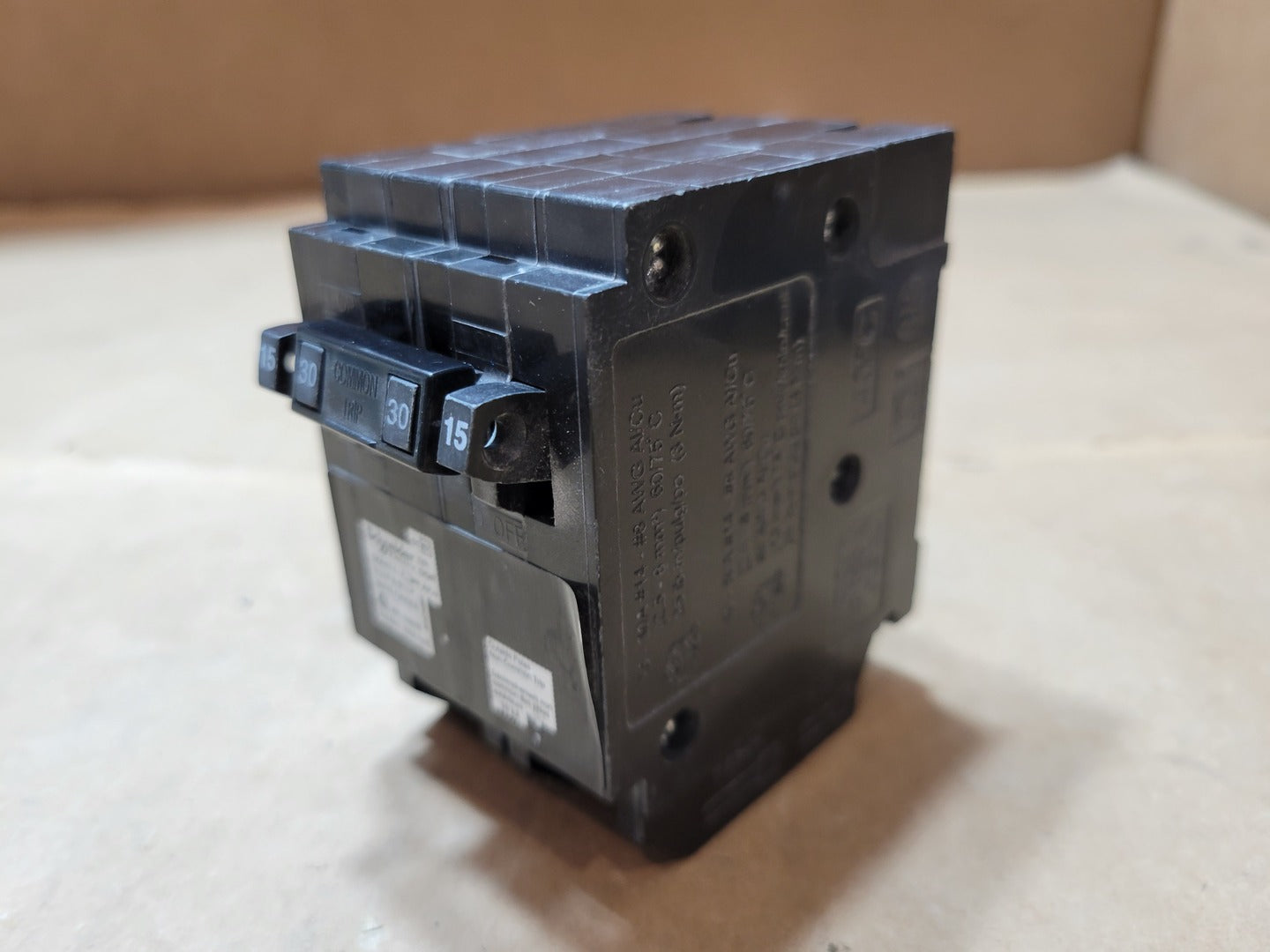

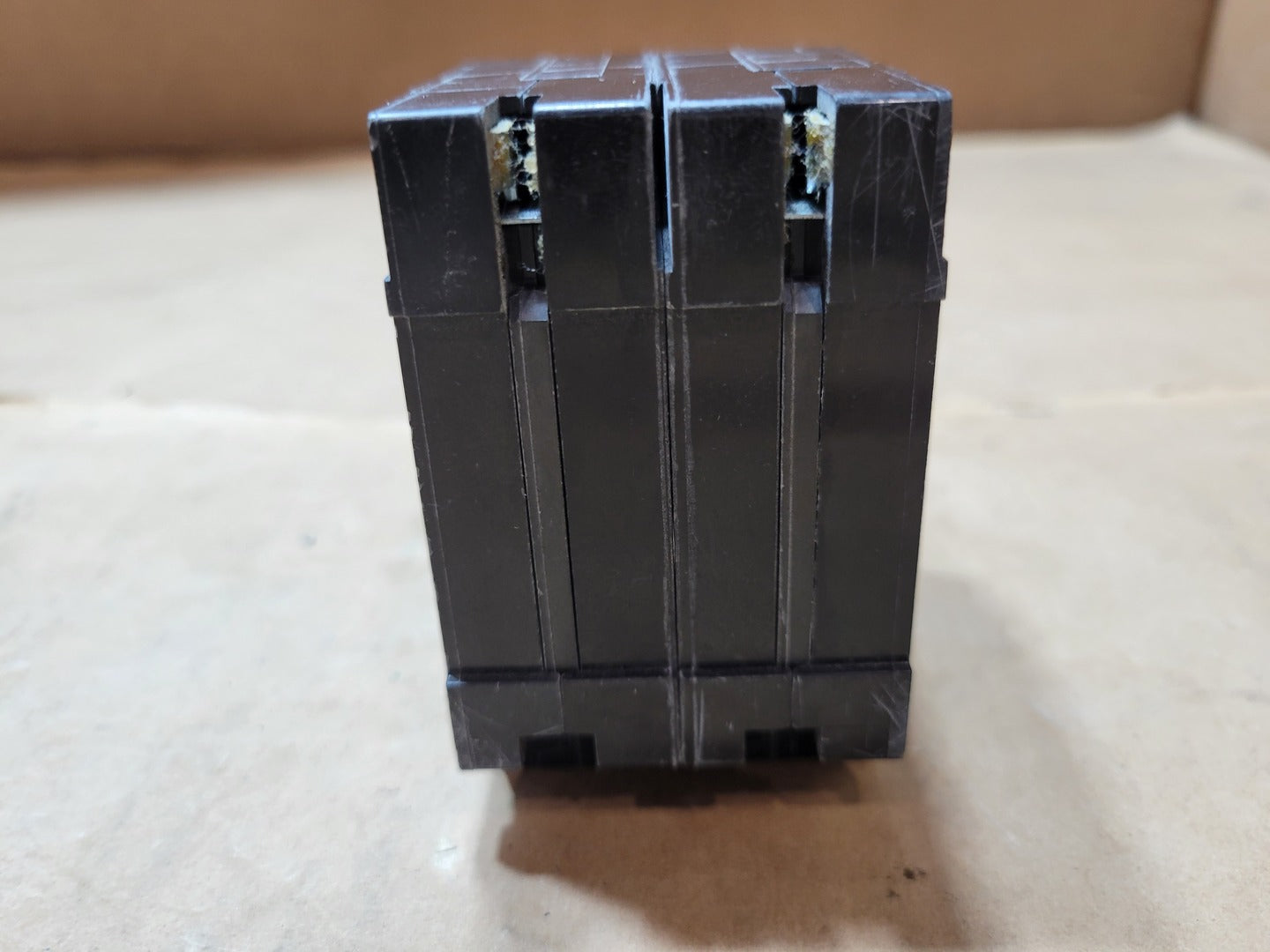

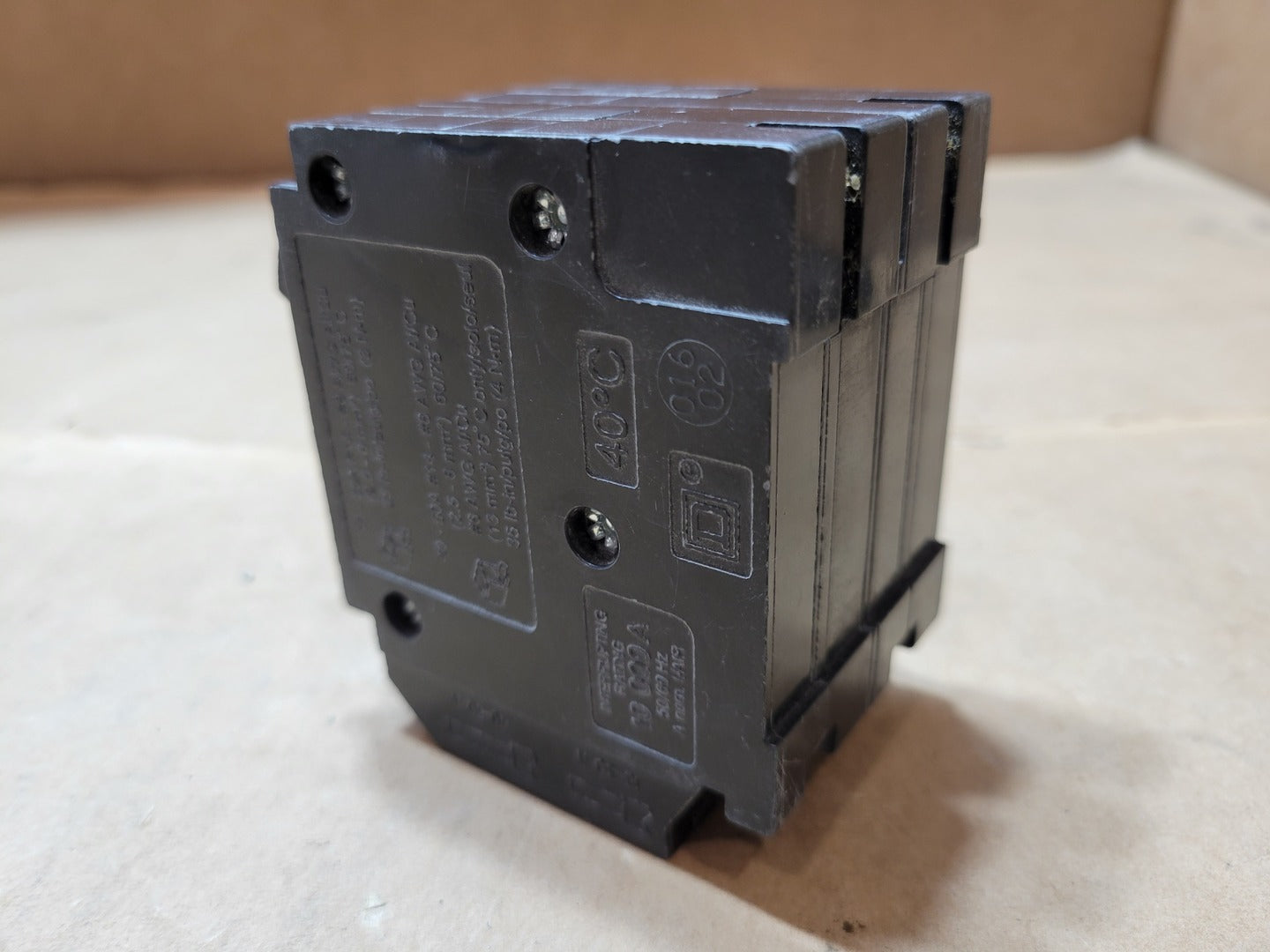

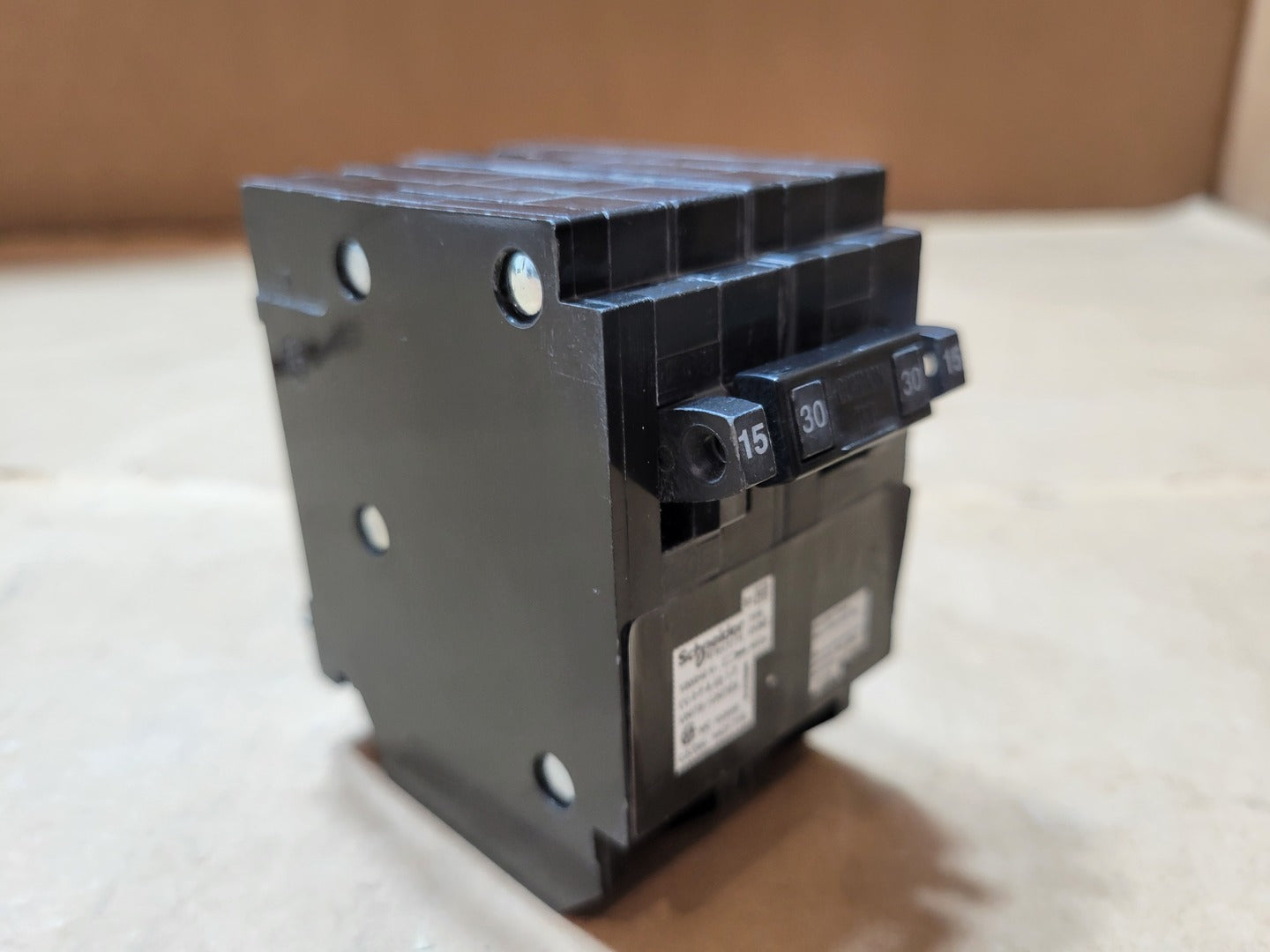

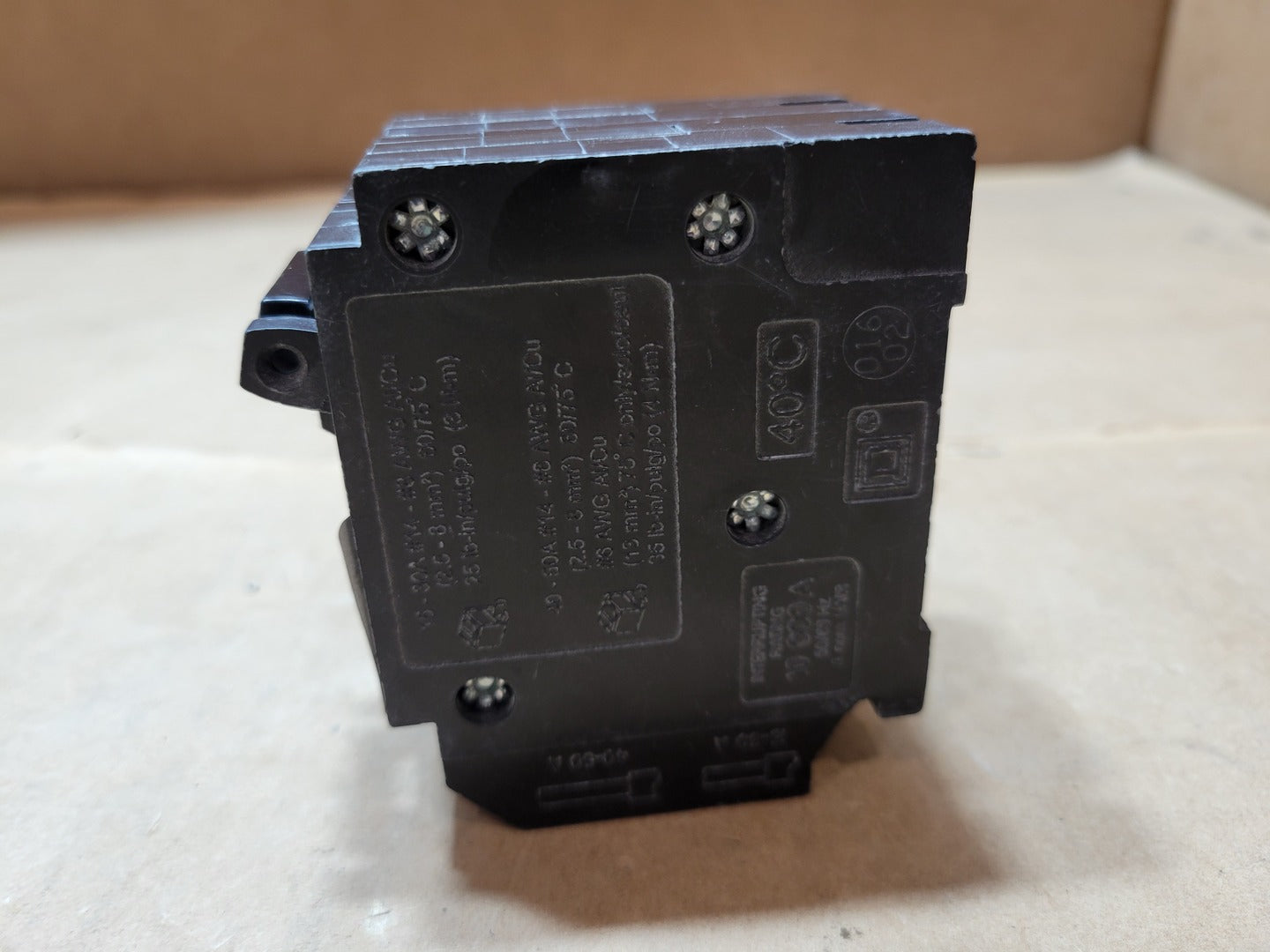

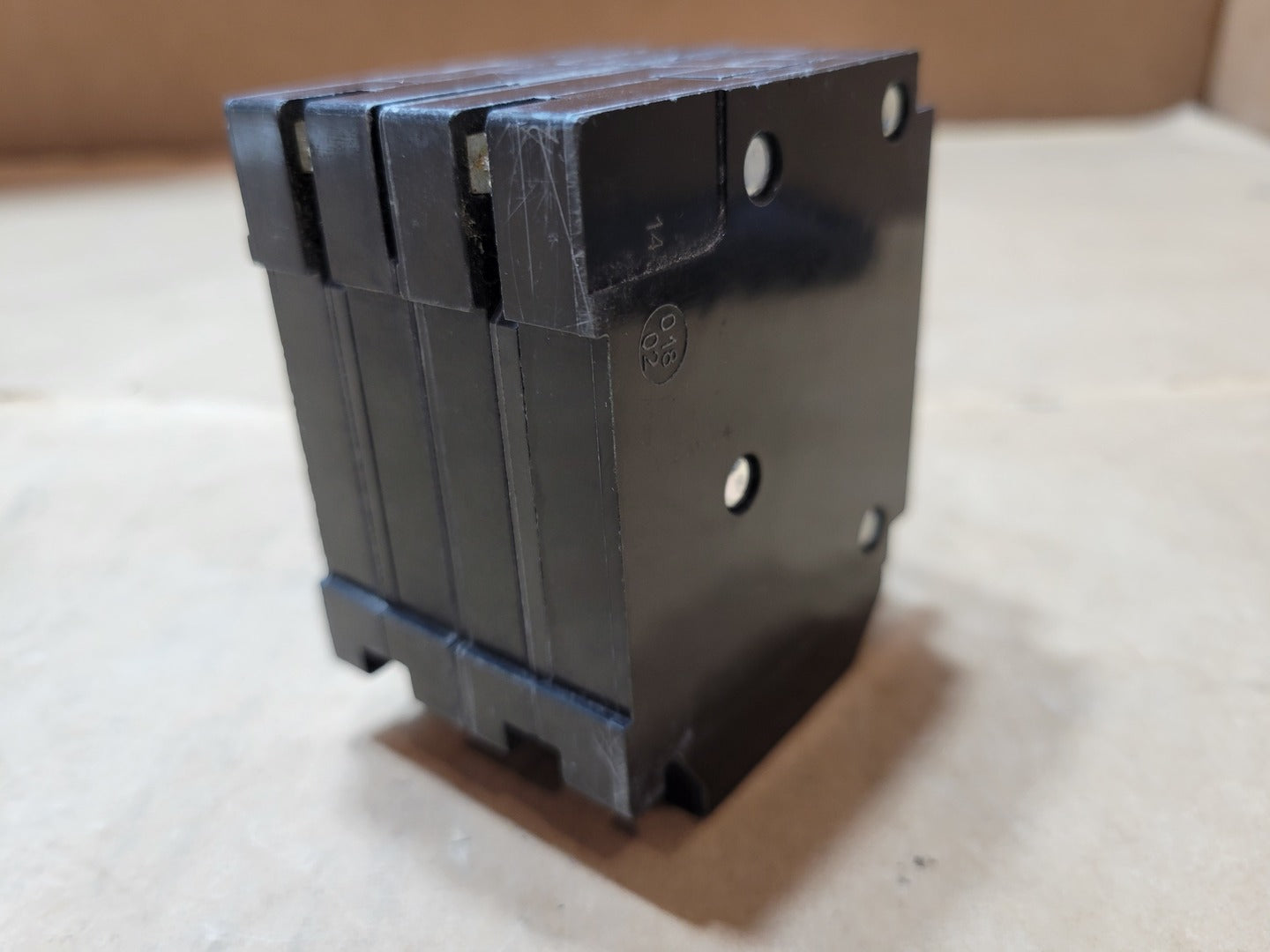

Schneider Electric / Square D CHOMT1515230 Homeline quad tandem circuit breaker combining two 15A single-pole circuits with one 30A double-pole common-trip circuit. Rated 120/240VAC, 10kA interrupting capacity, and designed for plug-in installation in compatible Square D Homeline Canadian load centres.
| Specifications | |
|---|---|
| Model | CHOMT1515230 |
| Condition | Used | General |
| Amps | 15/30 amps |
| Series | CHOMT |
| # of Poles | 2 |
| Mounting Style | Plug-In |
| Voltage | 120/240 volts |
| Other Specifications |
|---|
|

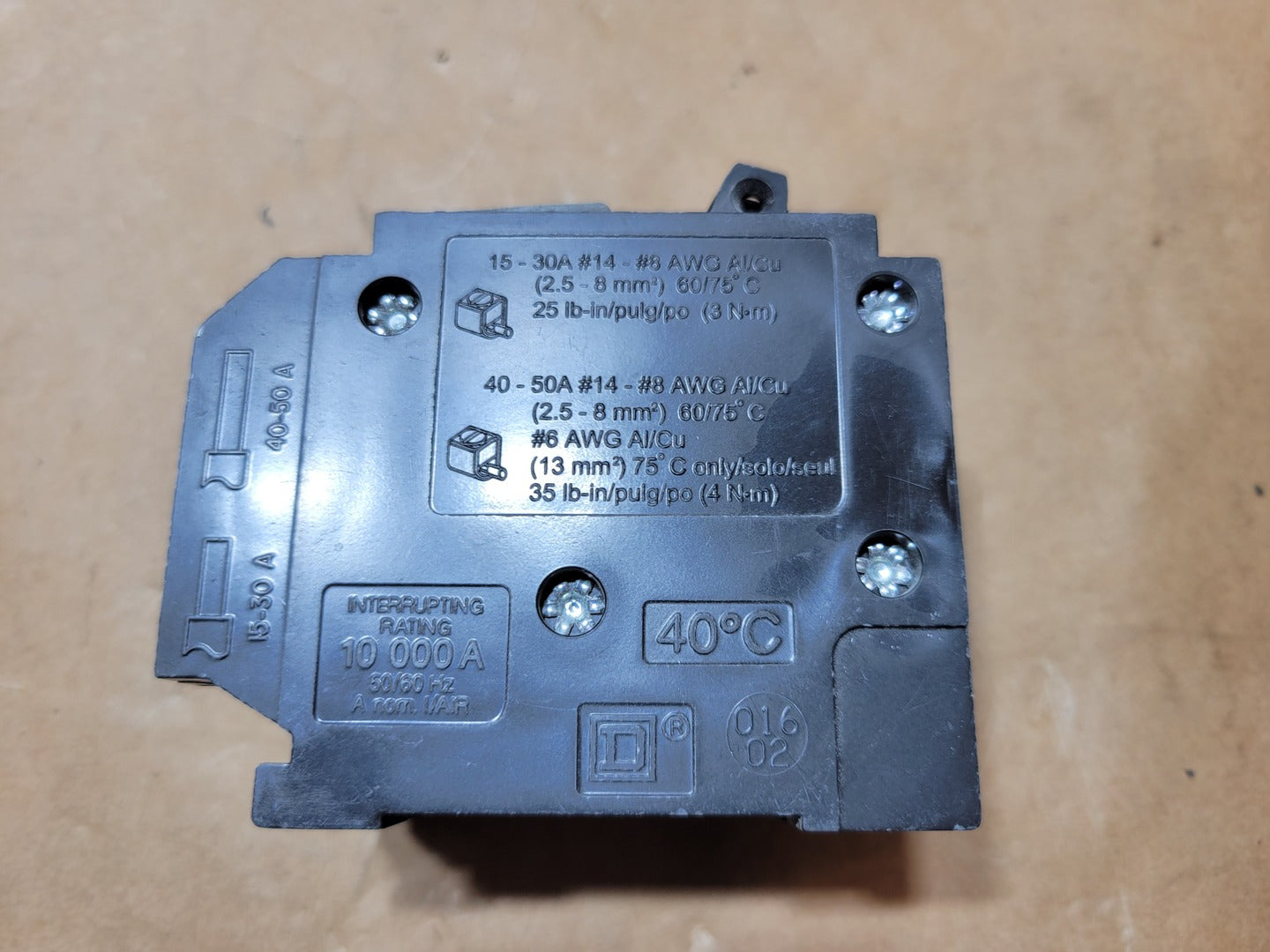

Configuration: (2) 15A 1-Pole + (1) 30A 2-Pole Common Trip Outside Circuits: 15A, 1-Pole each Center Circuit: 30A, 2-Pole Common Trip Frequency: 50/60 Hz Interrupting Rating: / 10kA AIR Mounting Style: Plug-In Panel Spaces Required: 2 Operating Temperature Marking: 40°C Conductor Material: Aluminum / Copper Wire Range, 15-30A: #14-#8 AWG Al/Cu Terminal Torque, 15-30A: 25 lb-in / 3 N-m |
