Description

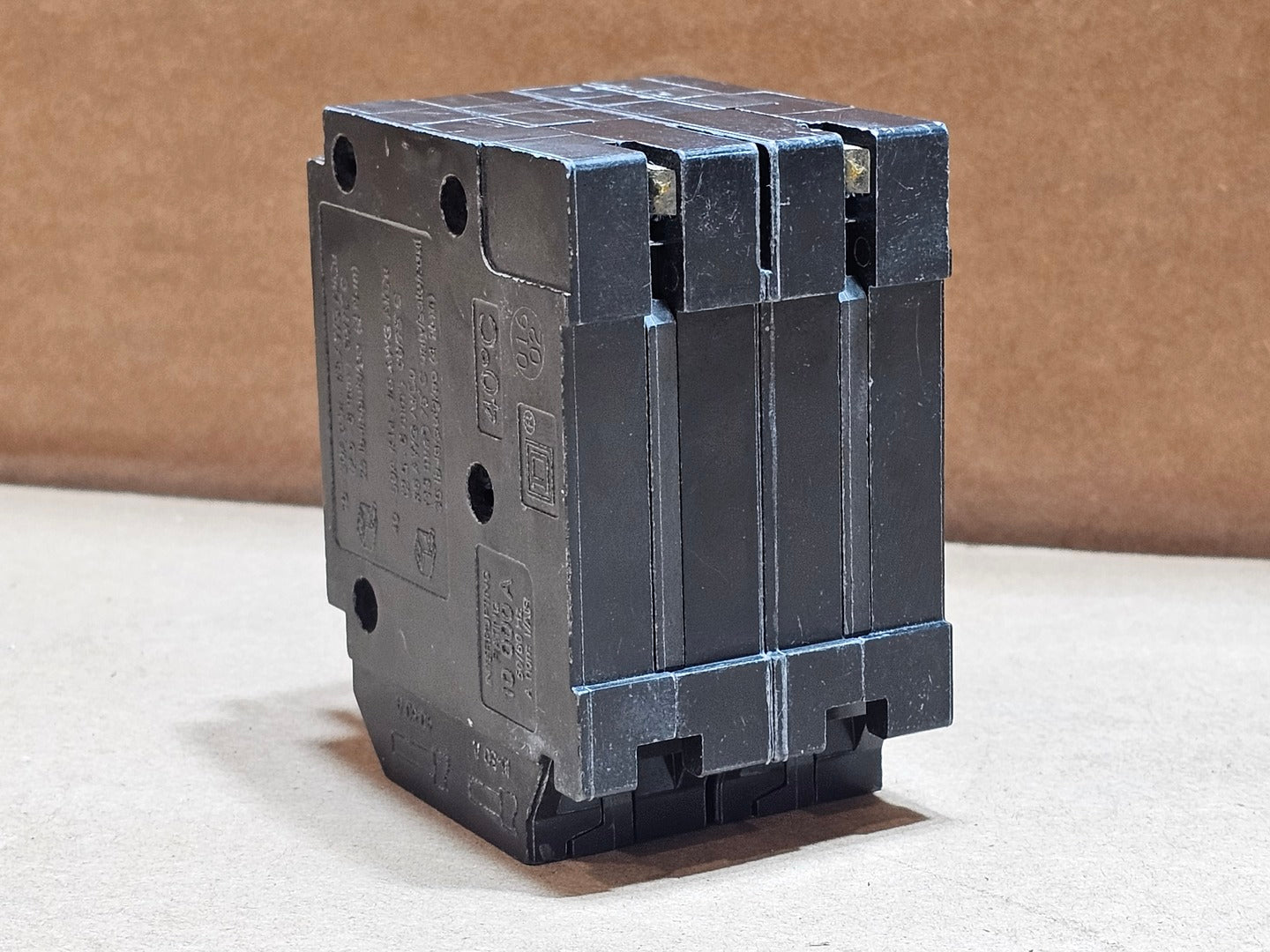

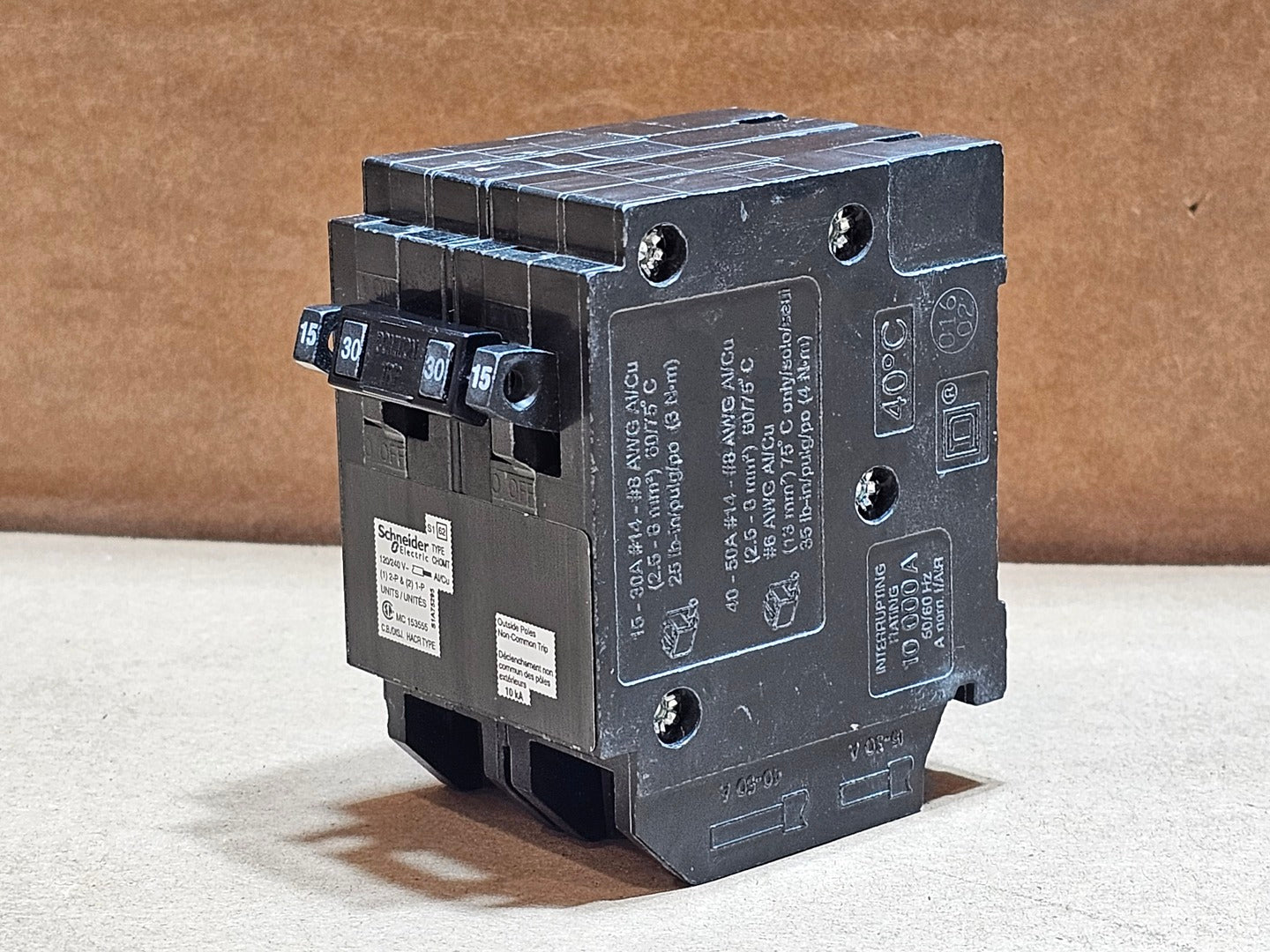

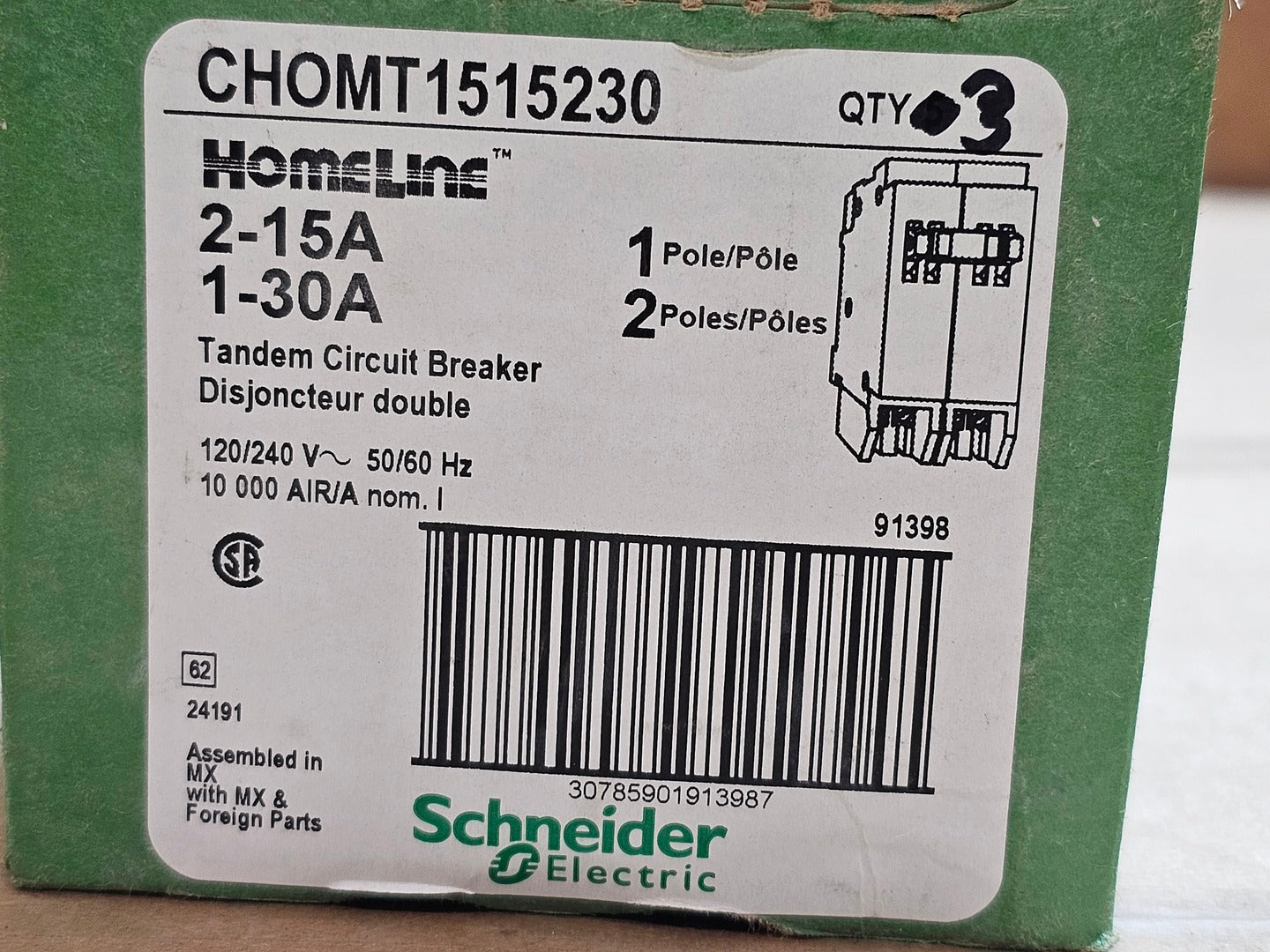

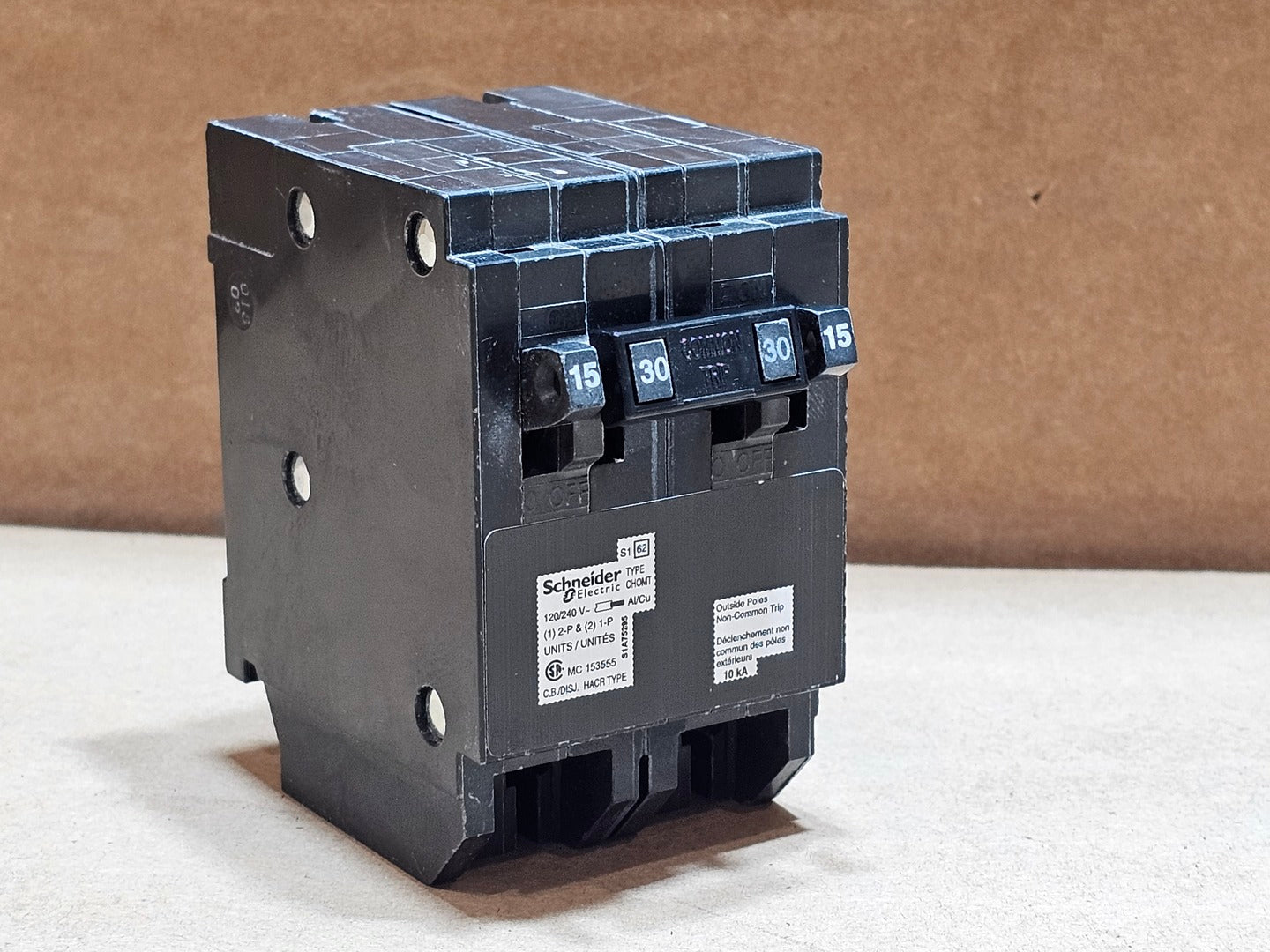

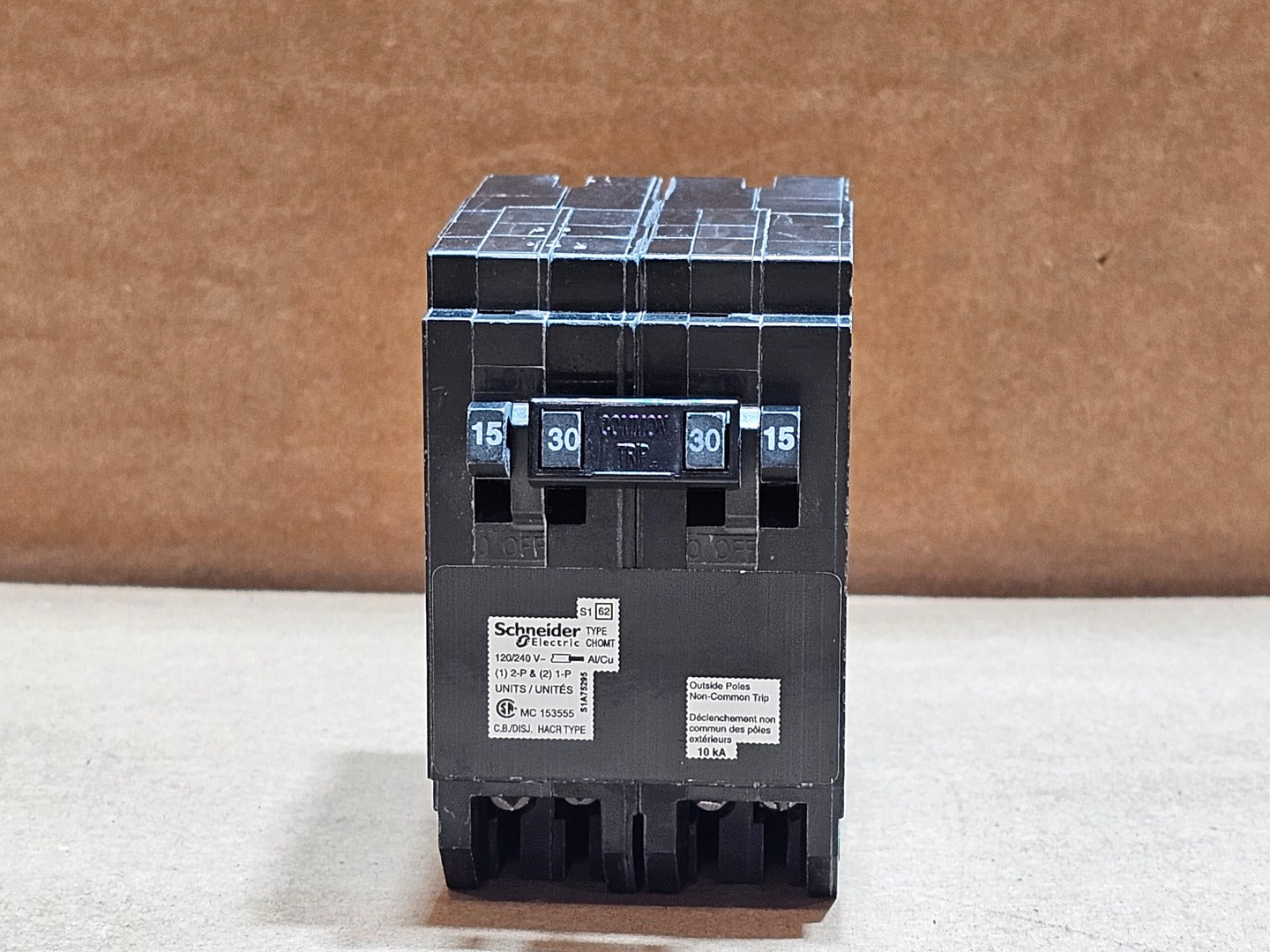

Schneider Electric / Square D Homeline CHOMT1515230 quad tandem circuit breaker featuring two outside 15A single-pole circuits and one center 30A double-pole common-trip circuit. Rated for 120/240VAC, 50/60Hz and 10kA interrupting capacity. Plug-in space-saving configuration for compatible Canadian Square D Homeline load centres.
| Specifications | |
|---|---|
| Model | CHOMT1515230 |
| Made In | MEXICO |
| Condition | Surplus New | General |
| Amps | 15/30 amps |
| Series | CHOMT |
| # of Poles | 4 |
| Mounting Style | Plug-In |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

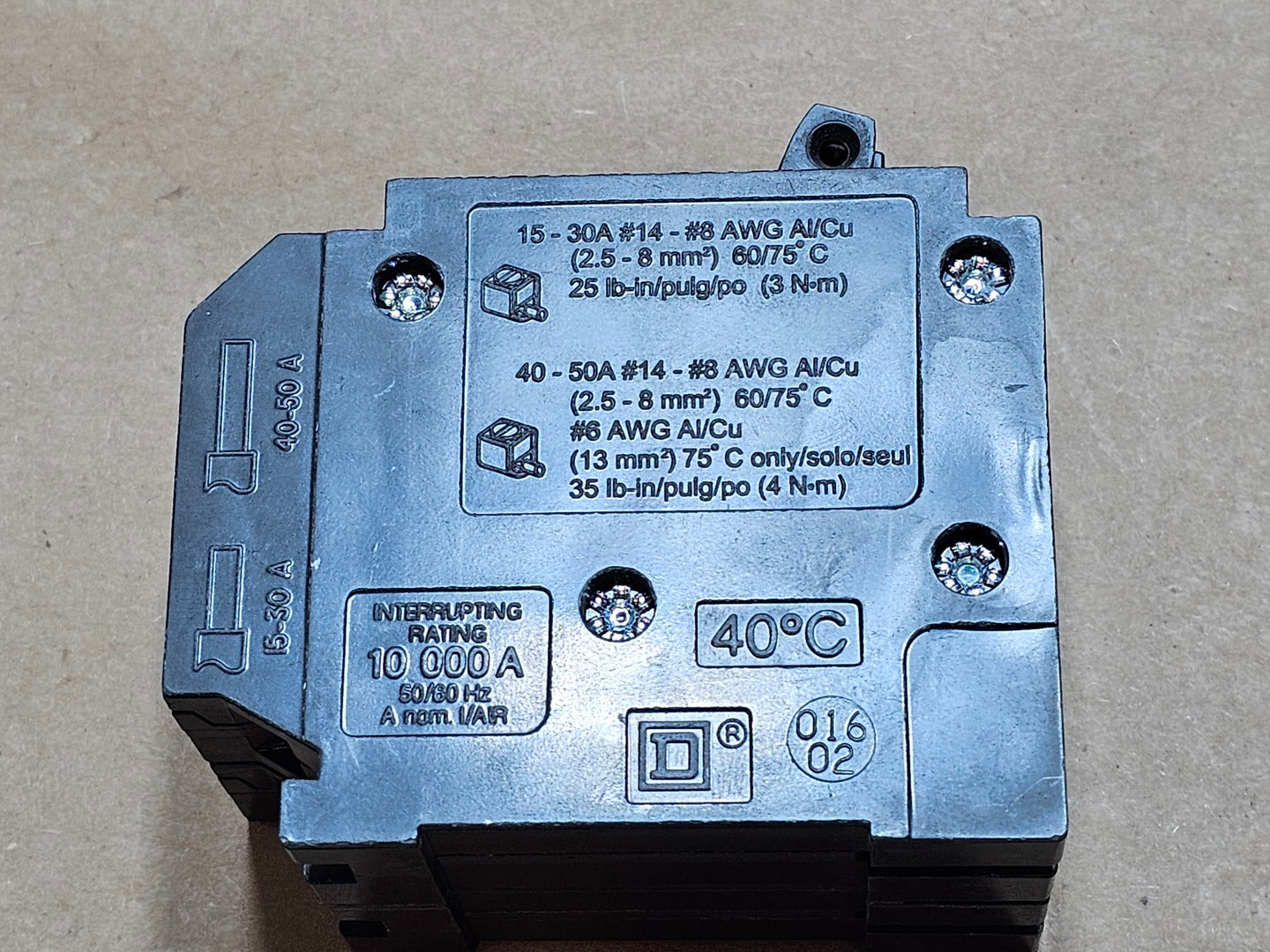

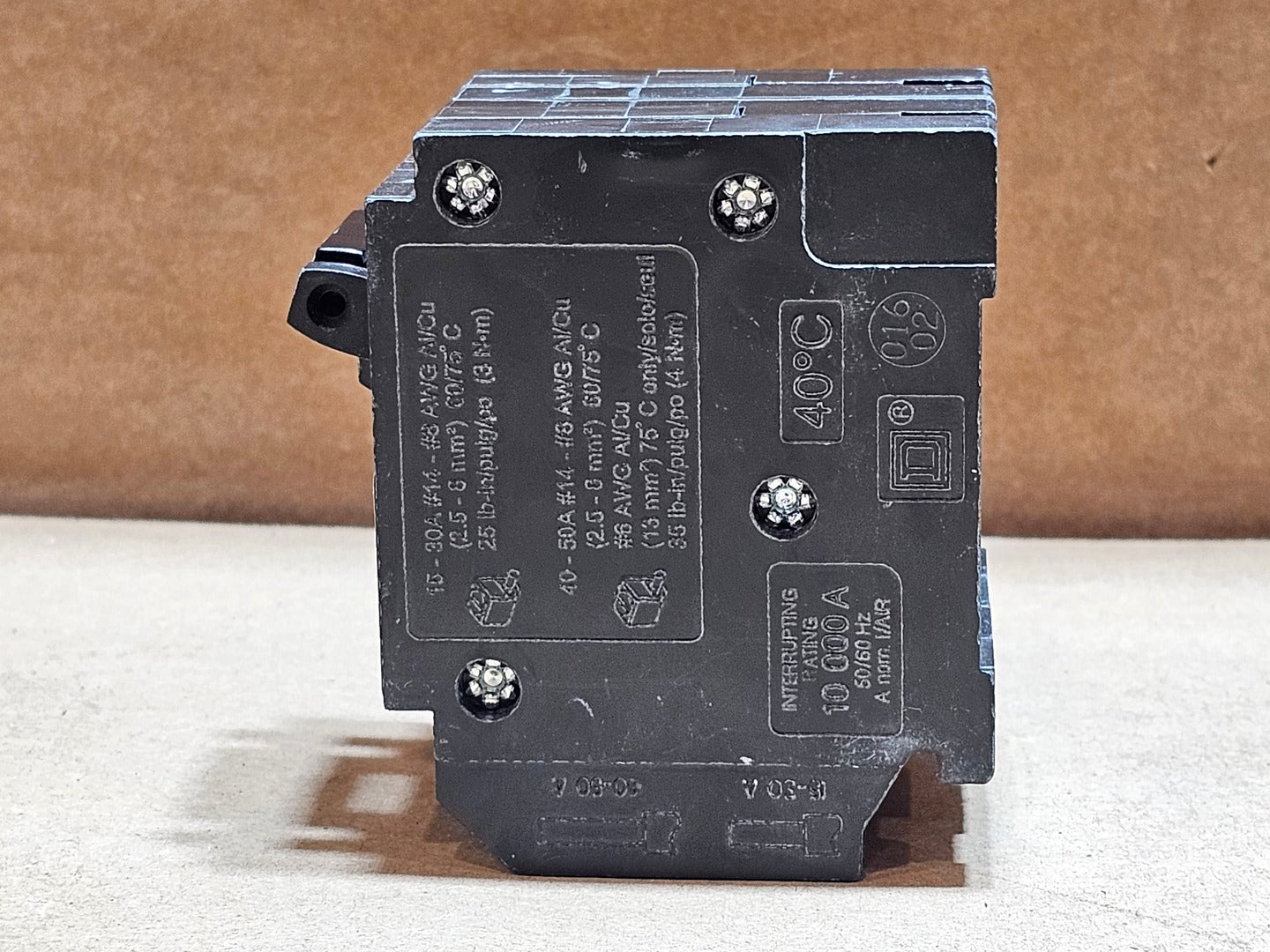

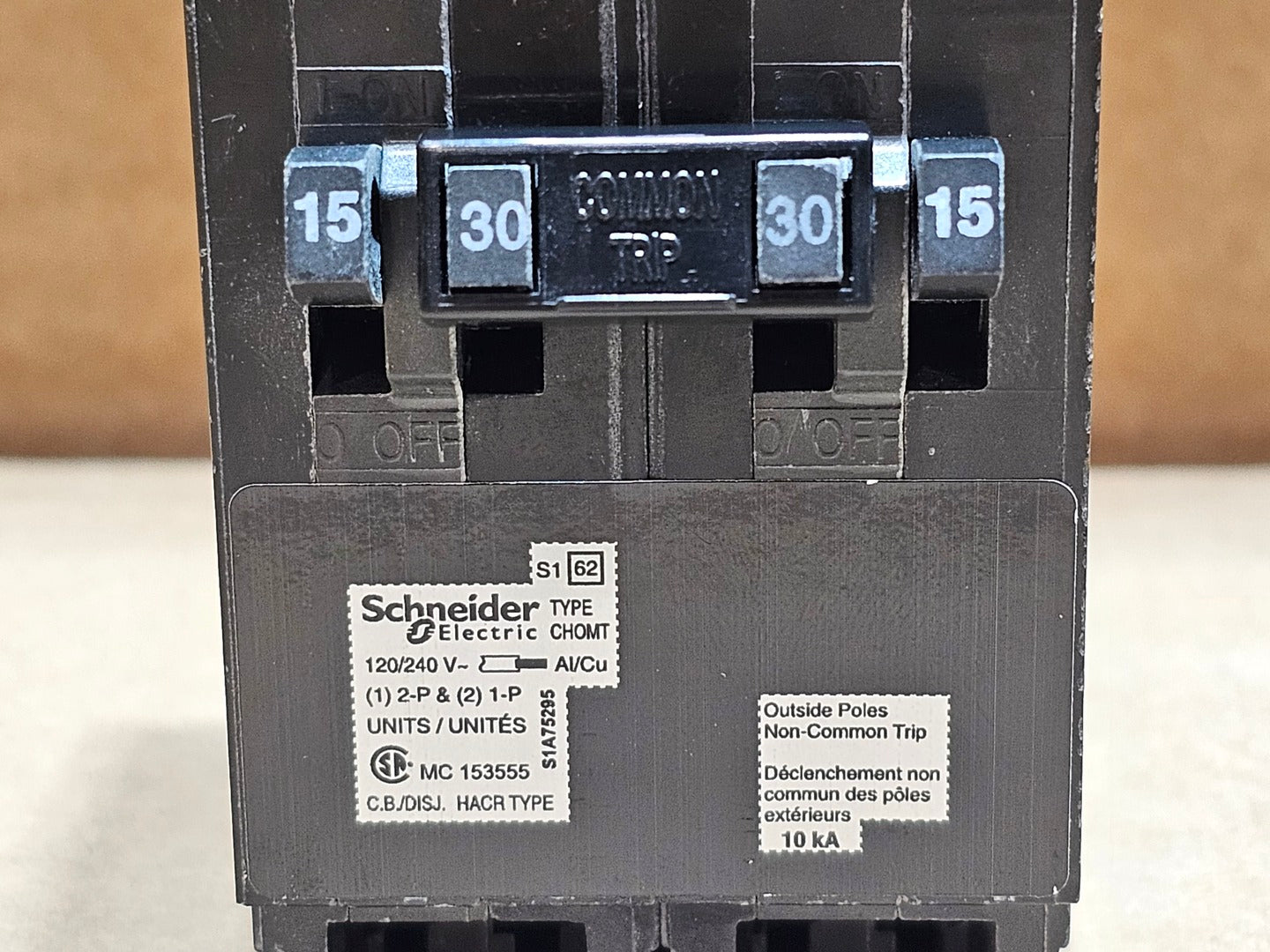

Type Marking: CHOMT Device Type: Quad tandem / space-saver circuit breaker Configuration: (2) 15A 1-Pole + (1) 30A 2-Pole Outside Circuits: 15A, 1-pole each Outside Pole Trip: Non-common trip Center Circuit: 30A, 2-pole Center Pole Trip: Common trip Frequency: 50/60 Hz Interrupting Rating: 10,000 A / 10kA AIR Panel Spaces Required: 2 Conductor Compatibility: Aluminum / Copper (Al/Cu) 15-30A Wire Range: #14-#8 AWG Al/Cu (2.5-8 mm2) 15-30A Terminal Torque: 25 lb-in (3 N-m) Conductor Temperature Rating: 60/75°C Operating Temperature Marking: 40°C HACR Rated: Yes Certification: CSA |
