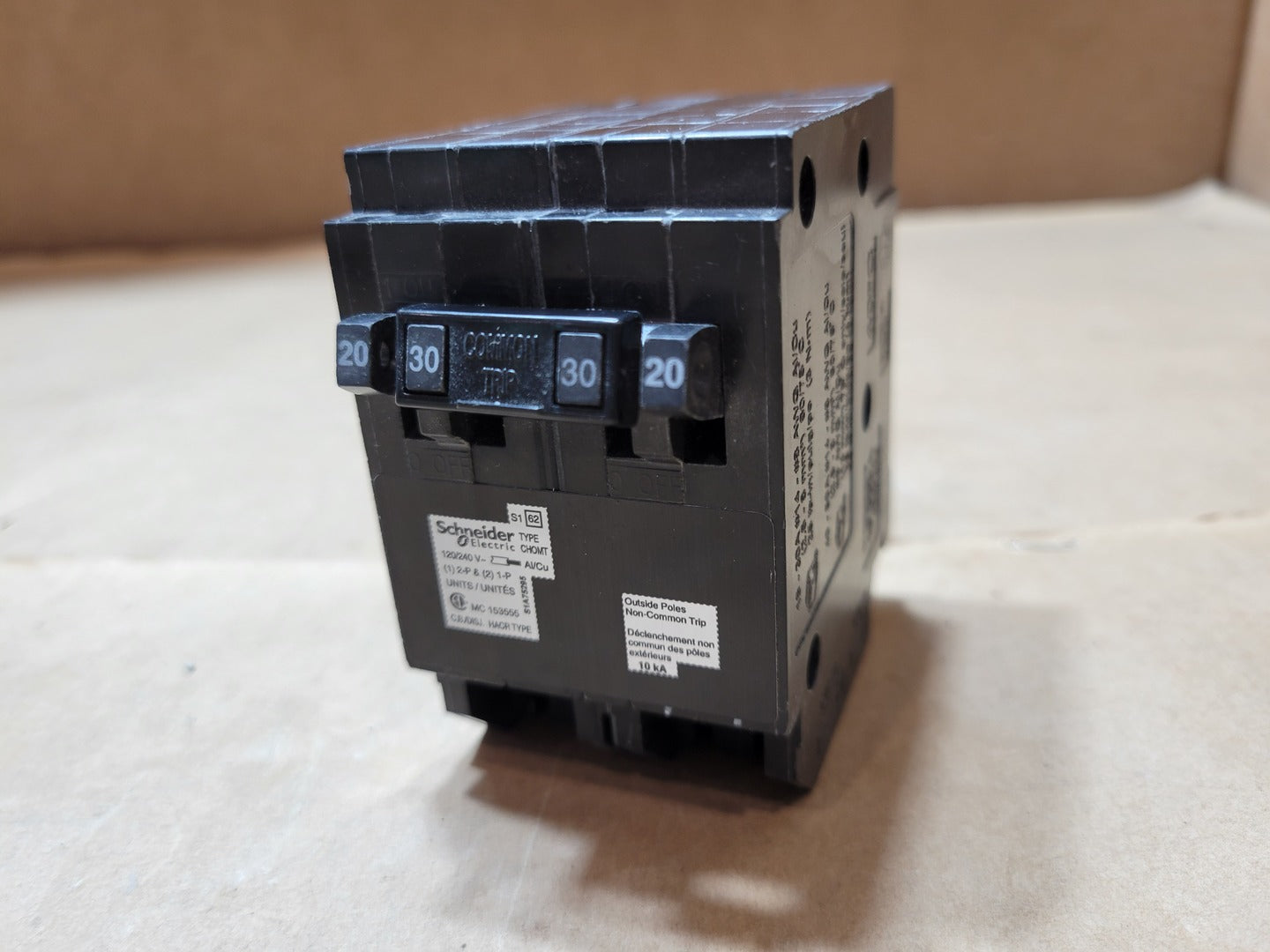

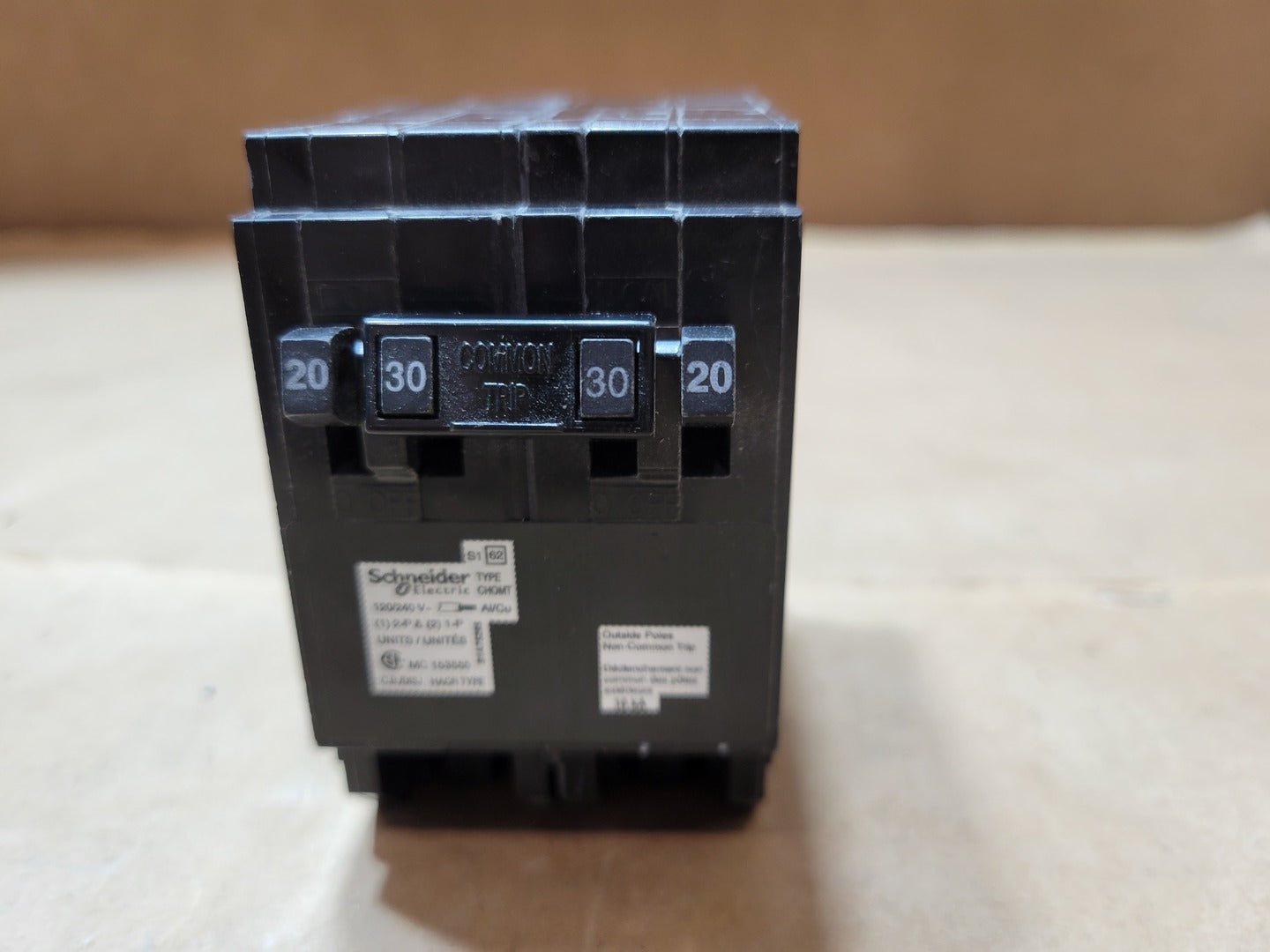

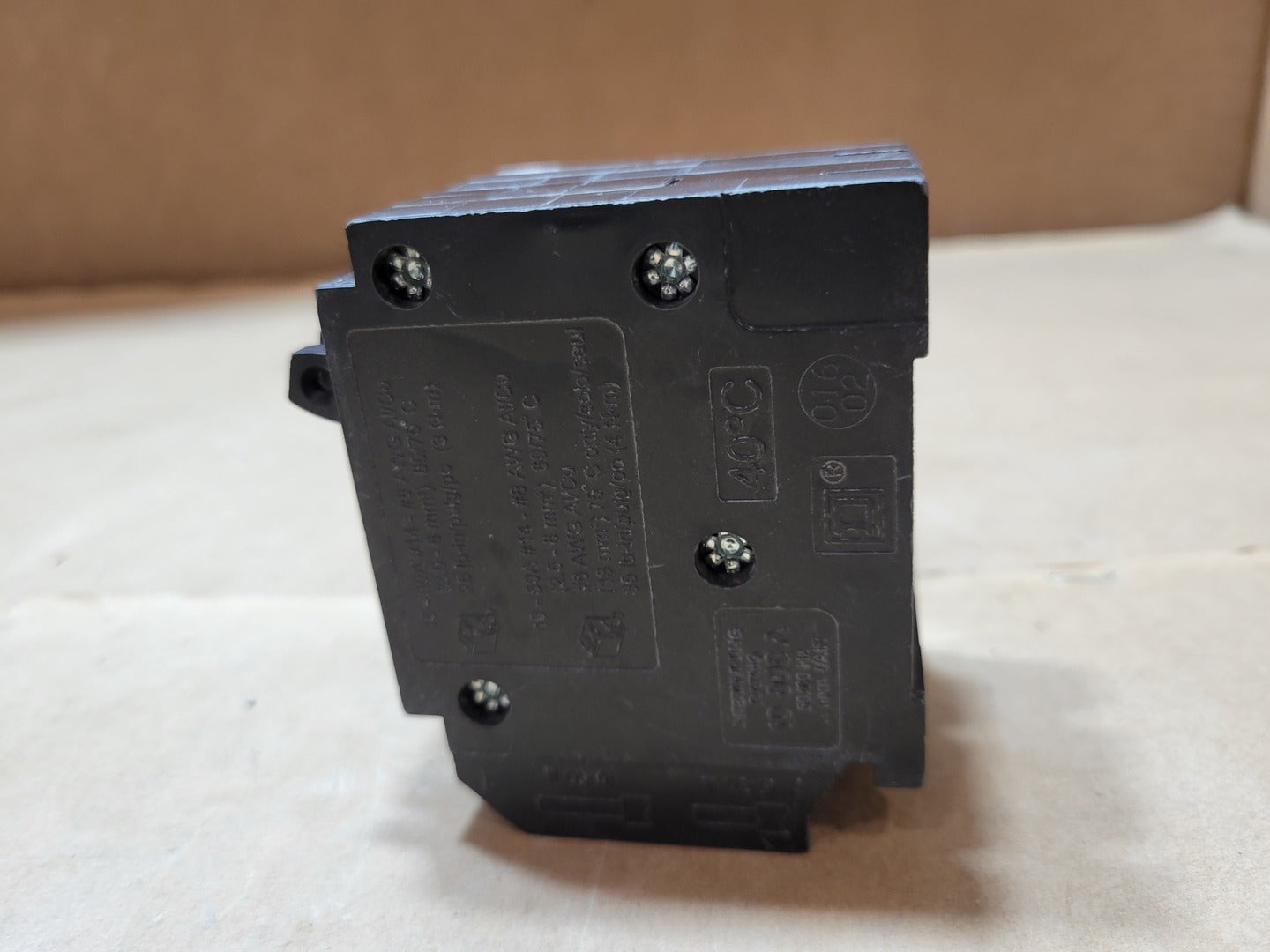

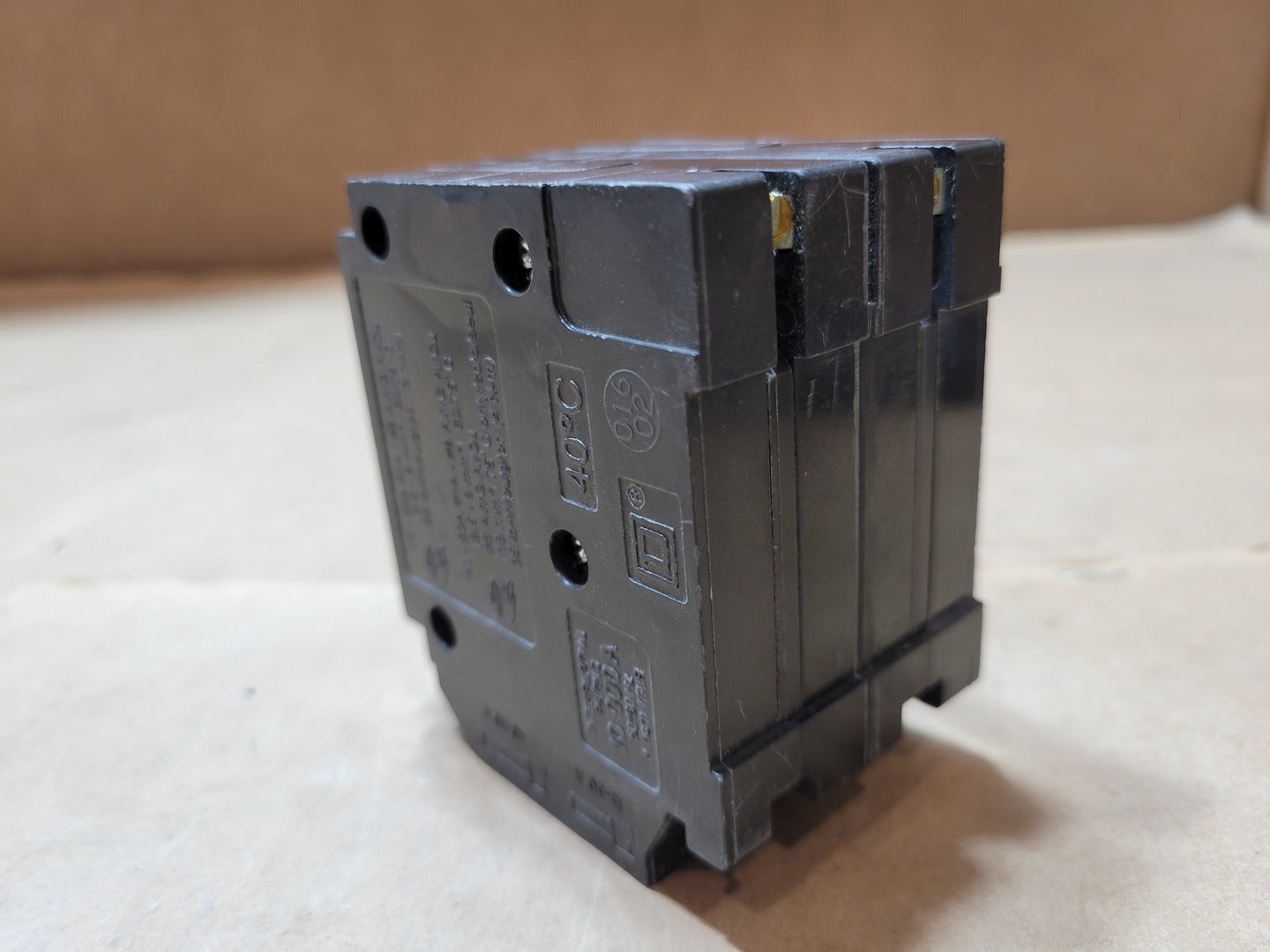

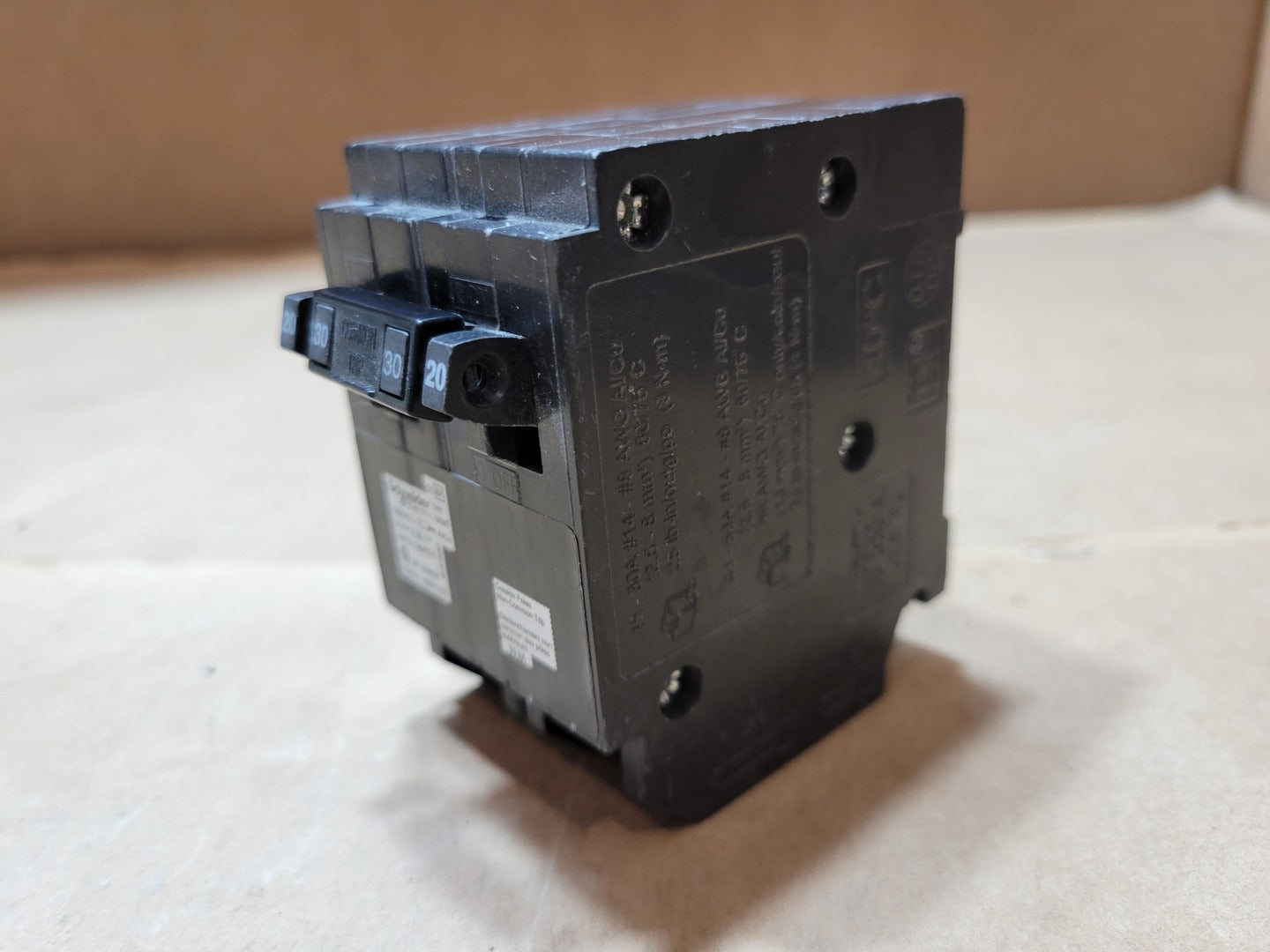

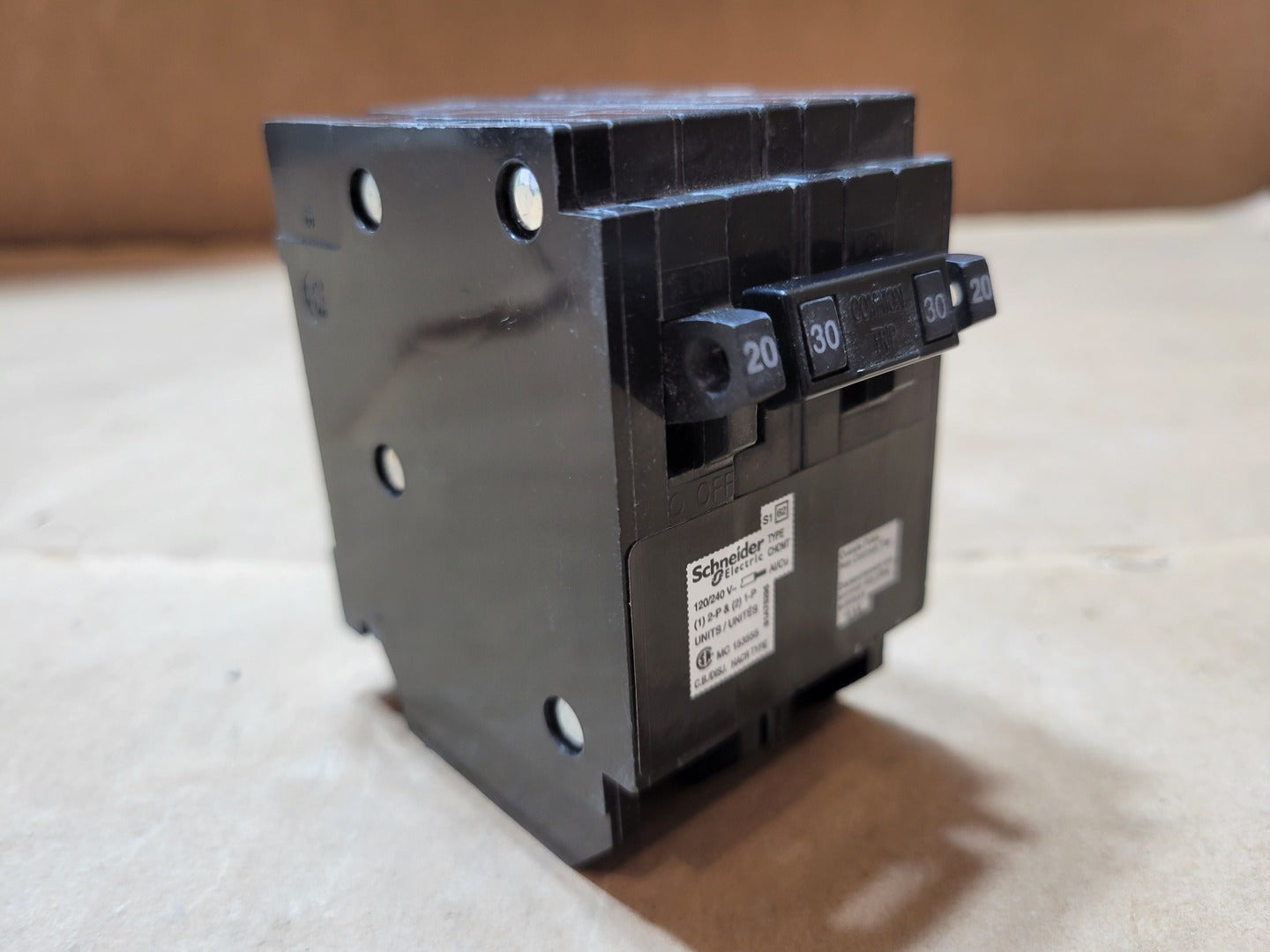

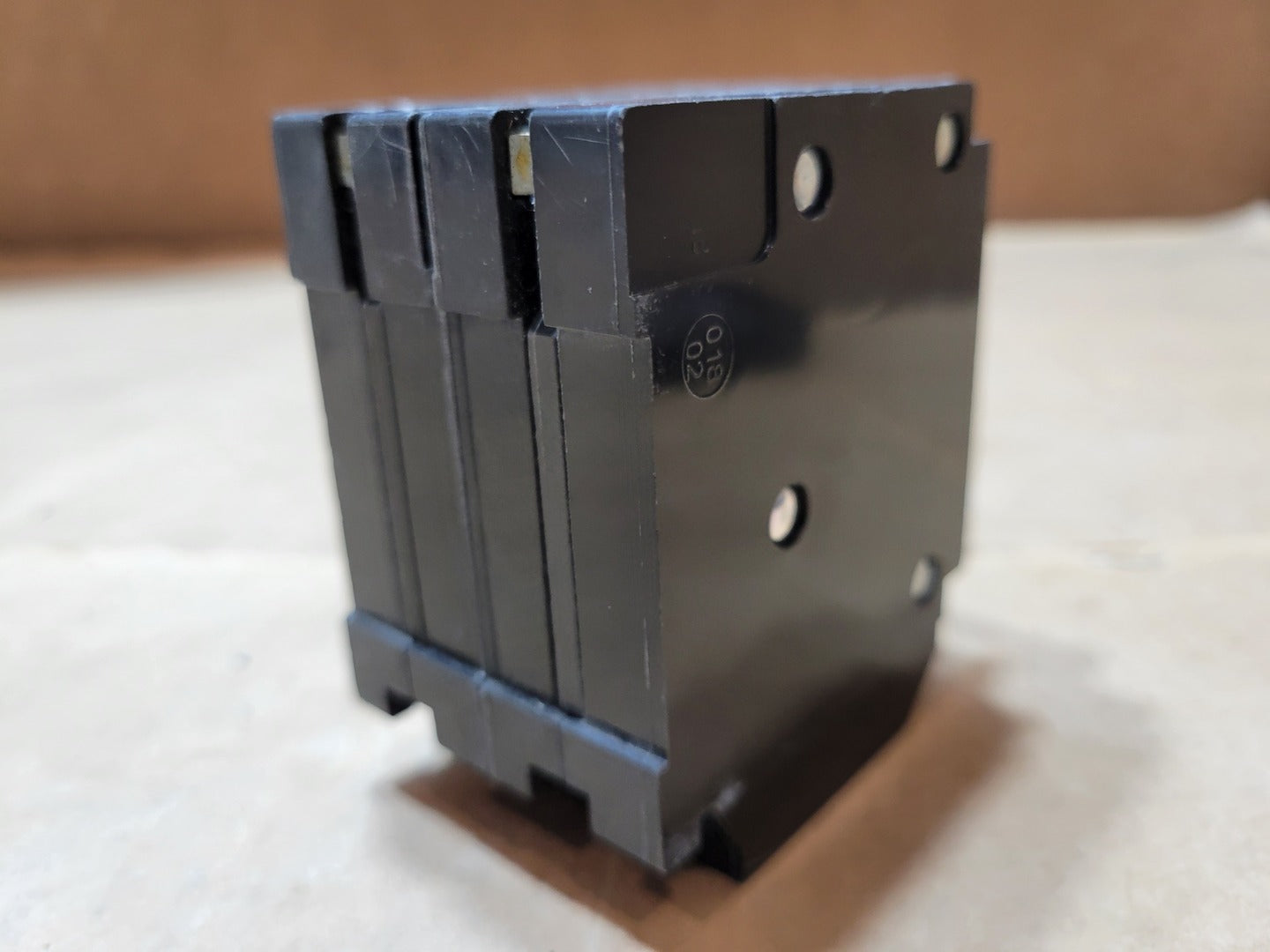

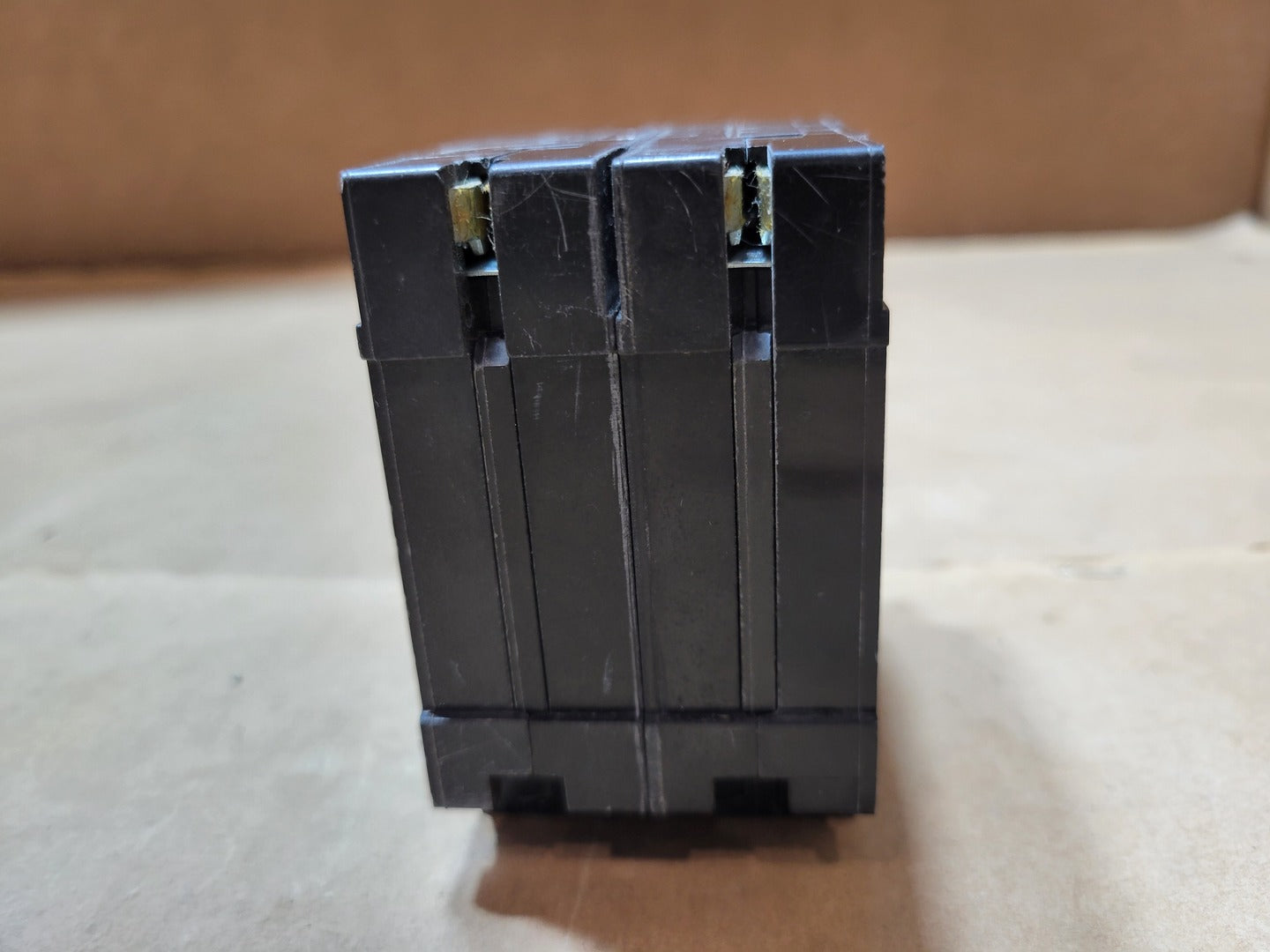

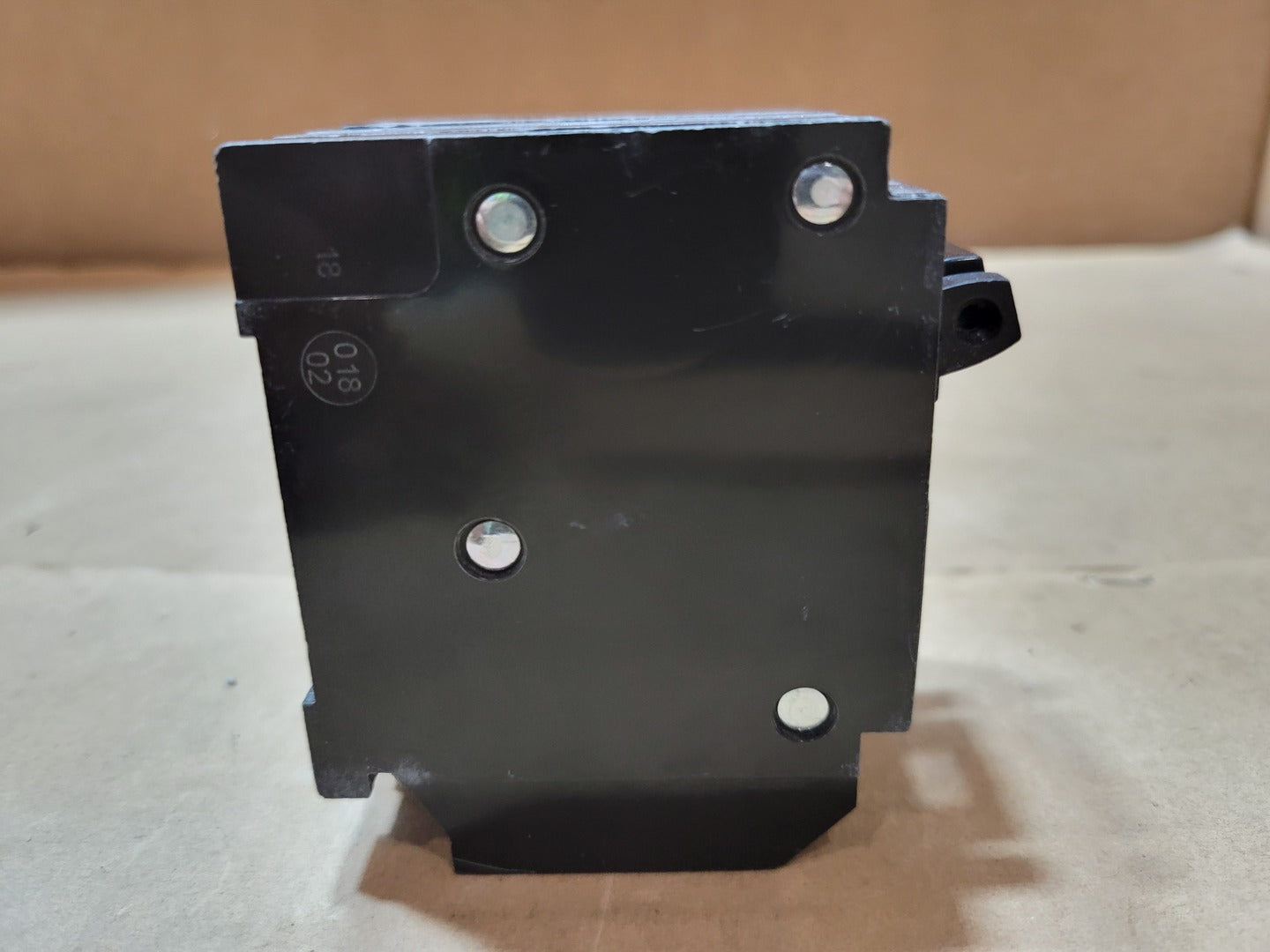

Schneider Electric / Square D CHOMT2020230 Homeline quad tandem circuit breaker featuring two 20A single-pole outside circuits and one 30A two-pole common-trip center circuit. Rated 120/240VAC with 10kA interrupting capacity, this space-saving plug-in breaker is designed for compatible Square D Homeline loadcentres.
| Specifications | |
|---|---|
| Model | CHOMT2020230 |
| Condition | Used | General |
| Amps | 20/30 amps |
| Series | CHOM |
| # of Poles | 4 |
| Mounting Style | Plug-In |
| Voltage | 120/240 volts |
| Other Specifications |
|---|
|

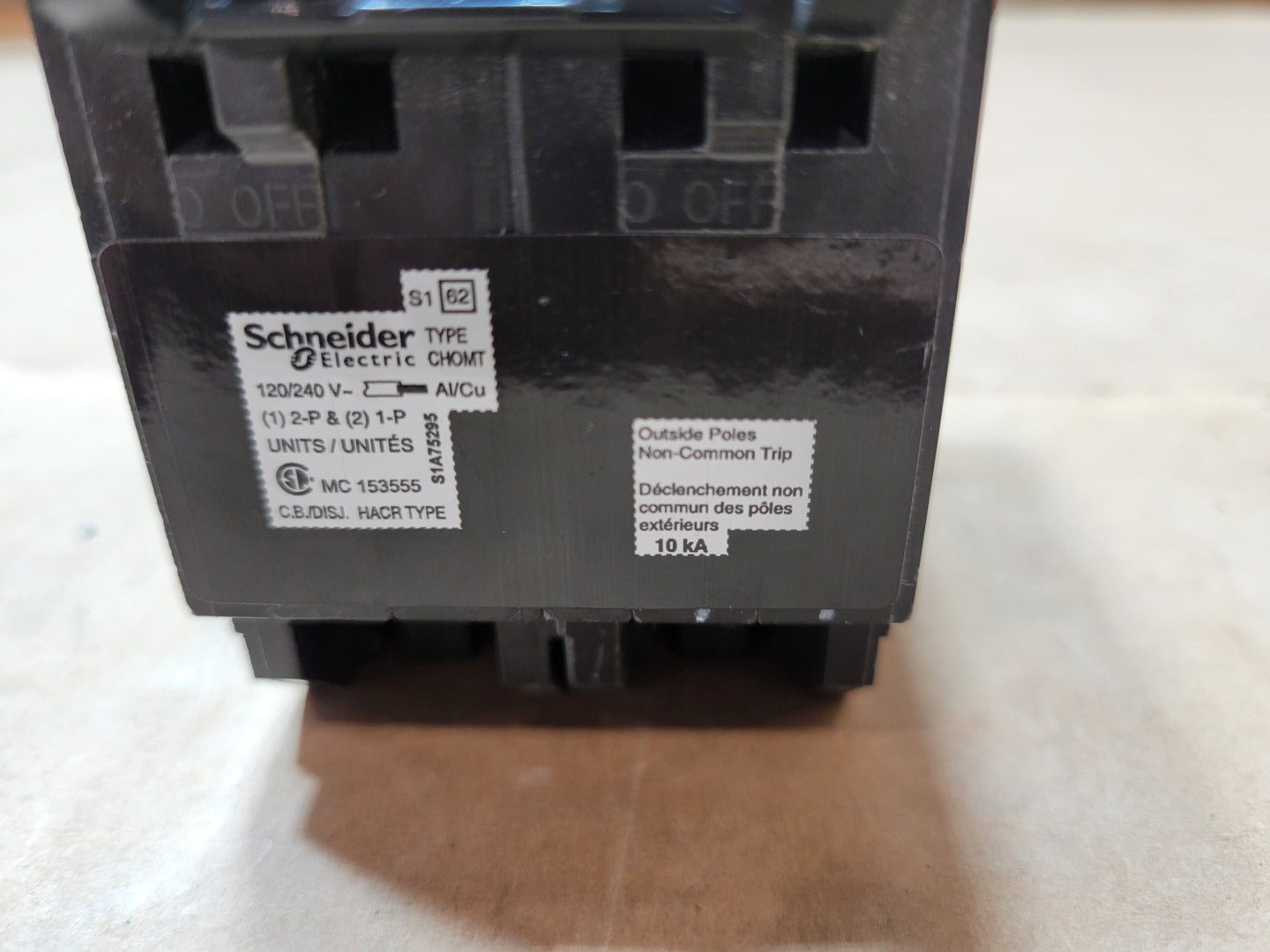

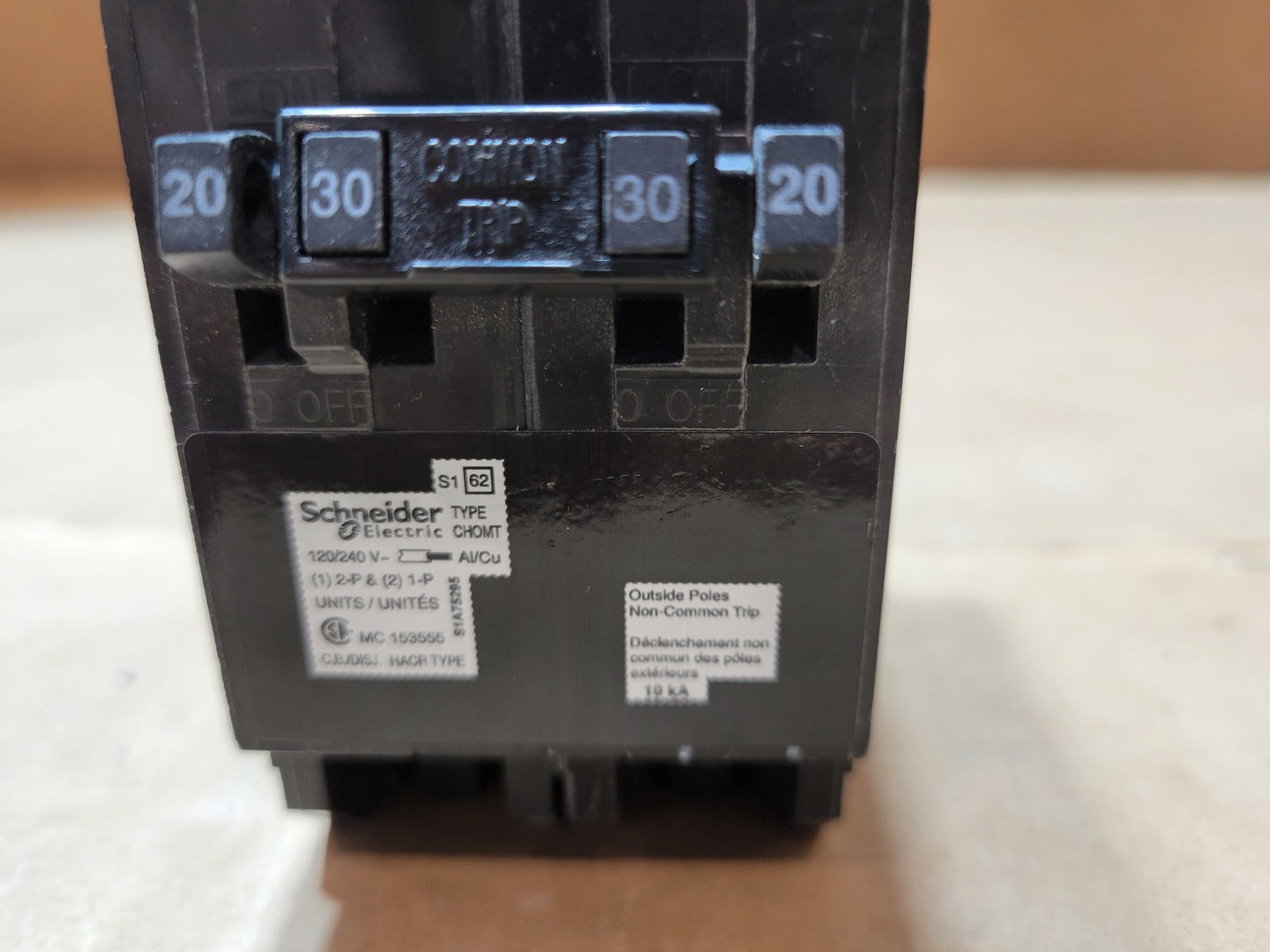

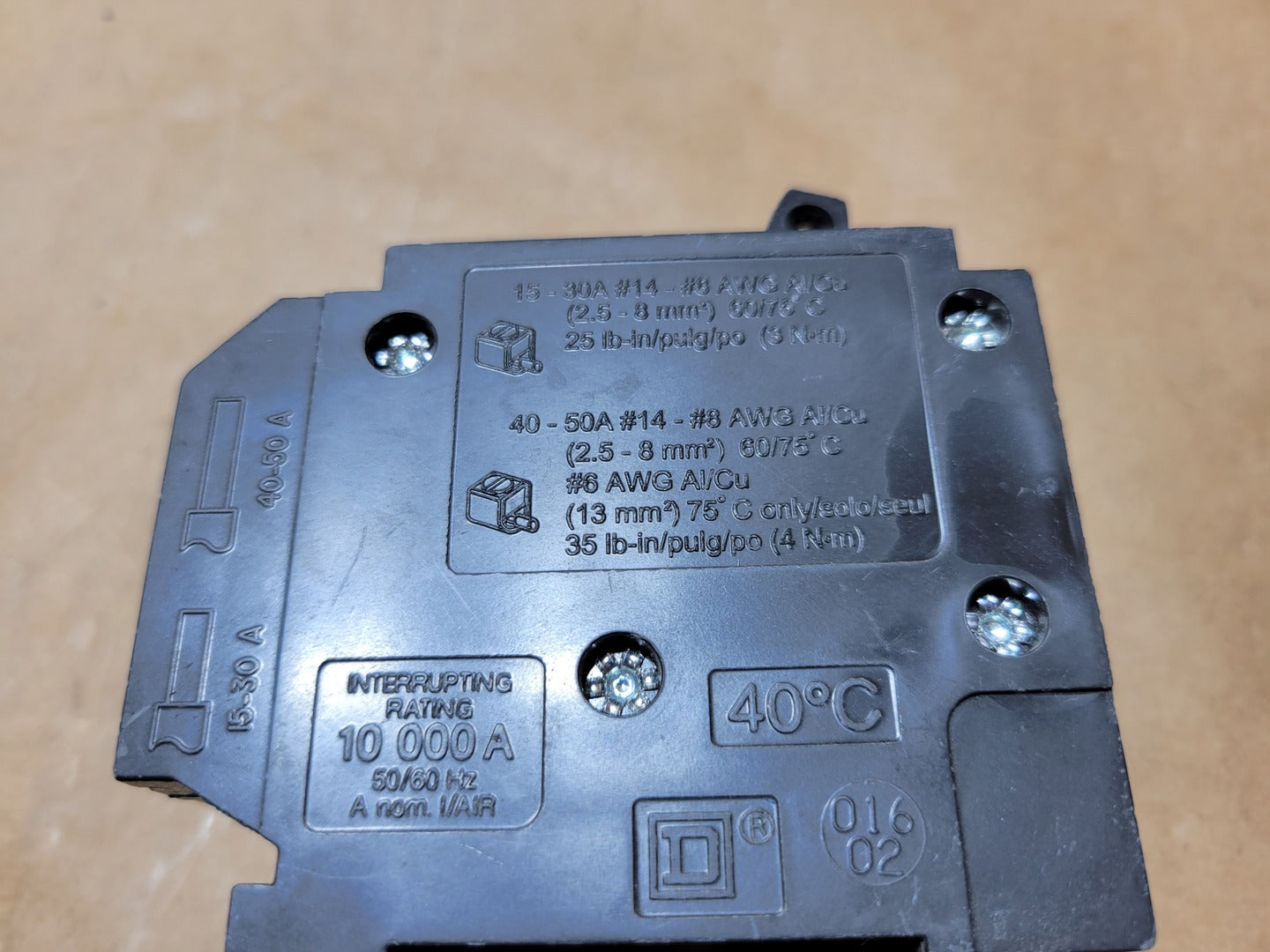

Outer Circuits: (2) x 20A, 1-Pole Center Circuit: (1) x 30A, 2-Pole Common Trip Handle Configuration: 20A / 30A / 30A / 20A Interrupting Rating: 10kA AIR Frequency: 50/60Hz Number of Panel Spaces Required: 2 Trip Type: Thermal-Magnetic Center Poles: Common Trip Outside Poles: Non-Common Trip Operating Temperature Marking: 40°C HACR Type: Yes Conductor Material: Aluminum / Copper 15-30A Terminal Range: #14-#8 AWG Al/Cu, 2.5-8 mm2, 60/75°C 15-30A Terminal Torque: 25 lb-in / 3 N-m |
