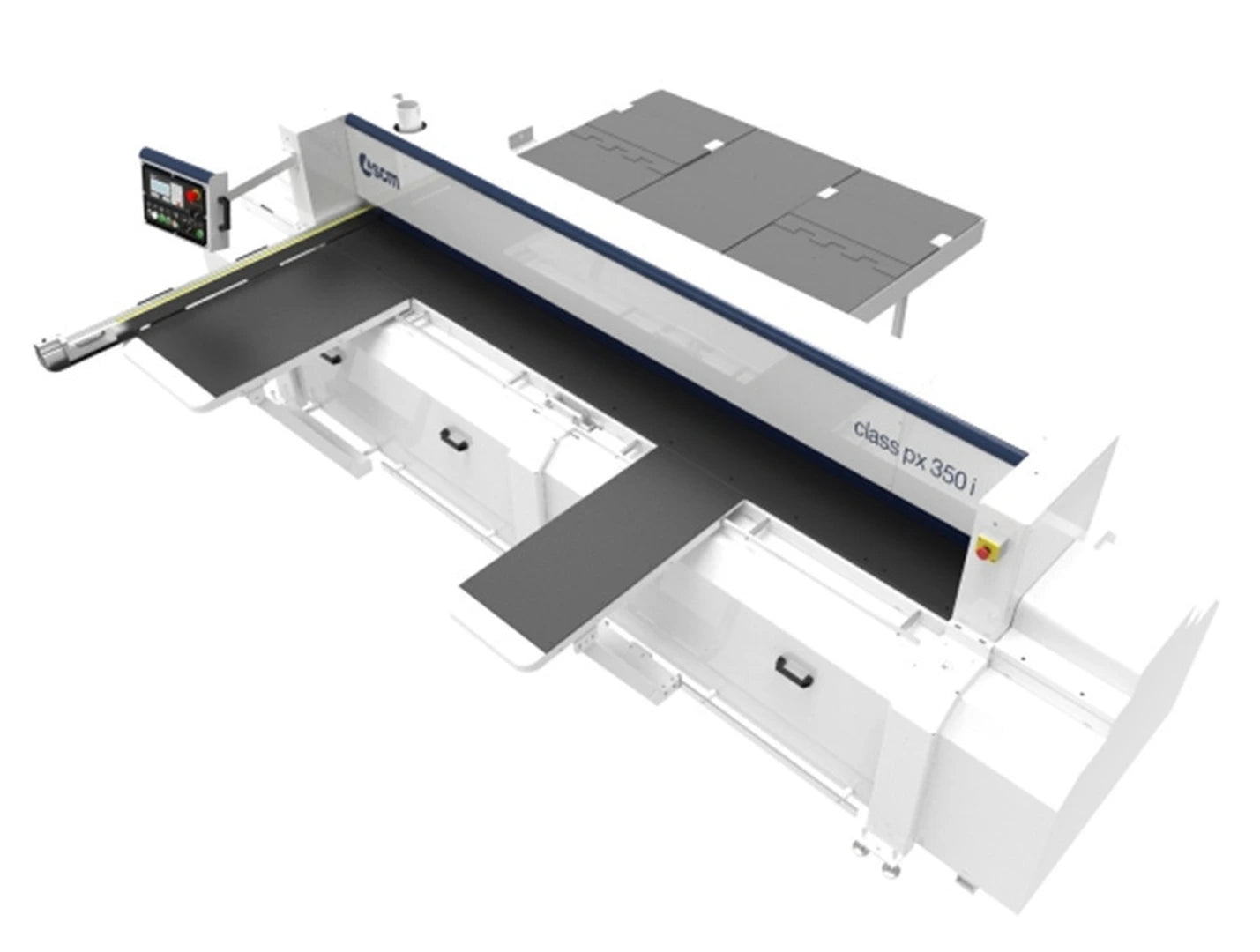

class px 350i Circular Saw w/ Mobile and Tilting Blades Unit

SKU: 90113
Price:
$52,889 CAD

Shipping calculated at checkout

Stock:
Available
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model class px 350i
Made In ITALY
Condition New
General
Horsepower 9.4 hp
Voltage 230 volts
Phase 3-phase
Saw Type Panel Saw
CNC Yes
Other Specifications

Max. Squaring Stroke: 3200 mm

Blade Tilting: 0 - 46o

Max. Saw Blade Diameter (Cutting): 350 mm

Max. Saw Blade Diameter (Engraving + Cutting): 300 mm

Max. Saw Blade Projection (D350) From Table at 90o / 45o: 105 / 72 mm

Max. Saw Blade Projection (D300) From Table at 90o / 45o: 80 / 50 mm

Blade Rotation Speed: 4000 rpm

Cutting Width On Rear Fence: 1300 mm

Exhaust Hoods Diameter [mm]: 120 (1) - 100 (2)

Overall Dimensions (L x W x H) [mm]:

  • At 3200 Squaring Stroke: 4459 x 3196 x 1368

Standard Equipment

  • Saw unit with engraving and cutting with tilting through high rigidity side sliding rests
  • 40 m/min maximum saw blade carriage
  • Panel length detecting system for the cutting cycle optimization
  • Adjusting system for the engraving depth with numerical readout
  • Control positioned on the upper mobile control panel
  • "READY" electronic control - 2 standard axes with:
  • Motorised control of blades unit tilting
  • Motorised control of the rear stop position (position readout on magnetic band)
  • Mode: manual, semiautomatic and automatic with memory capacity up to 99 programs.
  • Additional functions: calculator and hour counter.
  • 3rd axis available as option (blade lifting control)
  • 2 fixed tables + 1 mobile table
  • Additional emergency pushbuttons and working cycle start positioned on the mobile table. Very useful when machining very large dimensioned work pieces that prevent an easy and safe access to the main machine control panel

Additional Features

  • Telescopic squaring fence with extension up to 3200 mm with digital readouts and installed on large fixed table for the panel support (600 mm x 1350 mm from cutting line), complete with:
  • 2 stops equipped with independent electronic digital readouts with detecting system on magnetic band and LCD display
  • Roller for workpiece support of 1900 mm from the blade
  • Device for angular cutting with self-adjustment
  • Enlarged rear table with double motorised stop
  • stop positioning between 0 and 1300 mm
  • support table length 2000 mm
  • Seaworthy packing

PDF Specifications
