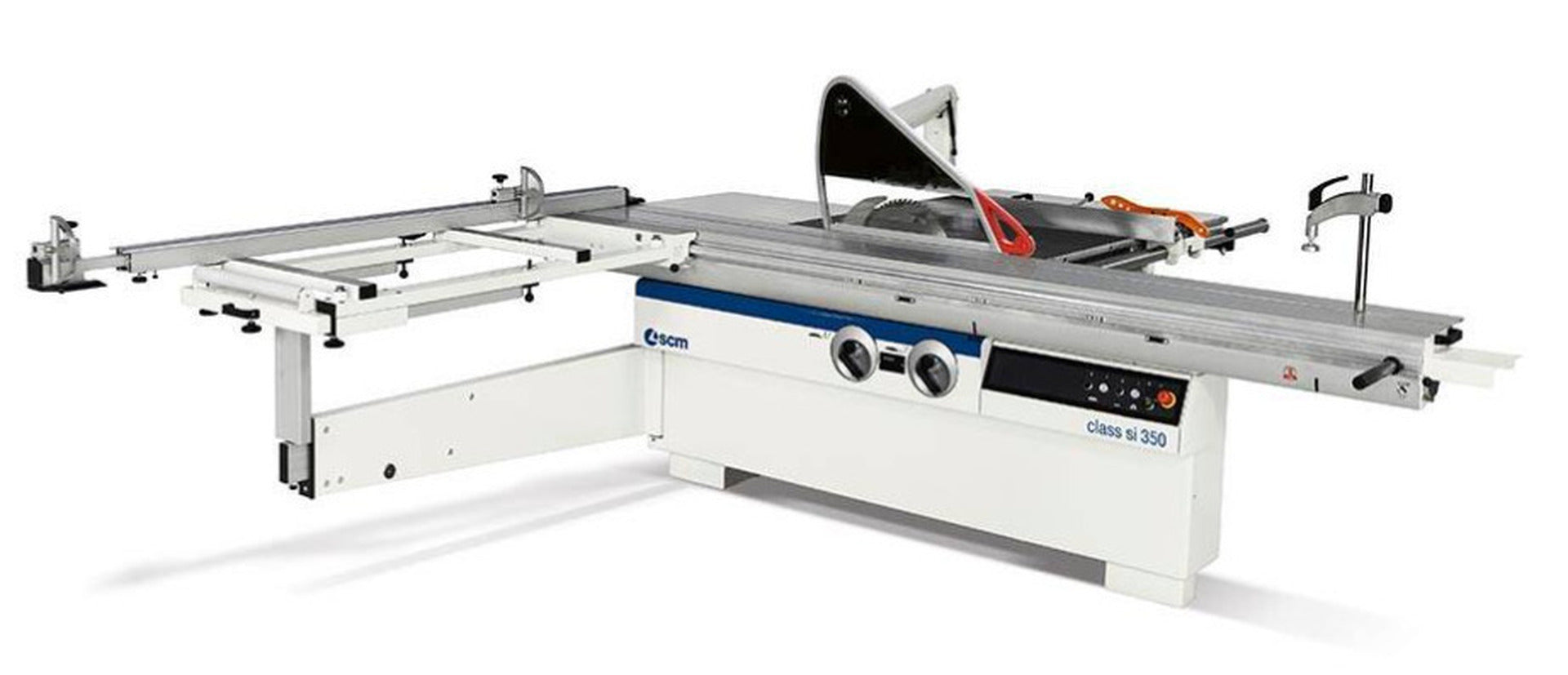

class si 350 Circular Saw w/ Tilting Blade

SKU: 90111
Save $2,088 CAD
Price:
$24,012 CAD $26,100 CAD

Shipping calculated at checkout

Stock:
In stock
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model class si 350
Made In ITALY
Condition New
General
Horsepower 11 hp
Table Size 1040 x 630 mm
Blade Diameter 350 mm
Voltage 600 volts
Phase 3-phase
Saw Type Sliding Saw
CNC No
Other Specifications

Max Cutting Height at 90o: 118 mm

Max Cutting Height at 45o: 81 mm

Blade Tilt: 45 degrees

Blades Lifting and Tilt: Manual

Main Blade Rotating Speed: 4000 rpm

Scoring Unit Rotating Speed: 8500 rpm

Scoring Unit Motor Power (S6 -40%): 1.3 kW (1.7 hp)

Squaring Capacity w/ 3200 mm Carriage: 3200 x 3200 mm

Cutting Width on Parallel Fence: 1500 mm

Exhaust Outlet Diameter:

  • At the Base: 120 mm
  • On Overhead Protection: 100 mm
  • On Riving Knife: 60 mm

Basic Machine Net Weight: 1050 kg

Standard Equipment and Options

  • Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt
  • Anodized aluminium alloy sliding carriage on high precision "arch-formed" hardened steel guides, which are fixed on the carriage by means of mechanical bending system
  • Eccentric clamp
  • Squaring frame the fast fence positioning of angular cuttings
  • Outfeed table extensions
  • Sliding carriage length 3200 mm
  • Manual parallel fence with position readout on metric rule, sliding system on 40mm steel bar and micrometric adjustment
  • Independent powered scoring unit external setting up and stops for a quick re-positioning of the blade

Additional Features

  • Motor Start/Stop Pushbuttons (integrated in the sliding carriage for saw and scoring blade)
  • Fence for angular cutting
  • Seaworthy packing
