Description
| Specifications | |
|---|---|

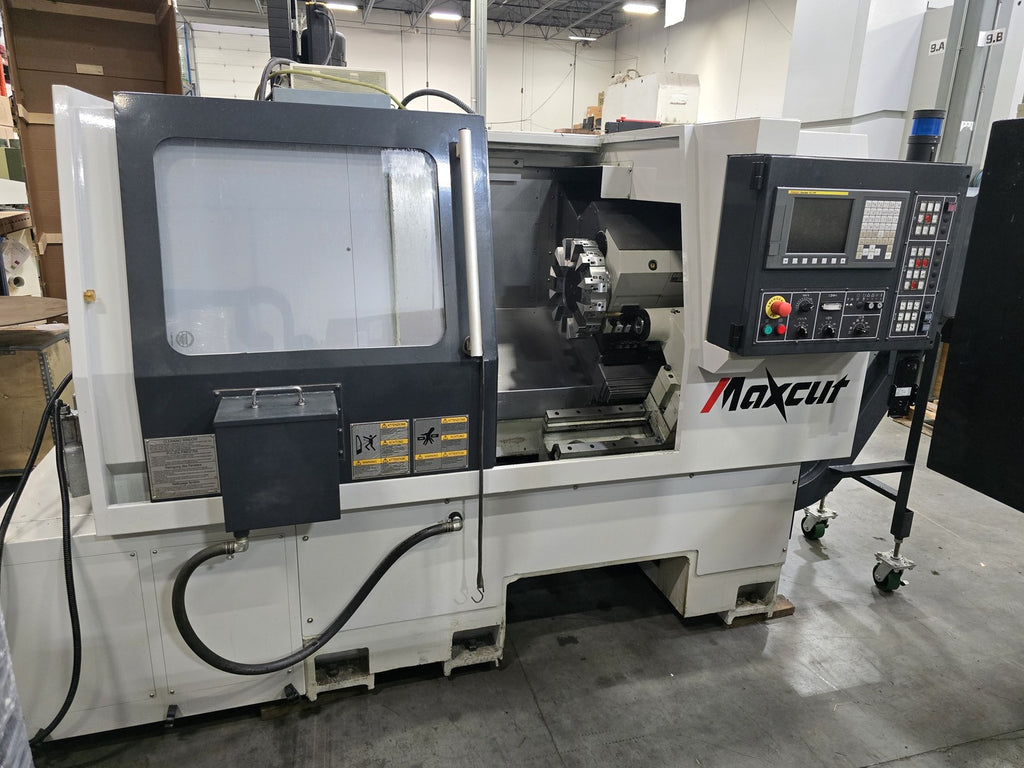

| Model | MTC25-1420 LT-65 |
| Year: | 2019 |
| S/N: | 1915011153 |
| Condition | Used | General |
| Swing Over Ways | 20 " |
| Swing Over Carriage | 16 " | Electrical |
| Voltage | 220 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Swing over bed: 508mm (20") Swing over cross slide: 407mm (16") Maximum turning diameter with turret: 407mm (16") Maximum turning length with chuck: 535mm (21") Bar capacity: 65mm (2.56") X-axis travel: 215mm (8.46") Z-axis travel: 514mm (20.25") Spindle nose: A2-6 Spindle hole diameter: 65mm (2.56") Maximum spindle speed: 4000 rpm Spindle motor: 11kW (15 hp) Hydraulic 3-jaw chuck size: 8" Turret tool stations: 12 Turning tool shank: 25mm (1") square Boring bar shank: 32mm (1.26") round Rapid feed rate: 30m/minute (1181"/minute) Tailstock quill diameter: 65mm (2.56") Tailstock travel: 425mm (16.73") Tailstock quill taper: MT#4 Tailstock quill travel: 50mm (1.97") Machine dimensions: 3280 x 1820 x 1680mm (130" x 72" x 67") Machine weight: 3200kg (7040 lbs.) |
