Description
| Specifications | |
|---|---|

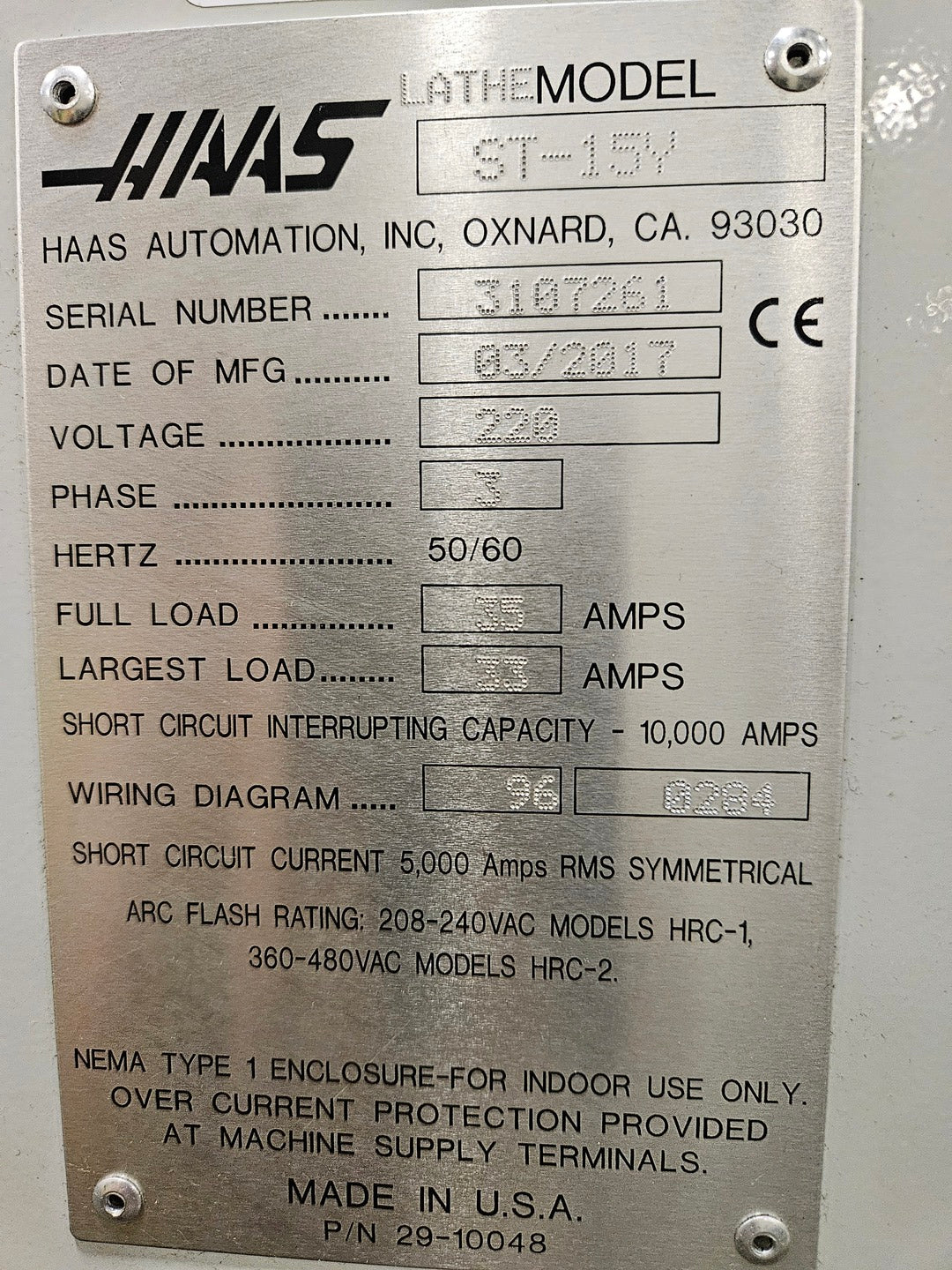

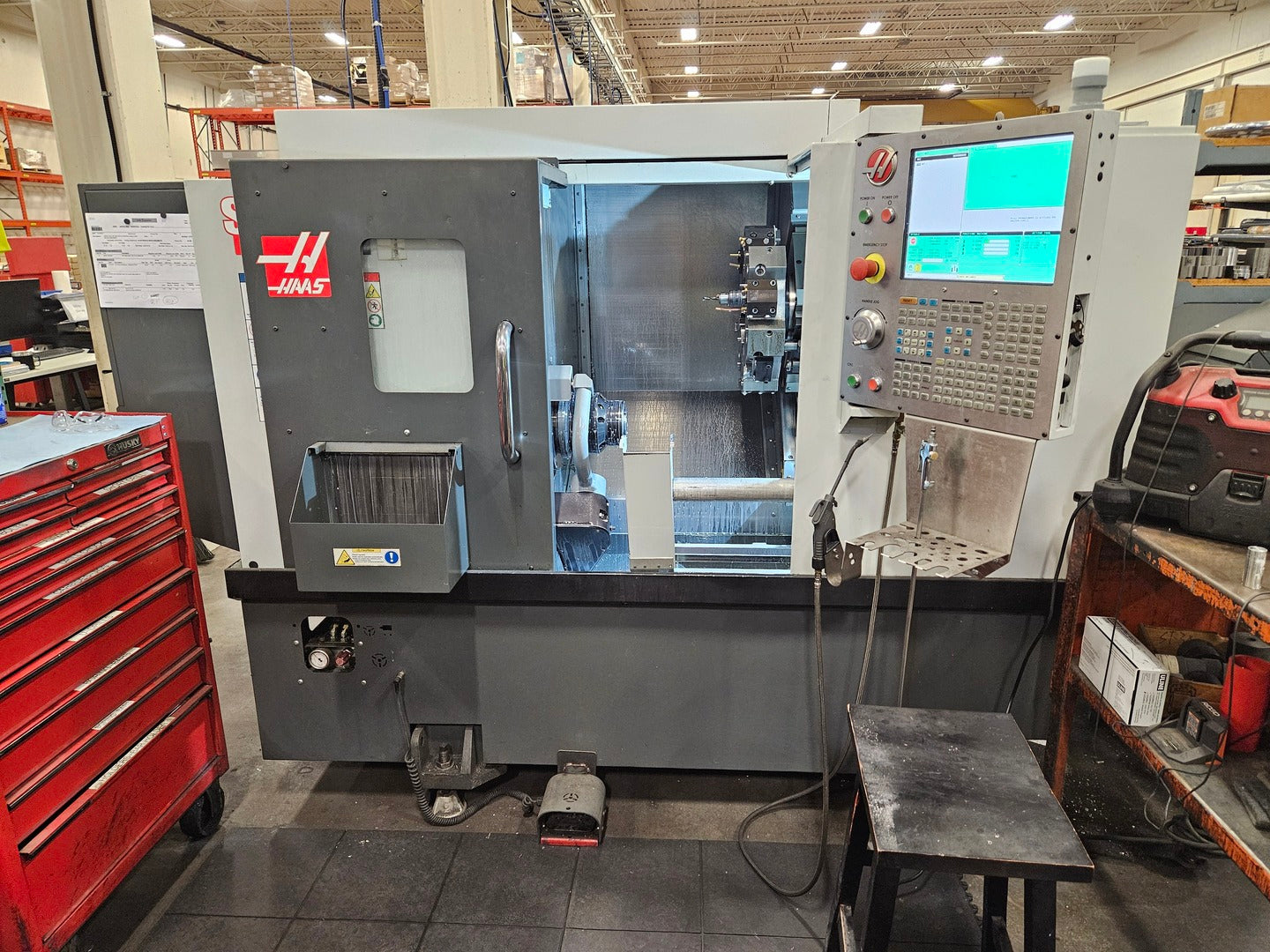

| Model | ST-15Y |
| Year: | 2017 |
| S/N: | 3107261 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Horsepower | 20 hp |
| Swing Over Ways | 16.5 " |
| Swing Over Carriage | 11 " |
| Bore Diameter | 2.5 " | Electrical |
| Voltage | 220 volts |
| Phase | 3-phase |
| Other Specifications |
|---|

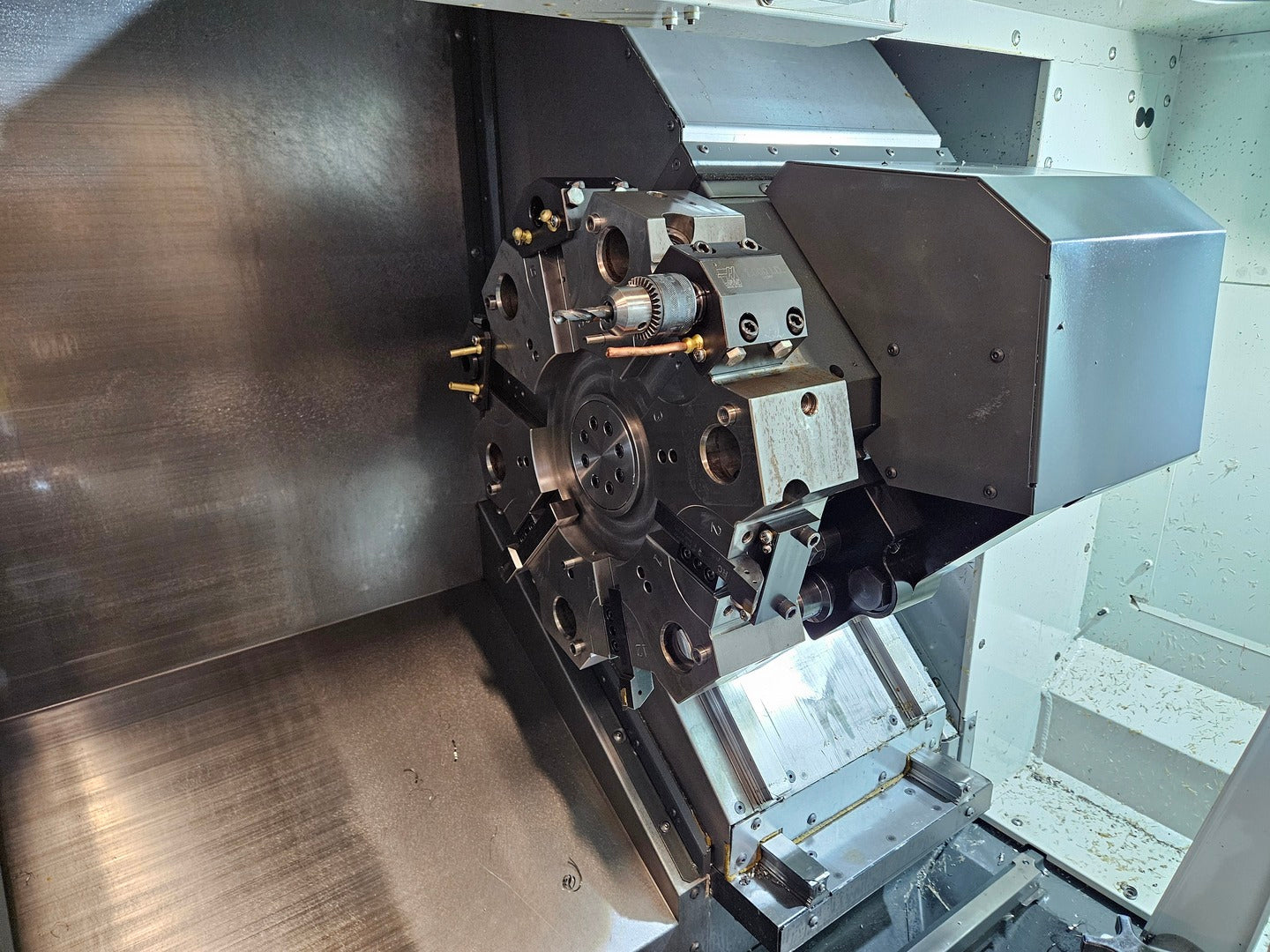

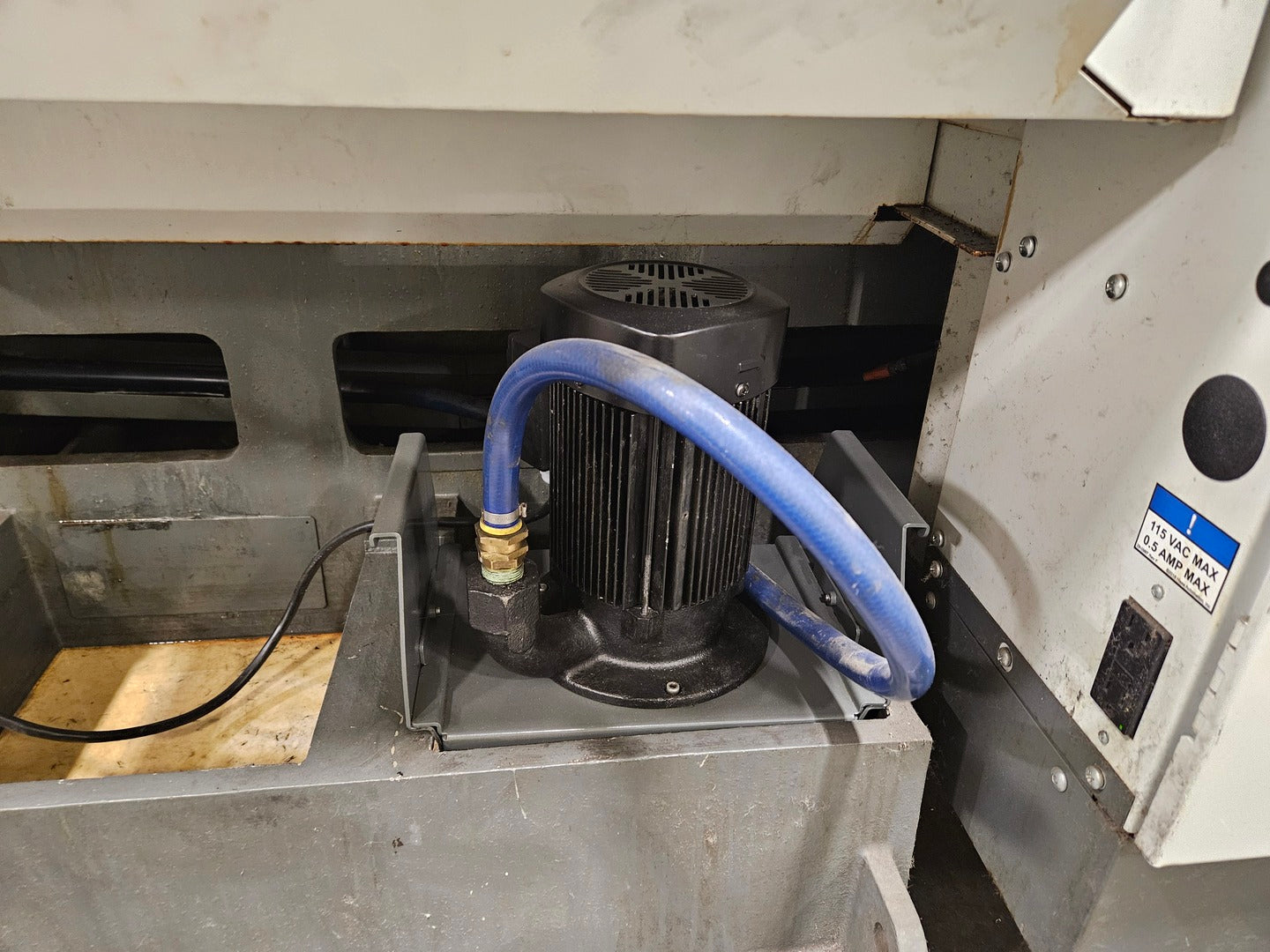

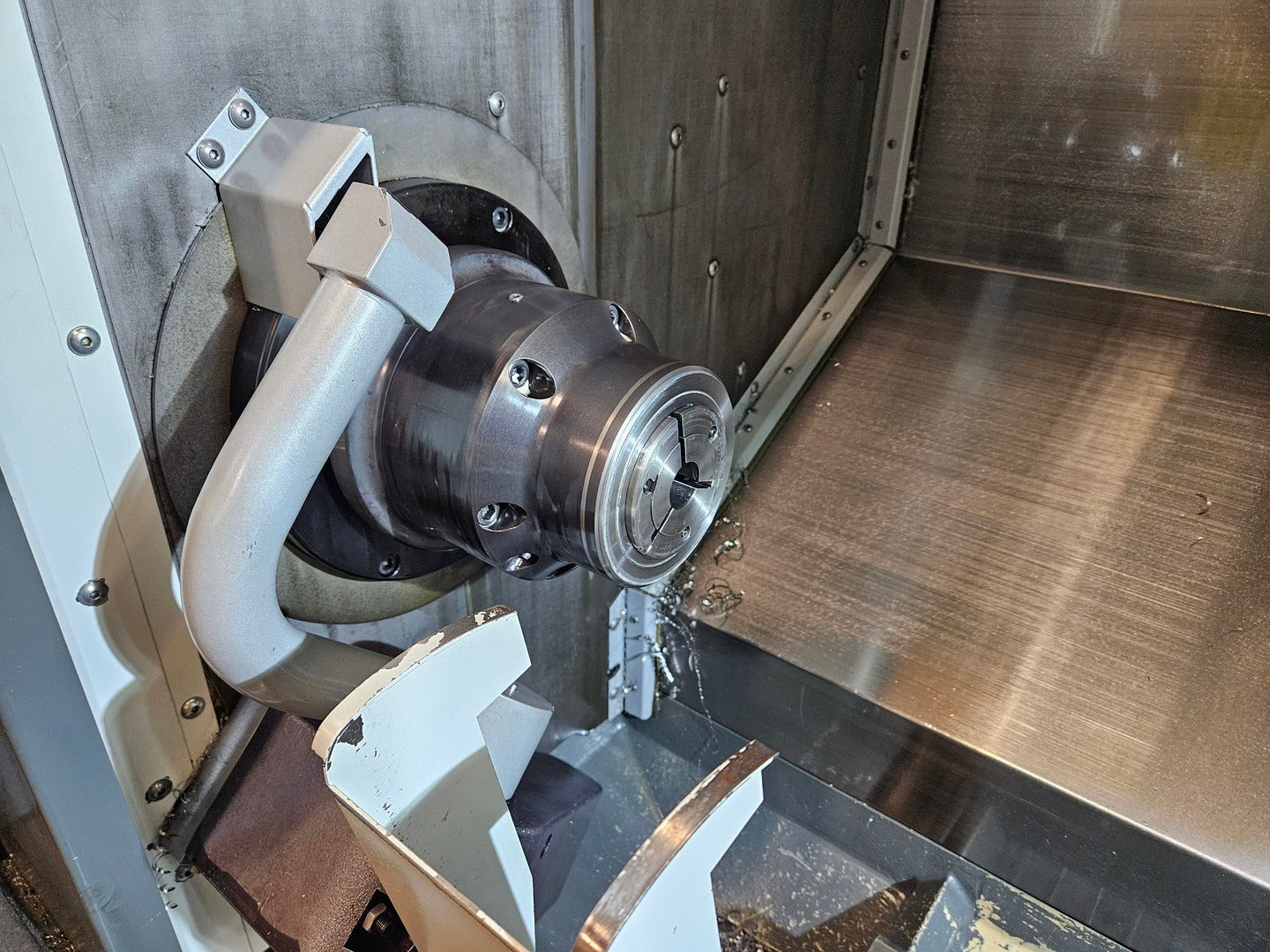

PDF FlyerPDF VideoPDF Technical DrawingsFull Load Amps: 35 A Largest Load Amps: 33 A Power On Time: 9634 hrs Cycle Start Time: 1150 hrs Feed Cutting Time: 757 hrs Number of Tools: 12 stations Coolant Capacity: 30 gal. Air Requirement: 4 scfm @ 100 psi Capacity Chuck Size: 8.3" Max Part Swing: 16.5" Max. Cutting Diameter (with BMT45 turret): 11" Bar Capacity: 2.50" Travels X-Axis Travel: 7.88" Y-Axis Travel: +/- 2" Z-Axis Travel: 16" Feedrates Rapids on X: 472 ipm Rapids on Y: 472 ipm Rapids on Z: 1200 ipm Spindle Spindle Nose: A2-6 Max. Horsepower: 20 hp Max. Speed: 4000 rpm Max. Torque: 150 ft-lbf @ 500 rpm Spindle Bore Diameter: 3.50" |
