Description
| Specifications | |
|---|---|

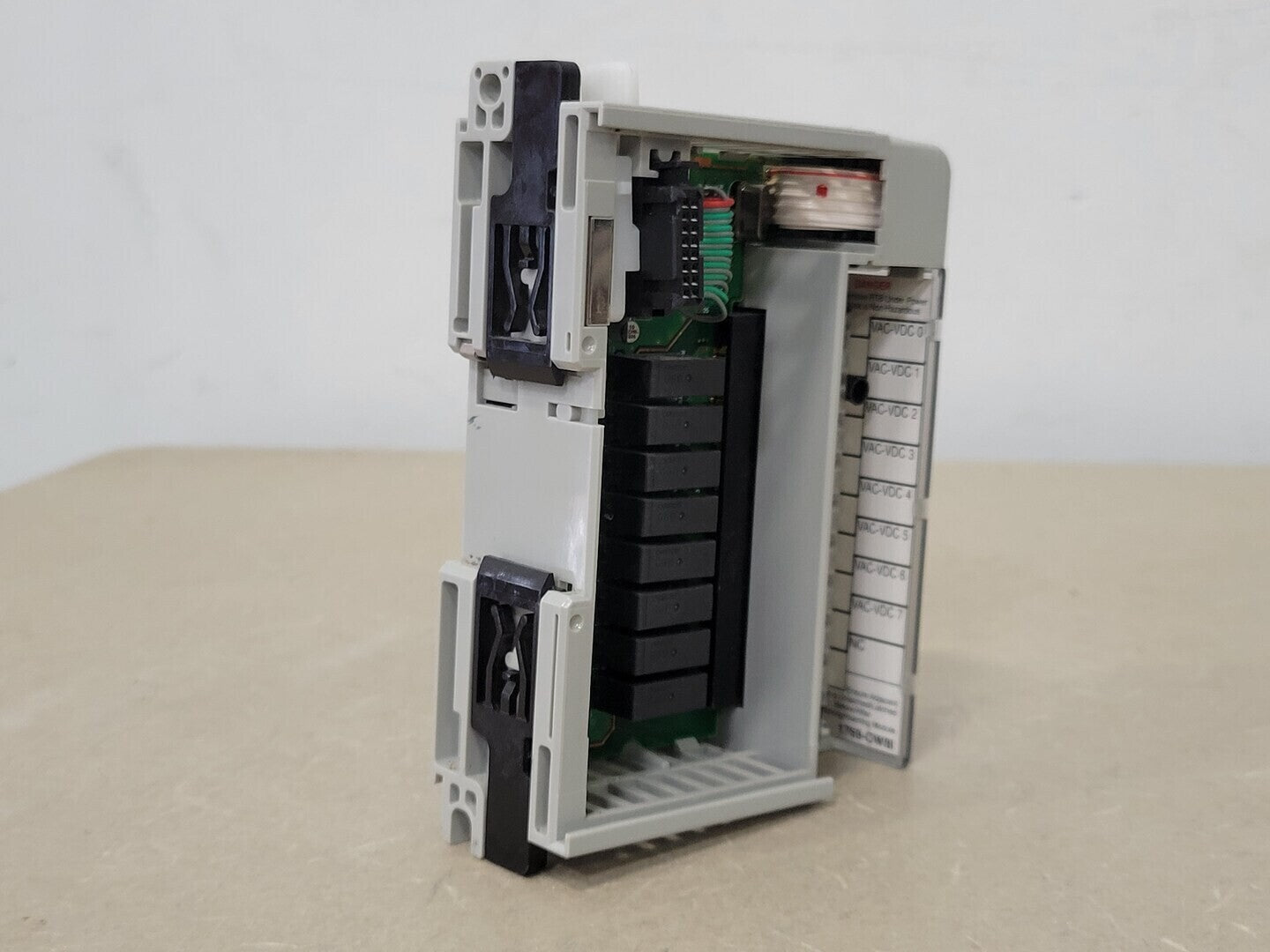

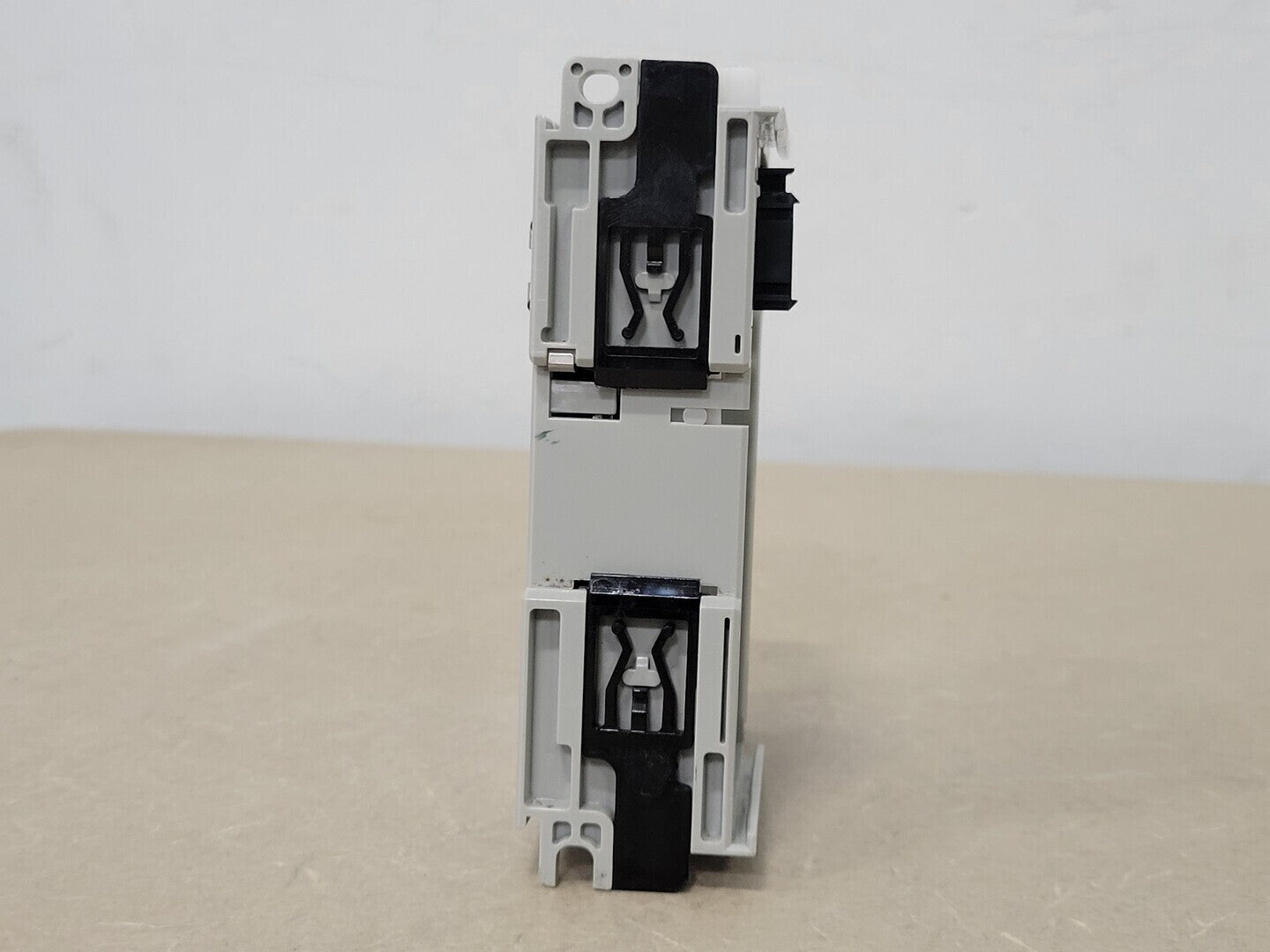

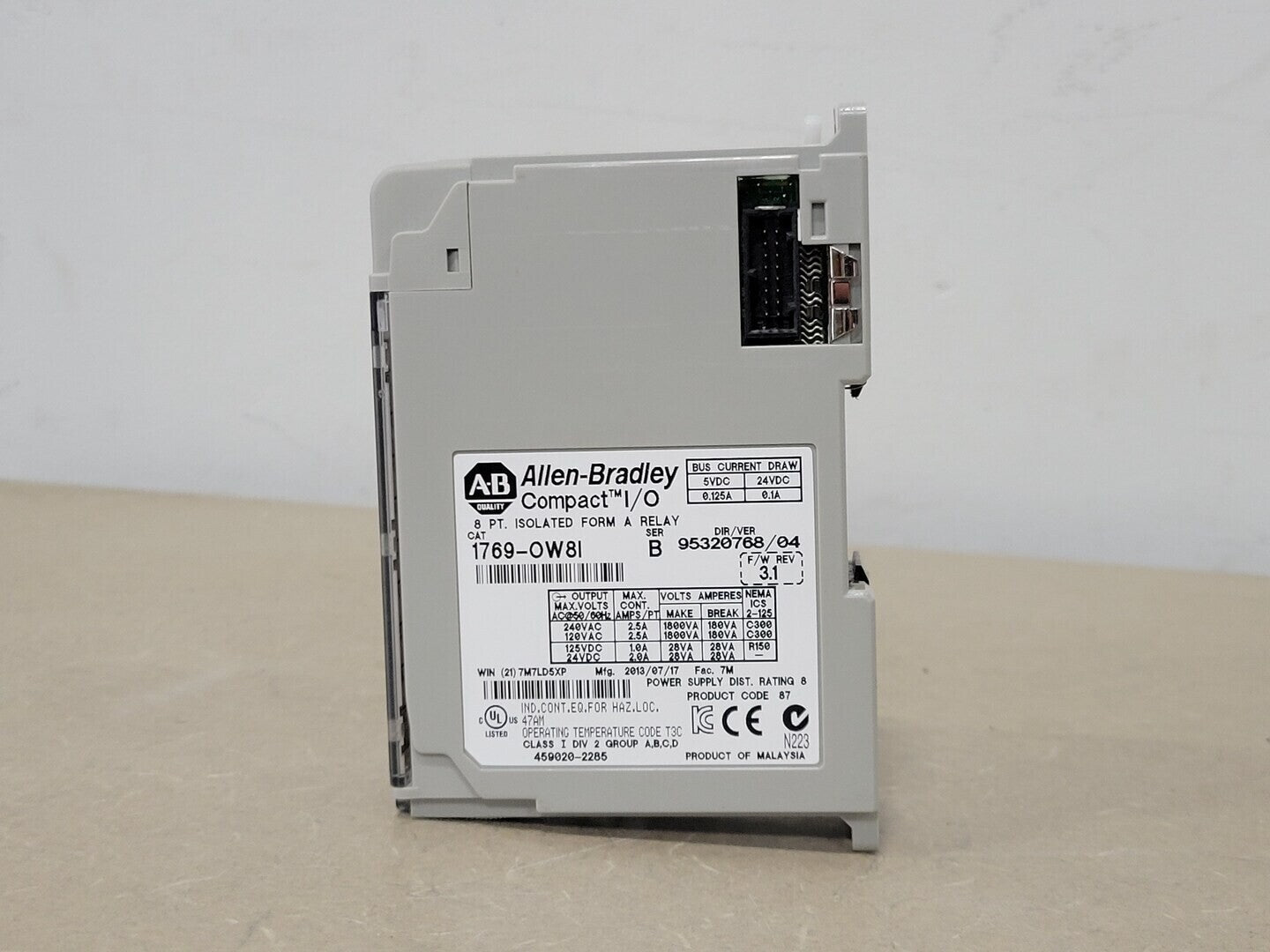

| Model | 1769-OW8I |
| Condition | Used |
| Other Specifications |
|---|
|
Outputs: 8 normally open, individually isolated (4 points/group) Operating voltage range: 5.. 265V AC 5... 125V DC Delay, on: 10 ms Delay, off: 10 ms Current draw @ 5.1V: 125 mA Current draw @ 24V: 100 mA Heat dissipation, max: 2.83 W Off-state leakage, max: 0 mA On-state current, min: 10 mA @ 5V DC Current per point, max: 2.5 A Current per module, max: 16 A Dimensions: (HxWxD), approx 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) |
