Description
| Specifications | |
|---|---|

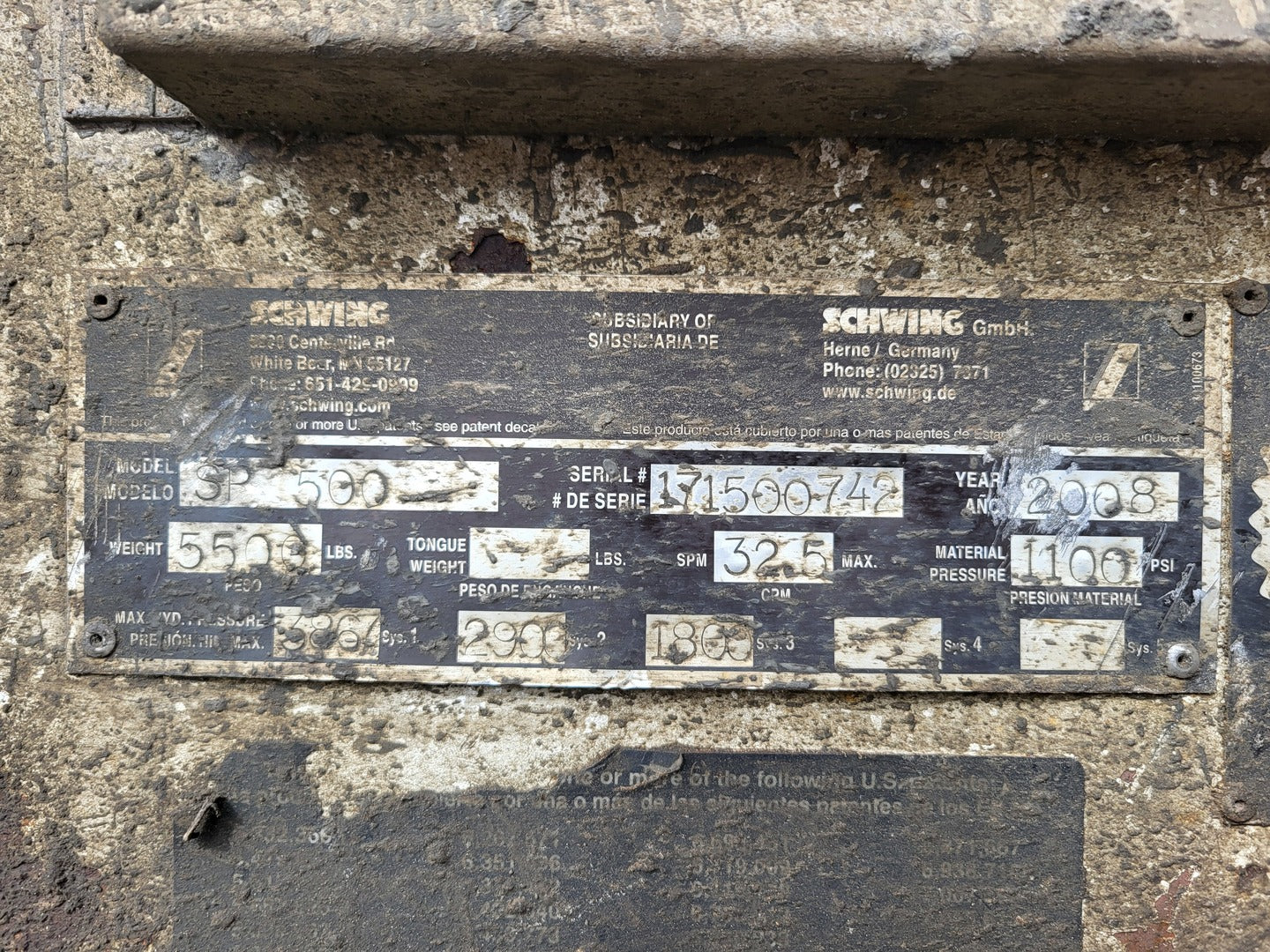

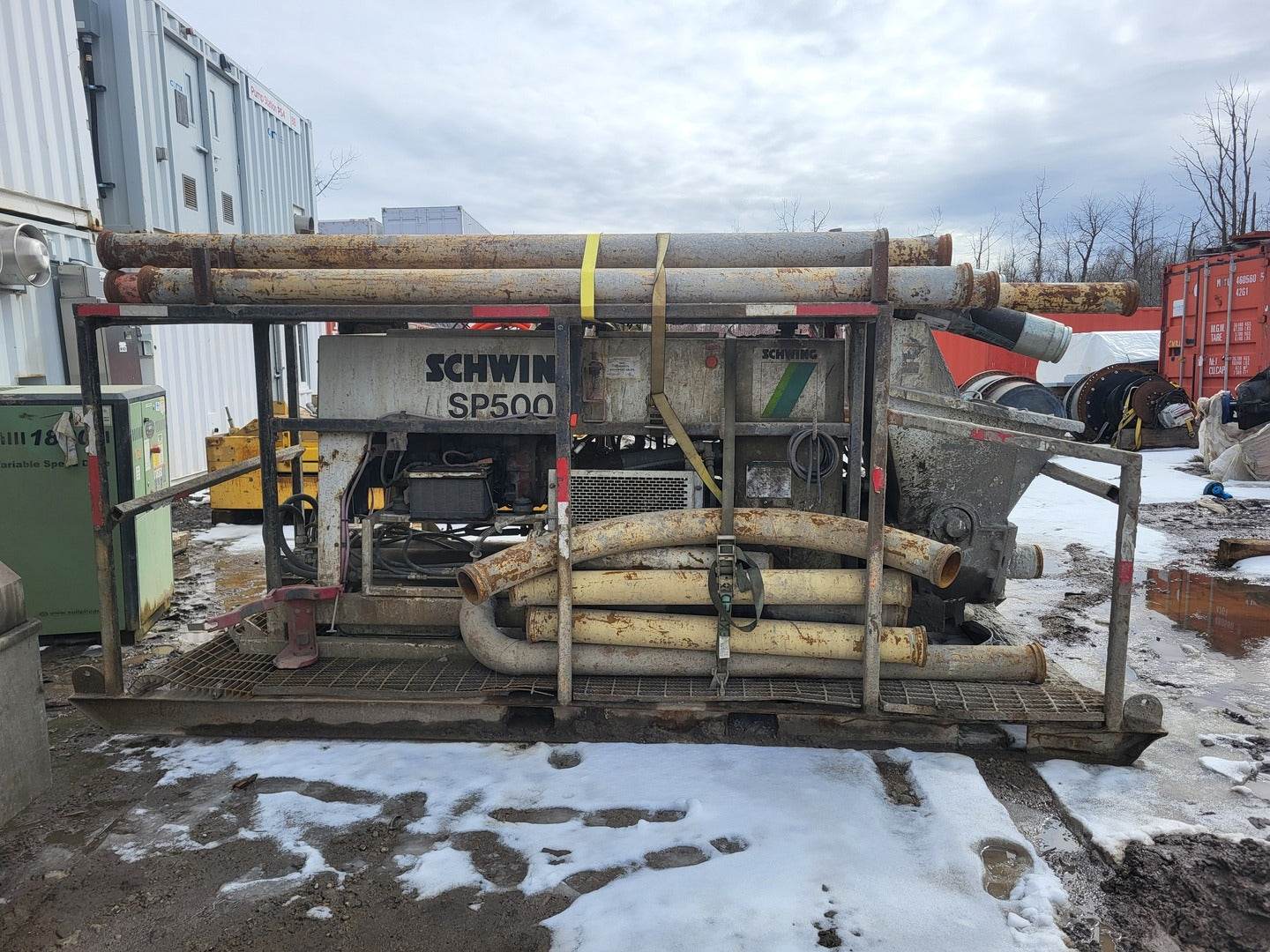

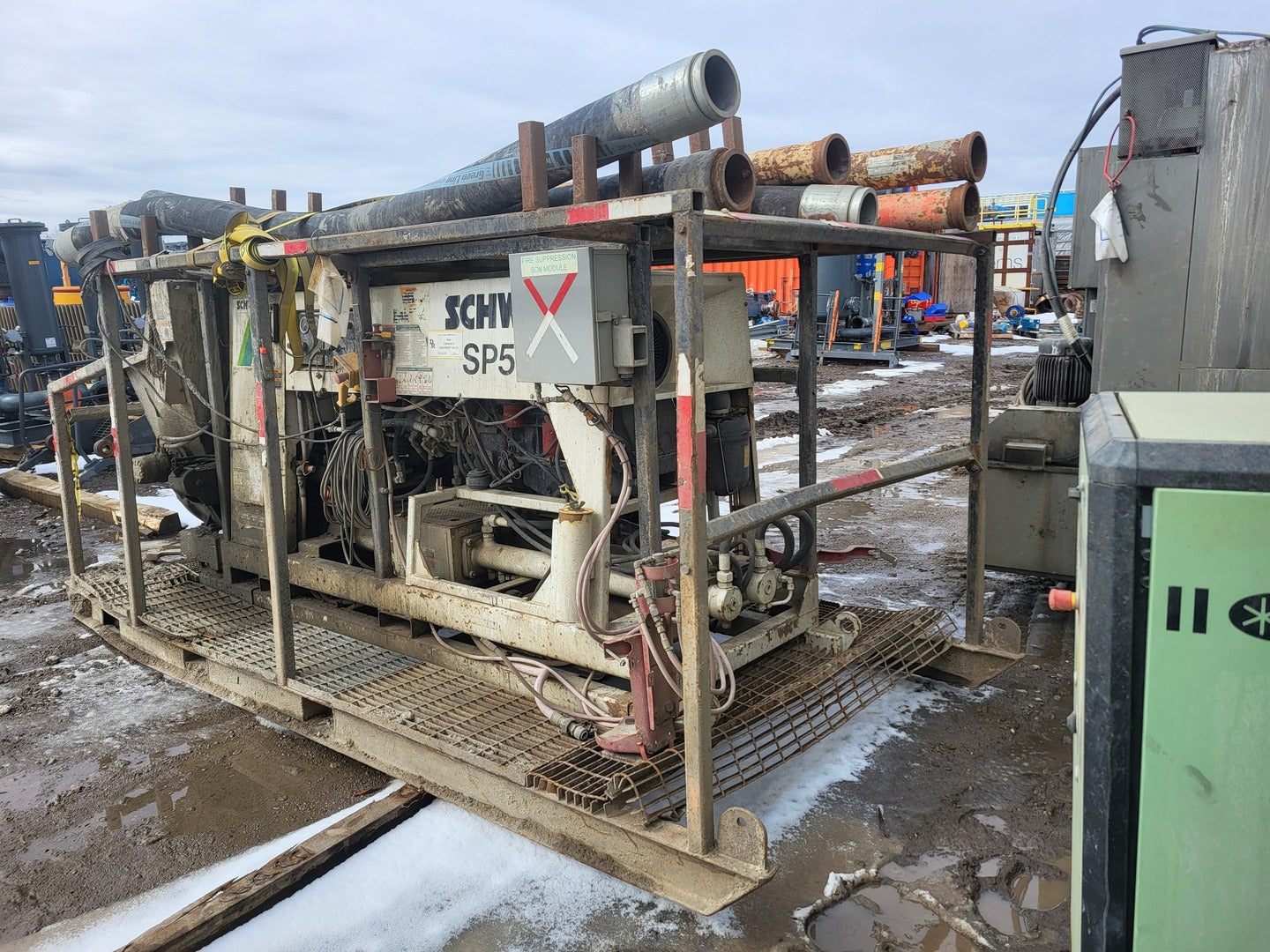

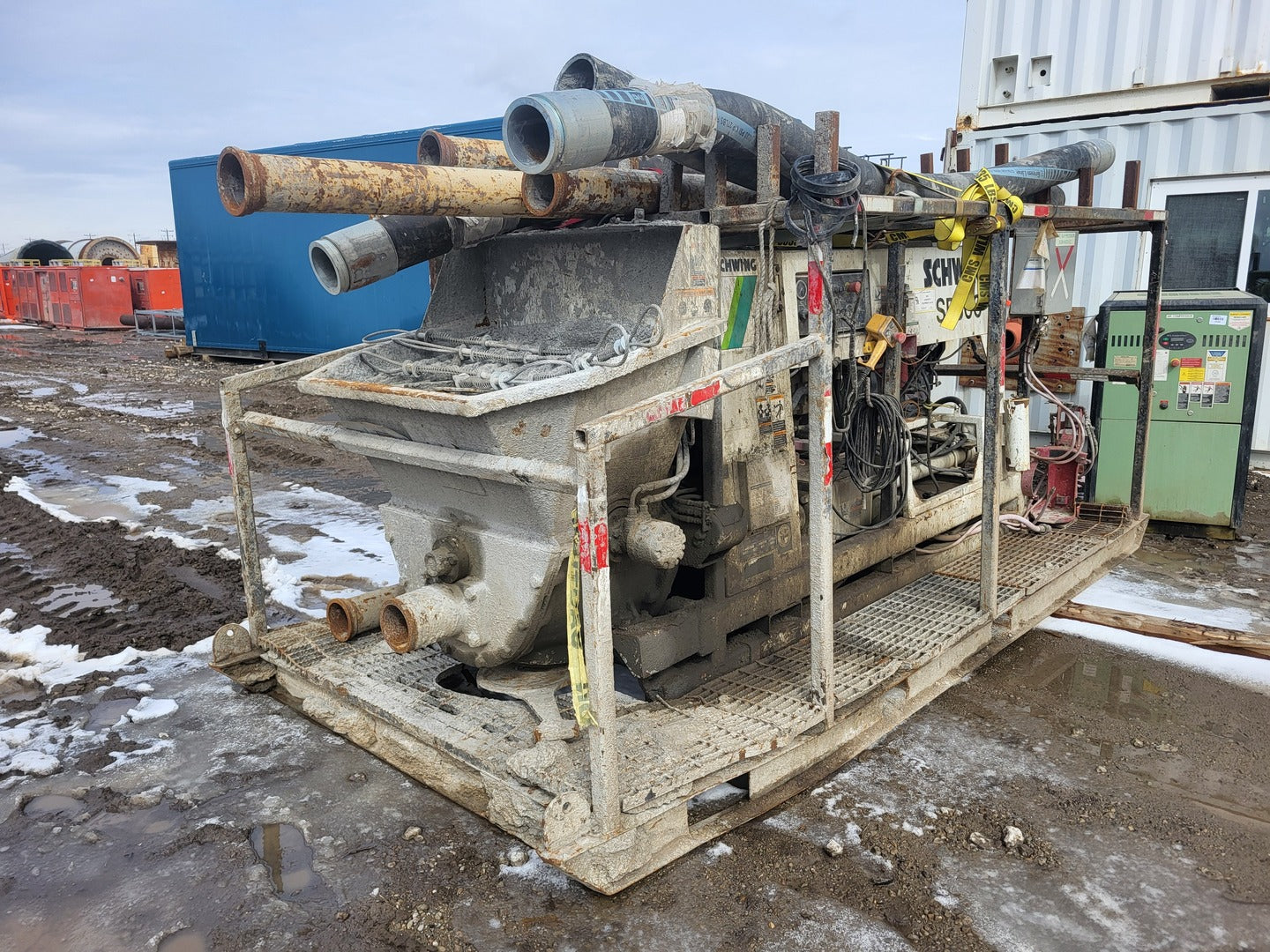

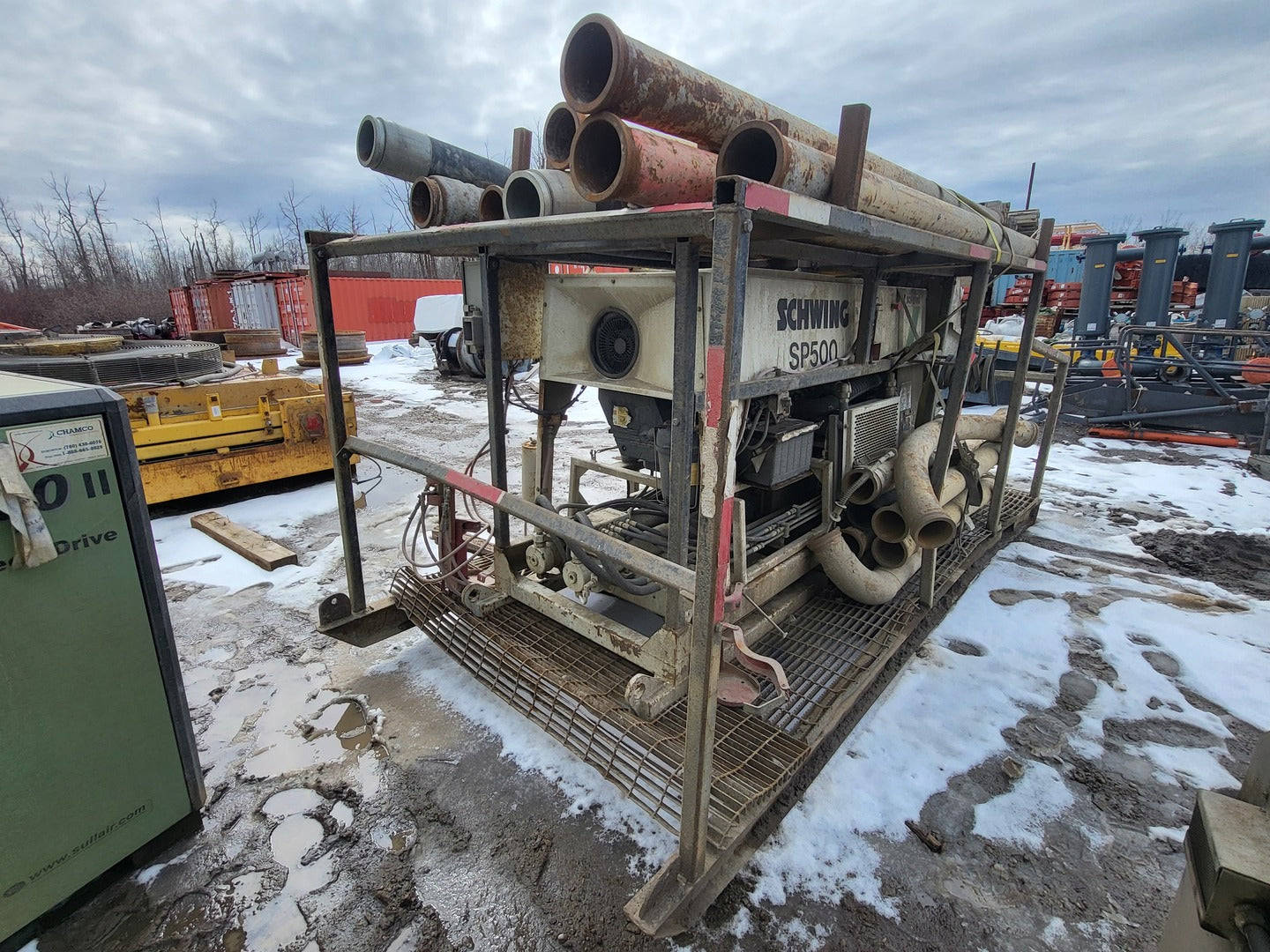

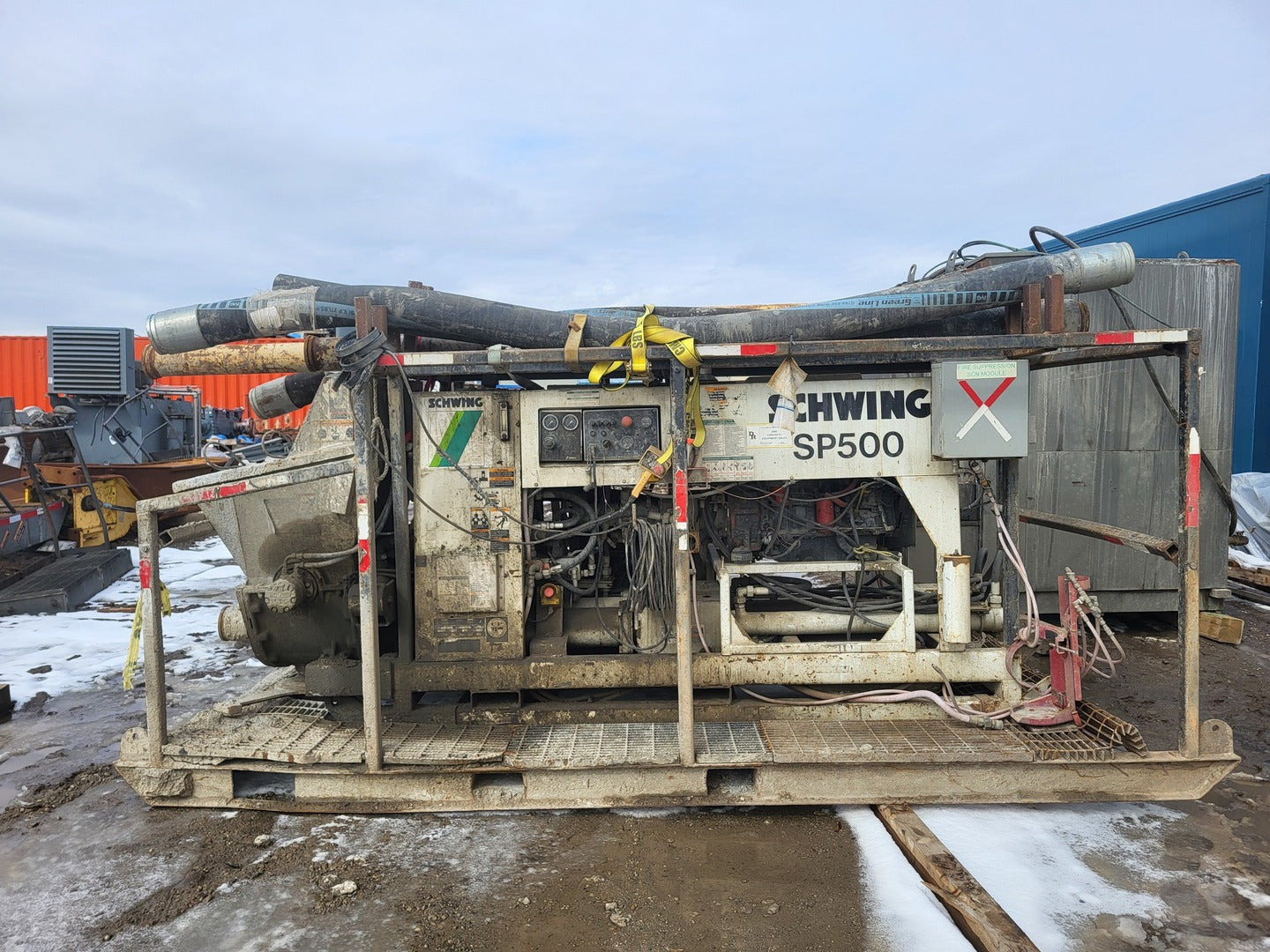

| Model | SP 500 |
| Year: | 2008 |
| S/N: | 171500742 |
| Condition | Used |
| Other Specifications |
|---|
|

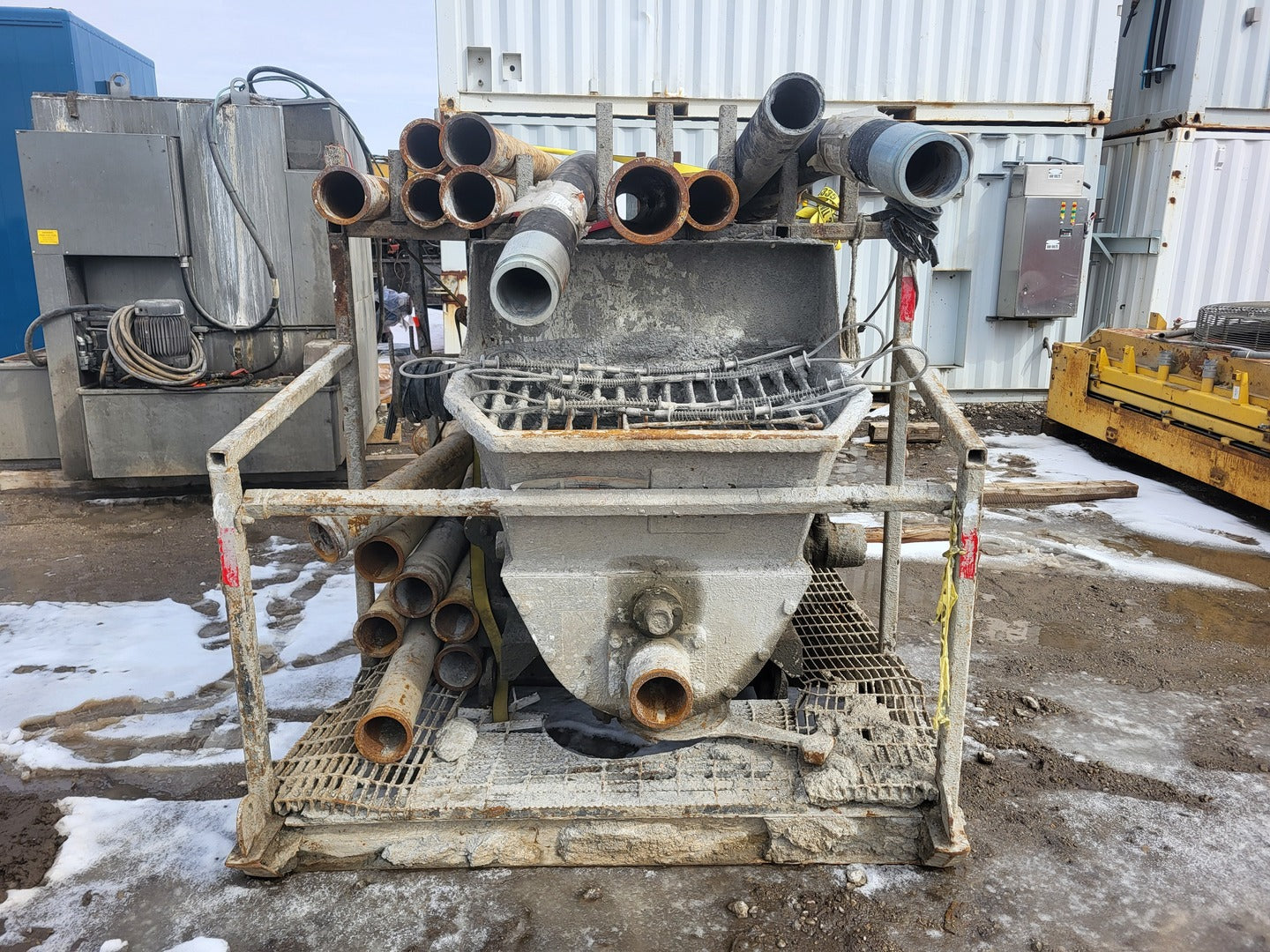

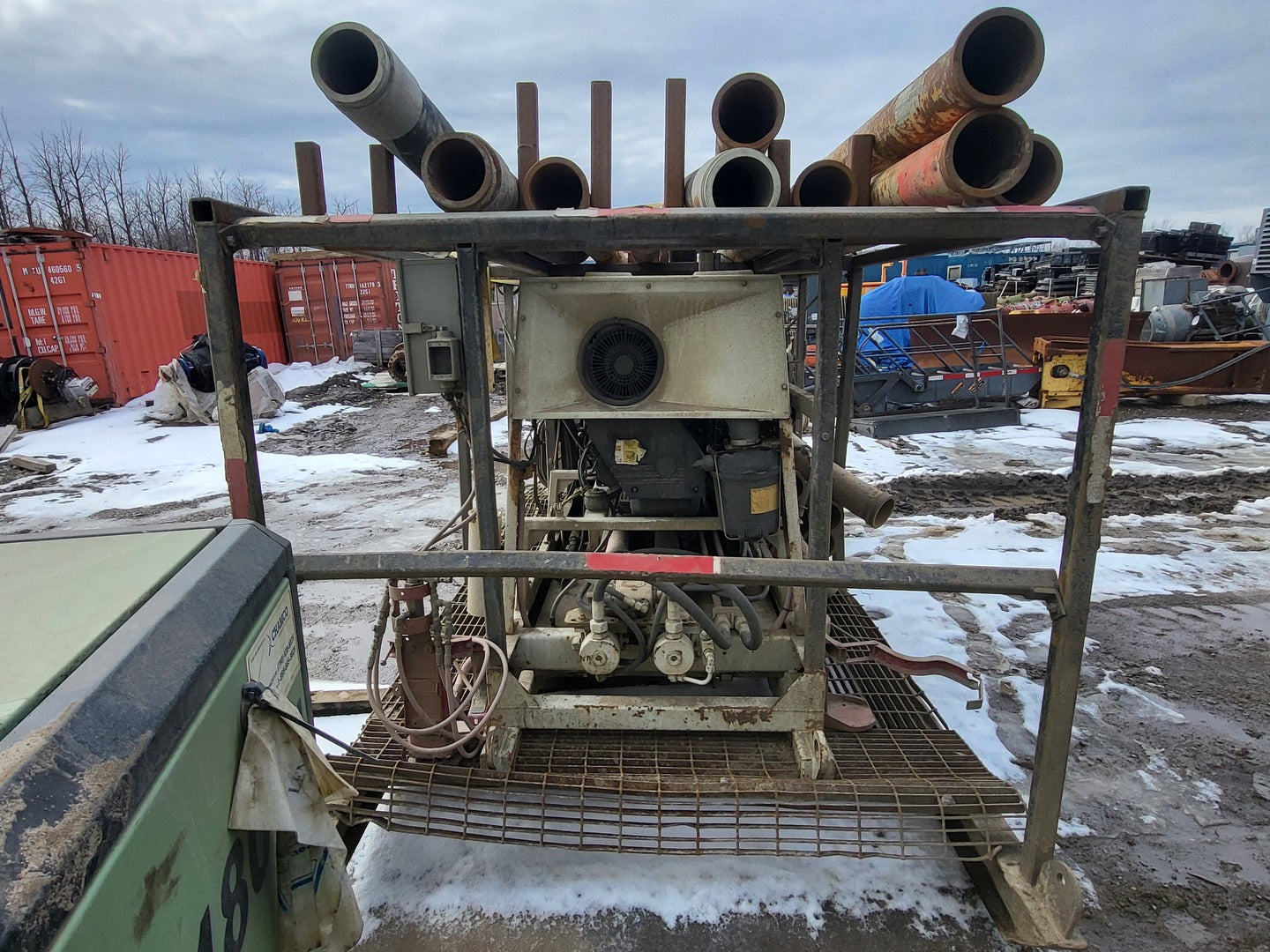

Concrete Output Per Hour: 45 cu yds // 35 cu m Maximum Pressure on Concrete: 1100 psi // 75.8 bar Maximum Aggregate Size: 1.5 in // 38.1 mm Concrete Cylinder Diameter: 6 in // 150 mm Concrete Cylinder Stroke Length: 39 in // 1000 mm Differential Piston/Rod Diameter: 3.15/1.96 in // 80/50 mm Outlet Diameter: 5 in // 125 mm Concrete Valve Type: Long Rock Shifting Cylinders: 2 Max. Pump Strokes Per Minute: 32.5 Volume Control: 0 to Maximum Hydraulic System: Open Loop Main Hydraulic Pump: A11VO95 Hydraulic Pressure: 3872 psi // 267 bar Hydraulic Tank Capacity: 53 gal // 200 l Engine Model - Diesel Tier 4 F: CAT C2.8 Stage V Engine Power: 74.5 hp // 55.5 kW Fuel Tank Capacity: 33.5 gal // 127 l Hopper Capacity: 13 cu ft // .38 cu m Hopper-Height: 50.5 in // 1280 mm |
