Description
| Specifications | |
|---|---|

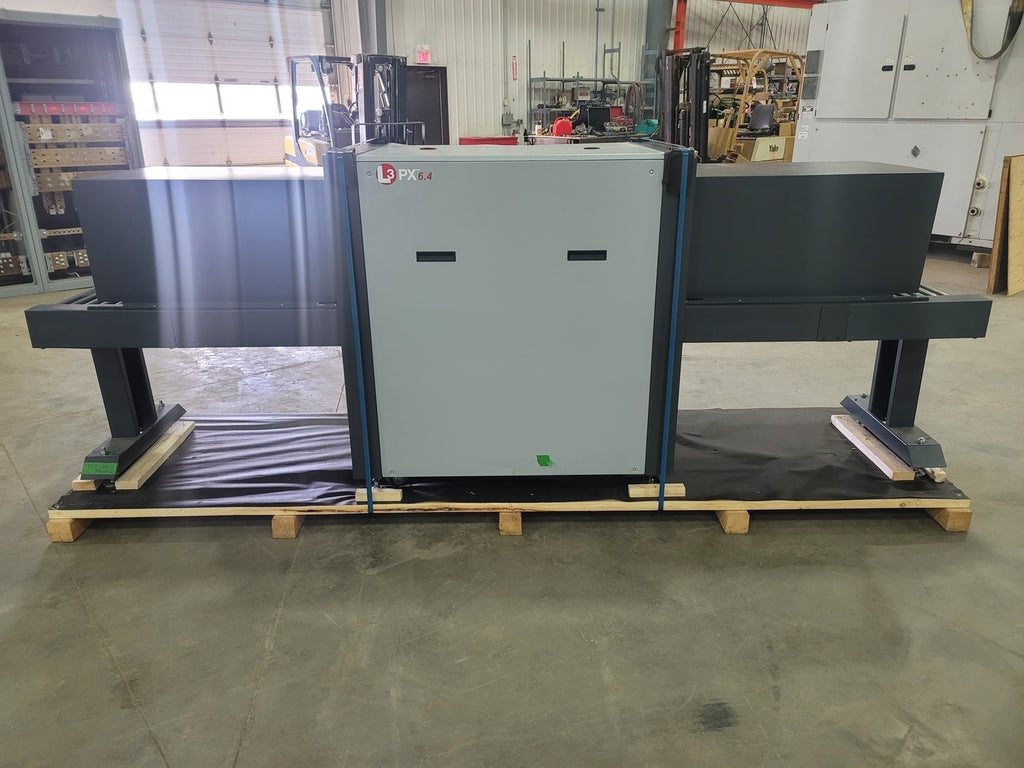

| Model | PX6.4 |
| Year: | 2014 |

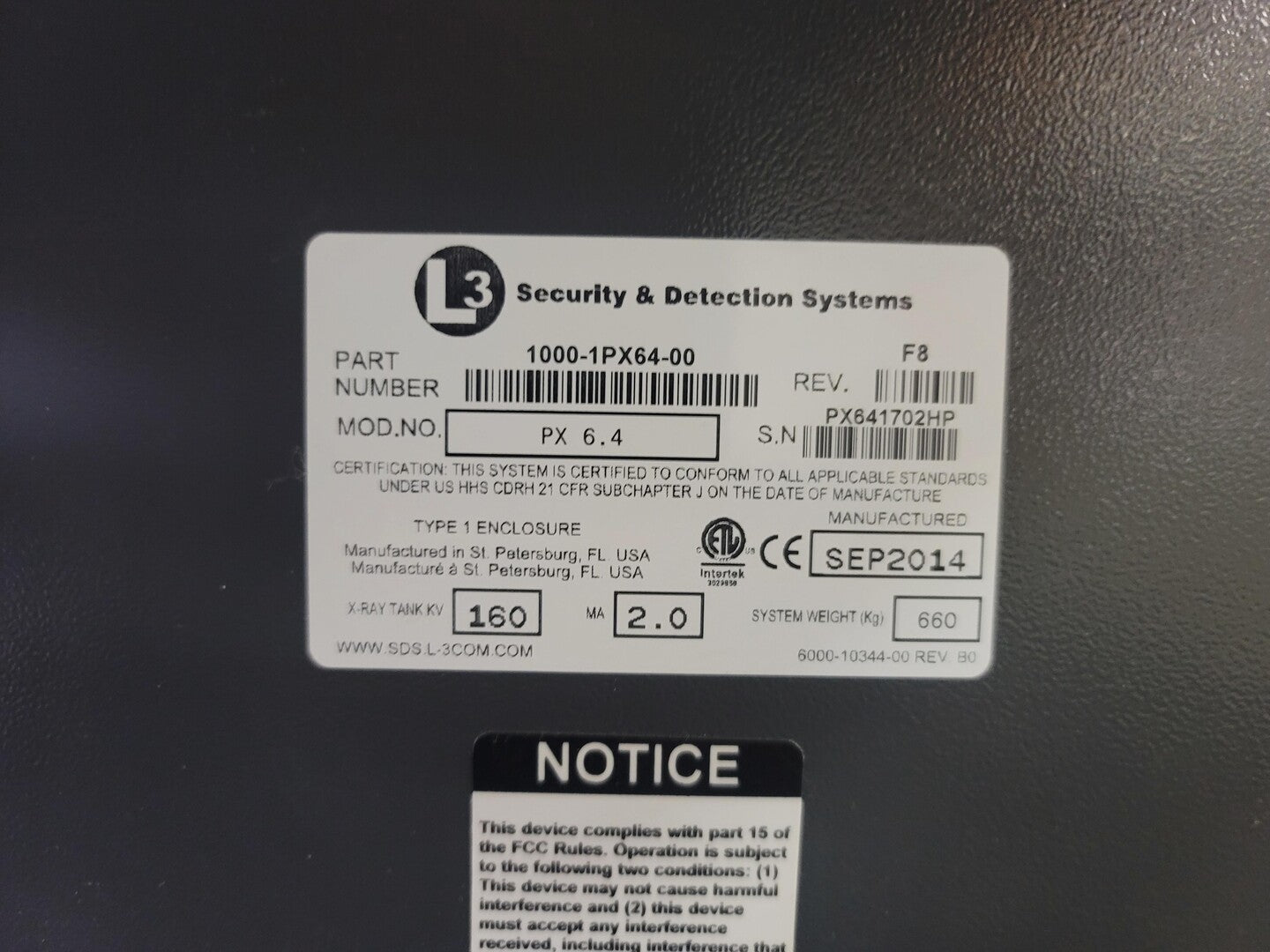

| S/N: | PX641702HP |
| Made In | UNITED STATES |
| Condition | Used |
| Other Specifications |
|---|
Manufacturer PDFApplications:-
General:- Dimensions:- Height: 1312 mm (51.7") Width: 862 mm (34.0") Length:-

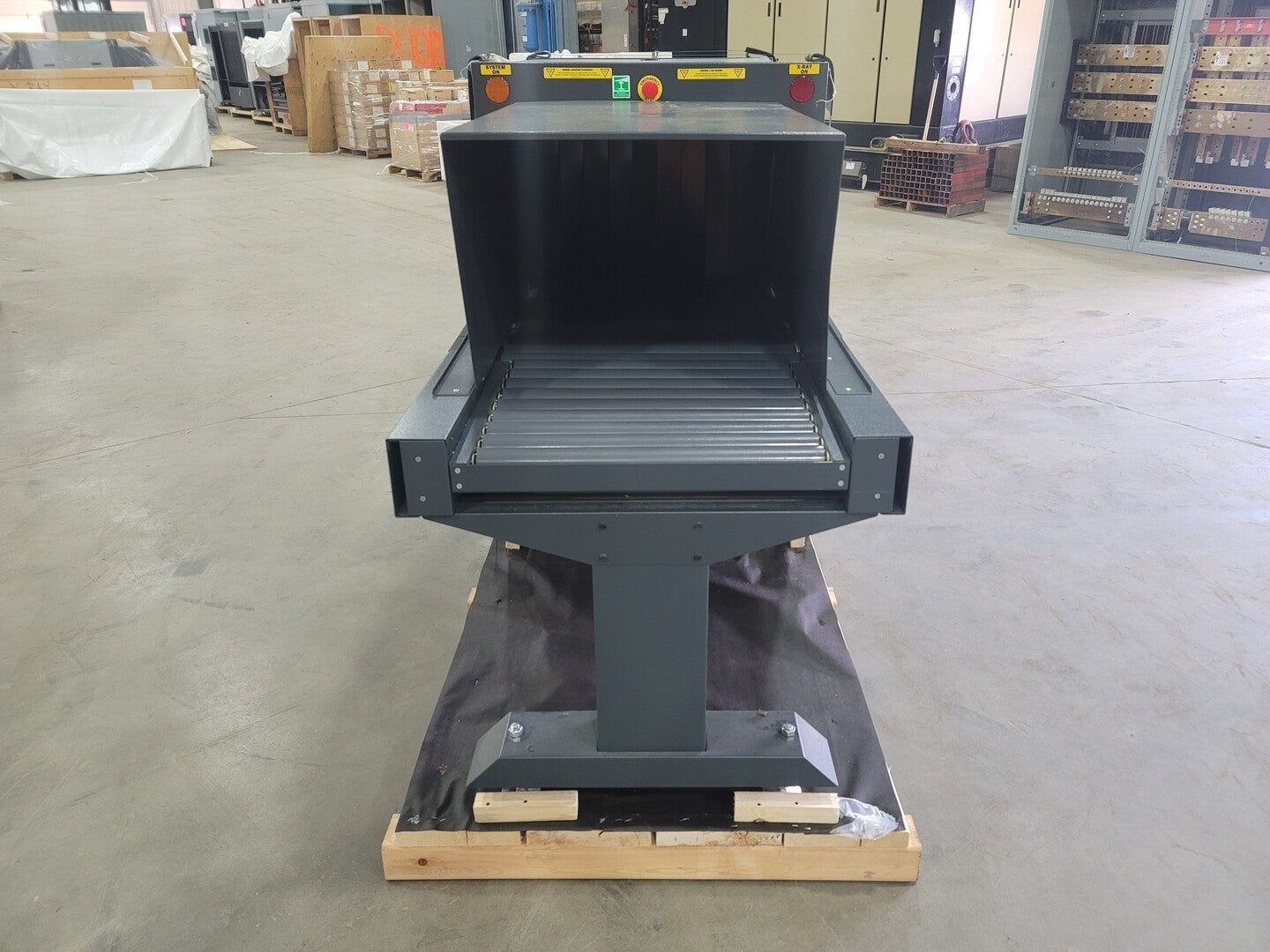

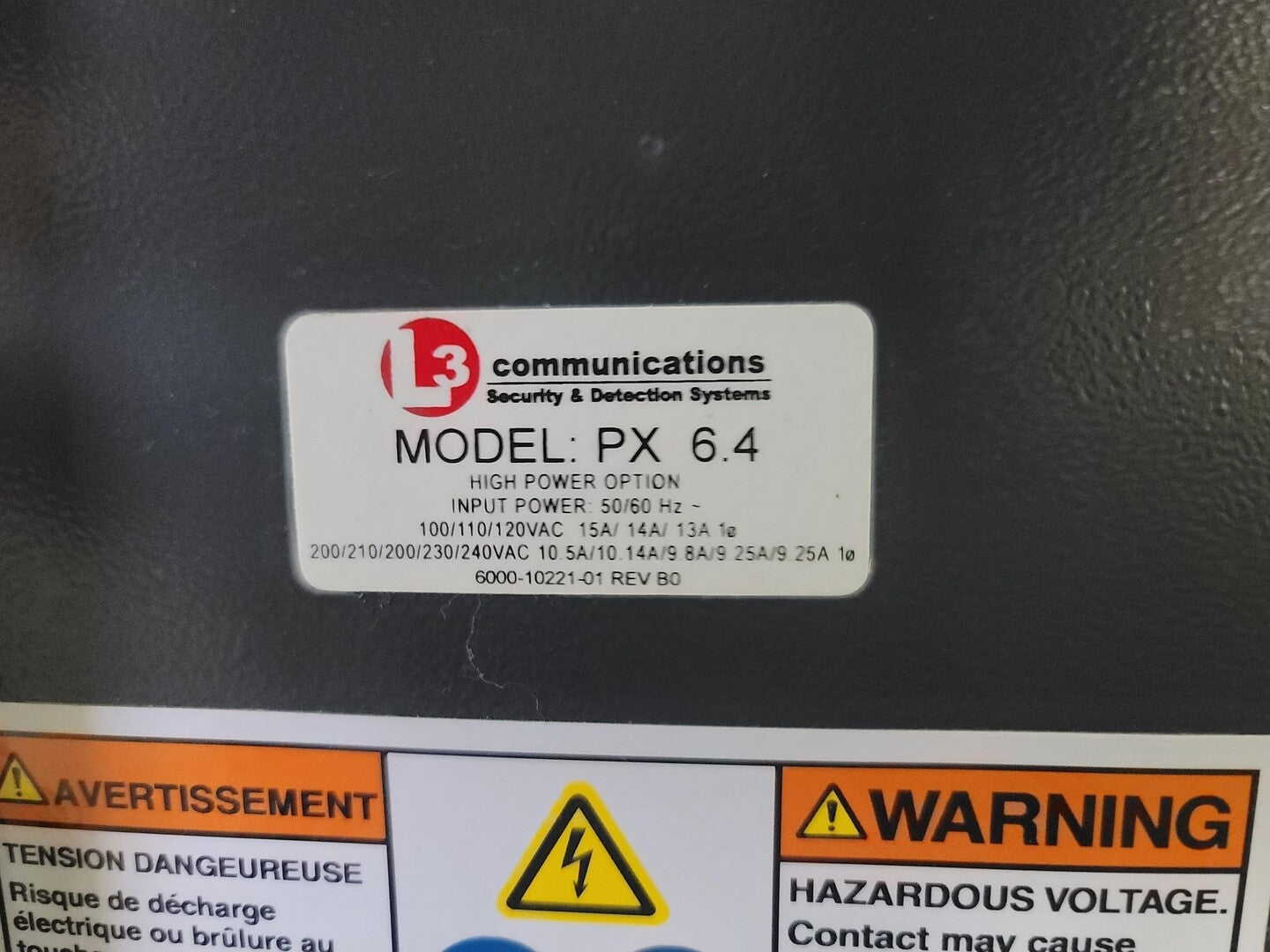

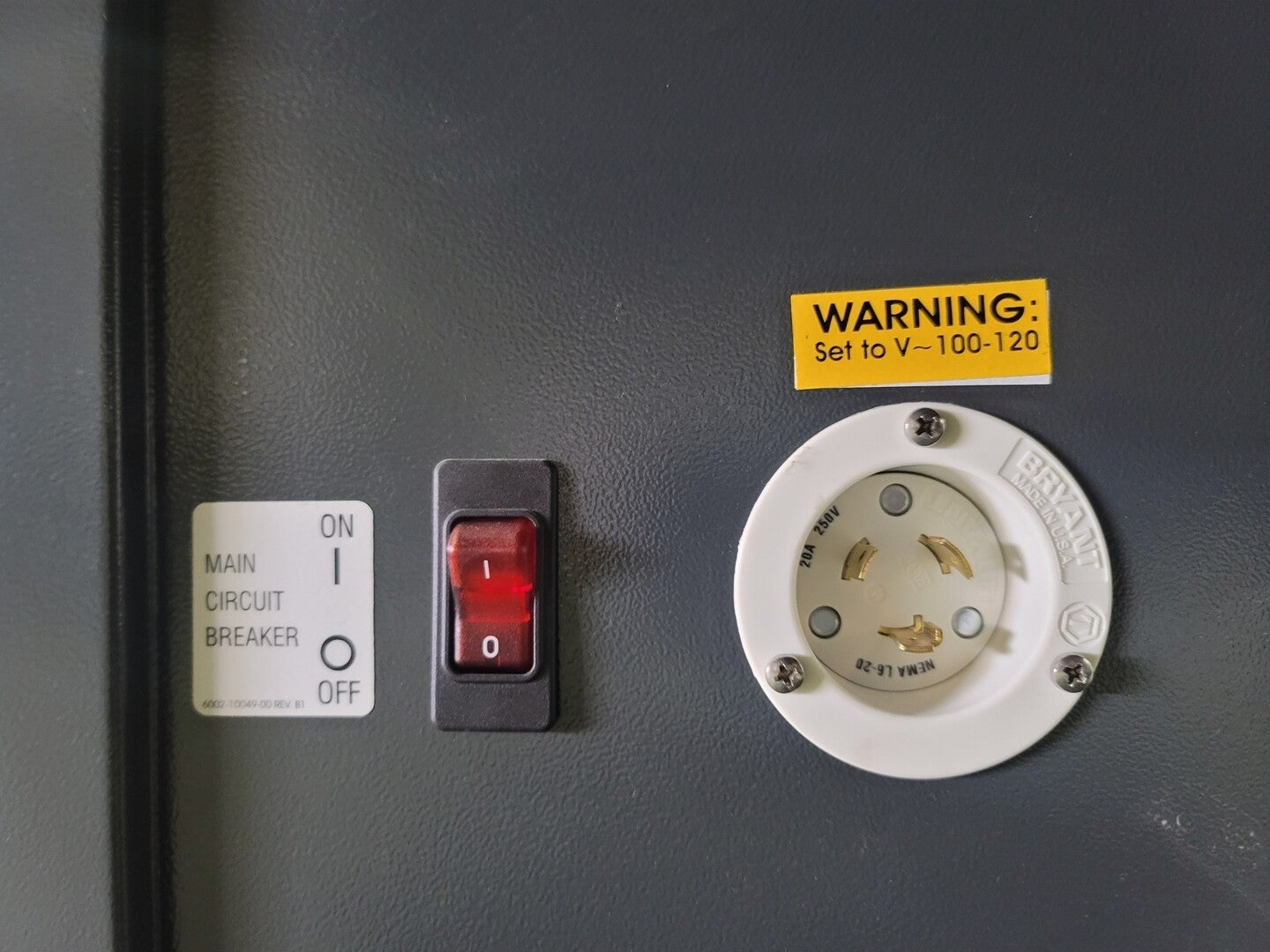

Tunnel Opening: 640 mm (25.2") W x 430 mm (16.9") H Conveyor Height: 762 to 812 mm (30" to 32") Power Requirement: 100-240 VAC, 1-Ph, -/+ 10% 50/60 Hz, +/- 1%, 1.0 kVA max Conveyor Speed: 0.22 m per second +2/-8% @ 50 Hz, 0.26 m per second +2/-8% @ 60 Hz Conveyor Capacity: 100 kg (220 lb) Scan Rate: >750 bags/hour (continuous mode) X-Ray:- Voltage: 150 kVp/160 kVp optional Duty Cycle: 100% Cooling: Sealed Oil Bath Beam Orientation: Vertically Upward Detector Configuration: 1152 photodiodes in L-shaped folded array configuration Imaging and Performance:- Resolution: 41 AWG standard, 44 AWG typical Penetration: 36 mm of steel standard, 38 mm typical Contrast Sensitivity: 4096 gray level stored Display Monitor: 19" high-resolution LCD Optional High-Powered X-Ray Imaging & Performance:- Resolution: 42 AWG standard, 45 AWG typical Penetration: 38 mm of steel standard, 42 mm typical Environmental:- Operating Temperature: 0 deg. C to 40 deg. C (32 deg. F to 104 deg. F) Storage Temperature: -20 deg. C to 50 deg. C (-4 deg. F to 122 deg. F) Humidity: 95% non-condensing Airborne Noise Level: <70dB(A) Accession Number 0612321-000 |
