Description
| Specifications | |
|---|---|

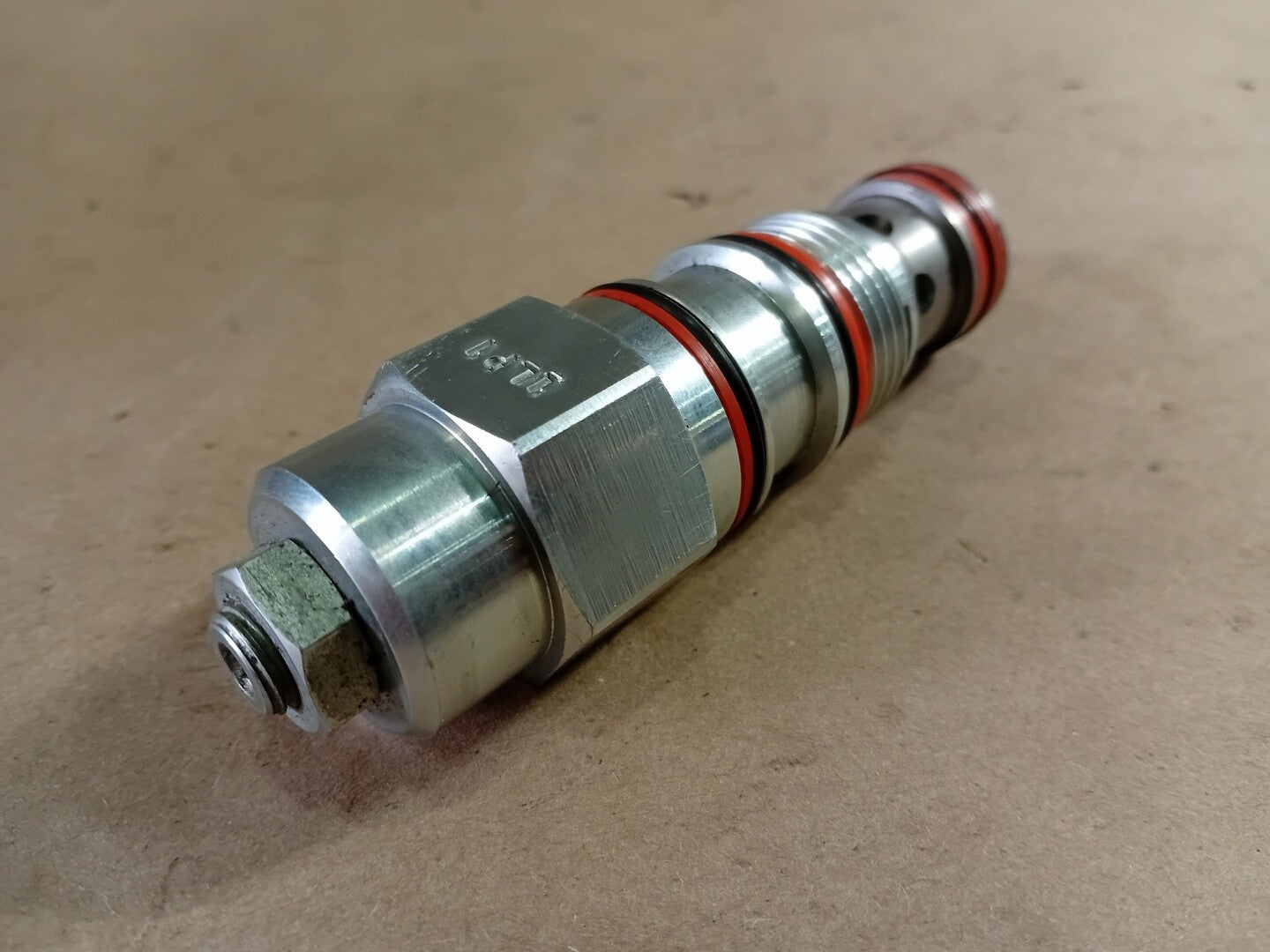

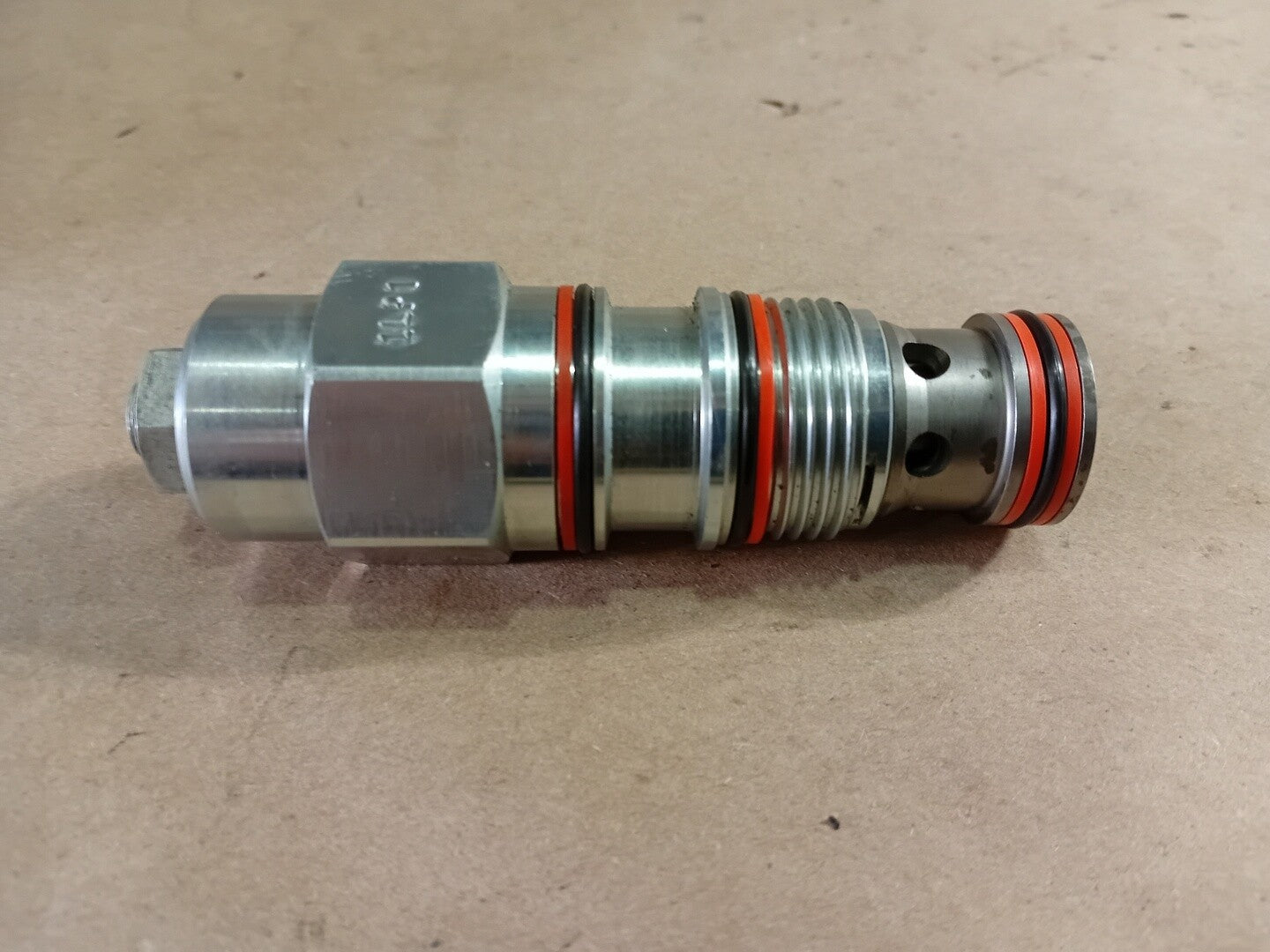

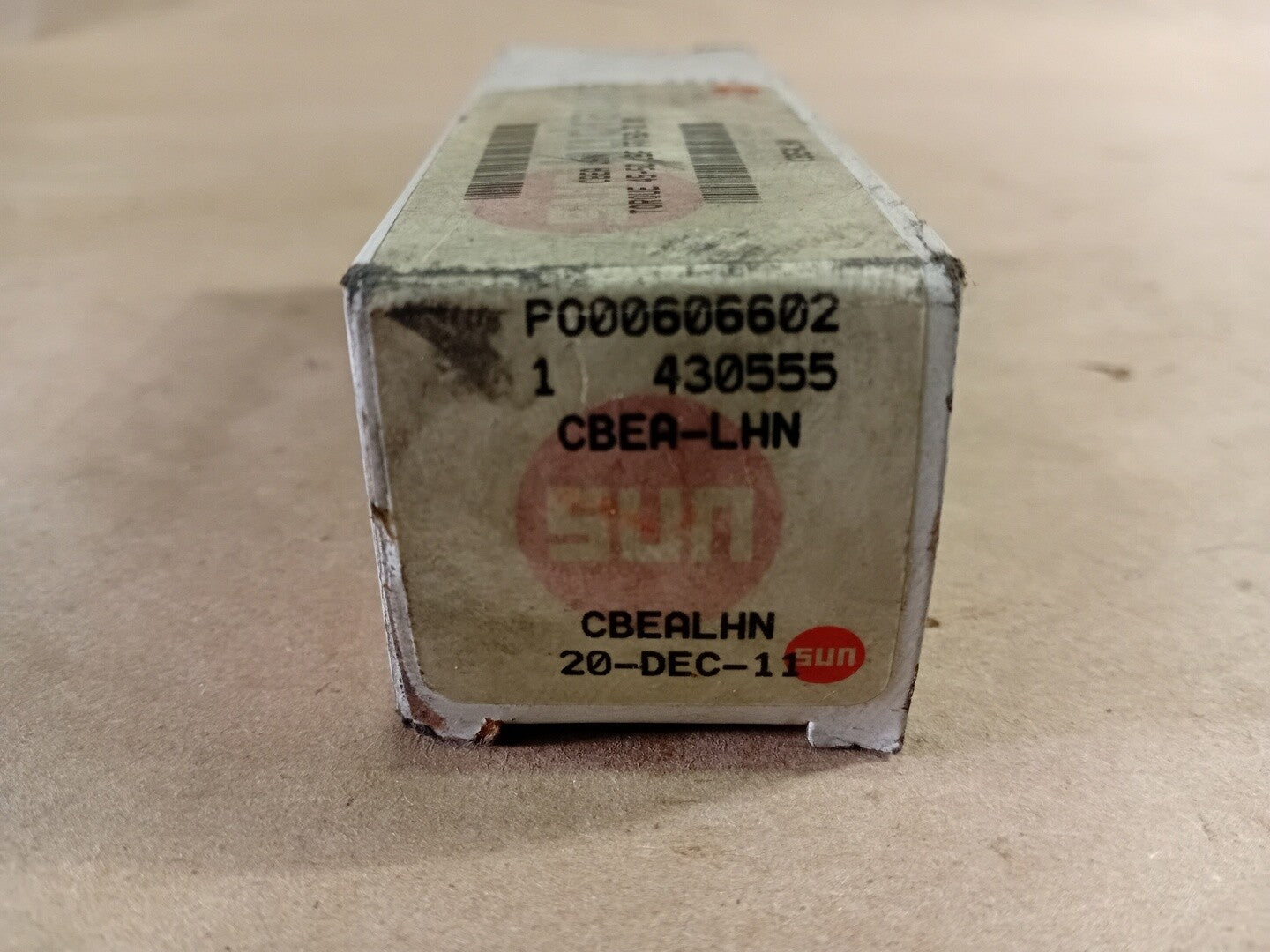

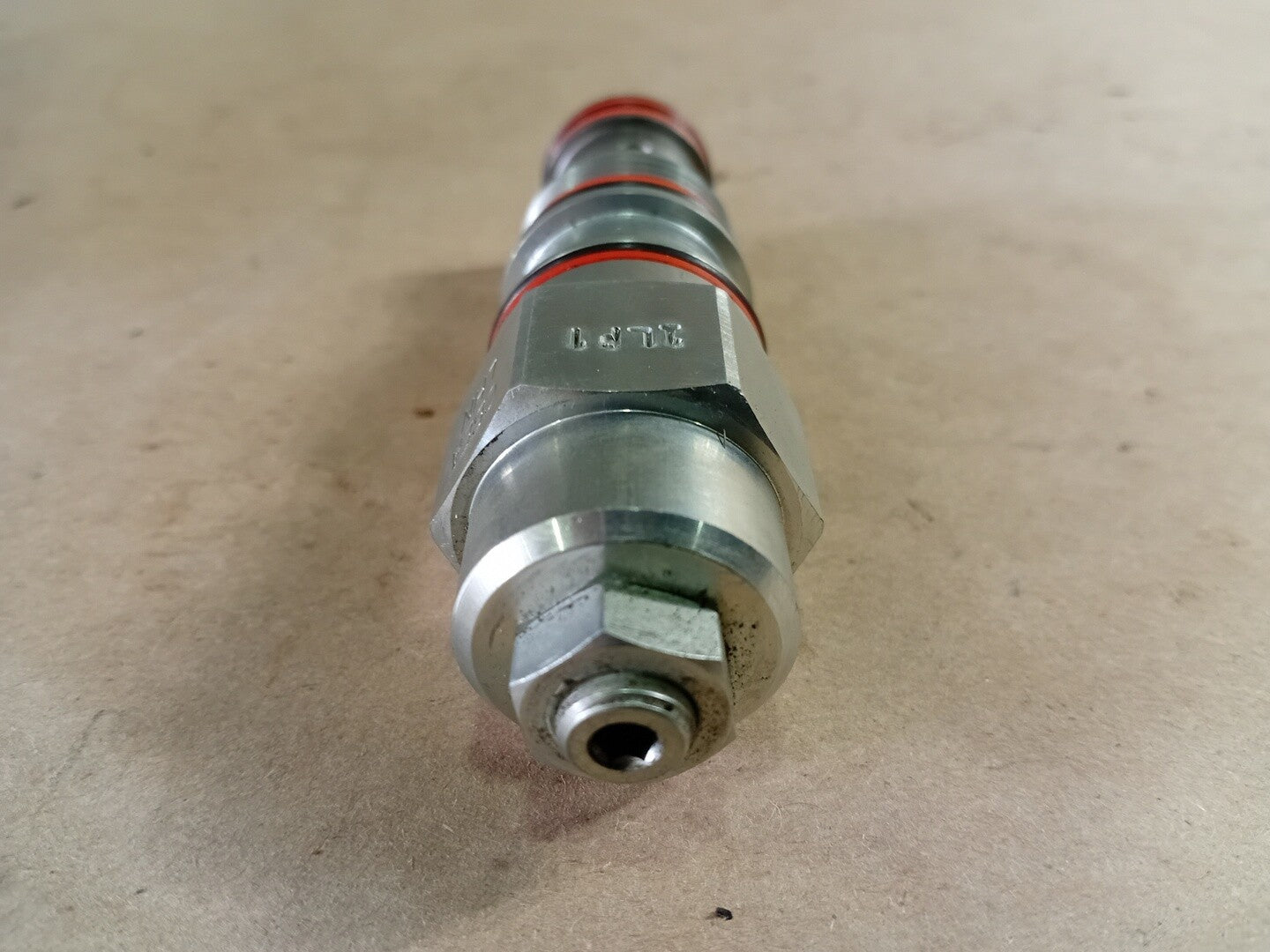

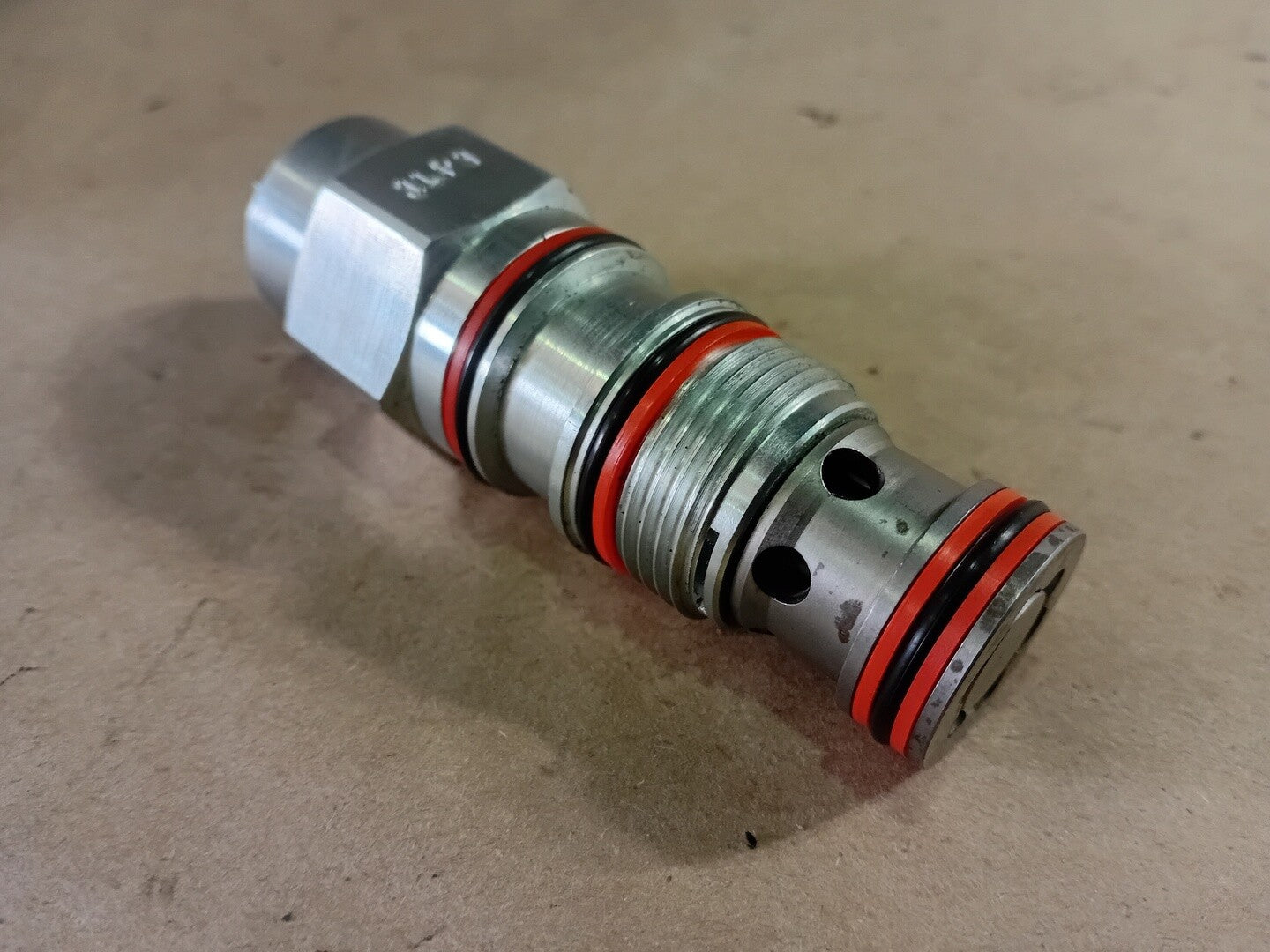

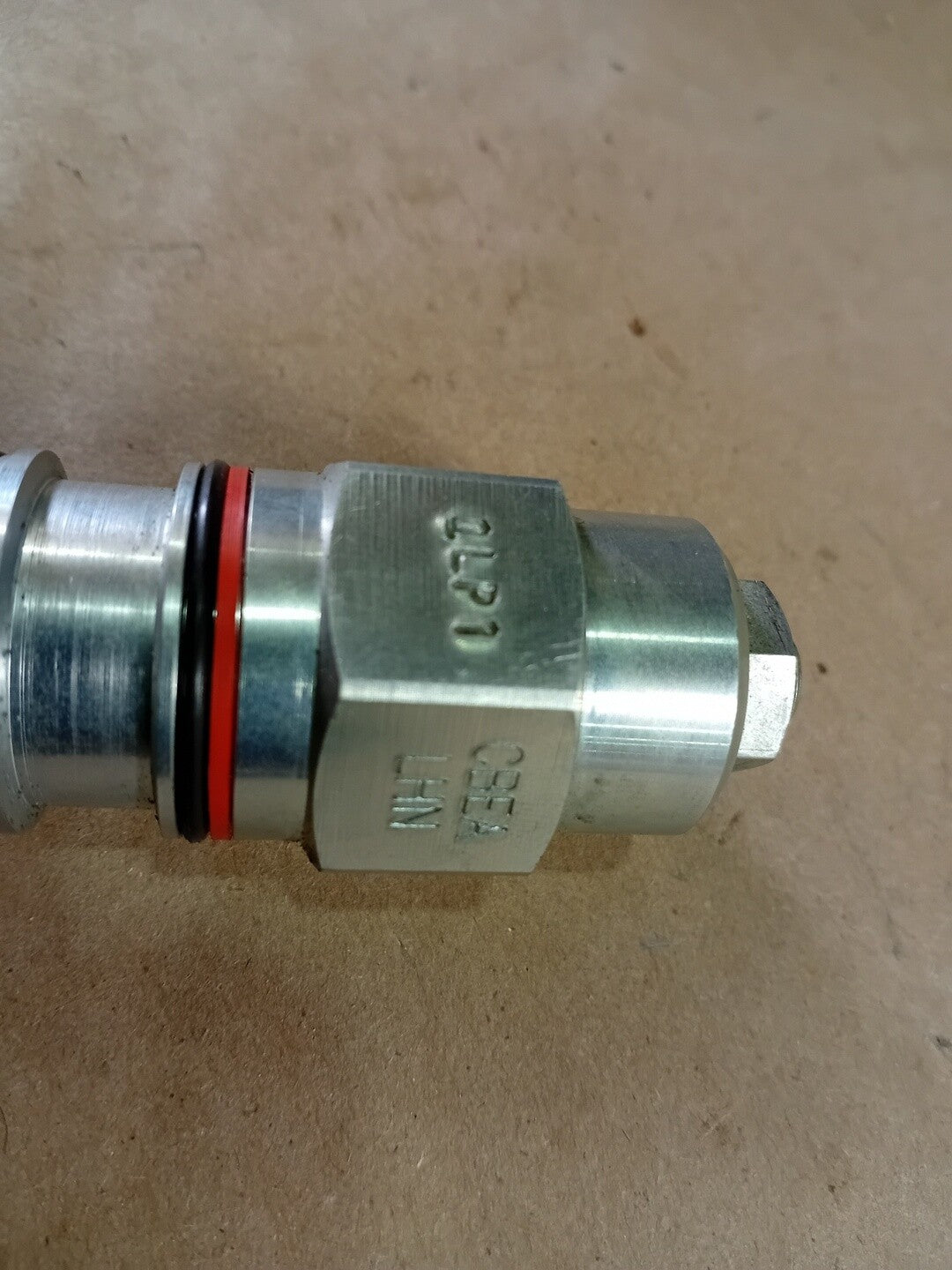

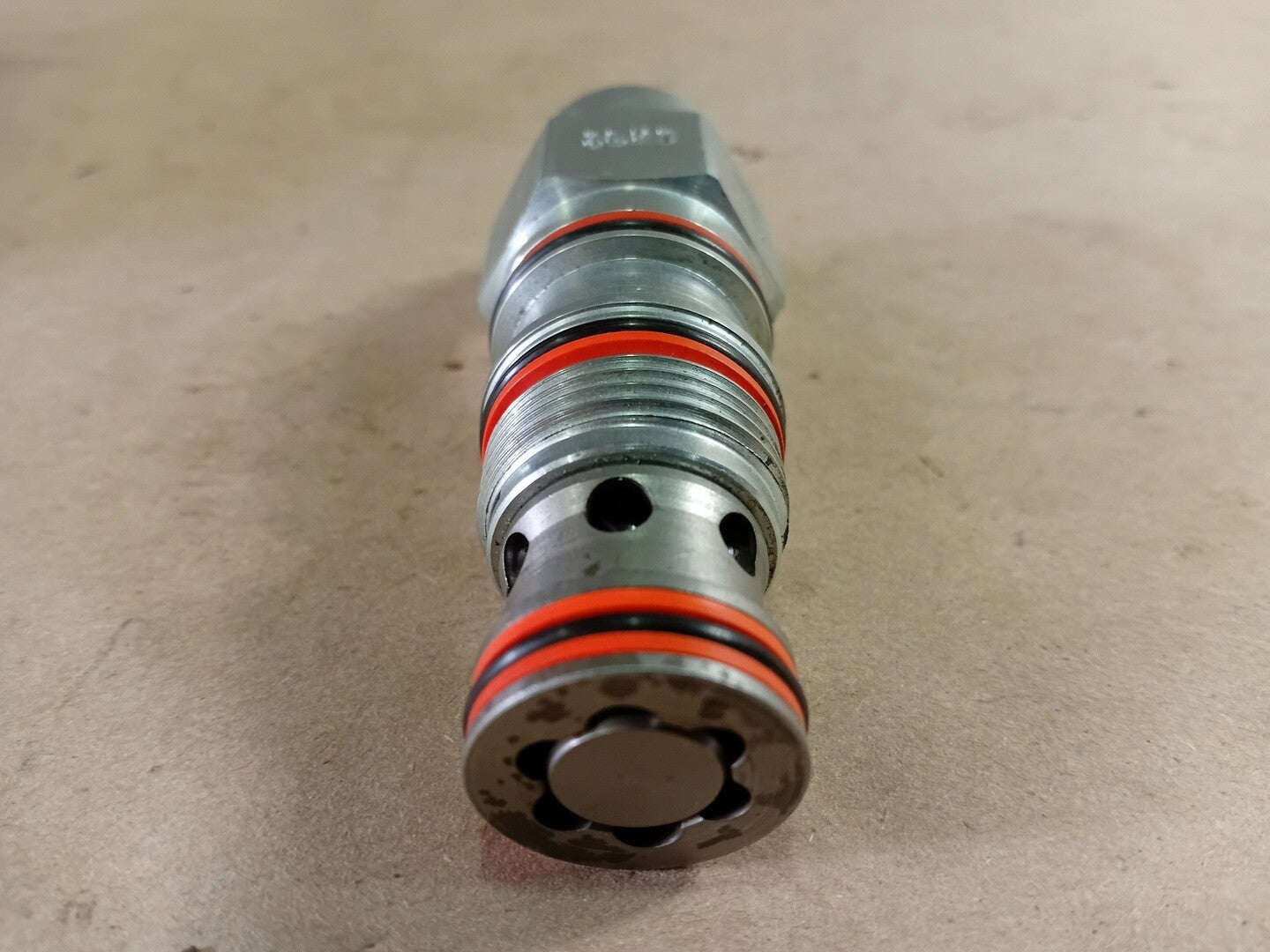

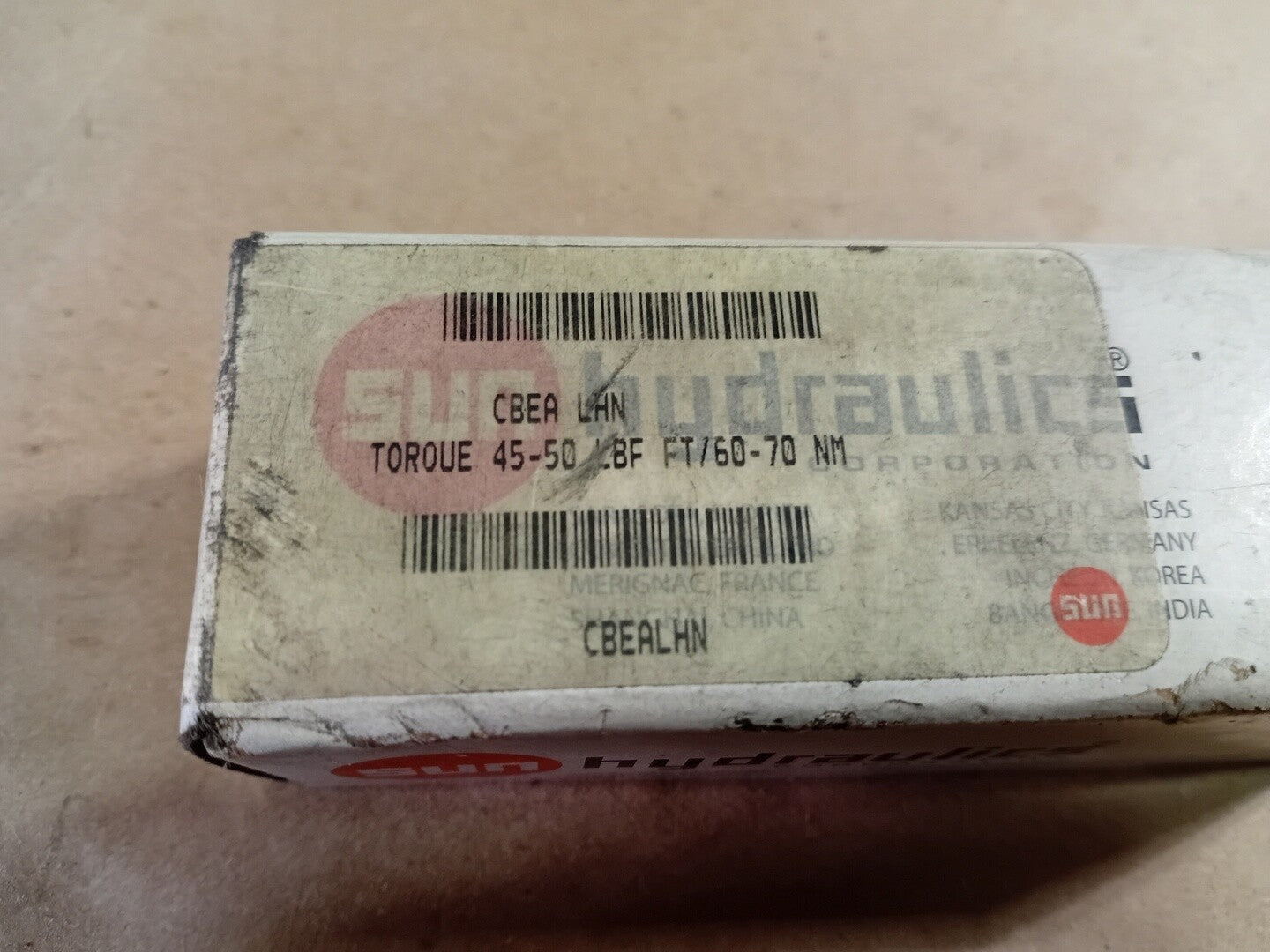

| Model | CBEA LHN |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Cavity: T-2A Series: 2 Capacity: 30 gpm Pilot Ratio: 3:1 Maximum Recommended Load Pressure at Maximum Setting: 3075 psi Maximum Setting: 4000 psi Pilot Configuration: Bleed through Factory Pressure Settings Established at: 2 in3/min. Maximum Valve Leakage at Reseat: 5 drops/min. Adjustment - No. of CCW Turns from Min. to Max. Setting: 3.75 Operating Characteristic: Standard Reseat: >85% of setting Valve Hex Size: 1 1/8 in. Valve Installation Torque: 45 - 50 lbf ft Adjustment Screw Internal Hex Size: 5/32 in. Locknut Hex Size: 9/16 in. Locknut Torque: 80 - 90 lbf in. |
