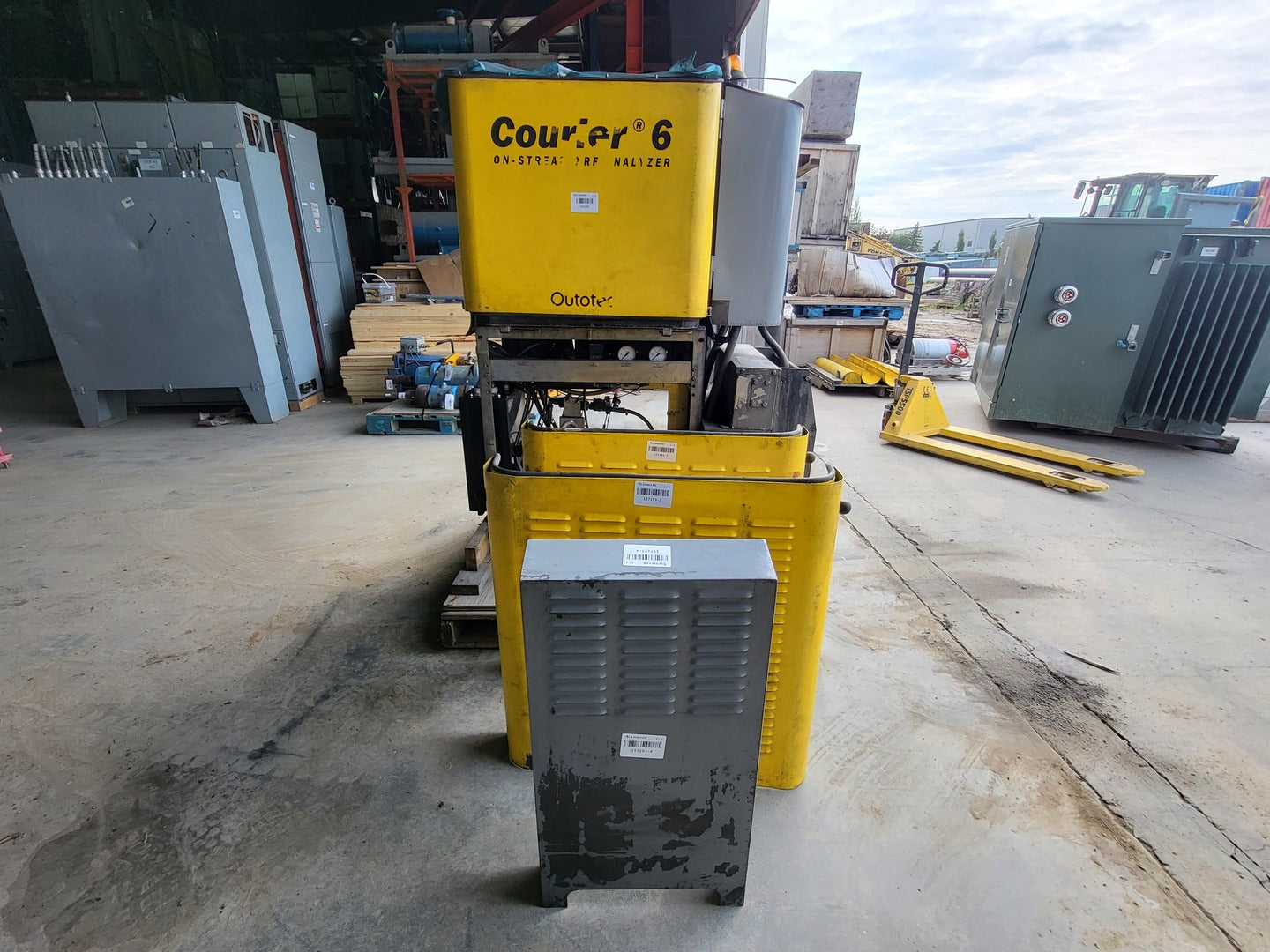

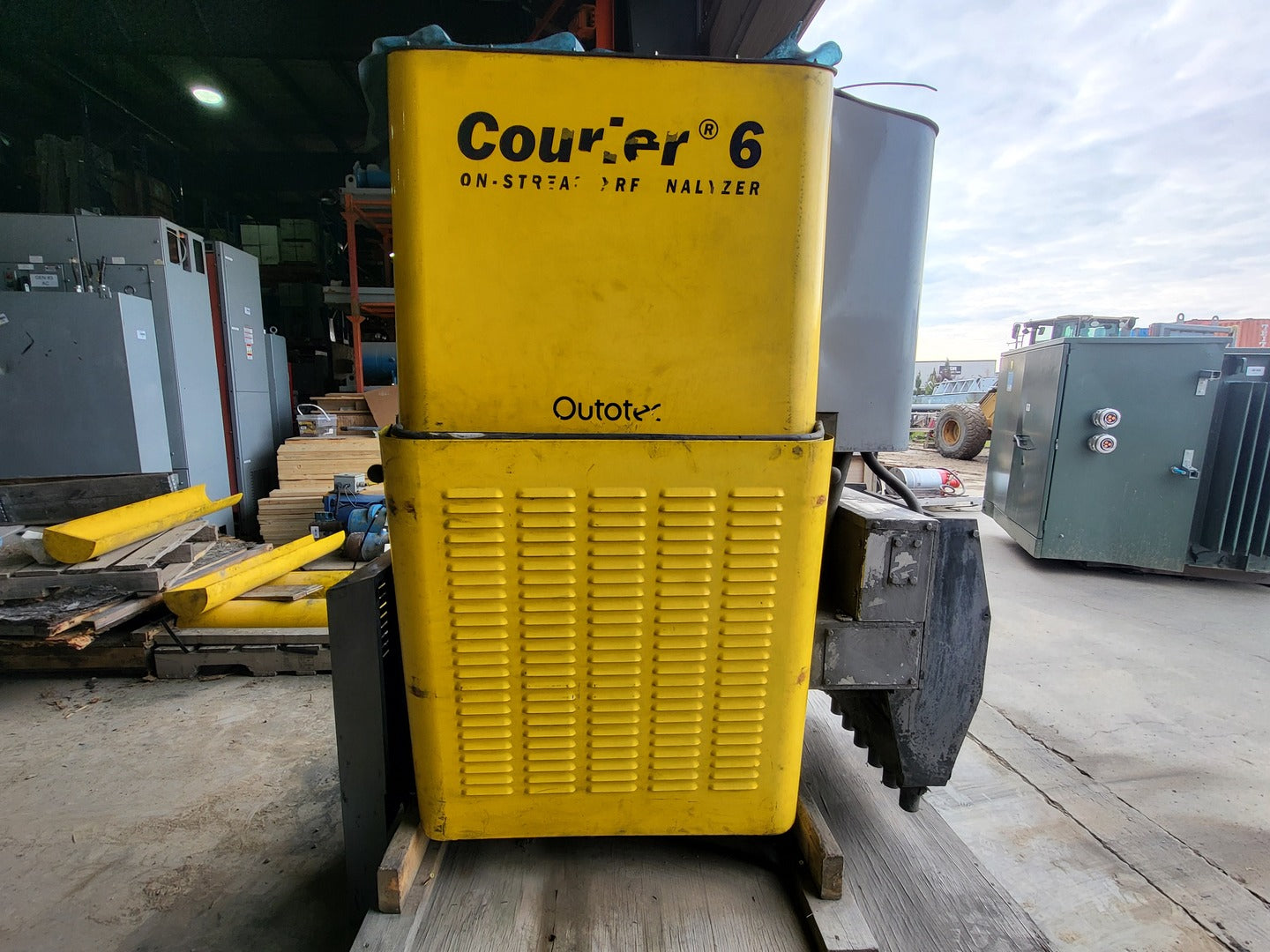

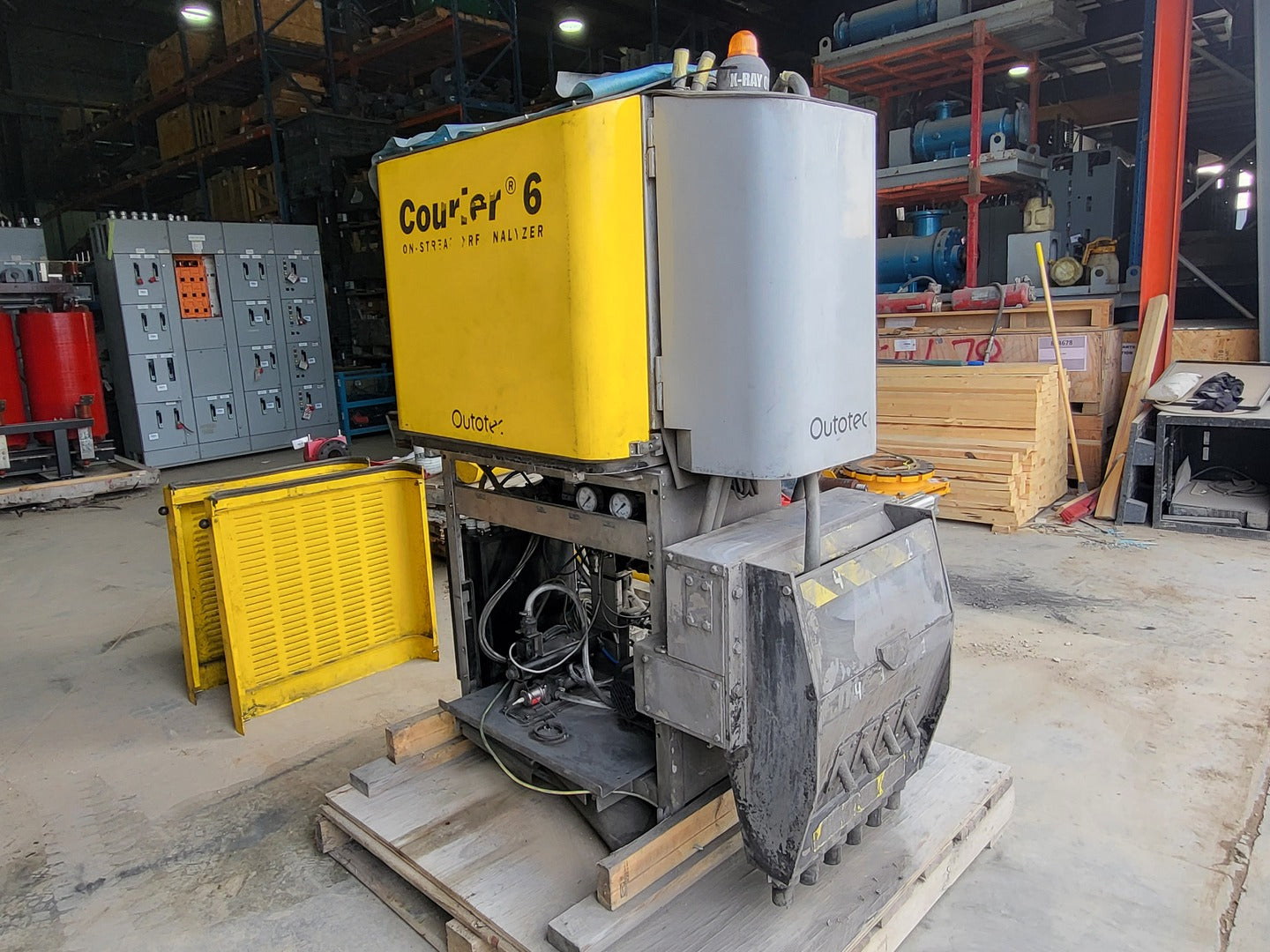

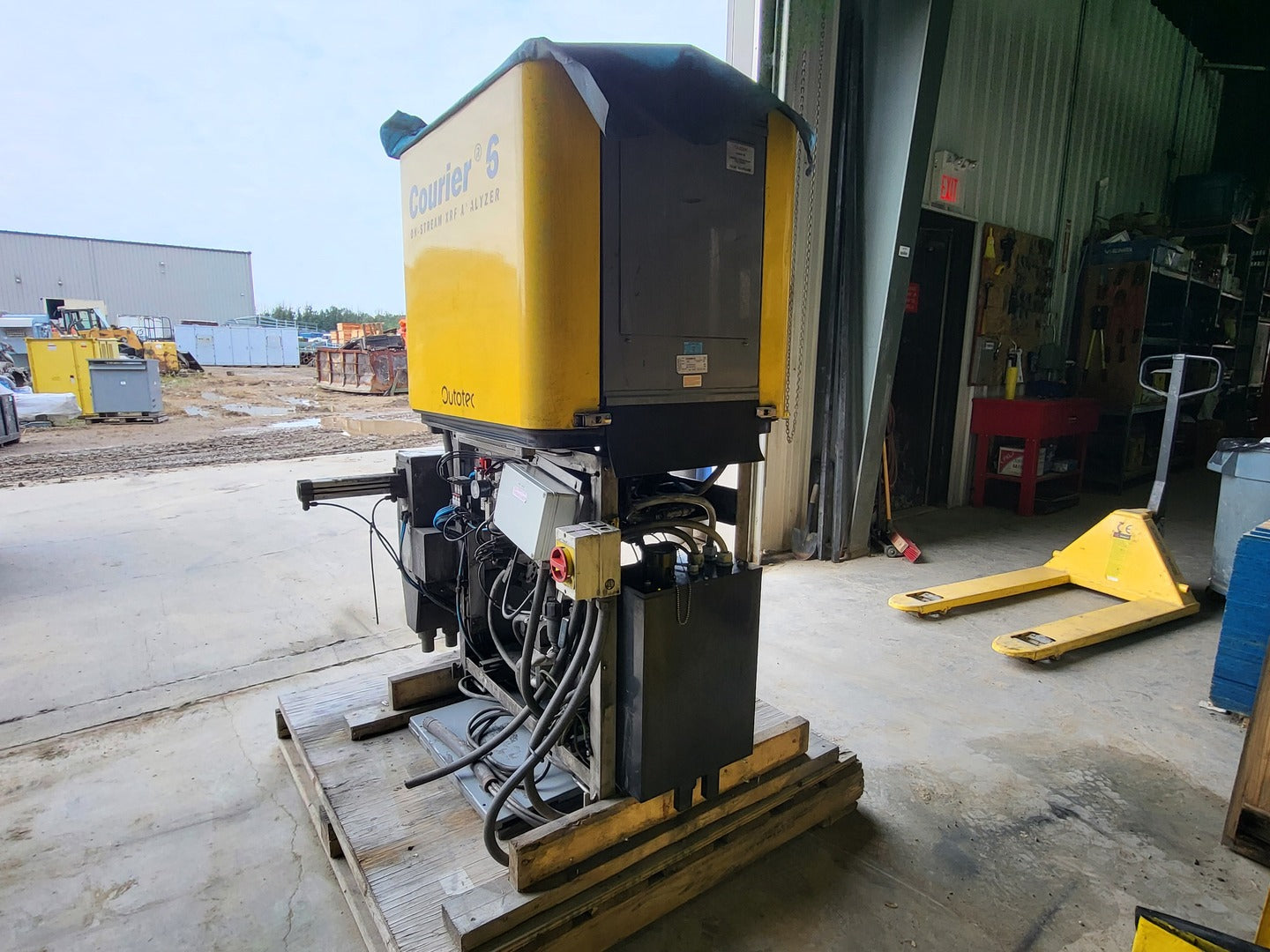

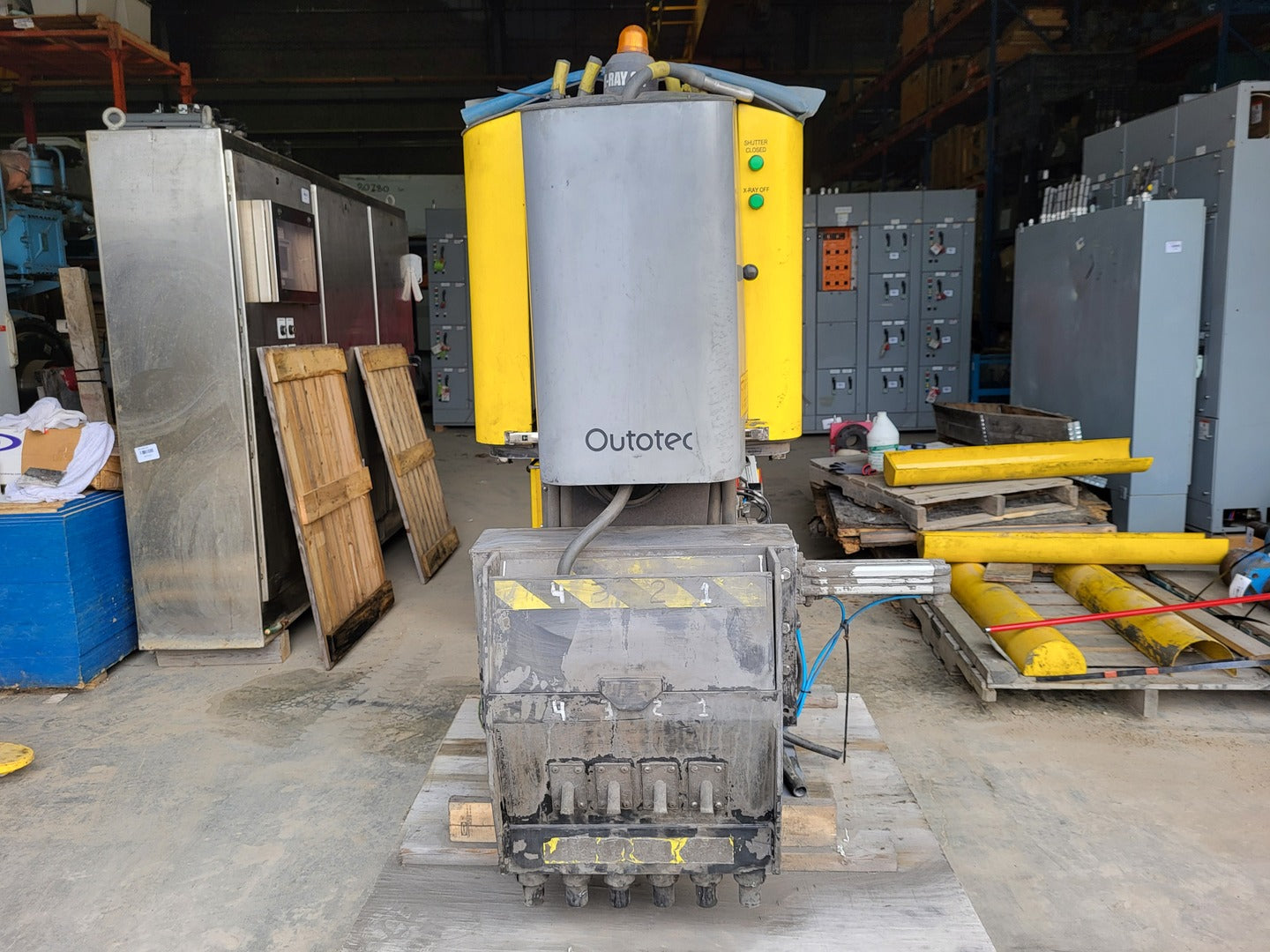

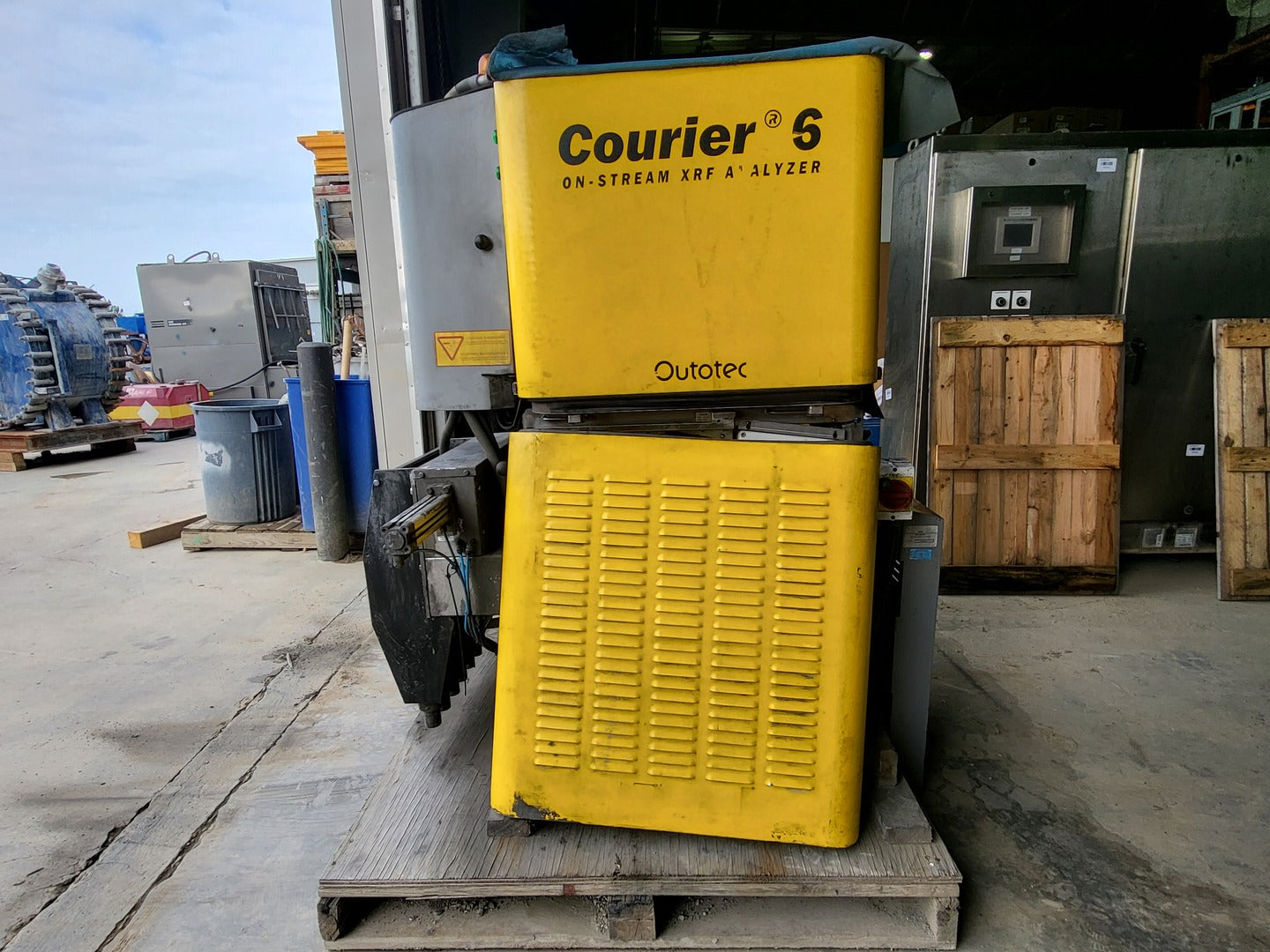

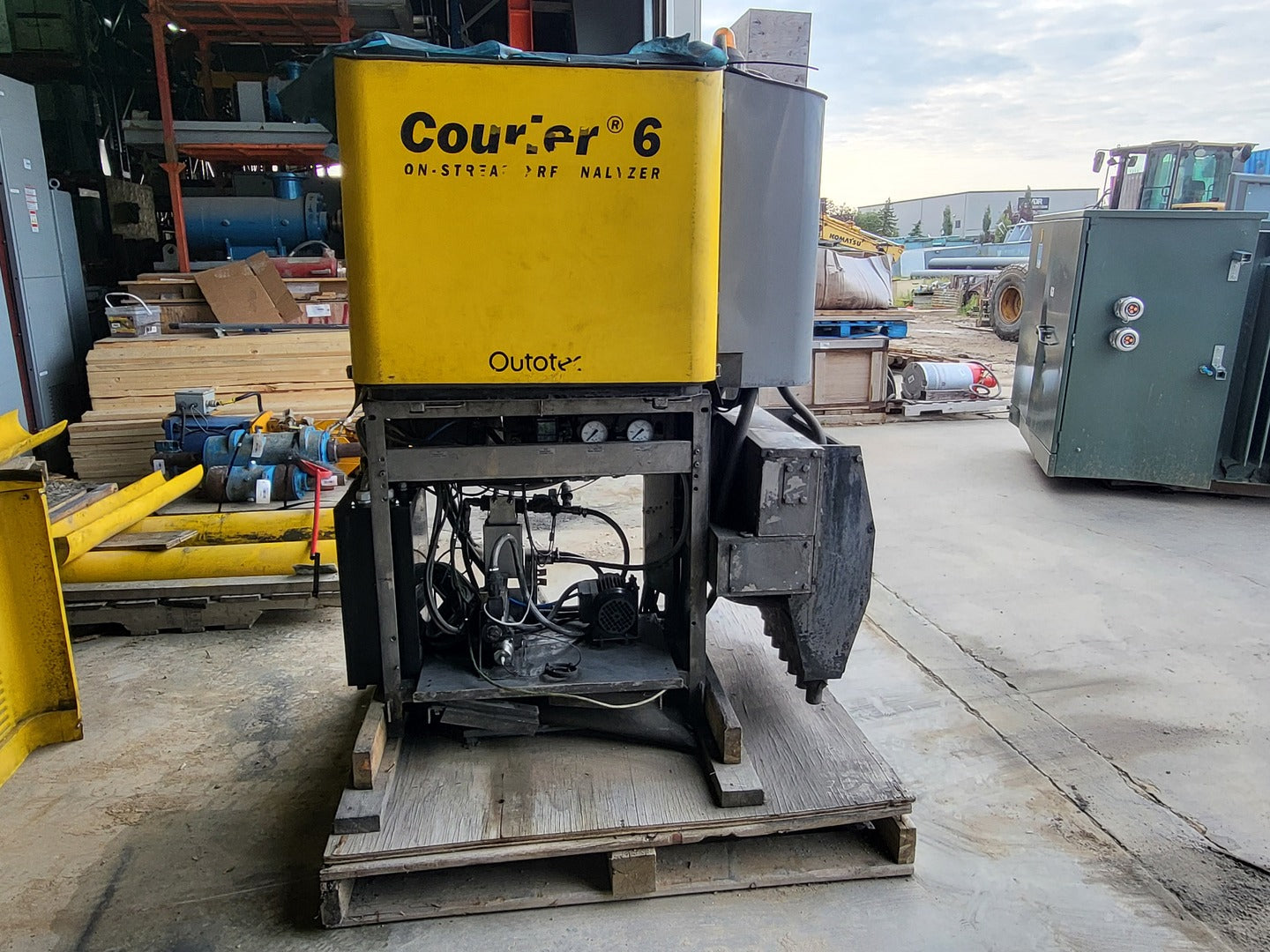

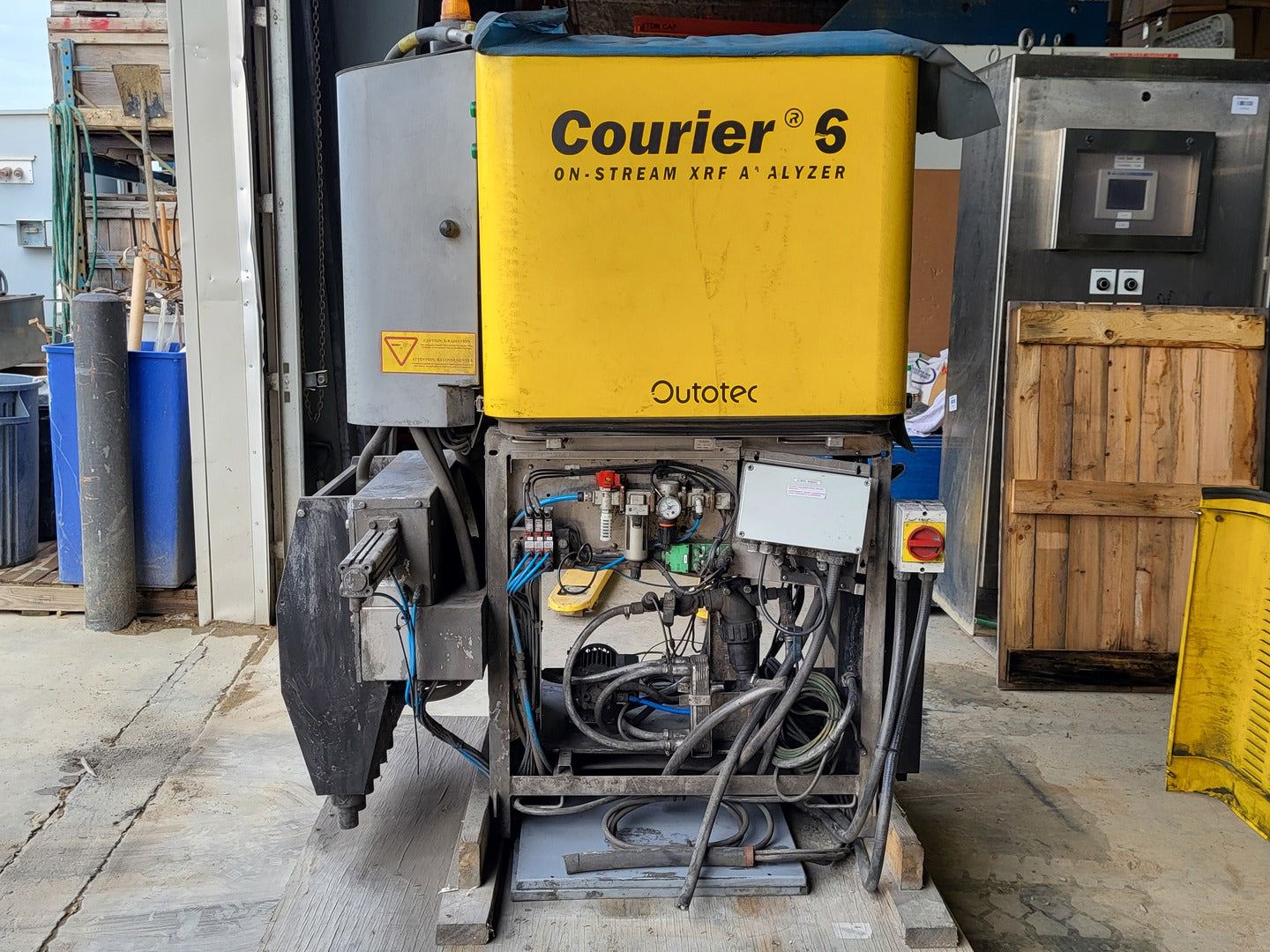

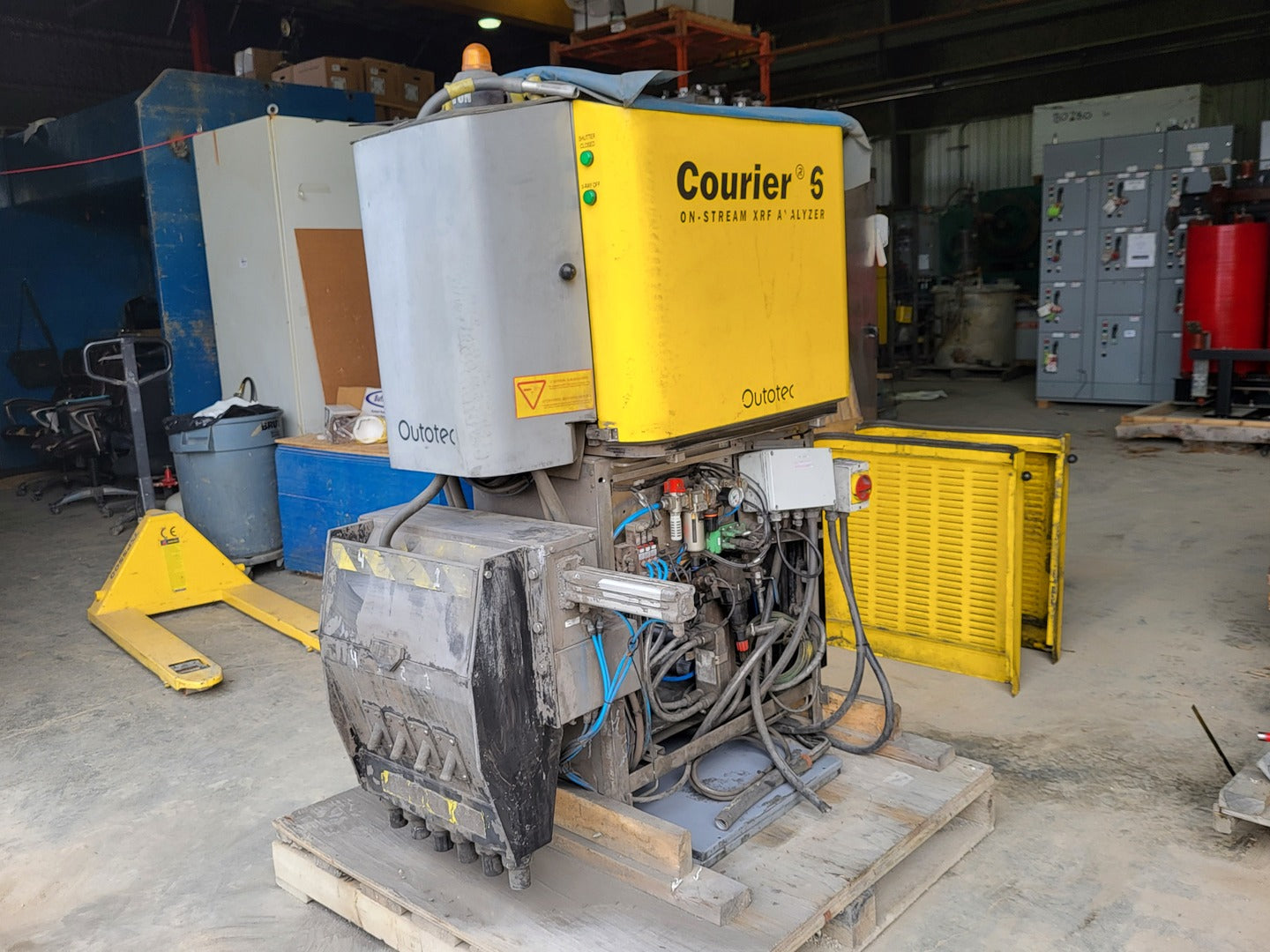

OUTOTEC Courier 6i On-Stream XRF Analyzer
OUTOTEC

Courier 6i On-Stream XRF Analyzer

SKU: 157193
Price:
$80,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Specifications

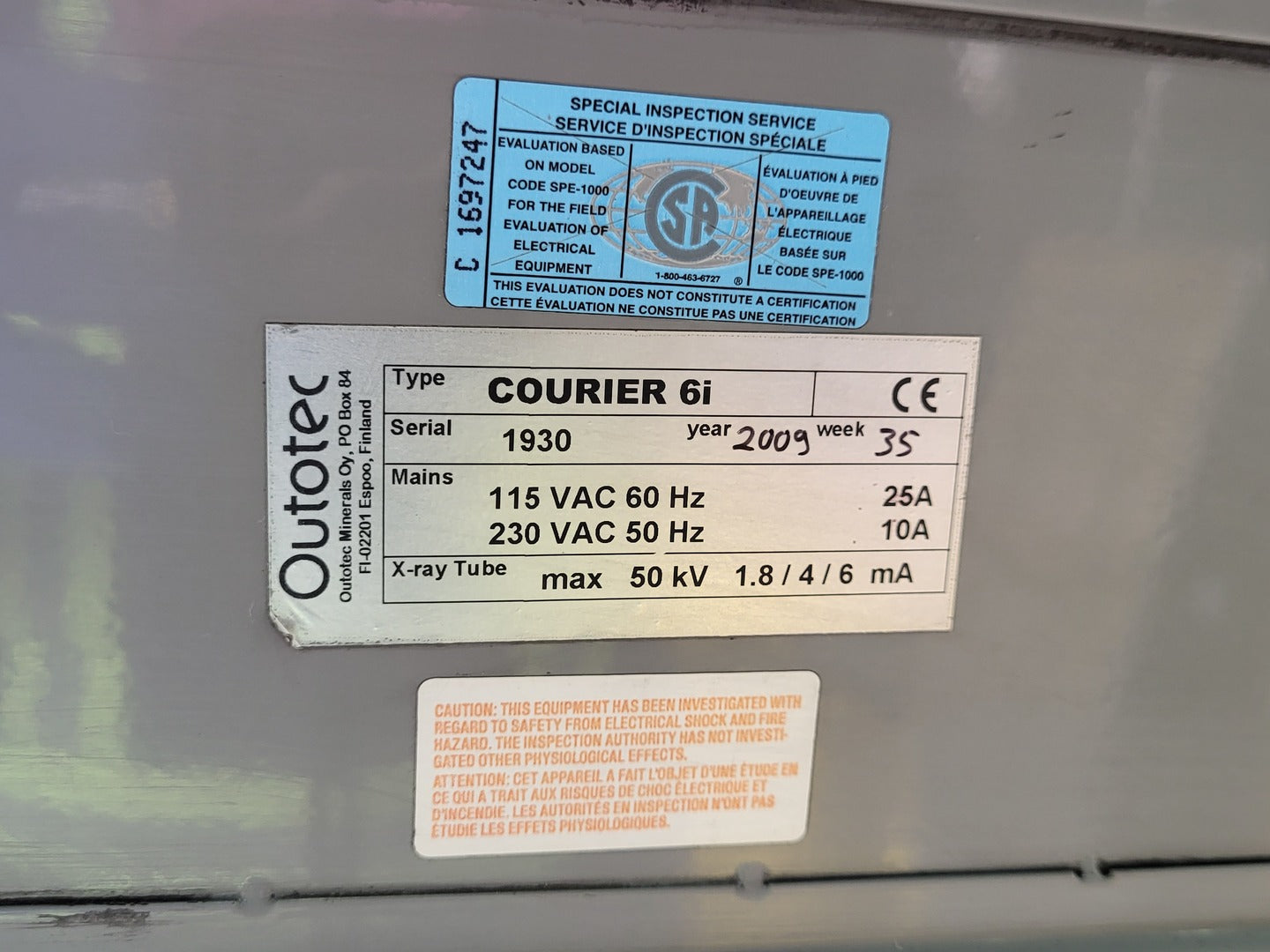

Model Courier 6i
Year: 2009
S/N: 1930
Condition Used
Other Specifications

Description: Courier 6i analyzer is designed for accurate and reliable on-stream X-ray fluorescence (XRF) measurement of element concentrations in slurries for up to 24 samples.

Analysis Method: The analysis method is Wavelength Dispersive X-ray Fluorescence (WDXRF) with X-ray tube excitation and fixed crystal spectrometers. An additional Energy Dispersive (EDXRF) measurement can be performed by using an optional proportional counter and/or a Peltier cooled solid state detector.

Main Electrical:

  1. 115 VAC, 60 Hz, 25 A, 1-ph
  2. 230 VAC, 50 Hz, 10 A, 1-ph

X-Ray Tube: Max. 50 kV, 1.8/4/6 mA

Element Range: Calcium to Uranium (Atomic numbers 20 to 92)

Number of simultaneous assays:

  1. The Courier 6i analyzer probe can have up to 6 parallel measurement channels, based on either fixed spectrometers (WDXRF) or energy dispersive detectors (EDXRF).
  2. The number of simultaneous assays is dependent on the application; in practice one can measure simultaneously 1-12 element concentrations and the solids content of the slurry.

Count Rate: There are up to 30,000 counts per second for each WDXRF channel

Concentration Range: 0.002 to 100% by weight for slurries

Detection Limit:

  1. The detection limit for most elements is 3-30 ppm in slurries.
  2. For Chrome and lighter elements, elements from Cadmium to Promethium and with ED channels, the detection limit is higher.
