Description

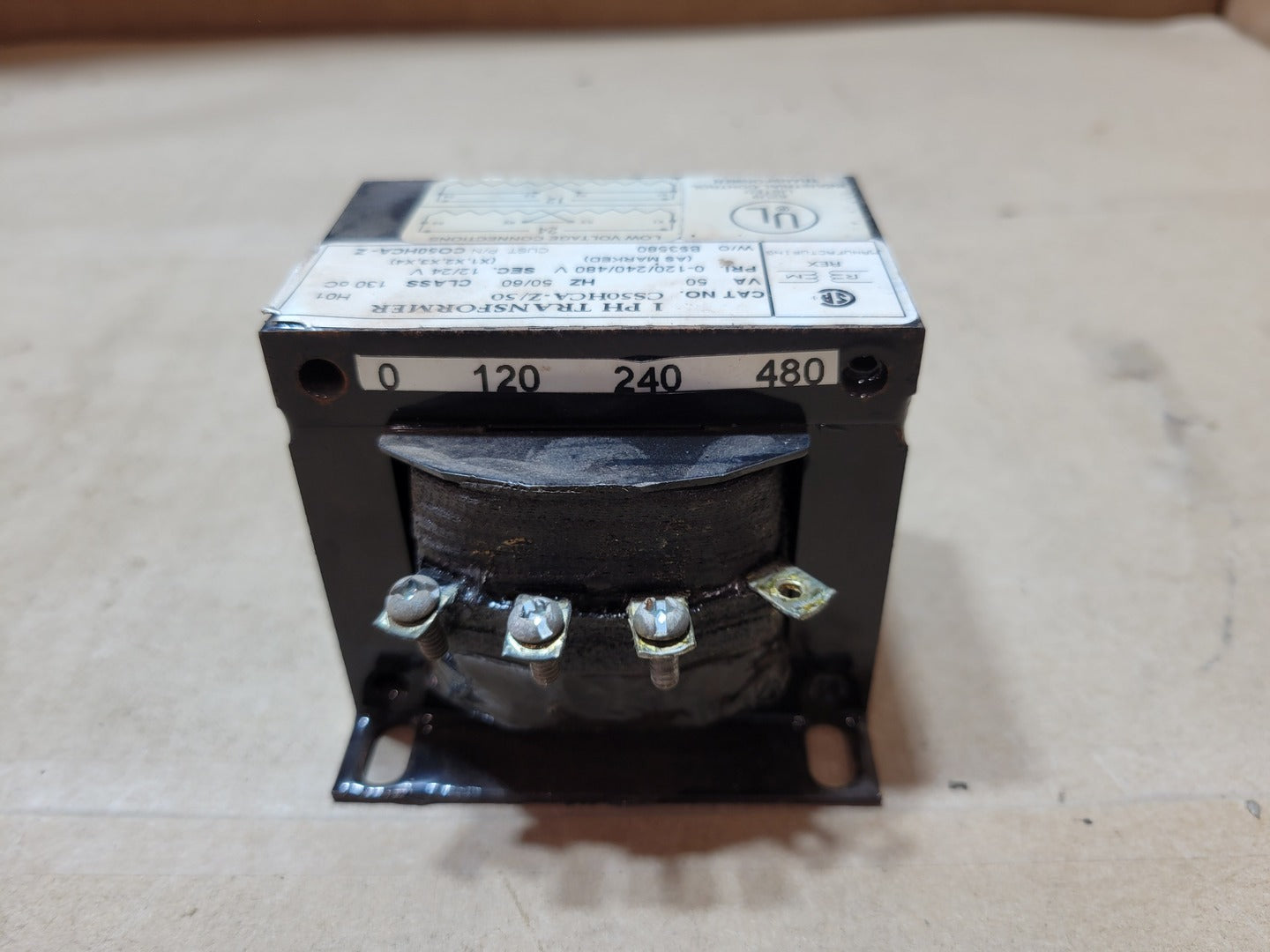

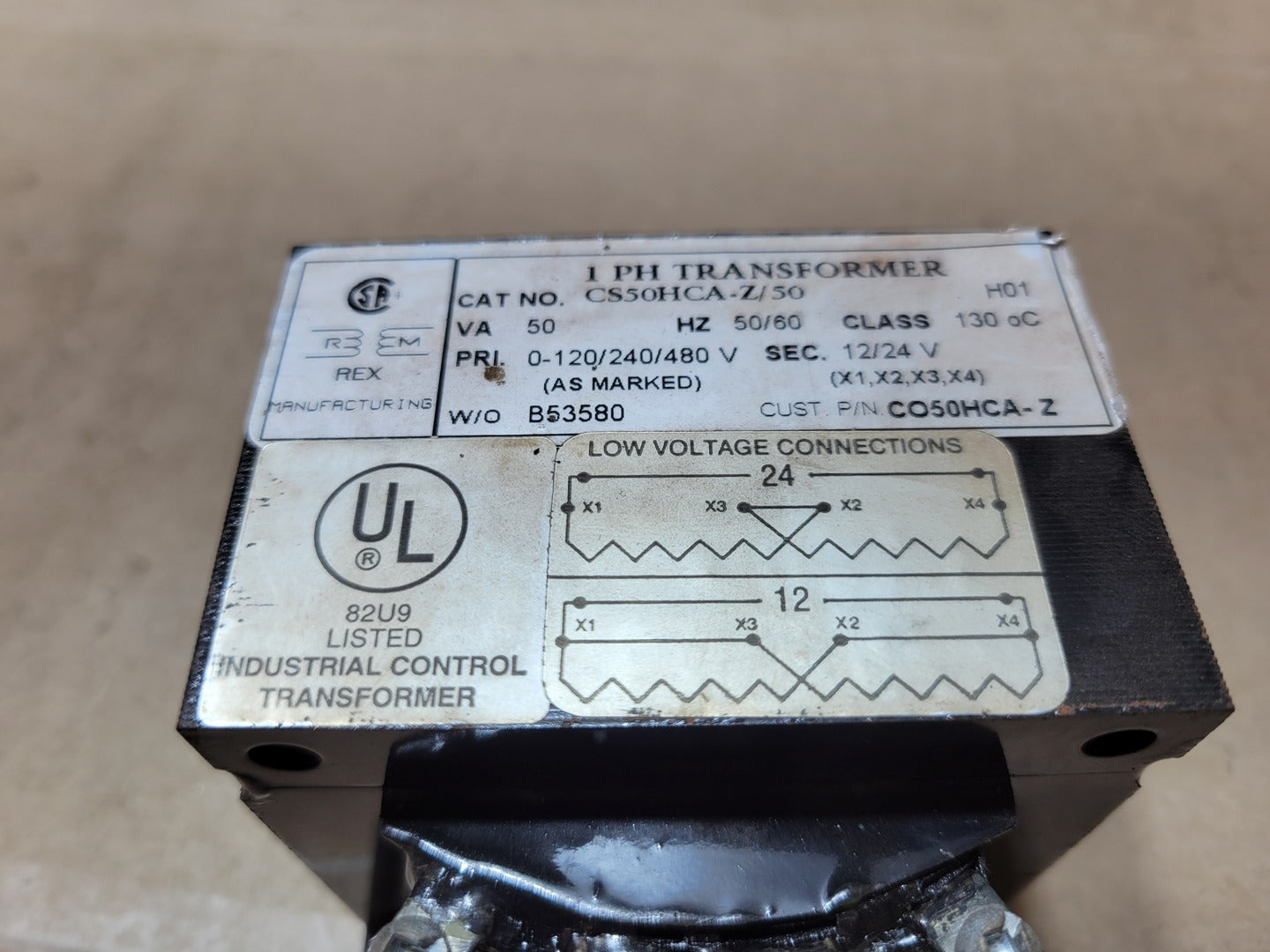

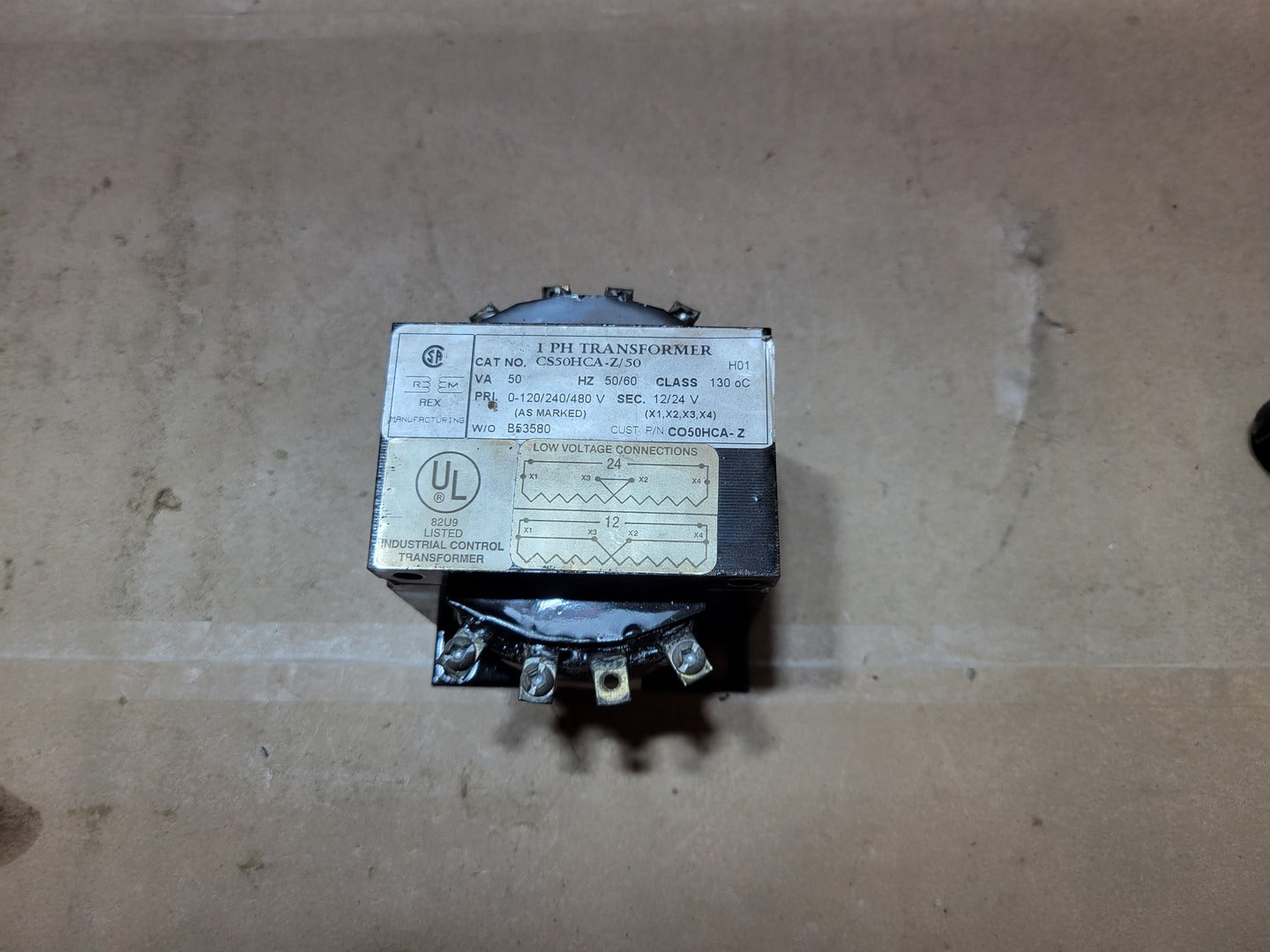

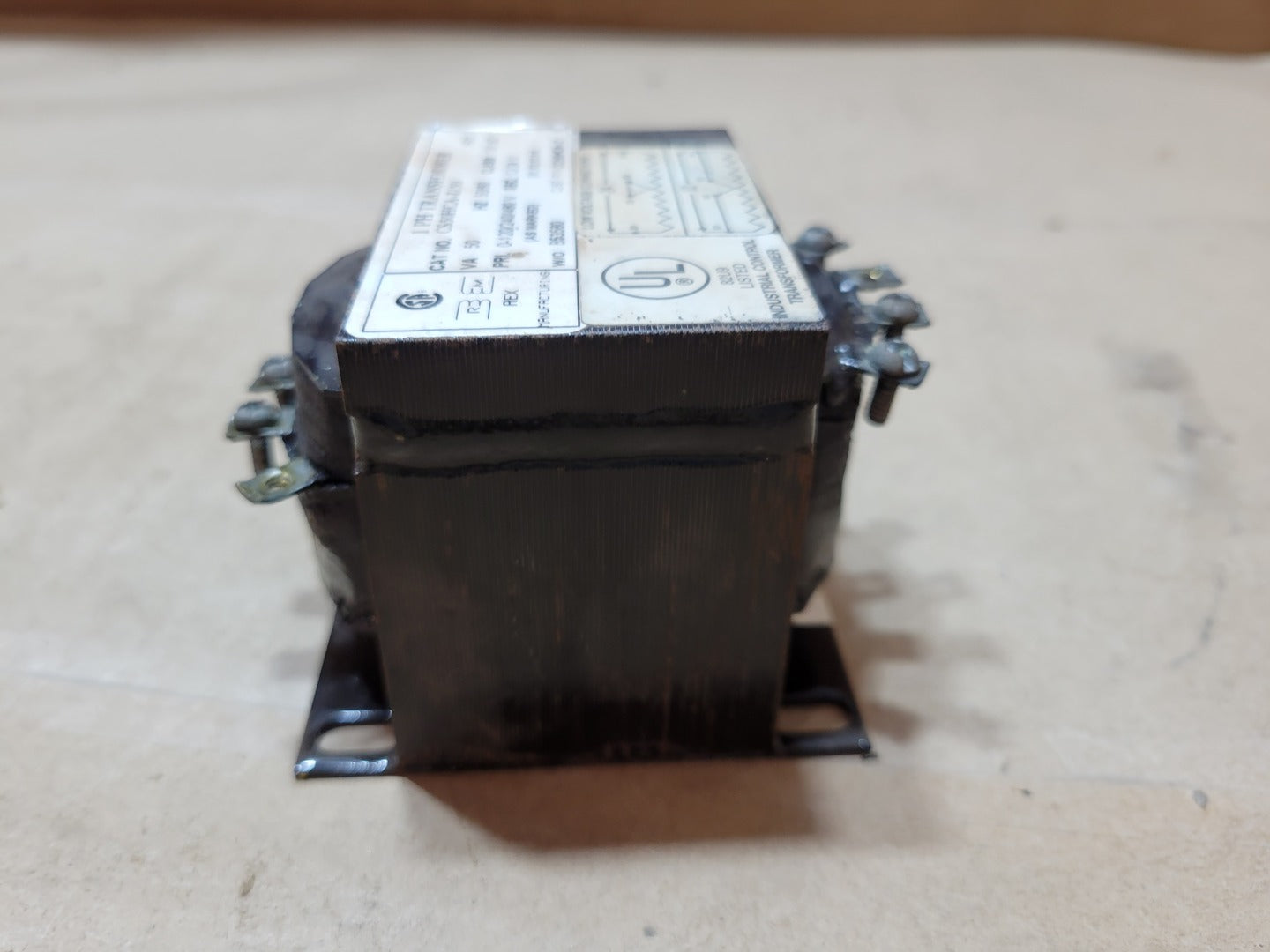

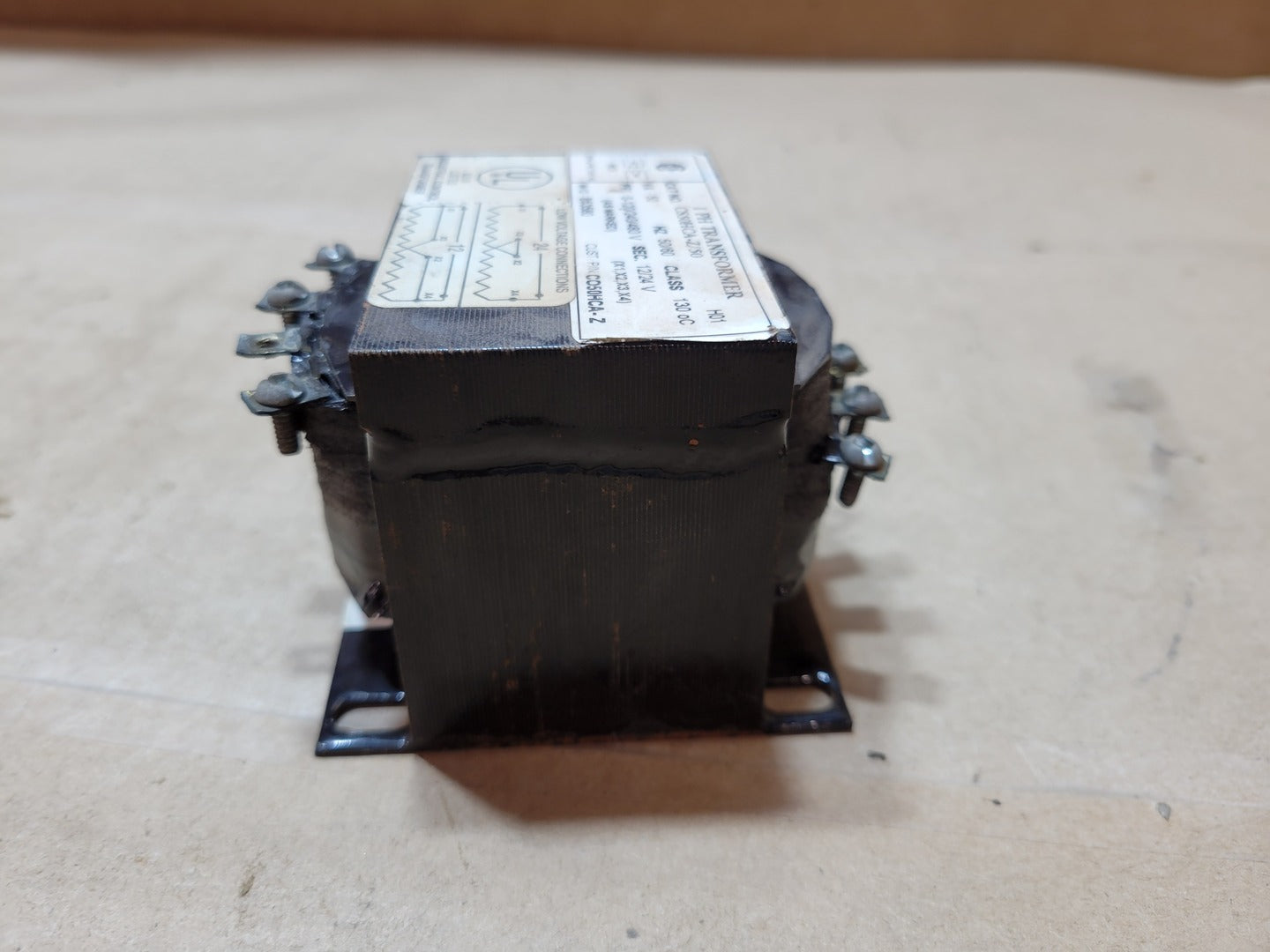

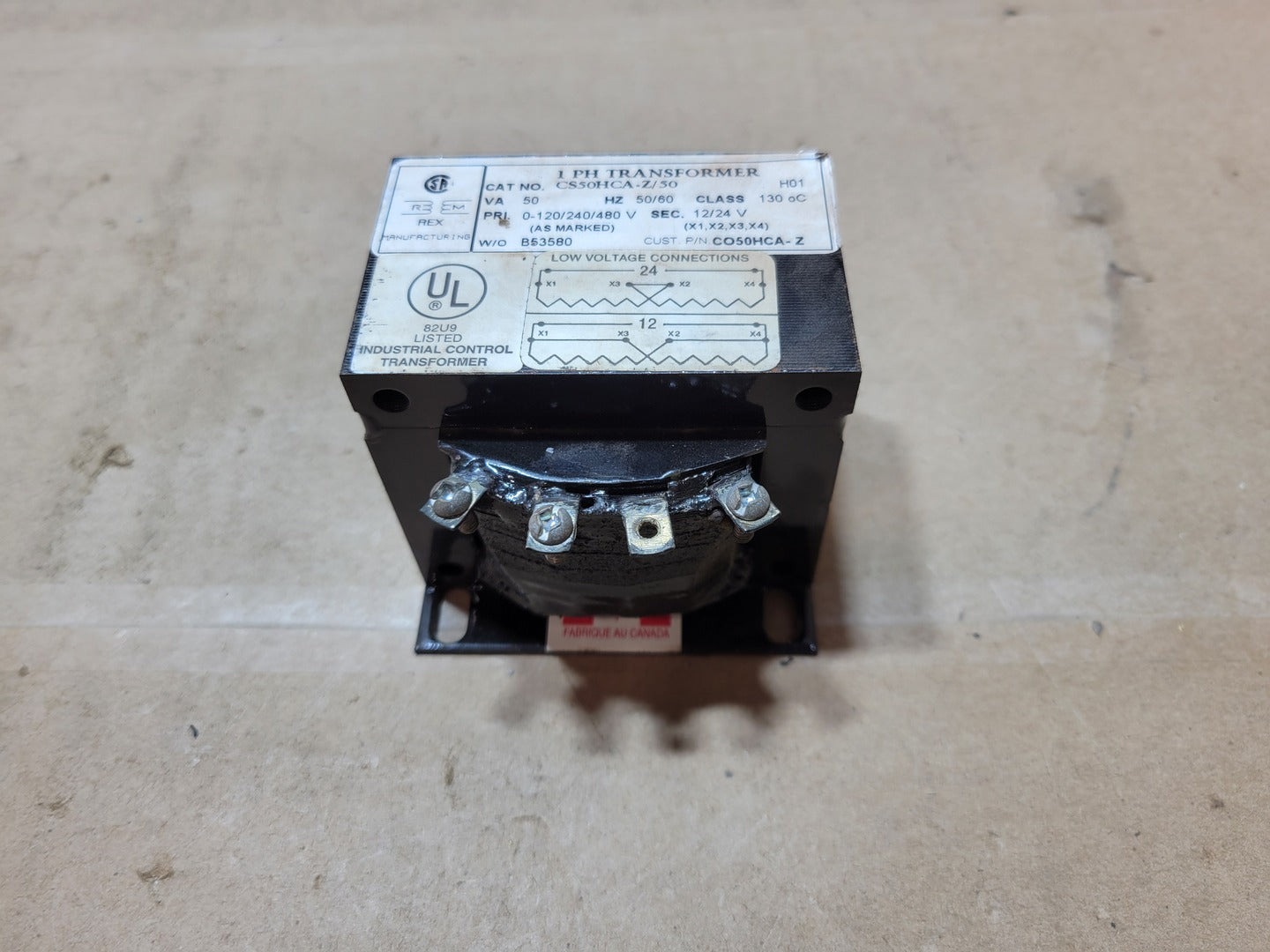

REX Manufacturing CS50HCA-Z/50 single-phase industrial control transformer rated 50 VA, with selectable 120V, 240V, or 480V AC primary connections and configurable 12V or 24V AC secondary output. Features 50/60 Hz operation, Class 130°C insulation, open-frame laminated steel-core construction, screw terminals, and a slotted mounting base.
| Specifications | |
|---|---|
| Model | CS50HCA-Z/50 |
| Made In | CANADA |
| Condition | Used | Electrical |
| kVA | .05 kVA |
| Primary Voltage | 240/480 volts |
| Secondary Voltage | 12/24 volts |
| Phase | Single-phase |
| Auto VS Isolation | Isolation |
| Other Specifications |
|---|
|
Product Type: Industrial Control Transformer Transformer Type: Step-Down / Multi-Voltage Primary Frequency: 50/60 Hz Insulation Class: 130°C Construction: Open-Frame Laminated Steel Core Terminal Type: Screw Terminals / Connection Tabs Mounting: Metal Base With Slotted Mounting Holes |
