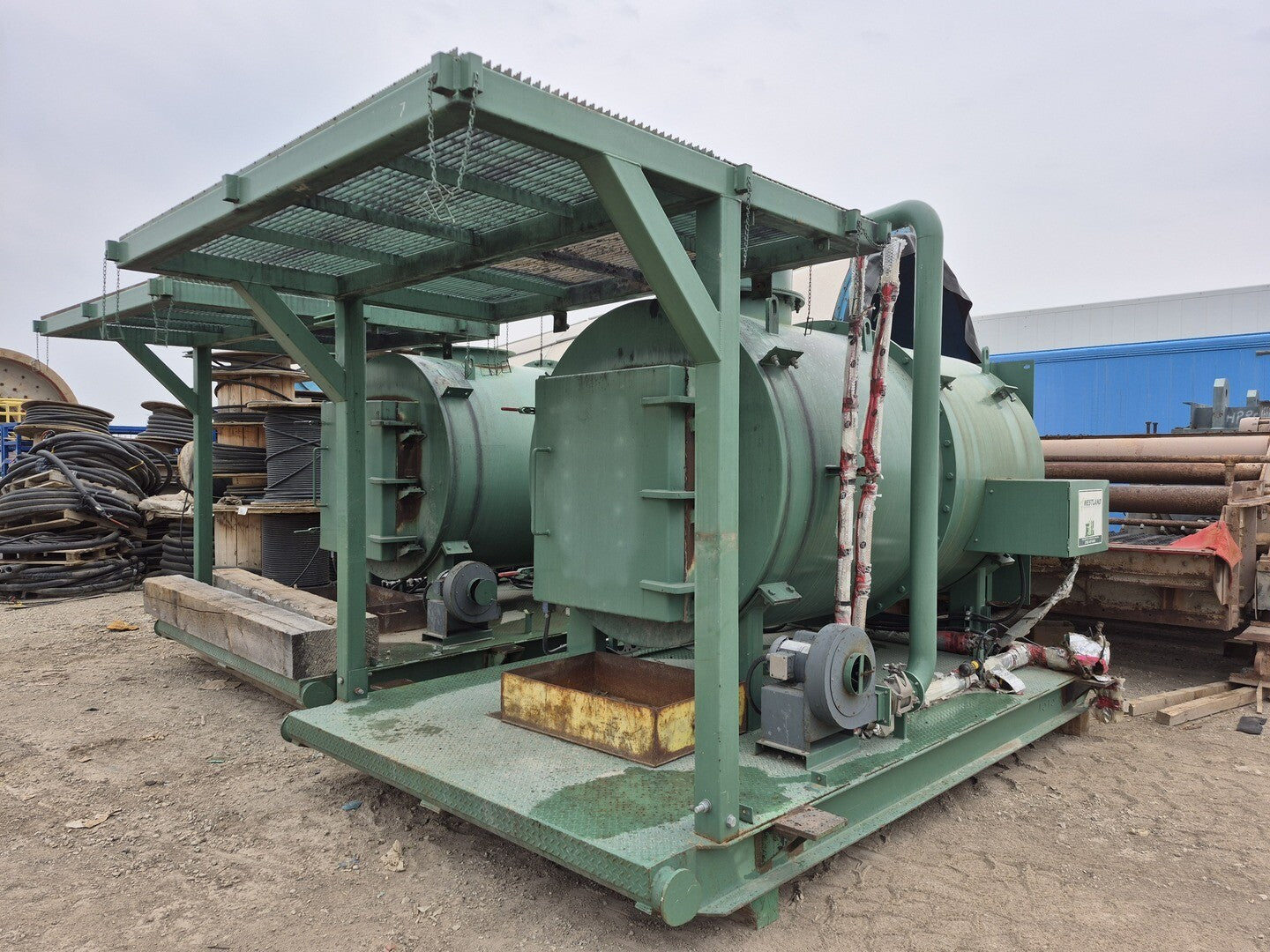

Ketek CY-100-CA Brochure
Features
- Dual chamber, controlled-air operation
- Secondary chamber gas residency time of two seconds

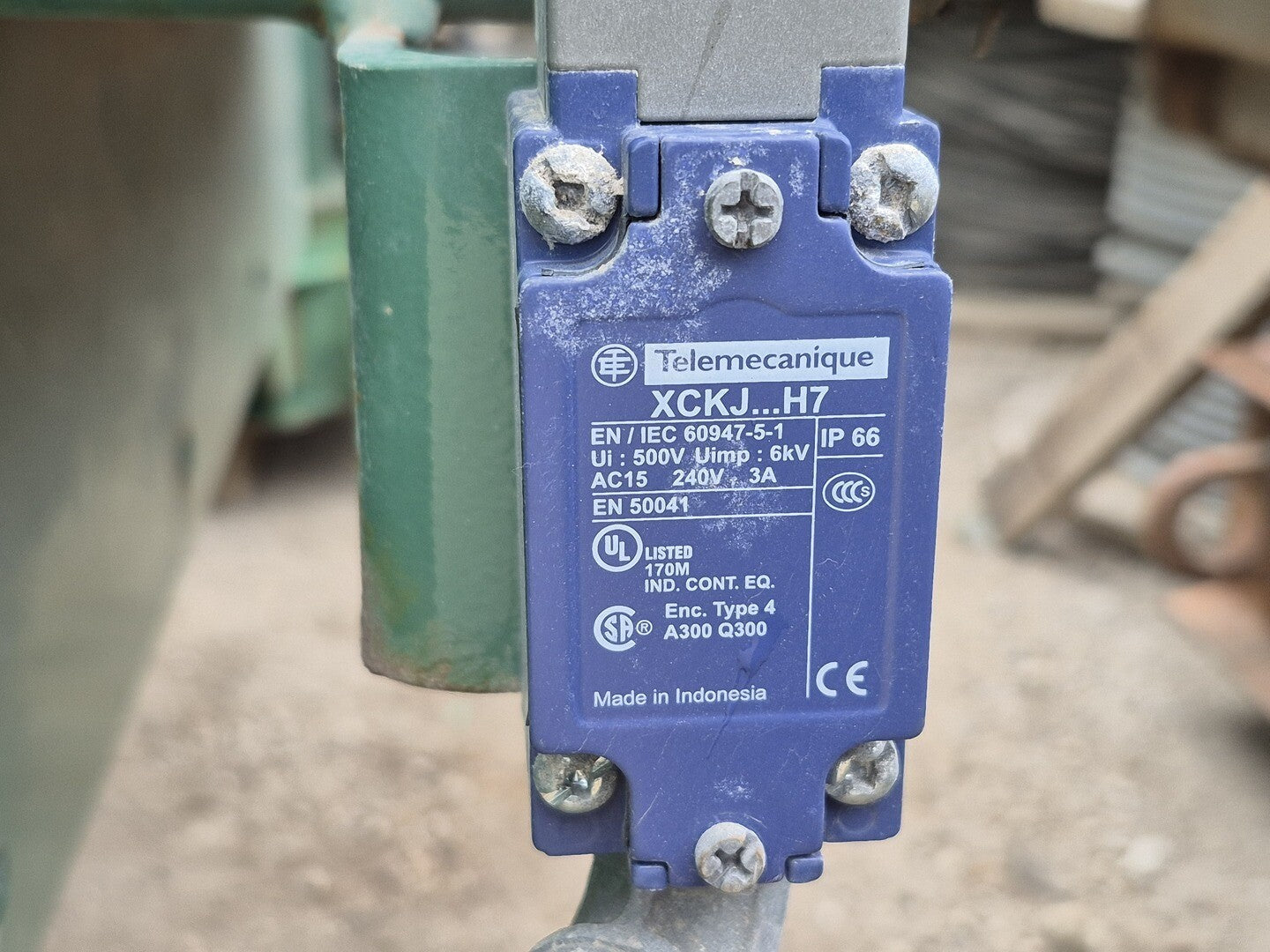

- Built in safety features
- Load-and-go operation
- Low power consumption
- Platform, ladder, ladder cage and handrails
Control System
- Load-and-go, one-button batch operation
- Temperature control for primary and secondary chambers
- PLC real-time data logging
Fuel Supply (diesel-fired units)
- Optional double-walled, 4,500 L fuel storage tank, c/w filter and flexible hose connection
- Optional cold-climate package / Arctic fuel line
Optional Fuels
- LPG, natural gas, diesel

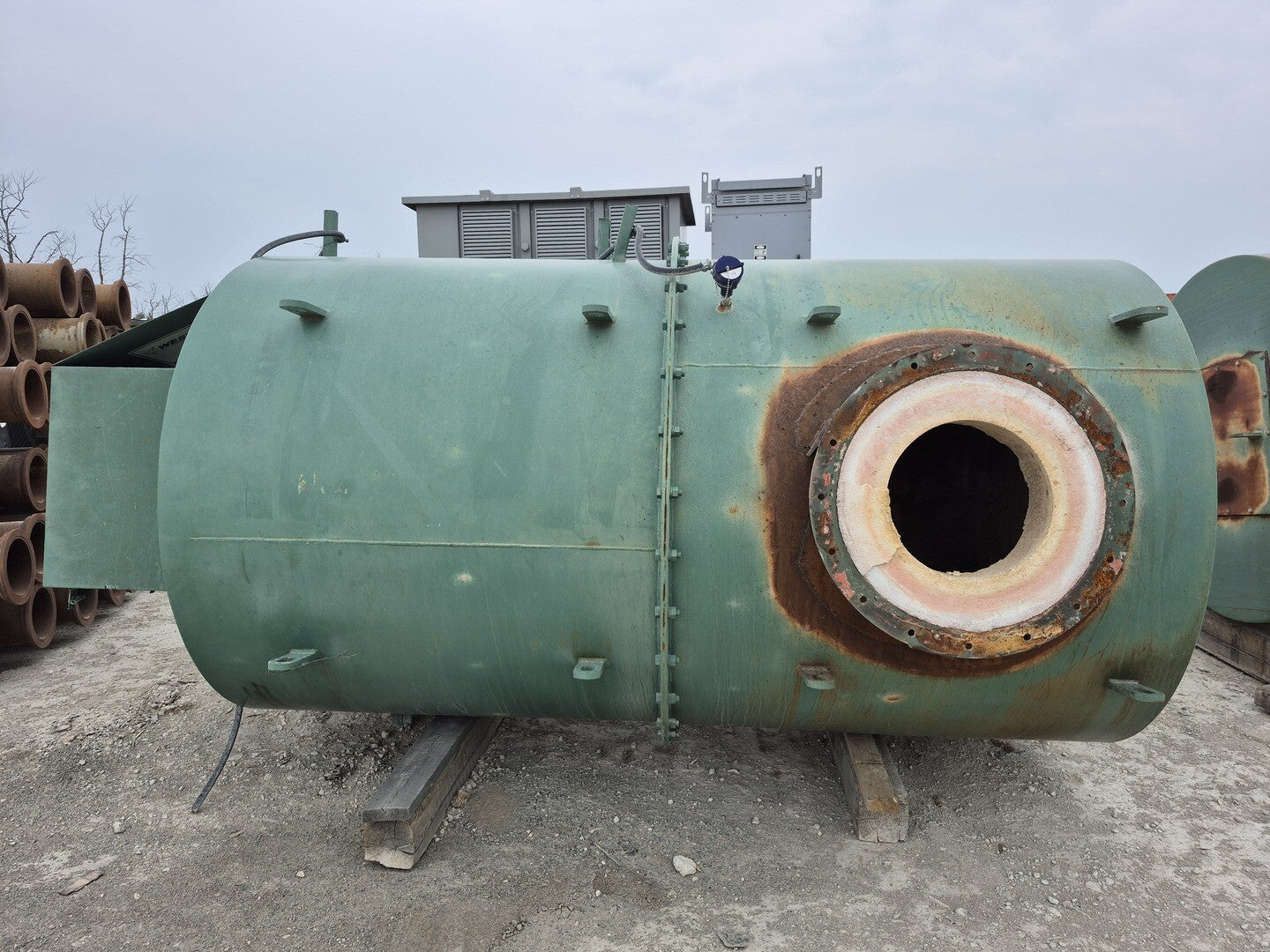

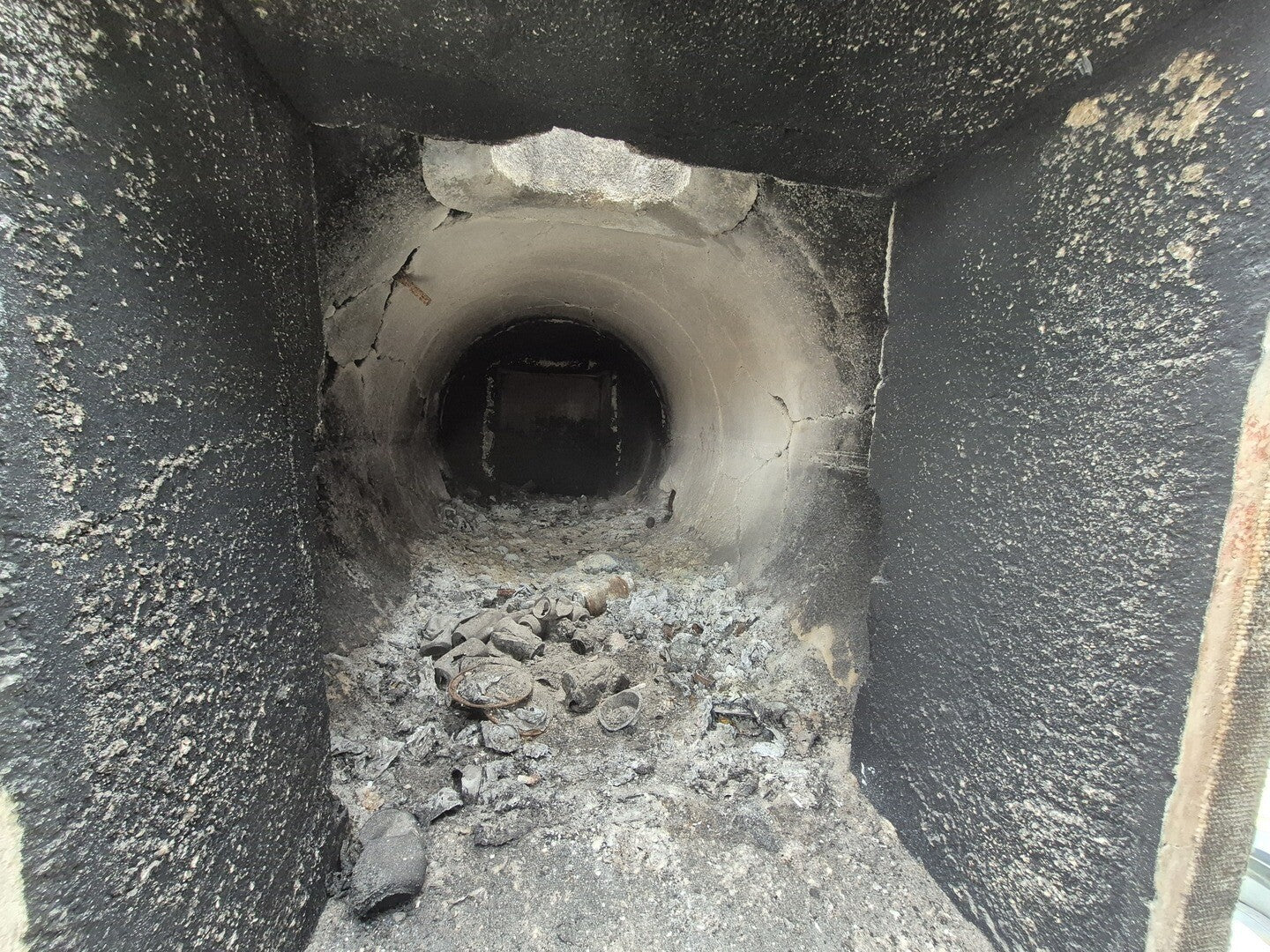

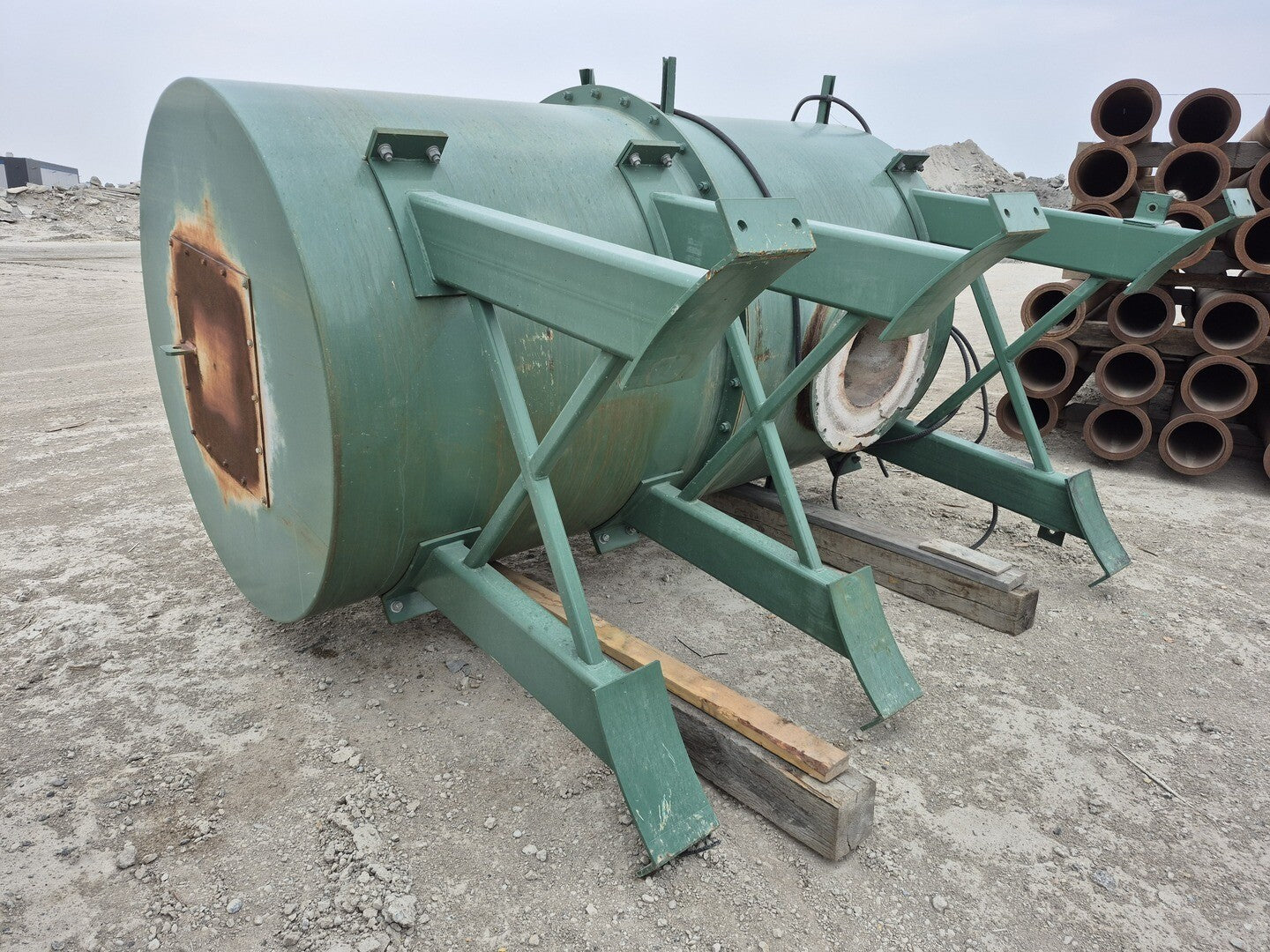

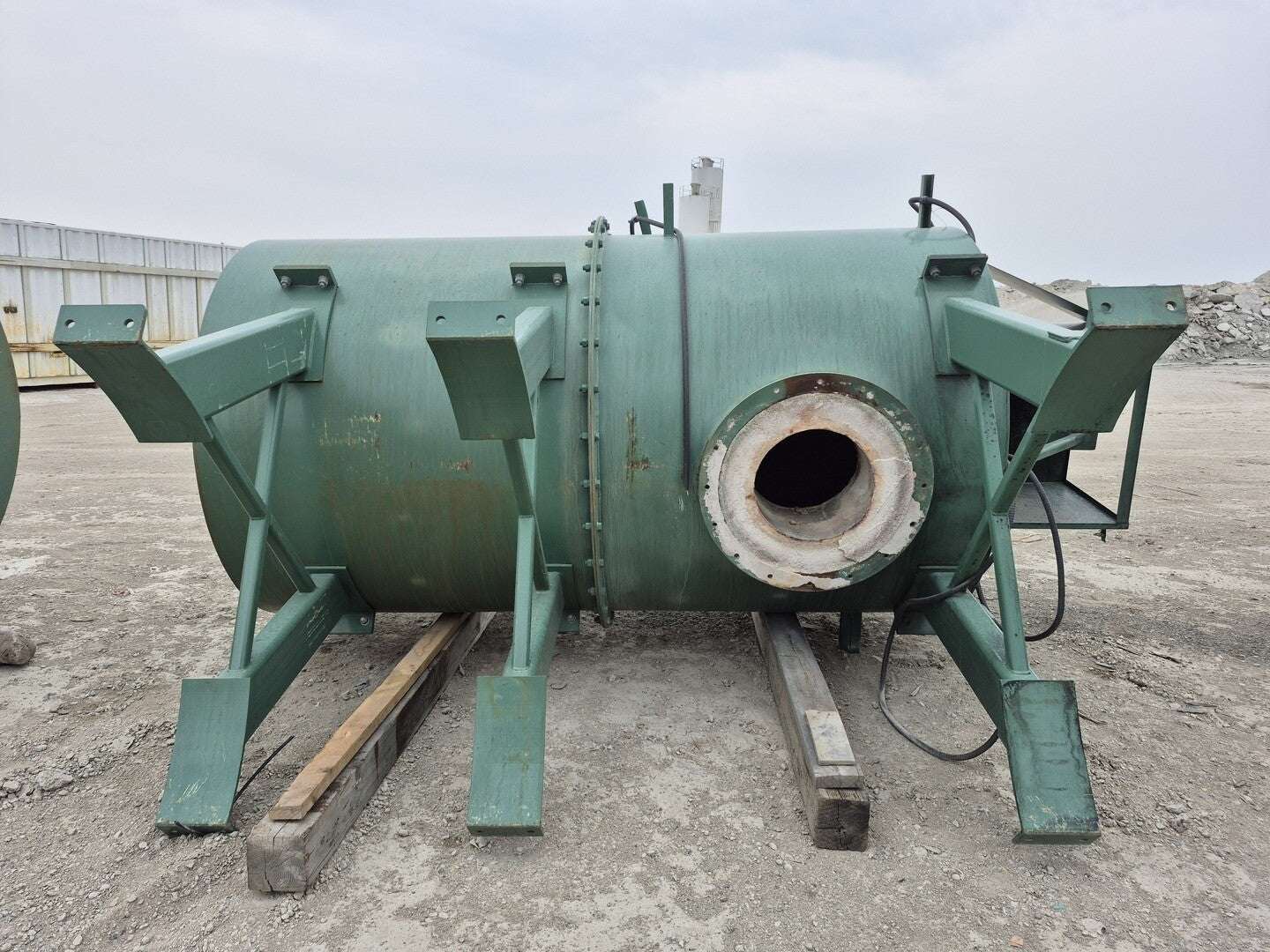

- Combustion Chambers
- The primary chamber is 2.74 m3
- The secondary chamber is 2.87 m3
Casing
- 6.35 mm gauge steel
- Lining: high-heat duty castable refractory over high-temperature insulation

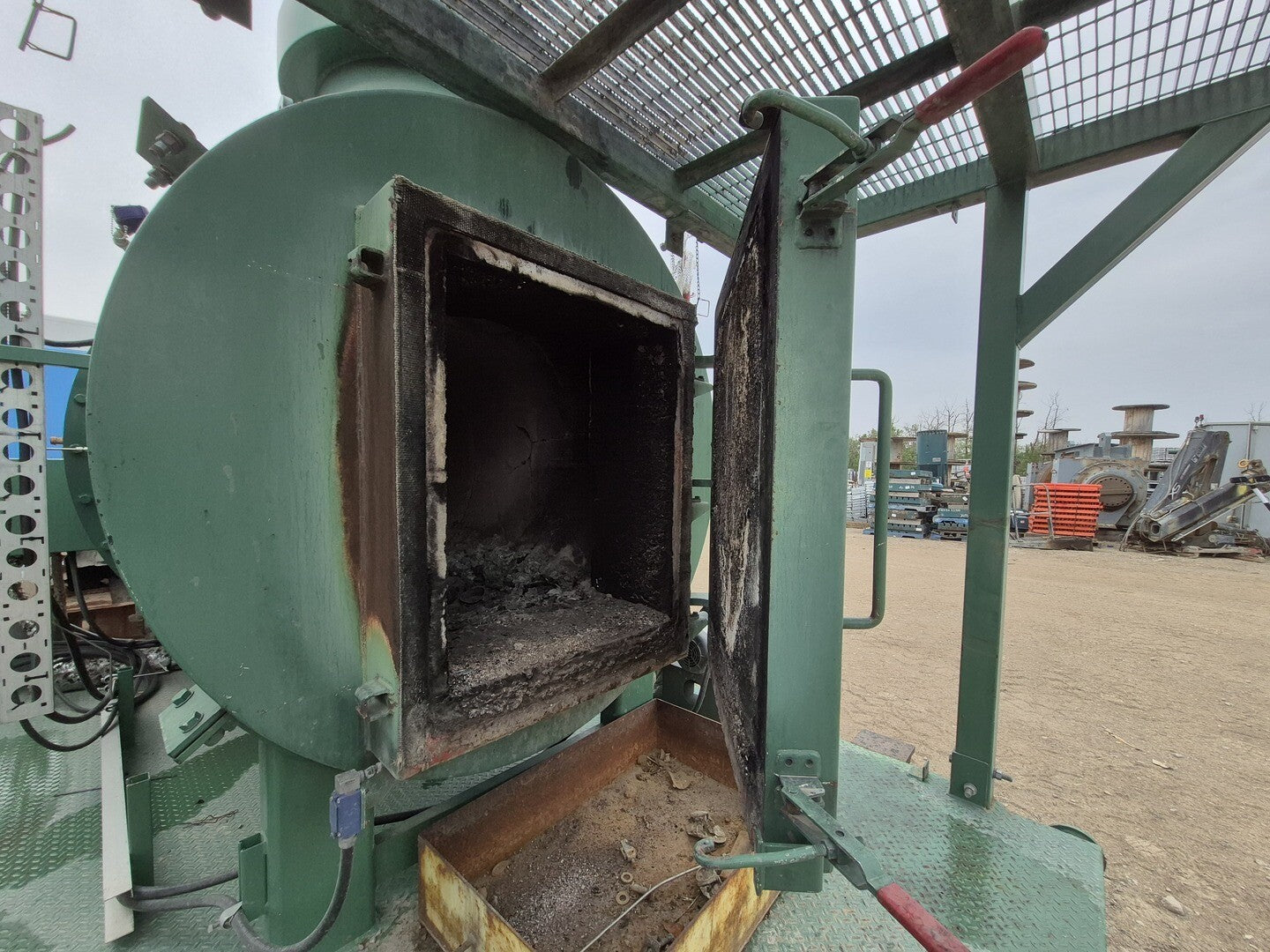

Refractory-lined Doors
- 699 mm x 899 mm clear opening
- 6.35 mm steel plate c/w heavy duty blade latch
Adjustable Air Supply

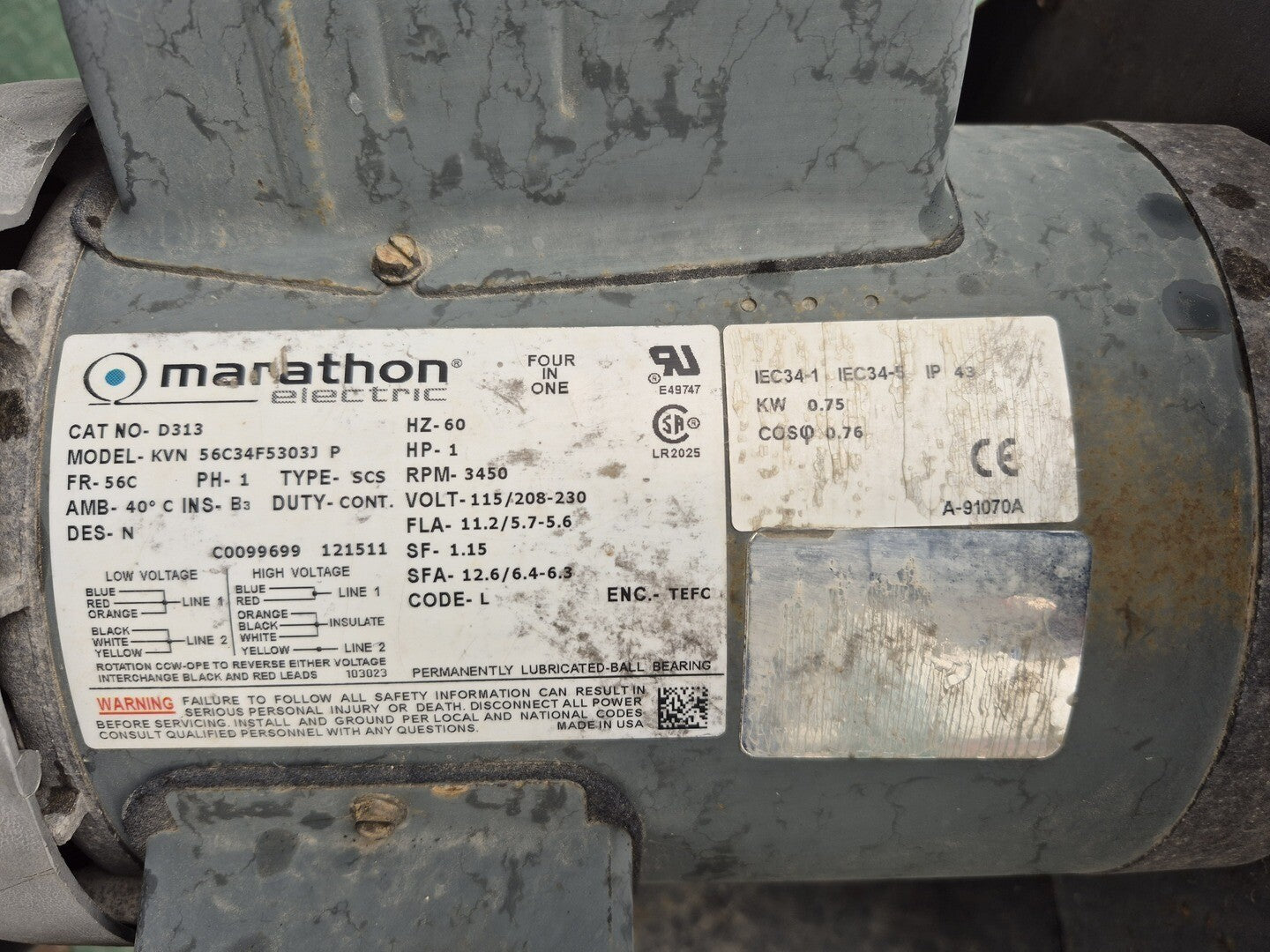

- Forced air fan c/w ducts to secondary flame port air jets

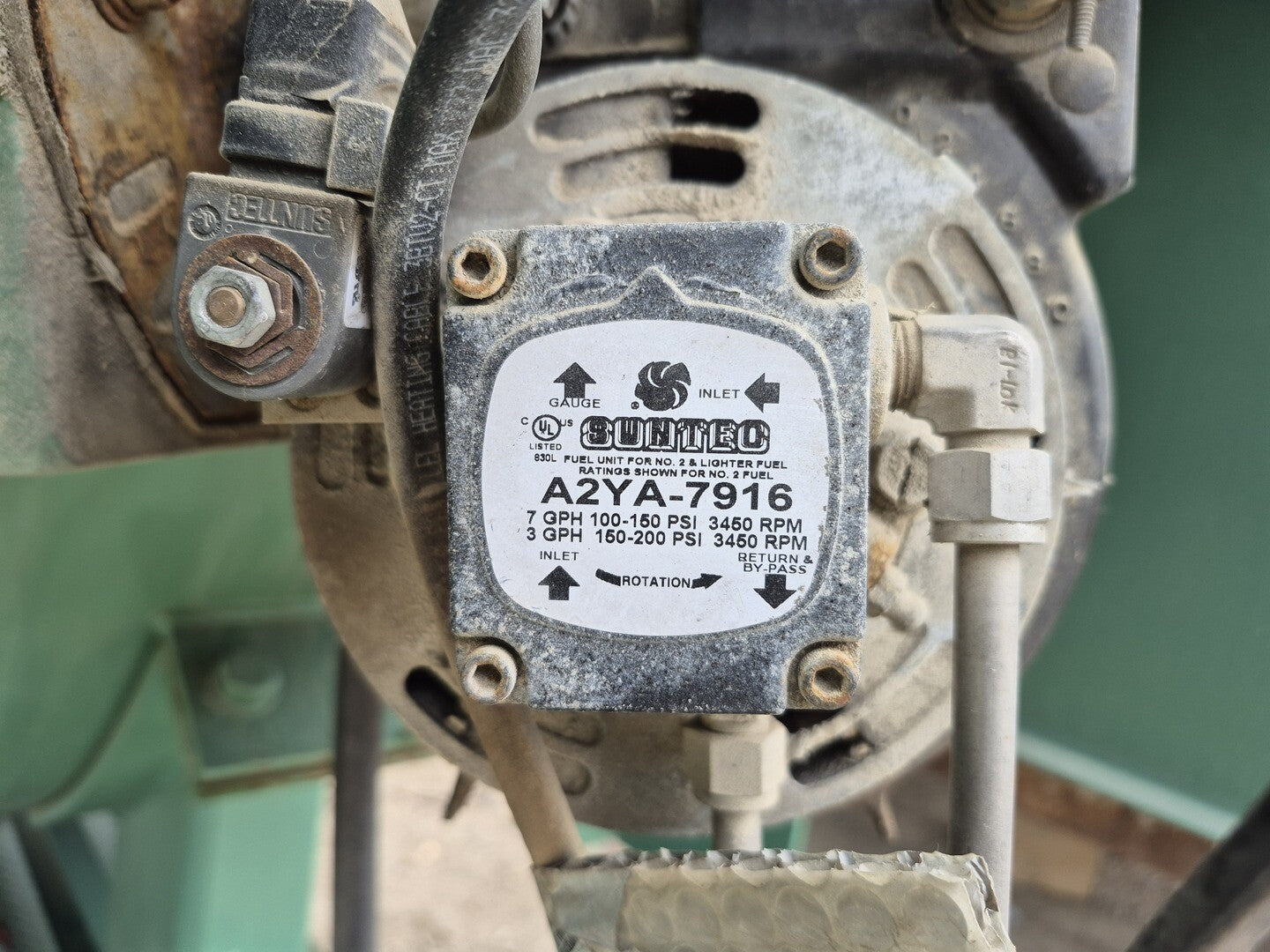

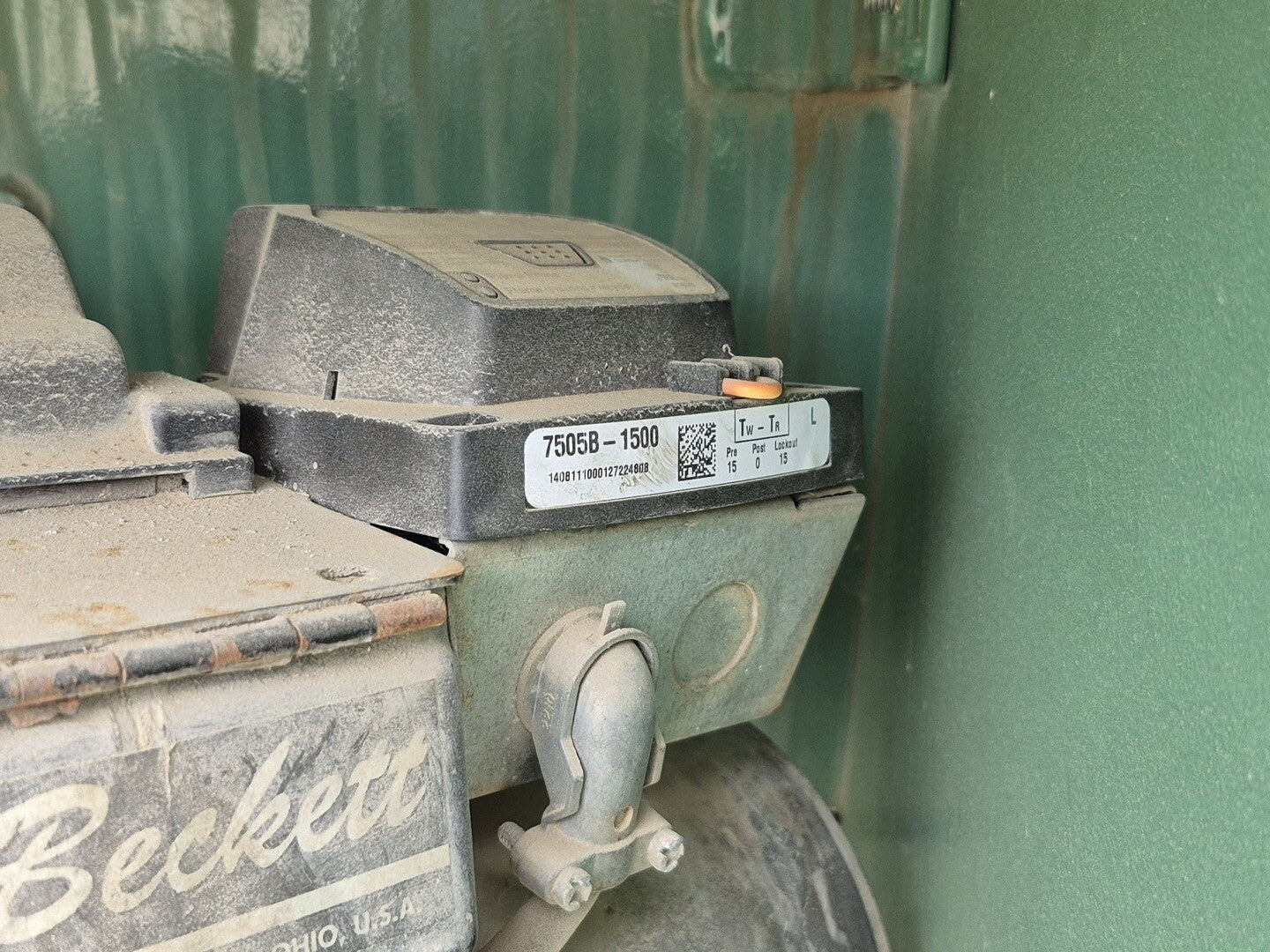

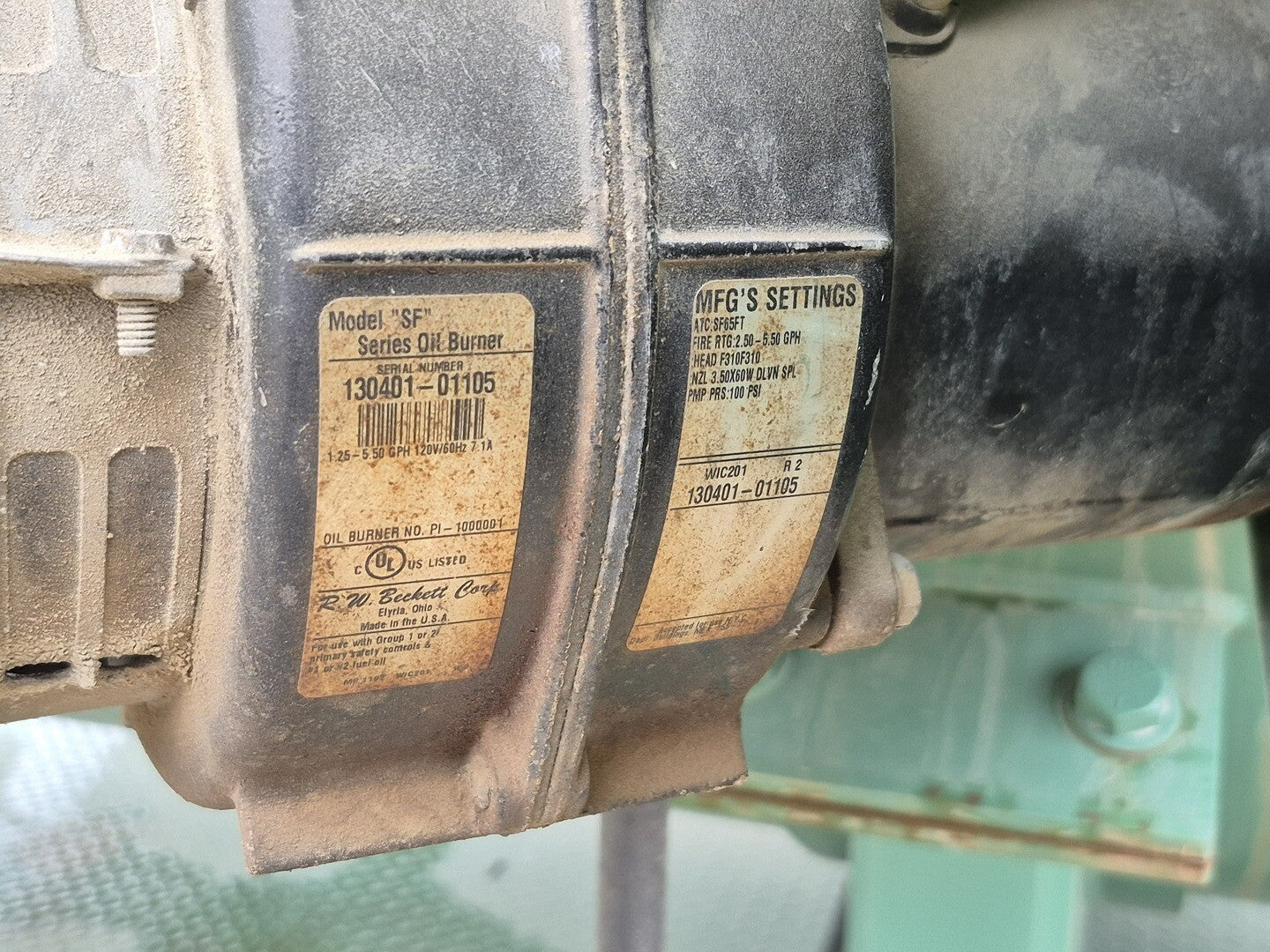

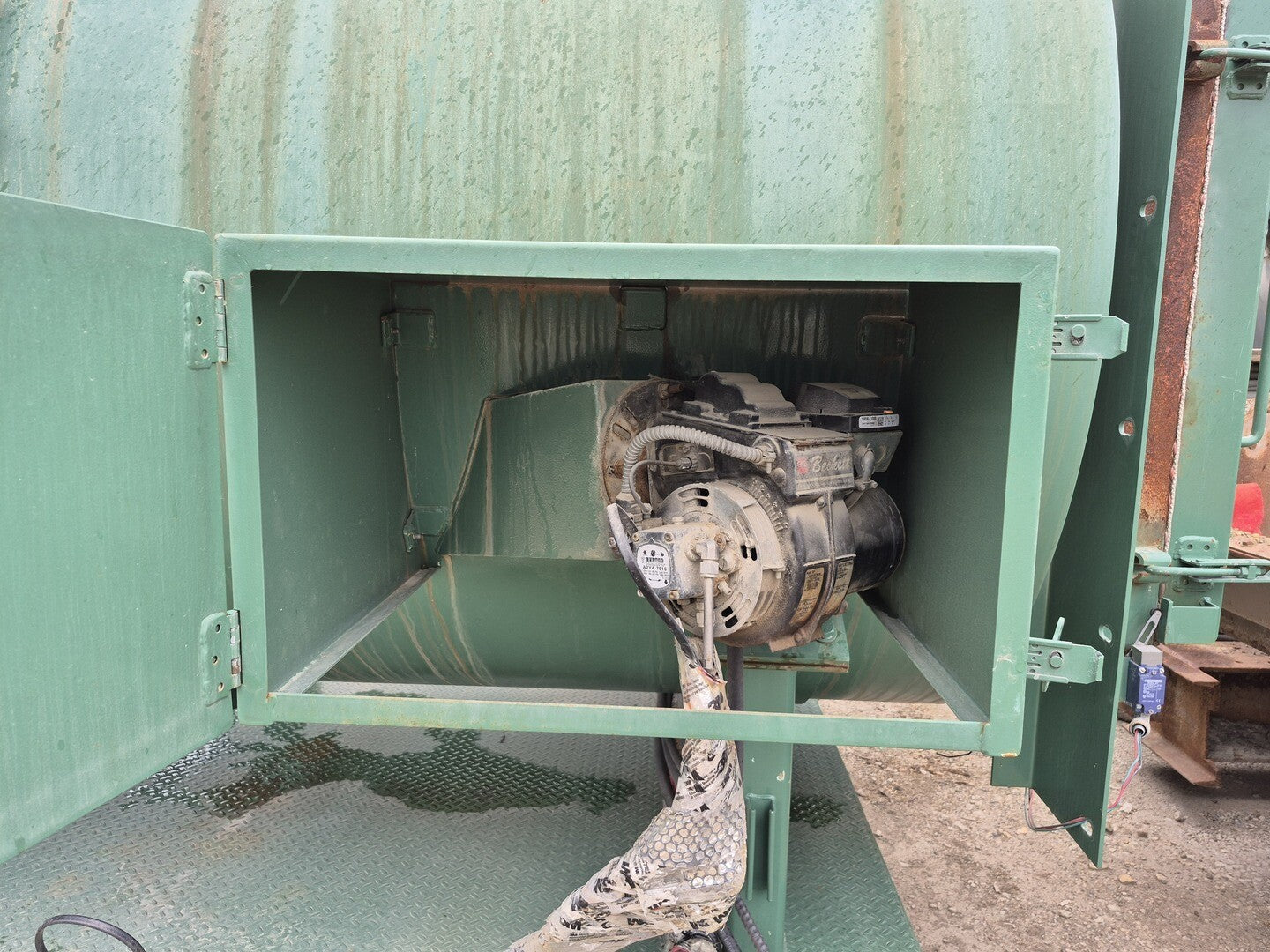

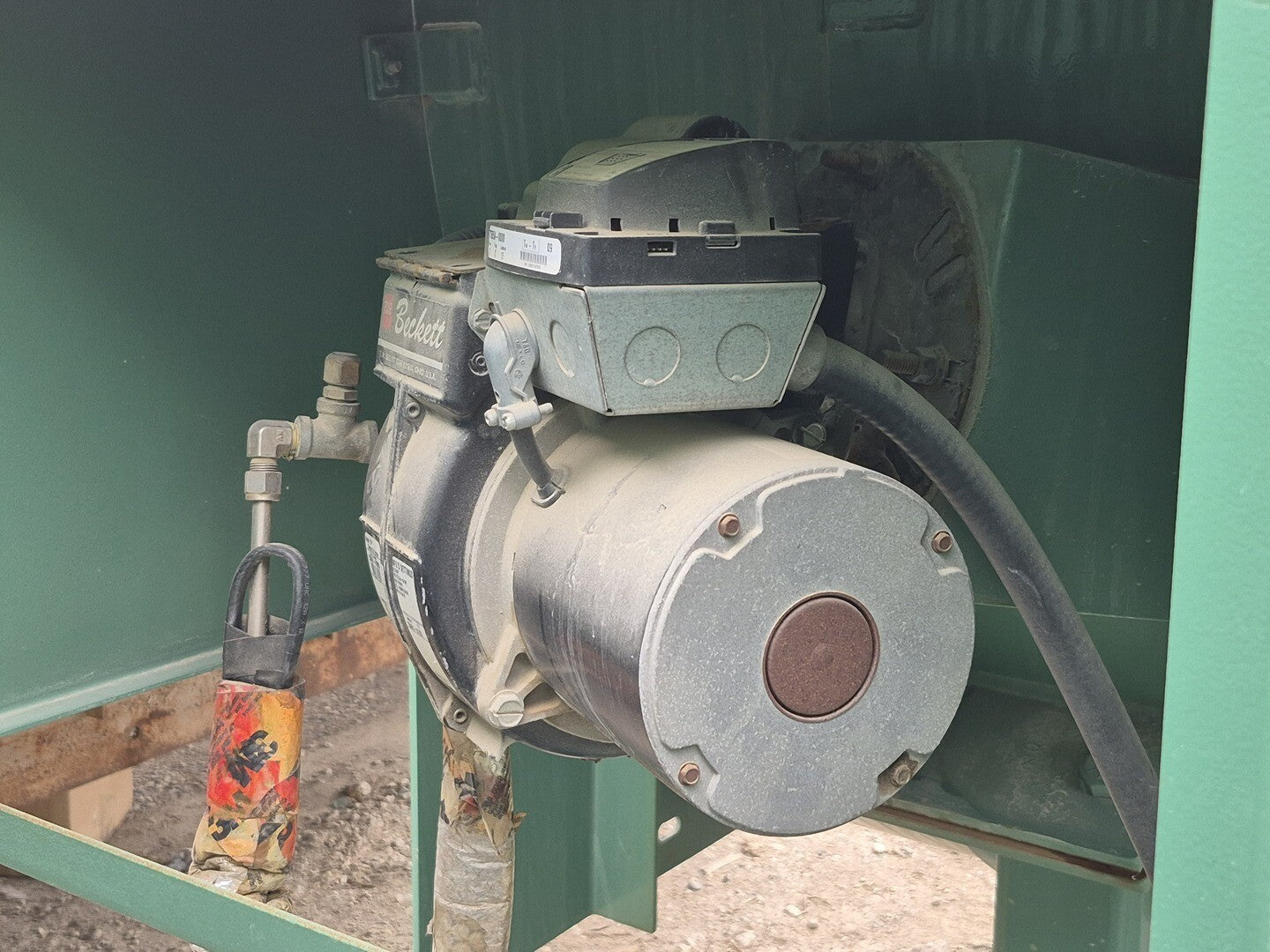

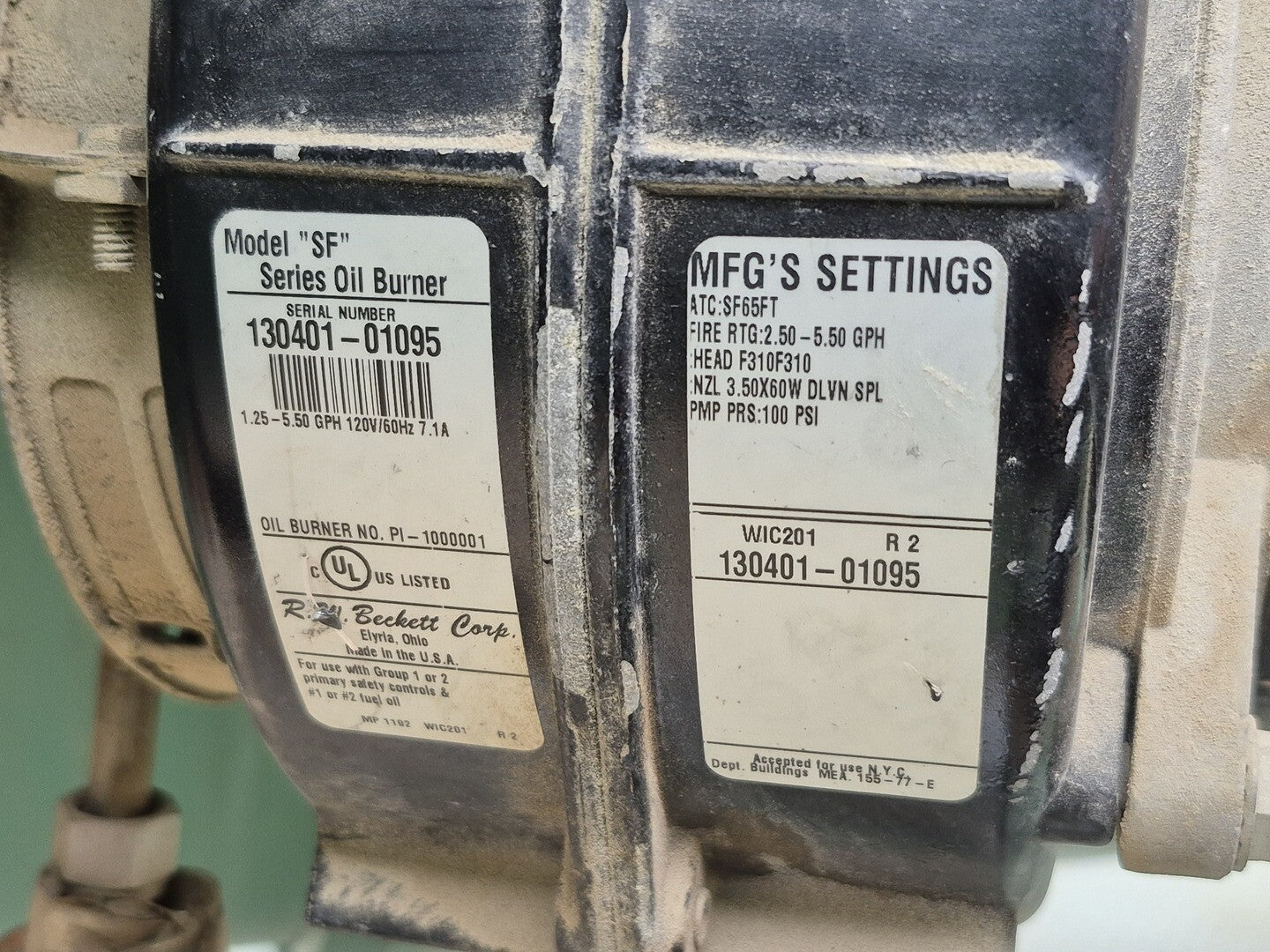

Auxiliary Burners
- Two 770,000 BTU/hr burners for primary chamber
- 1,600,000 BTU/hr burner for secondary chamber

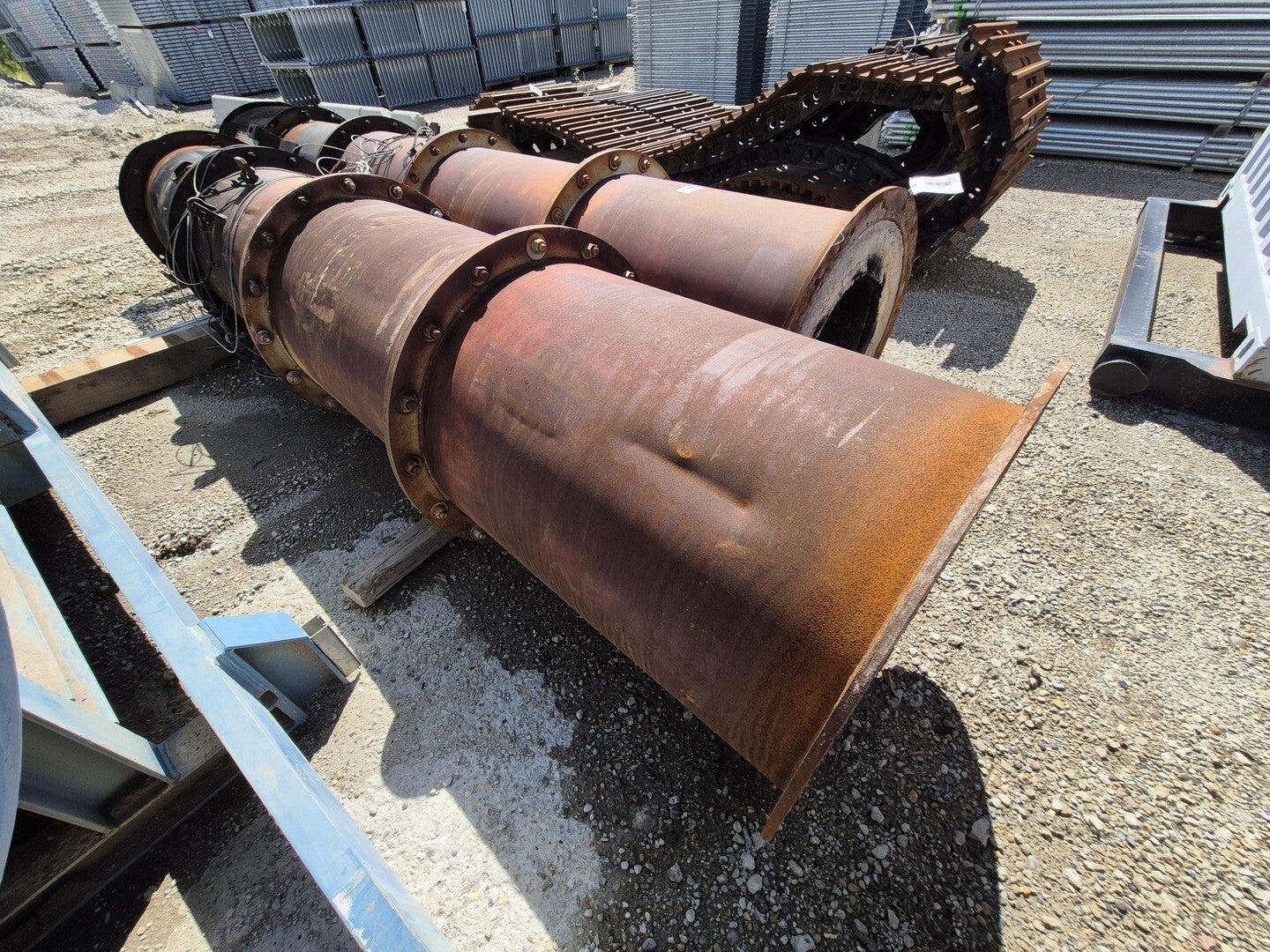

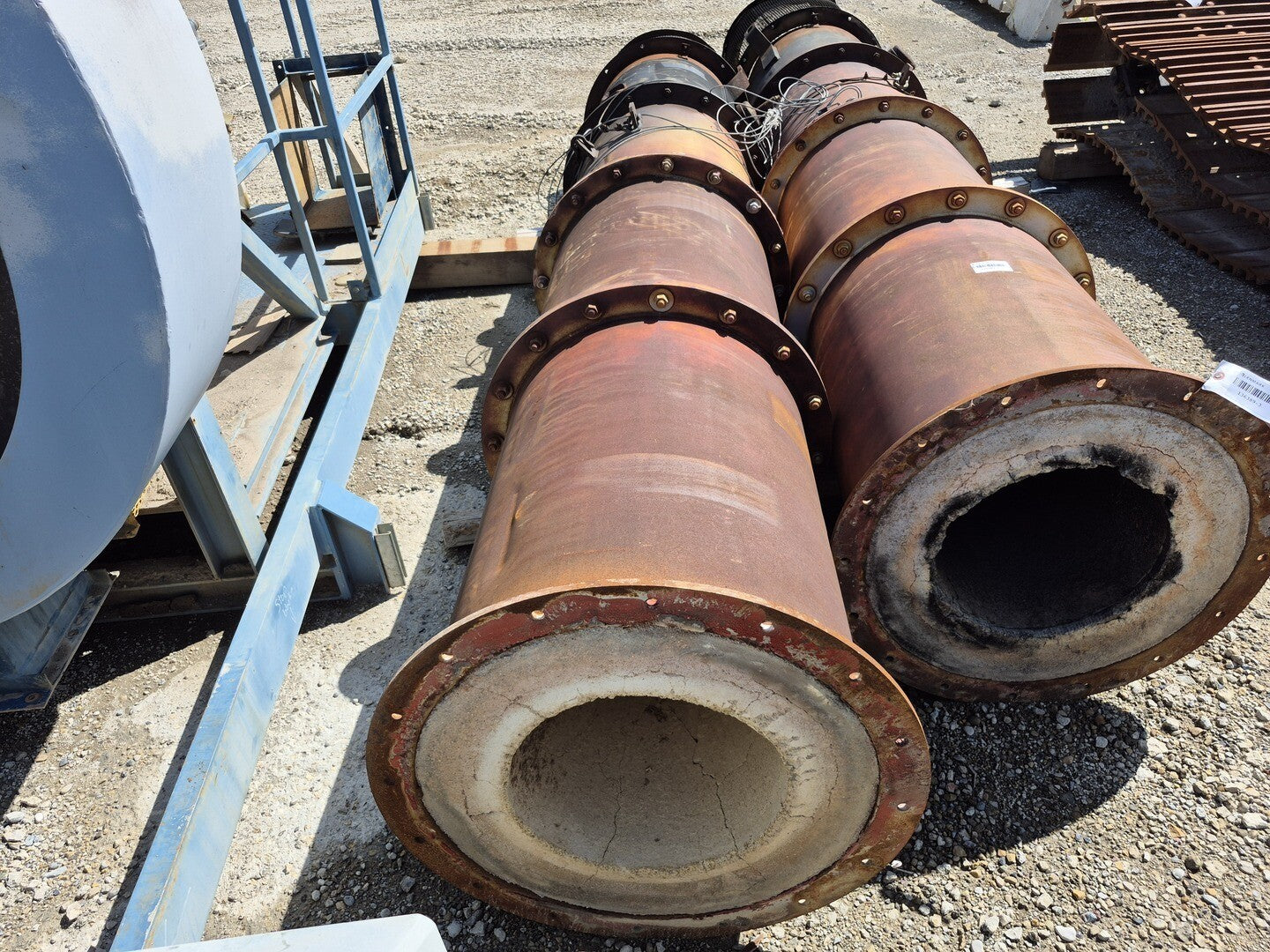

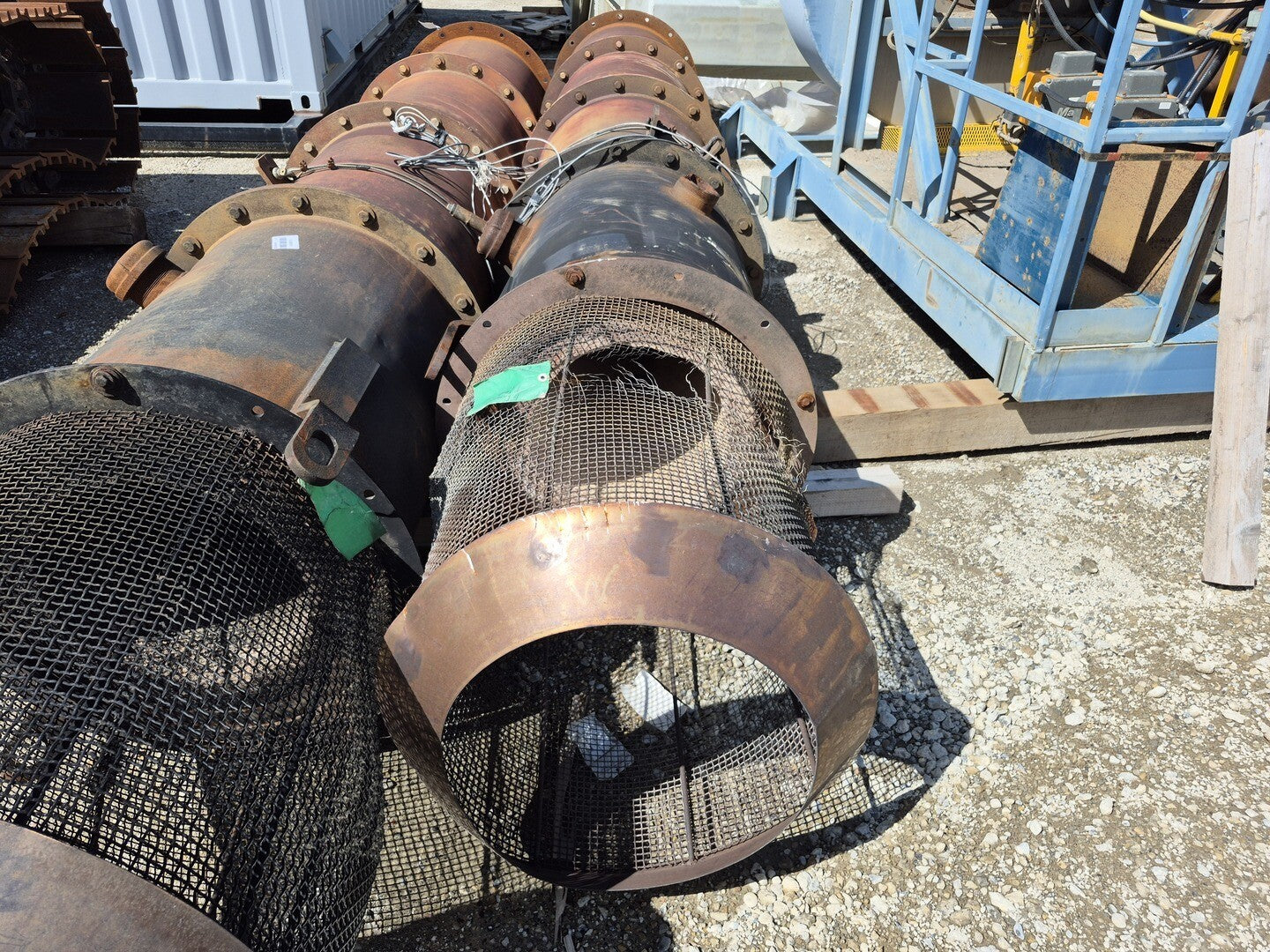

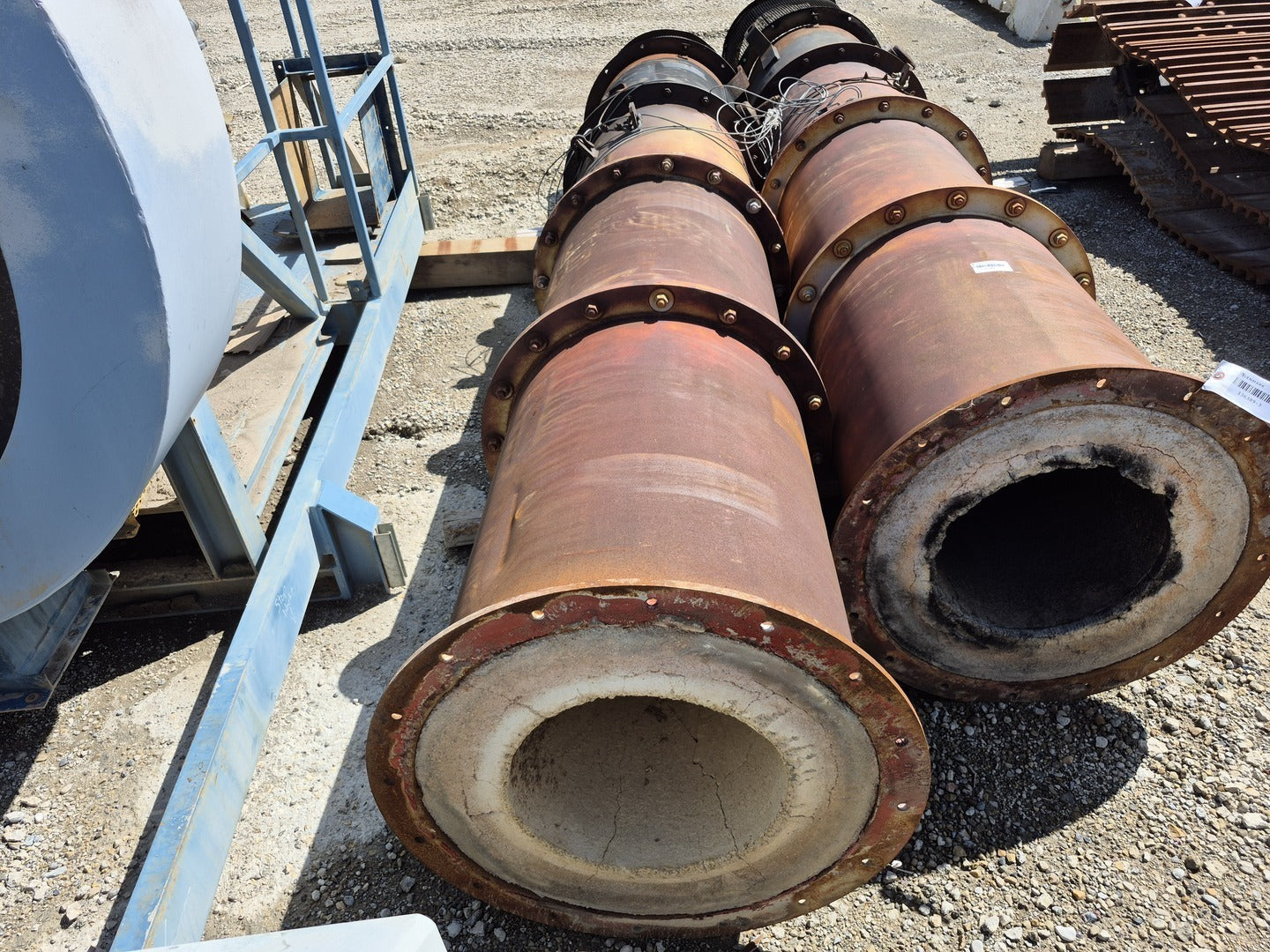

Refractory-lined Stack
- Diameter: 457 mm
- Height:
- Without spark arrestor: 3.7 m
- With spark arrestor: 4.24 m
Dimensions (Assembled)
- L 6.1 m (20')
- W 2.44 m (8')
- H 8.9 m (29' 2")
- Weight 16,300 kg (36,000 lbs)
|
