Description
| Specifications | |
|---|---|

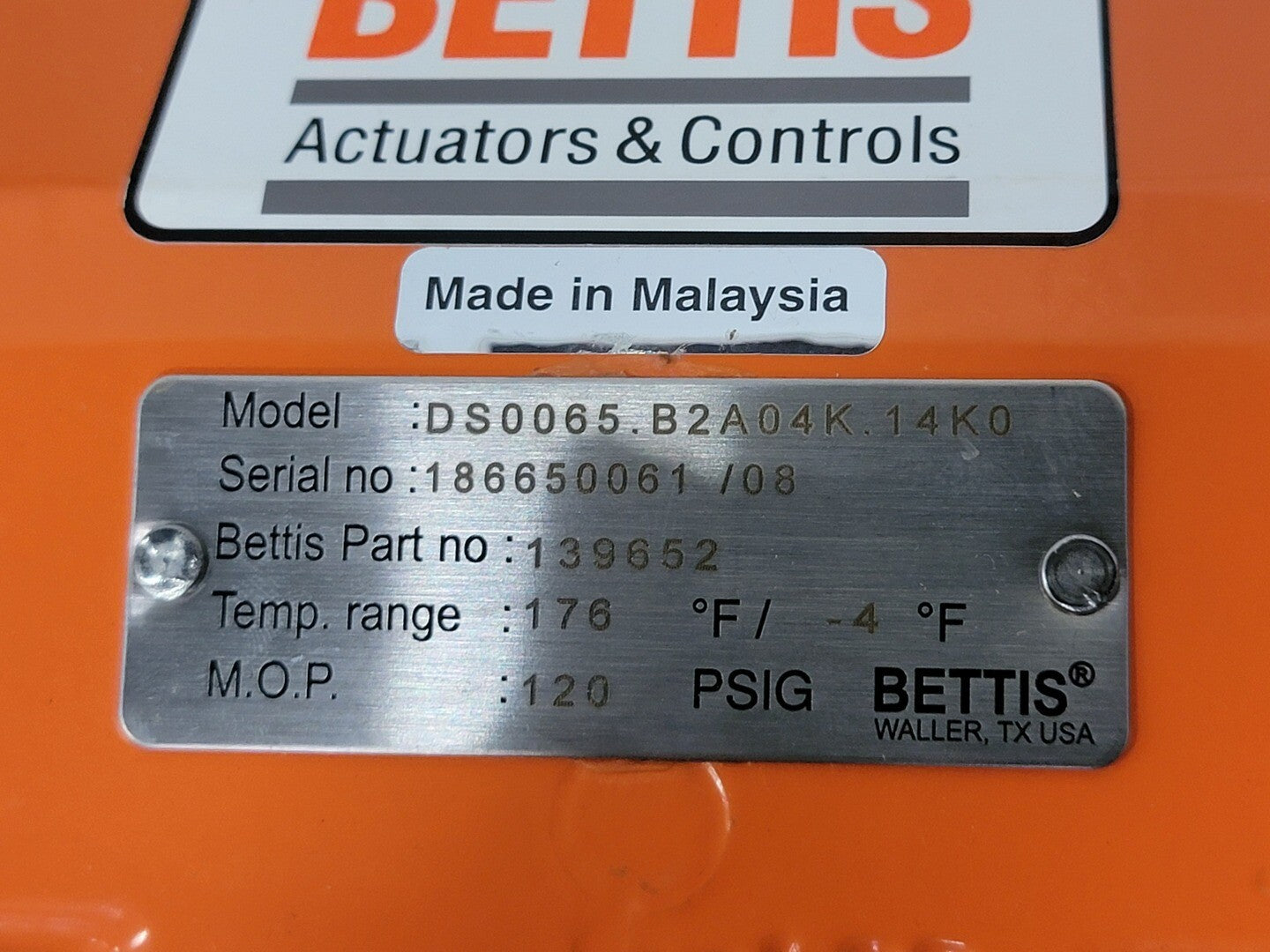

| Model | DS0065.B2A04K.14K0 |
| Condition | Surplus New |
| Other Specifications |
|---|
|

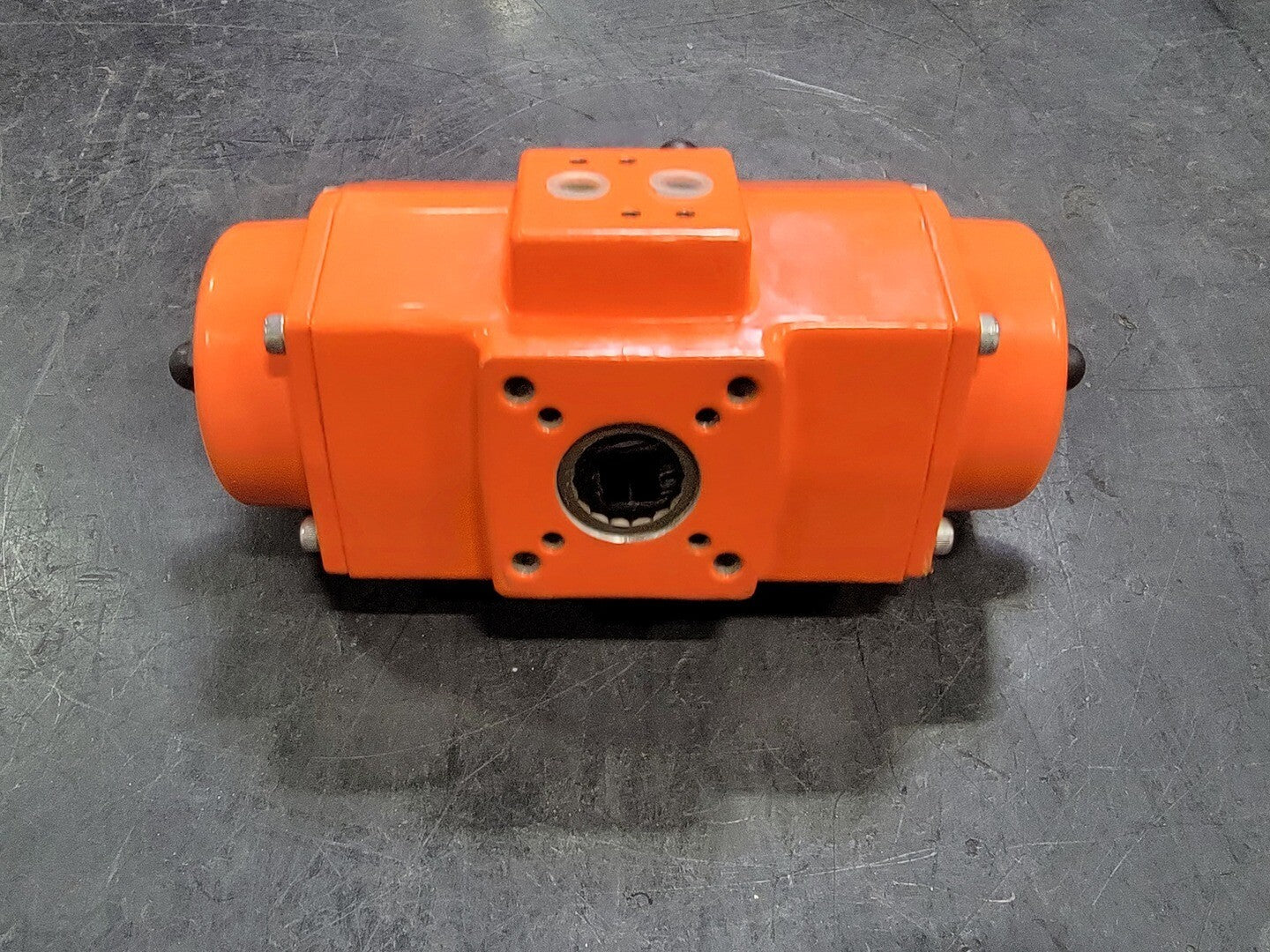

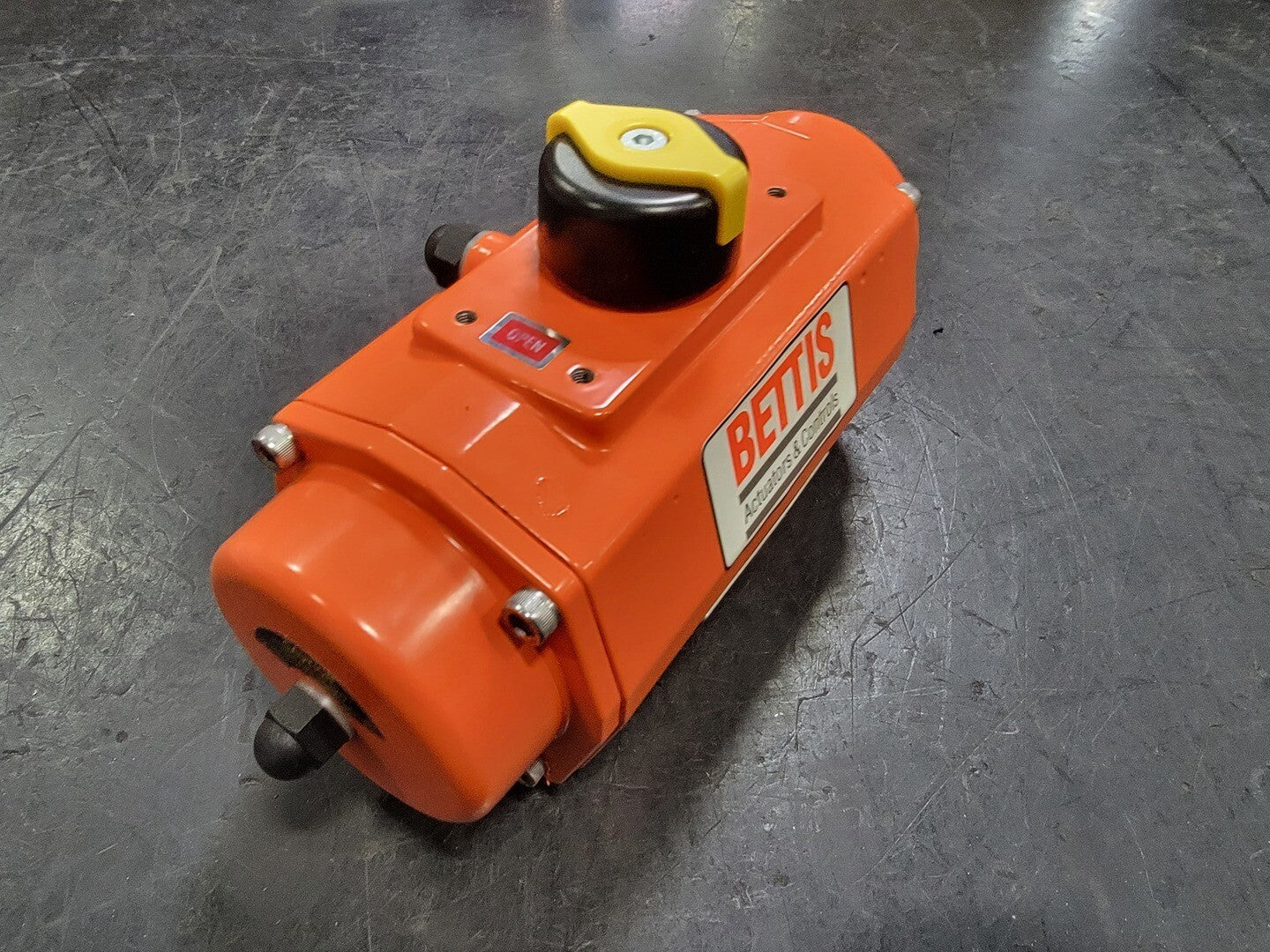

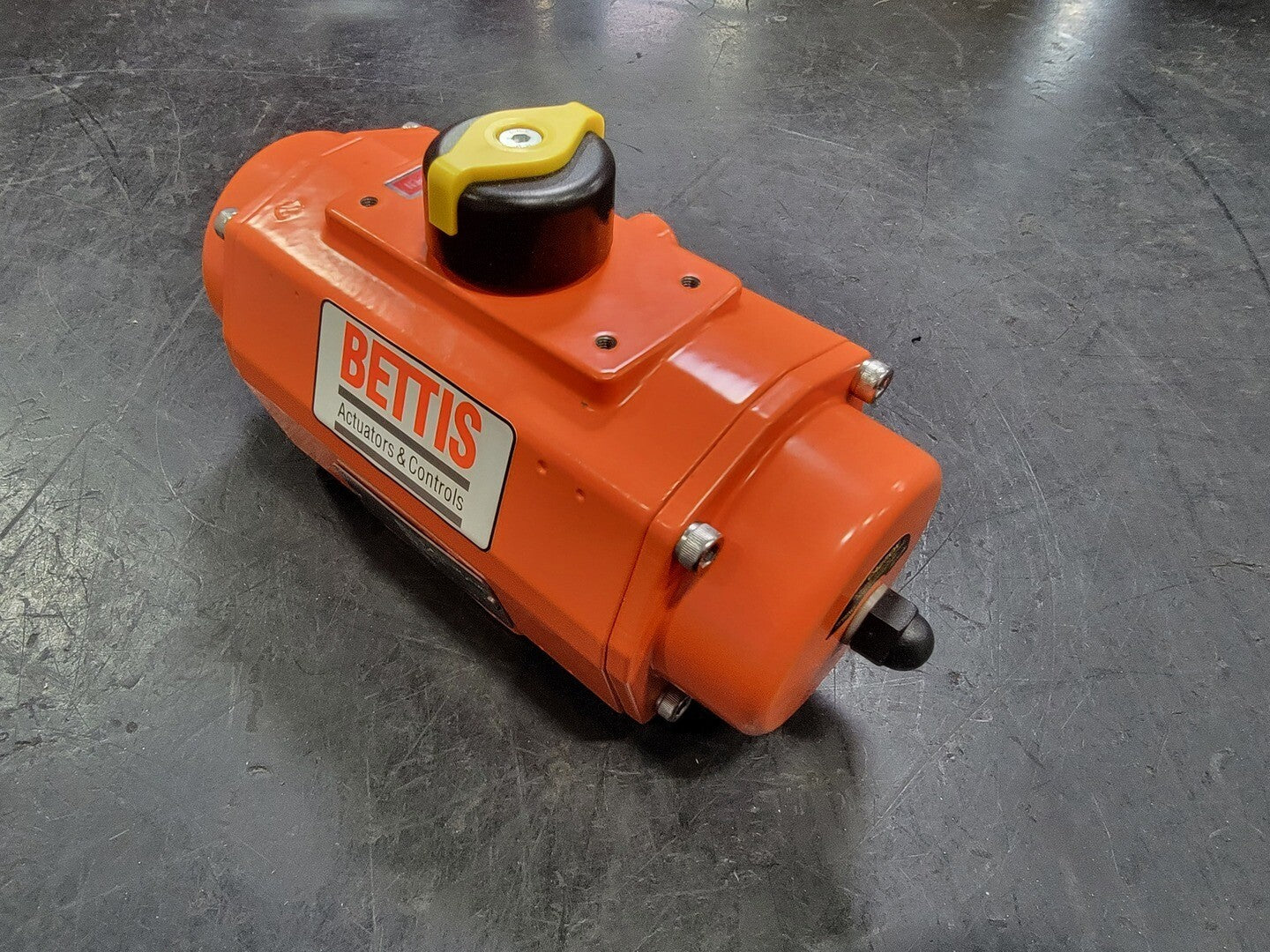

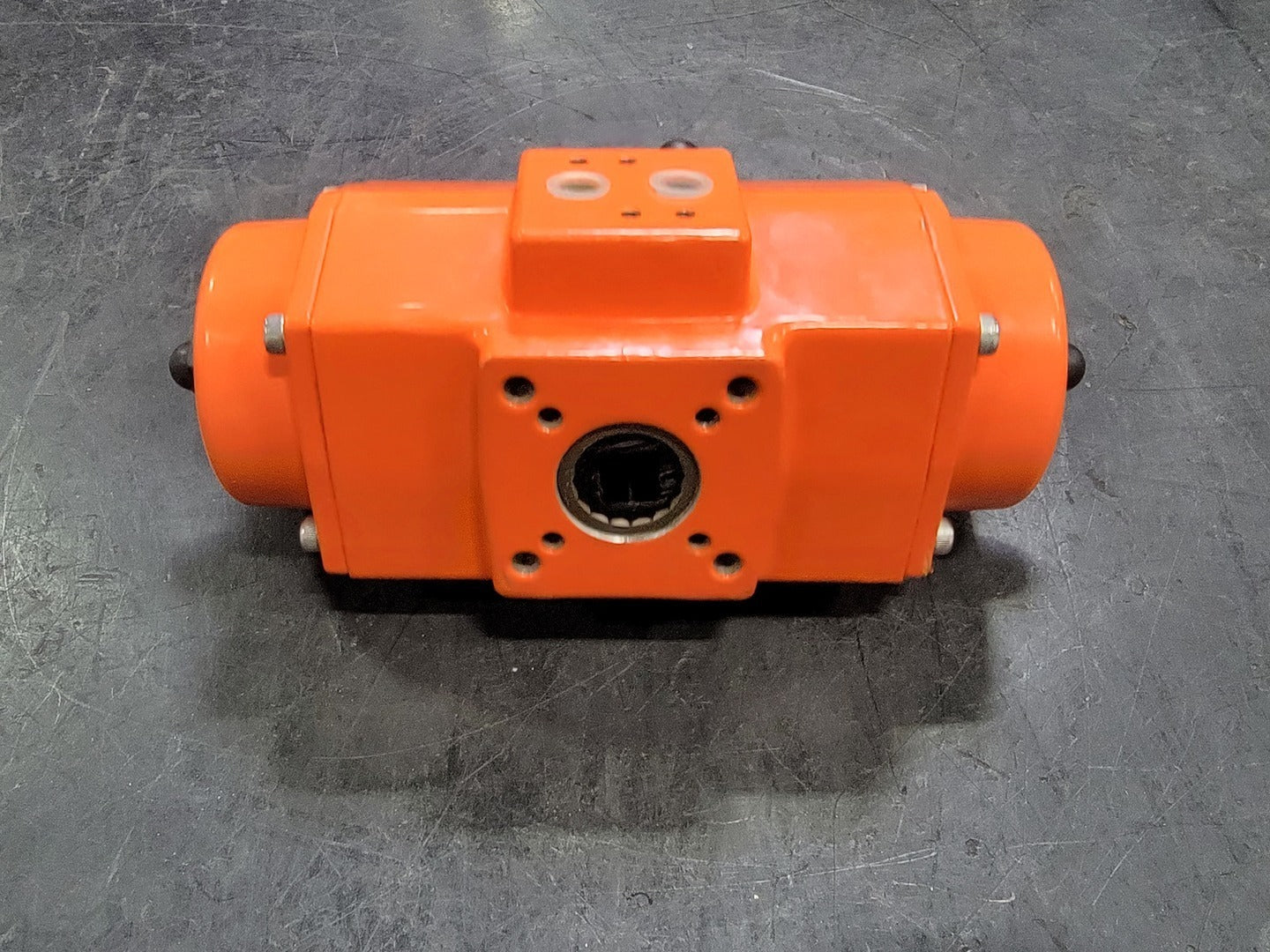

Type: D-Series & Spring Return Size: 0065 Tapped Mounting Bolt Holes: UNC (Standard Bettis Trim, ISO 5211 with UNC bolt holes on valve mounting side, Metric bolt holes on NAMUR patterns NPT ports) Travel Stops: Dual Travel stops Assembly Modes: Standard Bettis Trim Fail-CV (Mounted in line, standard) Spring Set Number: 04 Color Code: Bettis Orange Insert Code - Inner Square: 14 Indication Knob: Visual Indication (Knob, Standard) Pressure Range: 43 to 120 psig Operating Media: Air, dry or lubricated and inert gases Temperature Range: -4 deg. F to 176 deg. F Finish: Polyester non-TGIC based power coating Rotation: 90 deg. - Clockwise fail action |
