Description

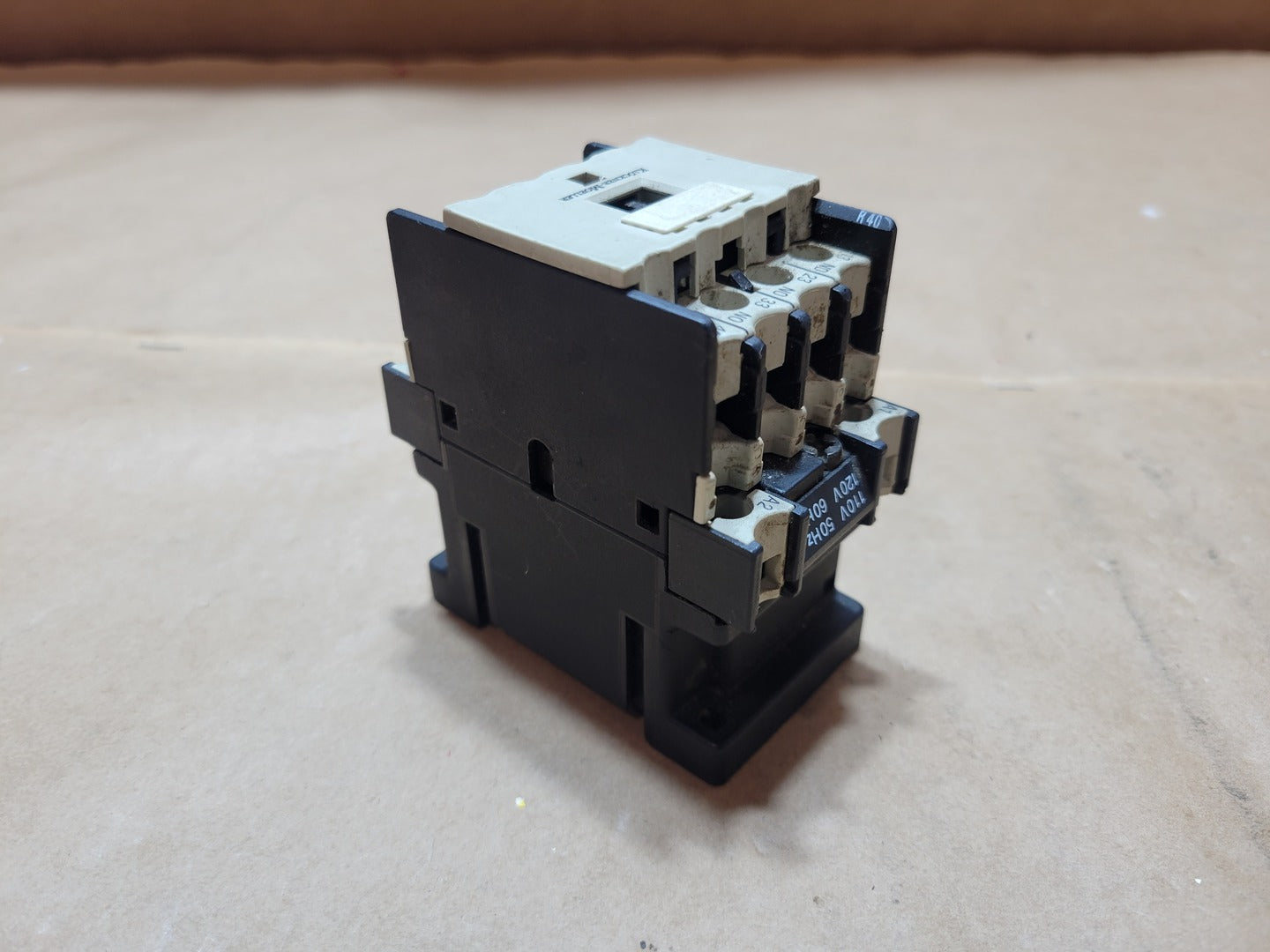

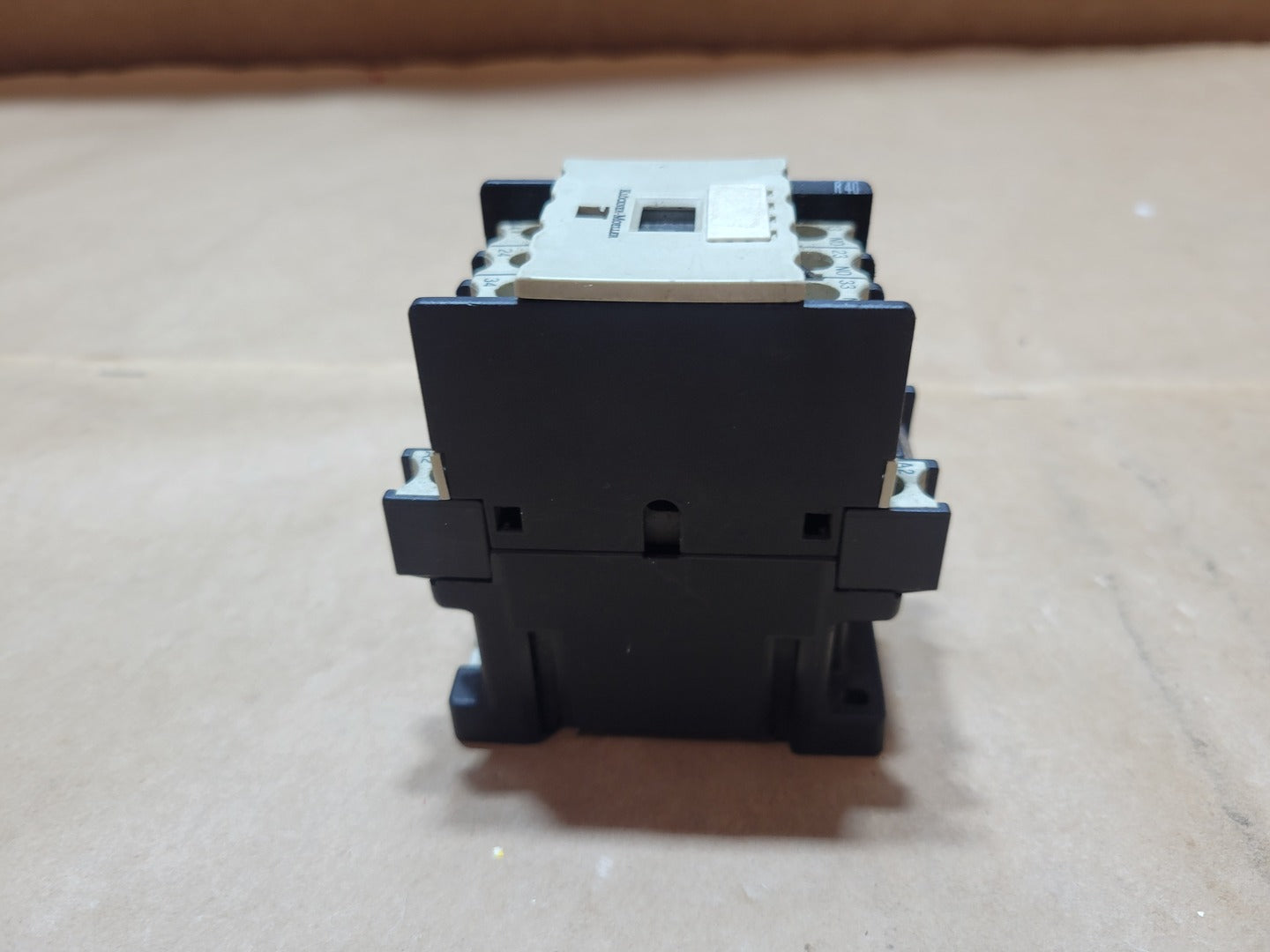

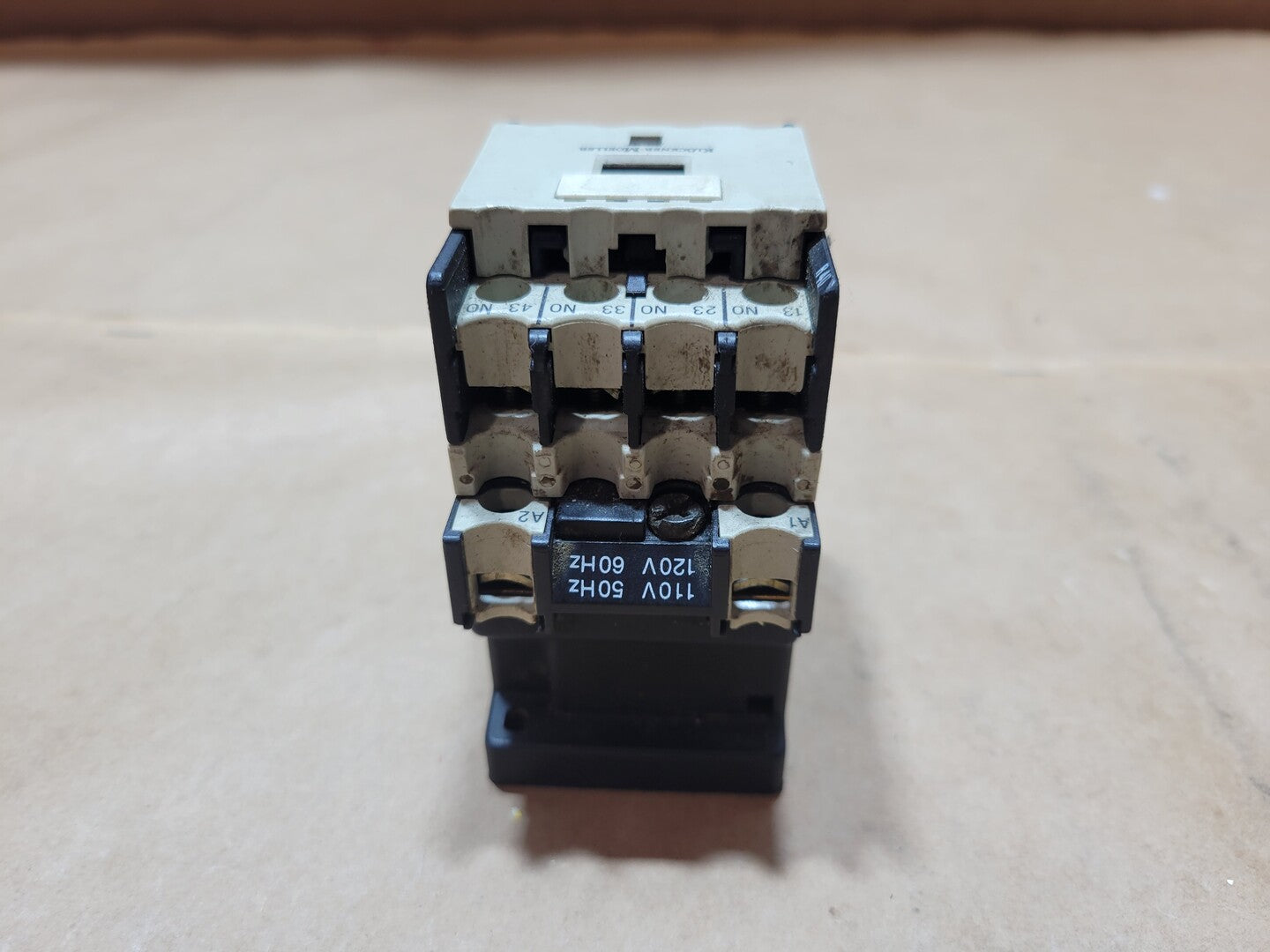

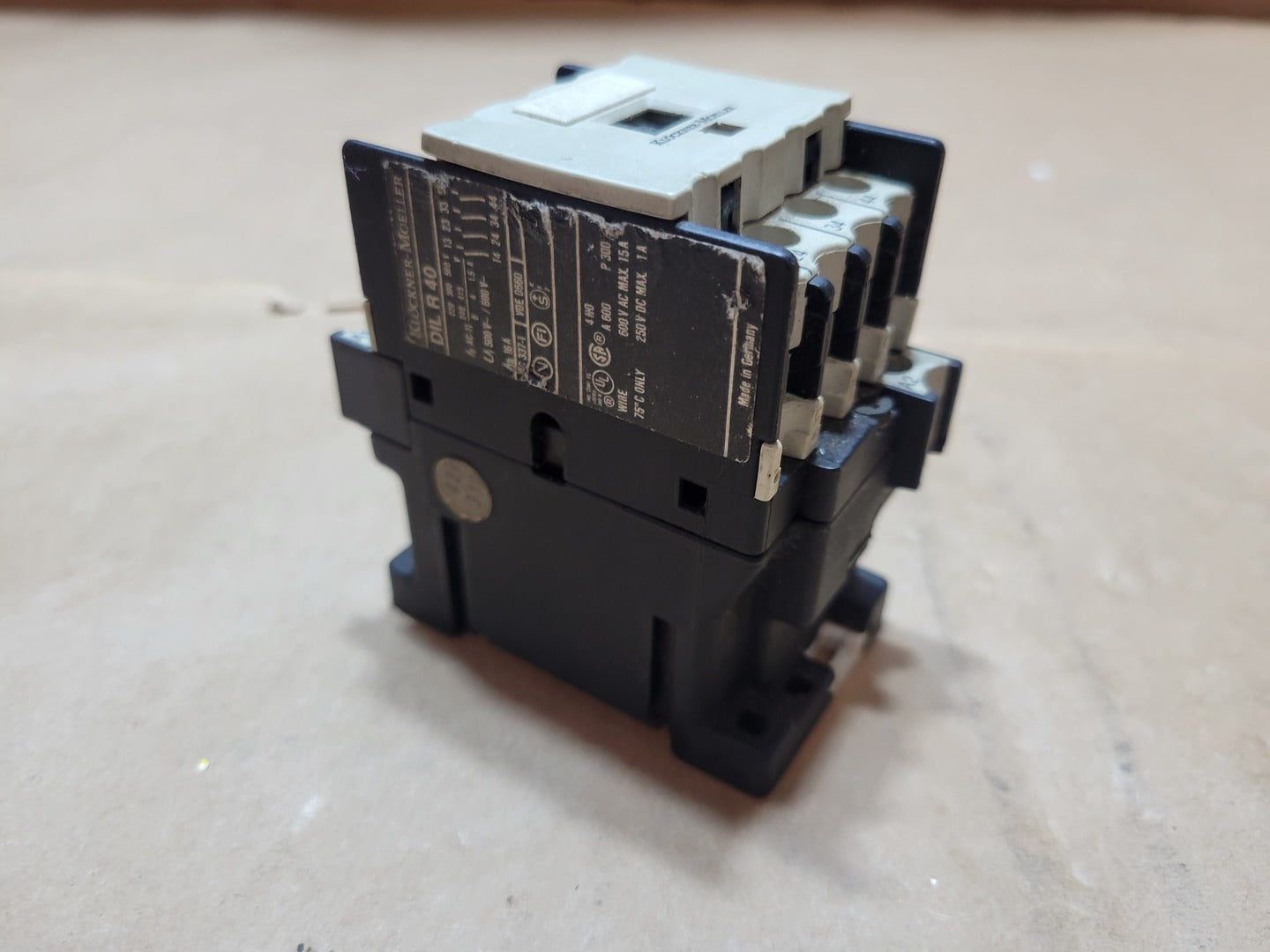

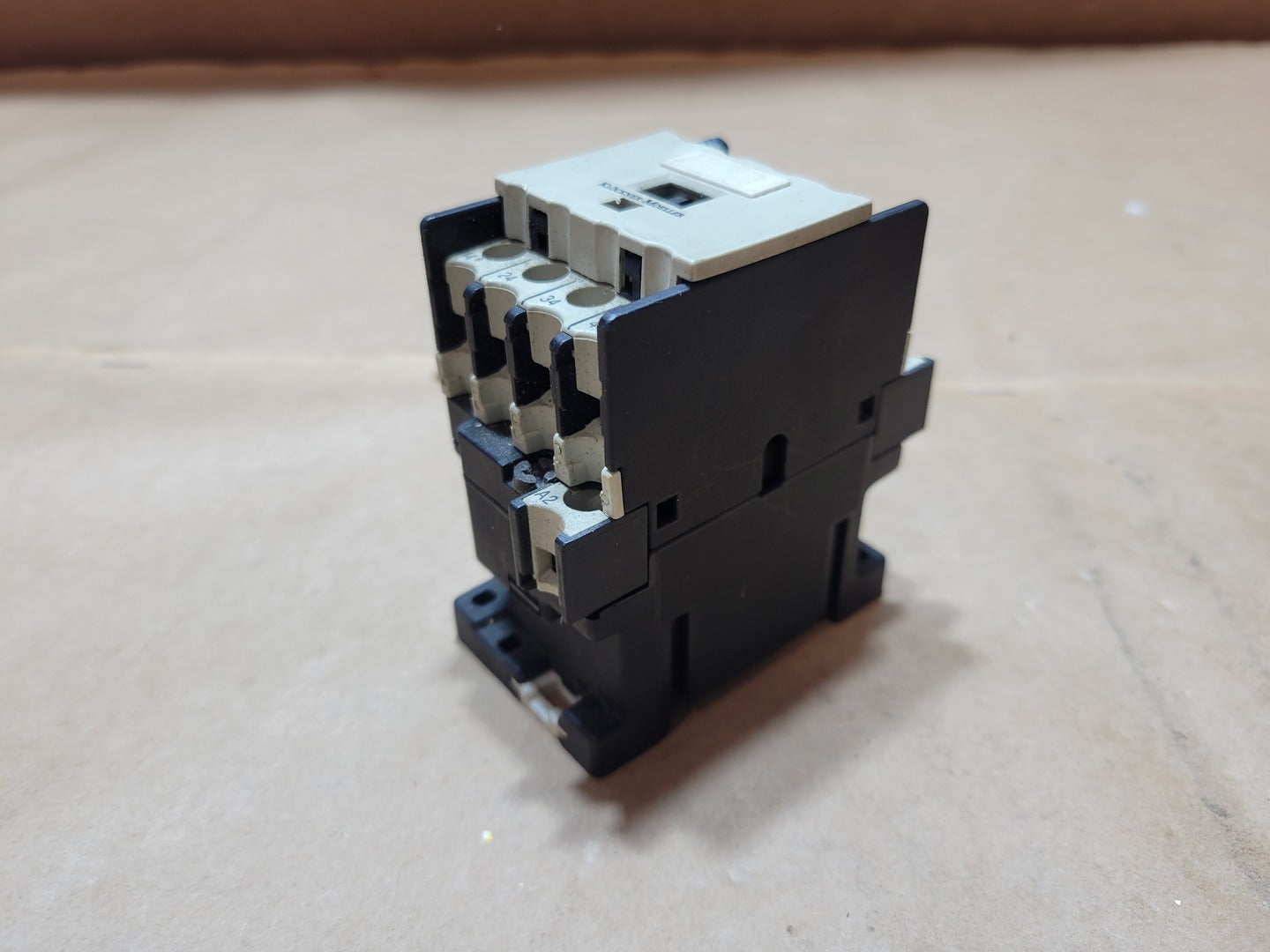

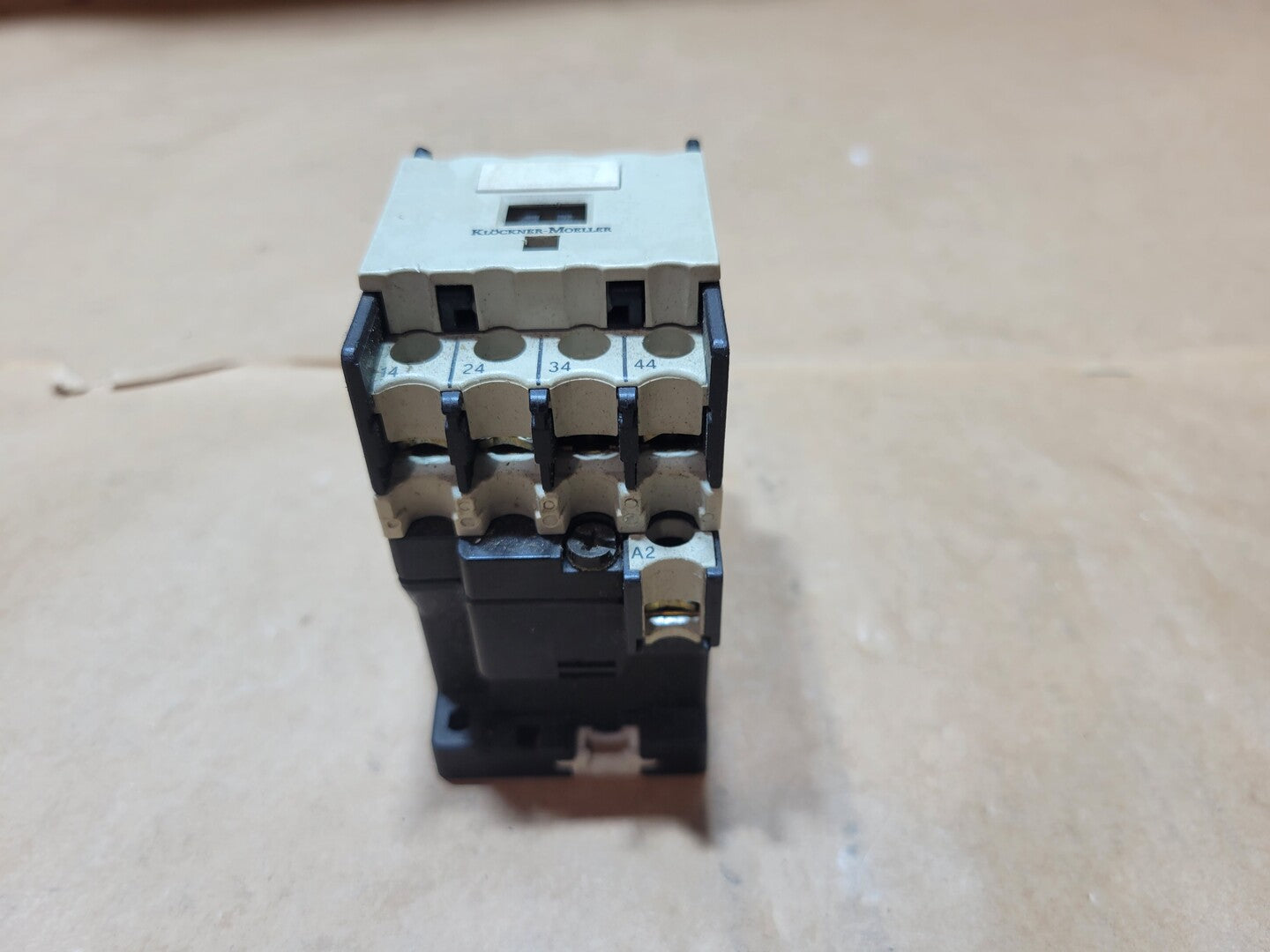

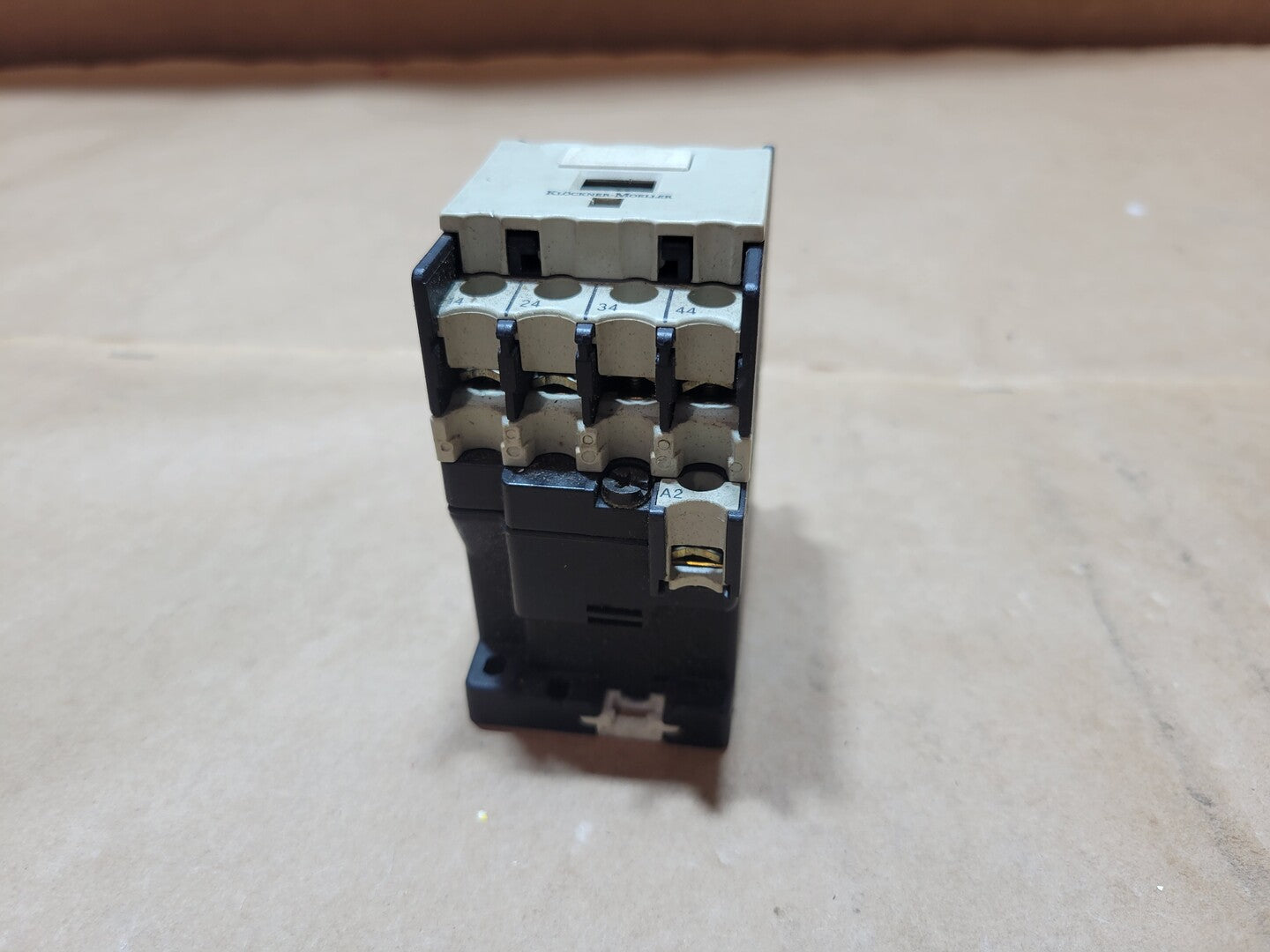

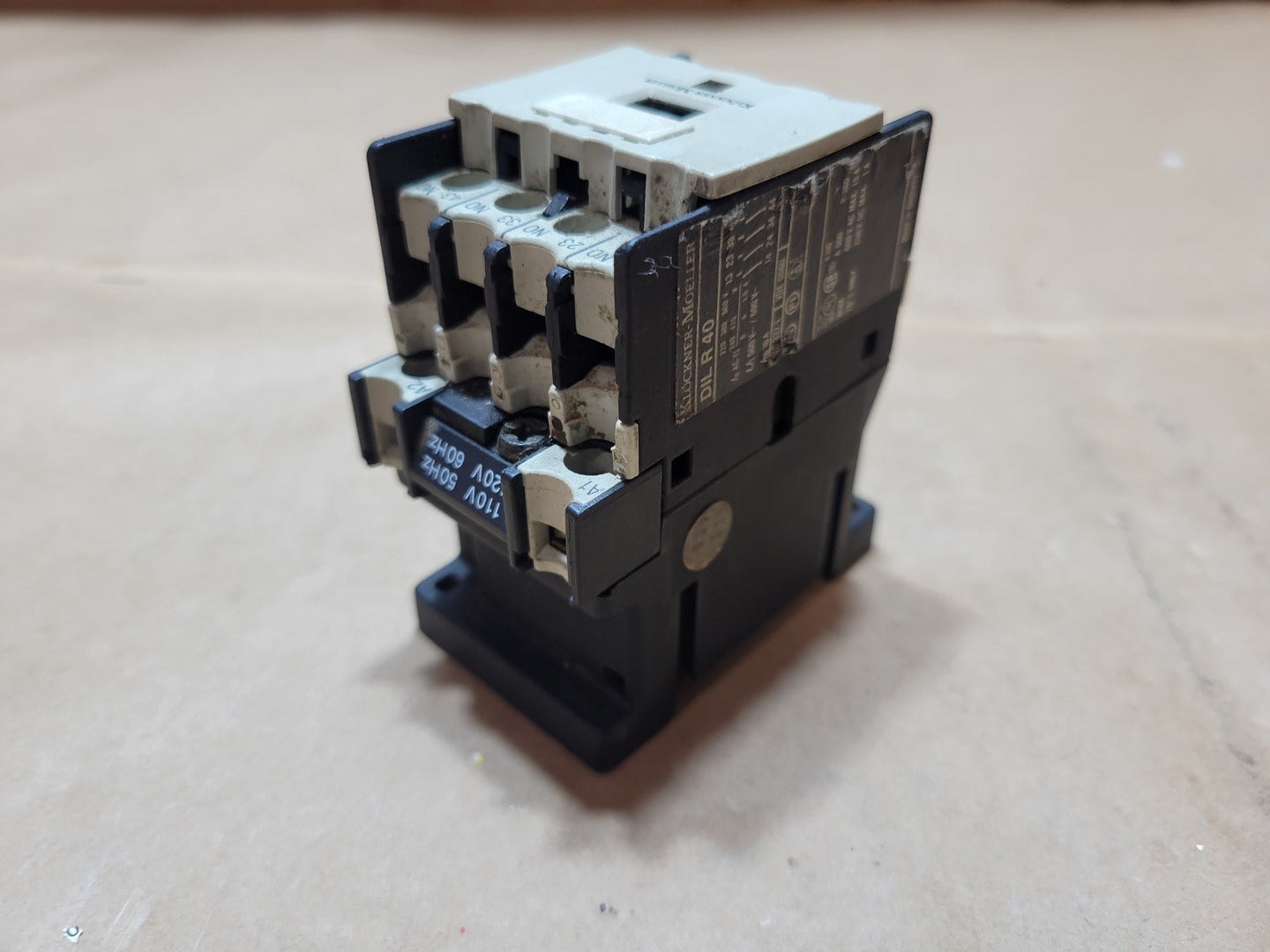

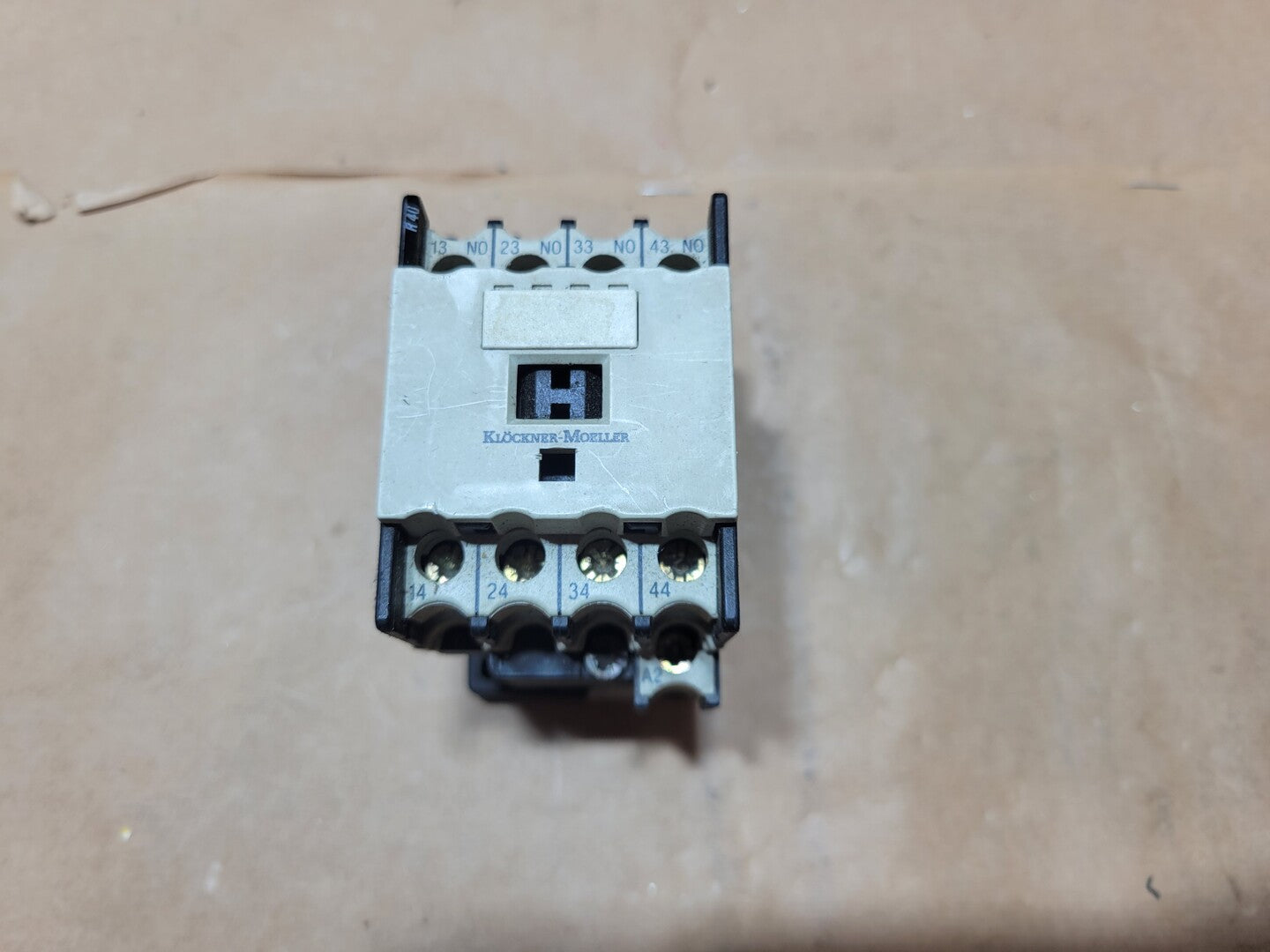

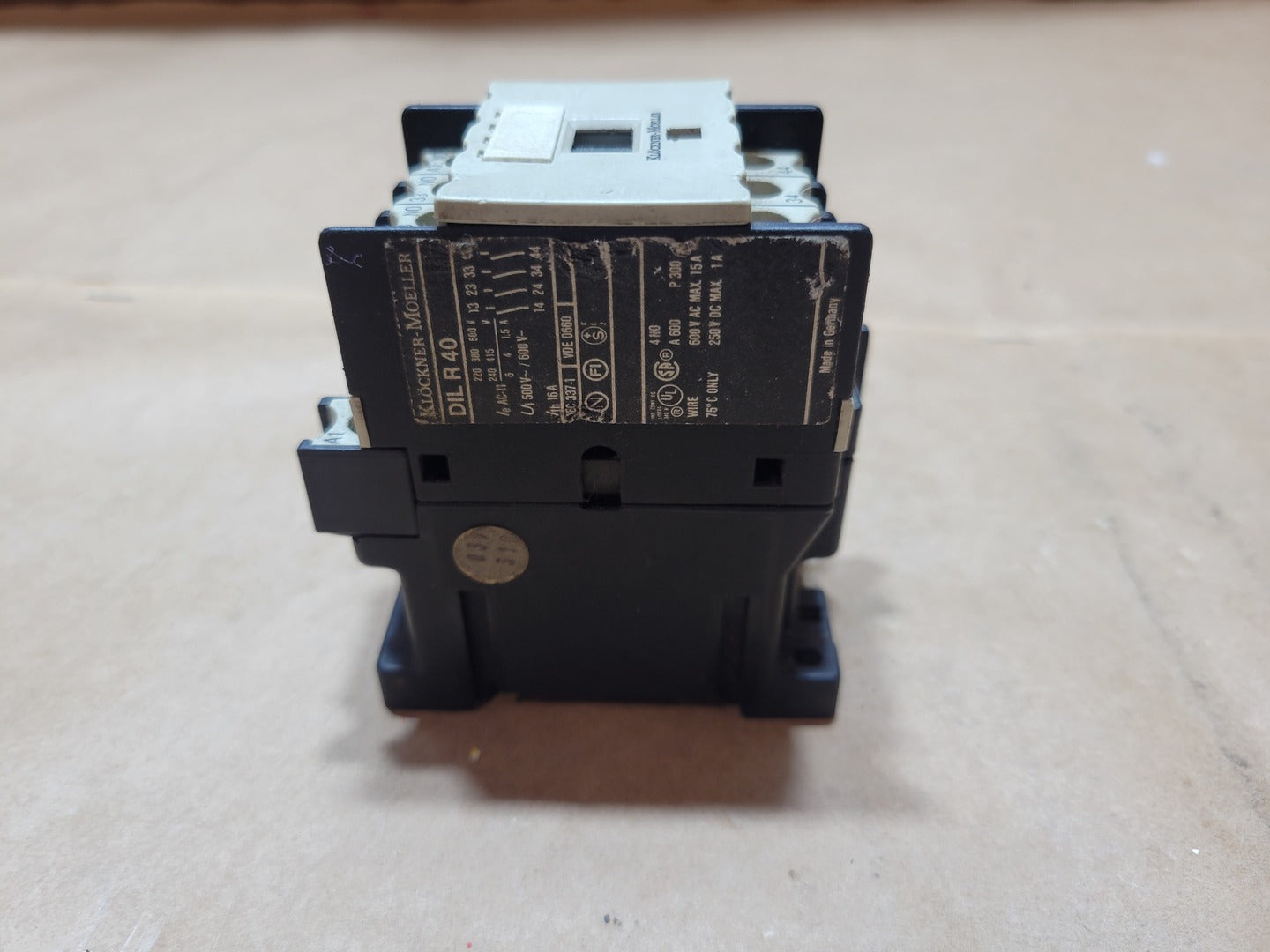

Klockner-Moeller DIL R 40 industrial auxiliary contactor/control relay featuring four normally open contacts and a 110 VAC 50 Hz / 120 VAC 60 Hz operating coil. Terminal pairs are marked 13-14, 23-24, 33-34 and 43-44.
| Specifications | |
|---|---|
| Model | DILR40 |
| Made In | GERMANY |
| Condition | Used |
| Other Specifications |
|---|
|

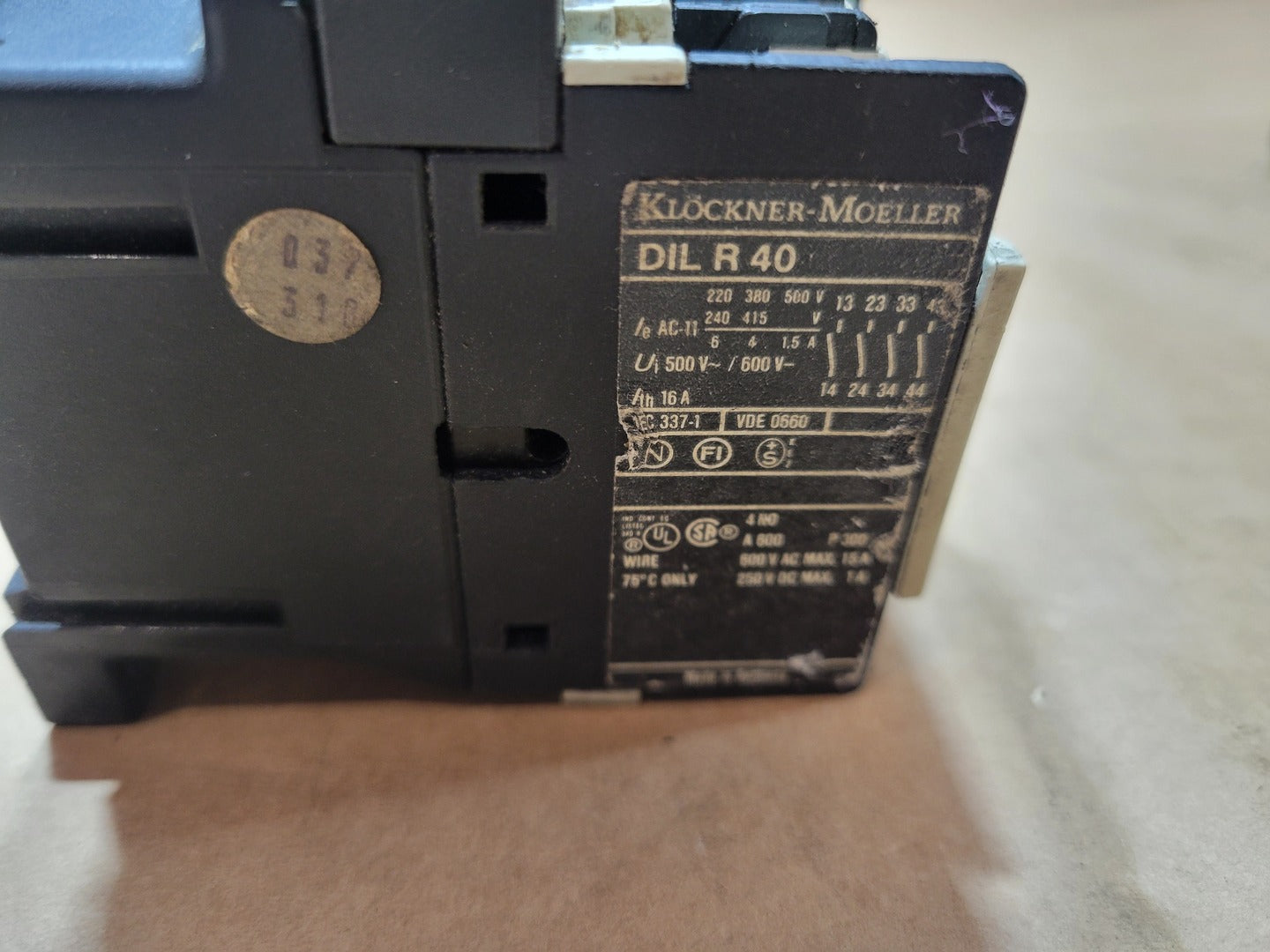

Product Type: Contactor Relay / Auxiliary Contactor Contact Configuration: 4NO Number of Contacts: 4 Contact Terminals: 13-14, 23-24, 33-34, 43-44 Coil Terminals: A1 / A2 Coil Voltage: 110 VAC at 50 Hz / 120 VAC at 60 Hz Thermal Current (Ith): 16 A Rated Insulation Voltage (Ui): 500 VAC / 600 VAC IEC Utilization Rating: AC-11 AC-11 Ratings: 6 A at 220/240 VAC; 1.5 A at 380/415/500 VAC North American Contact Rating: A600 Maximum AC Voltage: 600 VAC Maximum DC Voltage: 250 VDC Contact Type: Normally Open Mounting: Panel/Base Mount Standards Marked: IEC 337-1, VDE 0660 |
