OZ MACHINE Double Head Cutting Machine Gemini VI
OZ MACHINE

Double Head Cutting Machine Gemini VI

SKU: 151262
Condition: Used
Year: 2020
Price:
$39,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Looking for more equipment like this?

All Saws (Metal) → All Metalworking → More from OZ MACHINE →

Description

Specifications

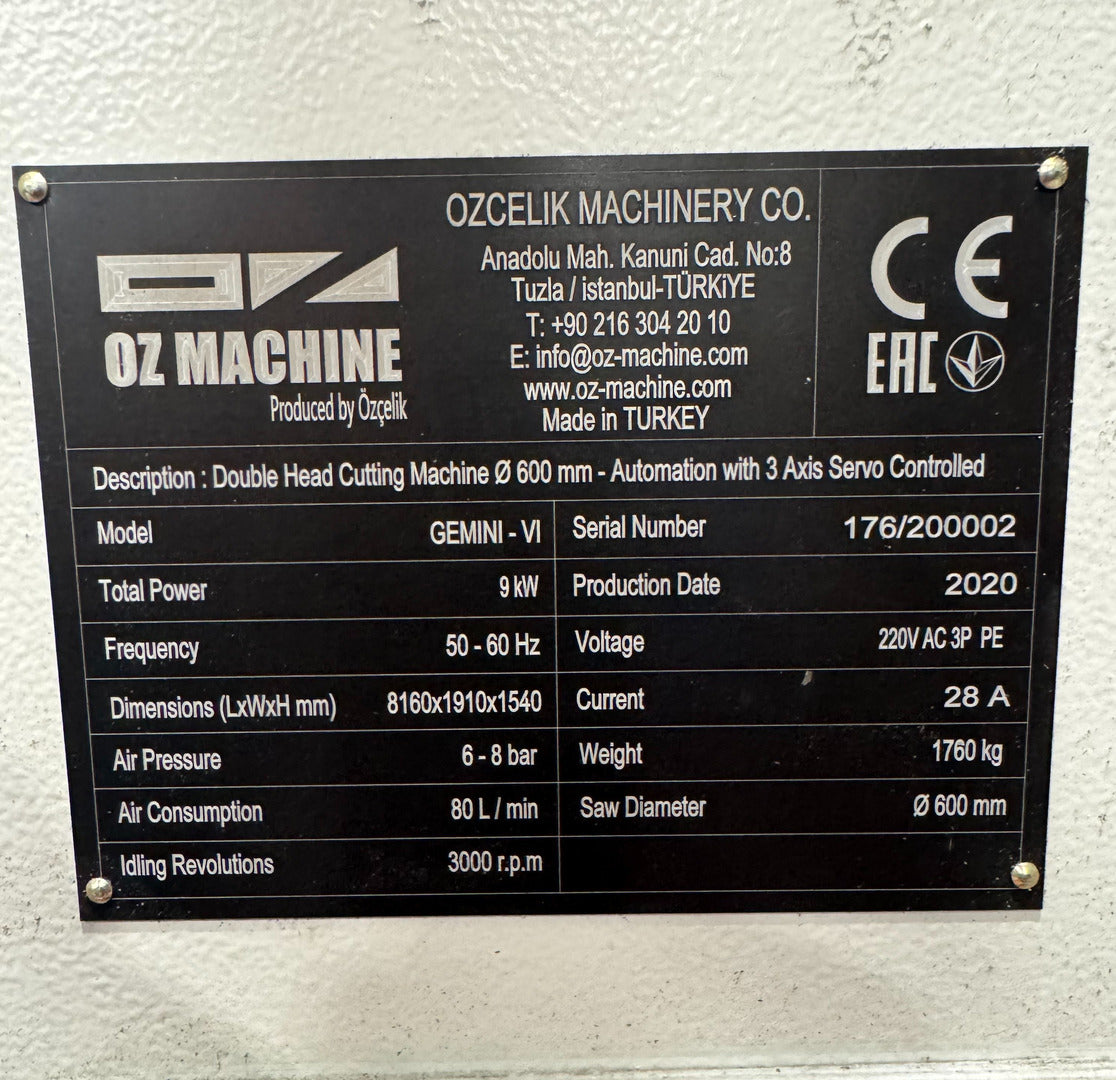

Model Gemini VI
Year: 2020
S/N: 176/200002
Made In TURKEY
Condition Used
General
Horsepower 12 hp
Electrical
Voltage 220 volts
Phase 3-phase
Other Specifications

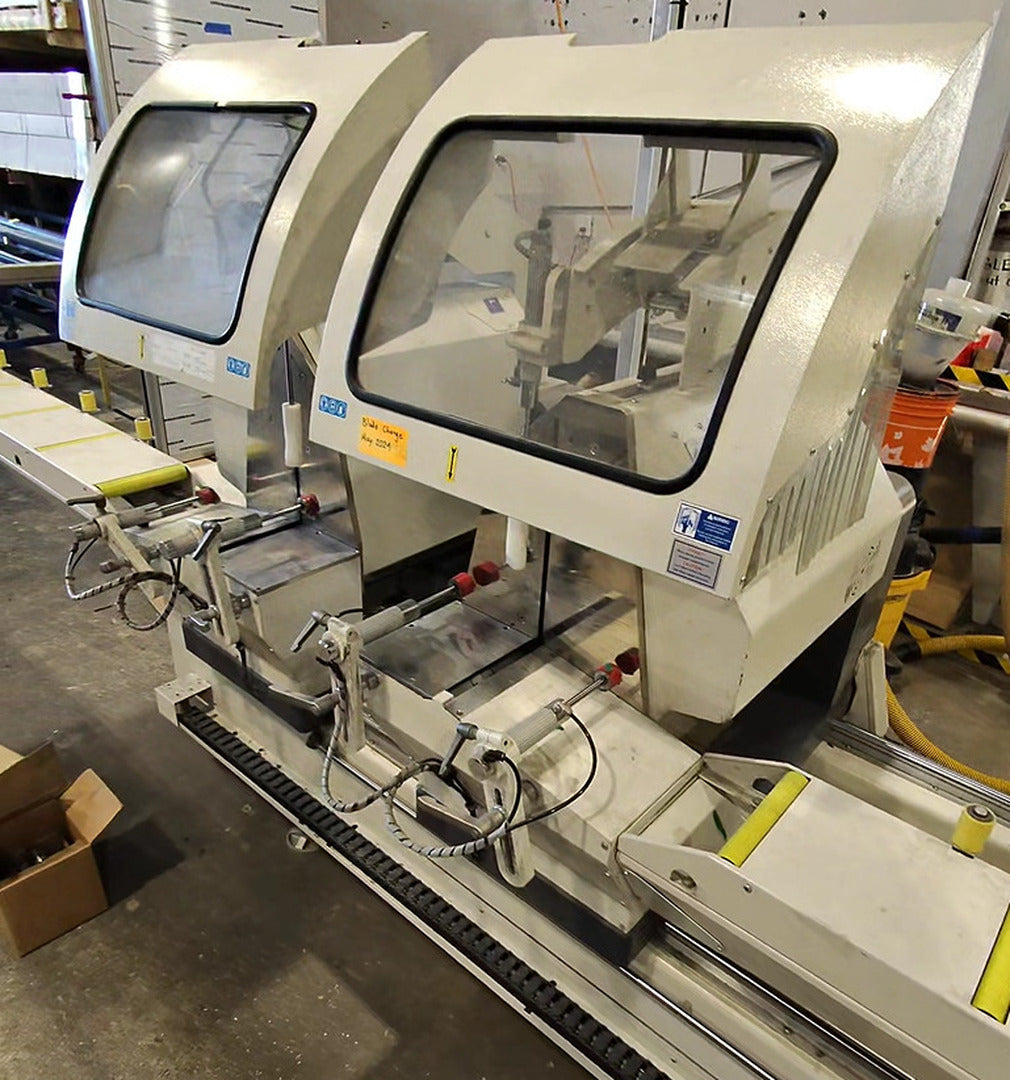

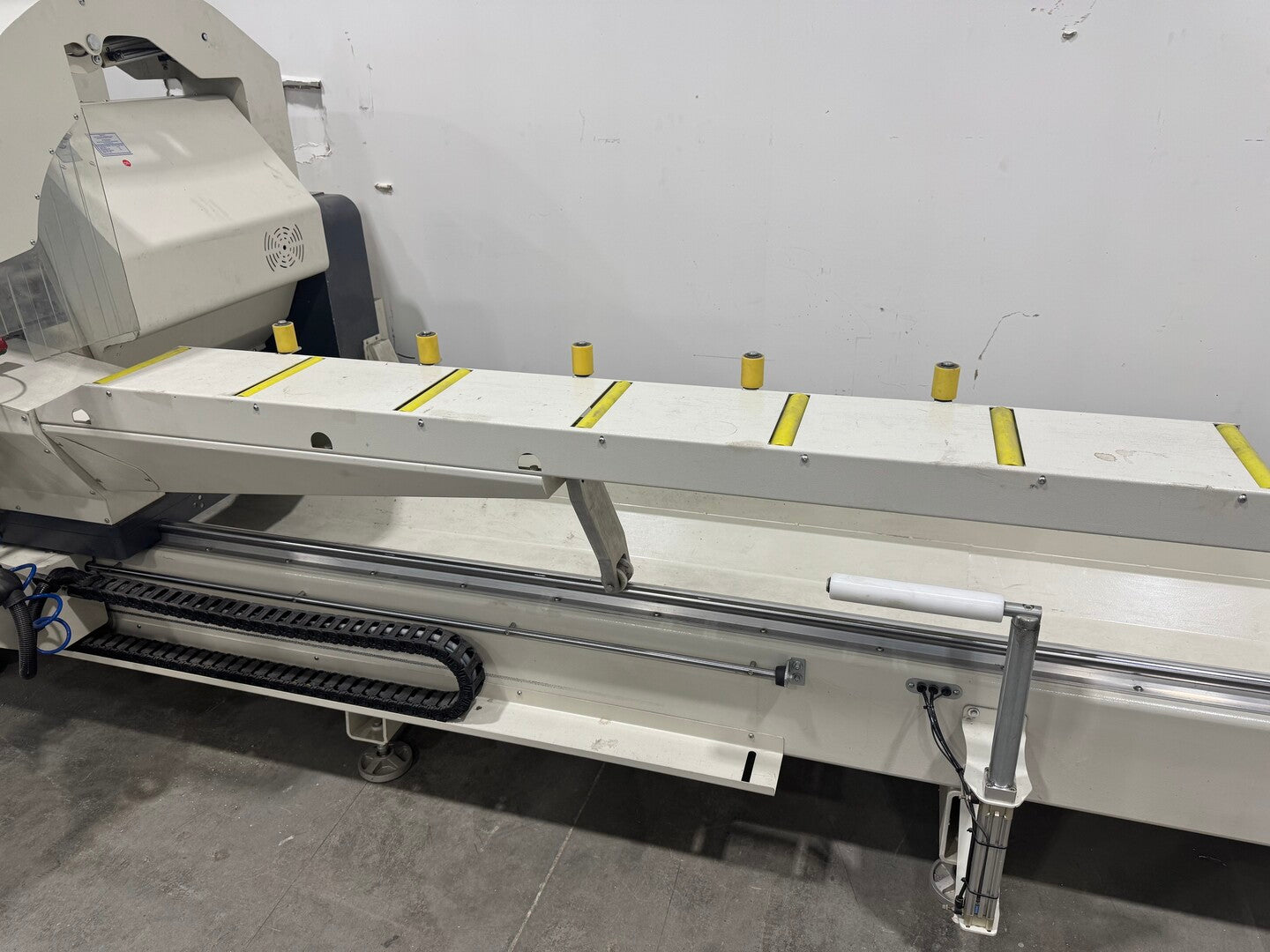

3 axis servo controlled double head cutting machine with 24" saw blades, is ideal for cutting aluminum and PVC profiles in various angles and thickness.

  1. Min. cutting length with double head 90° & 45°: 18 7/8" (480mm) / 28 3/8" (720mm)
  2. Max. cutting length with double head 90° & 45°: 198 13/16" / 198 13/16" (5050mm)
  3. X axis positioning speed 1575" (40000mm)/min
  4. Maximum internal rotation angle 45°
  5. Maximum external rotation angle -22.5°
  6. Saw blade diameter 24" (600mm)
  7. Saw blade motor power 3 kW
  8. Profile height measurement
  9. Cutting zone protection covers

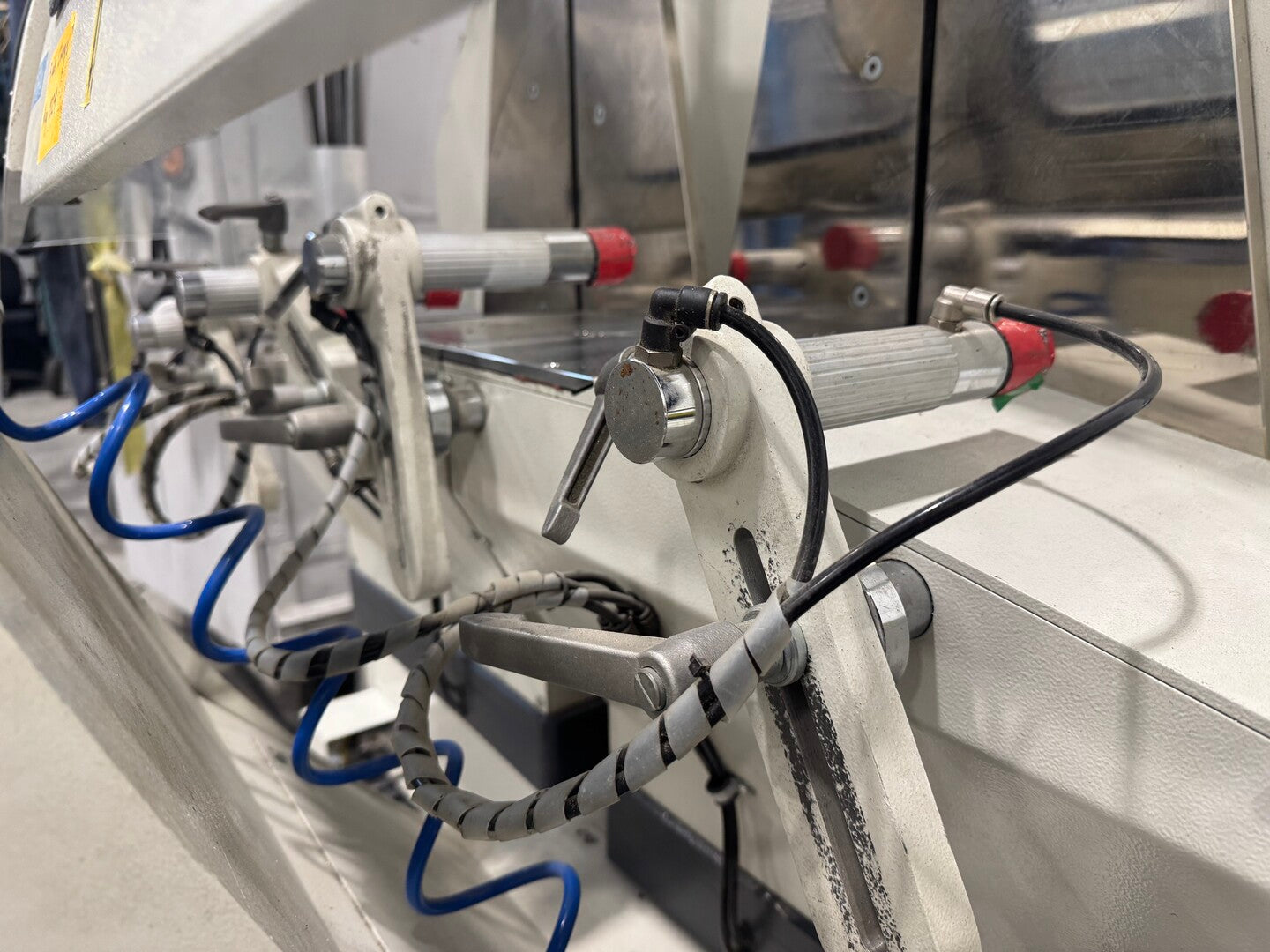

  10. Horizontal and Vertical pneumatic clamps
  11. Automatic intermediate profile support (2 pcs)
  12. Cooling lubrication system
  13. Manual adjustment saw blade stroke distance
  14. Saw blade stroke speed adjustment
  15. Slicing mode
  16. Remote access
  17. Data transfer via remote network connection, Ethernet and USB

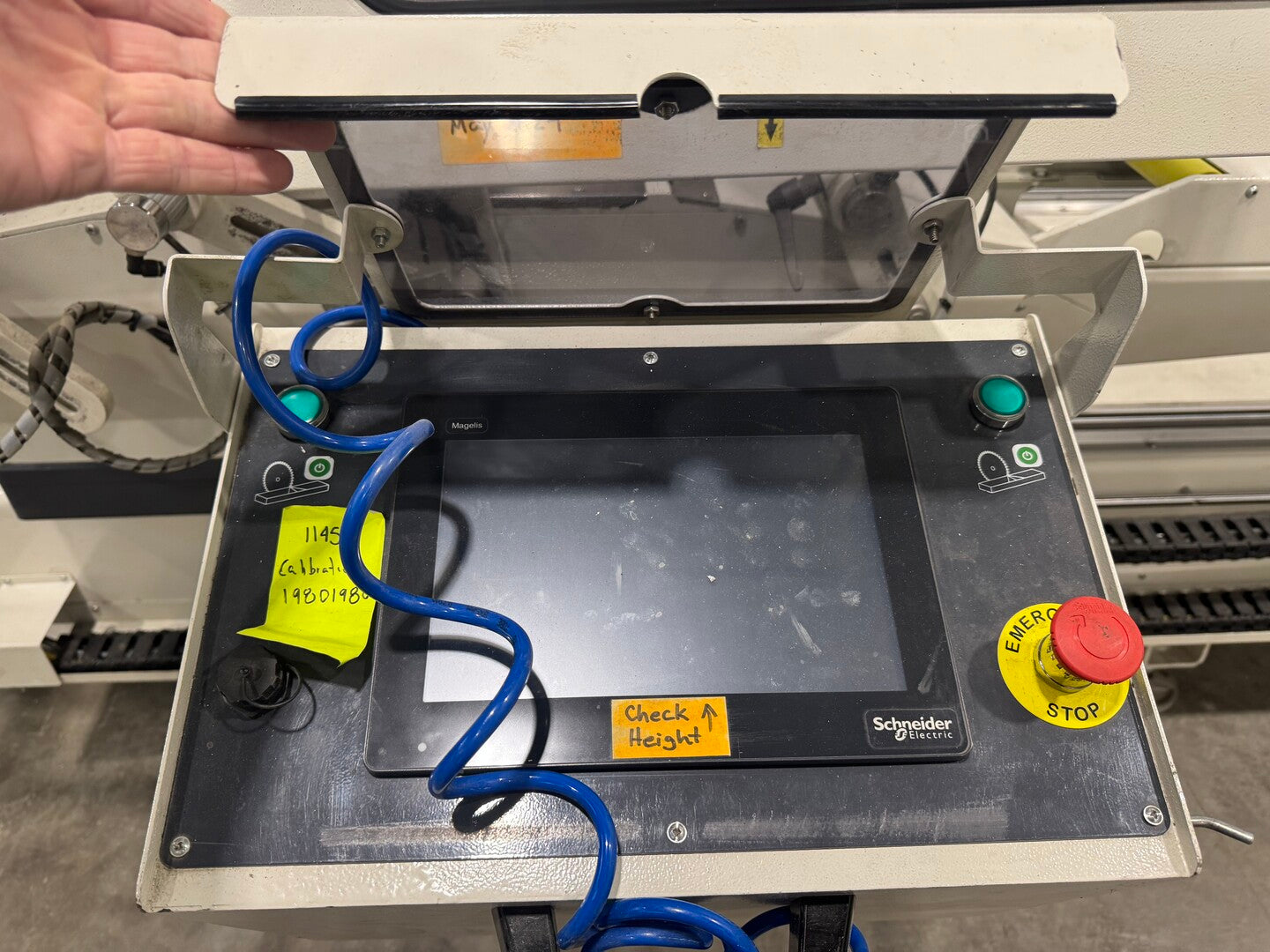

  18. Smart Touchscreen Panel PC
  19. Maximum profile loading length 314" (8000mm)

Standard Equipment

  1. Hydro-pneumatic cutting feed adjustment
  2. Electro control X axis
  3. Carbide saw blade (2 pcs)
  4. Roller conveyor on moving head

Optional Equipment

  1. Vacuum Cleaner for chips
  2. Roller conveyor on fixed head
