CALORITECH Dual Electric Boiler Container Package with 2 Boilers, 75 kVA Transformer, Pumps & Electrical Distribution
CALORITECH

Dual Electric Boiler Container Package with 2 Boilers, 75 kVA Transformer, Pumps & Electrical Distribution

SKU: 118014
Price:
$29,500 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

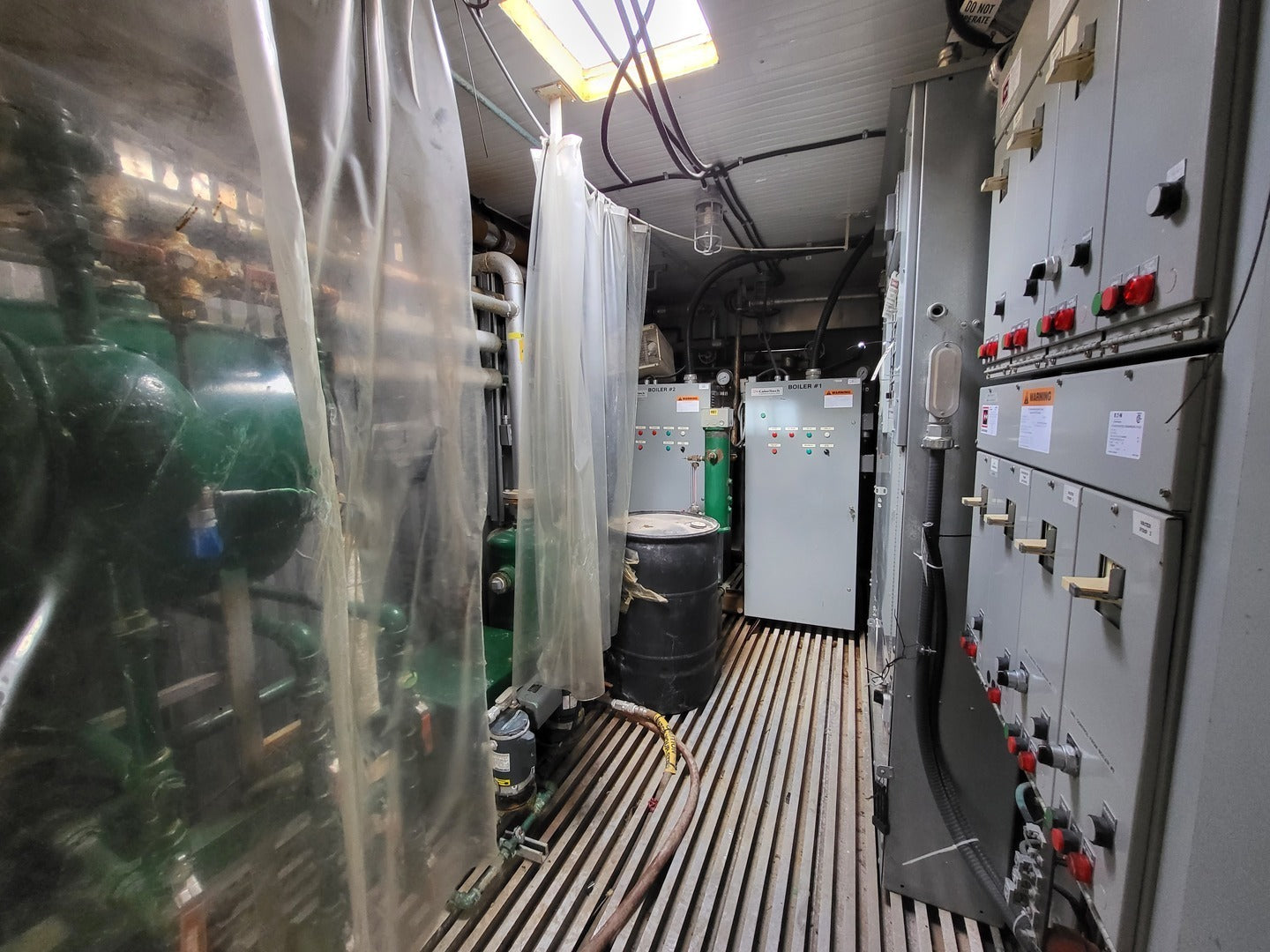

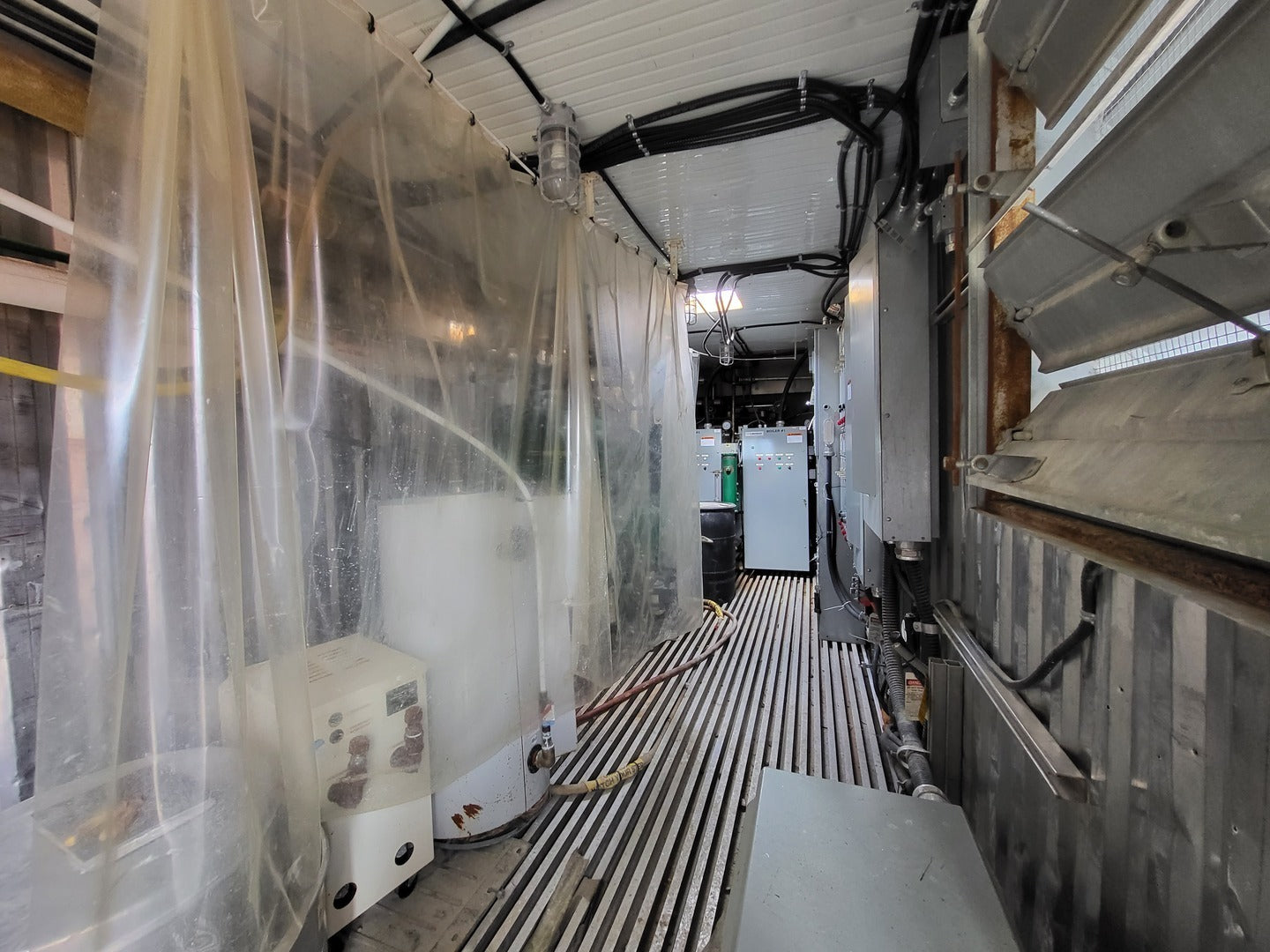

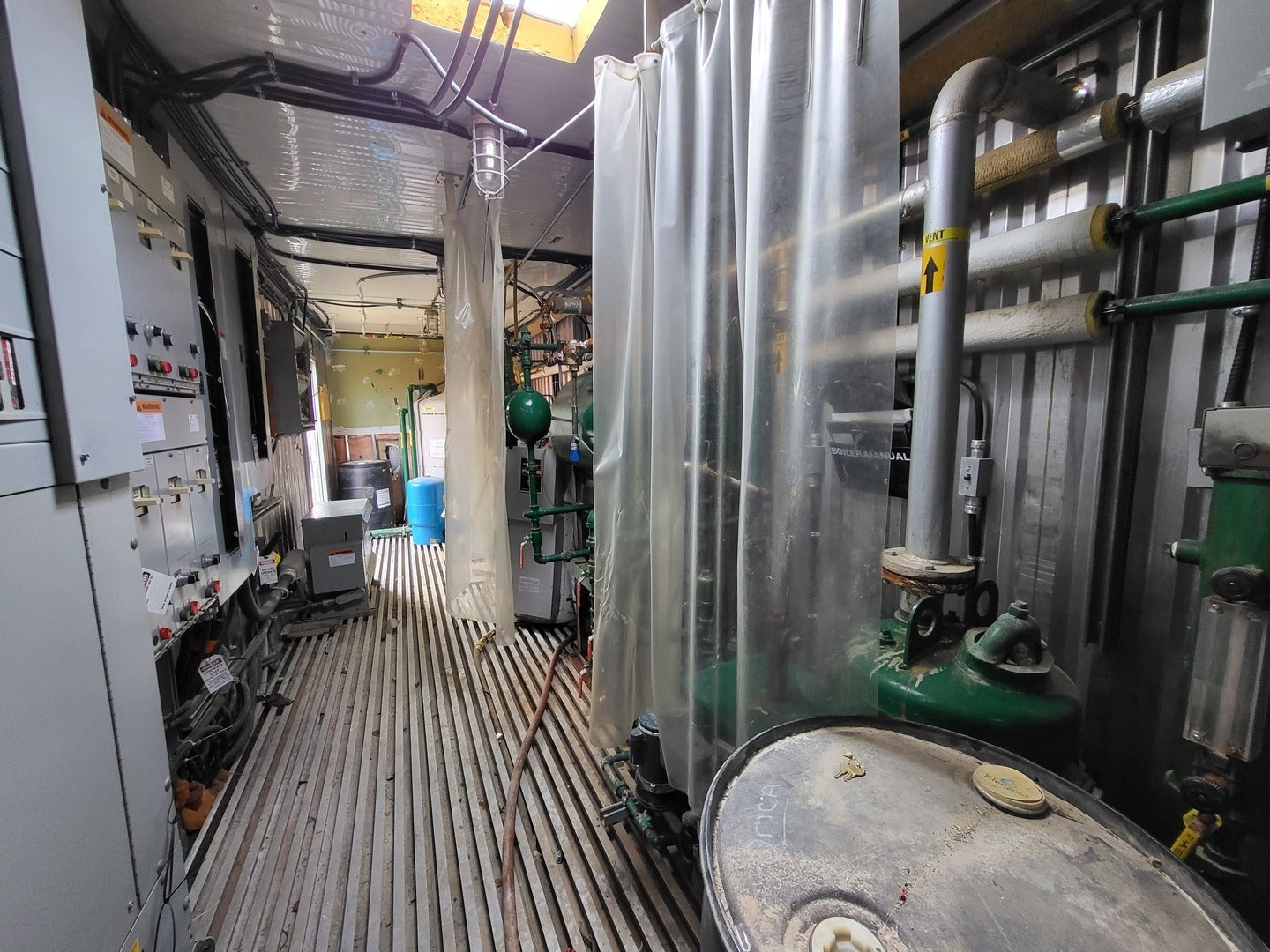

Complete containerized electric boiler package consisting of two Caloritech electric boilers installed inside a transportable equipment container. The system includes a Delta Group Commercial Series dry-type transformer, electrical distribution equipment, Cutler-Hammer disconnects, circulation pumps, expansion tank, piping, gauges, pressure vessels, and associated control equipment. This appears to be a self-contained boiler plant intended for commercial or industrial hydronic heating applications.
Specifications
Model VSB
Condition Used
Other Specifications

Boilers

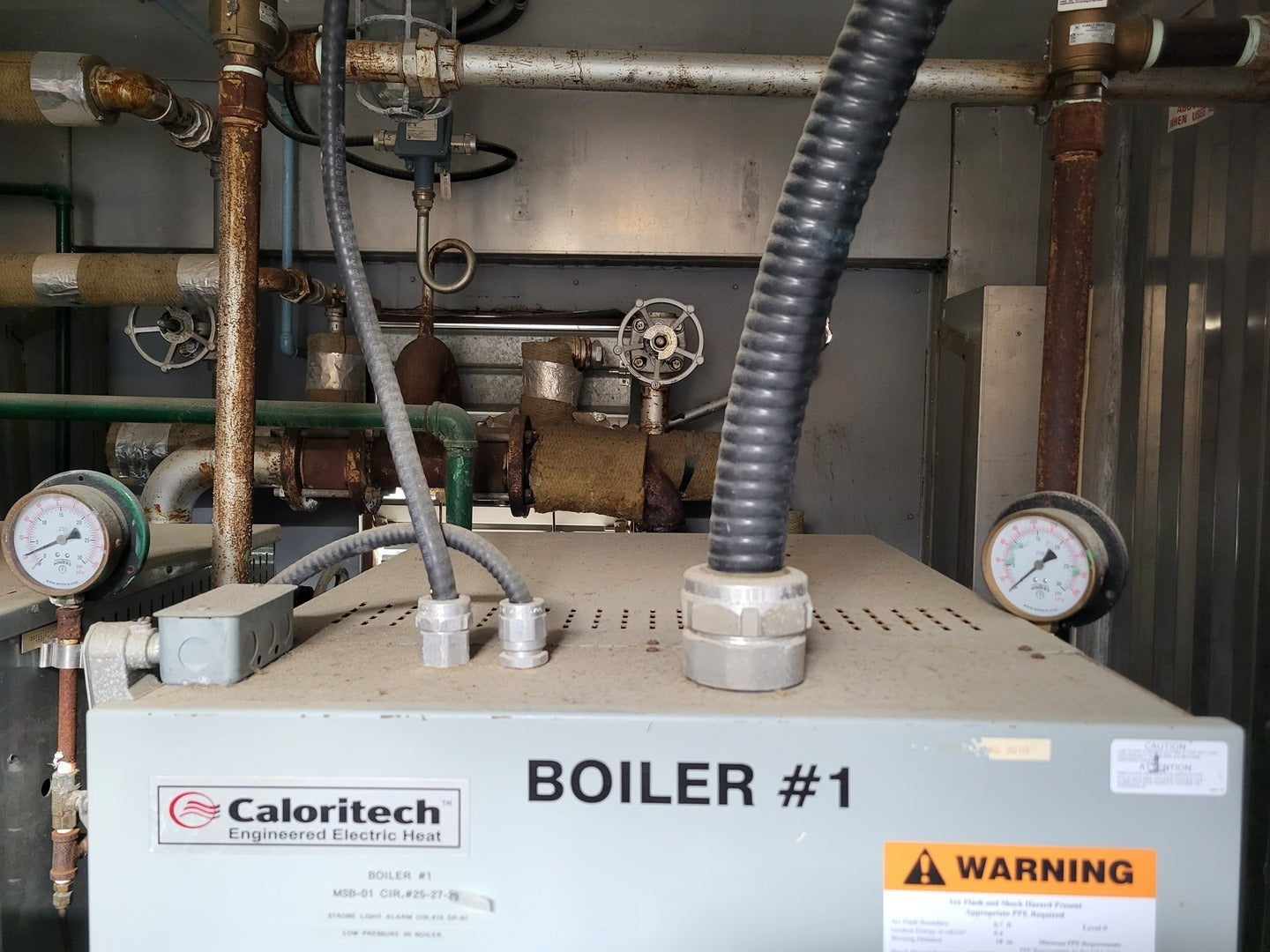

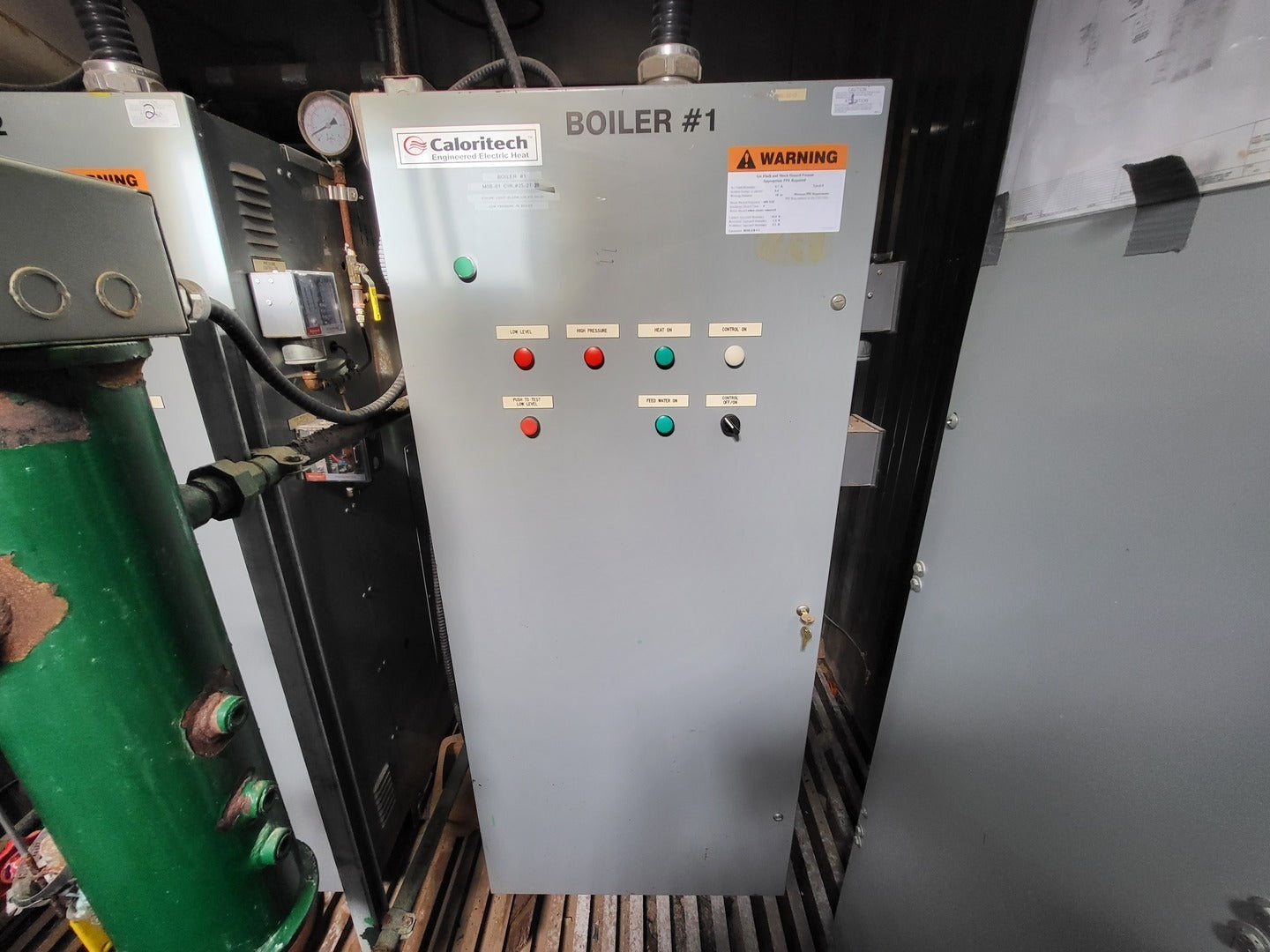

  1. Manufacturer: Caloritech
  2. Type: Electric hot water boilers
  3. Quantity: 2
  4. Identification: Boiler #1 and Boiler #2

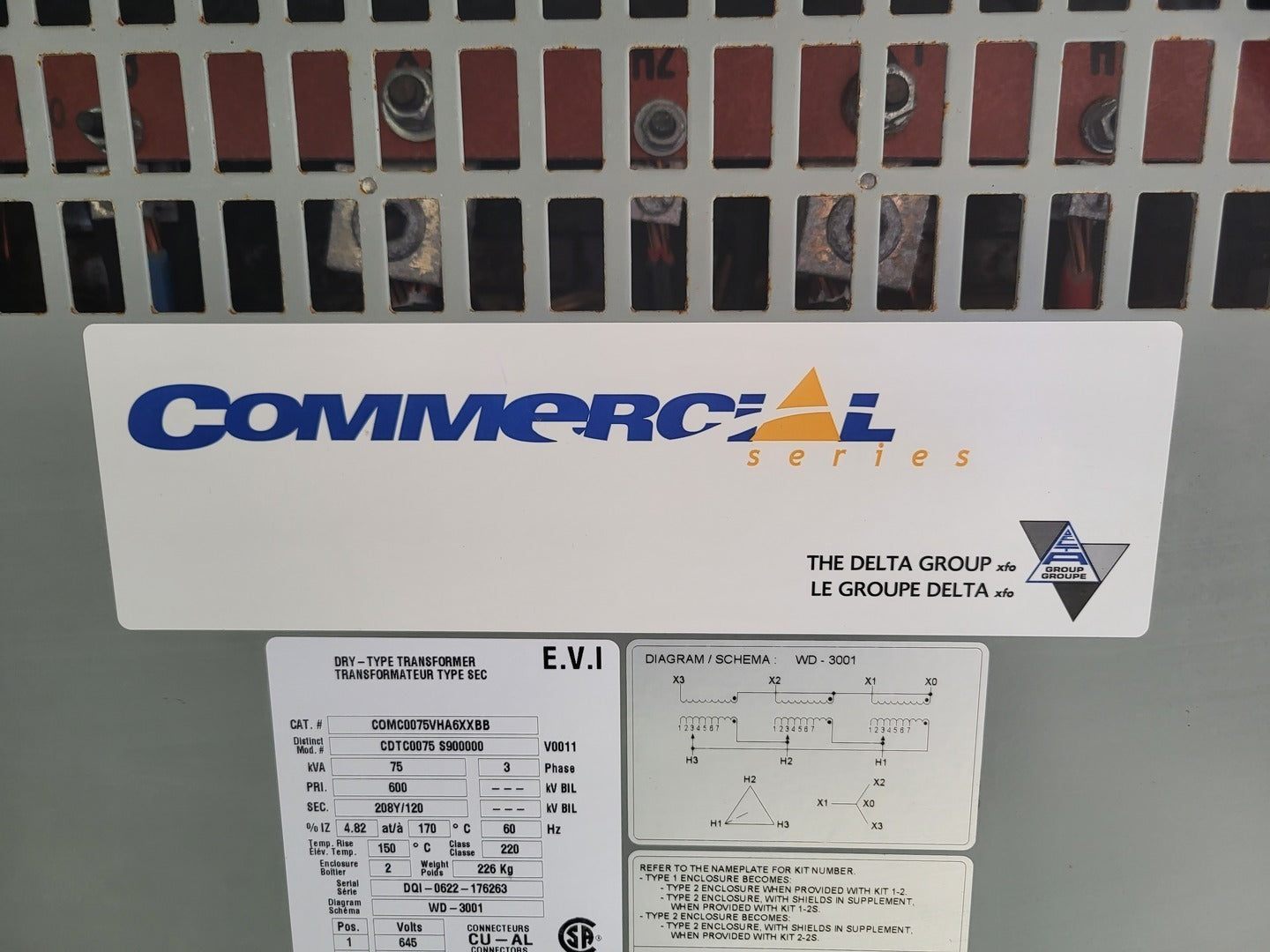

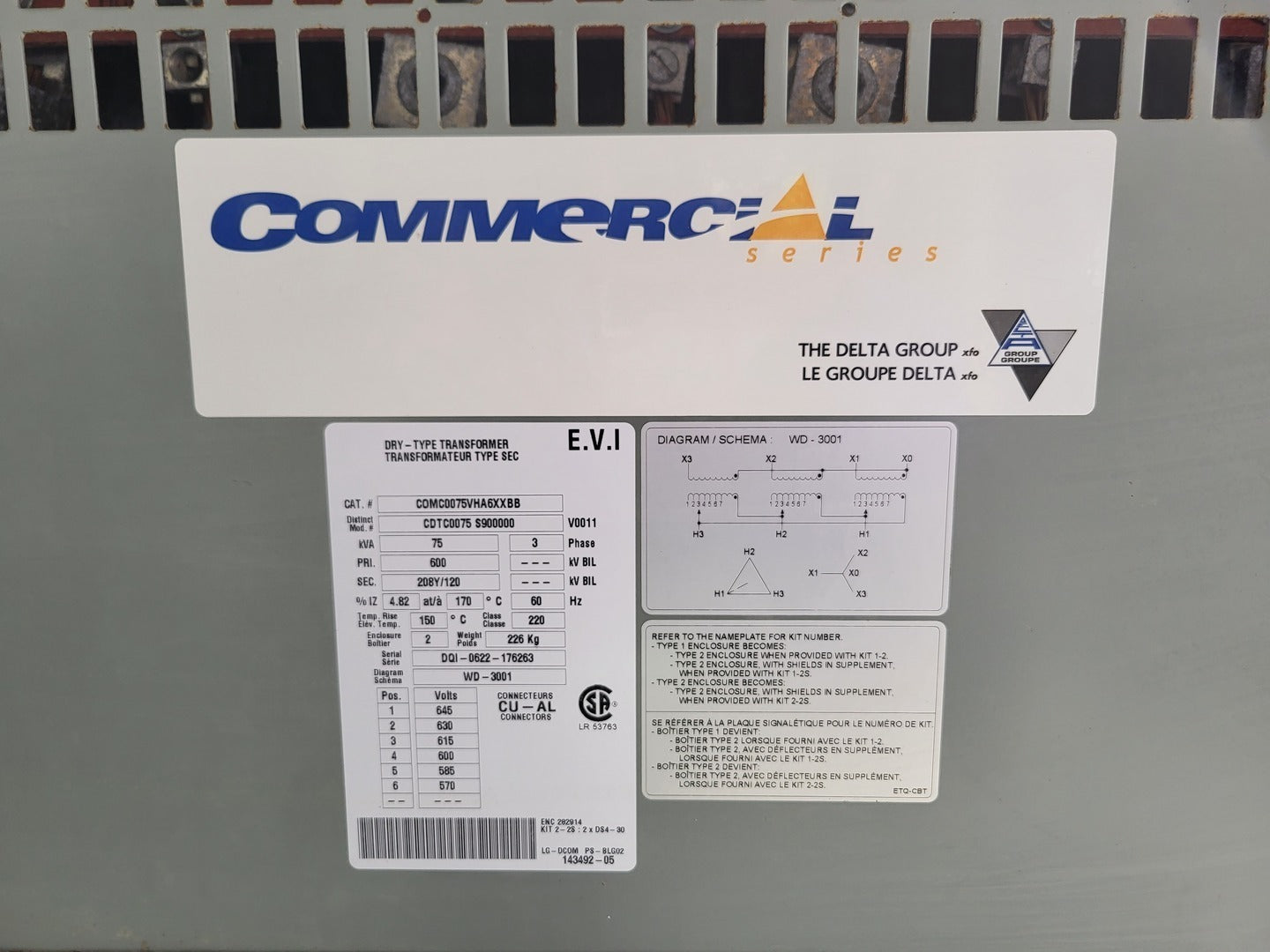

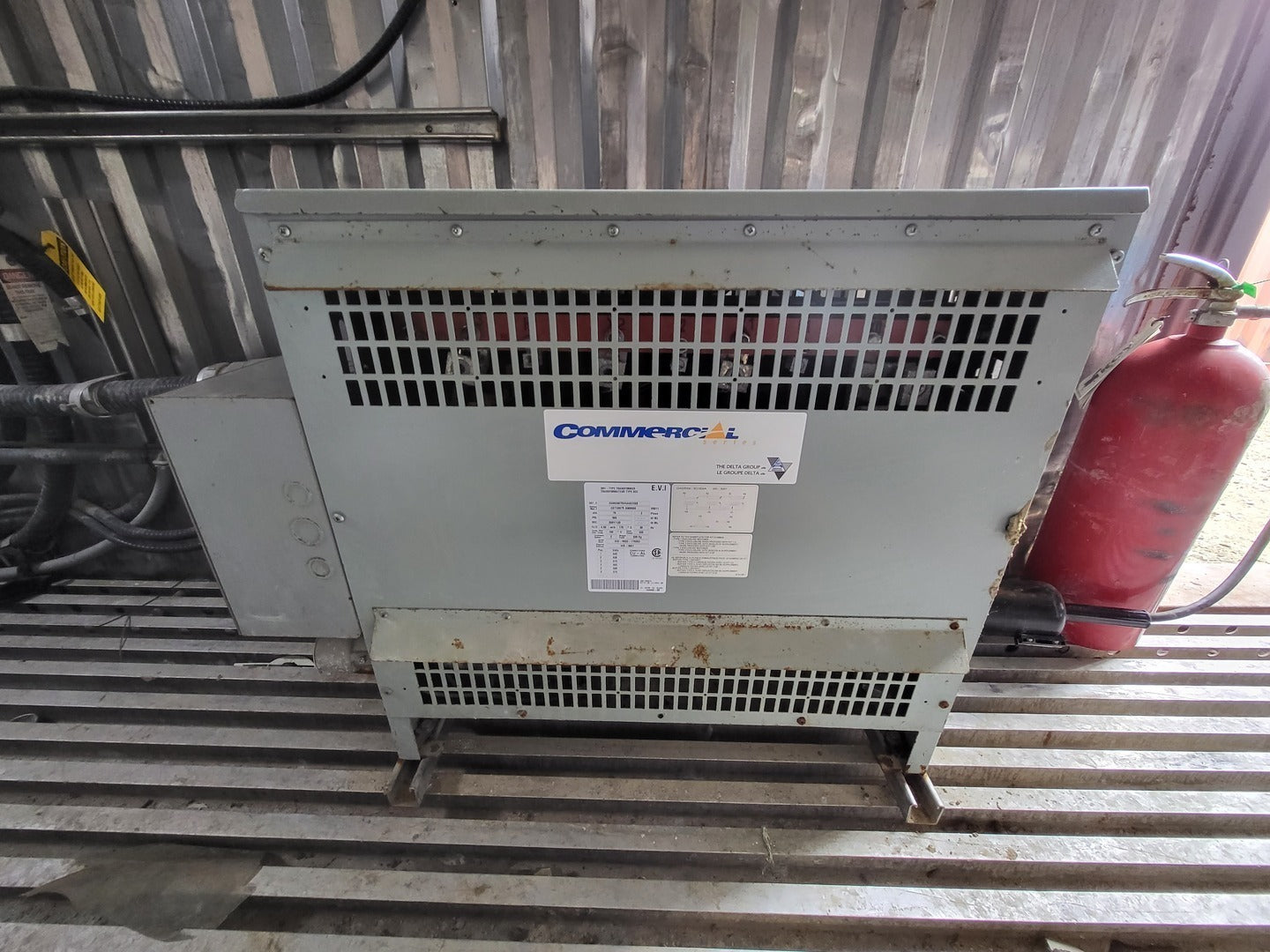

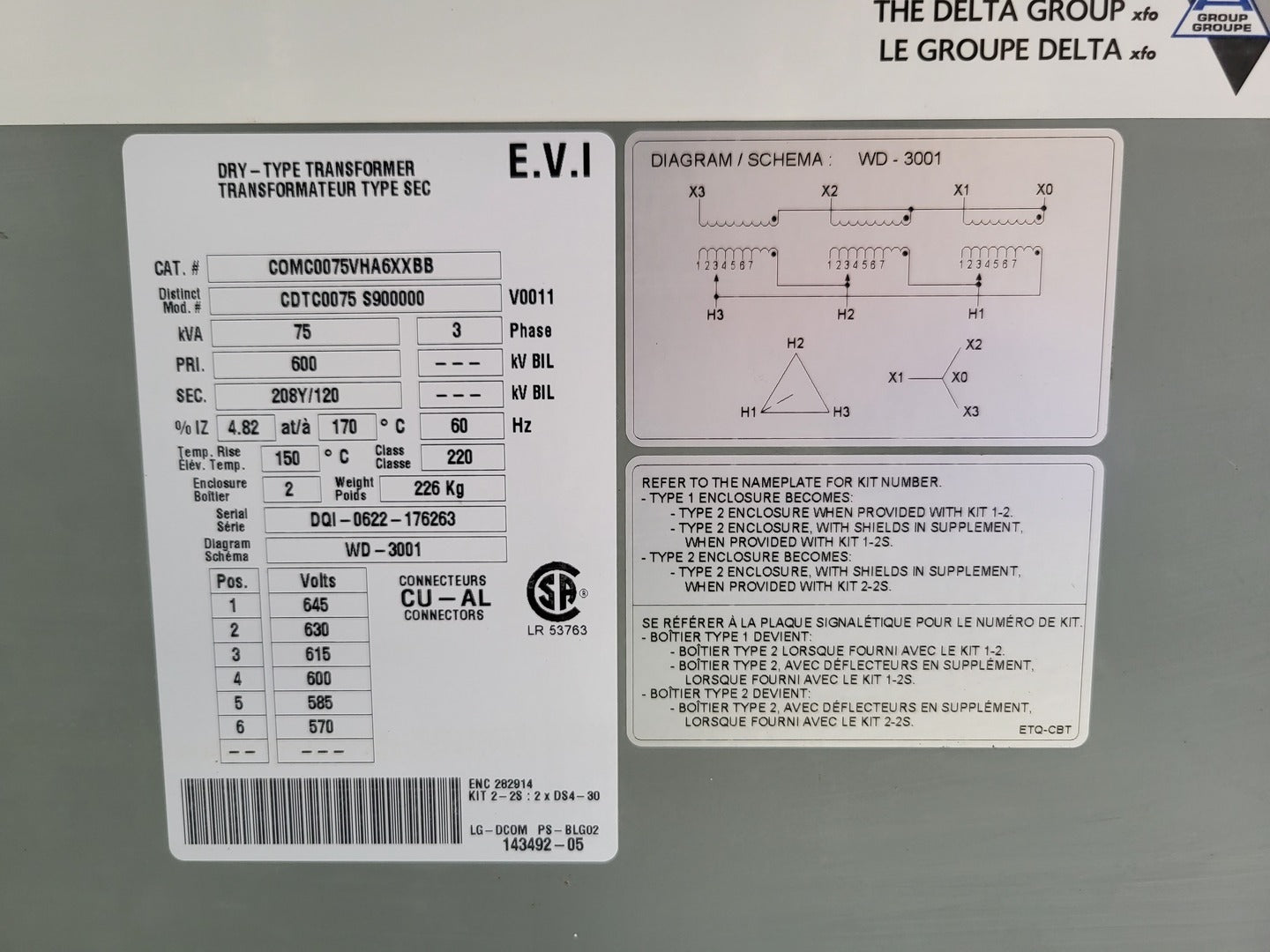

Transformer

  1. Manufacturer: The Delta Group XFO
  2. Series: Commercial Series
  3. Type: Dry-Type Transformer
  4. Catalog Number: COMC0075VHA6XXBB
  5. Model: CDTC0075 S900000
  6. Power Rating: 75 kVA
  7. Primary Voltage: 600 V
  8. Secondary Voltage: 208Y/120 V
  9. Phase: 3 Phase
  10. Frequency: 60 Hz
  11. Impedance: 4.82%
  12. Temperature Rise: 150°C
  13. Insulation Class: 220
  14. Enclosure: Type 2
  15. Weight: 226 kg
  16. Serial Number: DQI-0622-176263
  17. Diagram: WD-3001

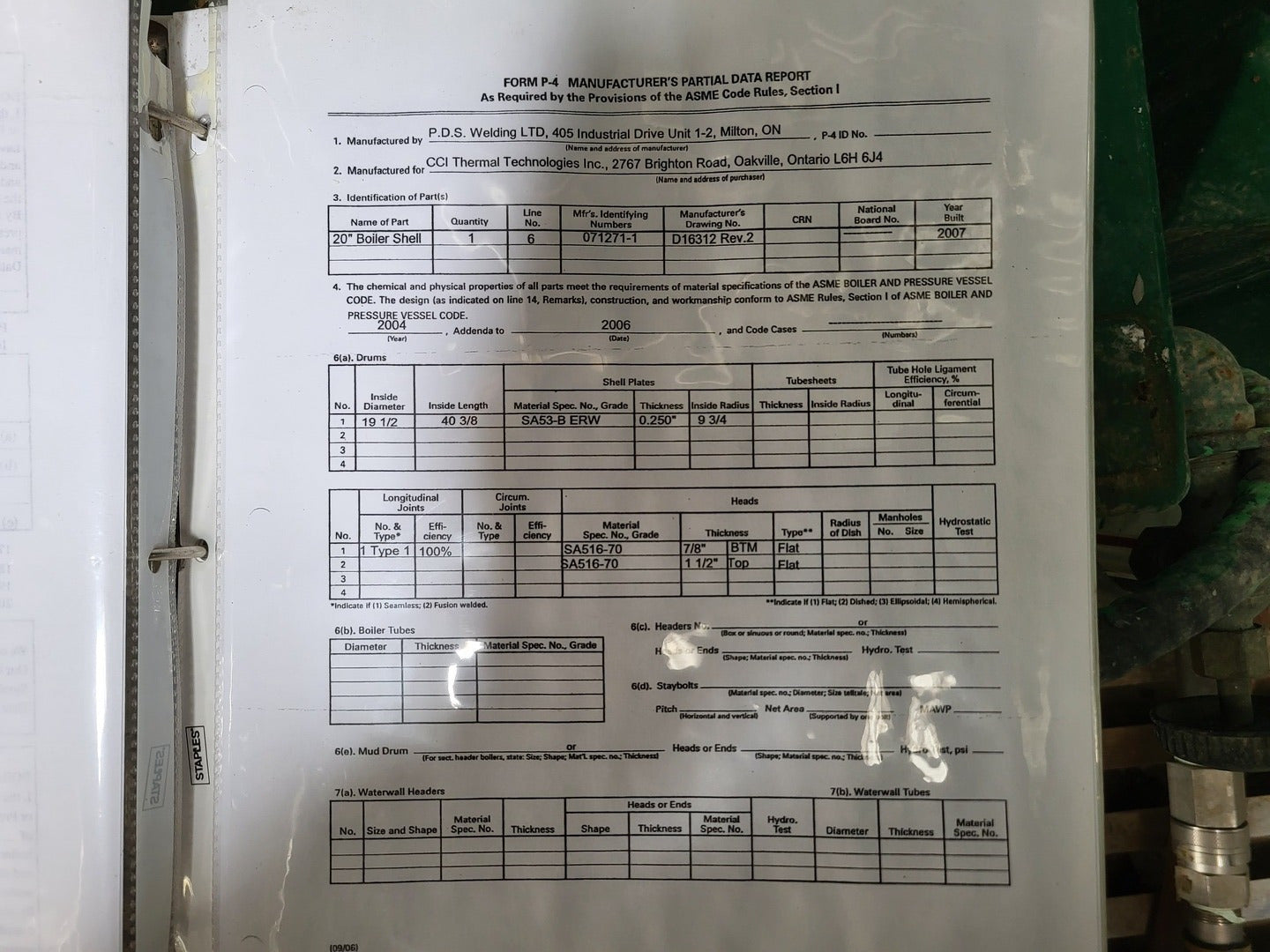

Boiler Shell Documentation

Visible ASME Form P-4:

  1. Manufacturer: P.D.S. Welding Ltd.
  2. Manufactured for CCI Thermal Technologies Inc.
  3. Boiler shell
  4. Year Built: 2007
  5. 20-inch boiler shell
  6. Documentation present

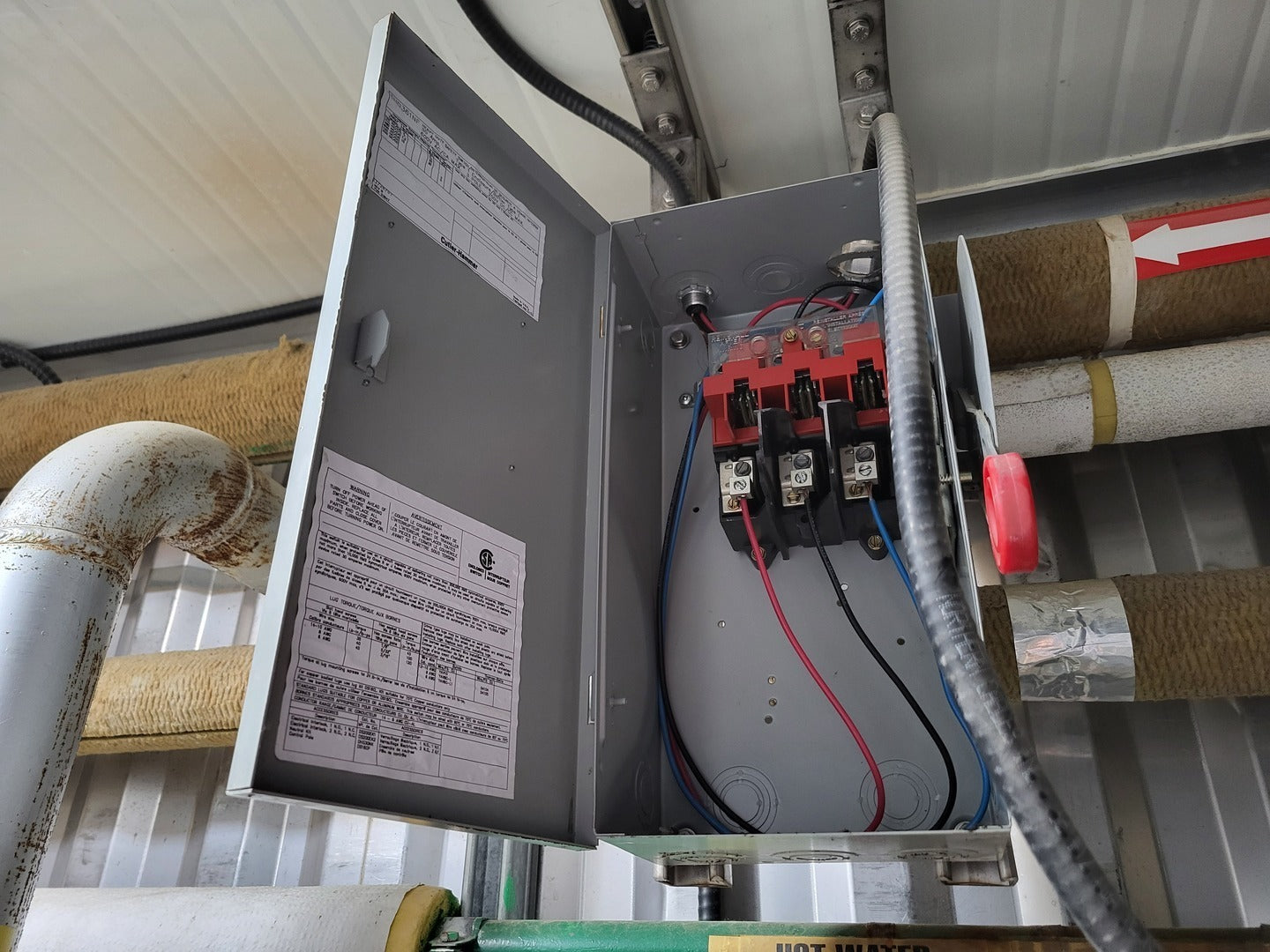

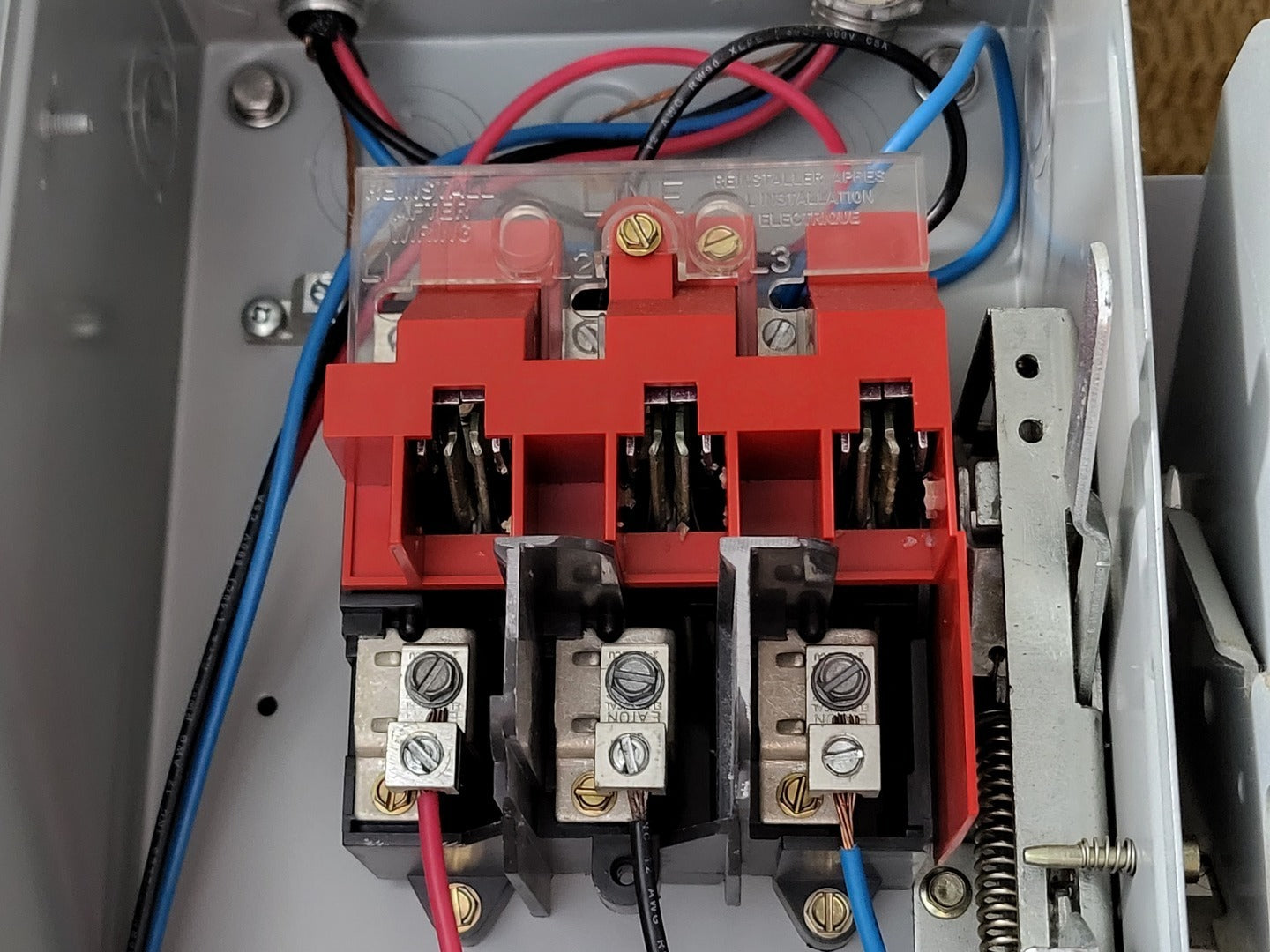

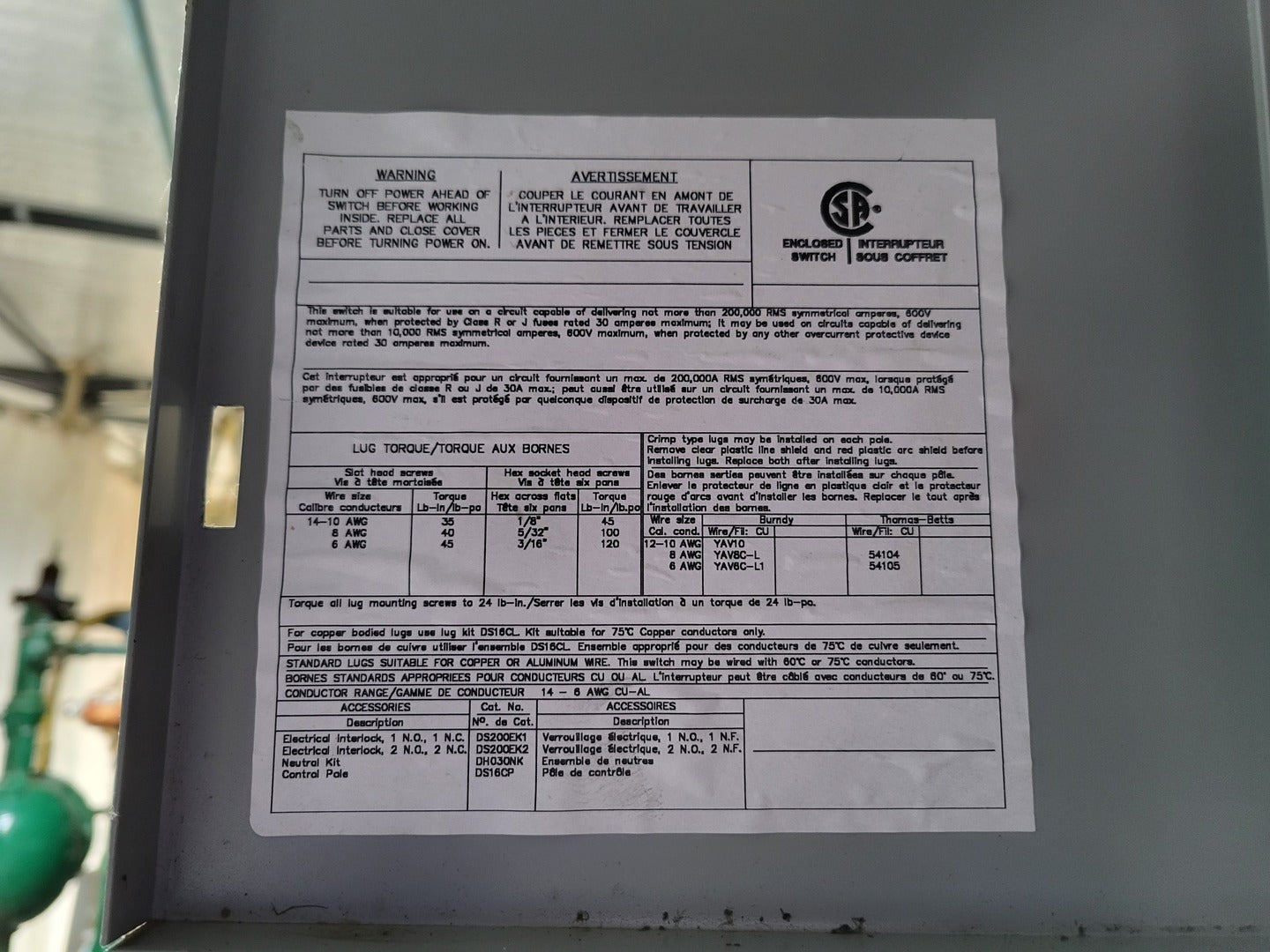

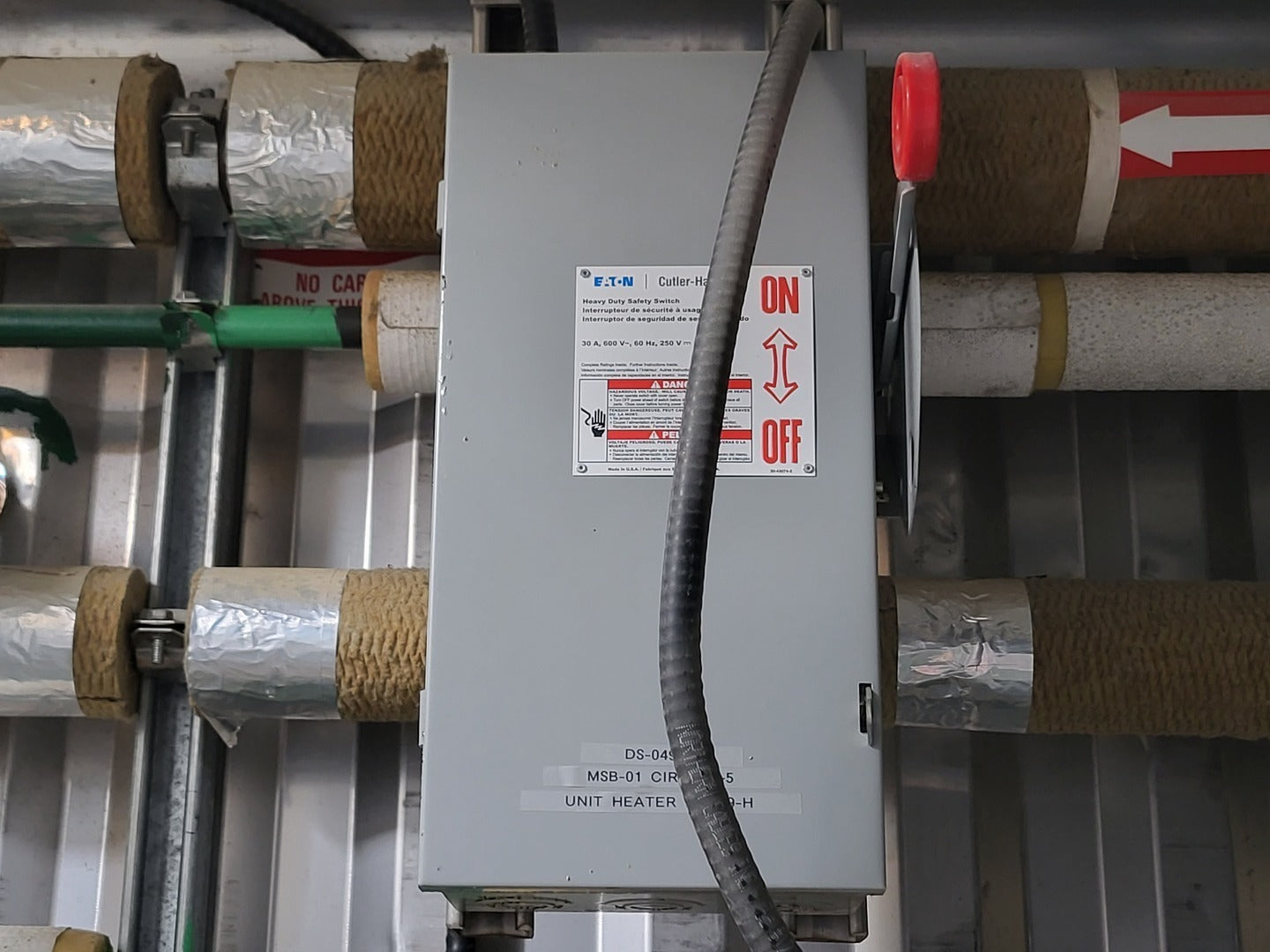

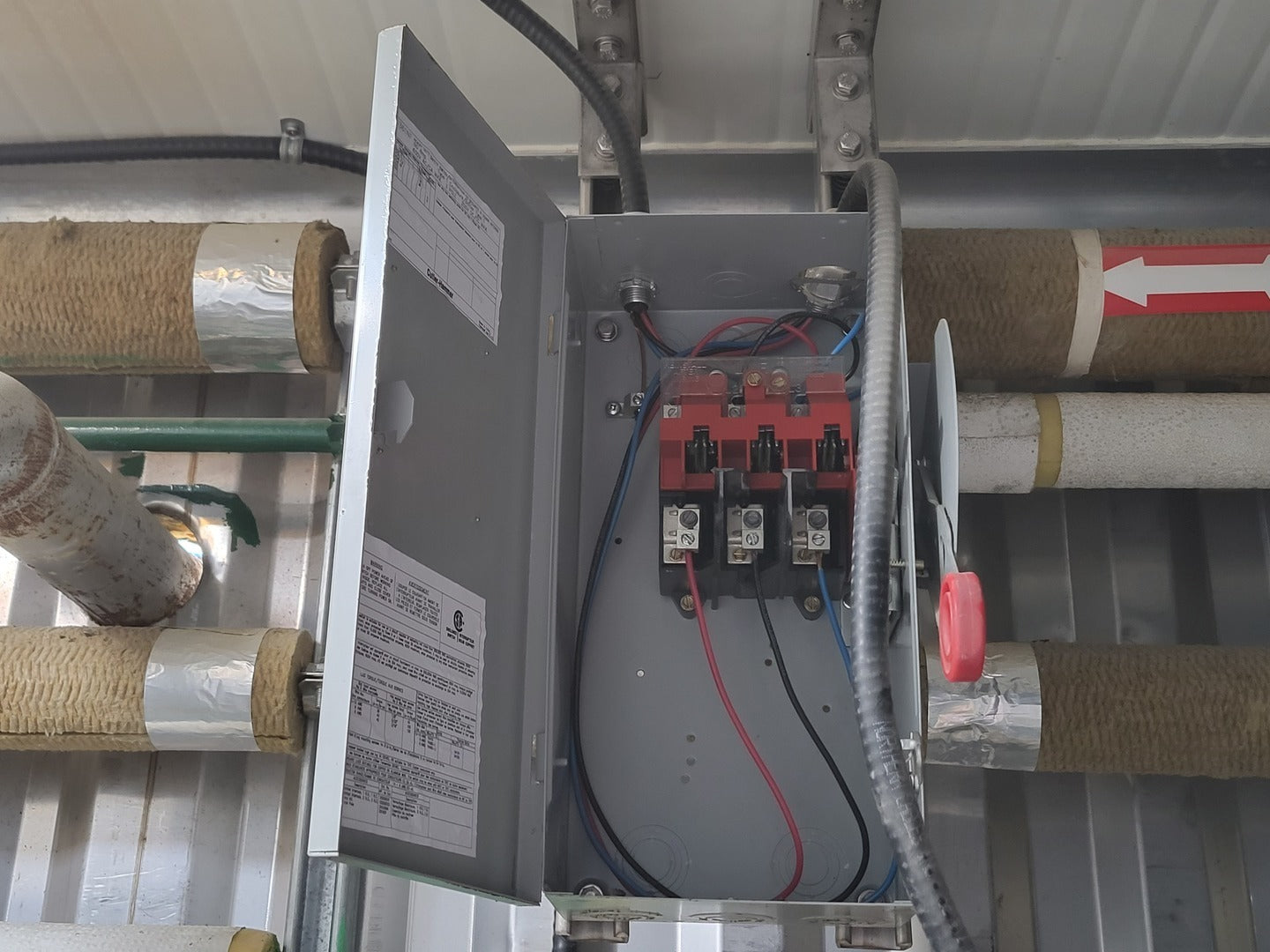

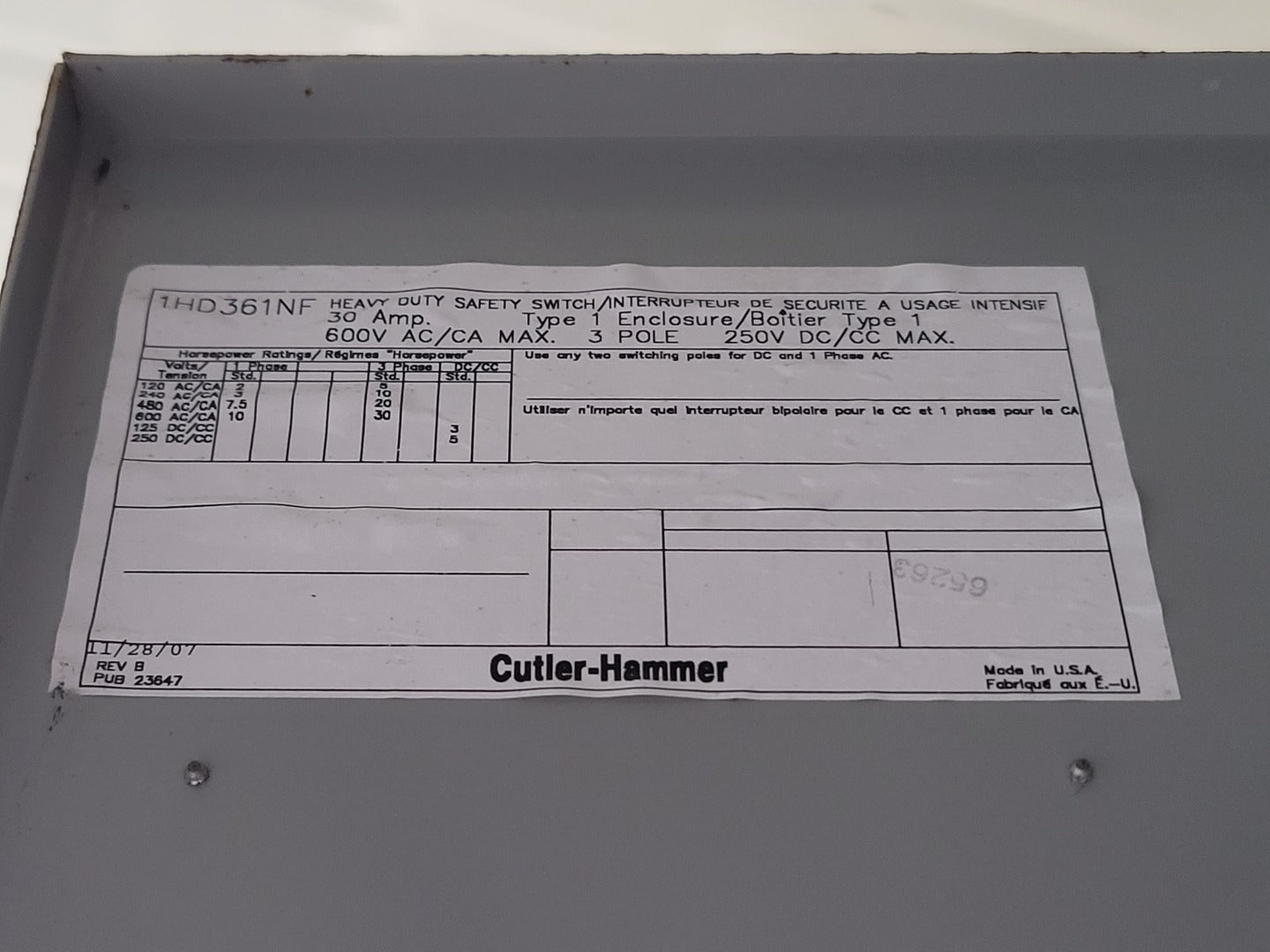

Disconnect Switch

  1. Manufacturer: Eaton / Cutler-Hammer
  2. Model: 1HD361NF
  3. Heavy Duty Safety Switch
  4. 30 Amp
  5. 600 VAC
  6. 3 Pole
  7. Type 1 Enclosure

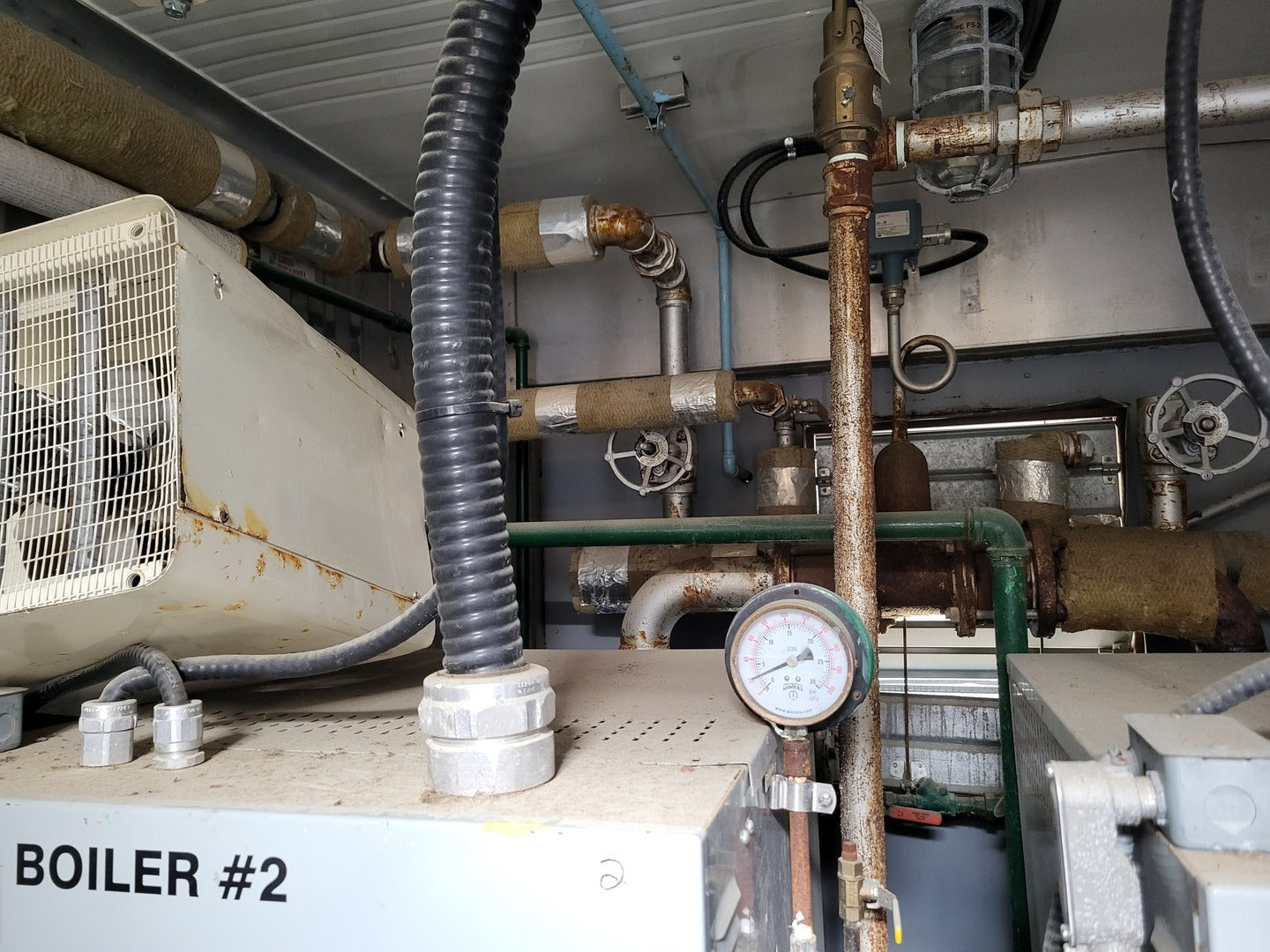

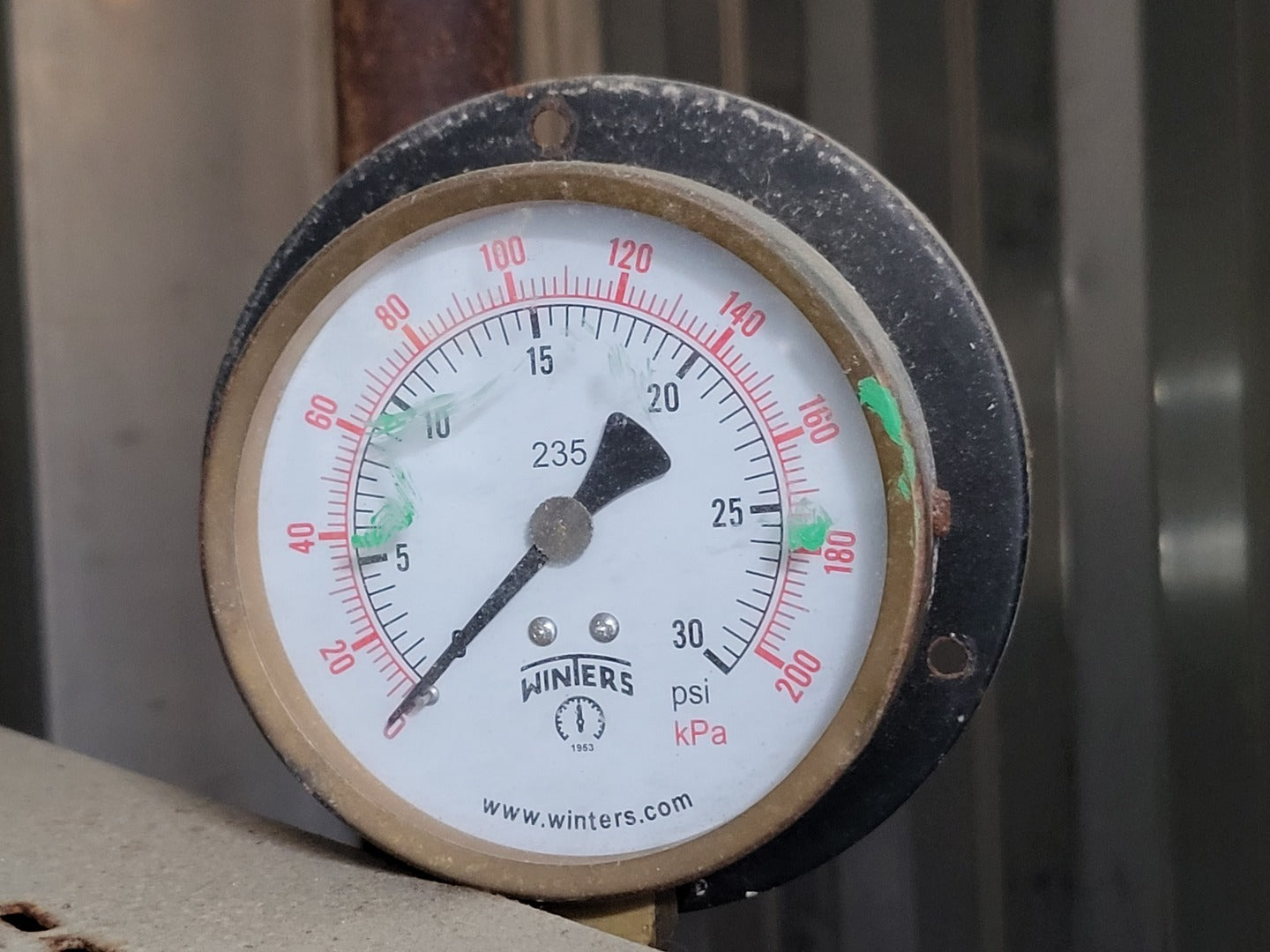

Pressure Gauges

  1. Manufacturer: Winters
  2. Dual scale
  3. 0-30 psi
  4. 0-200 kPa

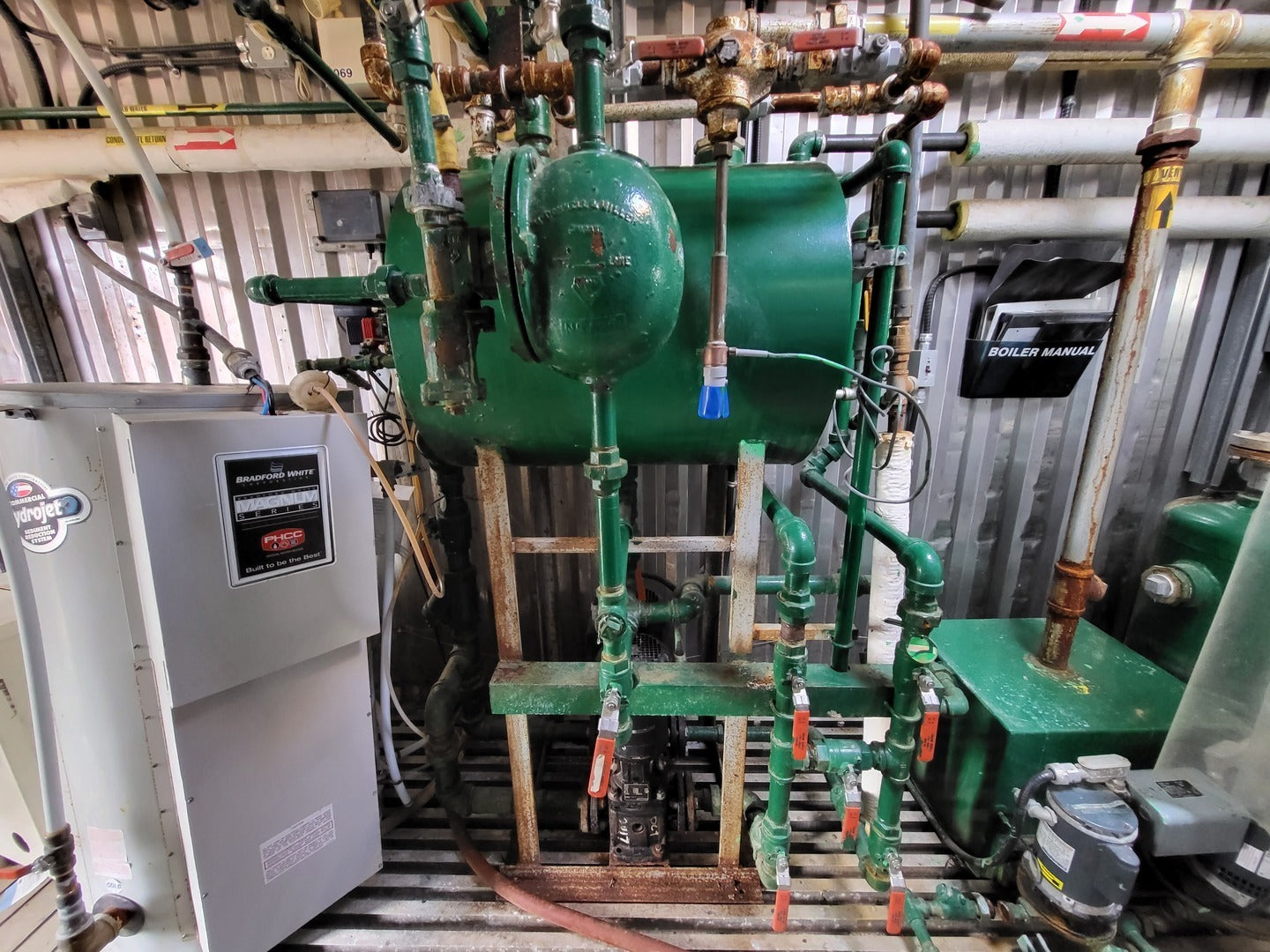

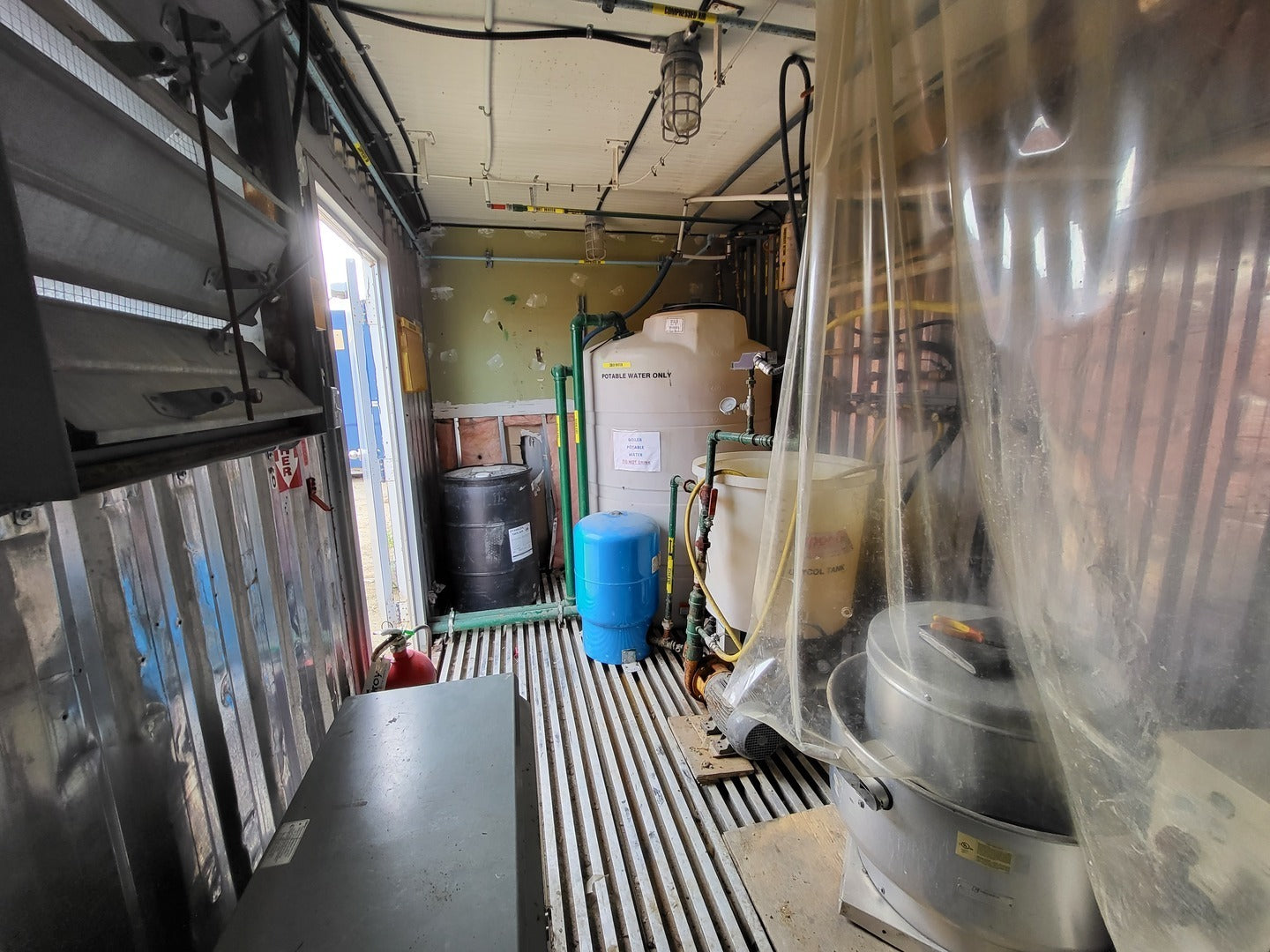

Visible Equipment

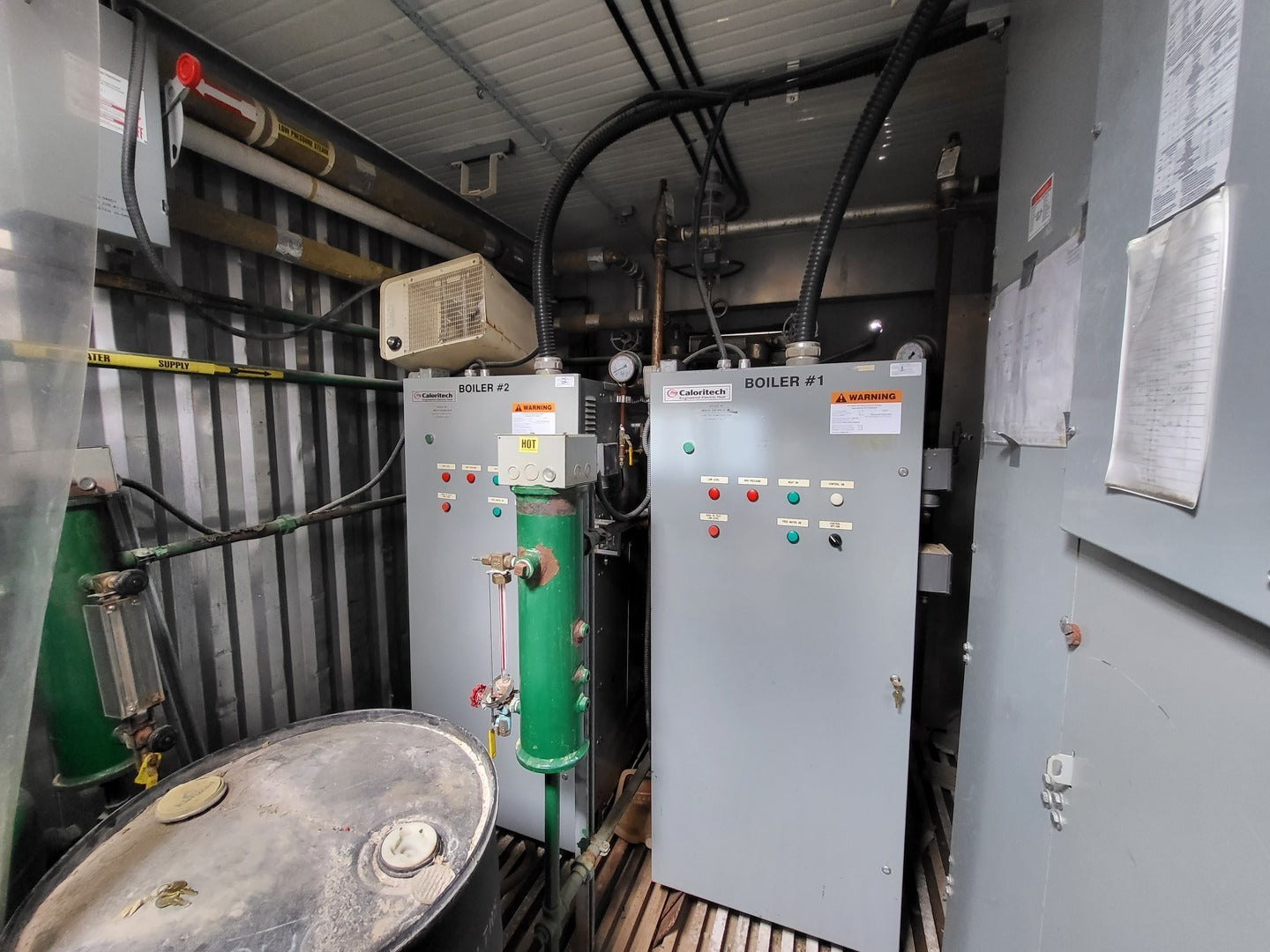

  1. Two electric boilers
  2. Dry-type transformer

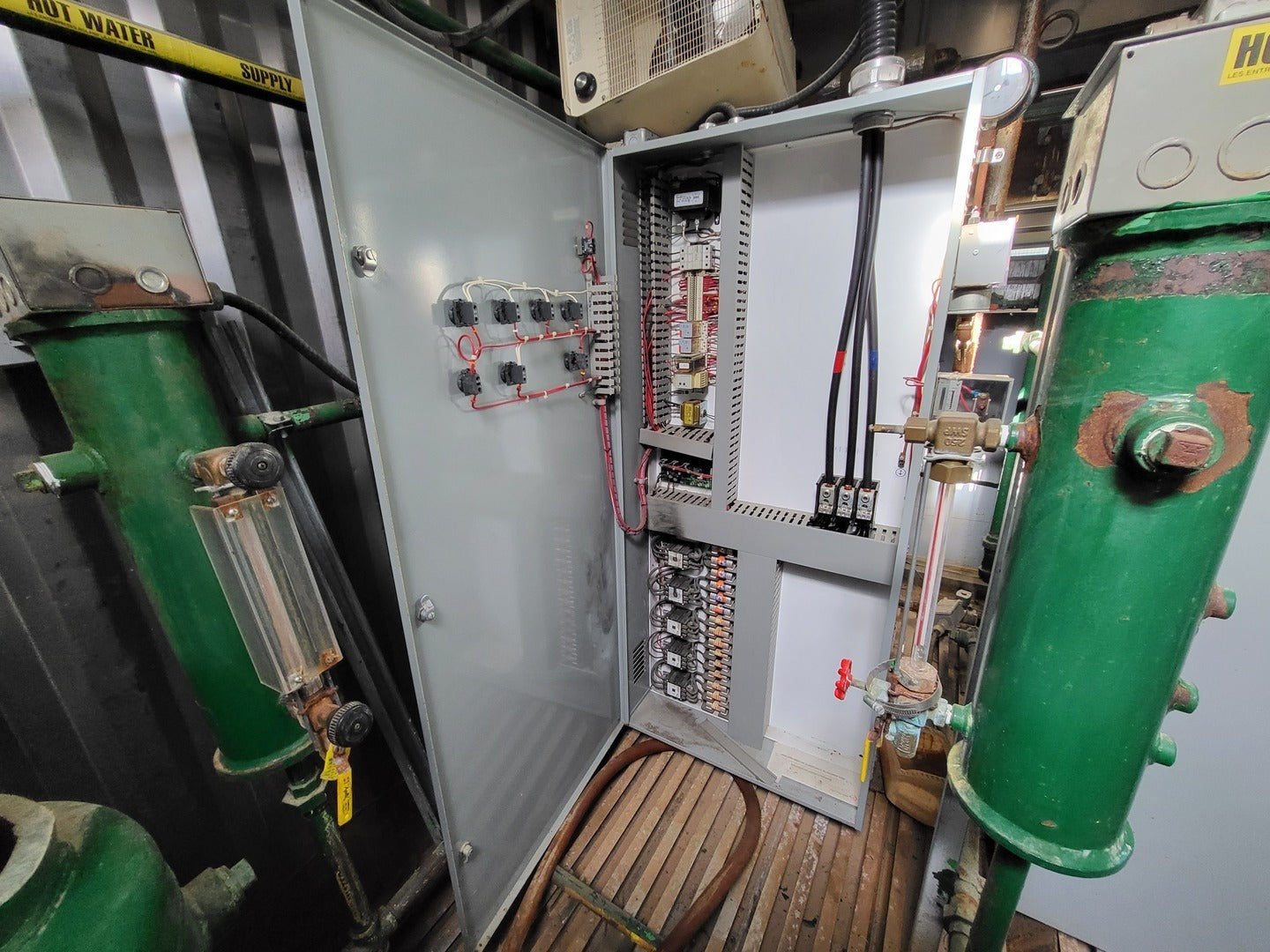

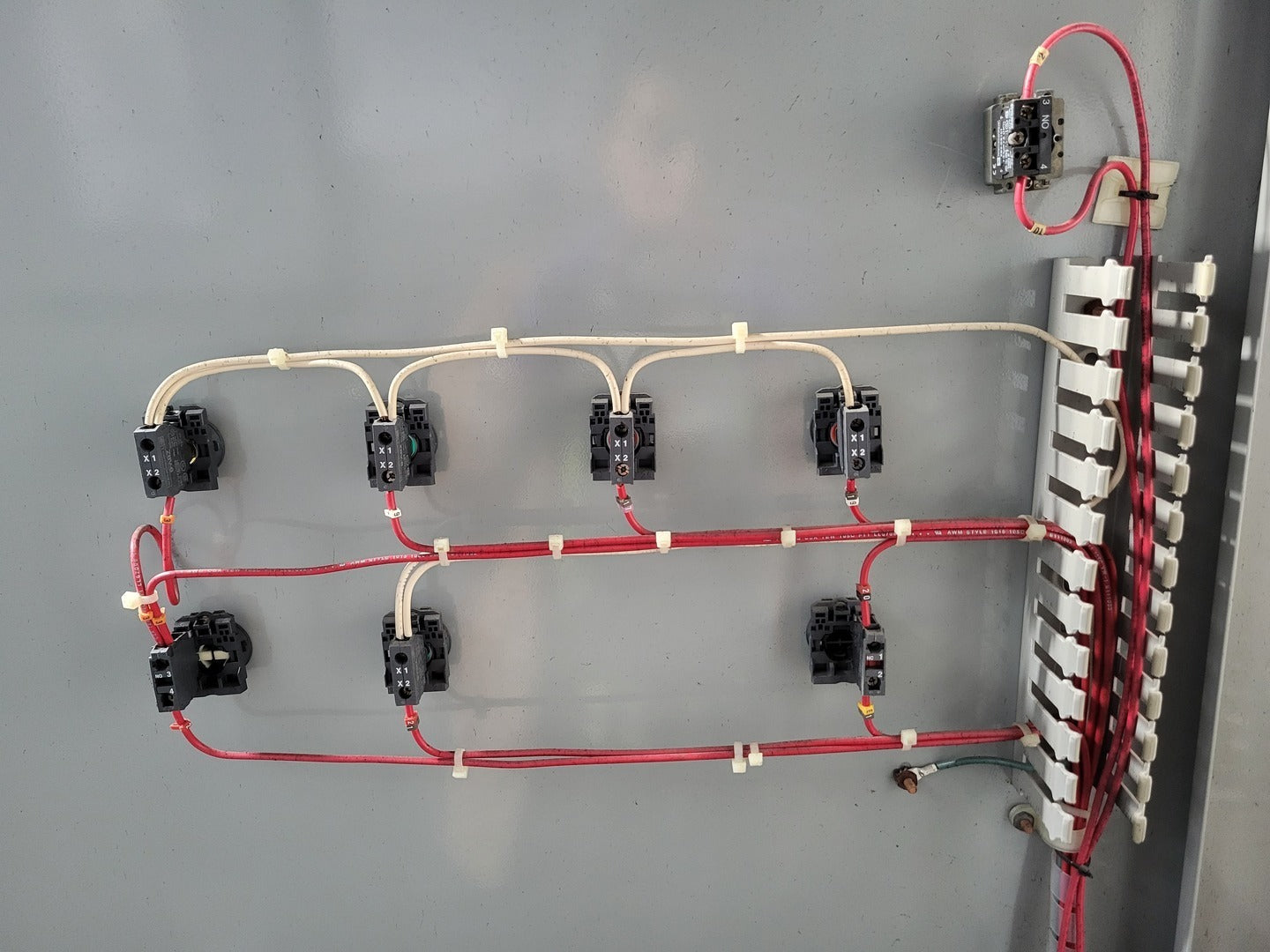

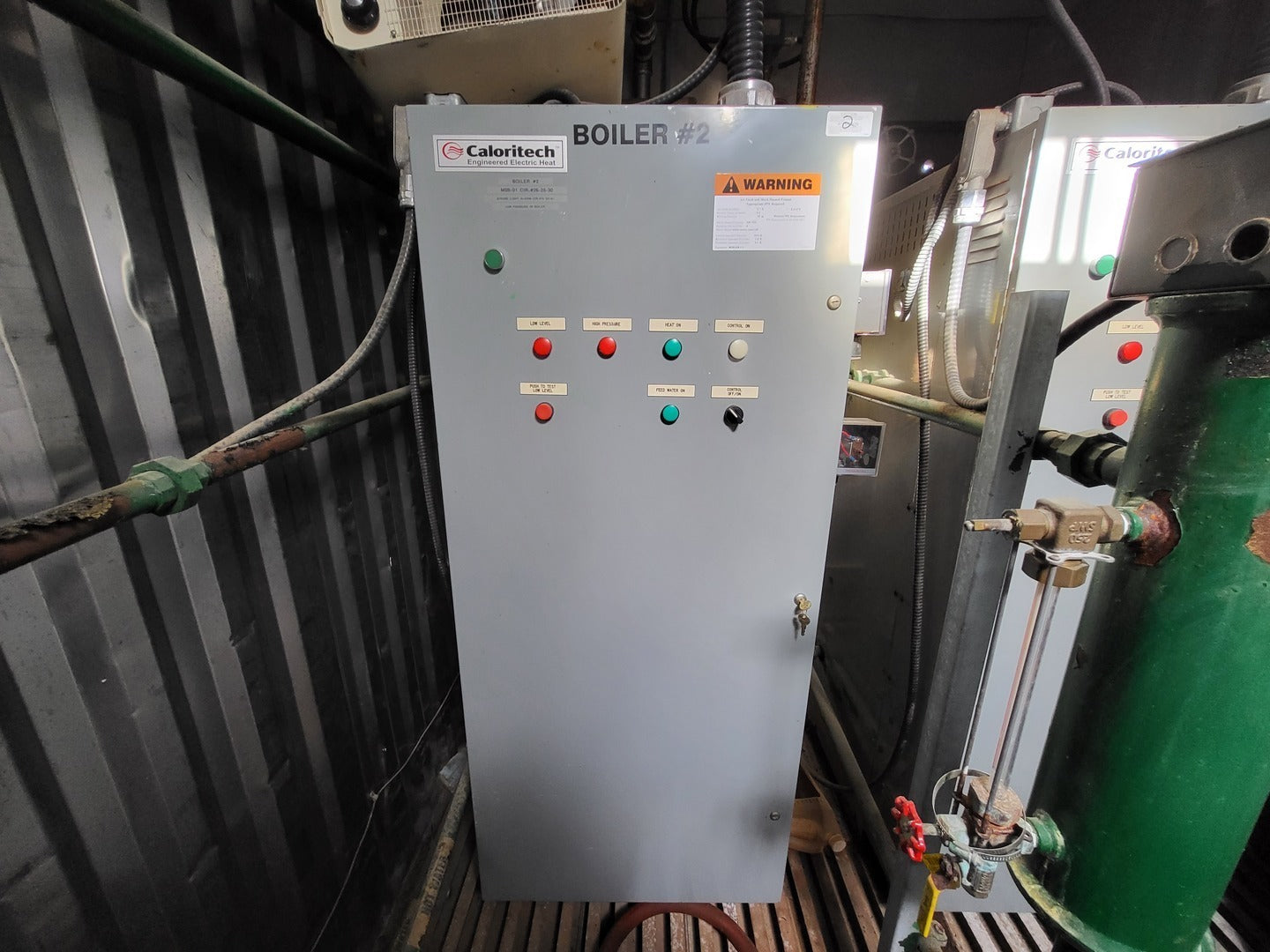

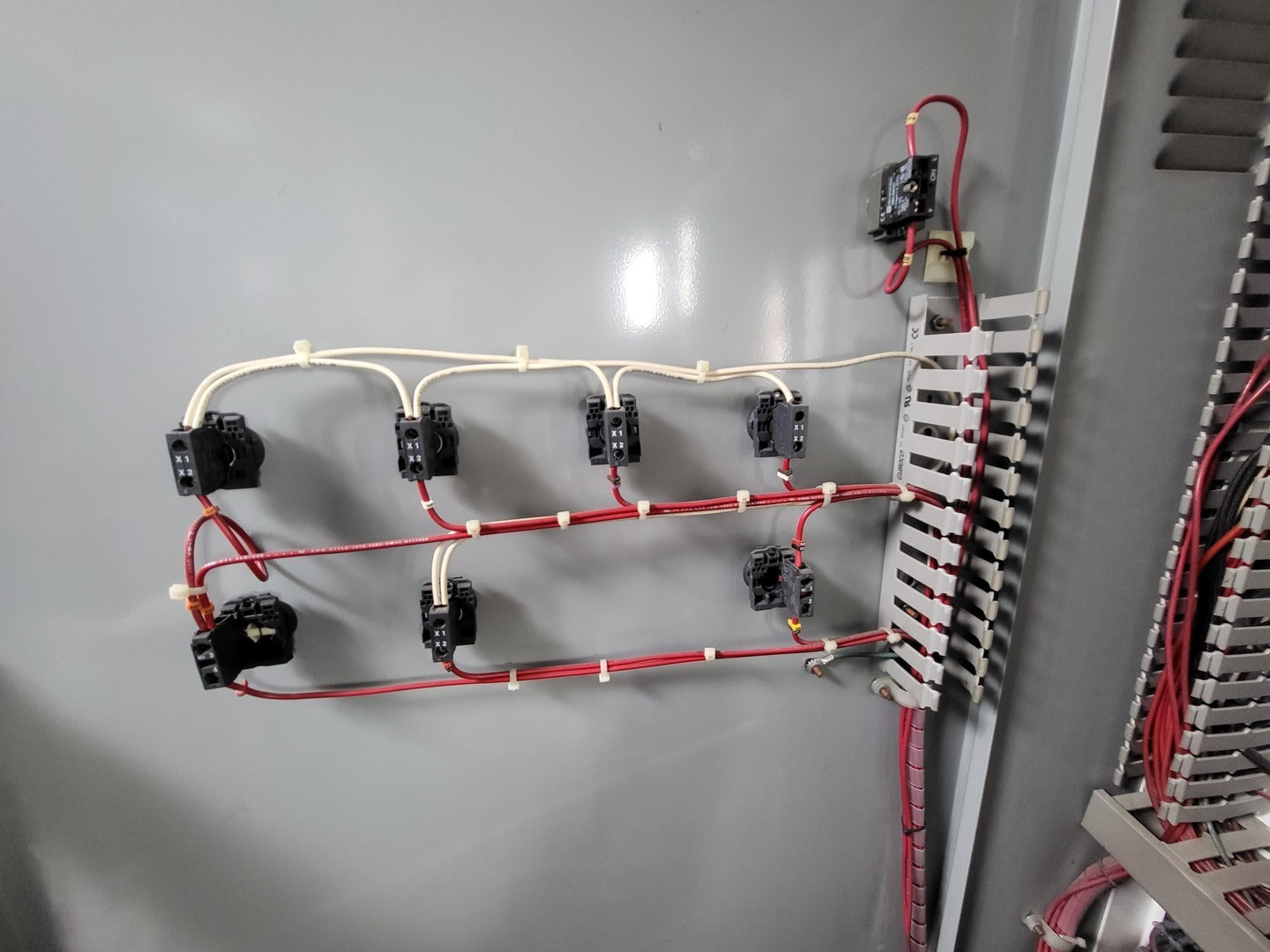

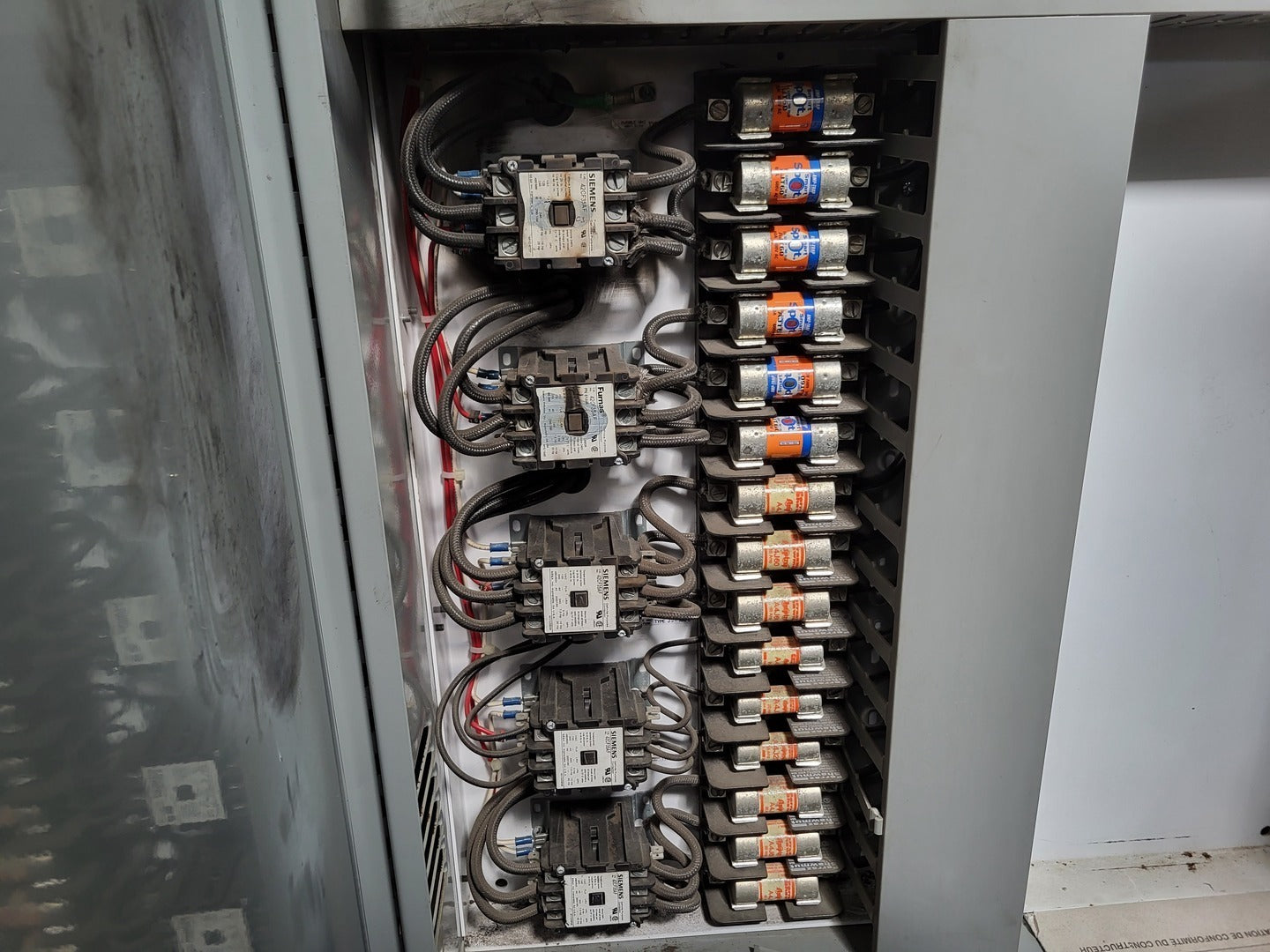

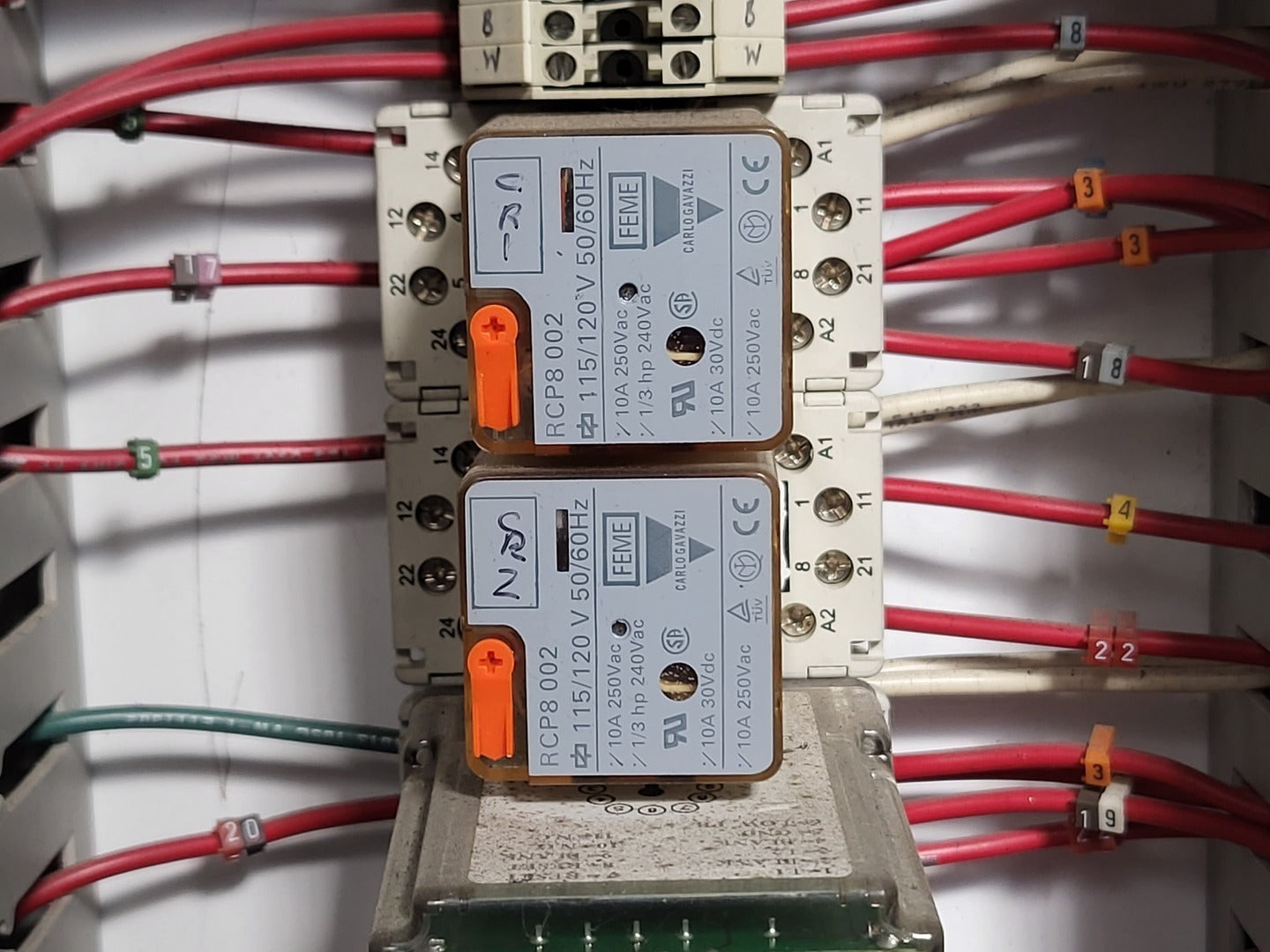

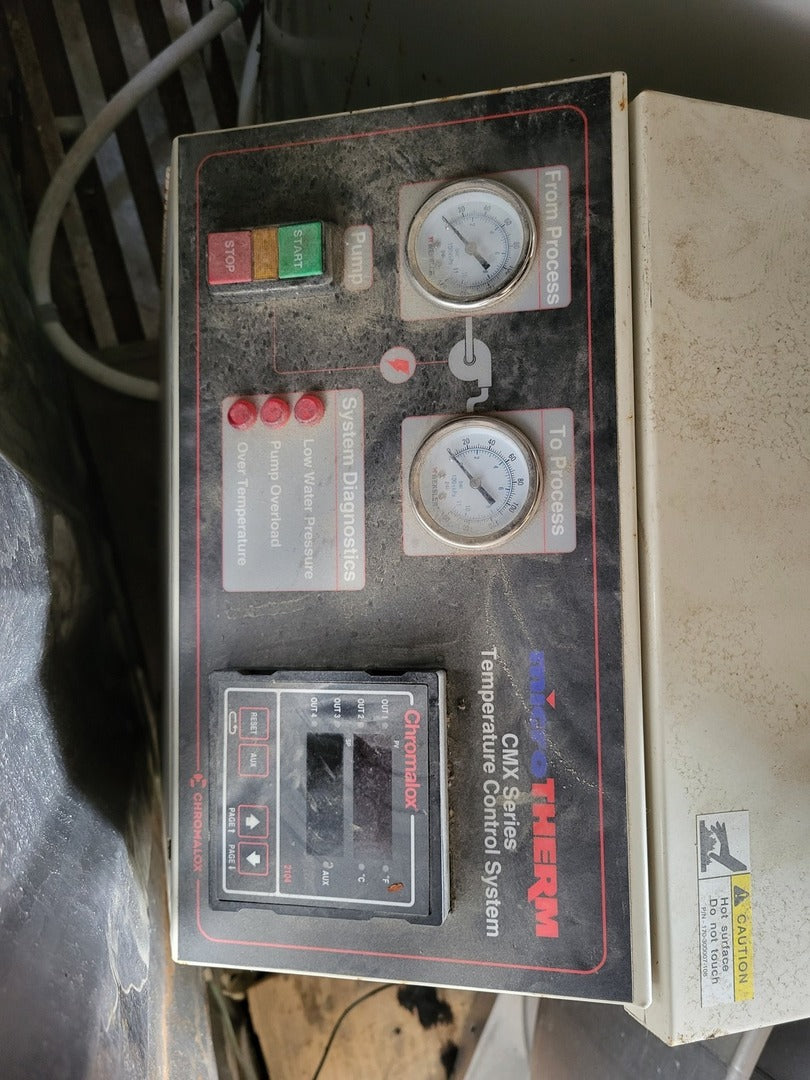

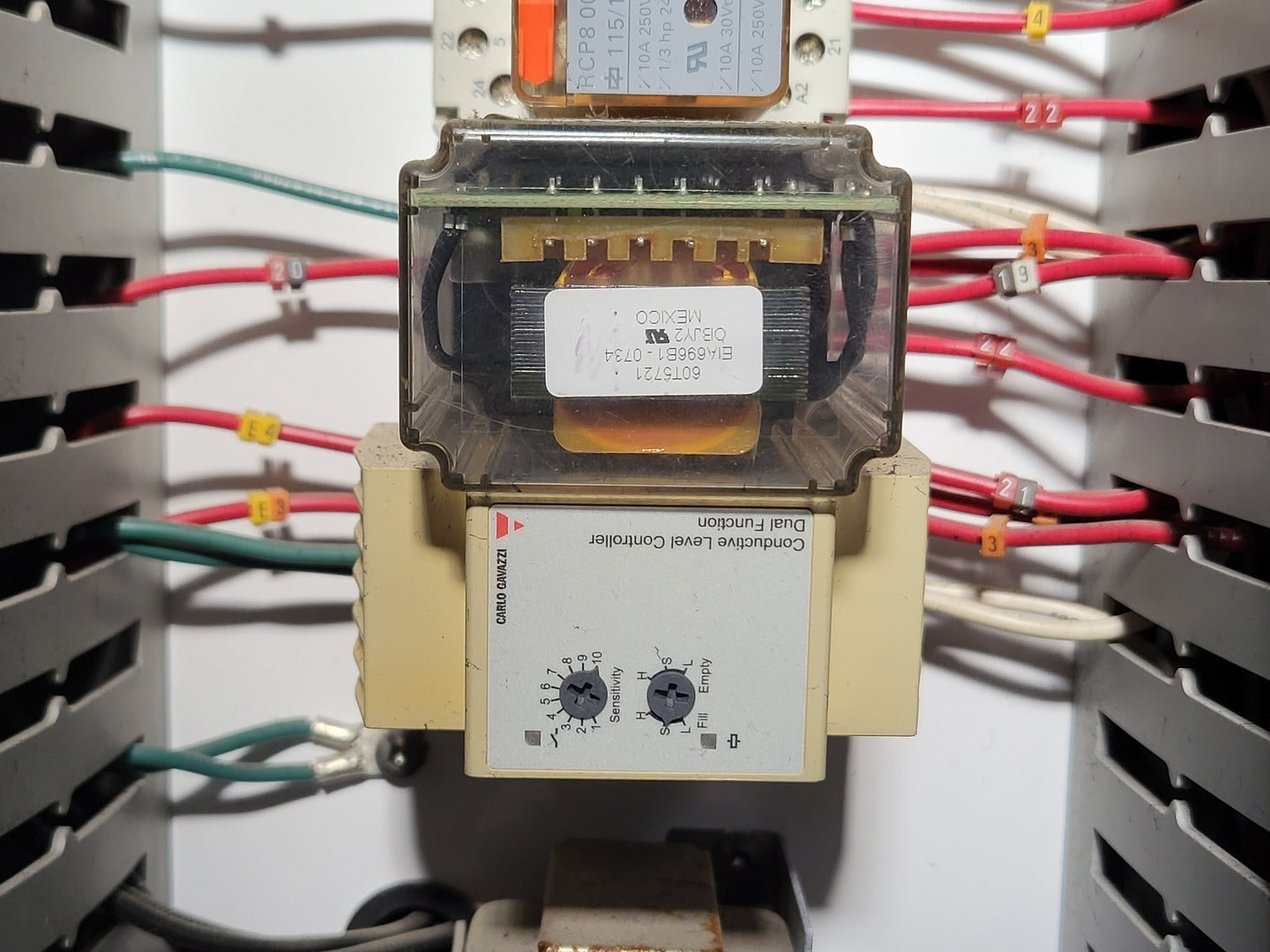

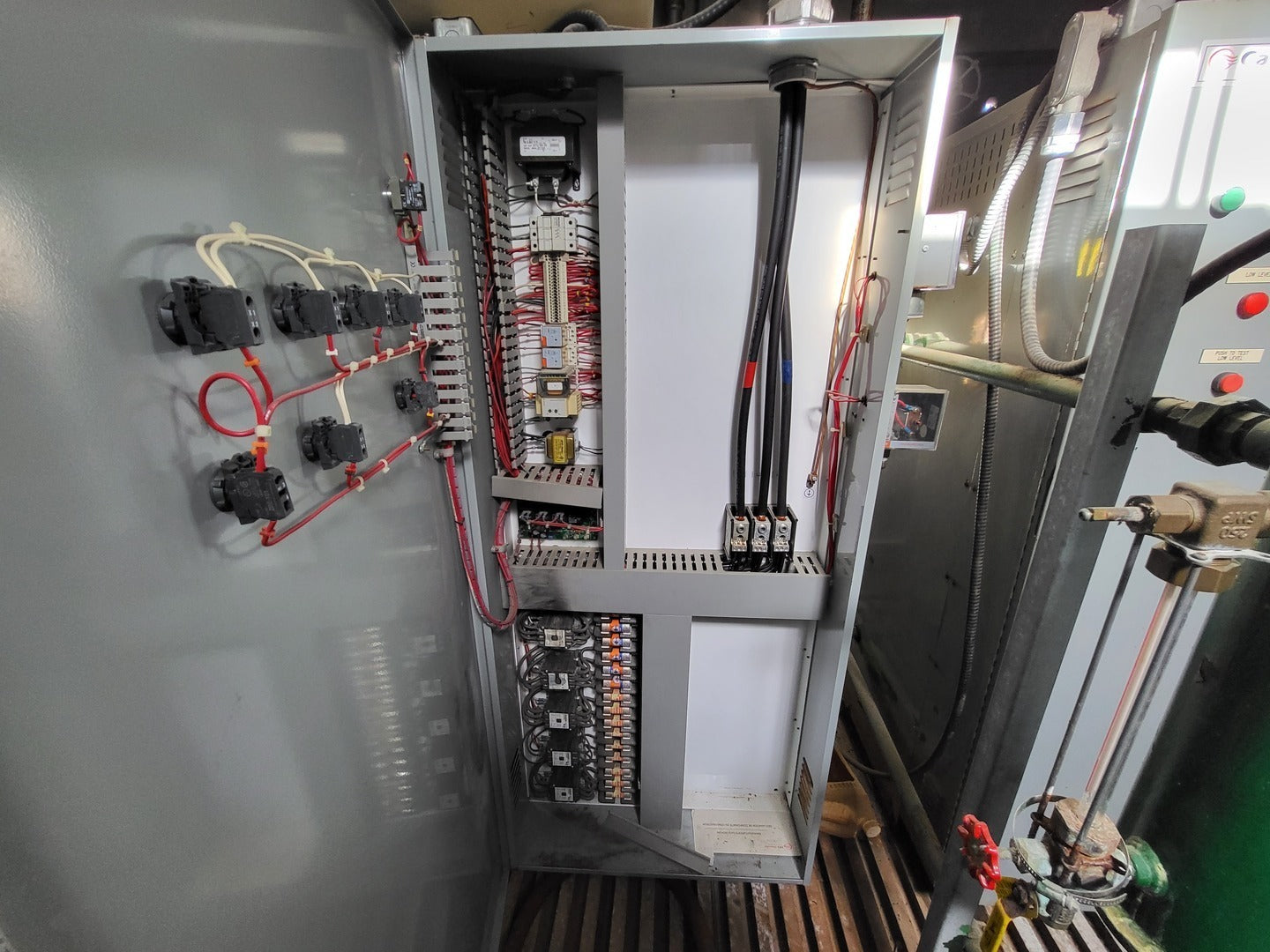

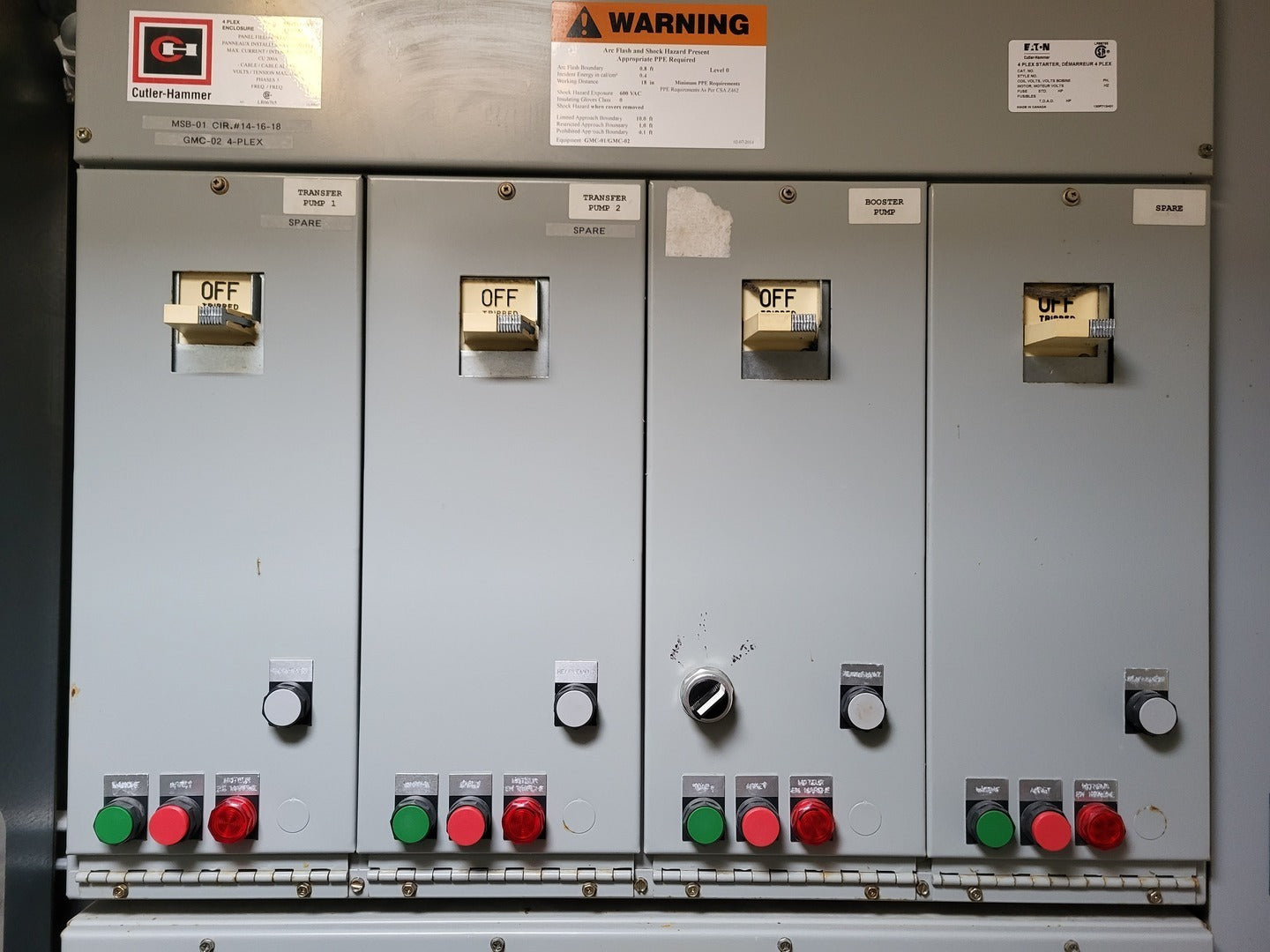

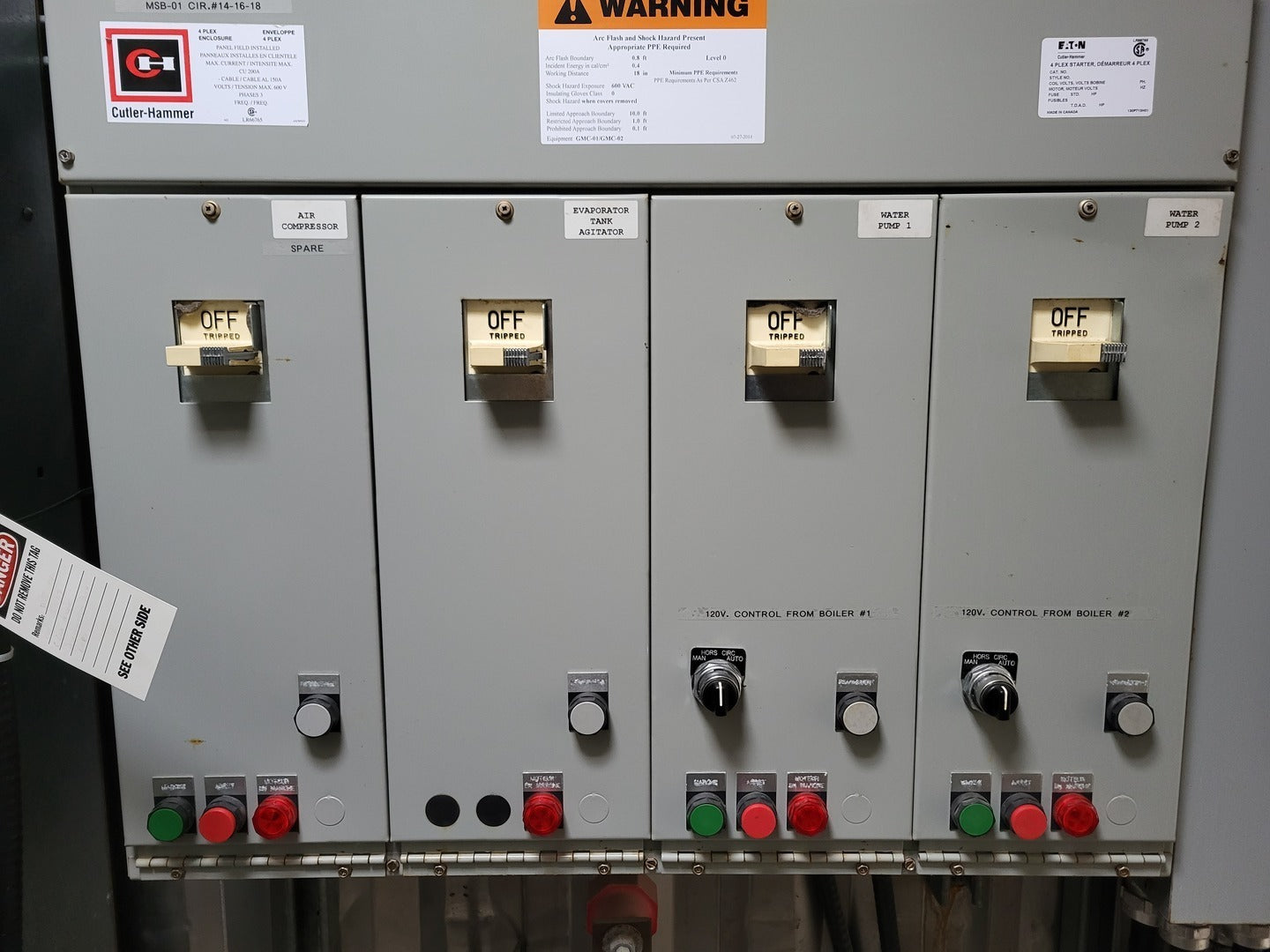

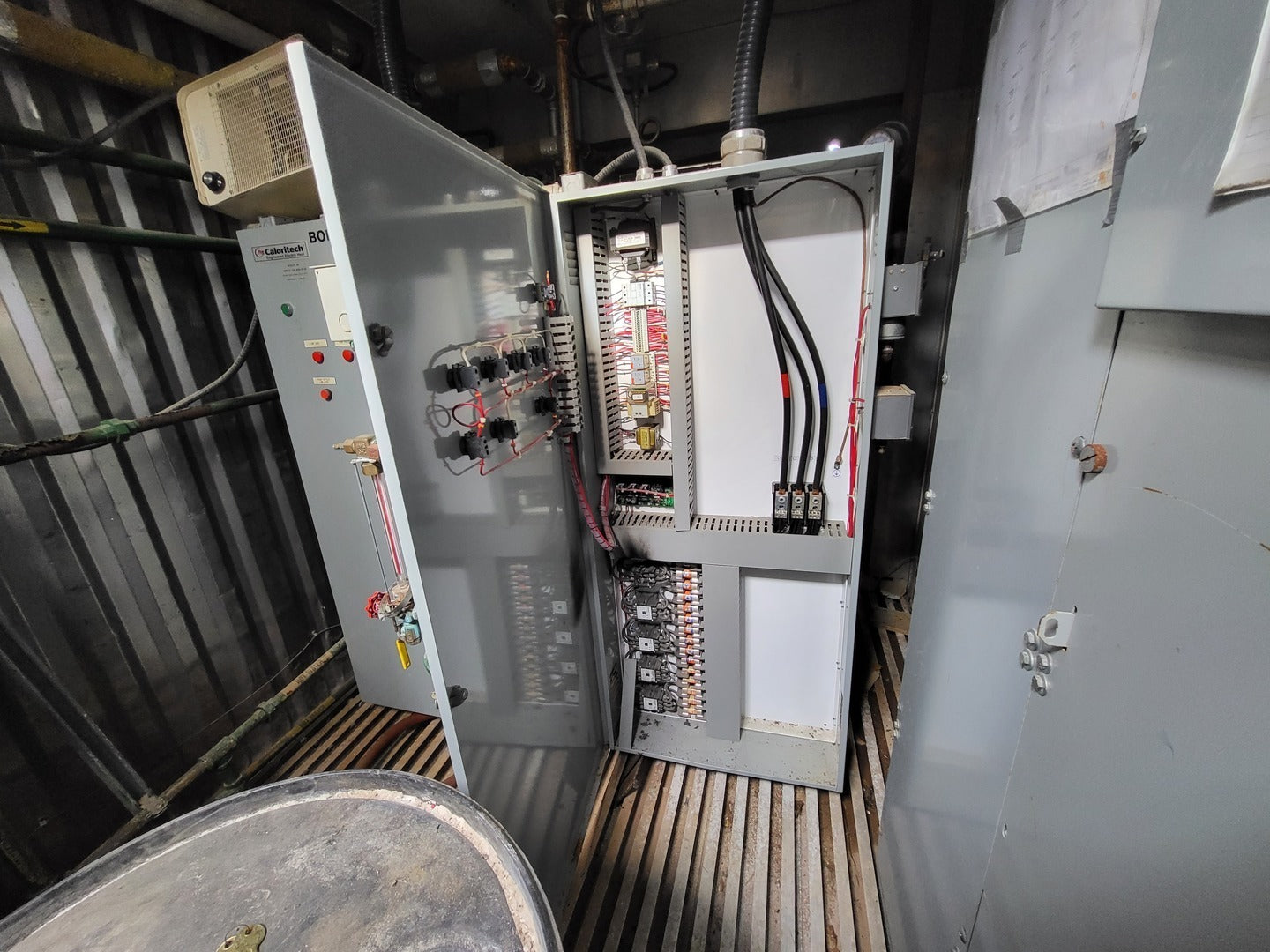

  3. Electrical control panels
  4. Electrical disconnect

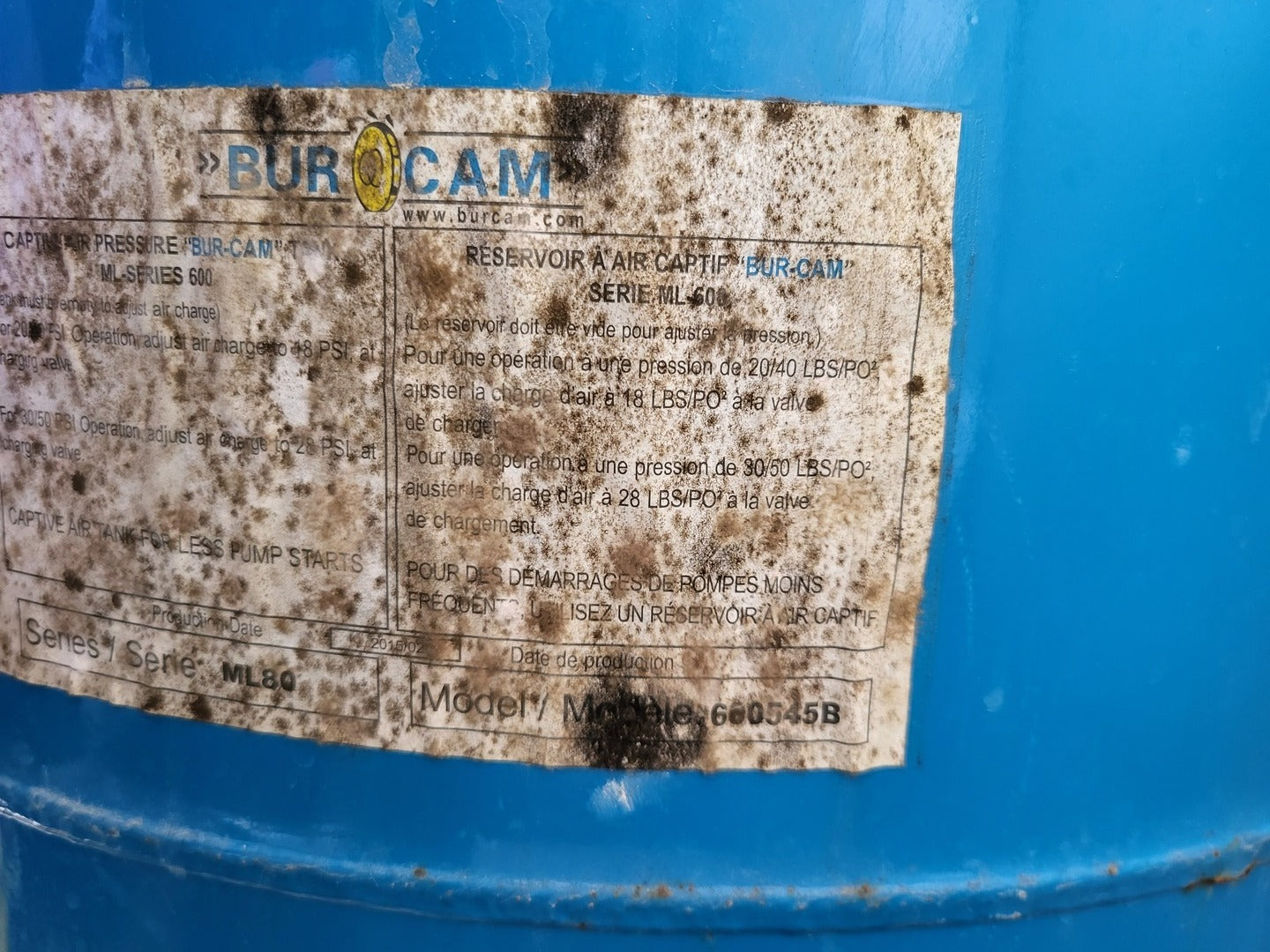

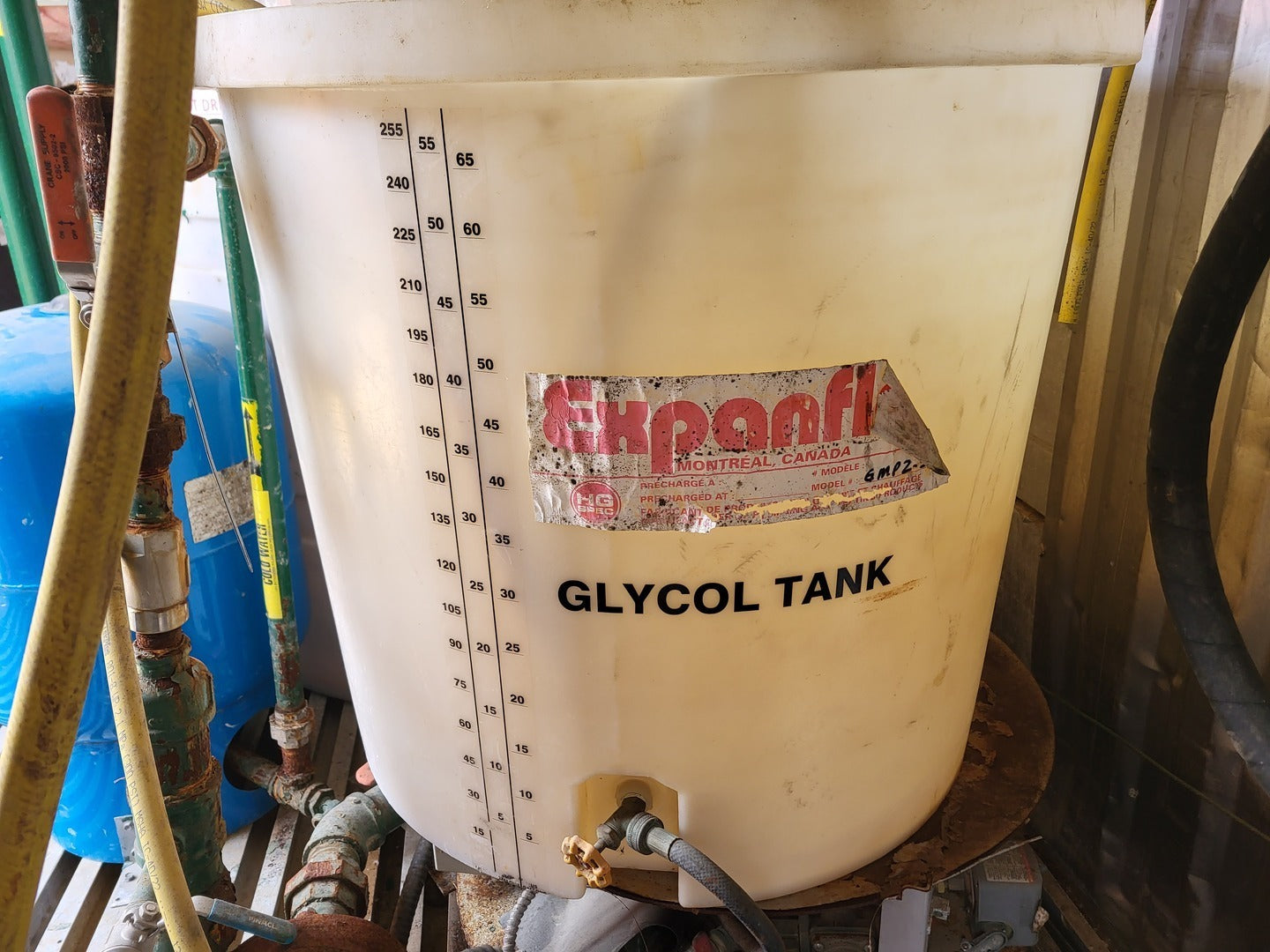

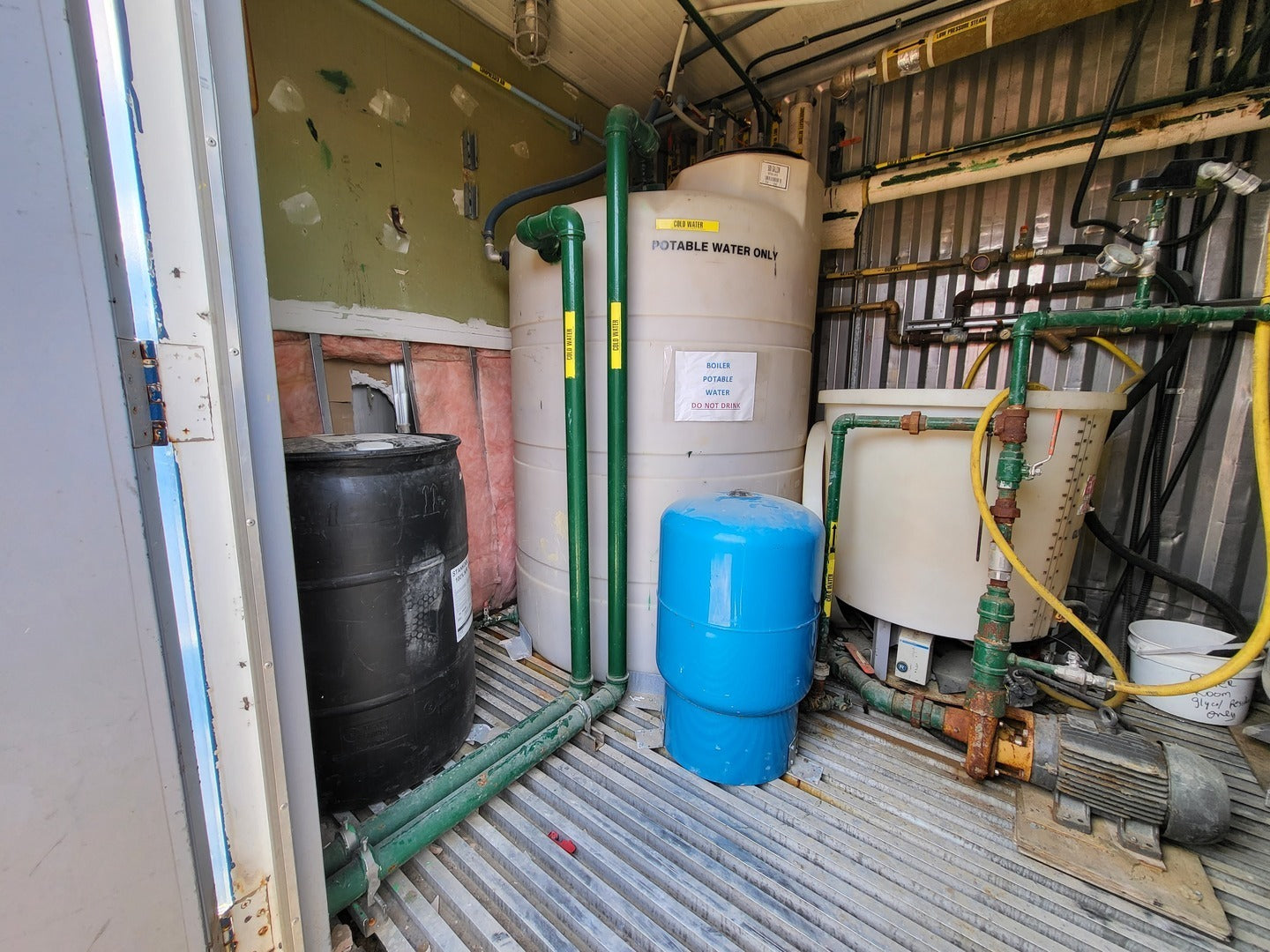

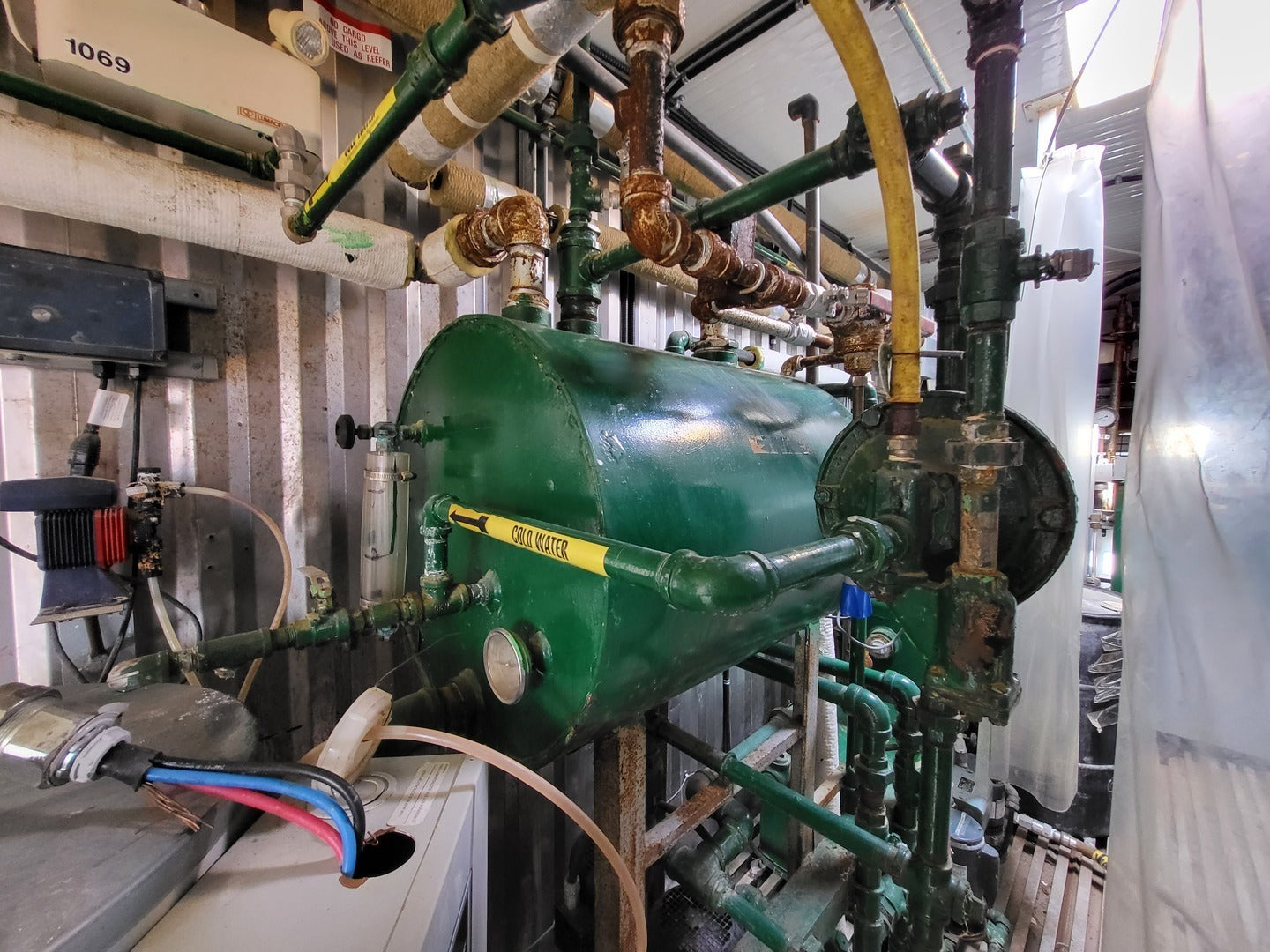

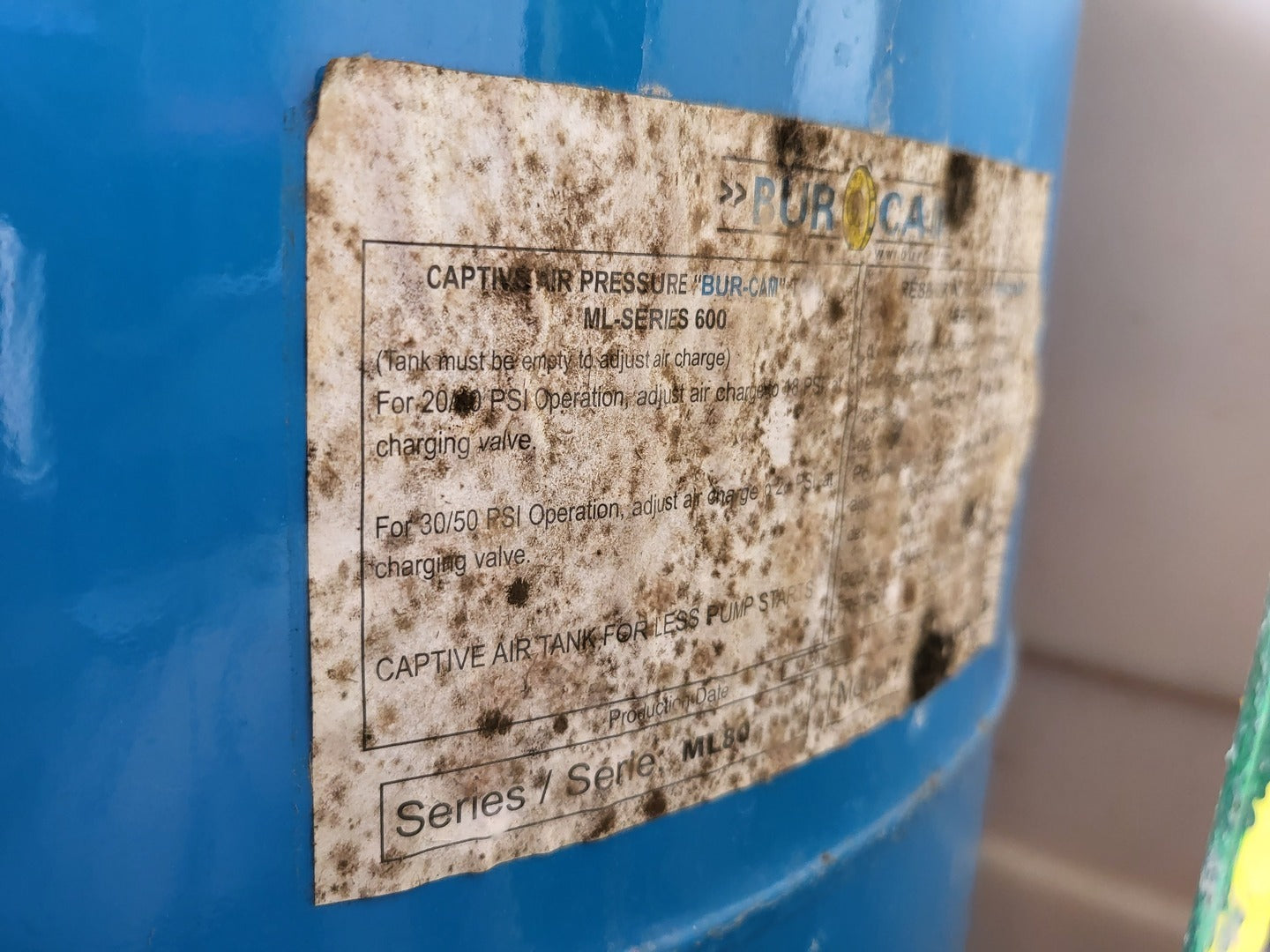

  5. Expansion tank

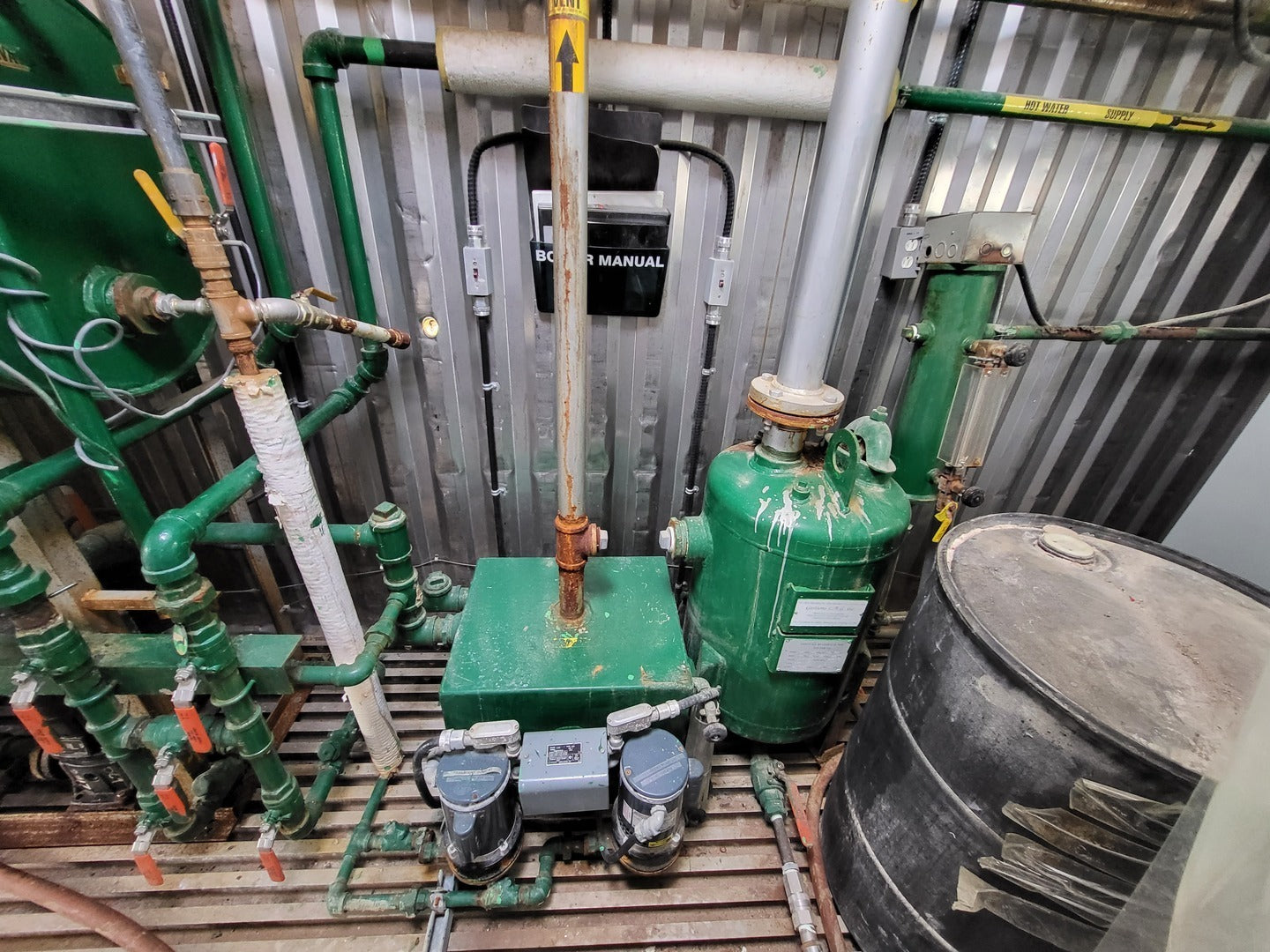

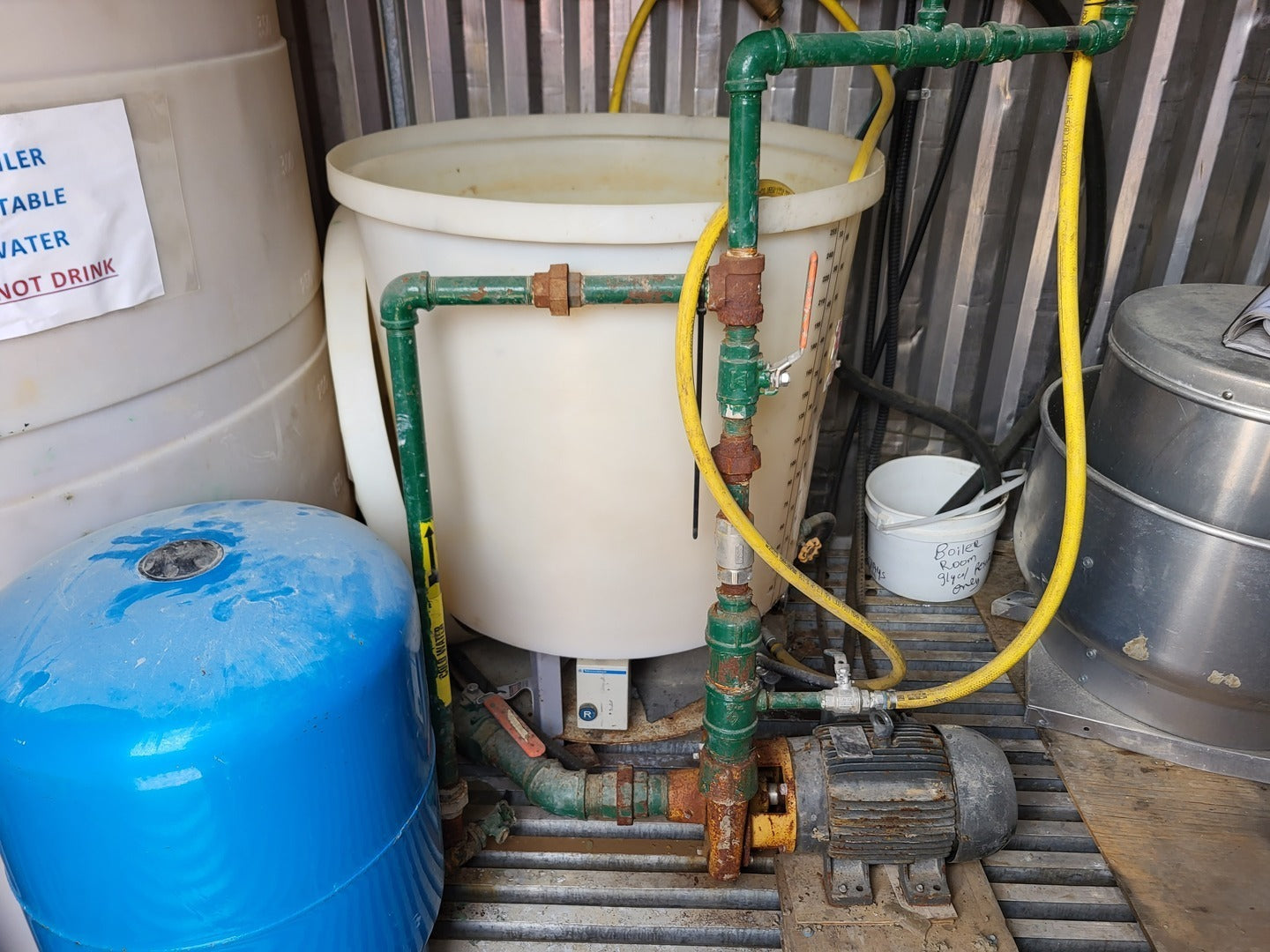

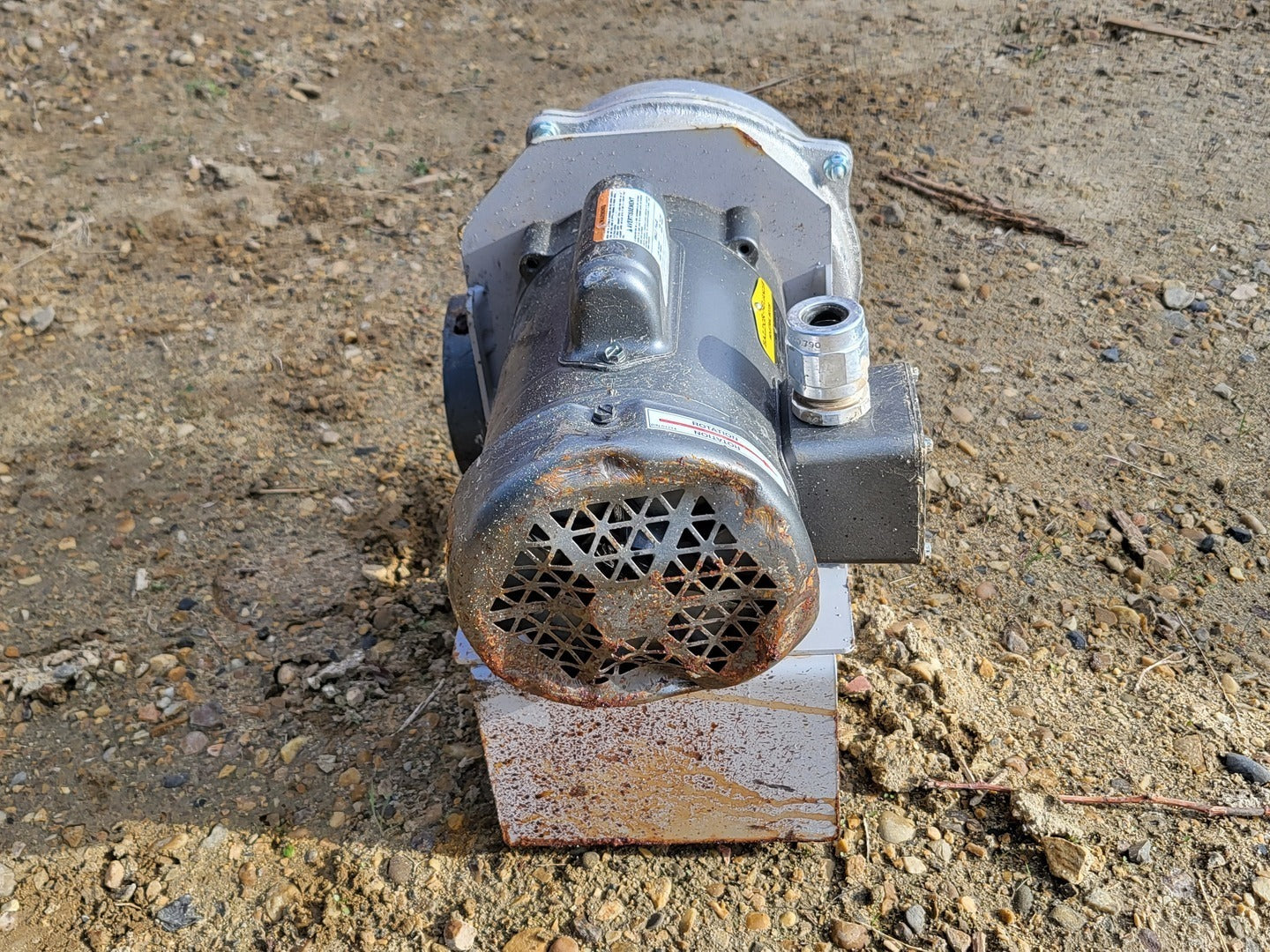

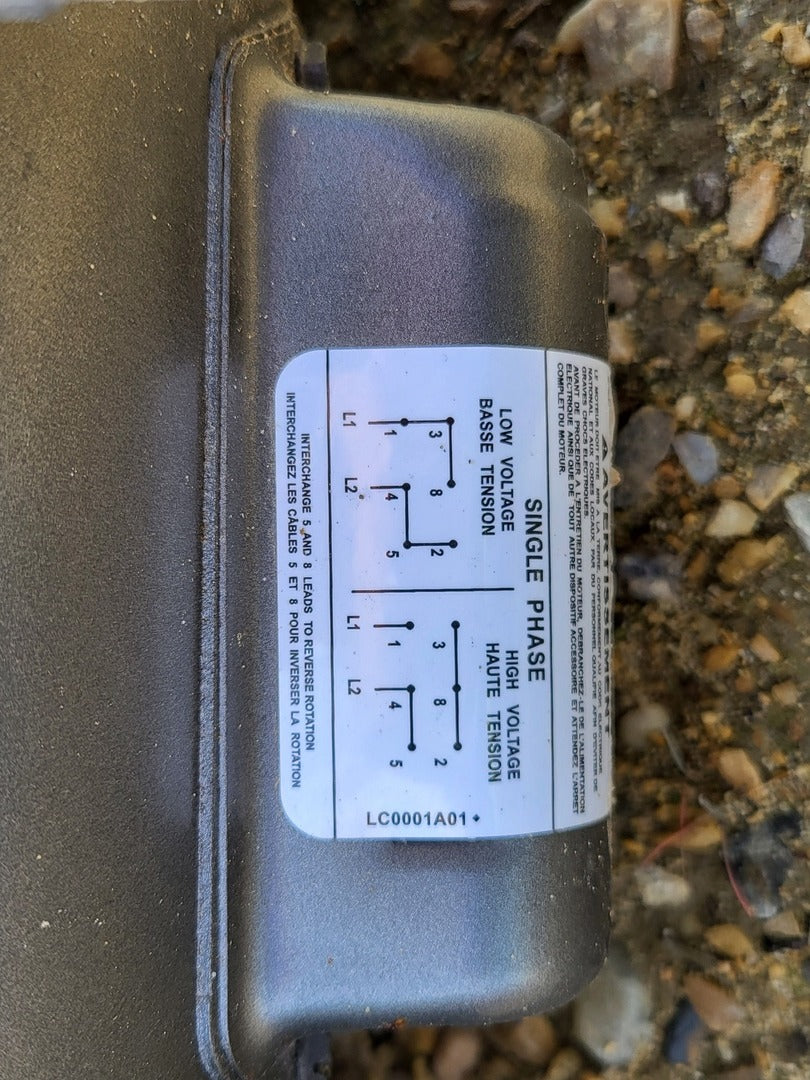

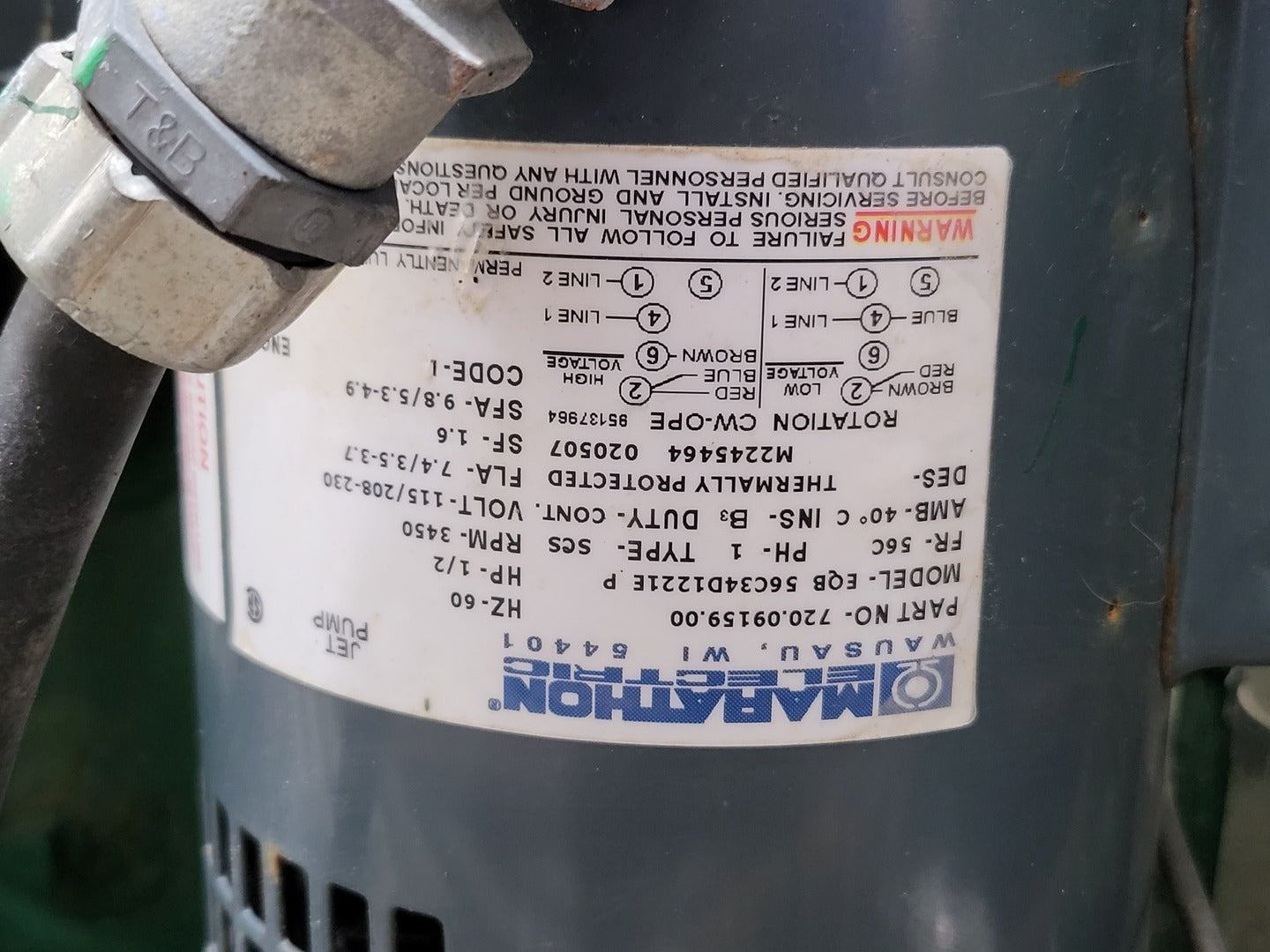

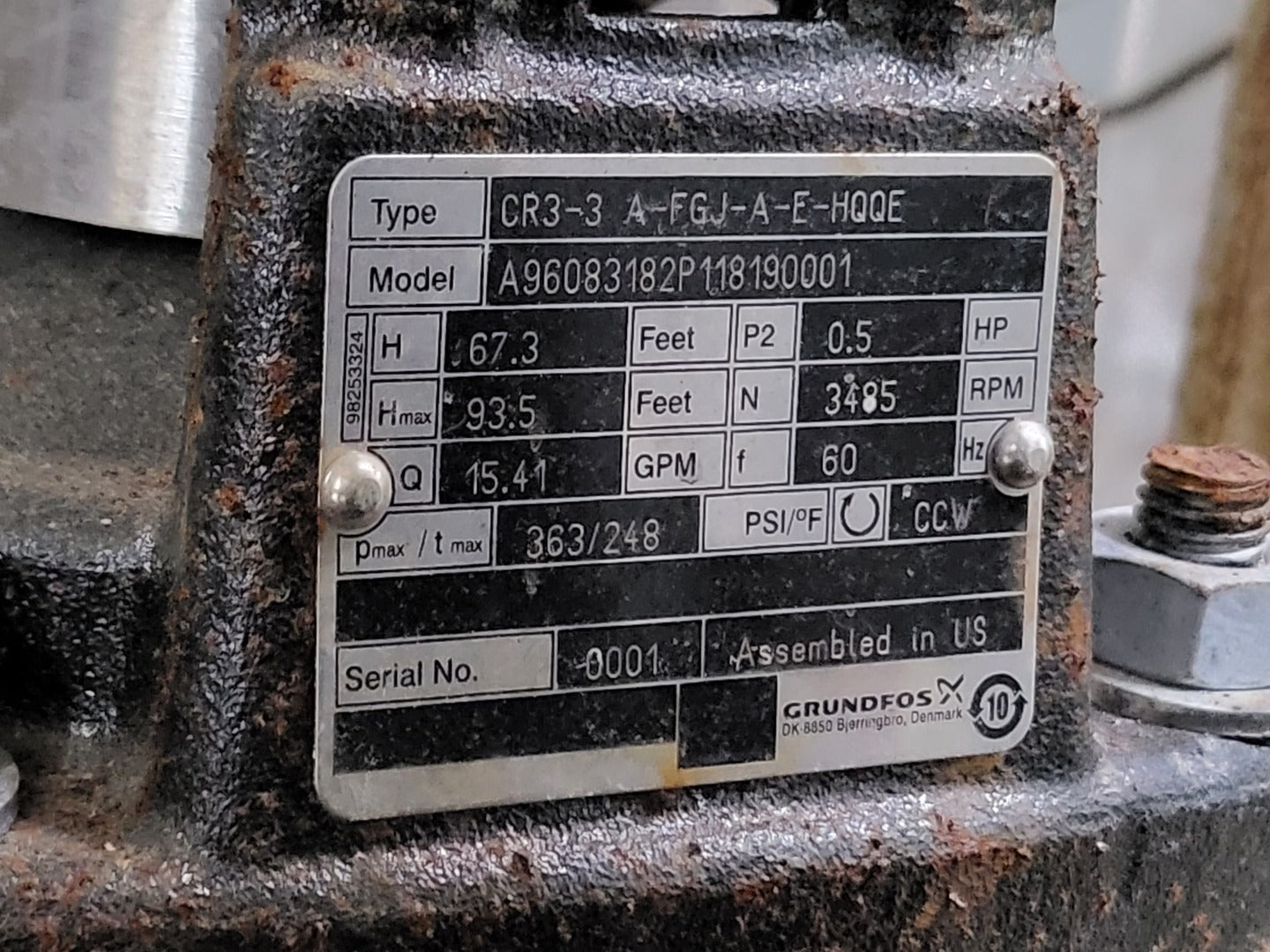

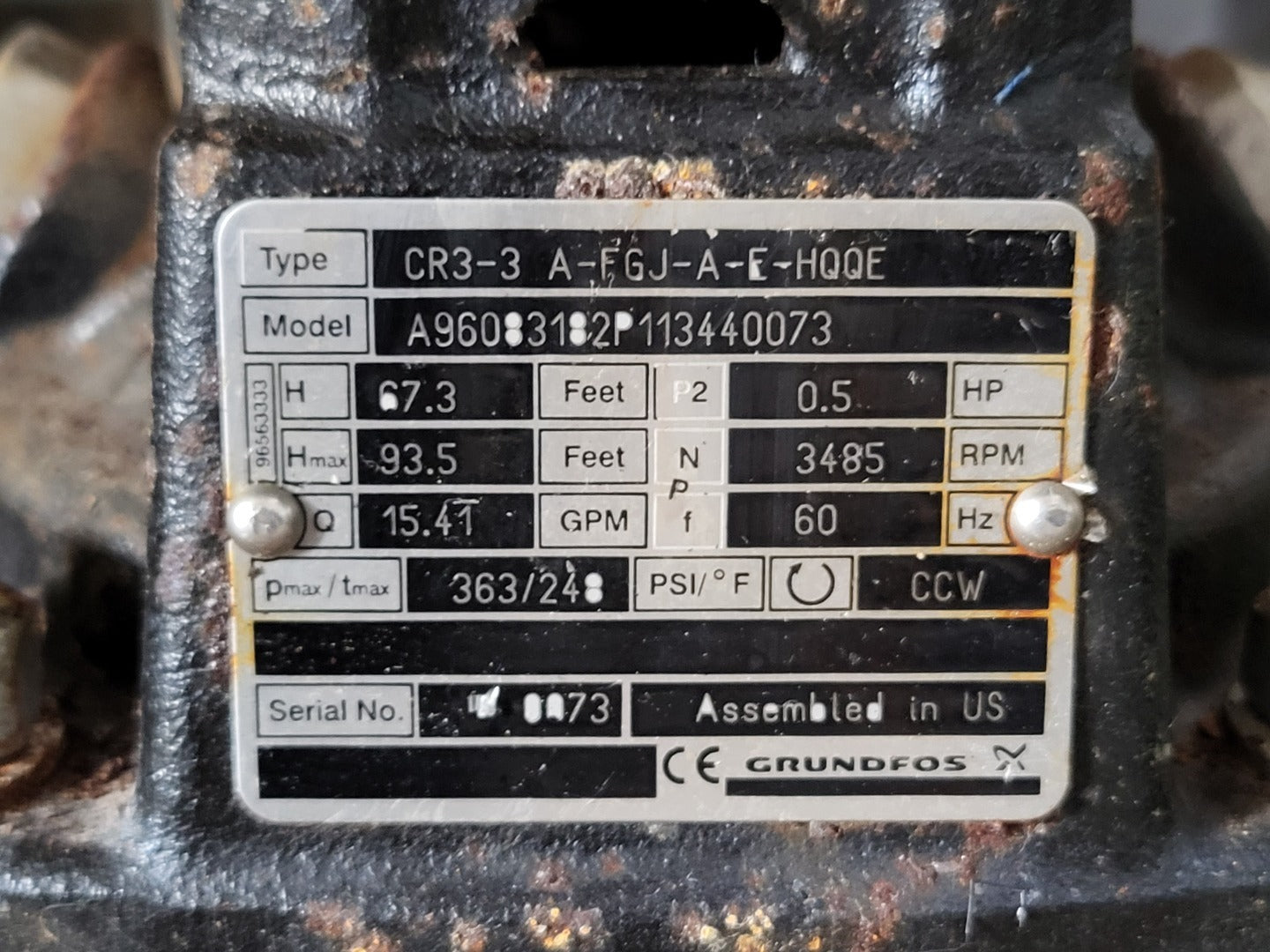

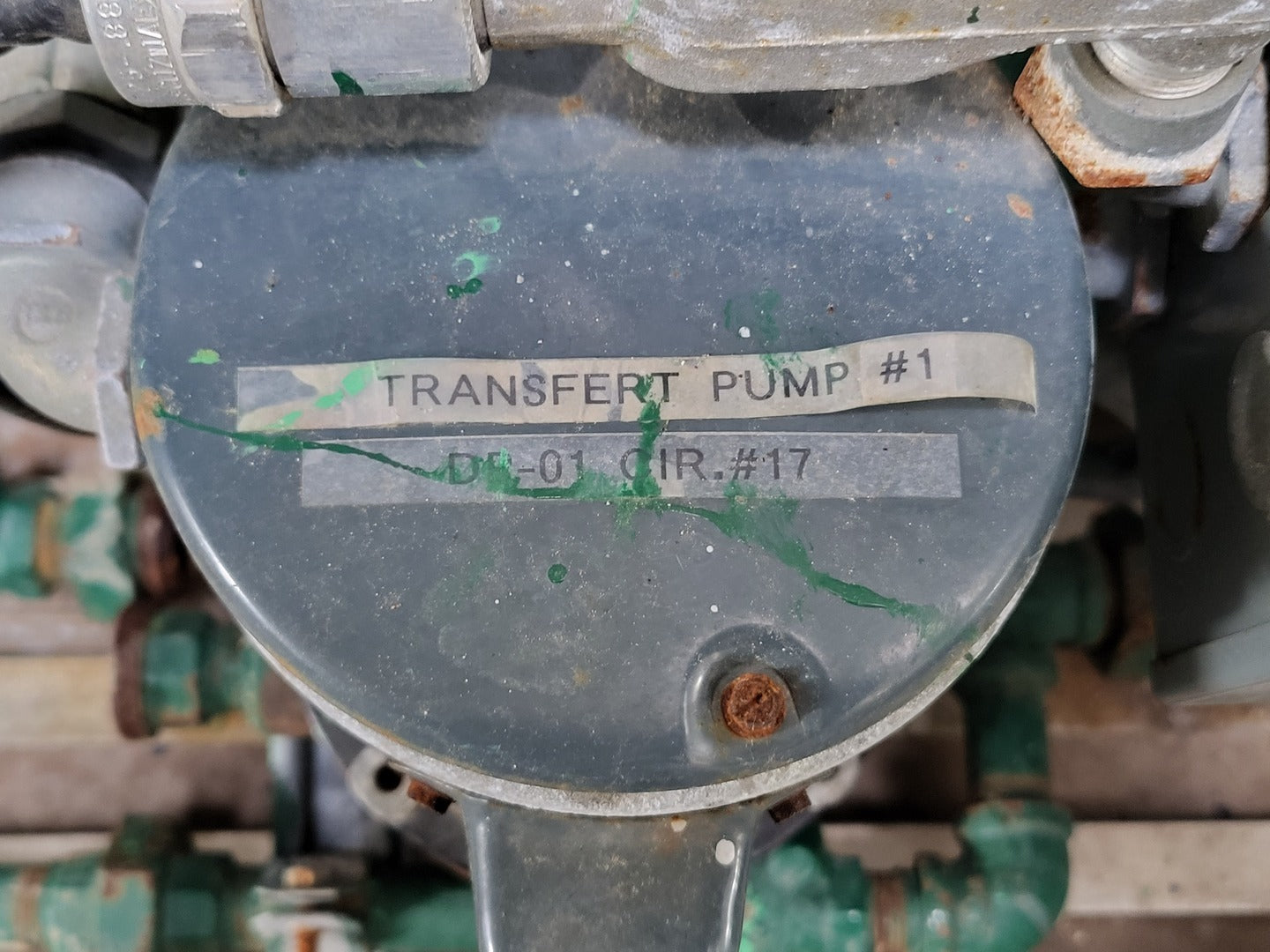

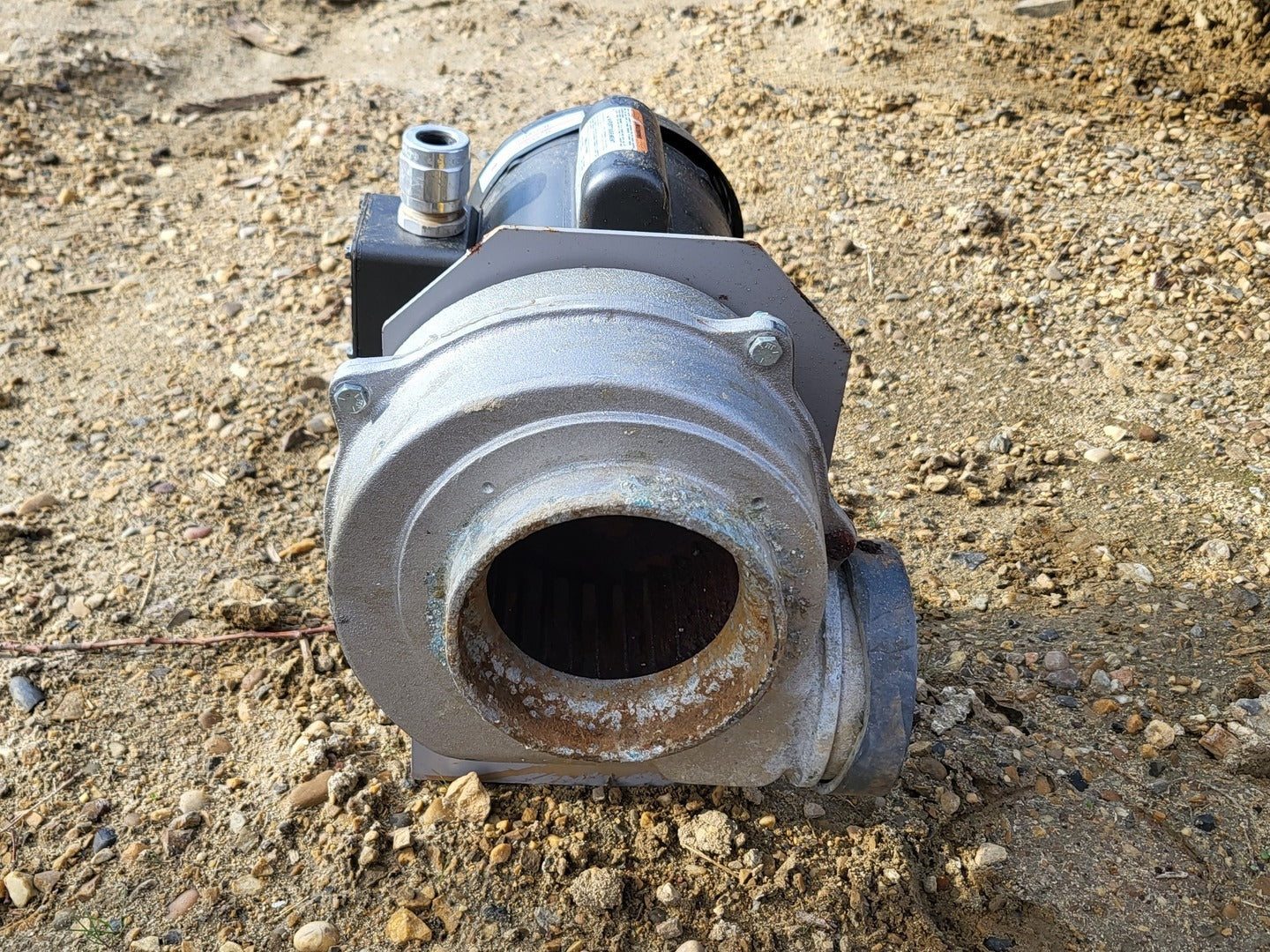

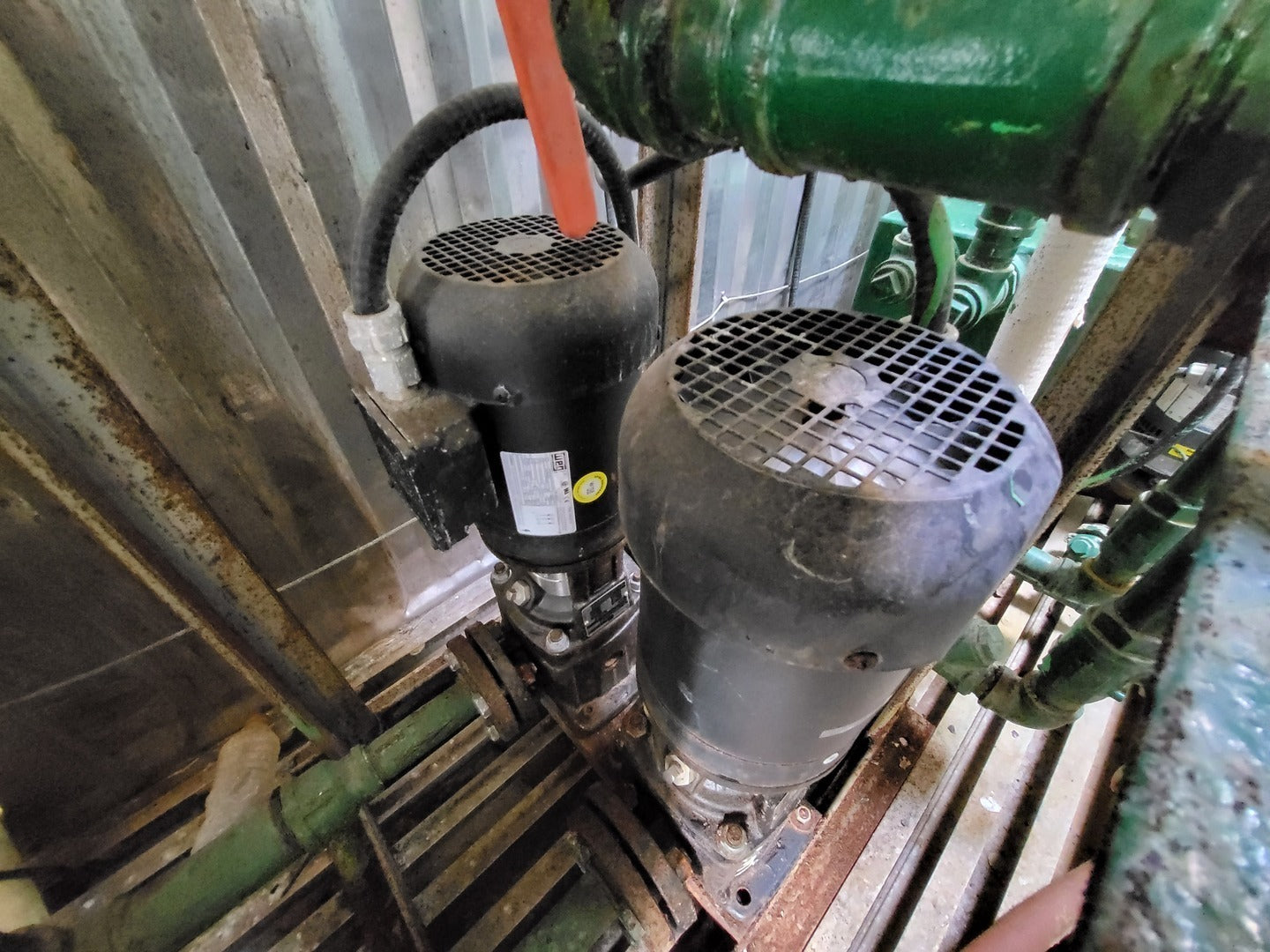

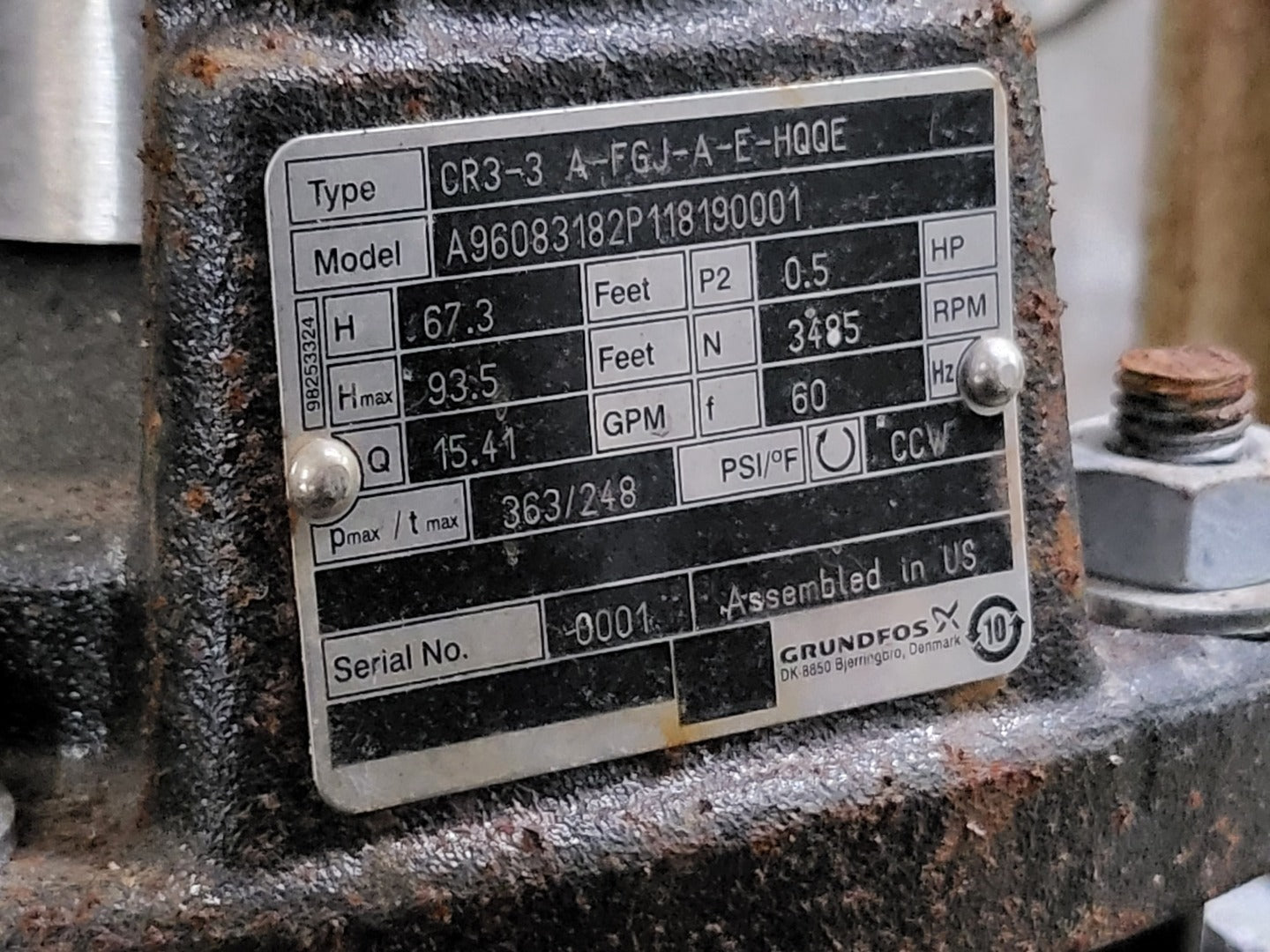

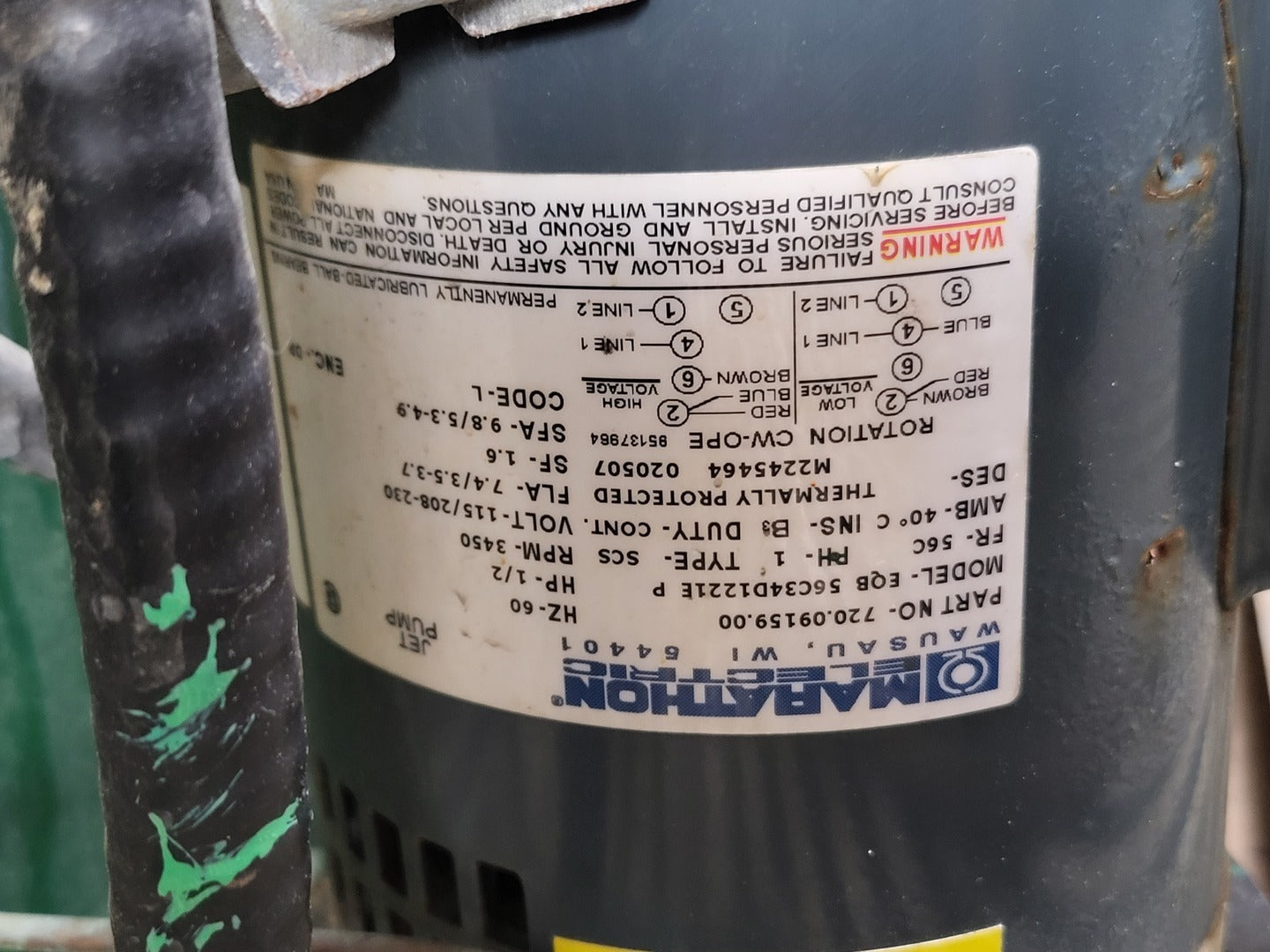

  6. Hydronic pumps
  7. Pressure gauges

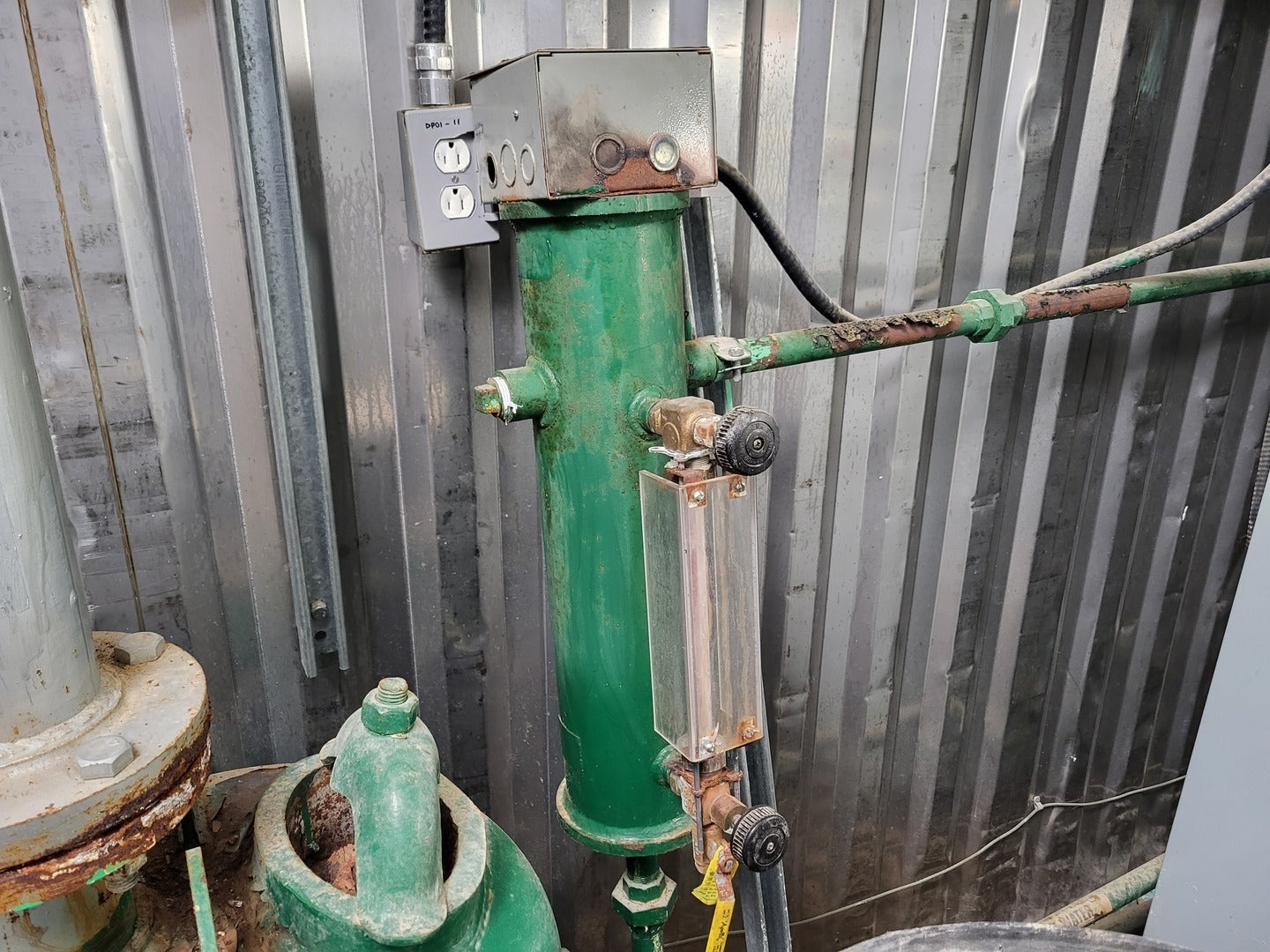

  8. Air separator

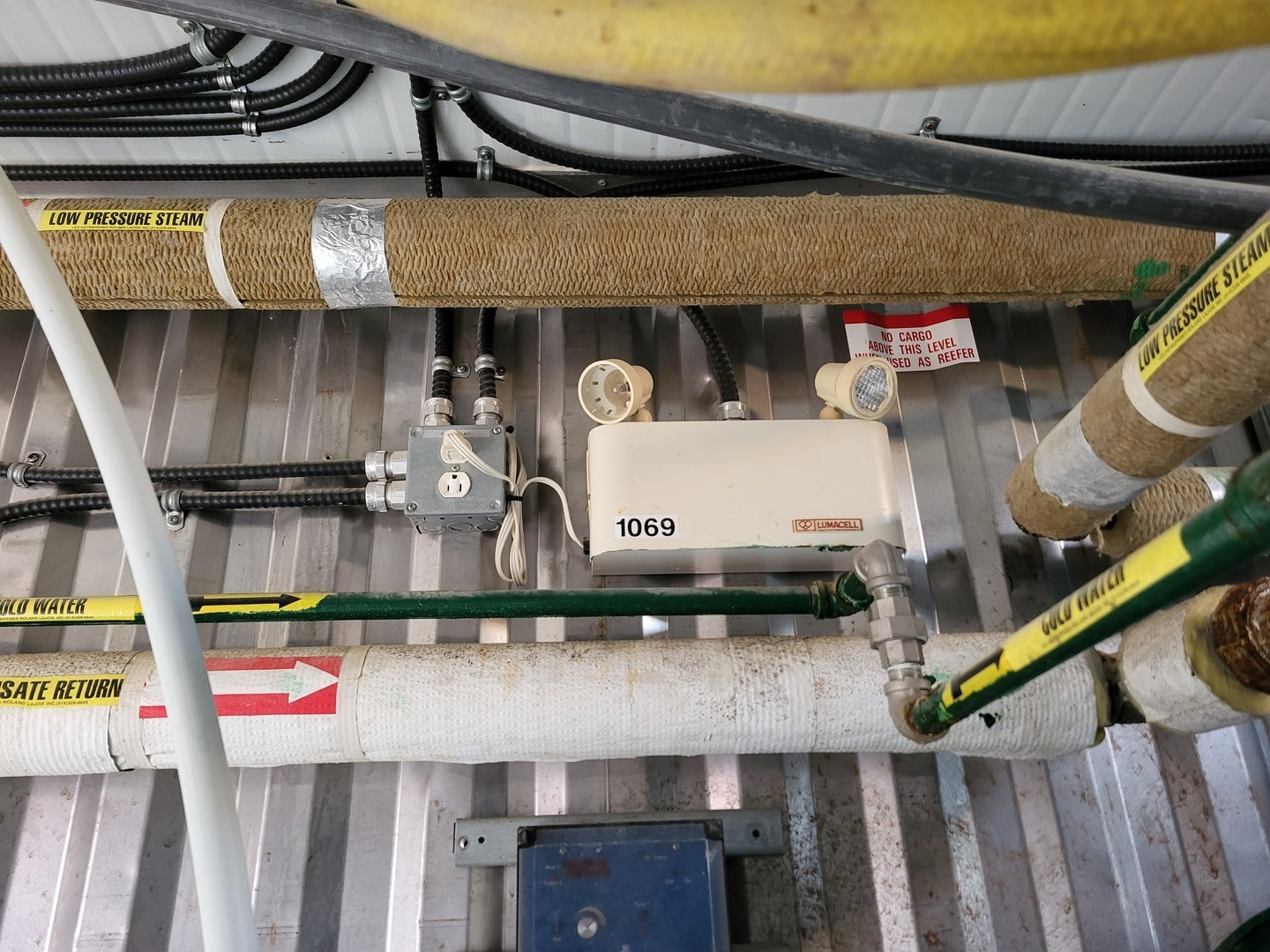

  9. Insulated piping
  10. Relief valves

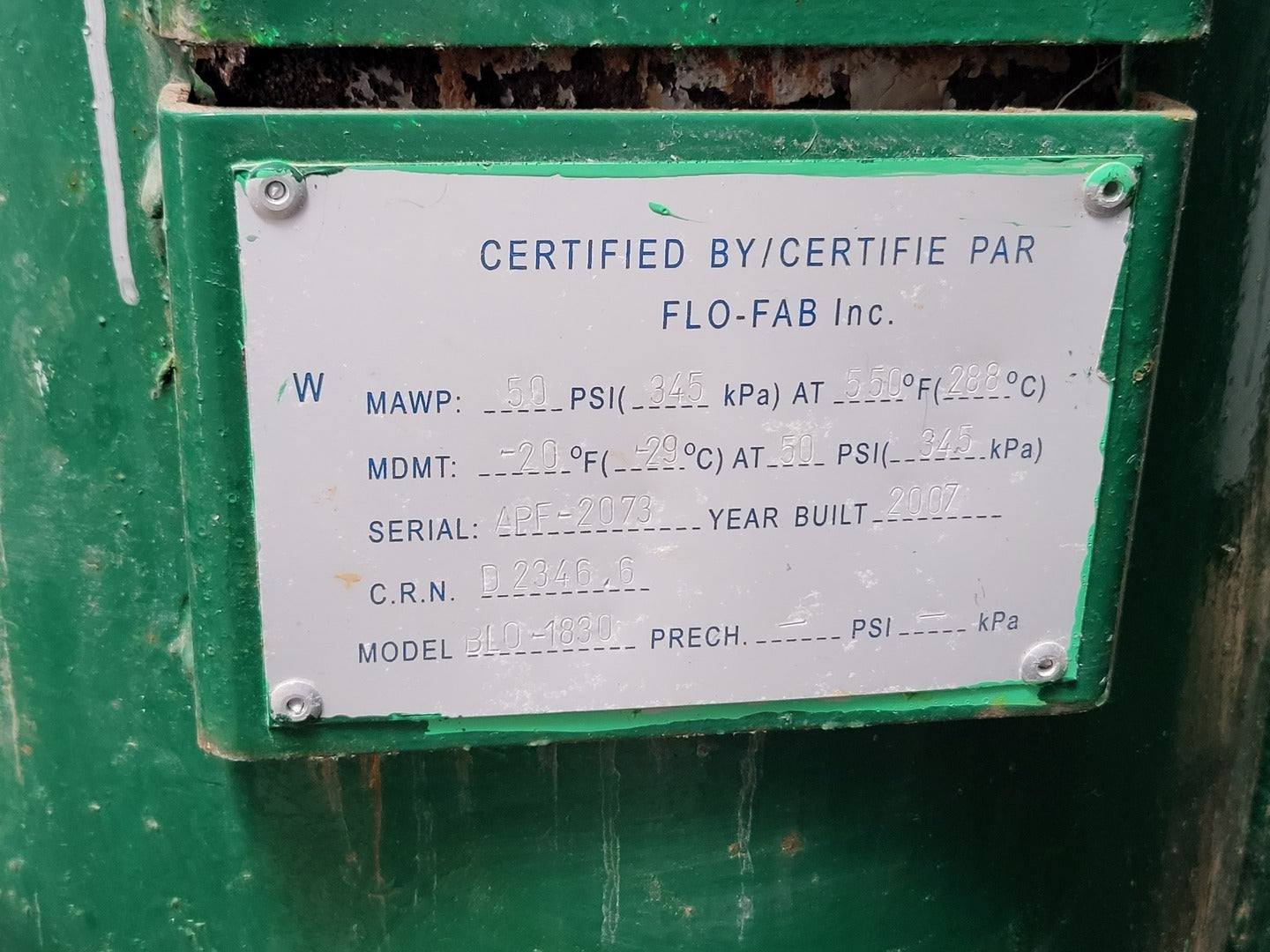

  11. Pressure vessels

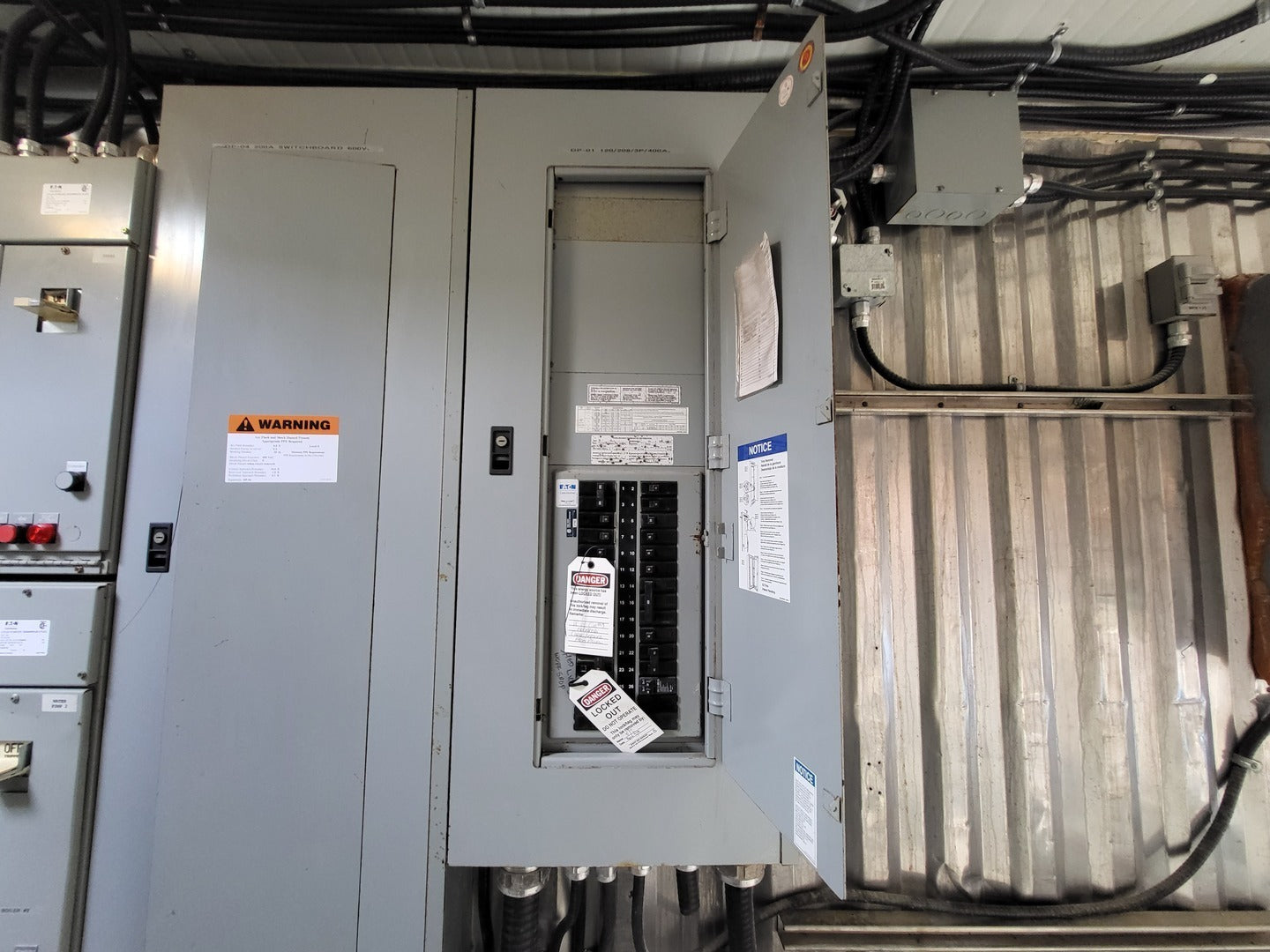

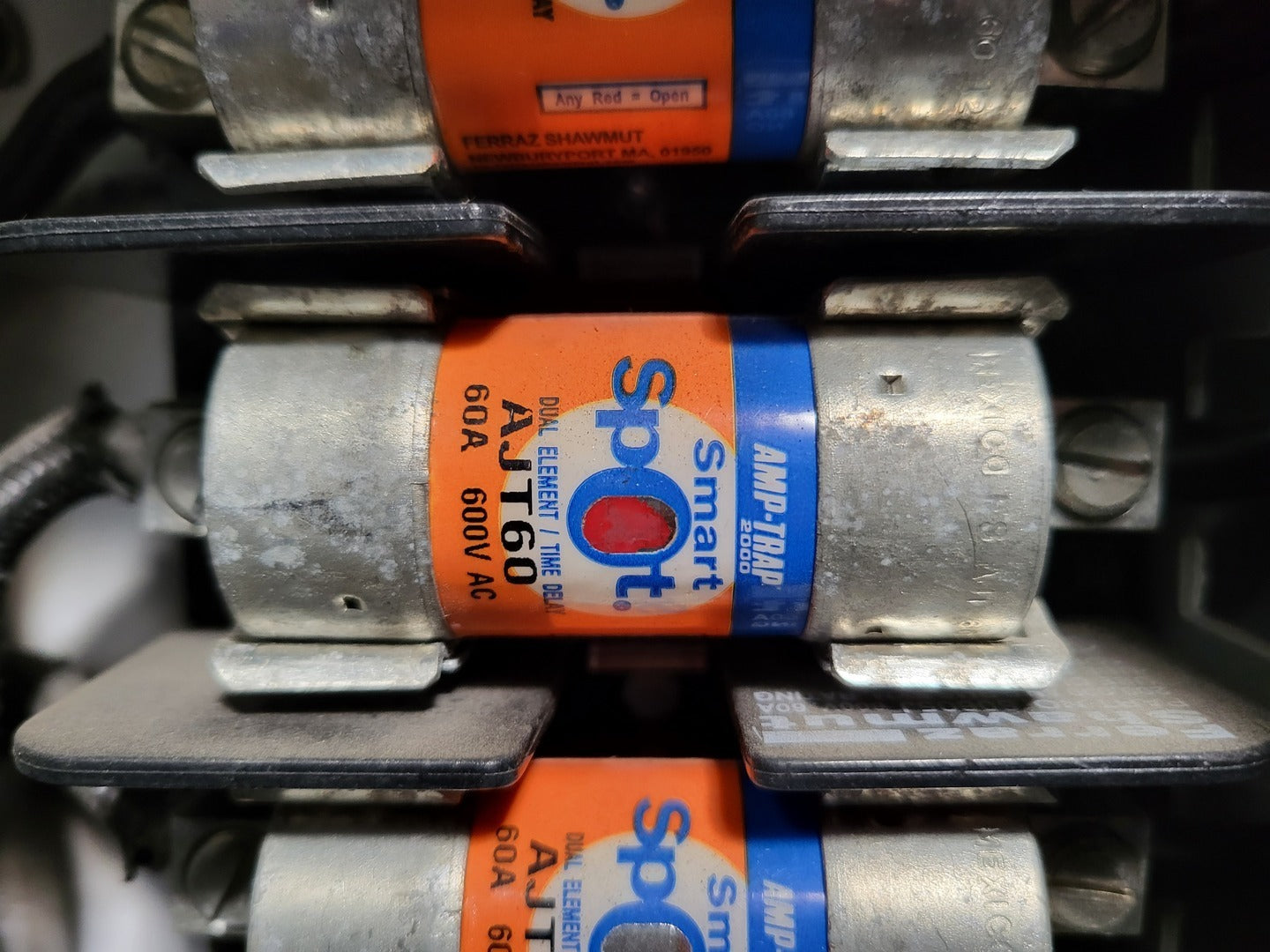

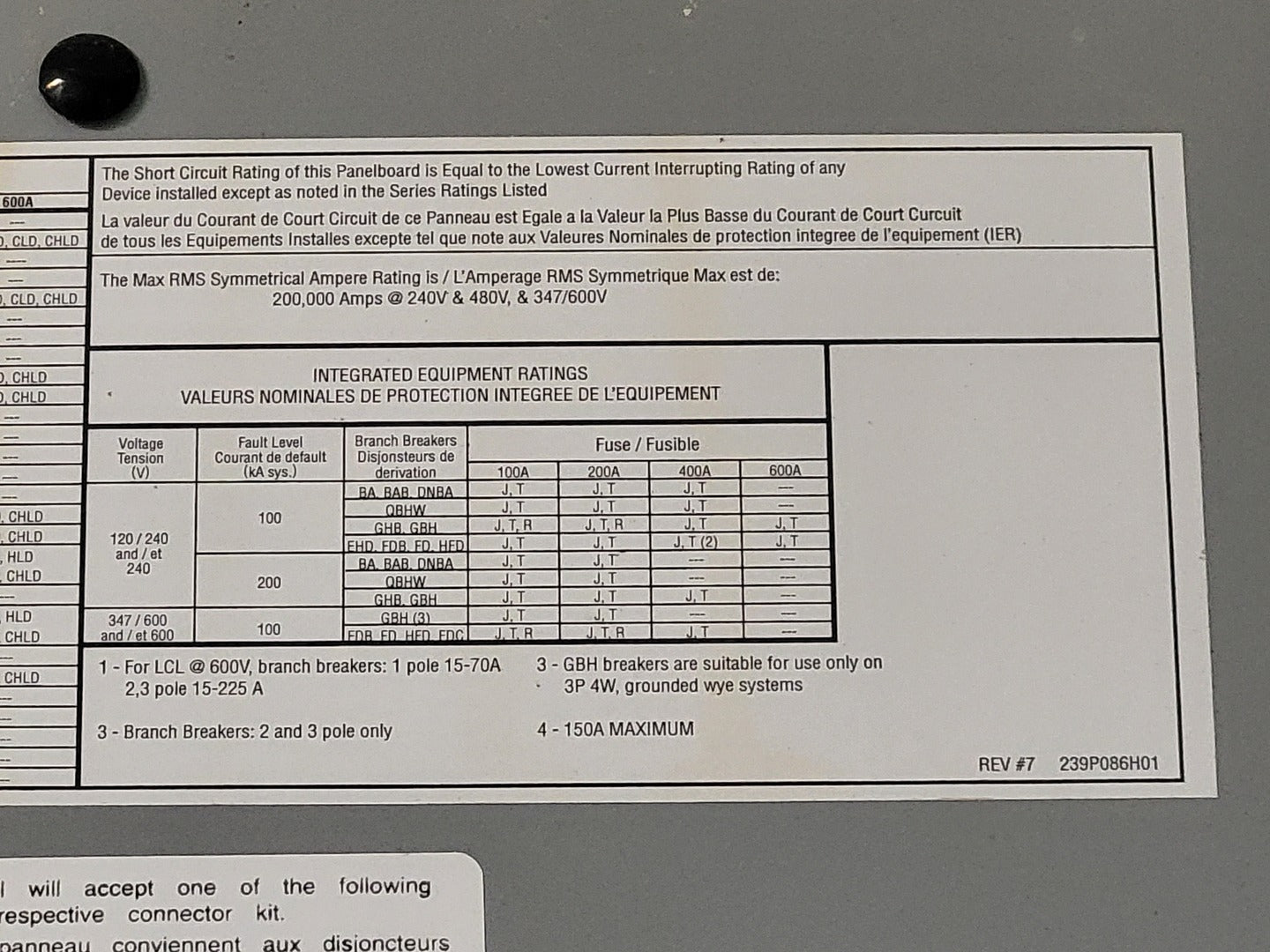

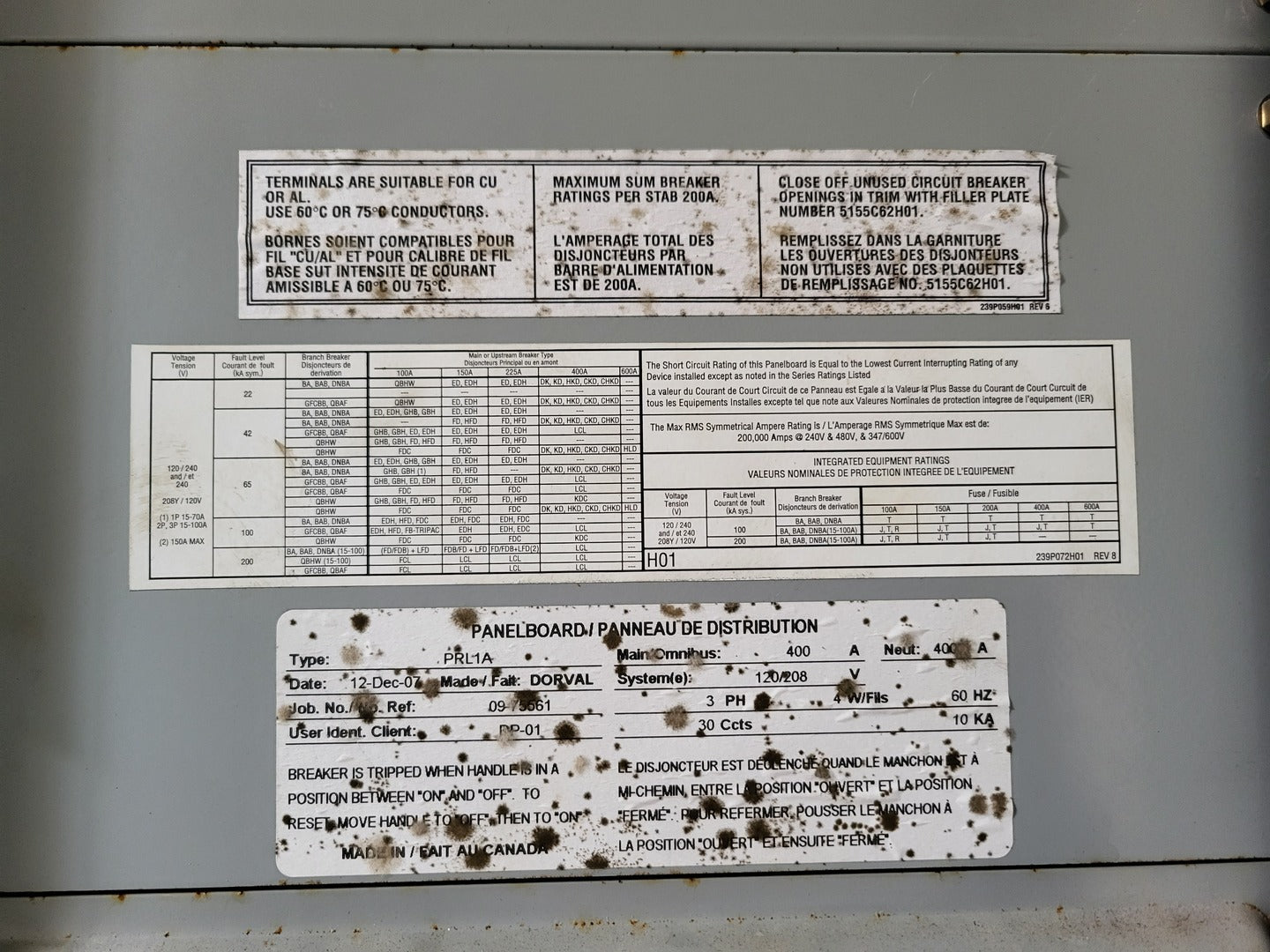

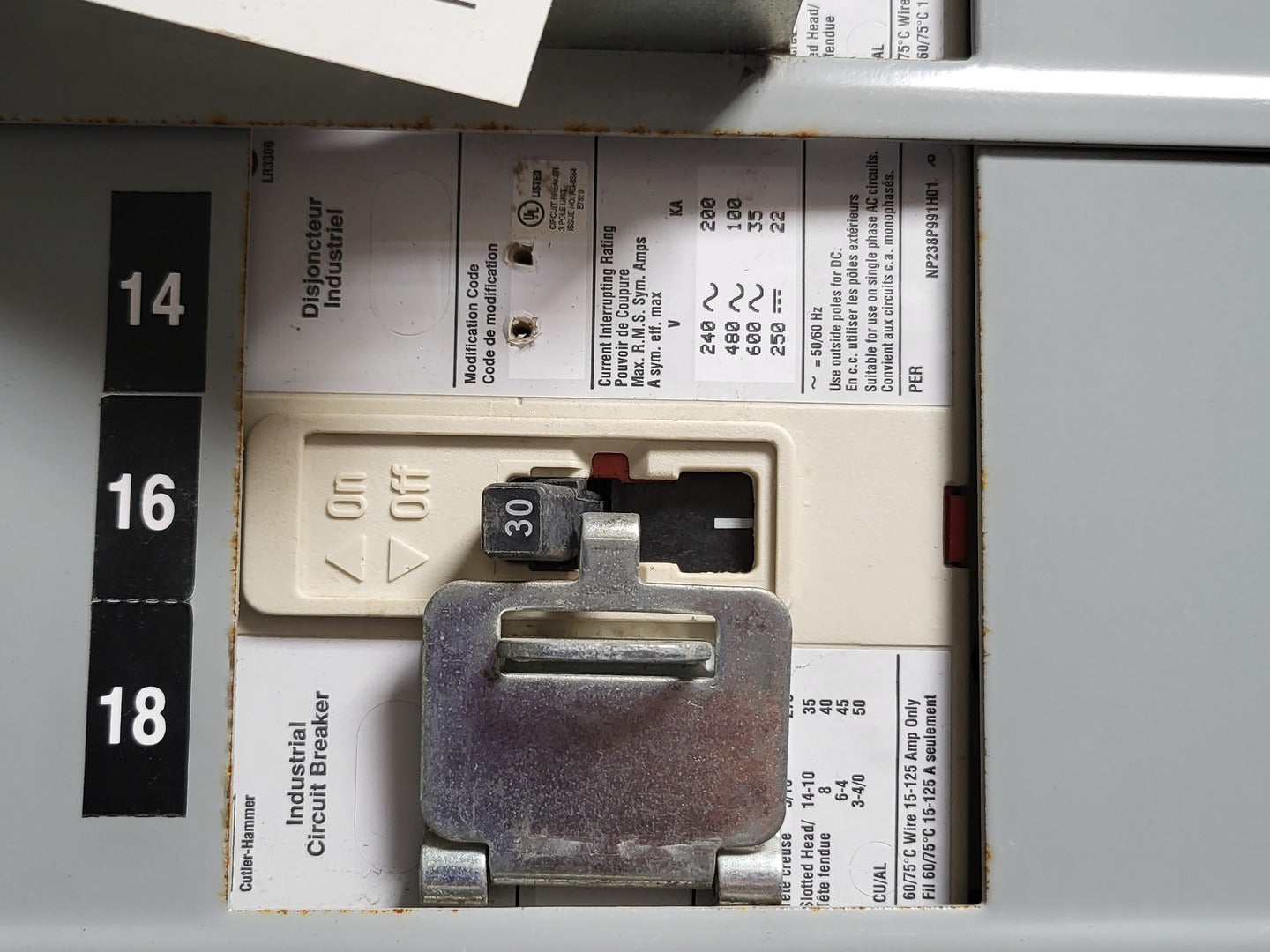

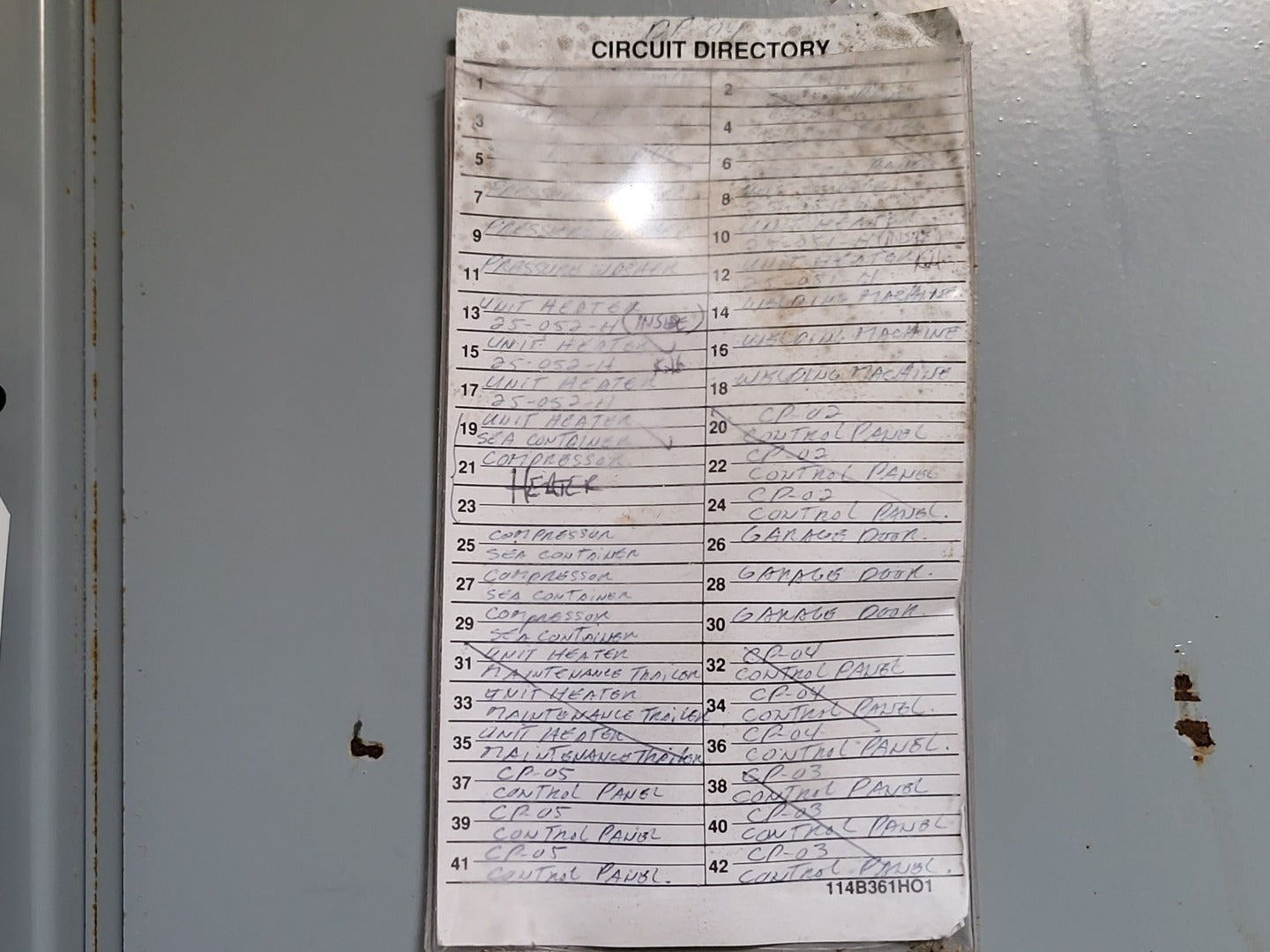

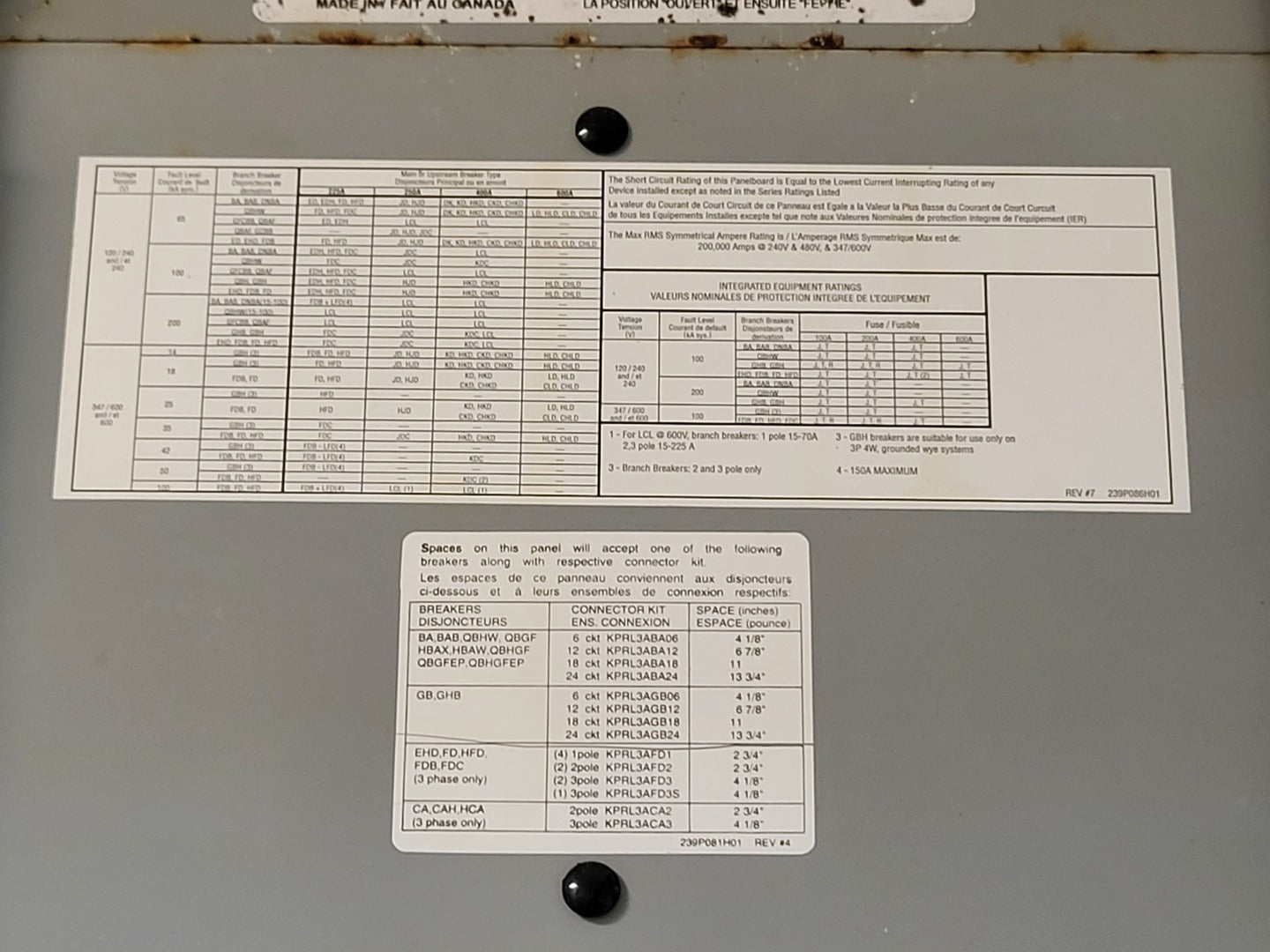

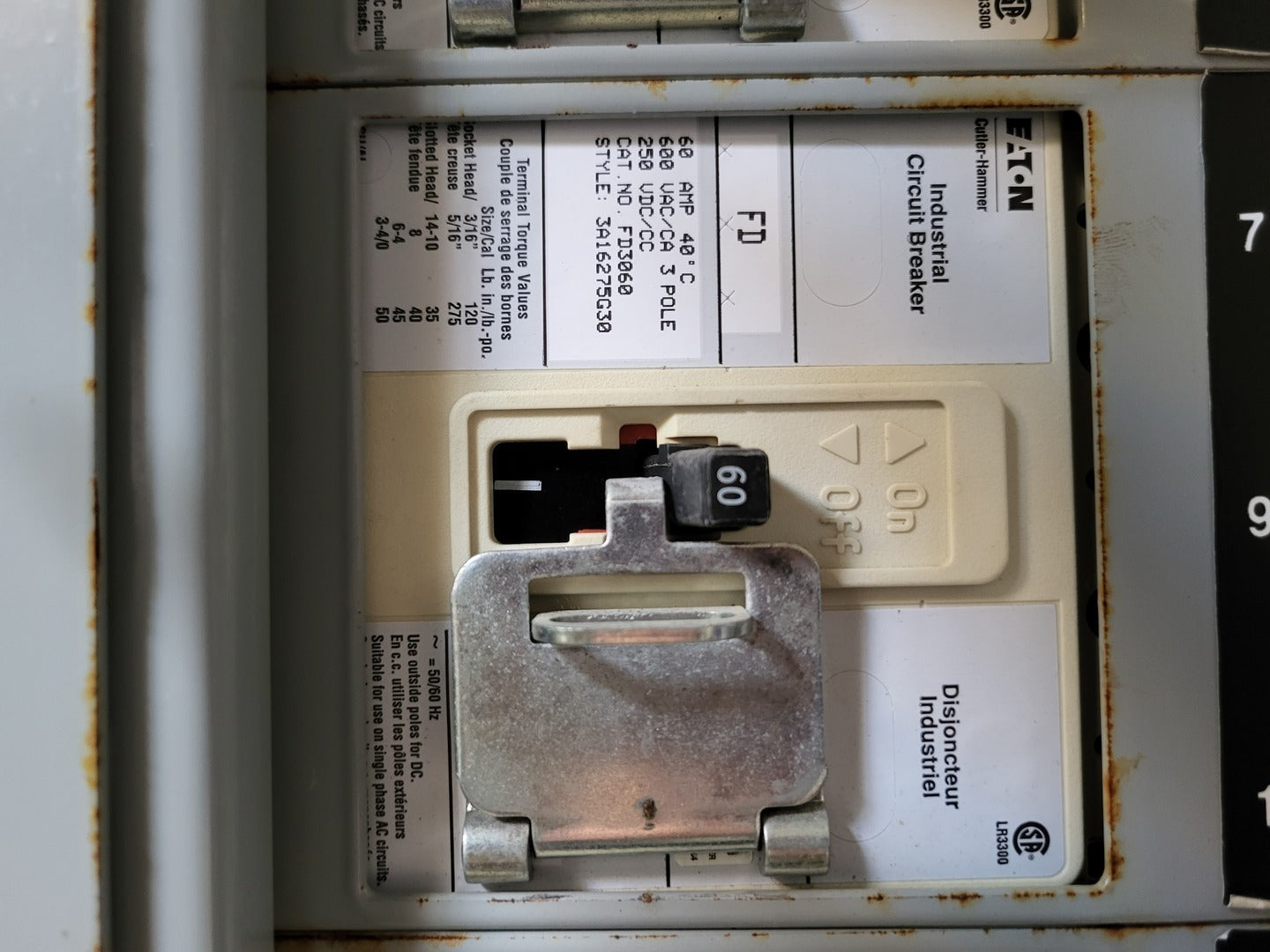

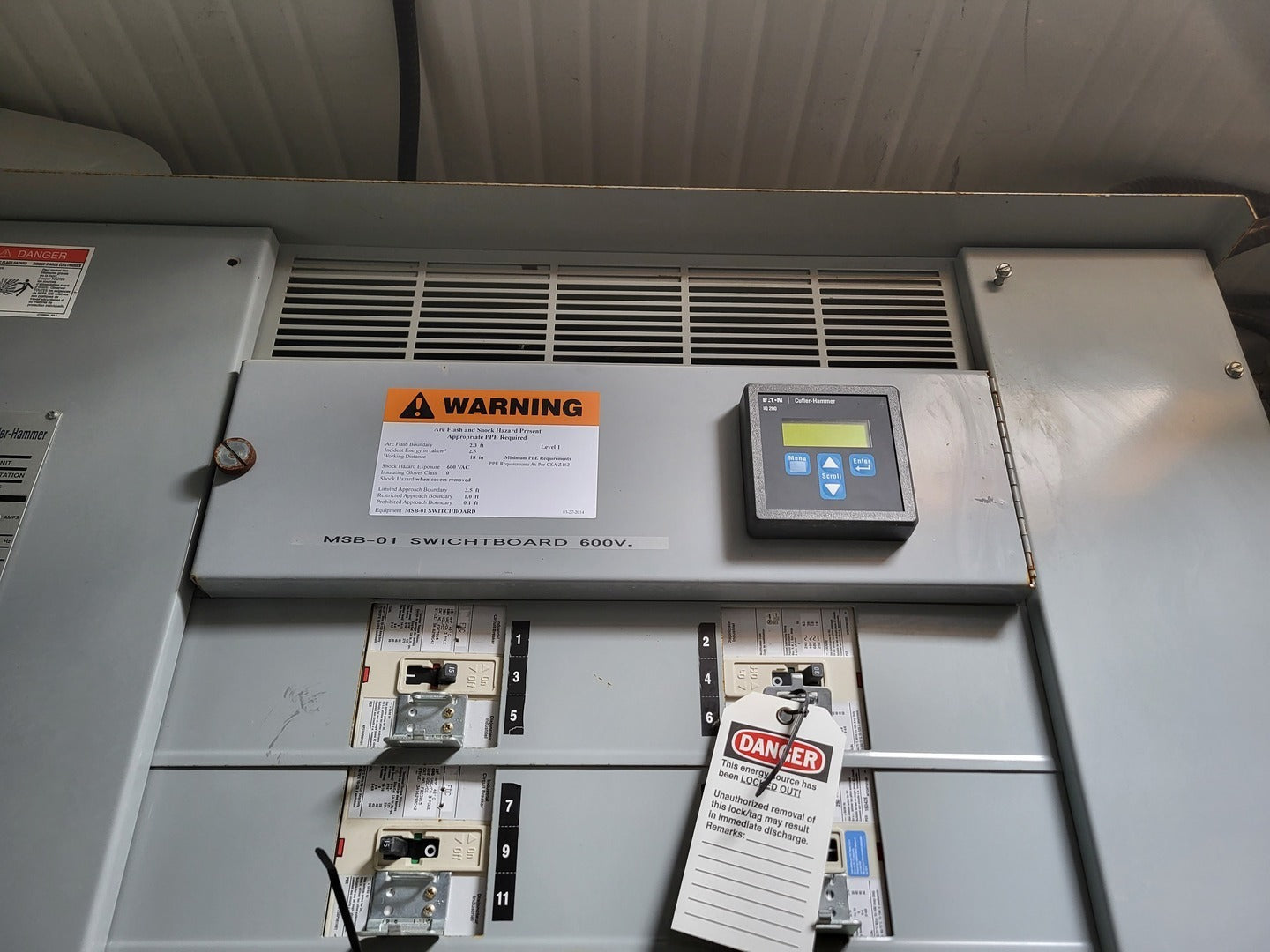

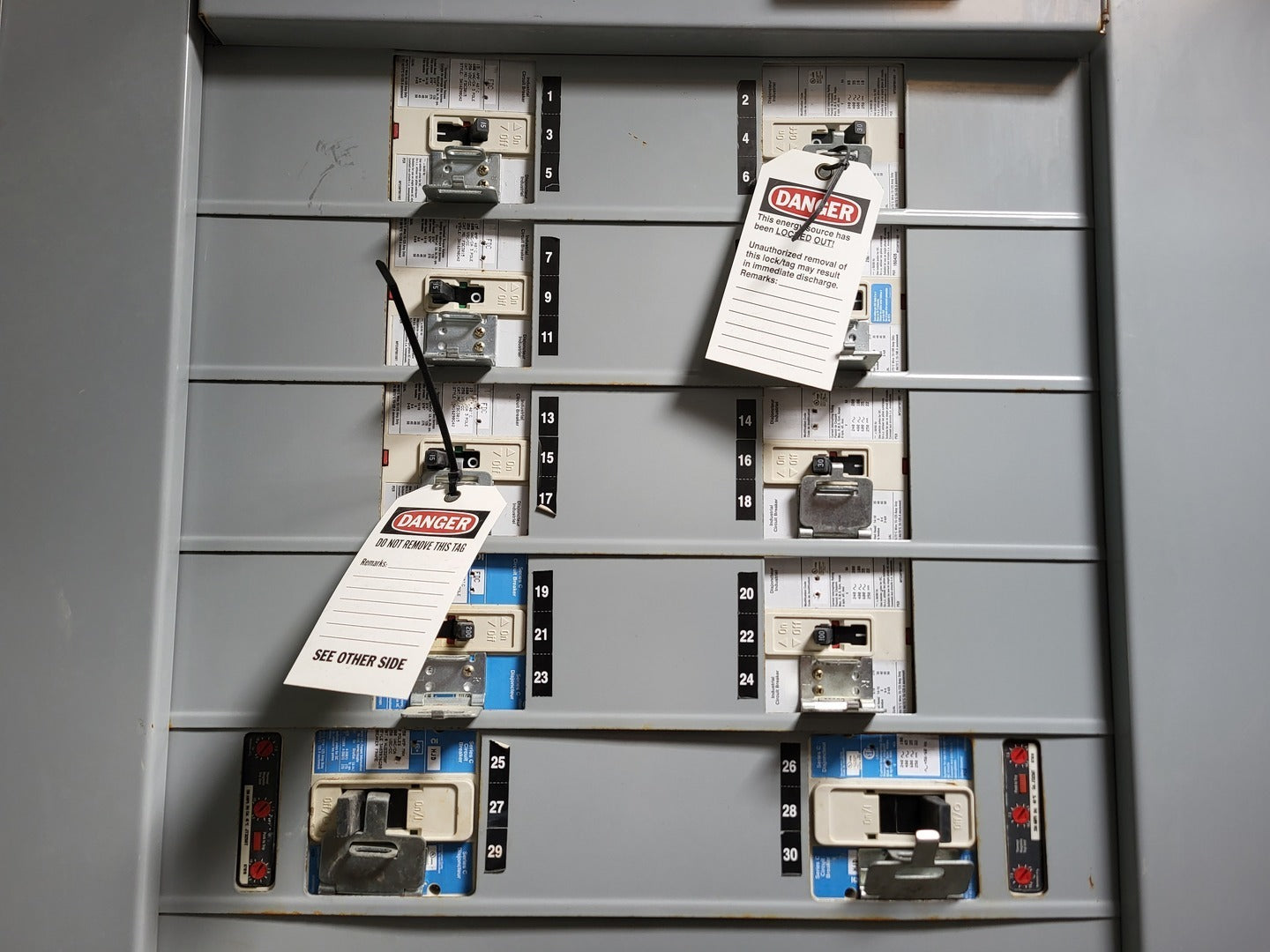

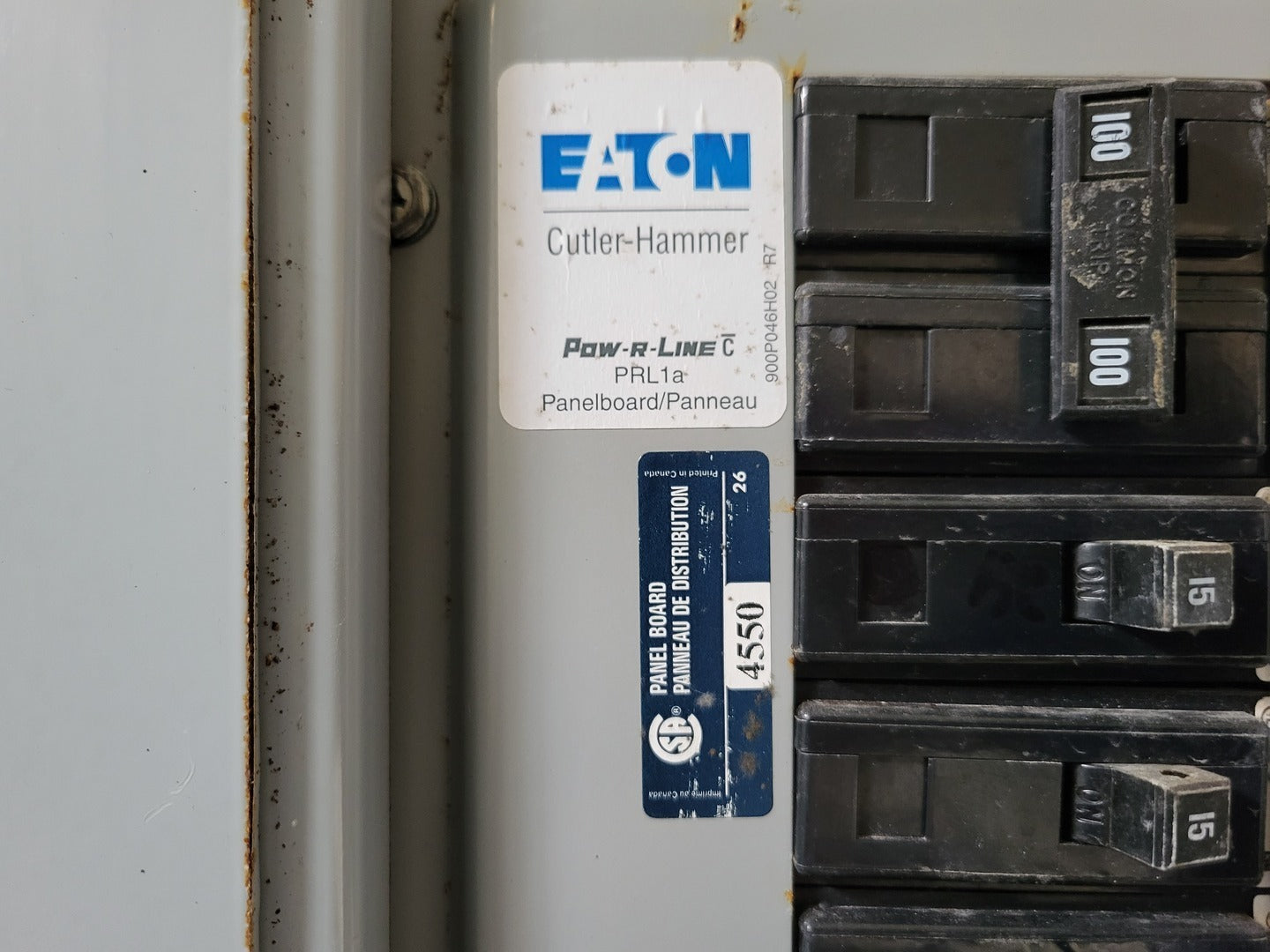

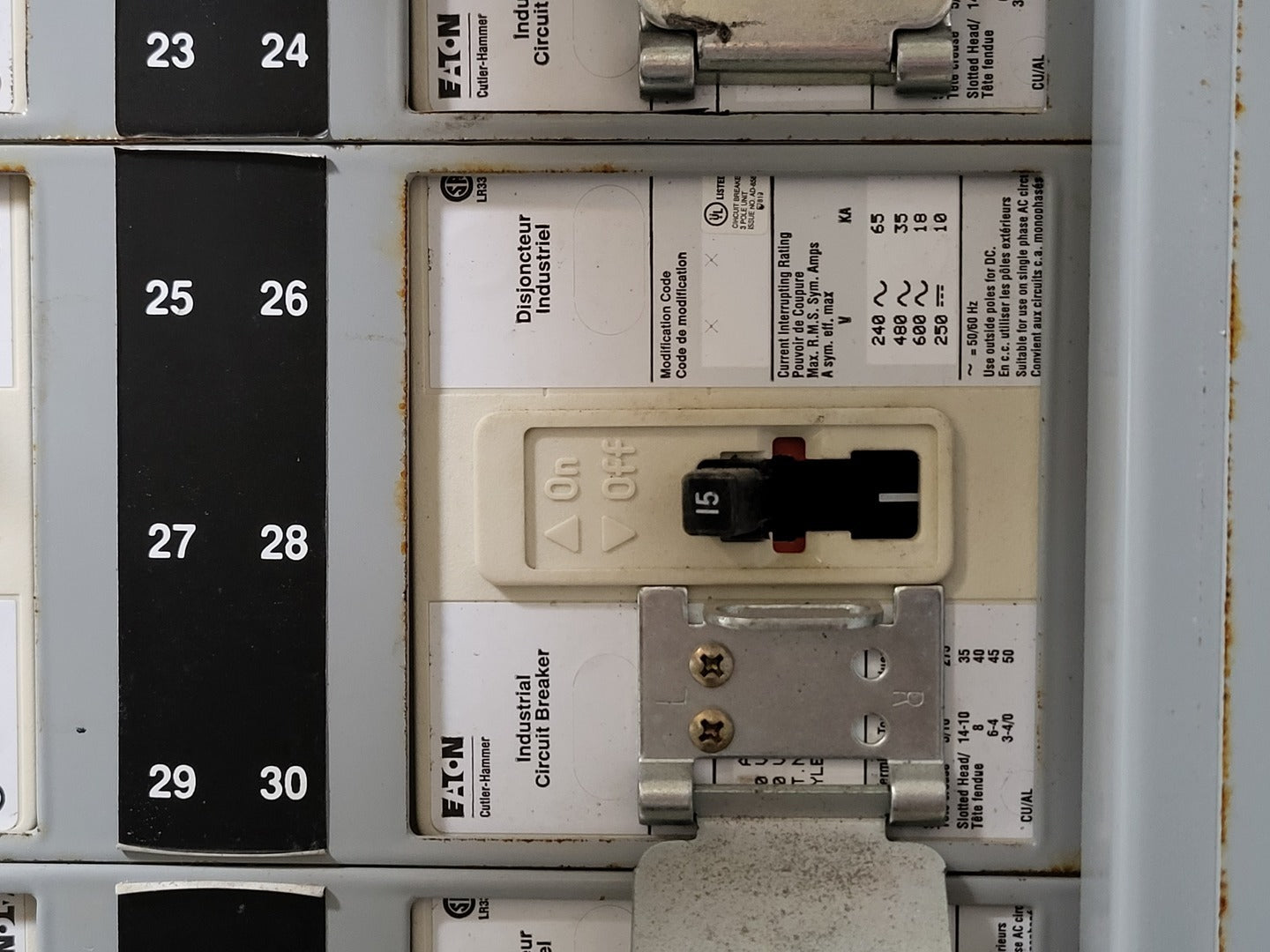

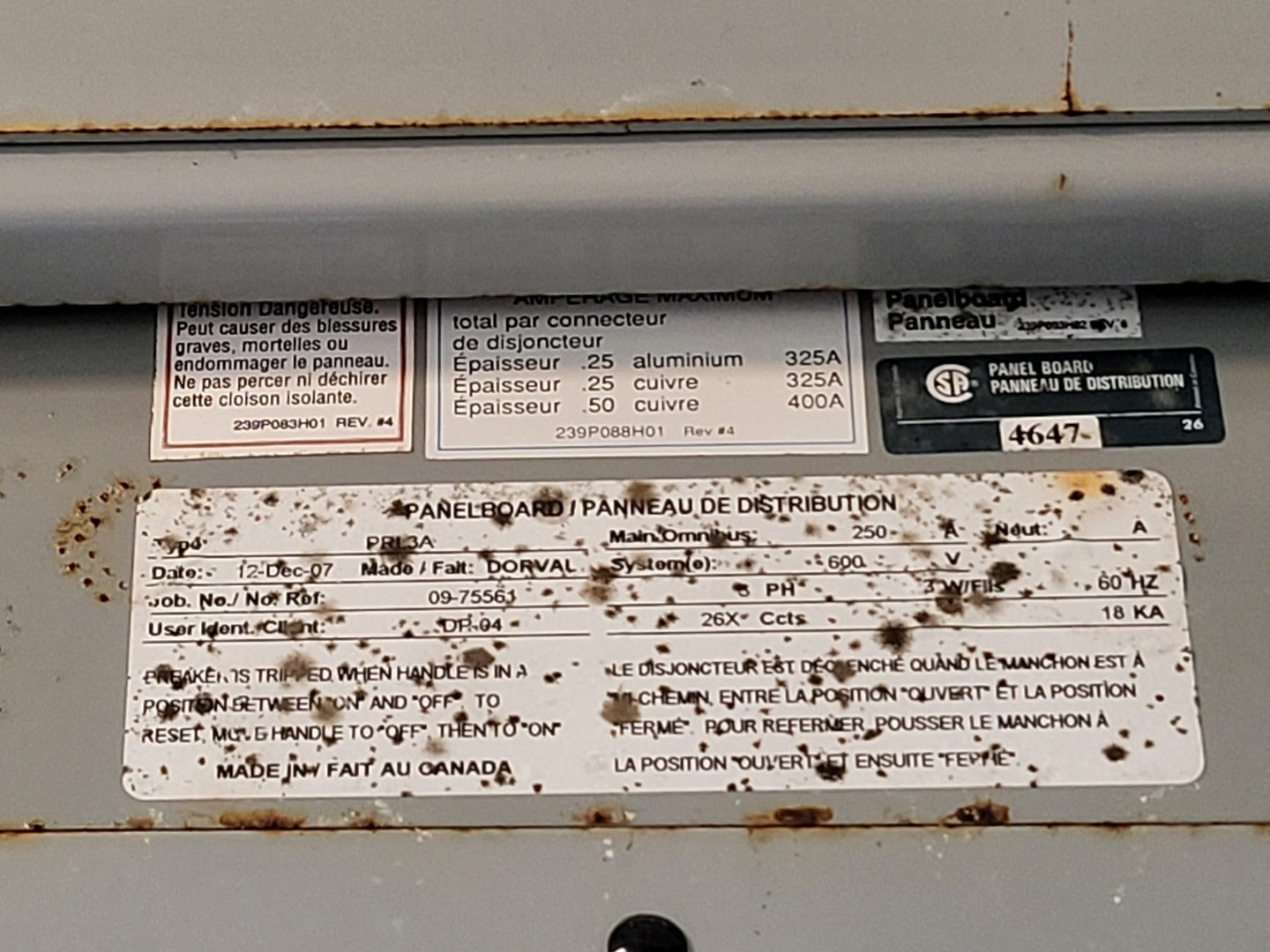

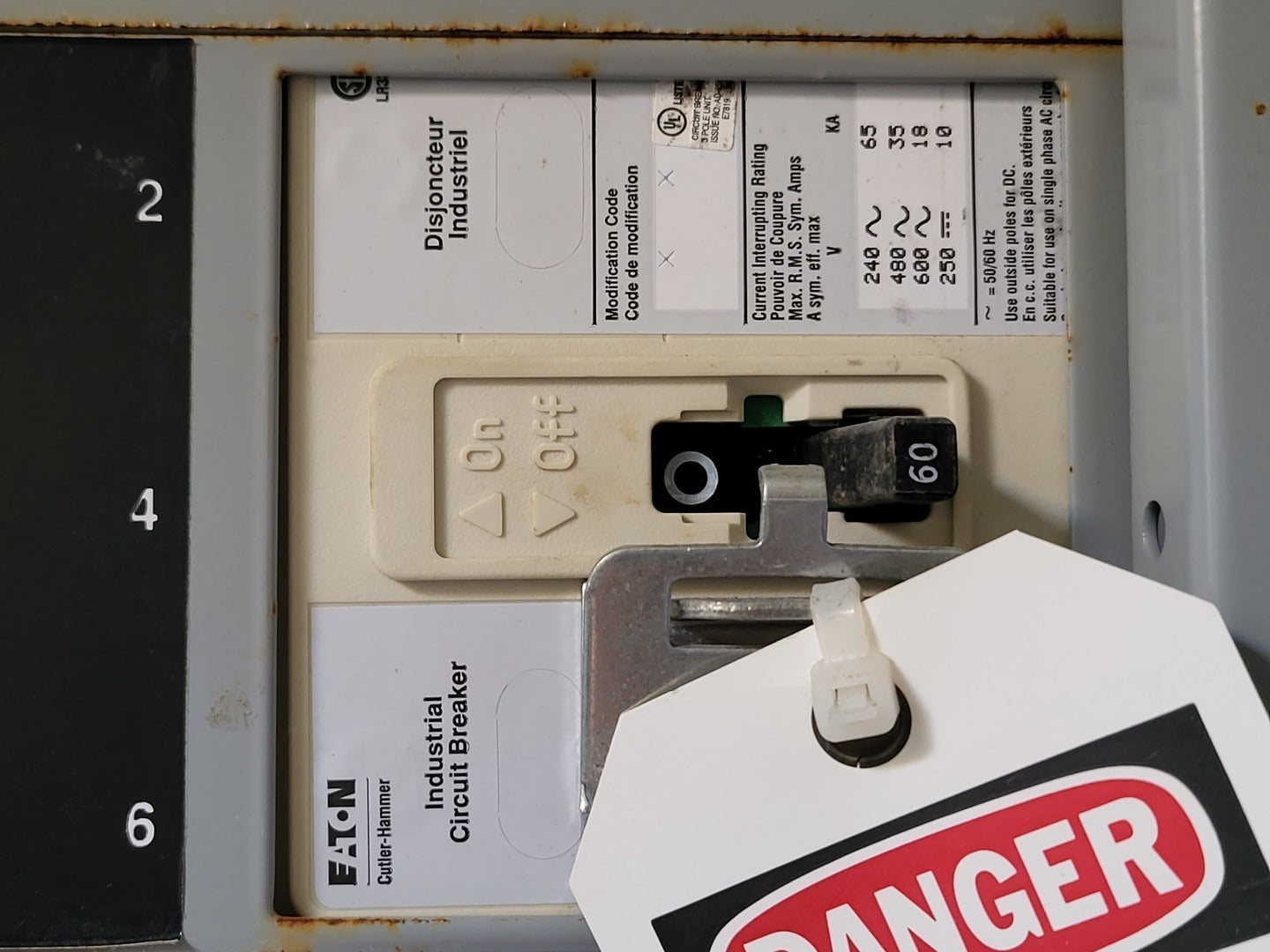

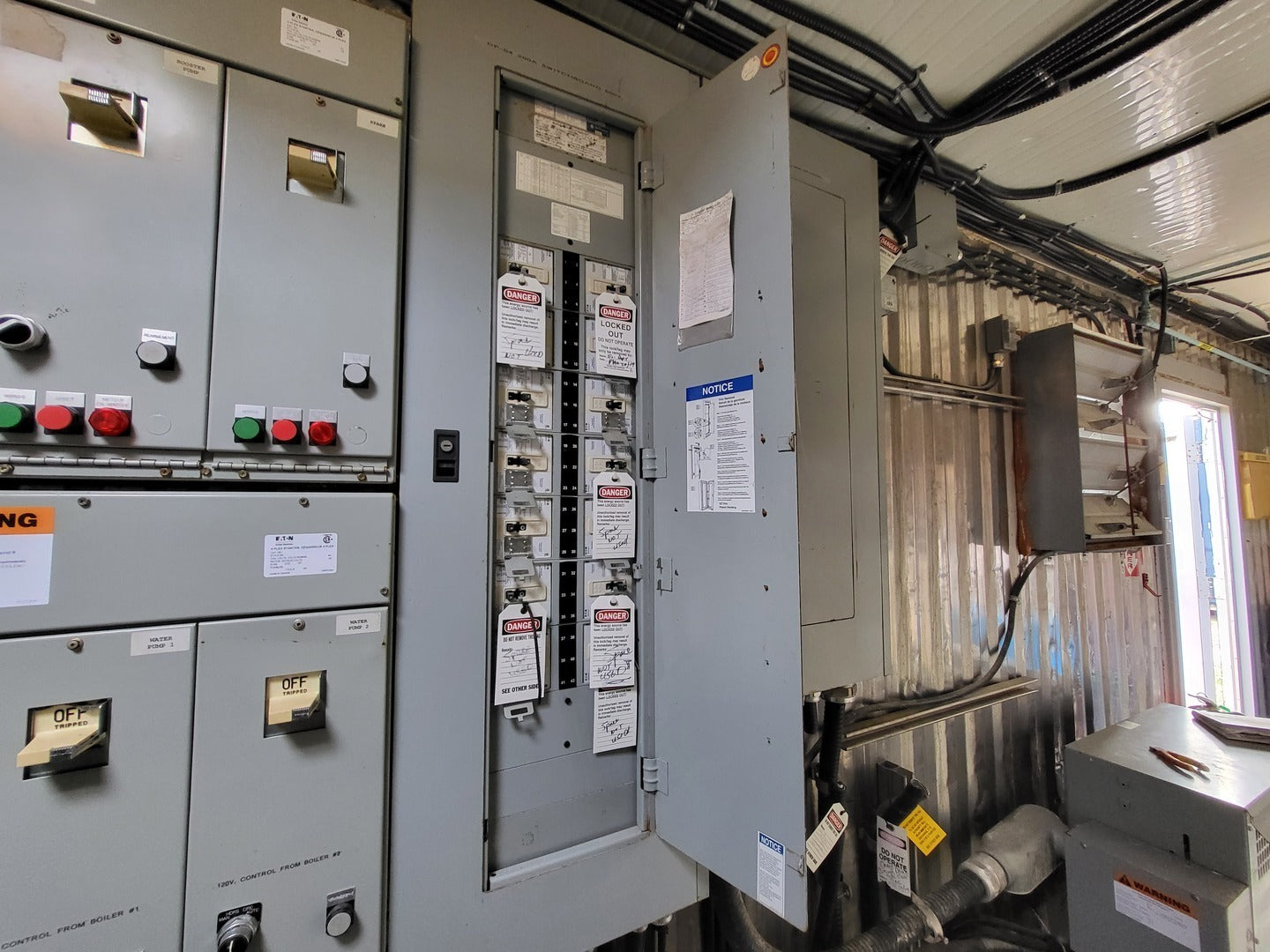

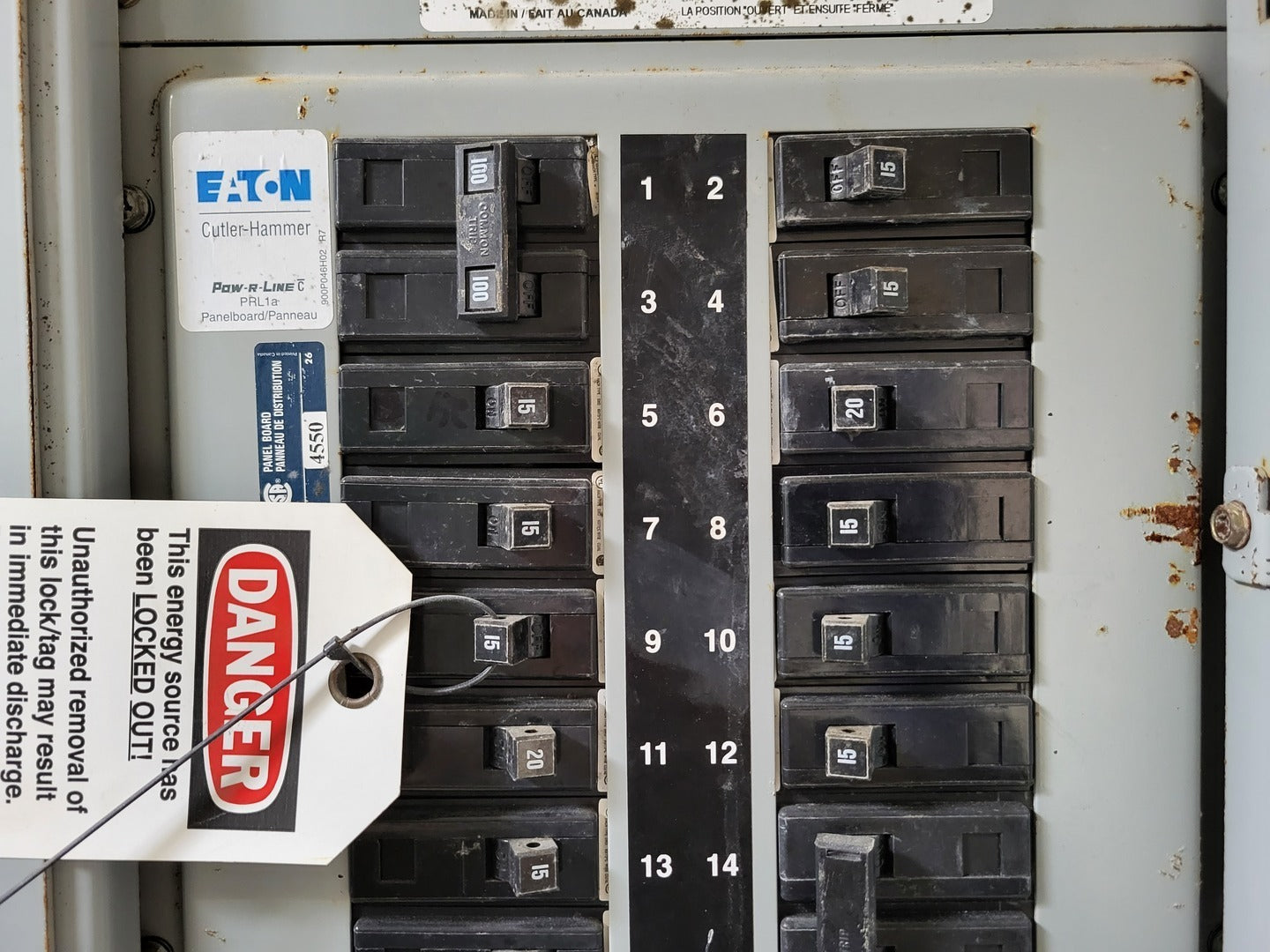

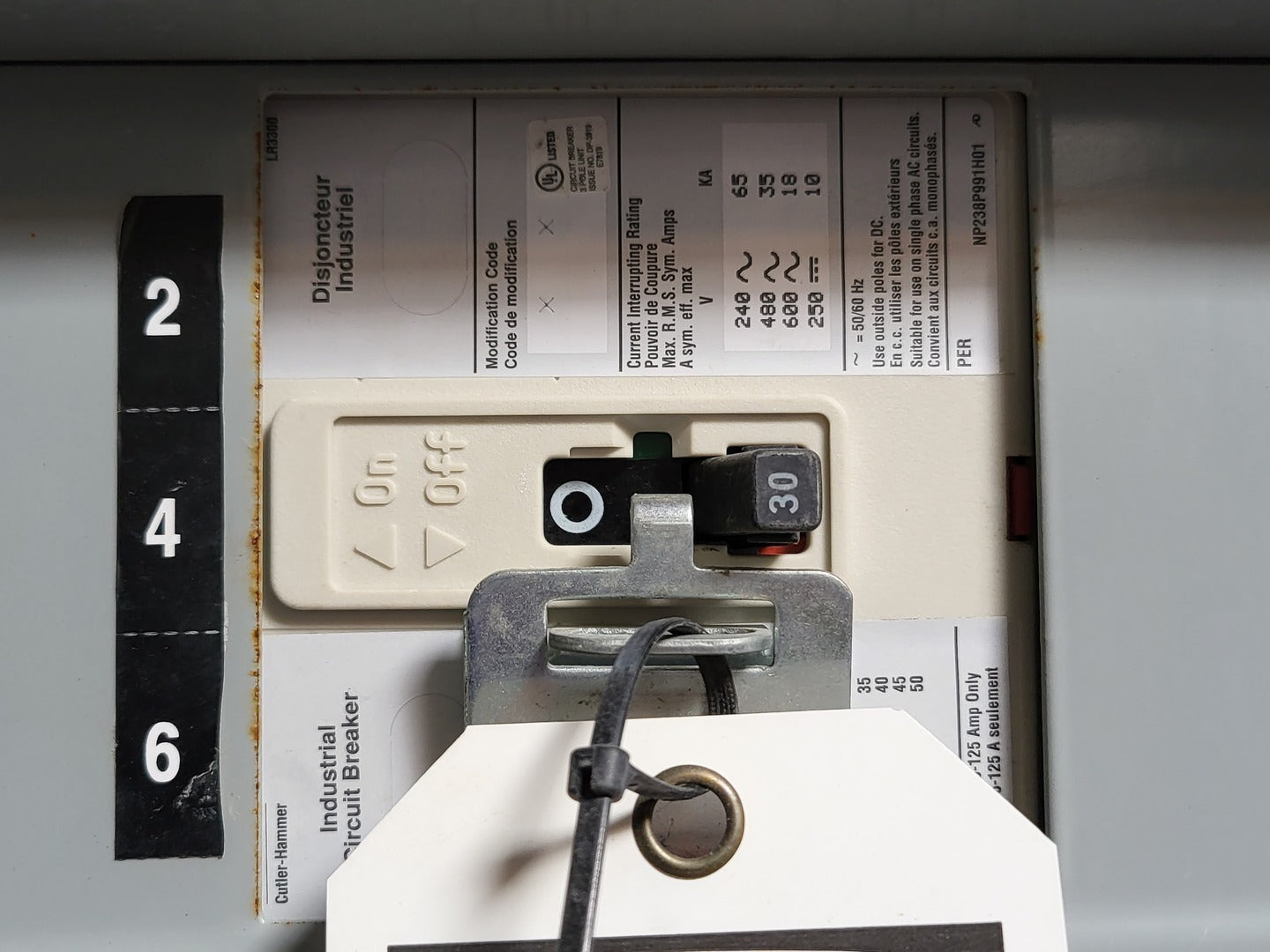

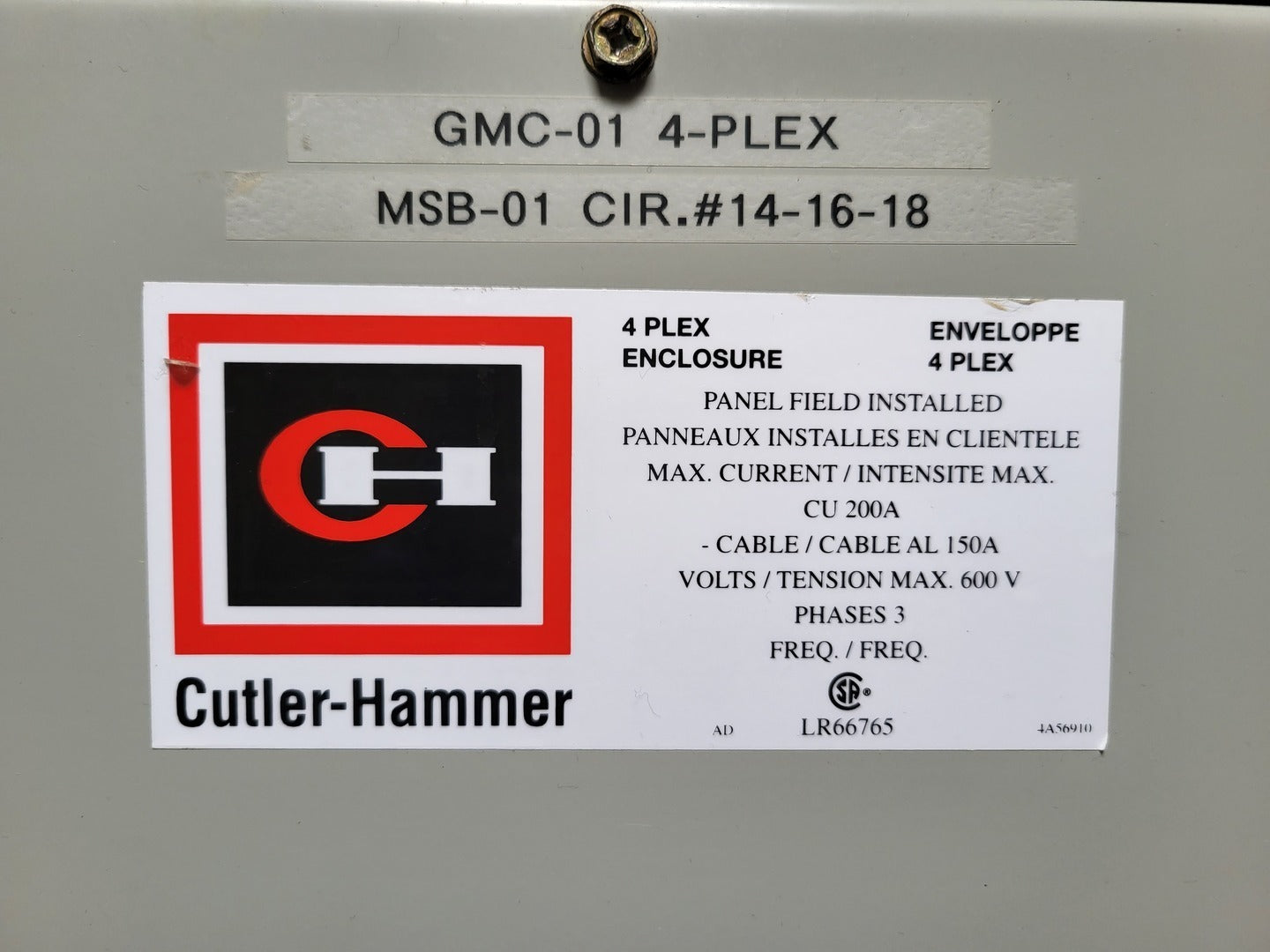

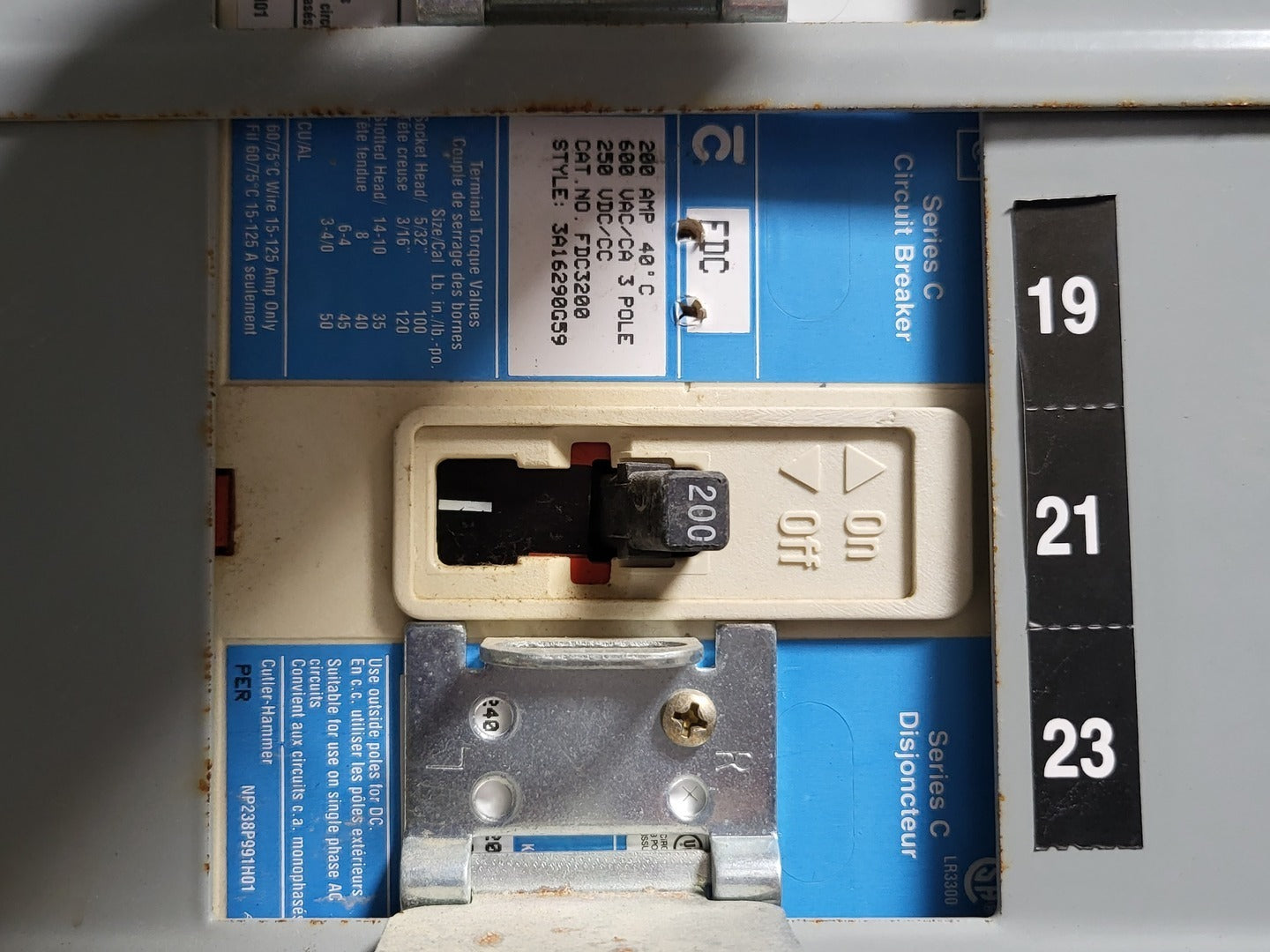

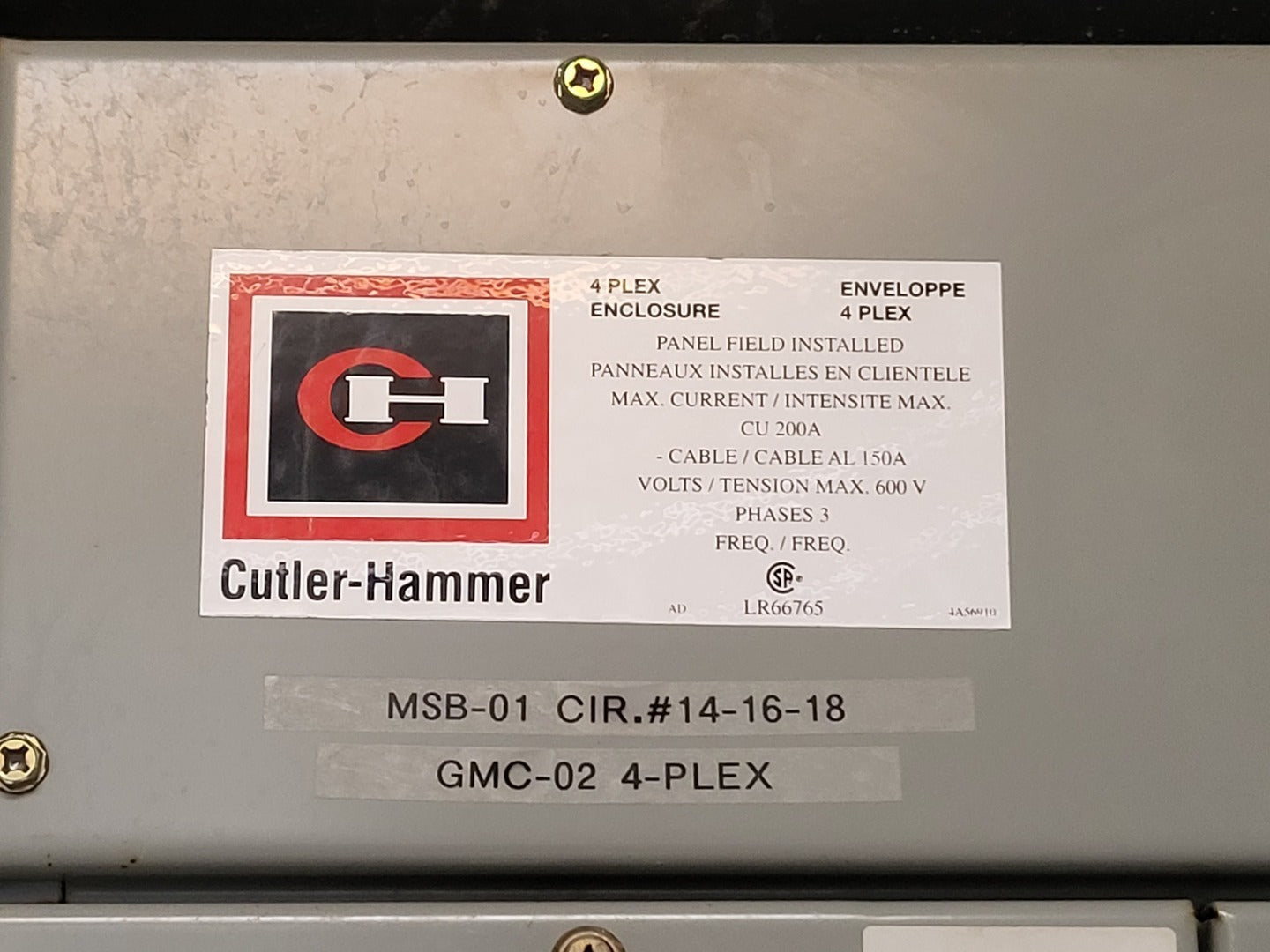

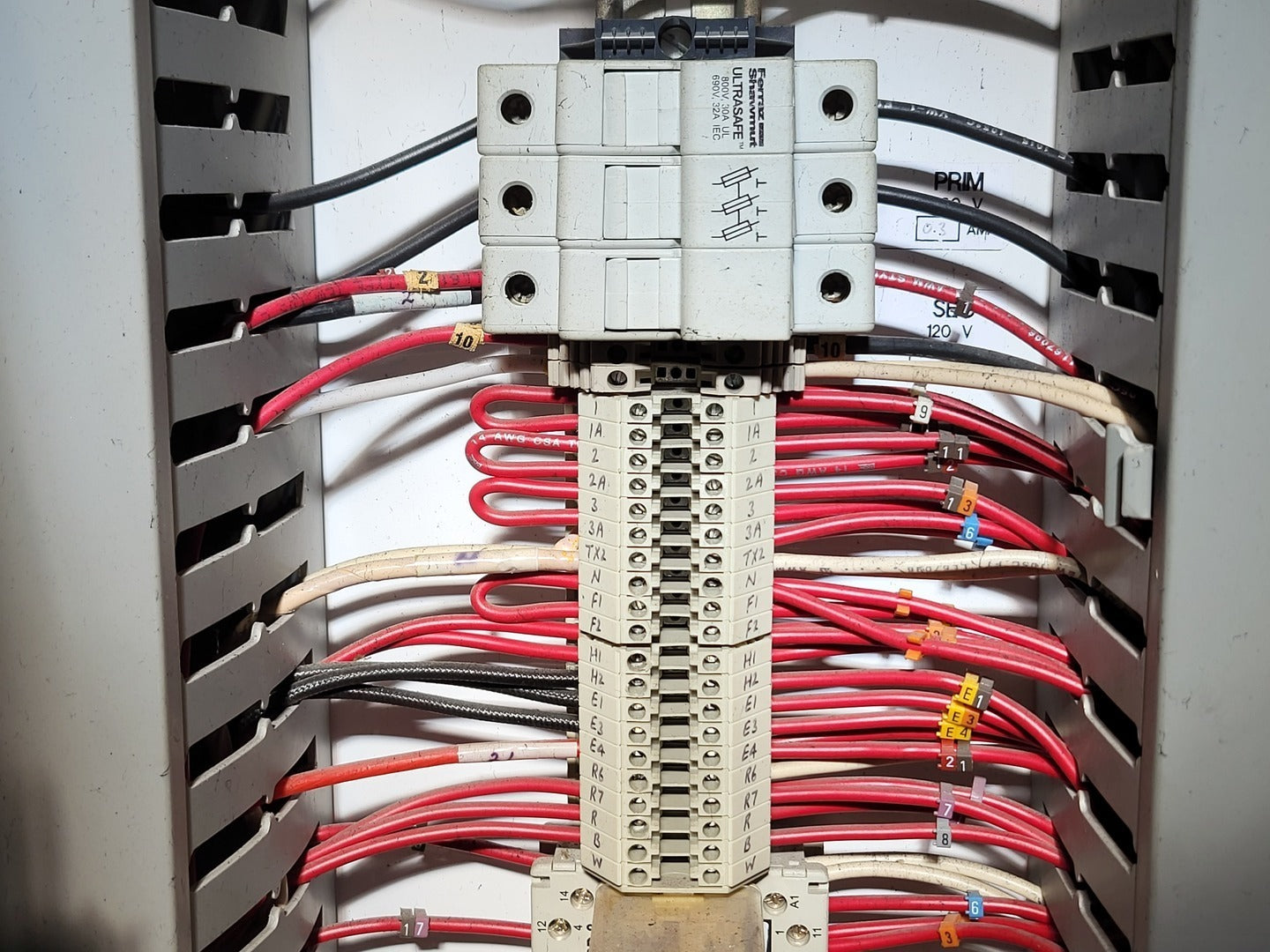

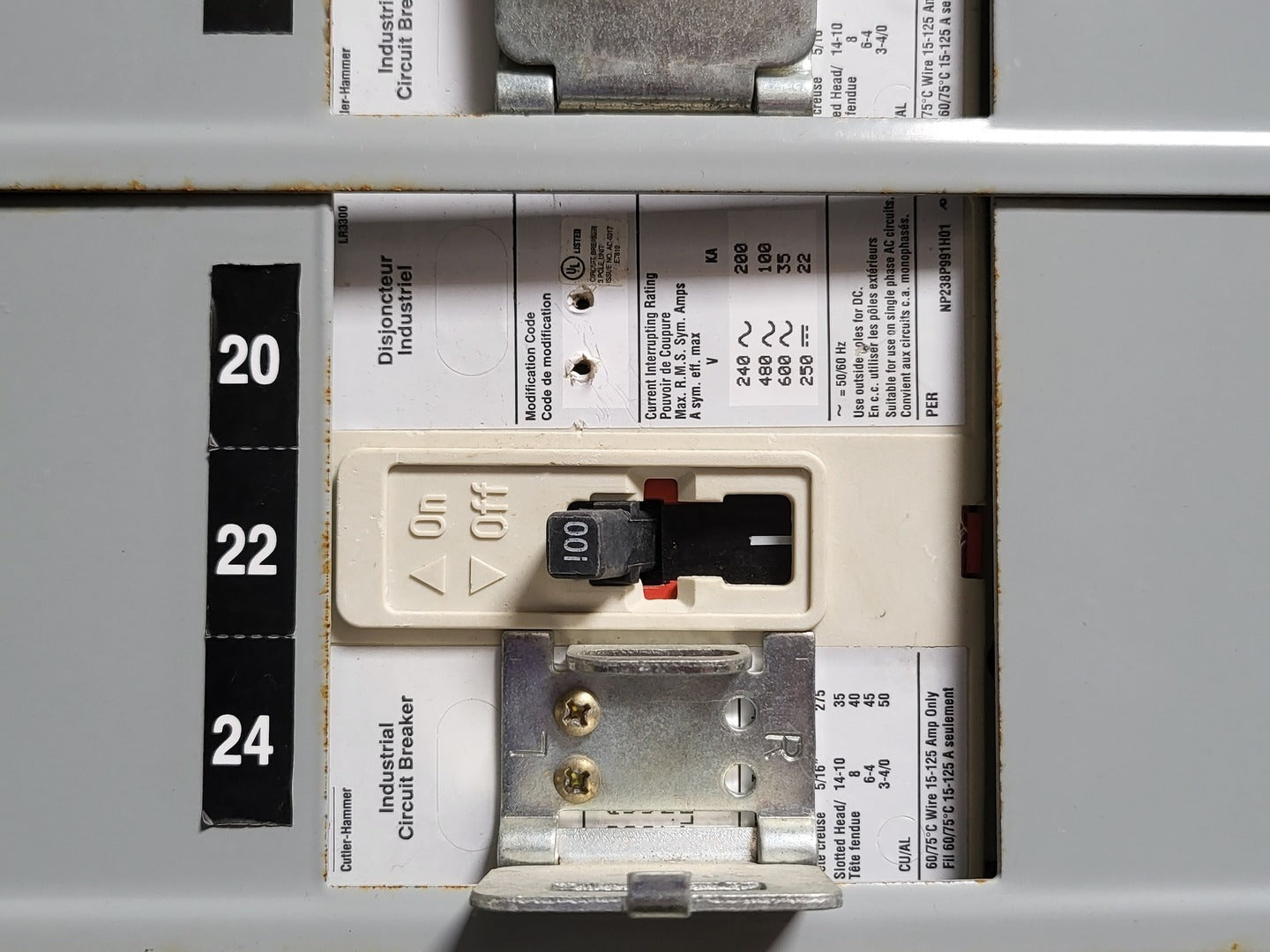

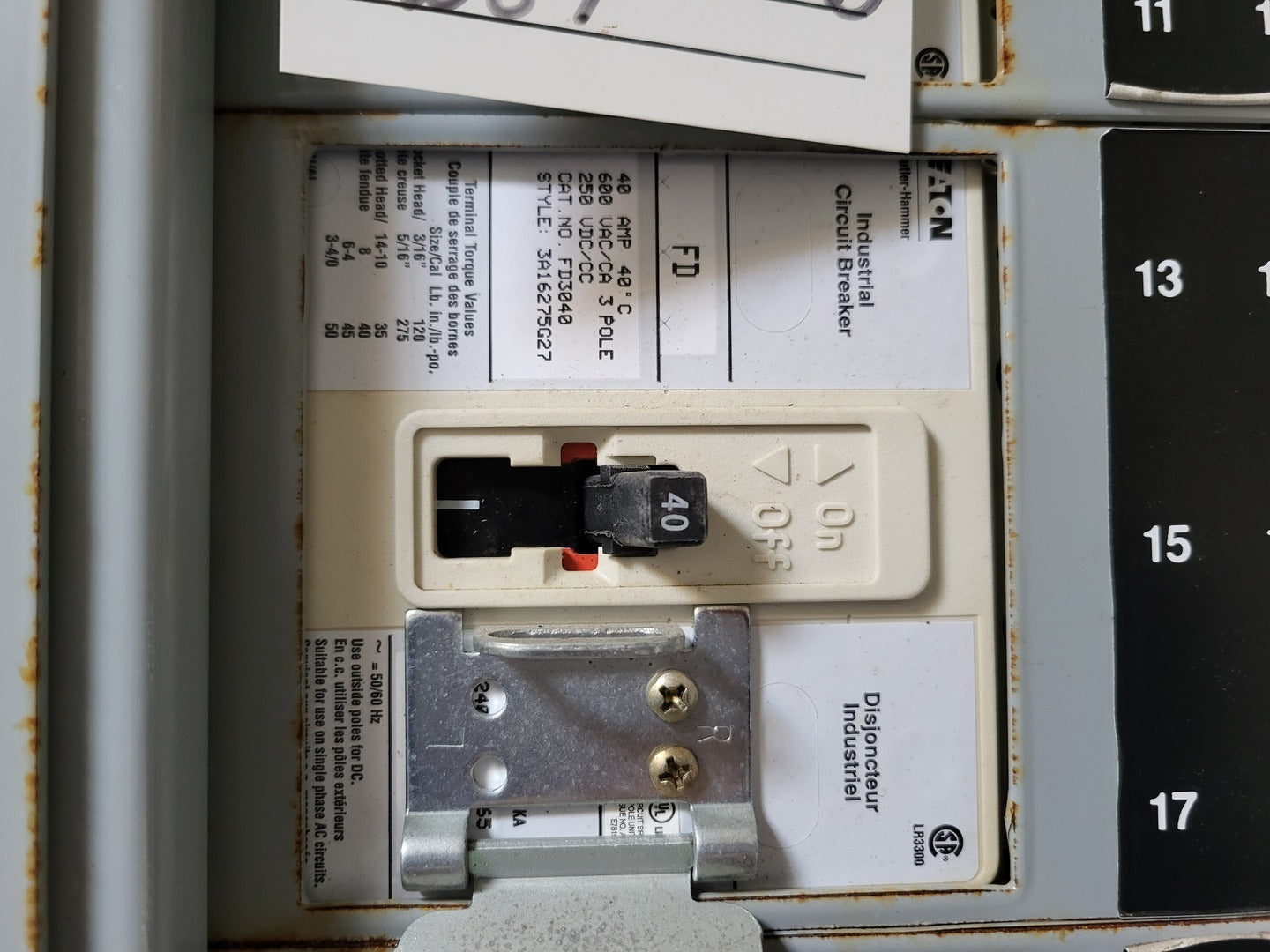

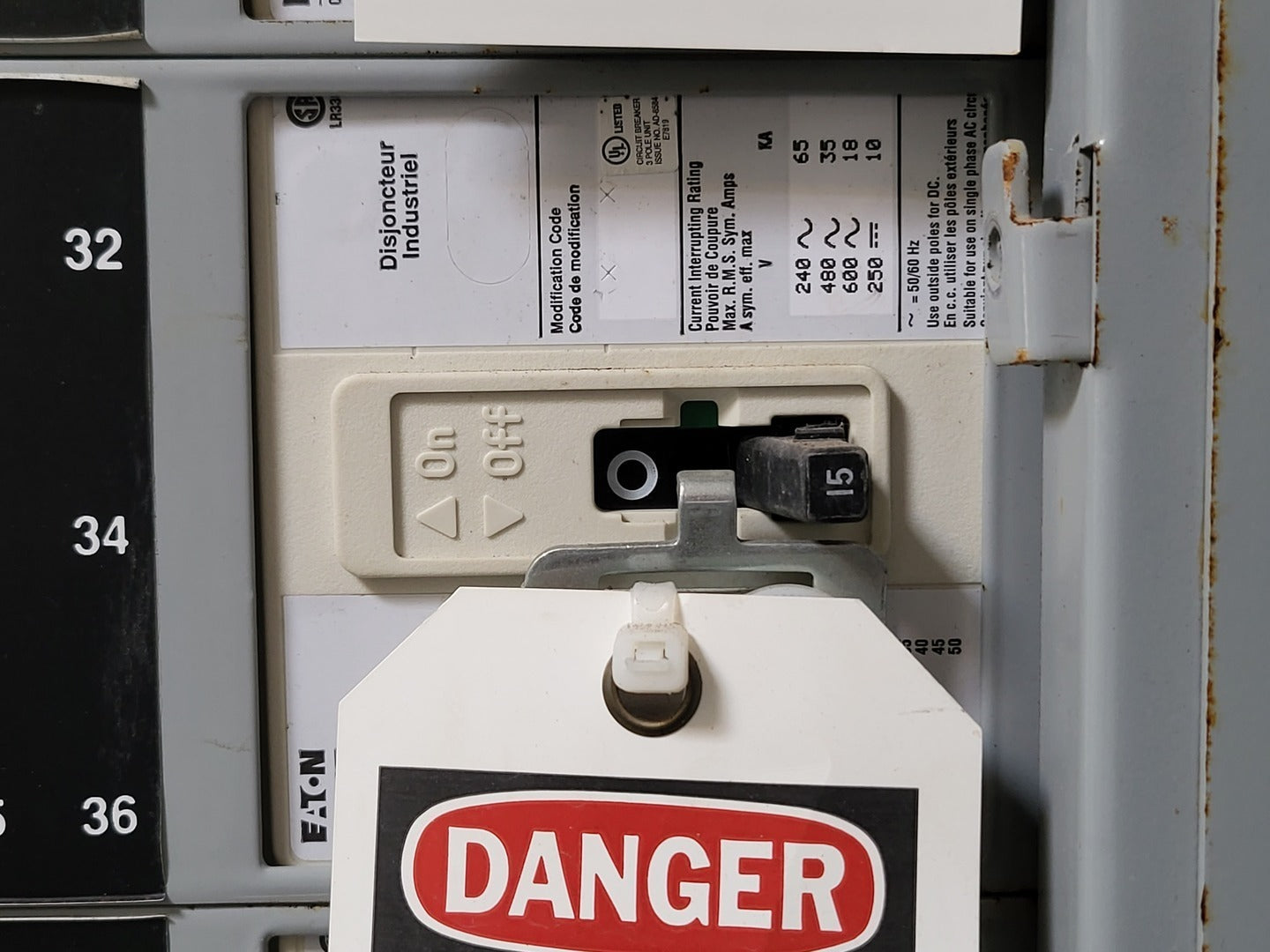

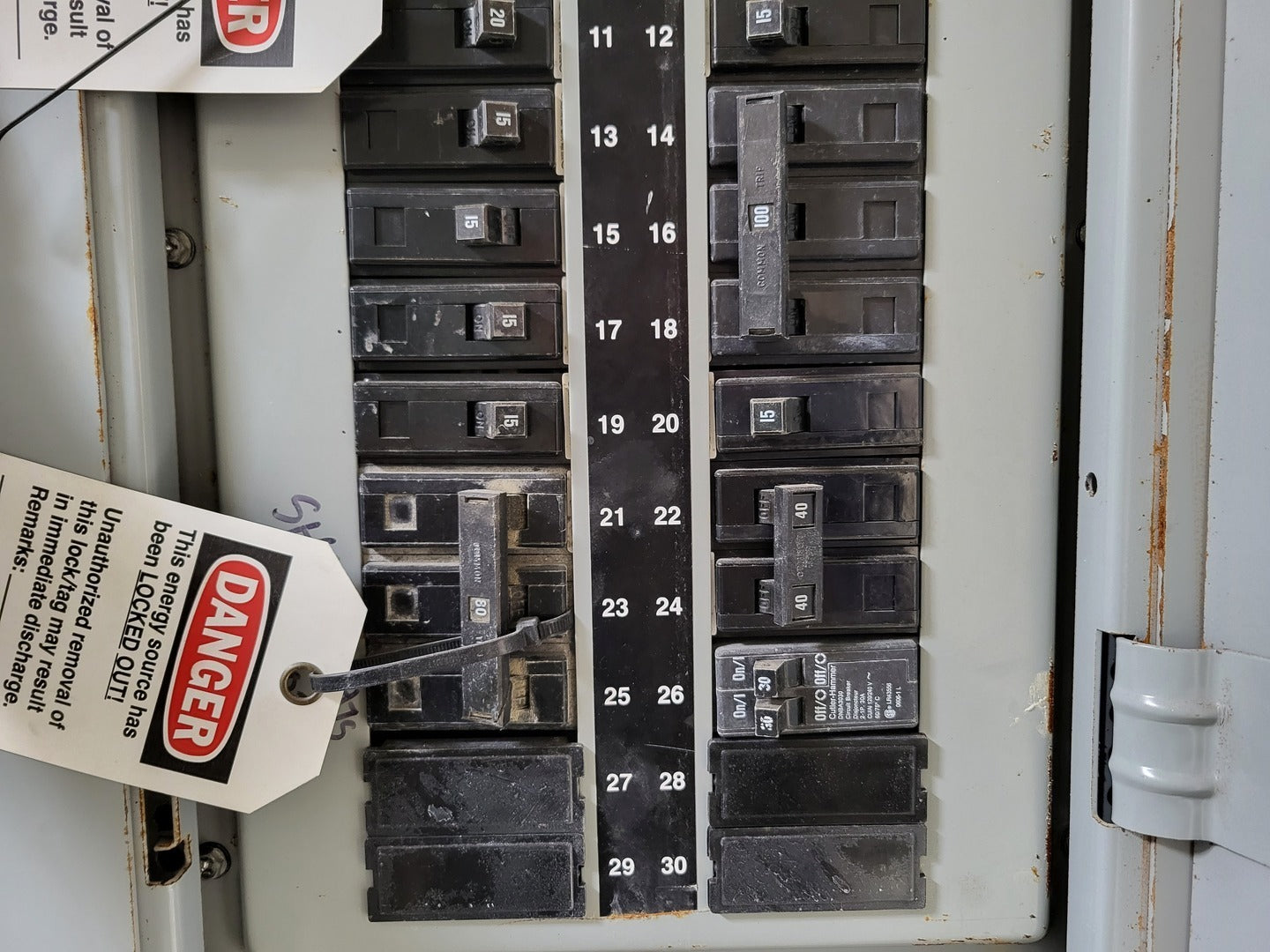

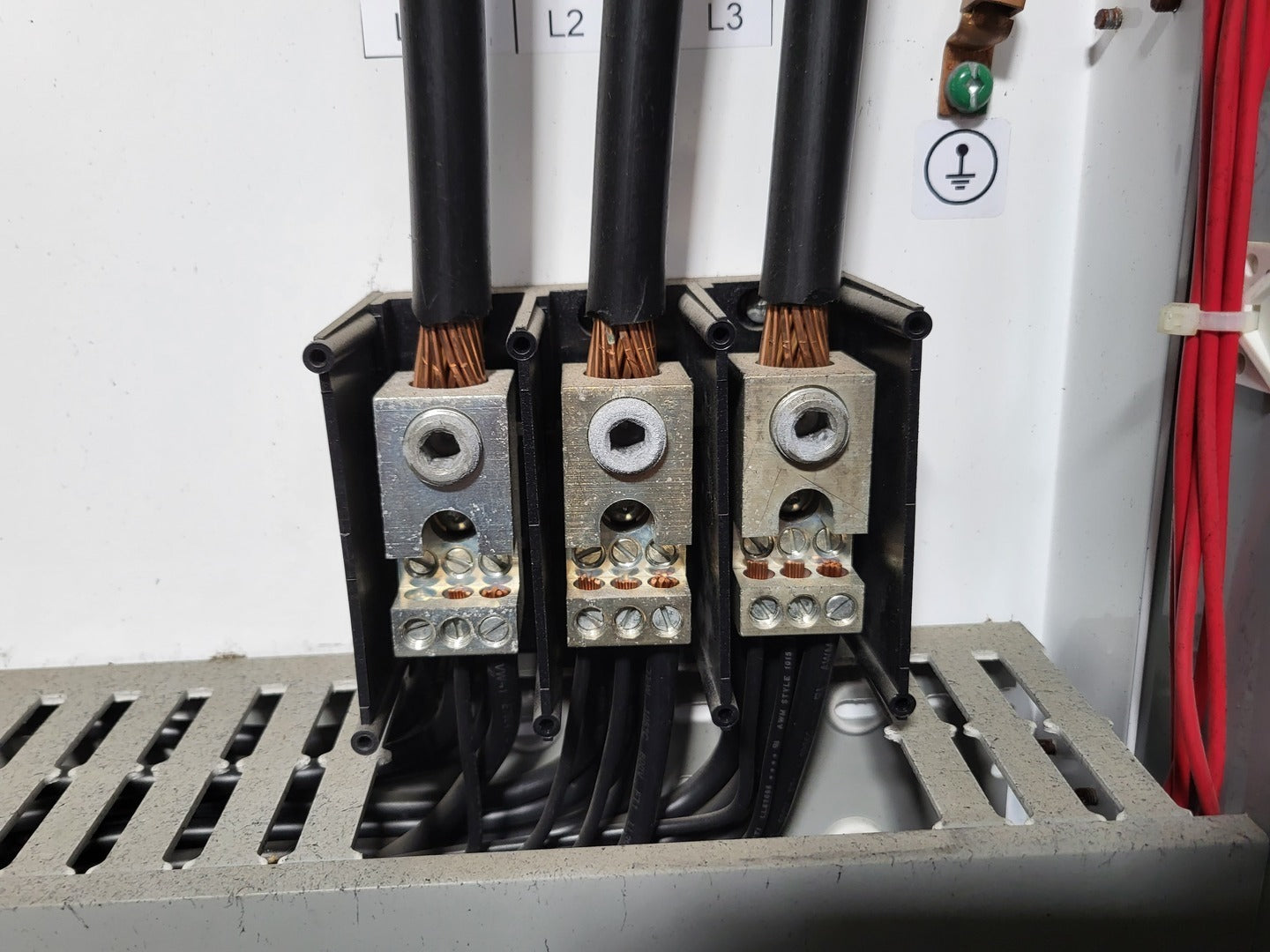

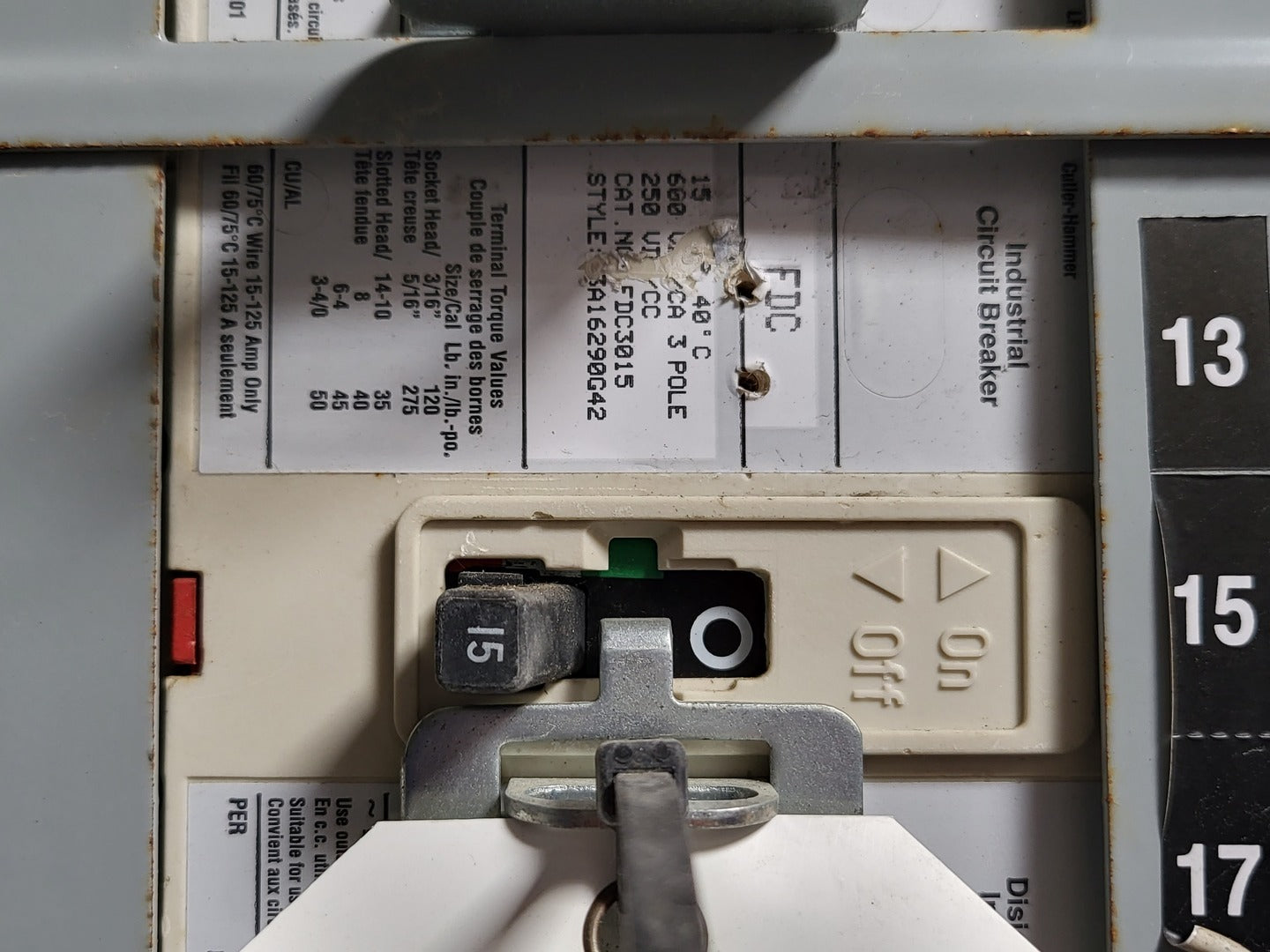

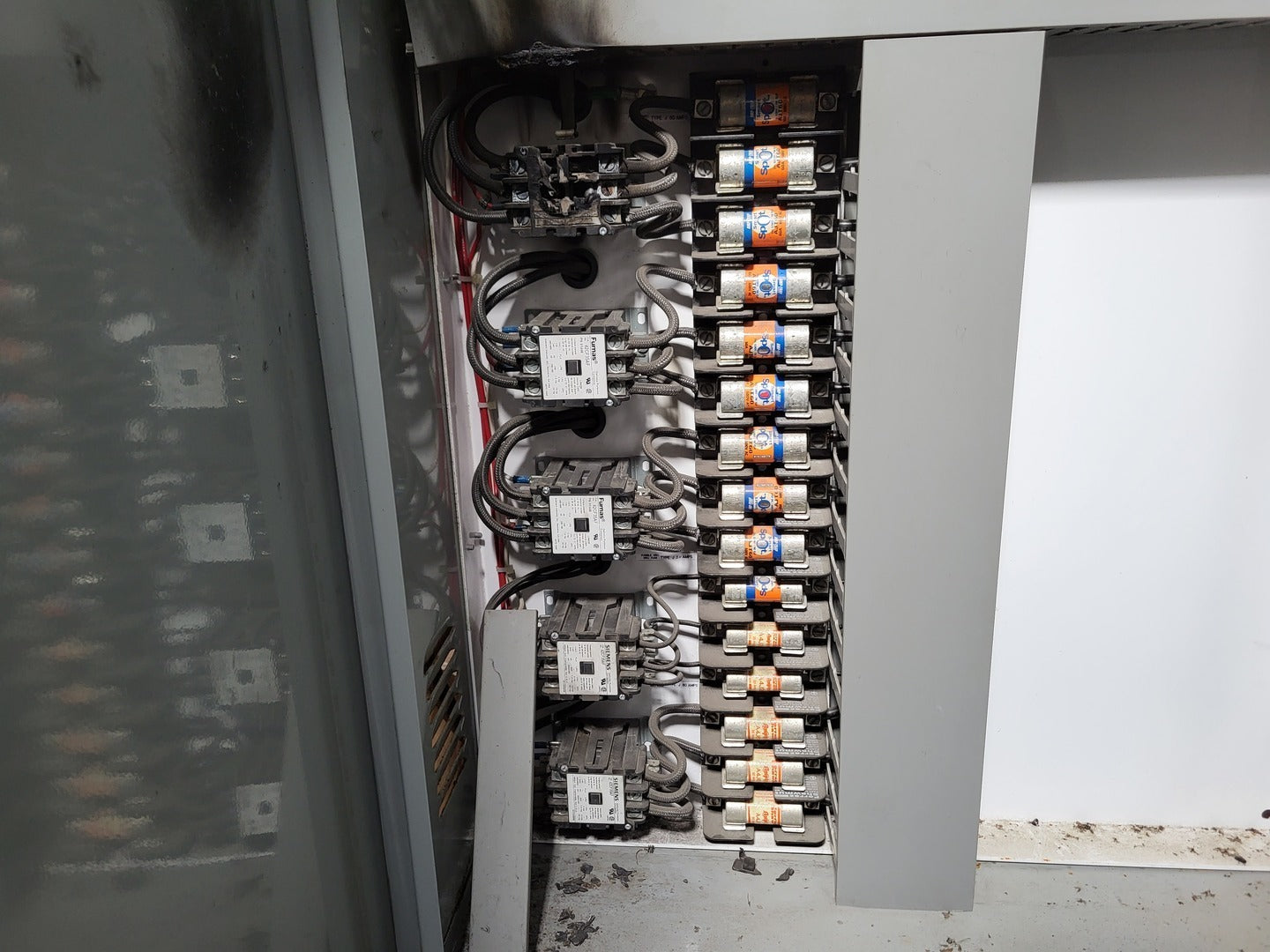

  12. Electrical distribution equipment

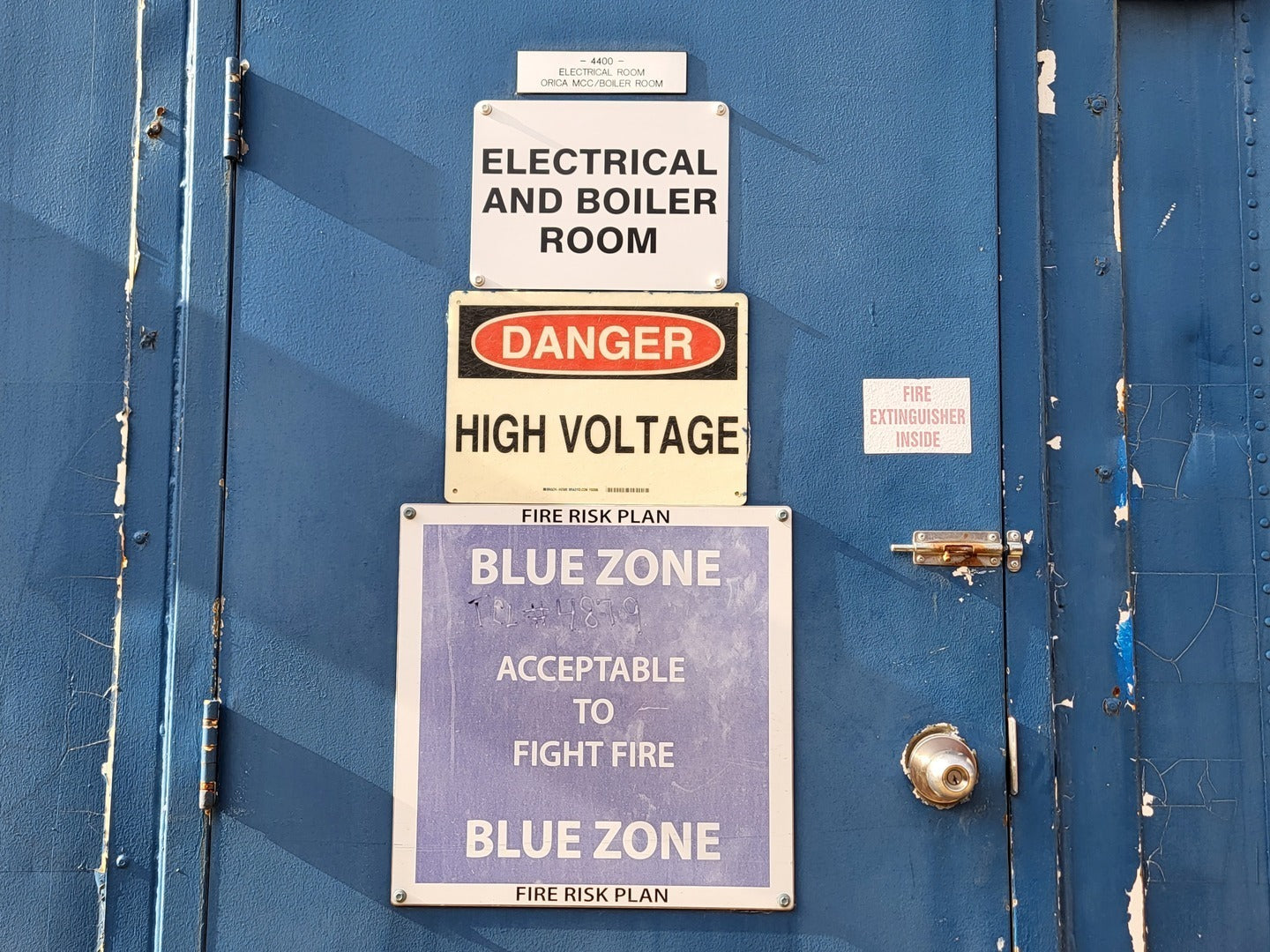

  13. Steel container enclosure
