Description

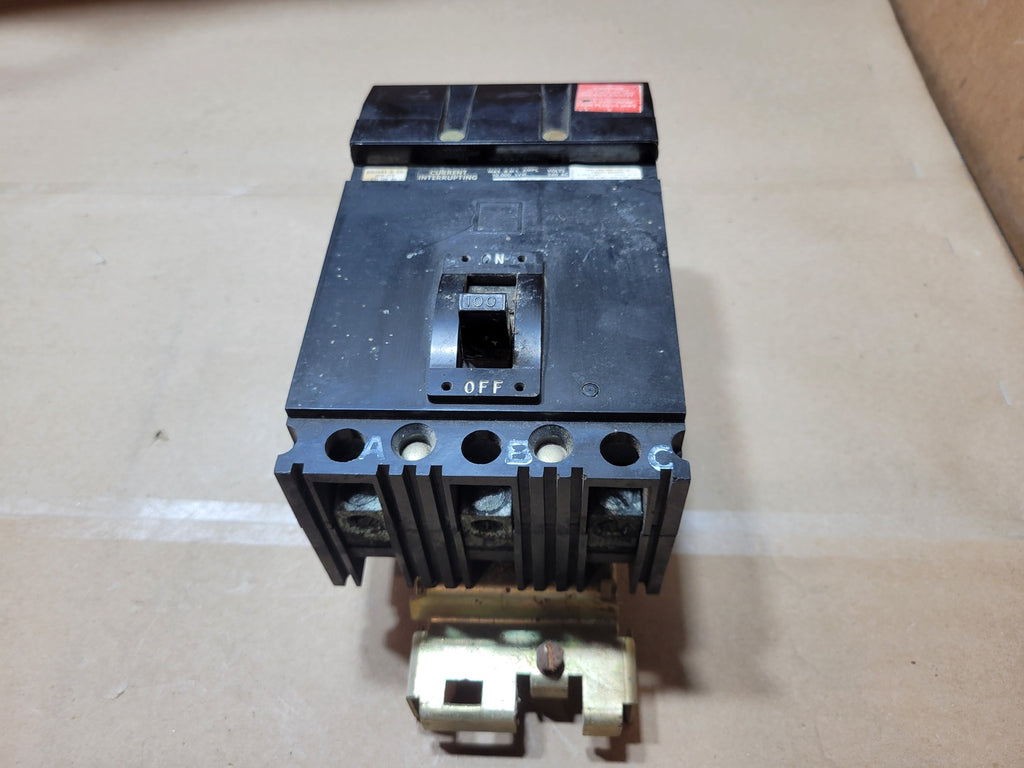

Square D Type FA molded-case circuit breaker rated 100 amps, 3 pole and 240 VAC, with I-Line style plug-in line-side jaws. The breaker is marked for a maximum interrupting rating of 10,000 RMS symmetrical amps at 240 VAC and also carries a 250 VDC application marking.
| Made In | UNITED STATES |
| Condition | Used | General |
|---|---|
| Amps | 100 amps |
| Series | FA |
| # of Poles | 3 |
| Mounting Style | Plug-In |
| Voltage | 240 volts |
| Other Specifications |
|---|
|
Product Type: Molded-Case Circuit Breaker DC Marking: 250 VDC Interrupting Rating: 10,000 A RMS symmetrical at 240 VAC Mounting / Line Connection: I-Line style plug-in jaws Load Terminals: 3, marked A / B / C Conductor Marking: #8-#0 Cu or Al visible on label Trip Type: Thermal-magnetic FA family |
