Description

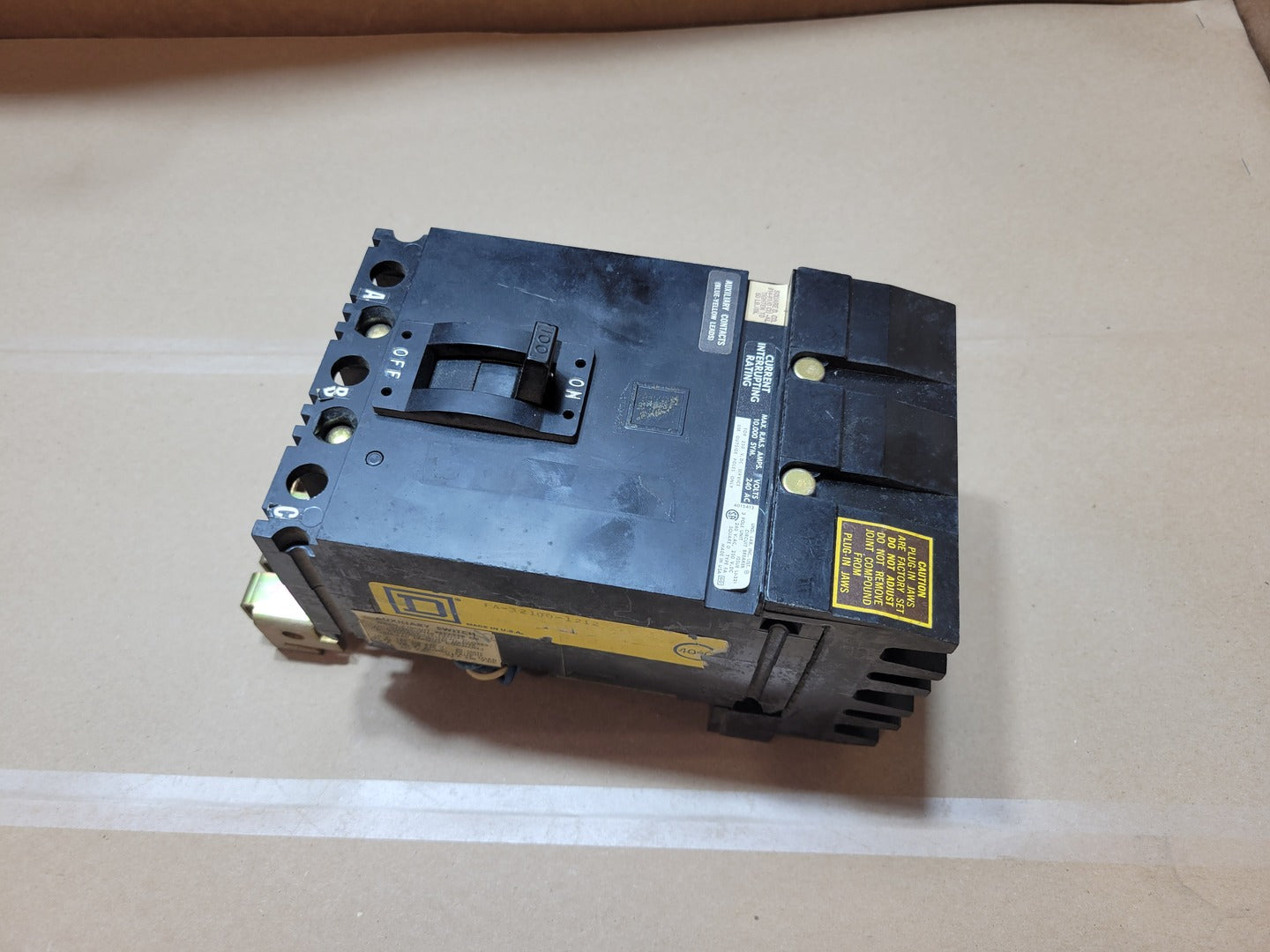

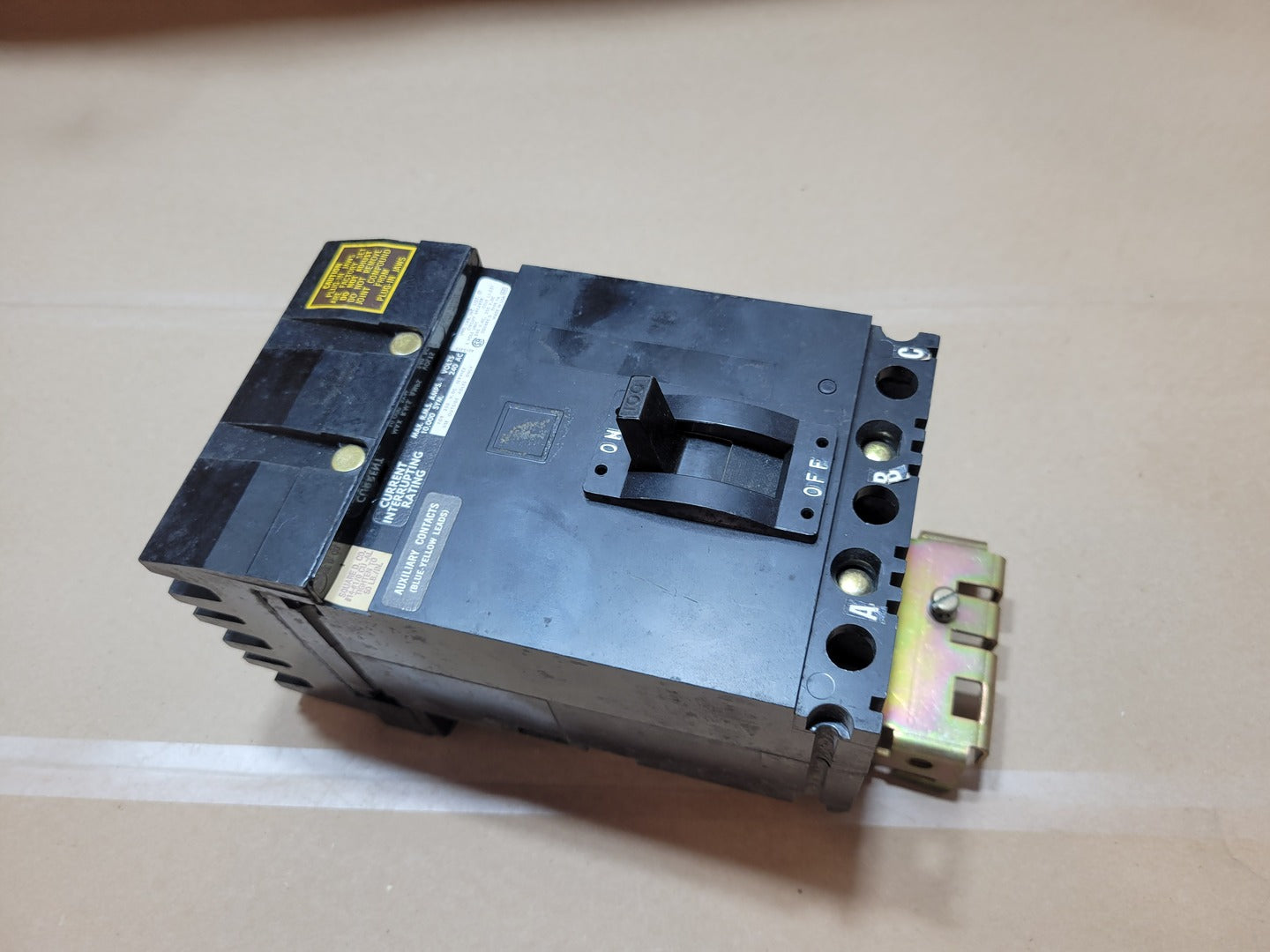

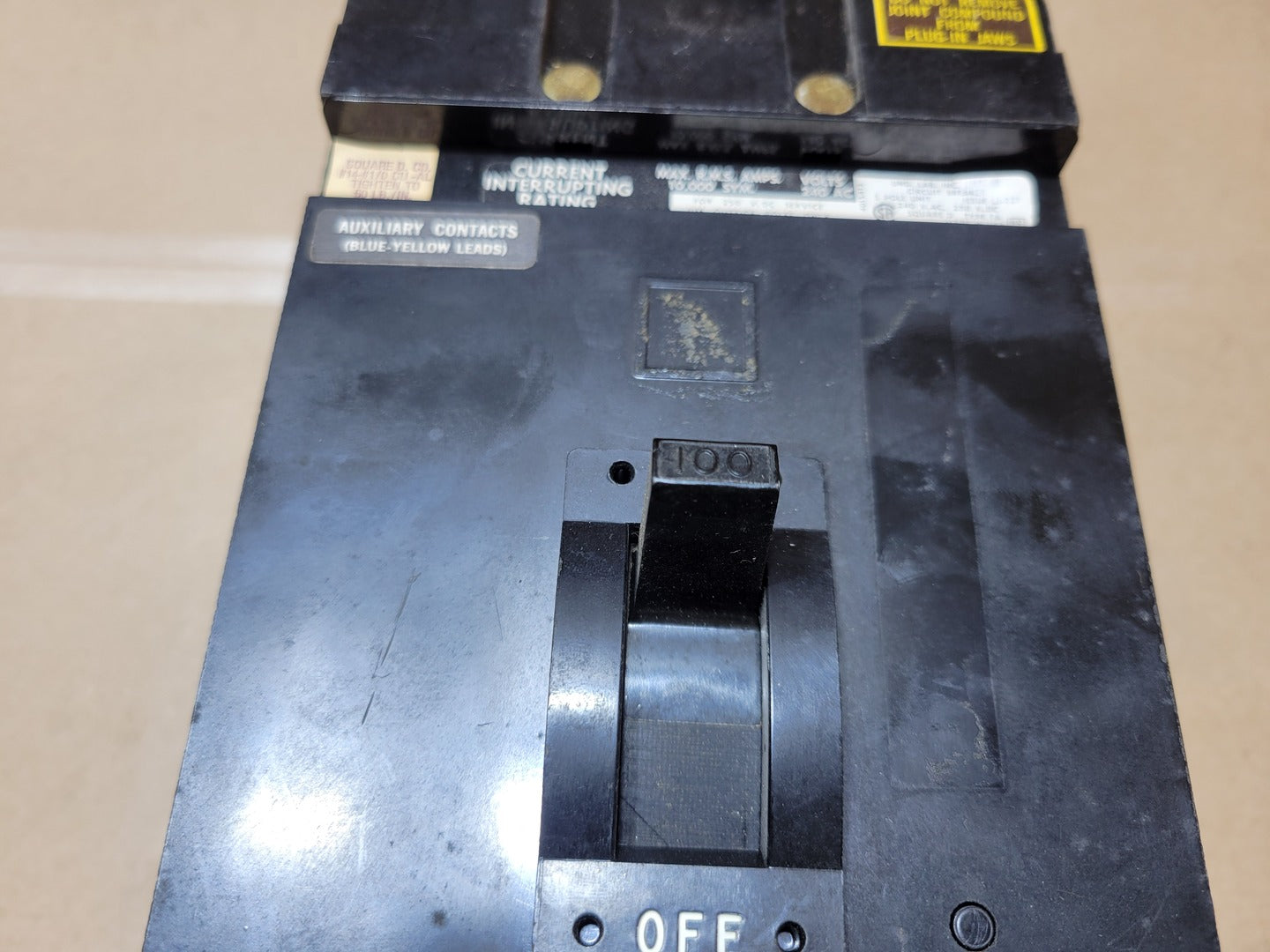

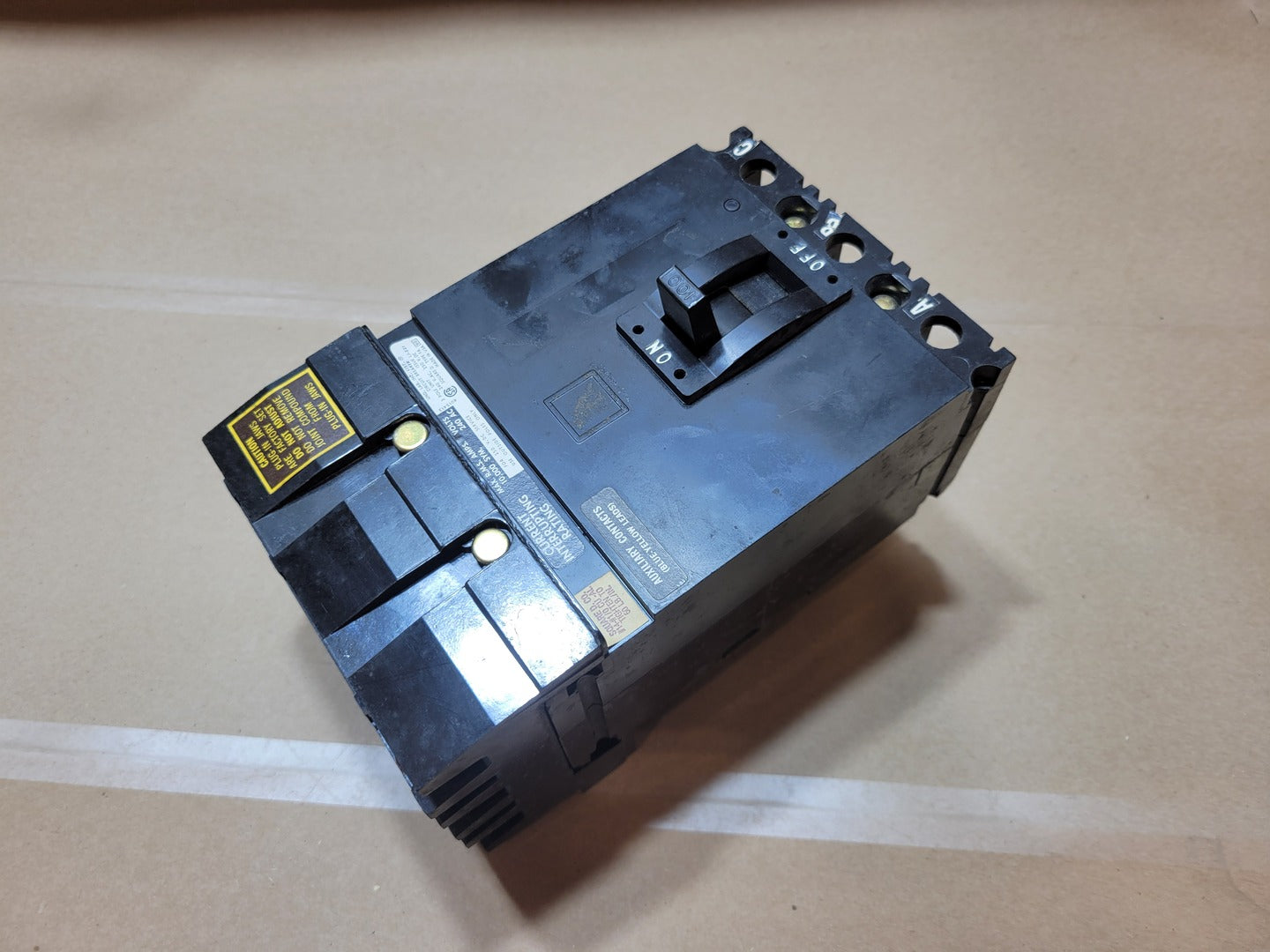

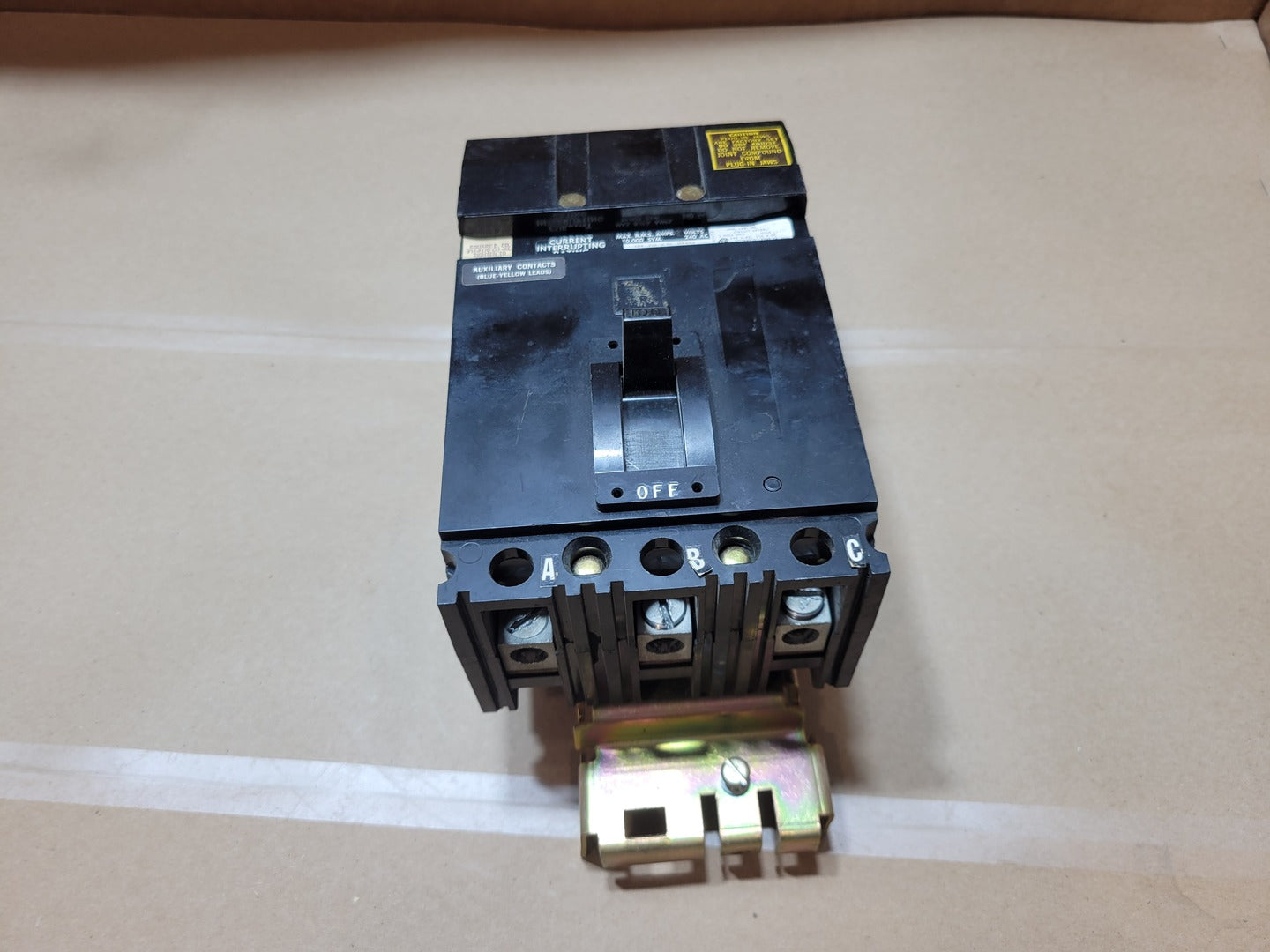

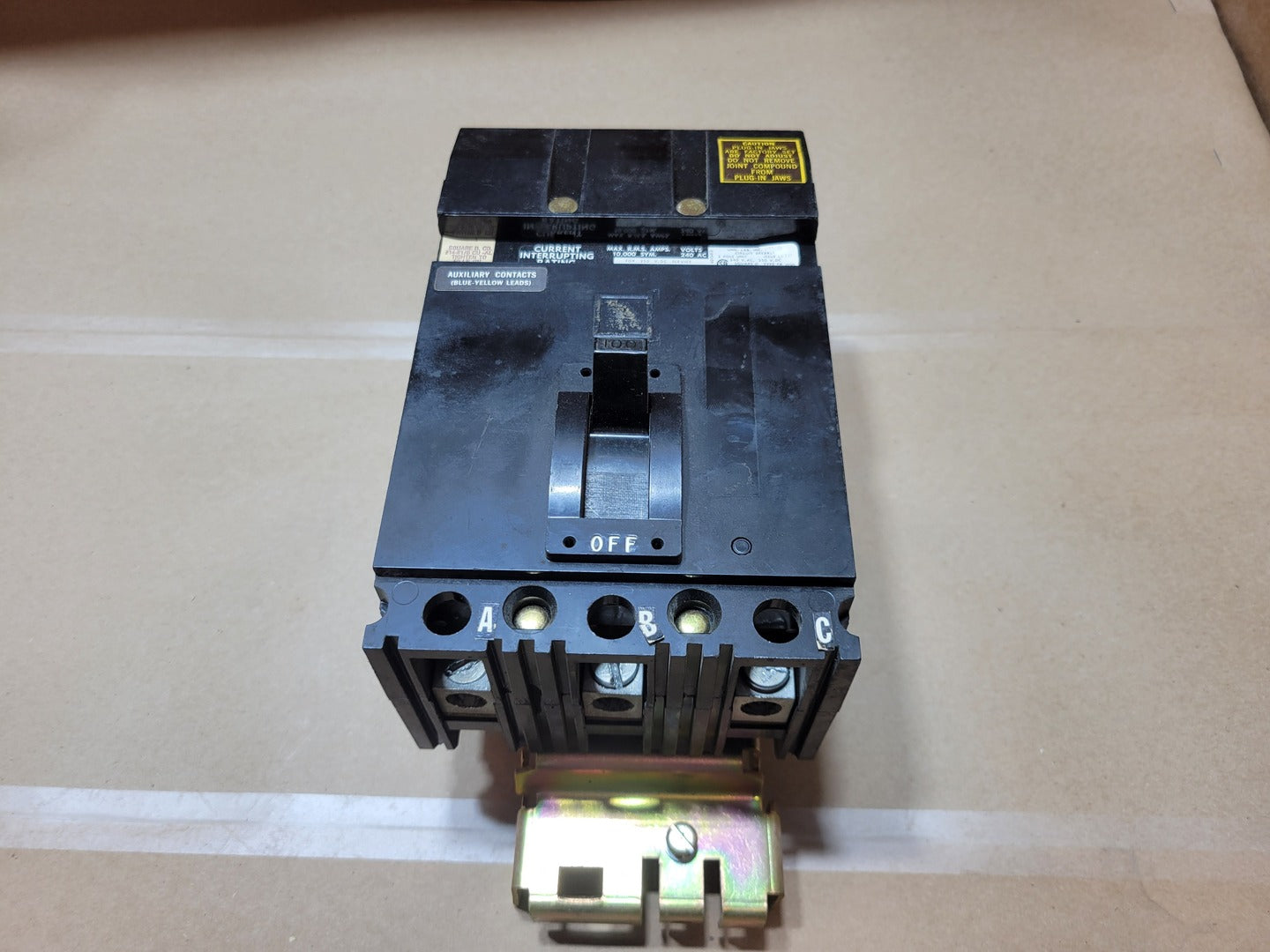

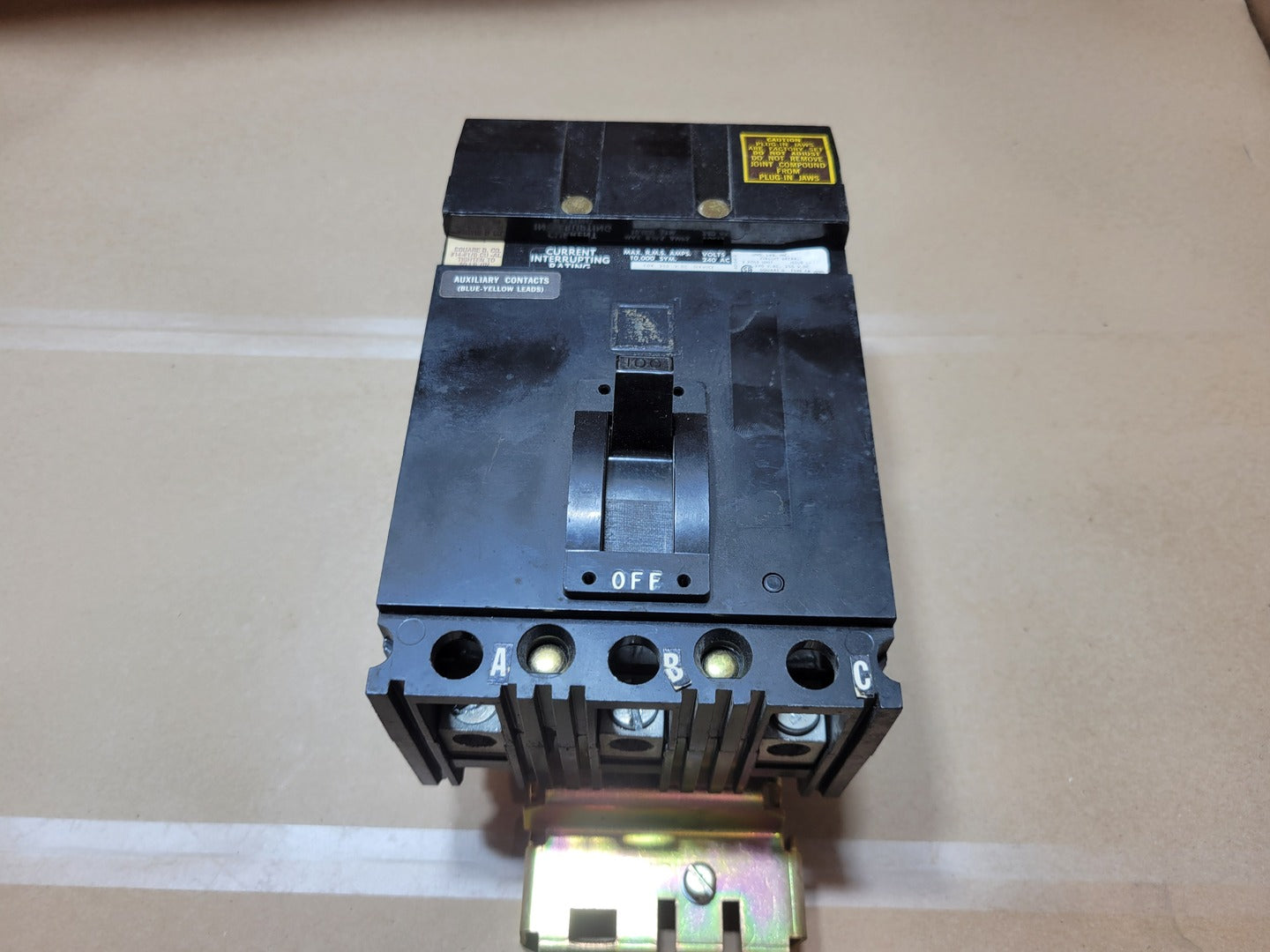

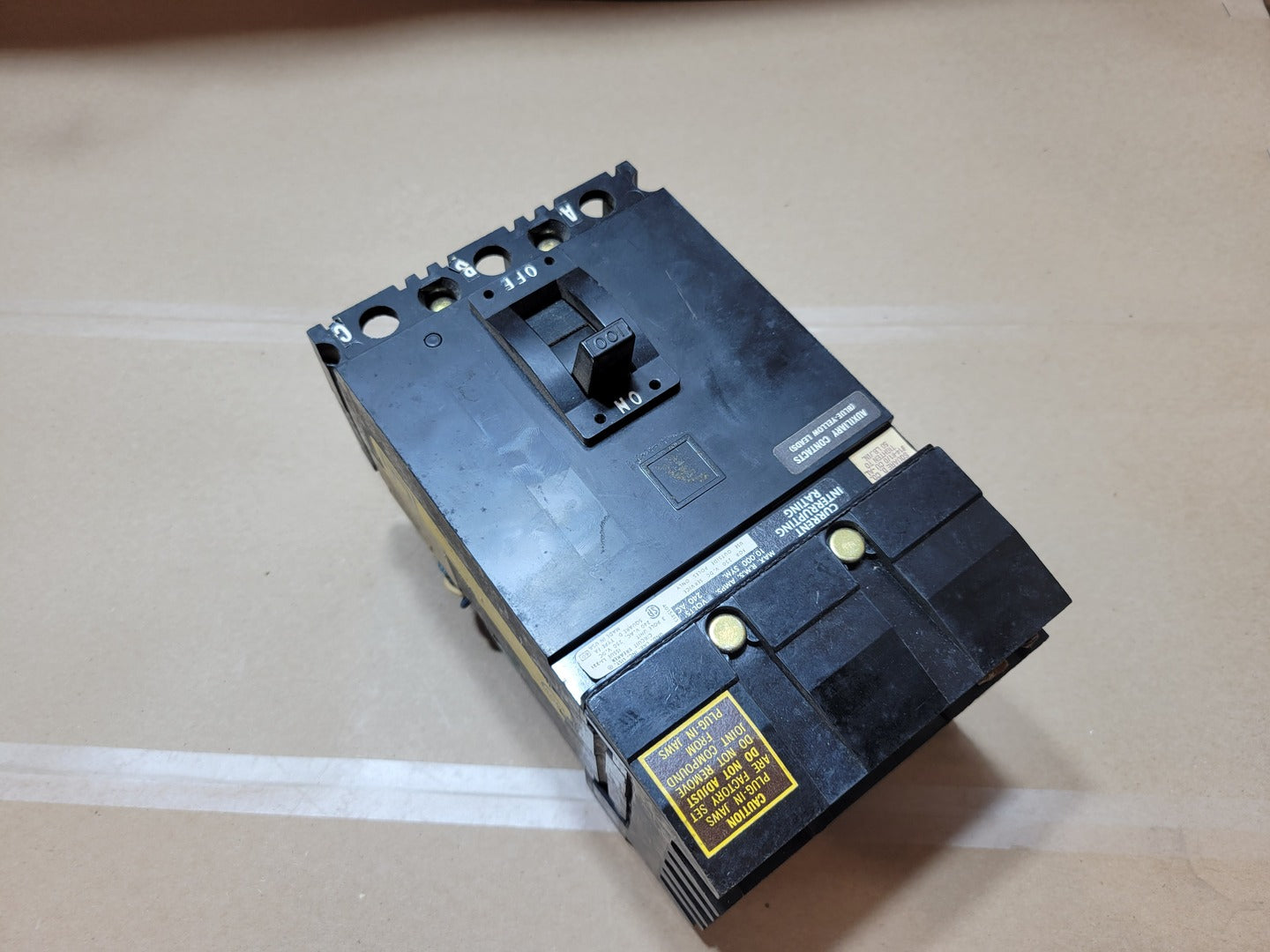

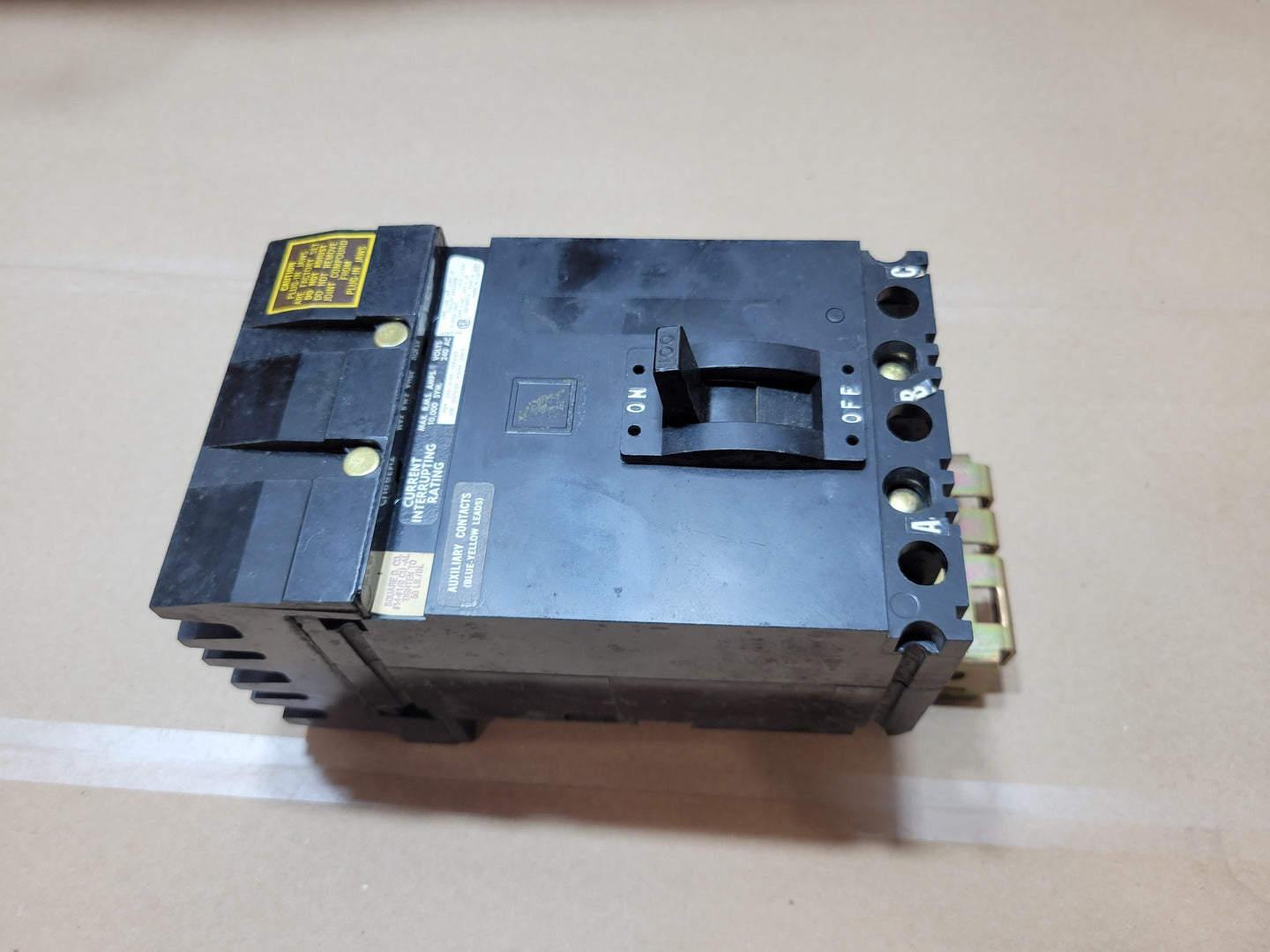

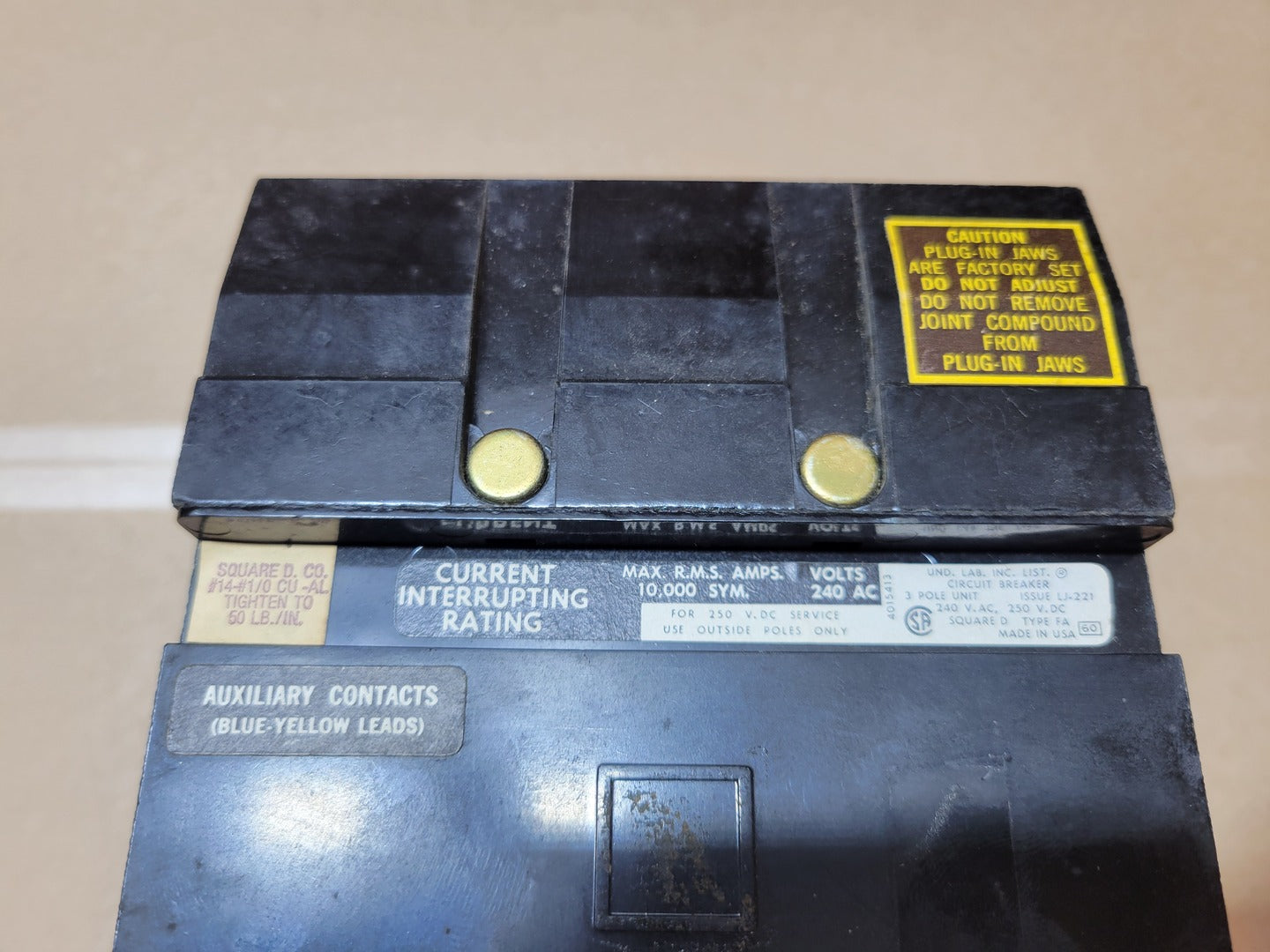

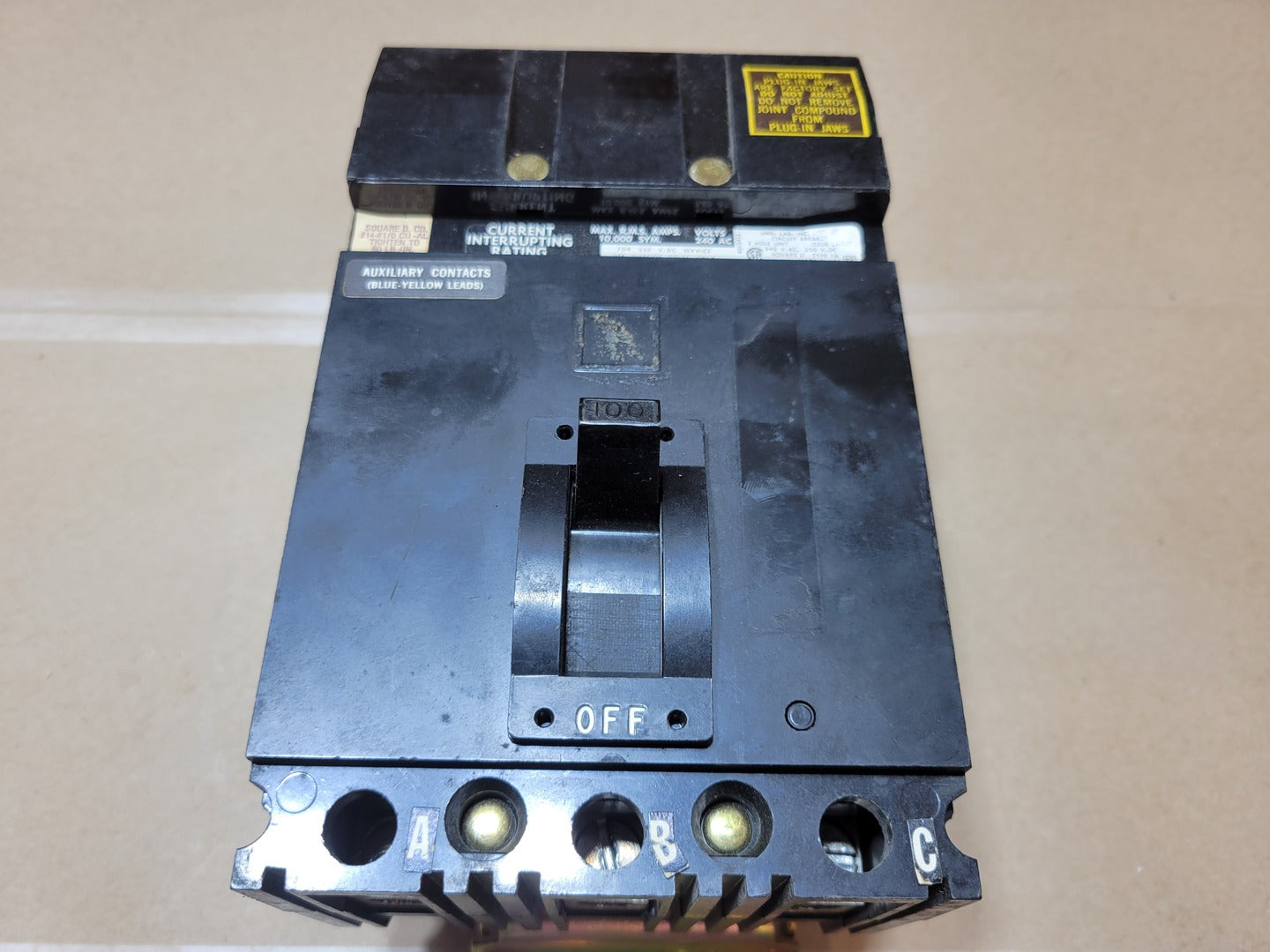

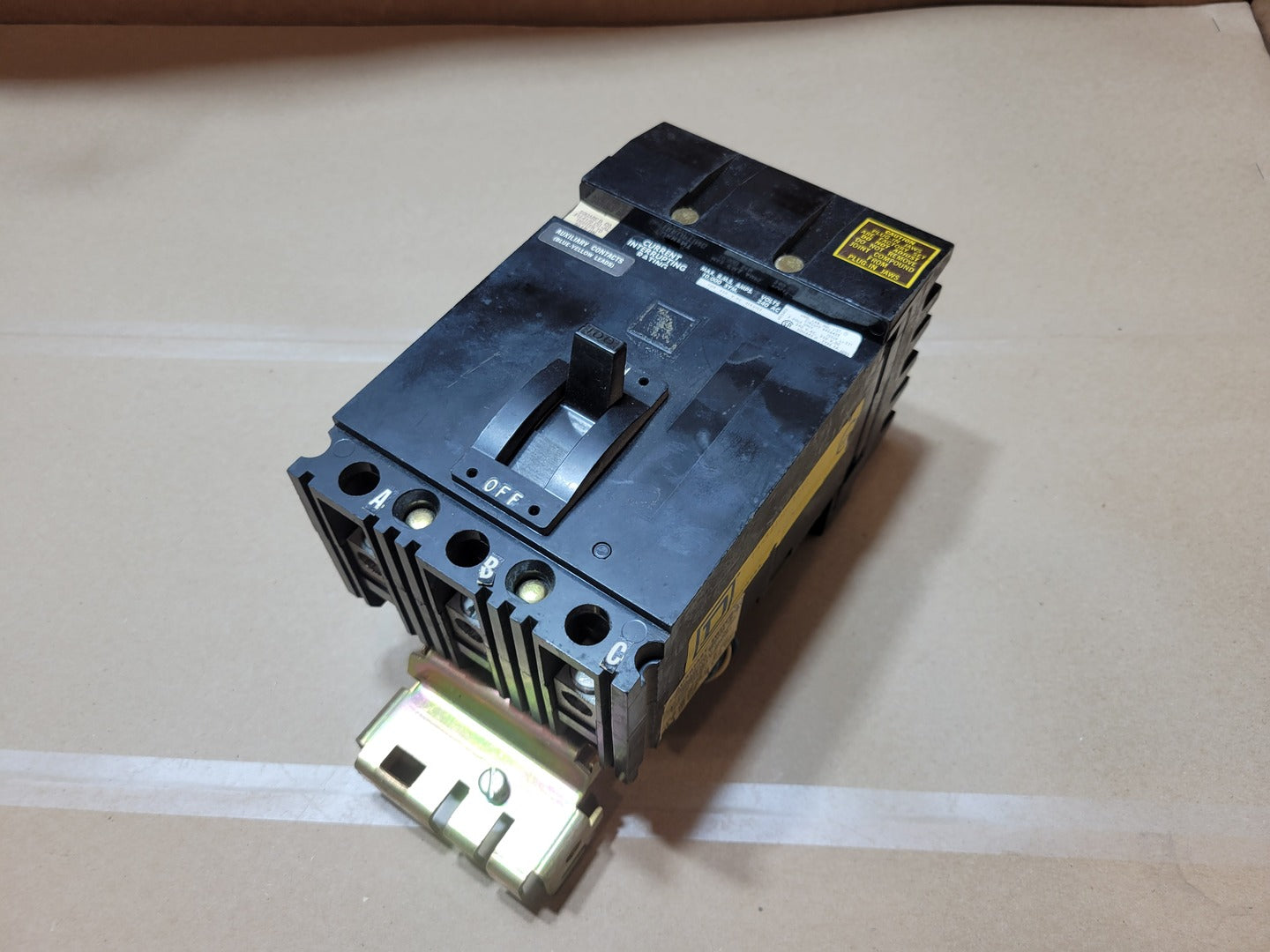

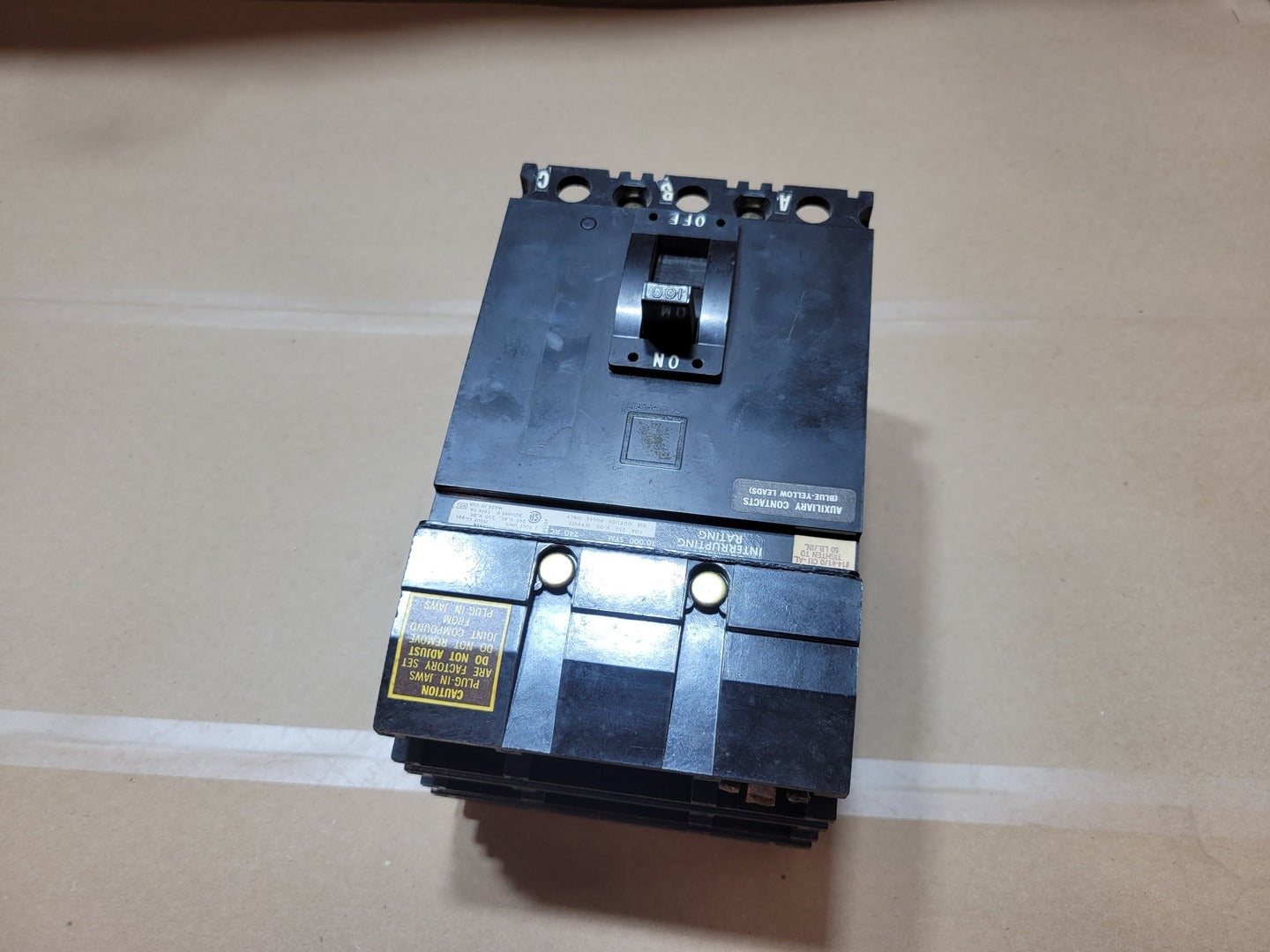

Square D Type FA 100 amp, 3-pole molded-case circuit breaker with I-Line style plug-in jaws and auxiliary contacts. The breaker is marked 240 VAC / 250 VDC with a 10 kA interrupting rating at 240 VAC. Auxiliary contacts are identified by the factory label as using blue-yellow leads.
| Made In | UNITED STATES |
| Condition | Used | General |
|---|---|
| Amps | 100 amps |
| # of Poles | 3 |
| Mounting Style | Plug-In |
| Voltage | 240 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Voltage Marked on Unit: 240 VAC / 250 VDC Interrupting Rating: 10,000 A symmetrical at 240 VAC Mounting Style: I-Line style plug-in Line Connection: Factory-set plug-in jaws Load Connection: Lug terminals, phases A/B/C Auxiliary Contacts: Yes Auxiliary Contact Leads: Blue-yellow leads Terminal Conductor Range: #14-#1/0 Cu/Al Terminal Torque: 50 lb-in appears marked Protection Type: Thermal-magnetic |
