Description

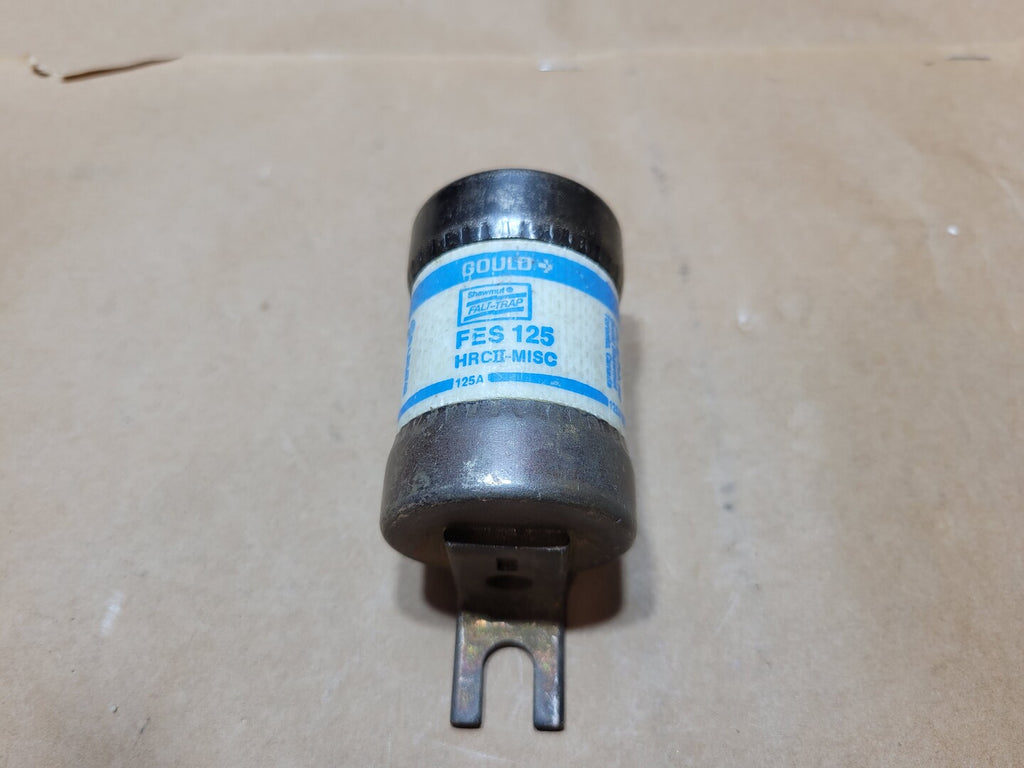

Gould / Shawmut FAL-TRAP FES125 industrial fuse rated at 125 A and 600 VAC. This HRC-II / Class C fuse features a ceramic cartridge body with offset bolted blade terminals and is intended primarily for short-circuit protection in industrial electrical equipment and motor-control applications. Current Mersen documentation identifies FES125 as the corresponding 600 VAC, 125 A Class C fuse.
| Specifications | |
|---|---|
| Model | FES125 |
| Condition | Used | Electrical |
| Amps | 125 amps |
| Voltage | 600 volts |
| Phase | Single-phase |
| Fuse Type | Low Volt |
| Current Type | AC |
| Class | C |
| Interrupting Rating | 200 kA |
| Other Specifications |
|---|
|
Product Line: FAL-TRAP Product Type: Industrial fuse Fuse Series: FES HRC-II Frequency: 50/60 Hz Fuse Type: Fast-acting Body Material: Ceramic Terminal Type: Offset bolted blade Mounting Configuration: Bolt-in / holder mounted Applicable Standards: BS88 / IEC 269-2-1 Approval: CSA Label Marking: HRCII-MISC Indication: No indicator |
