Description

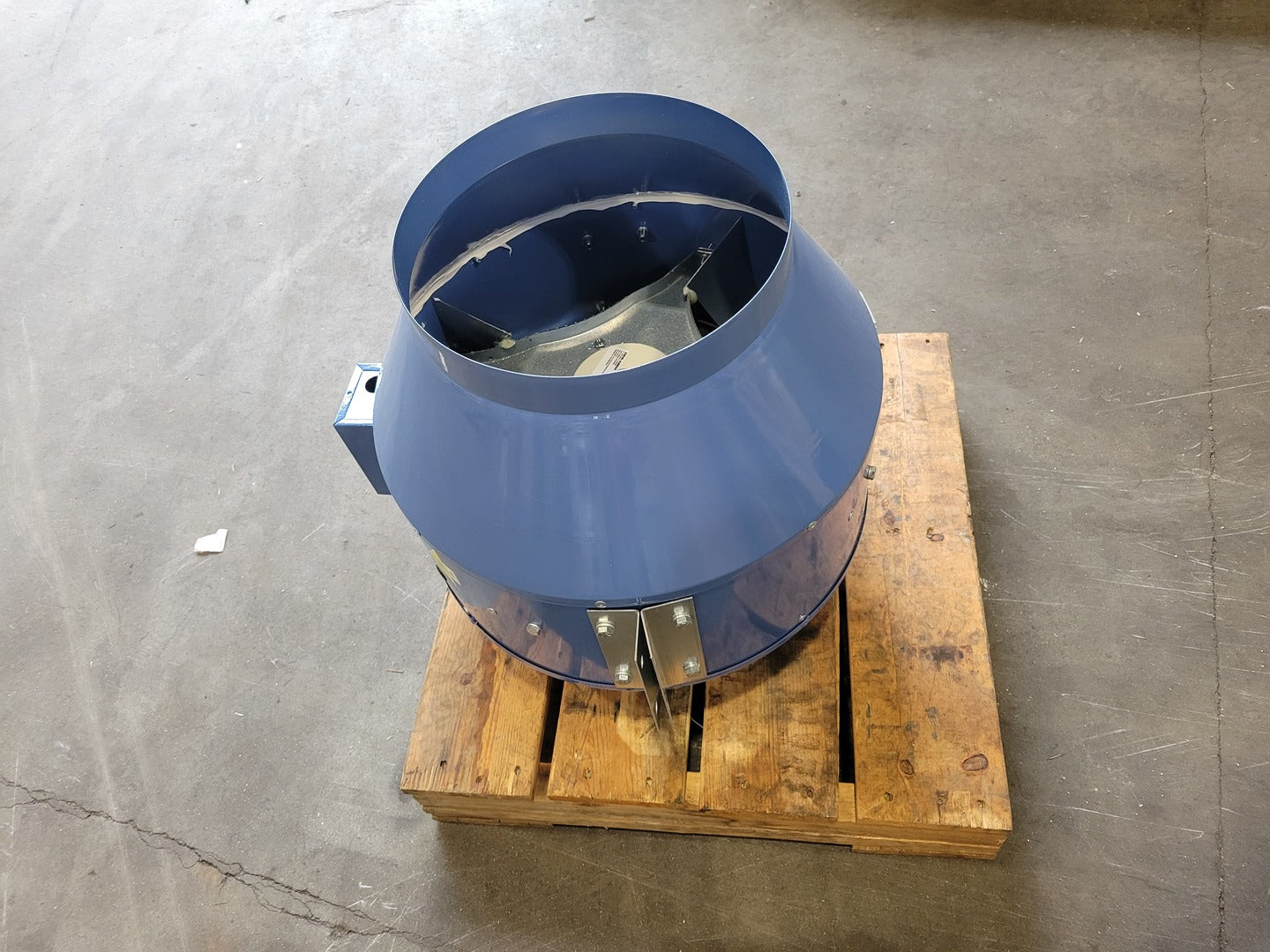

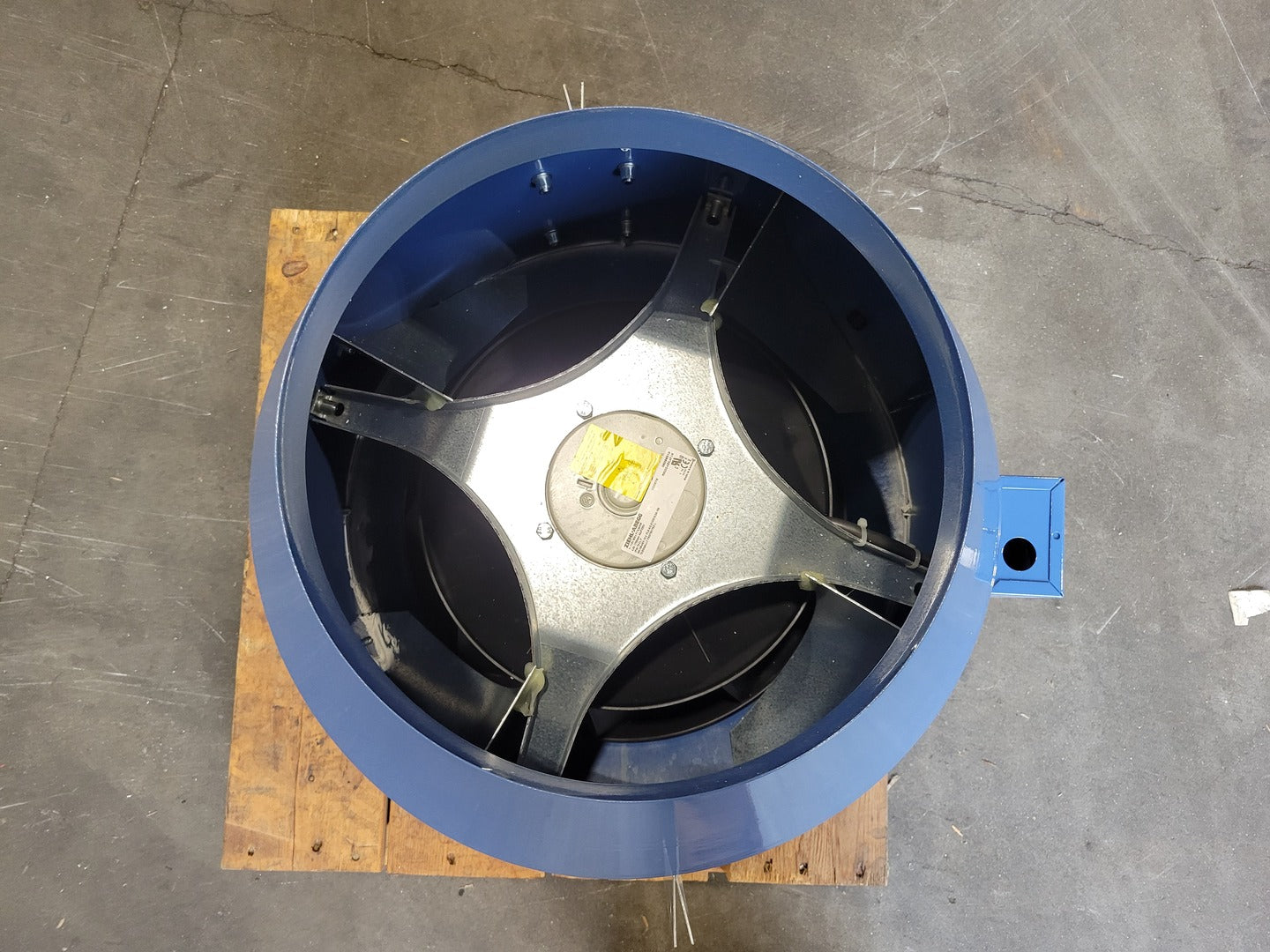

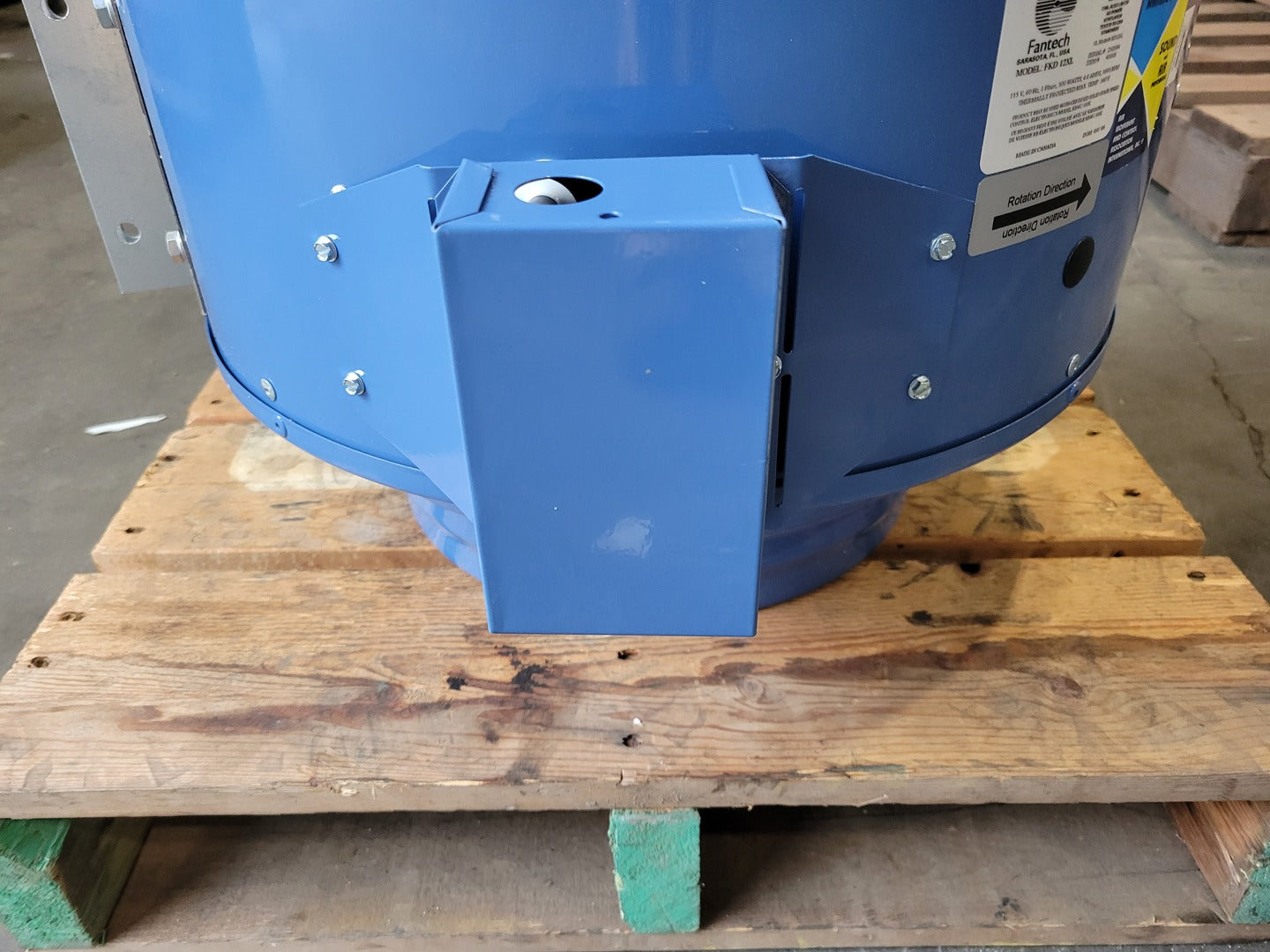

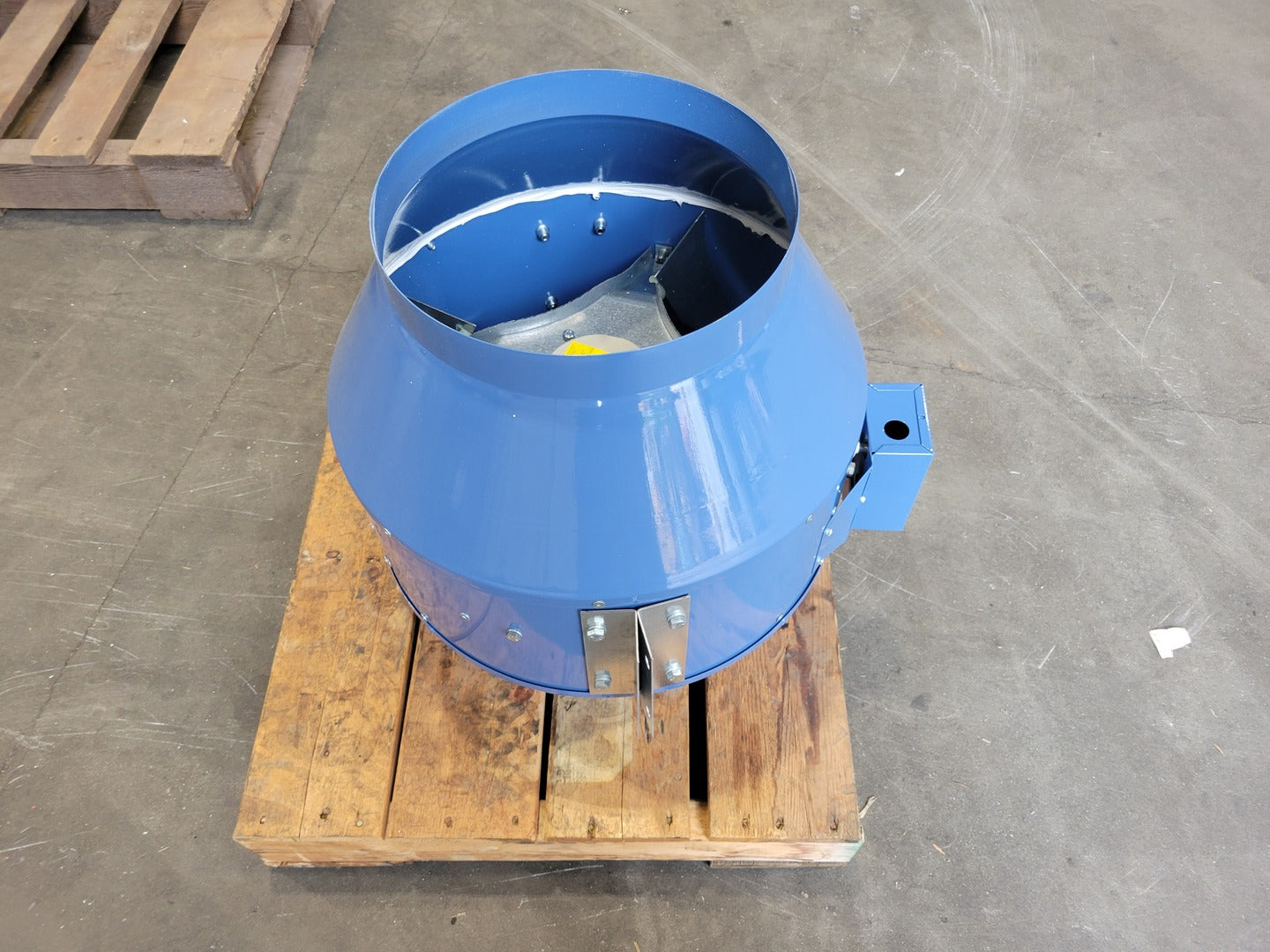

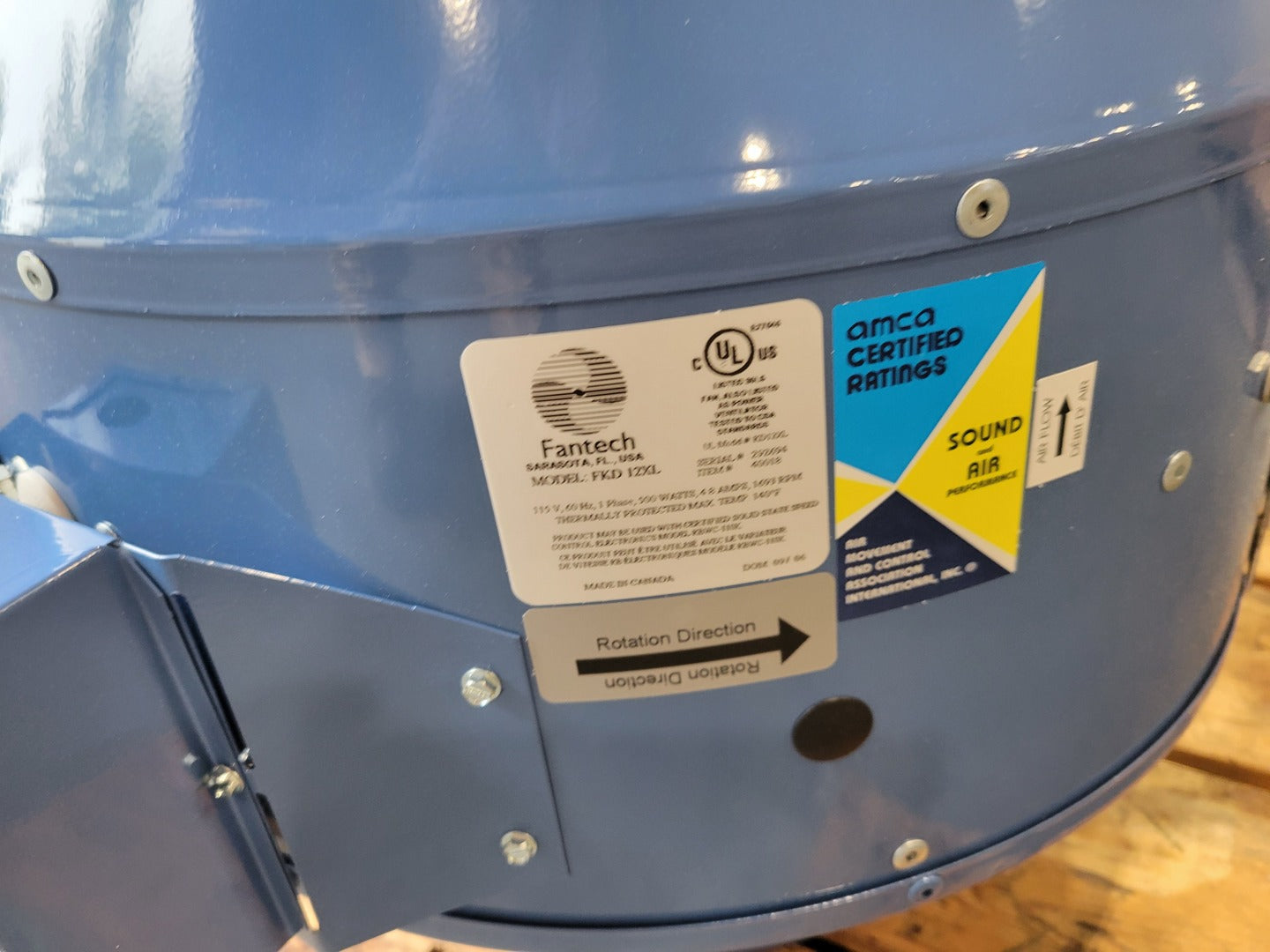

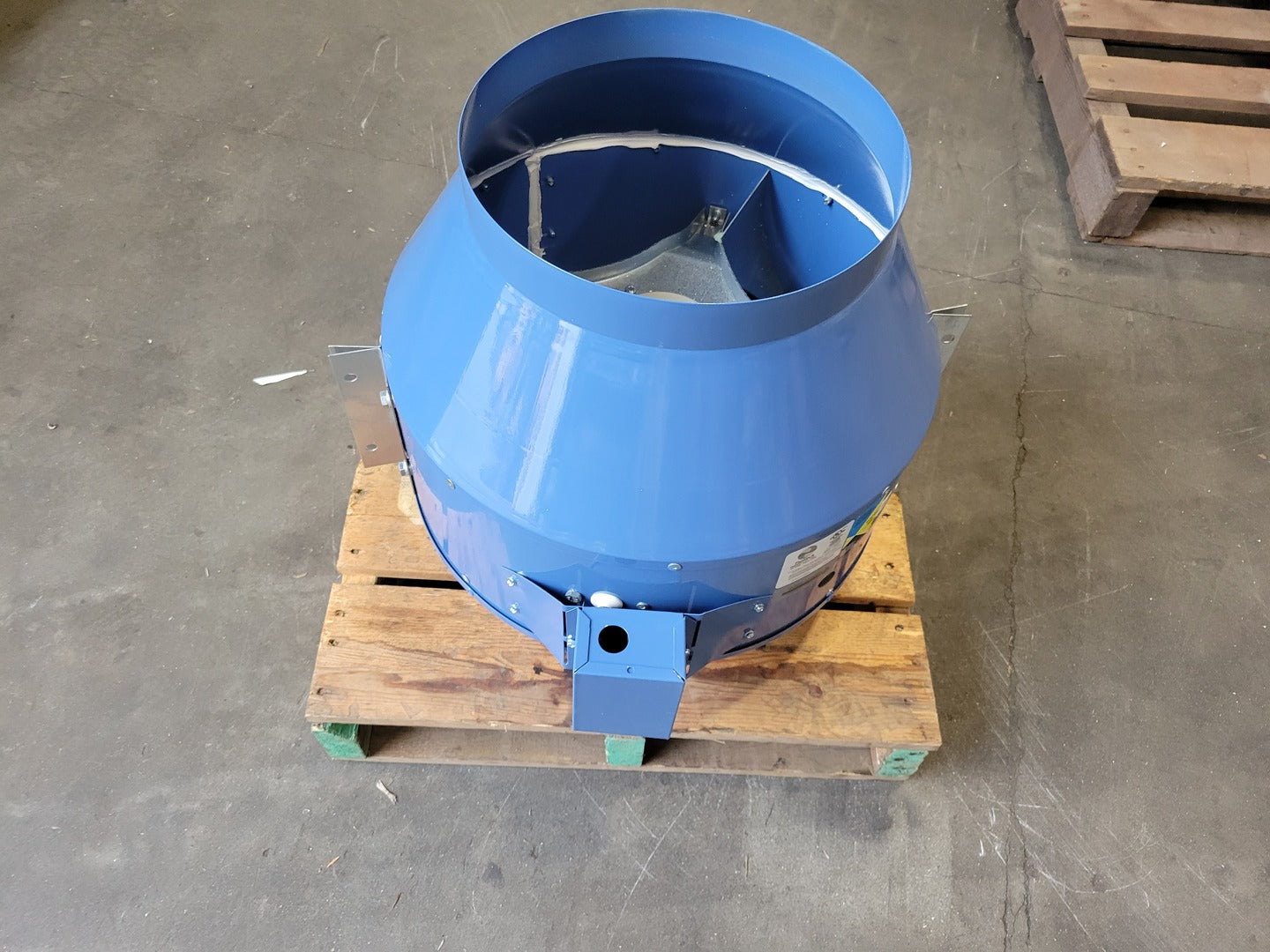

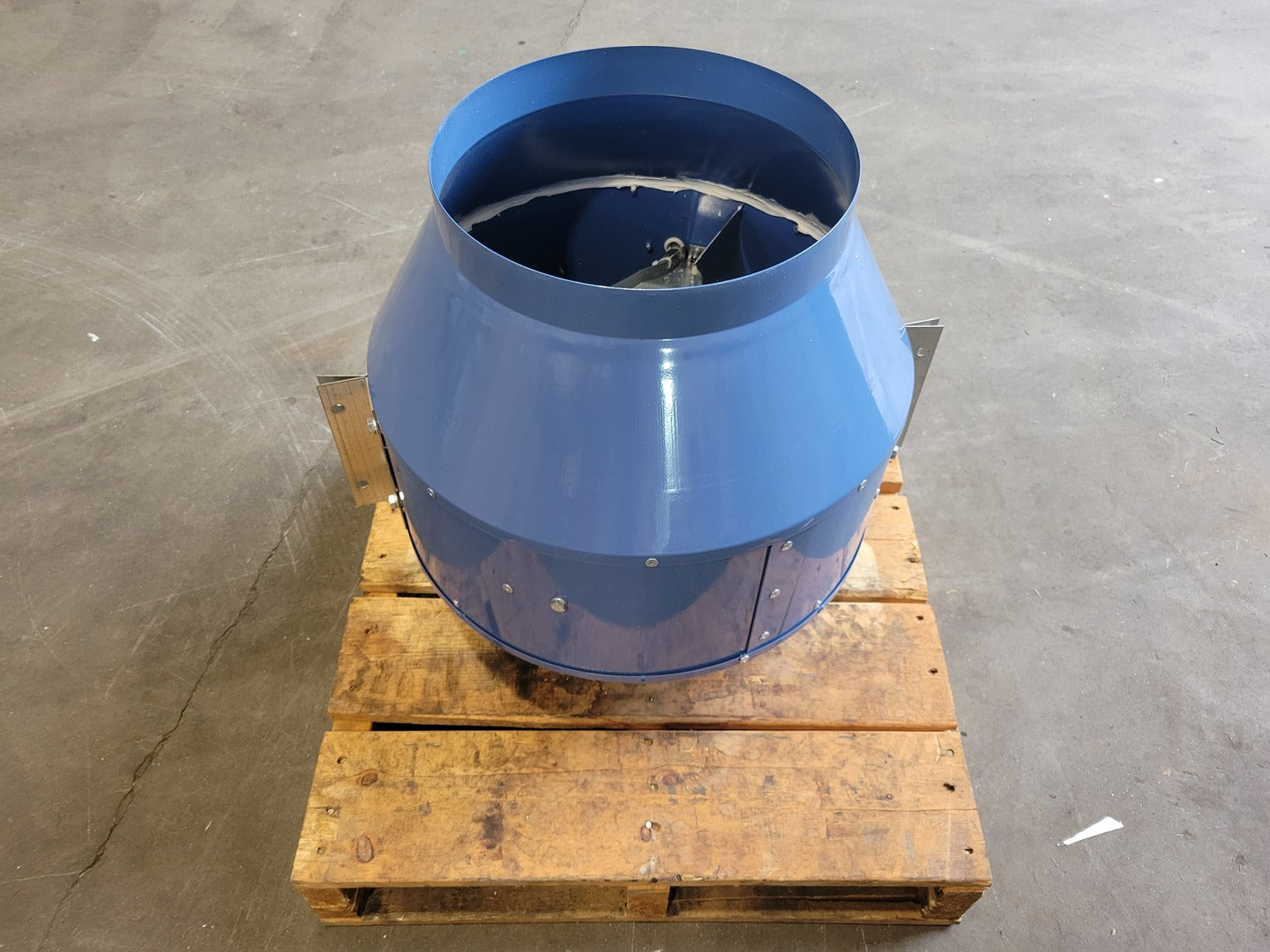

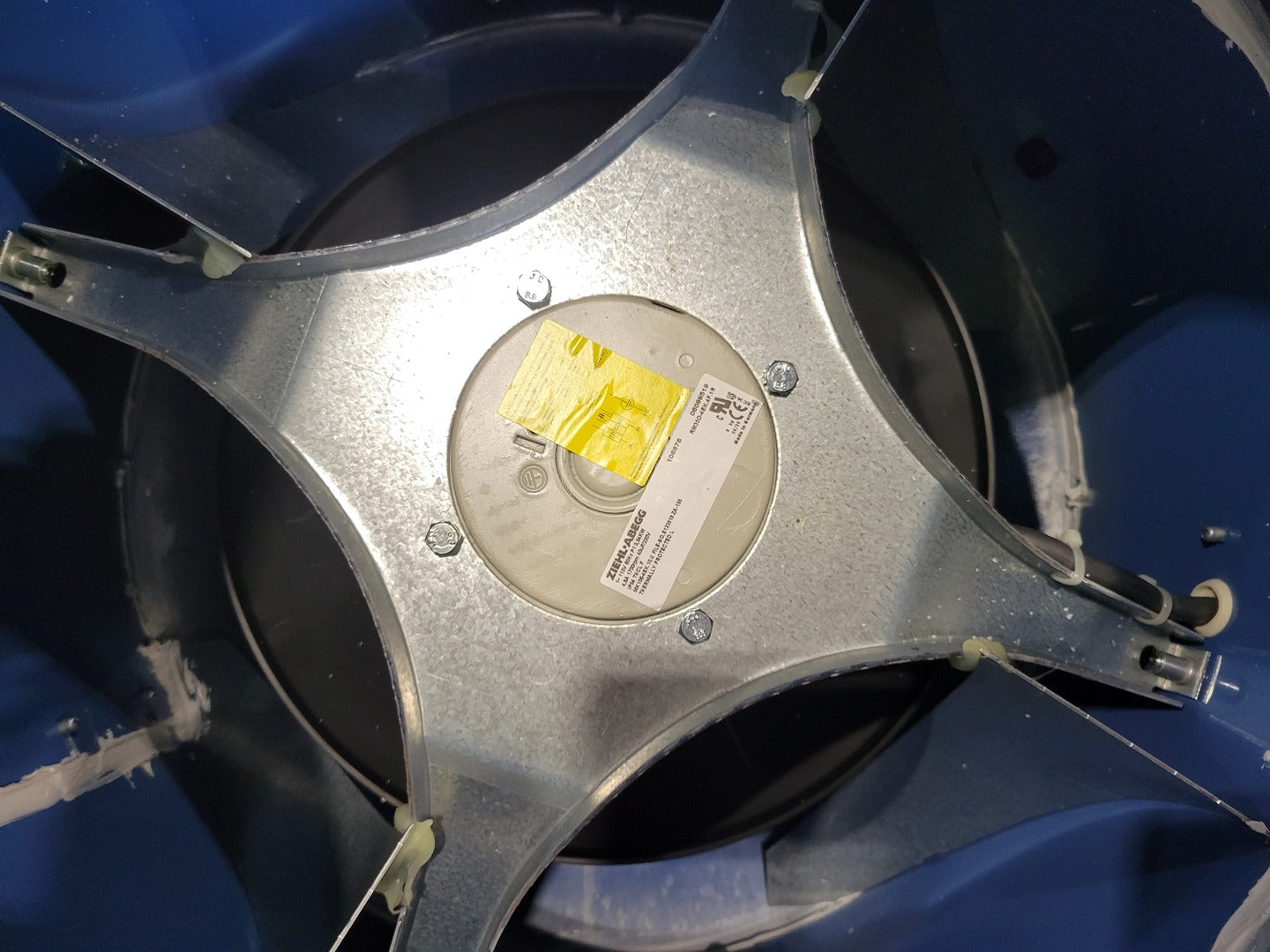

Fantech FKD 12 XL inline mixed-flow centrifugal fan for 12-inch round duct ventilation systems. The fan combines high airflow with the ability to operate against higher static pressure and is suitable for exhaust or supply-air applications. This unit features a Ziehl-Abegg 115 V single-phase external-rotor motor, mixed-flow/backward-curved impeller, thermal motor protection, steel housing, electrical junction box, and mounting brackets. Current Fantech documentation for Item #498327 confirms the FKD 12 XL configuration and lists thermal overload protection, galvanized steel construction, mounting brackets, and operation in airstream temperatures up to 140°F. Fantech Shop
| Specifications | |
|---|---|
| Model | FKD 12XL |
| Made In | CANADA |
| Condition | Surplus New | General |
| Type | Centrifugal |
| RPM | 1700 rpm |
| Horsepower | 0.7 hp |
| CFM | 1863 cfm |
| Fan Size | 12" | Electrical |
| Voltage | 115 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

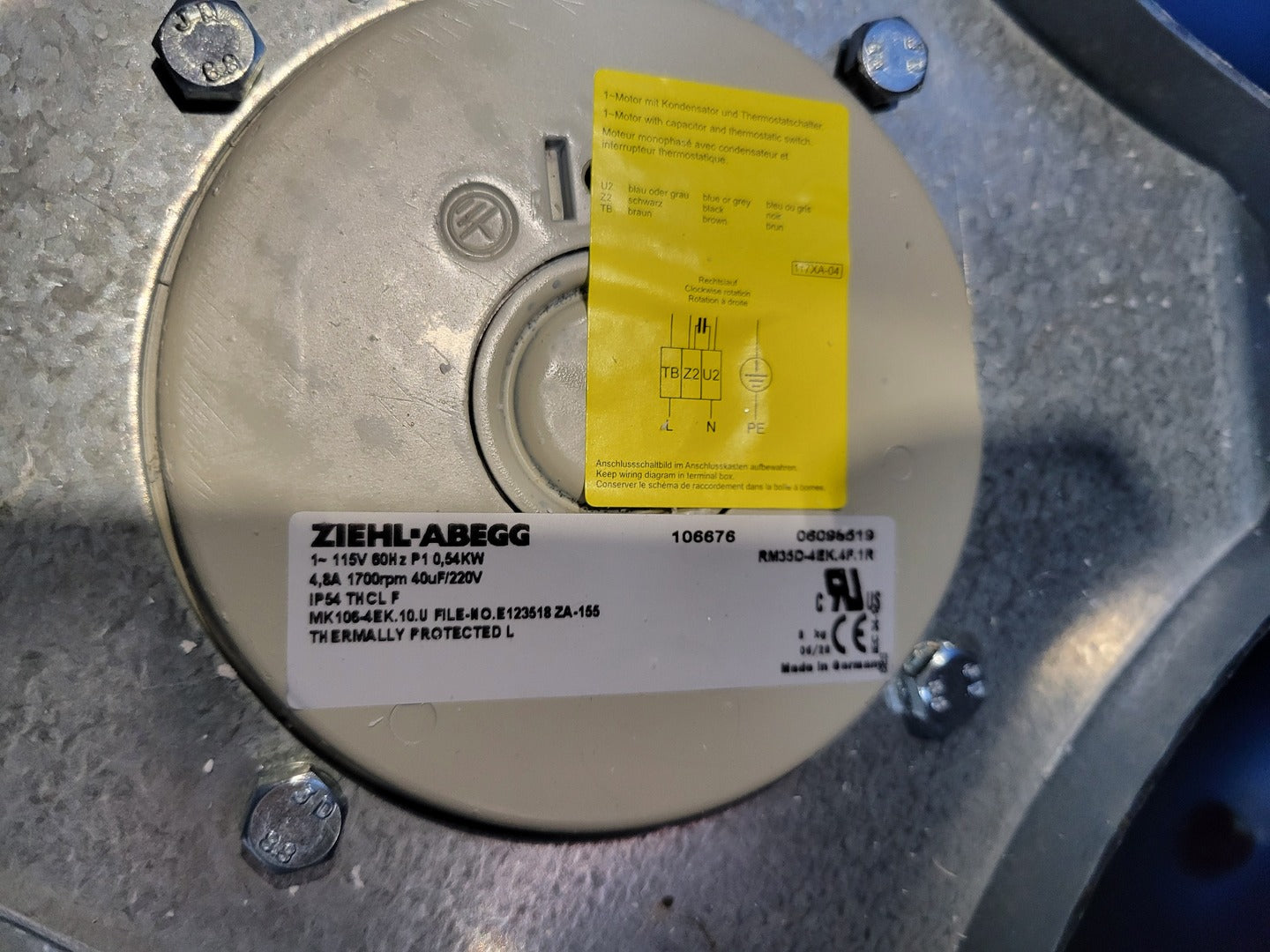

Product Type: Inline mixed-flow duct fan Application: Supply or exhaust ventilation Motor Manufacturer: Ziehl-Abegg Motor Type: AC external-rotor motor Frequency: 60 Hz Motor Current: 4.8 A Motor Rating: 0.54 kW Capacitor: 40 uF / 220 V Motor Protection: IP54 Insulation Class: F Thermal Protection: Yes Impeller: Mixed-flow / backward-curved Housing Material: Galvanized sheet metal Airflow @ 0.50 in. Ps: 1,524 CFM Airflow @ 0.75 in. Ps: 1,325 CFM Airflow @ 1.00 in. Ps: 1,052 CFM Maximum Airstream Temperature: 140°F / 60°C Casing Diameter: 17-7/8 in / 454 mm |
