SOCOMEC FUSERBLOC LM DC 630A 1000VDC Fused Disconnect Assembly w/ NH Fuse Holders & Pre-Charge
SOCOMEC

FUSERBLOC LM DC 630A 1000VDC Fused Disconnect Assembly w/ NH Fuse Holders & Pre-Charge

SKU: 139663
Price:
$5,750 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

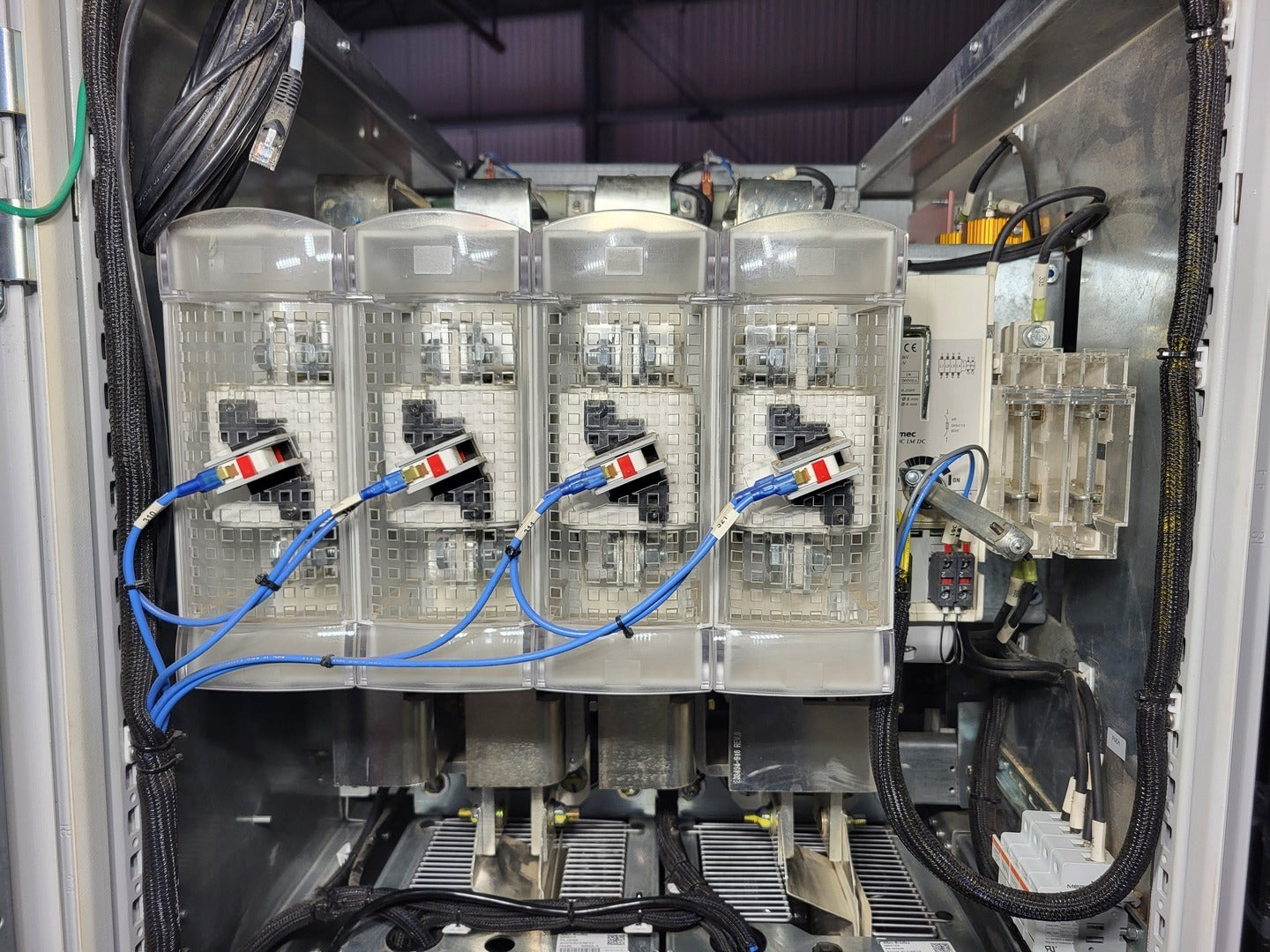

High-current Socomec FUSERBLOC LM DC fused disconnect assembly rated 630A at 1000VDC. Complete with multiple NH fuse holders, integrated pre-charge selector, busbar distribution, and fuse monitoring microswitches. Ideal for battery energy storage systems (BESS), solar PV, UPS, and industrial DC power applications requiring safe isolation and protection.
Specifications
Model 60947-3

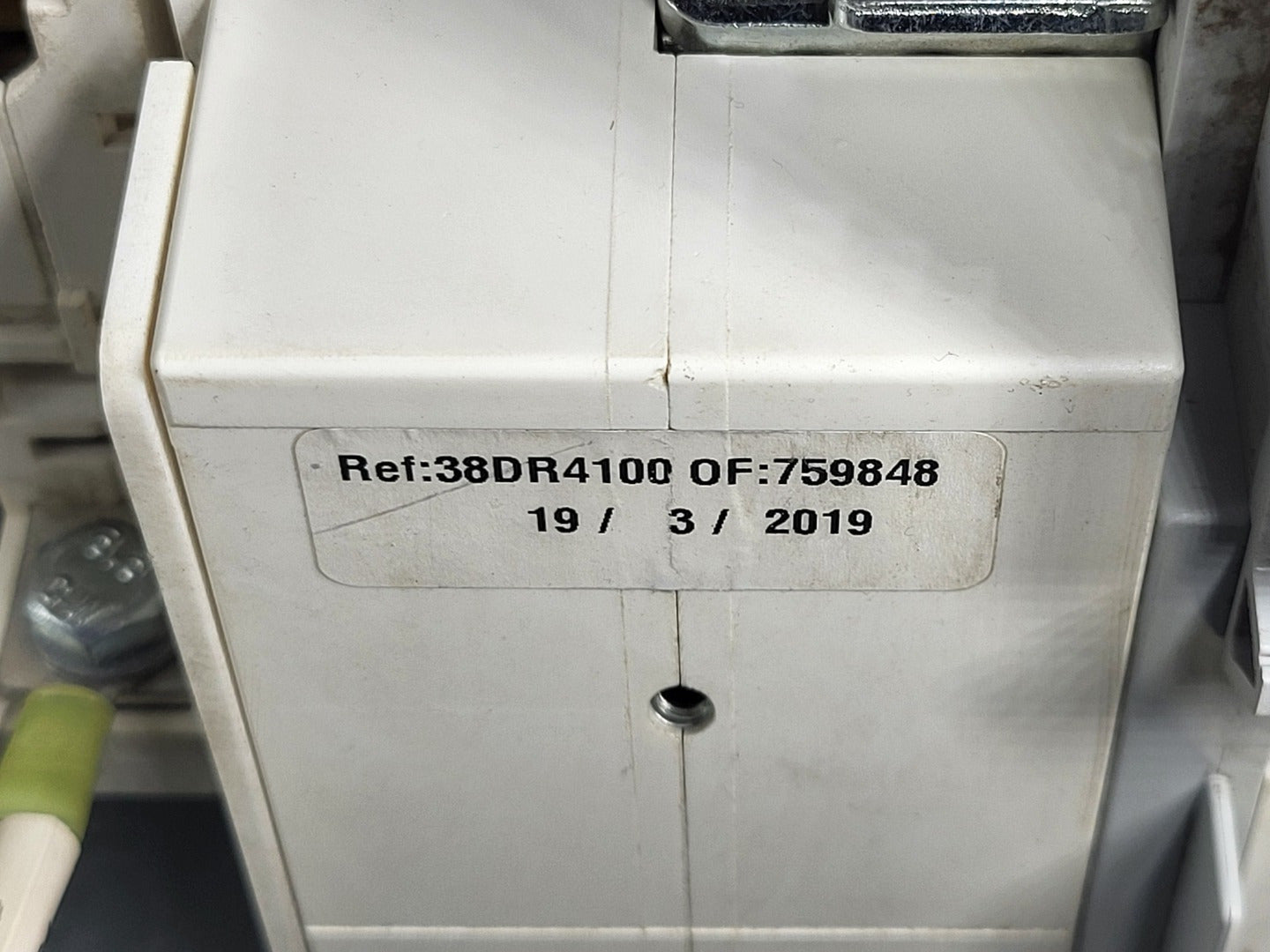

Year: 2019
Condition Used
Electrical
Amps 630 amps
Voltage 1000 volts
Phase Multi-phase
Fused Fused
Other Specifications

Type: DC Fused Disconnect / Load Break Switch Assembly

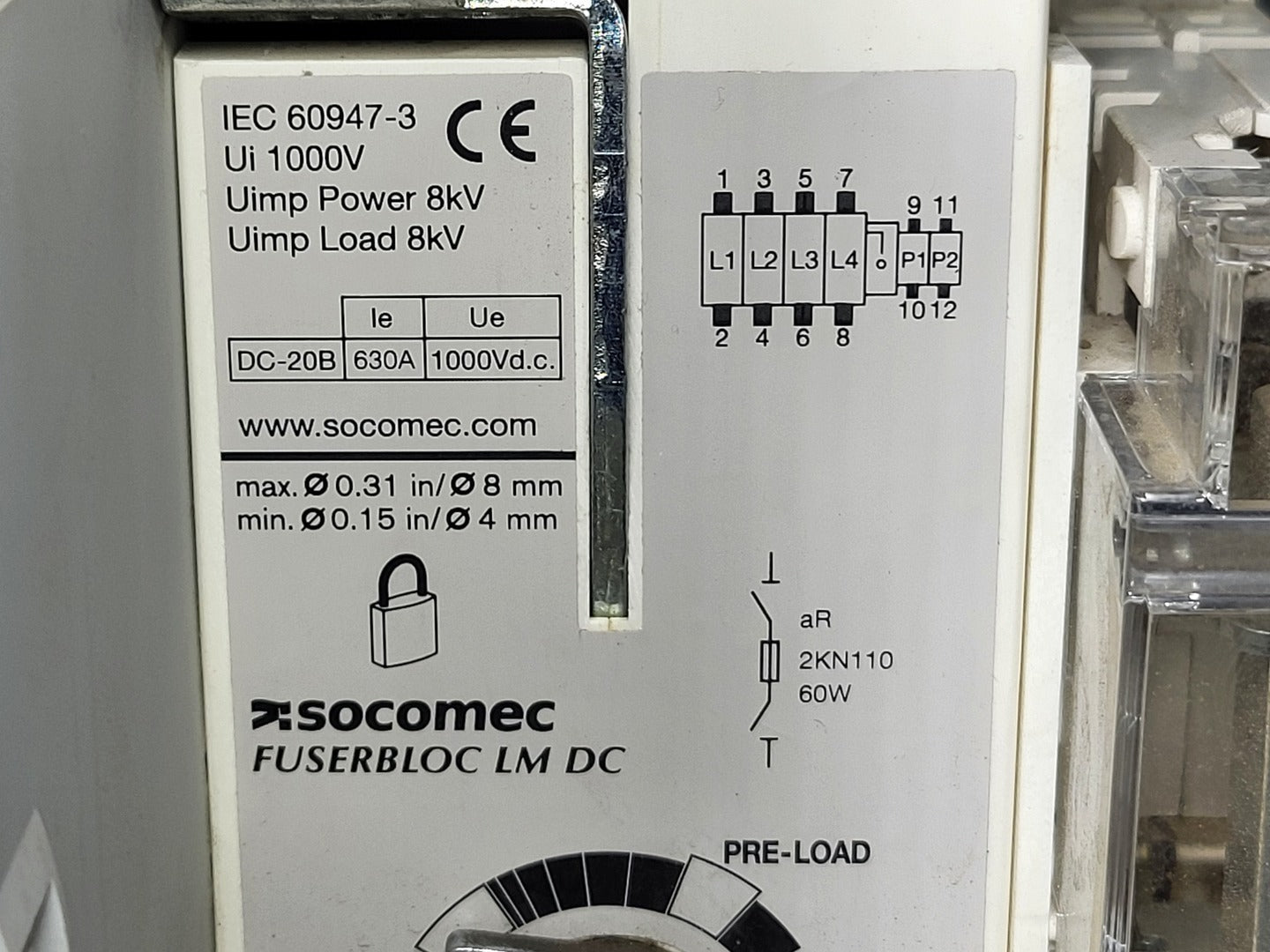

Electrical Ratings:

  1. Rated Current (Ie): 630A
  2. Rated Voltage (Ue): 1000 VDC
  3. Utilization Category: DC-20B
  4. Impulse Withstand (Uimp): 8 kV

Configuration:

  1. Multi-pole DC disconnect (L1, L2, L3, L4)

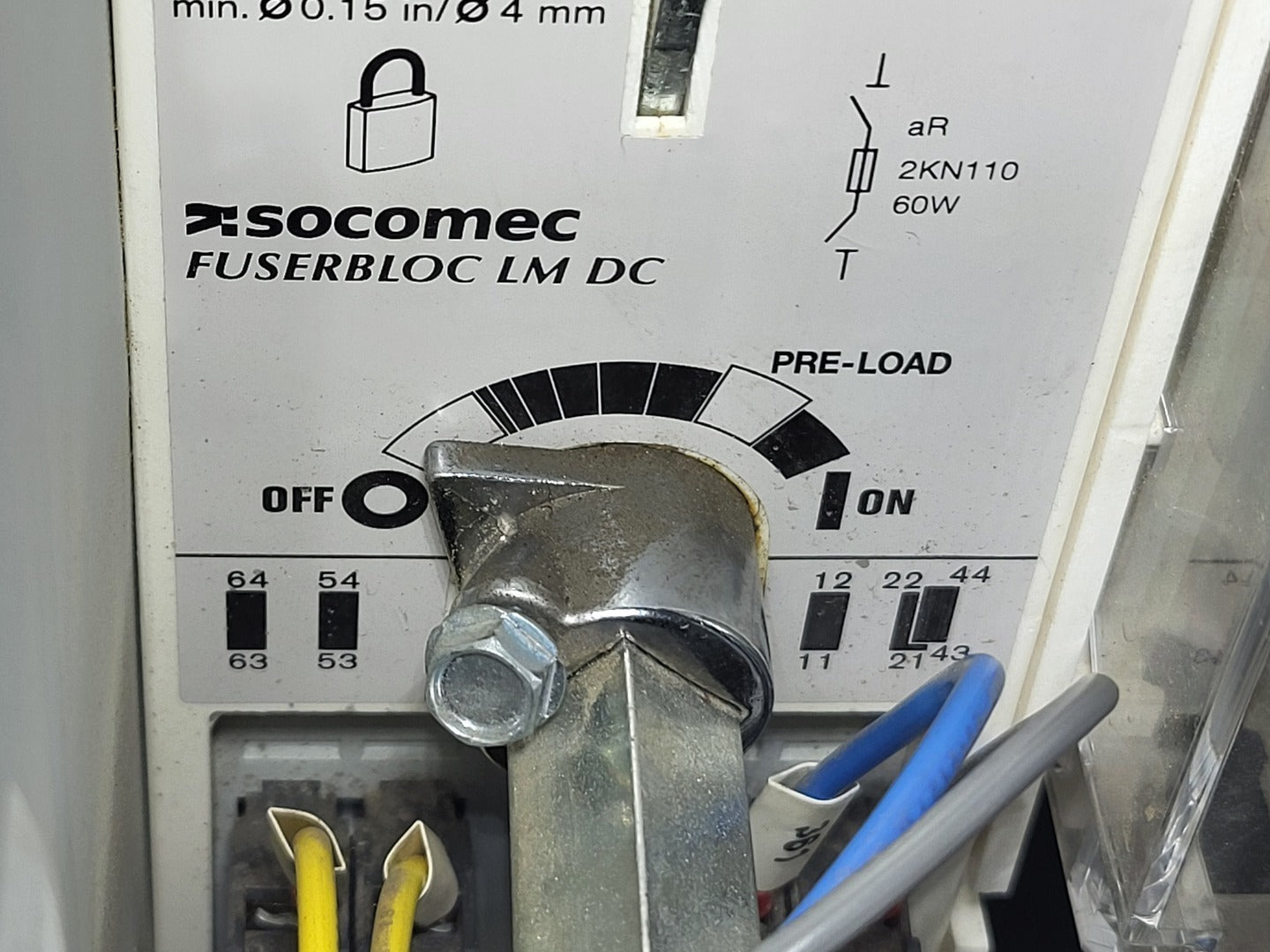

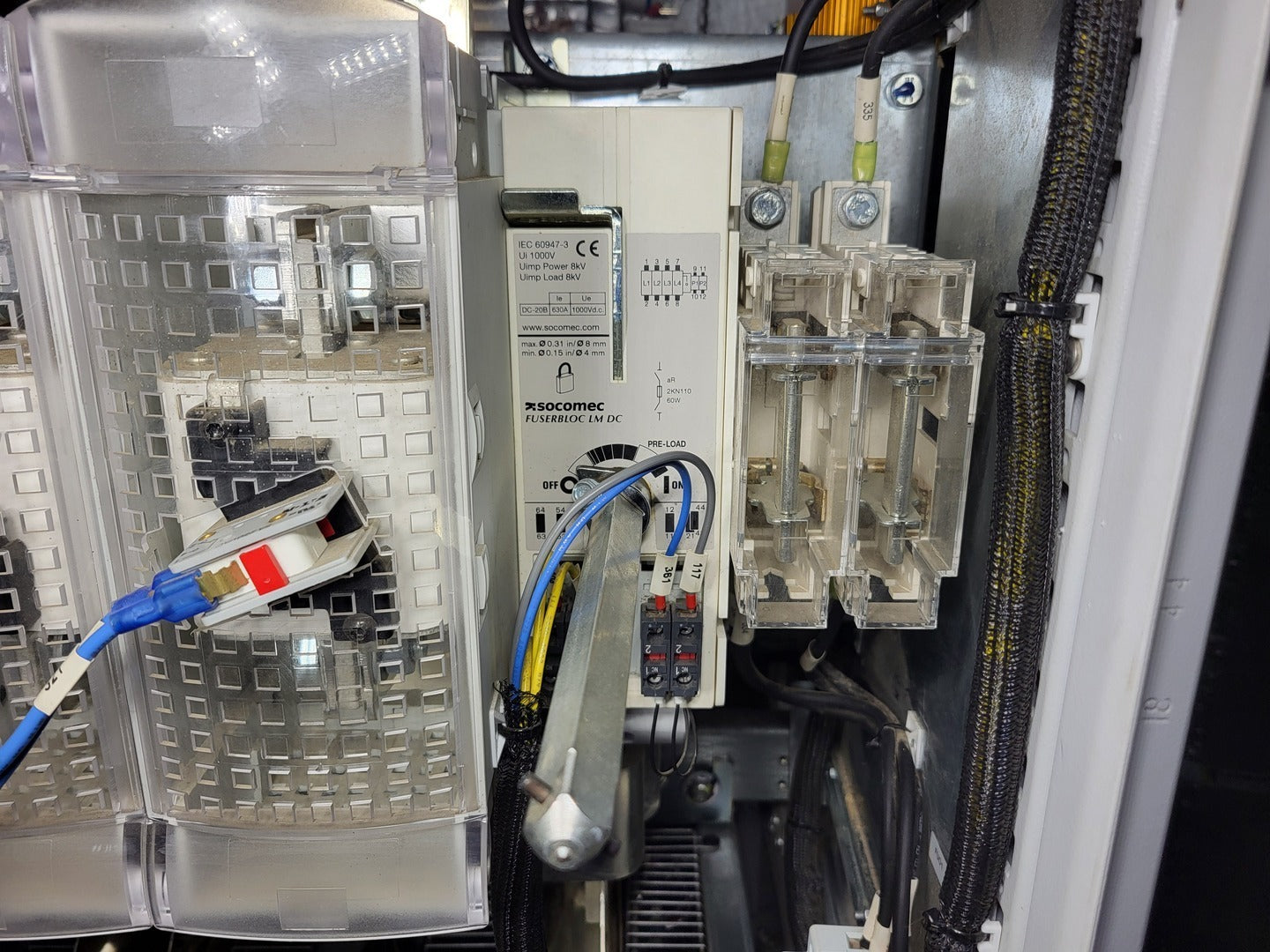

  2. Integrated pre-charge (pre-load) selector switch

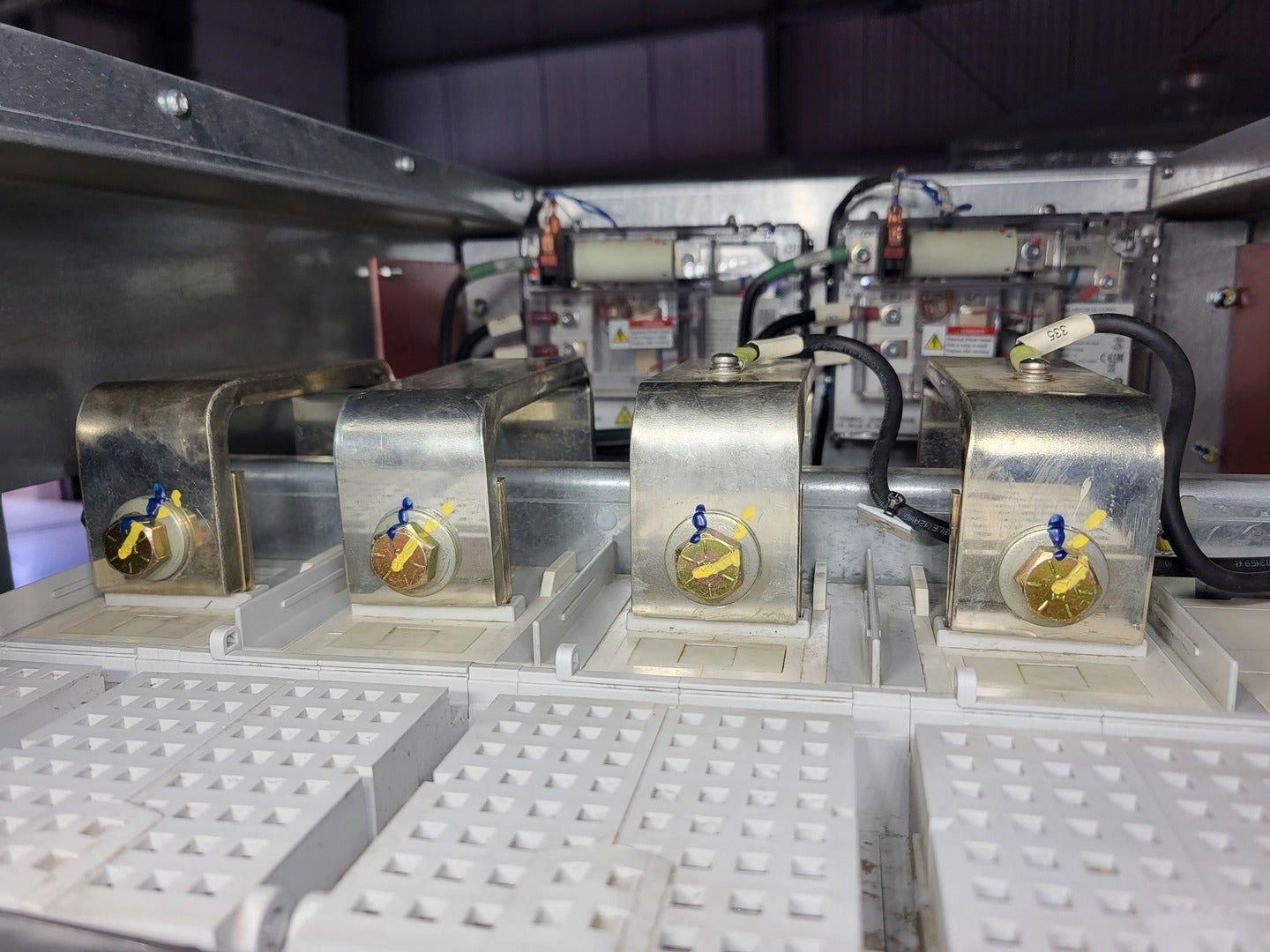

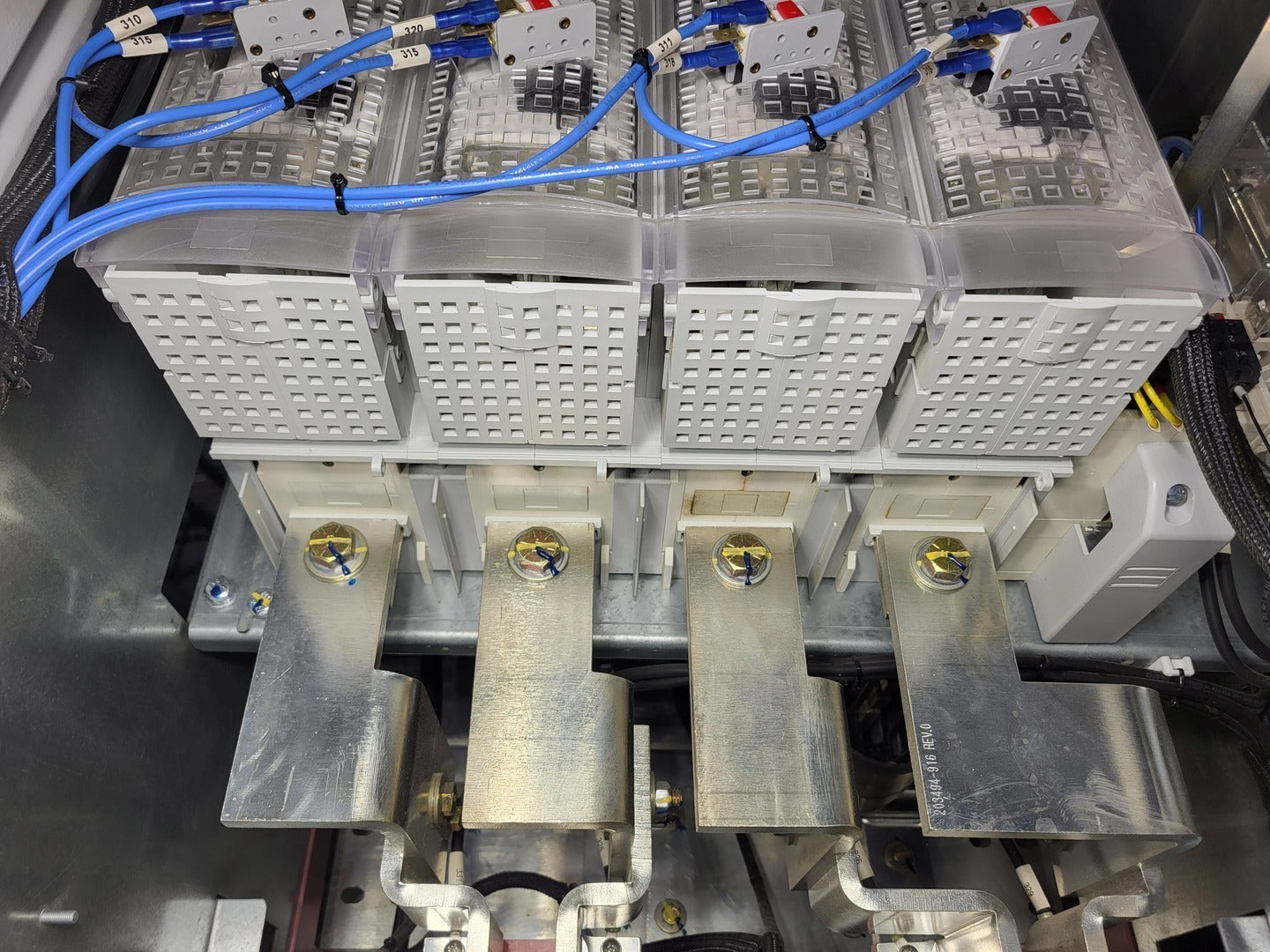

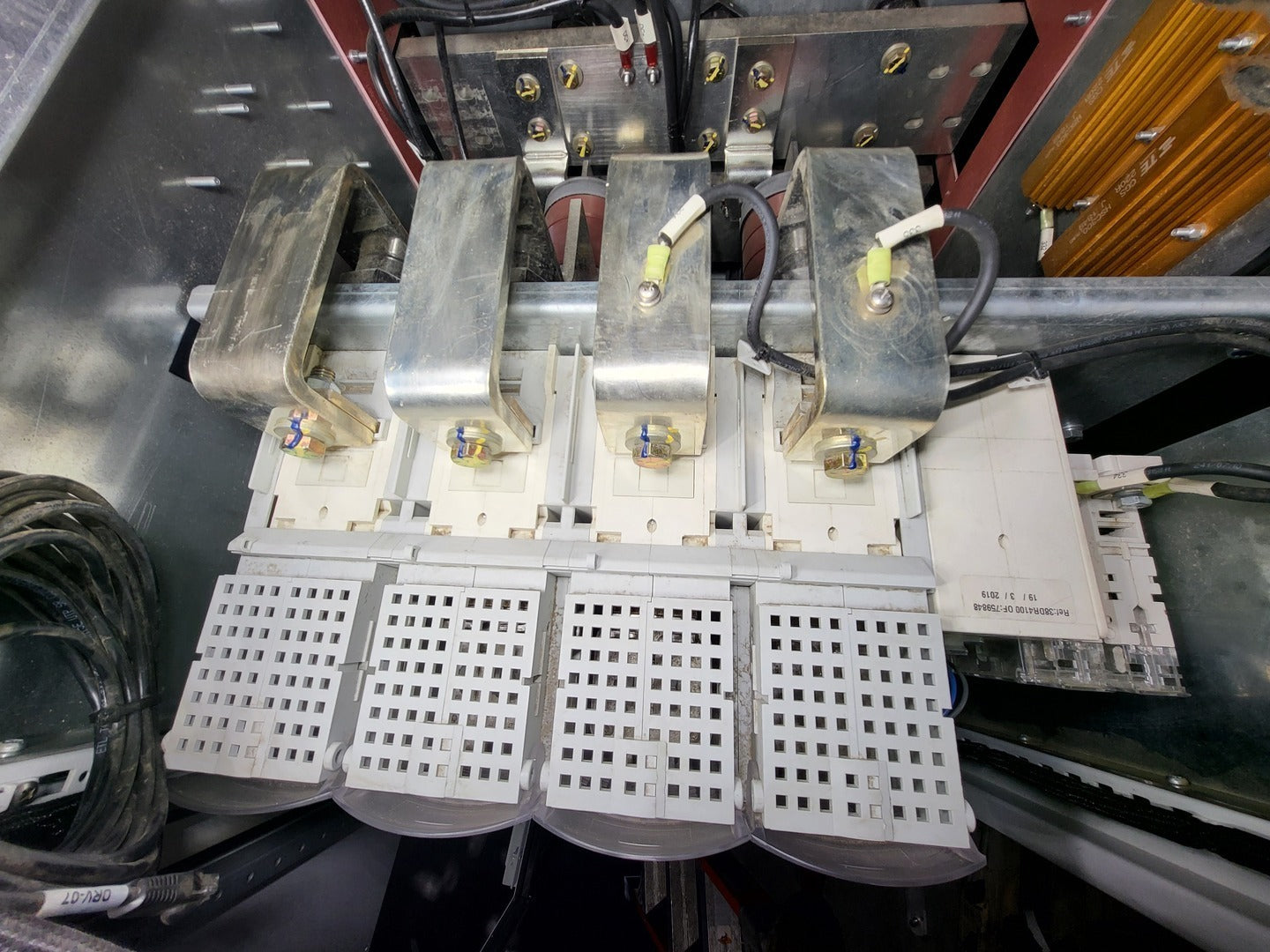

  3. Heavy-duty busbar distribution (top & bottom)

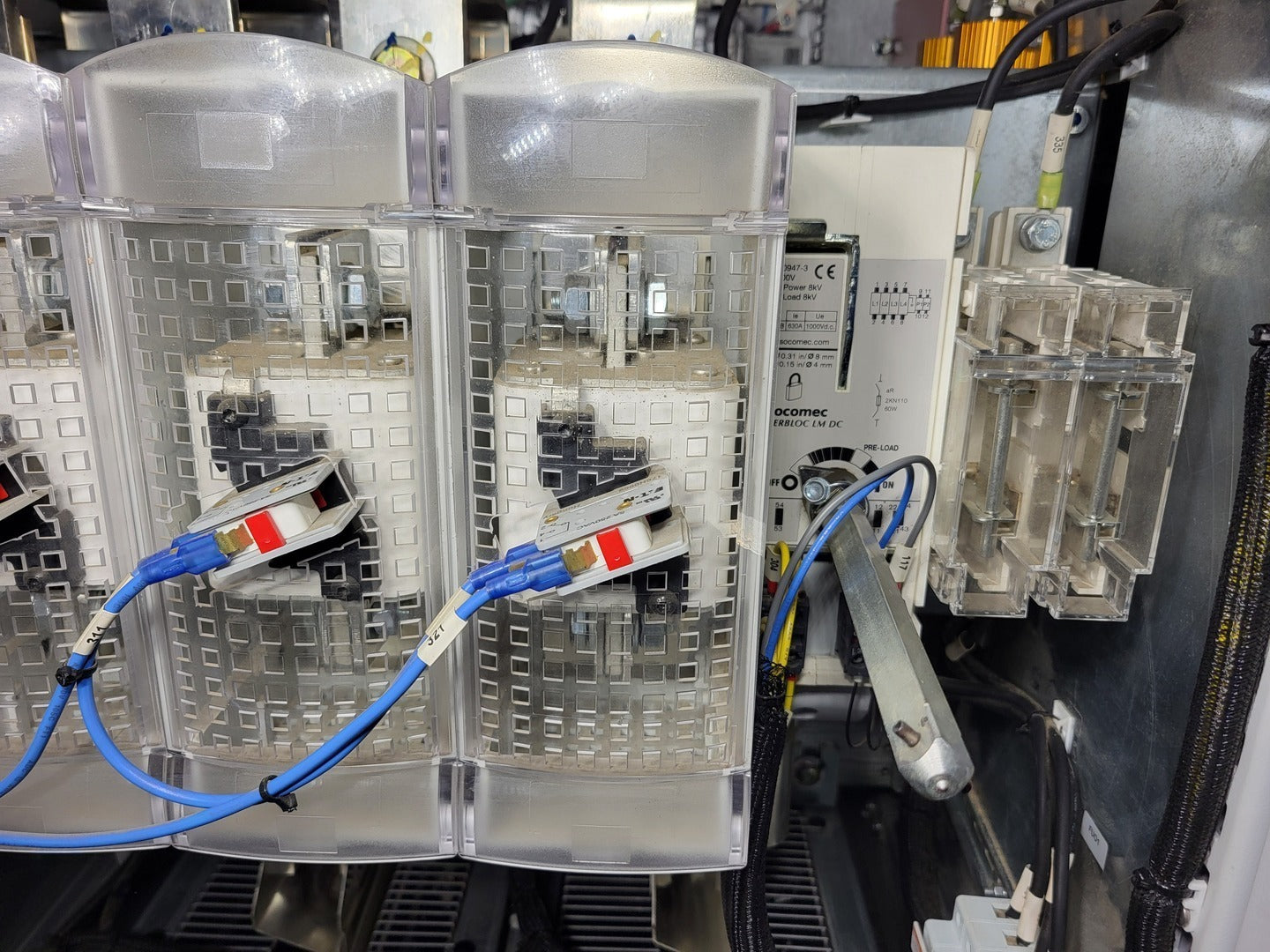

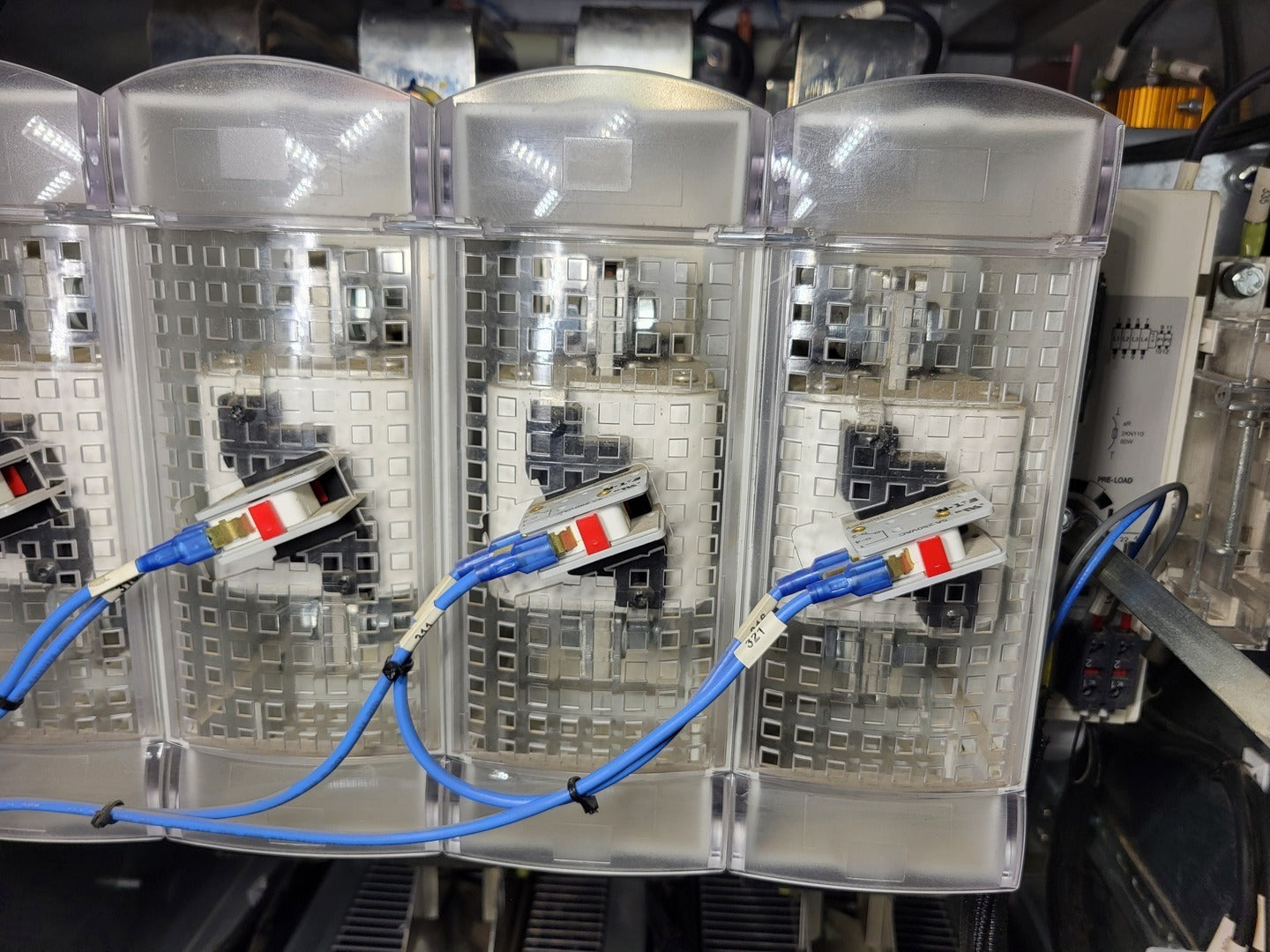

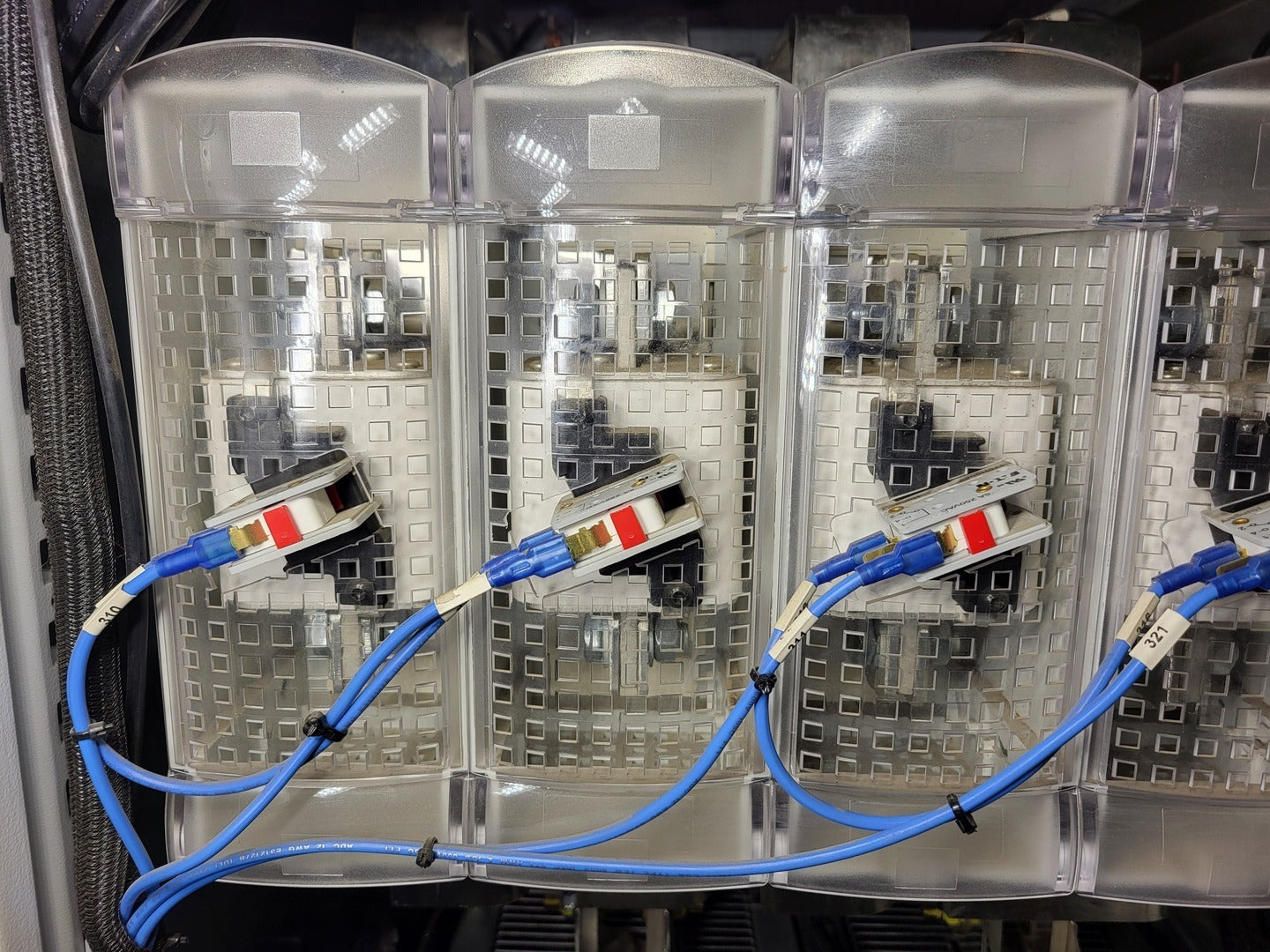

  4. (4) NH-style fuse holder modules with protective covers

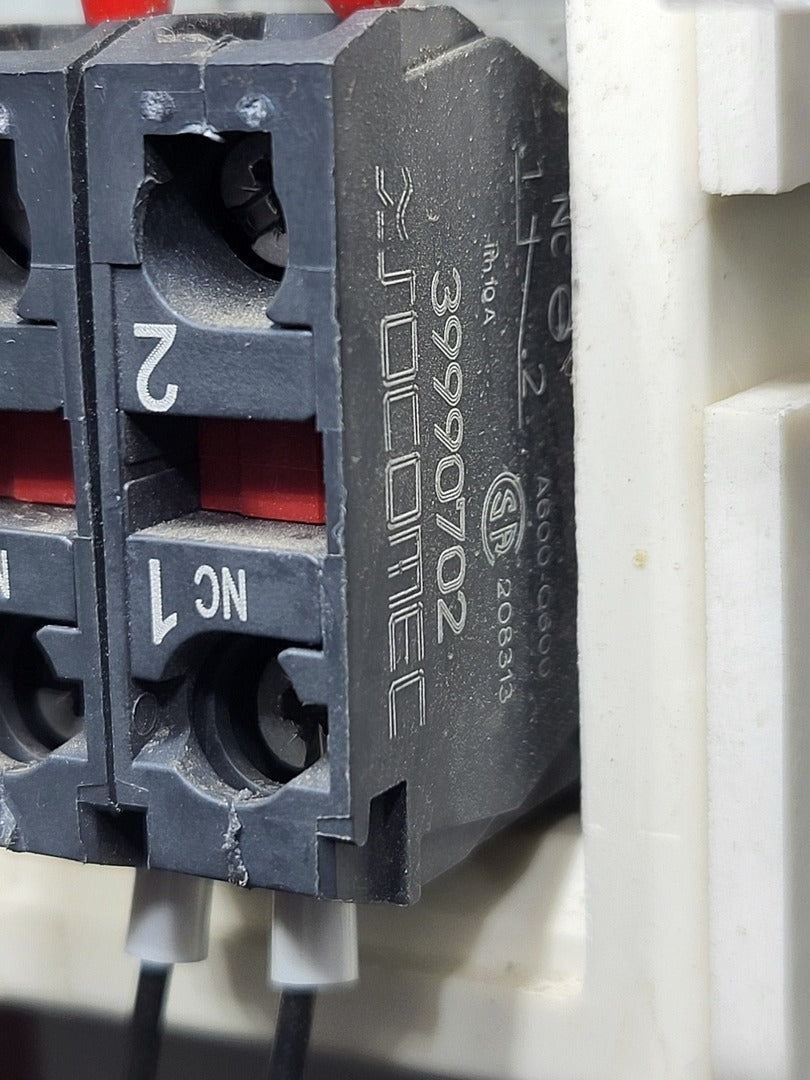

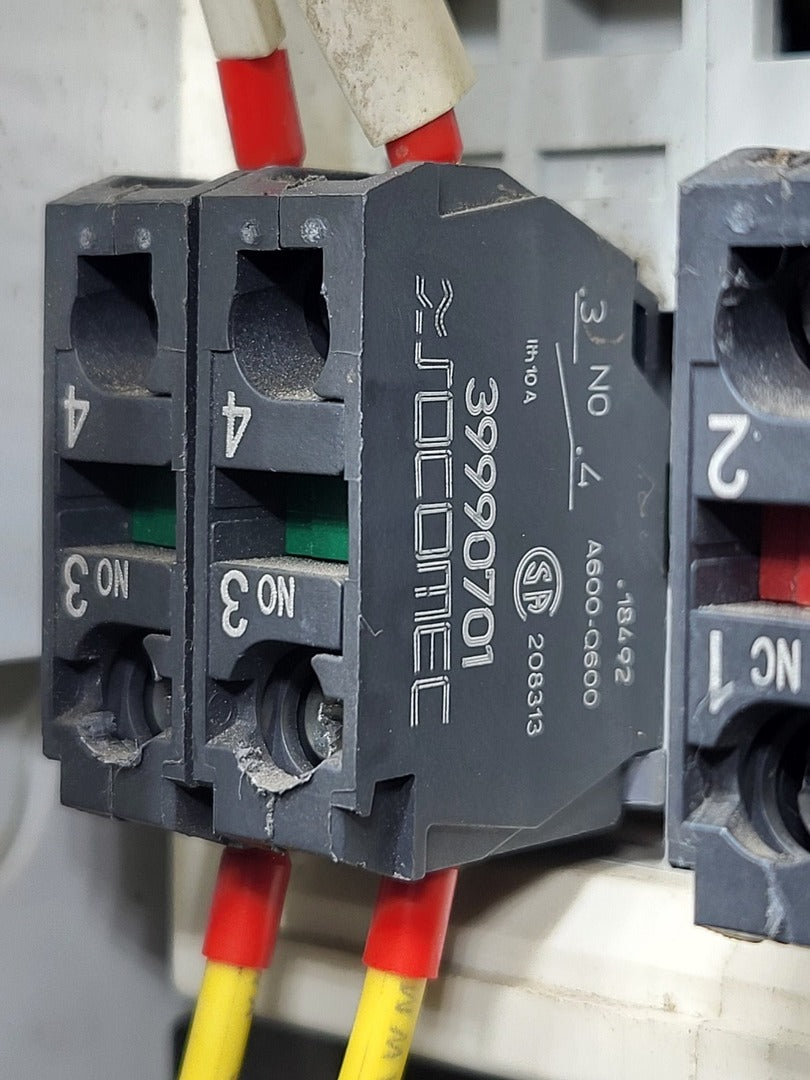

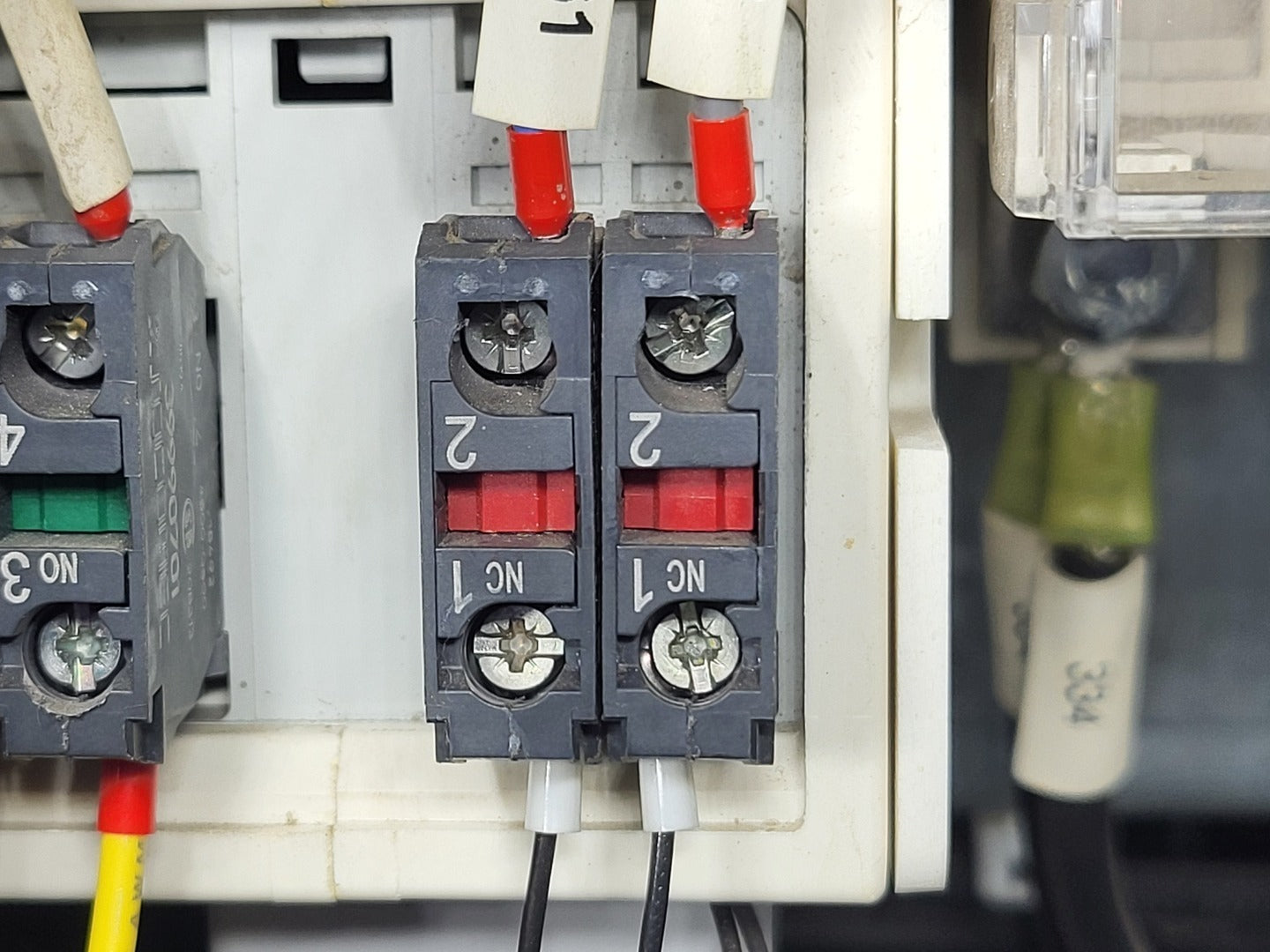

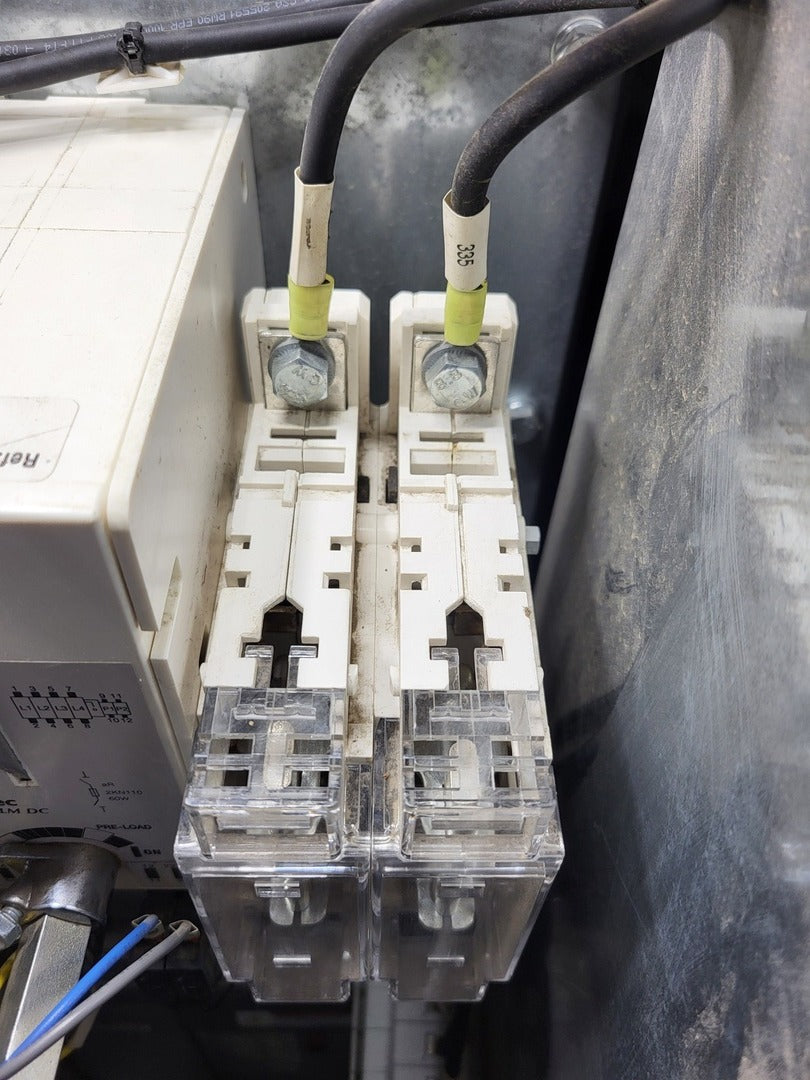

  5. Auxiliary fuse holders (control circuit protection)

Monitoring & Control:

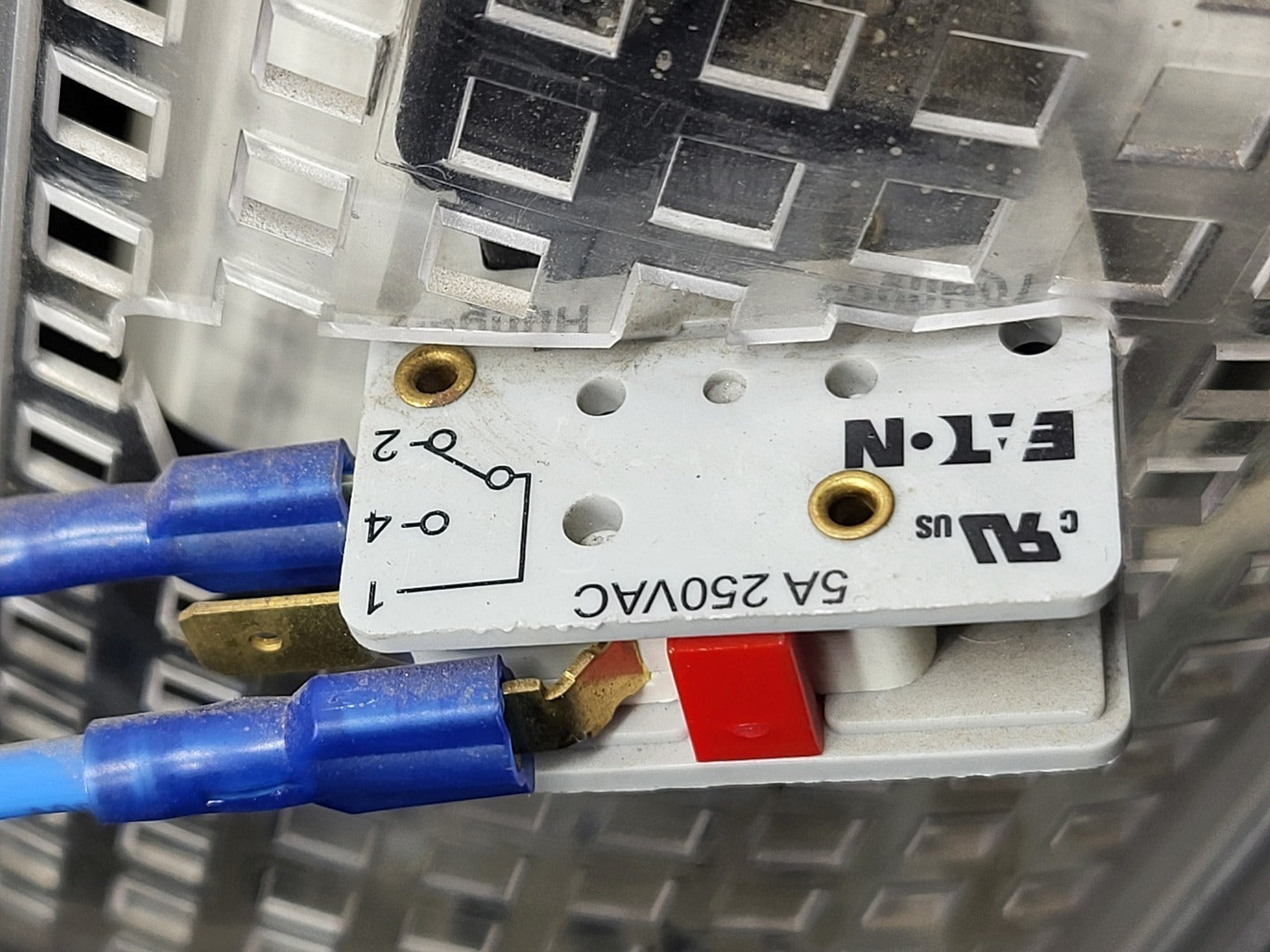

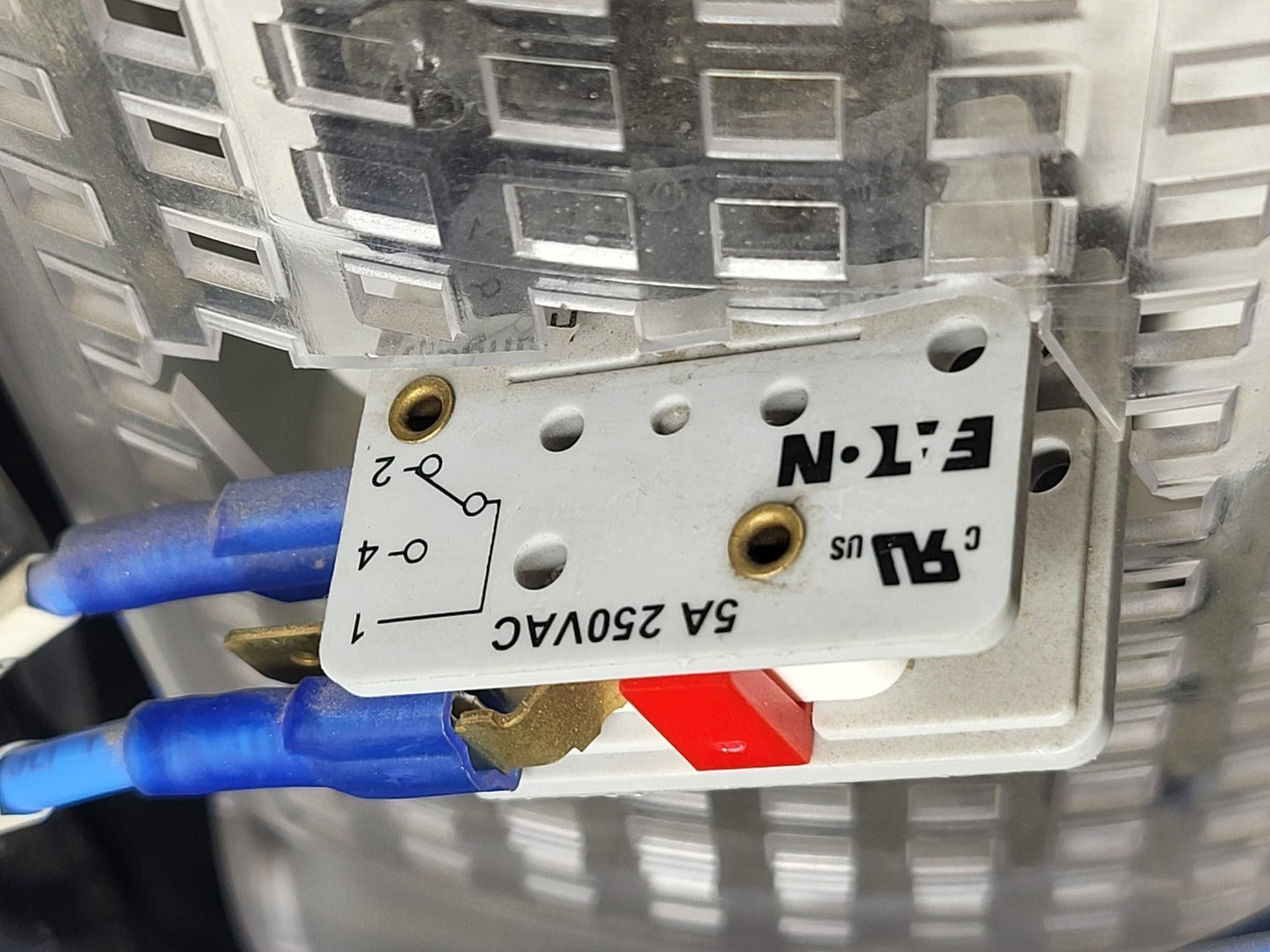

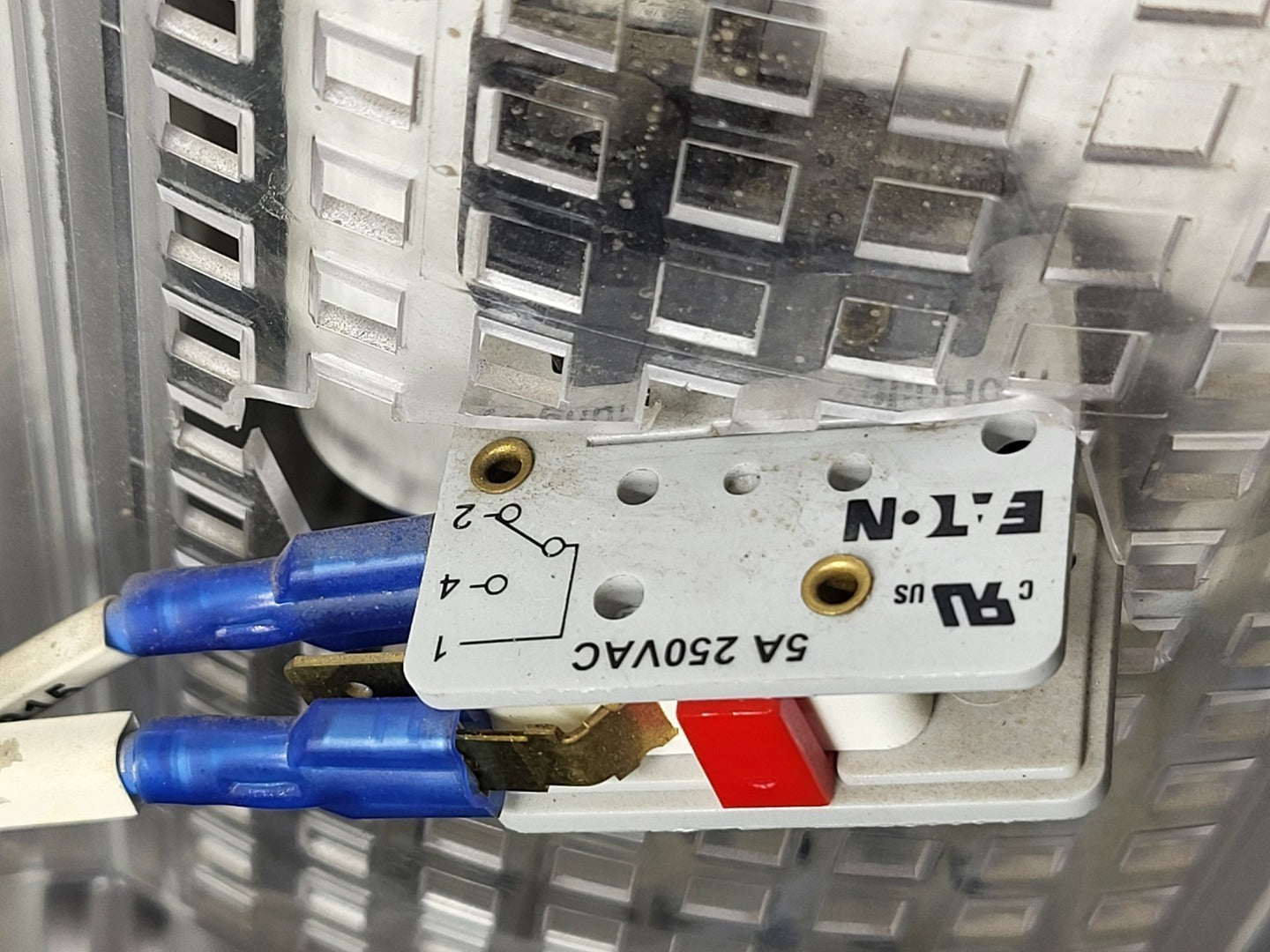

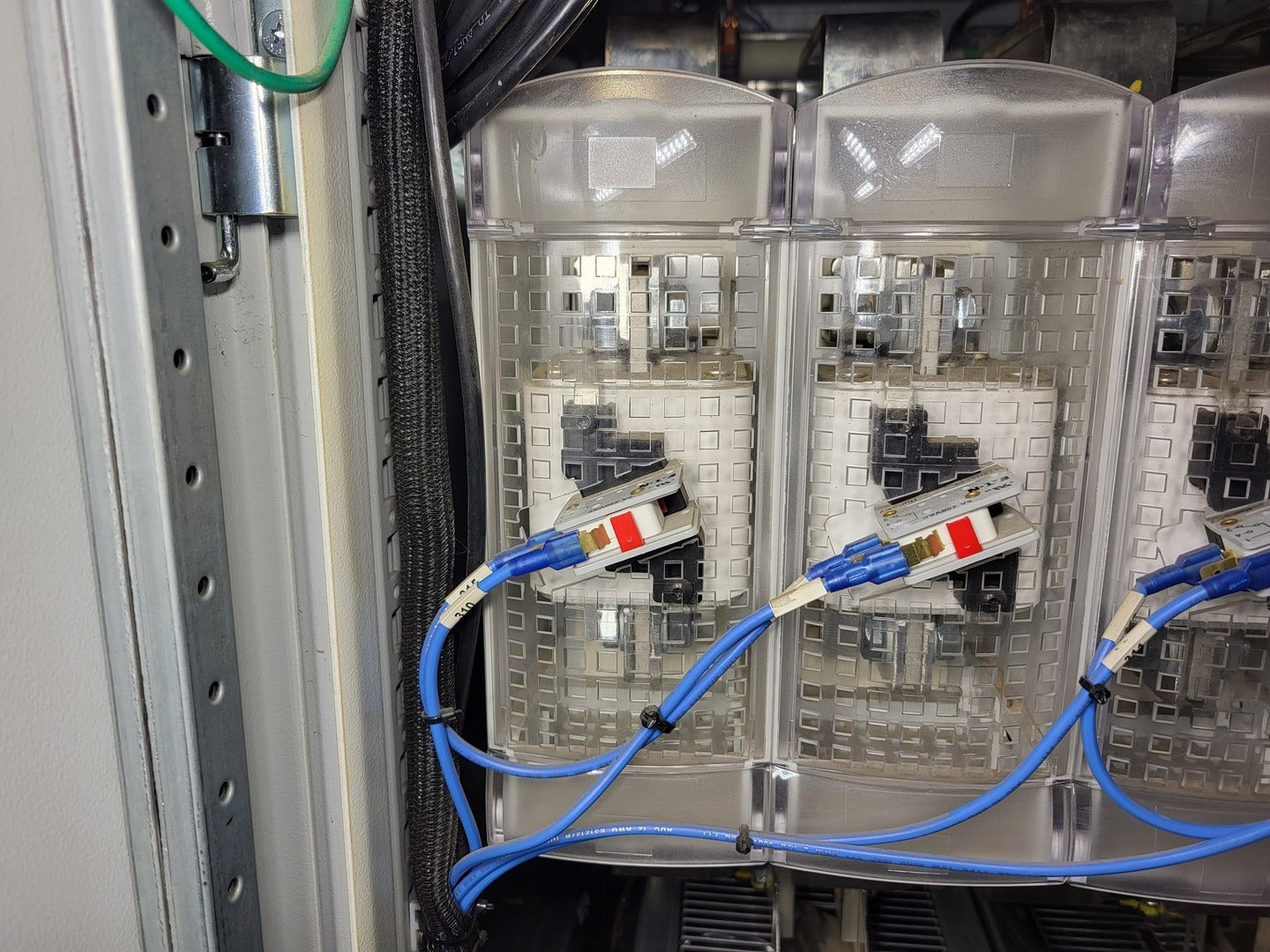

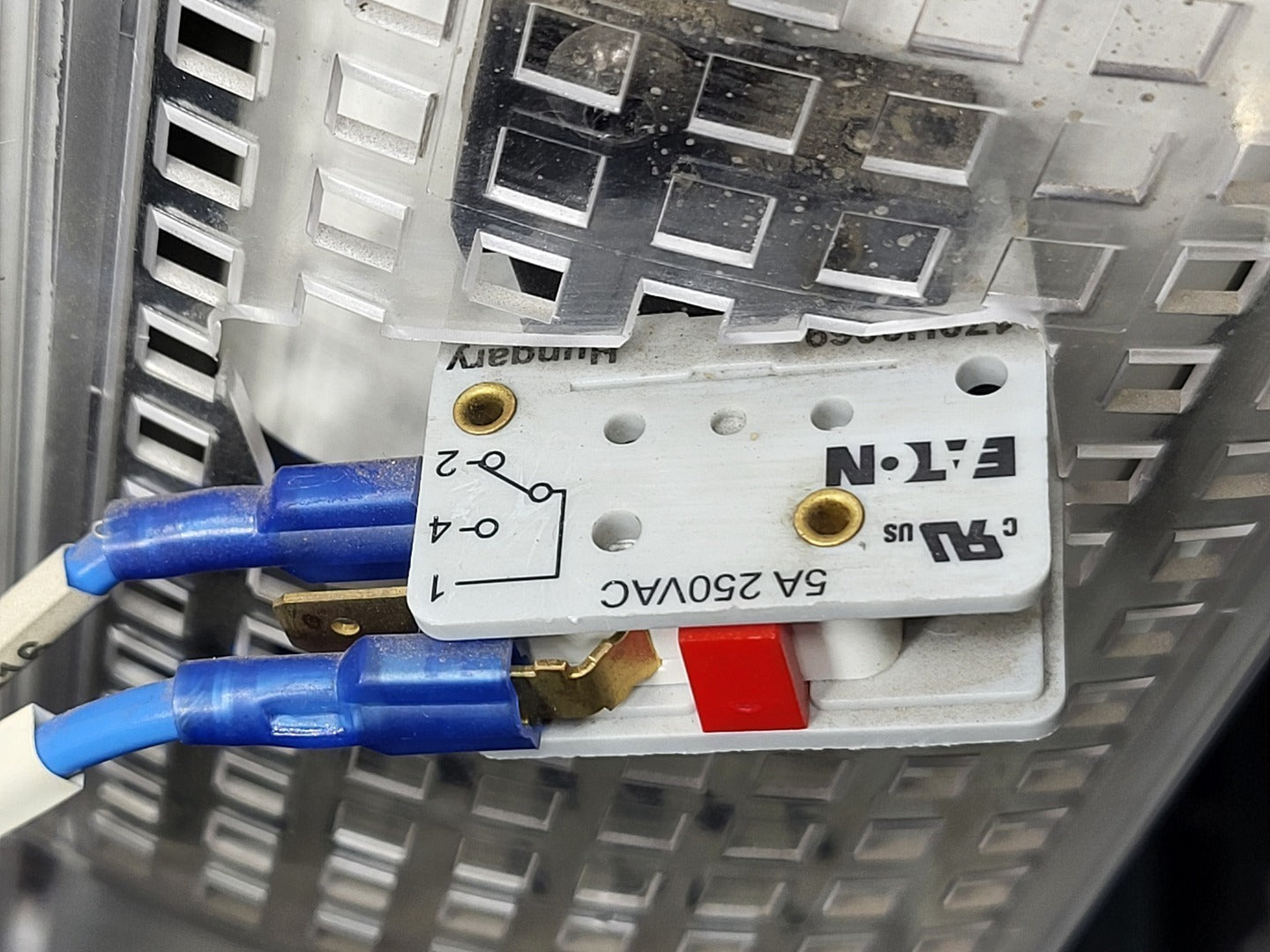

  1. Eaton microswitches (5A, 250VAC) for fuse status indication

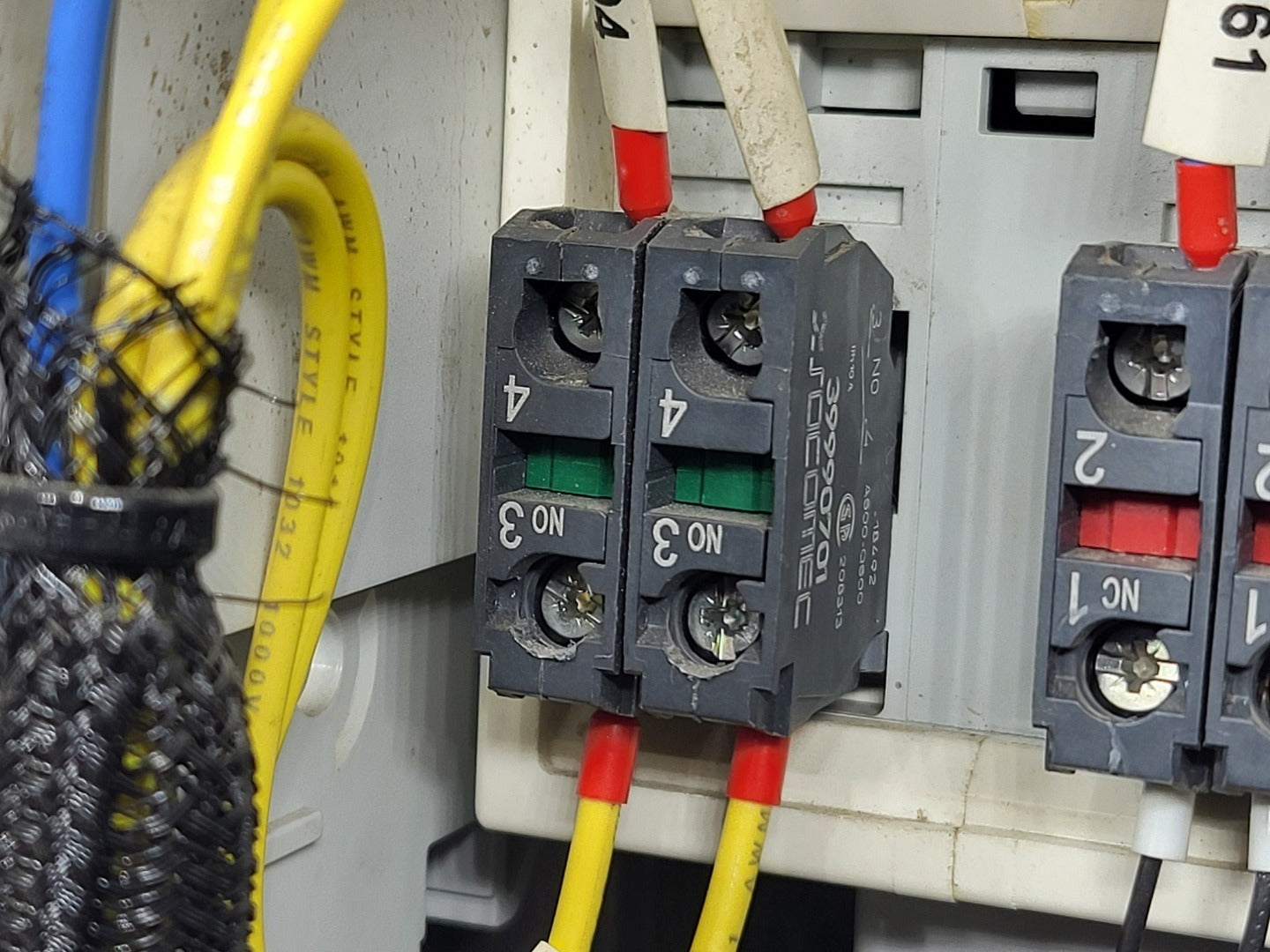

  2. Control circuit breakers (Socomec) installed

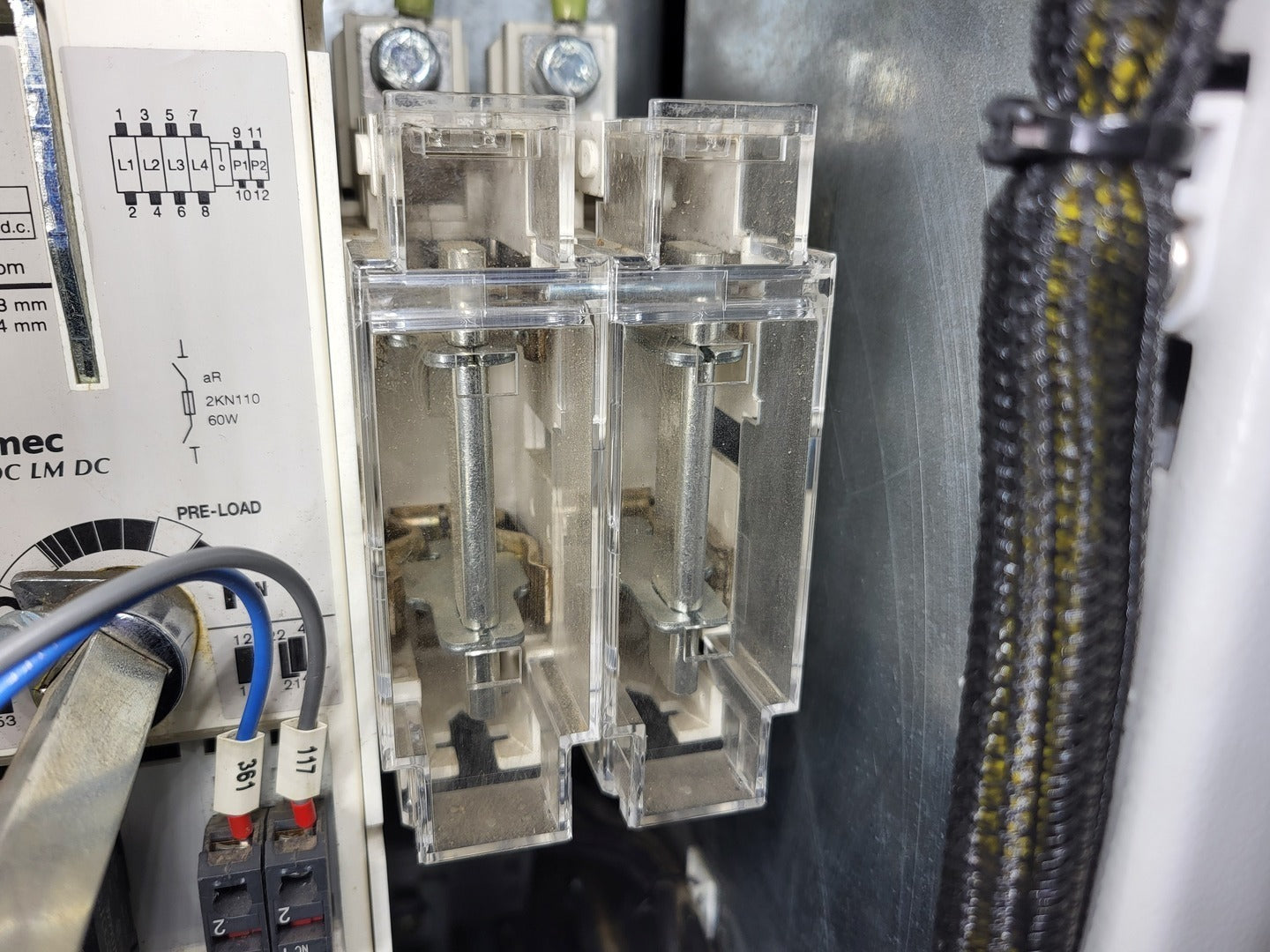

  3. Pre-charge resistor circuit (labeled 60W)

Construction:

  1. Industrial enclosure-mounted assembly

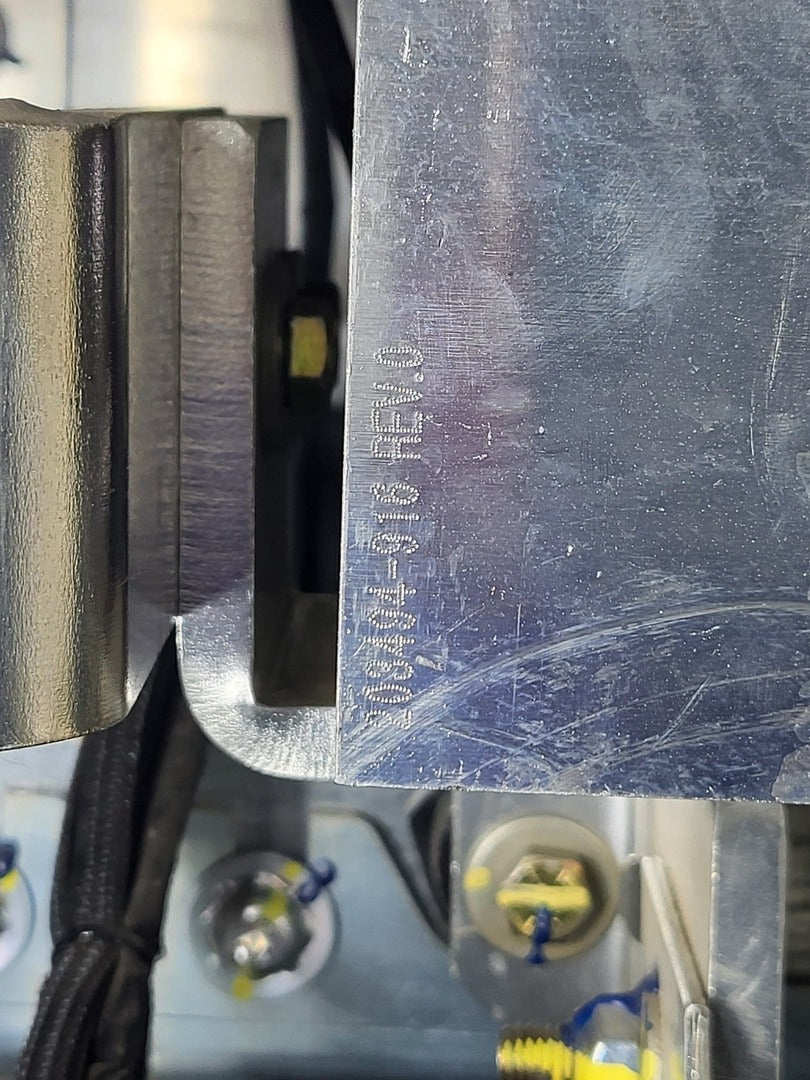

  2. High-conductivity busbars (aluminum/copper)
  3. Transparent fuse covers for visual inspection

Applications:

  1. Battery Energy Storage Systems (BESS)
  2. Solar / Photovoltaic DC systems
  3. UPS / backup power systems
  4. DC distribution panels
  5. Industrial rectifier / DC drive systems
