GRD FLT CT 50:5 3.13" Window 80025-995-01

SKU: 139942
Price:
$75 CAD

Shipping calculated at checkout

Stock:
3 in Stock
Make an Offer

Need An Answer Now?

Description

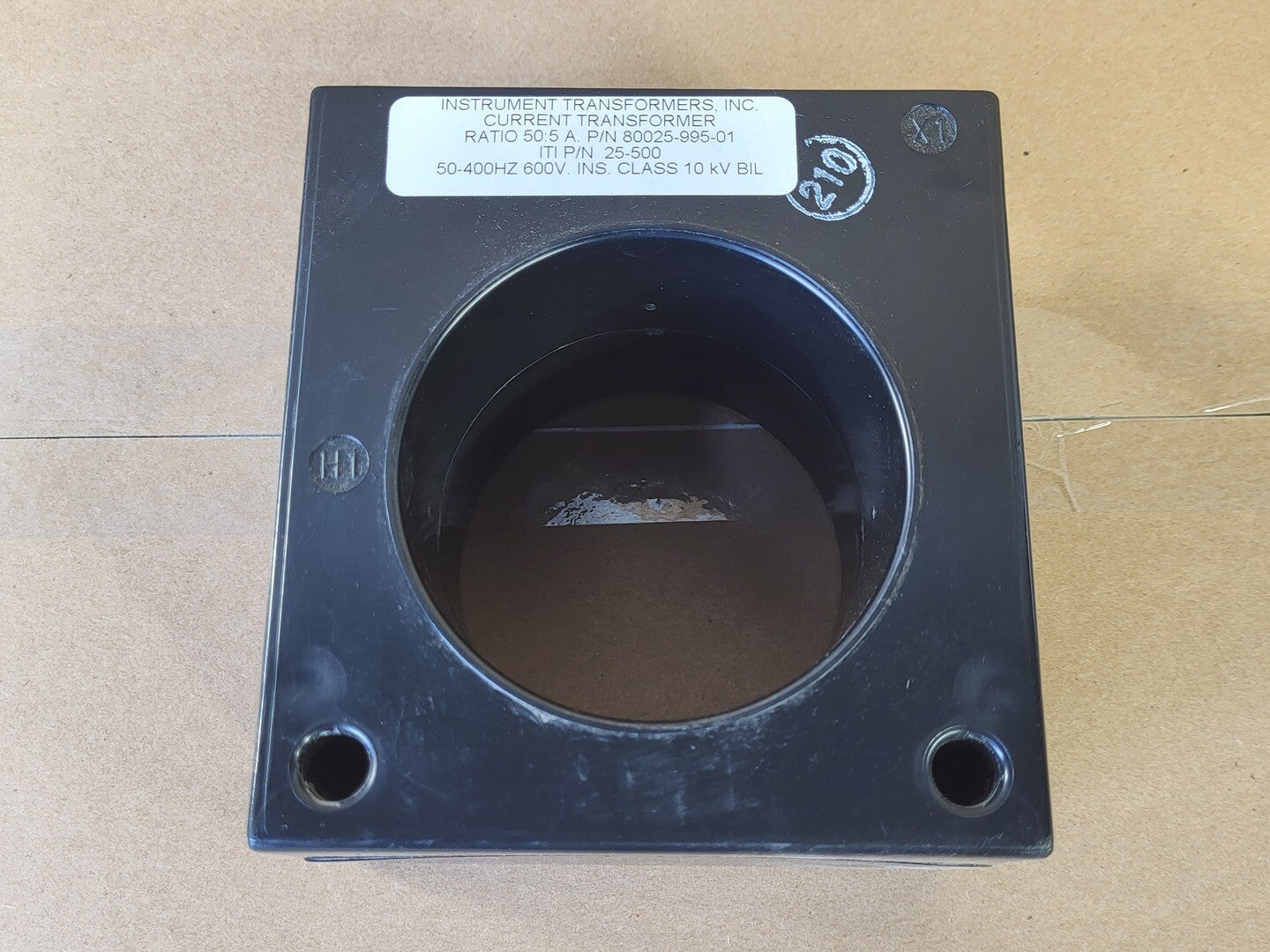

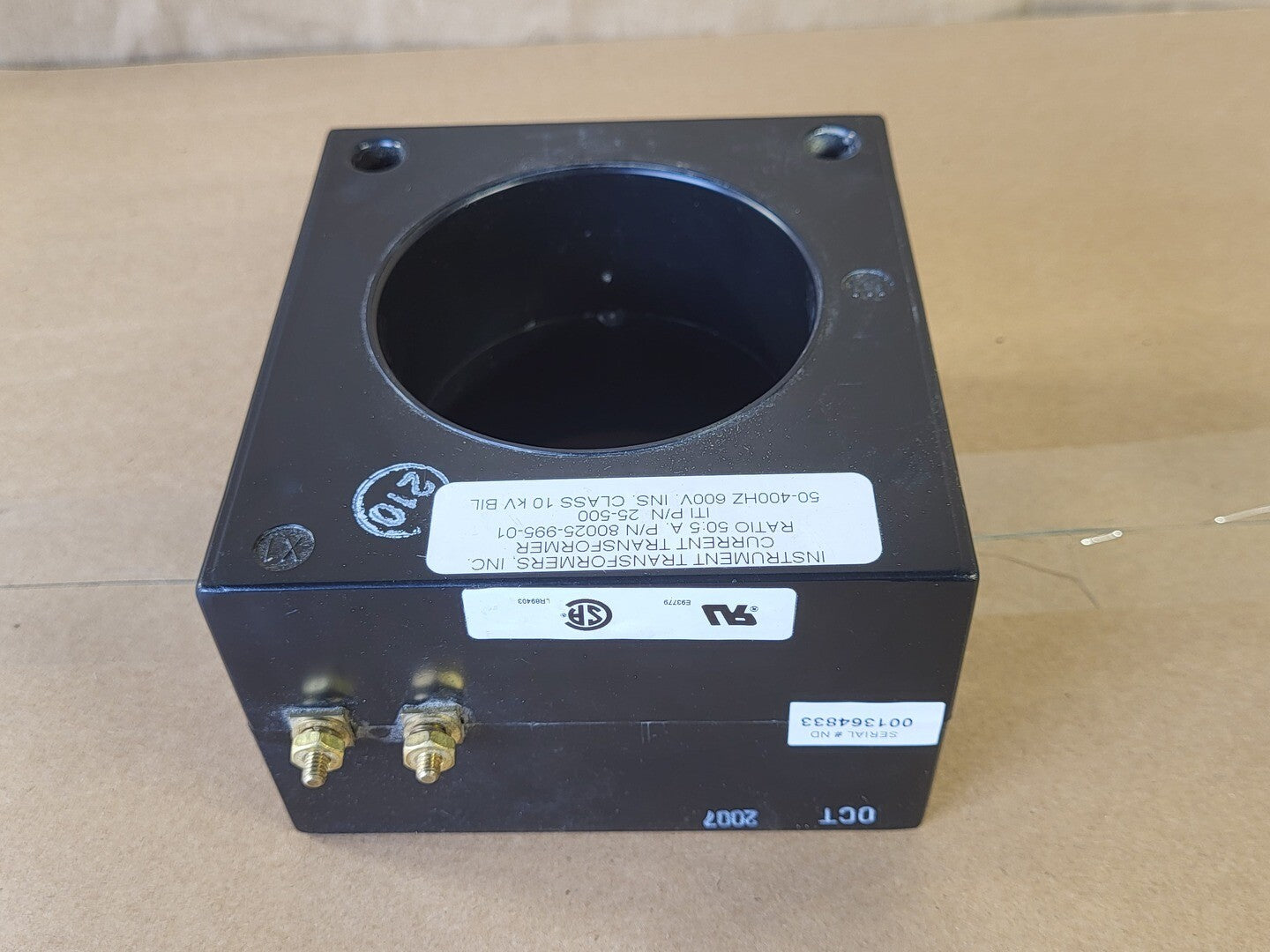

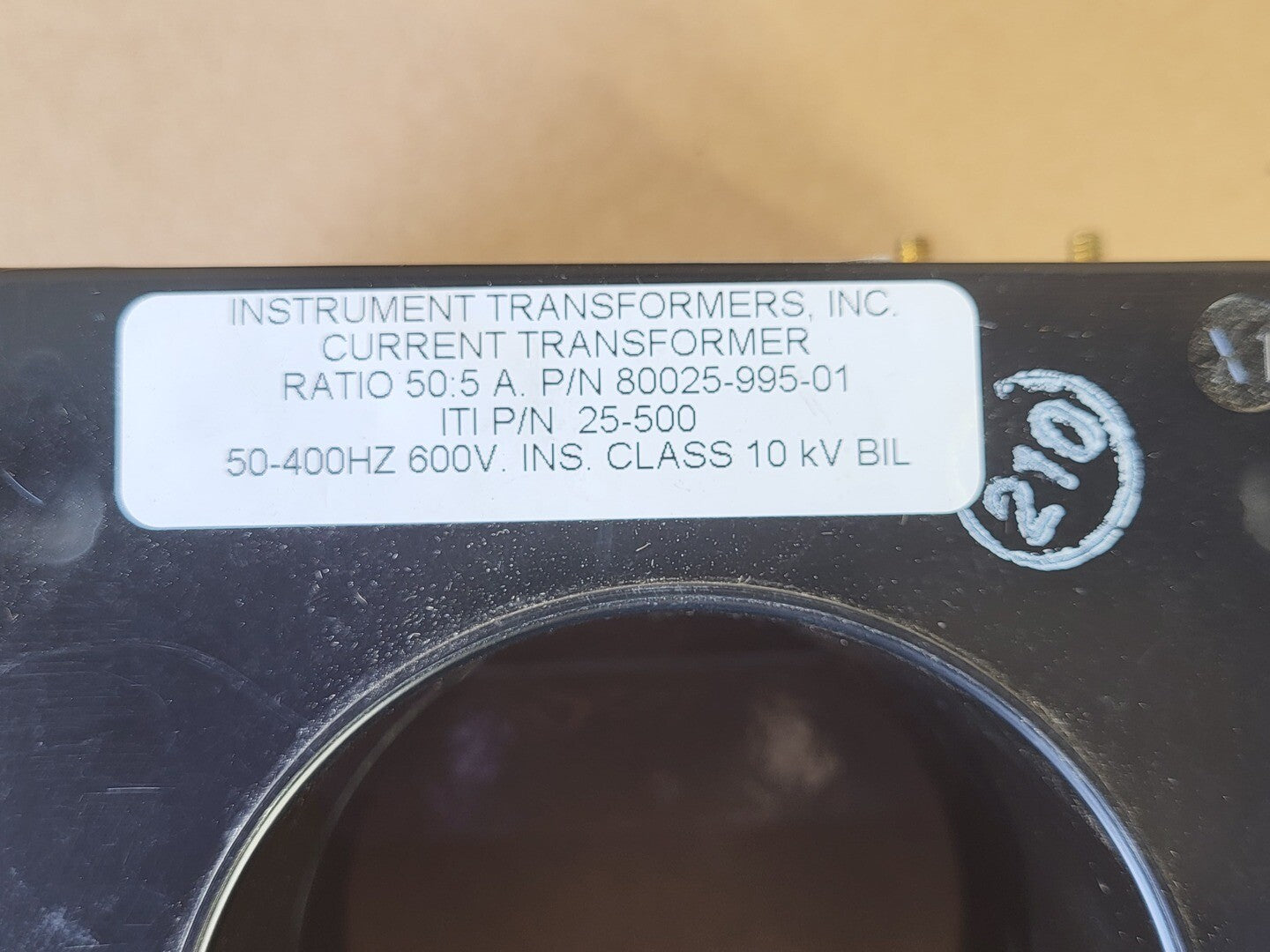

The 80025-995-01 is a current transformer manufactured by Instrument Transformers Inc. It is a window-type CT designed for current measurement and monitoring in electrical systems. This model has a primary to secondary current ratio of 50:5 A and is rated for up to 600 V AC. It operates within a frequency range of 50 to 400 Hz and features a basic impulse level (BIL) insulation rating of 10 kV. The transformer has an approximate window opening of 3.13 inches, allowing the conductor to pass through. It is commonly used in industrial panels, protective relays, and metering systems.
Specifications
Model 80025-995-01
Year: 2007
Condition Used - Like New
General
Oil vs Dry 147
Other Specifications

Overview:

  • Type: Window-type current transformer
  • Primary to secondary ratio: 50:5 A
  • Voltage rating: 600 VAC
  • Frequency: 50-400 Hz
  • Window size approx.: 3.13 inches.
