Description
| Specifications | |
|---|---|

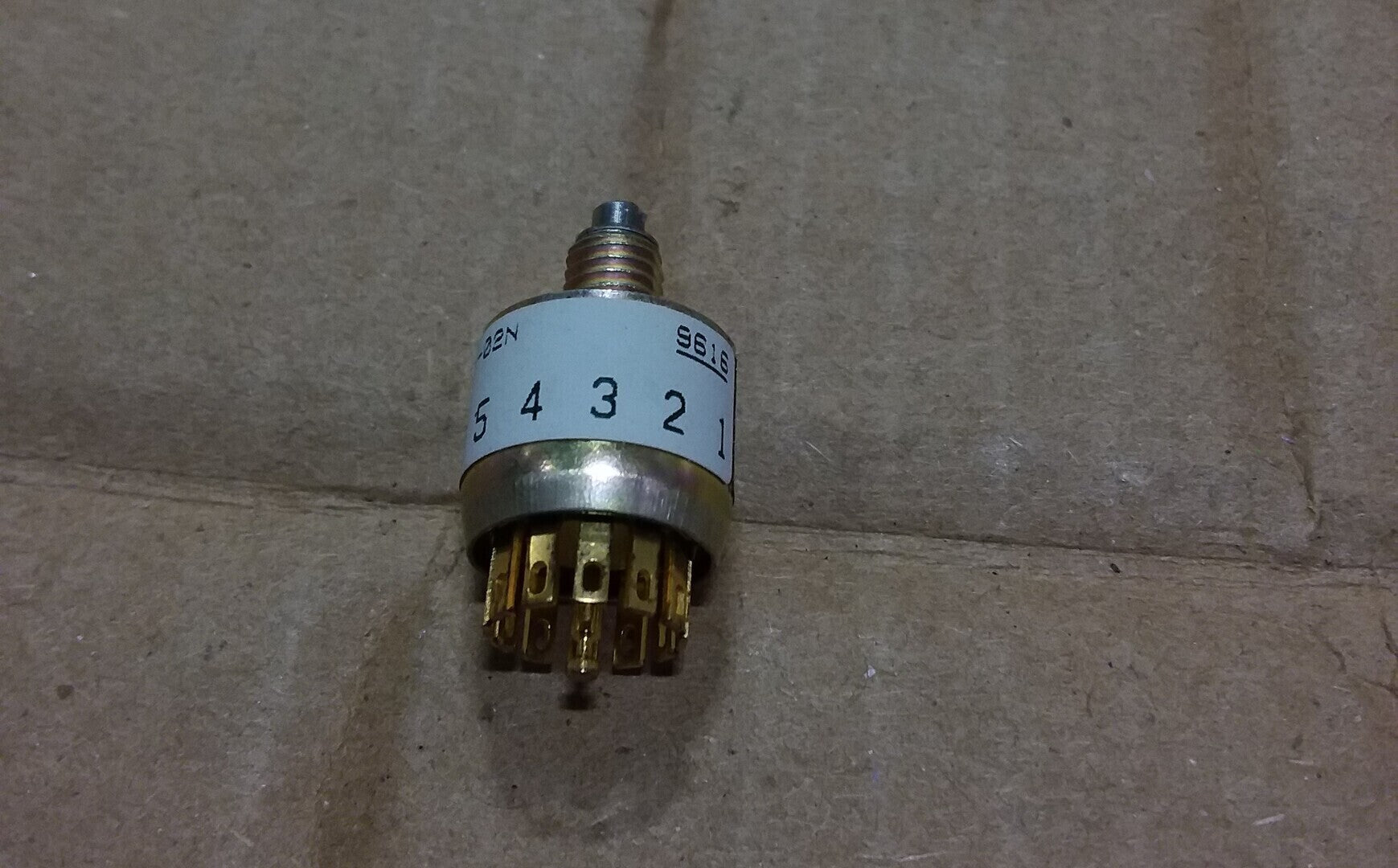

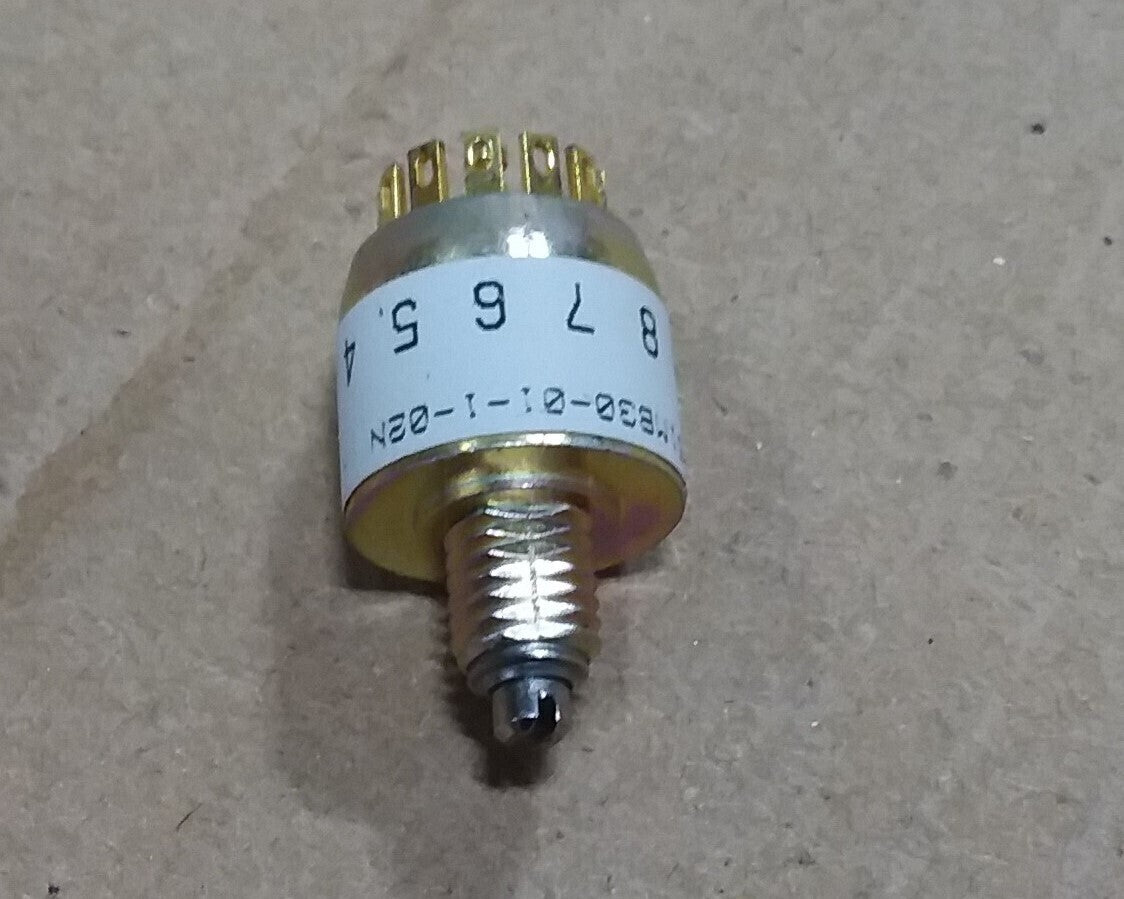

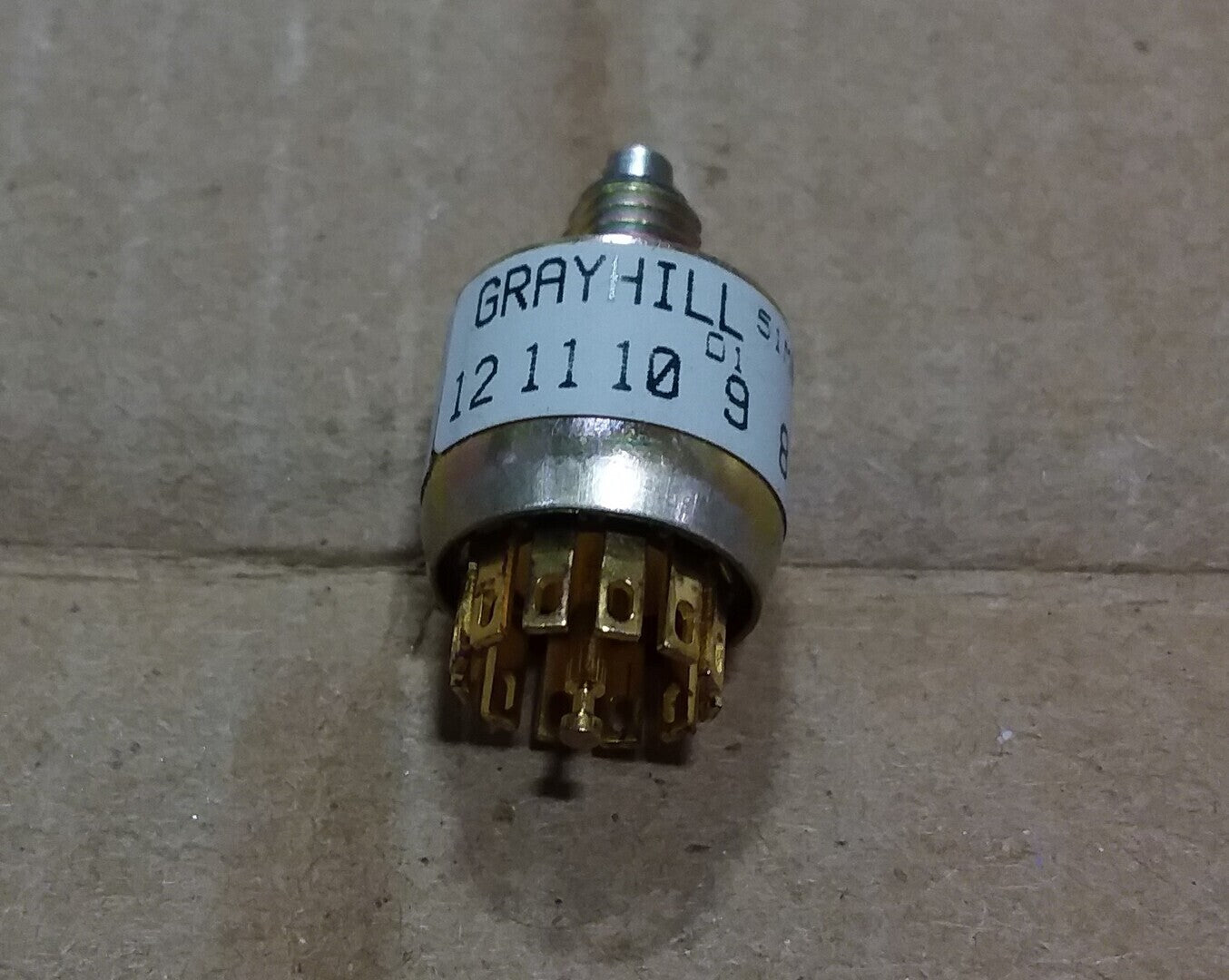

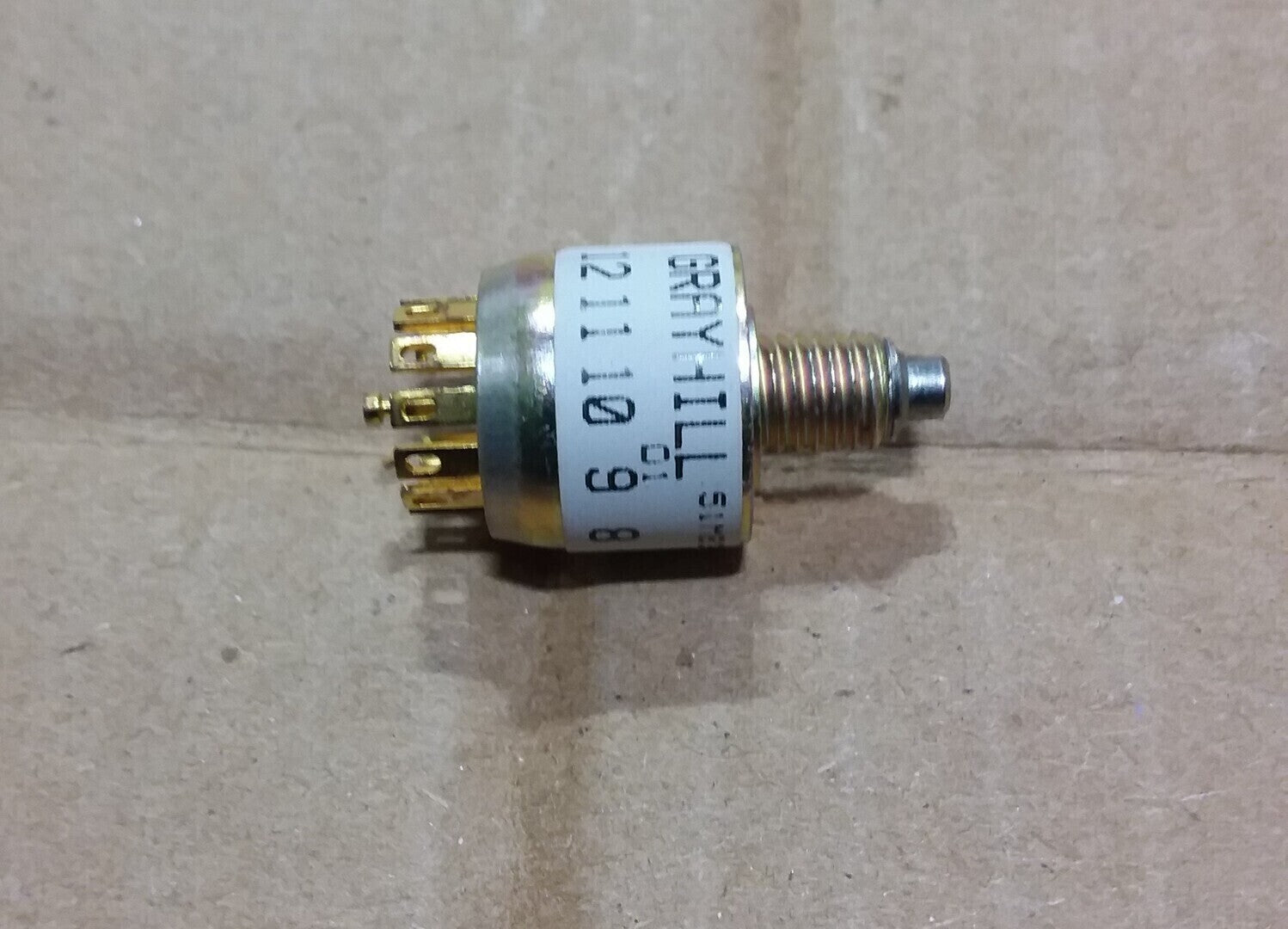

| Model | 51MB30-01-1-02N |
| Condition | New |
| Other Specifications |
|---|
|
Behind Panel: 0.739 in. Stop: Fixed Mechanical Life Cycles: 25,000 Number of Decks: 1 Positions per Pole: 2 Shaft Diameter: 0.125 in. Stop Strength: 7.5 lbf in. Angle of Throw: 30 deg. Contact Type: Non-Shorting Maximum Switch Rating: 200 mA Number of Poles: 1 Output: Rotary Process Seal: No Shaft & Panel Seal: Yes Termination: Solder Lug |
