Description

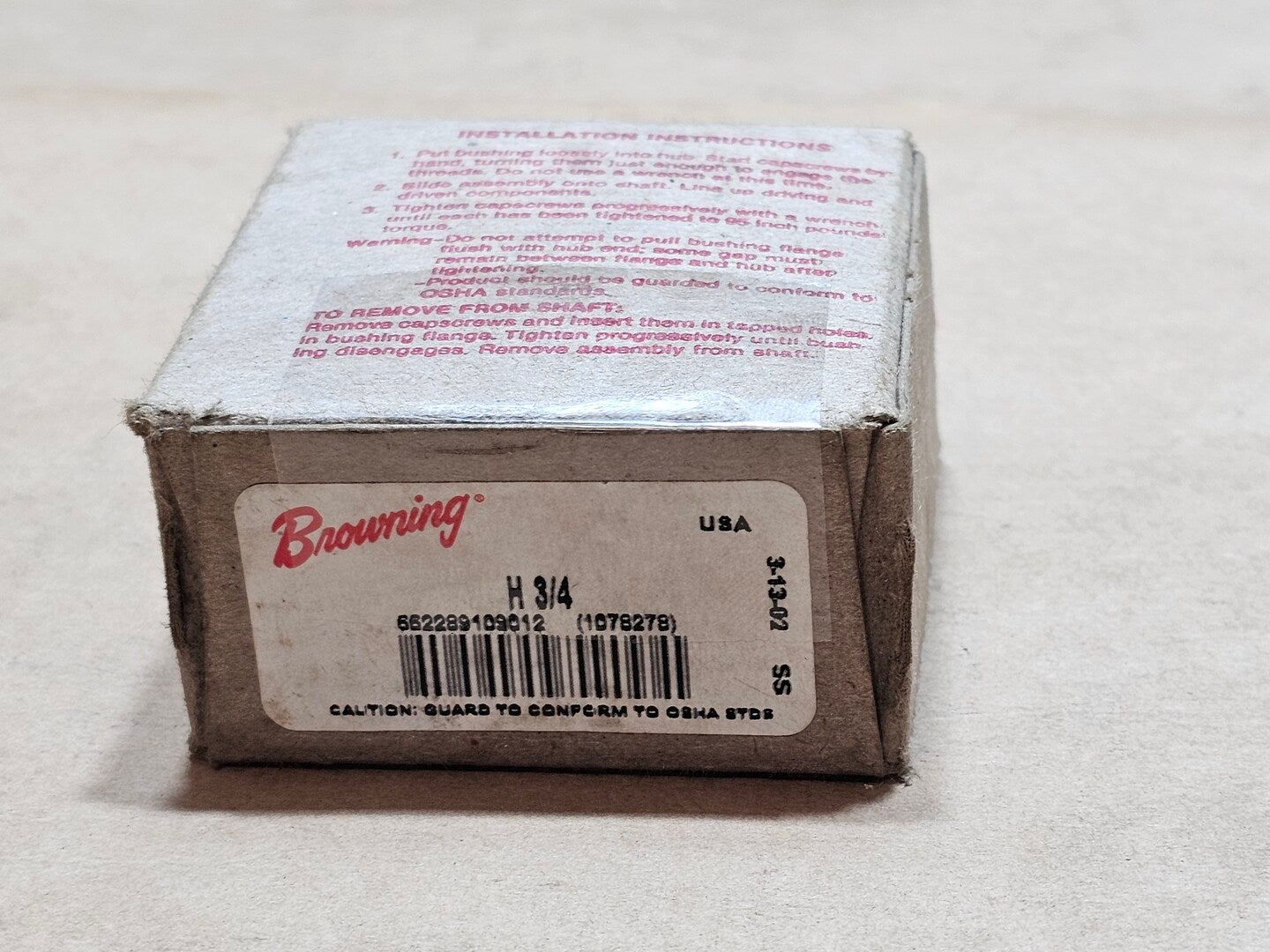

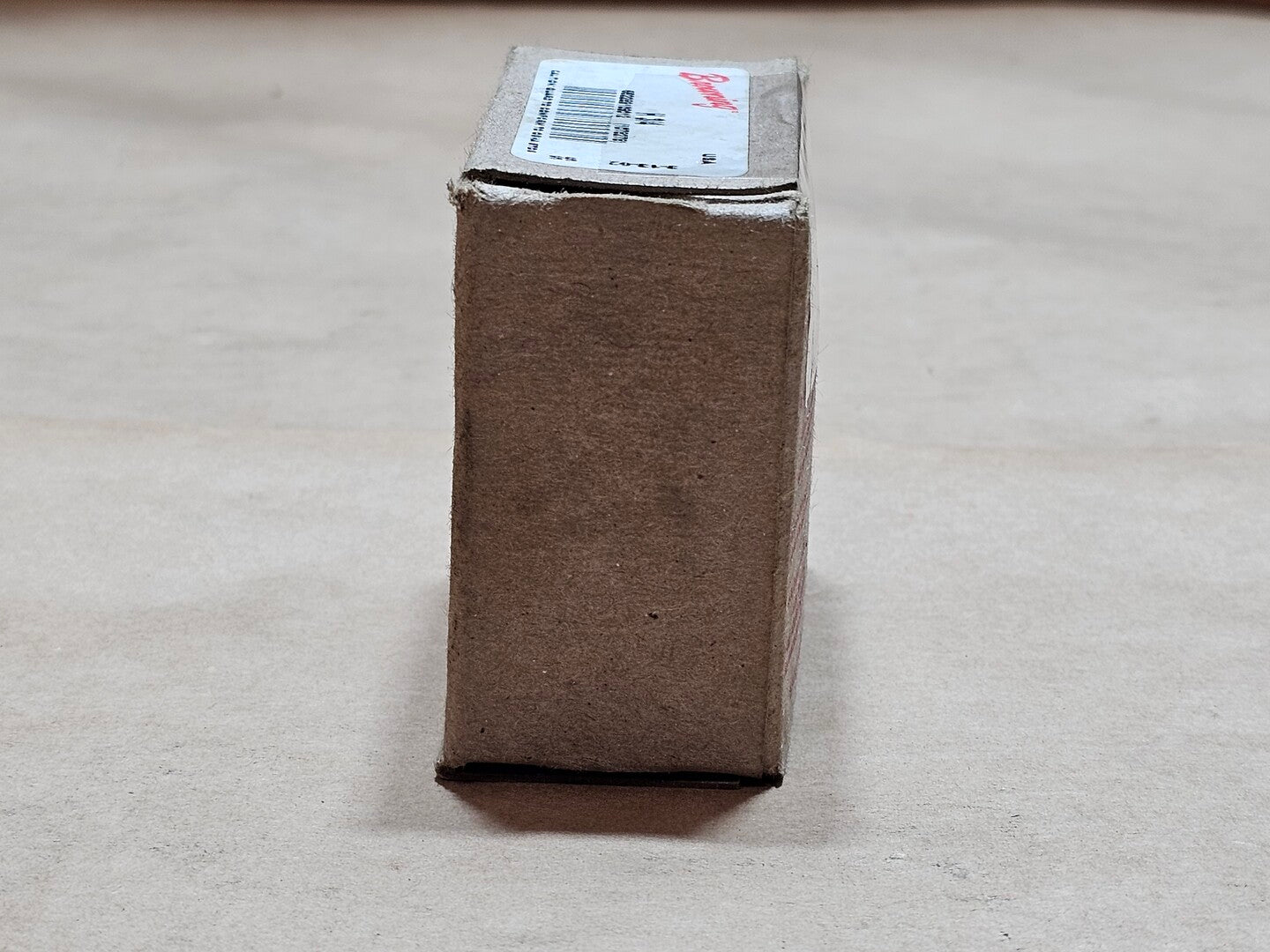

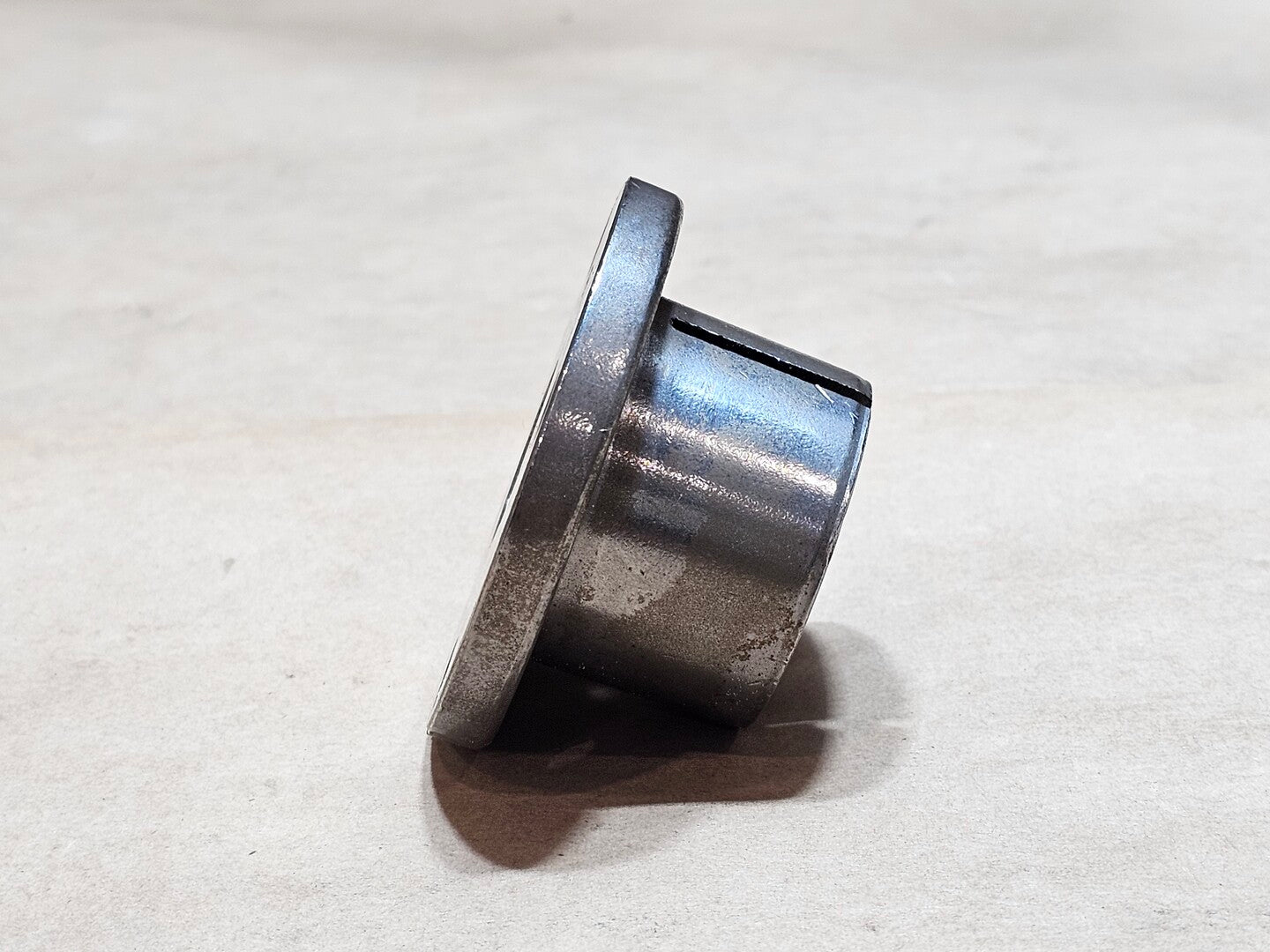

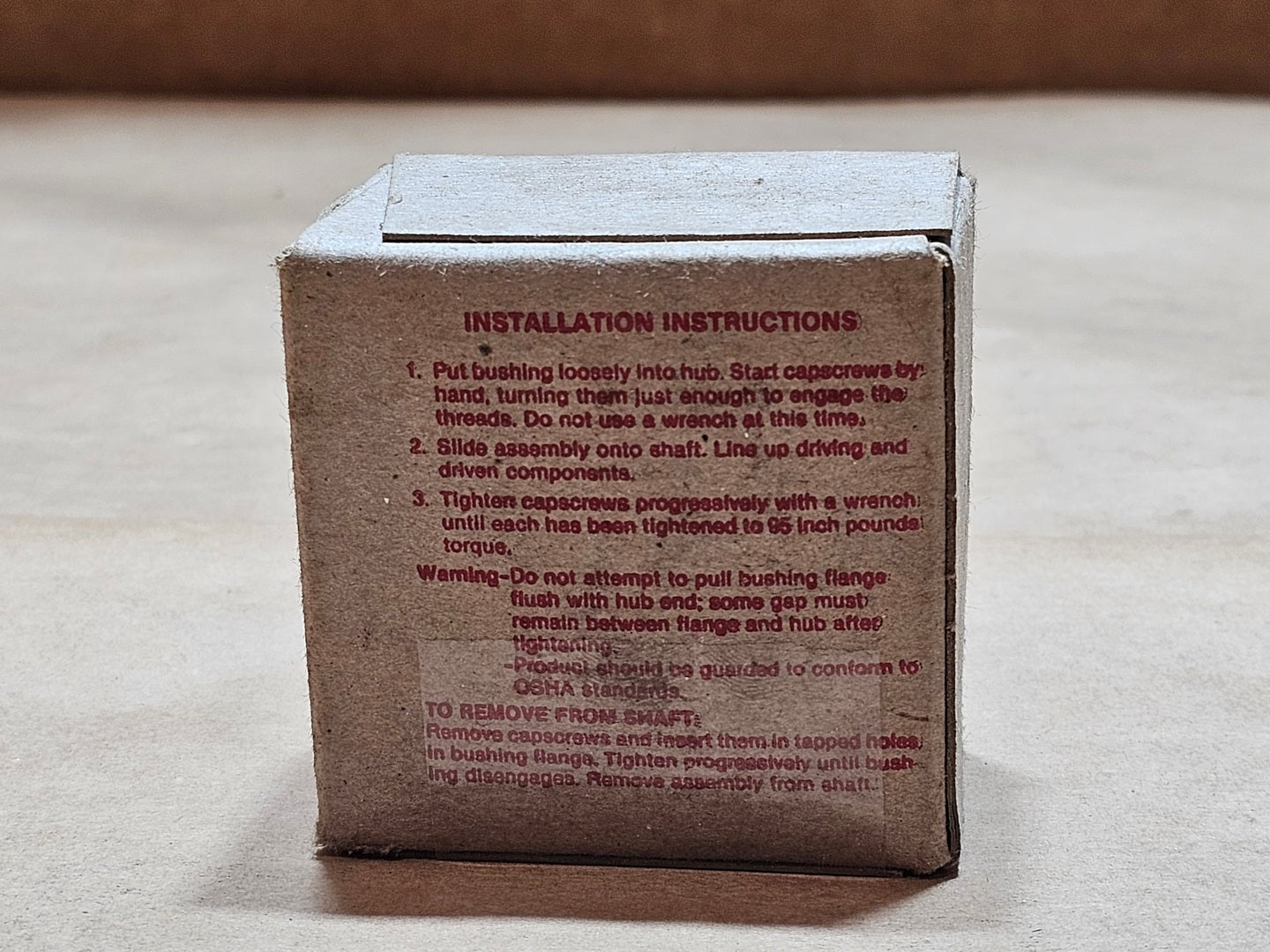

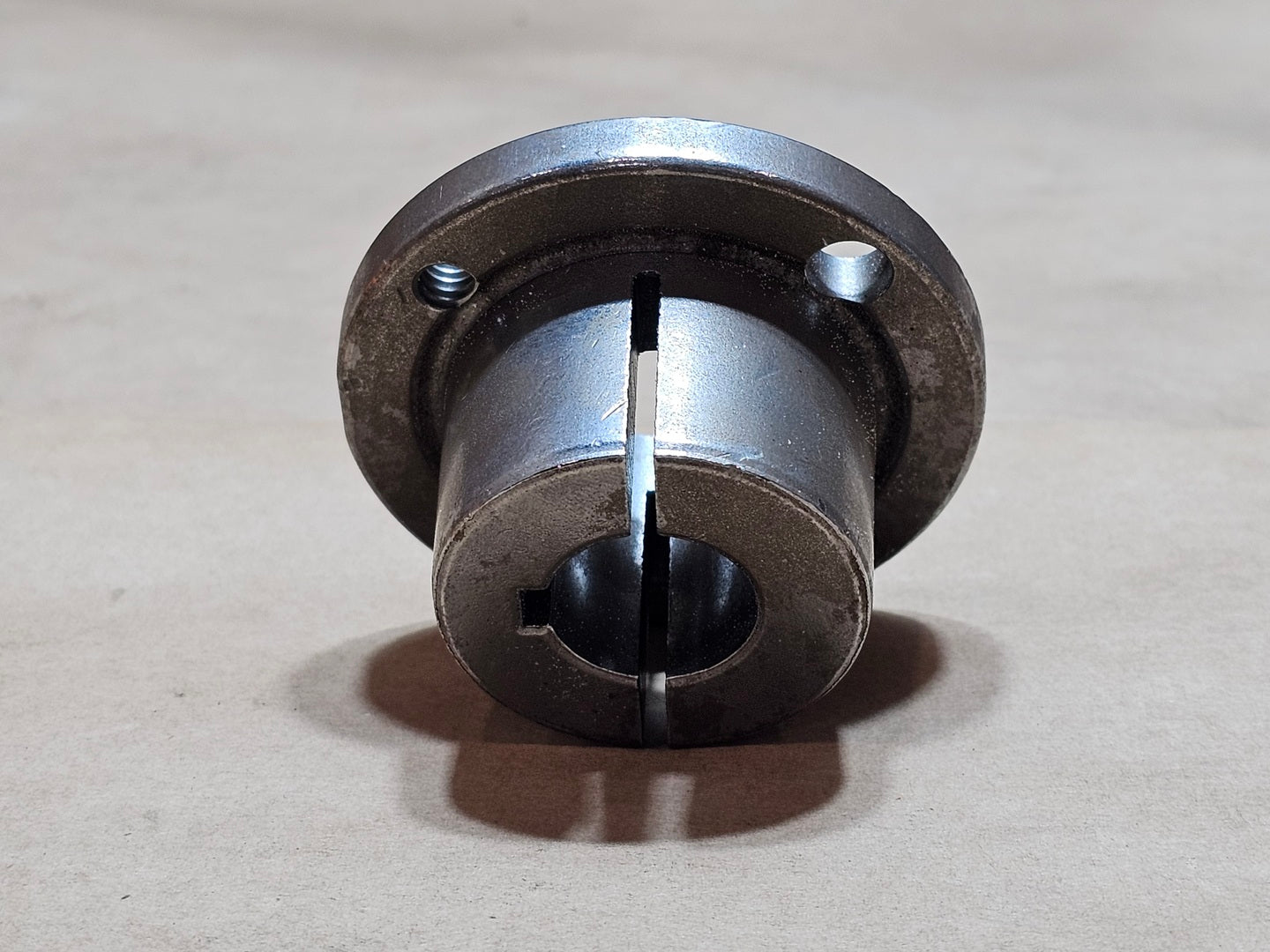

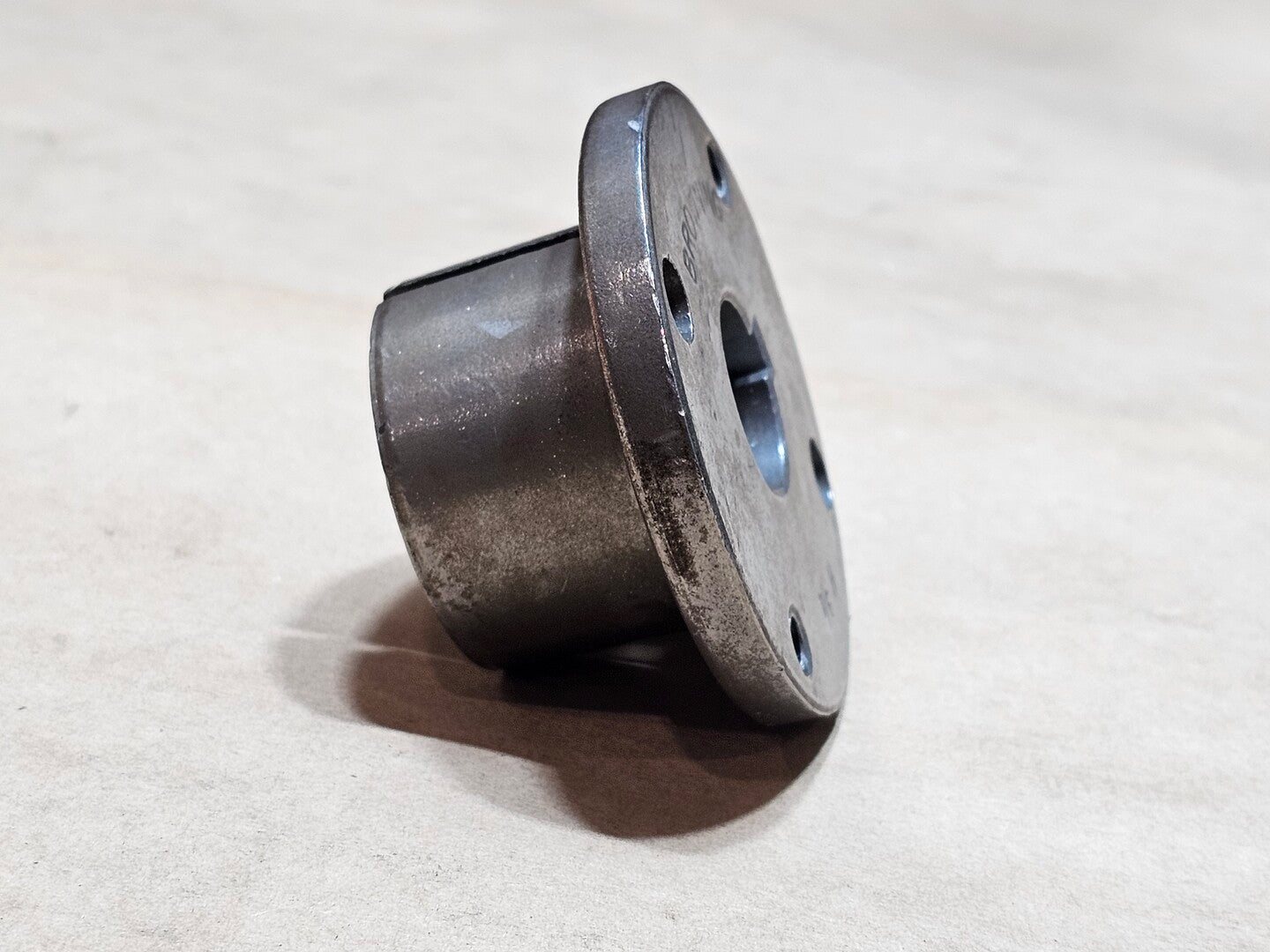

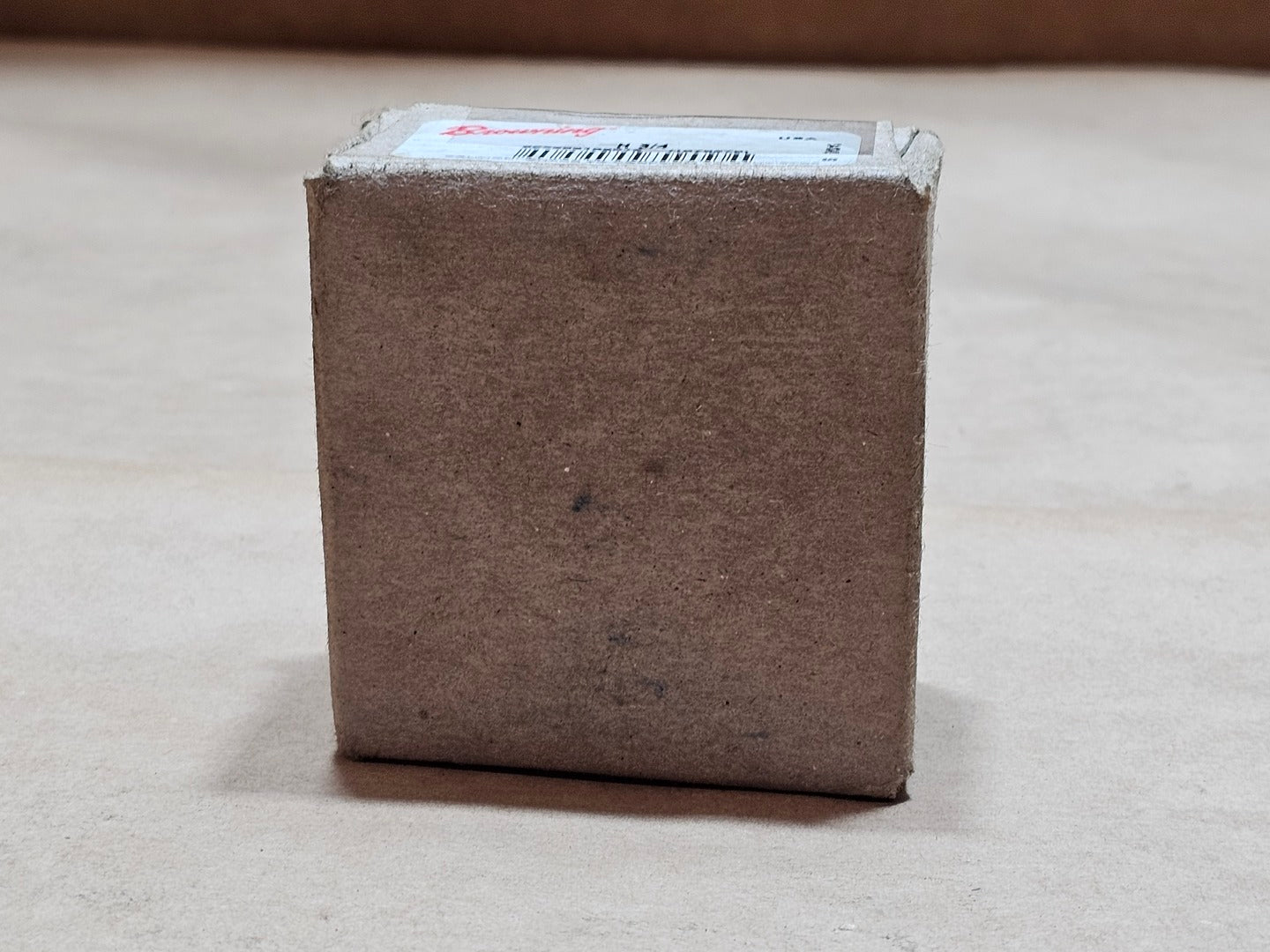

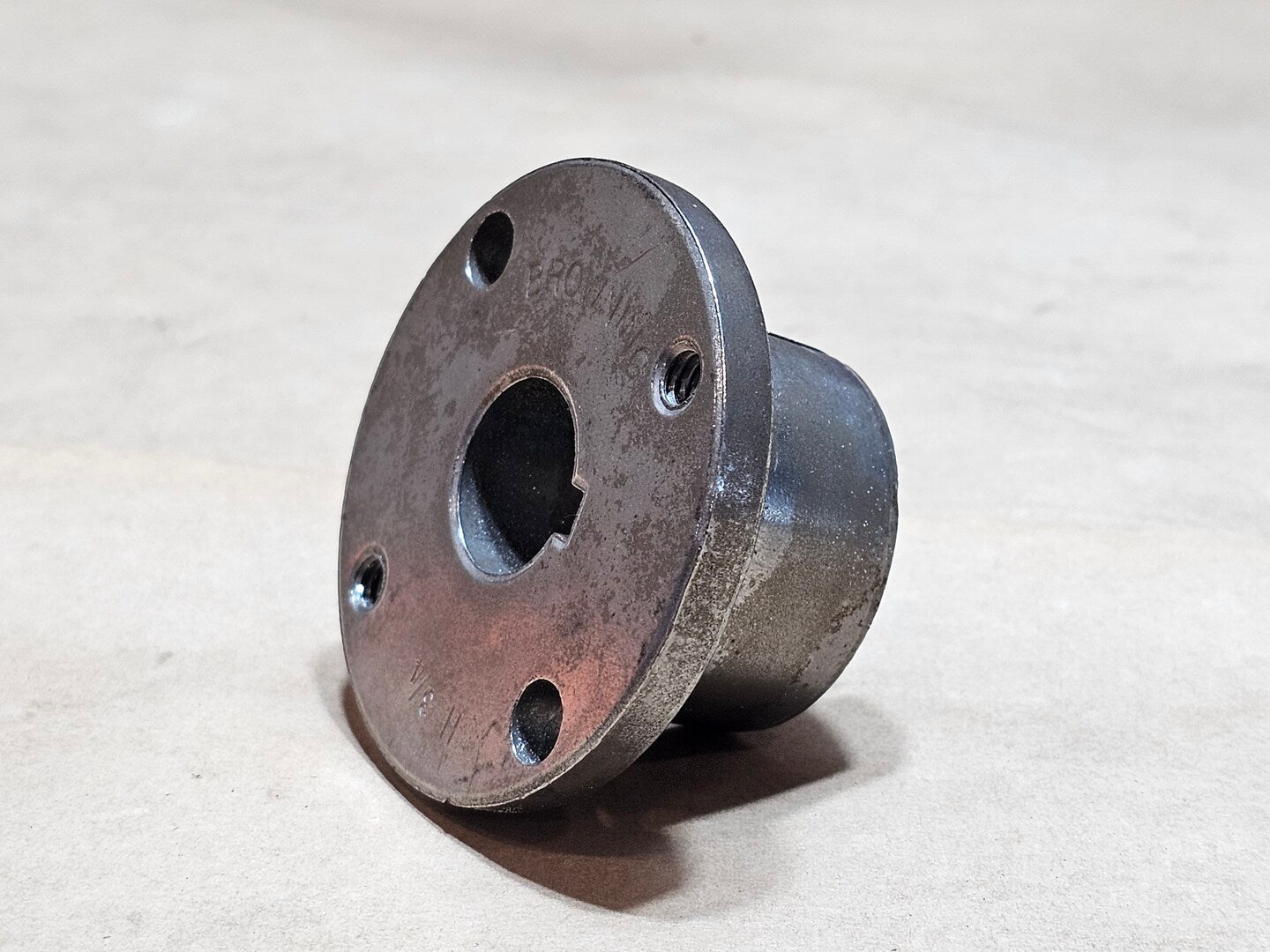

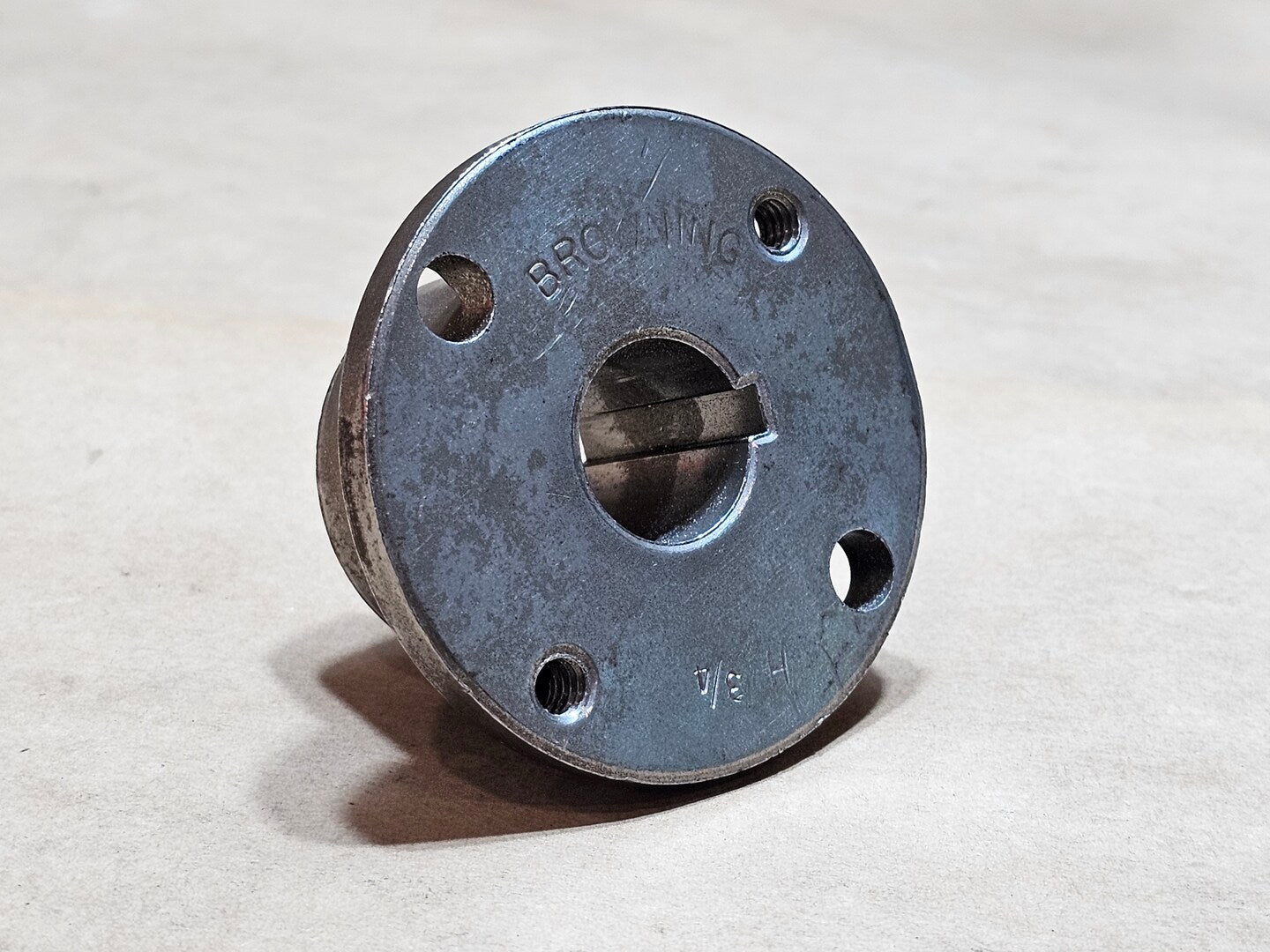

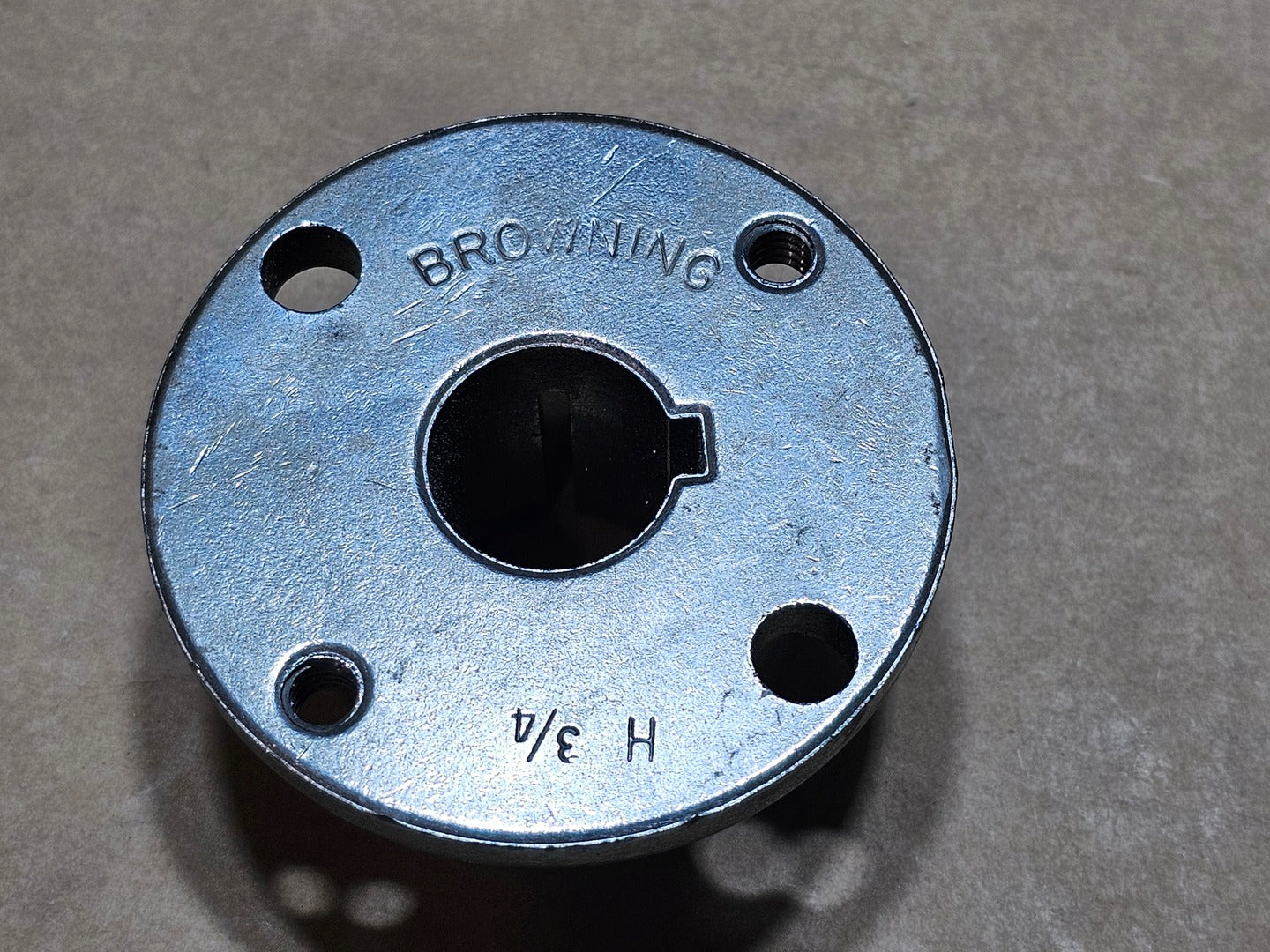

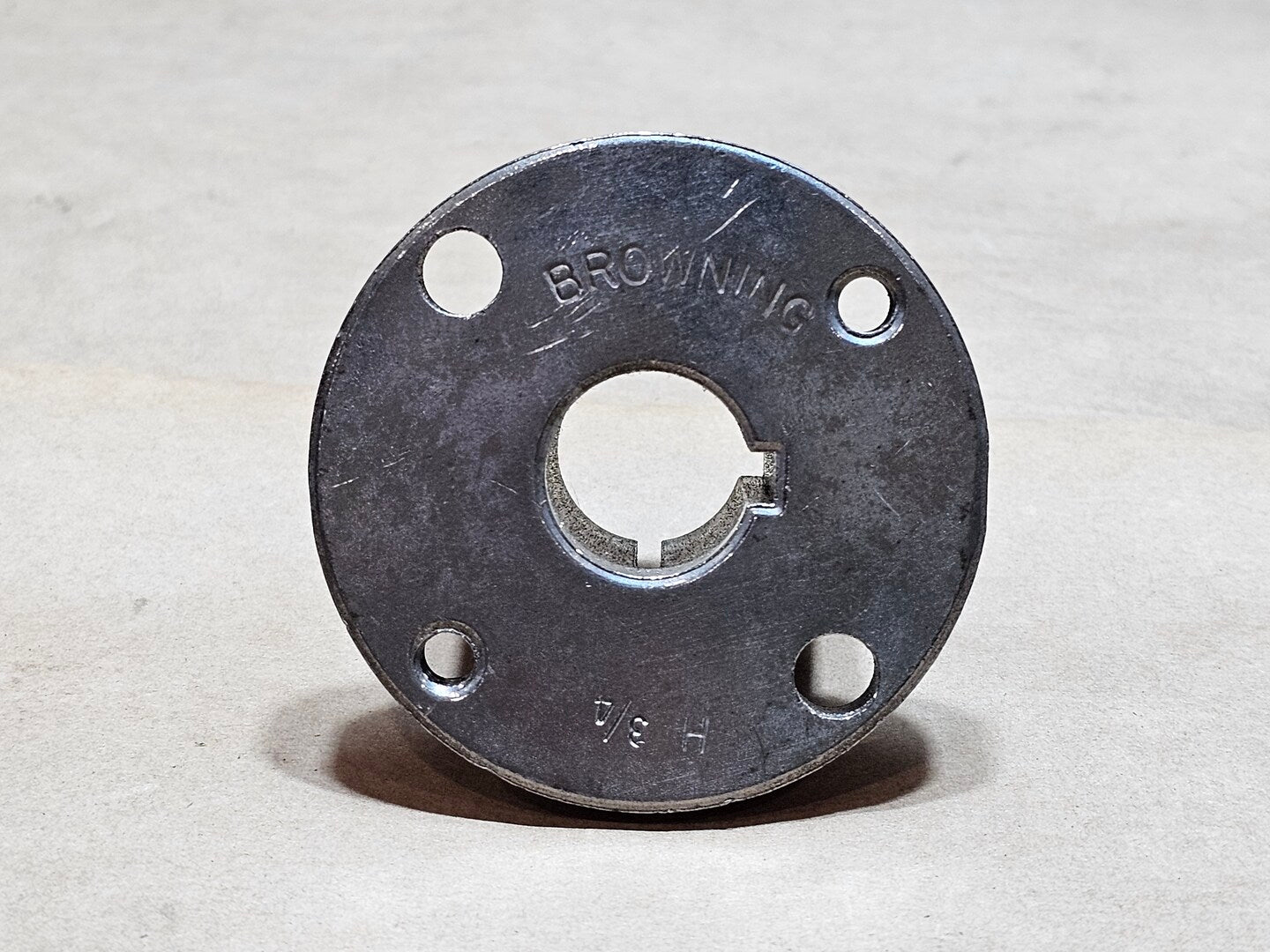

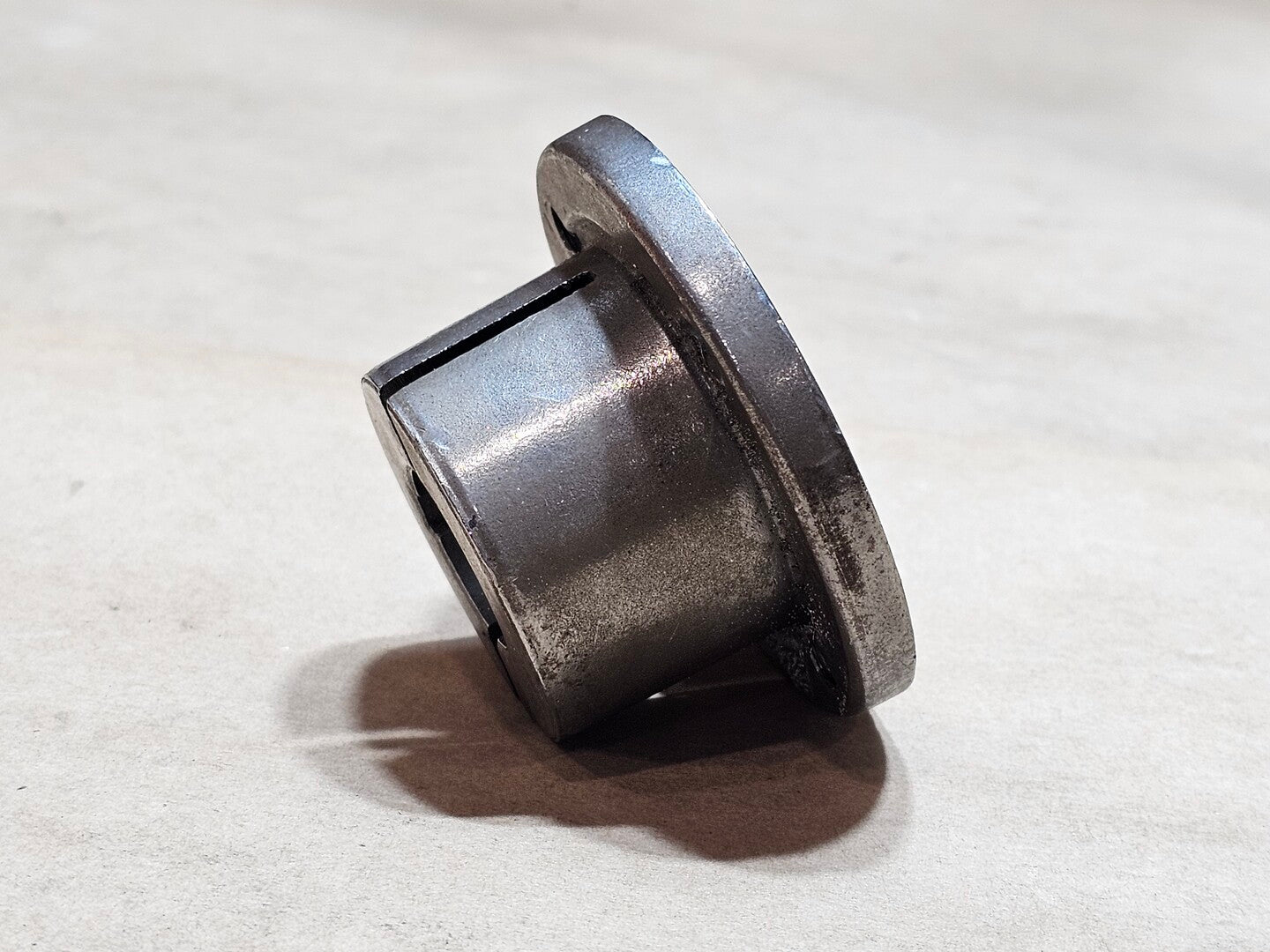

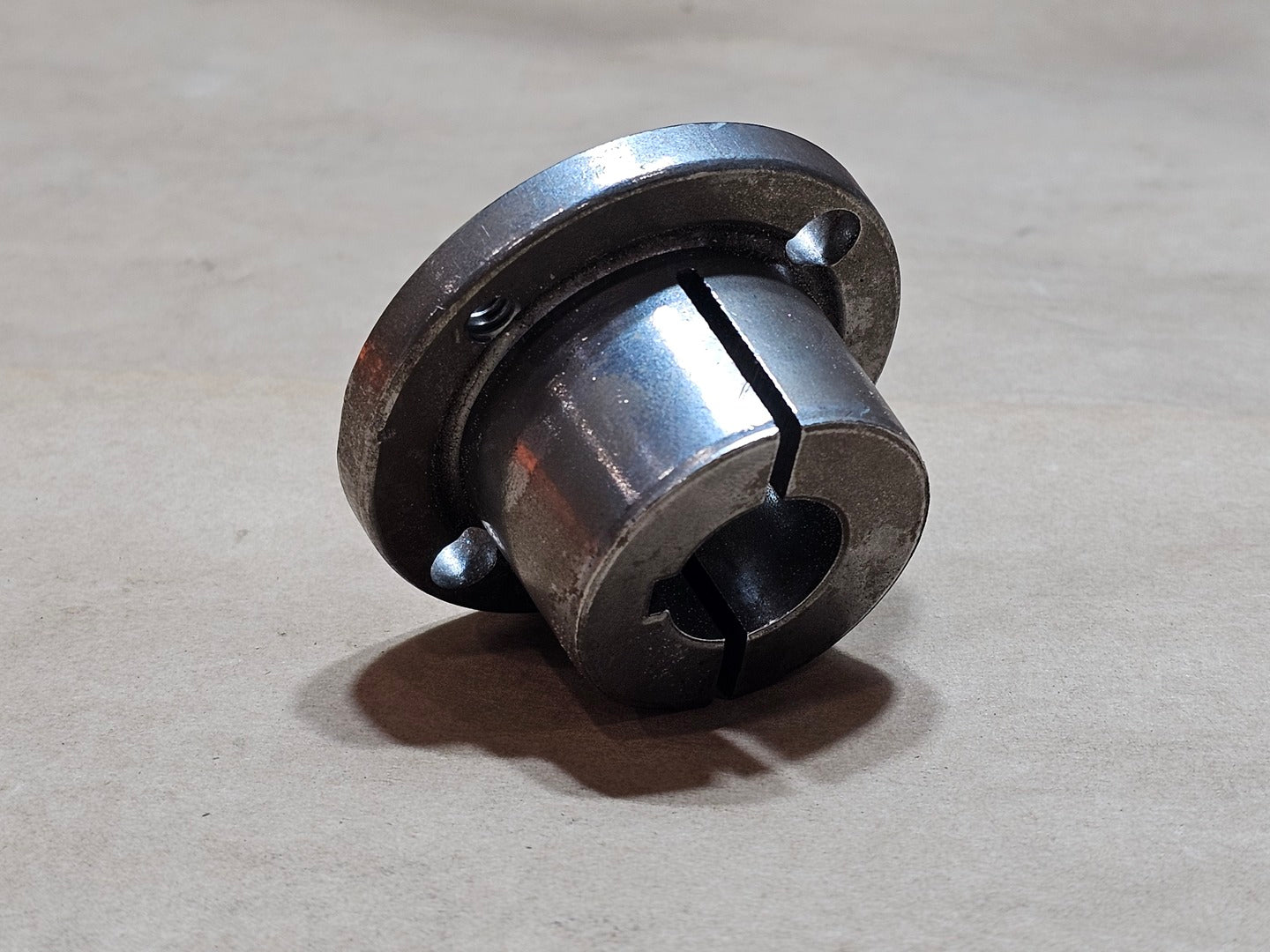

Browning H Series split taper bushing with a 3/4 inch finished bore for mounting pulleys, sheaves, sprockets, couplings, and similar rotating equipment to keyed shafts. Original Browning box included. Made in USA. The H-series bushing features a split tapered barrel for concentric shaft clamping and keyed positive drive. The box identifies Browning part number 1078278. Manufacturer specifications identify a 3/4 in bore, 1.25 in length through bore, and 2.50 in flange diameter.
| Specifications | |
|---|---|
| Model | H 3/4 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Type | Split Taper |
| Series | H |
| Bore Diameter | 3/4 " |
| Other Specifications |
|---|
|
Series: H Series Manufacturer Part Number: 1078278 Keyway: 3/16 x 3/32 in Material: Steel Flange Outside Diameter: 2.50 in Length Through Bore: 1.25 in Bolt Circle Diameter: 2.00 in Cap Screw Quantity: 2 Cap Screw Size: 1/4 x 3/4 in Recommended Screw Torque: 95 in-lb |
