Description
| Specifications | |
|---|---|

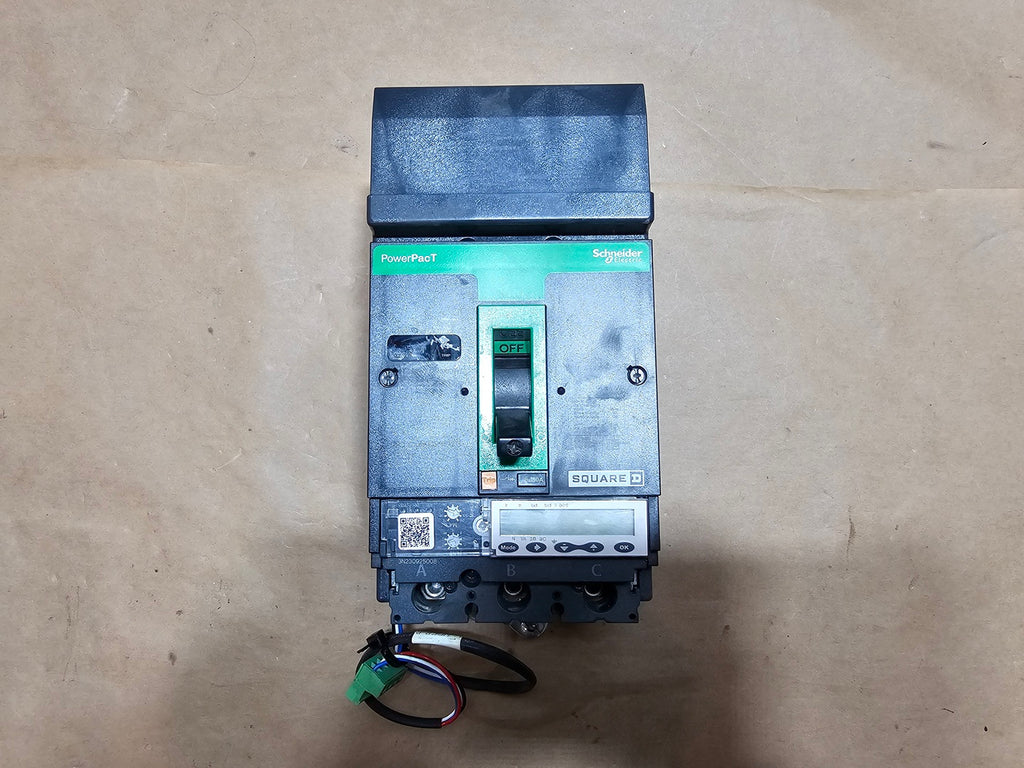

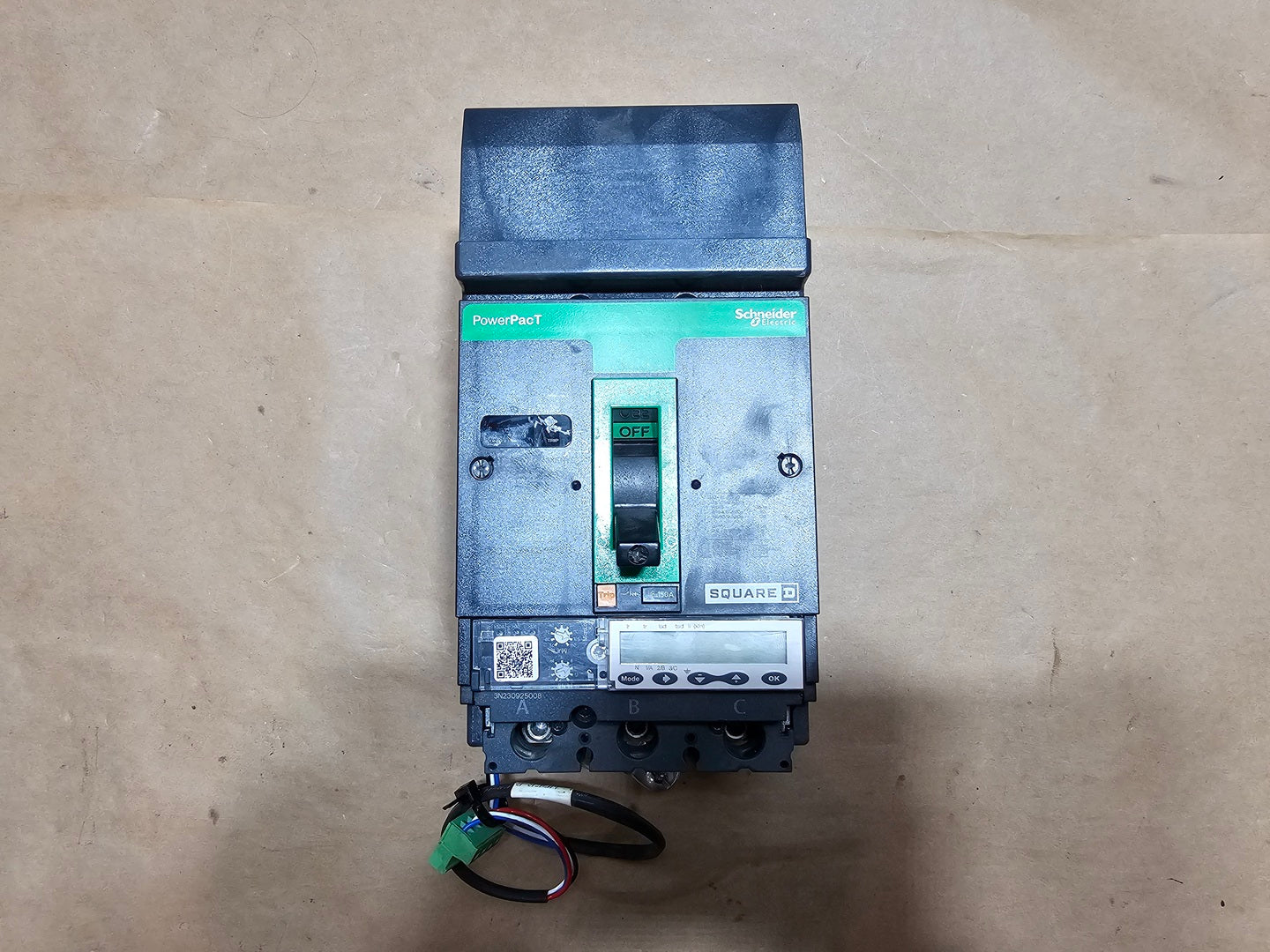

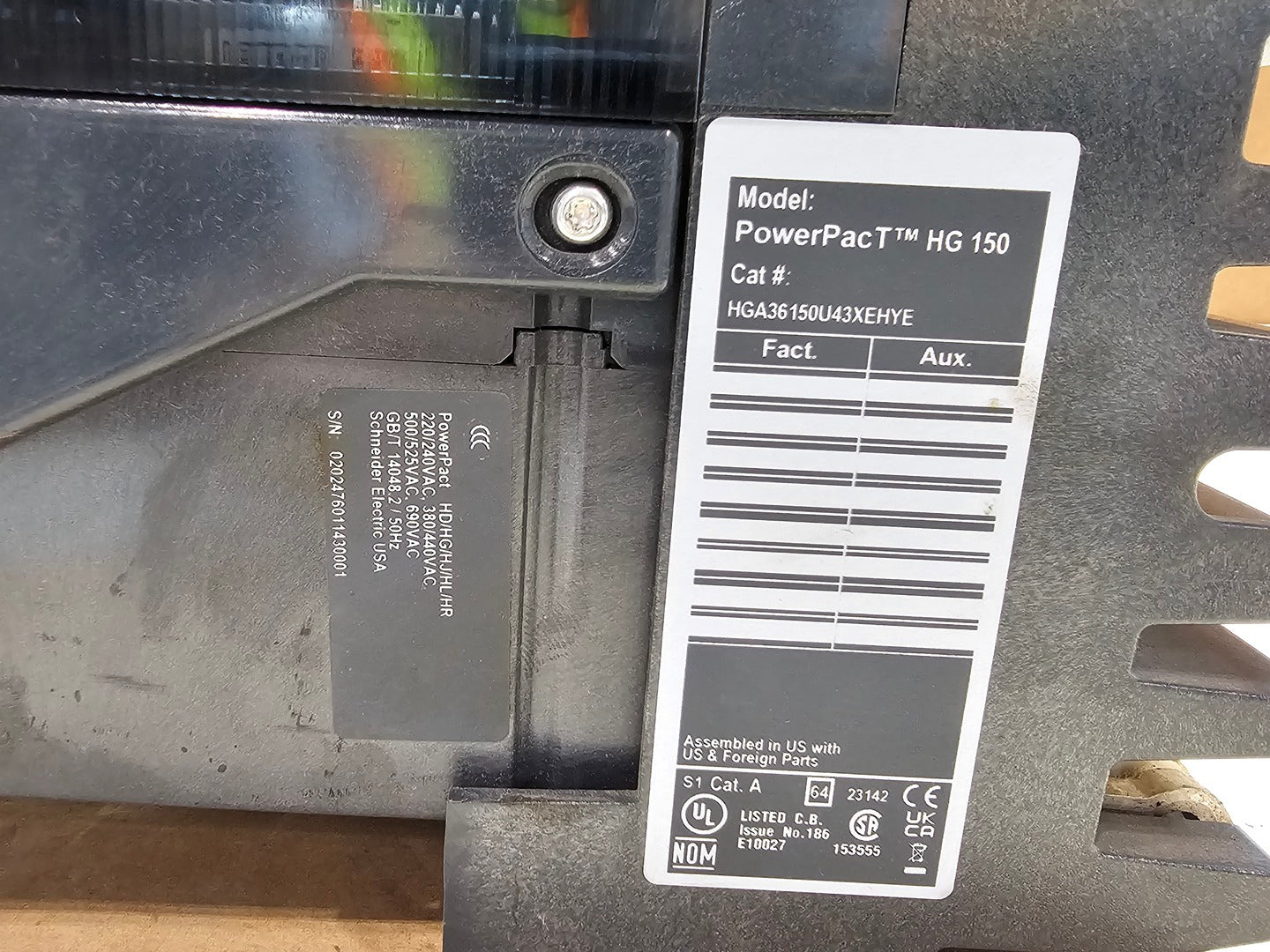

| Model | HGA36150U43XEHYE |

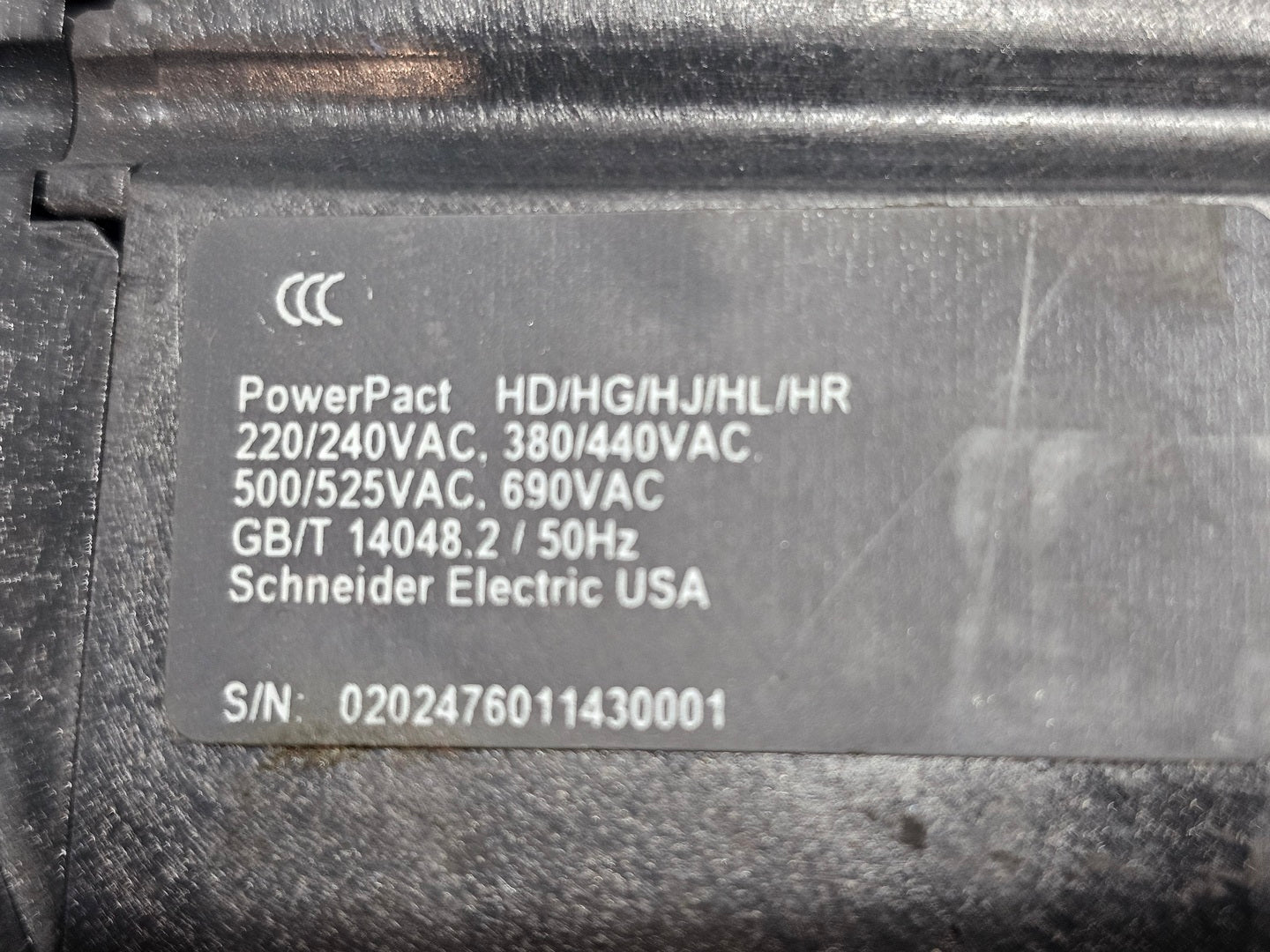

| S/N: | 0202476011430001 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Amps | 150 amps |
| Series | PowerPacT HG 150 |
| # of Poles | 3 |
| Mounting Style | Plug-In |
| Voltage | 600 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

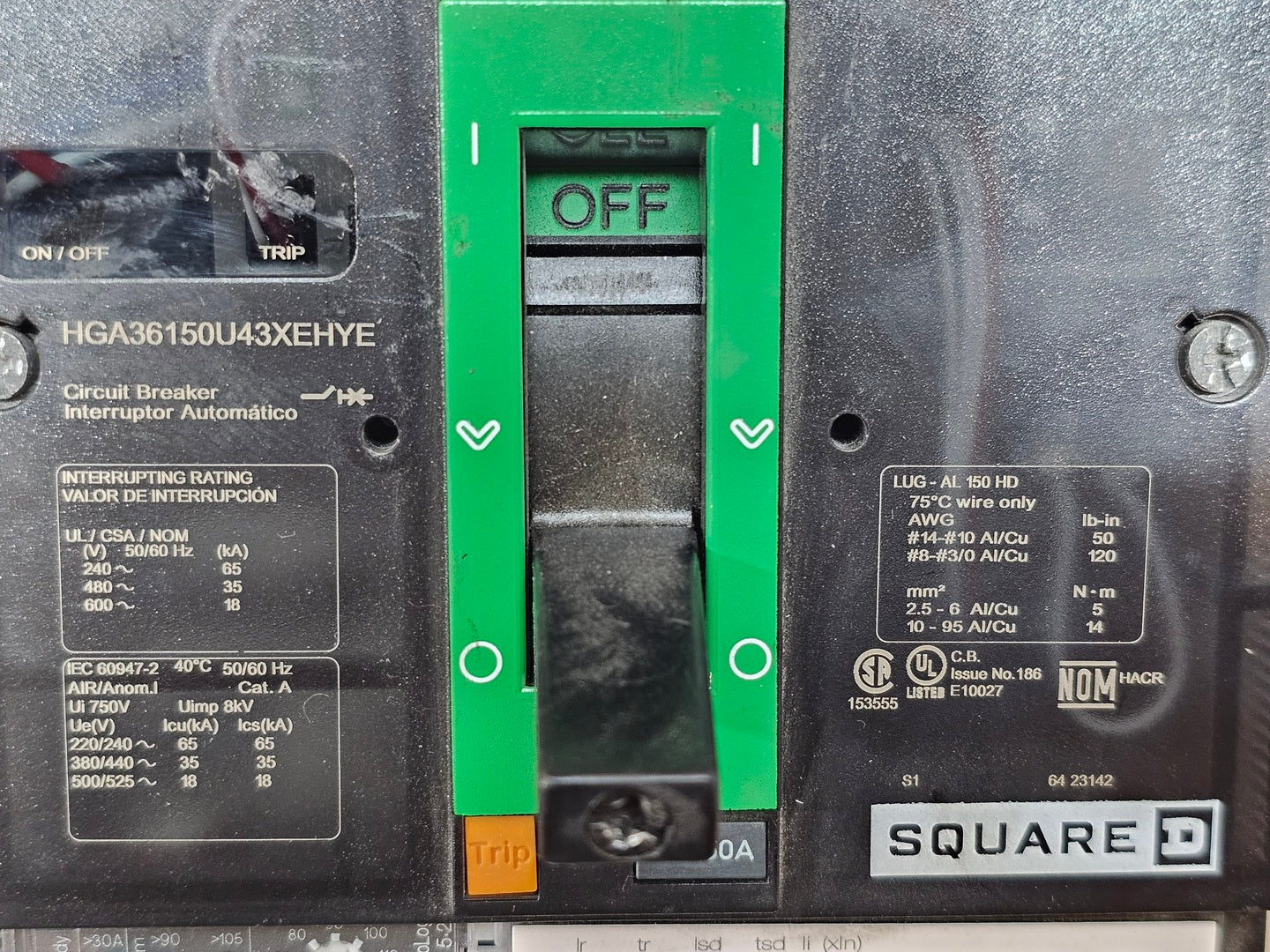

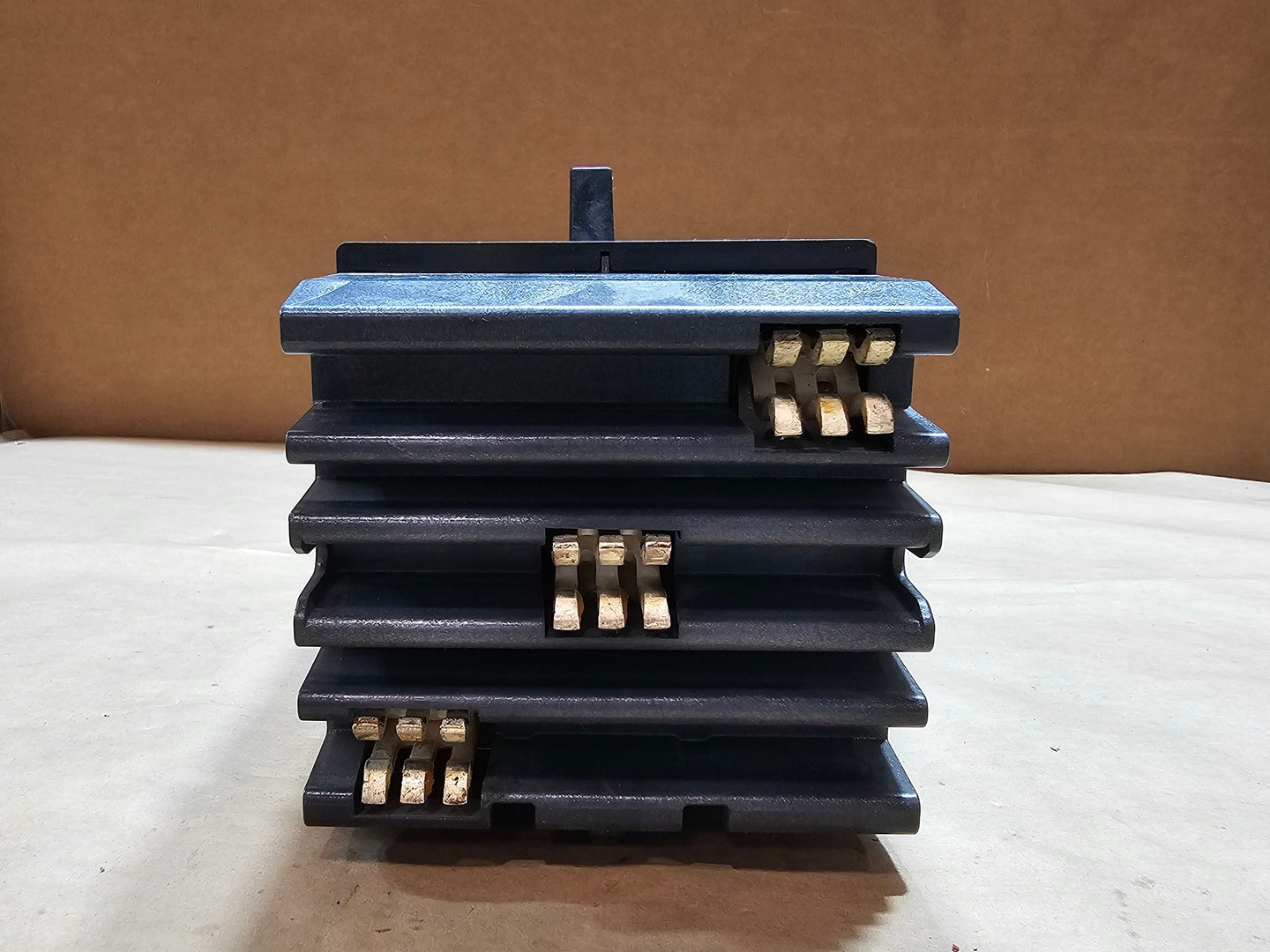

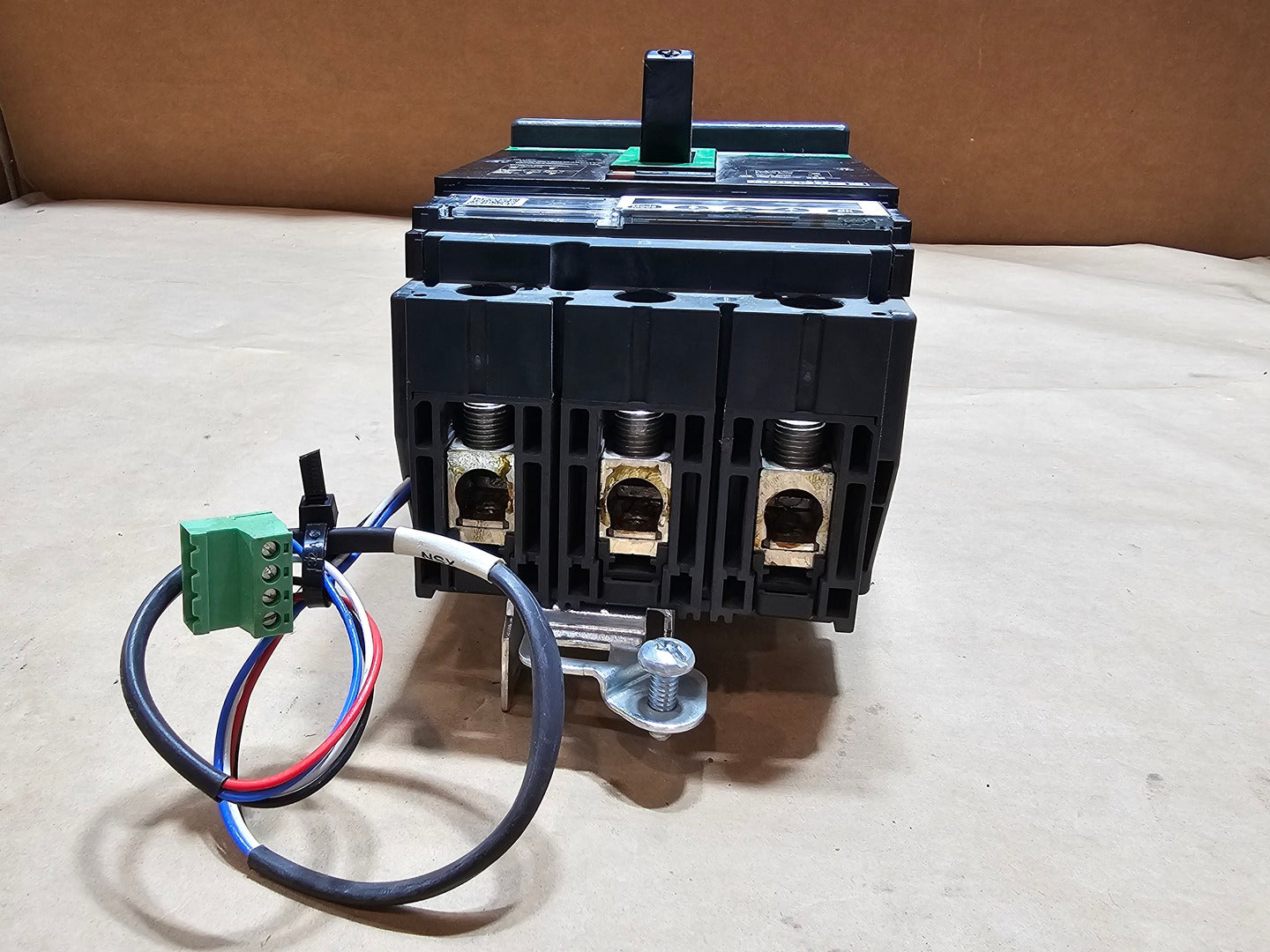

Equipment Type: Molded-case circuit breaker Frame Type: H-Frame Frequency: 50/60 Hz Continuous Current Rating: 80% Trip Technology: Solid-state electronic Trip Unit: Micrologic 5.2A Ammeter Protection Functions: LSI - long-time, short-time, and instantaneous protection Mounting Configuration: Square D I-Line plug-in Line-Side Connection: I-Line plug-in jaws Load-Side Connection: Mechanical lugs Interrupting Rating at 240VAC: 65kA Interrupting Rating at 480VAC: 35kA Interrupting Rating at 600VAC: 18kA IEC Rated Insulation Voltage: 750V IEC Rated Impulse Withstand Voltage: 8kV Operating Temperature Marking: 40C Utilization Category: Category A Terminal Type: AL 150 HD lugs Conductor Compatibility: Aluminum or copper Small Conductor Range: AWG 14-10 Al/Cu Large Conductor Range: AWG 8-3/0 Al/Cu Small Conductor Torque: 50 lb-in Large Conductor Torque: 120 lb-in |
