Description
| Specifications | |
|---|---|

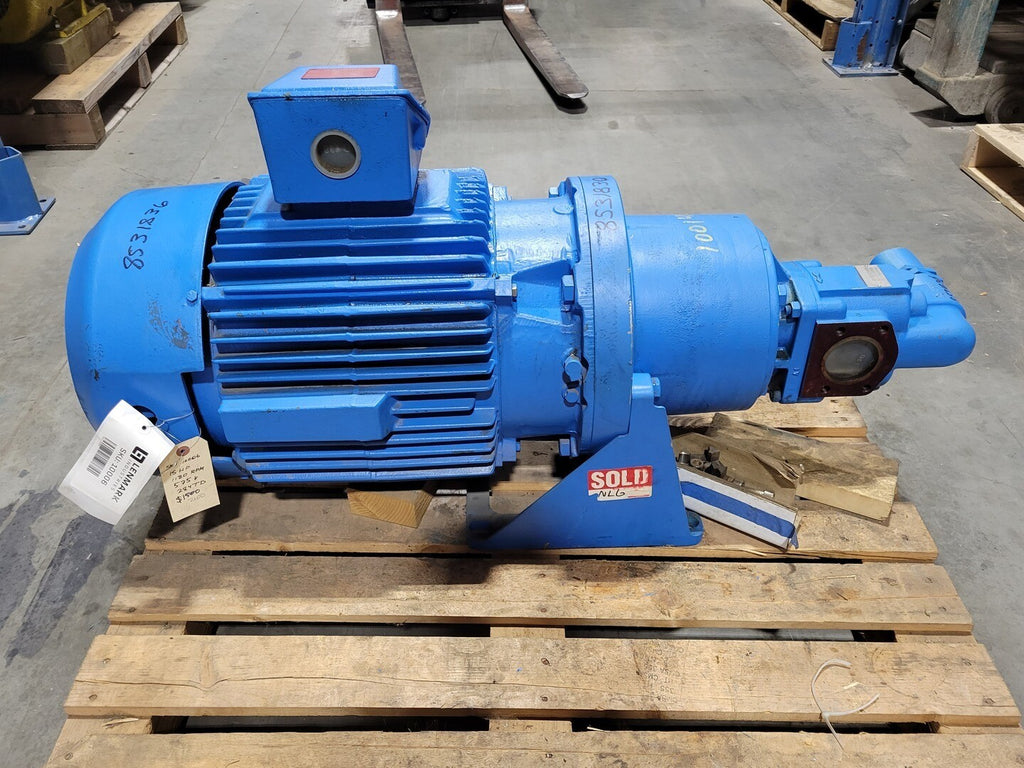

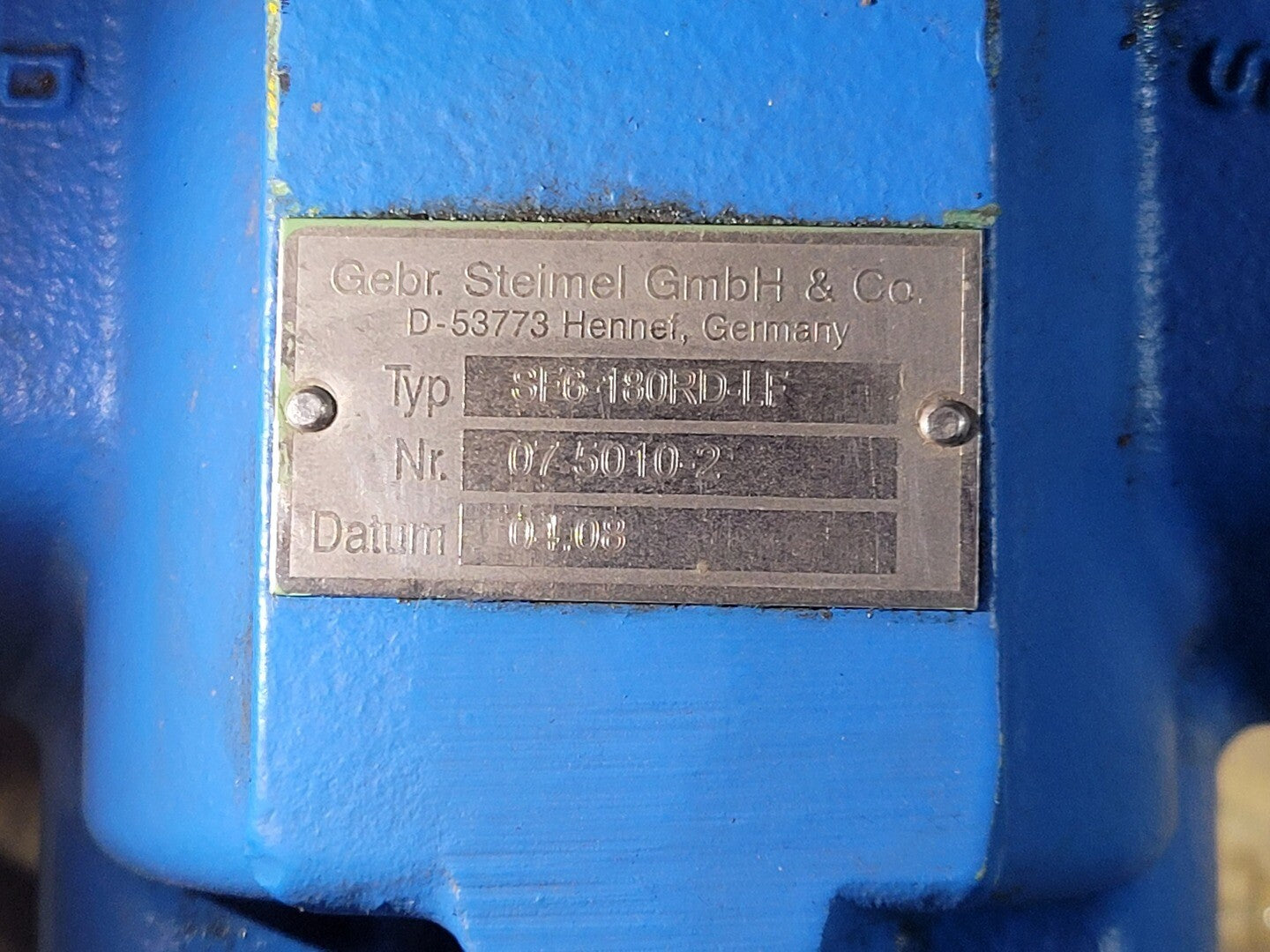

| Model | SF6-180RD-LF |
| Made In | GERMANY |
| Condition | Used |
| Other Specifications |
|---|
|
Type: Gear Pump Series: SF Displacement: 210L/min Operating Pressure: 5 bar (relief: 2-16 bar) Speed: 1200 rpm Construction: Robust: ion-nitrided gears, FKM seals, GG-25 housing Pump Housing Material: EN-GJL-250 (GG-25) Gears: 16 Mn Cr S 5, noise-optimized, helical, ion-nitrided (EN-GJS-400-15/ GGG-40) Shaft Seal: Radial Elastomer: FKM Media: Lubricating oil, 50-5000 cSt Viscosity Range: 50-5000 cSt Operating Temperature: 10 - 60 deg. C Pressure Relief Valve: 2 - 16 bar adjustment, opening at 8 bar Rotation: Right- Hand Test Run: Conducted with HLPD 46 Coupling: BKUA080-2441-302 Pump Support: BLF056355185LA11, M20 motor mounting thread Motor Compatibility: Three-phase NEMA 256 TD, D-flange (similar to IM B5), 15 hp Finish: Primed |
