Description

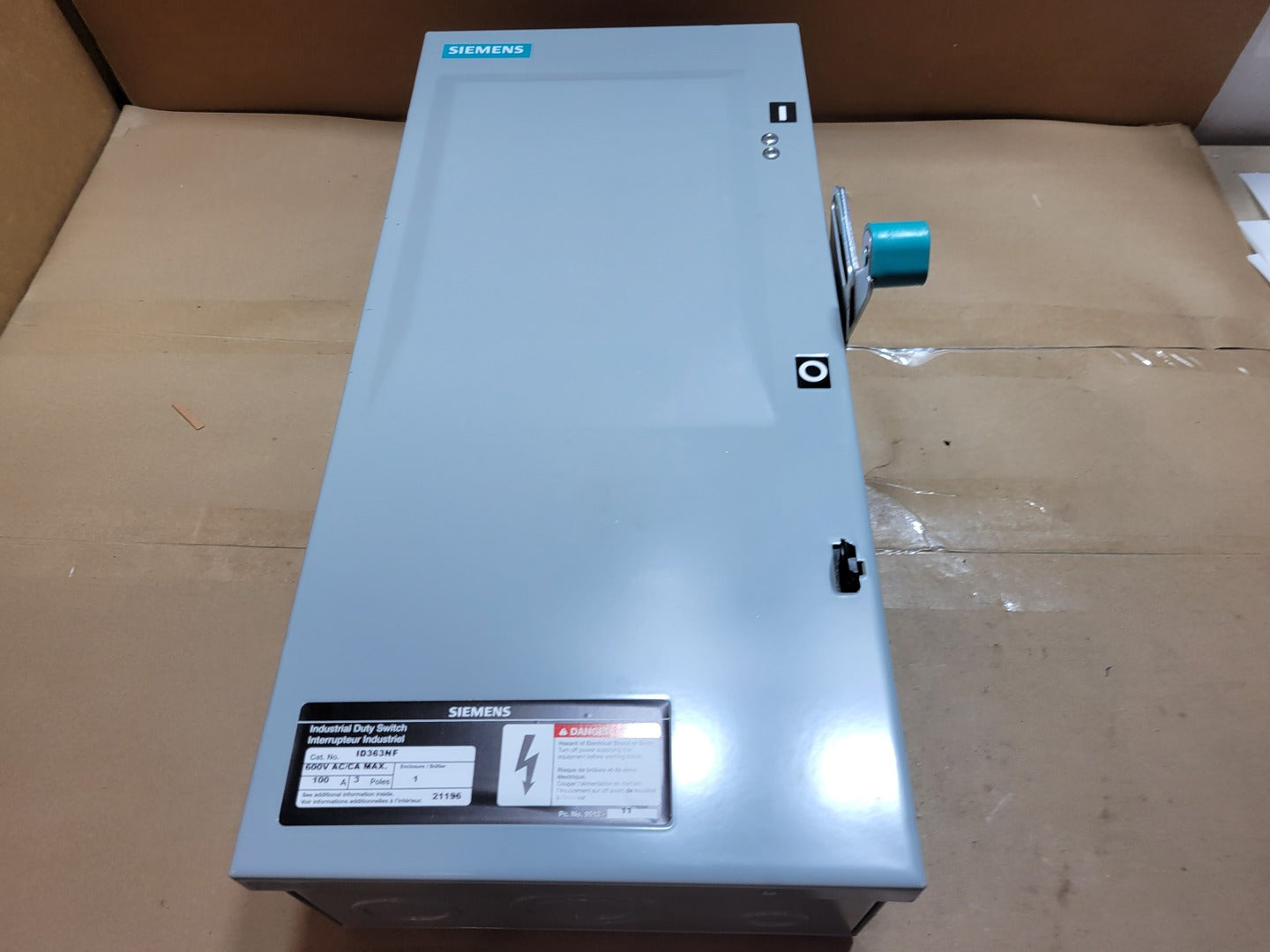

Siemens ID363NF industrial-duty non-fusible safety disconnect switch rated 100A, 600V AC, 3-pole, with a Type 1 indoor metal enclosure. Features an external manual operating handle, hinged access door, door interlock, and three-pole switching mechanism. Designed for industrial electrical isolation and equipment disconnect applications. Surplus new condition with minor storage and handling marks.
| Specifications | |
|---|---|
| Model | ID363NF |
| Made In | CANADA |
| Condition | Surplus New | Electrical |
| Amps | 100 amps |
| Voltage | 600 volts |
| Fused | Non-Fused |
| Other Specifications |
|---|
|
Number of Poles: 3 Enclosure Type: Type 1 (NEMA 1) Enclosure Material: Painted Steel Enclosure Color: Gray Operating Mechanism: External Manual Handle Door Interlock: Yes Line Terminal Wire Range: #6 AWG to 2/0 AWG Copper/Aluminum, 60/75°C Load Terminal Wire Range: #14 AWG to 1/0 AWG Copper/Aluminum, 60/75°C DC Rating: Not Suitable for DC Applications Mounting: Surface / Wall Mount |
