What's Included:

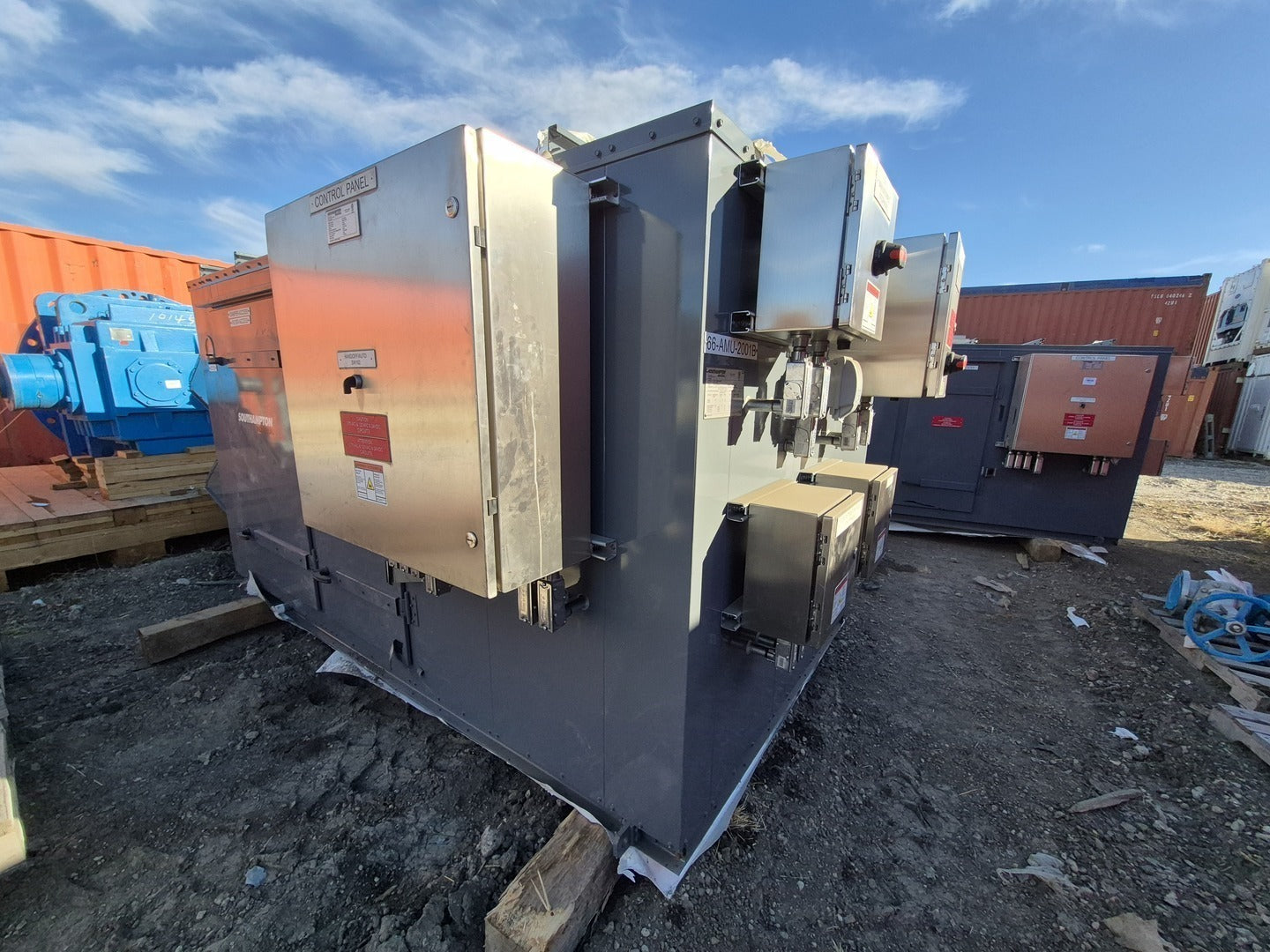

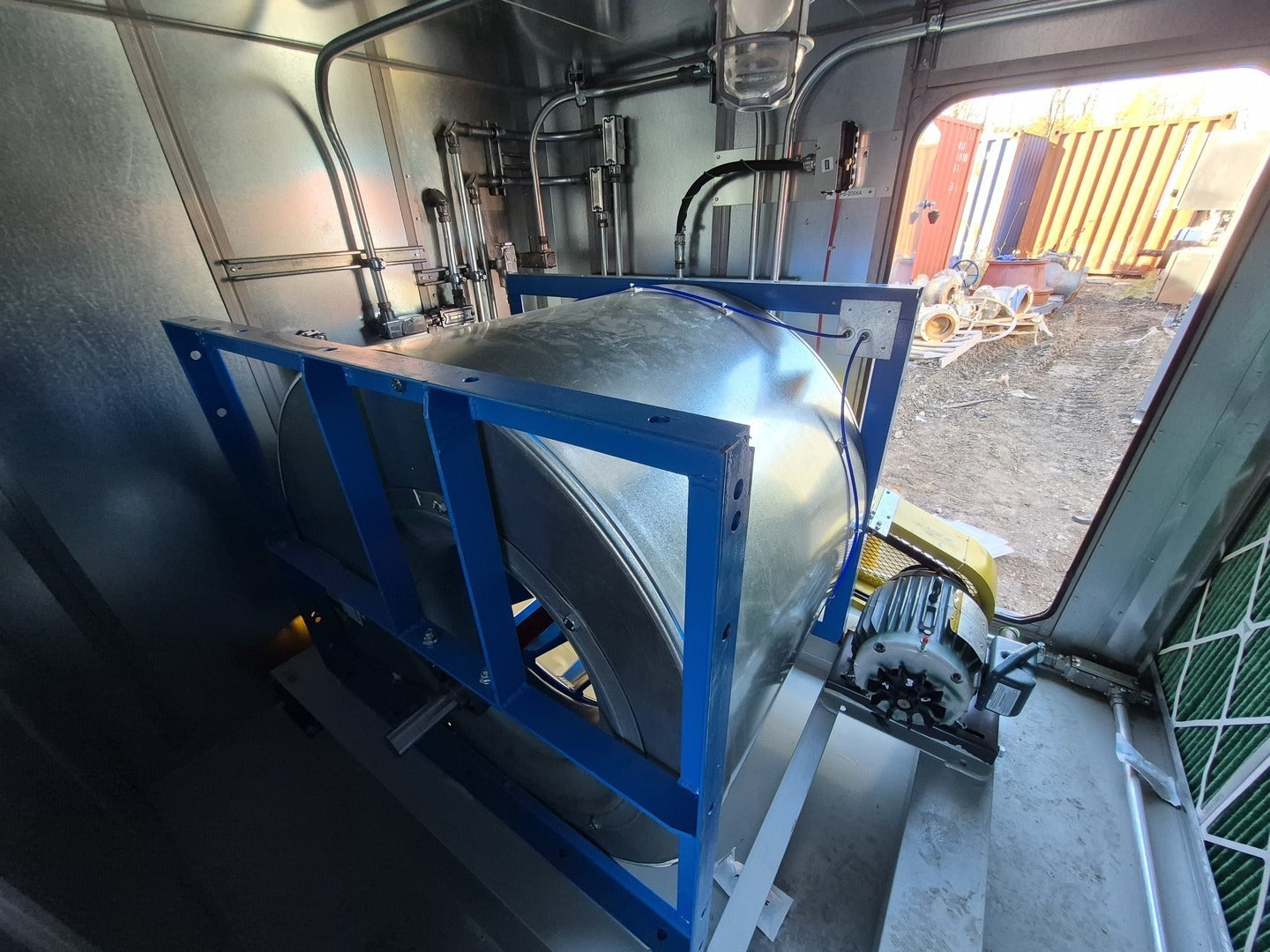

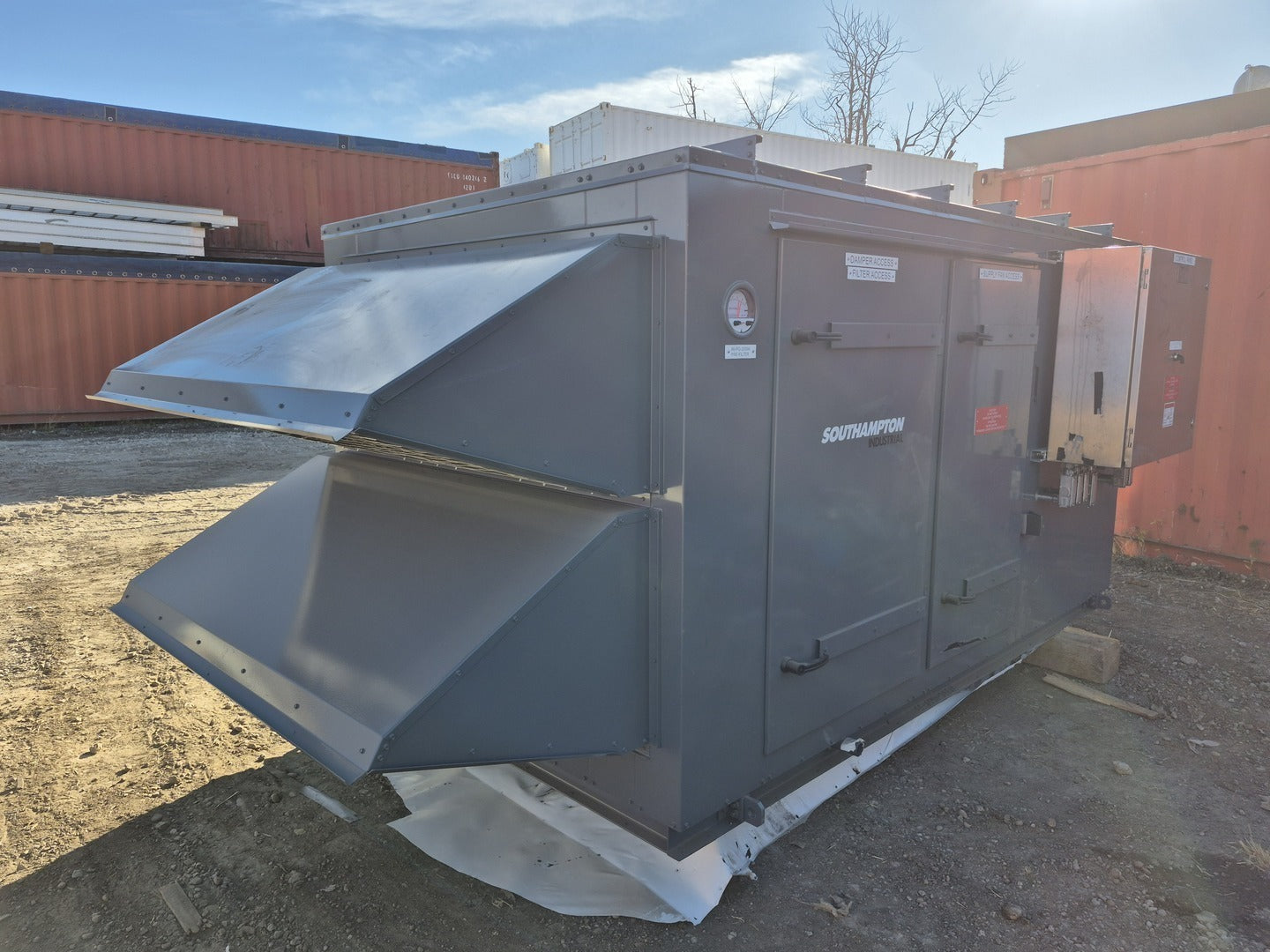

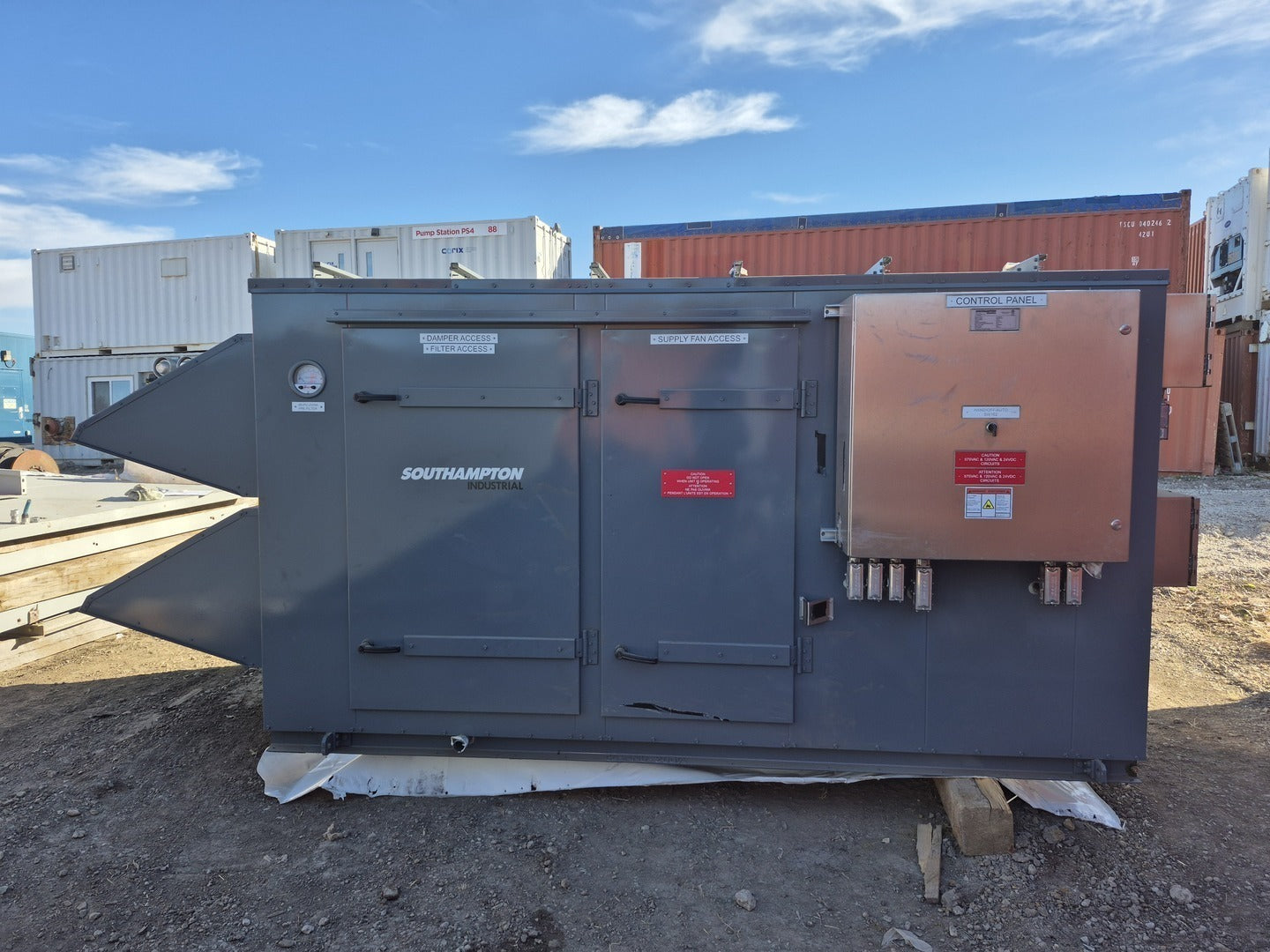

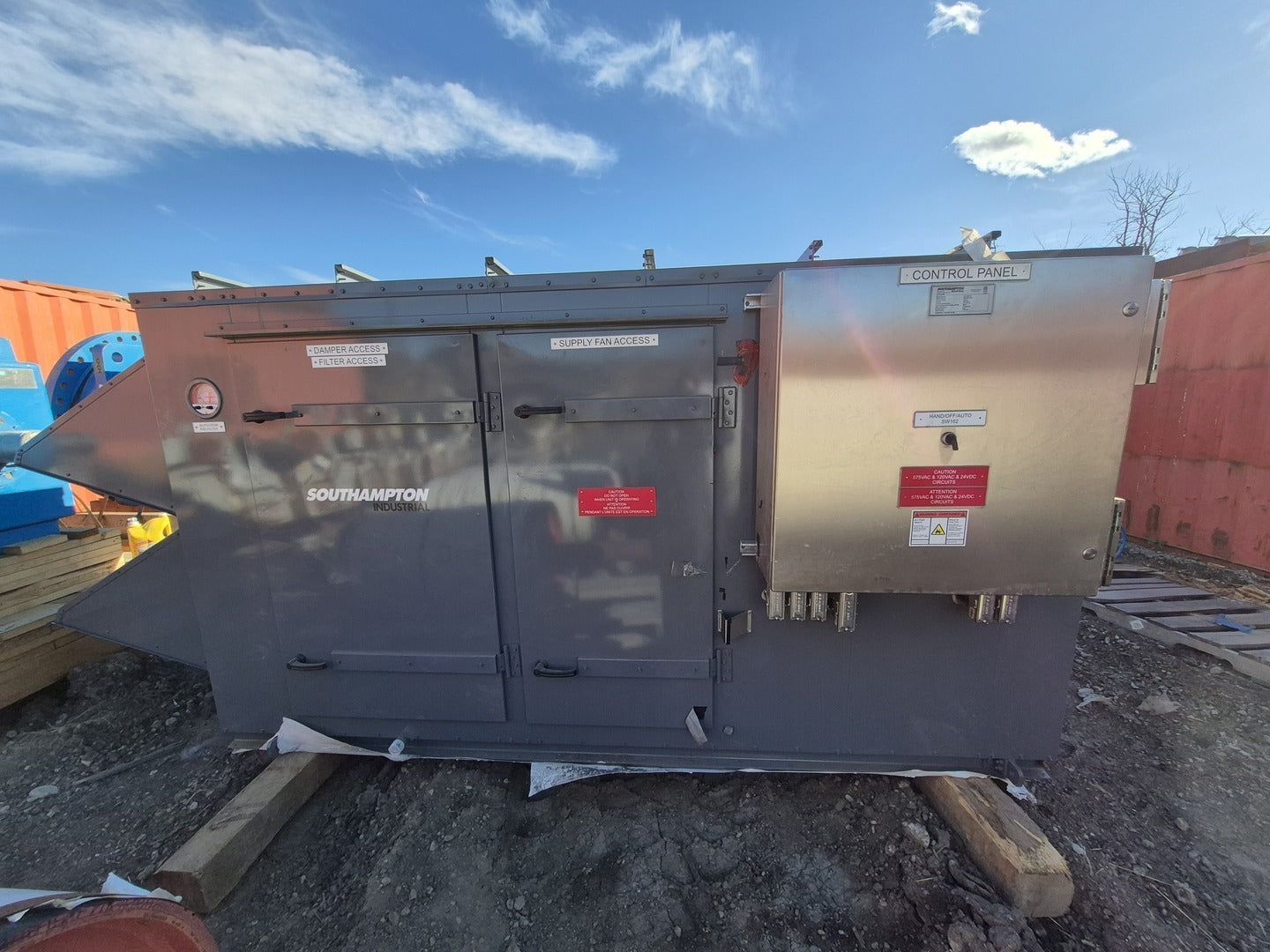

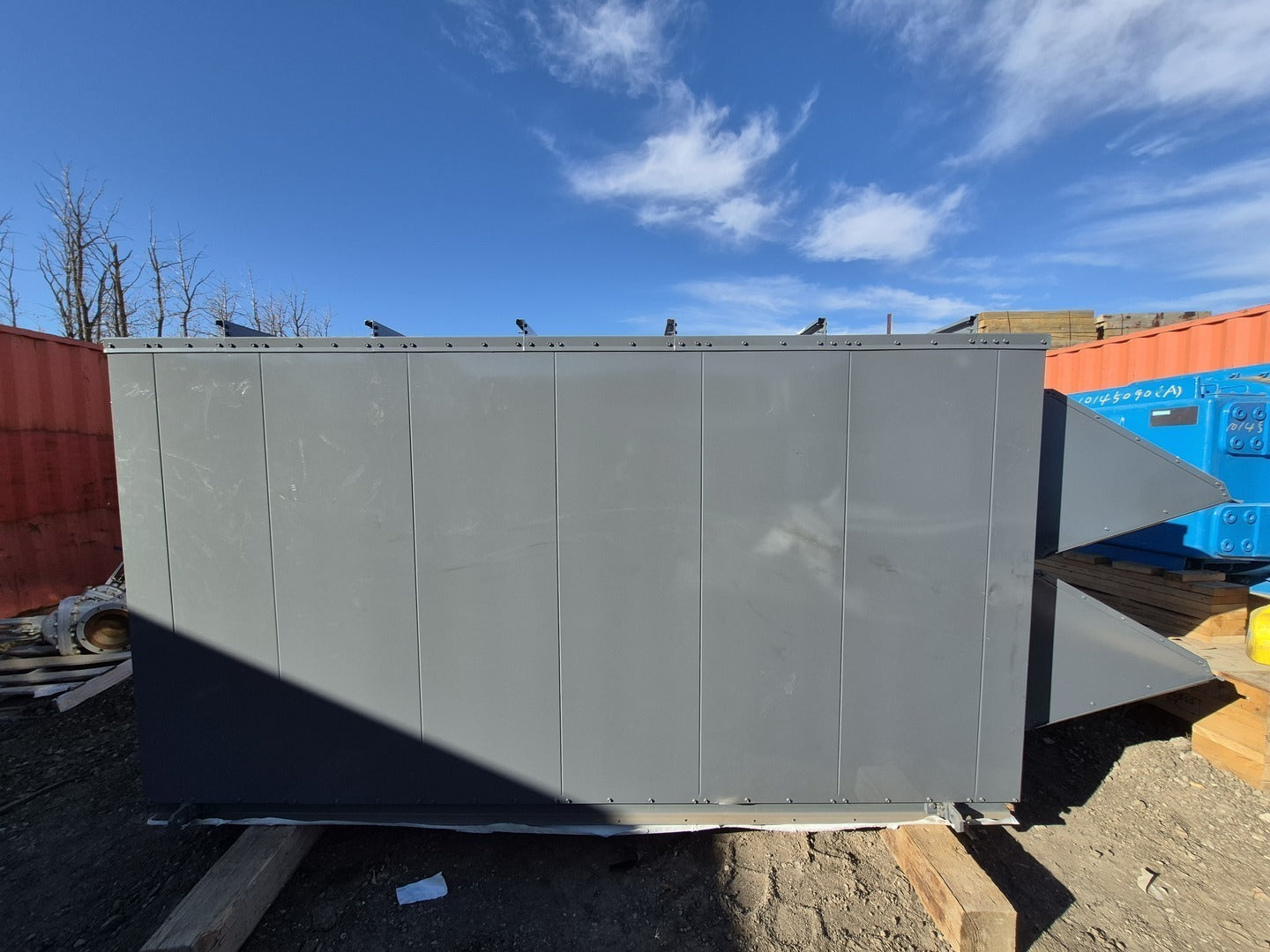

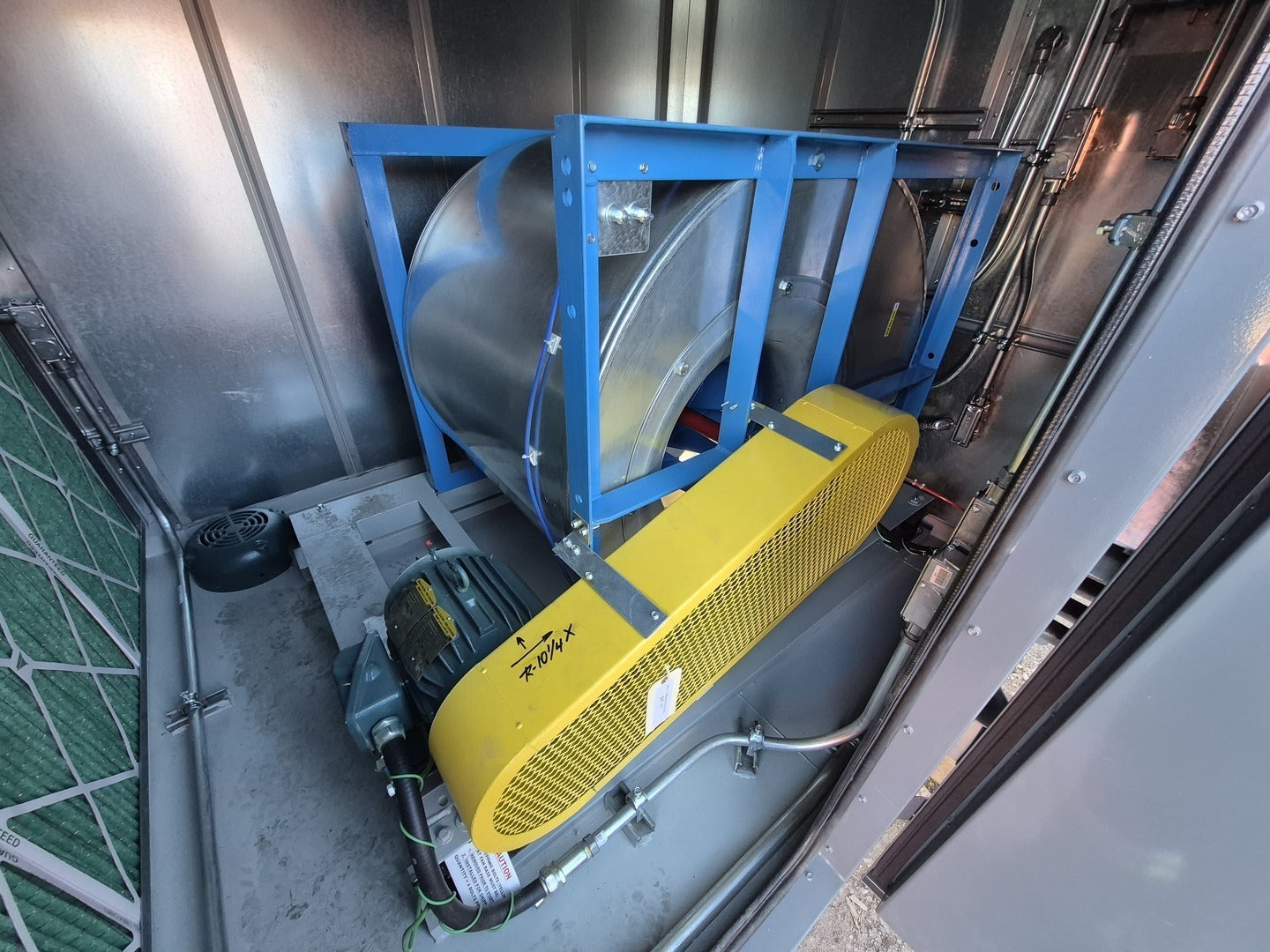

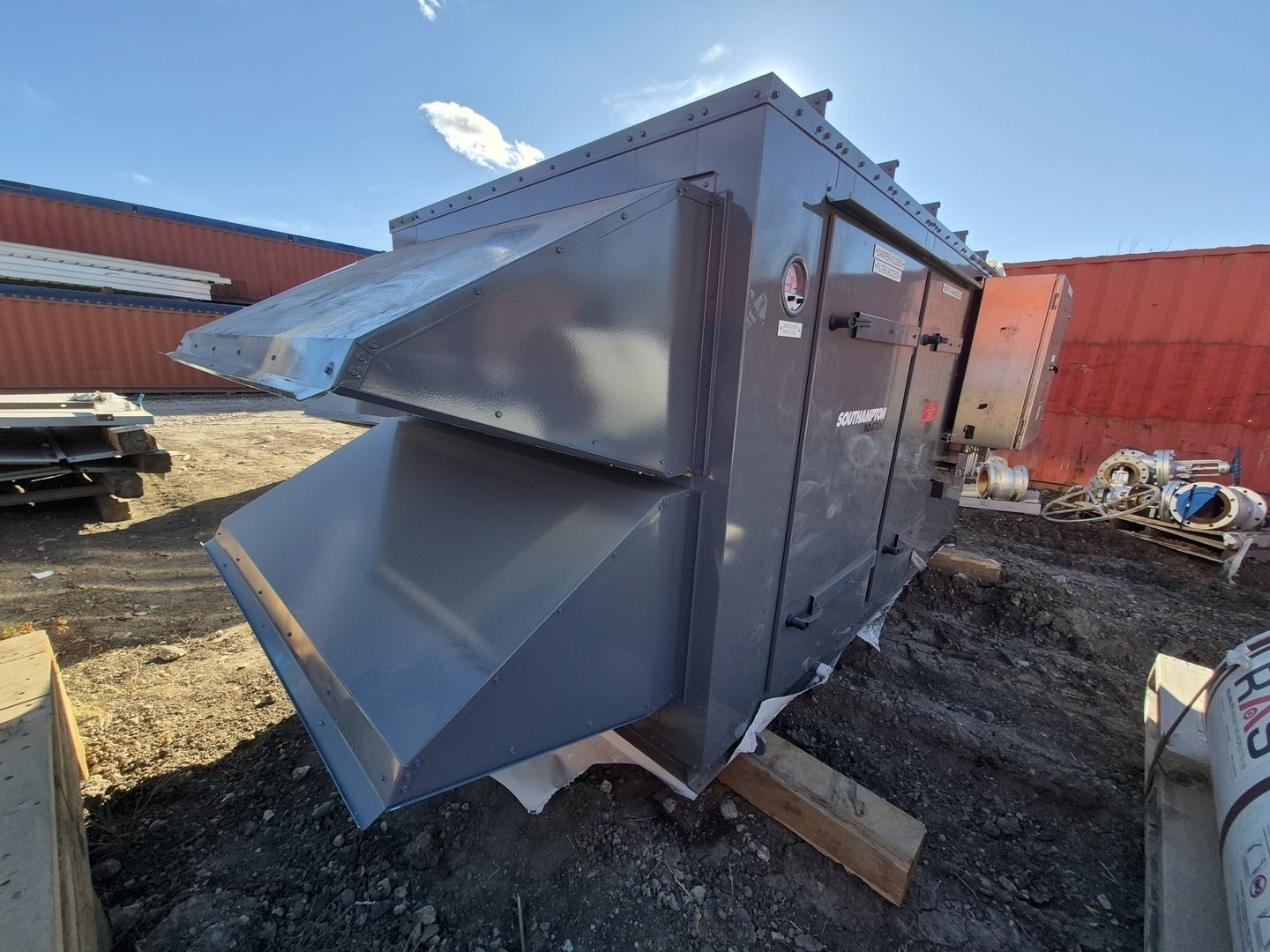

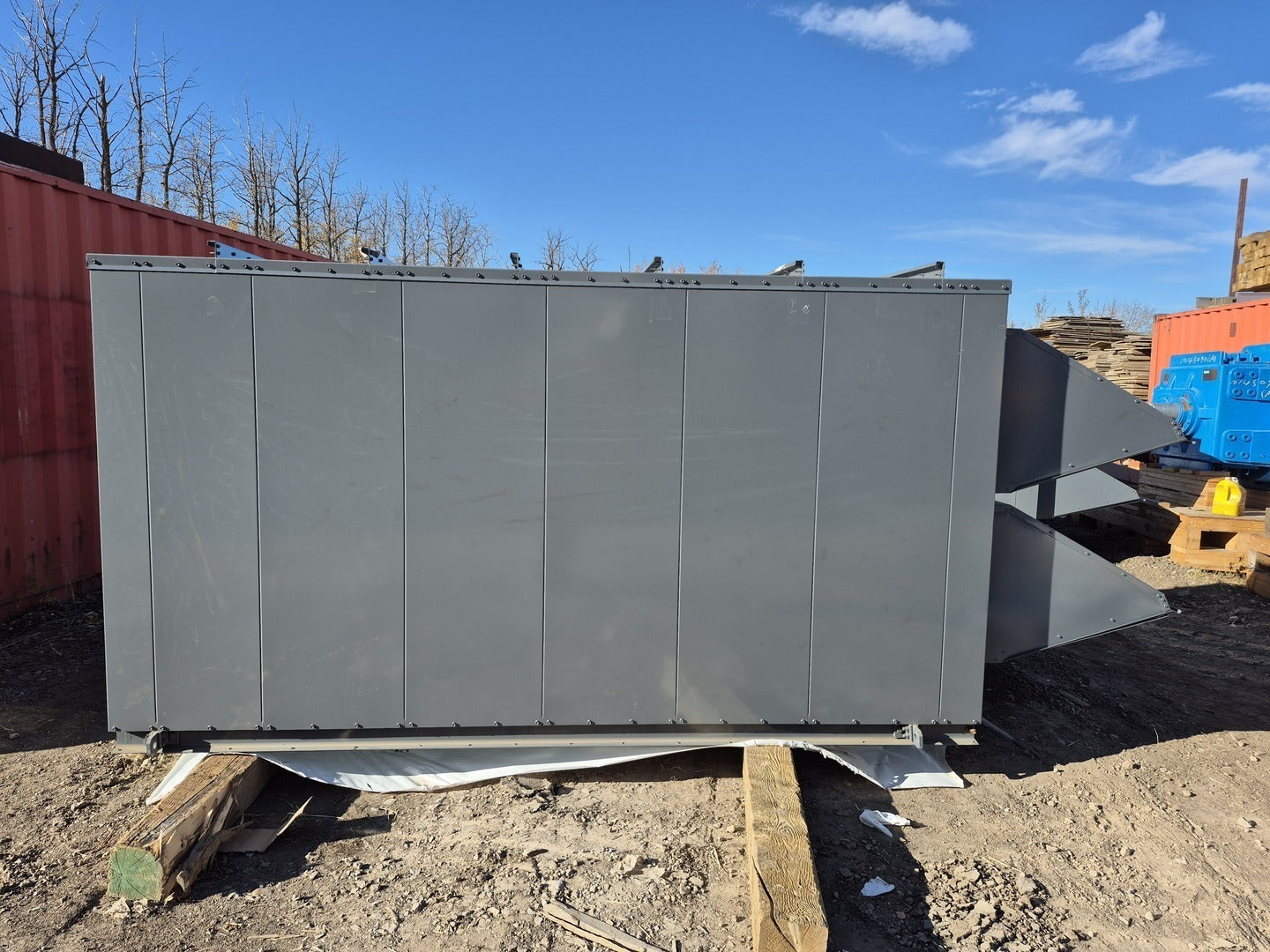

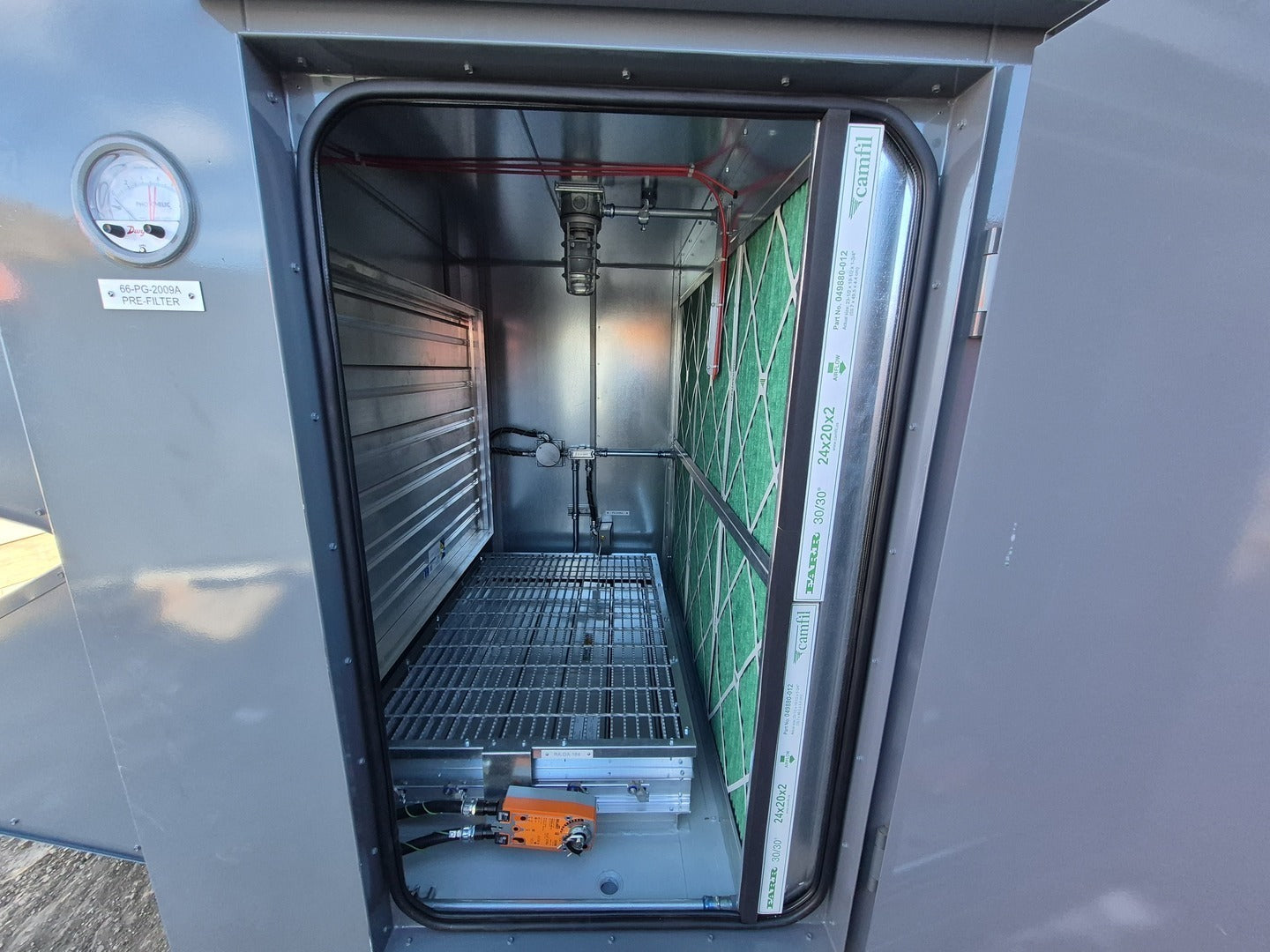

2 x Make-Up Air Unit / Air Mixing Units (Ref. 145473, 145474):
-
Make: SOUTHAMPTON
-

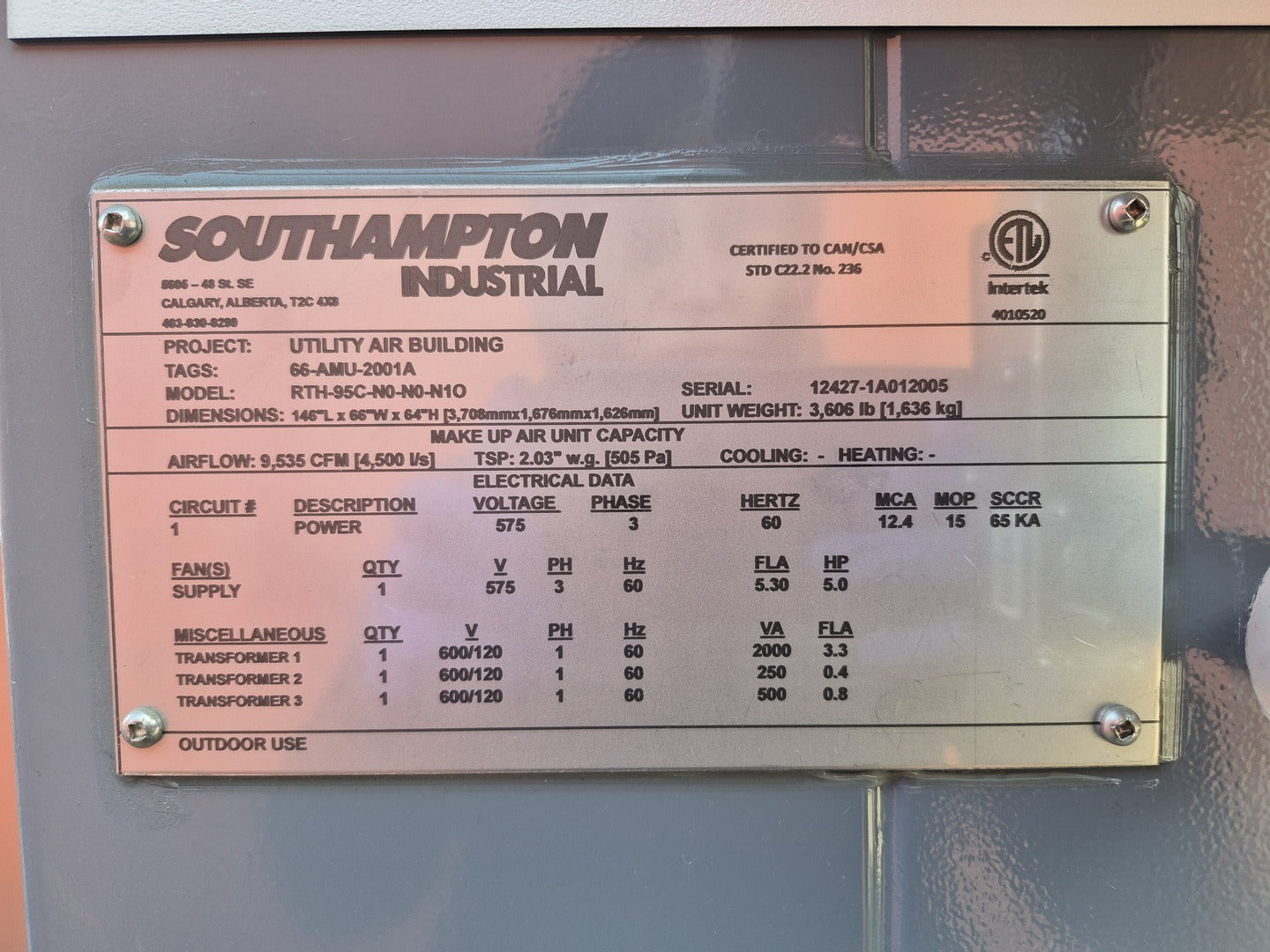

Model: RTH-95C-N0-N0-N10
-
Serial(s): 12427-1A012005 / 12427-1B022005
-
Airflow: 9,535 CFM (4,500 l/s)
-
TSP: 2.03in. w.g. (505 Pa)
-
Electrical: 575V, 3-Ph, 60hz

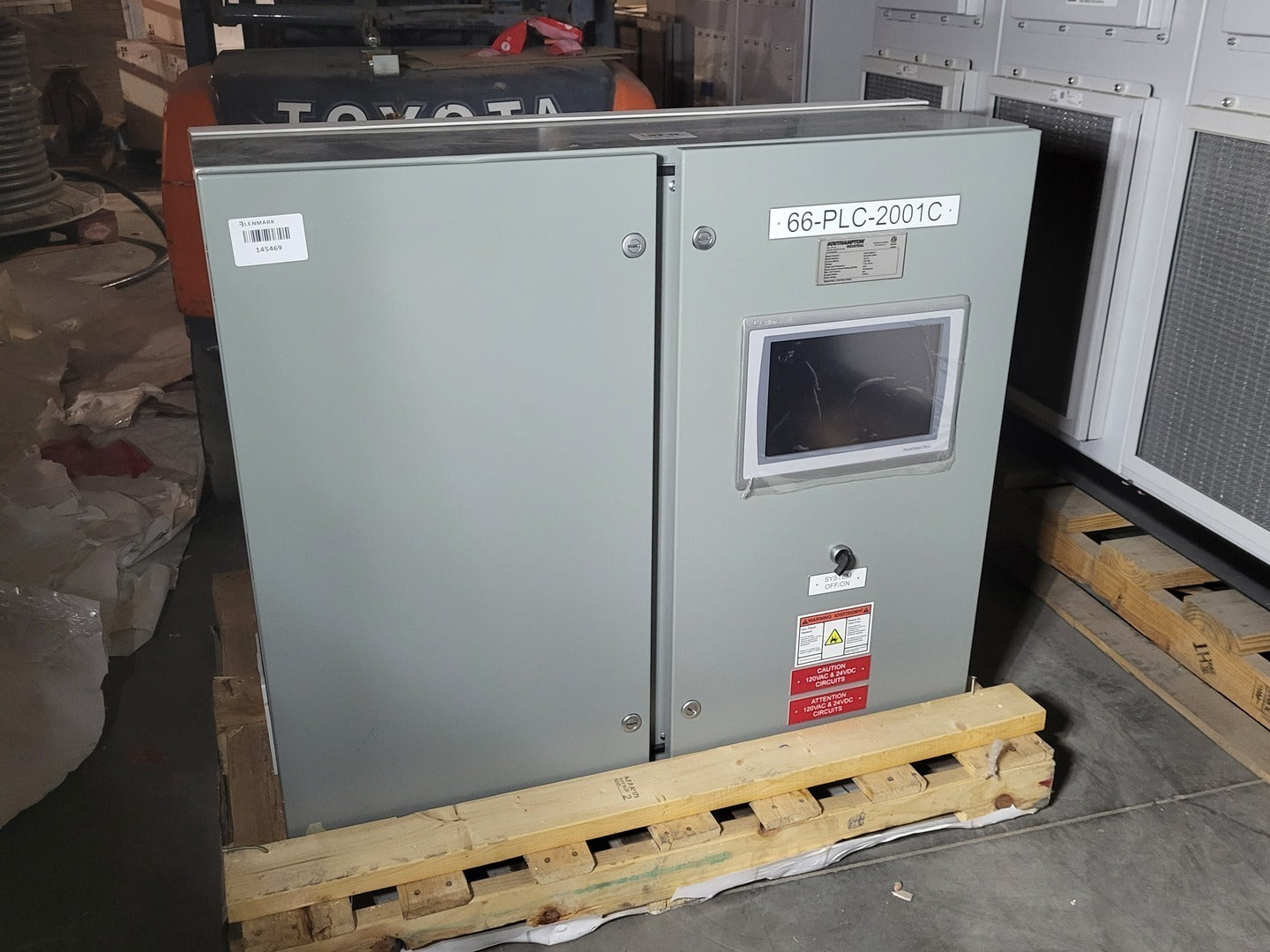

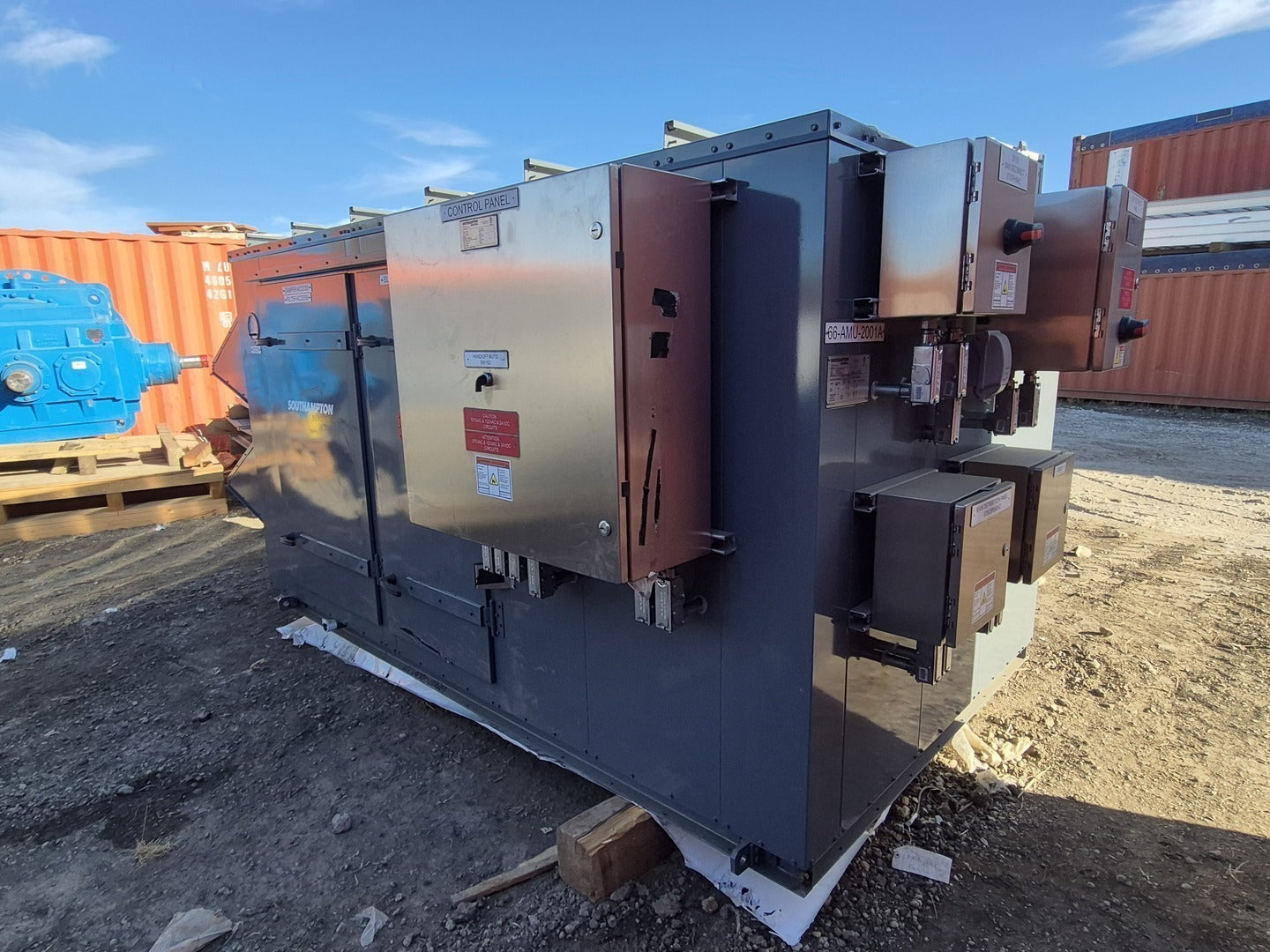

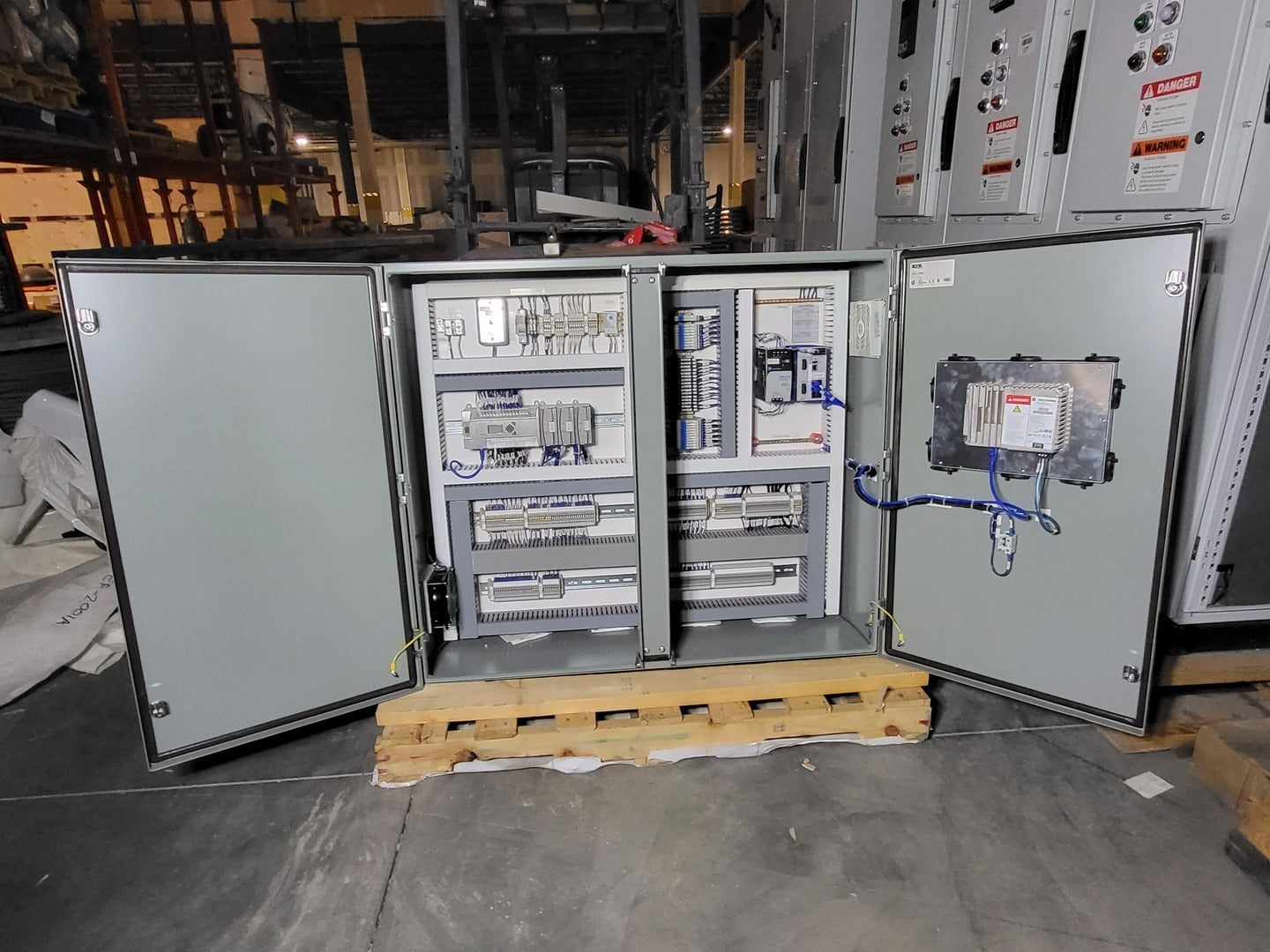

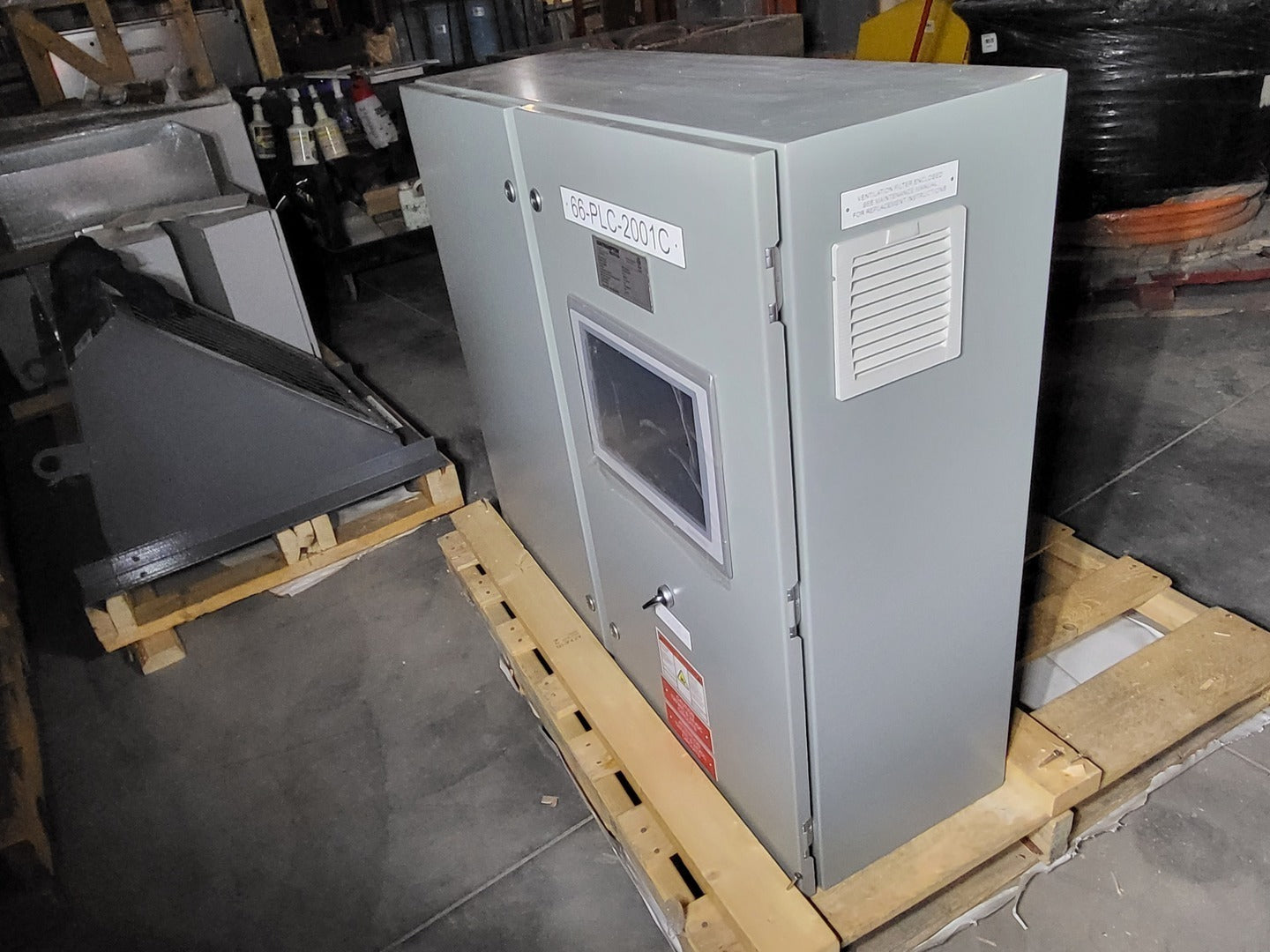

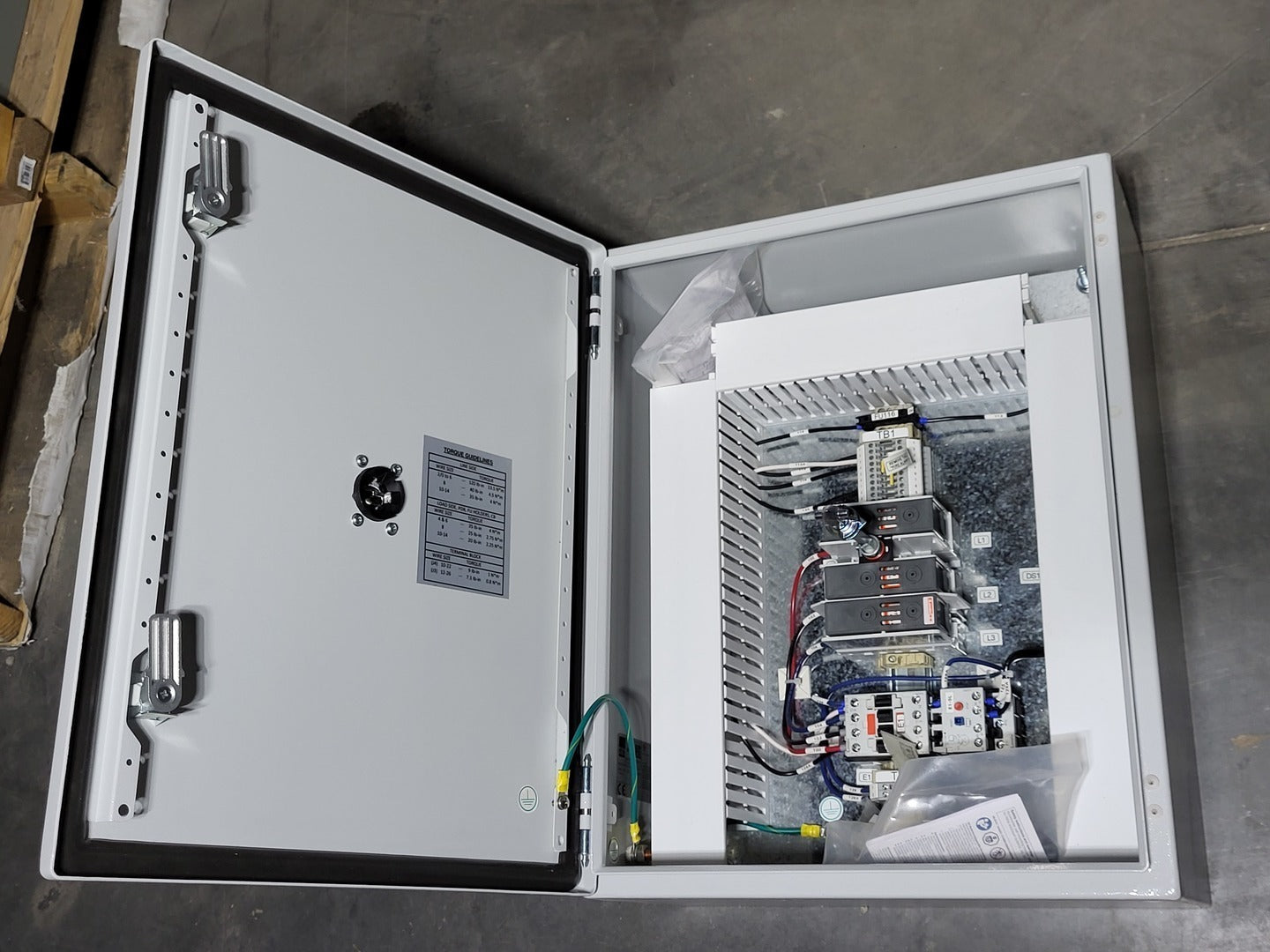

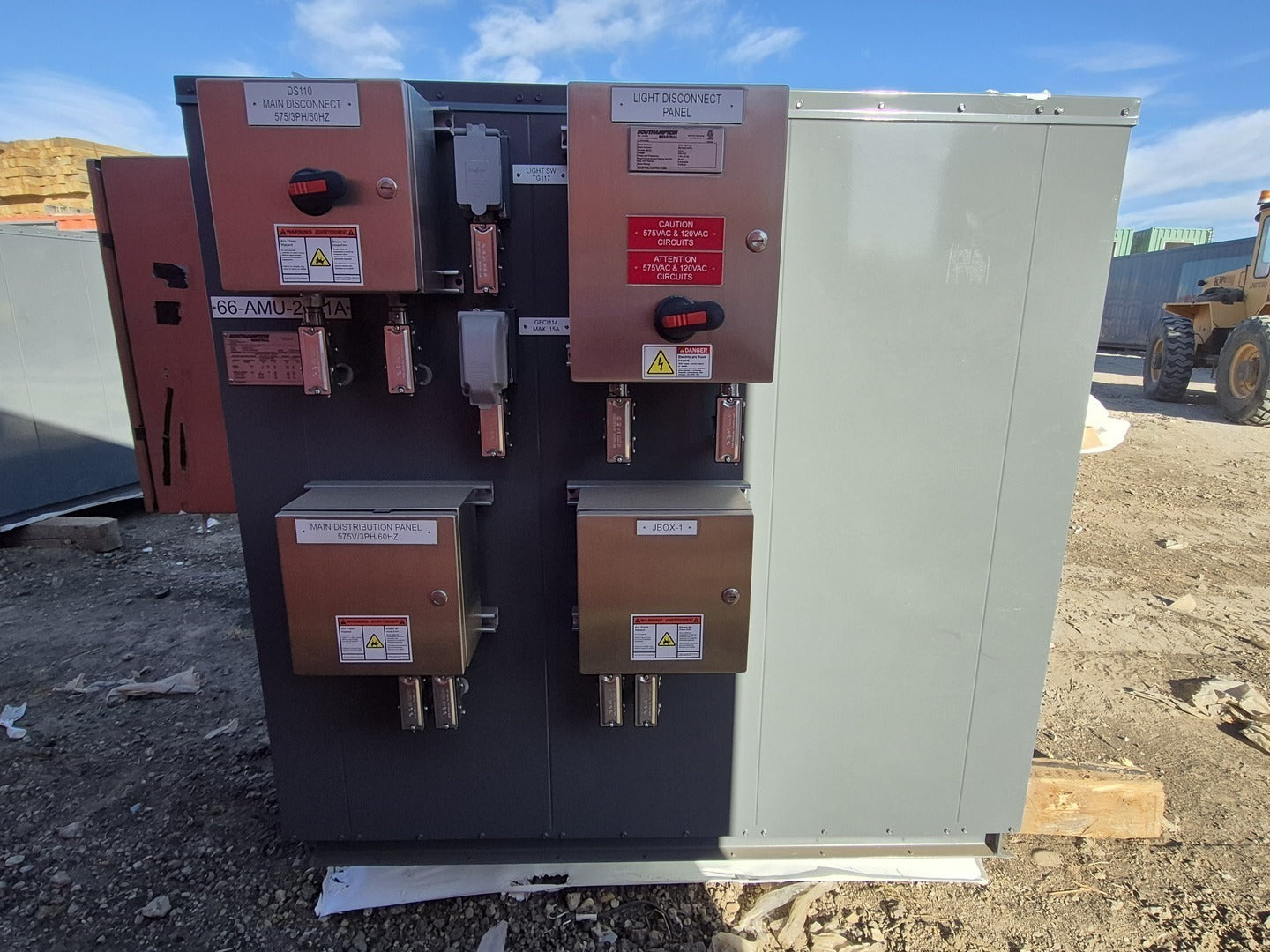

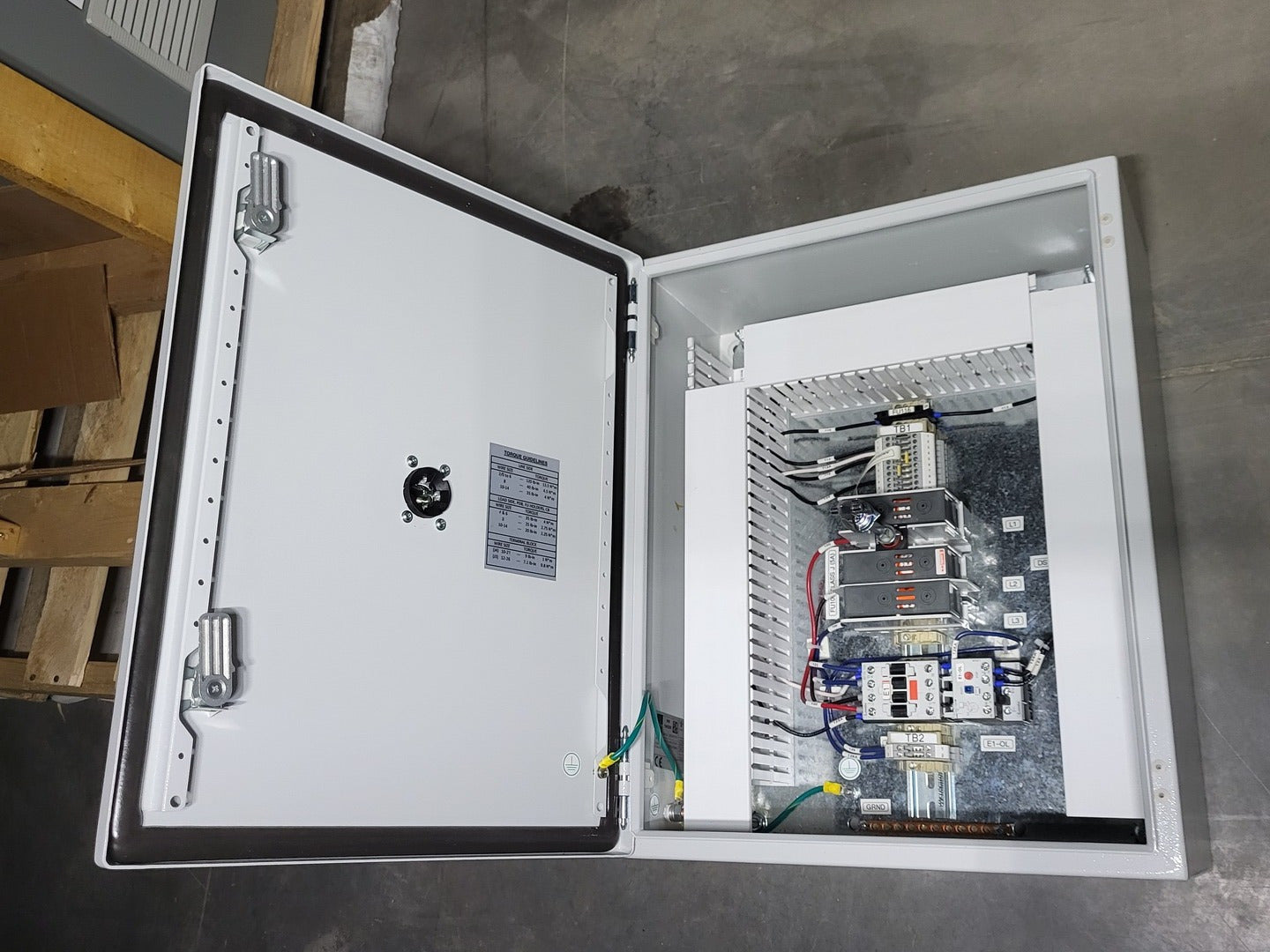

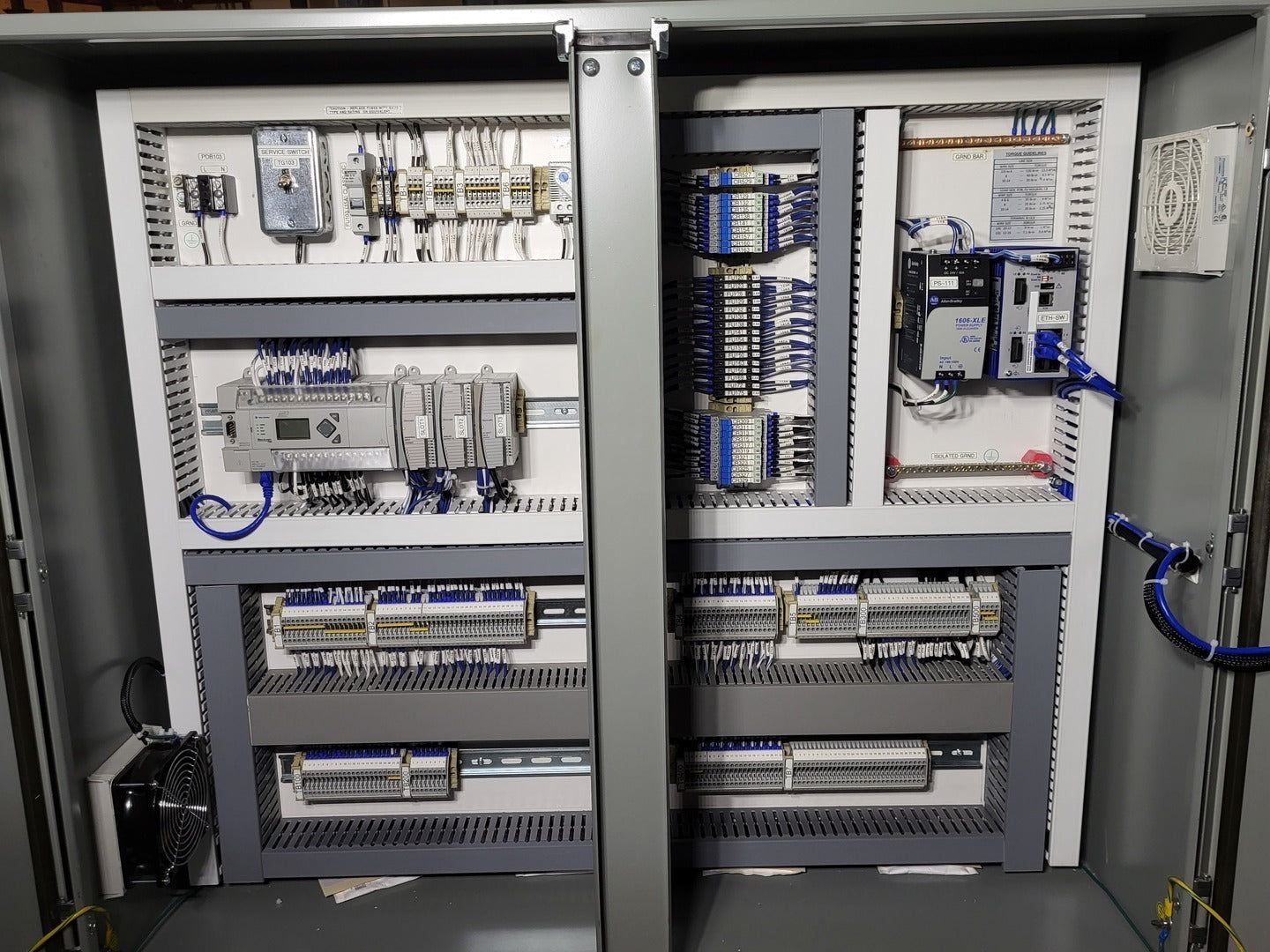

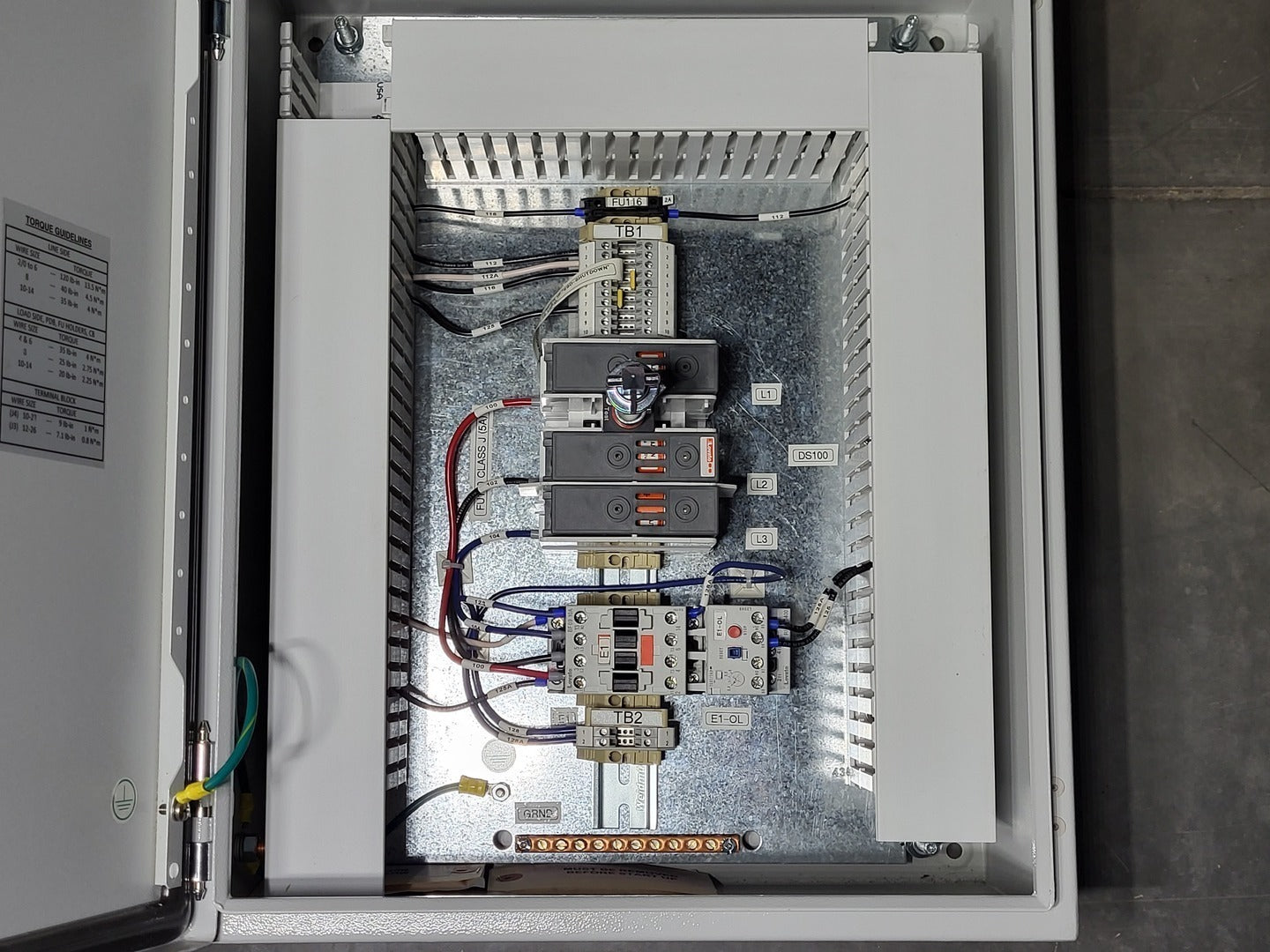

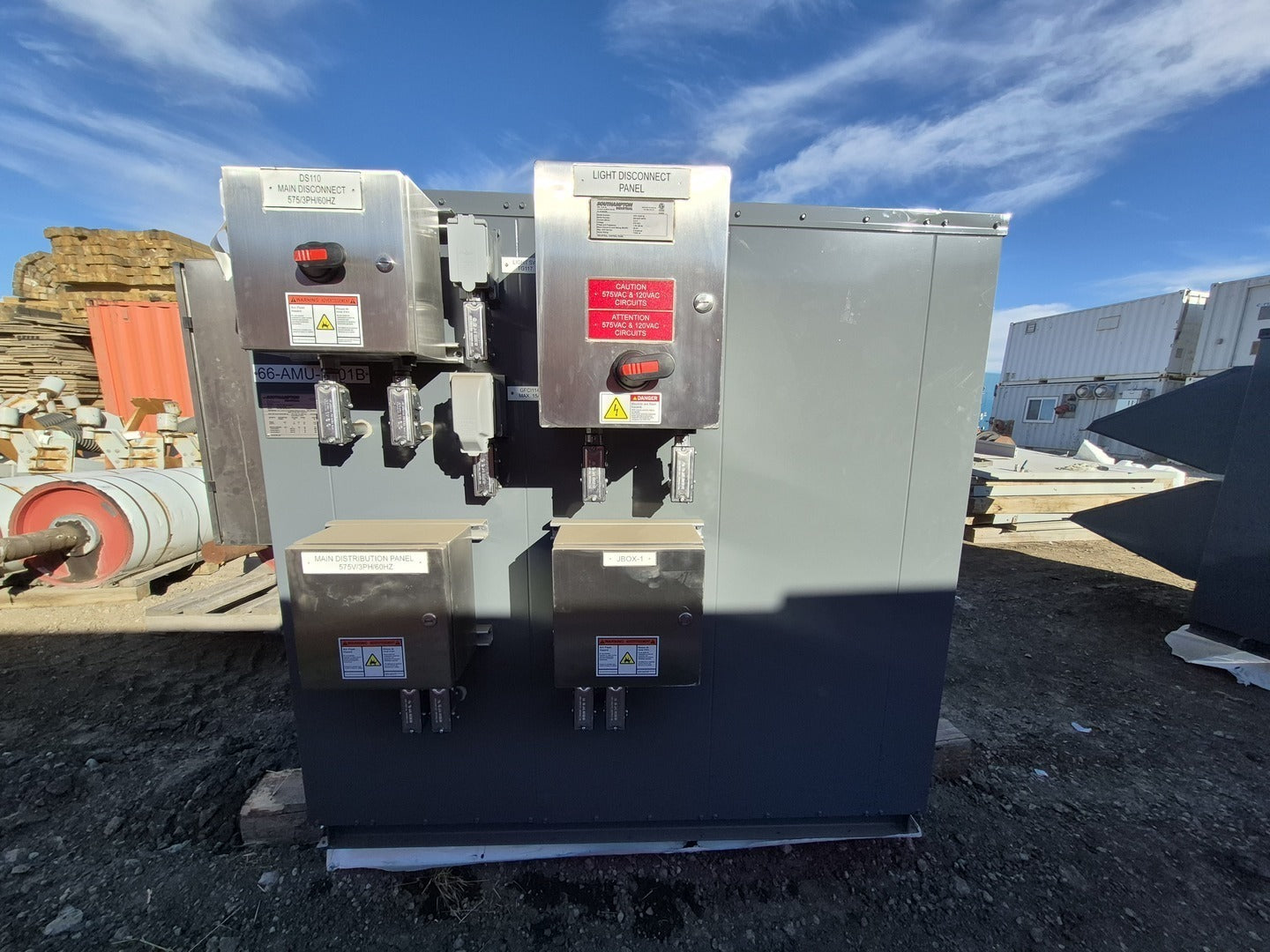

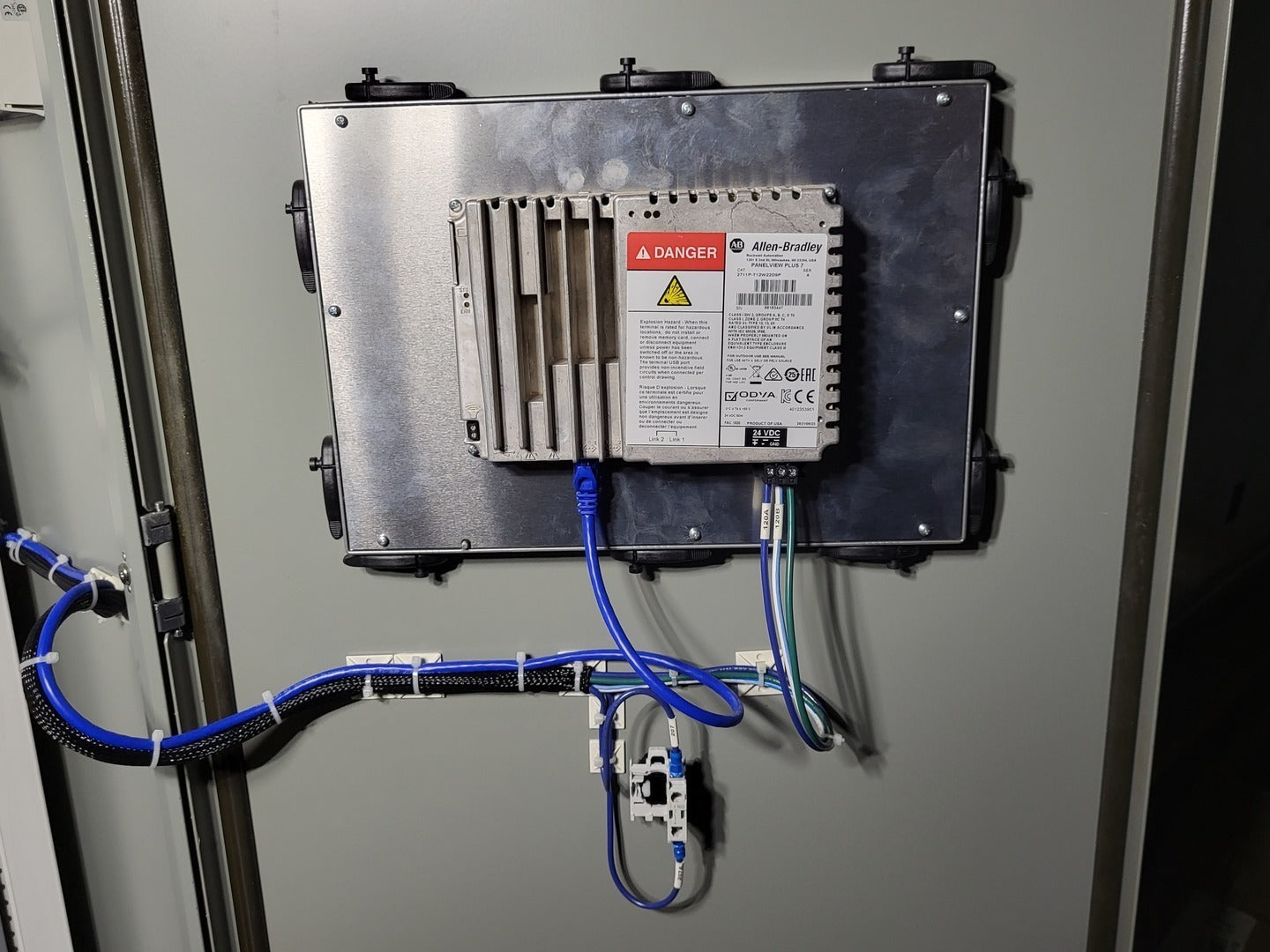

1 x Control Panel Unit (Ref. 145469):
-
Make: SOUTHAMPTON
-
Model: CPR-12427-A
-
Electrical: 120VAC / 24VDC, Single-Phase, 60hz, 12.4A, NEMA 4

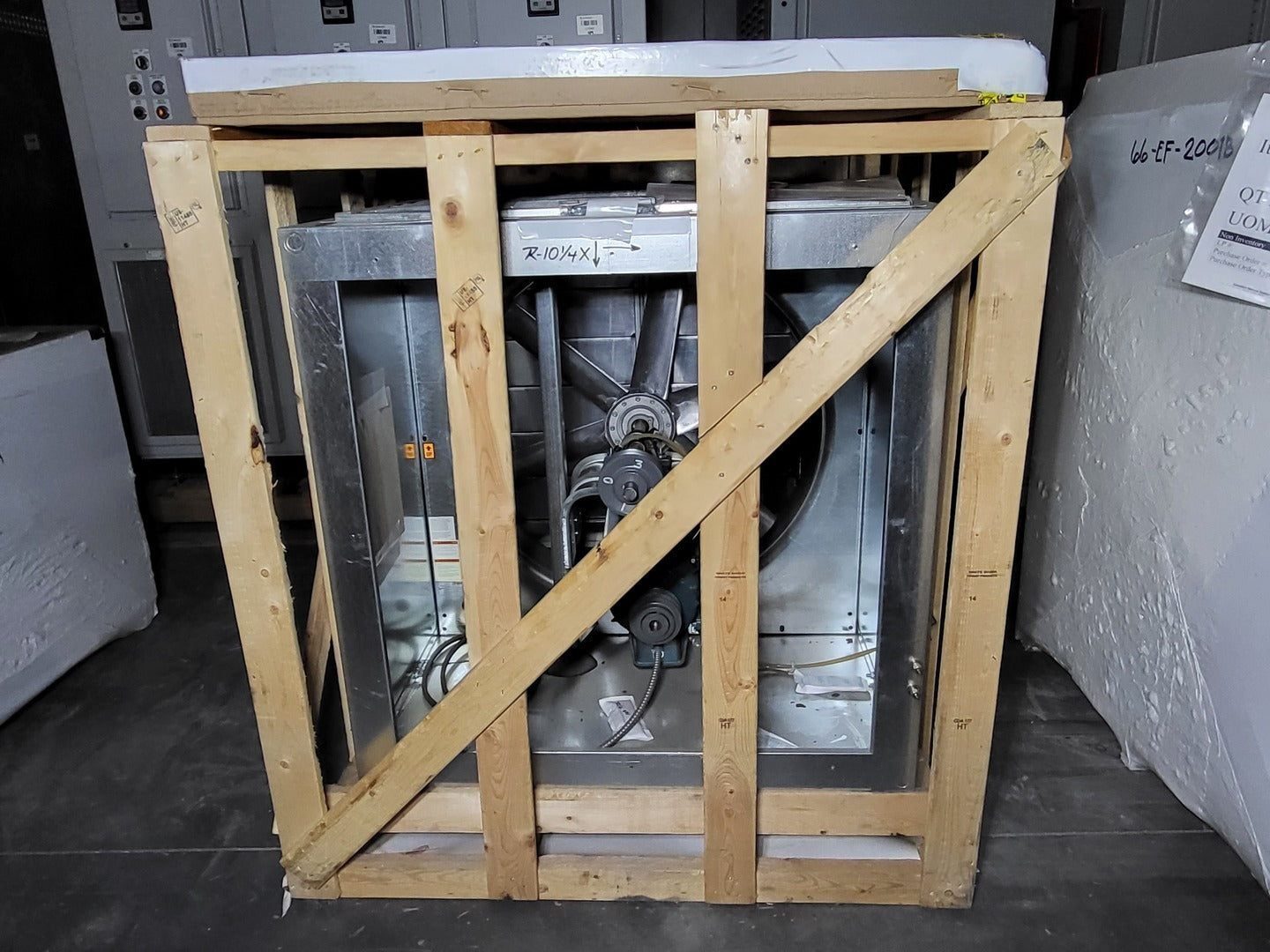

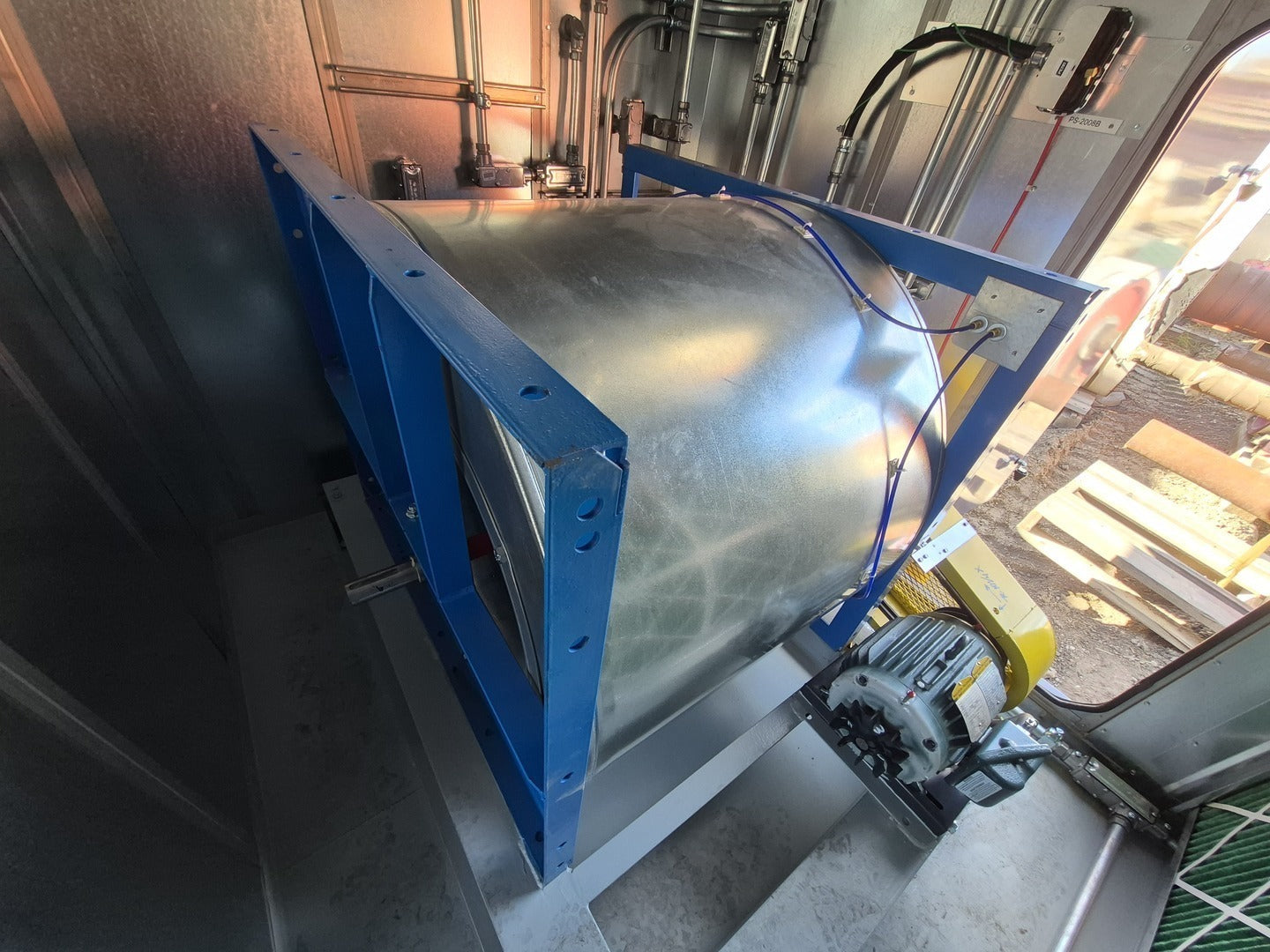

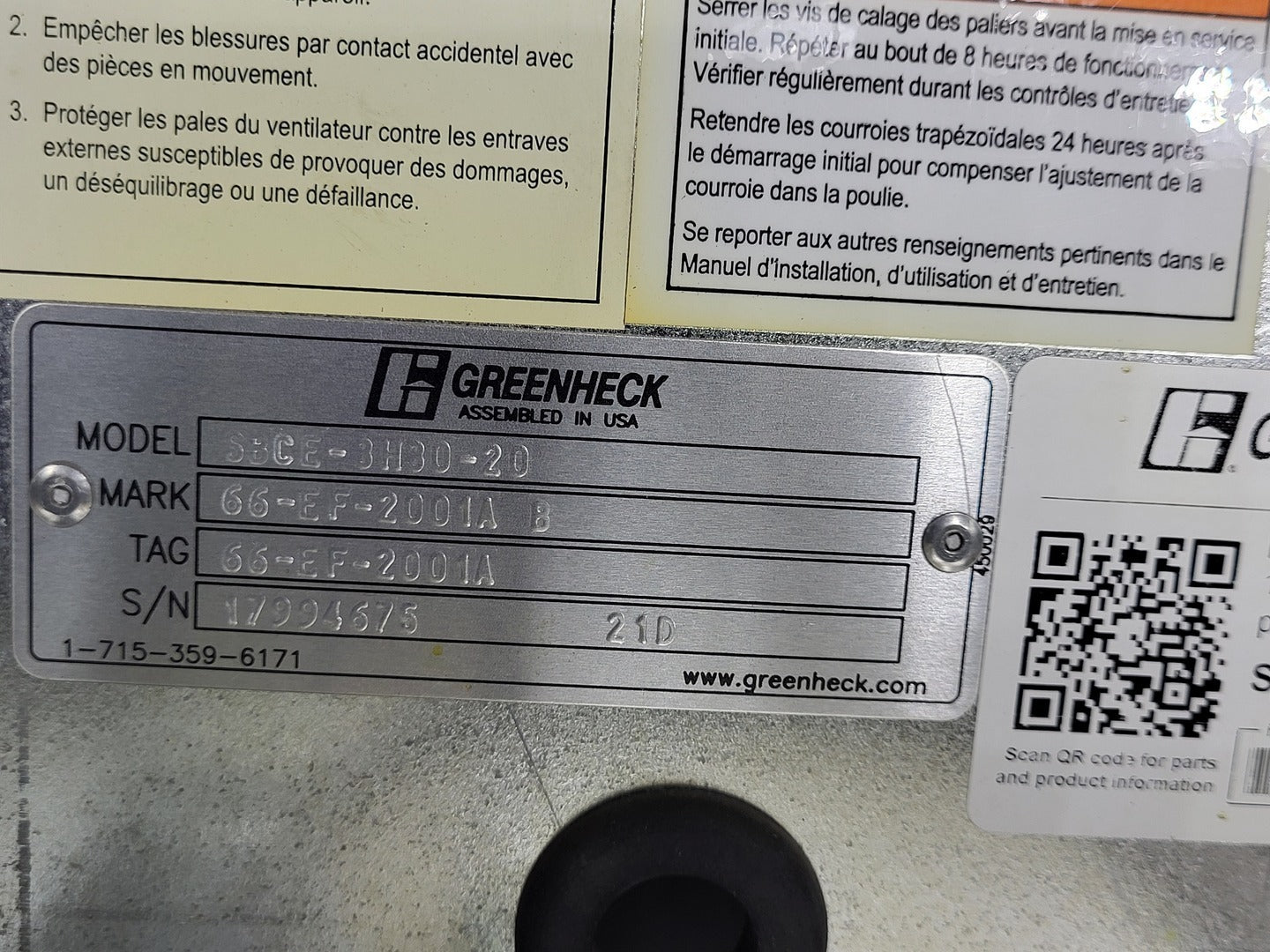

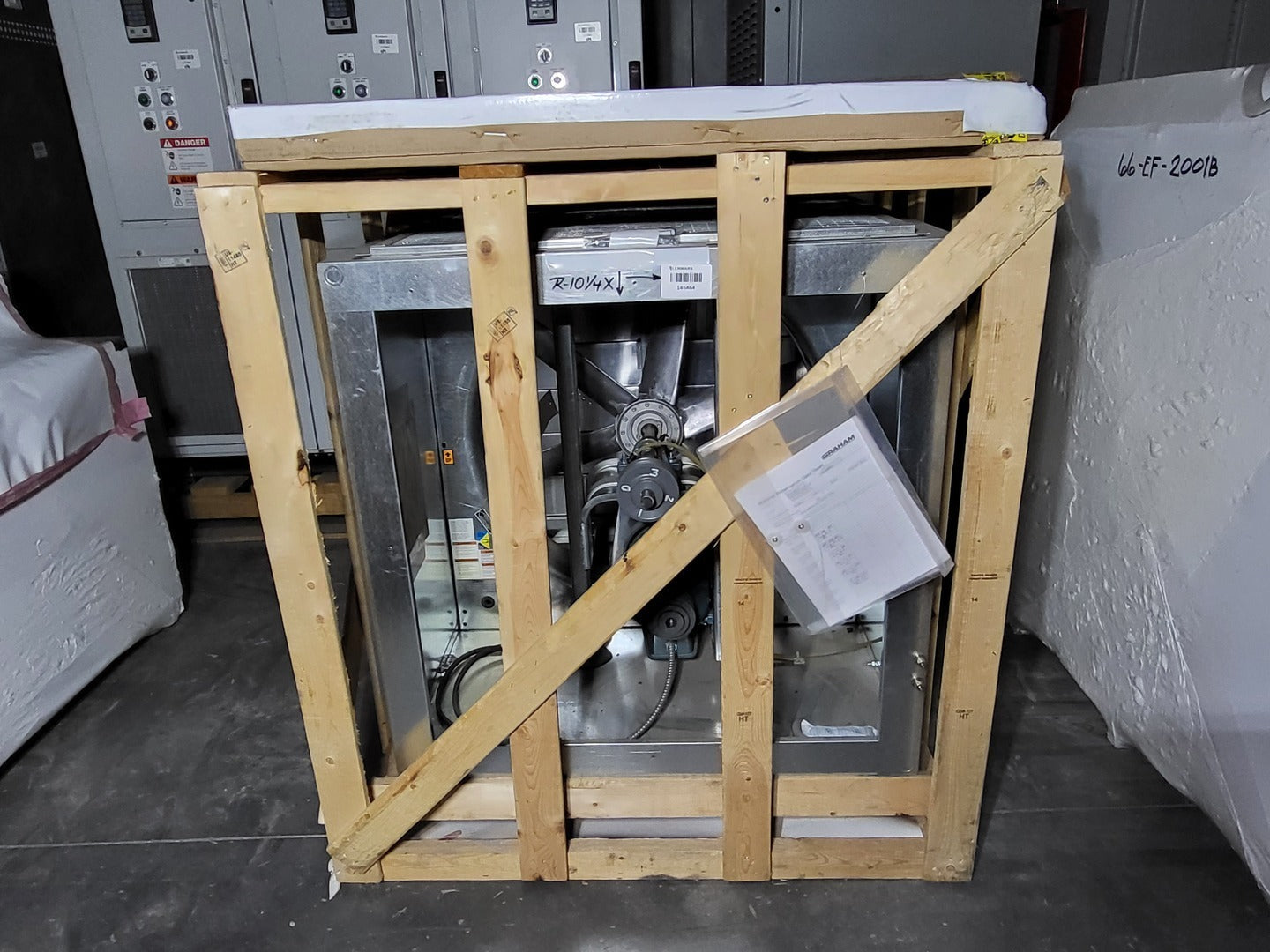

2 x Exhaust Fans (Ref. 145464):
-
Make: GREENHECK
-
Model: SBCE-3H30-20
-

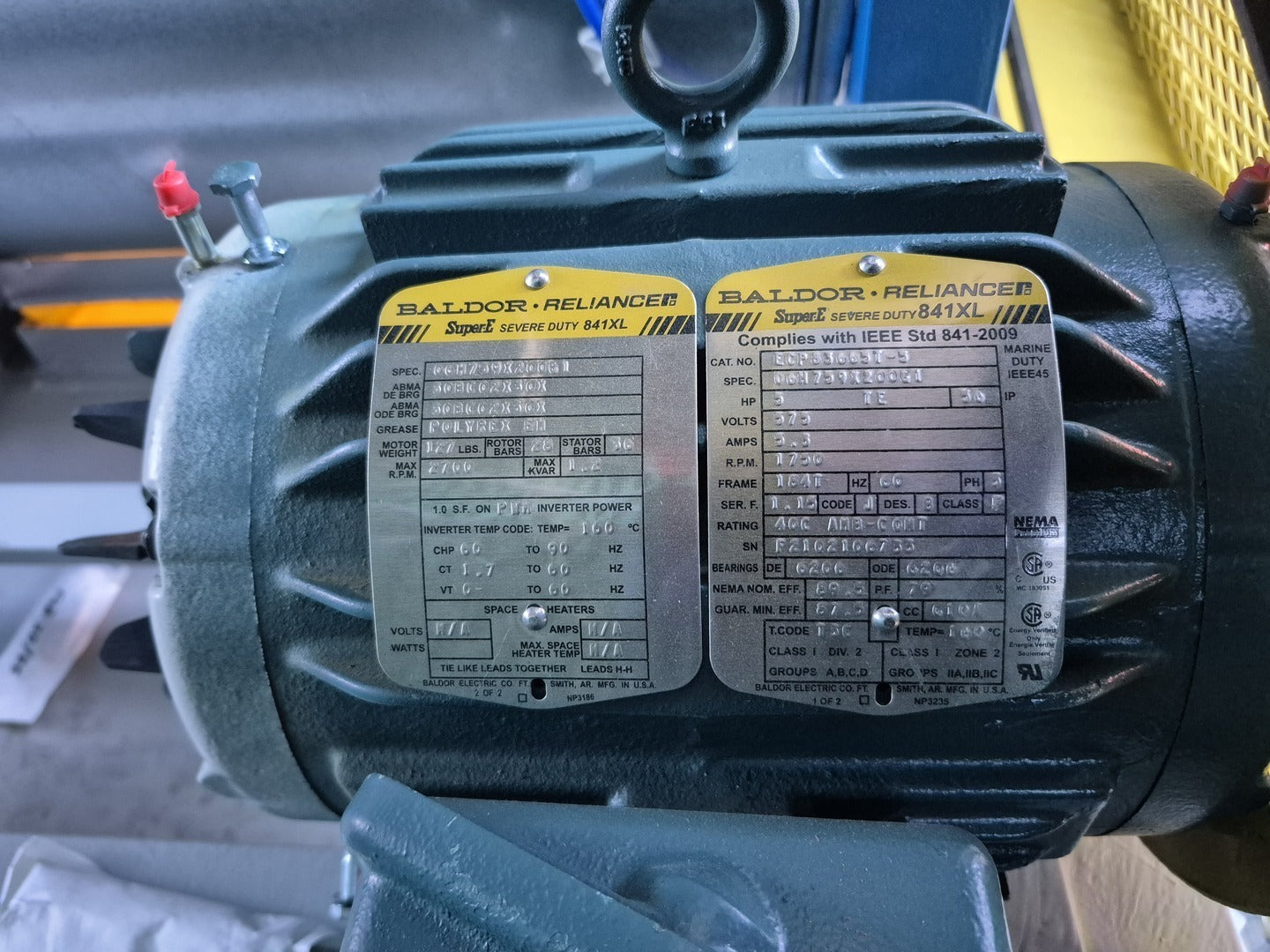

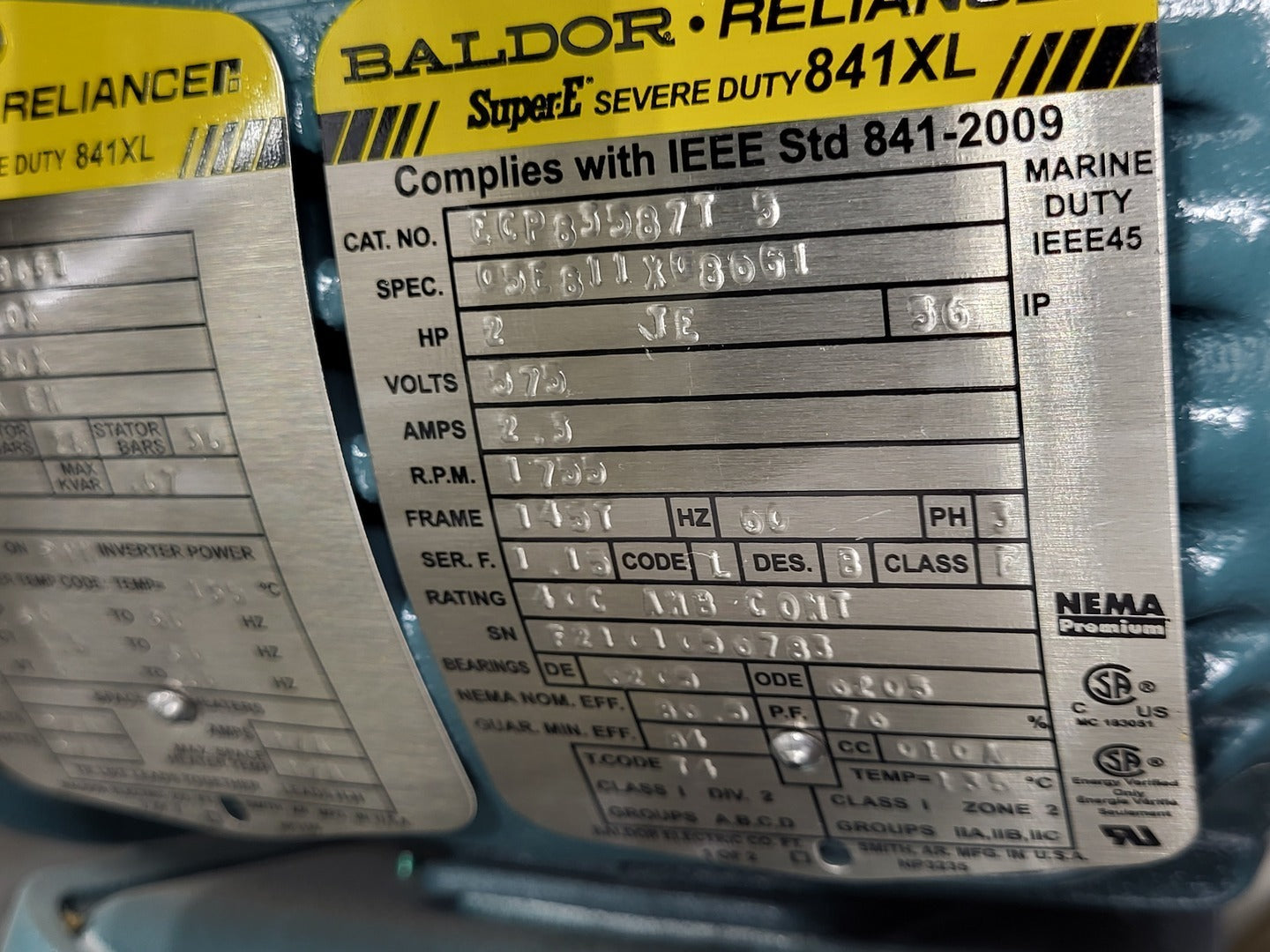

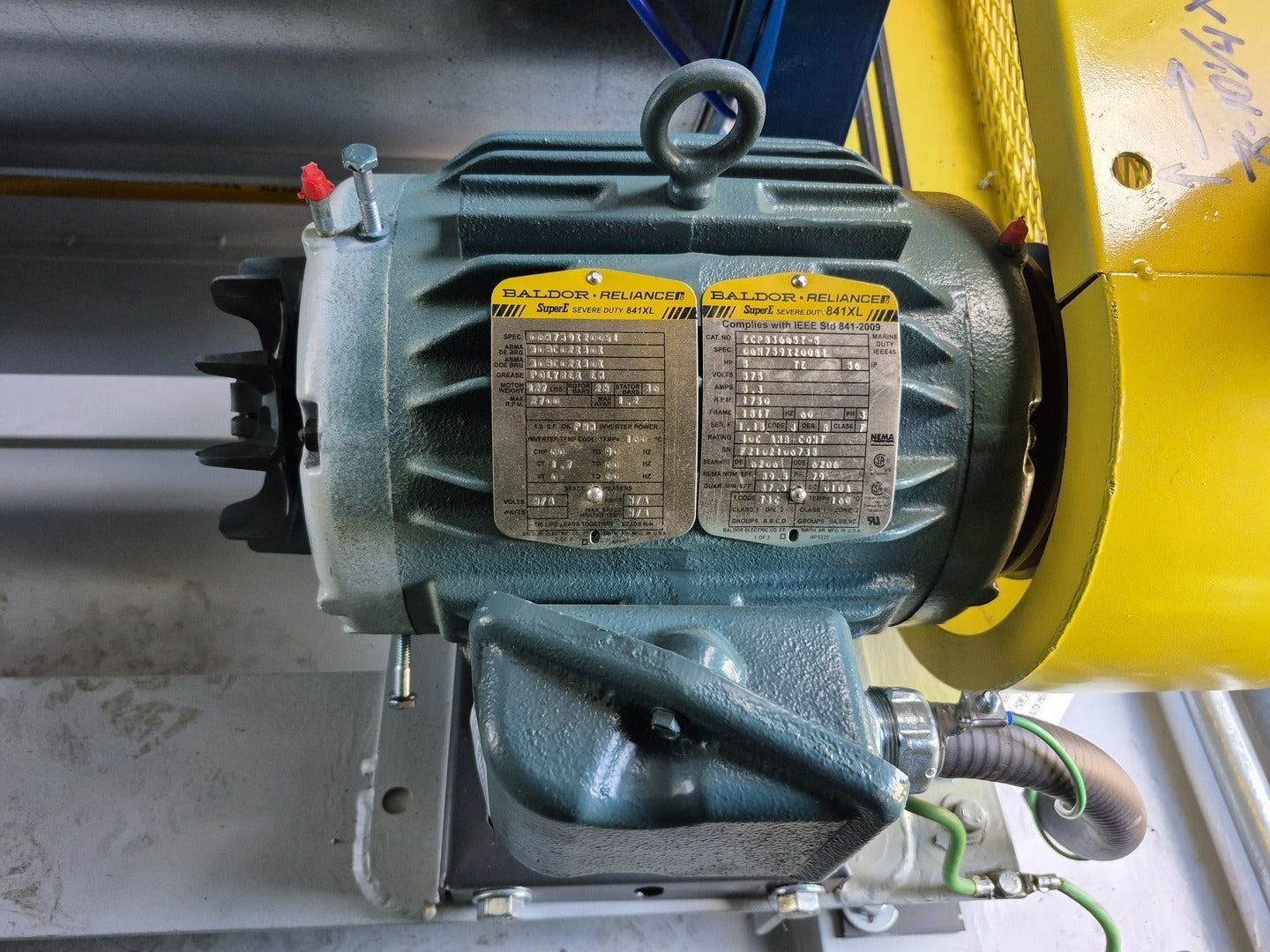

Power: BALDOR 2HP, 575V, 1755RPM Electric Motors

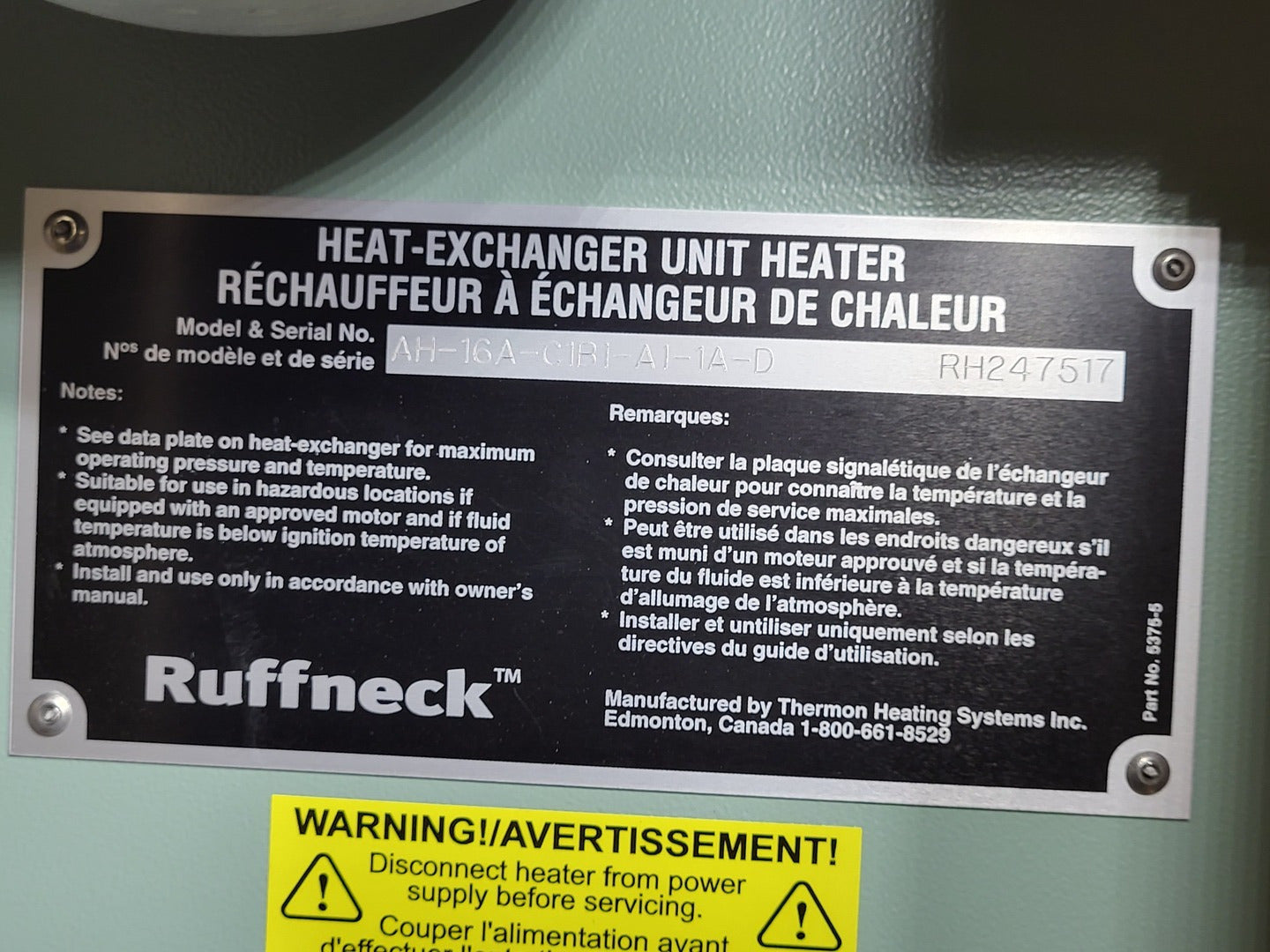

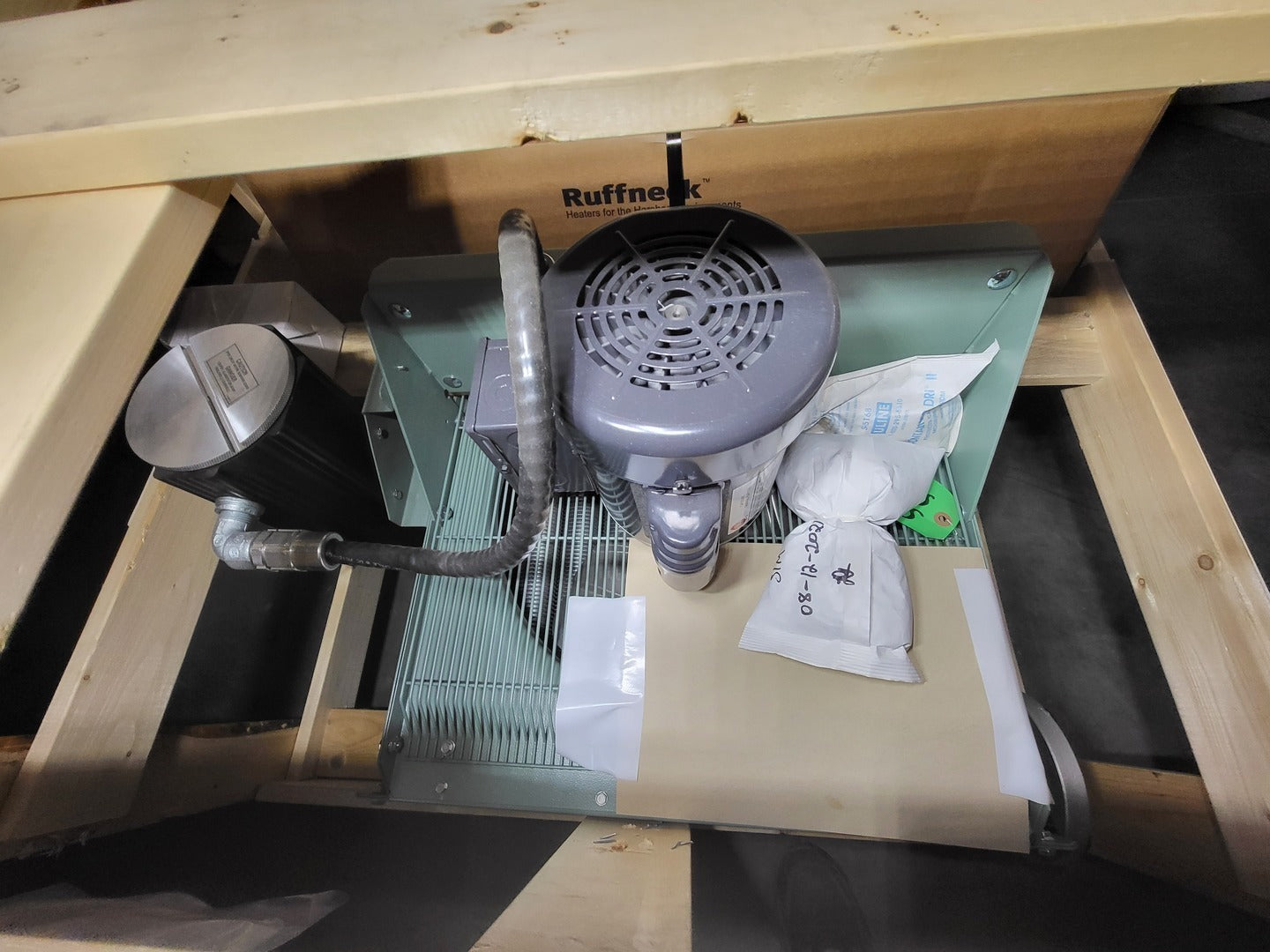

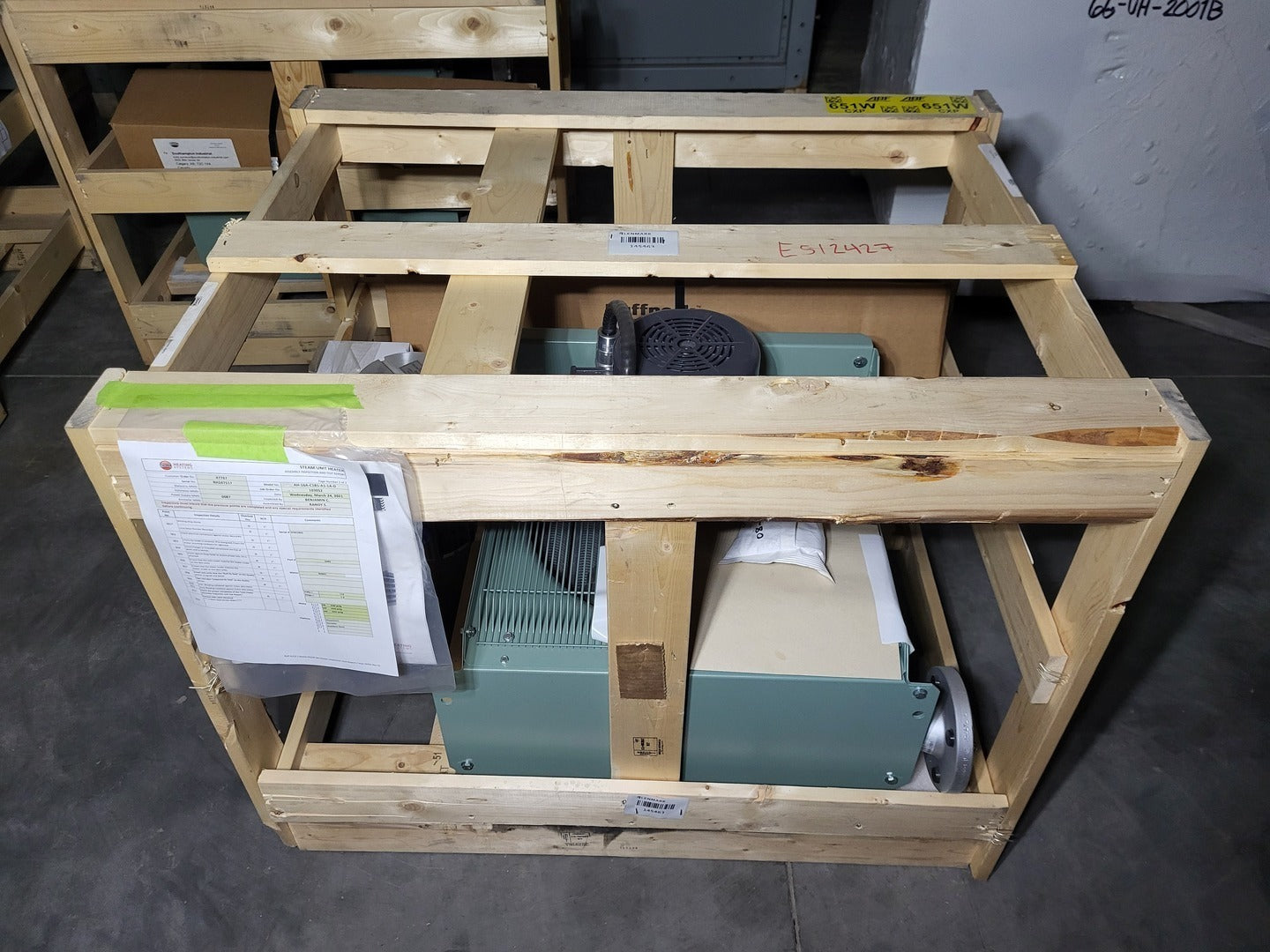

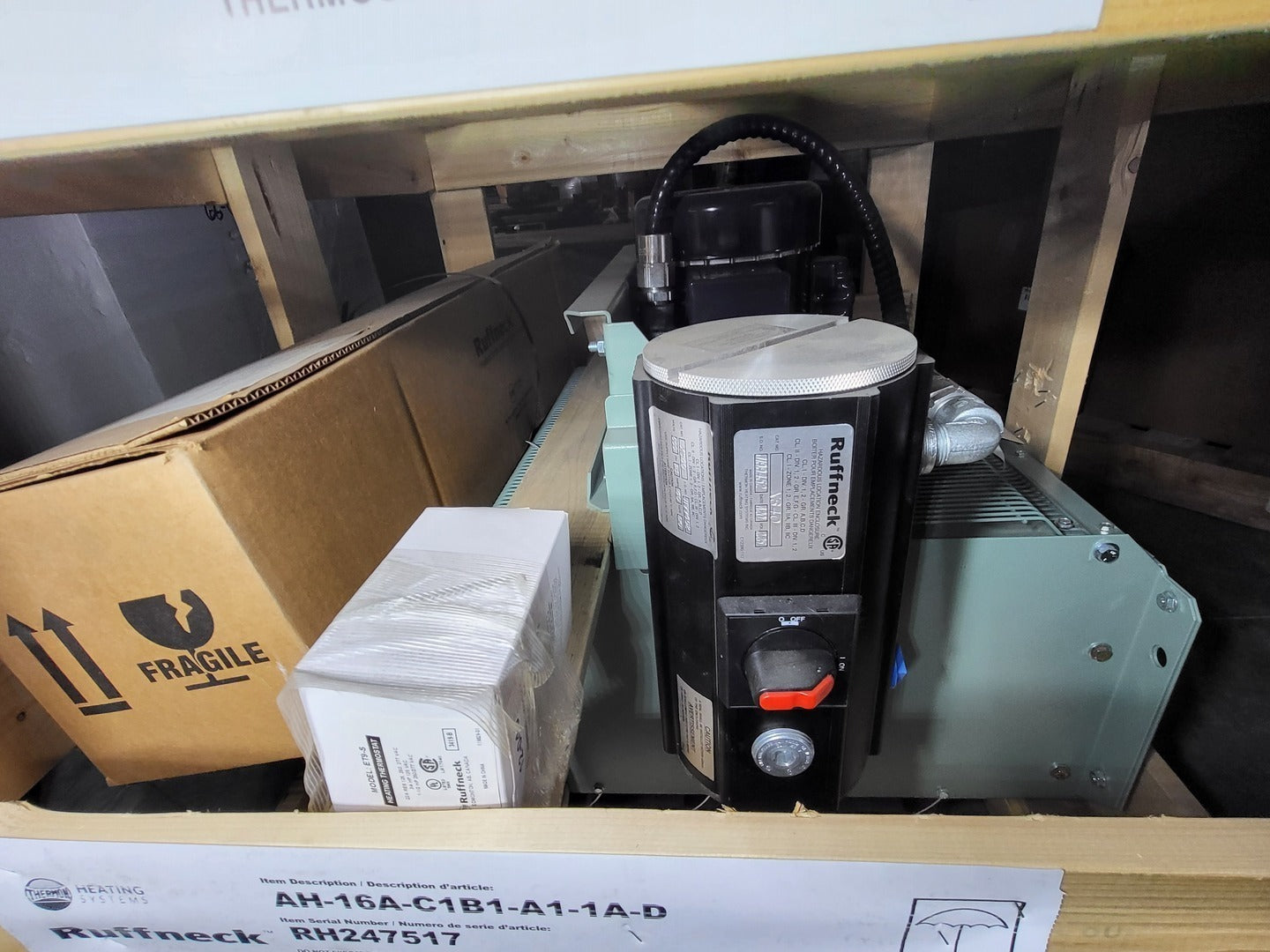

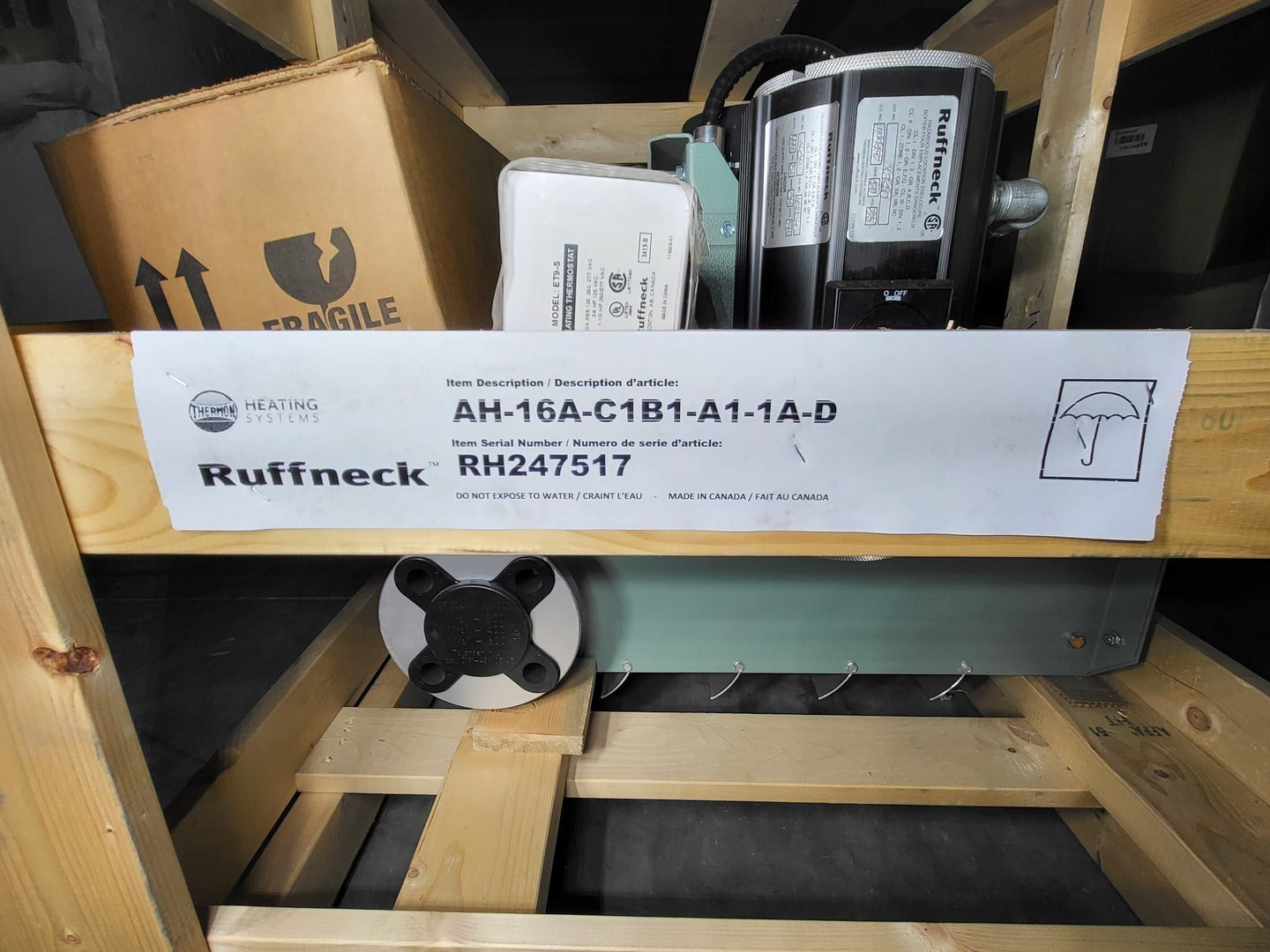

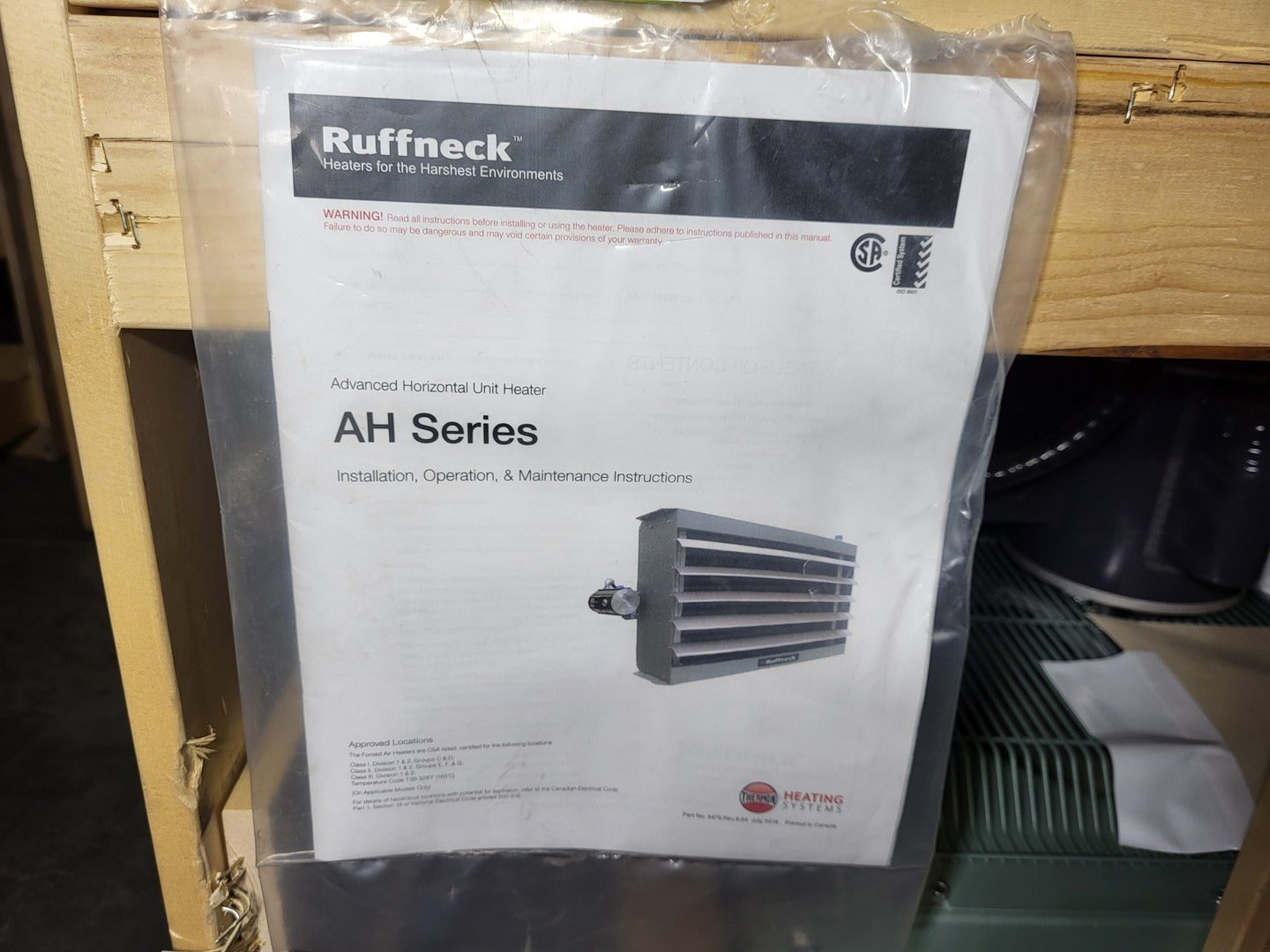

6 x Horizontal Steam Unit Heaters (Ref. 145463):
-
Make: THERMON RUFFNECK
-
Model: AH-16A-C1B1-A1-1A-D
-

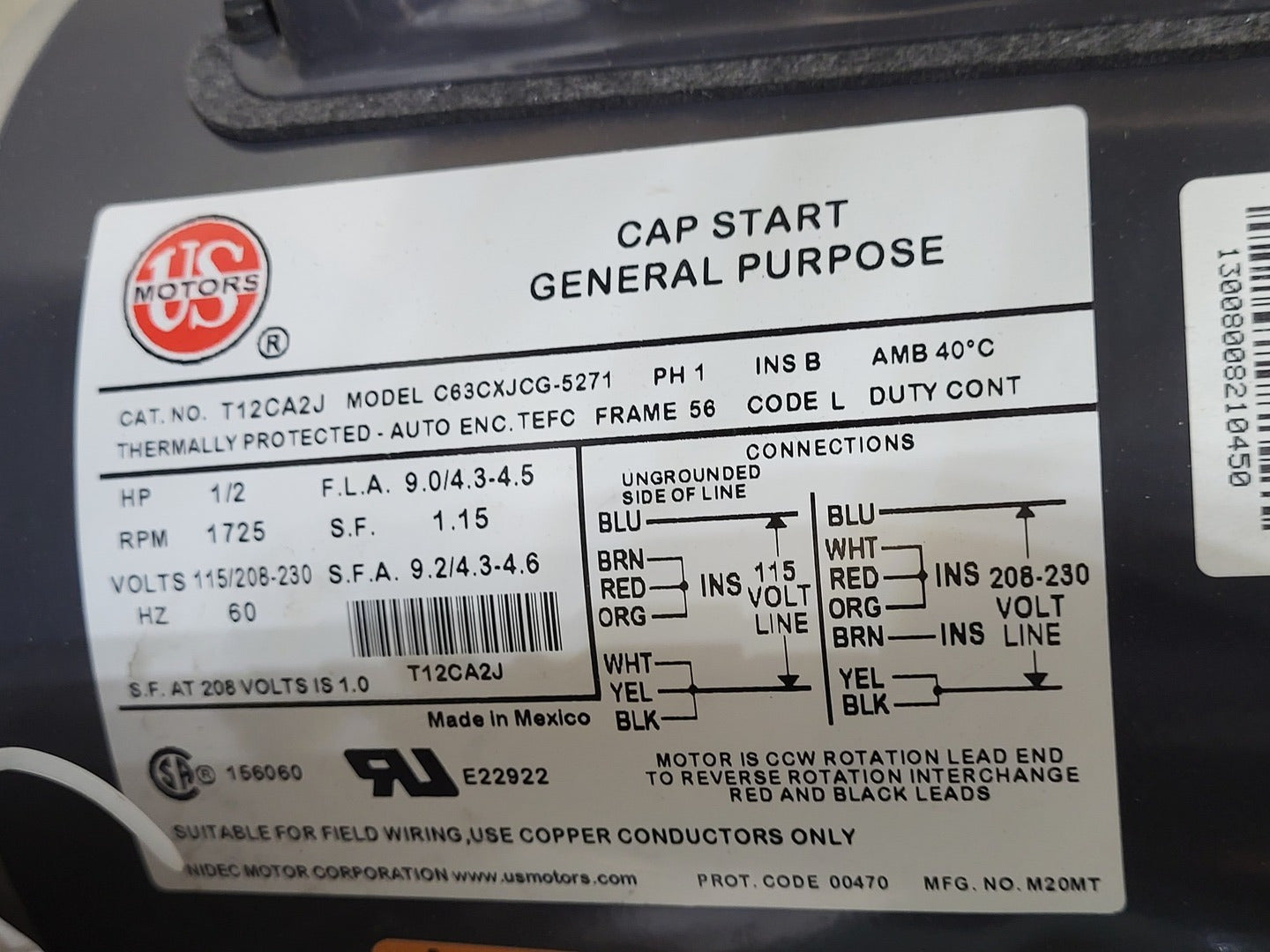

Power: 1/2HP, 115/208-230V, 1725RPM
-
C/W: Thermostats, Wall Mounting Kits

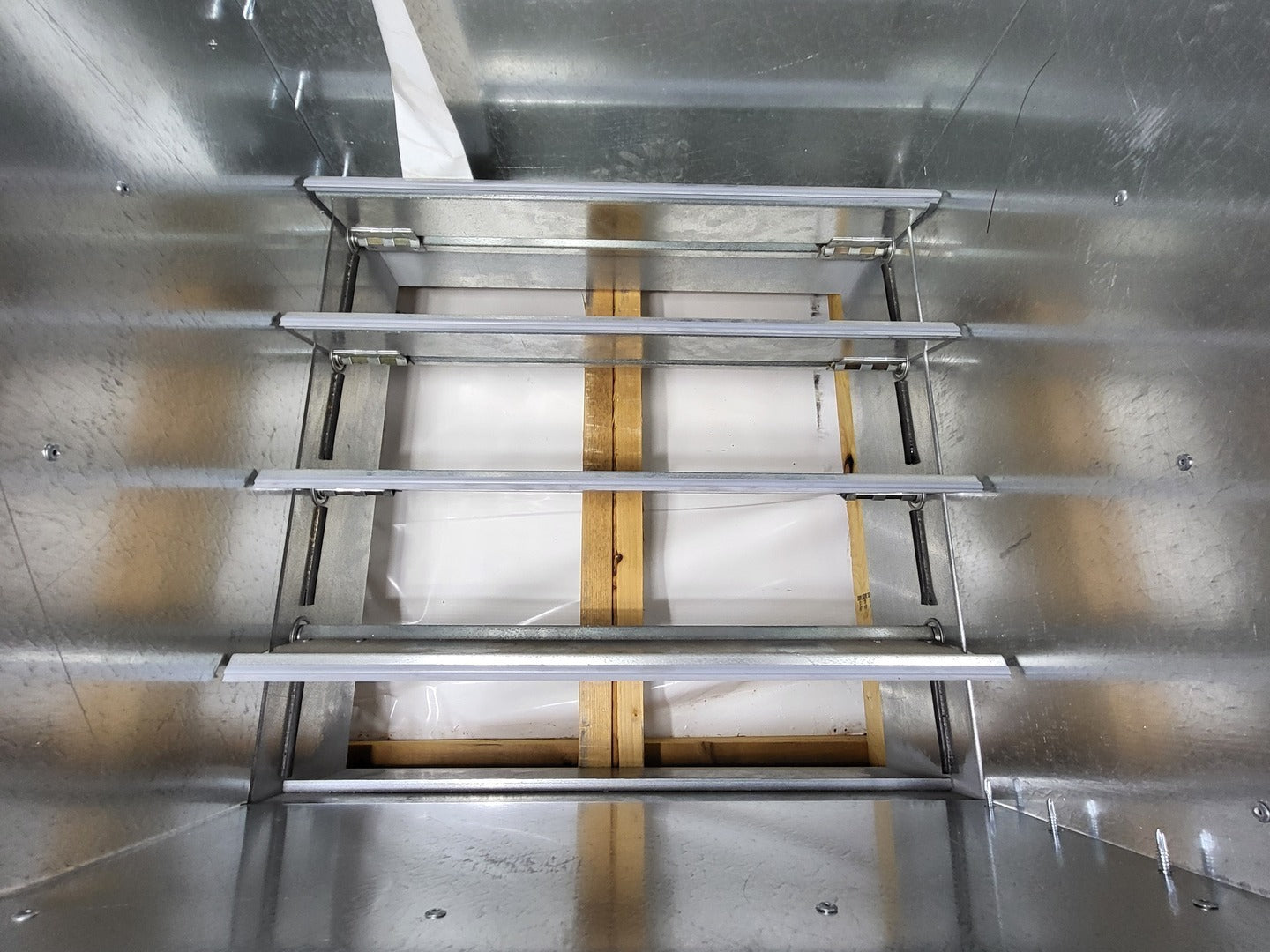

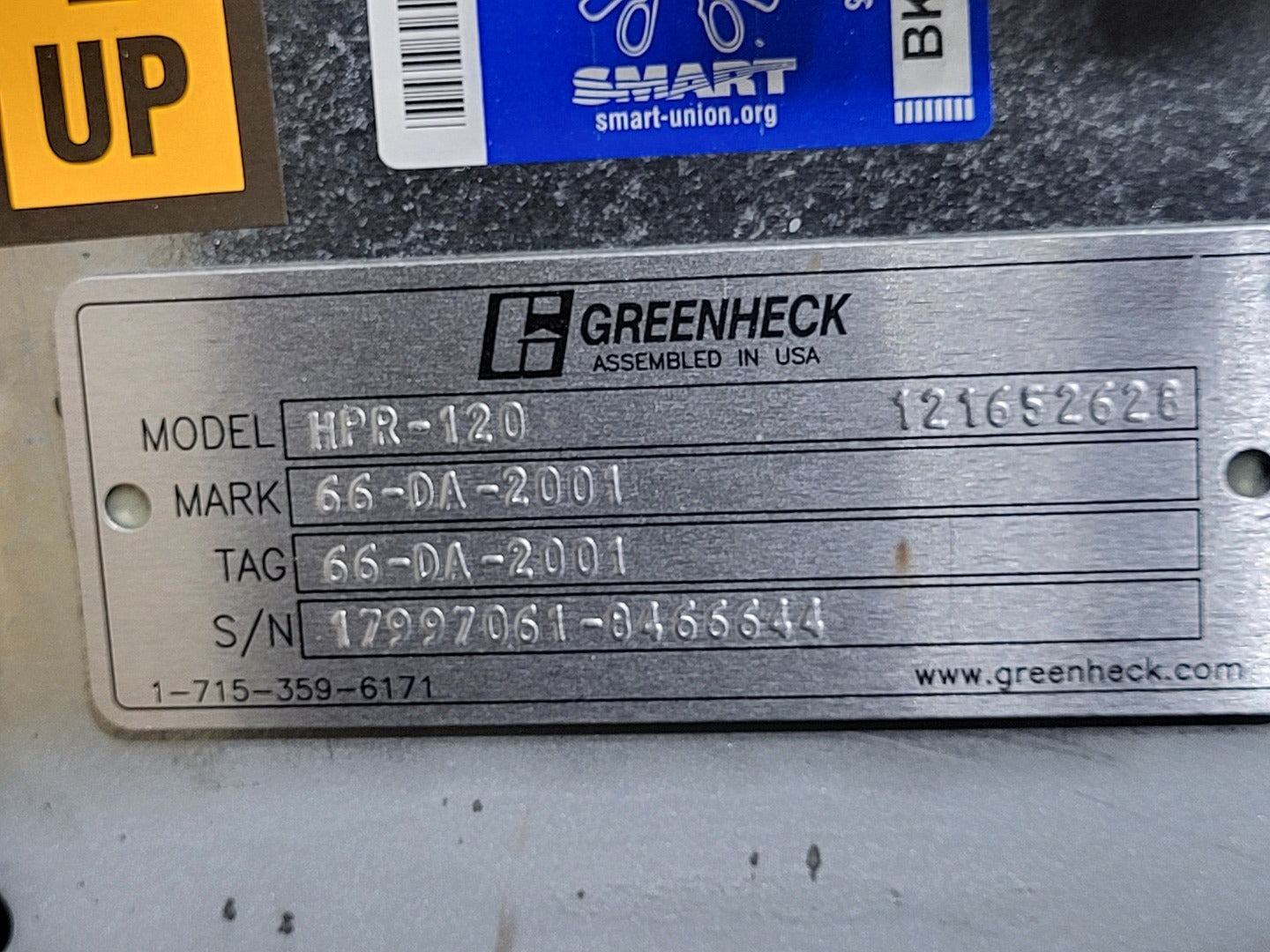

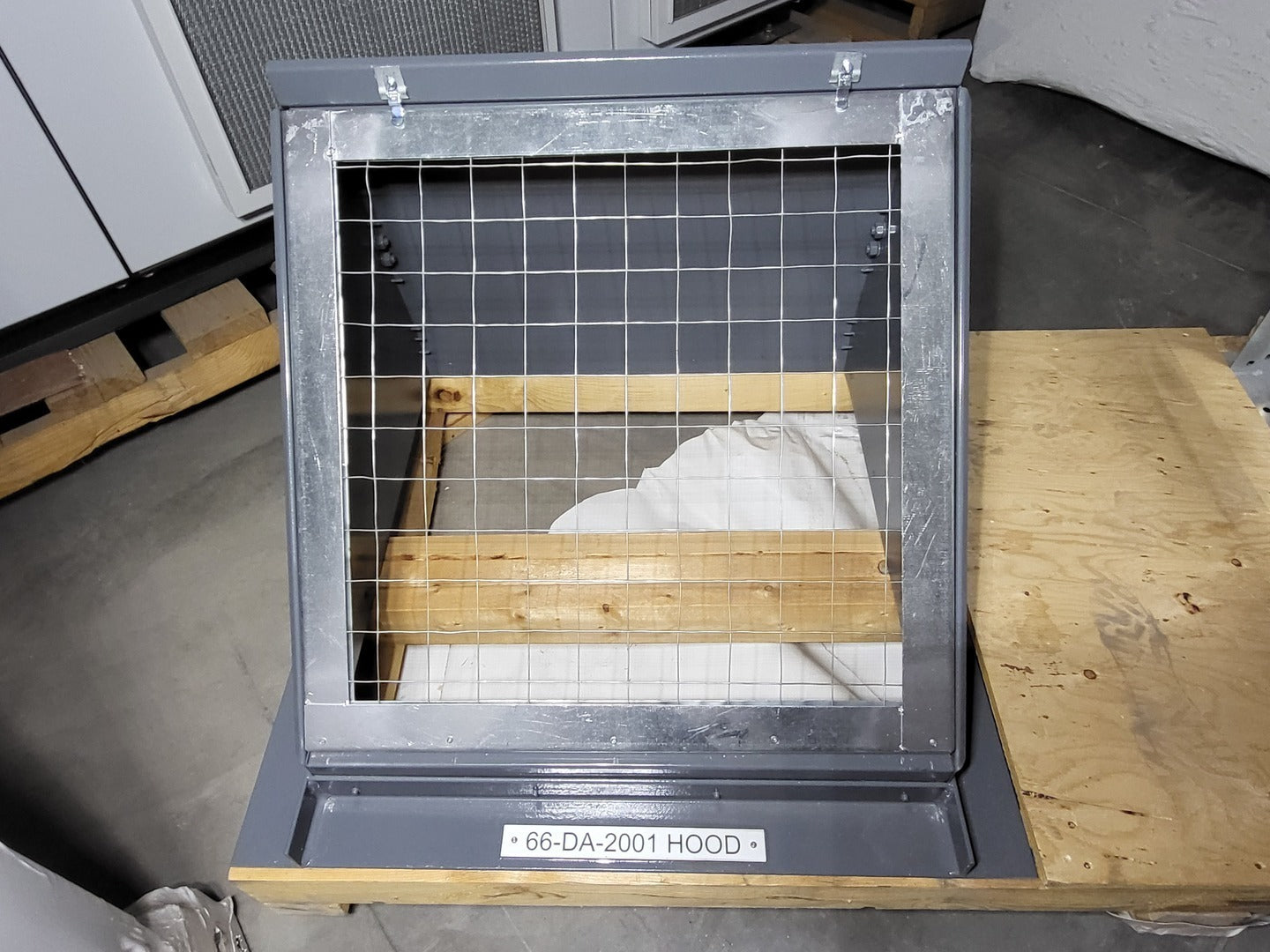

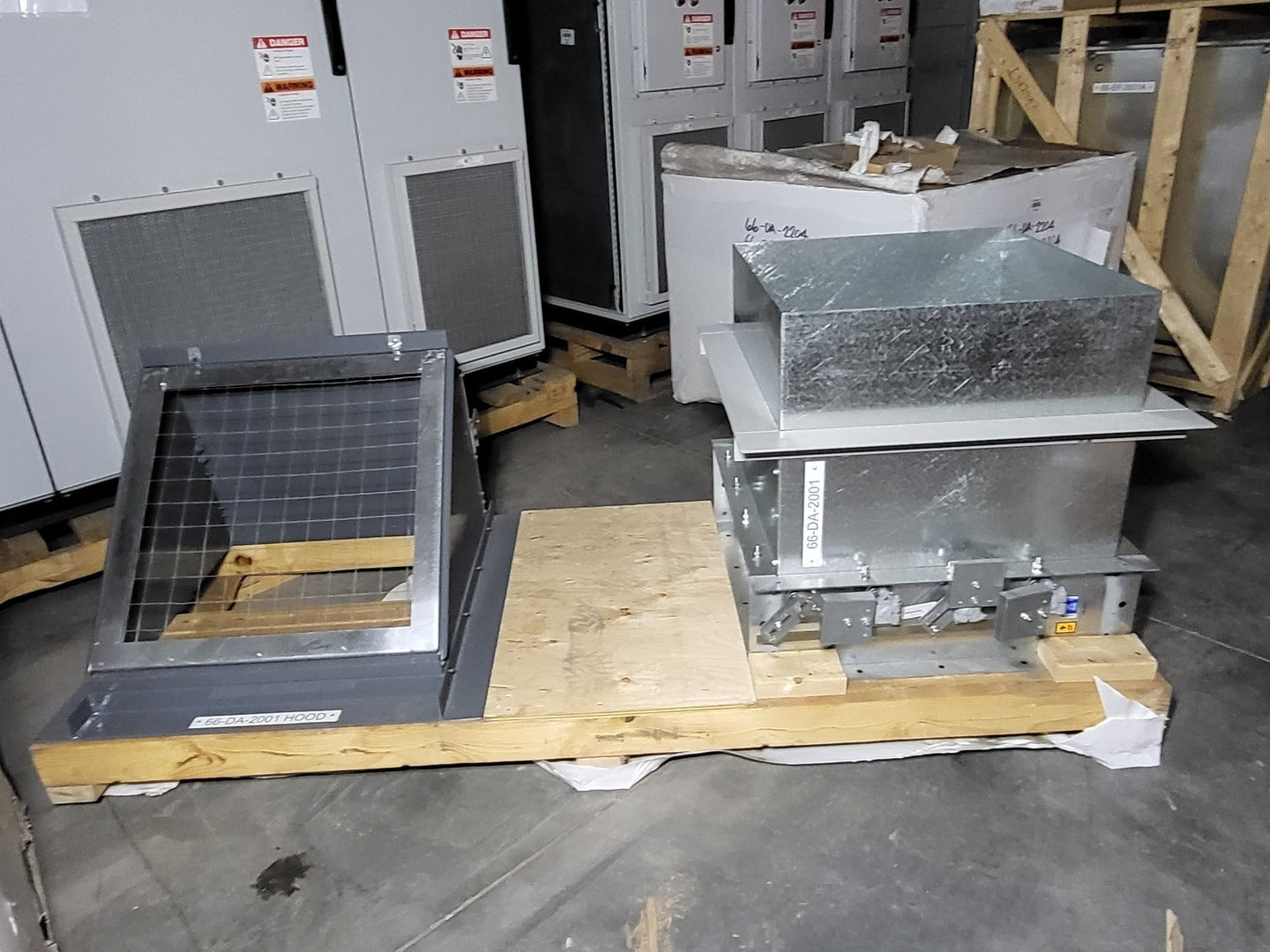

1 x Backdraft Damper (Ref. 145466):
-
Make: GREENHECK
-
Model: HPR-12024X24
-
Size: 24in. x 24in.
-
C/W: Exhaust Hood, Bird Screen

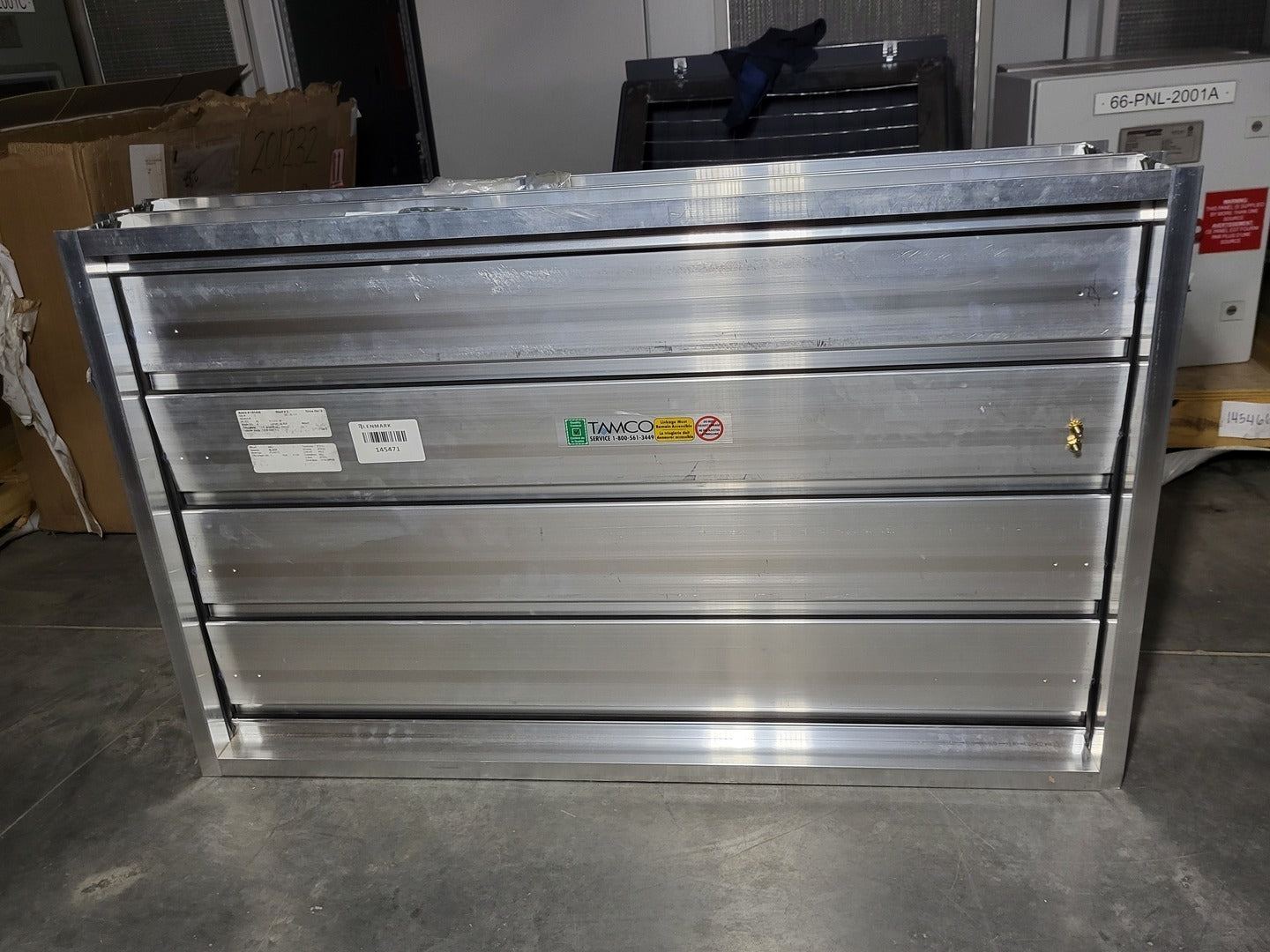

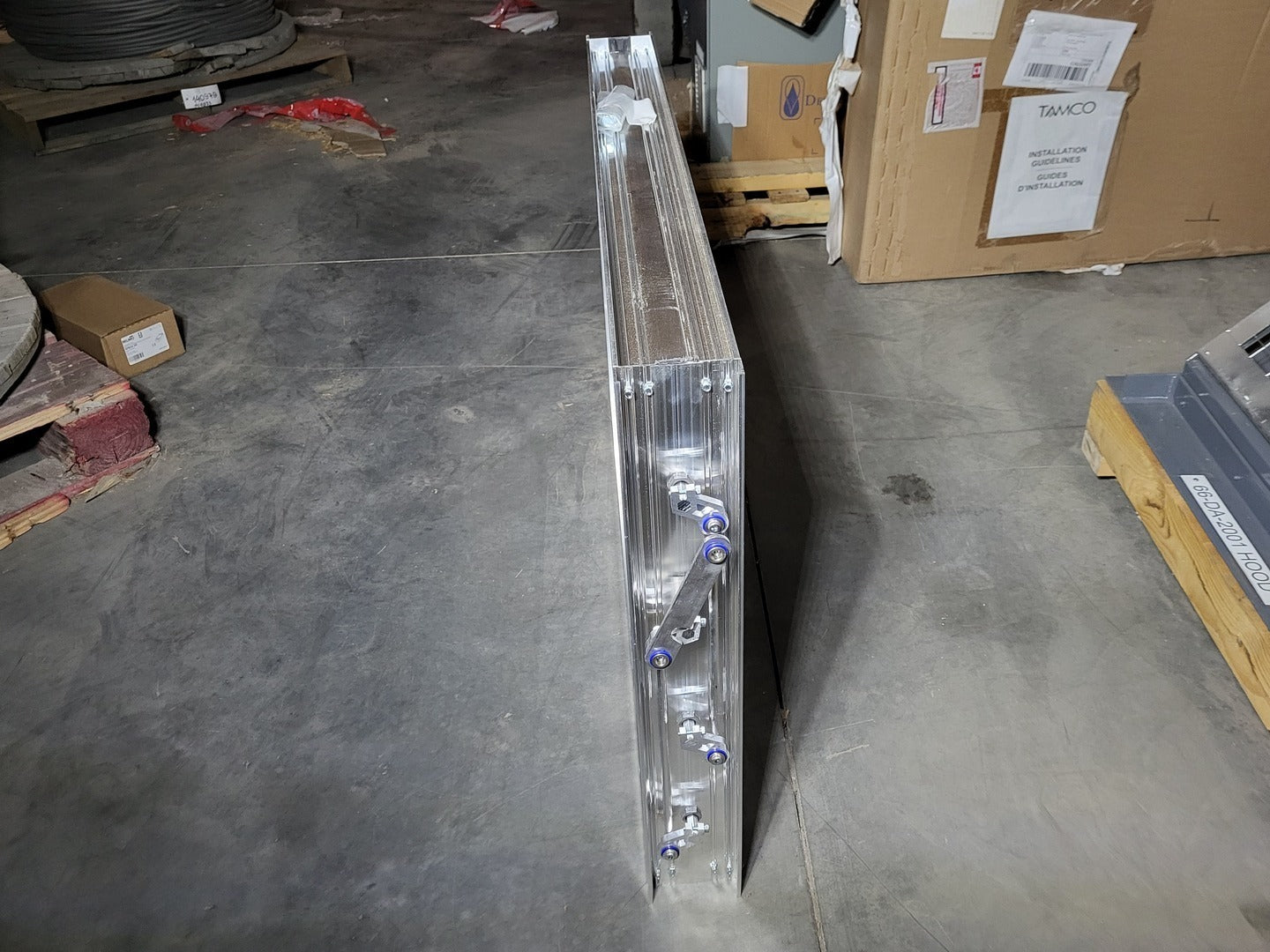

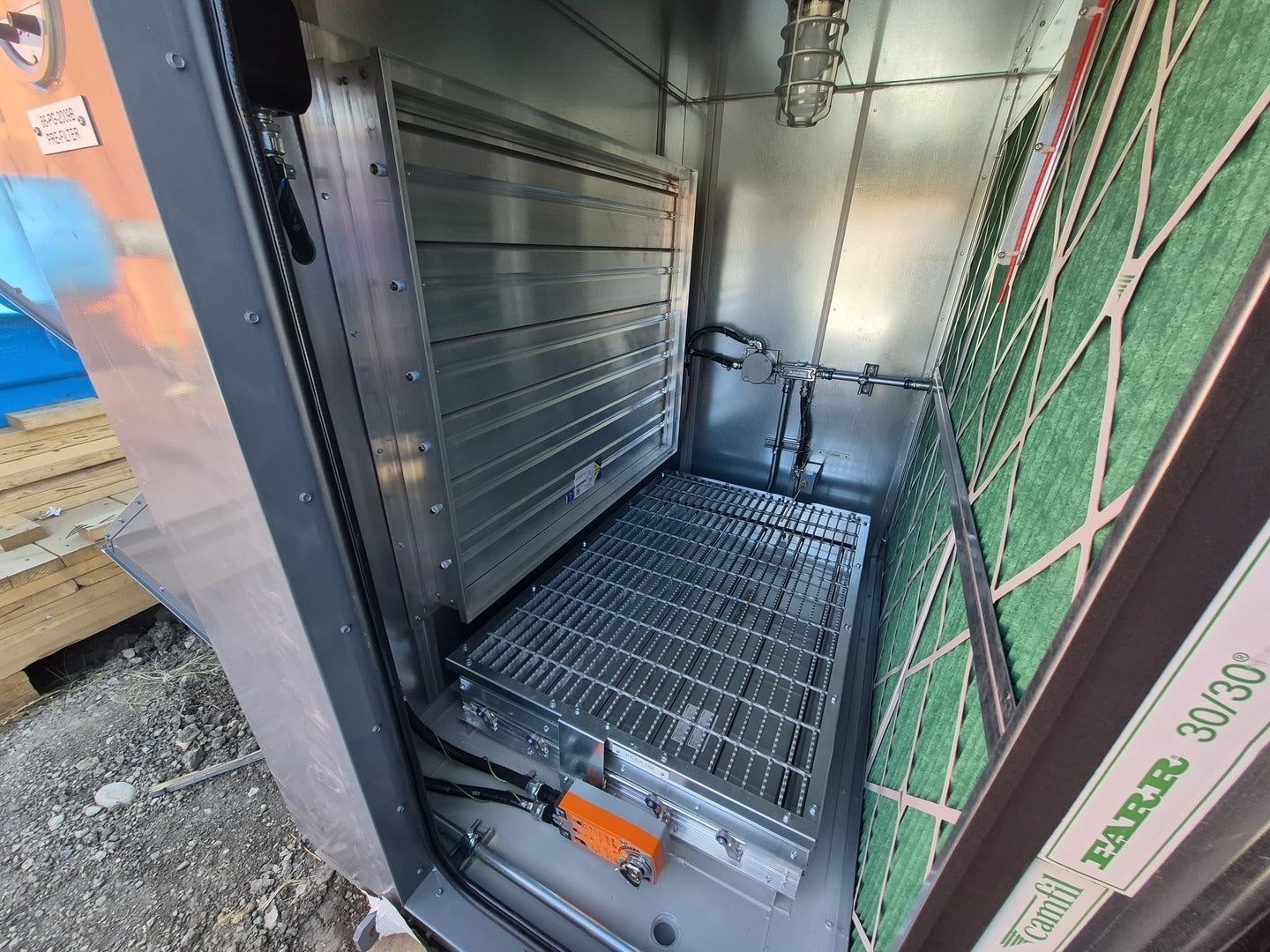

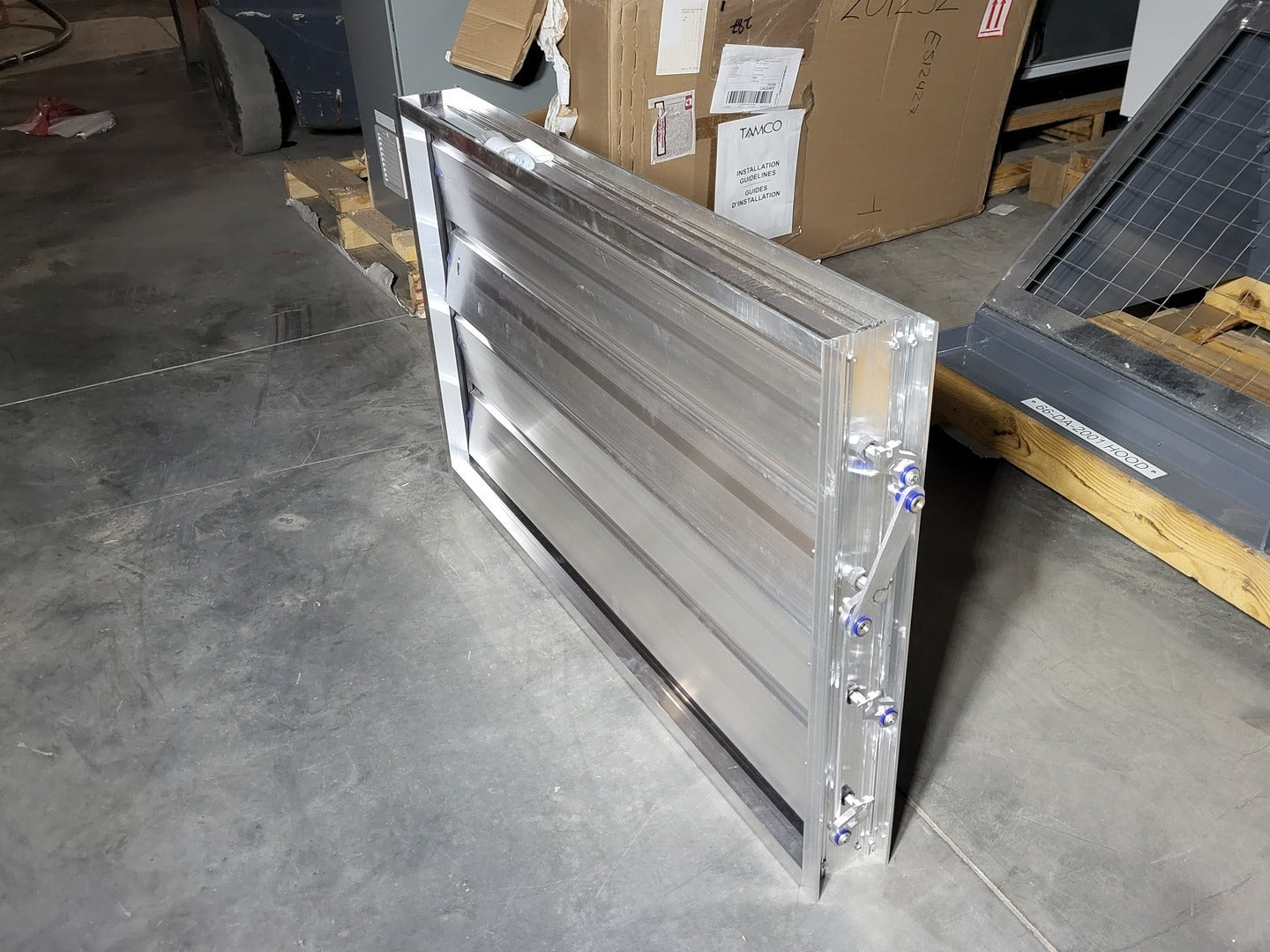

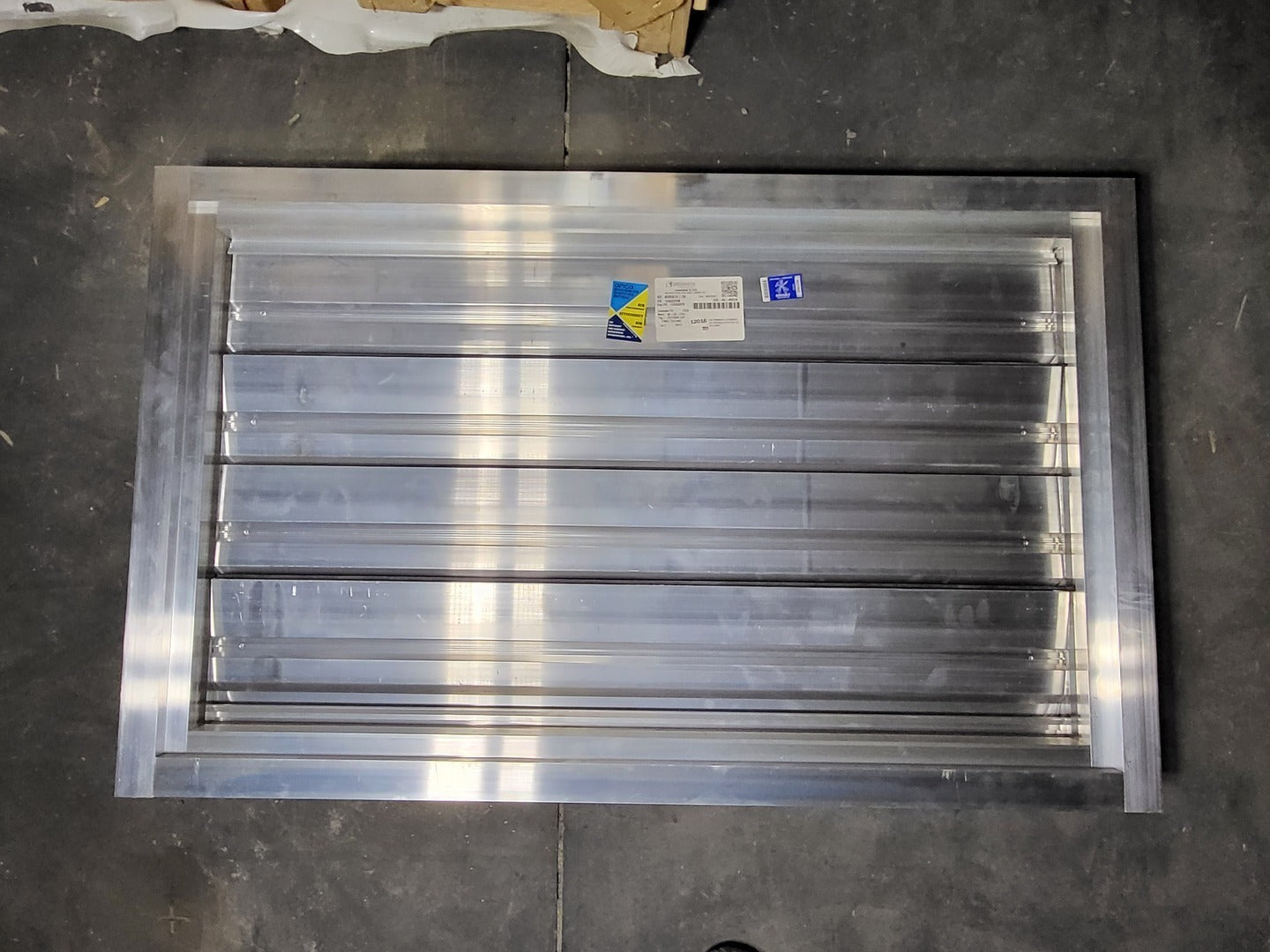

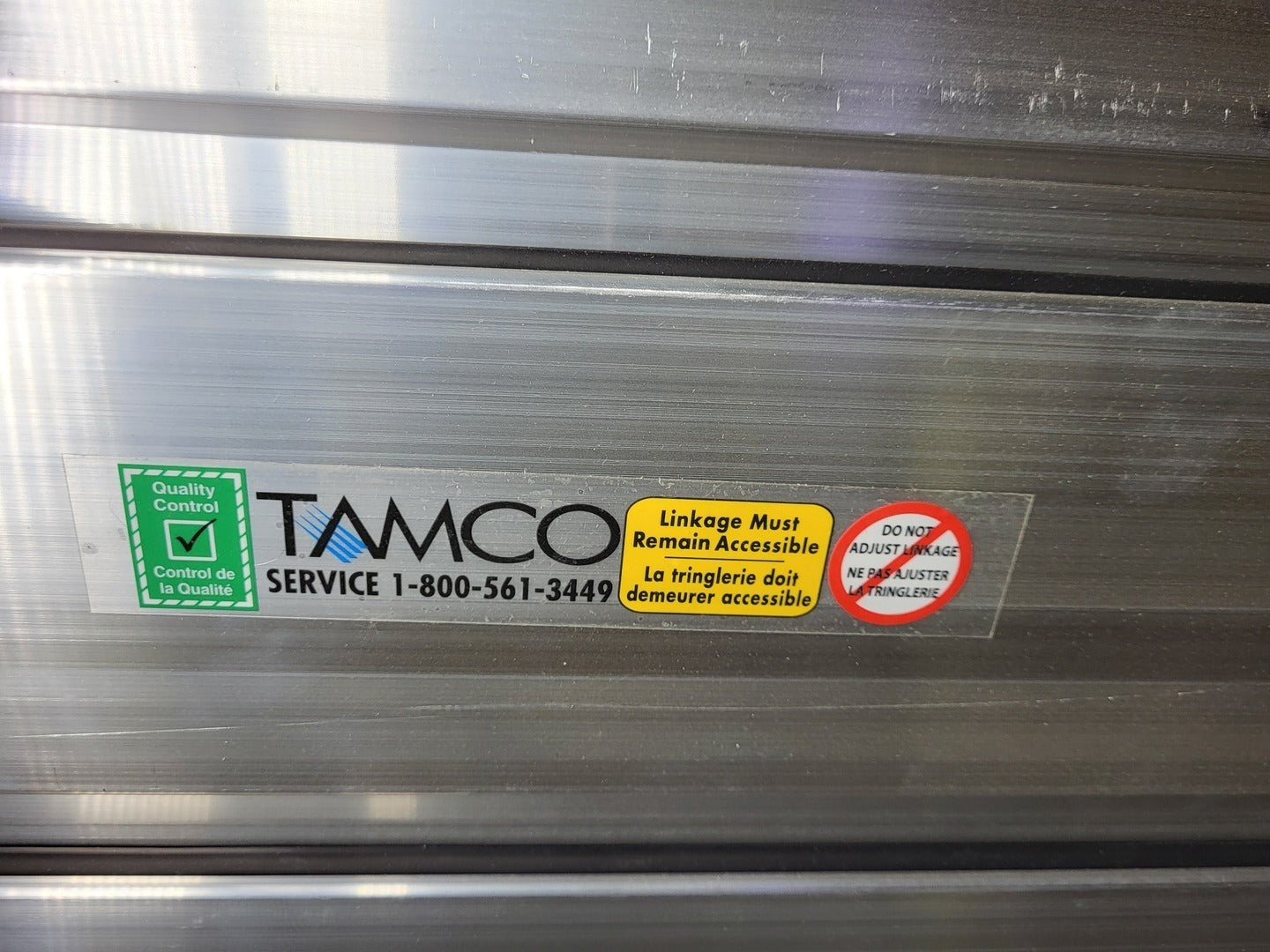

2 x Motorized Dampers (Ref. 145470, 145471, 145563):
-
Make: TAMCO
-
Model: 1000
-
Size: 40in. x 26in.
-

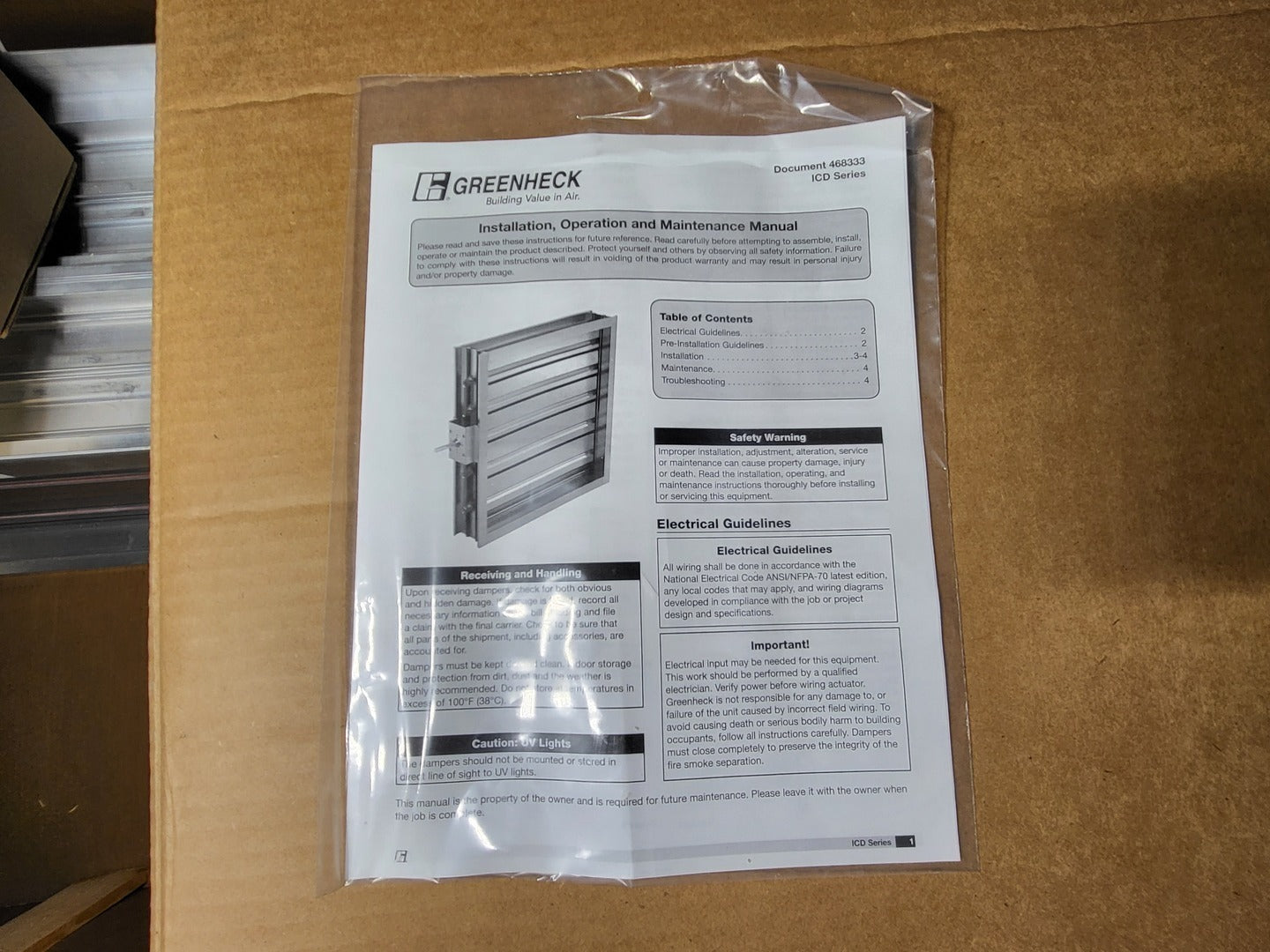

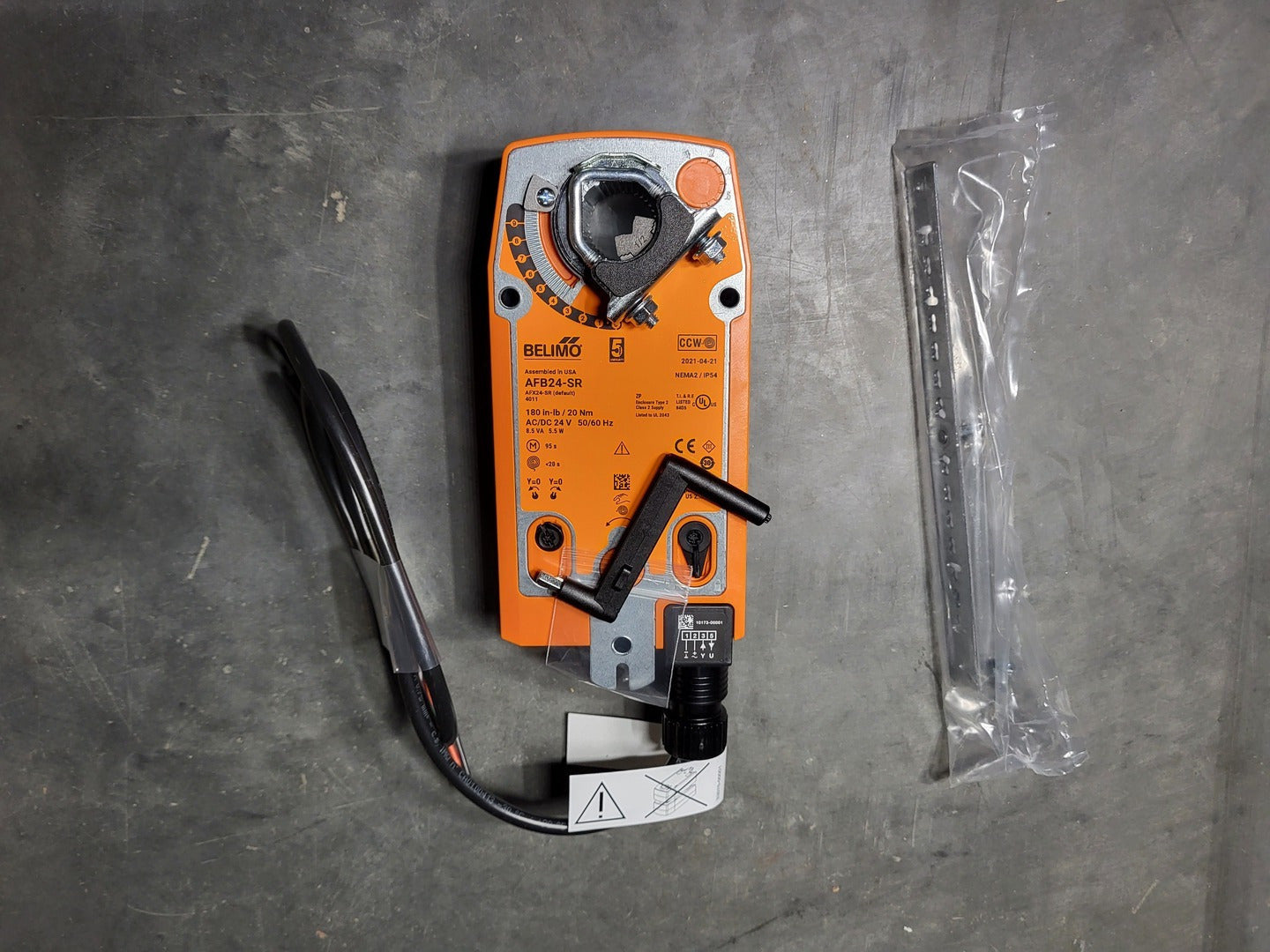

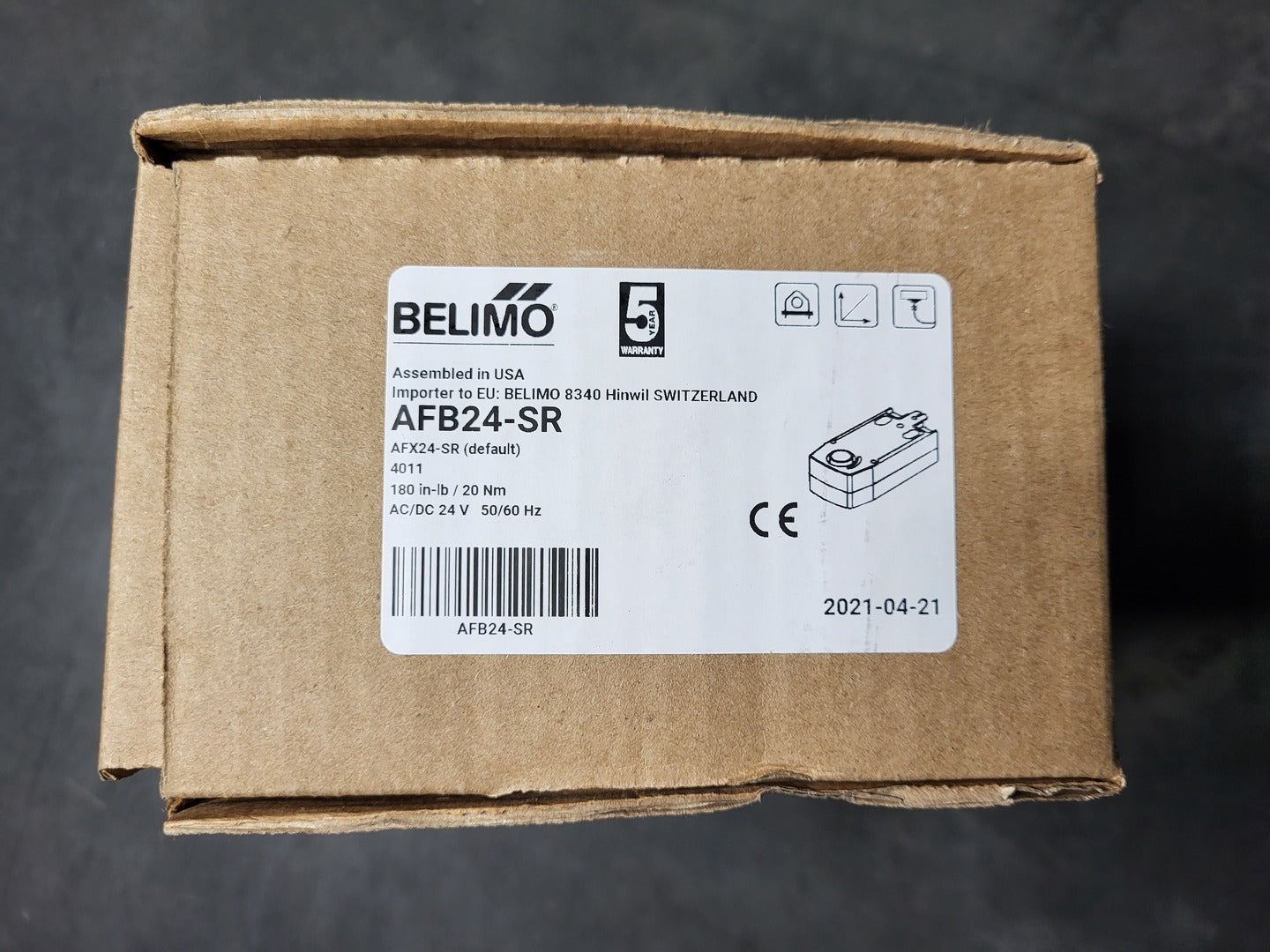

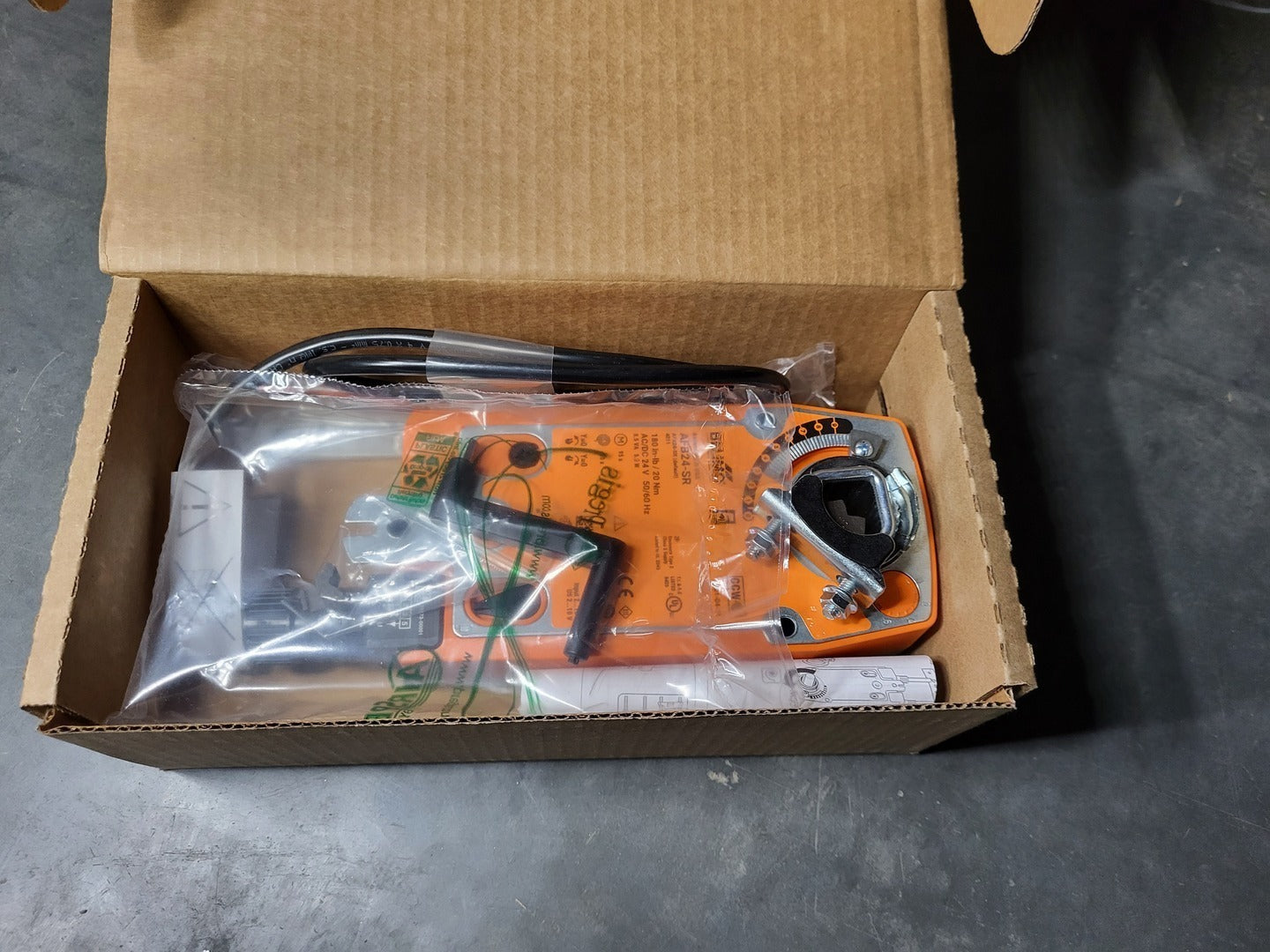

C/W: BELIMO Spring Return Damper Actuators AFB24-SR

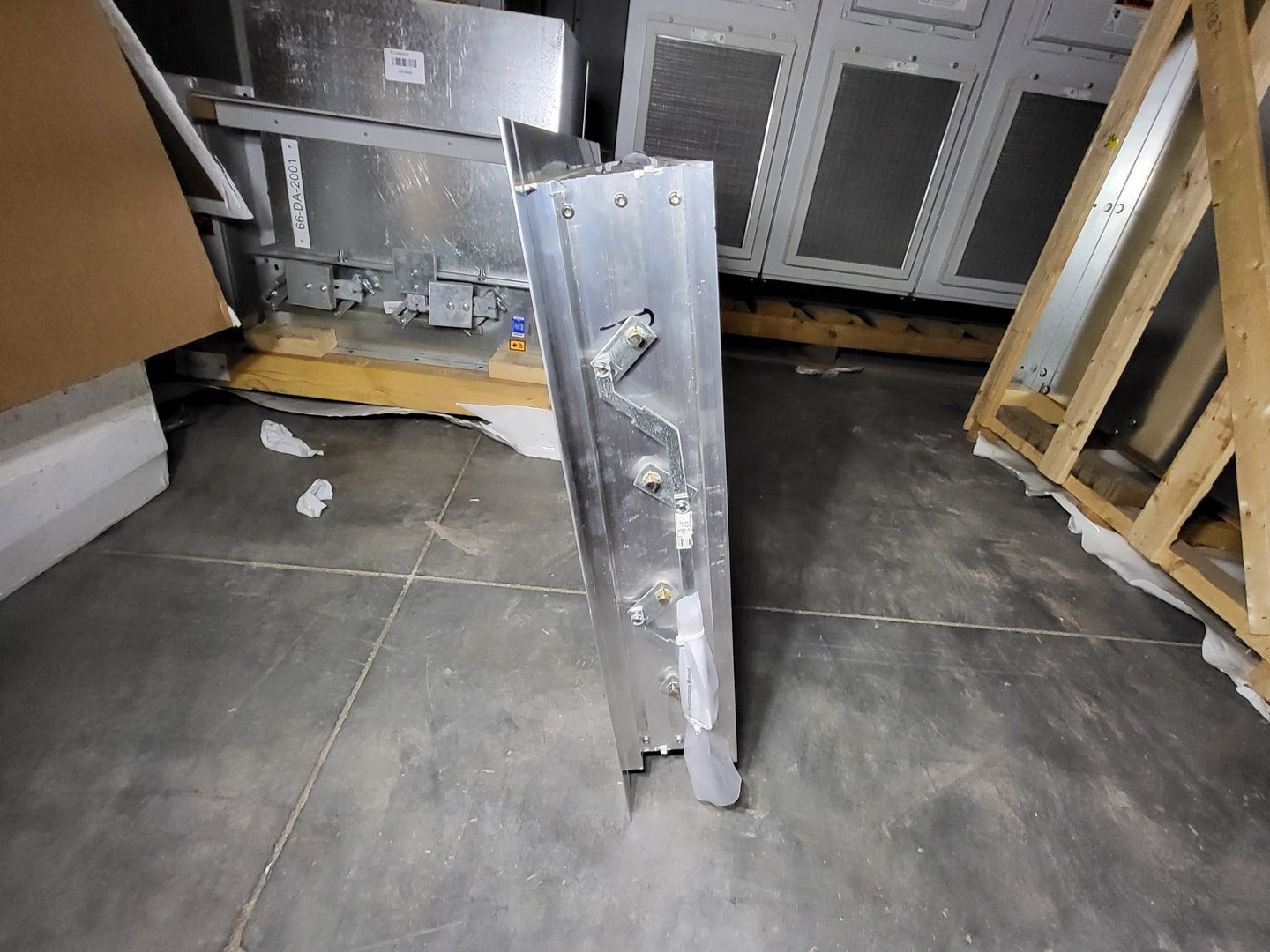

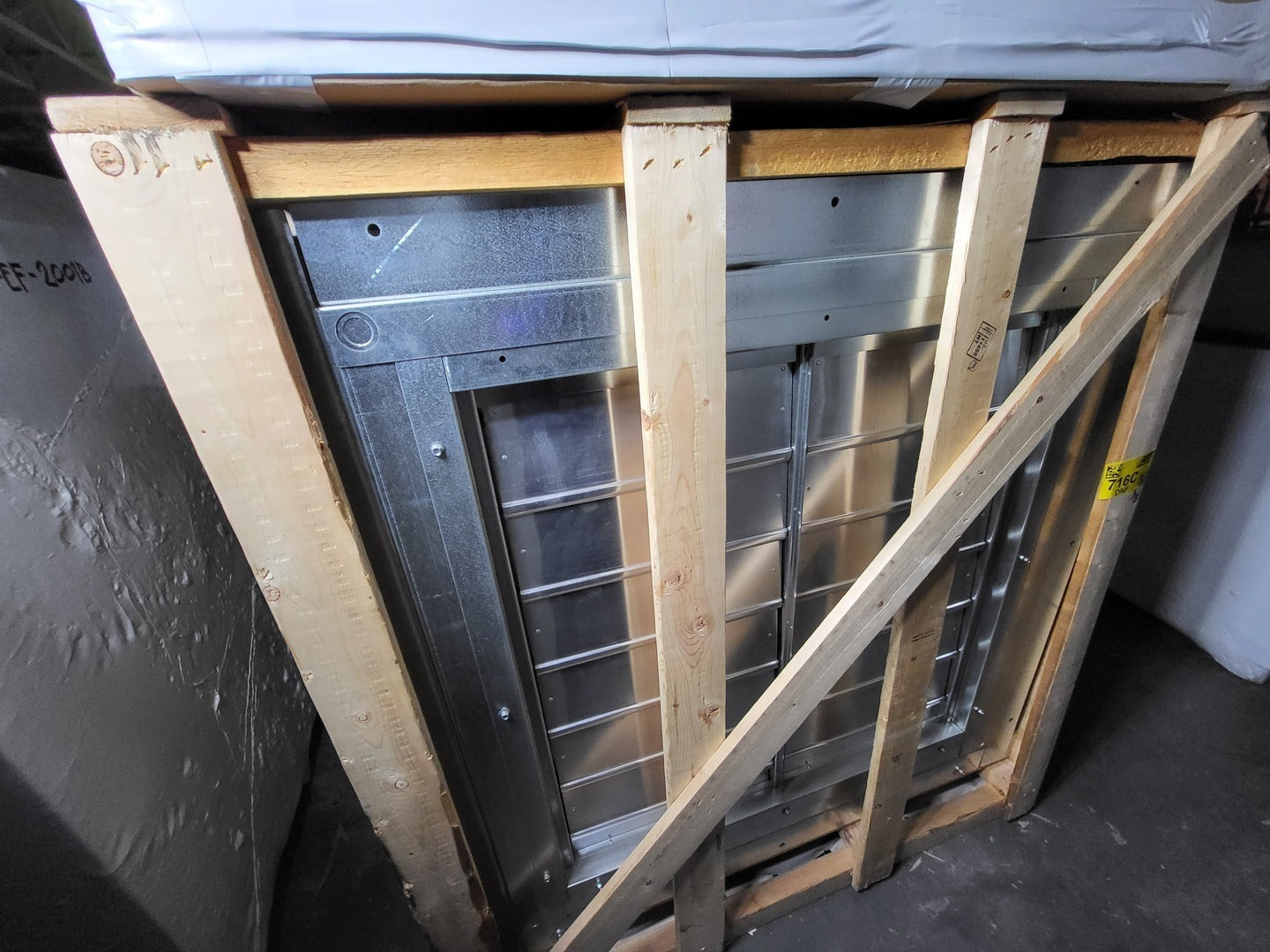

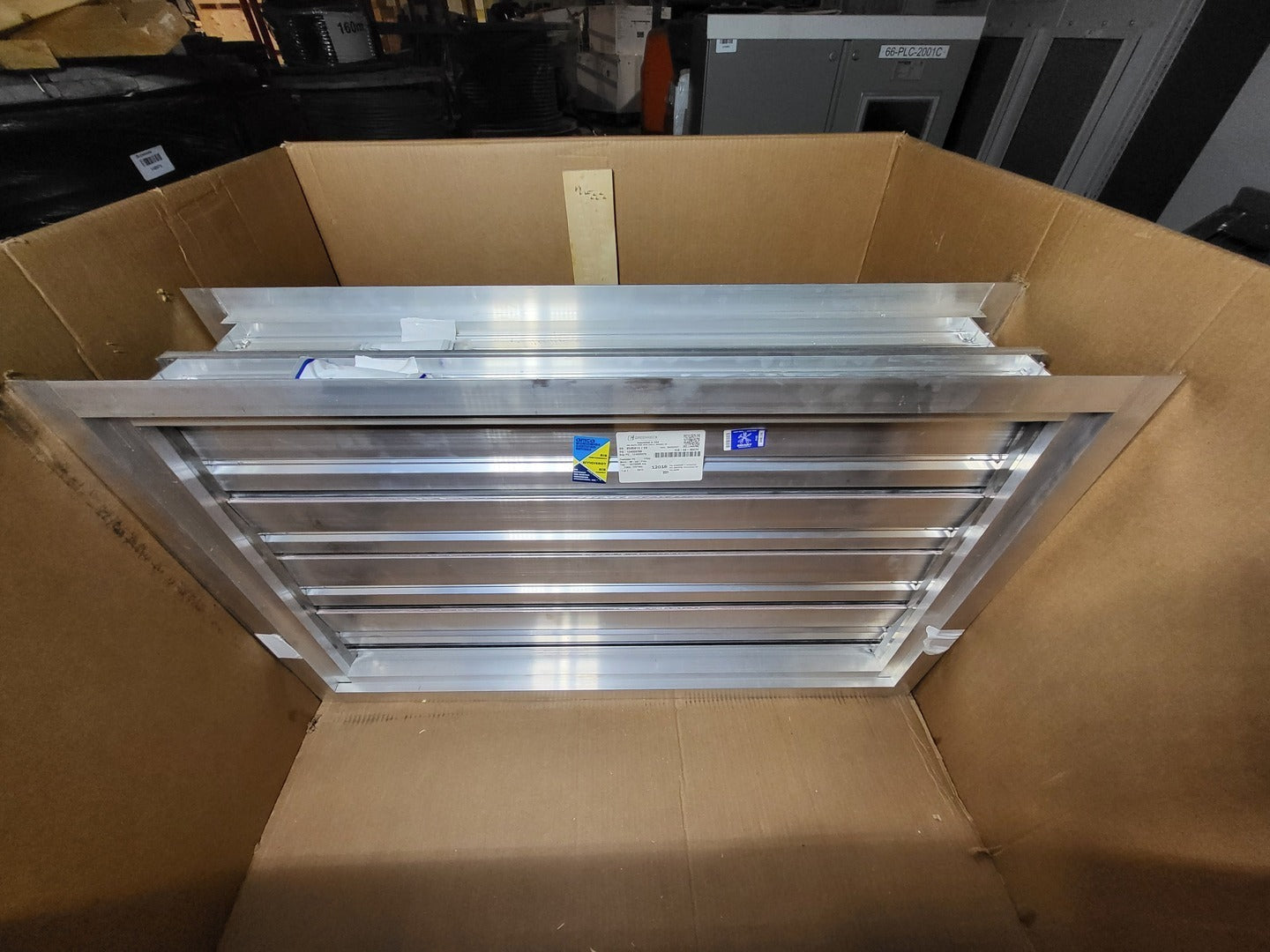

2 x Motorized Dampers (Ref. 145465, 145472):
-
Make: GREENHECK
-

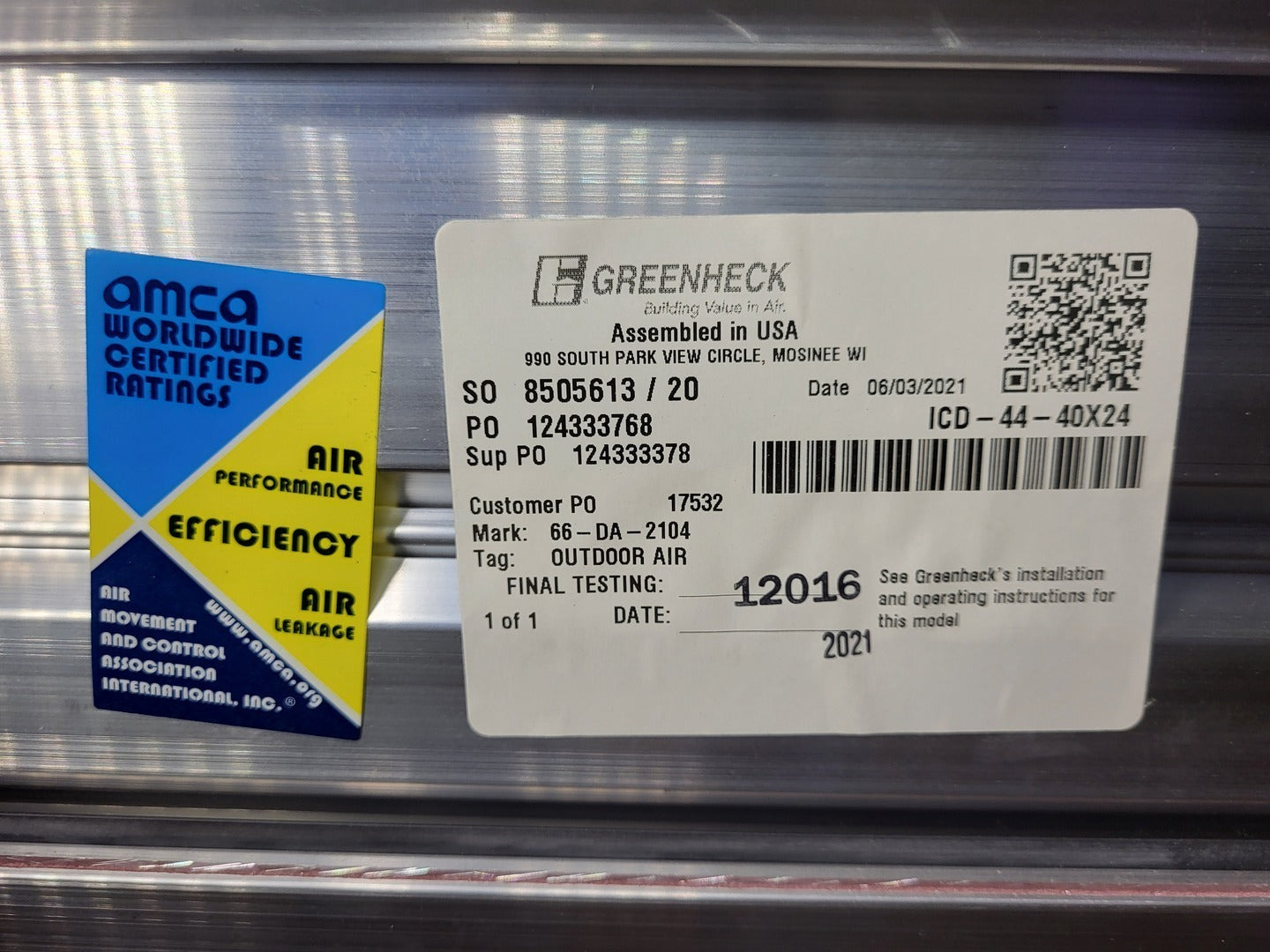

Model: ICD-44-40X24
-
Size: 40in. x 24in.
-

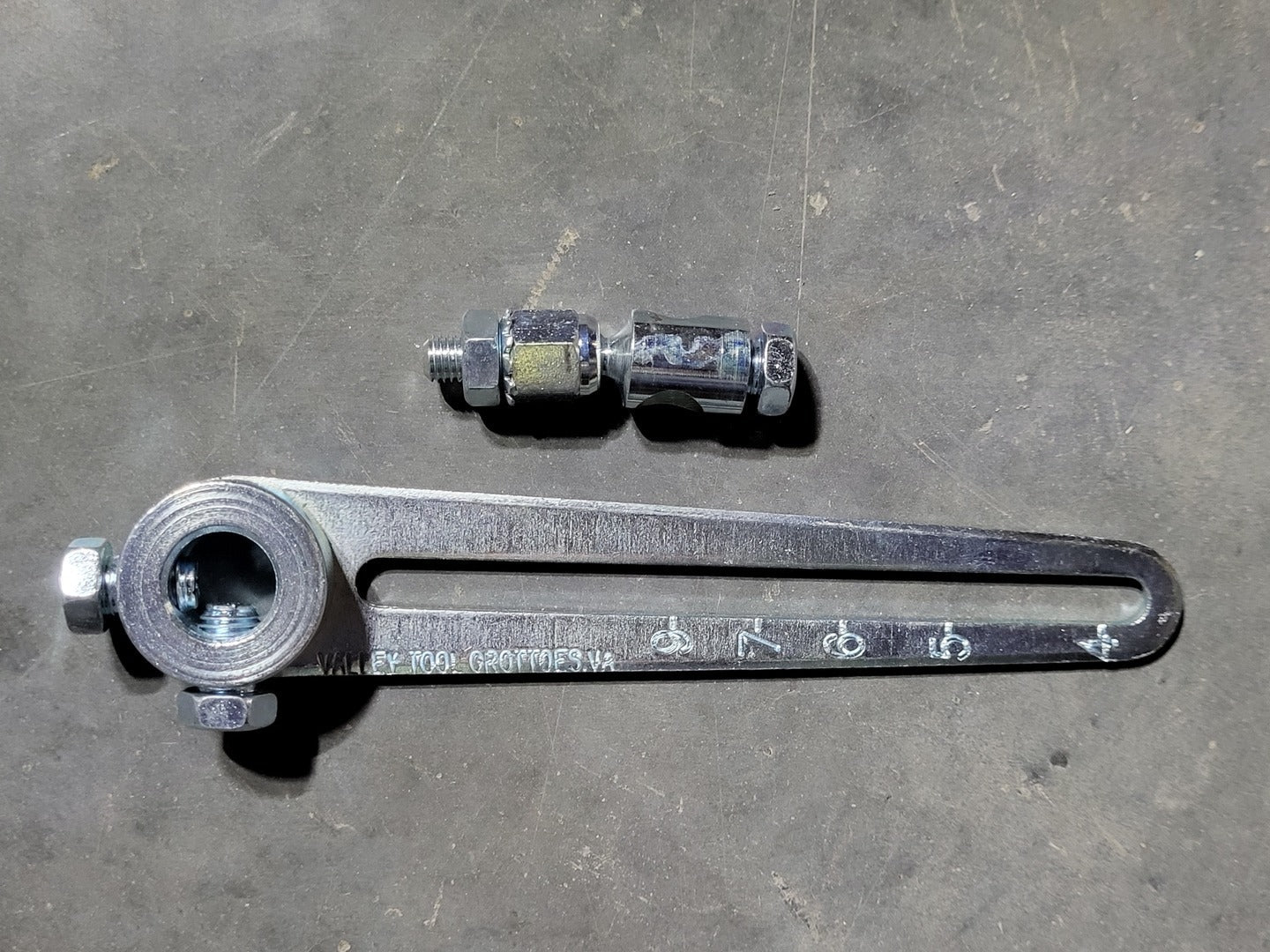

C/W: Crank arms and swivel joints

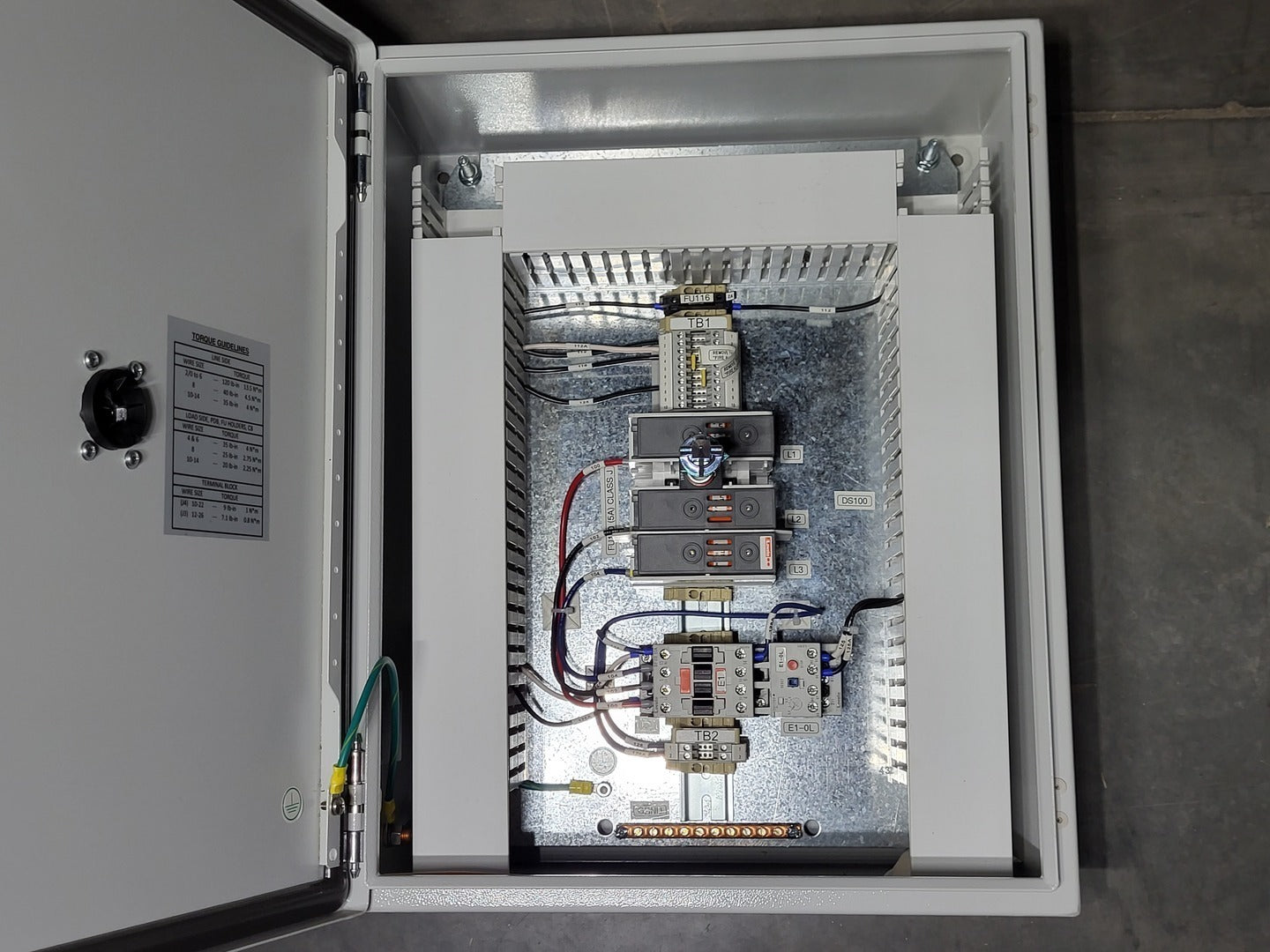

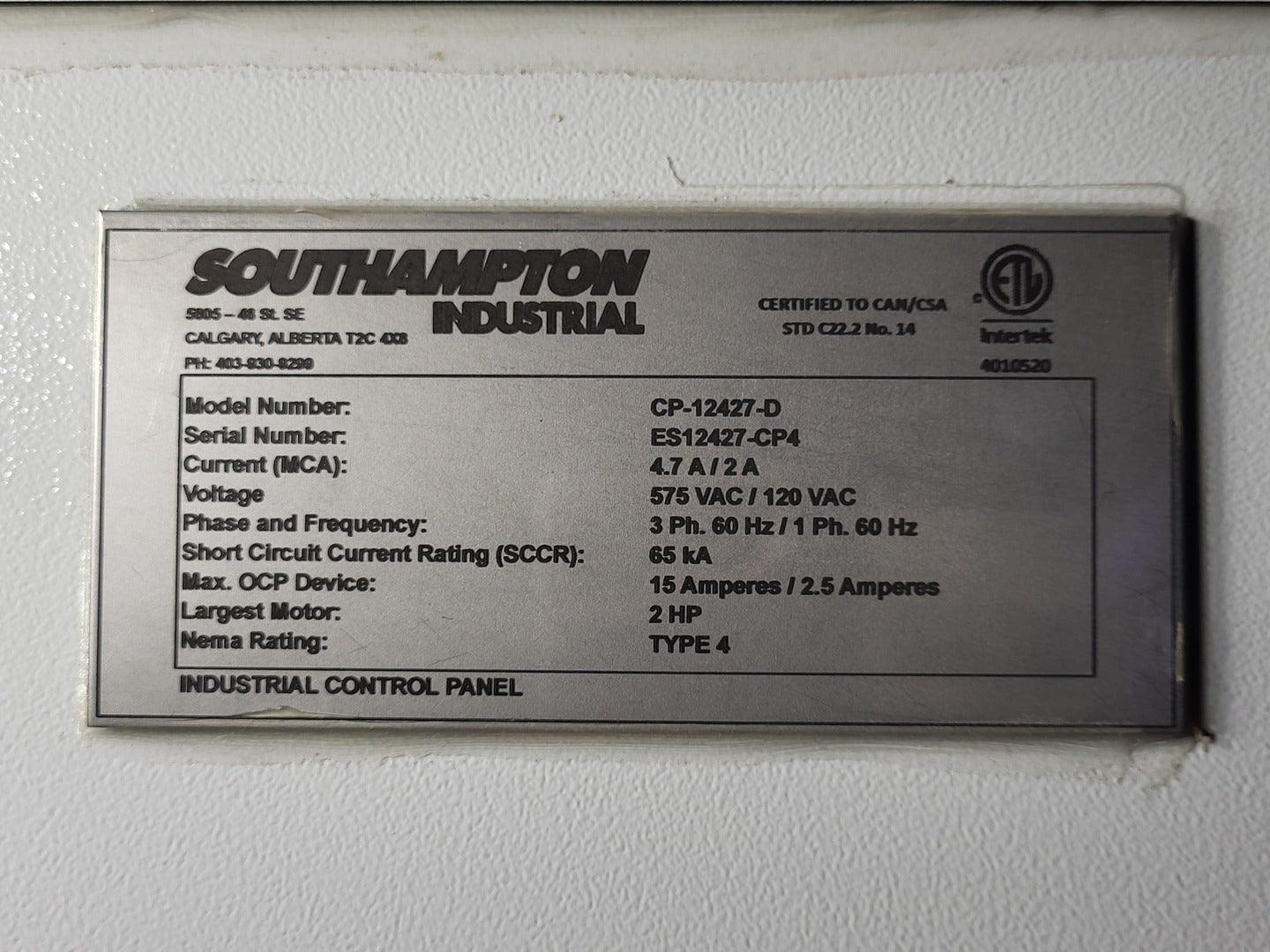

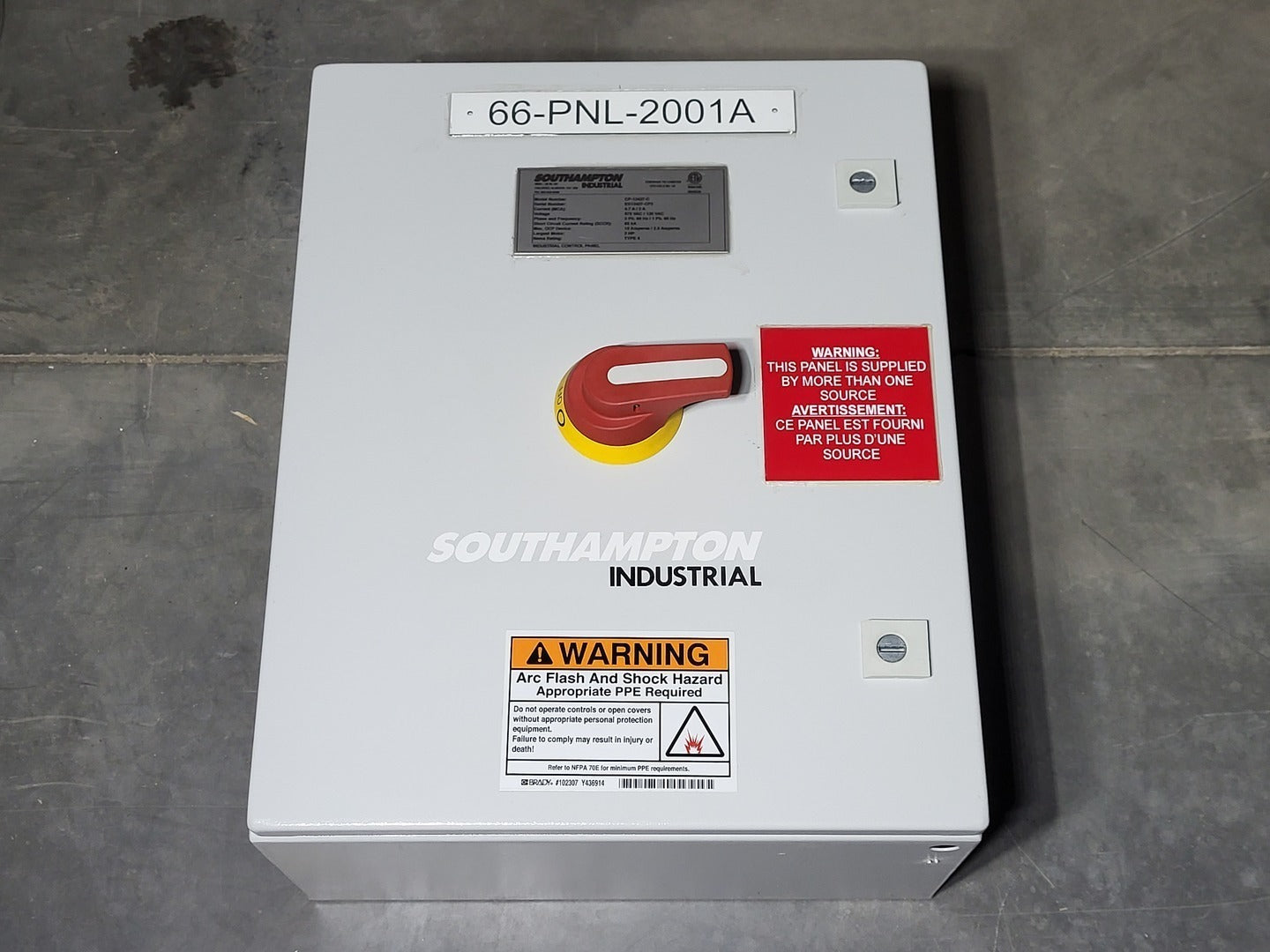

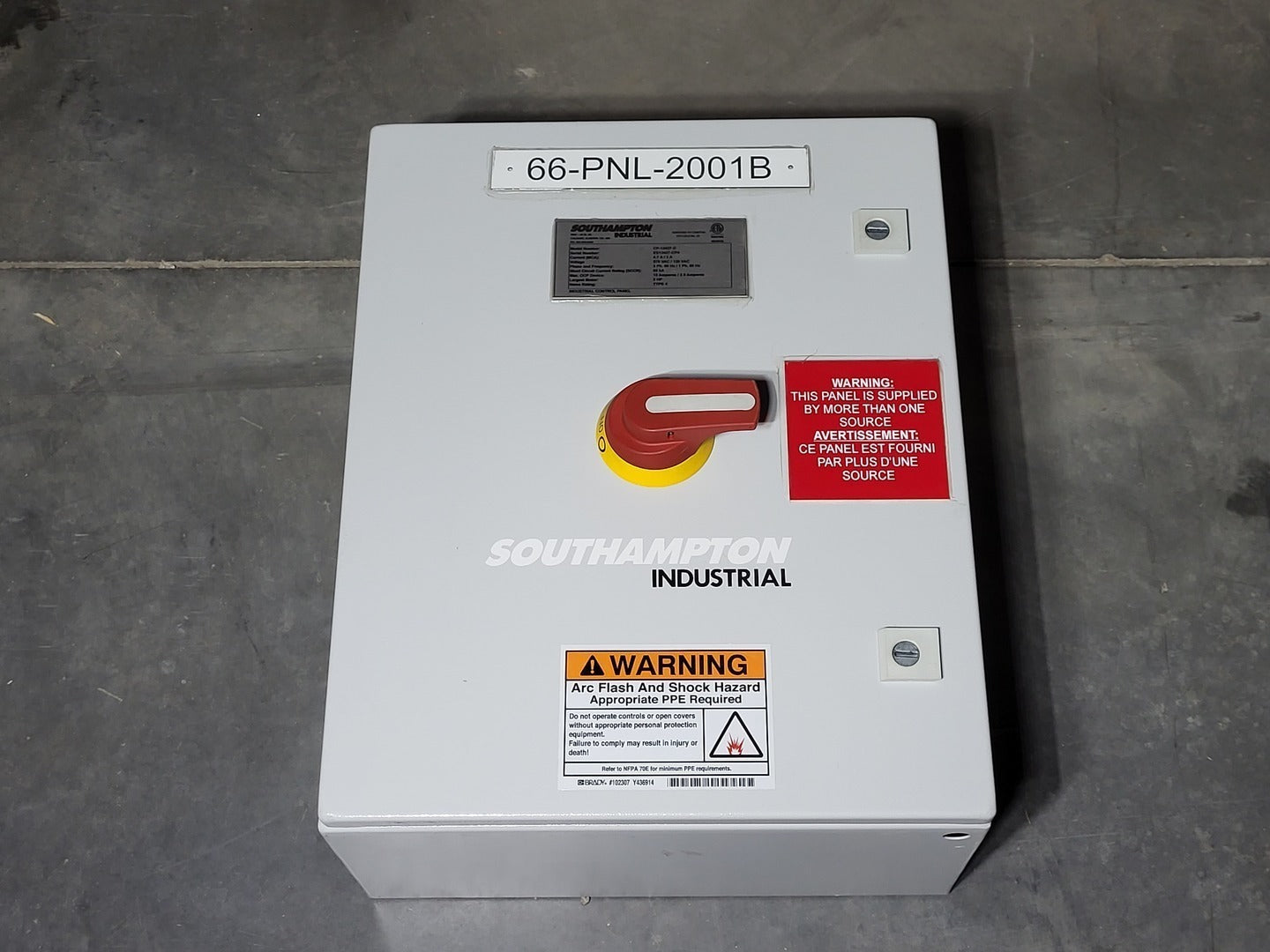

2 x Fused Disconnects (Ref. 145467, 145468):
-
Make: SOUTHAMPTON
-
Model: CP-12427-C / CP-12427-D
-
Electrical: 575 / 120VAC, 3-Ph / Single-Phase, 60hz, 4.7 / 2A, 65kA SCCR, NEMA 4
|
