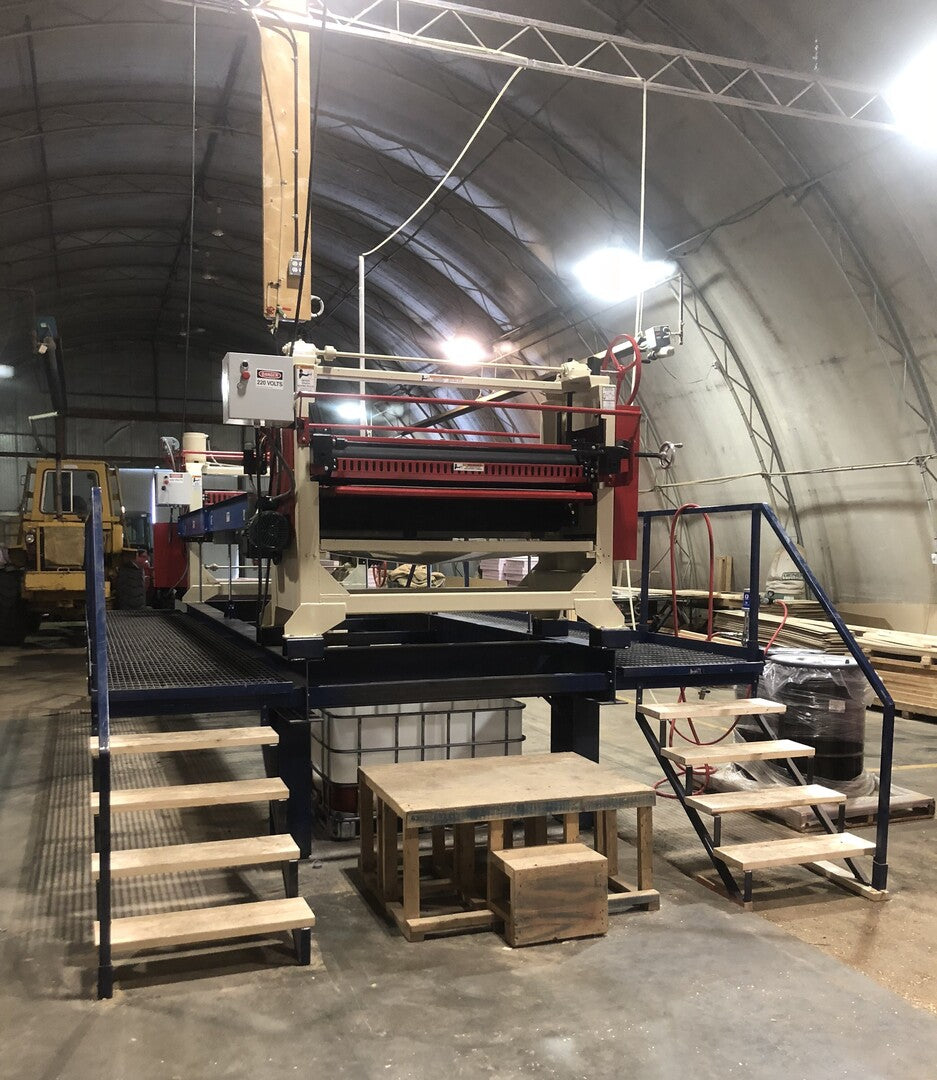

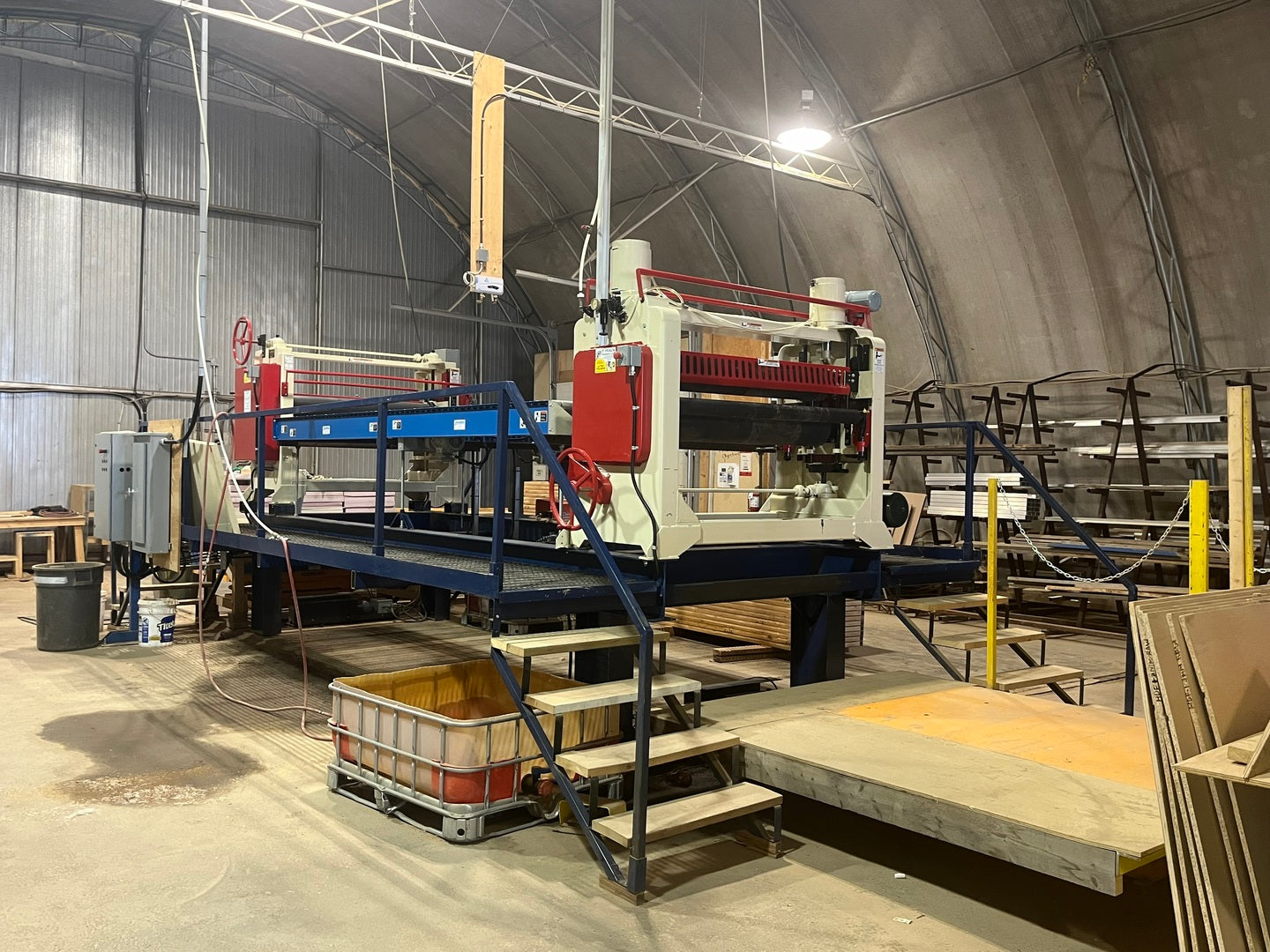

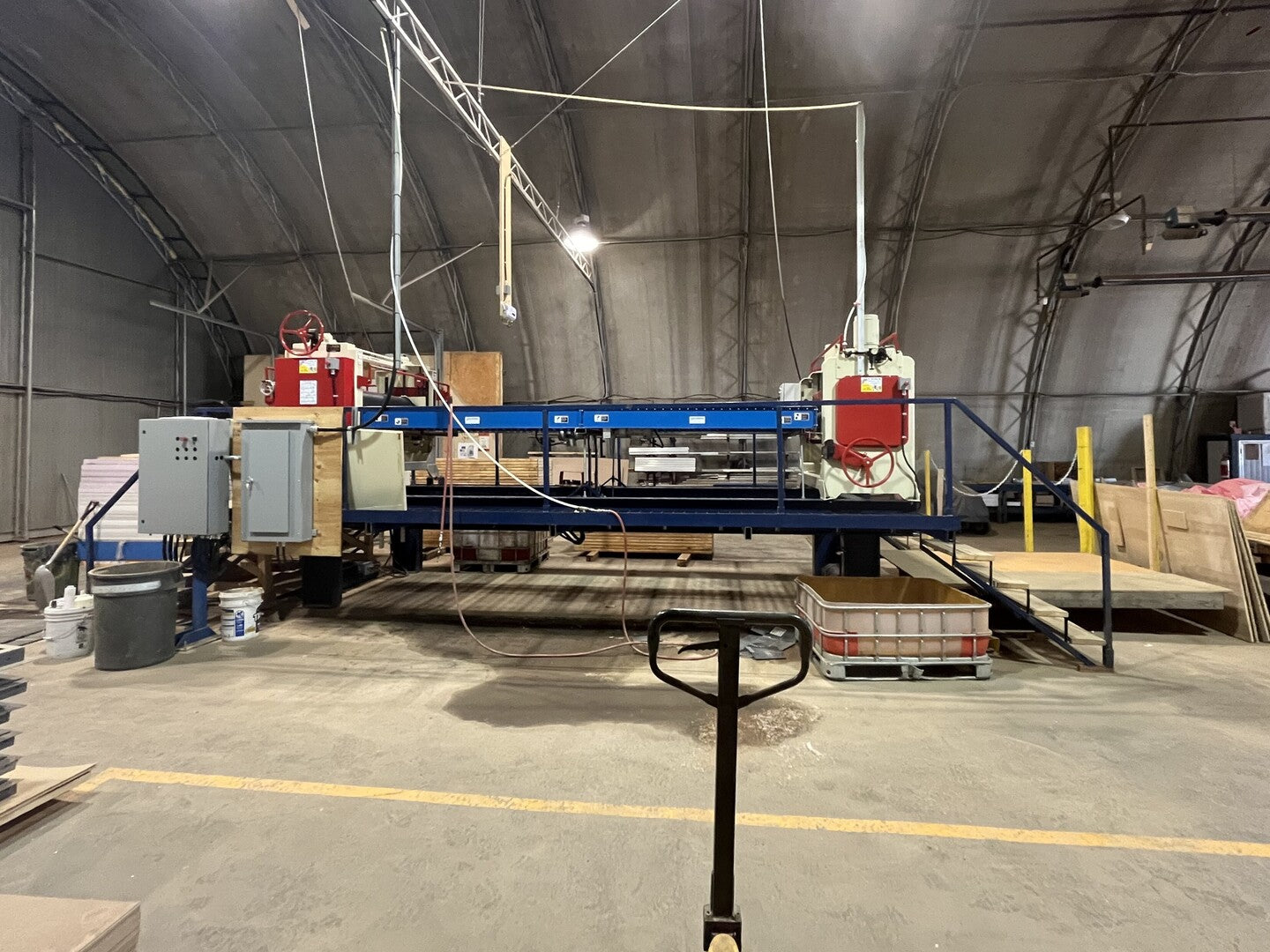

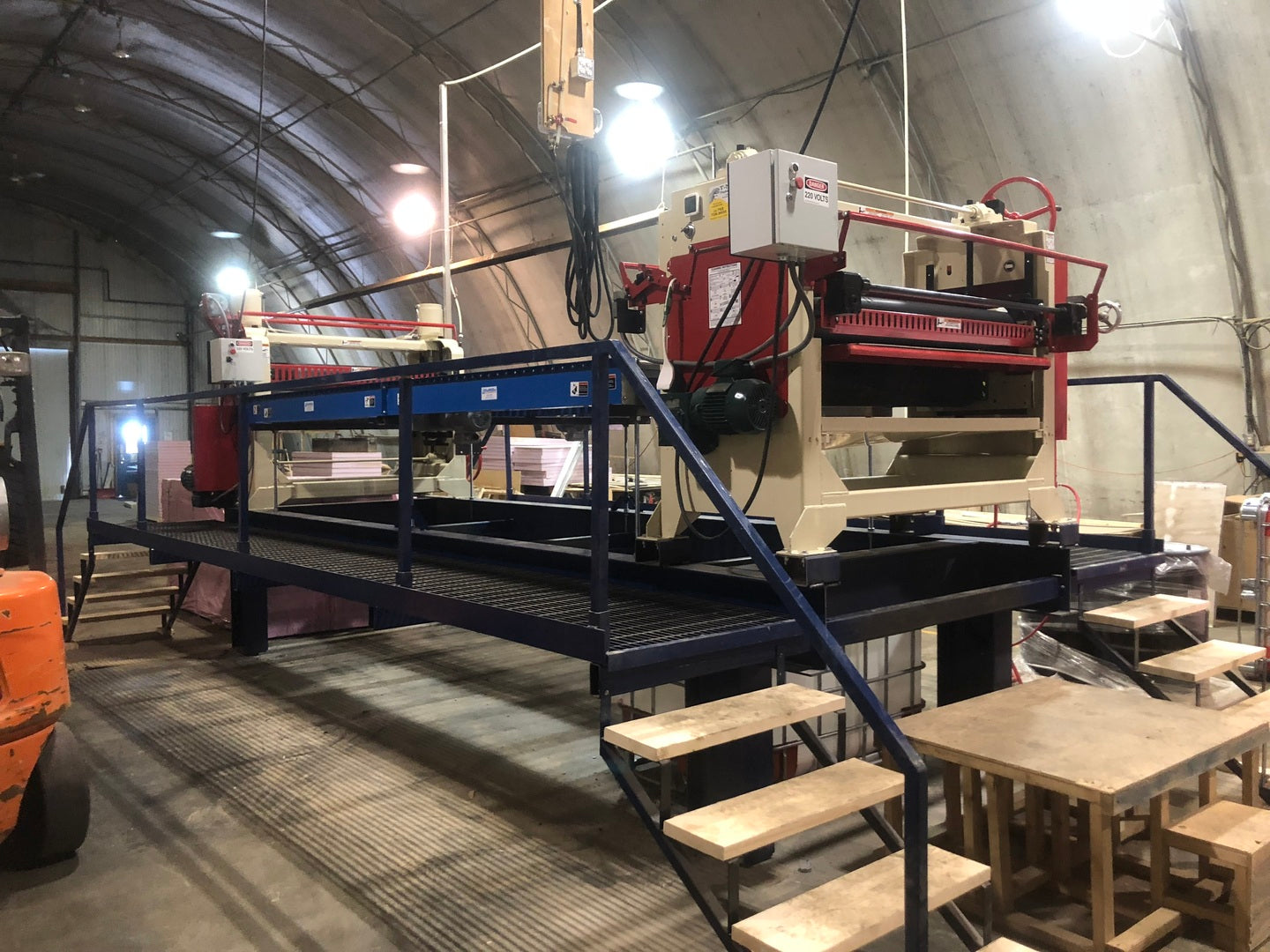

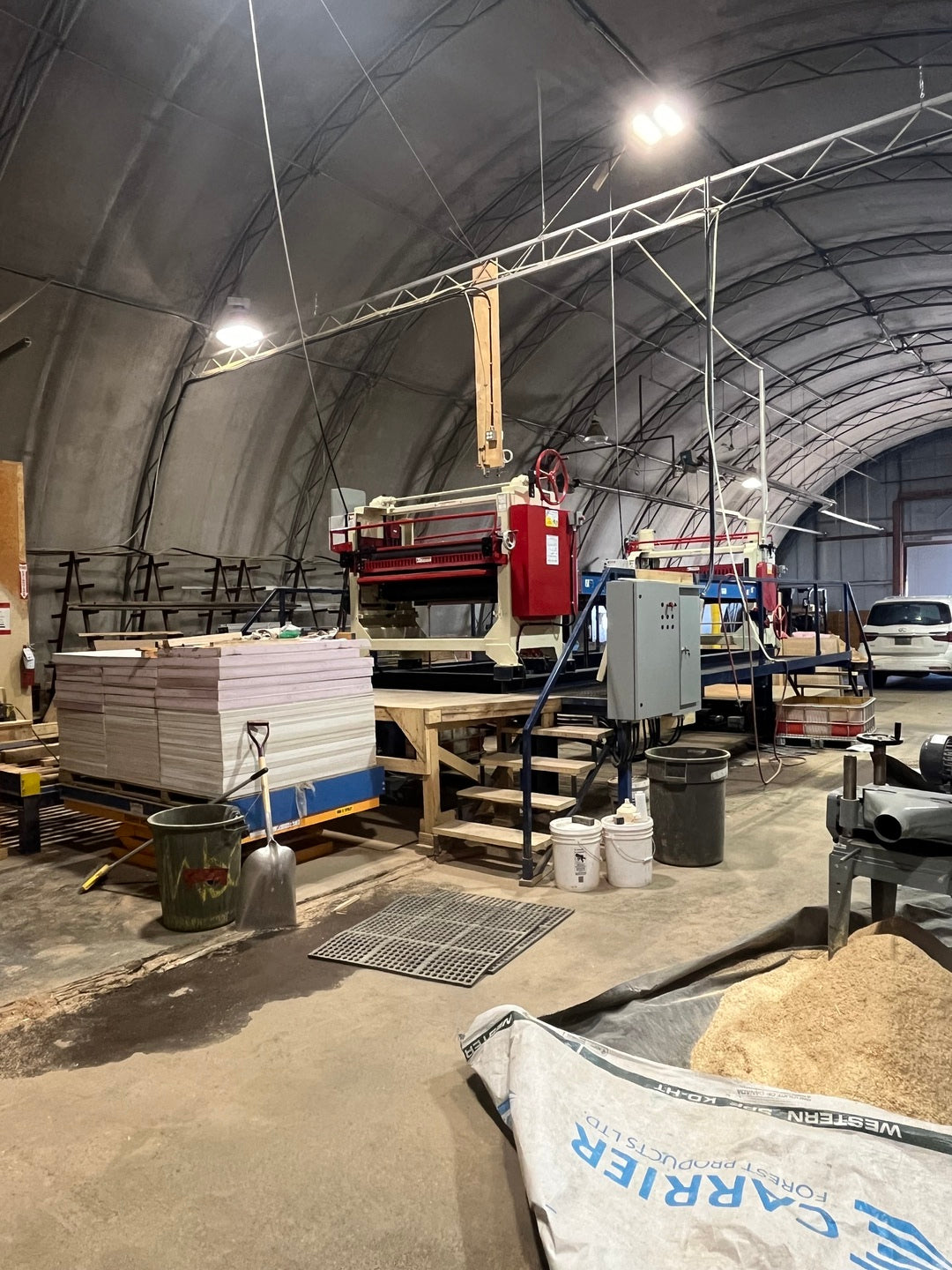

Laminating and Gluing Equipment Line

SKU: 120140
$150,000 CAD

Shipping calculated at checkout

Only 1 unit left
Make an Offer

Need An Answer Now?


Email Finance


Condition Used
Other Specifications

Glue Roller Laminating and Finishing Equipment

Condition: Fully Refurbished

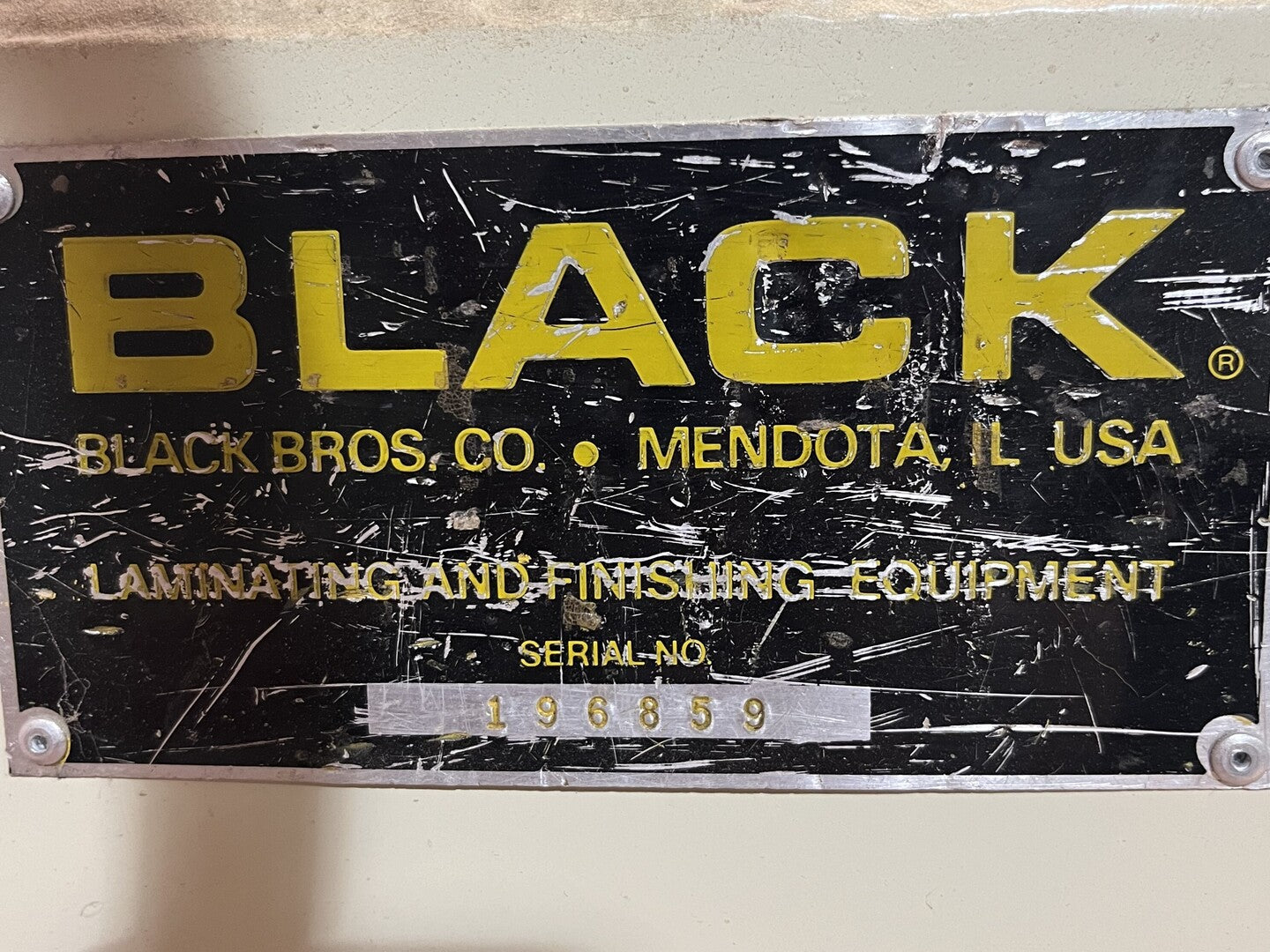

S/N: 196859

Shipping Dimensions: 96" L x 48" W x 67" H

Weight: 2,800 lbs.

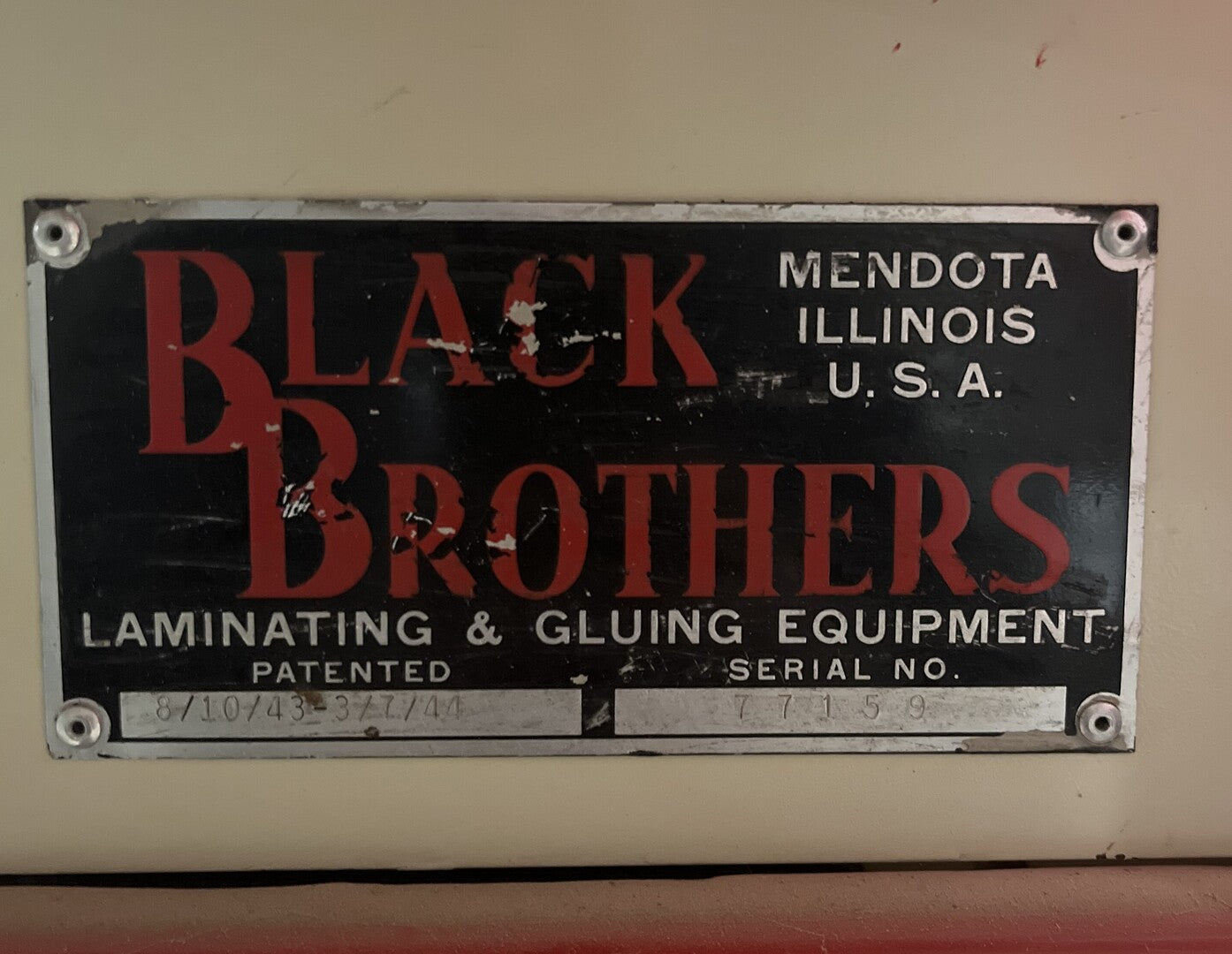

BLACK BROTHERS ''22-D-875-56'' GLUE SPREADER (TOP) Top Only Adhesive Spreader

Working Width: 56" reconditioned Glue Spreader

"New" Smooth Neoprene coated applicator roll: 8-3/4" Dia.

"New" Neoprene Doctor roll: 6-3/4" Dia.

Upper elevator opening: 0" - 4-1/2"

  • Single Hand Wheel adjustment for the Doctor Roll
  • Variable speed drive
  • NEMA 12 electrics

Complete with: Push button magnetic starter, safety guards, all warning labels.

Electrics: 230 volts, 60 Cy, 3 Phase

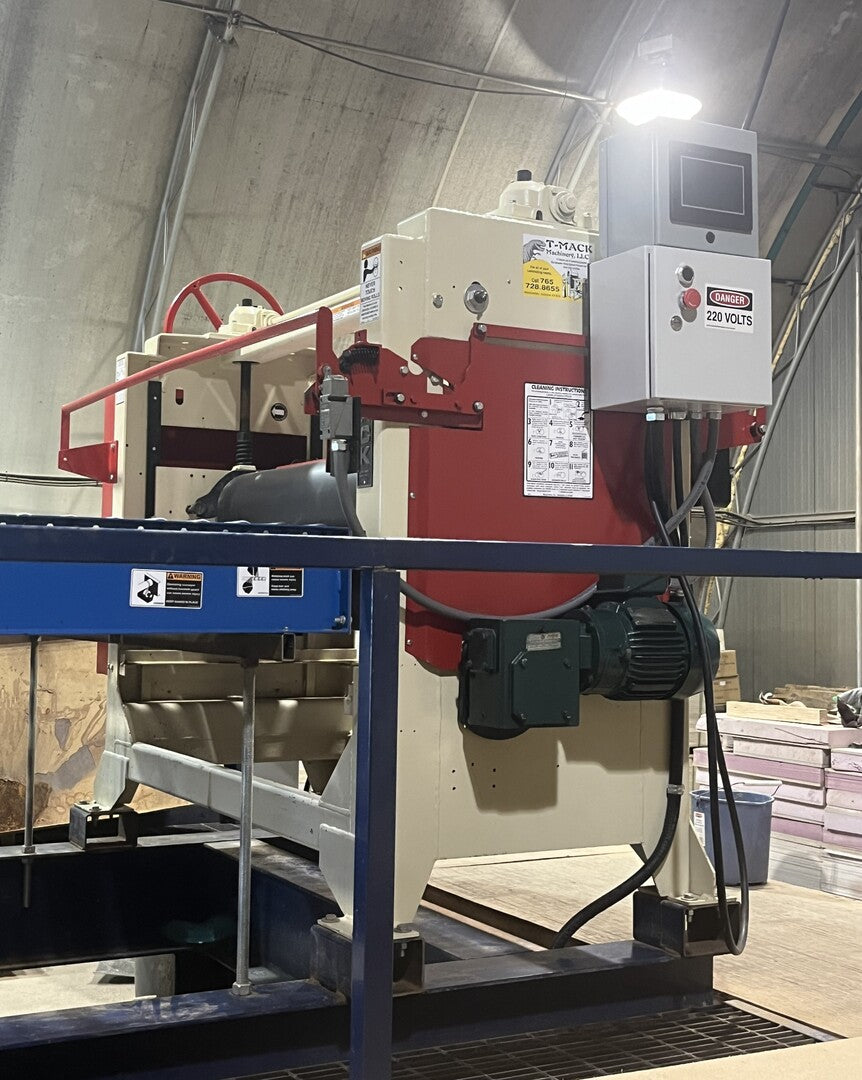

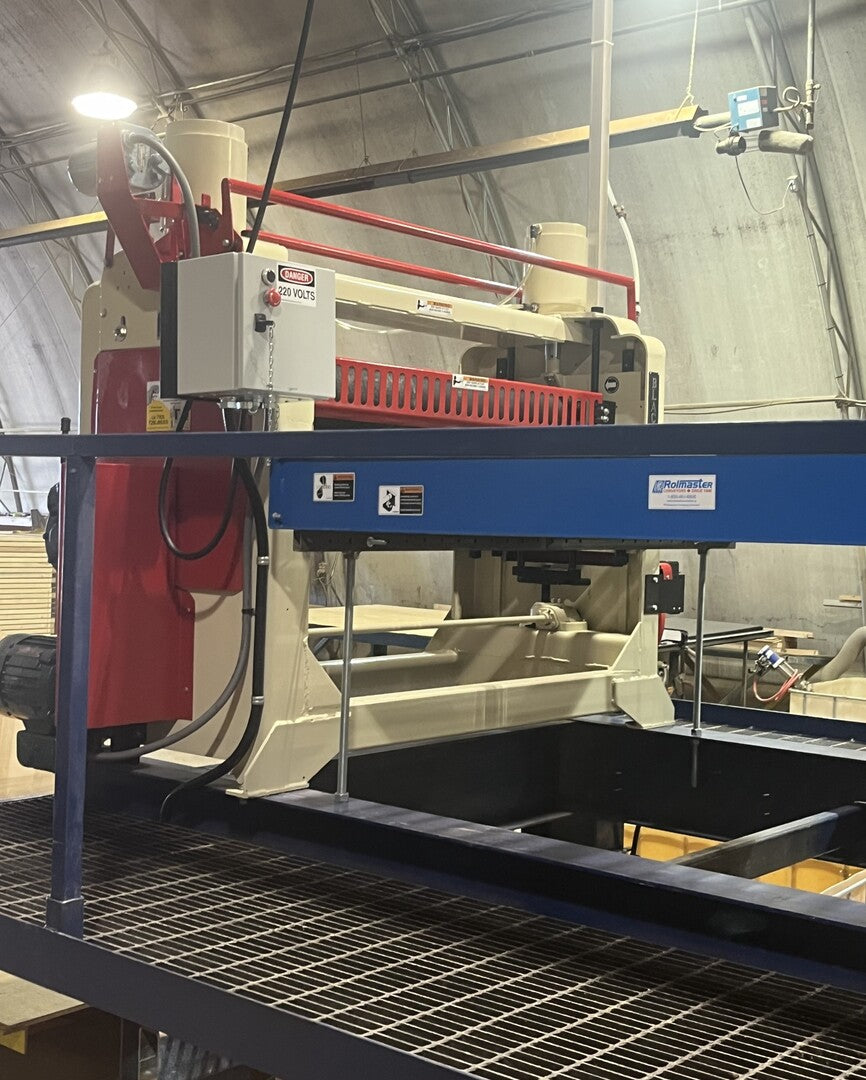

Pinch Press Laminating and Gluing Equipment



Working width: 56"

New (60/65 durometer): 8-3/4" dia. rolls.

Specifications: Upper elevator opening 0" - 4-1/2"

Variable Speed Drive

Cylinders: 8" Dia.

Combined pressure: 8,000 Lbs max.

Complete with:

  • Push button magnetic starter
  • Safety guards
  • All warning labels
  • Bottom infeed & outfeed rolls
  • NEMA 12 electrics

Electrics: 230 volts, 60 Cy, 3 Phase

NOTE: Machine will have both upper and lower pinch rollers driven to prevent the parts from slipping in the machine

Econolift Double Scissor Lifting Tables

Condition: New

Qty: 2

Model: 3DSL72

Platform: 48" w x 72"

Lowered height: 15"

Travel: 72"

Raised height: 87"

Electrics: 3 hp, 240 volts, 3 Phase

Includes: Foot Pedal Controls

S/N 1: S19326

S/N 2: S19326

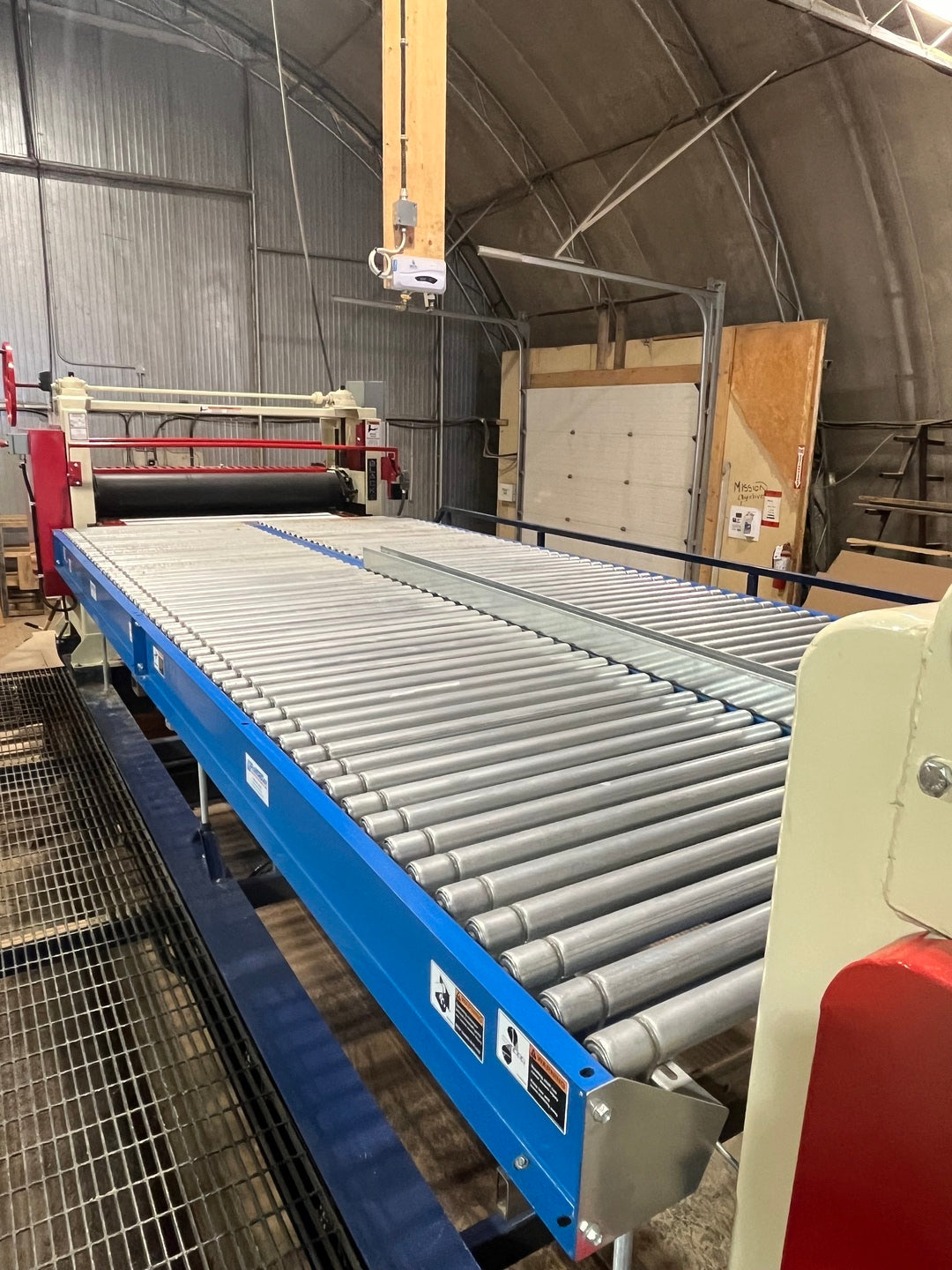

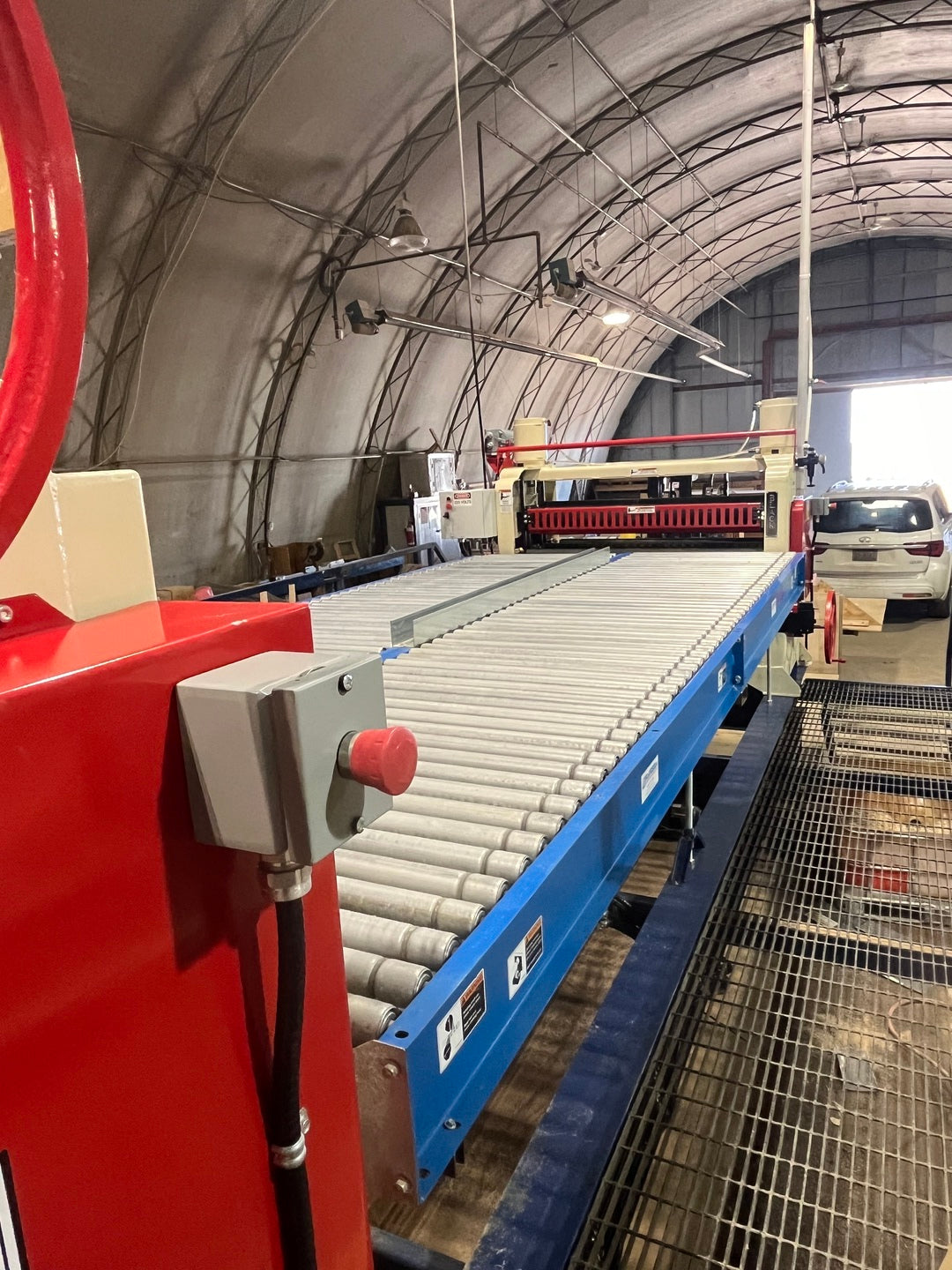

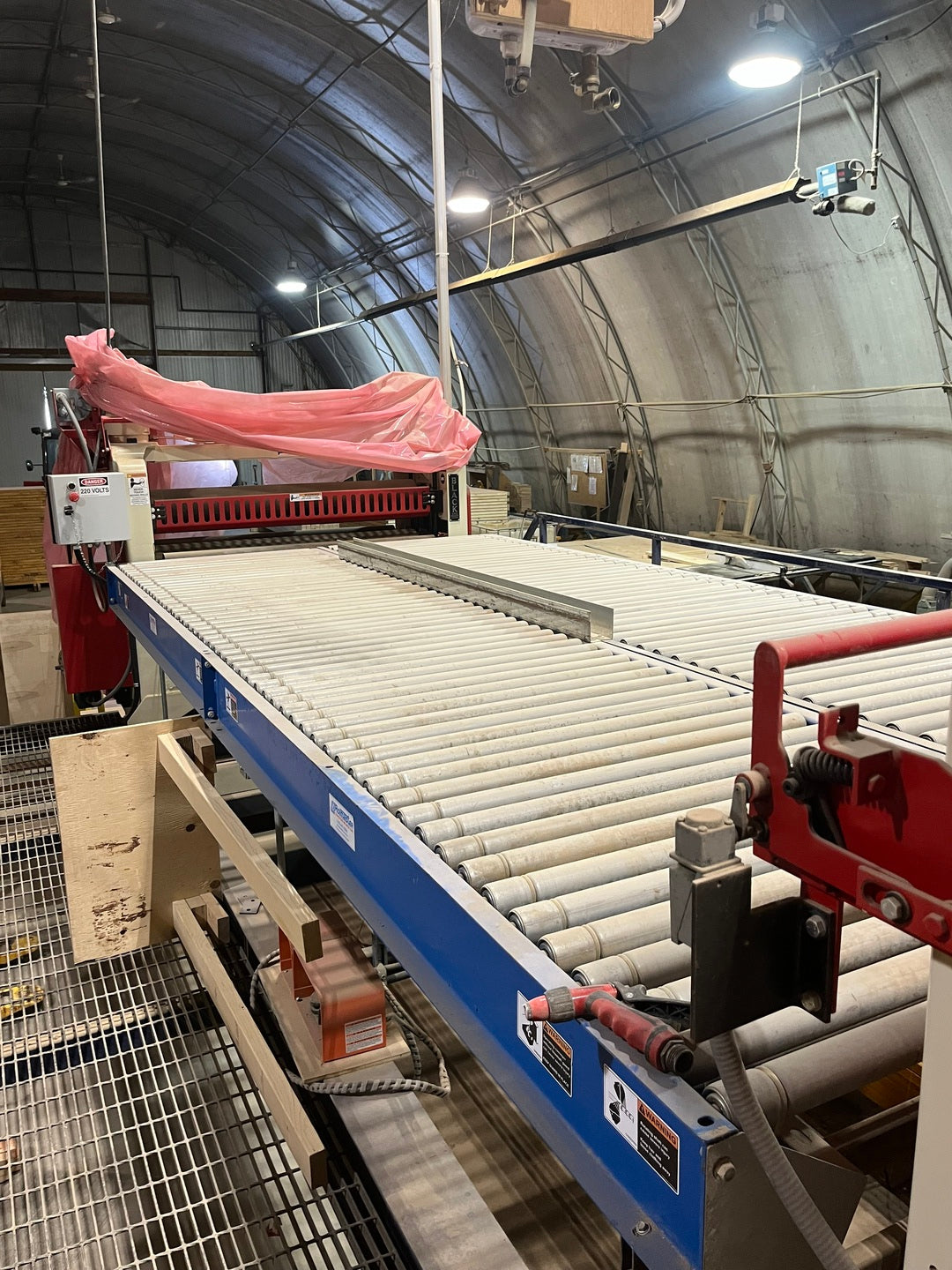

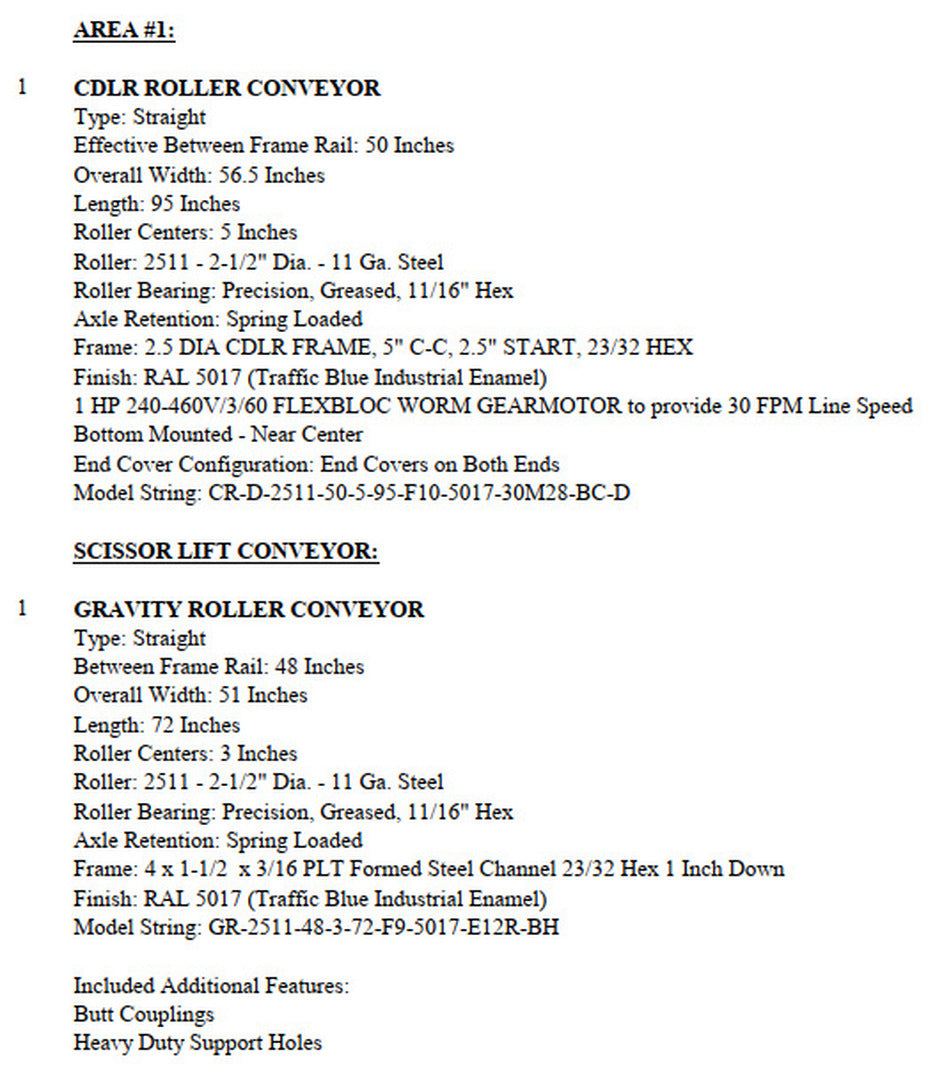

Rolmaster Conveyors - See photo attatchments for full details

Area 1

  • 1 x CDLR Roller Conveyor (95 in. length, 56.5 in. width)

Scissor Lift Conveyor

  • 1 x Gravity Roller Conveyor (72 in. length, 51 in. width)

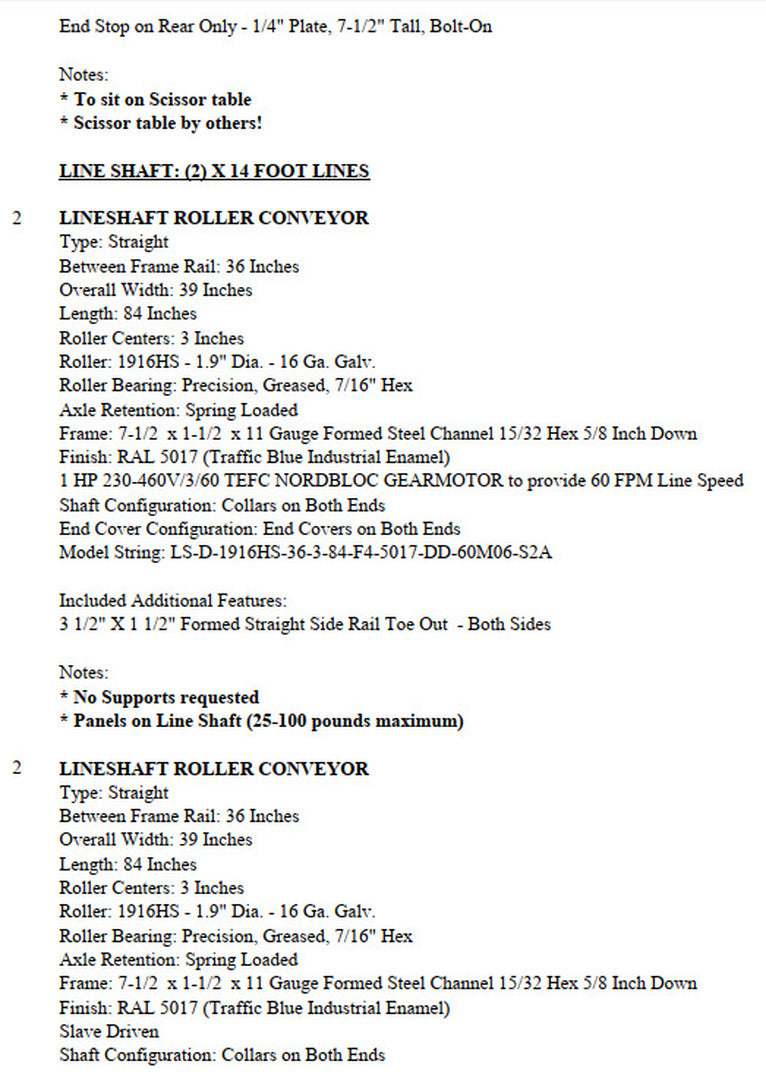

Line Shaft: (2) x 14 ft lines

  • 4 x Line Shaft Roller Conveyor (84 in. length, 39 in. width)

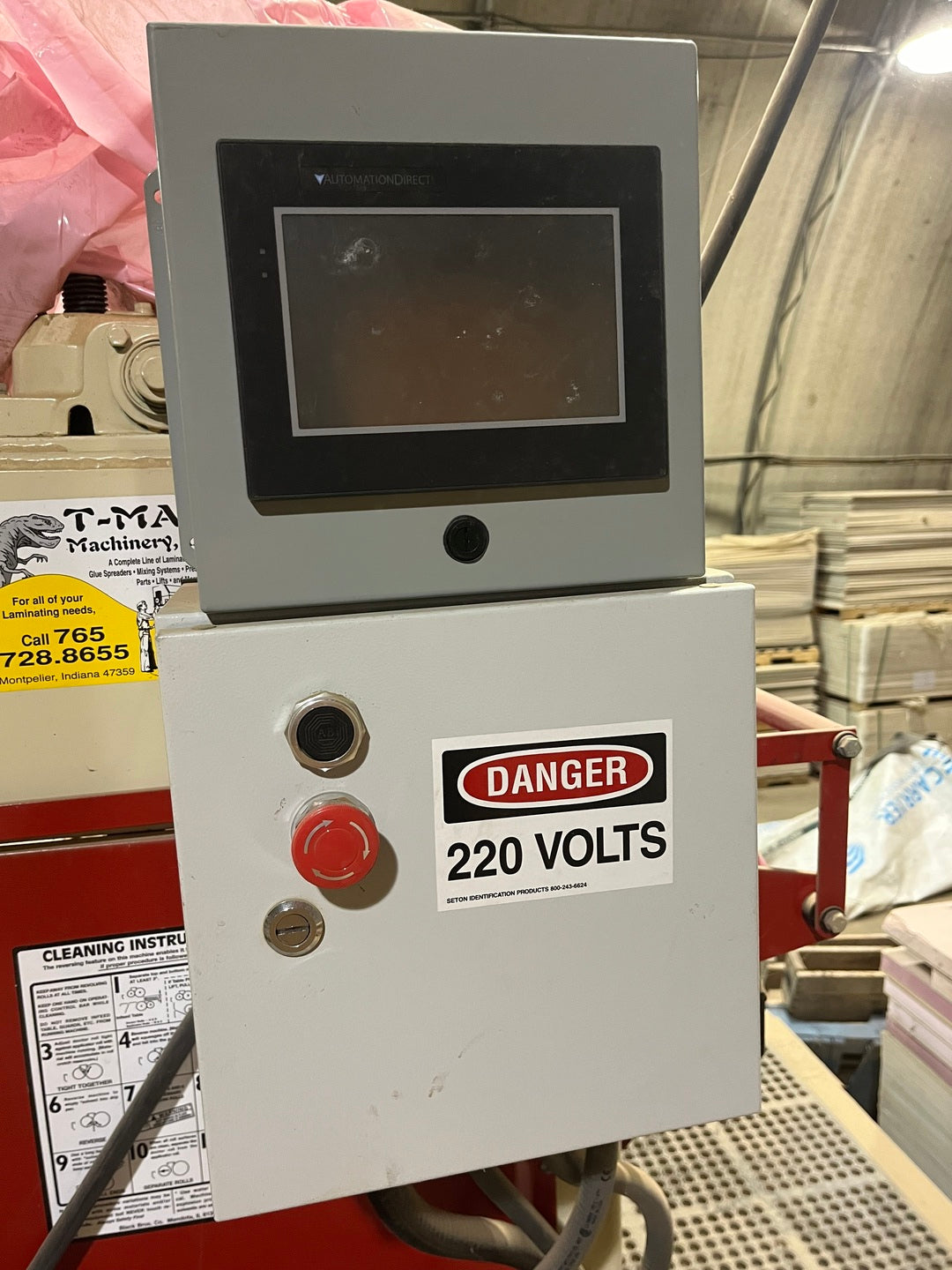

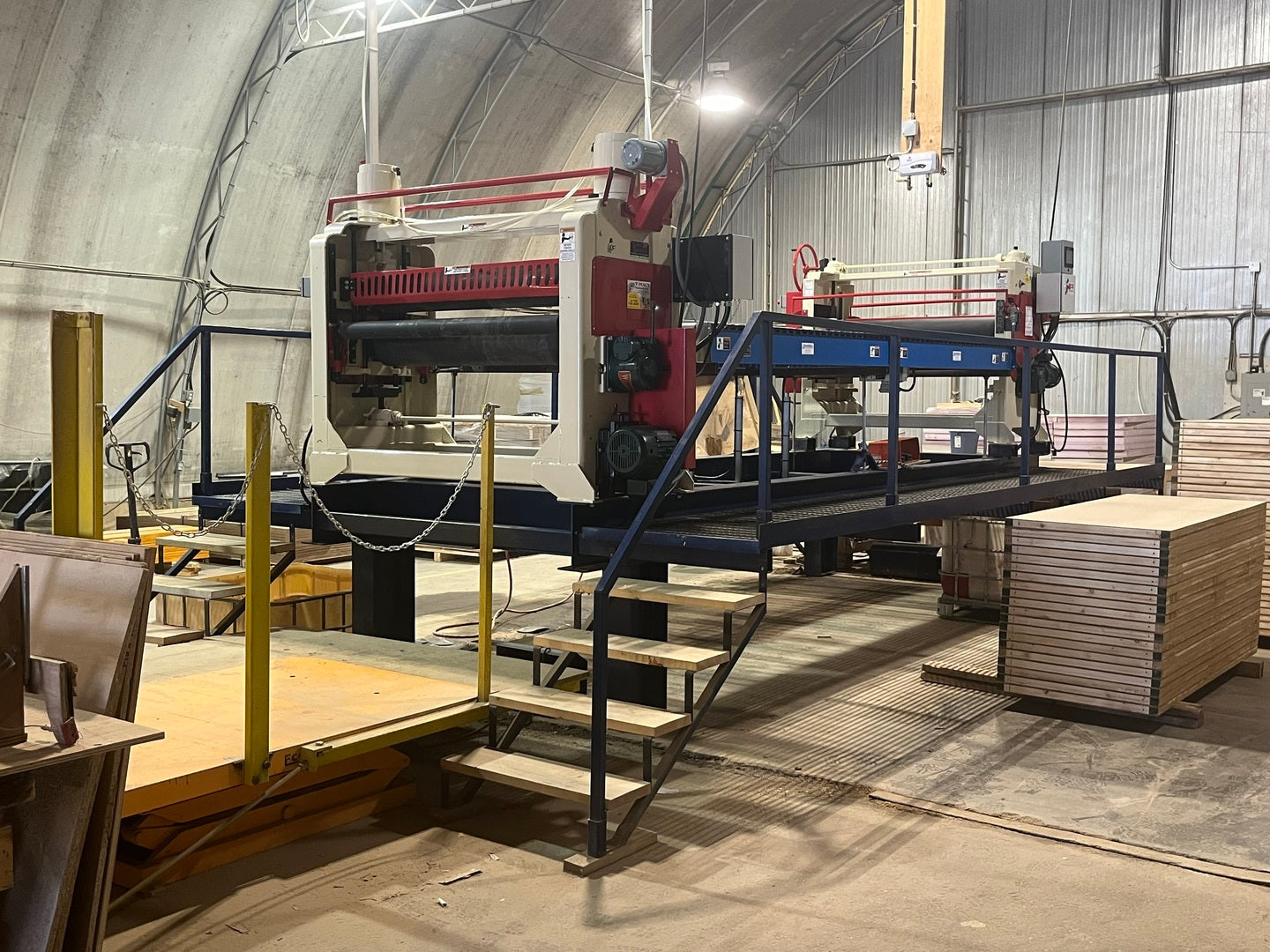

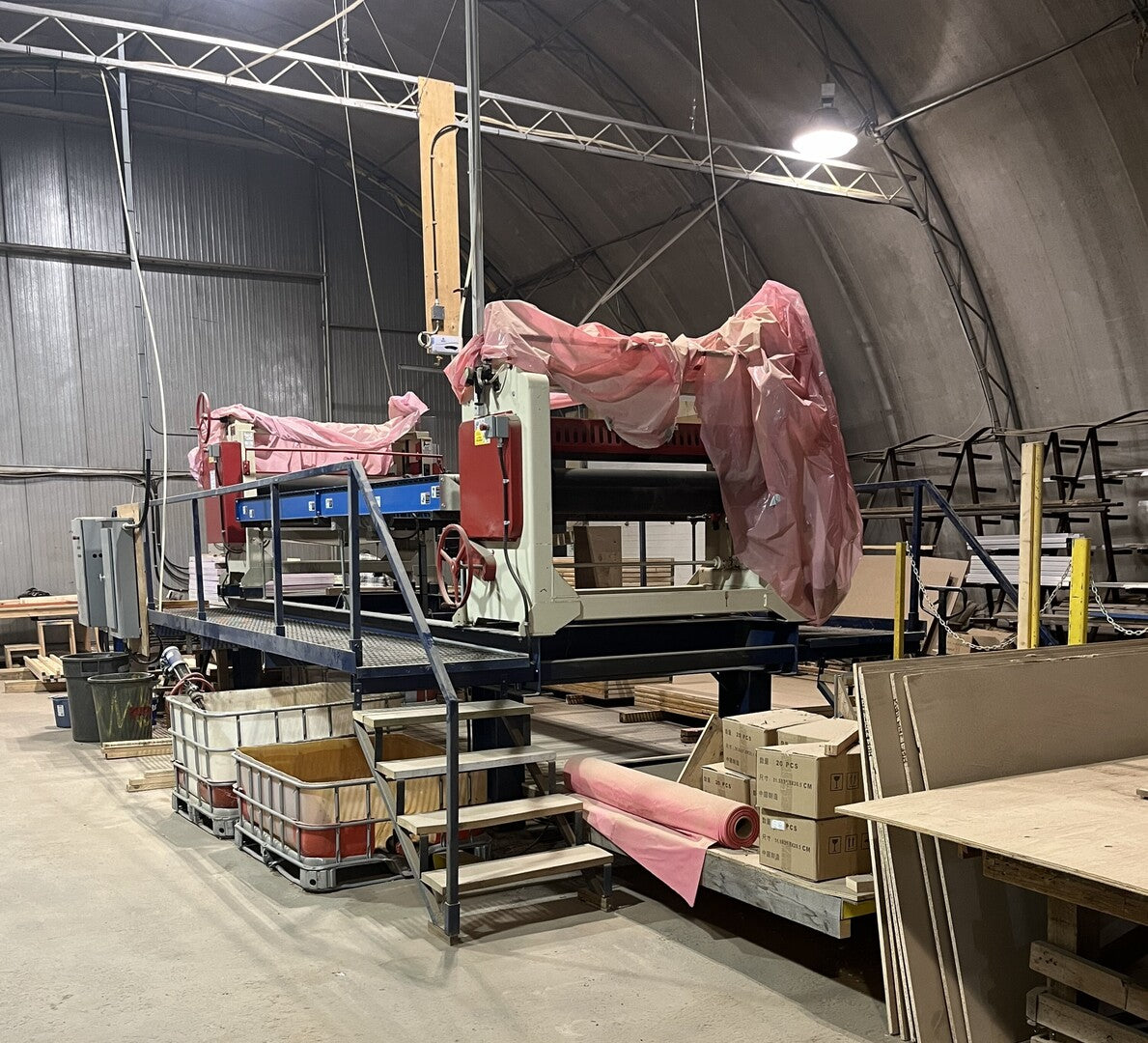

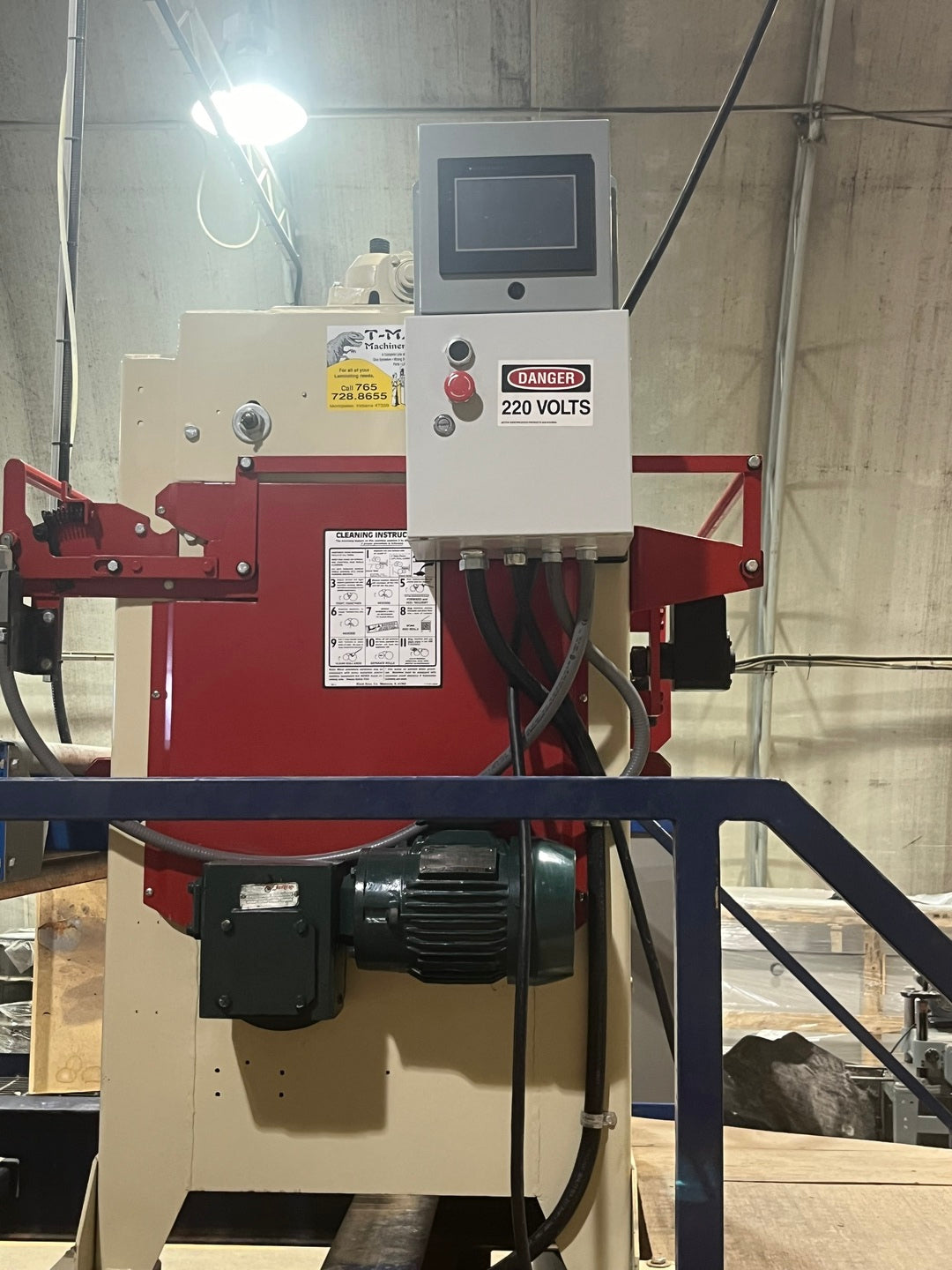

Steel Platform included with all motors, electrical and PLC's and all controls, drives, foot pedals Included. All components of the line are included as well (water system etc.)
