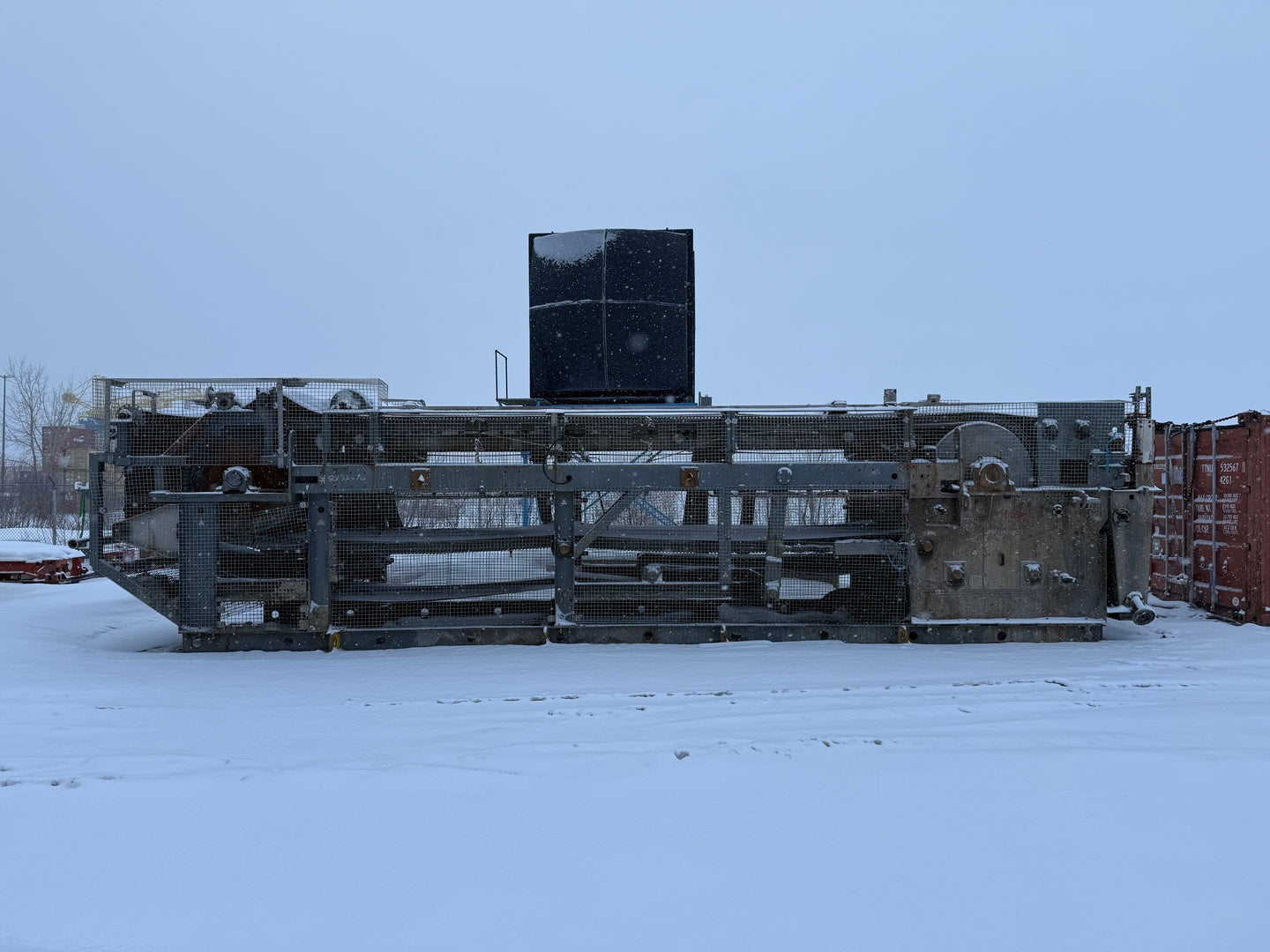

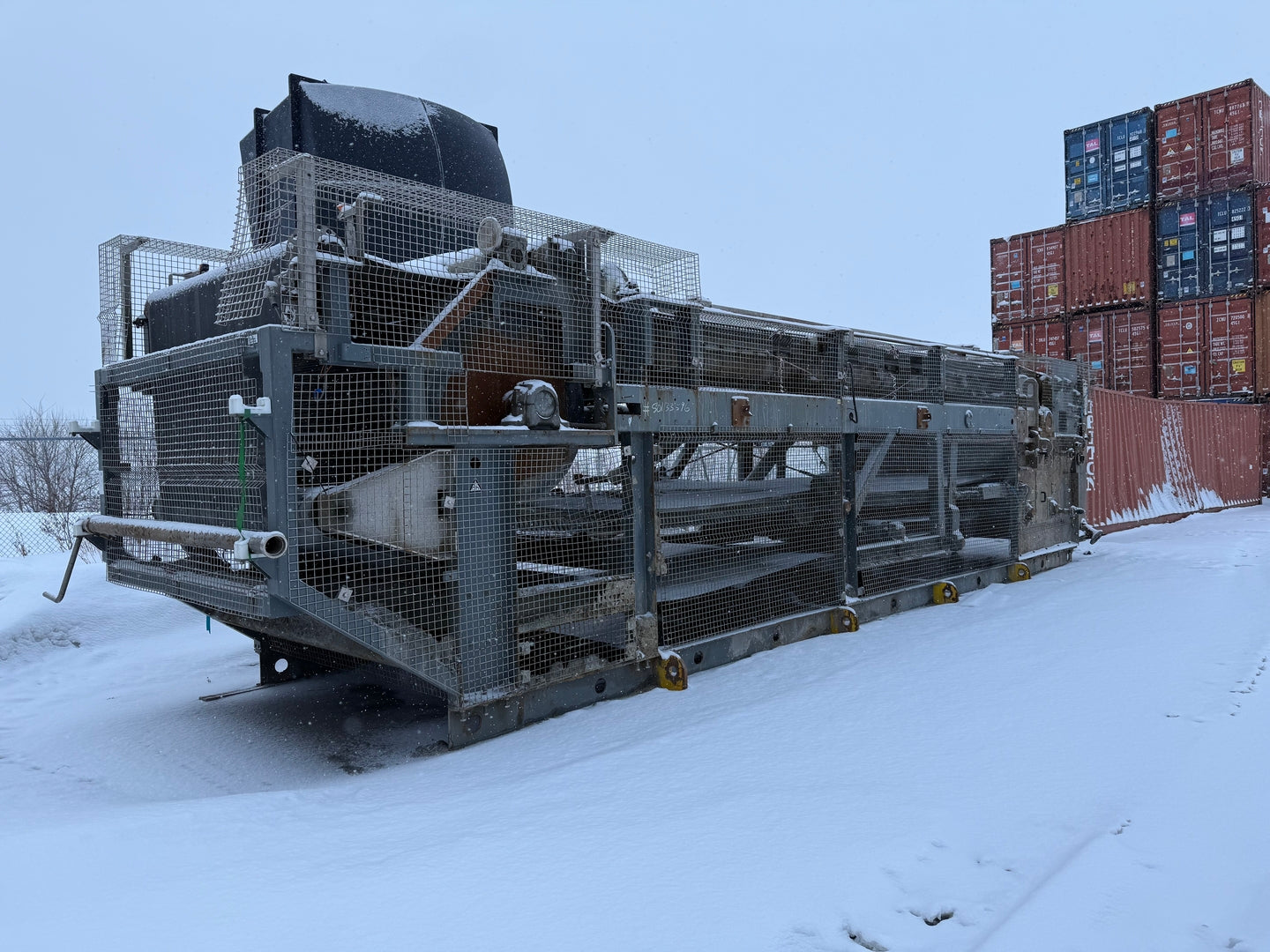

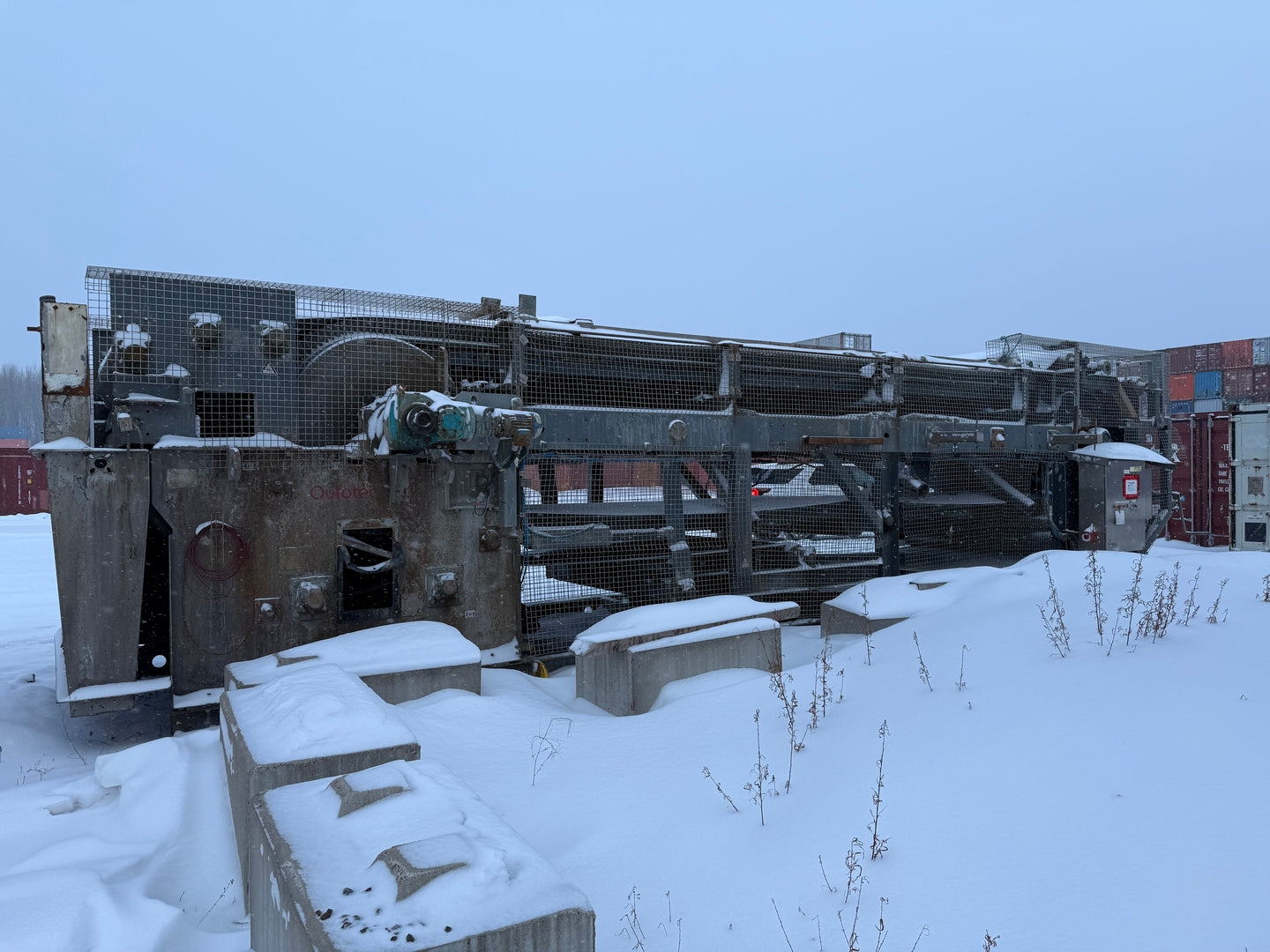

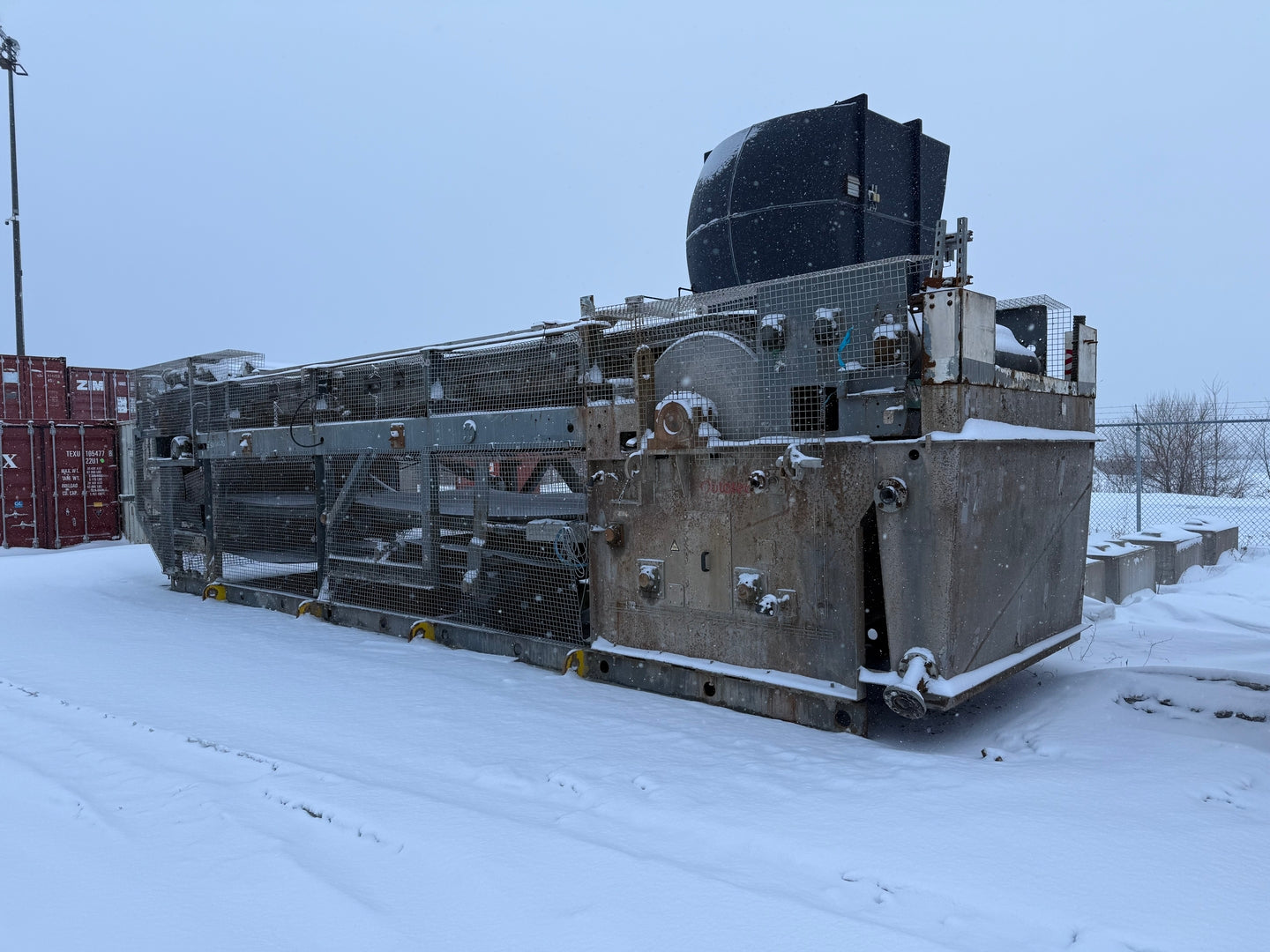

OUTOTEC Larox Horizontal Belt Filter, 1.6 m x 6.0 m, RB-SV 1600
OUTOTEC

Larox Horizontal Belt Filter, 1.6 m x 6.0 m, RB-SV 1600

SKU: 137953
Price:
$200,000 CAD

Shipping calculated at checkout

Stock:
Sold out
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Specifications

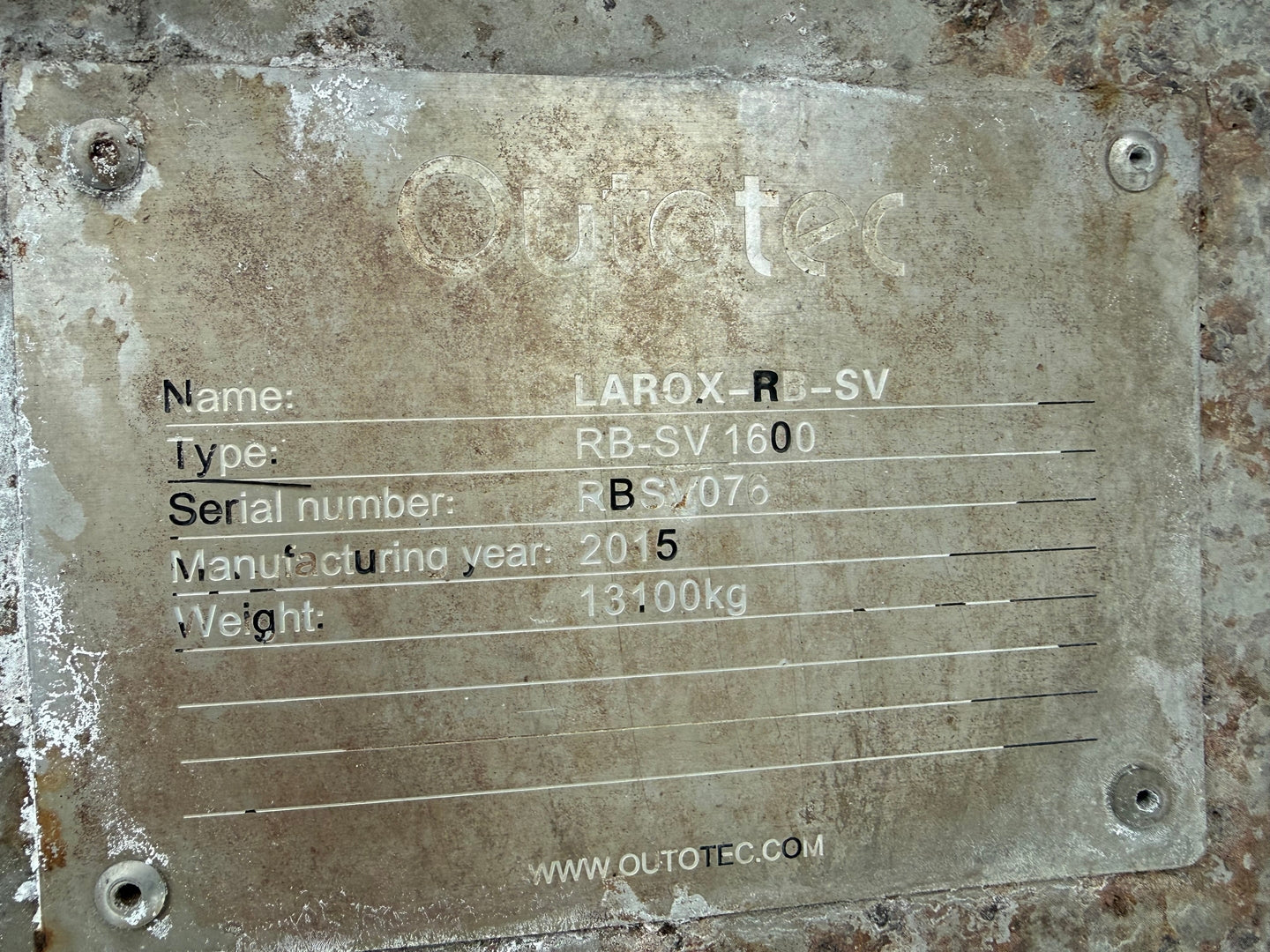

Model RB-SV 1600
Year: 2015
S/N: RBSV076
Condition Used
Other Specifications

PDF Manual

PDF Dimensional Drawing

PDF Foundation

PDF Electricals

PDF Pneumatic Schematic

Intended Use: The machine is for indoor professional automatic use in the mining. metallurgy and chemical industries. It is for the separation of solids and liquids and to wash and dry solids.

Specifications

Net Filtration Width: 1.6 m

Net Filtration Length: 6.0 m

Filtration Area: 9.6 sq. m

Filter Type:

  1. RB = Rubber belt filter
  2. SV = Vacuum box at side

Weight: 13100 kg

Cloth Speed Range: 3.1 - 12.4 cm/s

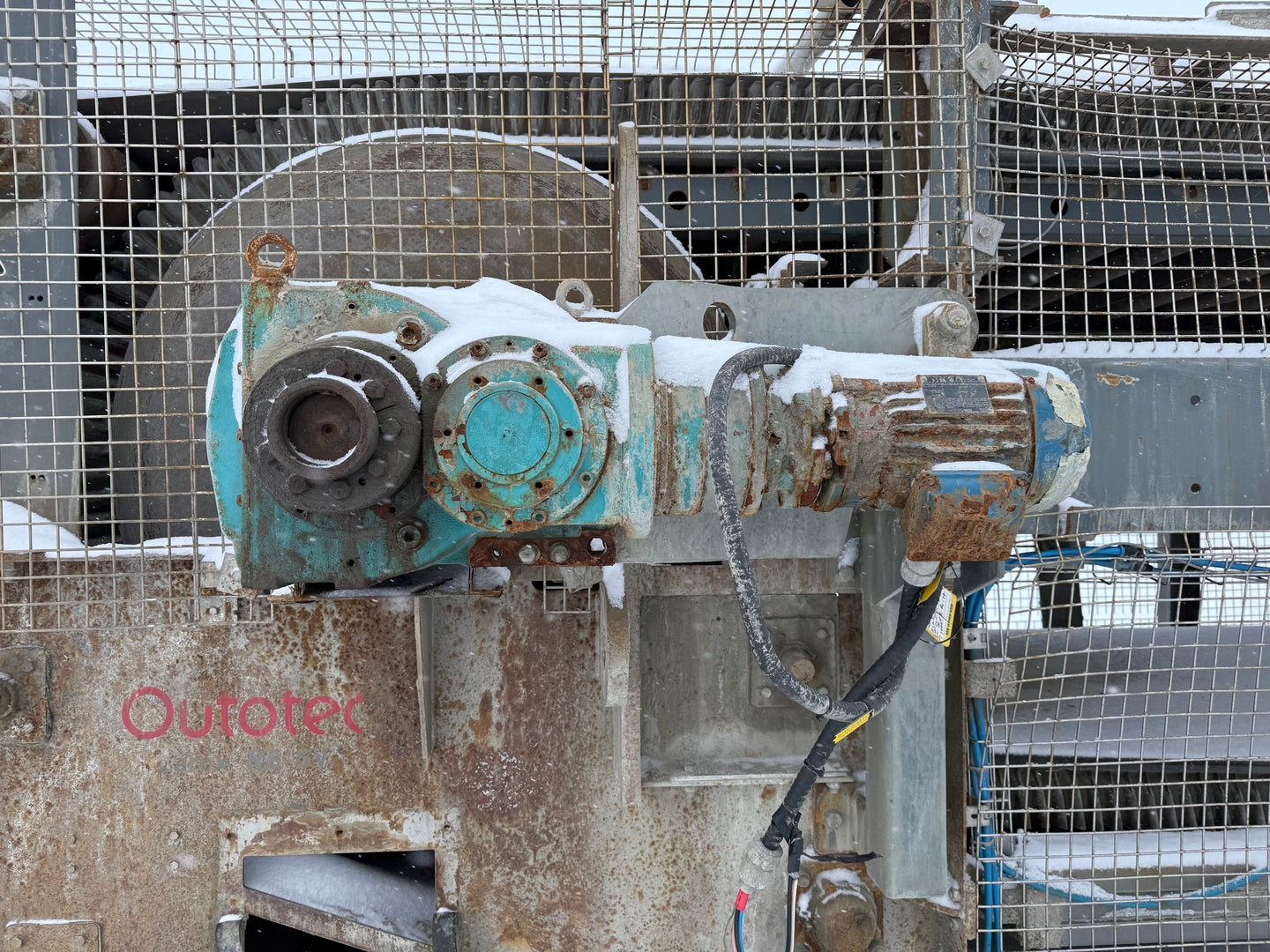

Belt Drive Motor: 7.5 kW

Vacuum Pump Motor: 30 kW

Filtrate Pump Motor: 4 kW

Materials of Construction

Frame Structures: Mild steel, epoxy painted

Slurry/Filtrate Contacted Parts: AISI 304 stainless steel

Rubber Belt: SBR

Bolts and Nuts: A4
