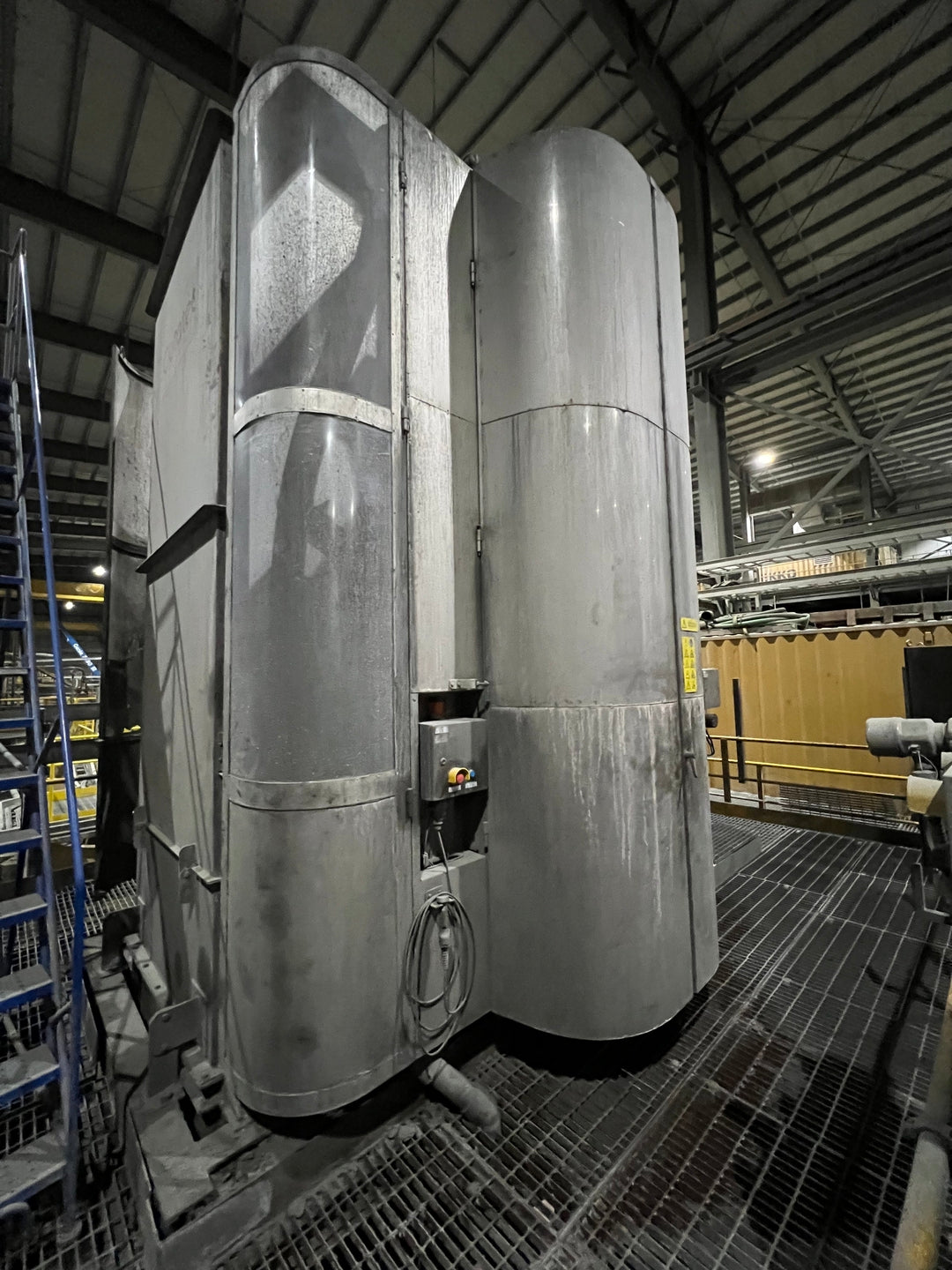

Larox - PF Vertical Filter Press PF 28/32 M12 1 60

SKU: 137957
Price:
$200,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

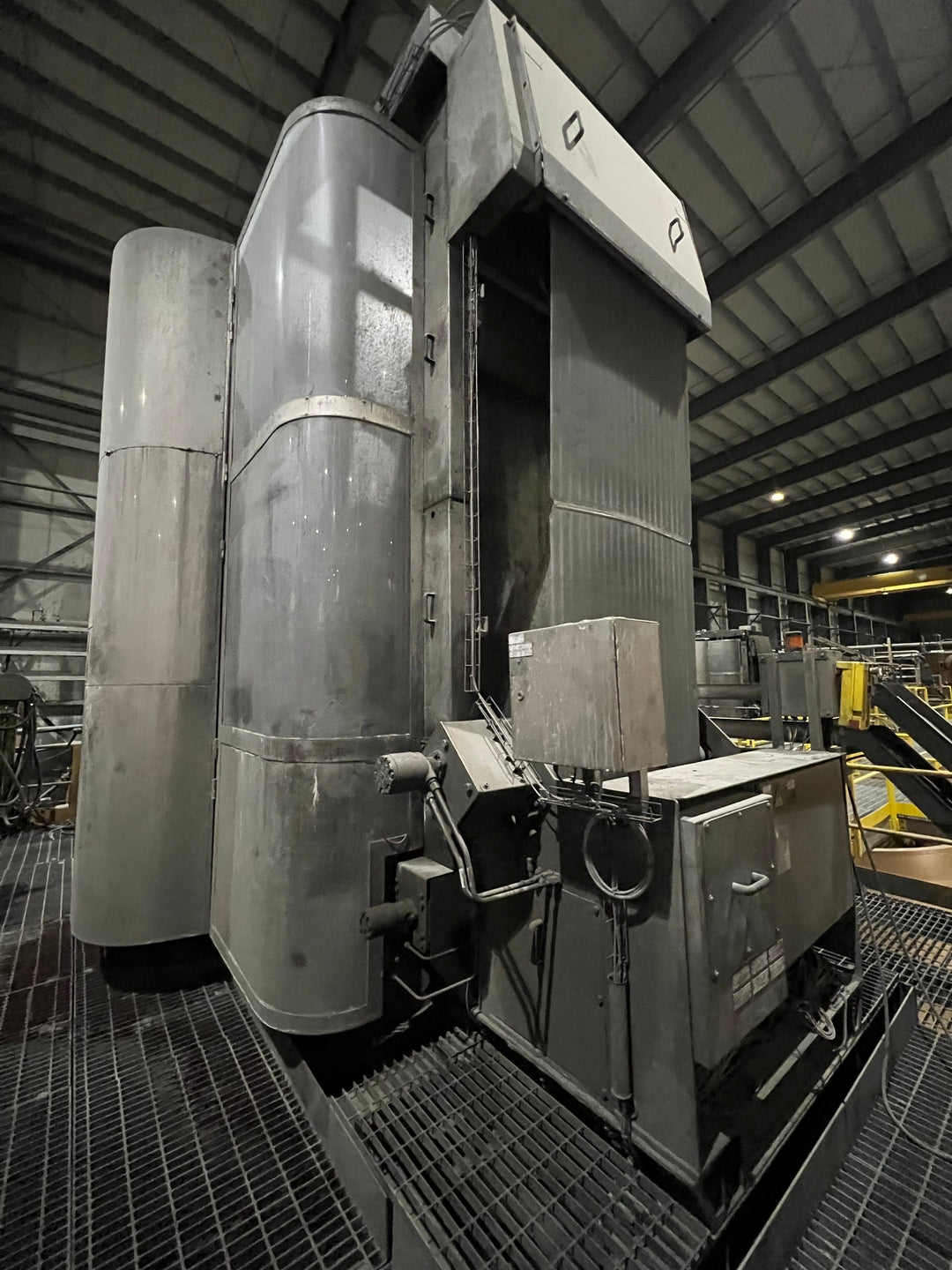

Larox PF pressure filters are fully automatic recessed-plate diaphragm filters with horizontally oriented chambers. The continuous filter cloth ensures thorough cloth washing and efficient cake discharge from each chamber at every cycle.
Specifications

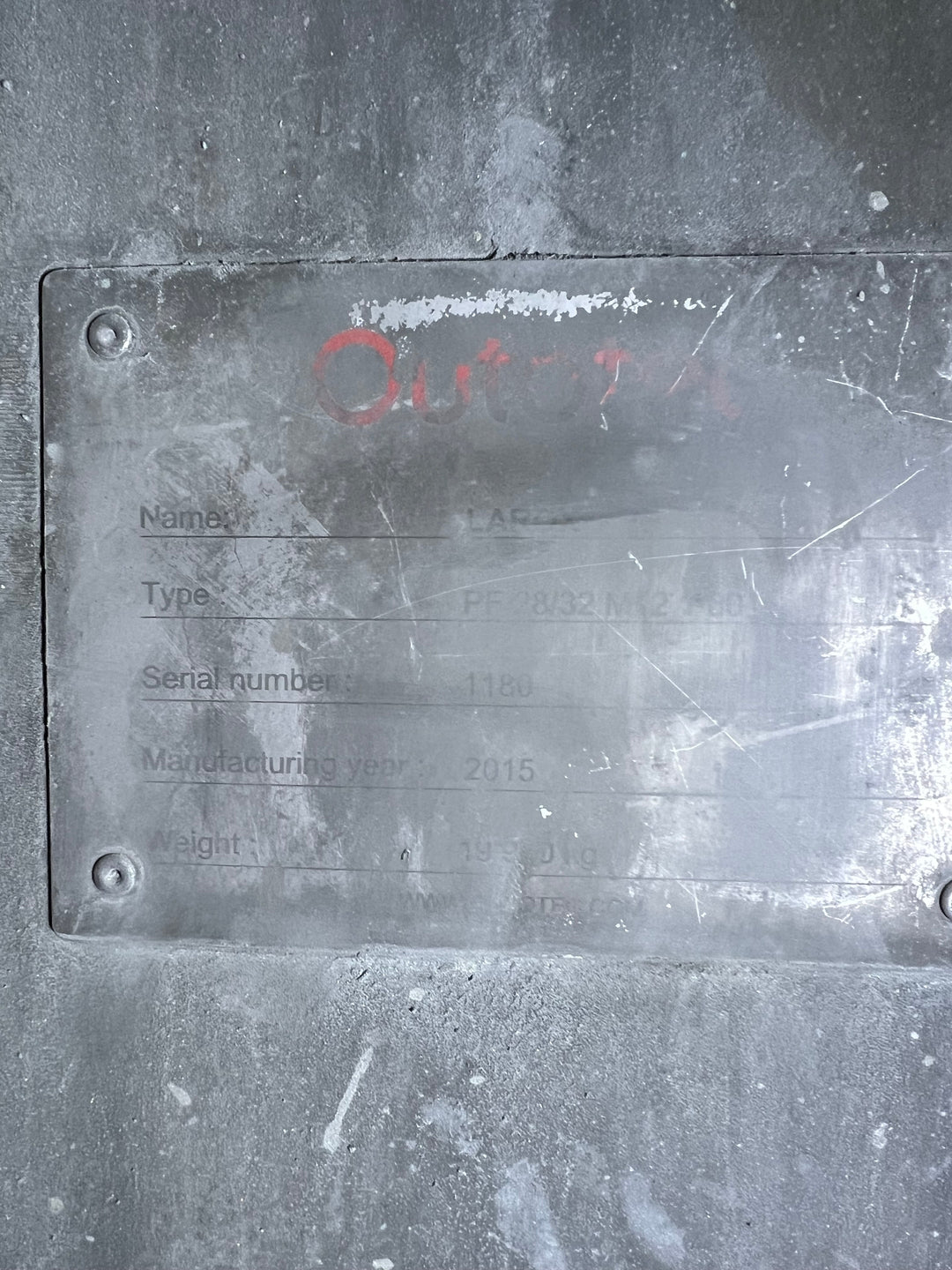

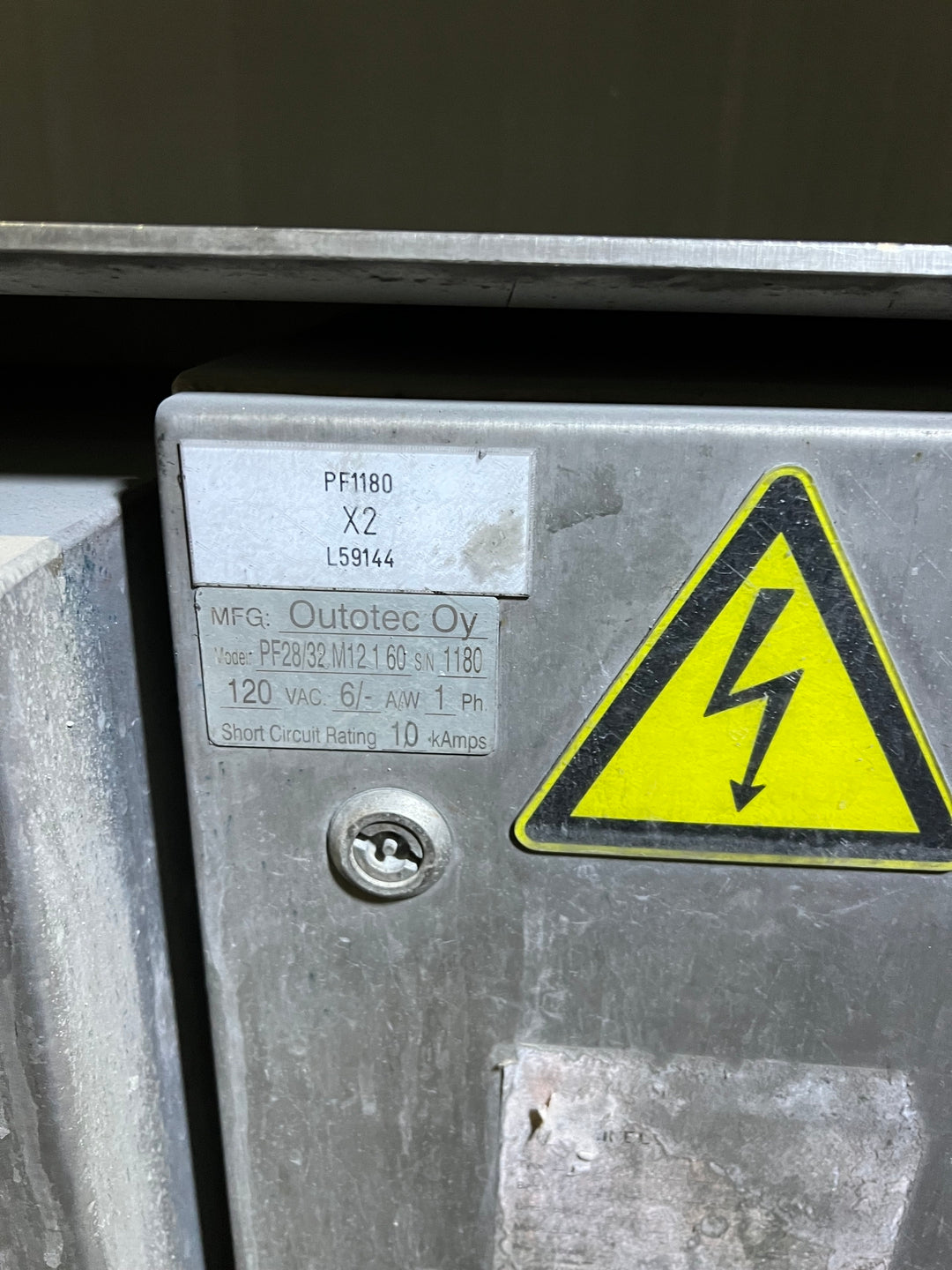

Model PF 28/32 M12 1 60
Year: 2015
S/N: 1180
Condition Used
Other Specifications

Features:

  • Offers high capacity with proven efficiency and reliability
  • Gives you low overall operating costs and competitive total cost of ownership
  • Produces dry, consistent, and homogenous filter cake and efficient solids wash
  • Offers fully automatic operation, self-diagnostics, and flexible operation
  • Reduces floor space requirements

Applications:

  • Bulk mining
  • Concentrates
  • Metallurgical refineries
  • Industrial minerals
  • Food
  • Pharma and biotechnology
  • Chemical processing industries

General Specifications:

  • Filter Type: PF
  • Filtration Area/Expandability (m2): 28/32
  • Filter Series: M12 (12 Series)
  • No. of Filter Plates (28/32): 18/20
  • Filter Plate Size: 900 x 1750mm
  • Filter Length: 4805mm
  • Filter Width: 3800mm
  • Filter Height: 4100mm
  • Cloth Width: 1.05m
  • Cloth Length (28/32): 53/57m

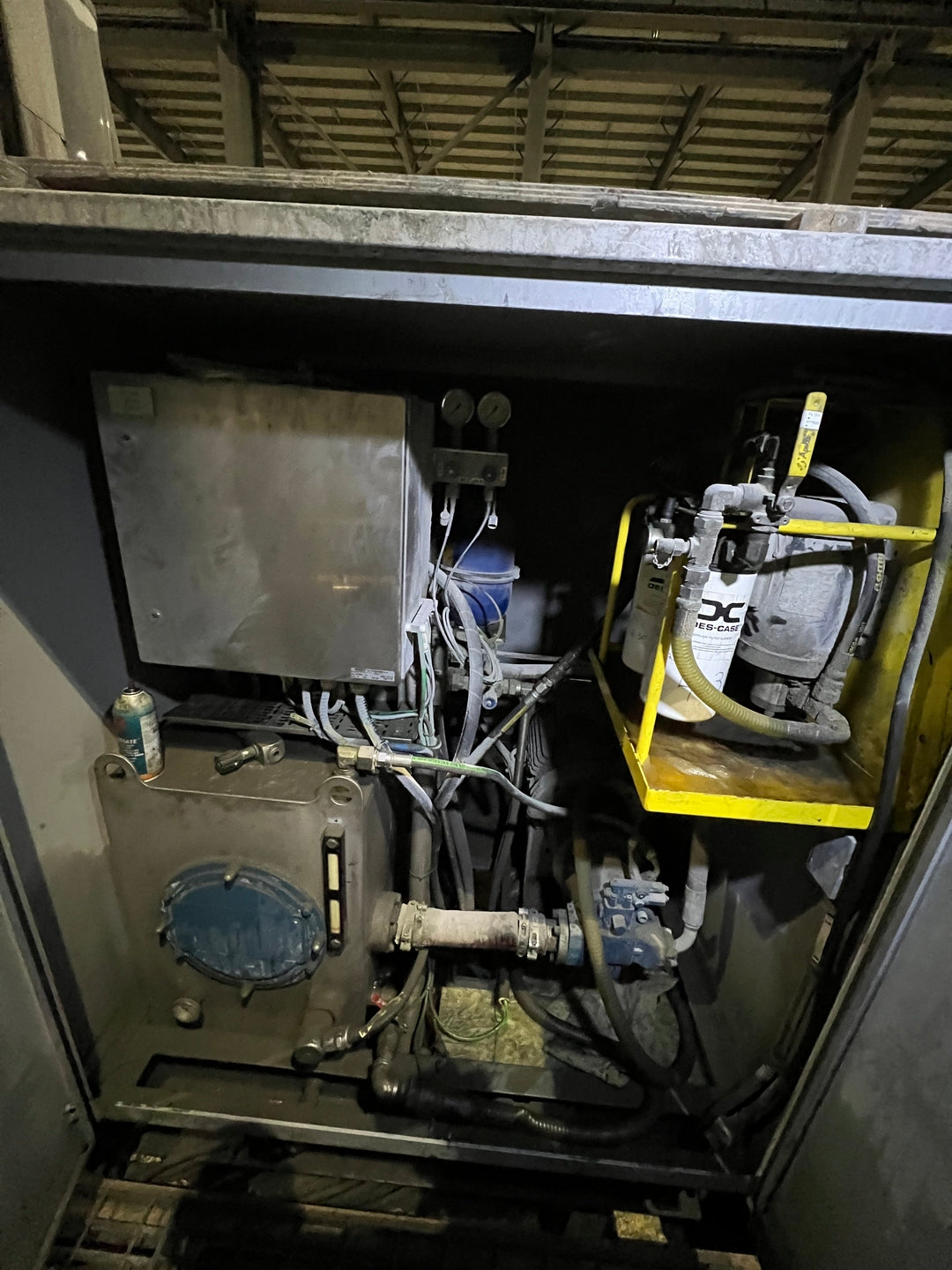

Hydraulic Unit Specifications:

  • Type: Outotec Larox HU300
  • Pump Type: Axial Piston Pump
  • Pump Motor: 18.5kW (25HP), 1800RPM
  • Air Cooler: 1/4kW (1/3HP), 1800RPM
  • Oil Heater: 1.5kW (2HP)
  • Oil Tank Volume: 0.30m3
  • Operating Pressure: 0-28MPa
  • Max. Flow: 140 l/min
