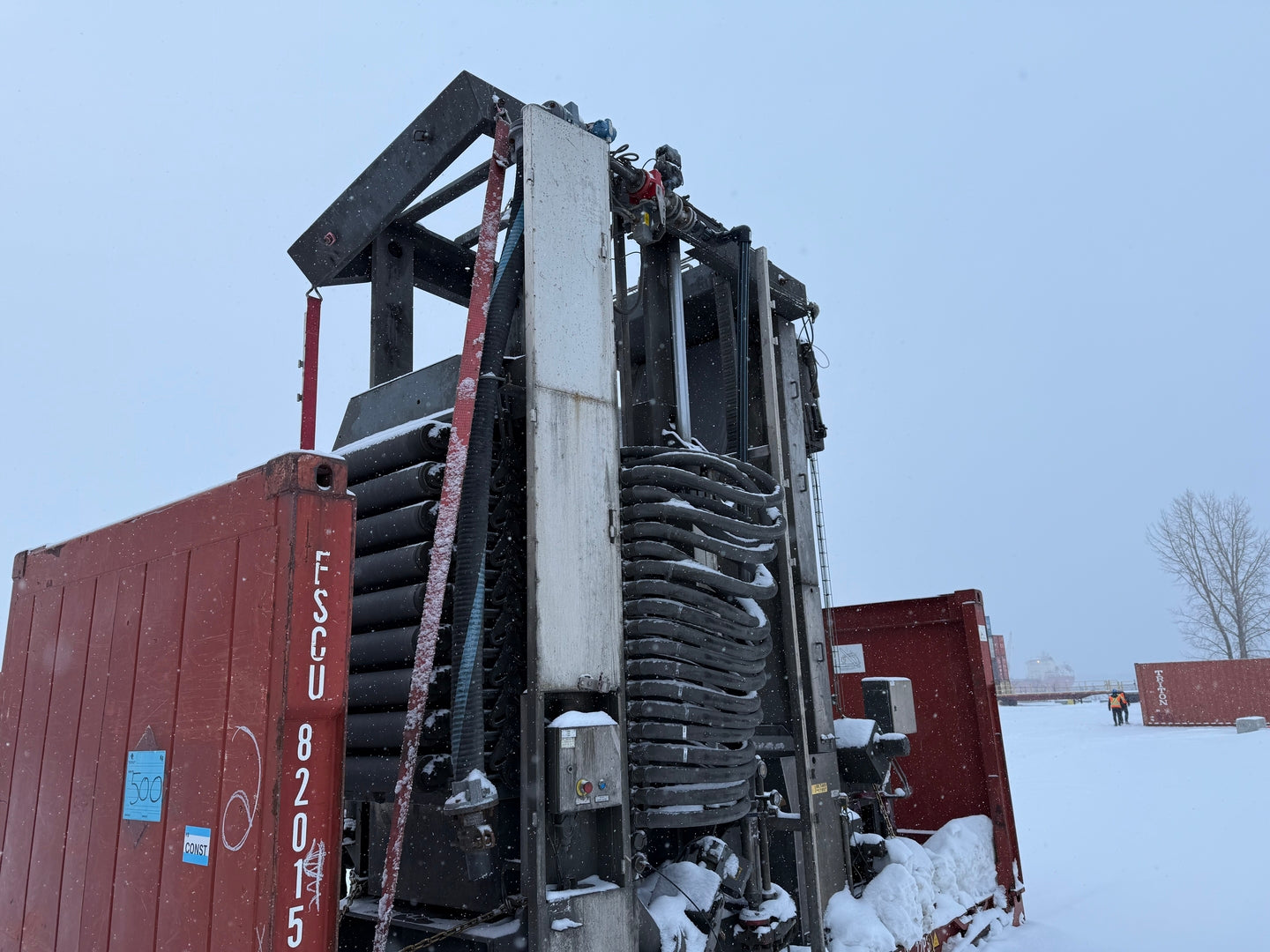

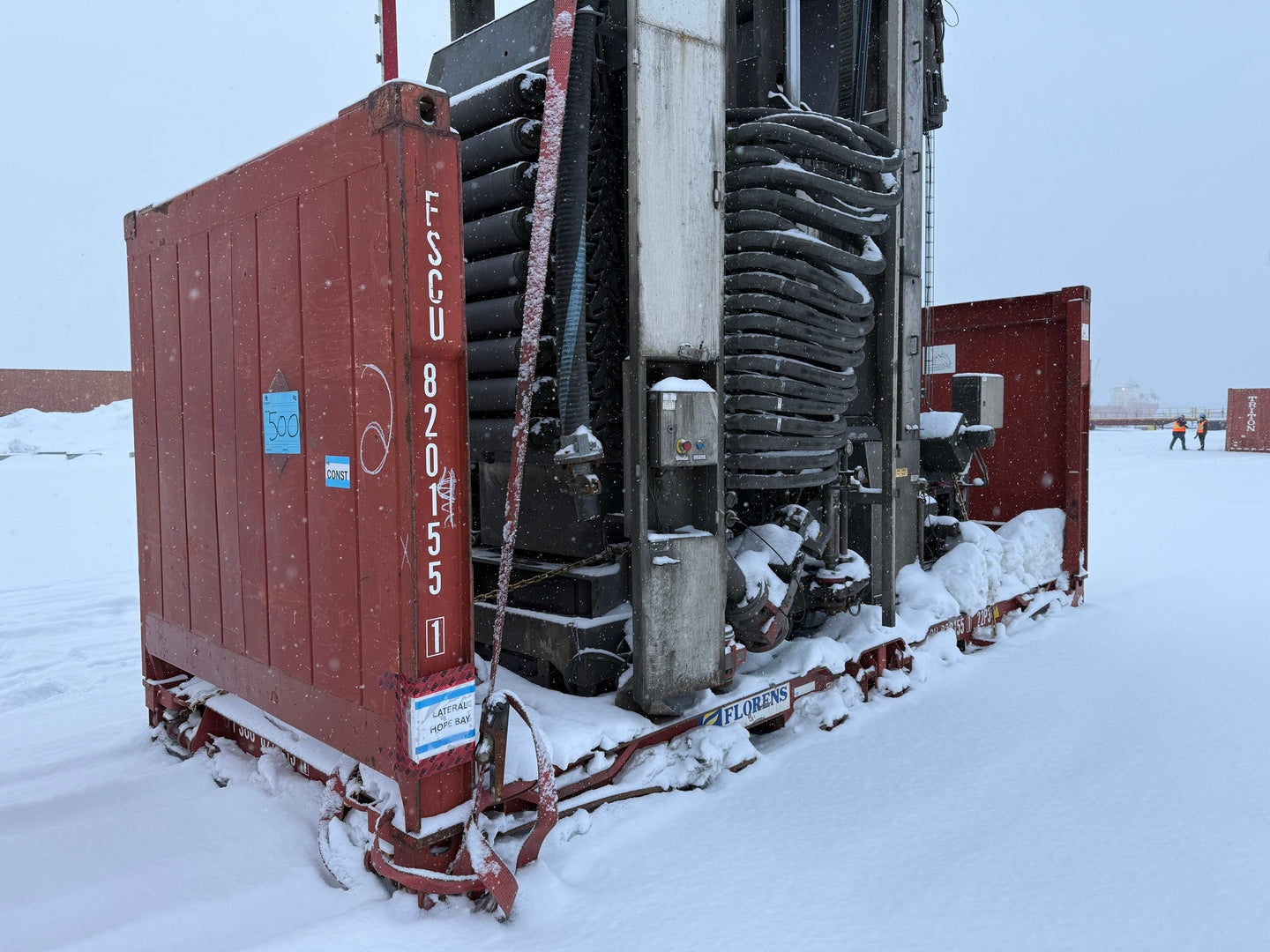

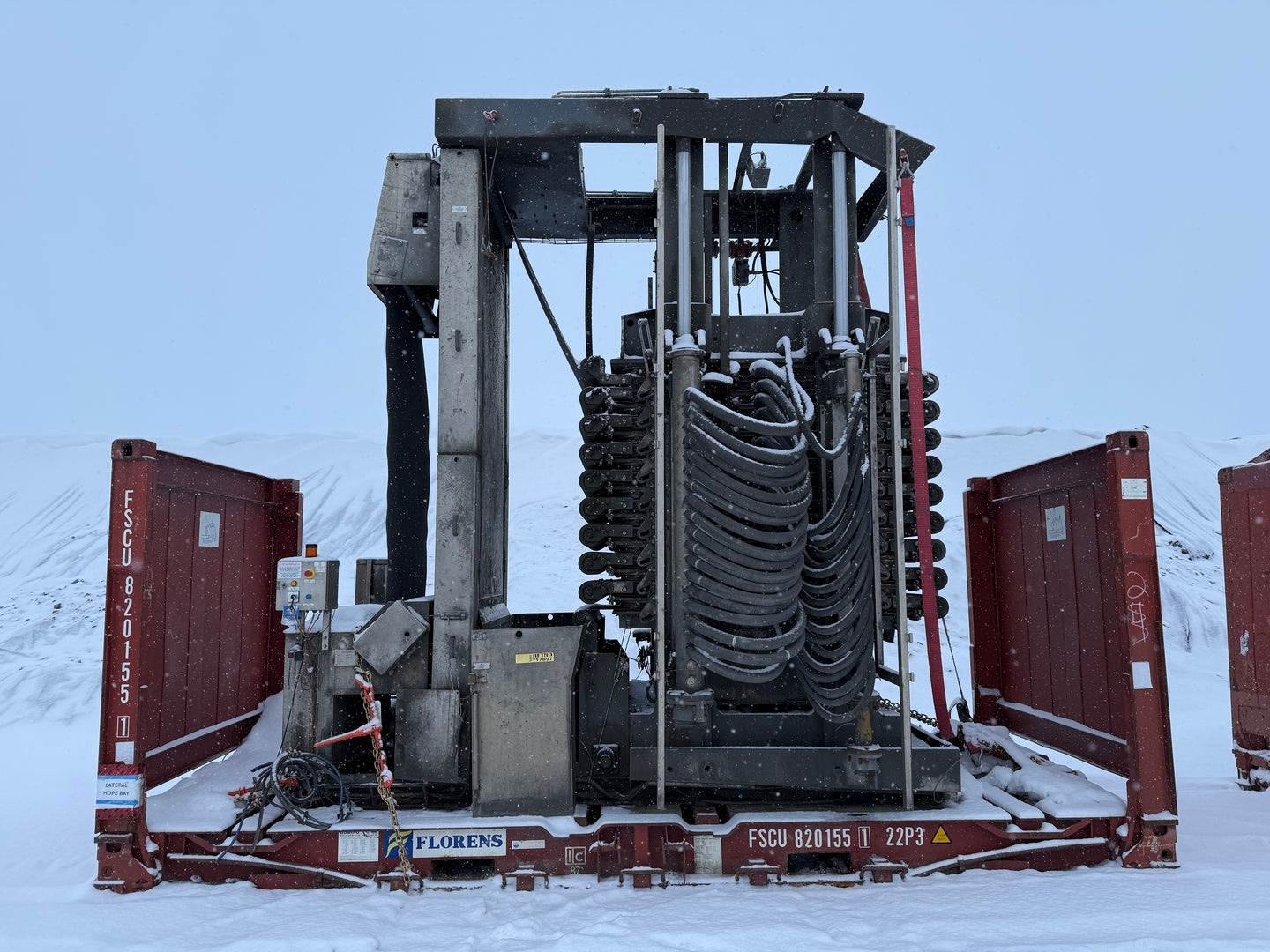

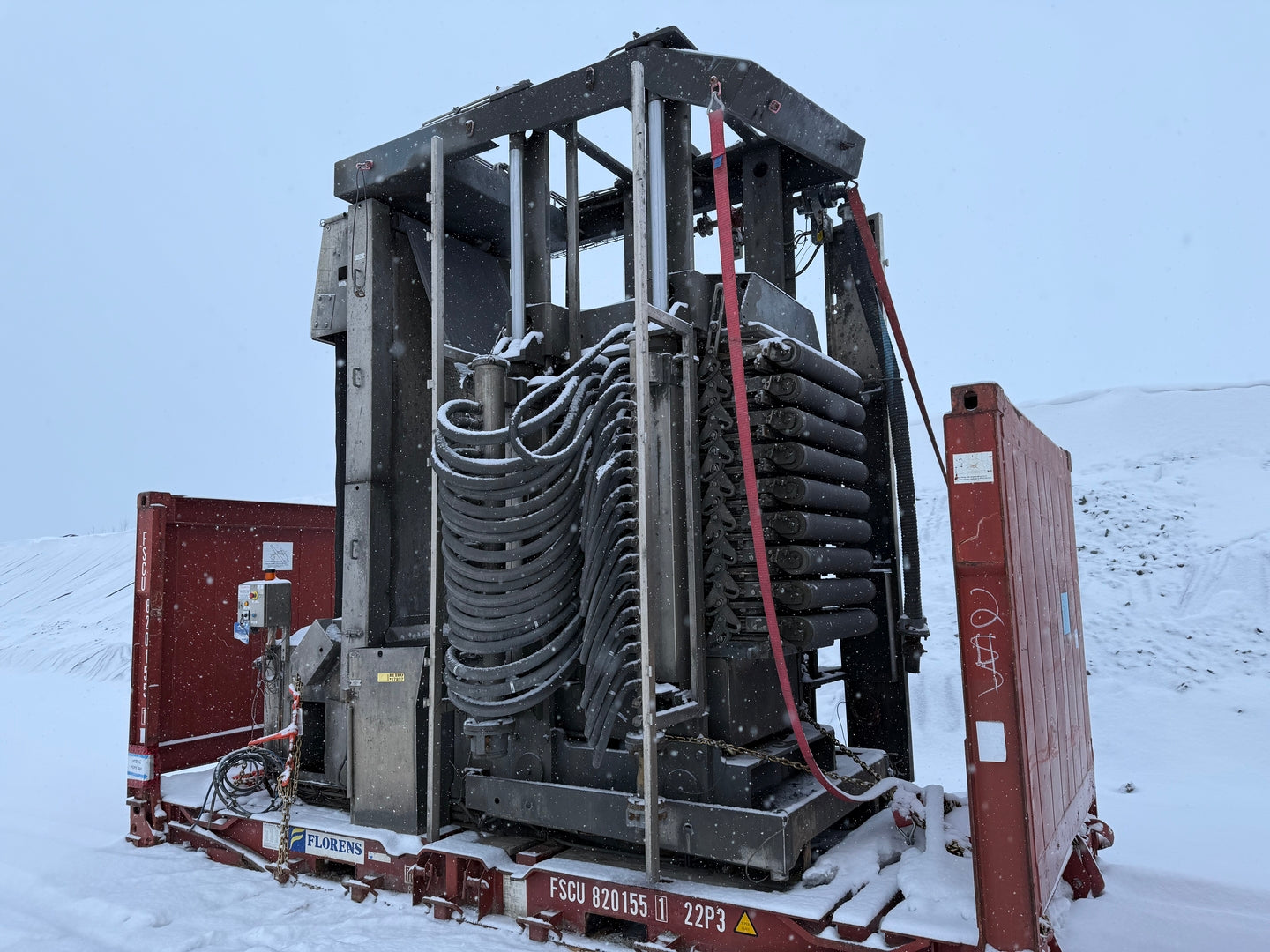

METSO/OUTOTEC Larox - PF Vertical Filter Press PF 28/32 M12 1 60
METSO/OUTOTEC

Larox - PF Vertical Filter Press PF 28/32 M12 1 60

SKU: 137958
Price:
$200,000 CAD

Shipping calculated at checkout

Stock:
Sold out
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

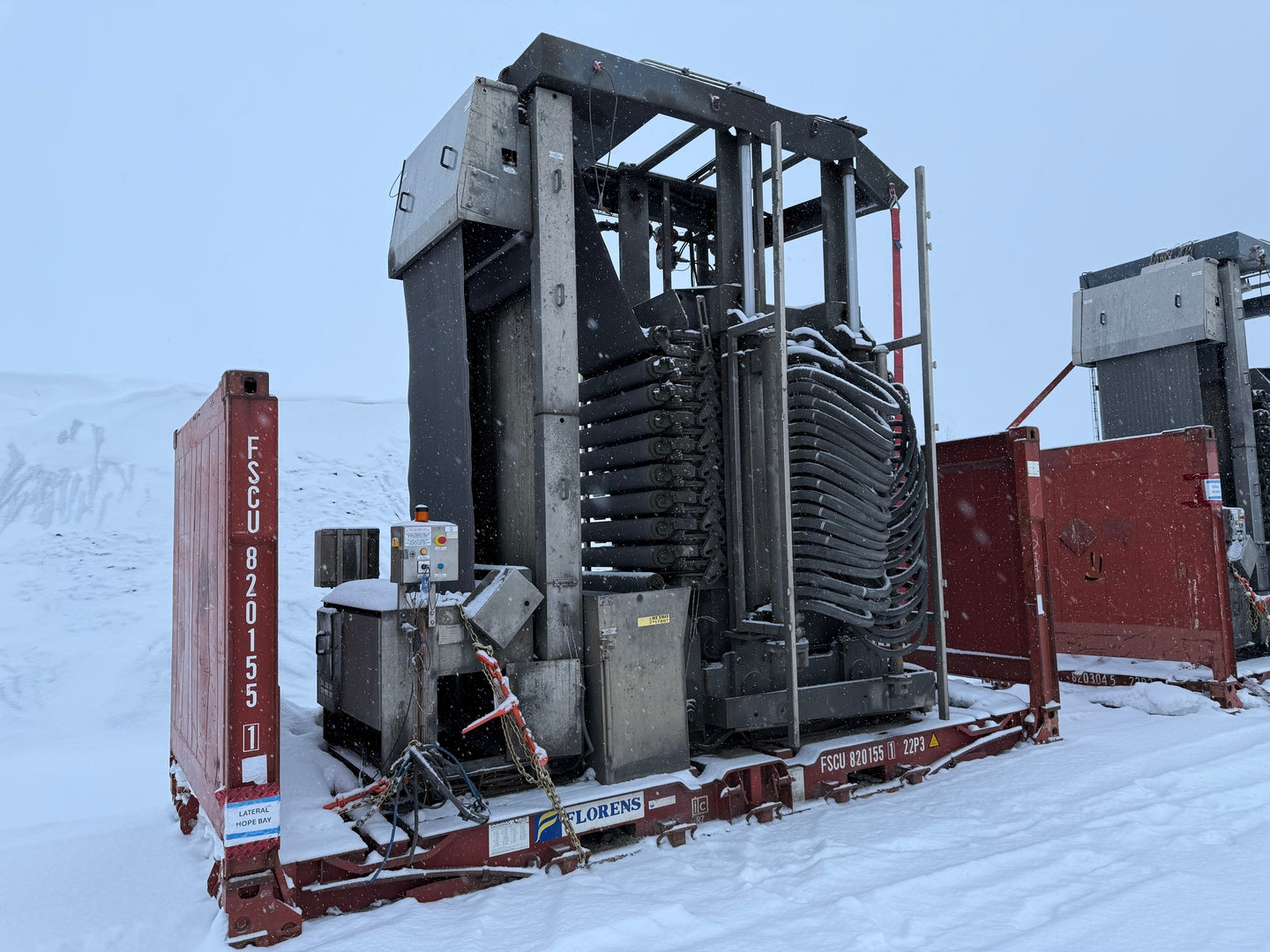

Larox PF pressure filters are fully automatic recessed-plate diaphragm filters with horizontally oriented chambers. The continuous filter cloth ensures thorough cloth washing and efficient cake discharge from each chamber at every cycle.
Specifications

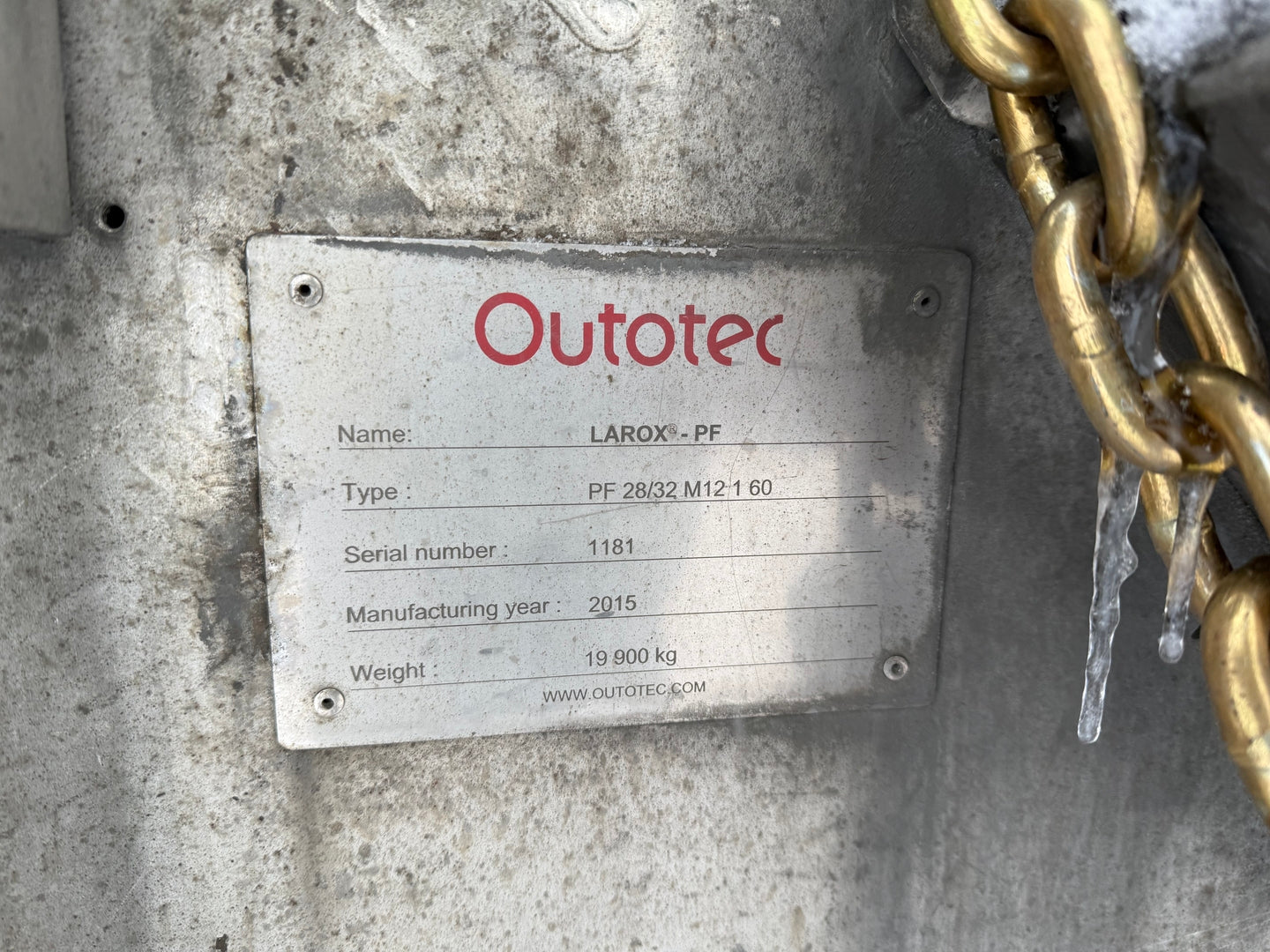

Model PF 28/32 M12 1 60
Year: 2015
S/N: 1181
Condition Used
Other Specifications

PDF Manual

PDF P & I Diagrams

Features:

  1. Offers high capacity with proven efficiency and reliability
  2. Gives you low overall operating costs and competitive total cost of ownership
  3. Produces dry, consistent, and homogenous filter cake and efficient solids wash
  4. Offers fully automatic operation, self-diagnostics, and flexible operation
  5. Reduces floor space requirements

Applications:

  1. Bulk mining
  2. Concentrates
  3. Metallurgical refineries
  4. Industrial minerals
  5. Food
  6. Pharma and biotechnology
  7. Chemical processing industries

General Specifications:

  1. Filter Type: PF
  2. Filtration Area: 28 m2
  3. Frame Size (max area): 32 m2
  4. Filter Series: M12
  5. Construction Material: AISI 304L
  6. Chamber Height: 60 mm
  7. No. of Filter Plates: 18
  8. Filter Plate Size: 900 x 1750mm
  9. Main Dimensions (mm): 4805 length x 3800 width x 4700 height
  10. Required Floor Area: 44.5 m2
  11. Weight: 19,900 kg
  12. Cloth Width: 1050 mm
  13. Cloth Length 55.0 m

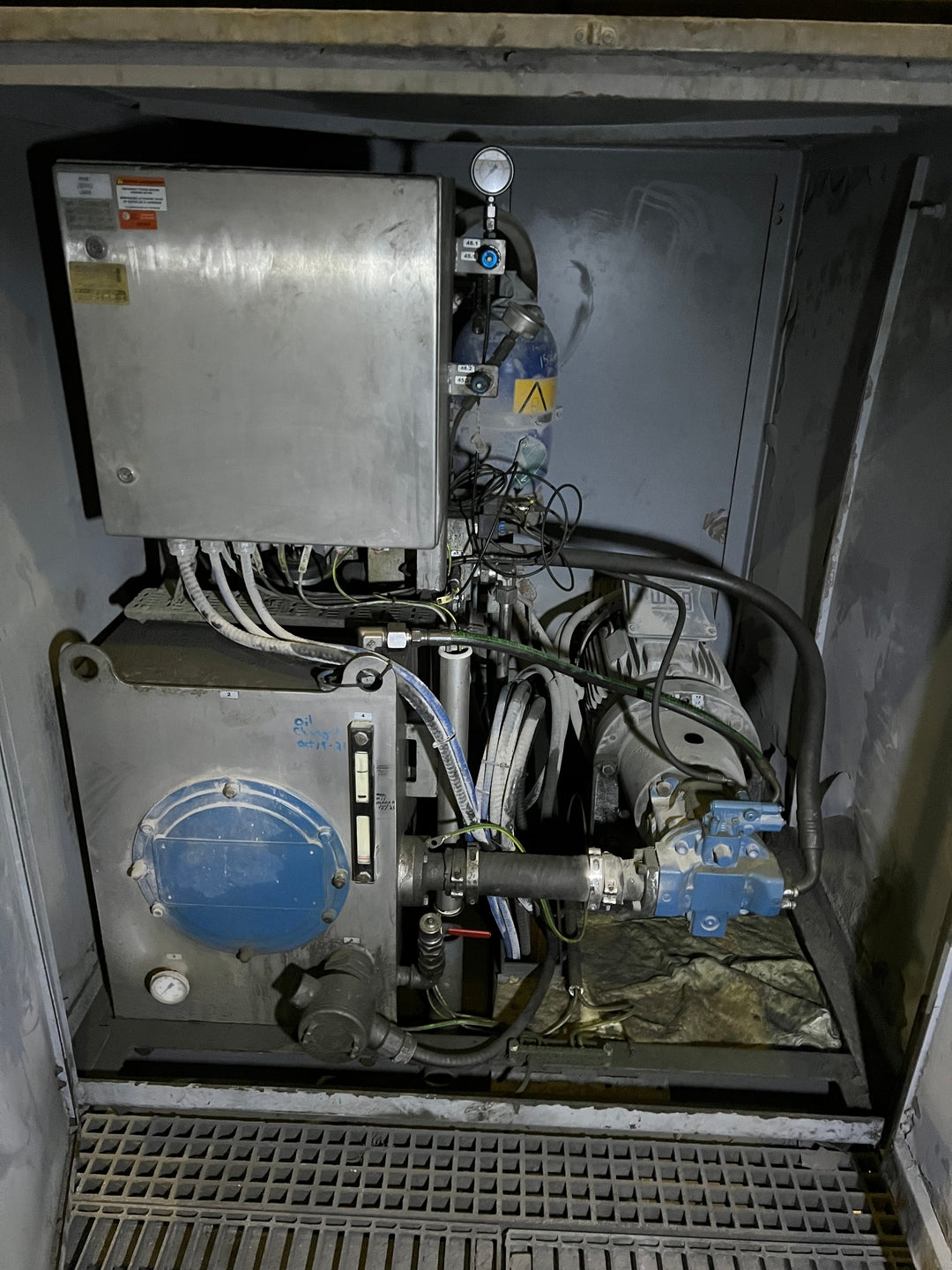

Hydraulic Unit Specifications:

  1. Type: Outotec Larox HU300
  2. Pump Type: Axial Piston Pump
  3. Pump Motor: 18.5kW (25HP), 1800RPM
  4. Air Cooler: 1/4kW (1/3HP), 1800RPM
  5. Oil Heater: 1.5kW (2HP)
  6. Oil Tank Volume: 0.30m3
  7. Operating Pressure: 0-28MPa
  8. Max. Flow: 140 l/min
