Description

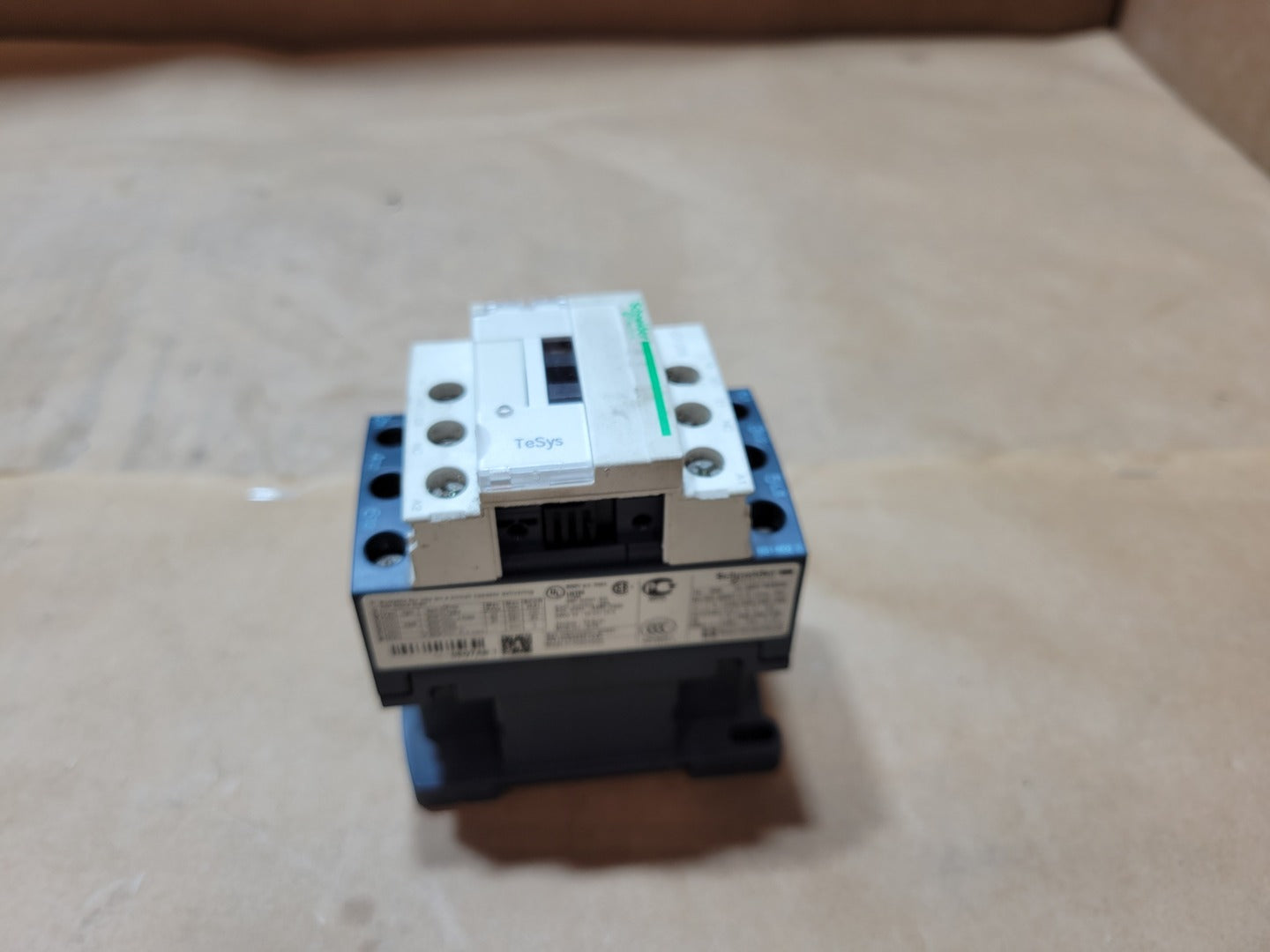

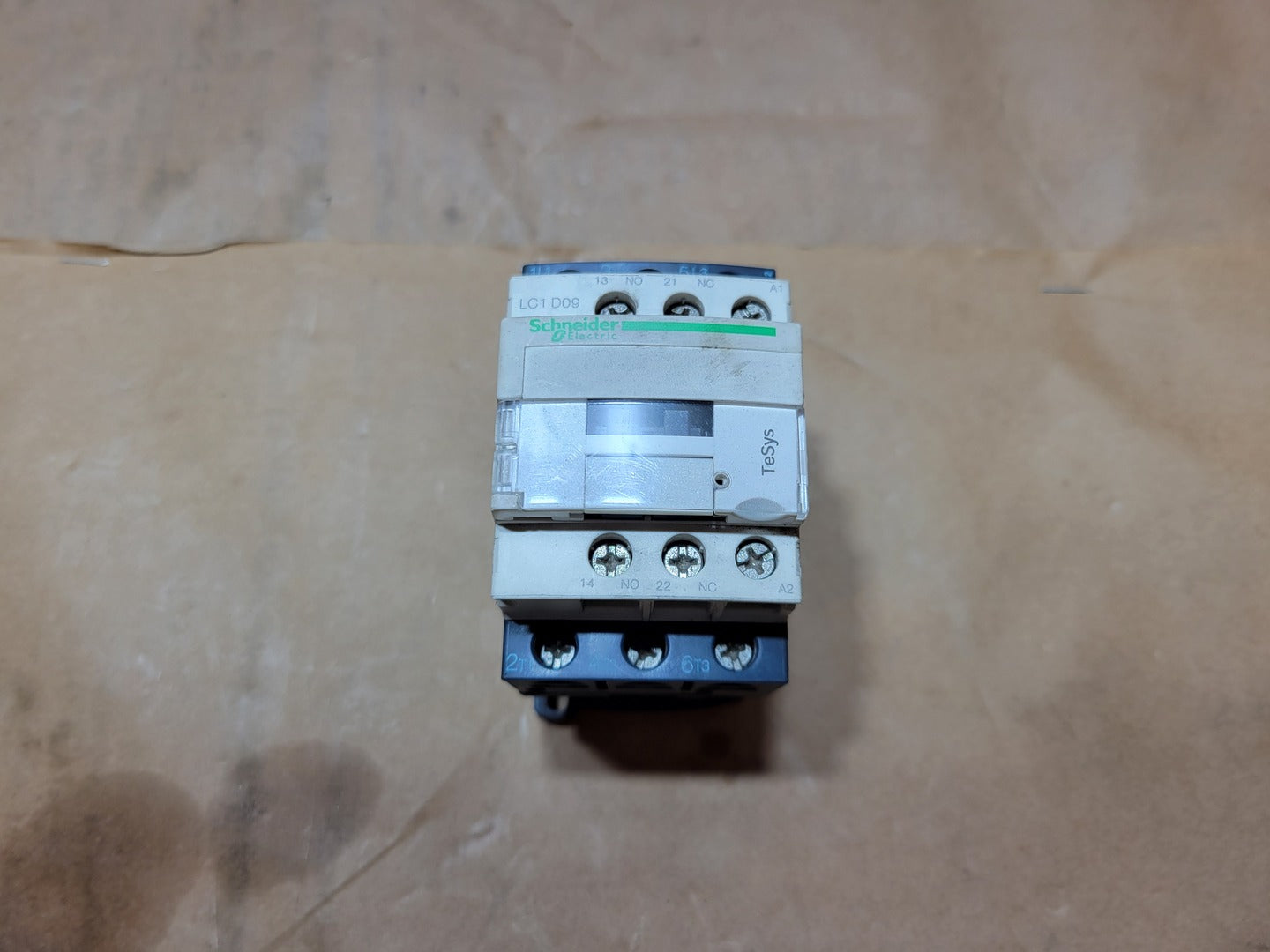

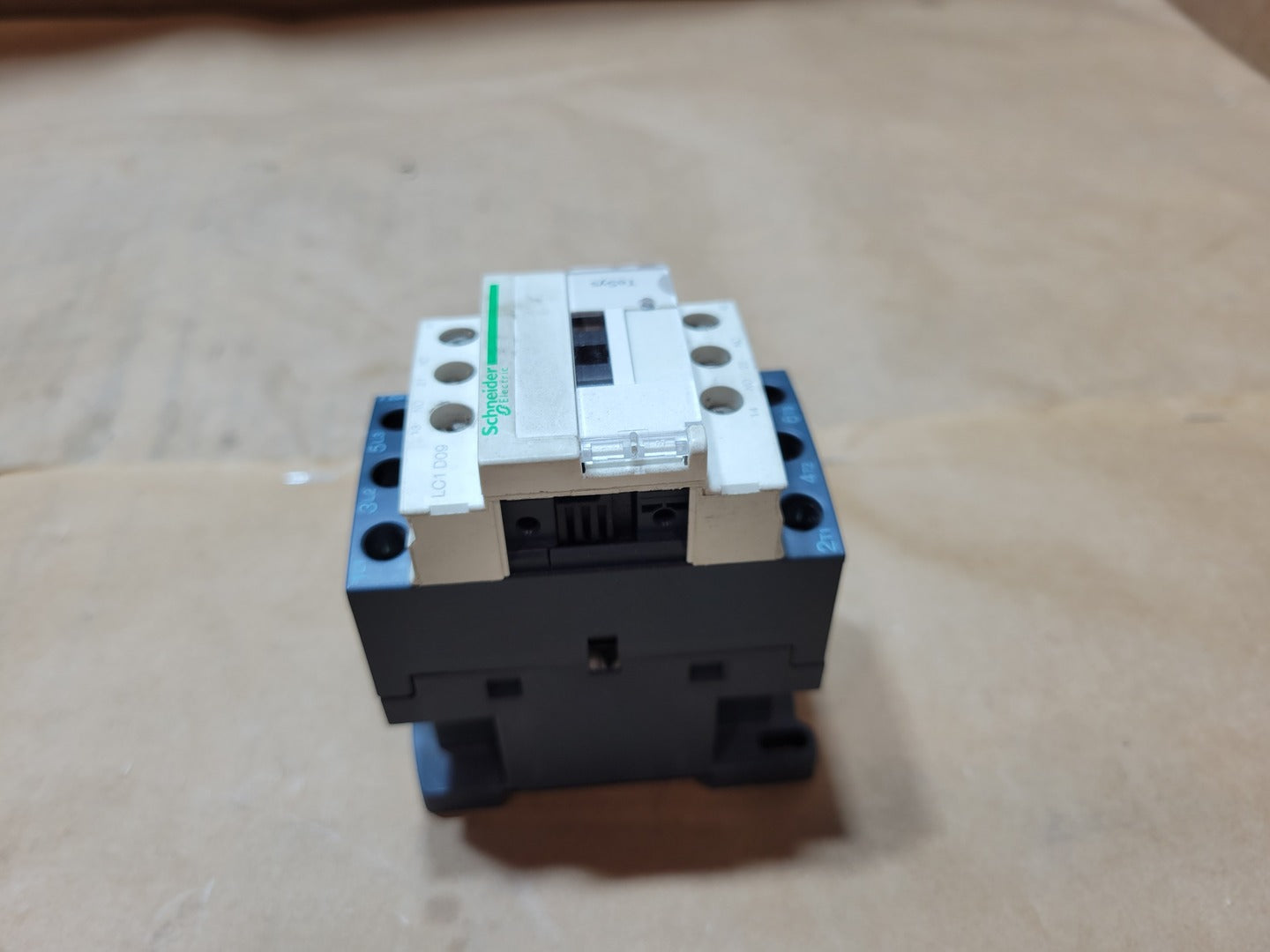

Schneider Electric TeSys D LC1D09 three-pole magnetic contactor removed from surplus inventory. The unit includes one normally open and one normally closed auxiliary contact and is rated for motor control applications up to 690 VAC.
| Specifications | |
|---|---|
| Model | LC1 D09 |
| Made In | INDONESIA |
| Condition | Surplus New | General |
| Horsepower | 7.5 hp | Electrical |
| Voltage | 600 volts |
| Amps | 25 amps |
| Other Specifications |
|---|
|

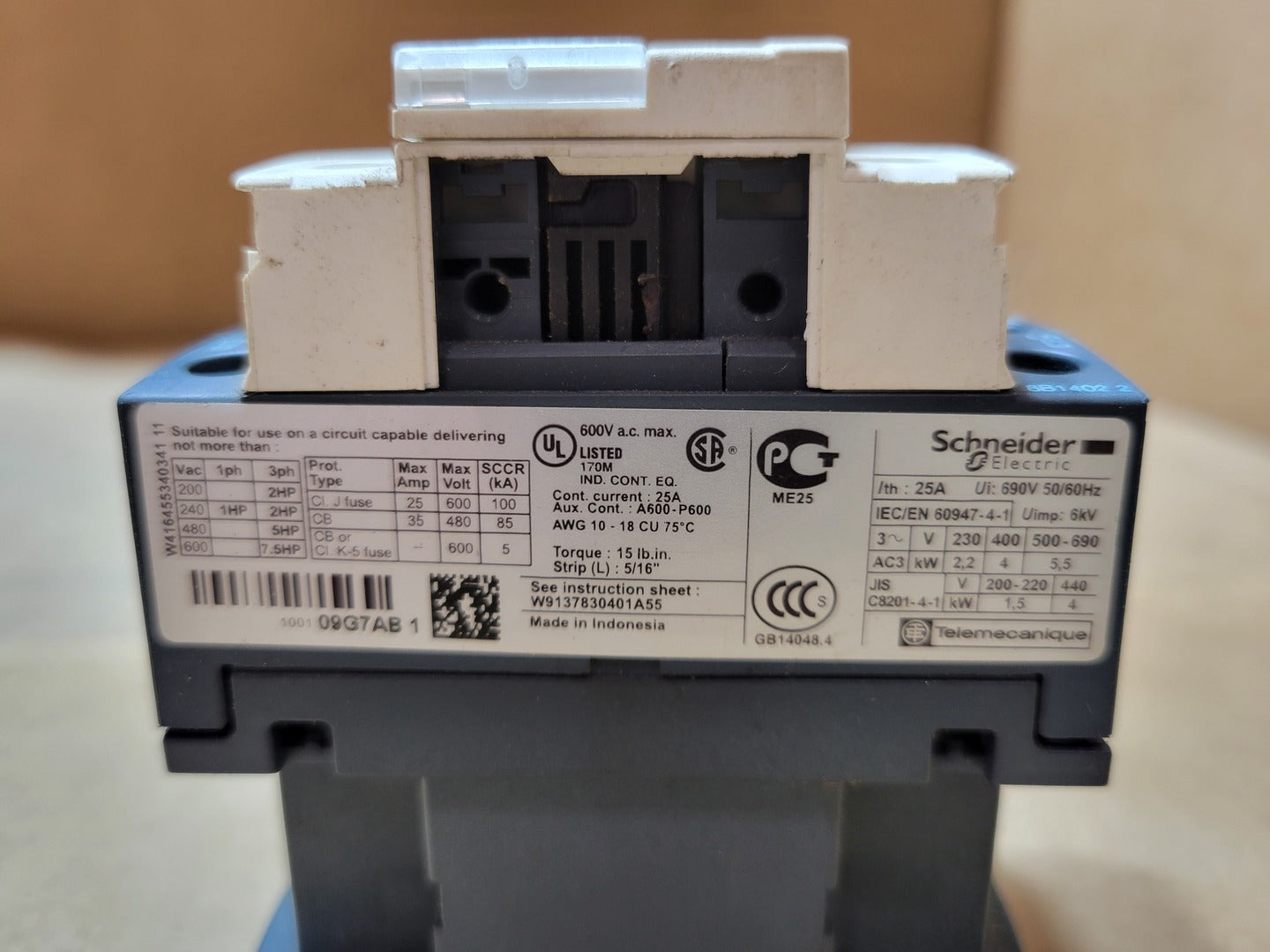

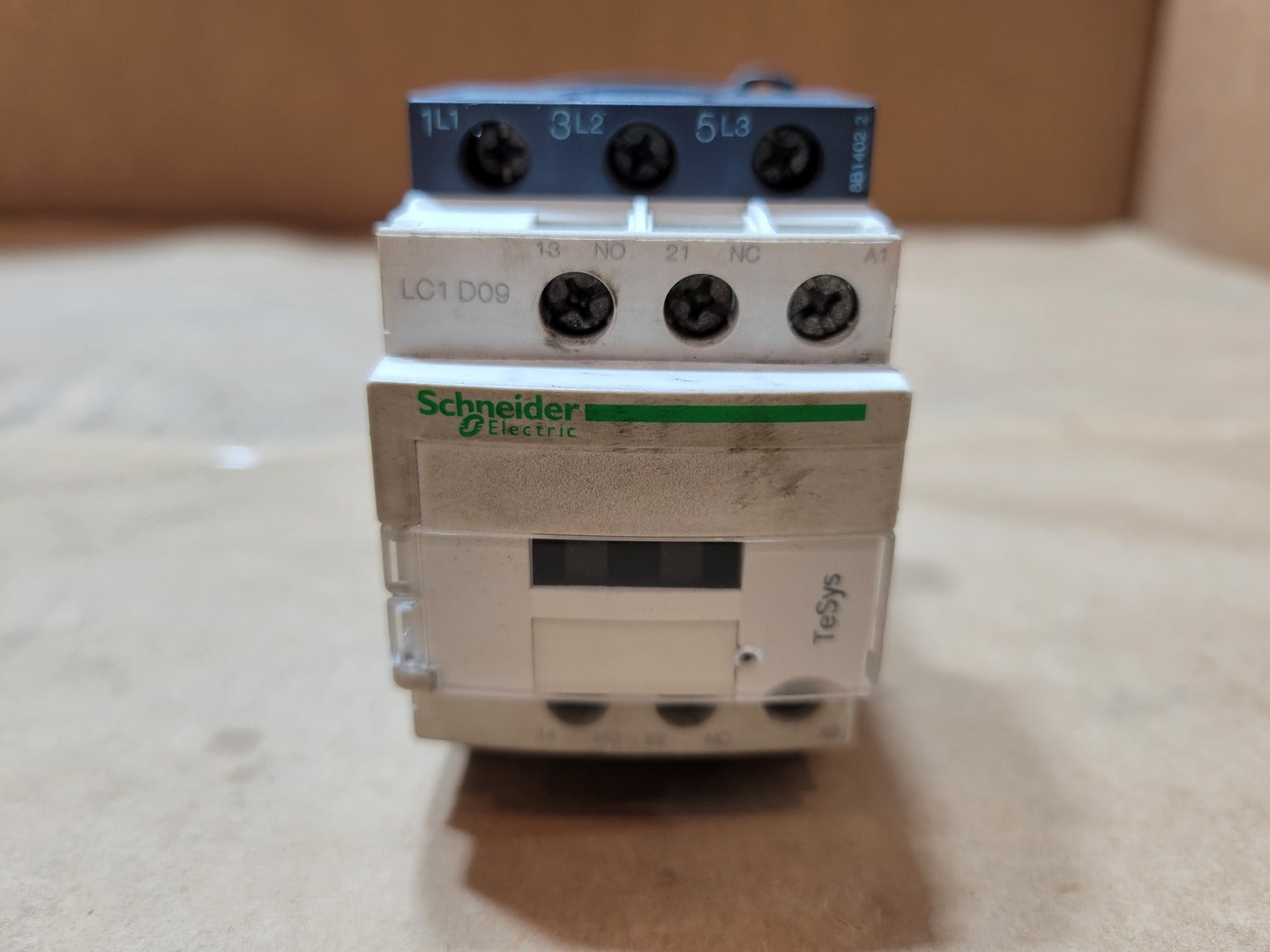

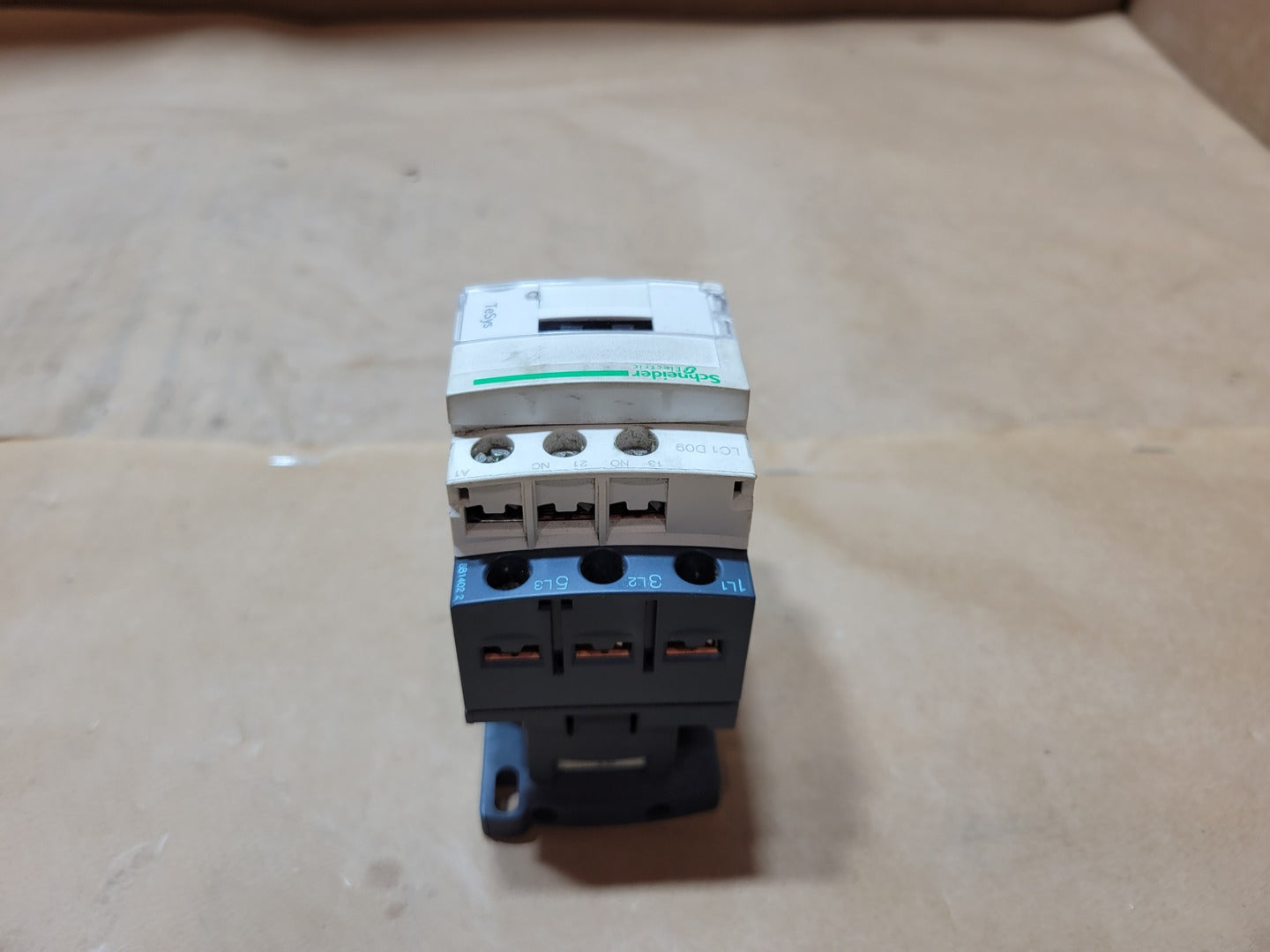

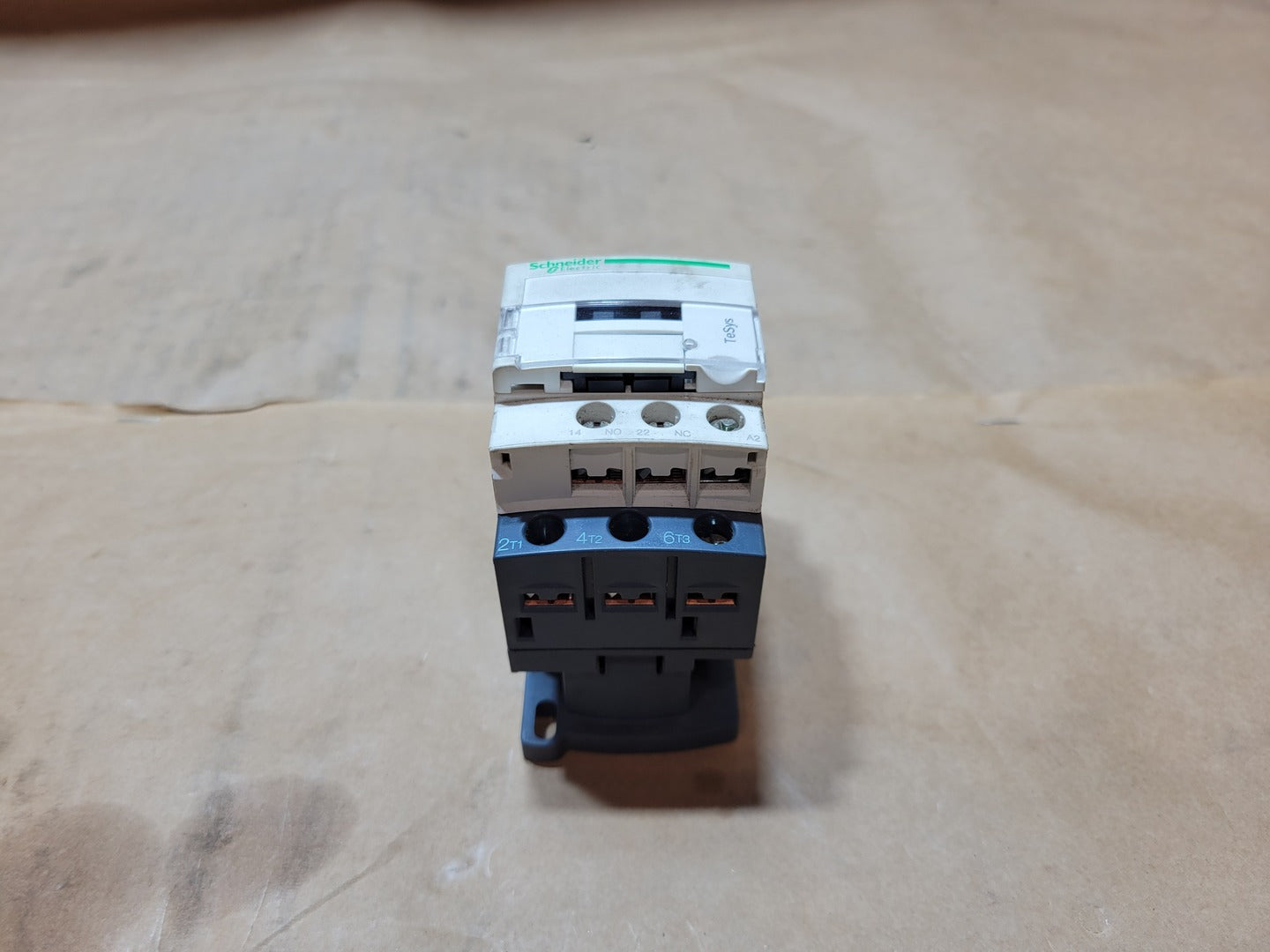

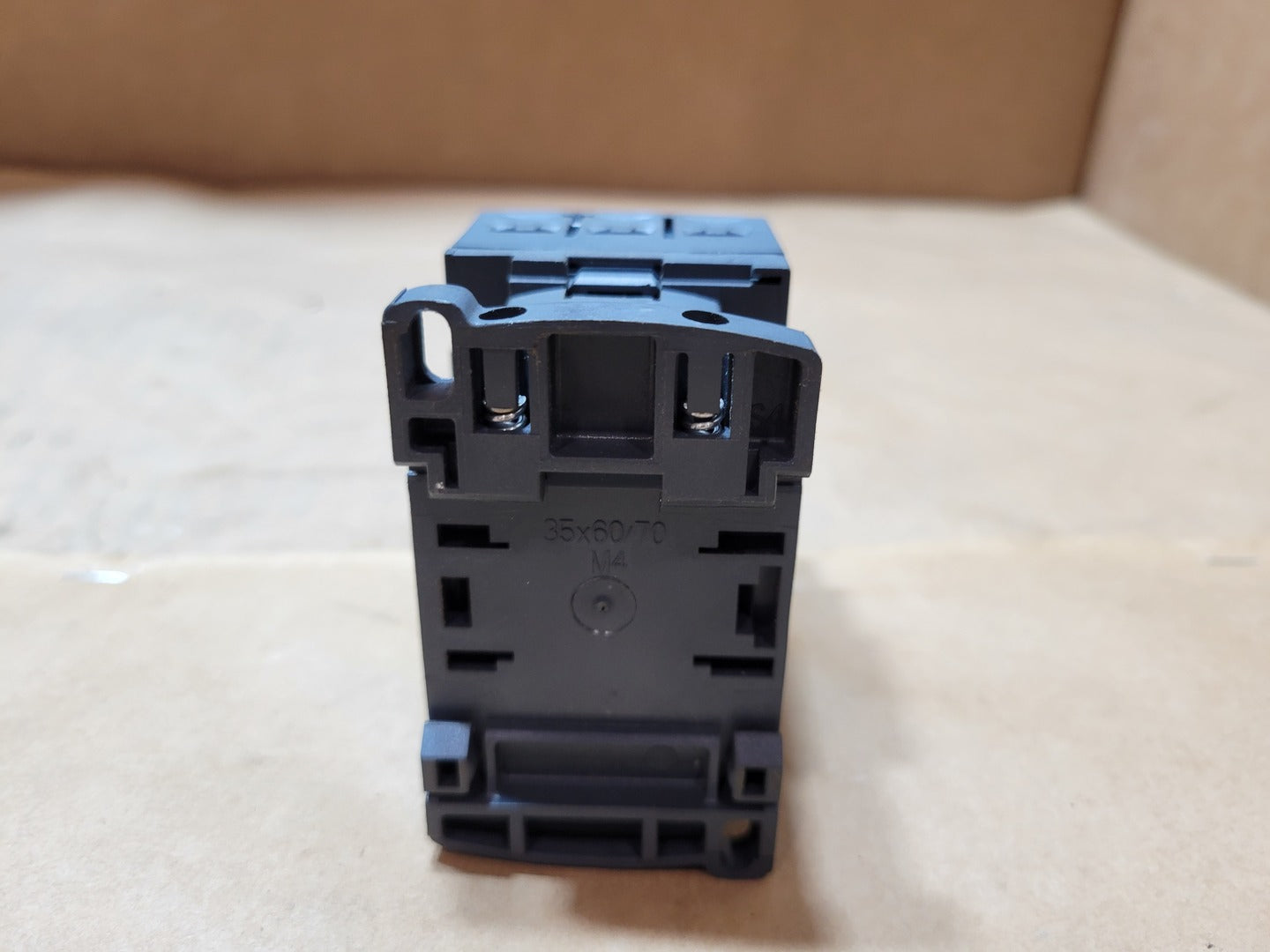

Equipment Type: Magnetic Contactor Main Poles: 3 Auxiliary Contacts: 1 Normally Open (13-14), 1 Normally Closed (21-22) Terminal Markings: 1L1, 3L2, 5L3 / 2T1, 4T2, 6T3 Coil Terminals: A1, A2 Continuous Thermal Current (Ith): 25 A Rated Insulation Voltage (Ui): 690 V AC Impulse Withstand Voltage (Uimp): 6 kV IEC Standard: IEC/EN 60947-4-1 AC-3 Motor Rating @ 230 V: 2.2 kW AC-3 Motor Rating @ 400 V: 4 kW AC-3 Motor Rating @ 500-690 V: 5.5 kW UL Continuous Current: 25 A Mounting: Panel or DIN rail compatible |
