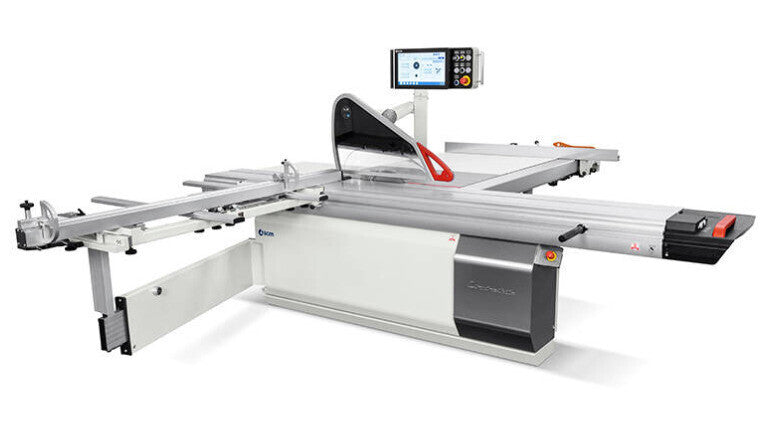

L'invincibile si 3 Circular Saw w/ Tilting Blade

SKU: 90124
Price:
$71,702 CAD

Shipping calculated at checkout

Stock:
Available
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model L'invincibile si 3
Made In ITALY
Condition New
General
Horsepower 9.4 hp
Blade Diameter 400 mm
Voltage 600 volts
Phase 3-phase
Saw Type Sliding Saw
CNC Yes
Other Specifications

"DADO" Machining

Mechanical presetting to use a tool (not included) in place of the main blade.

  • 203 mm / 8" max. diameter
  • 30 mm internal diameter
  • 20 mm maximum thickness
  • 40 mm max. working depth

1" Saw Spindle for "DADO" Machining

In replacement of the 1-1/4" spindle supplied with the "DADO machining" option

Main Blade Diameter: 400 mm

Scoring Blade Diameter: 120 mm

Sliding Carriage: 3200 mm

Squaring Capacity with Carriage and Extended Stop: 3200 x 3200 mm

Blade Tilting: 45o

Max. Cutting Height at 90o: 140 mm

Max. Cutting Height at +45o: 97 mm

Rotating blade Speed: 3000-4000-5000 rpm

Scoring Unit Speed: 8500 rpm

Diameter of Exhaust Outlet:

  • At Base: 120 mm
  • At Overhead Saw Guard: 100 mm

Main Scoring Unit Motor Power: 1.3 kW (1.7 hp)

Cutting Width on Parallel Fence: 1500 mm

"Full Support & Wireless"

Mobile frame for angular cutting complete with Wireless function with:

manual movement and possibility of angle from +50o to -50o in respect of the perpendicular to the cutting axis, with micrometric adjustment. Angle detecting system on magnetic band and readout on LCD display, updating in real time of the squaring stops positions on LCD readout when varying the blade and/or cutting angle tilting.

Furthermore the frame is complete with:

  • Quick lock fence with simultaneous positioning and locking/unlocking on the frame
  • roller for workpiece support of 2400 mm from the blade

Additional Info

  • Aluminum alloy carriage sliding on high precision "arch-formed" hardened steel guides, which are fixed on the carriage by means of mechanical bending system
  • "eye-S 15" touch screen electronic control
  • Overhead mobile control panel
  • Squaring frame with Compex device angular cutting with automatic self-adjustment of the stop position. This exclusive system allows the functioning even when the optional fence for complementary cuts is applied. It is complete with 2400 mm extensible roller for blade support.
  • Motor start/stop pushbuttons integrated in the sliding carriage
  • Eccentric clamp
  • Seaworthy Packing
  • Machine language: French
  • Machine language: English

PDF Specifications
