Description

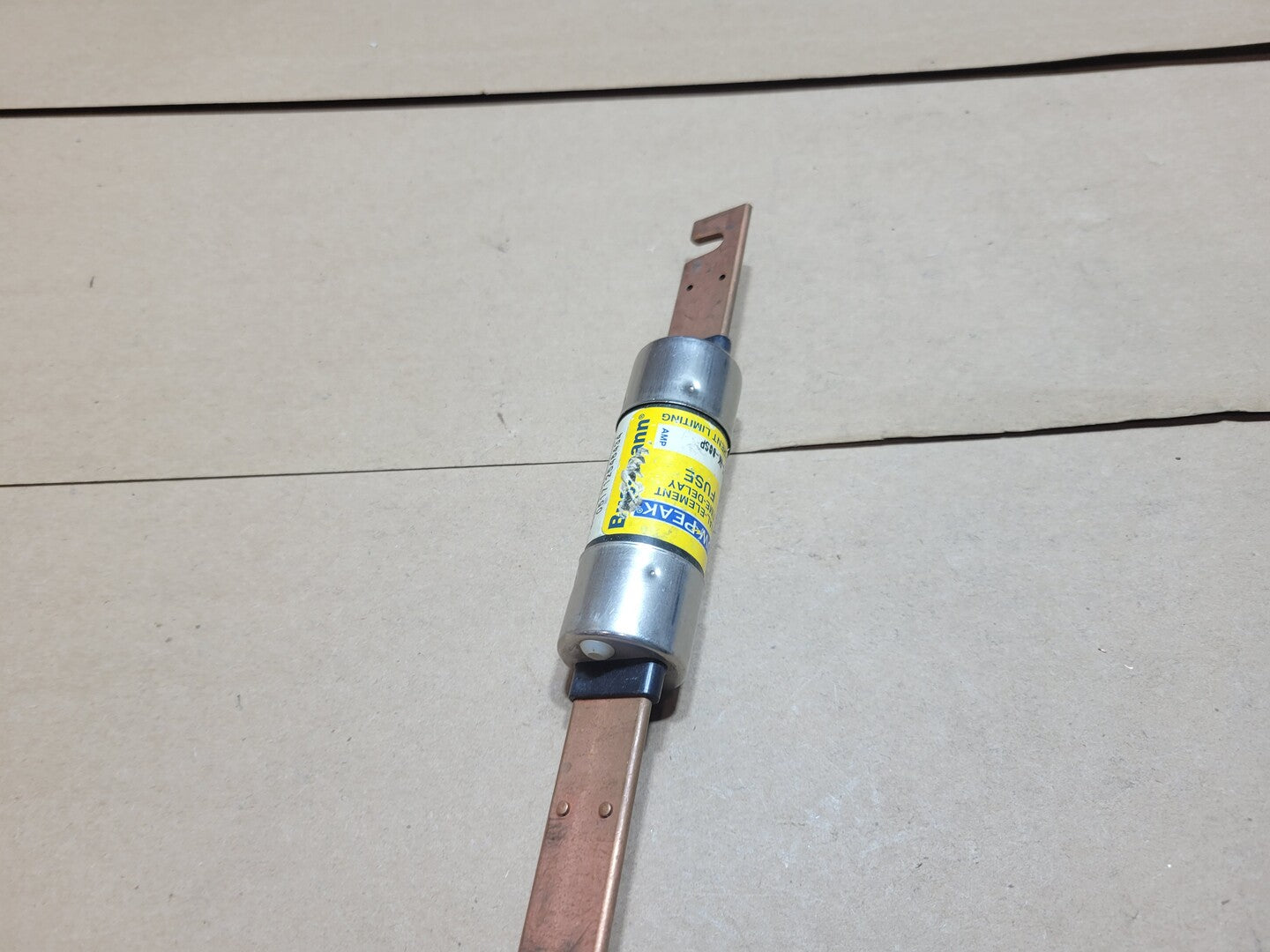

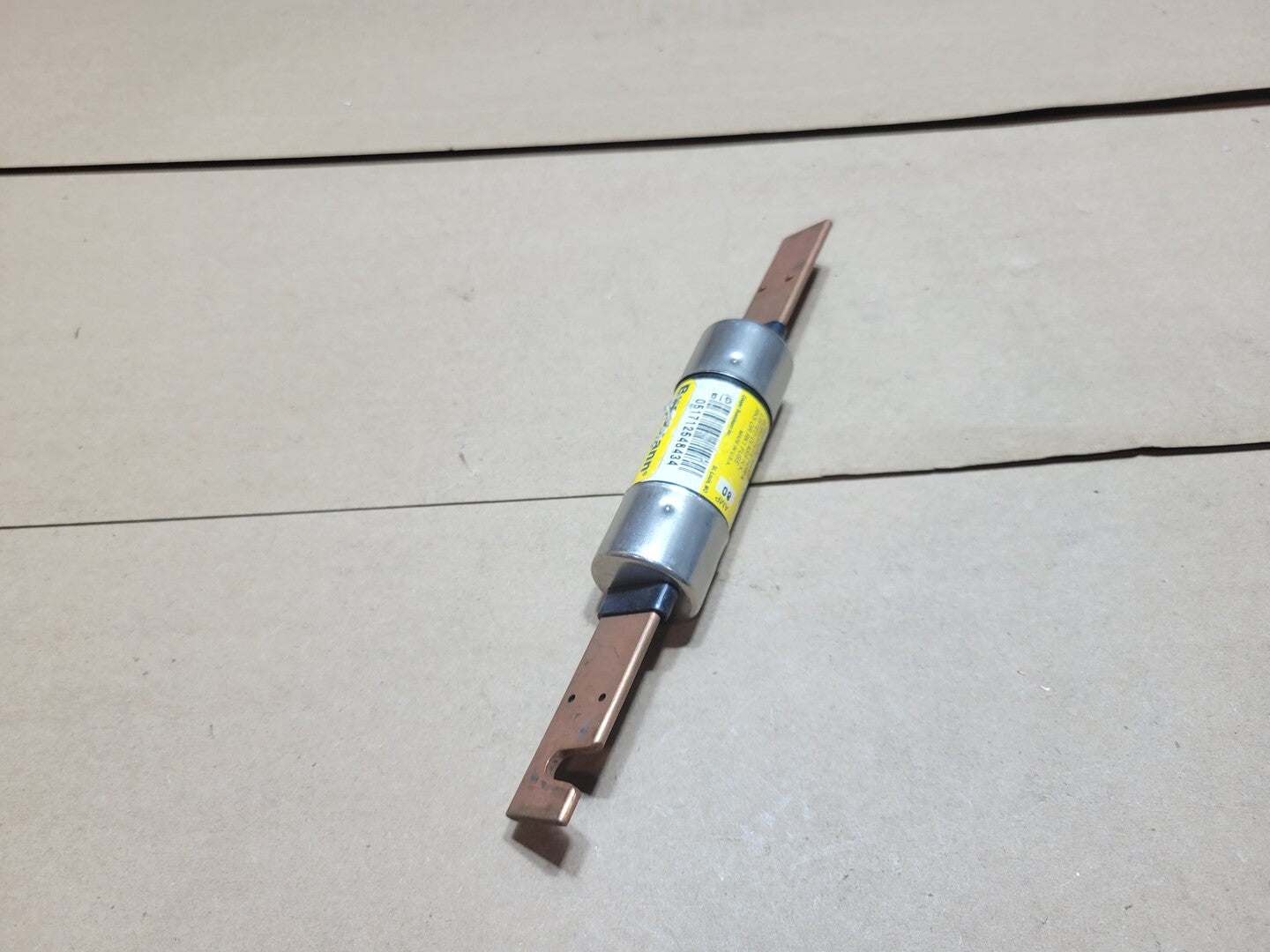

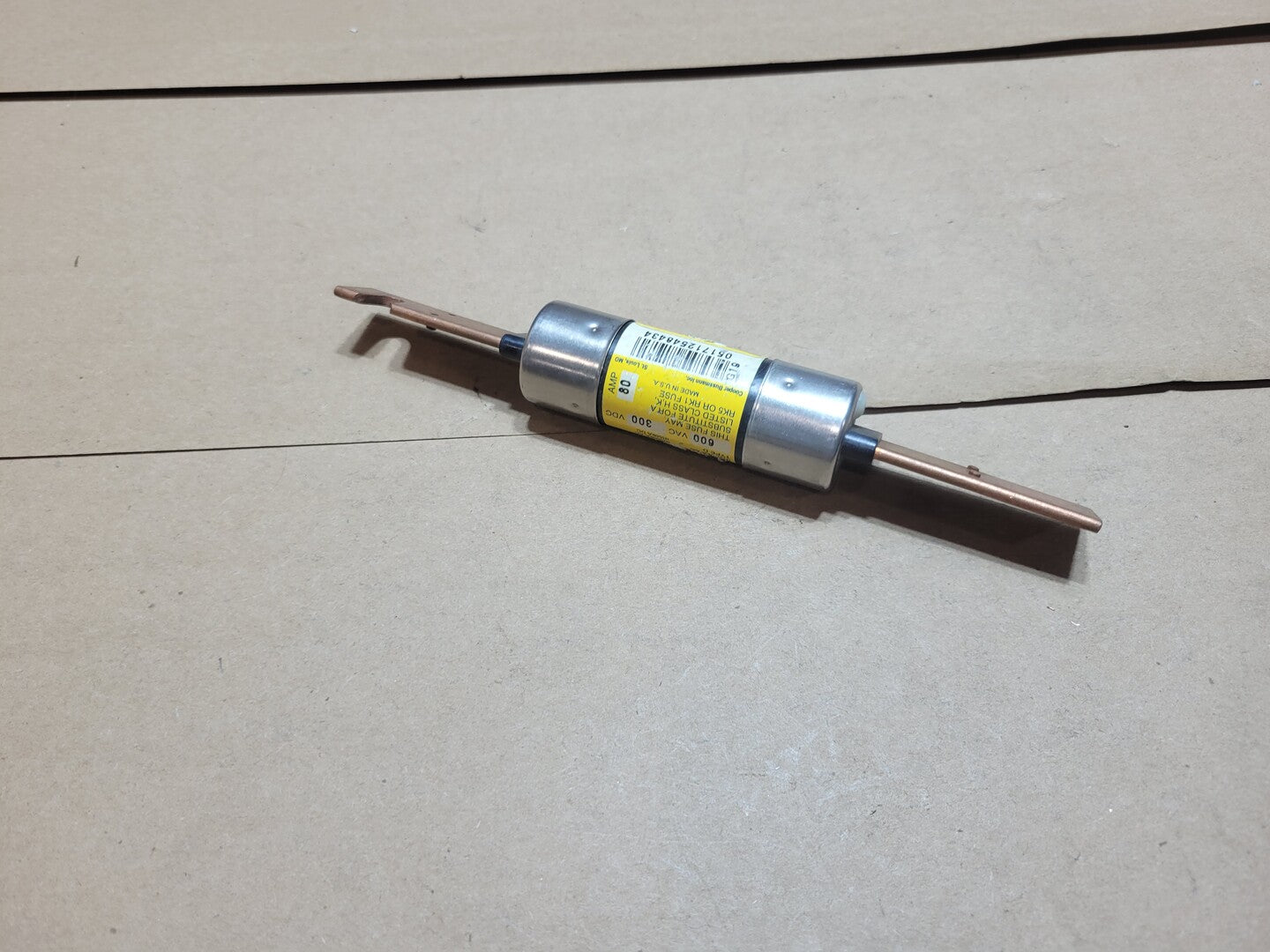

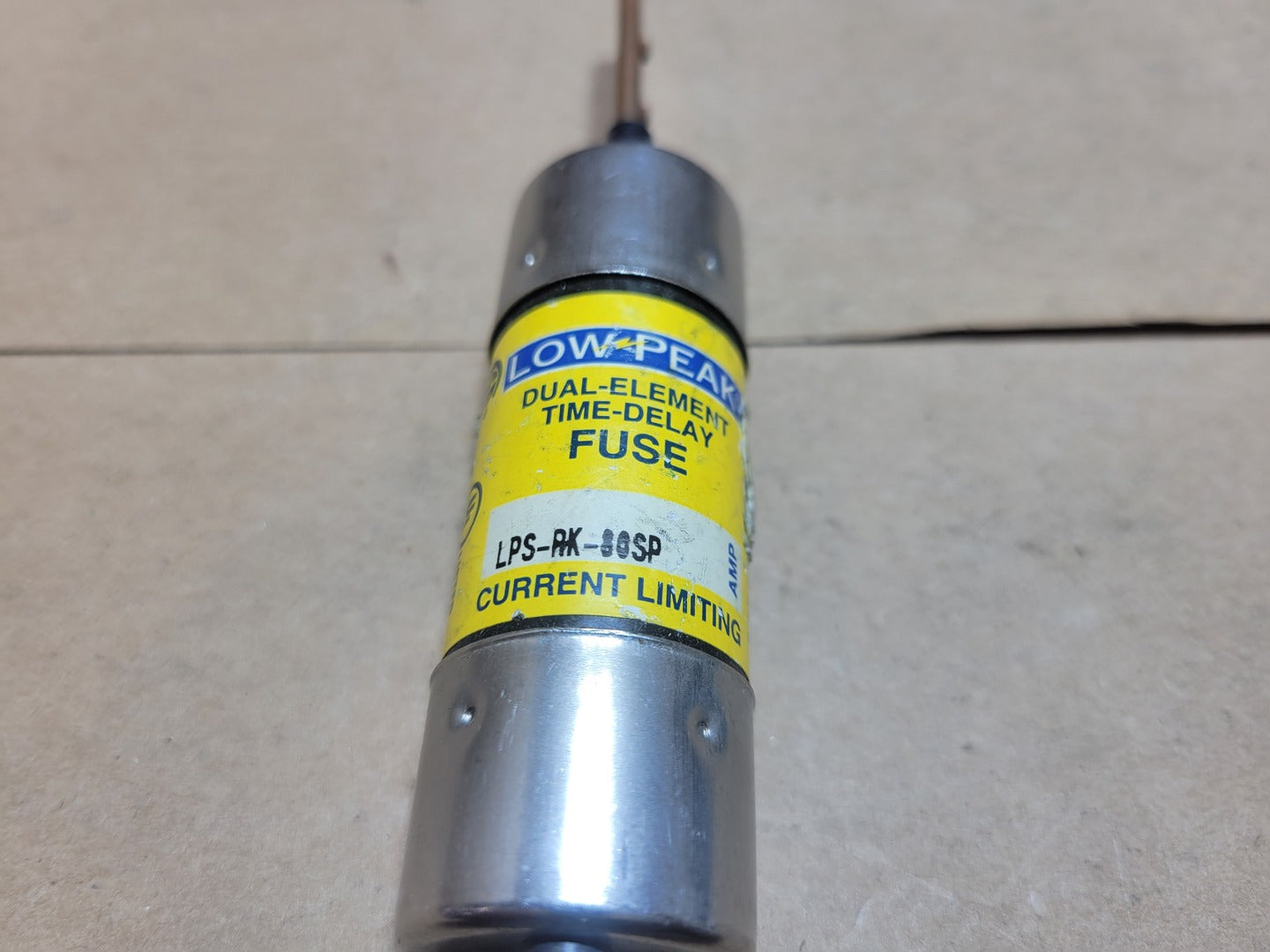

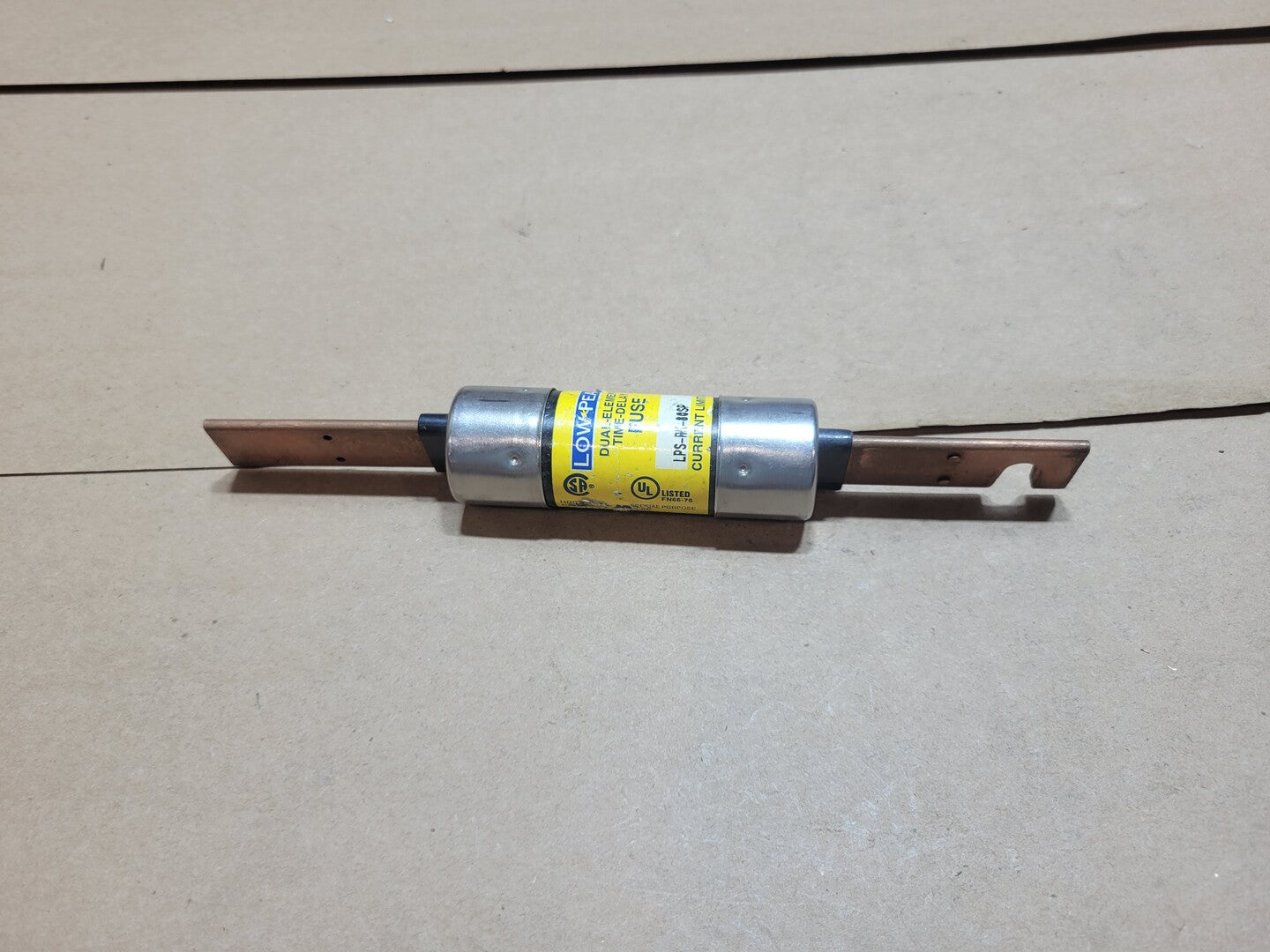

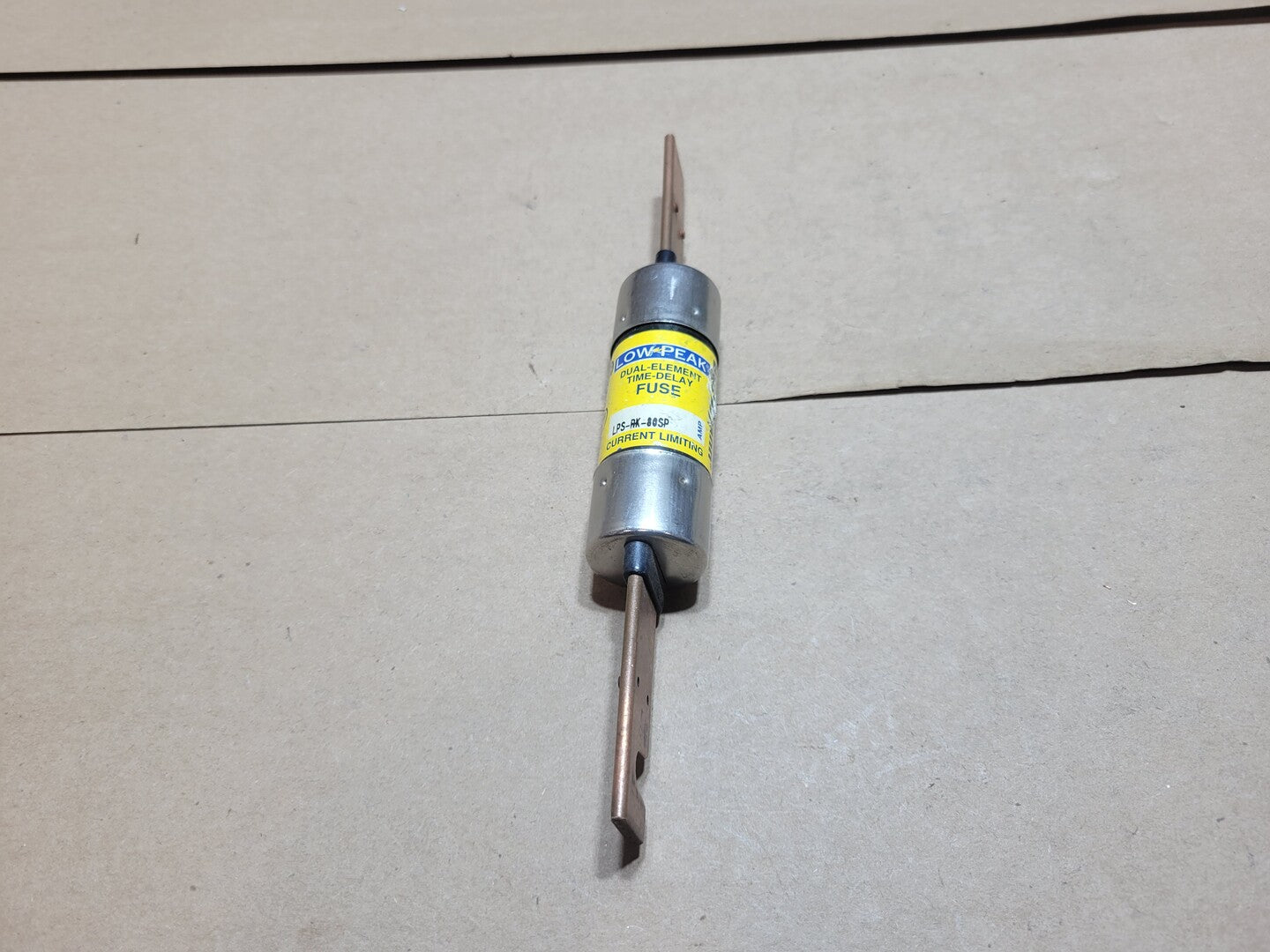

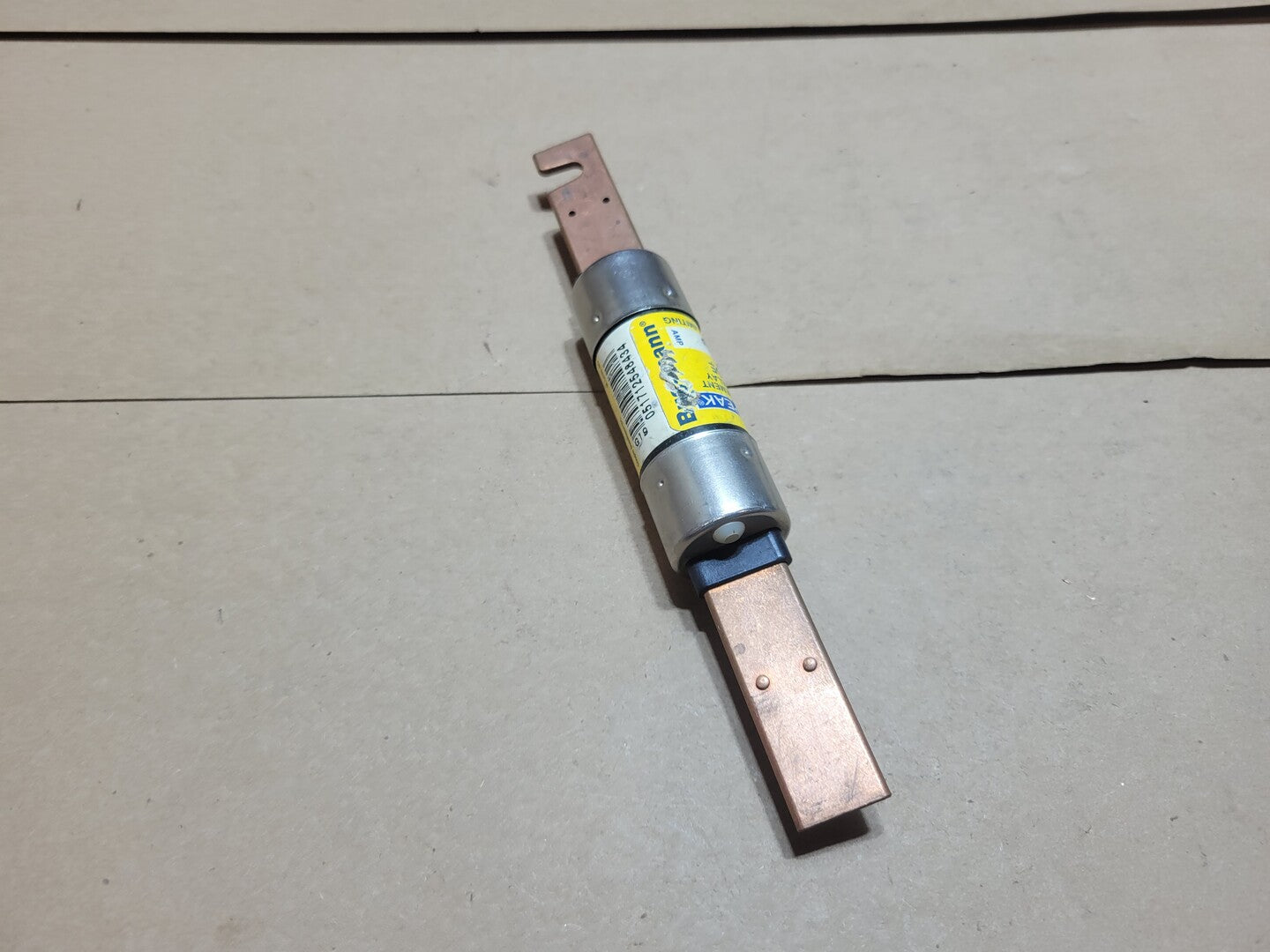

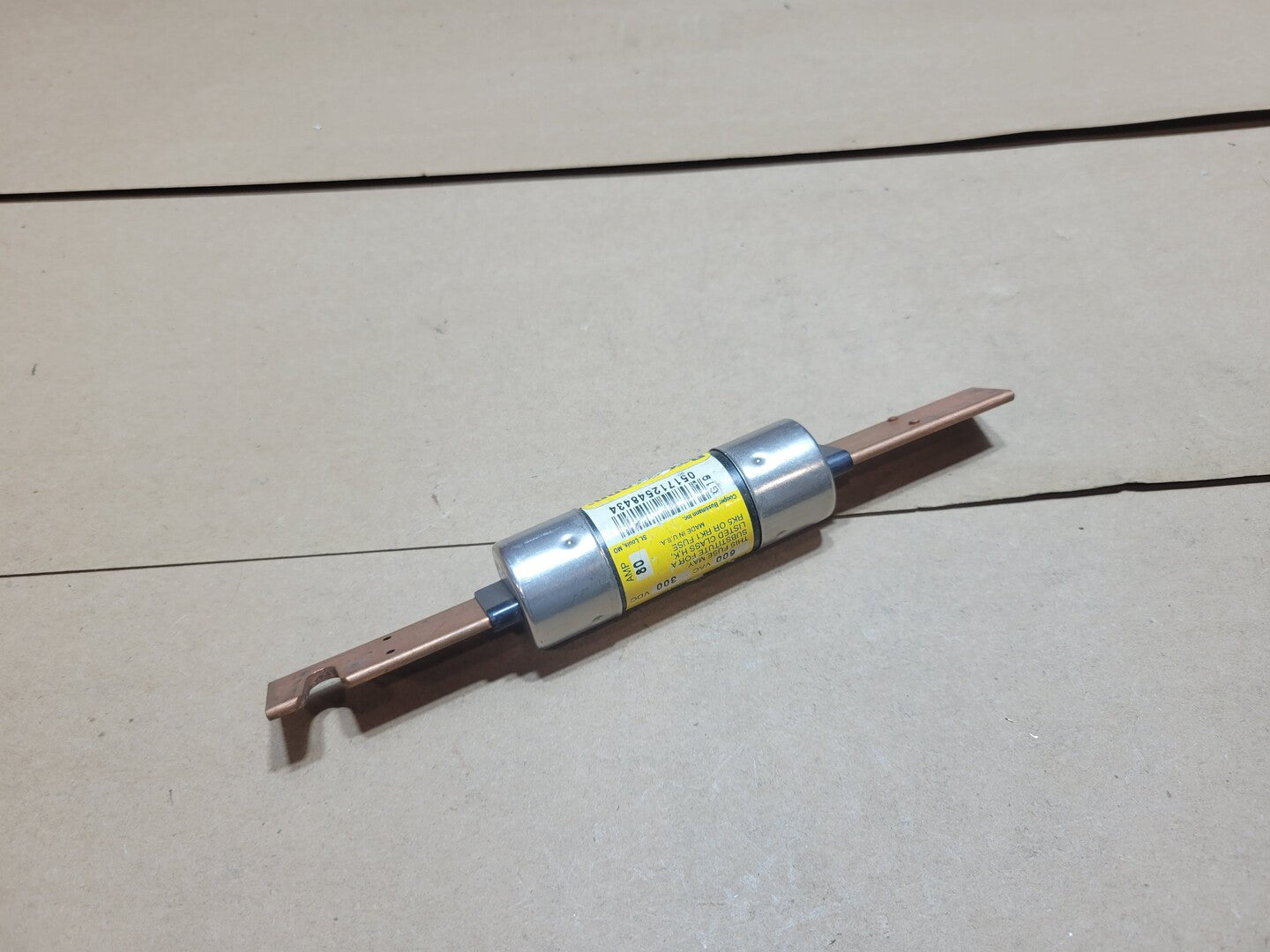

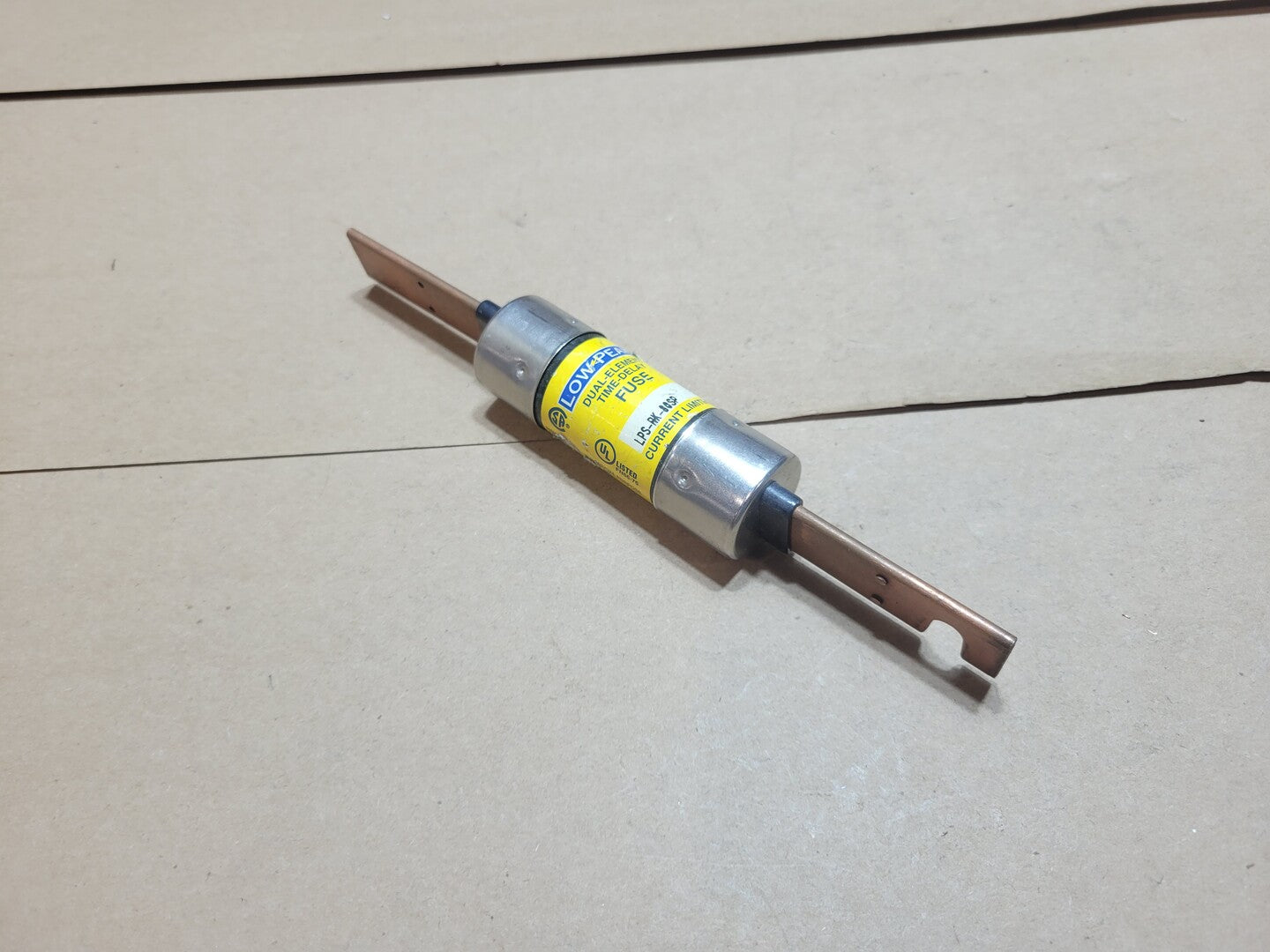

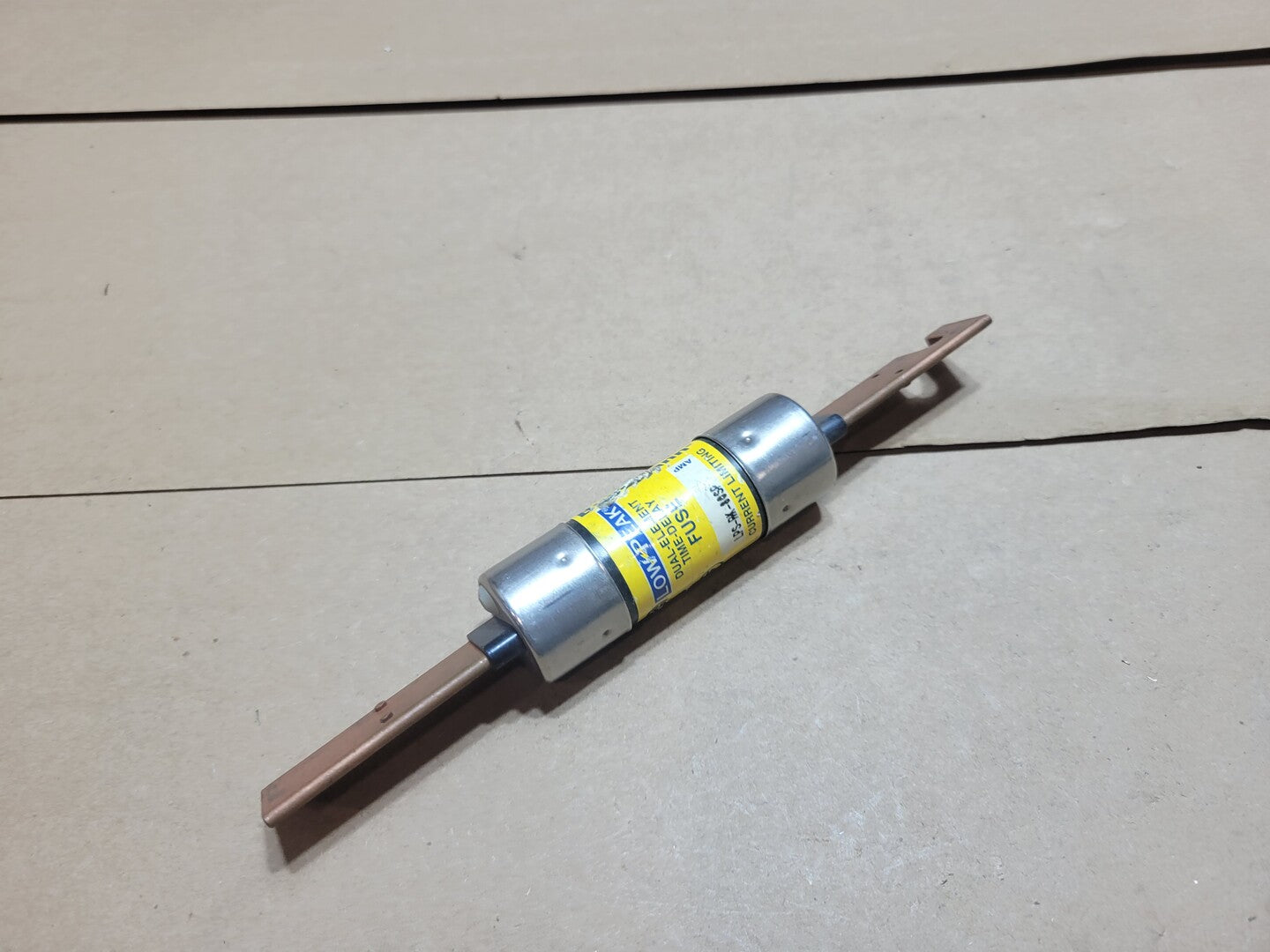

Bussmann LOW-PEAK LPS-RK-80SP industrial power fuse rated 80A, 600VAC / 300VDC. Class RK1 dual-element, time-delay and current-limiting design with Class R rejection-style blade terminals. Designed for high-level short-circuit protection while accommodating temporary motor and transformer inrush currents.
| Specifications | |
|---|---|
| Model | LPS-RK-80SP |
| Condition | Used | Electrical |
| Amps | 80 amps |
| Voltage | 600 volts |
| Fuse Type | Low Volt |
| Current Type | AC |
| Class | RK1 |
| Interrupting Rating | 300 kA |
| Other Specifications |
|---|
|
Product Type: Industrial Power Fuse Fuse Class: Class RK1 Current Rating: 80 A AC Voltage Rating: 600 VAC DC Voltage Rating: 300 VDC Operating Characteristic: Time-Delay Element Type: Dual-Element Current-Limiting: Yes DC Interrupting Rating: 100 kA at 300 VDC Time Delay: 10 seconds at 500% rated current Terminal Type: Blade x Blade Blade Configuration: Class R rejection-style Indicator: Non-Indicating |
