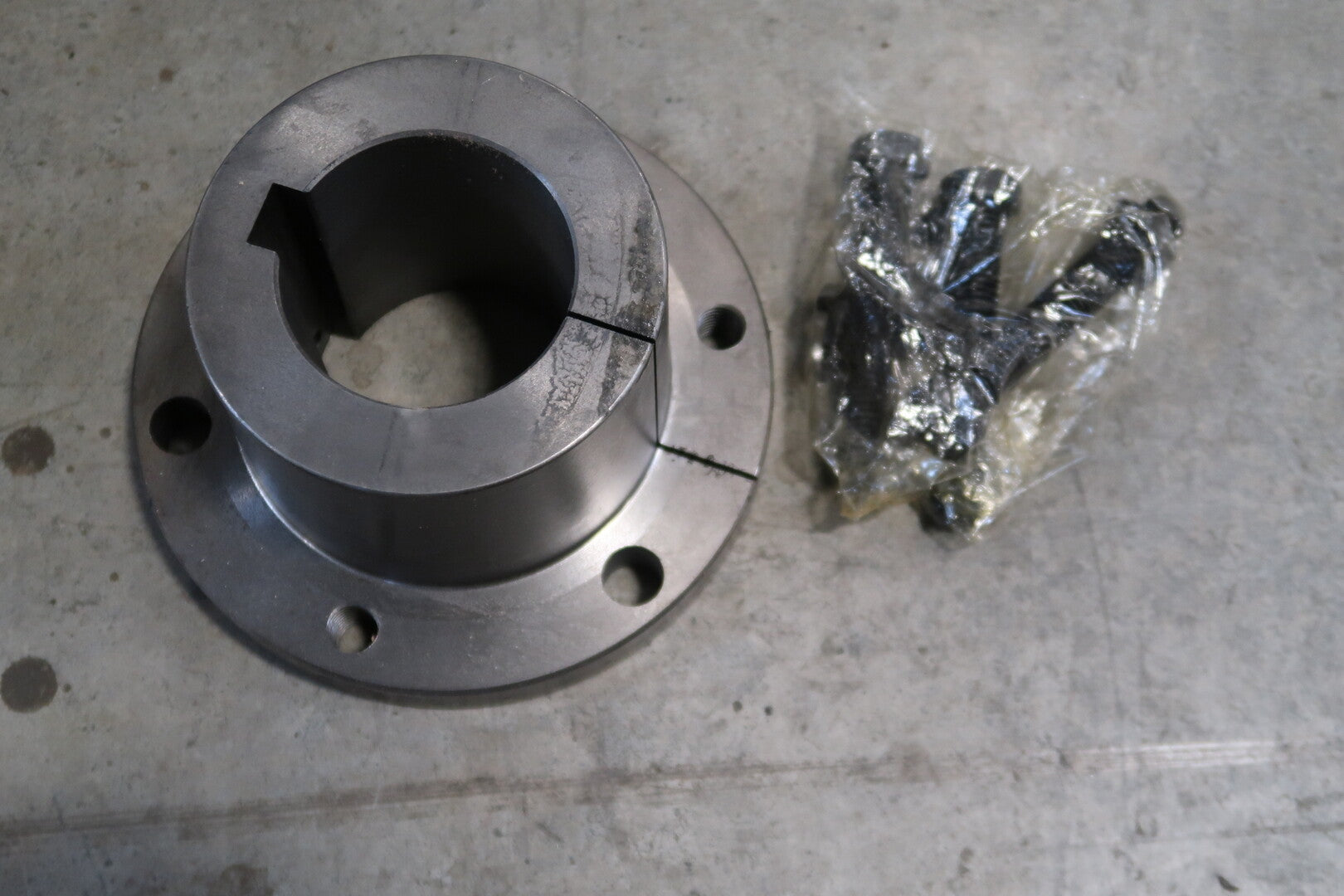

2-5/8" Quick Disconnect Bushing FX2-5/8

SKU: 14983
Price:
$105 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

Specifications
Model FX2-5/8
Condition Surplus New
General
Type QD Bushing
Bore Diameter 2-5/8 "
Other Specifications

Bushing Size: F

Bore Type: Finished w/ keyway

Keyway Size: 5/8 x 5/16 in.

Bore Diameter: 2.6250 in.

Flange Outside Diameter: 6.6250 in.

Flange Thickness: 0.8125 in.

Length Through Bore: 3.6250 in.

Material: Steel

Torque Capacity: 3000 in.

Screw Torque: 900 in.

Maximum Hub Outside Diameter: 7-1/4 (Steel) in., 7-3/4 (Class 30 Iron) in.

Barrel Diameter: 4.43 in.

Barrel Length: 2.82 in.

Bolt Circle Diameter: 5.63 in

Number of Bolt Holes: 3

Screw Thread Size: 9/16-12 in.

Screw Length: 3-5/8 in.

Mounting Type: Conventional or Reverse
