SQUARE D MCC Bucket, Size 1, 5 hp, 600 Volt, FA100-3MC6 Series 1
SQUARE D

MCC Bucket, Size 1, 5 hp, 600 Volt, FA100-3MC6 Series 1

SKU: 158288
Condition: Used
Price:
$900 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Looking for more parts like this?

All Electrical Components → More from SQUARE D →

Description

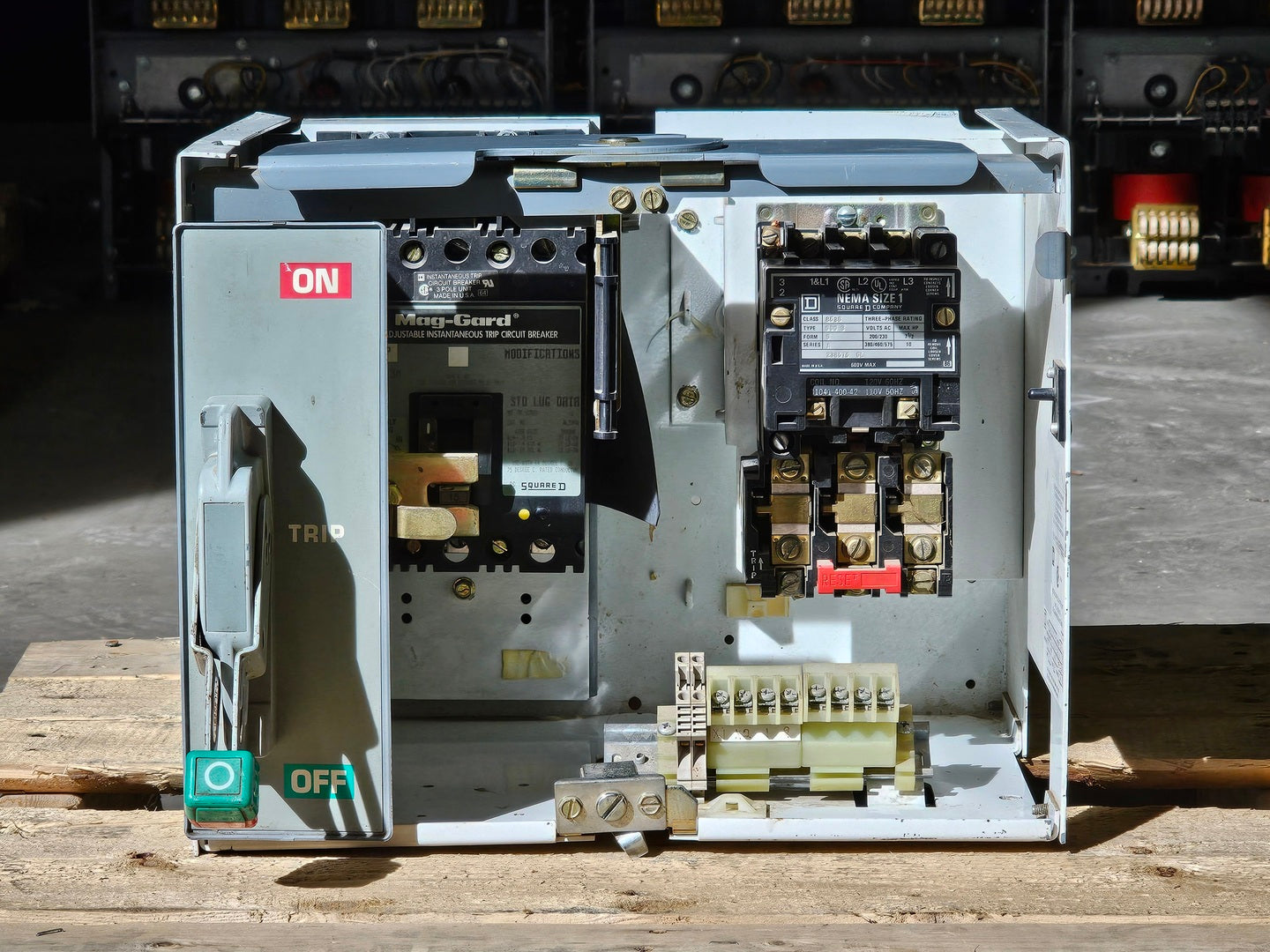

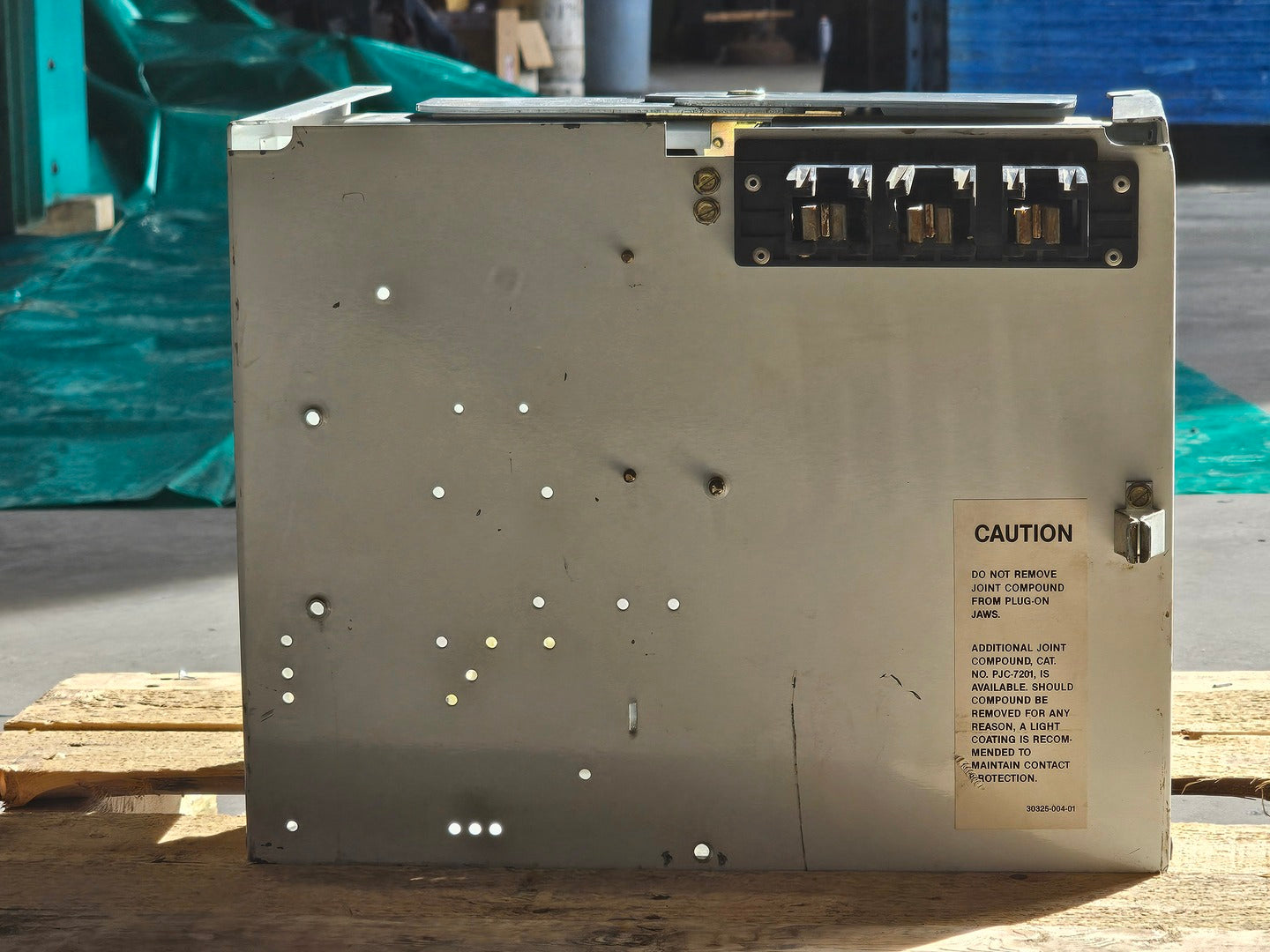

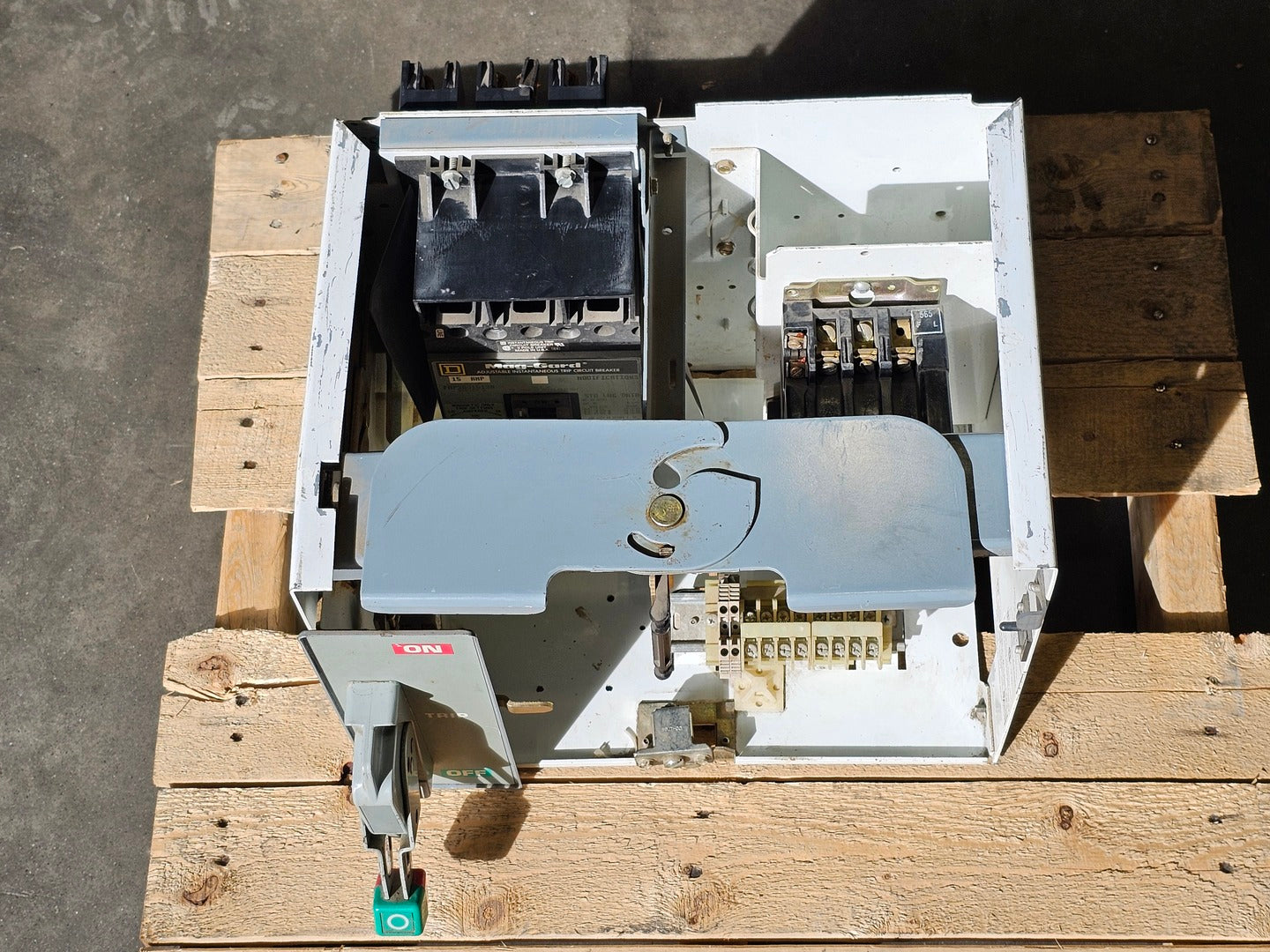

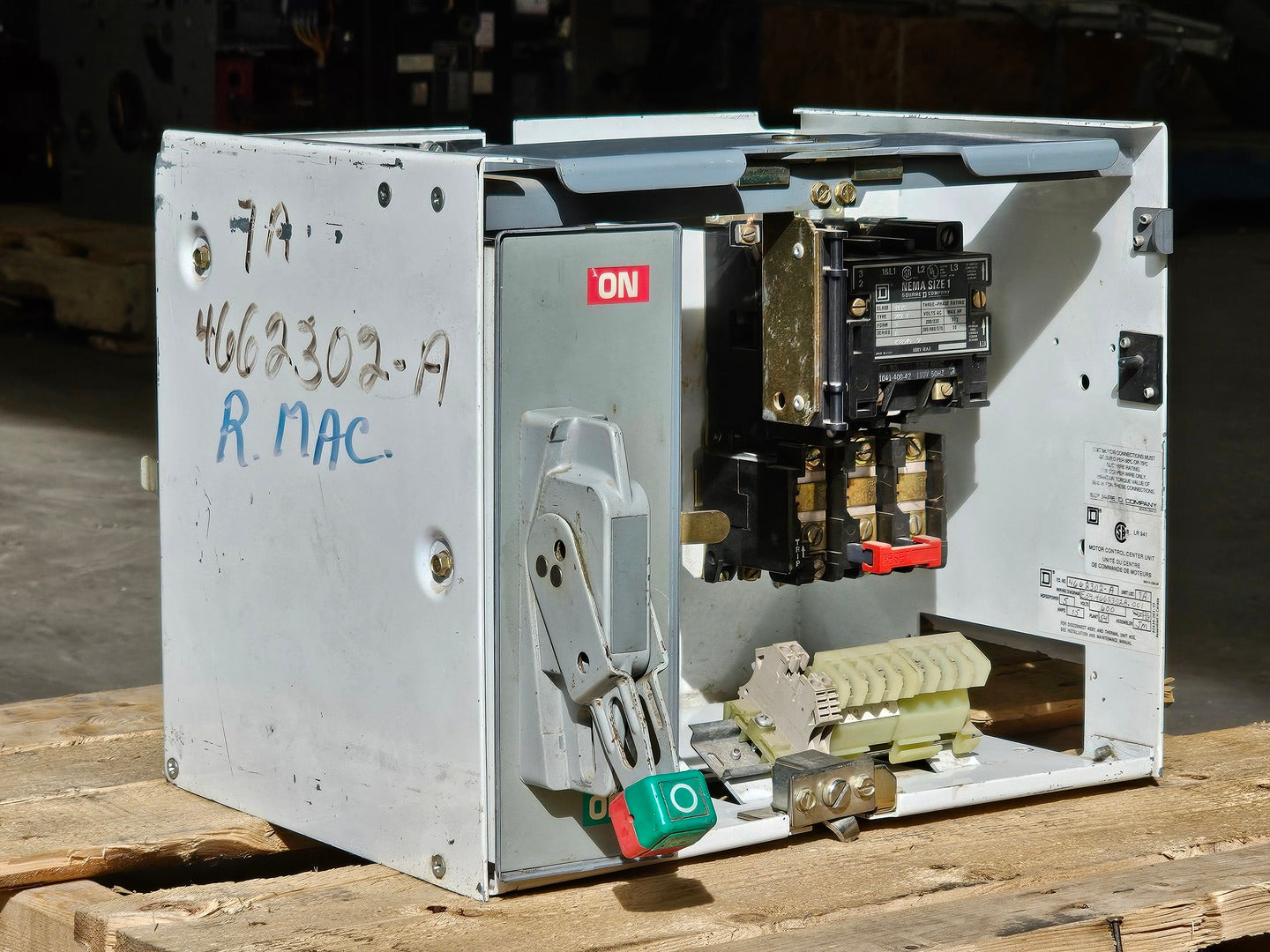

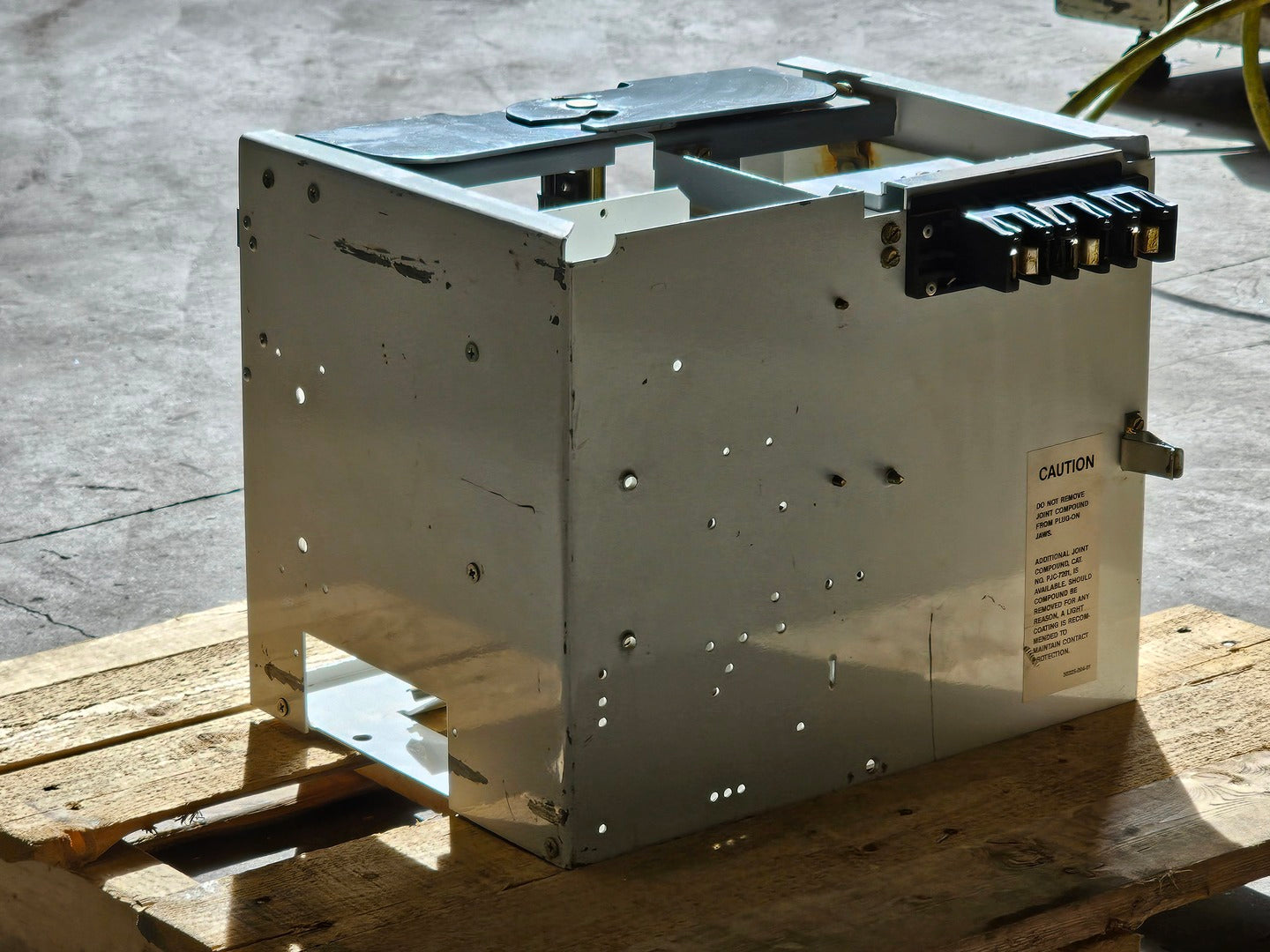

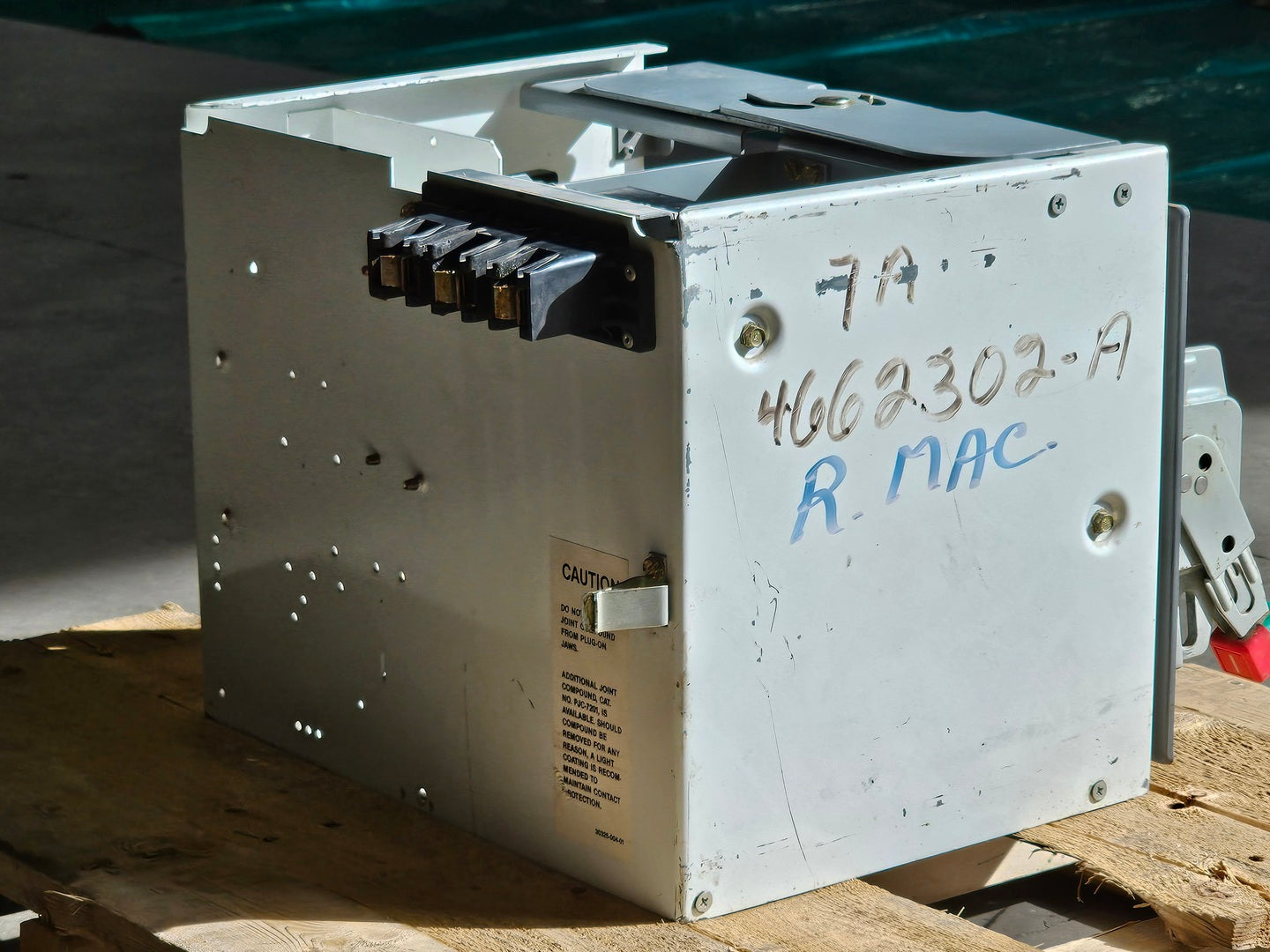

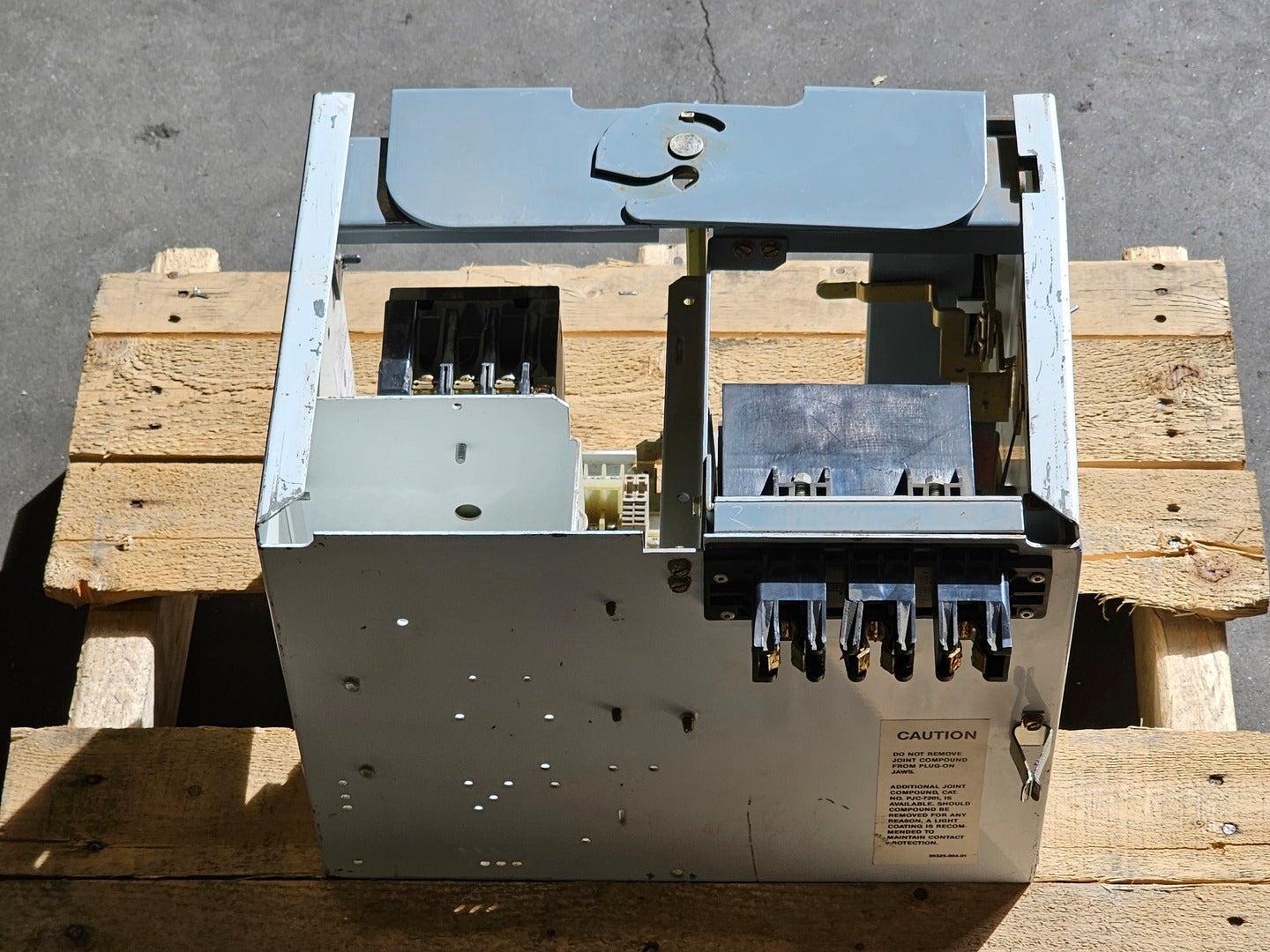

Square D FA100-3MC6 Series 1 MCC bucket configured for a 5 HP, 15 A, 600 VAC motor circuit. The unit includes a Square D Mag-Gard adjustable magnetic-only breaker, Class 8536 NEMA Size 1 three-phase starter with overload protection, Class 9007 limit switch, terminal block, plug-in MCC stabs, and external ON/OFF/TRIP operating handle.
Specifications
Model FA100-3MC6
Made In UNITED STATES
Condition Used
General
Size 1
HP Rating 5 hp
Electrical
Max. Voltage 600
Other Specifications

Circuit Breaker

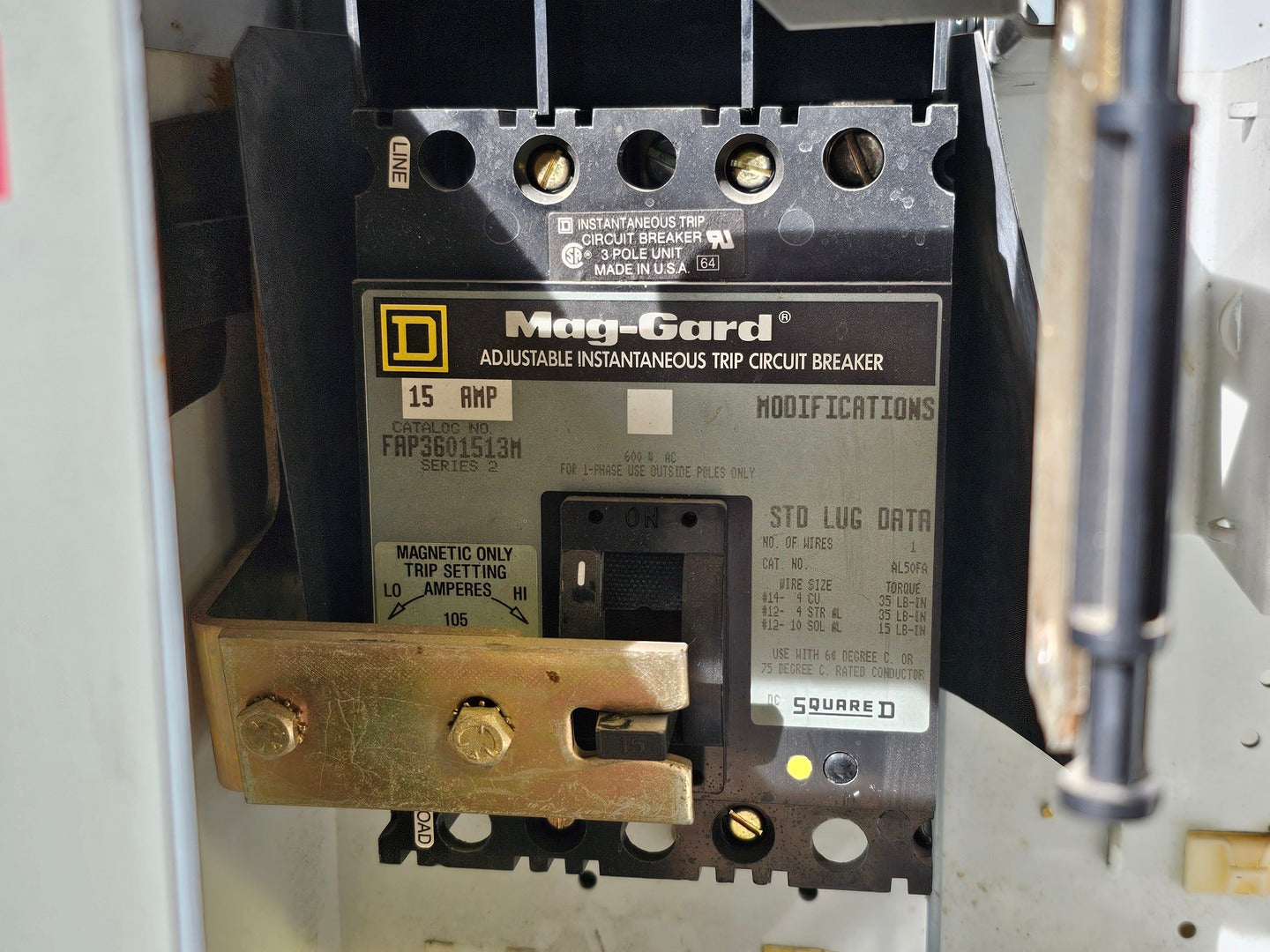

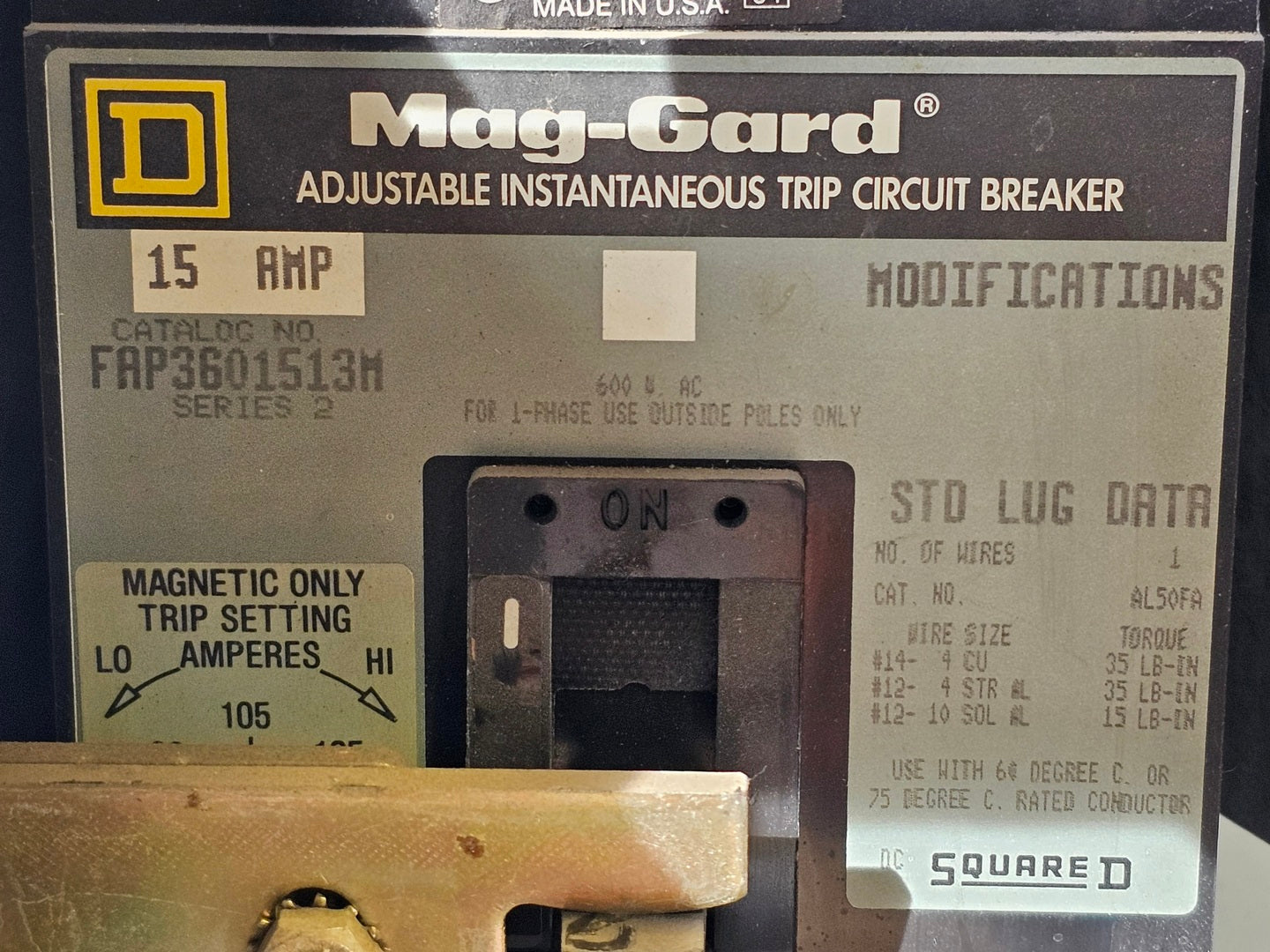

  1. Model: Square D Mag-Gard FAP3601513M
  2. Amp Rating: 15 A
  3. Poles: 3 Pole
  4. Voltage Rating: 600 VAC
  5. Single-Phase Use: Outside poles only

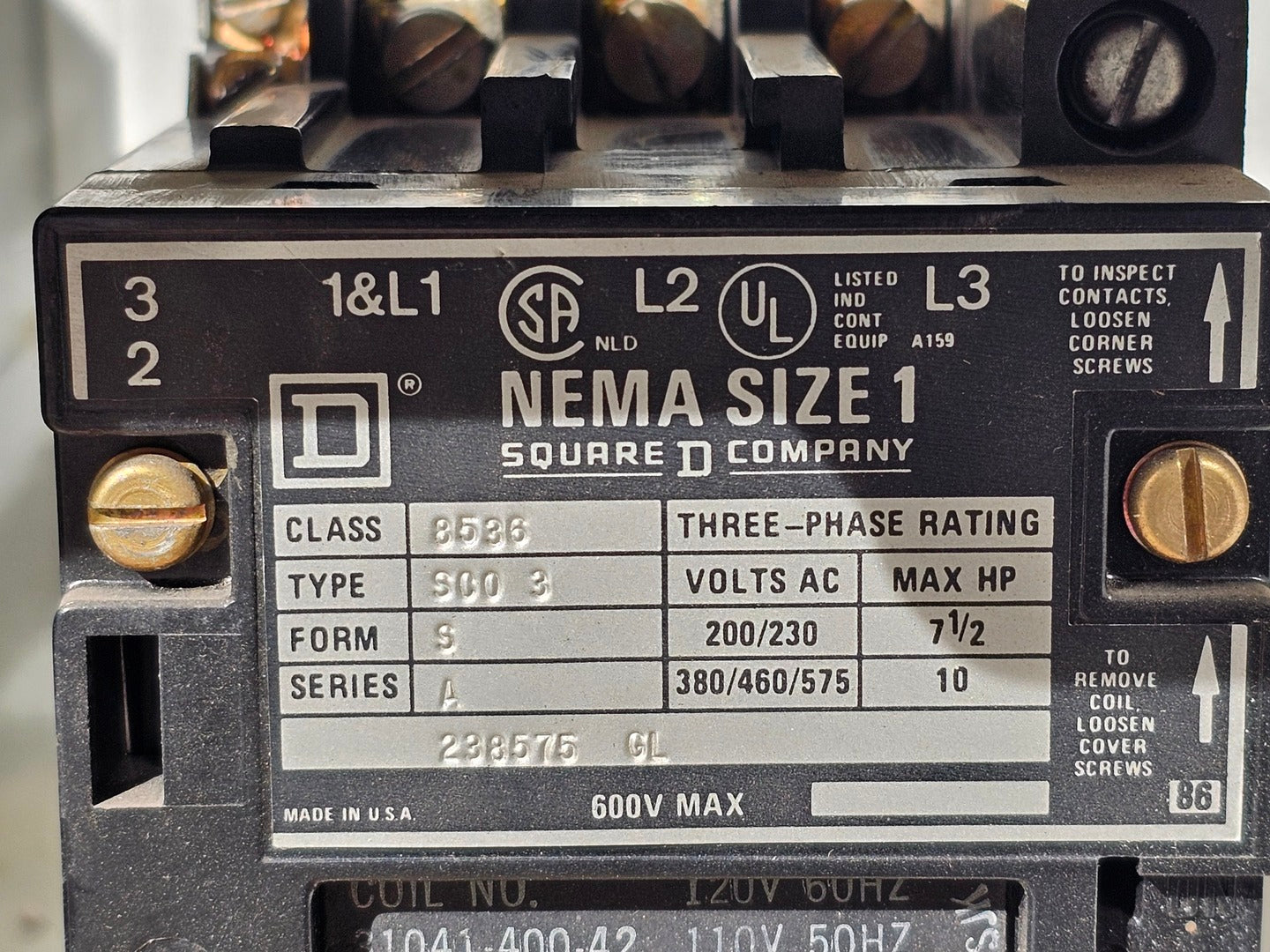

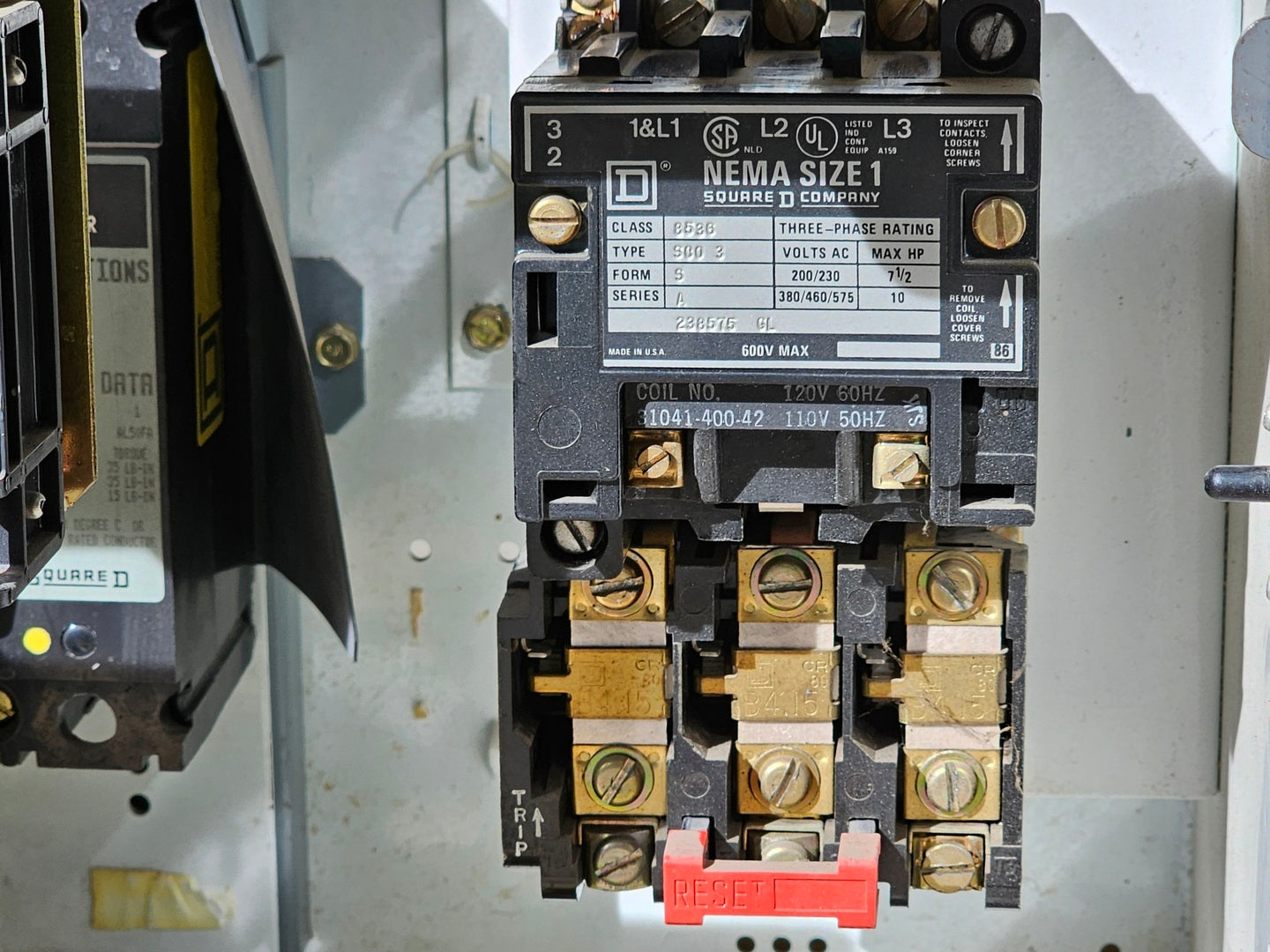

Starter / Contactor

  1. Model: Square D Class 8536
  2. Starter Type: SDO3
  3. NEMA Size: 1
  4. Starter Form: S
  5. Starter Series: A
  6. Phase Rating: 3 Phase
  7. Starter HP Rating: 7-1/2 HP @ 200/230 VAC; 10 HP @ 380/460/575 VAC
  8. Starter Maximum Voltage: 600 VAC
  9. Coil Number: 31041-400-42
  10. Coil Voltage: 120 VAC, 60 Hz / 110 VAC, 50 Hz
  11. Overload Protection: 3-pole thermal overload assembly with manual reset

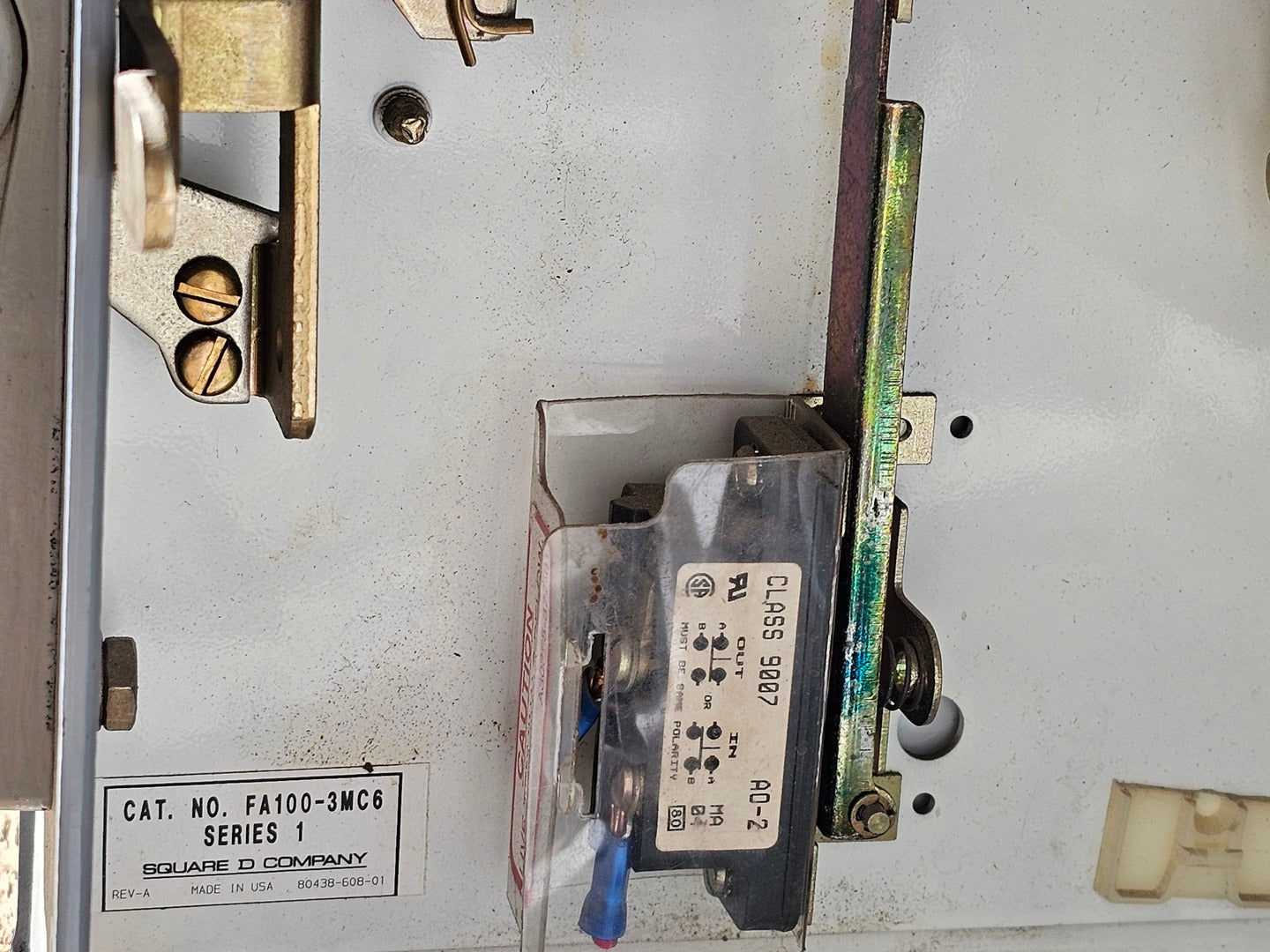

Limit Switch

  1. Squre D Class 9007 AO-2

Disconnect

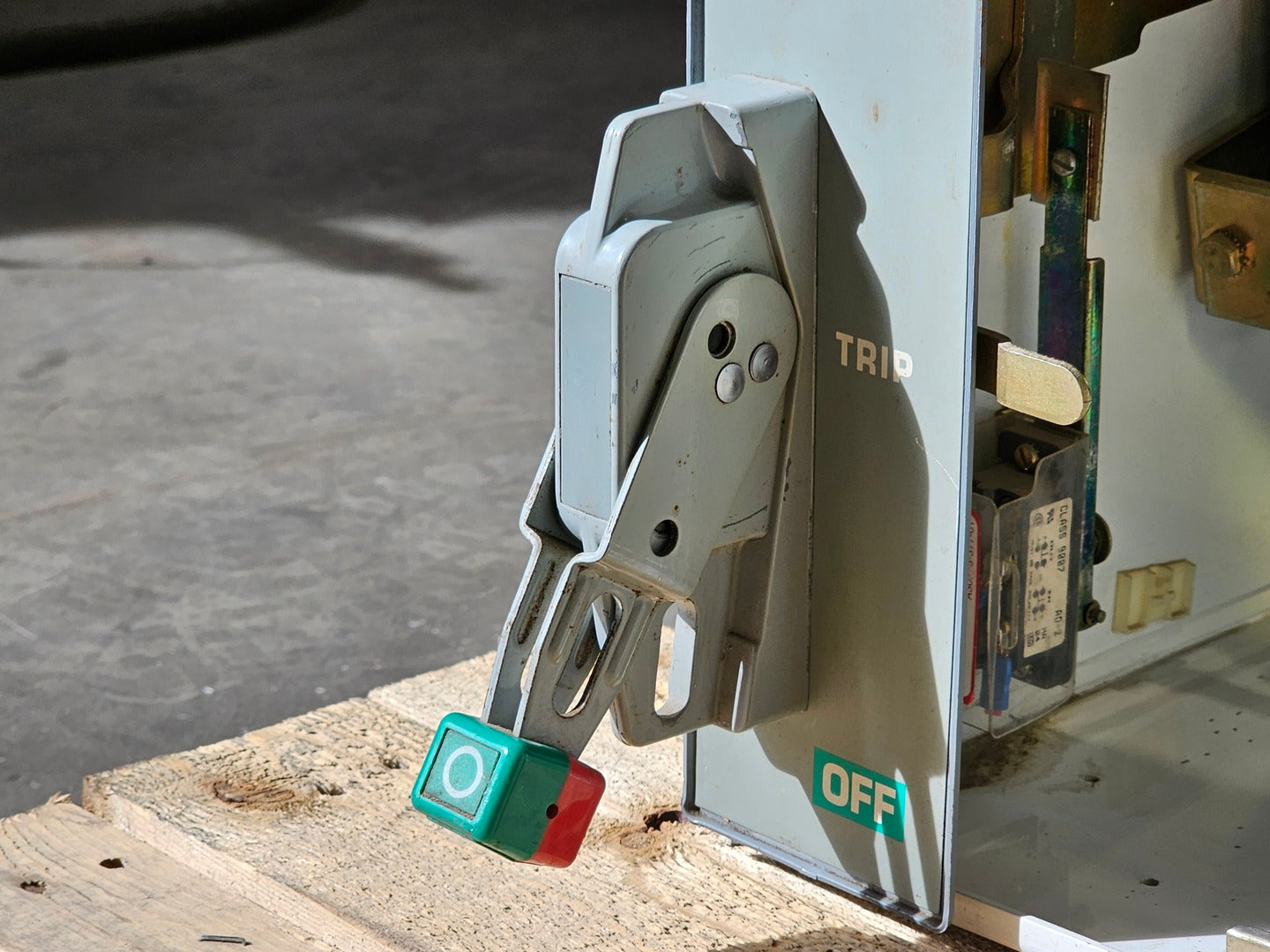

  1. External door-mounted operating handle with ON/OFF/TRIP positions
