CUTLER-HAMMER NEMA Size 1 MCC Combination Motor Starter Bucket 27A
CUTLER-HAMMER

NEMA Size 1 MCC Combination Motor Starter Bucket 27A

SKU: 144665
Price:
$1,100 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Eaton / Cutler-Hammer plug-in MCC combination motor starter bucket complete with AN16DN0 NEMA Size 1 starter, control transformer, auxiliary contacts, and fused control circuit. Designed for integration into compatible Eaton / Cutler-Hammer motor control center lineups for industrial motor starting and protection applications. Clean, complete assembly ideal for replacement inventory, plant maintenance, mining, pulp mill, and industrial processing operations.
Condition Used
General
Size 1
HP Rating 10 hp
Electrical
Max. Voltage 600
Other Specifications

General

  1. Manufacturer: Eaton / Cutler-Hammer
  2. Product Type: MCC Combination Motor Starter Bucket
  3. MCC Type: Plug-In MCC Bucket
  4. Application: Motor Control Center
  5. Configuration: Combination Starter Unit

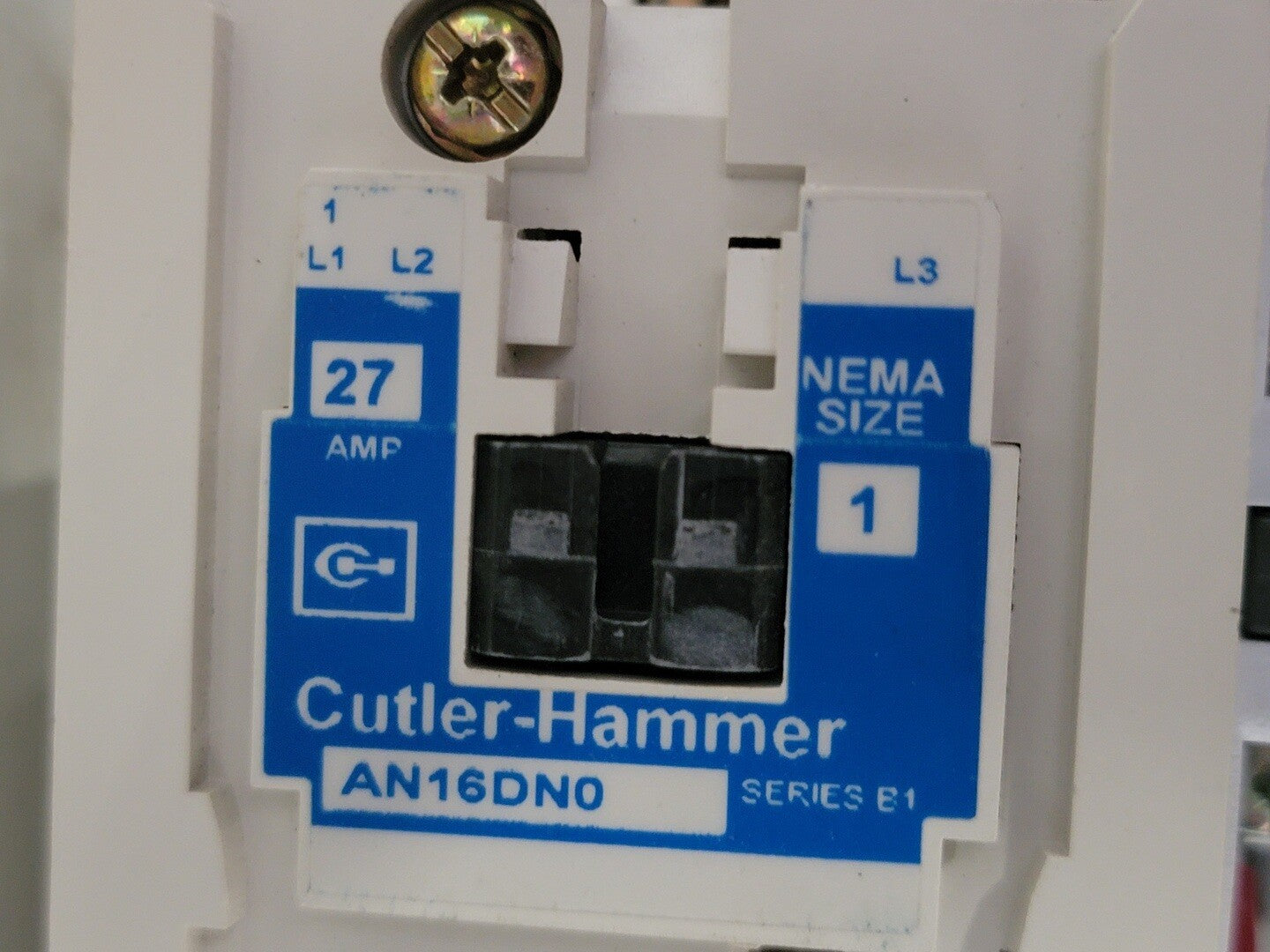

Motor Starter

  1. Manufacturer: Cutler-Hammer
  2. Model: AN16DN0
  3. NEMA Size: 1
  4. Series: B1
  5. Overload Setting: 27 Amp
  6. Starter Type: Magnetic Motor Starter
  7. Phases: 3 Phase

Typical Motor Ratings

  1. Approx. 7.5 HP @ 230V
  2. Approx. 15 HP @ 460V
  3. Approx. 20 HP @ 575V

Control Transformer

  1. Manufacturer: Cutler-Hammer
  2. Series: A1
  3. Rating: 120 VA
  4. Frequency: 50/60 Hz
  5. Primary Voltage Taps:
  6. 220V
  7. 230V
  8. 240V
  9. 440V
  10. 460V
  11. 480V
  12. Secondary Voltage:
  13. 110/115/120V

Auxiliary Components

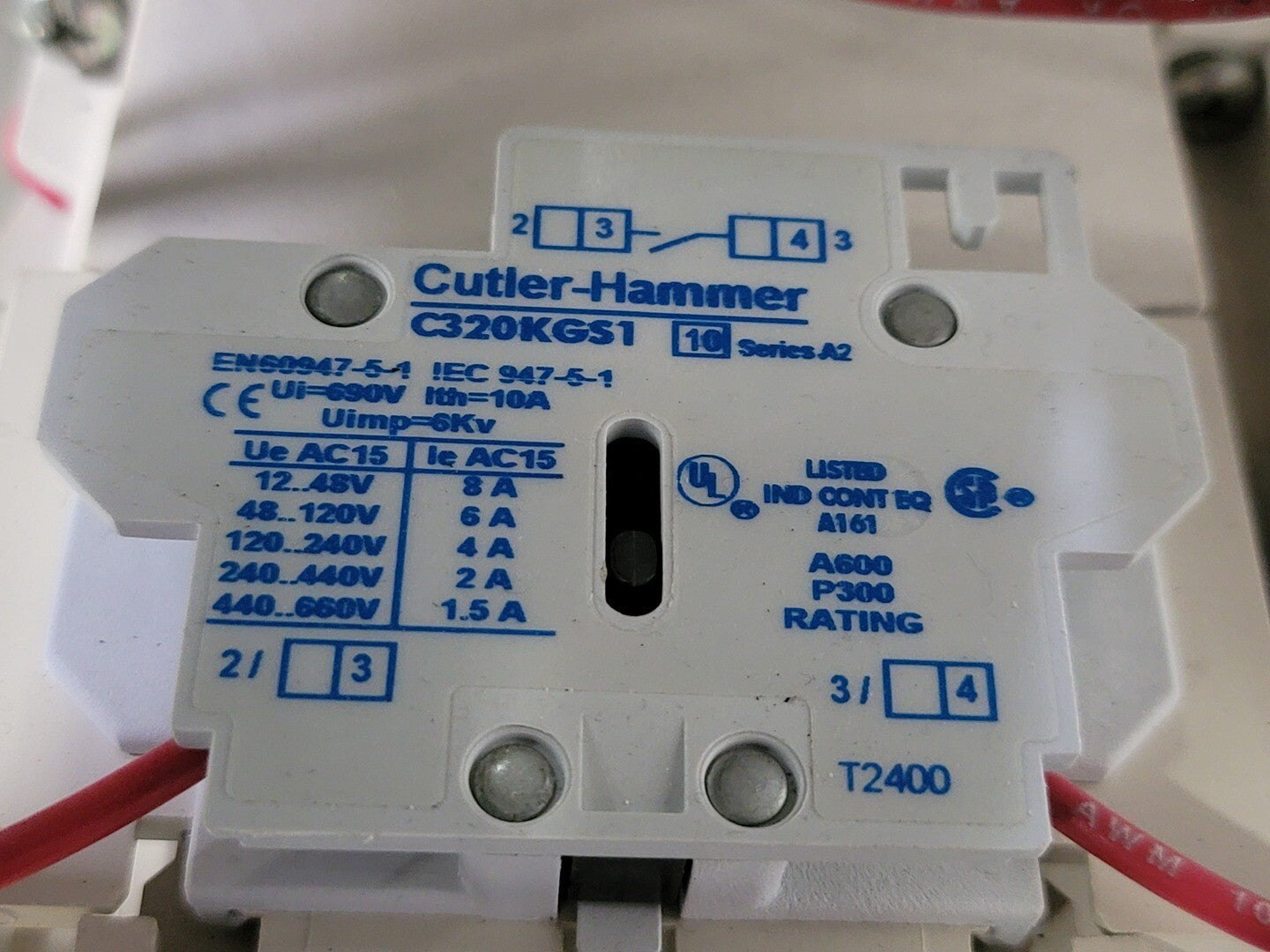

Auxiliary Contact Block

  1. Model: C320KGS1
  2. IEC 947-5-1 Rated
  3. Ith: 10A
  4. Ui: 690V
  5. AC15 Rated
  6. 1C Auxiliary Contact

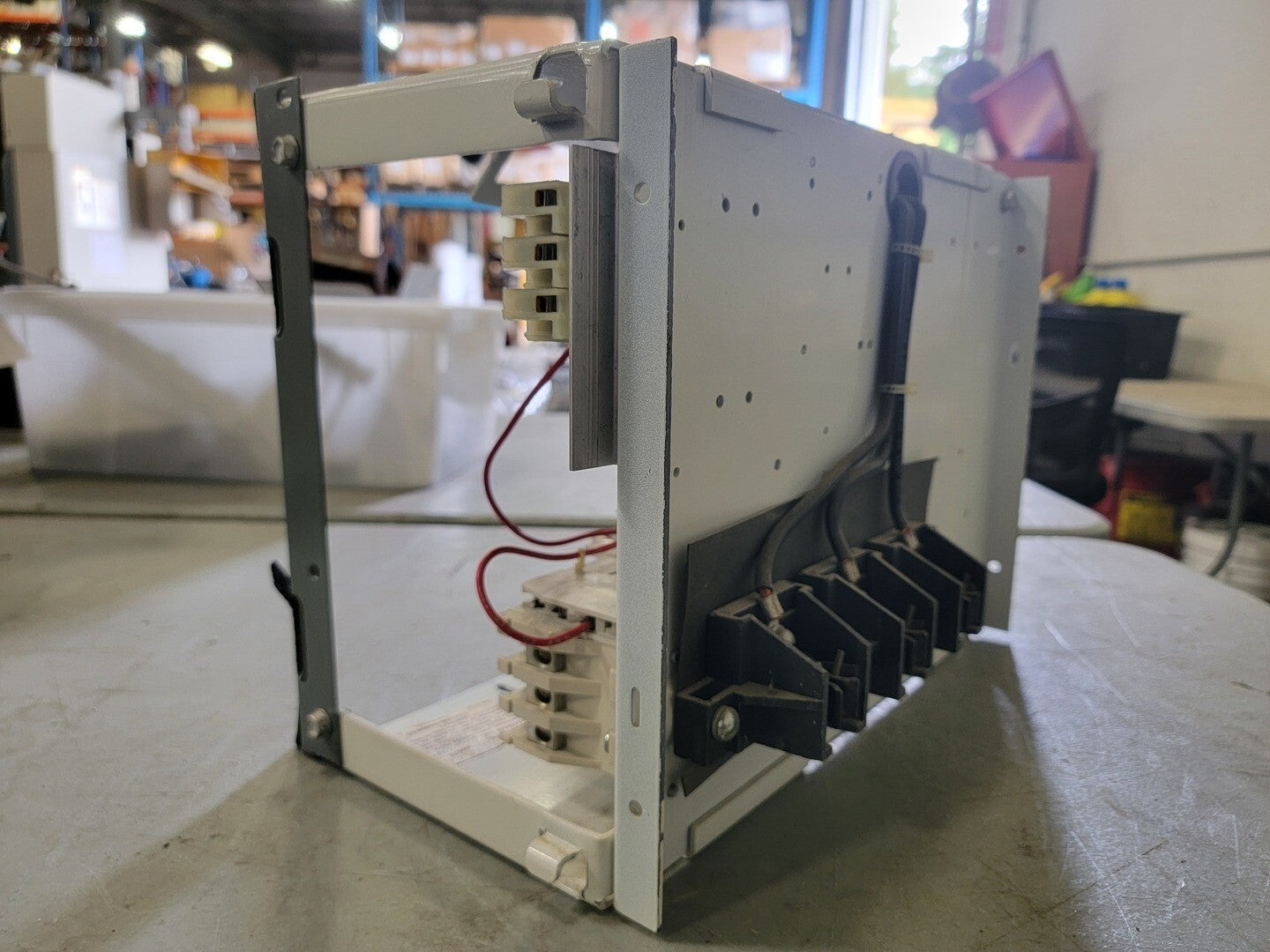

Additional Components

  1. Terminal Block Assembly
  2. Control Fuse Holder
  3. Internal Control Wiring
  4. MCC Plug-In Rear Stabs
  5. Mechanical Disconnect Handle
  6. Industrial Steel MCC Housing

Features

  1. Complete MCC starter bucket assembly
  2. Plug-and-play MCC replacement unit
  3. Industrial-grade Cutler-Hammer construction
  4. Includes control transformer and auxiliaries
  5. Suitable for retrofit or spare inventory
  6. Compact NEMA Size 1 configuration
  7. Ideal for industrial motor control applications

Applications

  1. Mining operations
  2. Sawmills & pulp mills
  3. Industrial manufacturing
  4. Conveyor systems
  5. Pump stations
  6. Fans & blowers
  7. Processing plants
  8. MCC retrofit projects
