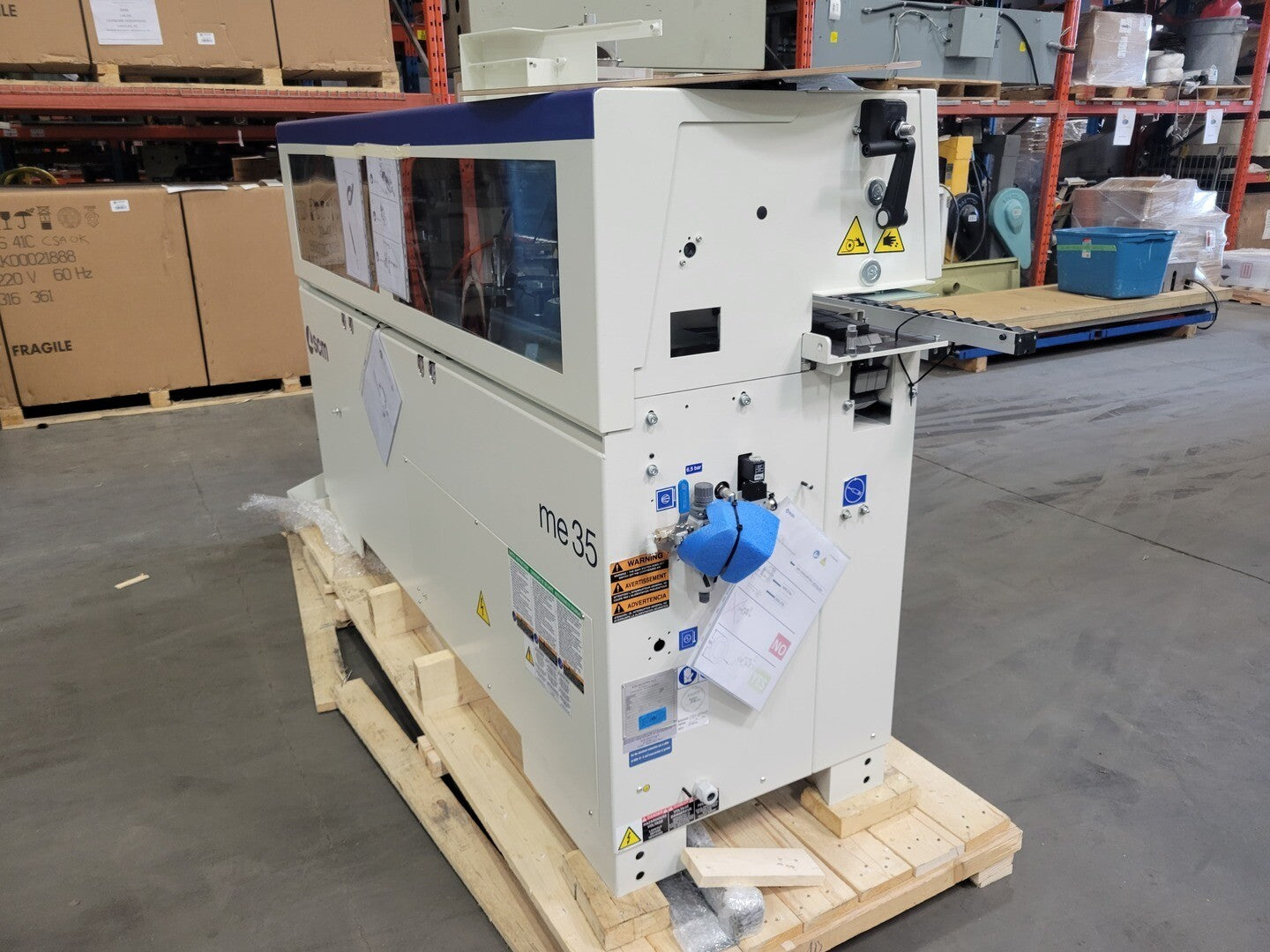

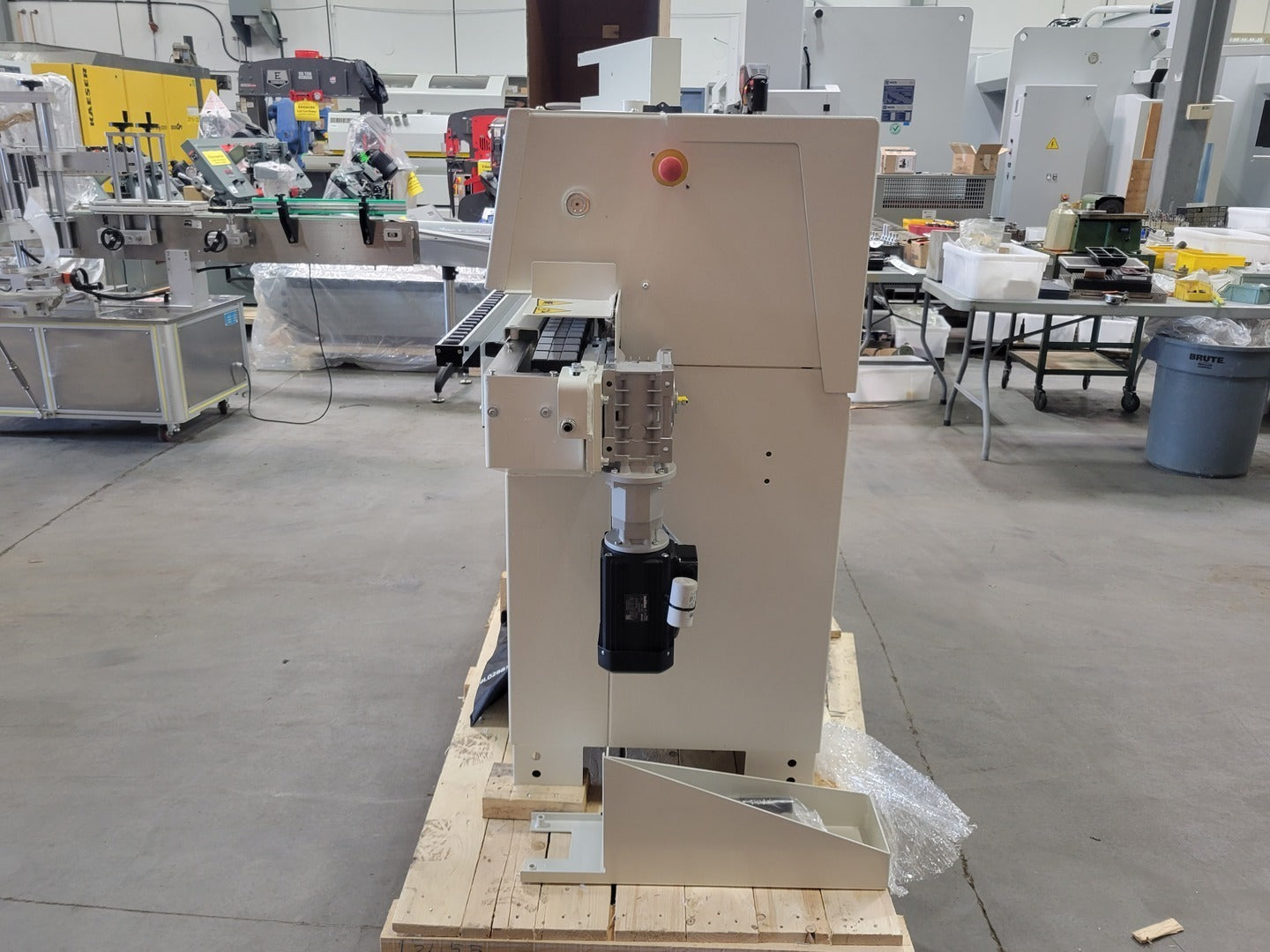

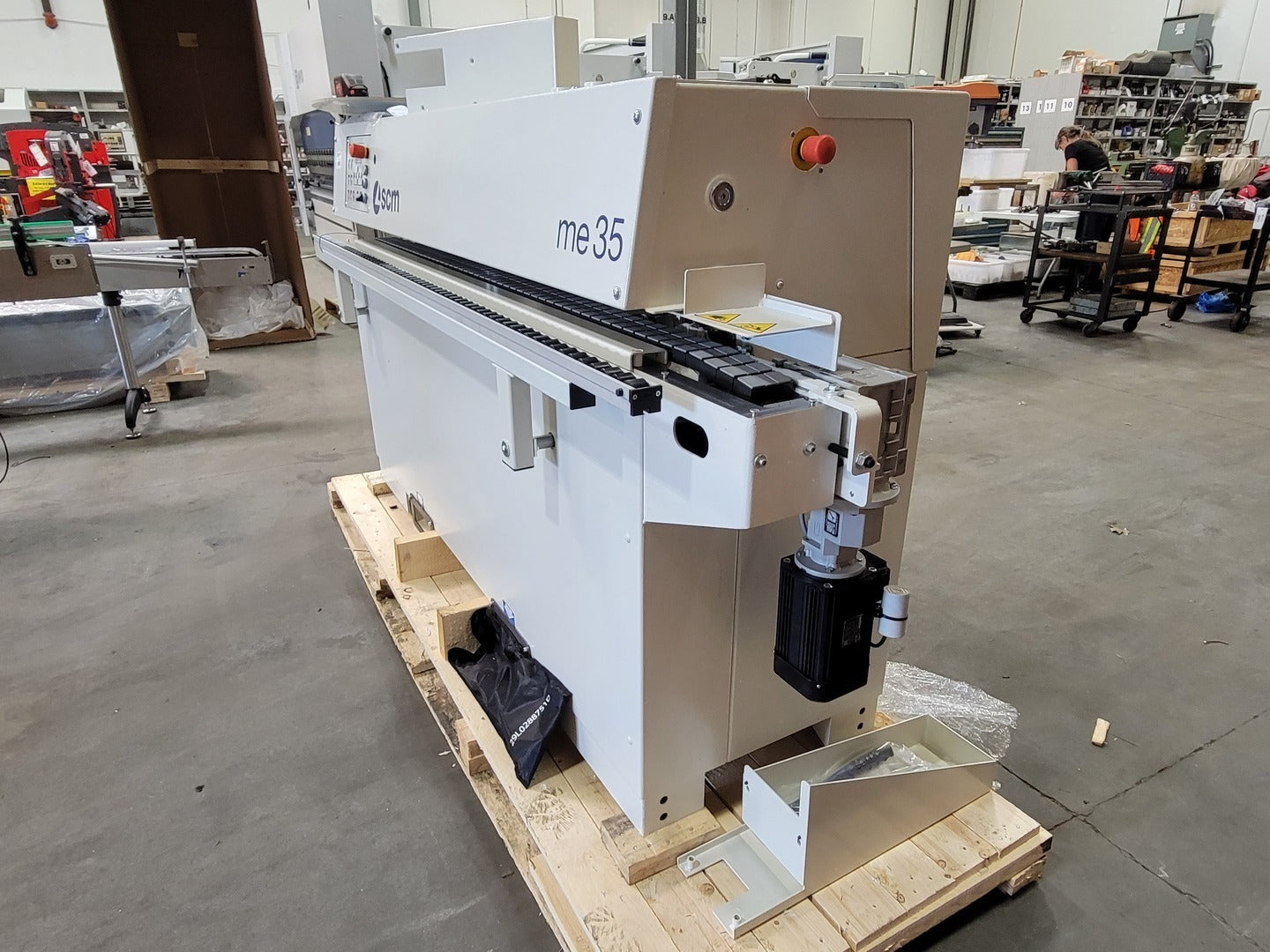

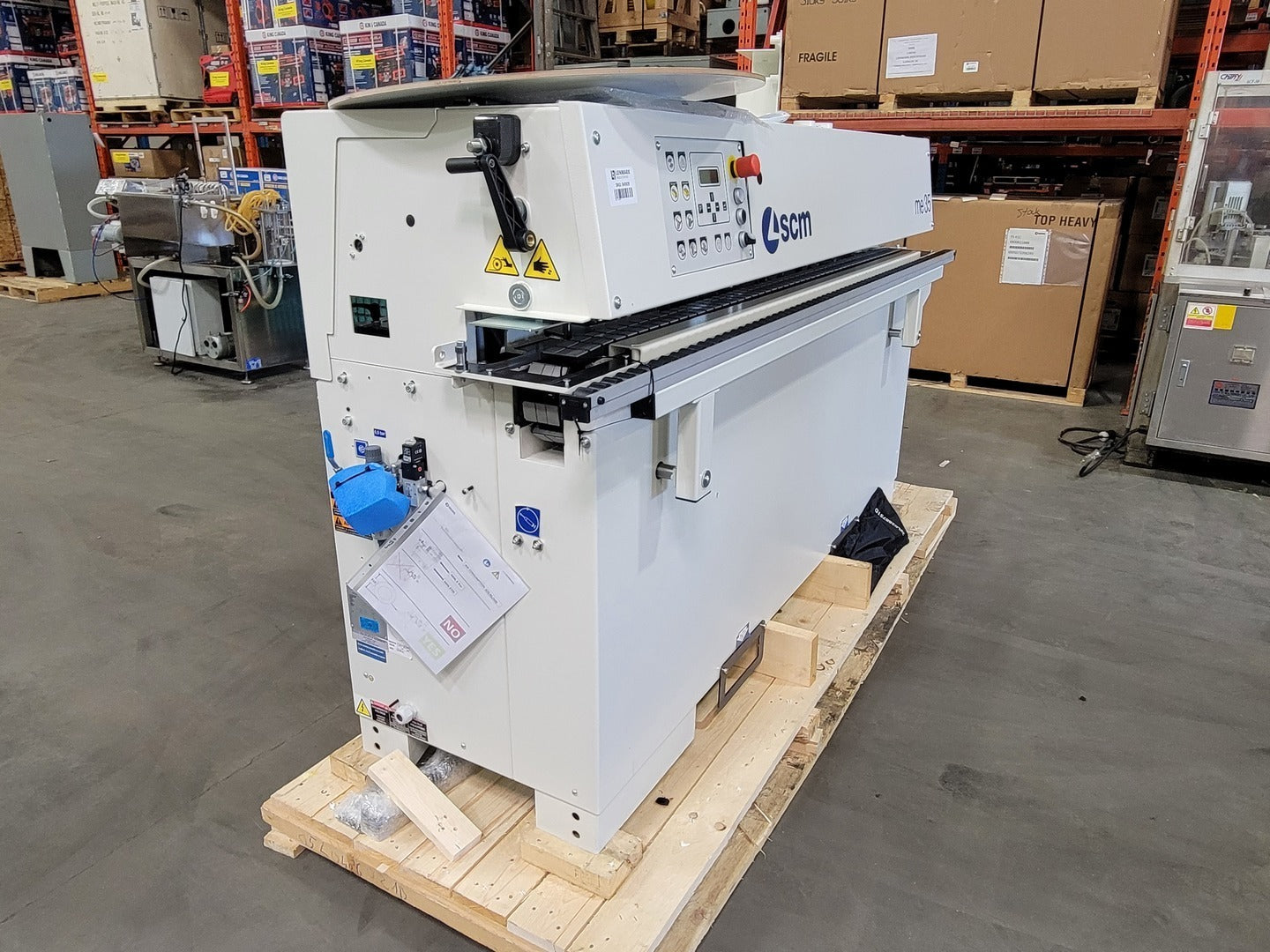

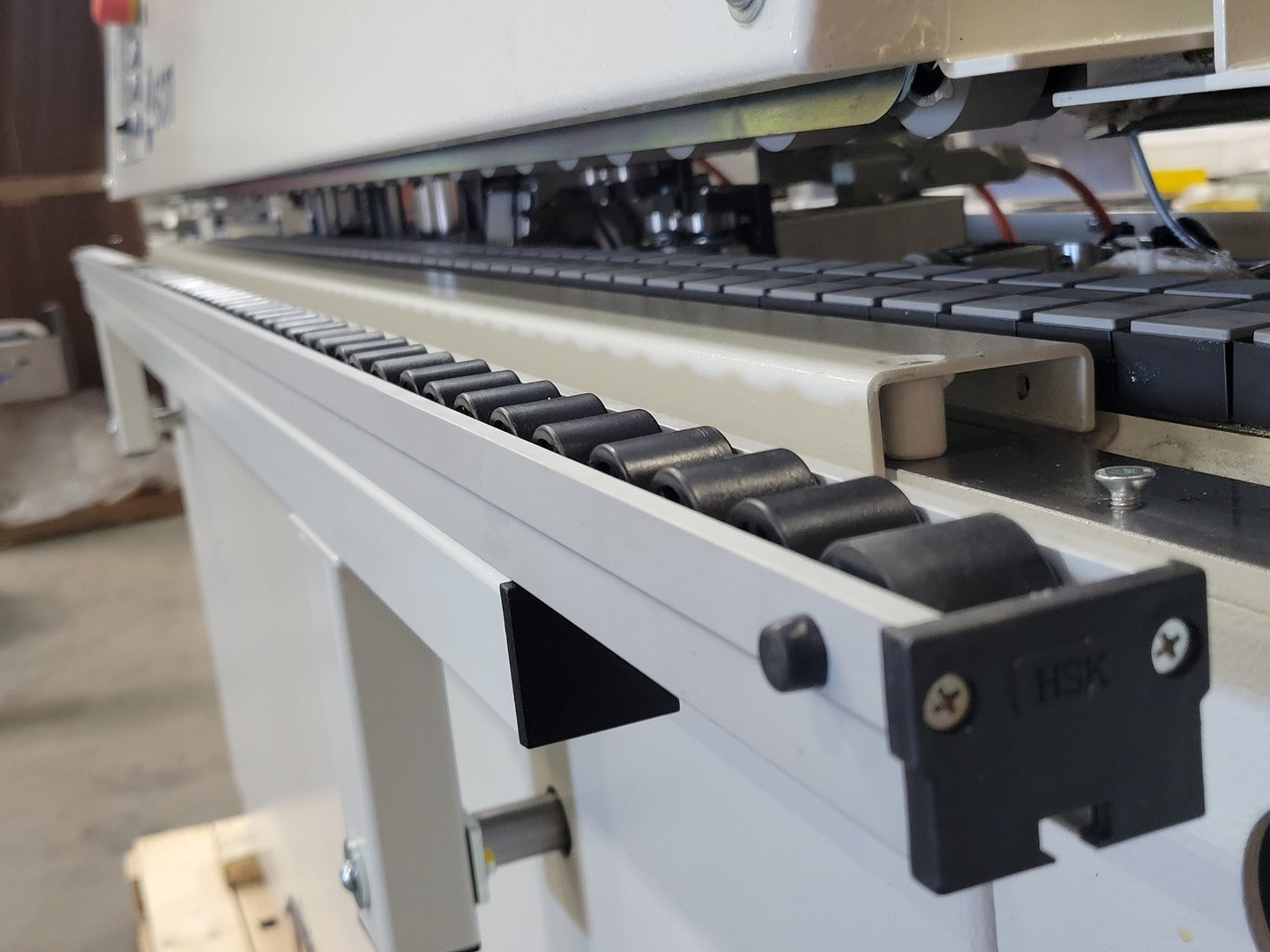

ME 35T Automatic Edge Bander

SKU: 90121
Save $2,704 CAD
Price:
$31,096 CAD $33,800 CAD

Shipping calculated at checkout

Stock:
In stock
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications

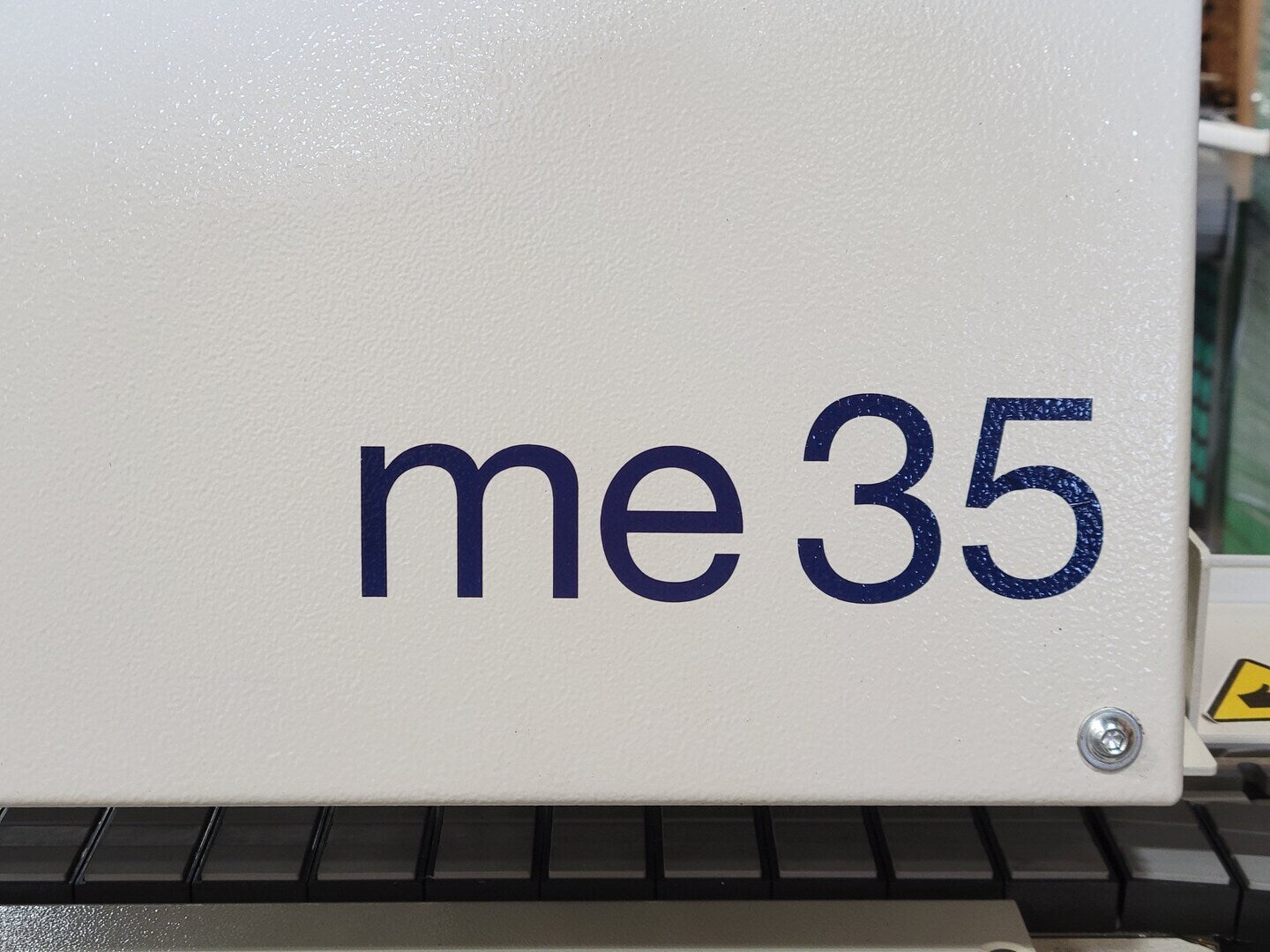

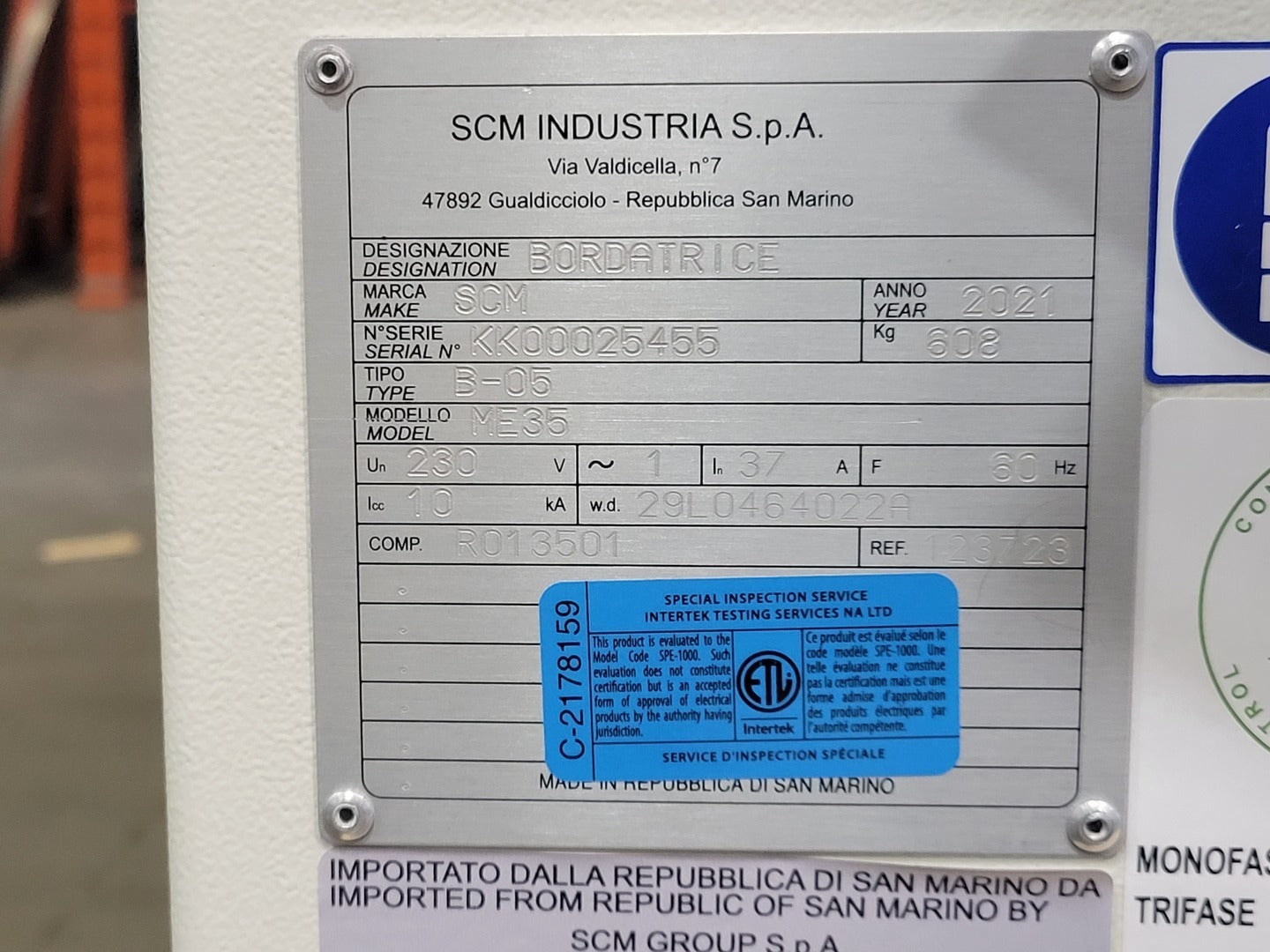

Model ME 35T
Made In ITALY
Condition New
General

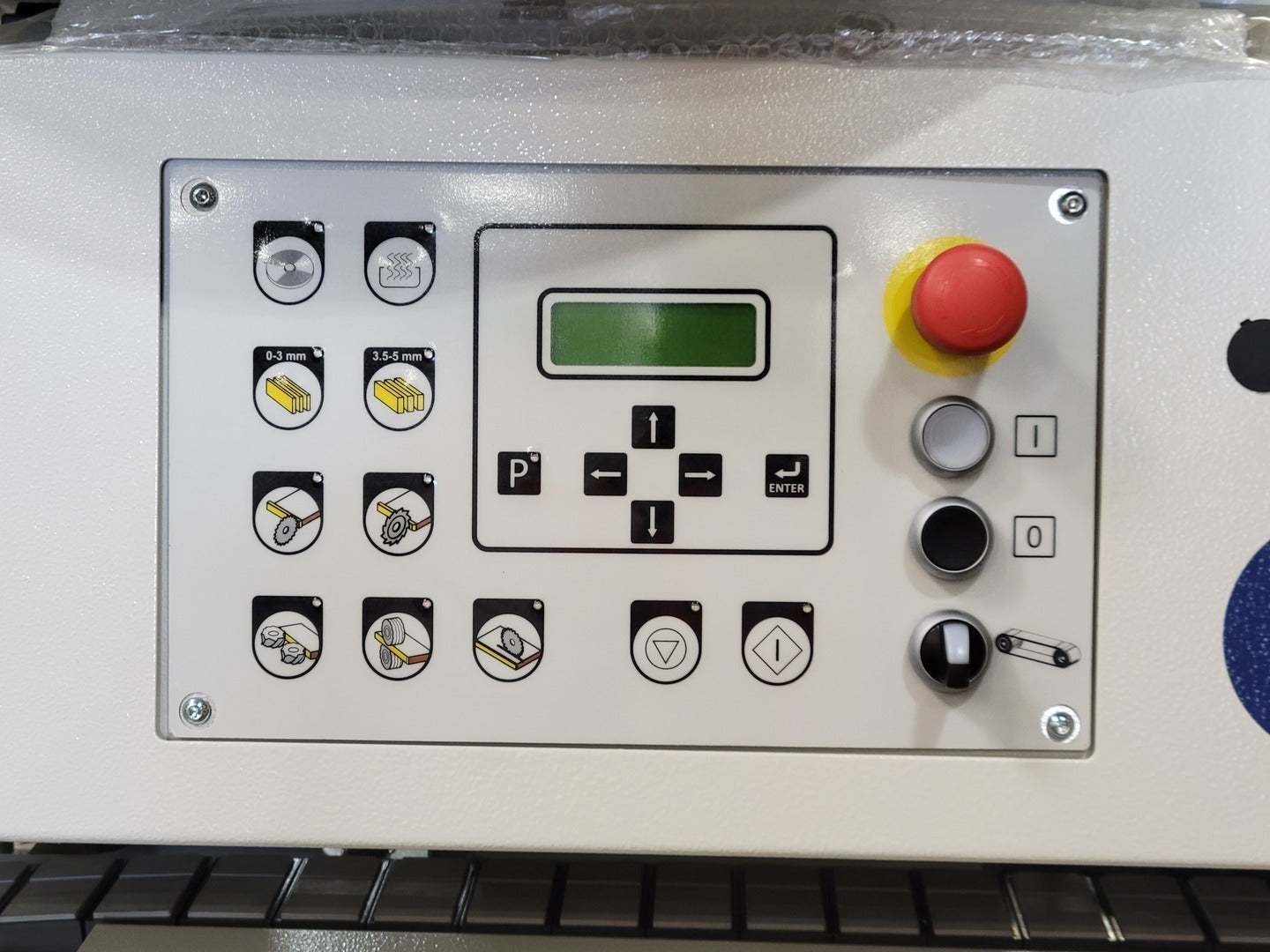

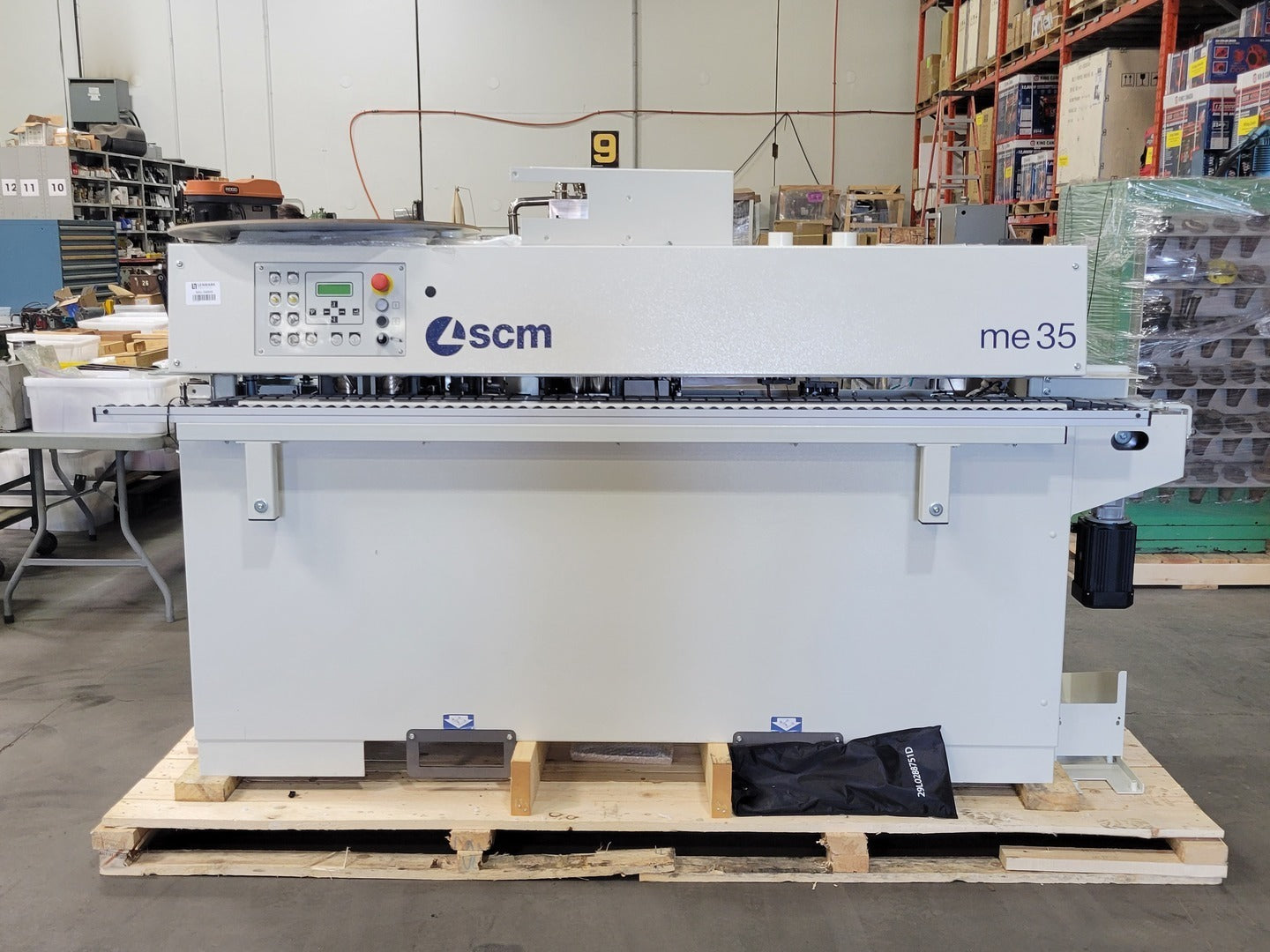

Control System PLC
Electrical
Voltage 220 volts
Phase Single-phase
Other Specifications

Technical Features

Worktable Dimensions (Length x Width x Height): 3000 x 525 x 904 mm

Thickness of Rolled Edges: 0.4 mm - 3 mm

Thickness of Edges in Strips: Up to 5 mm

Min. / Max. Panel Height: 8 / 50 mm

Min. Panel Length/Width with Rolled Edges: 190/110 mm

Min. Panel Length (Cut Only On the Front): 120 mm

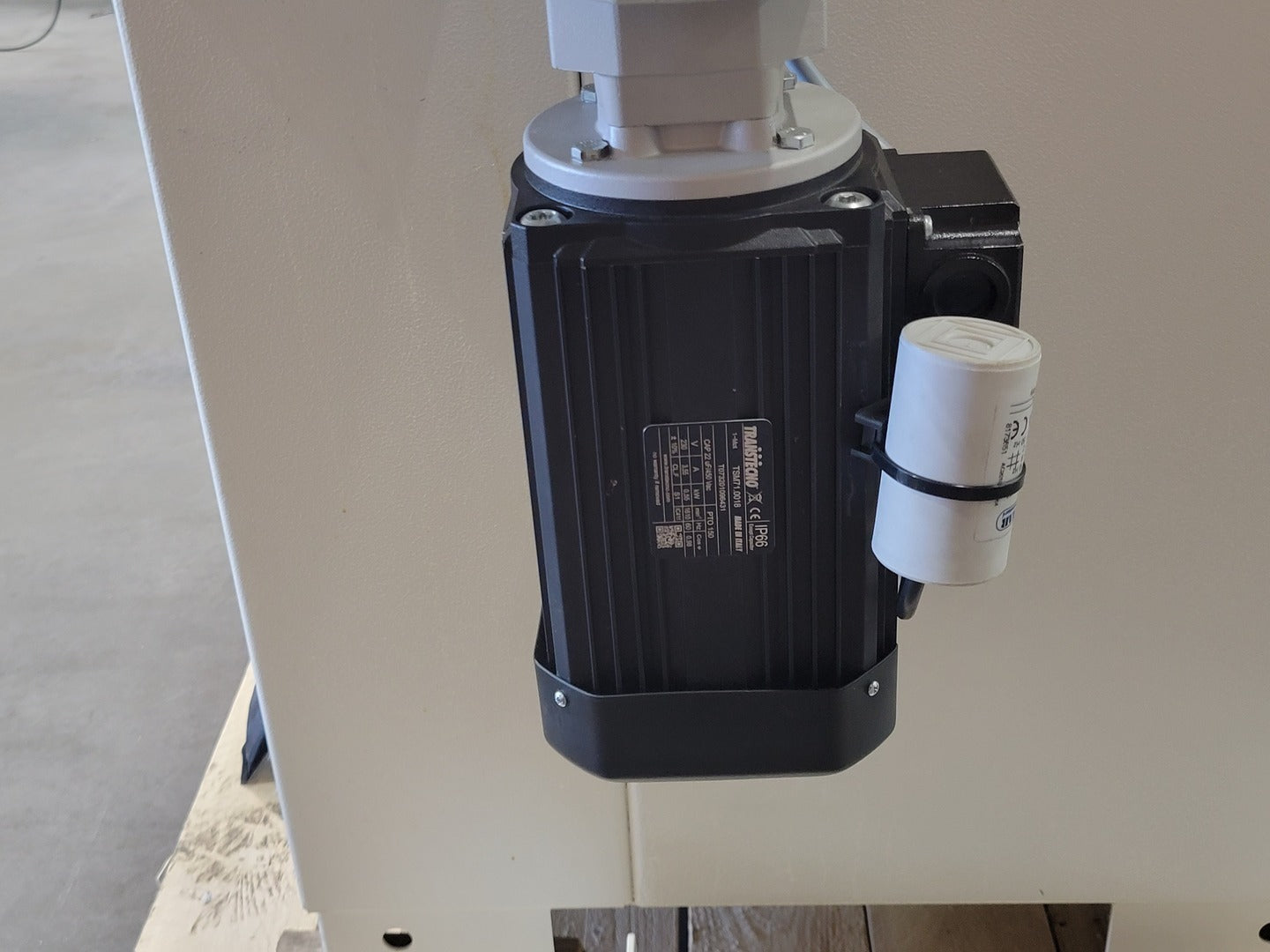

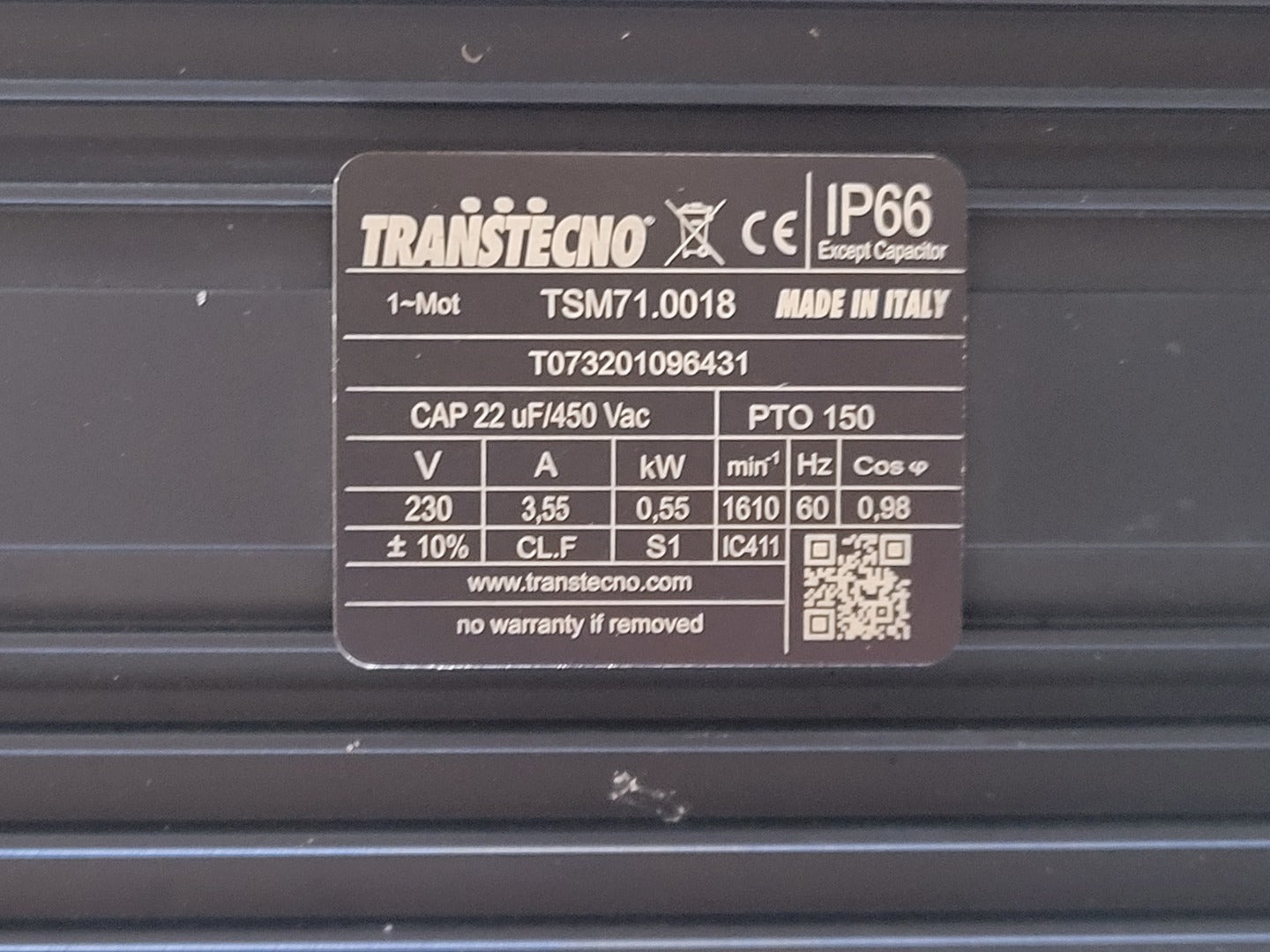

Feed Motor Power S1: 0.55 kW

Feed Speed: 7 m/min

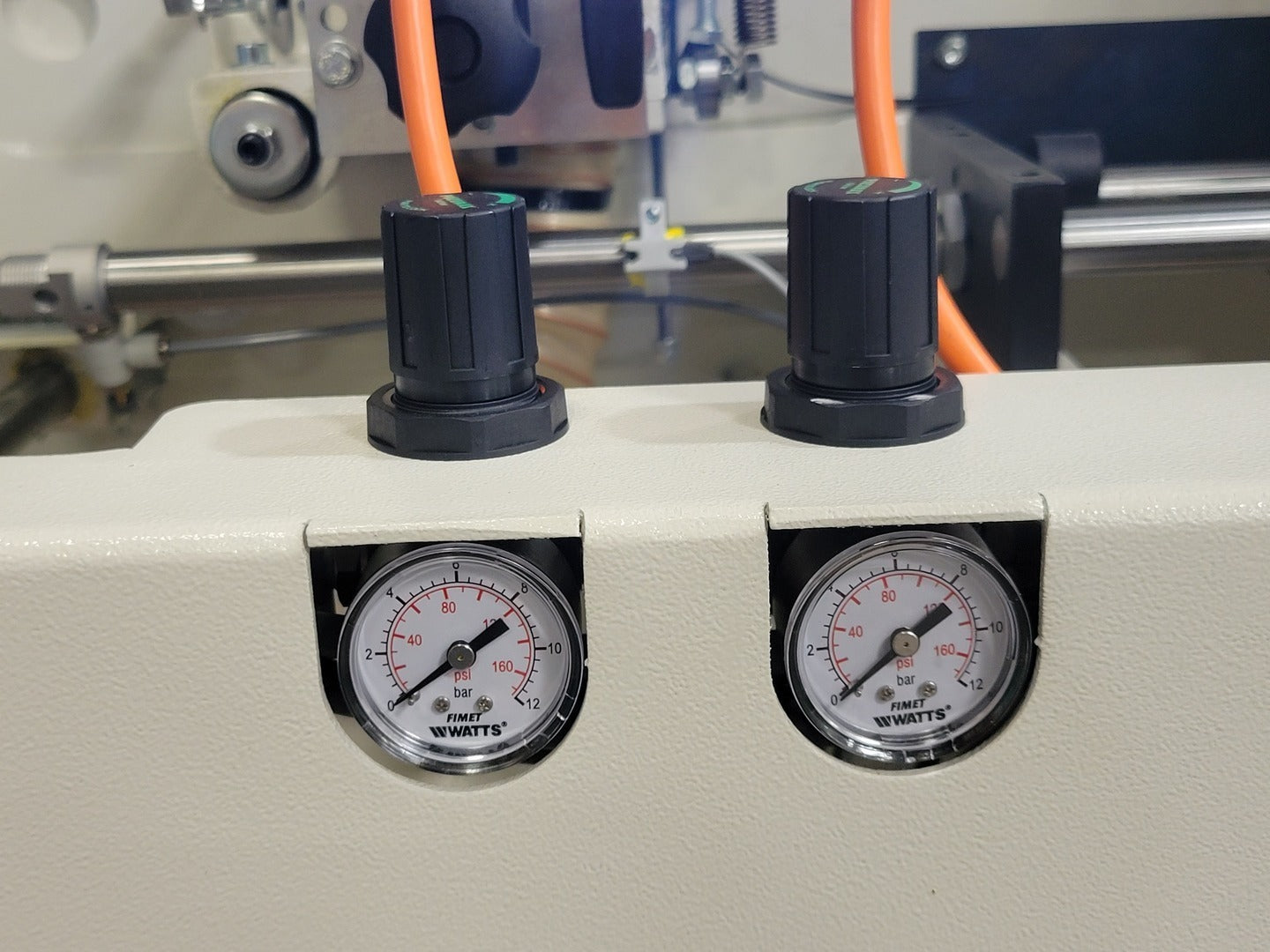

Pneumatic Operating Pressure: 6.5 bar

Operating Temperature Range: 20 - 190 oC

Exhaust Outlet Diameter (glue pot): 60 mm

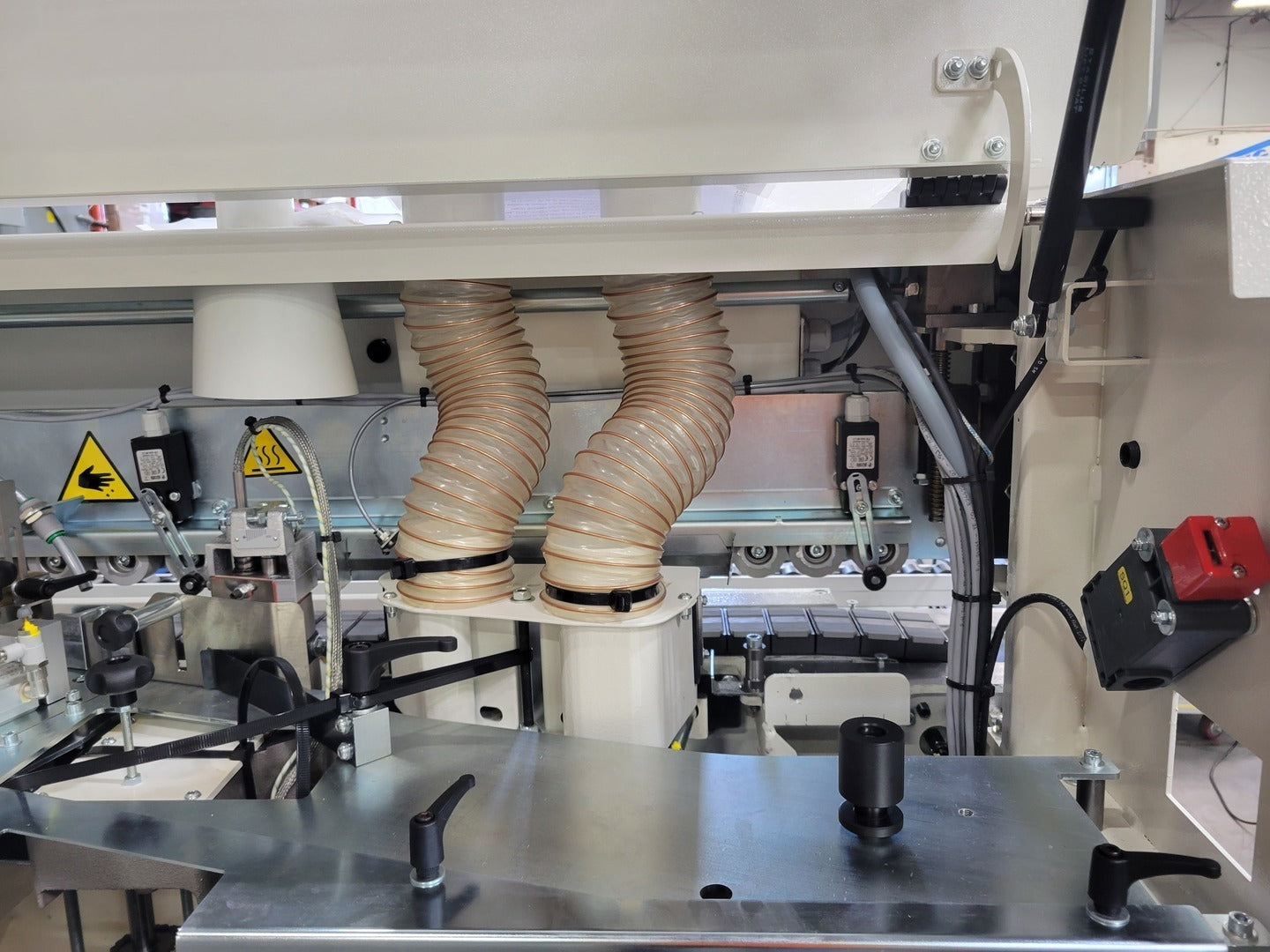

No. 2 Exhaust Outlets Diameter (trimming unit): 60 mm

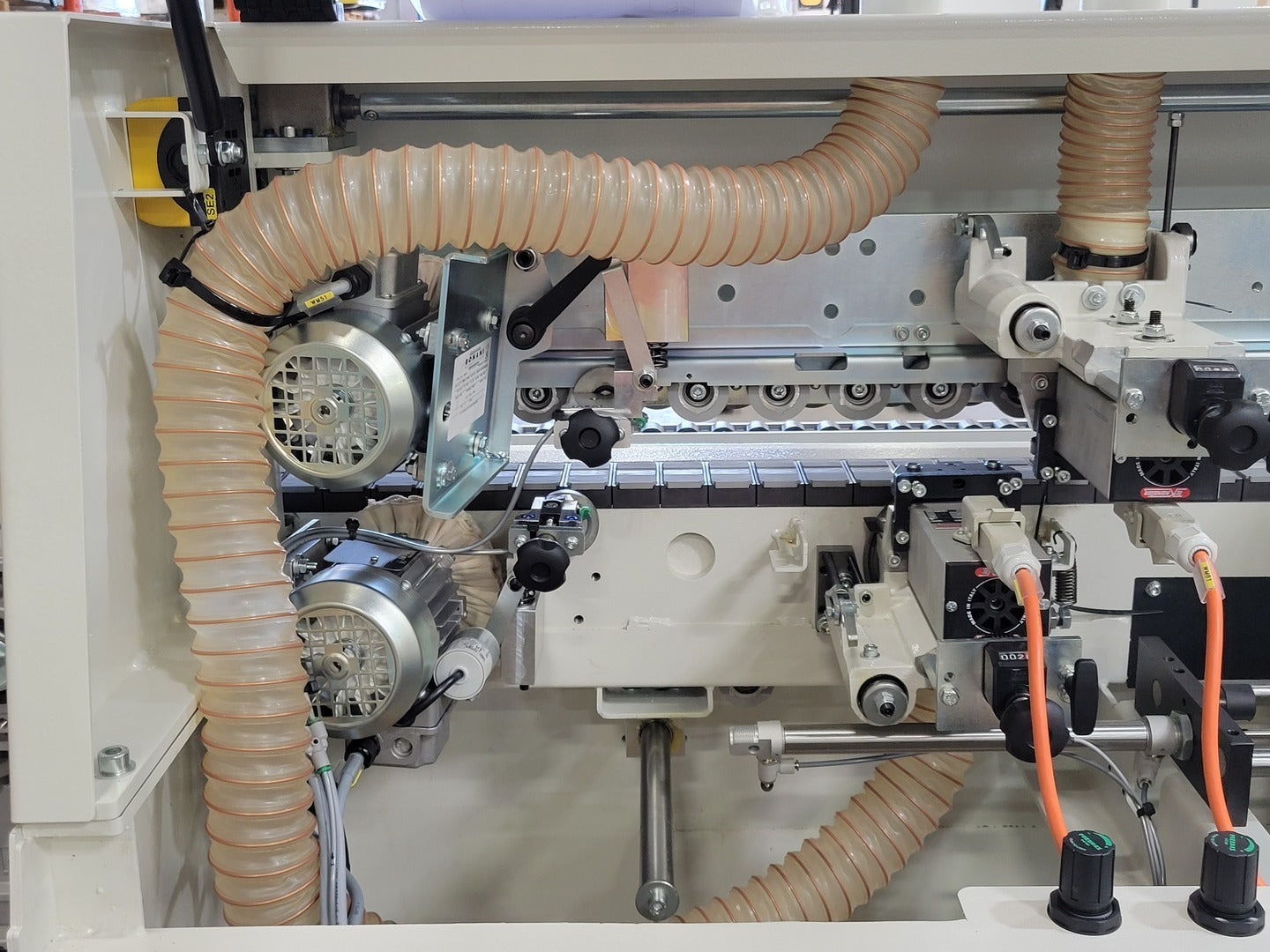

Pre-Milling Unit

No. 2 Exhaust Outlets Diameter: 80 mm

Motor Power (S1): 2.2 kW

Blade Rotation Speed: 7200 rpm

No. 2 Diamond Cutters: Diameter 80 mm H56 Z2

Stock Removal: 0.5 / 1 / 1.5 / 2 mm

Glue Pot Unit

Motor Power S1: 0.18 kW

Glue Capacity: 0.8 kg

End Cutting Unit with Radius Function

Motor Power SI: 0.19 kW

End Cutting Blade: Diameter 125 mm Z12

Blade Rotating Speed: 12000 rpm

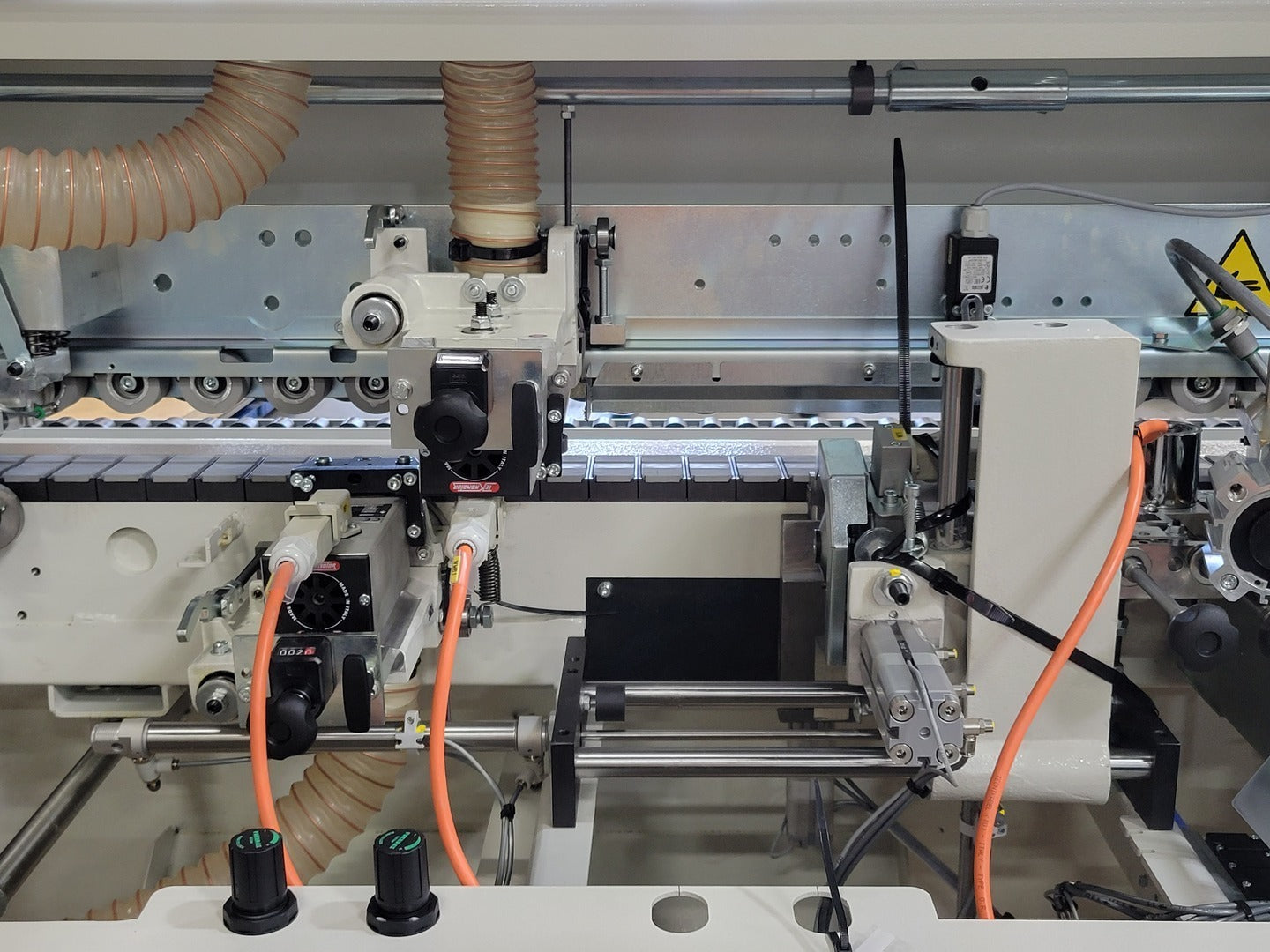

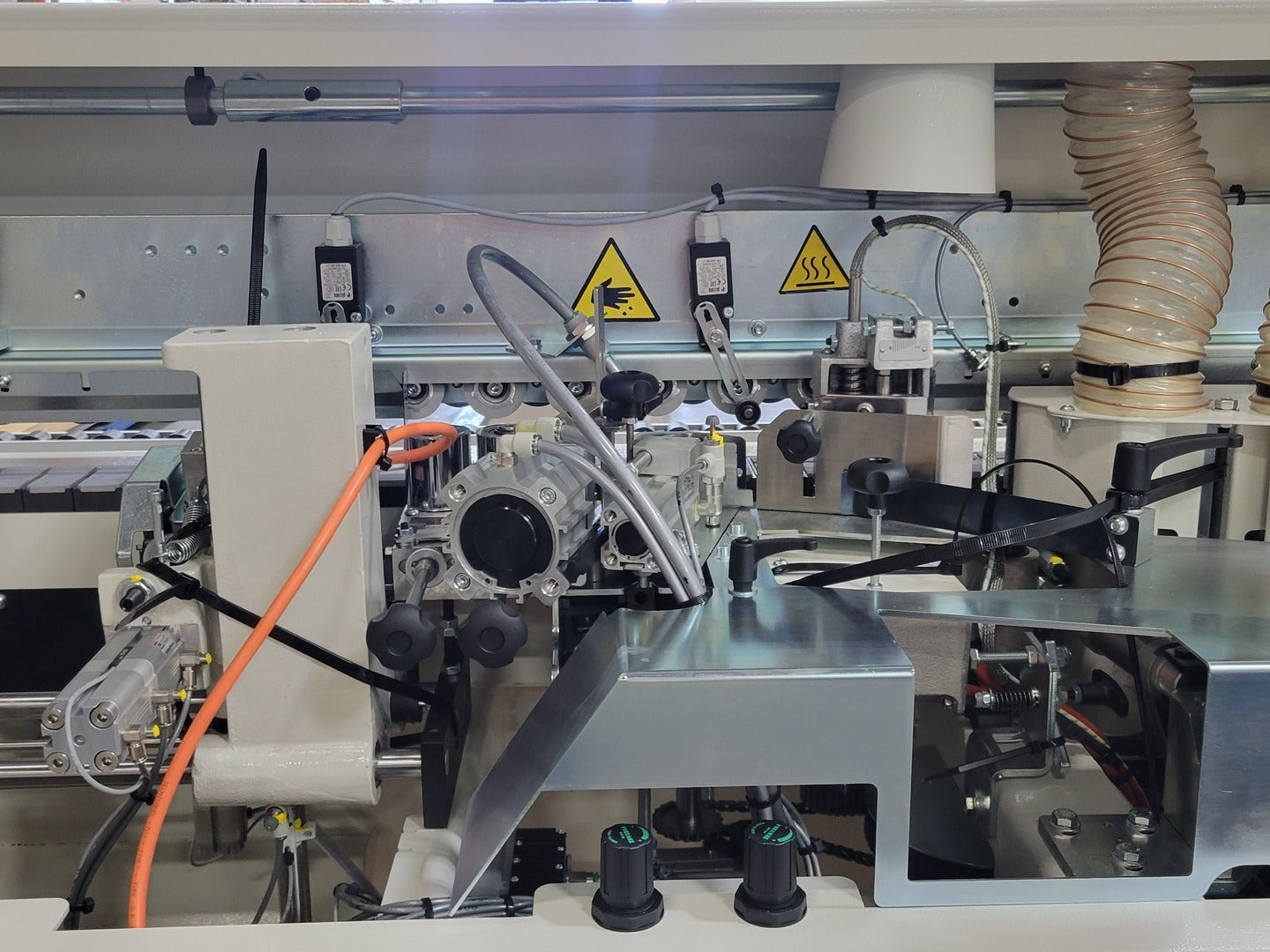

Trimming Unit

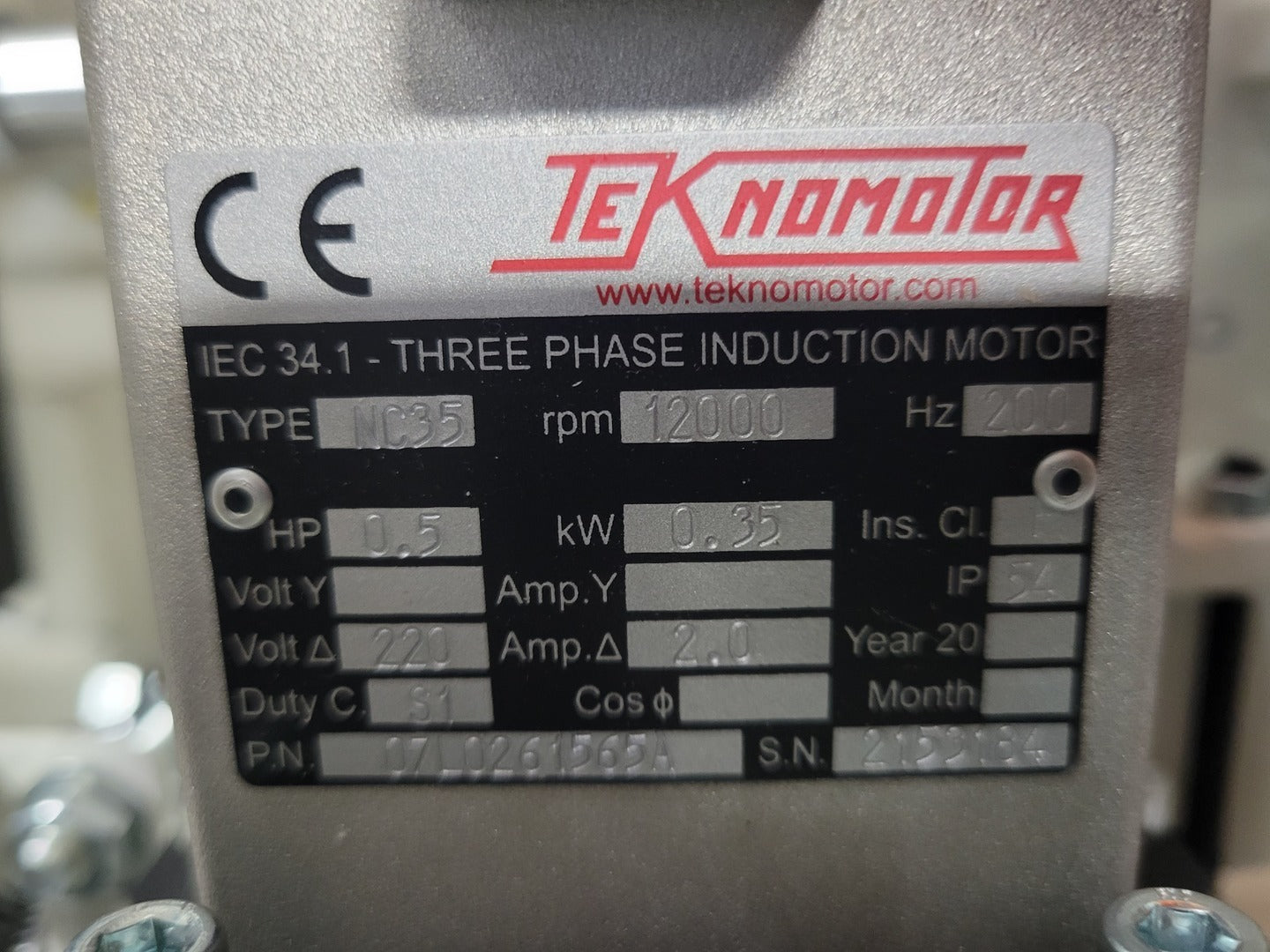

Upper/Lower Motor Power (S1): 2 / 0.35 kW

Widia Cutters: Diameter 55.3 mm Z3

Cutters Rotation Speed: 12,000 rpm

Vertical/Horizontal Copying Devices: Rotating/Rotating

Additional Features

  • Brushing Unit
  • Glue Scraping Unit
  • Automatic loading device for edges in strips
  • Triple Wall Package

PDF Specifications

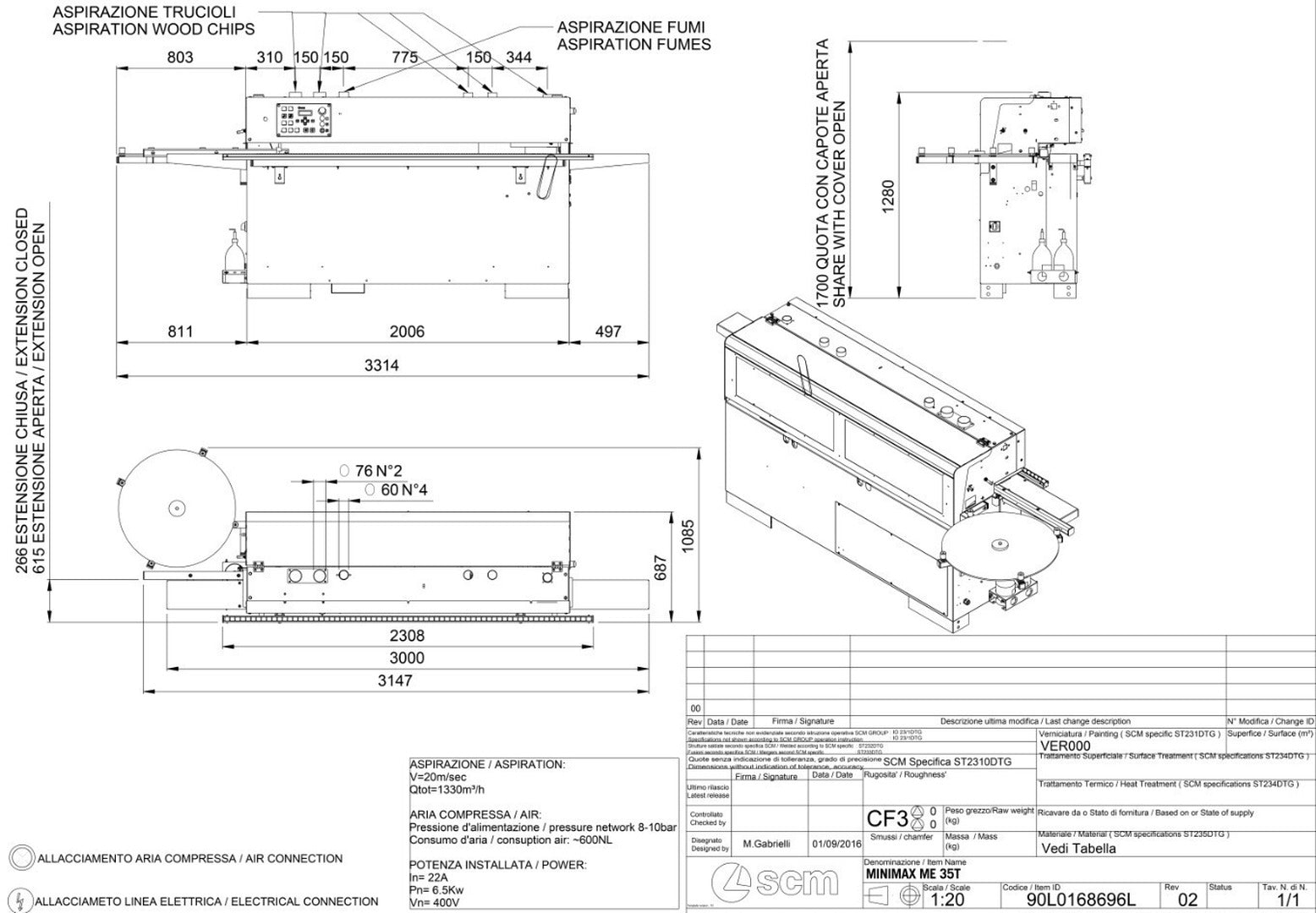

PDF Footprint
