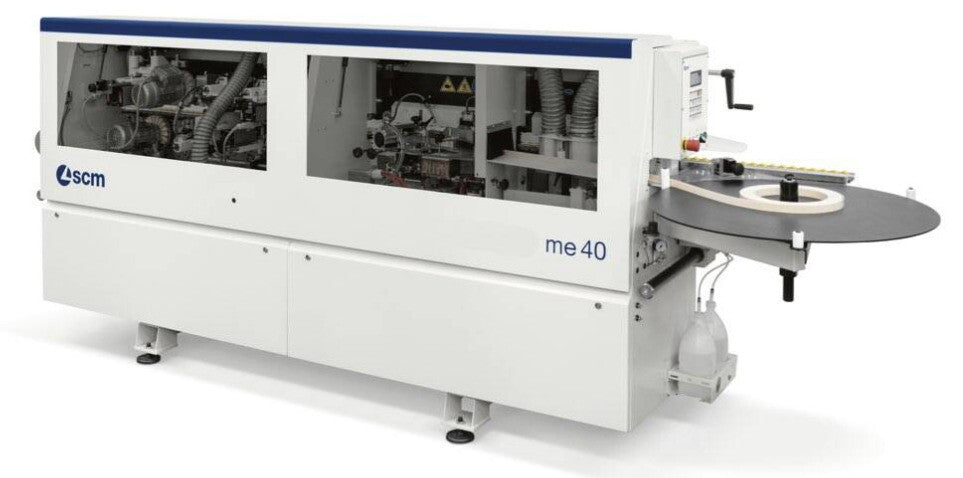

ME 40TR Automatic Edge Bander

Technical Features

Worktable Dimensions (Length x Width x Height): 3465 x 710 x 875 mm

Thickness of Rolled Edges: 0.4 mm - 3 mm

Thickness of Edges in Strips: Up to 5 mm

Min. / Max. Panel Height: 8 / 50 mm

Min. Panel Length/Width with Rolled Edges: 190/110 mm

Min. Panel Length Cut Only On The Front: 120 mm

Feed Motor Power: 0.55 kW

Feed Speed: 9 m/min

Pneumatic Operating Pressure: 6.5 bar

Operating Temperature Range: 20 - 190 ^oC

Exhaust Outlet Diameter (glue pot): 80 mm

No. 2 Exhaust Outlets Diameter (trimming unit): 60 mm

Pre-Milling Unit

Motor Power: 3 kW

No. 2 Exhaust Outlets Diameter: 80 mm

Blade Rotation Speed: 7200 rpm

No. 2 Diamond Cutters: Diameter 80 mm H=56 Z2

Stock Removal: 0 / 2 mm

Glue Pot Unit

Motor Power: 0.25 kW

Glue Capacity: 0.8 kg

End Cutting Unit w/ Radius Function

Motor Power: 0.19 kW

End Cutting Blade: 125 mm diameter, Z20

In-Line Trimming Unit

Upper/Lower Motor Power (S1): 2 / 0.35 kW

Widia Cutters: Diameter 55.3 mm Z3

Cutters Rotation Speed: 12,000 rpm

Vertical/Horizontal Copying Devices: Rotating/Rotating

Rounding Unit

With high frequency motor, driven directly from control panel

Additional Features

• Edge scraping unit
• Glue Scraping Unit
• Brushing Unit
• Automatic loading device for edges in strips
• Kit for Glue Pot Rapid Substitution
• Internal machine lightening
• Tools kit radius 3 mm (replaces all standard 2 mm radius tools supplied)
• Pallet
• Machine language: English

PDF Specifications

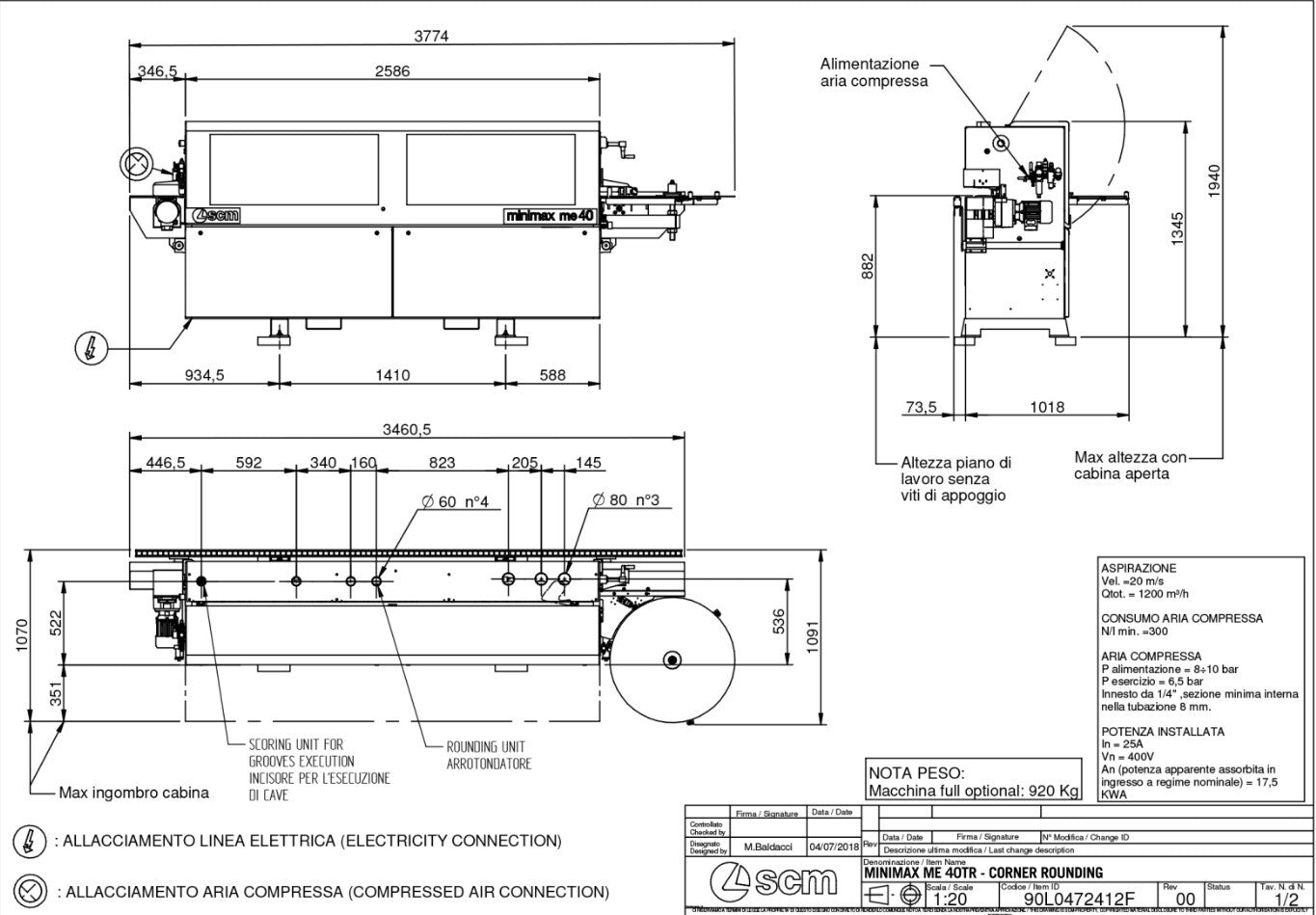

PDF Footprint
