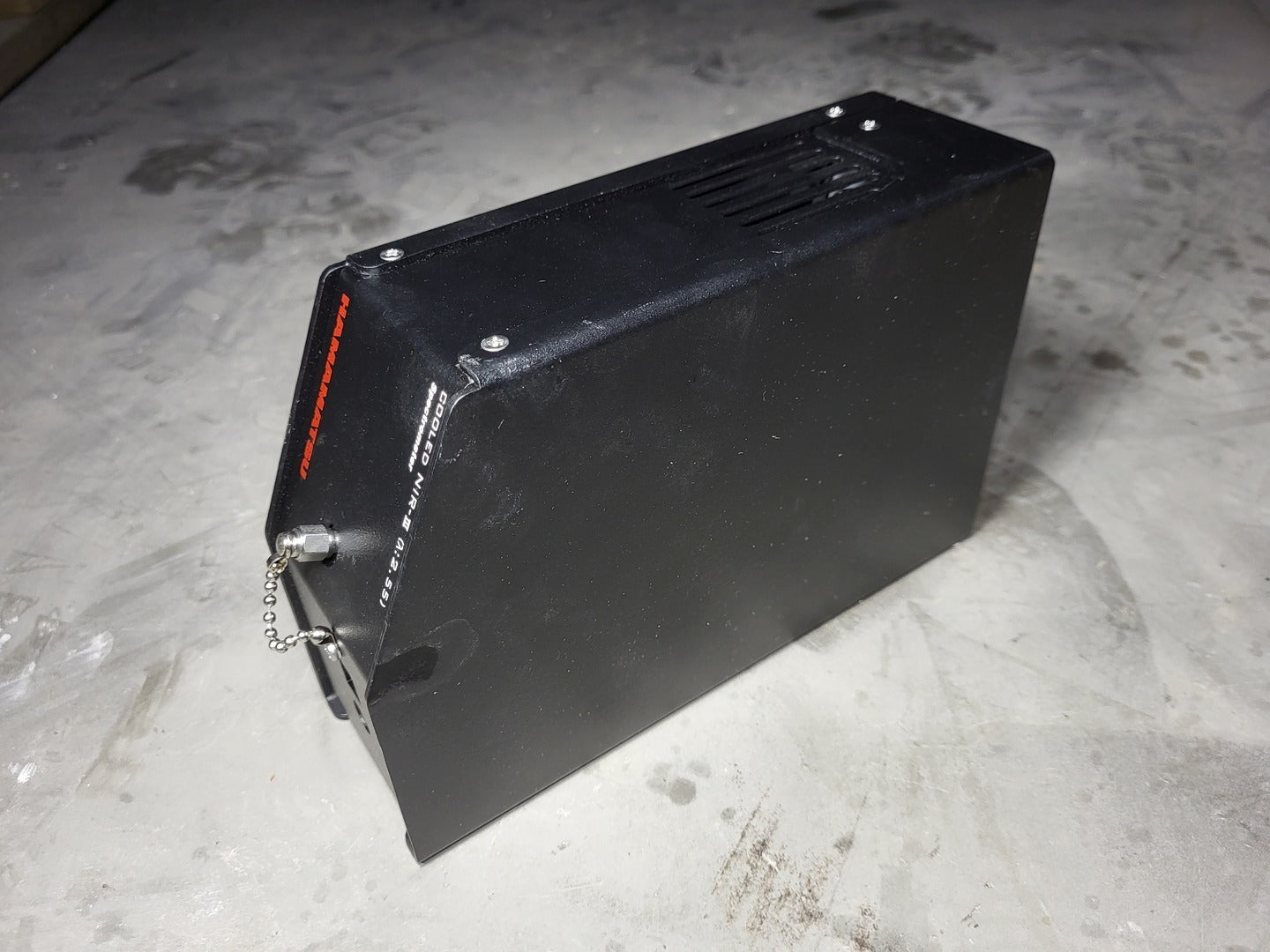

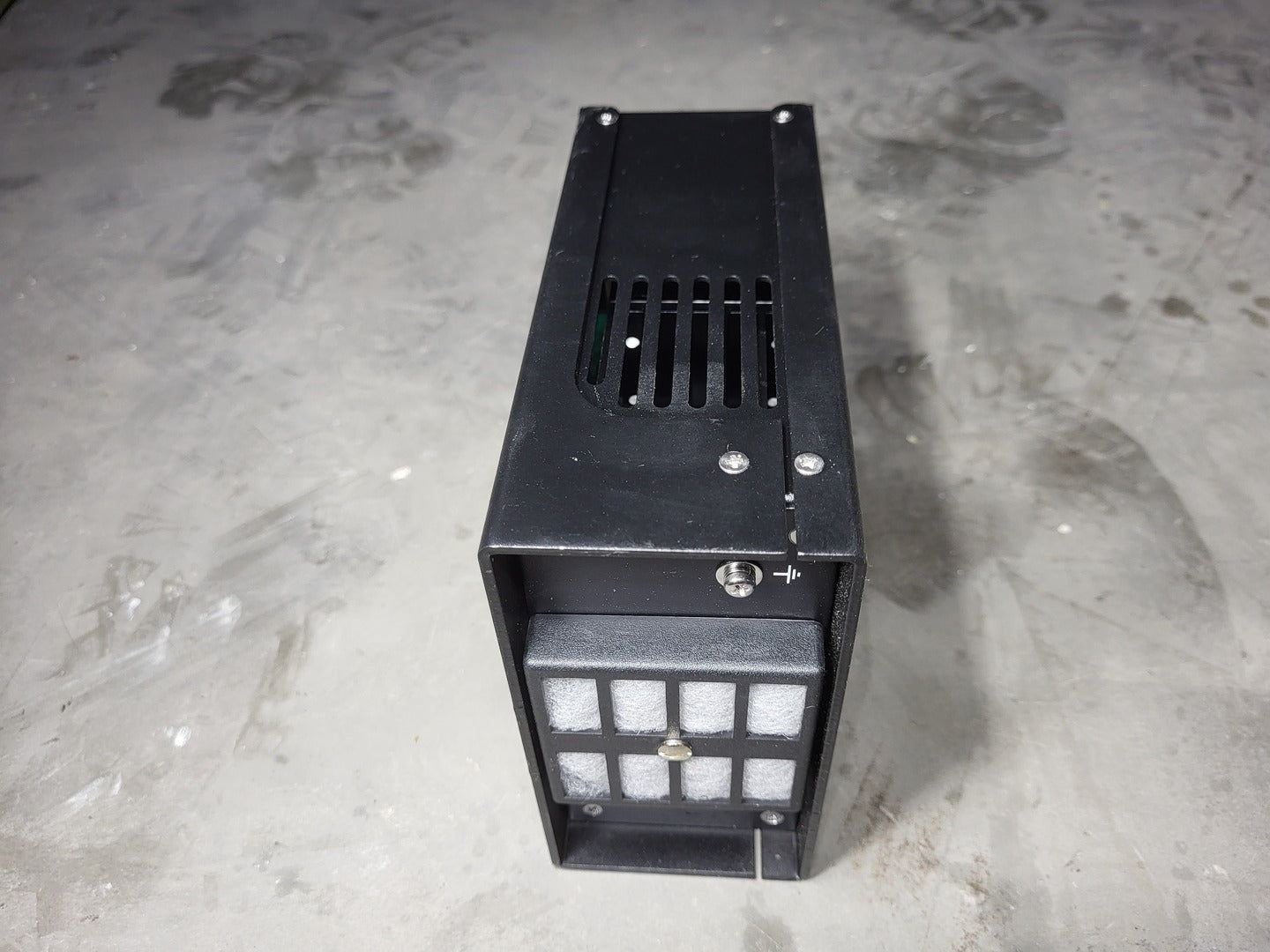

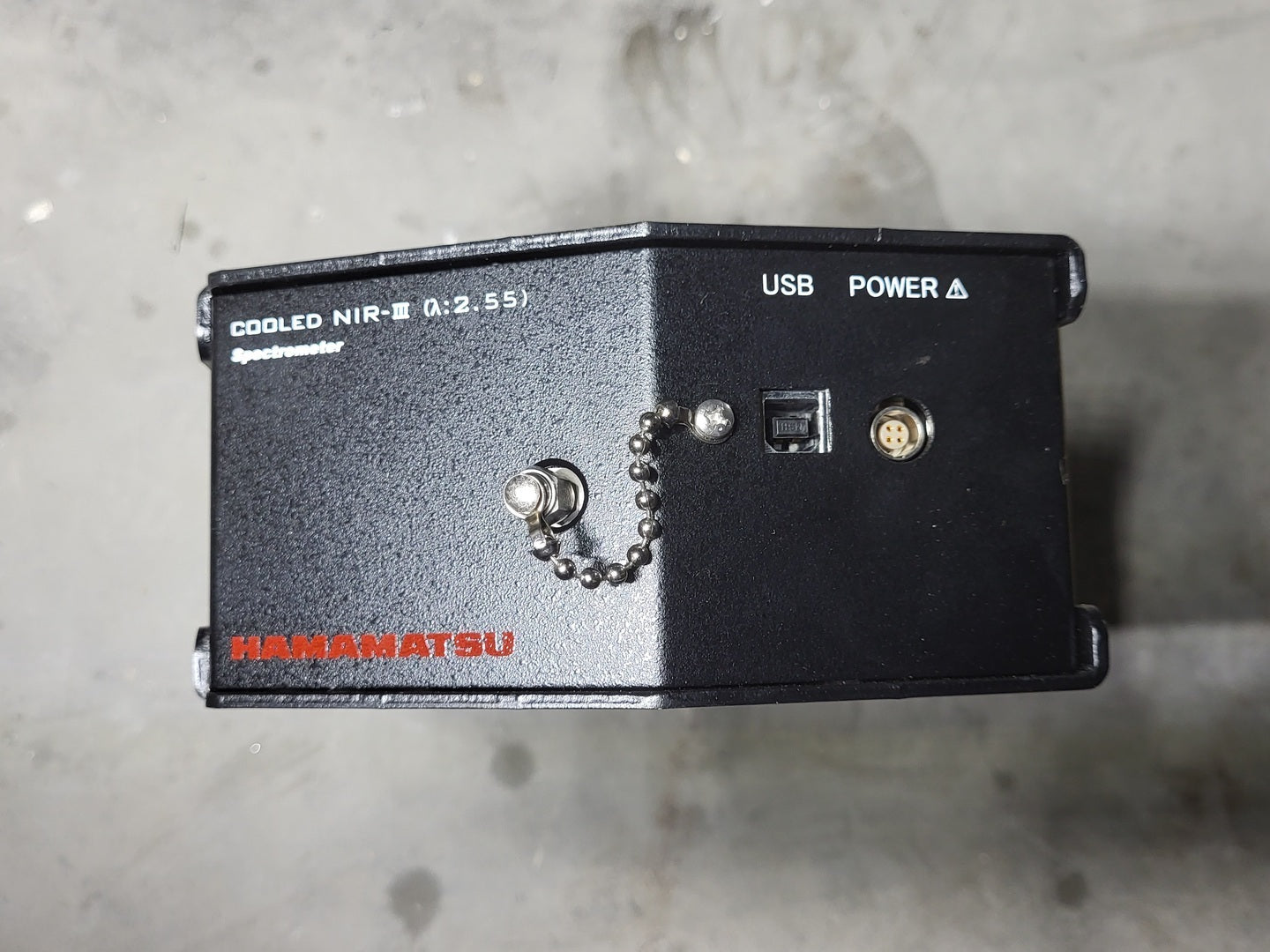

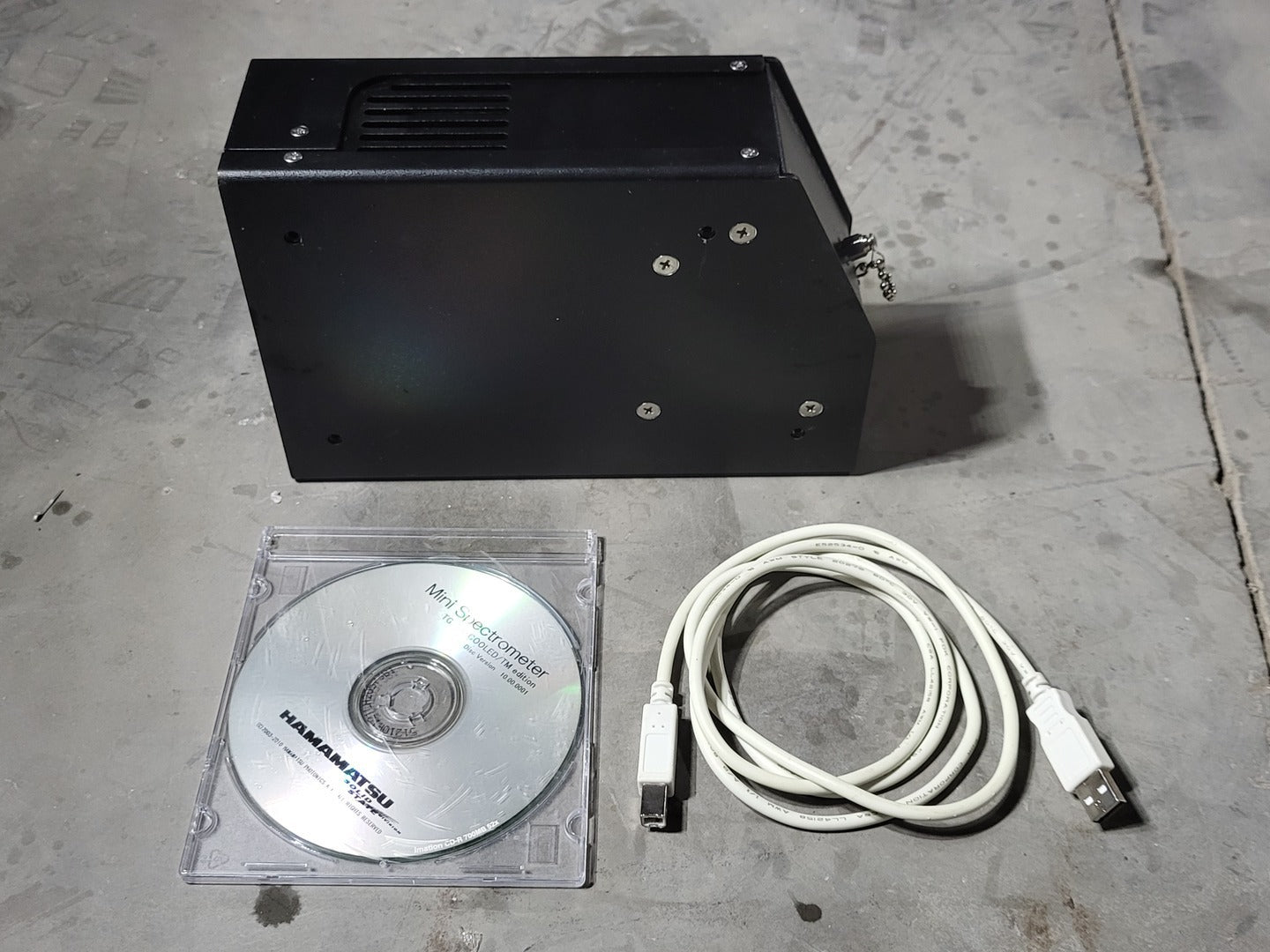

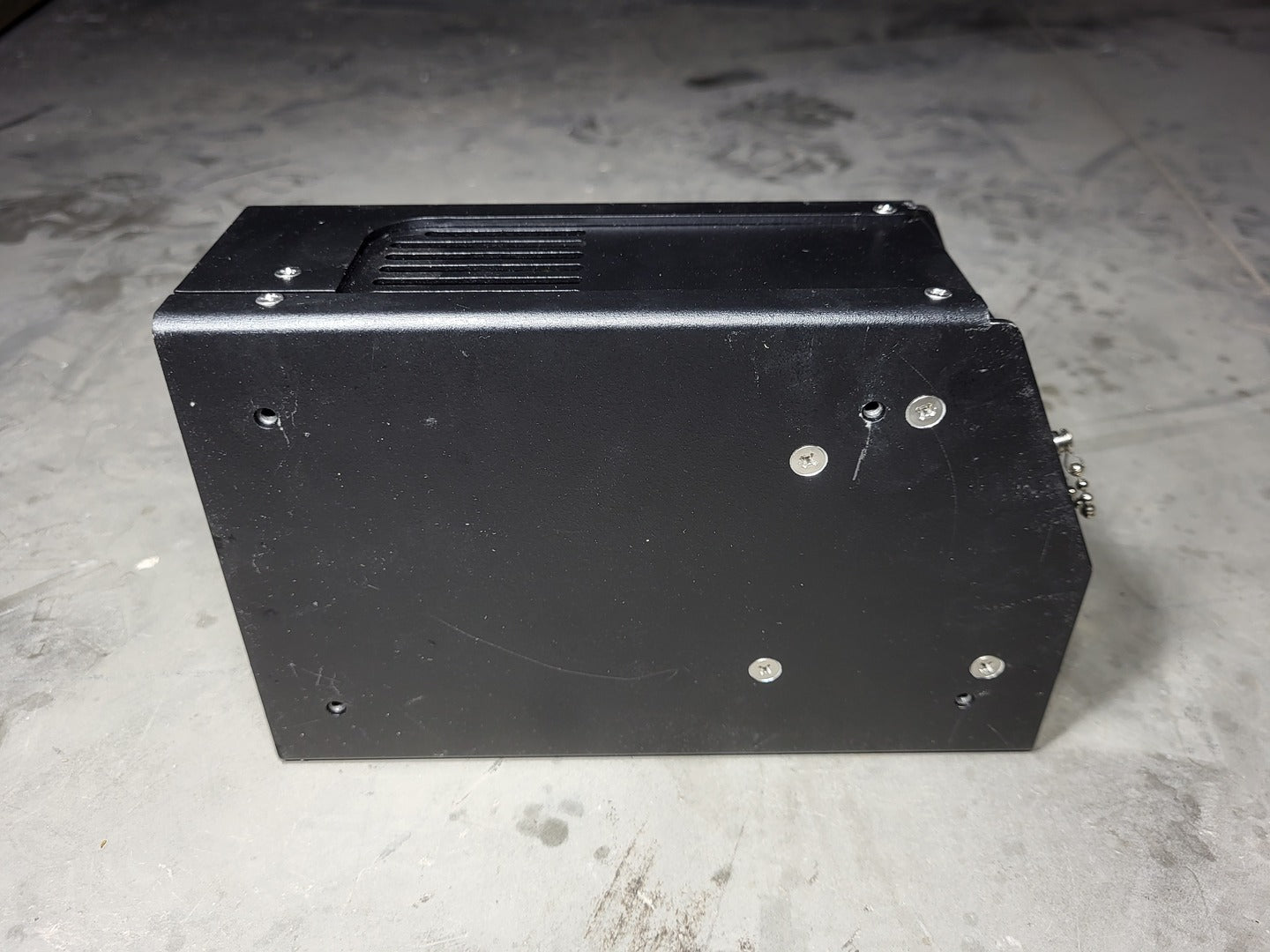

Mini Spectrometer Type NIR-3 C11118GA

SKU: 150789
Price:
$17,700 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

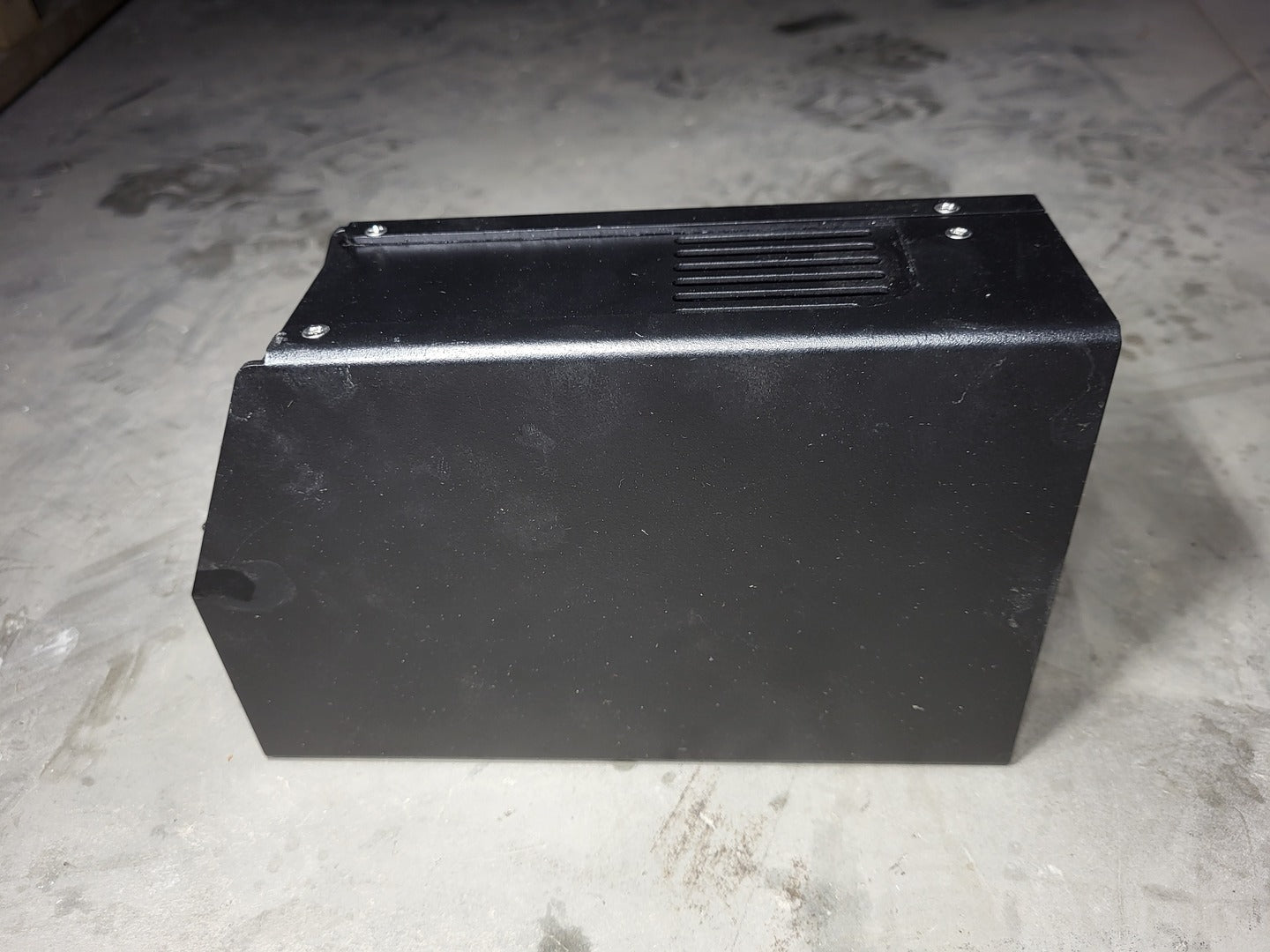

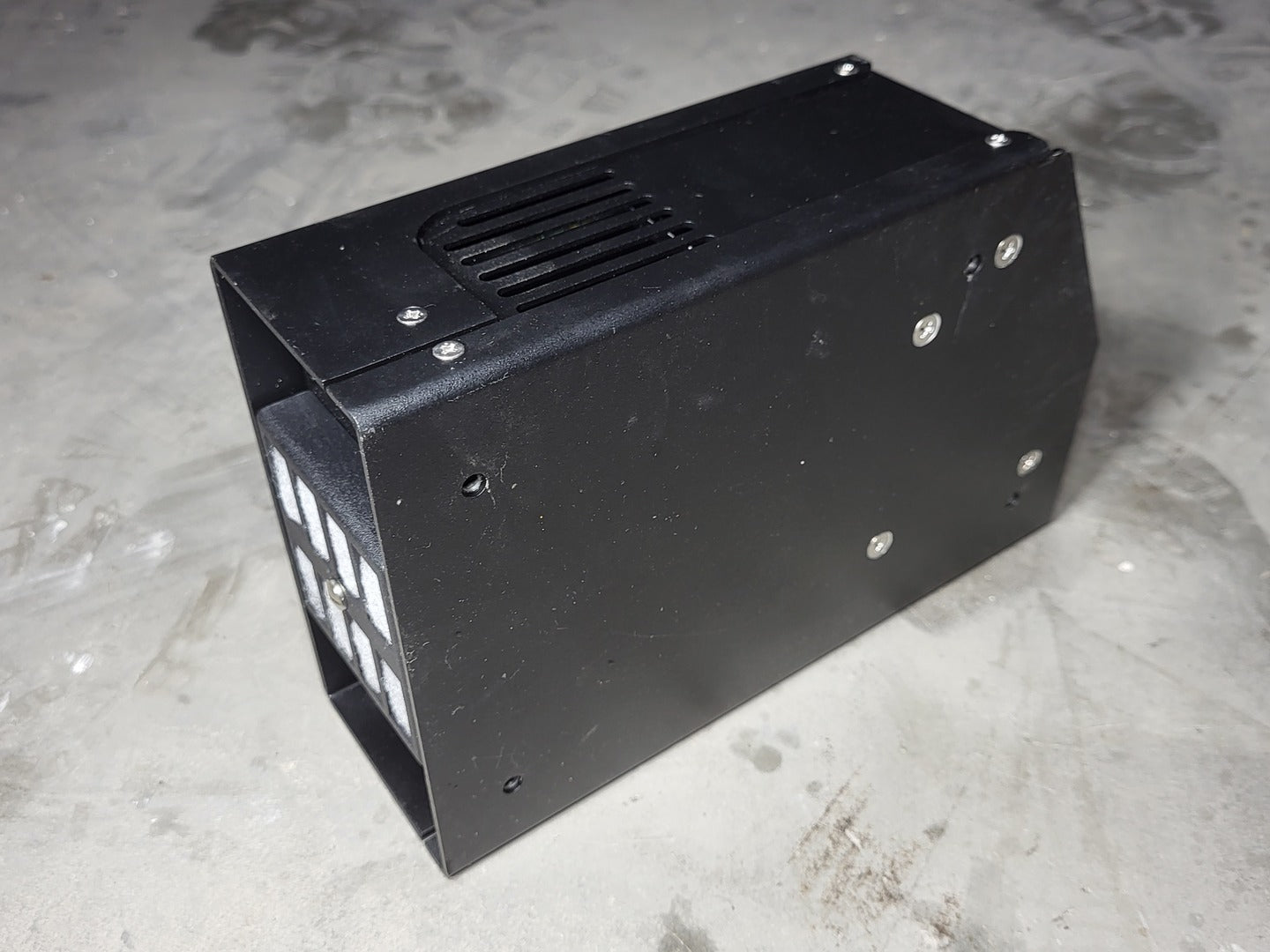

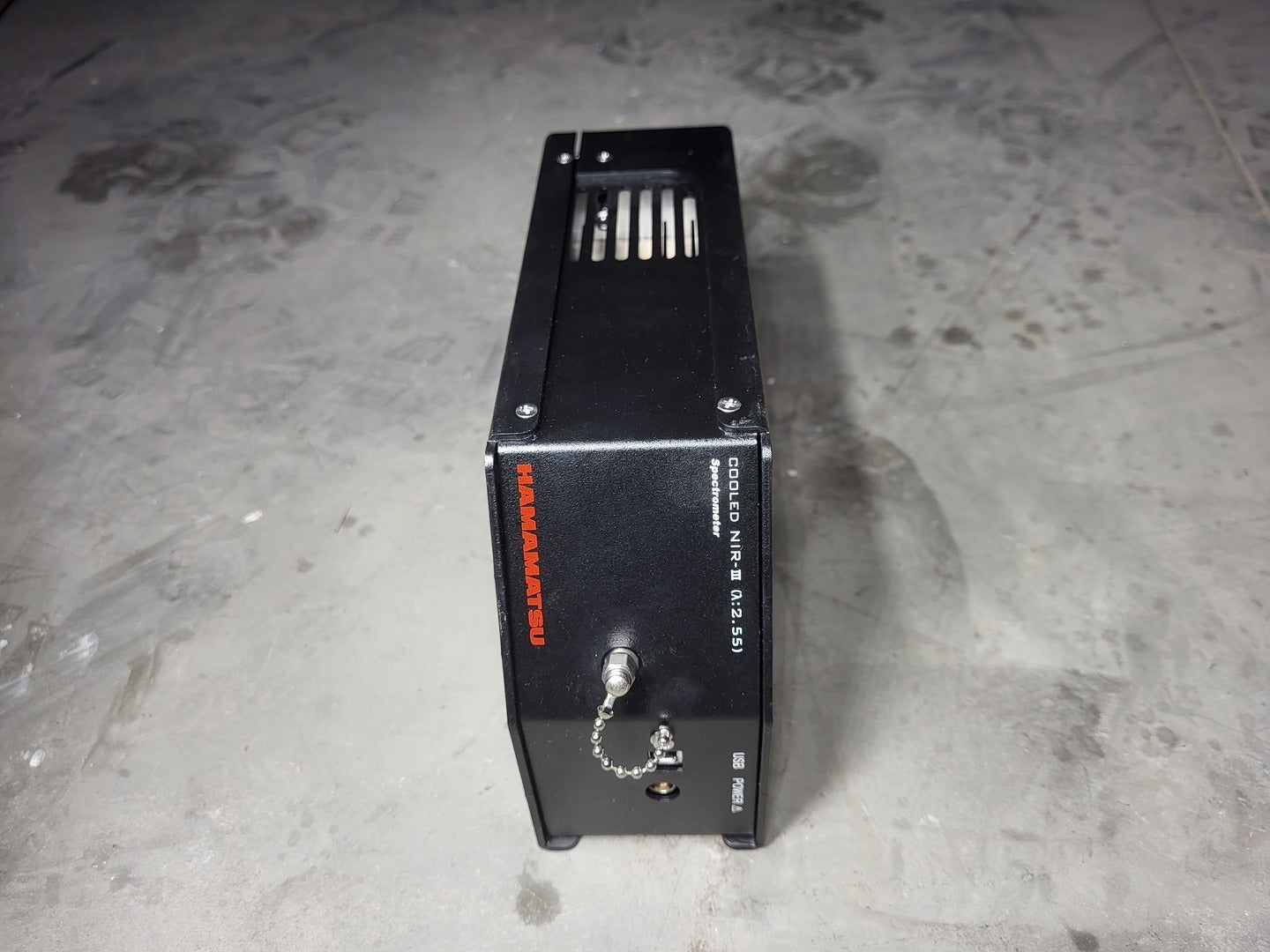

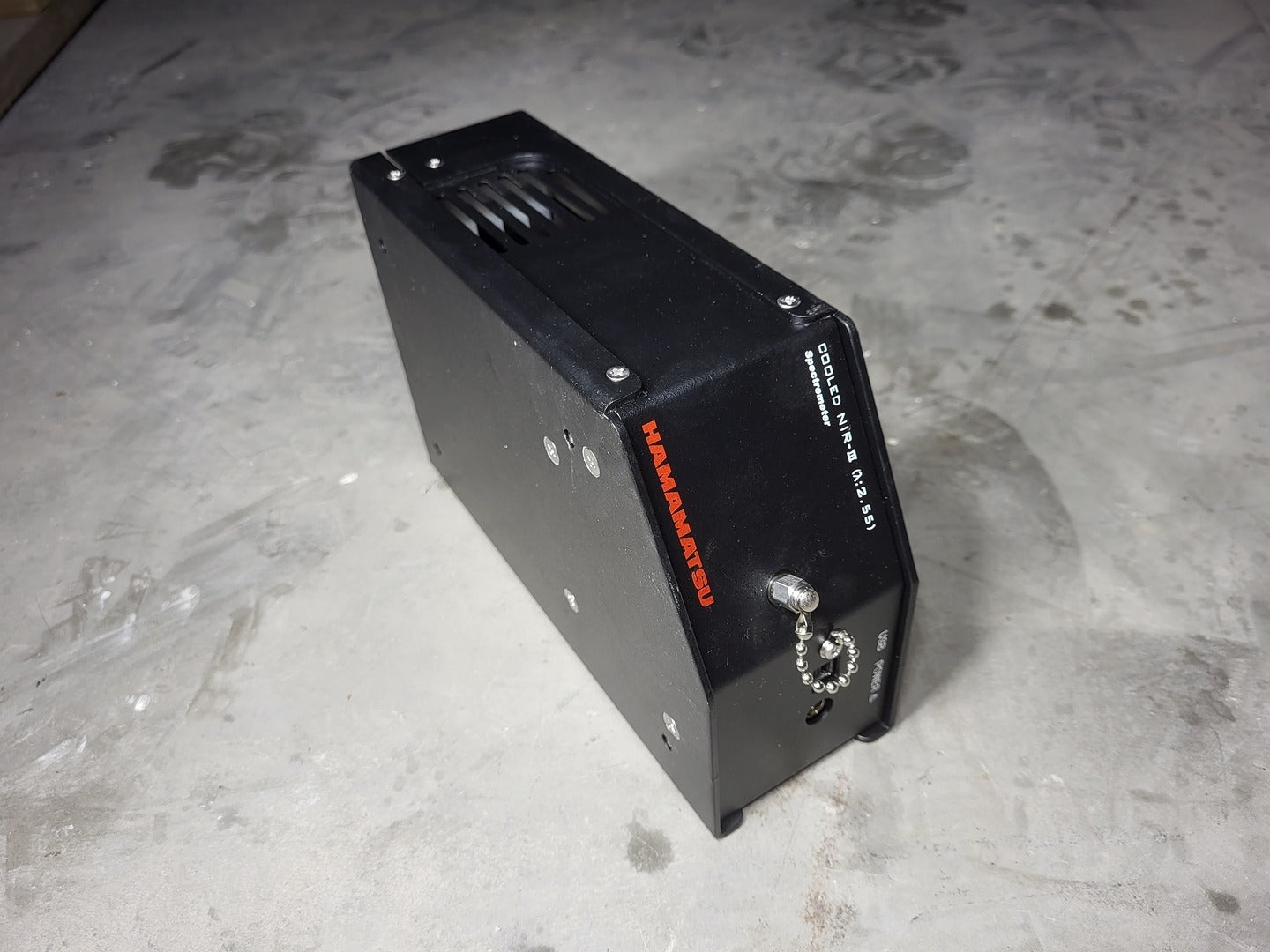

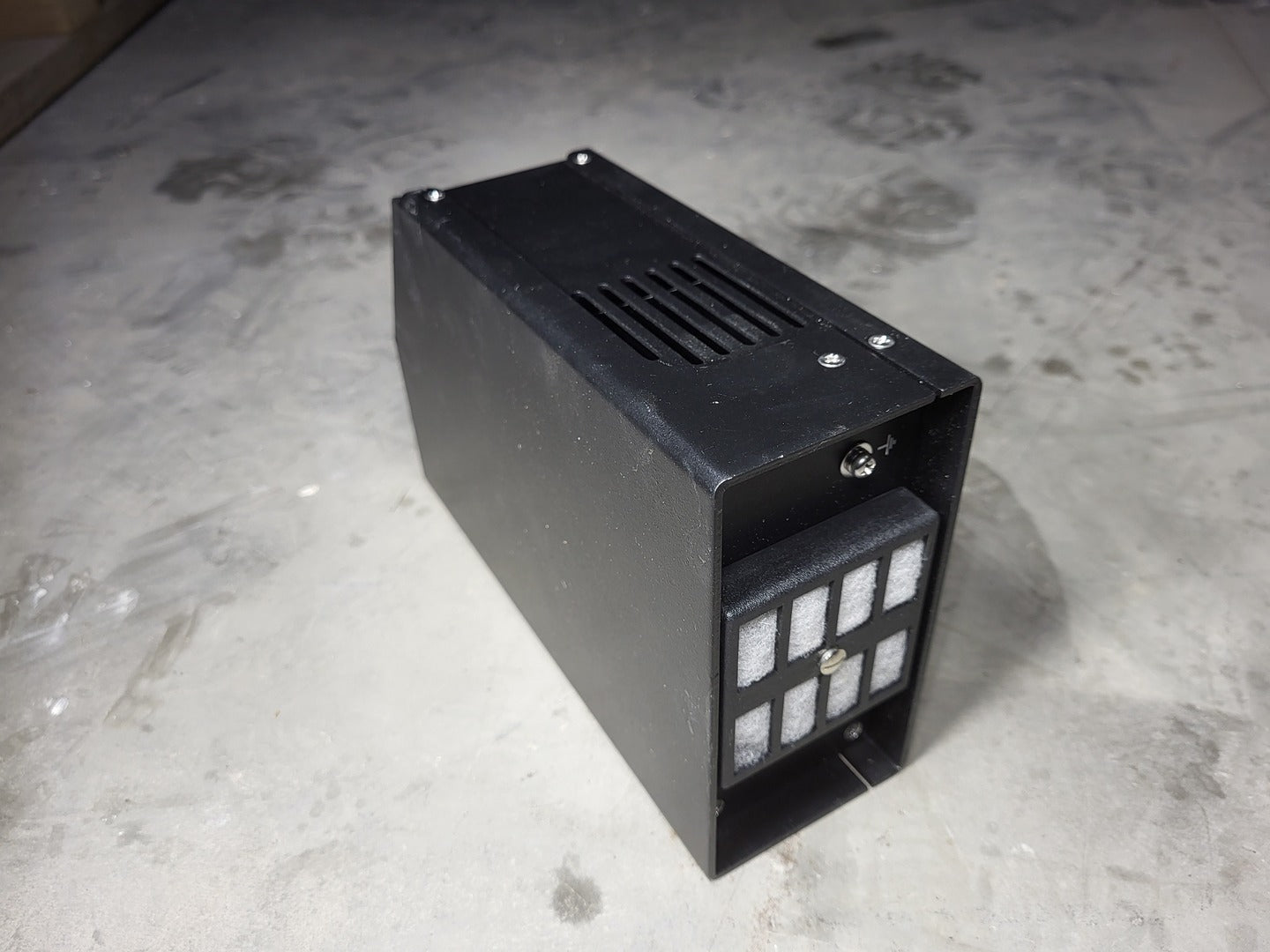

The Hamamatsu C11118GA is a cooled mini spectrometer with an InGaAs detector designed for near infrared measurement and used as a high value scientific instrument
Specifications
Model C11118GA
Condition Surplus New
Other Specifications

General specs:

  1. Spectral response range 900 to 2550 nm
  2. Spectral resolution FWHM typical 15 nm max 20 nm
  3. Wavelength reproducibility 0.8 nm max
  4. Wavelength temperature dependence 0.08 nm per C max
  5. Spectral stray light 30 dB max
  6. AD resolution 16 bits
  7. Integration time range 6 to 40000

Detector and optics:

  1. Detector type TE cooled InGaAs linear image sensor
  2. Number of pixels 256
  3. Entrance slit size 140 by 500 um
  4. Numerical aperture NA 0.22
  5. Fiber connector SMA905D

Interface and power:

  1. Interface USB 2.0
  2. USB bus power consumption 250 mA max
  3. Cooling element current 2.8 A max
  4. Cooling fan current 0.2 A max
