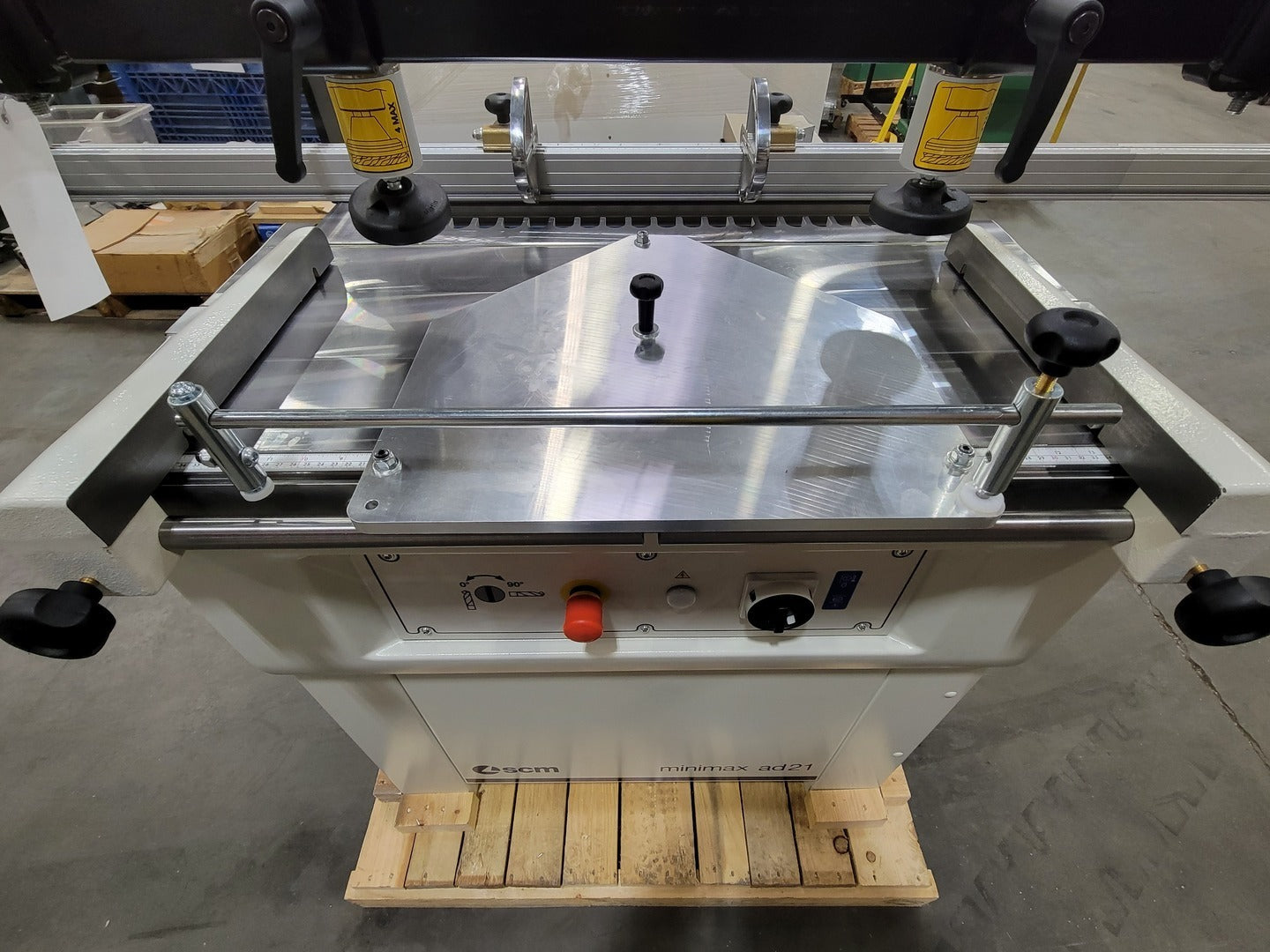

minimax ad 21 Single Head Multiboring Machine w/ 21 Spindles

SKU: 90104
Price:
$9,500 CAD

Shipping calculated at checkout

Stock:
In stock
Make an Offer

Need An Answer Now?

Description

Specifications
Model minimax ad 21
Made In ITALY
Condition New
General
Horsepower 2.5 hp
# of Spindles 21
Distance Between Spindles 32 mm
Electrical
Voltage 220 volts
Phase Single-phase
Other Specifications

Worktable Dimensions (Length x Width x Height): 905 x 372 x 900 mm

Max. Tool Diameter: 40 mm

Max. Boring Centre-to-Centre: 640 mm

Max. Height of Horizontal Boring Operation: 60 mm

Spindle Speed: 2800 rpm

Min. / Max. Panel Height: 10 / 85 mm

Max. Panel Width Under the Bridge: 833 mm

Max. Boring Head Stroke: 70 mm

Pneumatic System Operating Pressure: 6 bar

Air Consumption: 3.5 Nl/cycle

Exhaust Outlets Diameter: 80 mm

Additional Features

  • No. 5 drilling bit-holder bushes 10 mm diameter
  • No. 11 drilling bit-holder bushes 10 mm diameter
  • Fence for horizontal boring at 45o
  • Triple wall

PDF Specifications

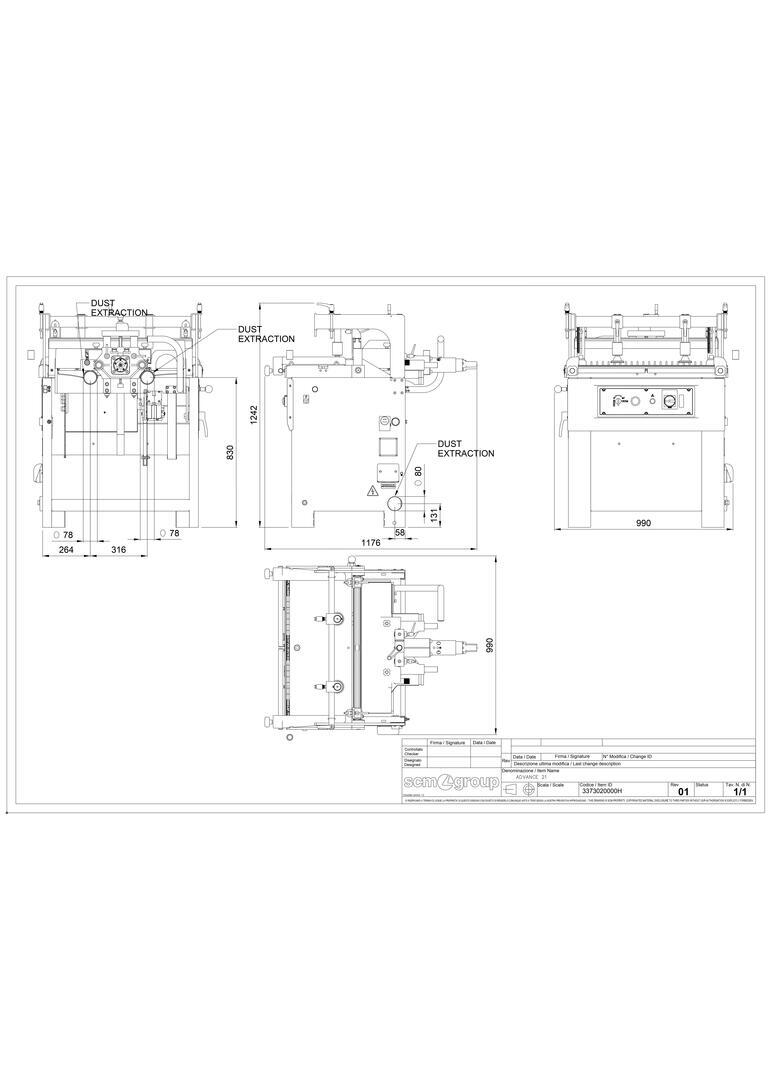

PDF Footprint
