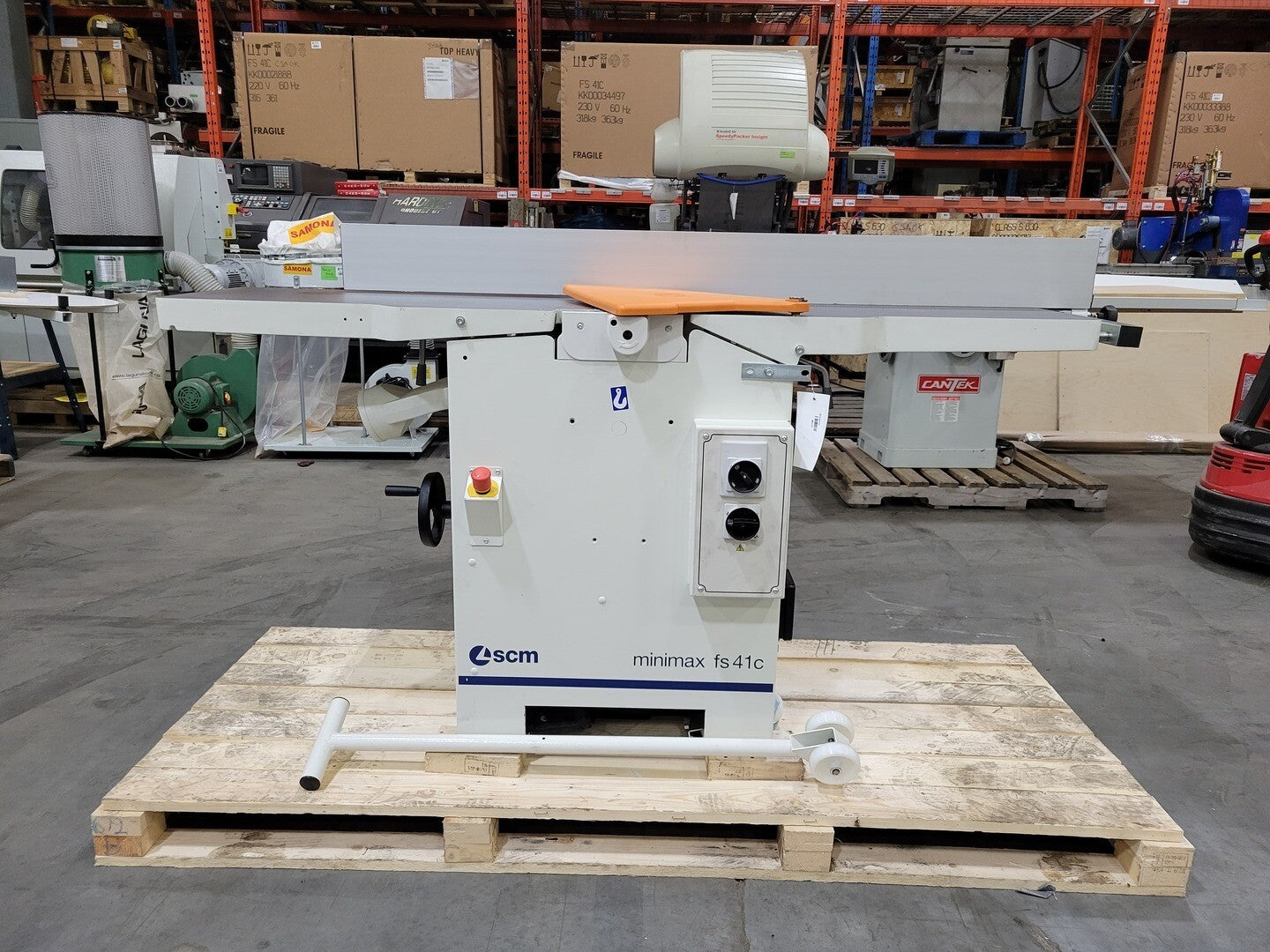

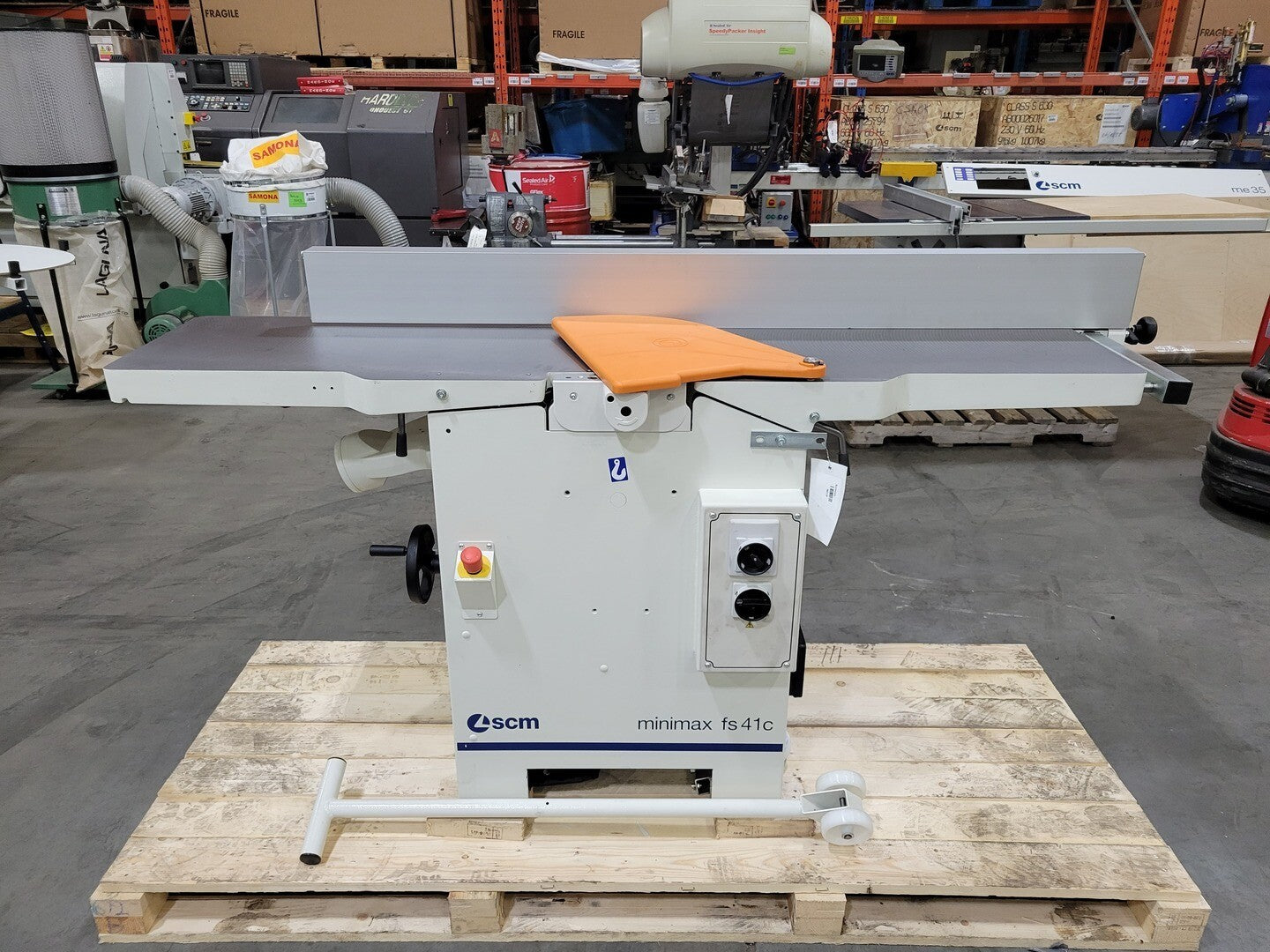

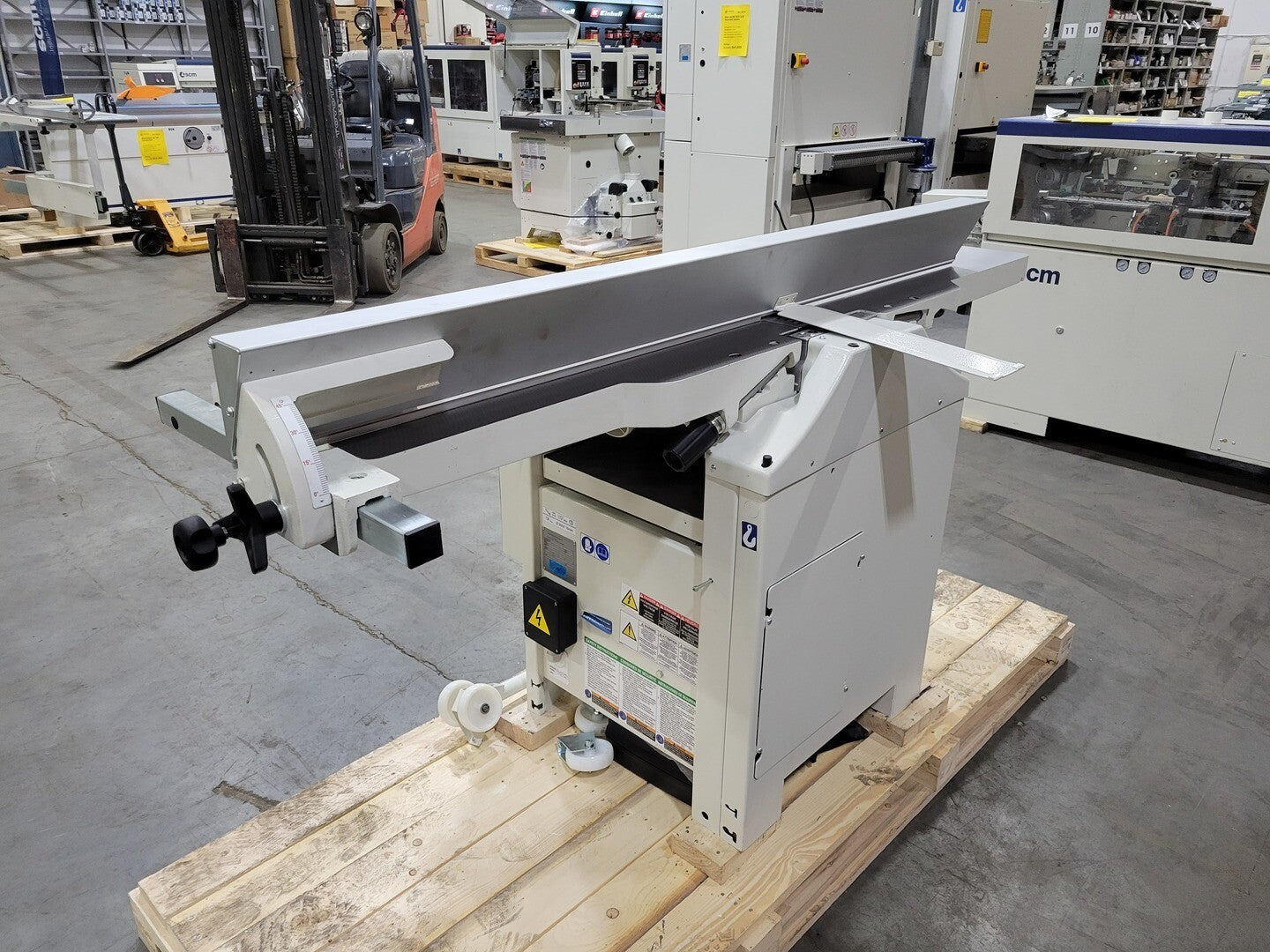

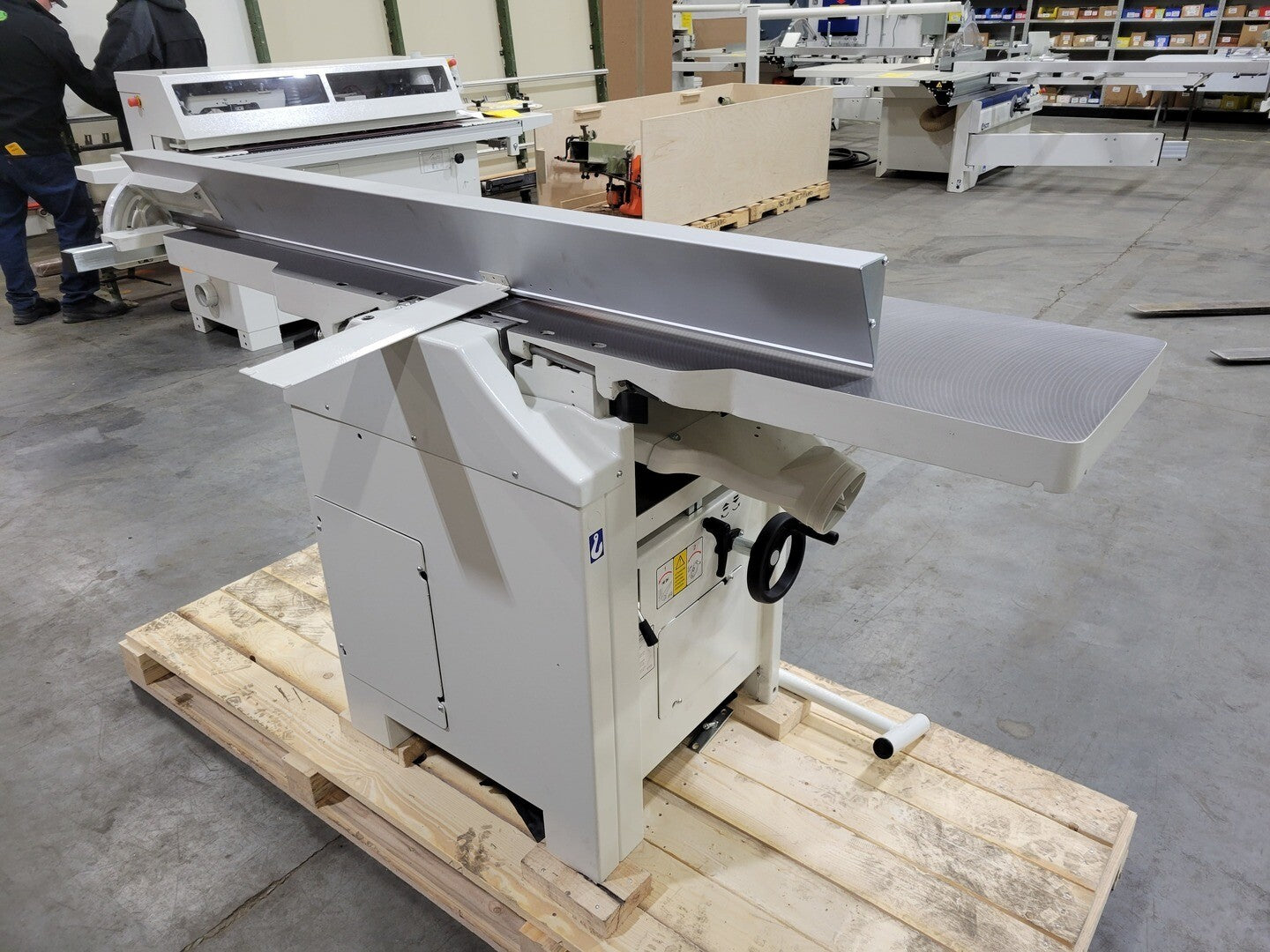

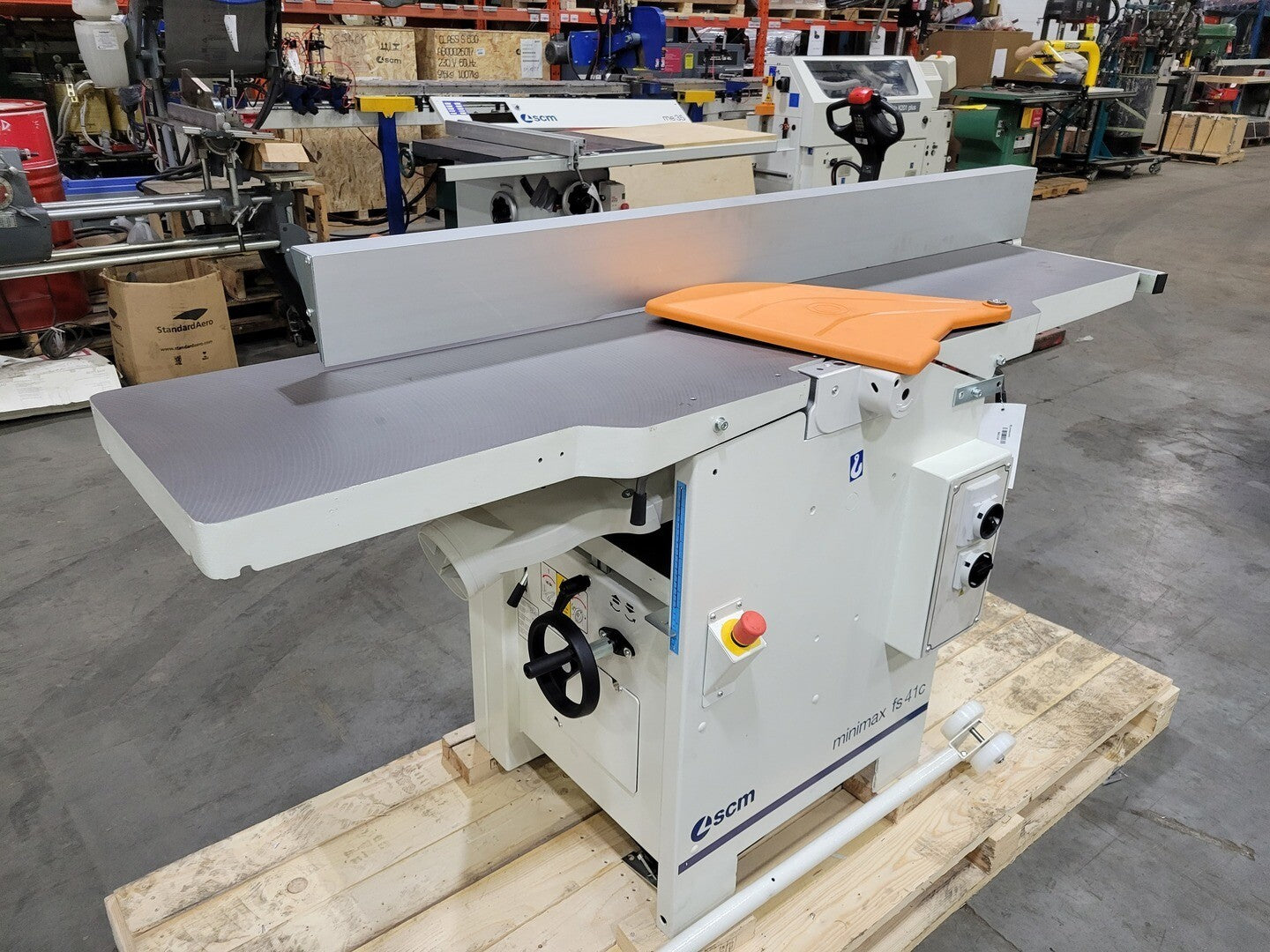

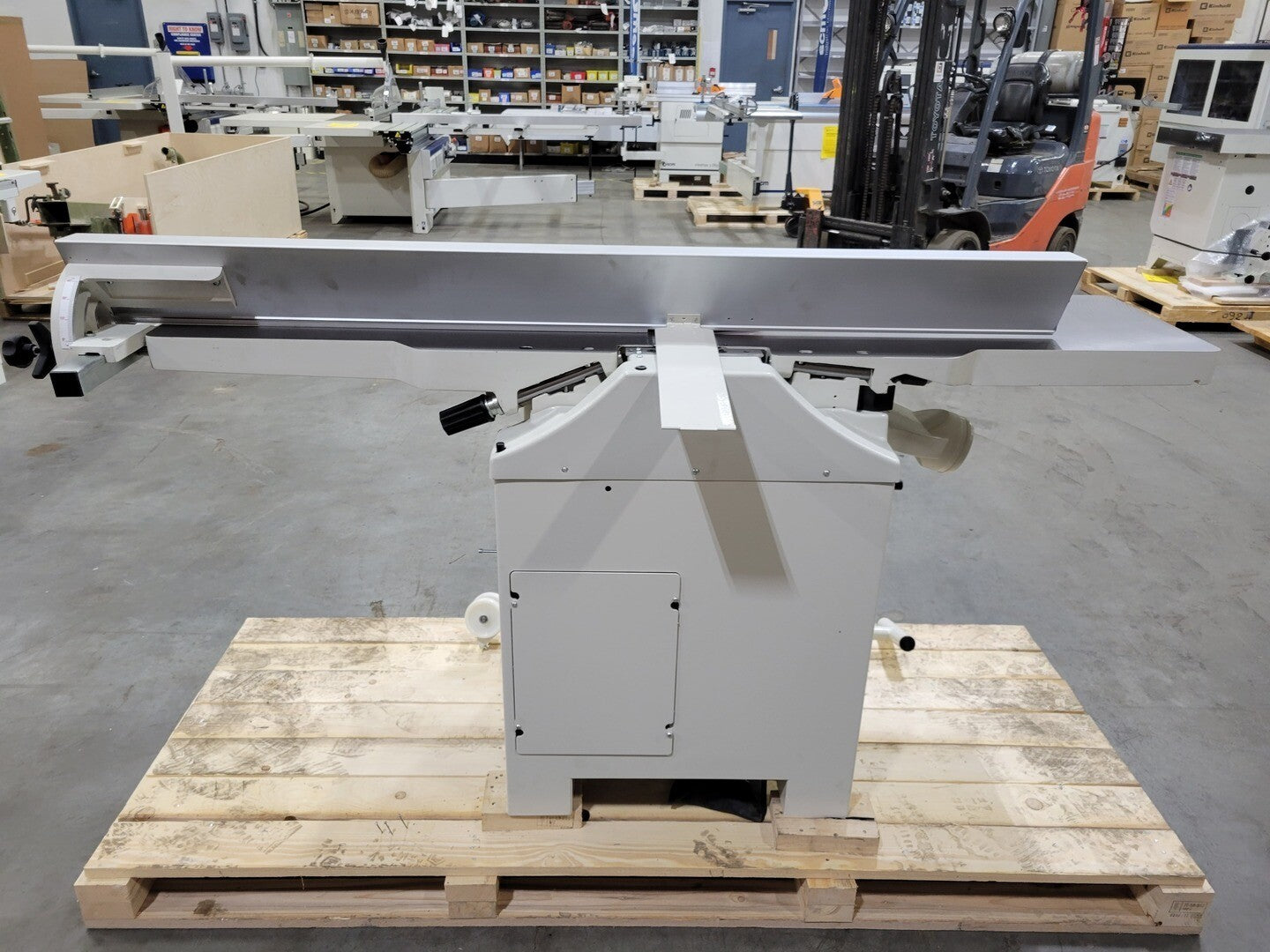

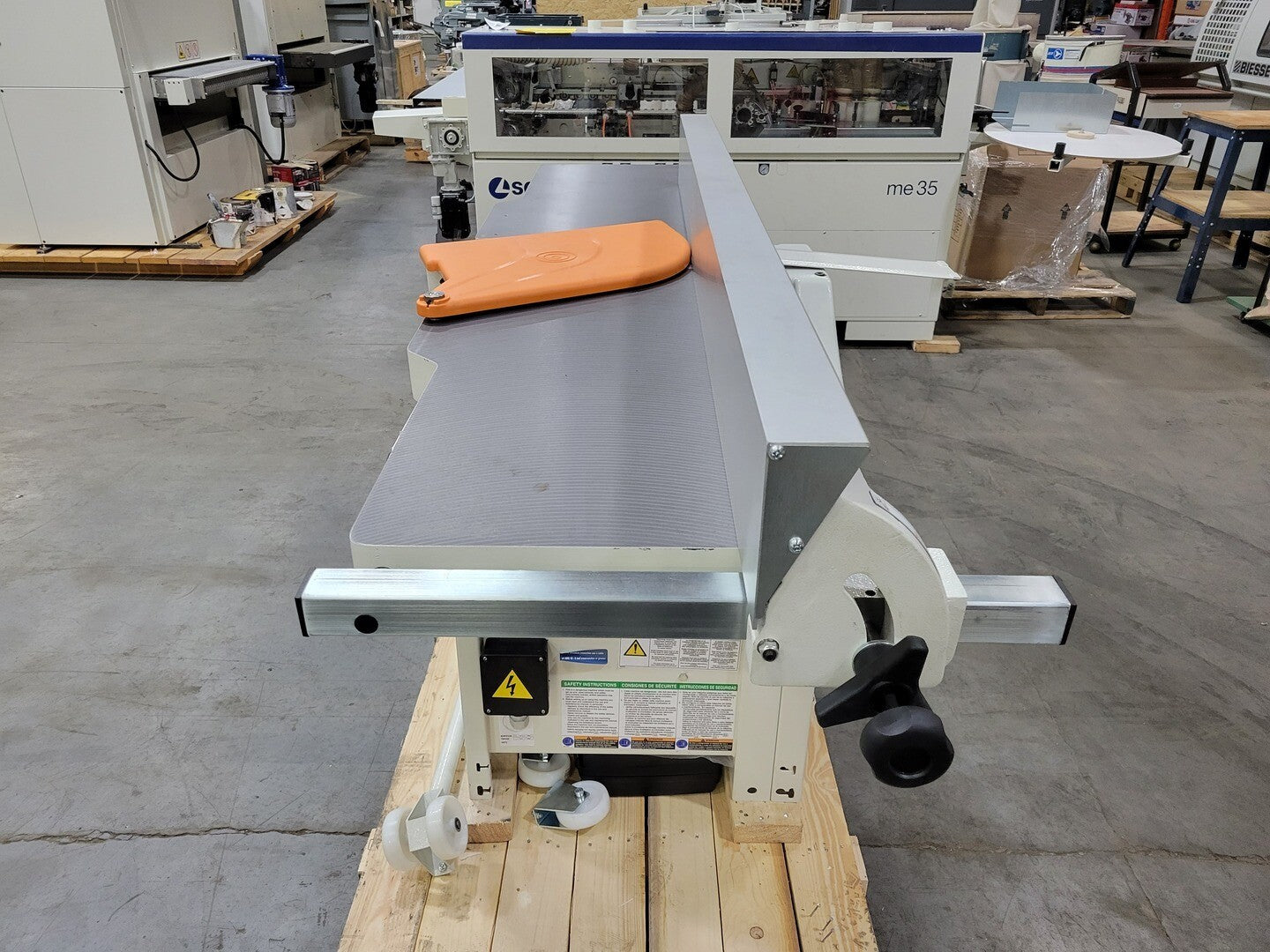

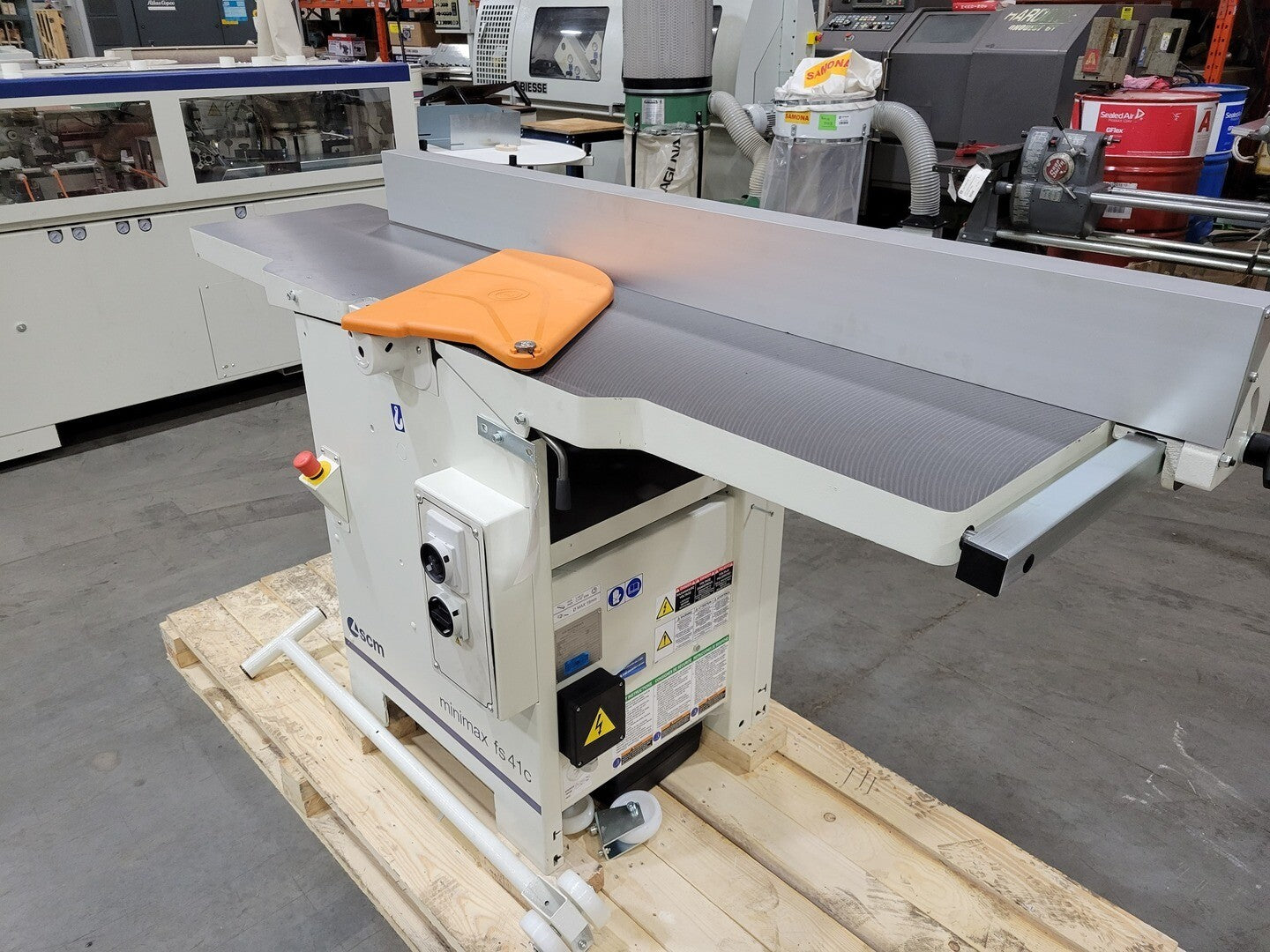

SCM minimax fs 41c Surfacing-Thicknessing Planer w/ "Xylent" Cutterhead
SCM

minimax fs 41c Surfacing-Thicknessing Planer w/ "Xylent" Cutterhead

SKU: 90118
Price:
$10,950 CAD

Shipping calculated at checkout

Stock:
In stock
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications
Model minimax fs 41c
Made In ITALY
Condition New
General
Horsepower 4.8 hp
Max. Workpiece Width 410 mm / 16.14 "
Max. Workpiece Thickness 230 mm / 9.05 "
Type Xylent
Electrical
Voltage 230 volts
Phase Single-phase
Other Specifications

** Combination machine of Planer, Jointer

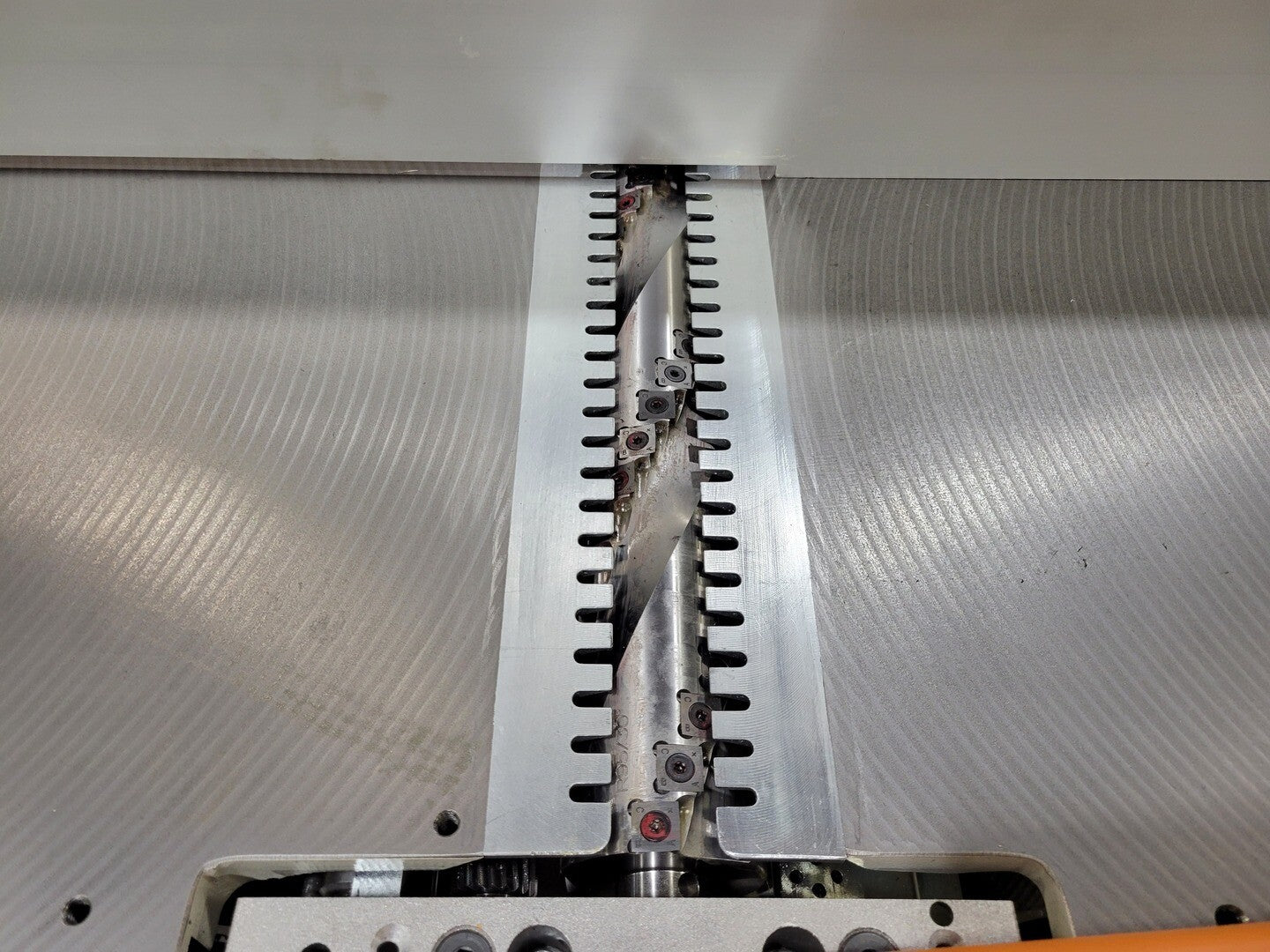

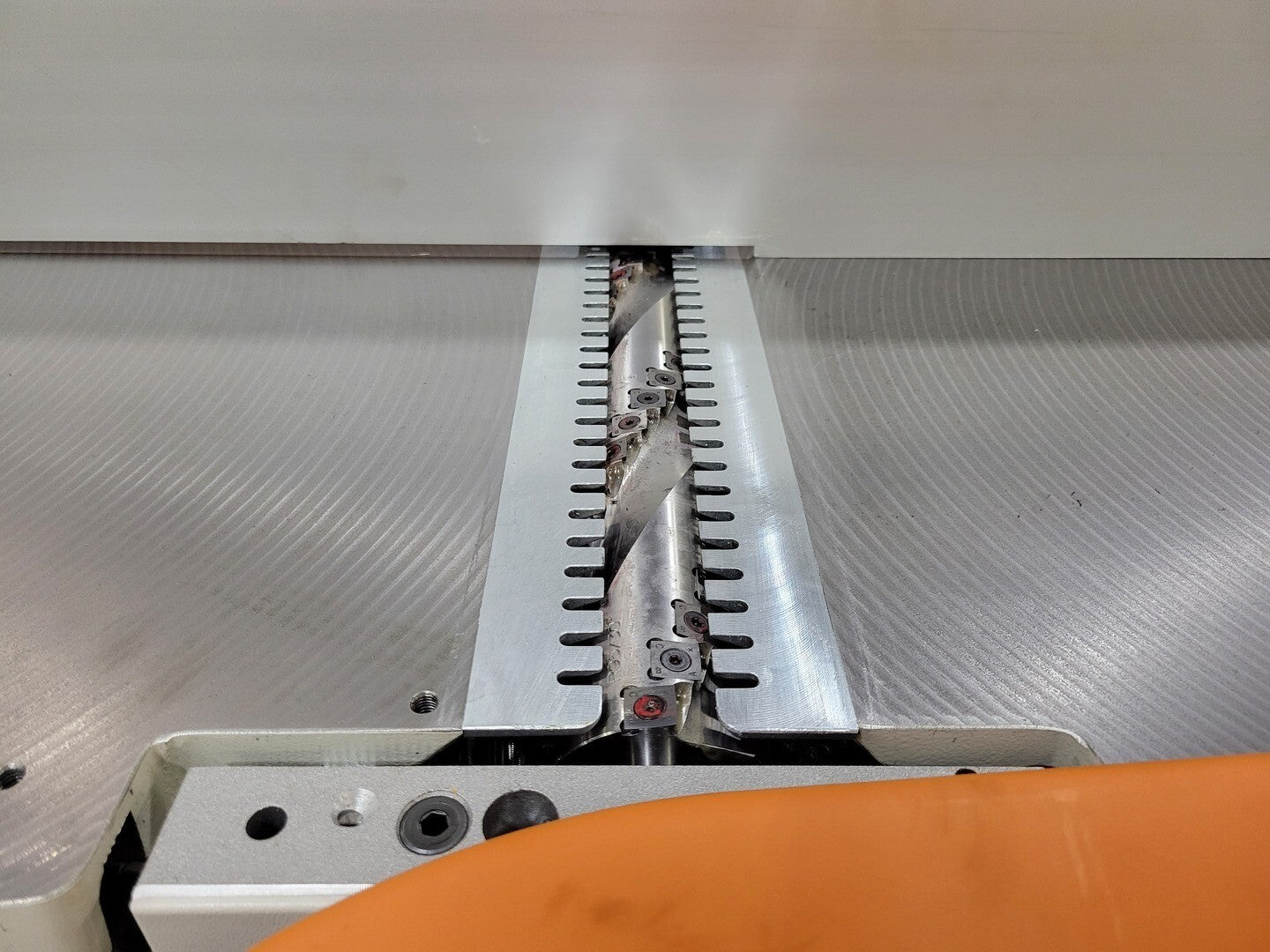

Xylent Spiralknife Cutterblock with 3 Series of Knives

Complete With:

  • 87 mm diameter cutterblock
  • No. 66 standard plates, 15x15x2.5 mm with 4 self-locking and self-centering screw knives
  • No. 1 dynamometric key for the correct and safe use of the locking
  • No. 2 inserts for the dynamometric key

Max. Stock Removal: 4 mm

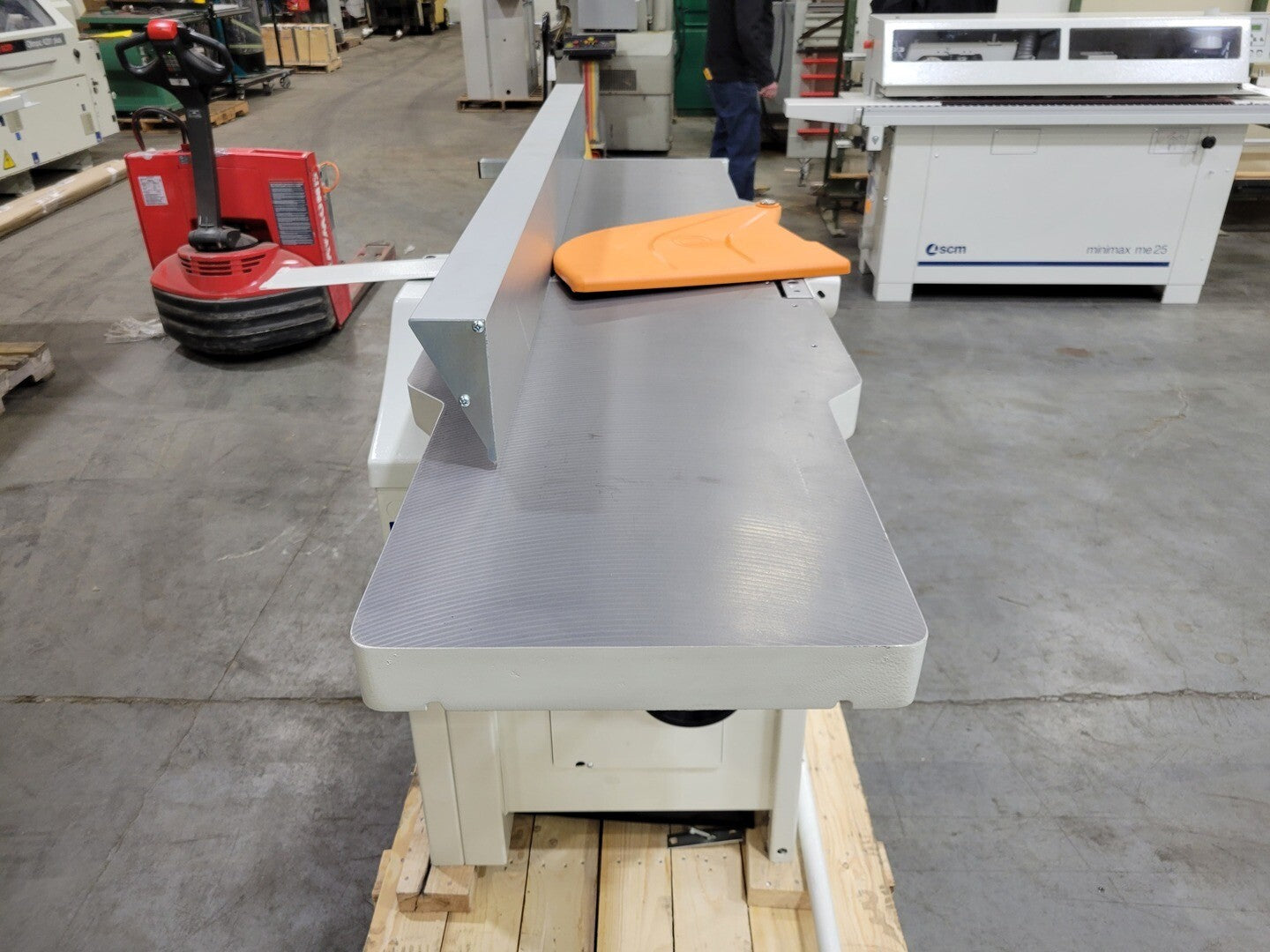

Surfacing Tables Total Length: 1800 mm

Thicknessing Table Dimensions: 410 x 605 mm

Feed Speed on Thicknesser: 7 m/min

Min. / Max. Working Height on Thicknesser: 3 / 230 mm

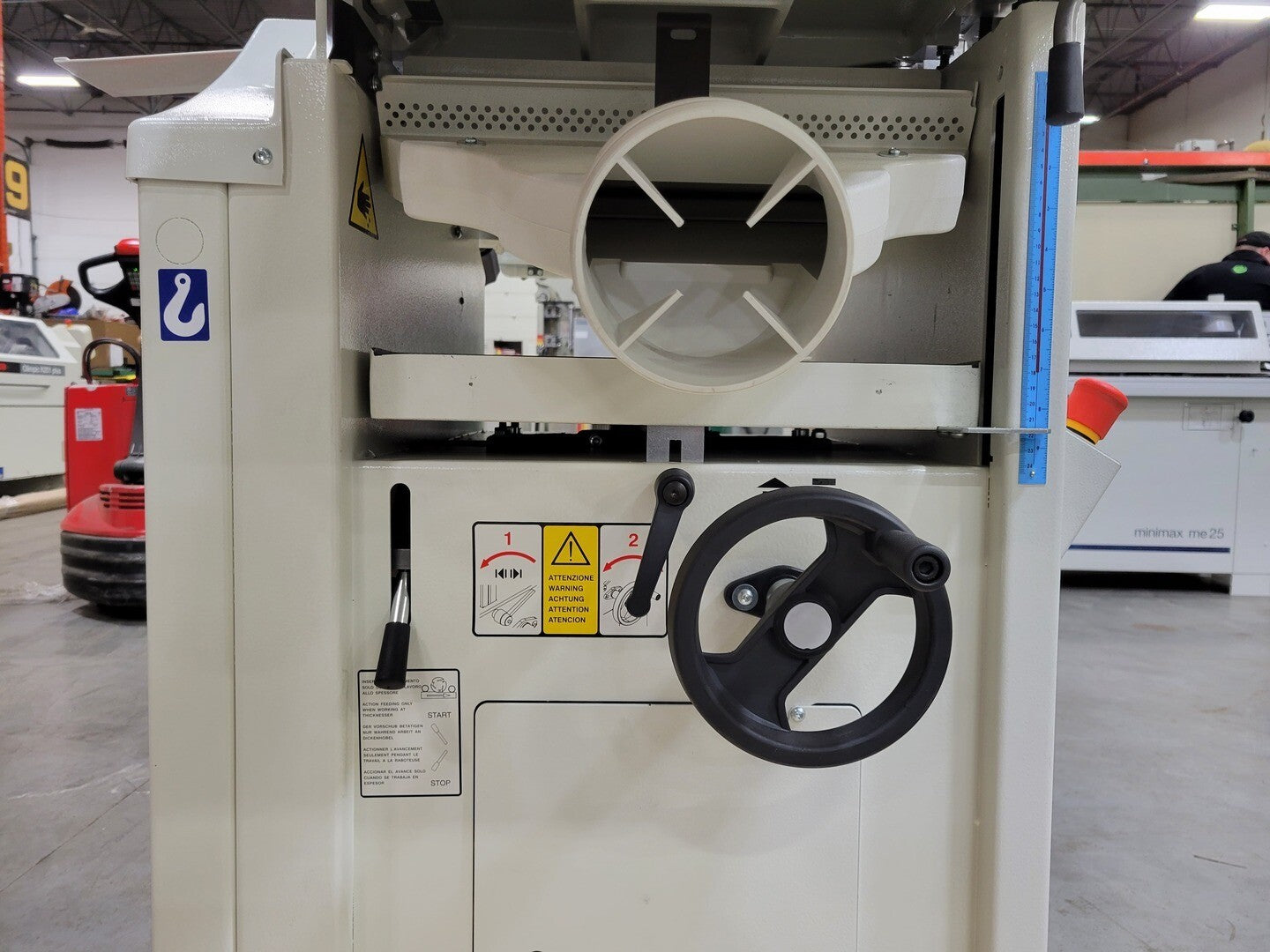

Exhaust Hoods Diameter: 120 mm

Additional Features

  • Wheels for machine movement
  • Xylent maintenance kit
  • 10 spare inserts kit (15x15x2.5) for Xylent spindle
  • Triple Wall

PDF Brochure

PDF Footprints
