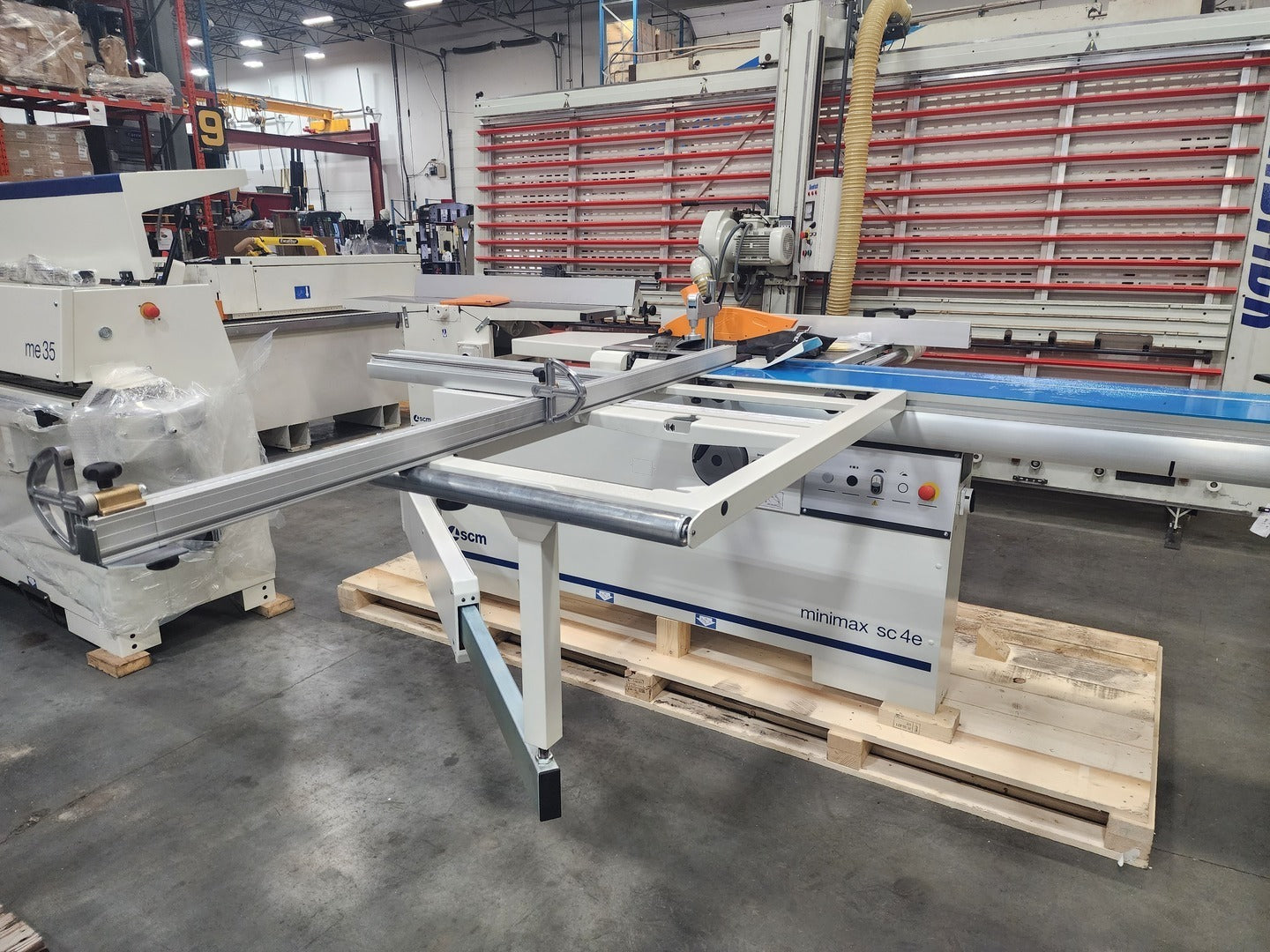

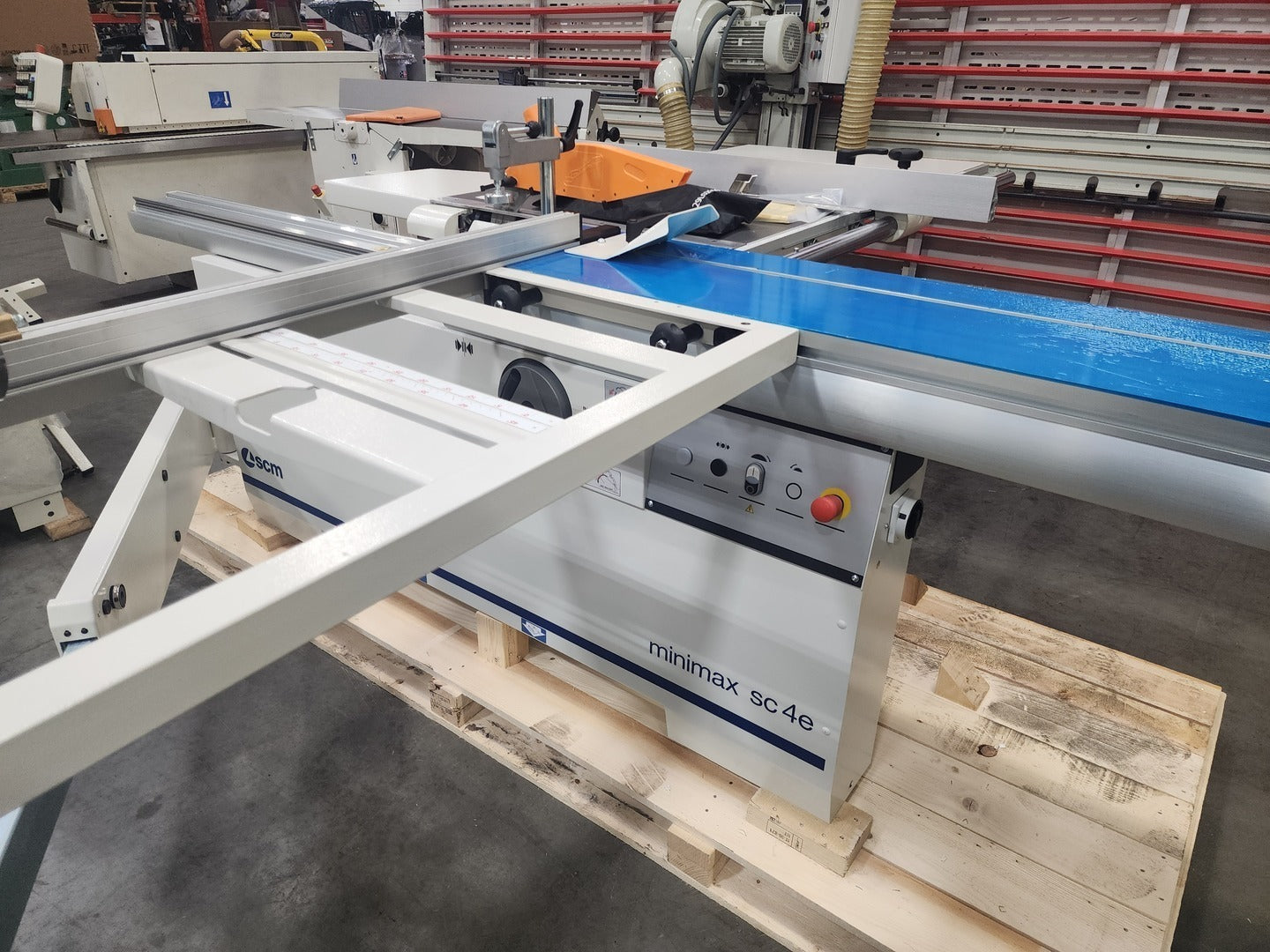

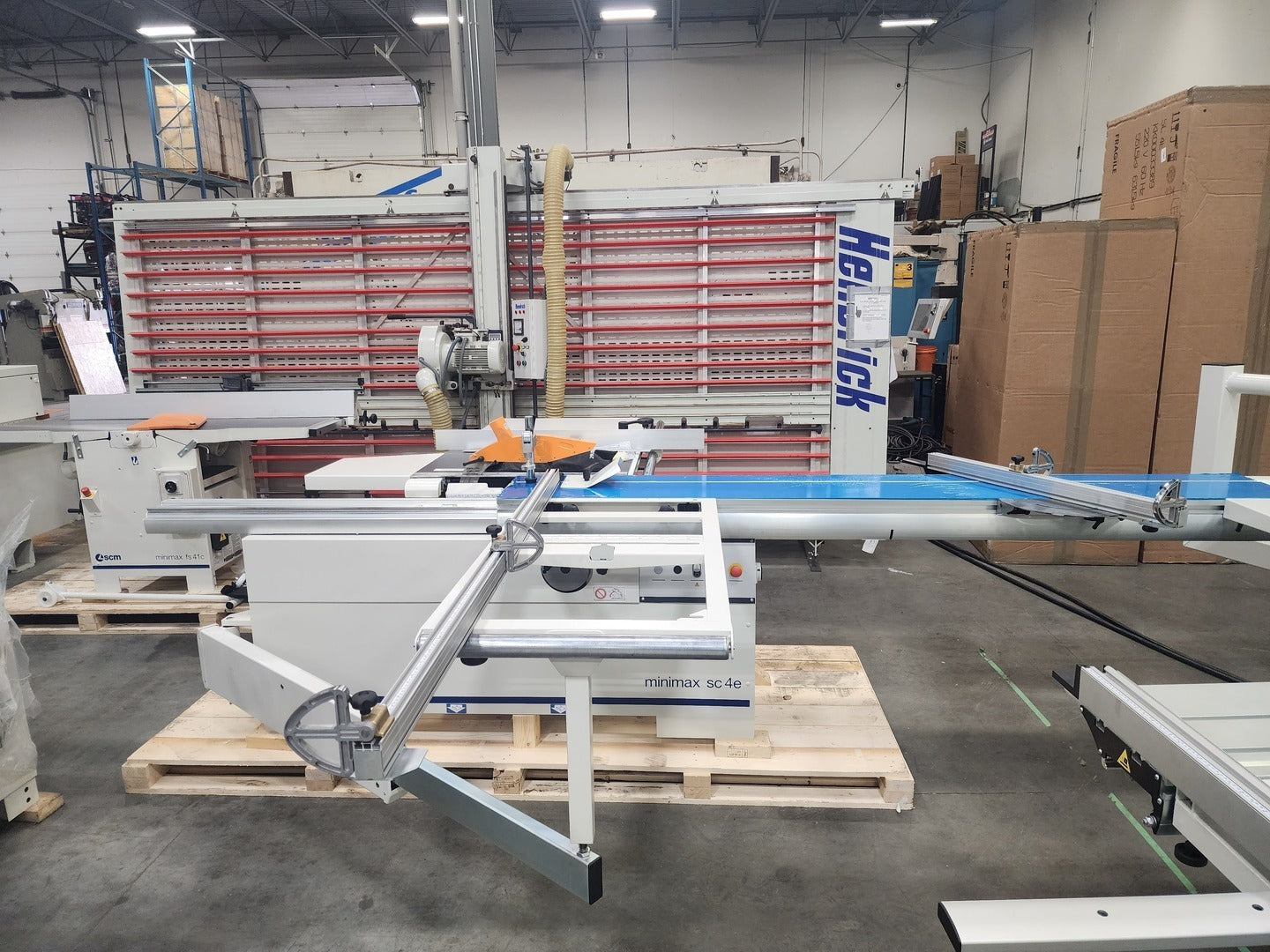

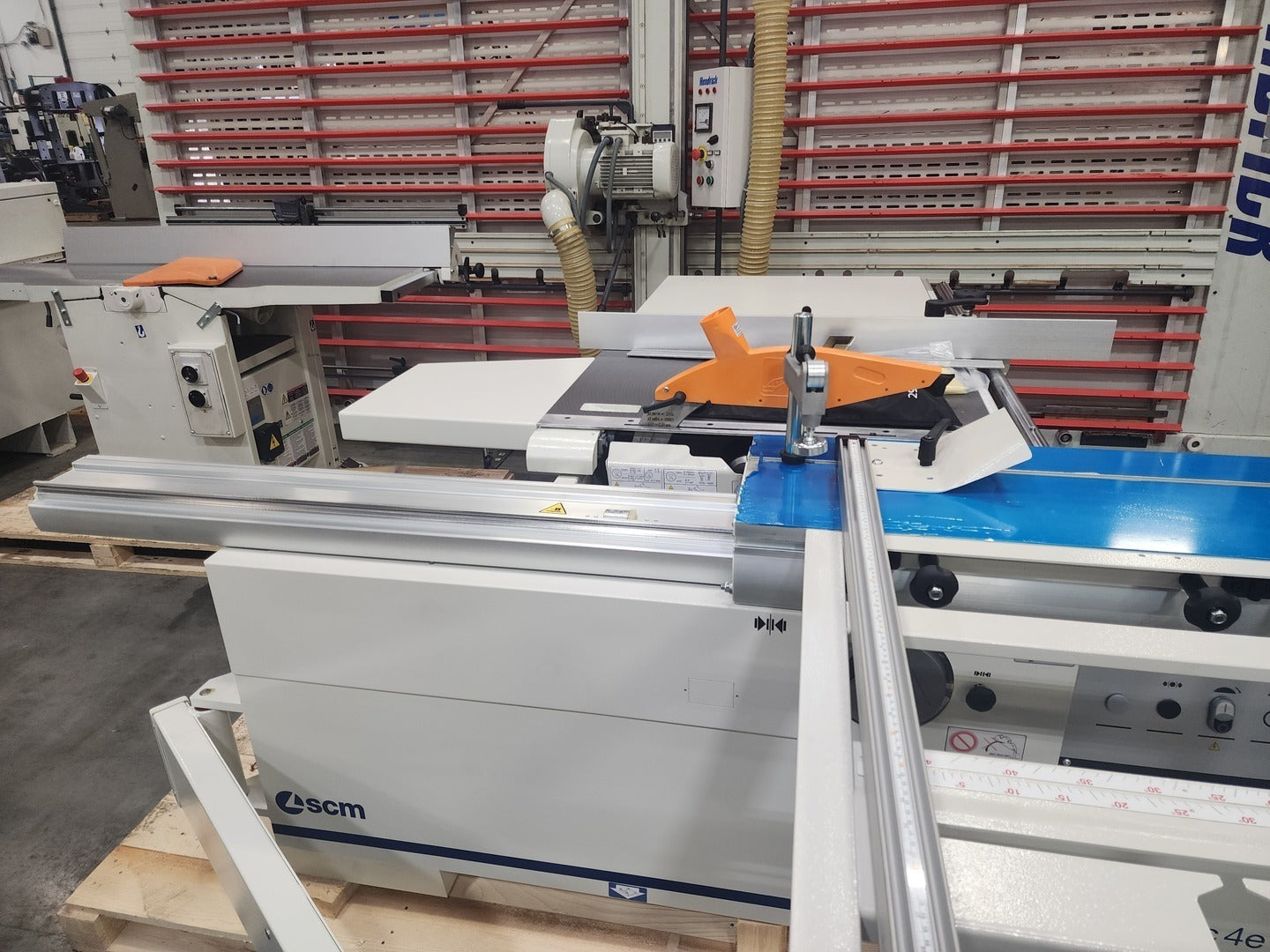

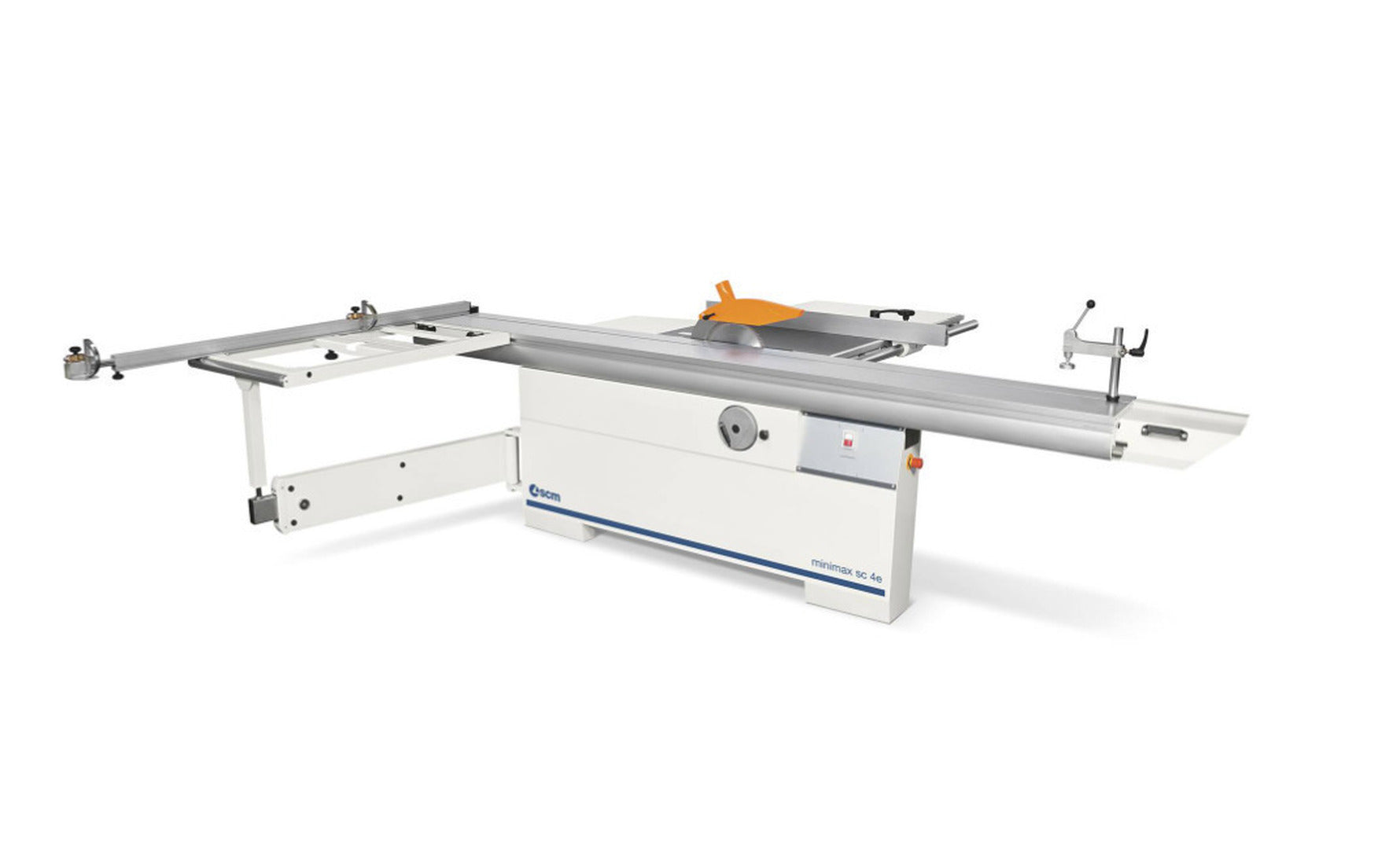

minimax sc 4e Circular Saw with Tilting Blade

SKU: 90100
Save $700 CAD

$13,300 CAD $14,000 CAD

Shipping calculated at checkout

In stock
Make an Offer

Need An Answer Now?


Model minimax sc 4e
Made In Italy
Condition New
Shipping Dimensions: 110 x 42.5 x 43.7 inches
Horsepower 4.8 hp
Table Size 33" x 22"
Blade Diameter 12
Voltage 220 volts
Phase Single-phase
Saw Type Sliding Saw
Other Specifications
Cast iron saw-spindle moulder worktable dim.: 840 x 560 mm
Blades Tilting: 90o ÷ 45o
Max. Saw Blade w/ Scoring Blade Installed: 315 mm
Max. Saw Blade Projection from Table at 90o ÷ 45o: 100/71 mm - 3.94/2.75 in.
Max. Squaring Stroke: 2600 mm
Cutting width with parallel fence: 1270 mm

Additional Features
  • Belt driven scoring unit complete with blade:
  • With external setting up
  • Blade diameter 100 mm Z 20
  • "Dado set" capability:
  • (Tools with max. diameter 203.2 mm / 8" excluded)
  • The machine is supplied with saw spindle, 5/8" diameter (1 on si 315es and si 400es)

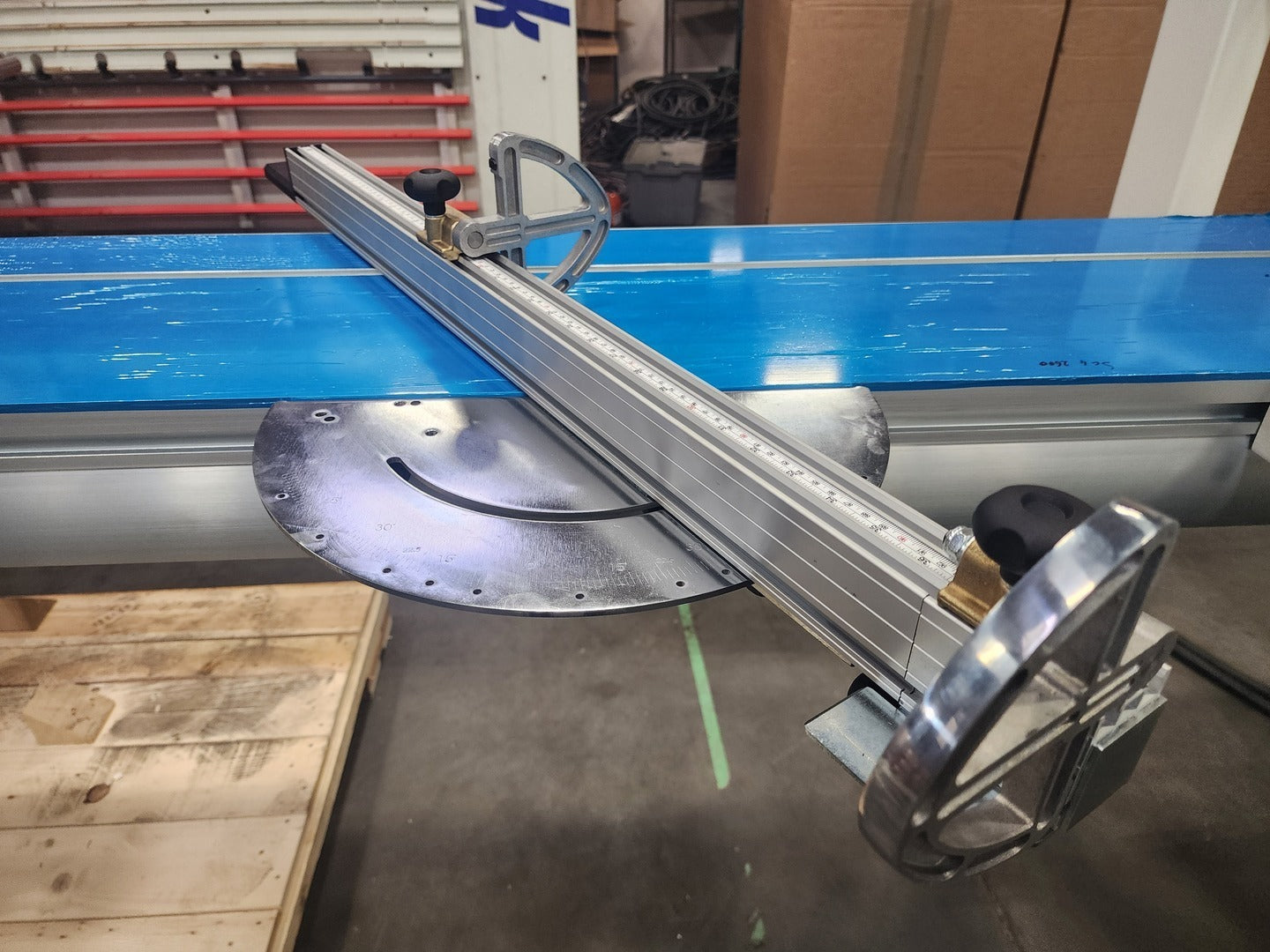

  • Angular cutting device with flip-over stops, equipped with:
  • Telescopic fence with two flip-over stops
  • pre-set for angle rapid selection
  • Additional table on the sliding table, for the support of panels with large dimensions
  • Triple wall for 2600 mm sliding table
