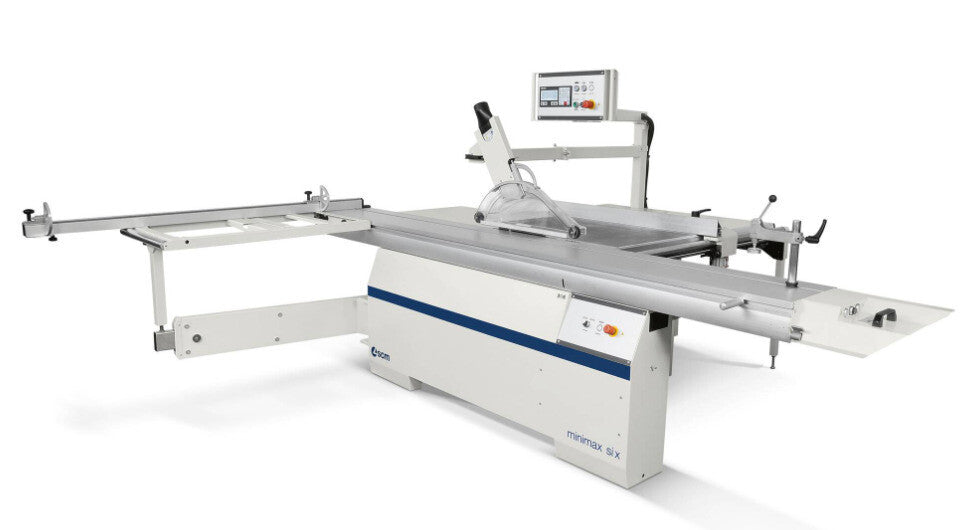

minimax si x Circular Saw w/ Tilting Blade

SKU: 90122
Save $6,045 CAD
Price:
$34,255 CAD $40,300 CAD

Shipping calculated at checkout

Stock:
In stock
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model minimax si x
Made In ITALY
Condition New
General
Horsepower 11 hp
Table Size 1000 x 685 mm
Voltage 600 volts
Phase 3-phase
Saw Type Sliding Saw
CNC Yes
Other Specifications

Blades tilting: -46o to +46o

Max. saw blade diameter with scoring blade installed: 400 mm

Max. saw blade projection from table at 90o/45o: 136/97/60 mm

Scoring blade diameter: 160 mm

Max. squaring stroke: 3200 mm

Cutting width on parallel fence: 1270 mm

Scorer motor: 0.9 kW (1.2 hp) 60 Hz

Exhaust outlets diameter: 120 - 80 mm

Standard Equipment

  • Squaring frame (dimensions 1200 x 650 mm) with:
  • telescopic fence with 2 flip-over stops and metric rule tilted towards the operator
  • eccentric clamp
  • swinging arm support
  • idle roller to facilitate the panel loading/unloading
  • Dedicated saw parallel fence with:
  • "high rigidity" cast iron fence support
  • micrometric adjustment and cam-locking system
  • rectified steel round sliding bar, 45 mm diameter

"Ready 3 UP" Version electronic control, 3 axes control

  • Control of blades unit lifting/tilting
  • Tools data setting with automatic height adjustment with respect to the tilting
  • Mode: manual, semi-automatic and automatic with memory capacity up to 99 programs
  • Additional functions: calculator and hour counter
  • Powered parallel fence with electronic programmer
  • position readout on encoder
  • adjustment by means of recirculating ball screws
  • continuously adjustments by means of pushbuttons or automatic positioning
  • possibility of incremental positioning
  • possibility of fence exclusion

Additional Features

  • Angular cutting device with flip-over stops, equipped with:
  • telescopic fence with two flip-over stops
  • pre-set for angle rapid selection
  • Squaring fence with no. 2 LCD readouts for stops position
  • Third squaring stop with LCD display for the position readout
  • Additional table on the sliding table
  • Crate
  • Triple Wall box
  • Delivery Ex Factory

PDF Specifications

PDF Footprint
