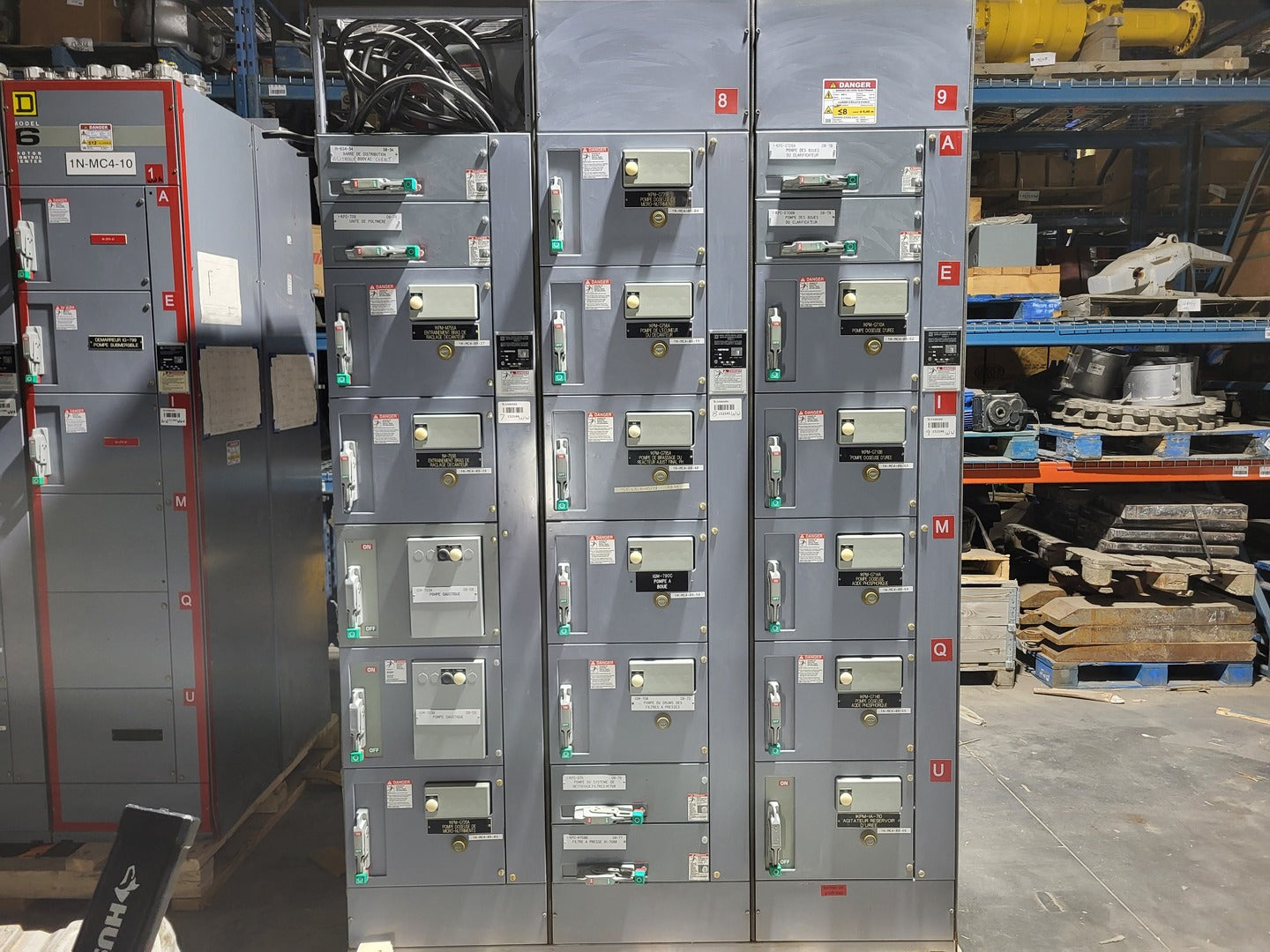

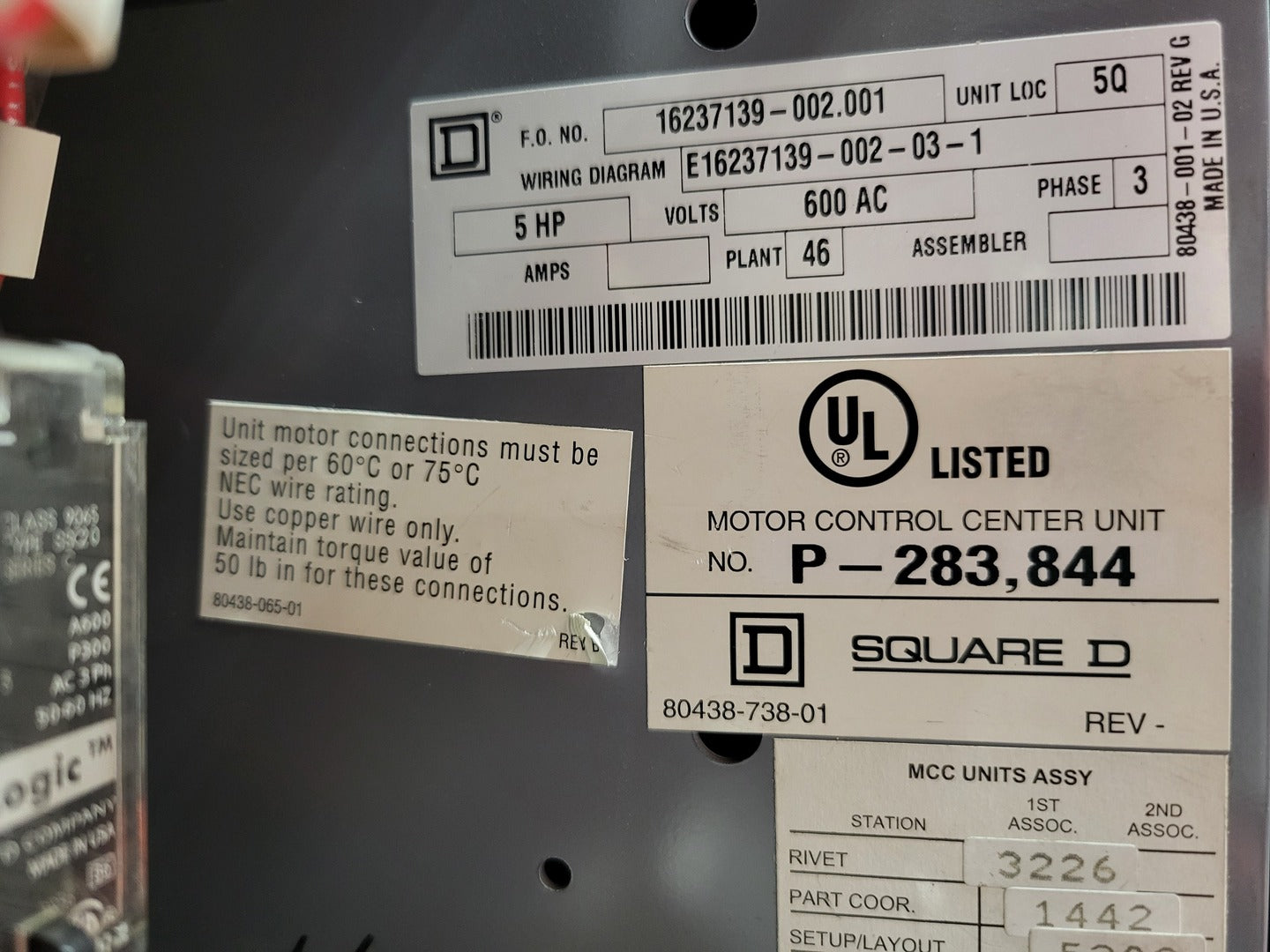

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

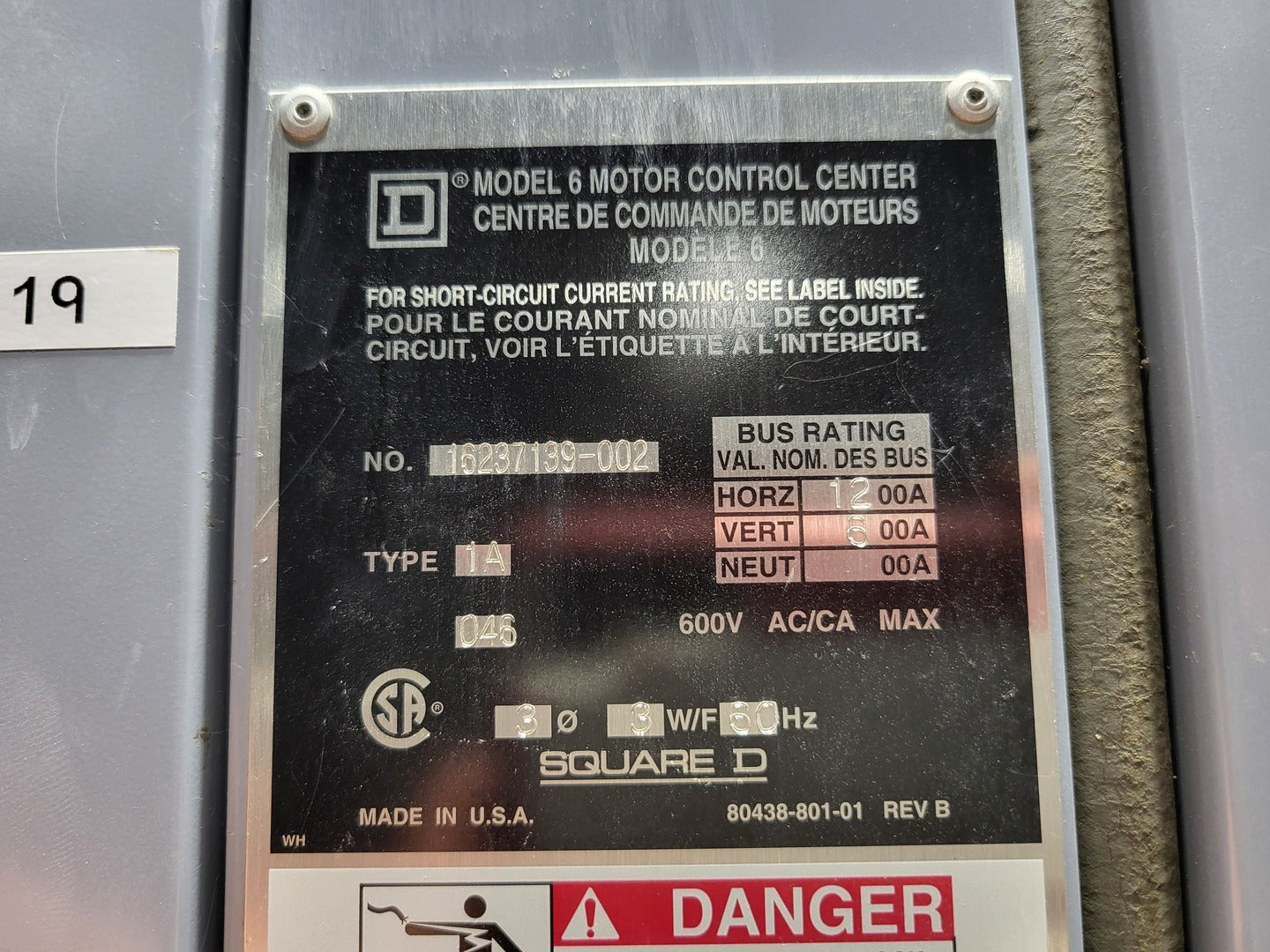

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 152145
Price:
$8,800 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications
Model Model 6
Condition Used
Other Specifications

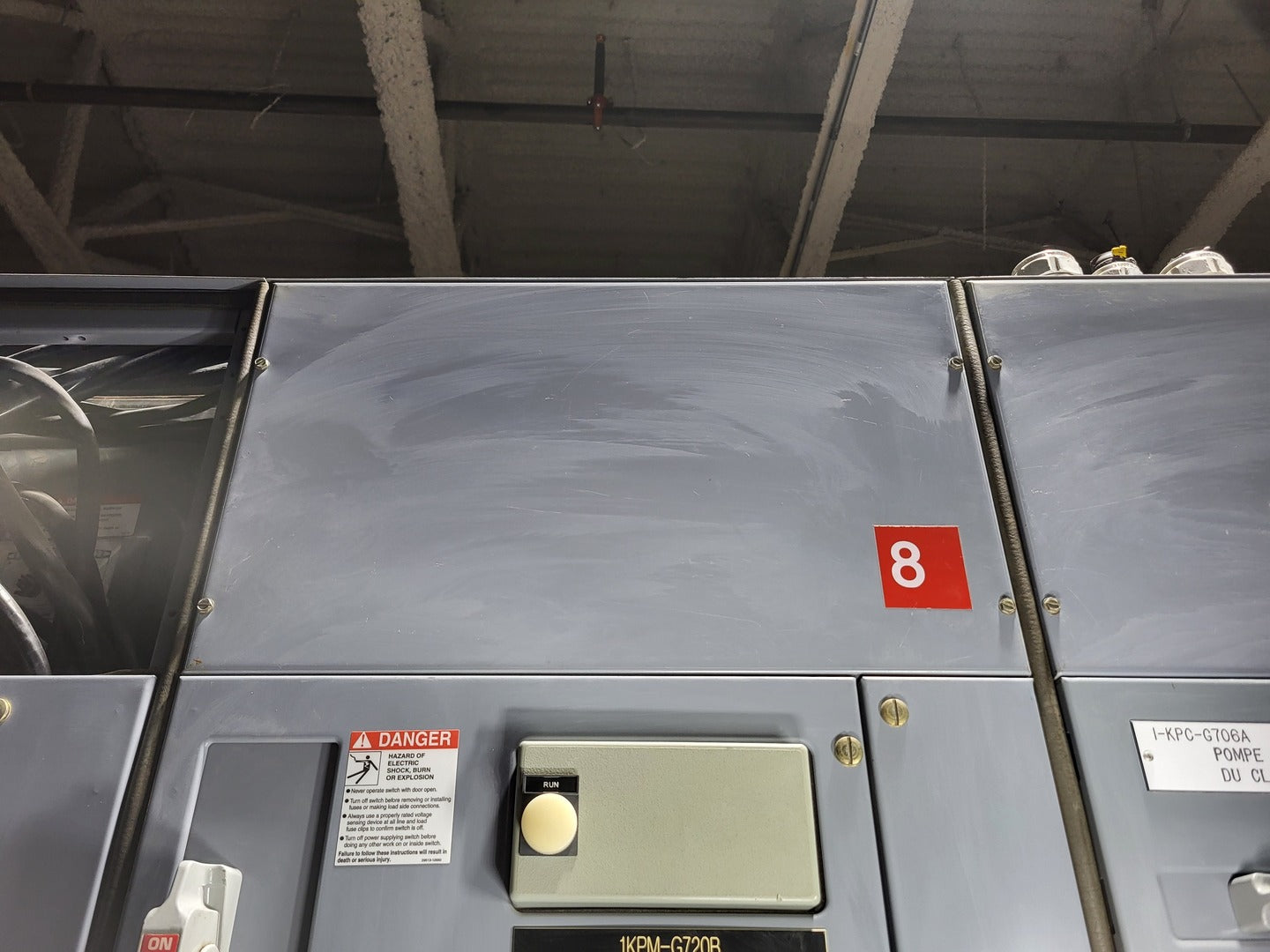

Note: Section 8 only

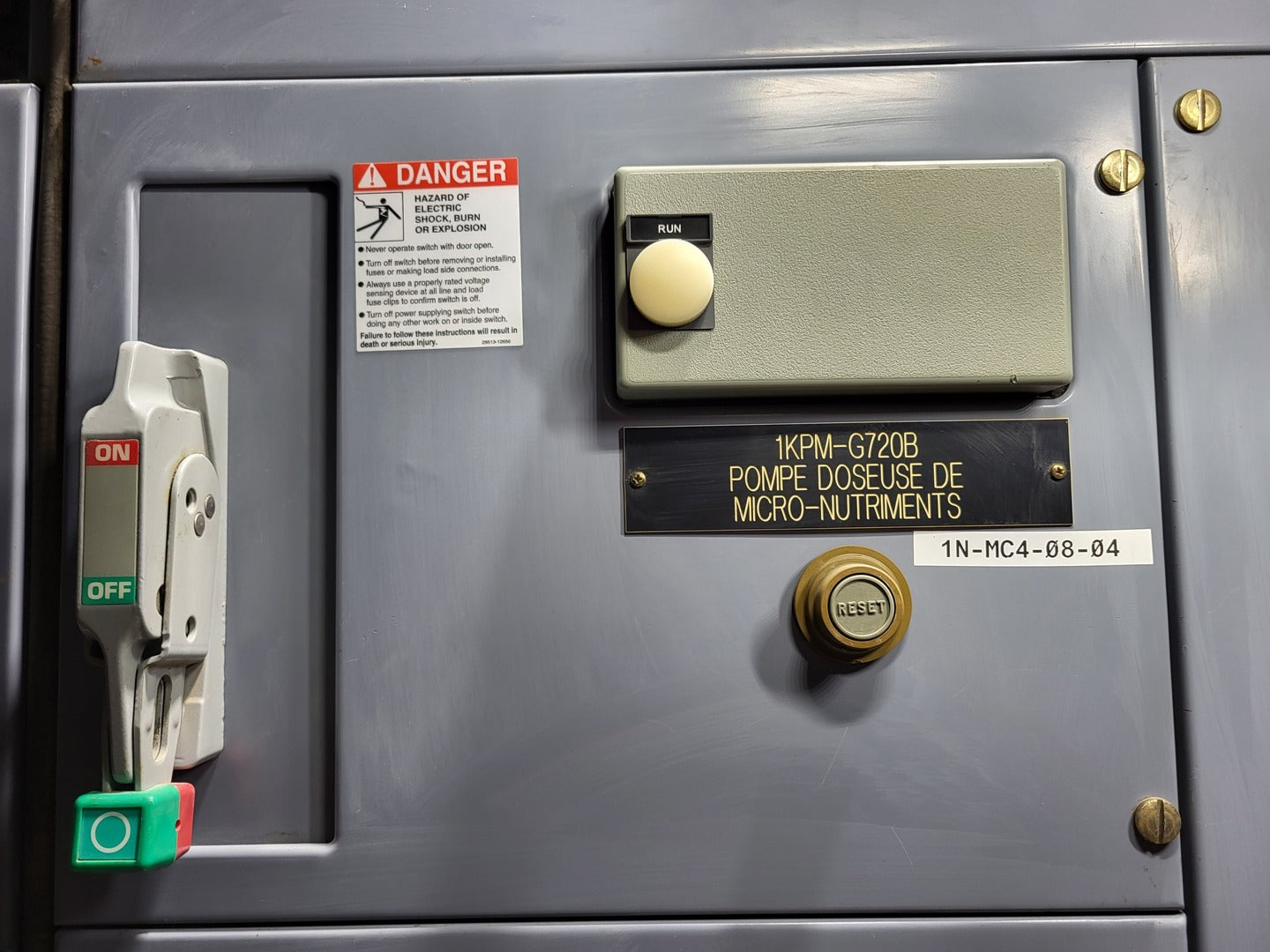

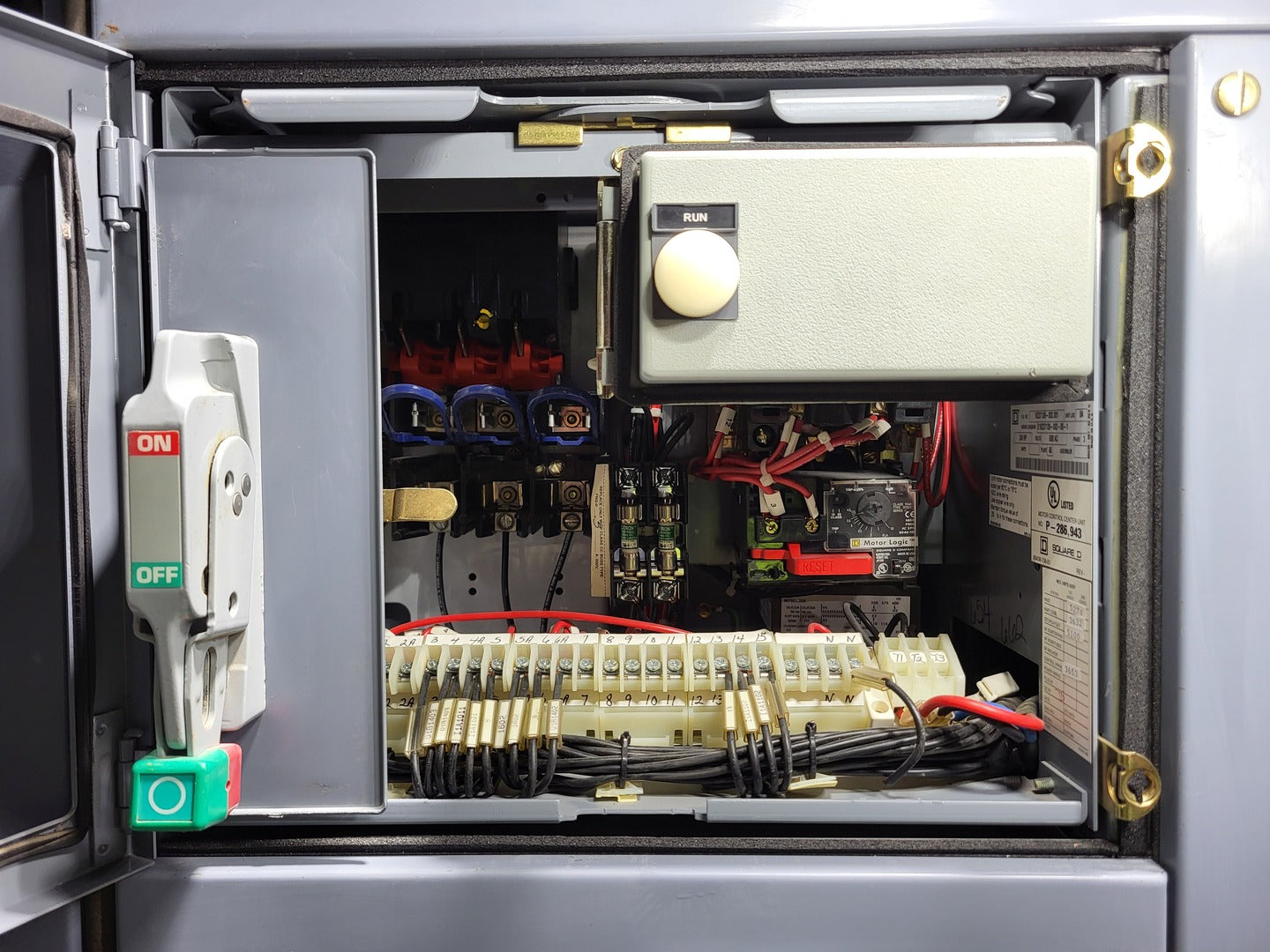

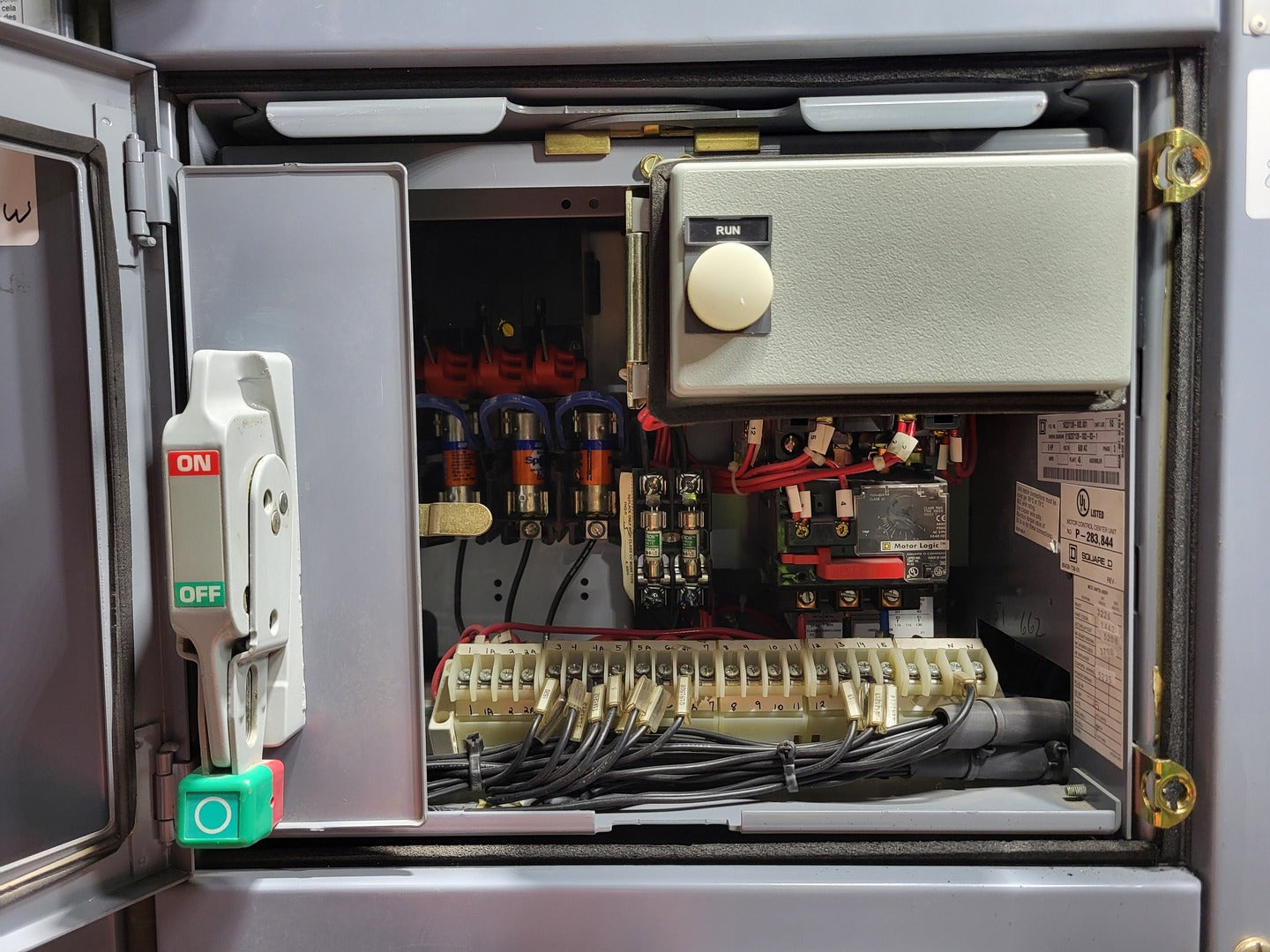

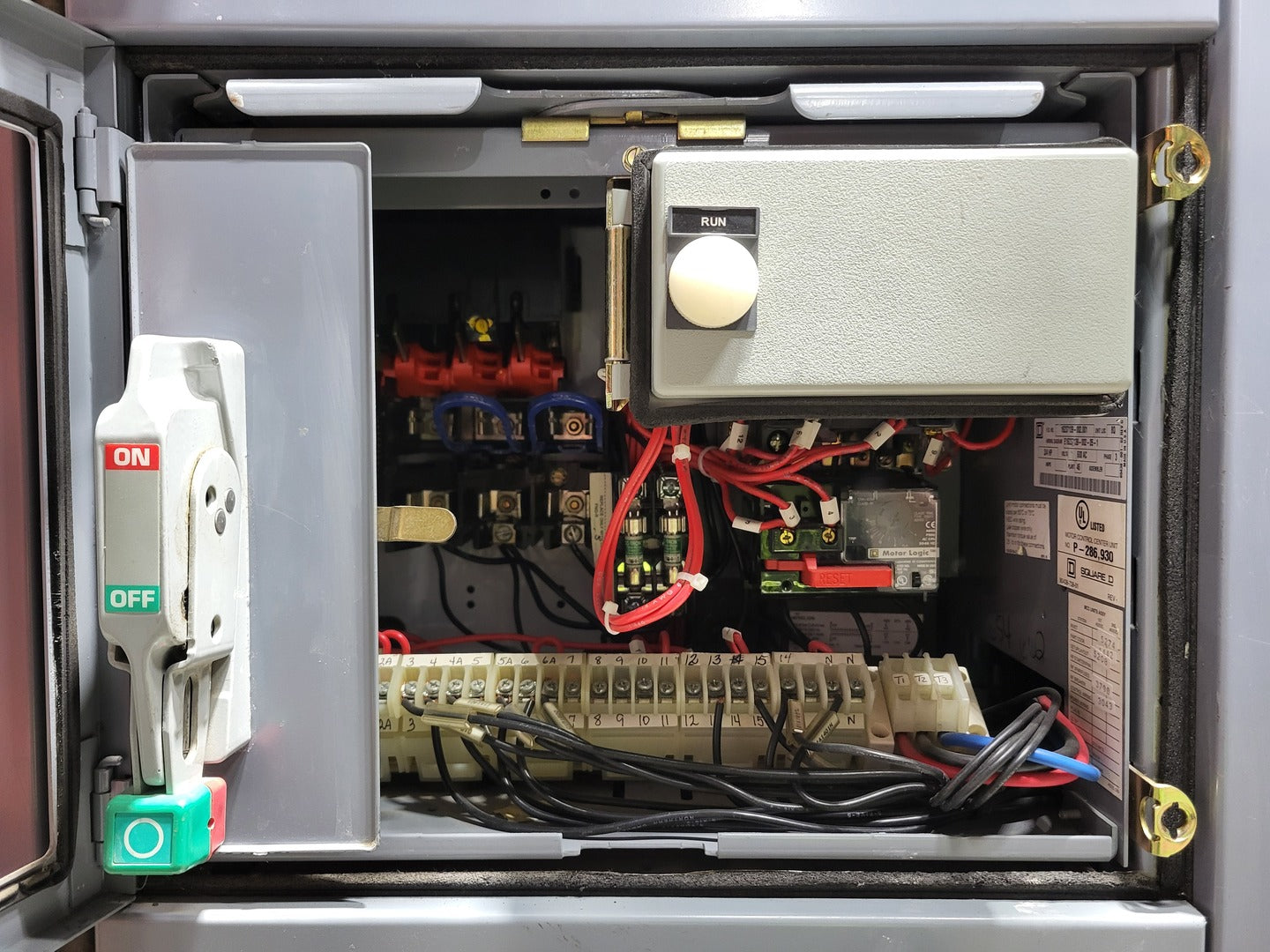

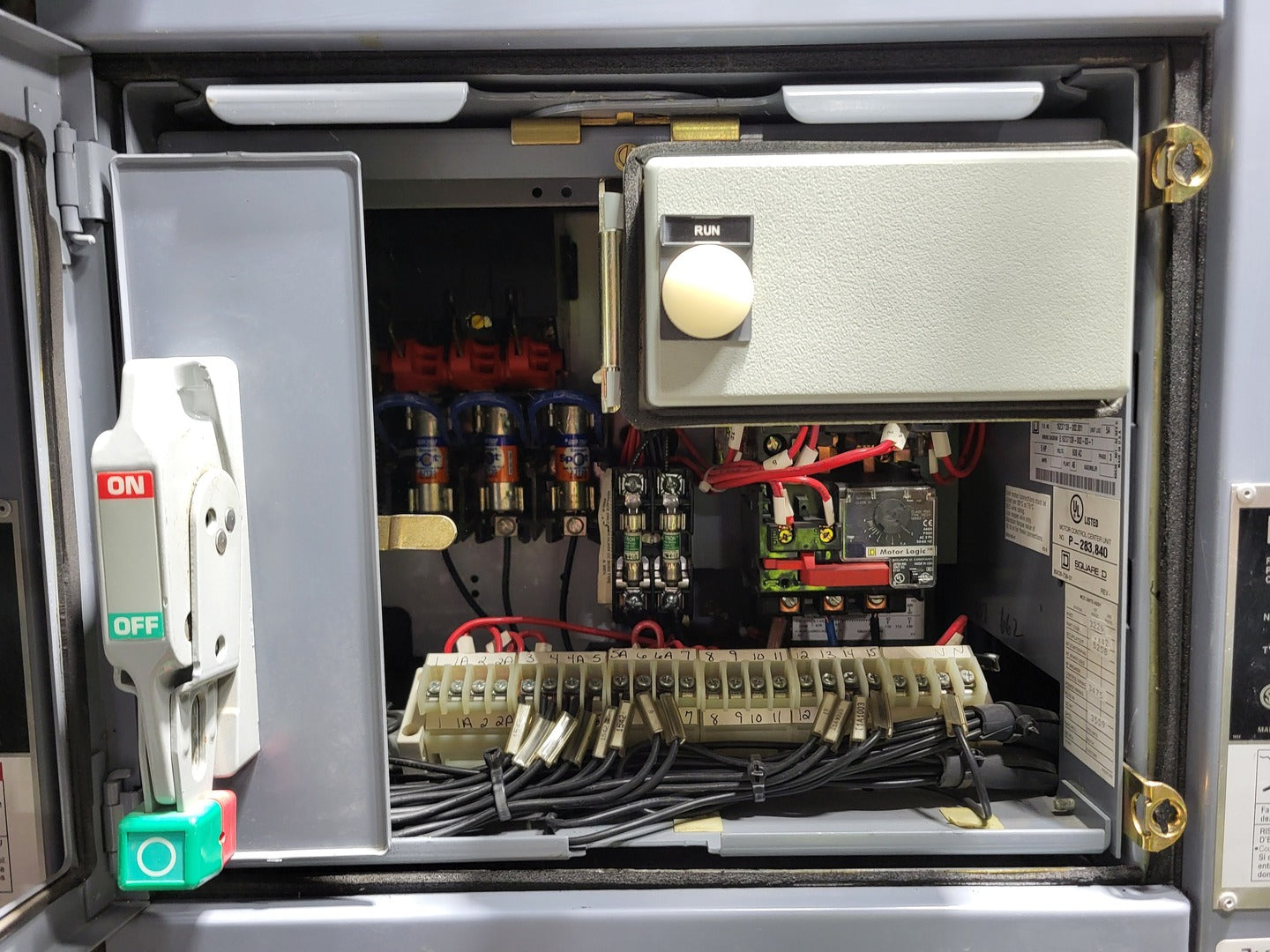

Bucket #1 1KPM-G720B

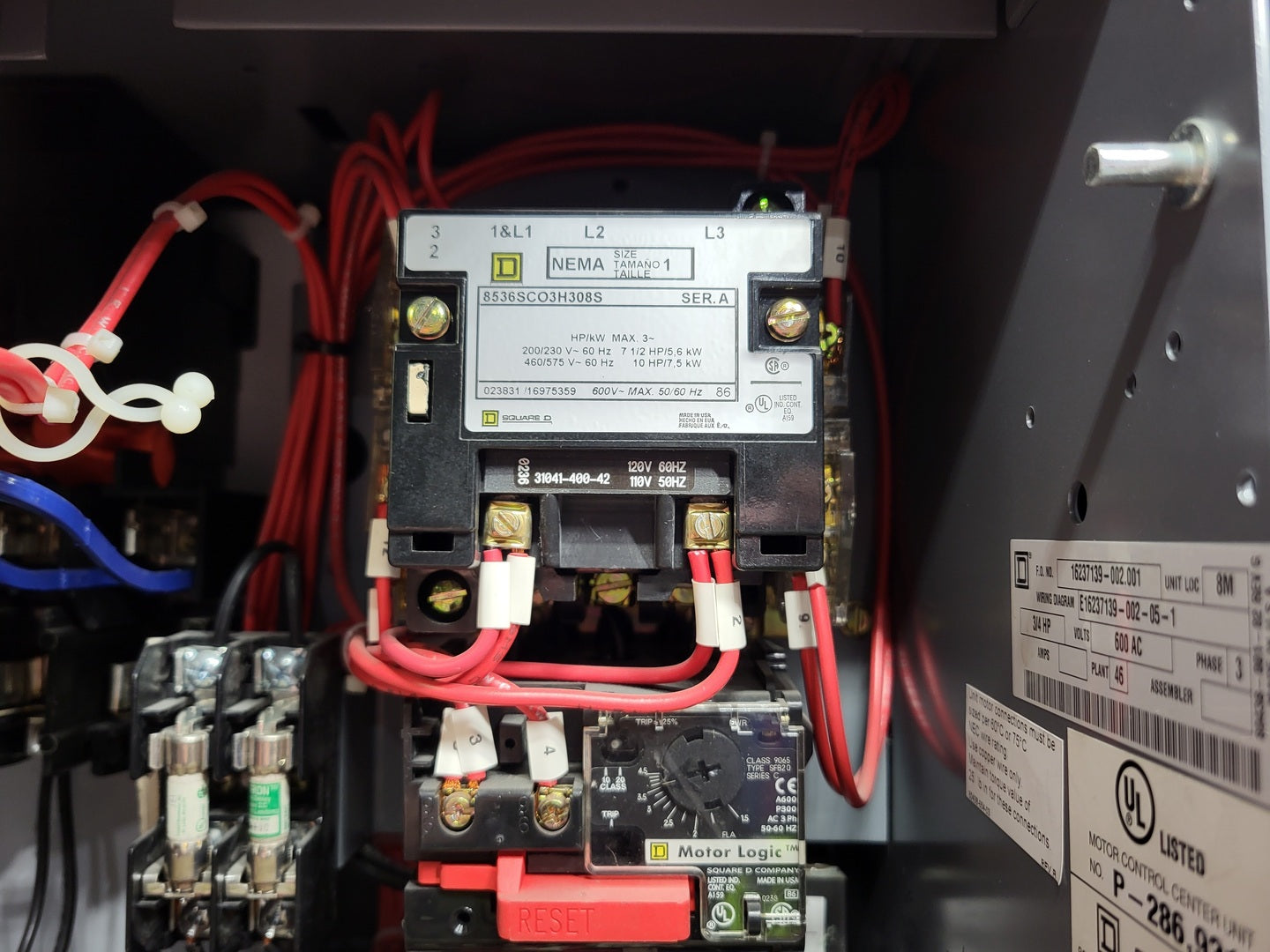

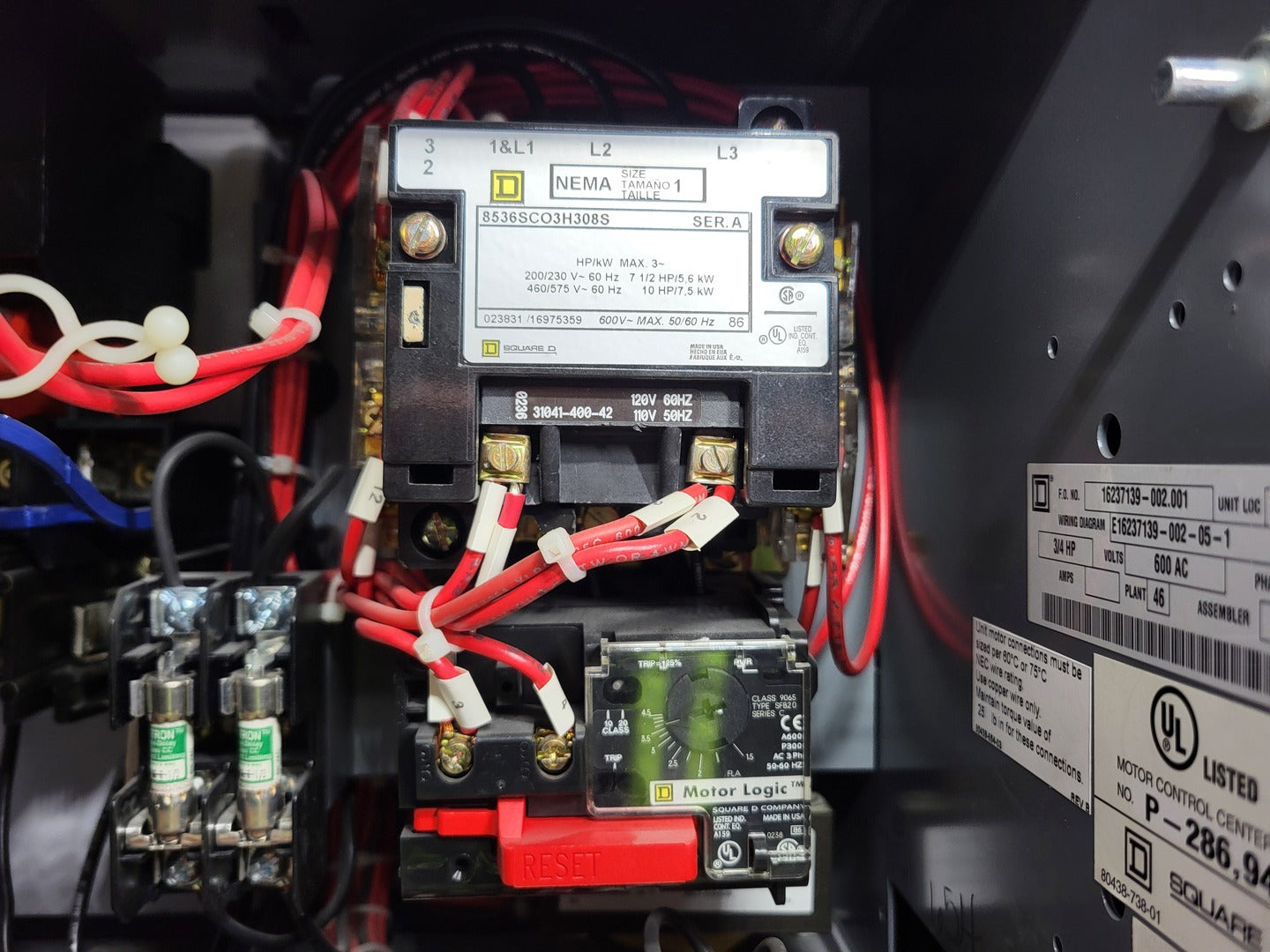

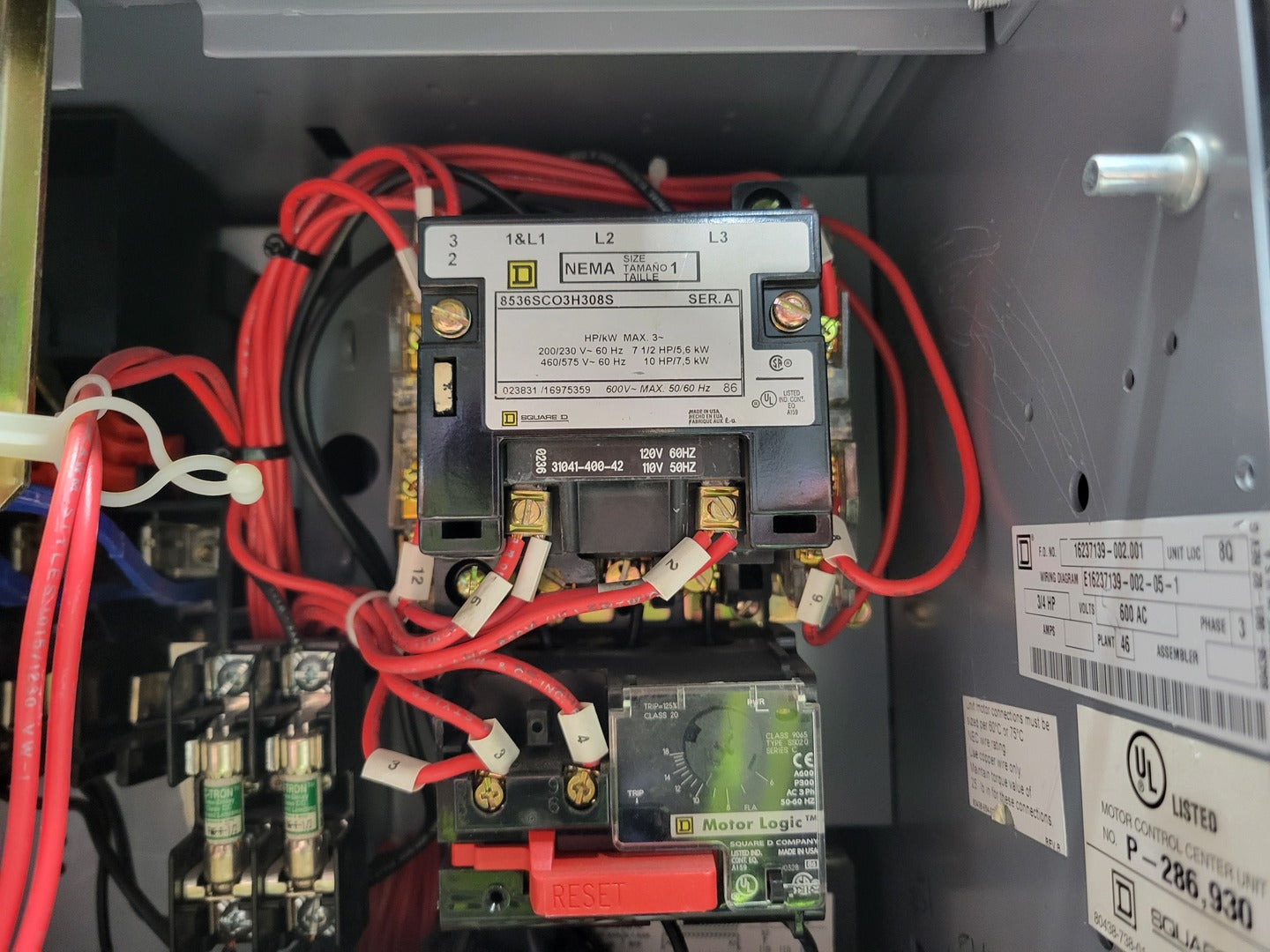

  1. Square D 8536SCO3H308S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V
  2. Square D Motor Logic 9065 SFB20 1.5-4.5 A motor protection relay

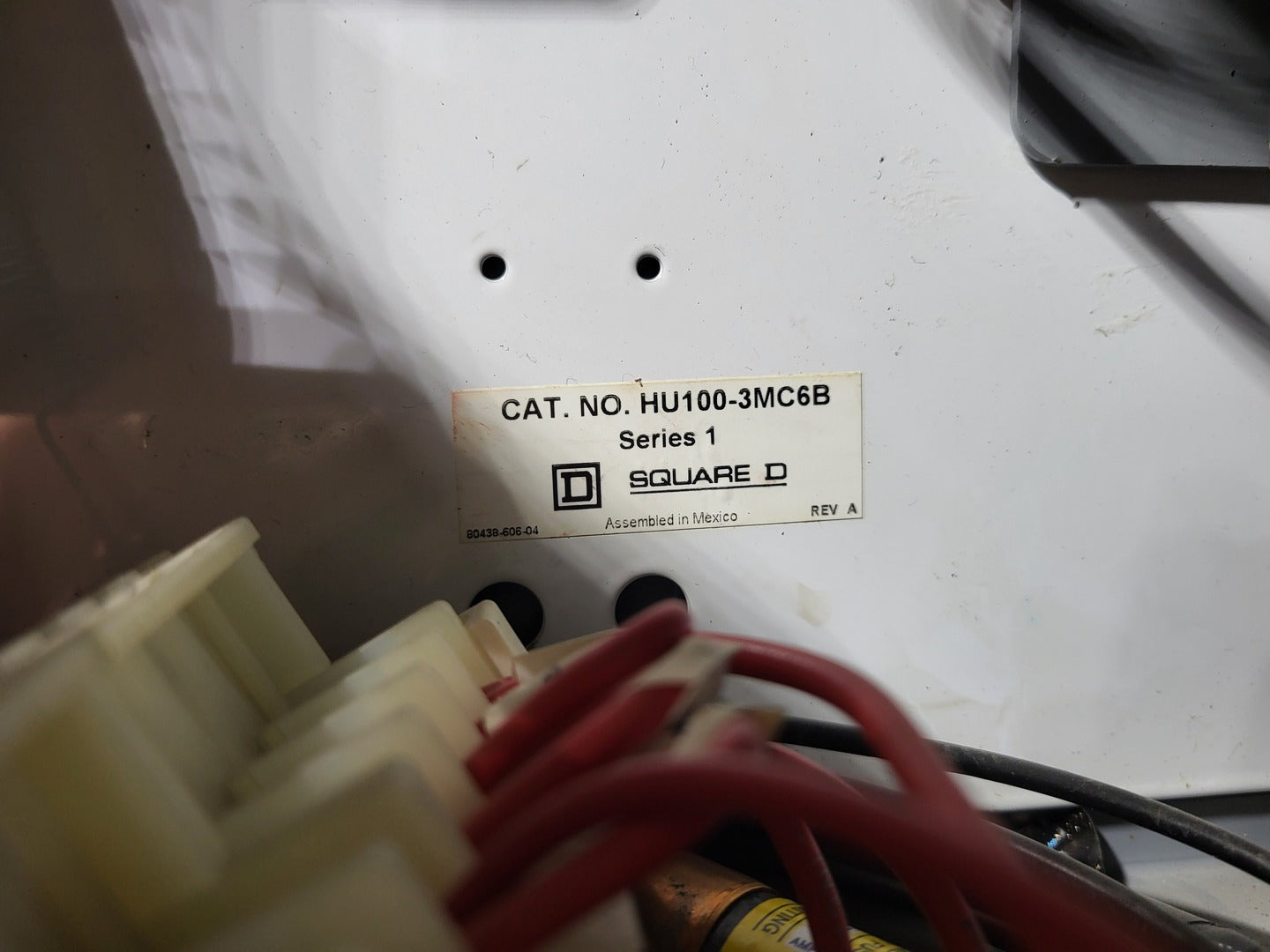

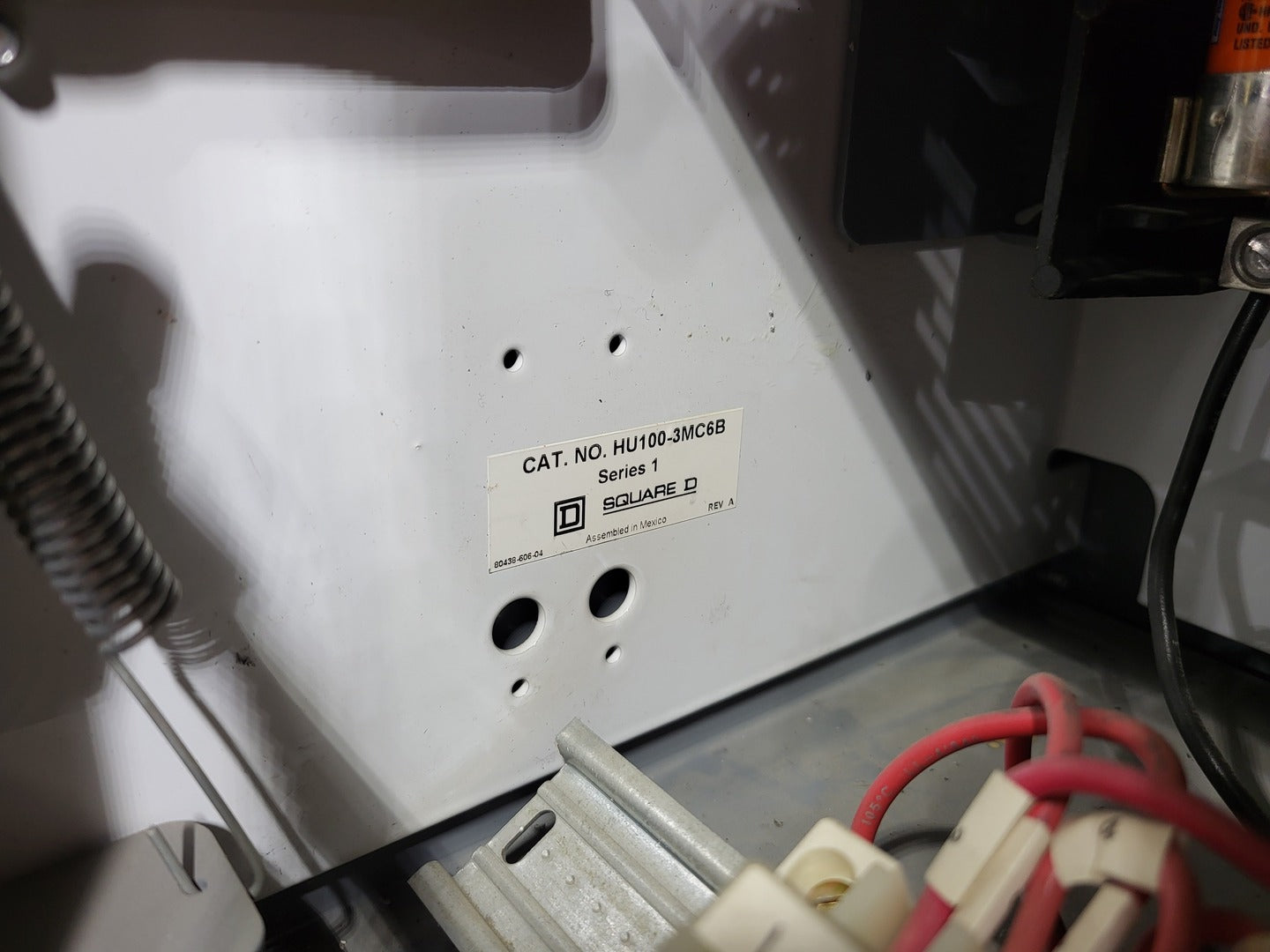

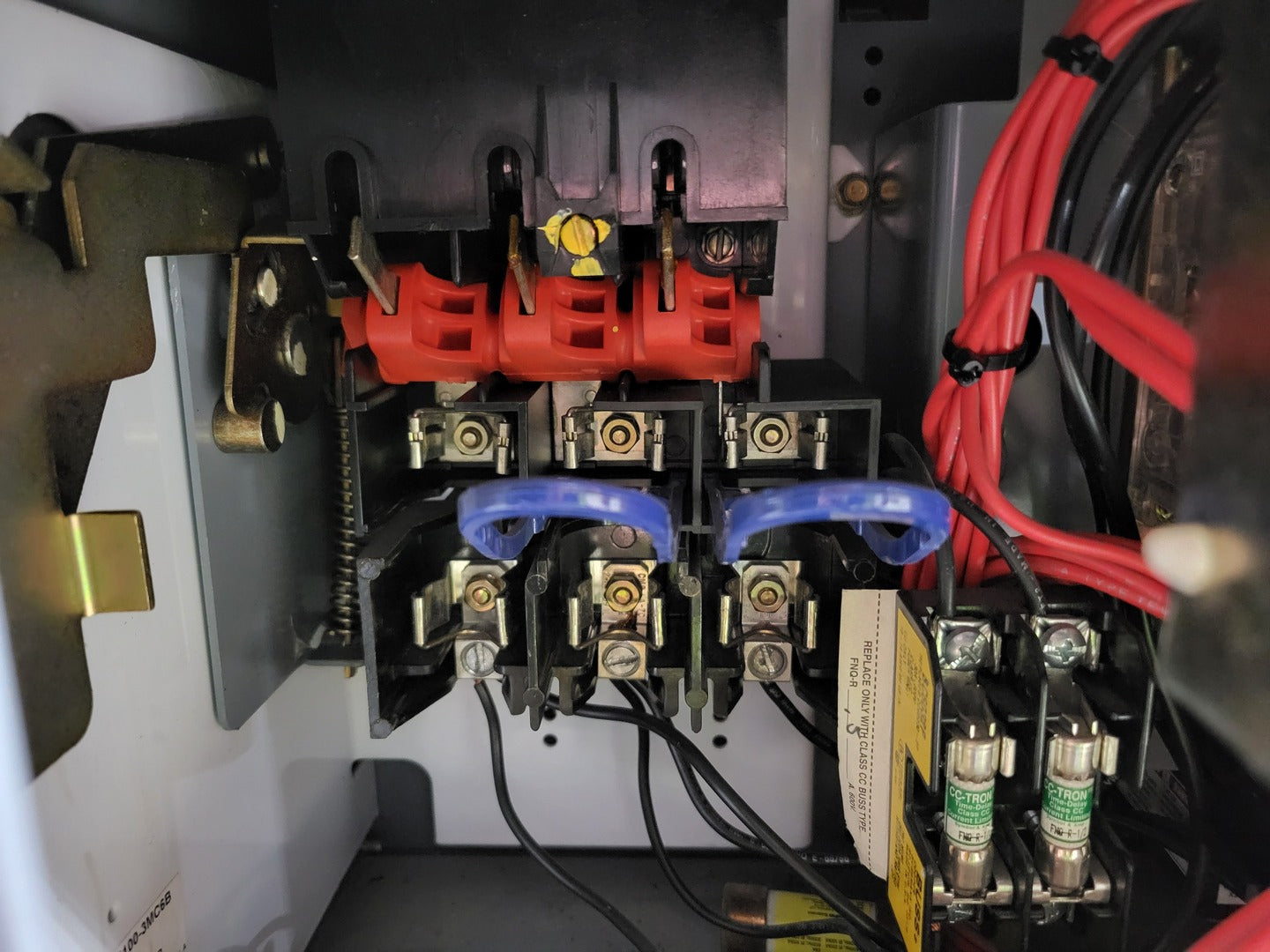

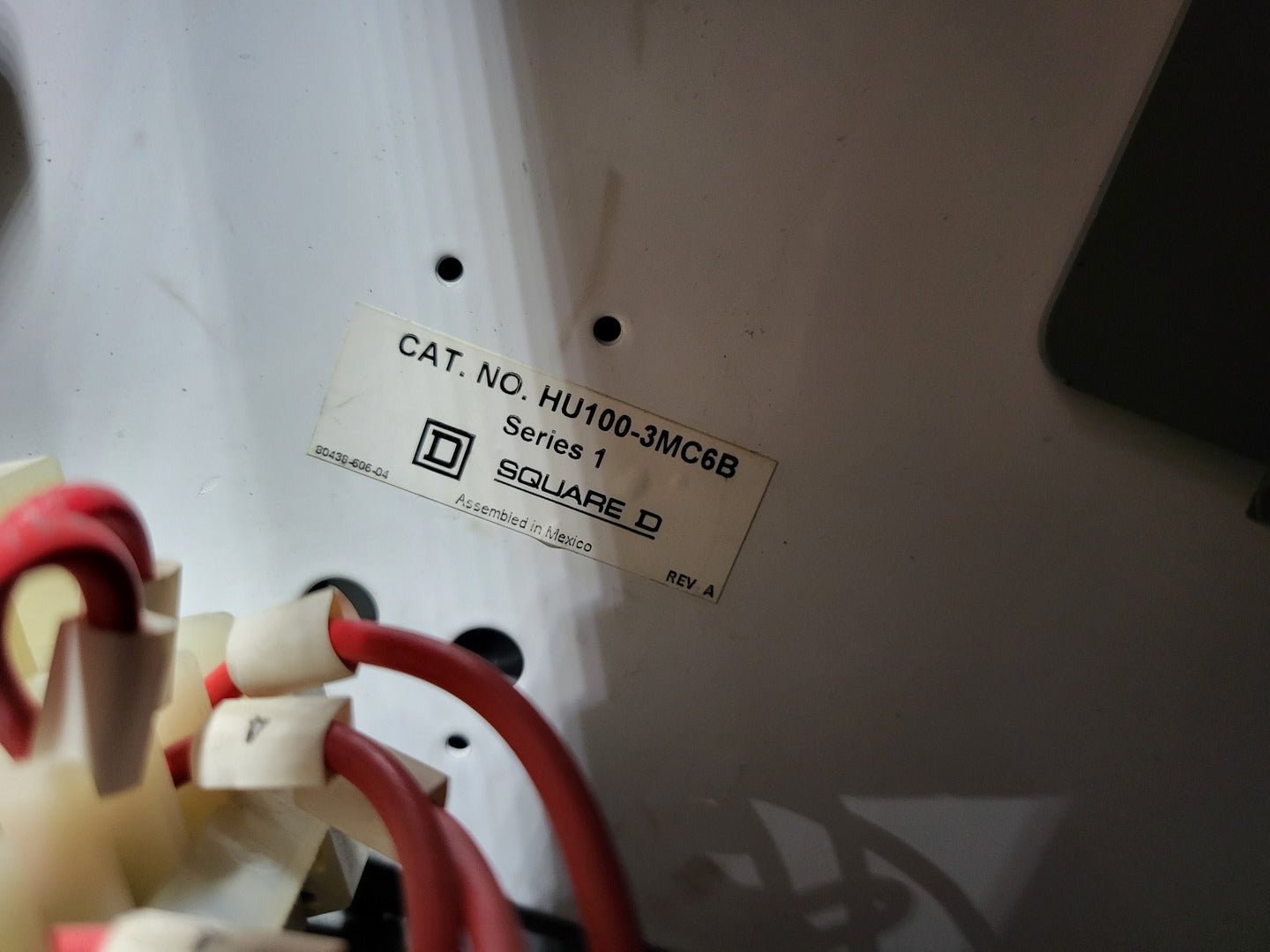

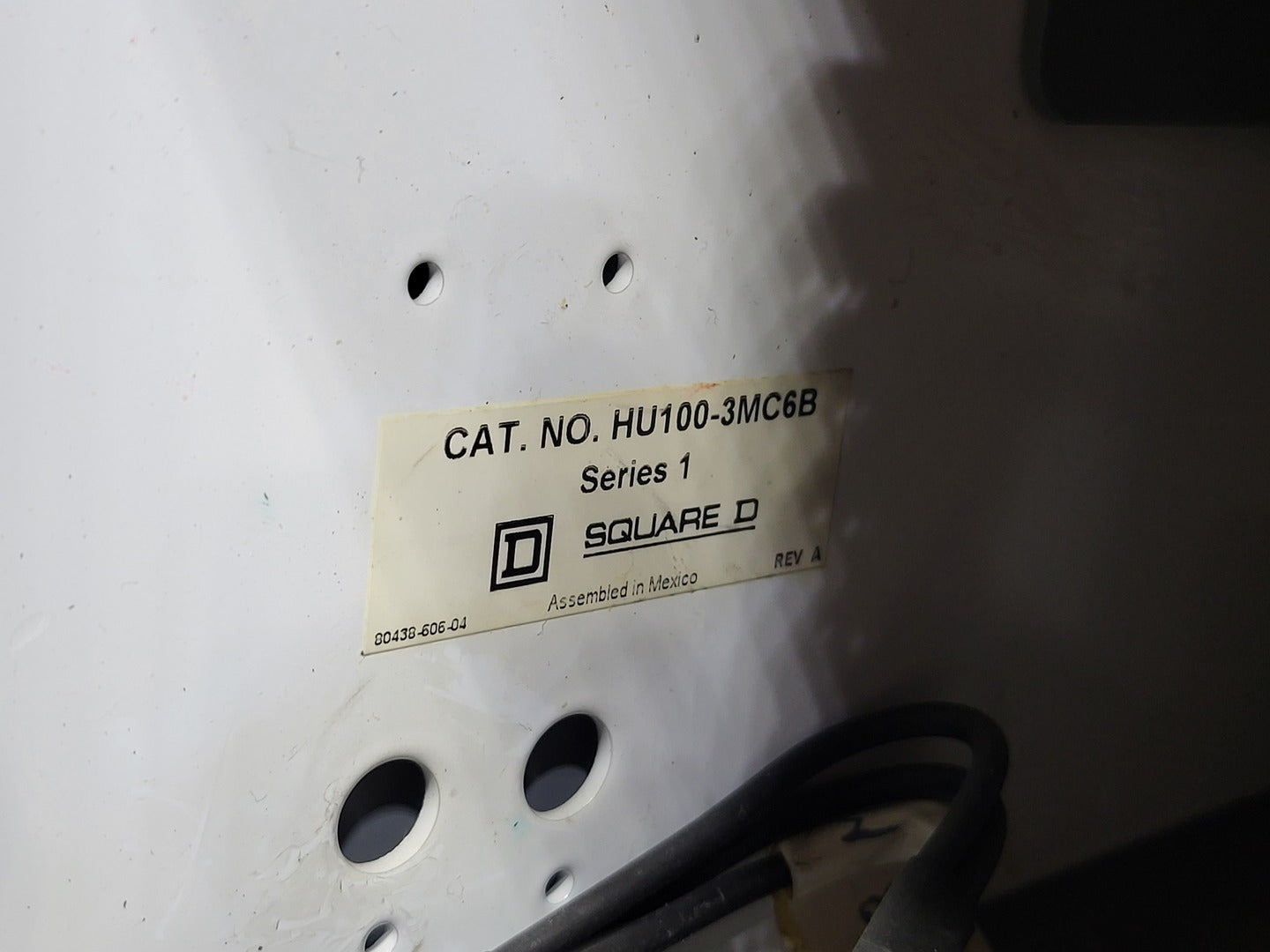

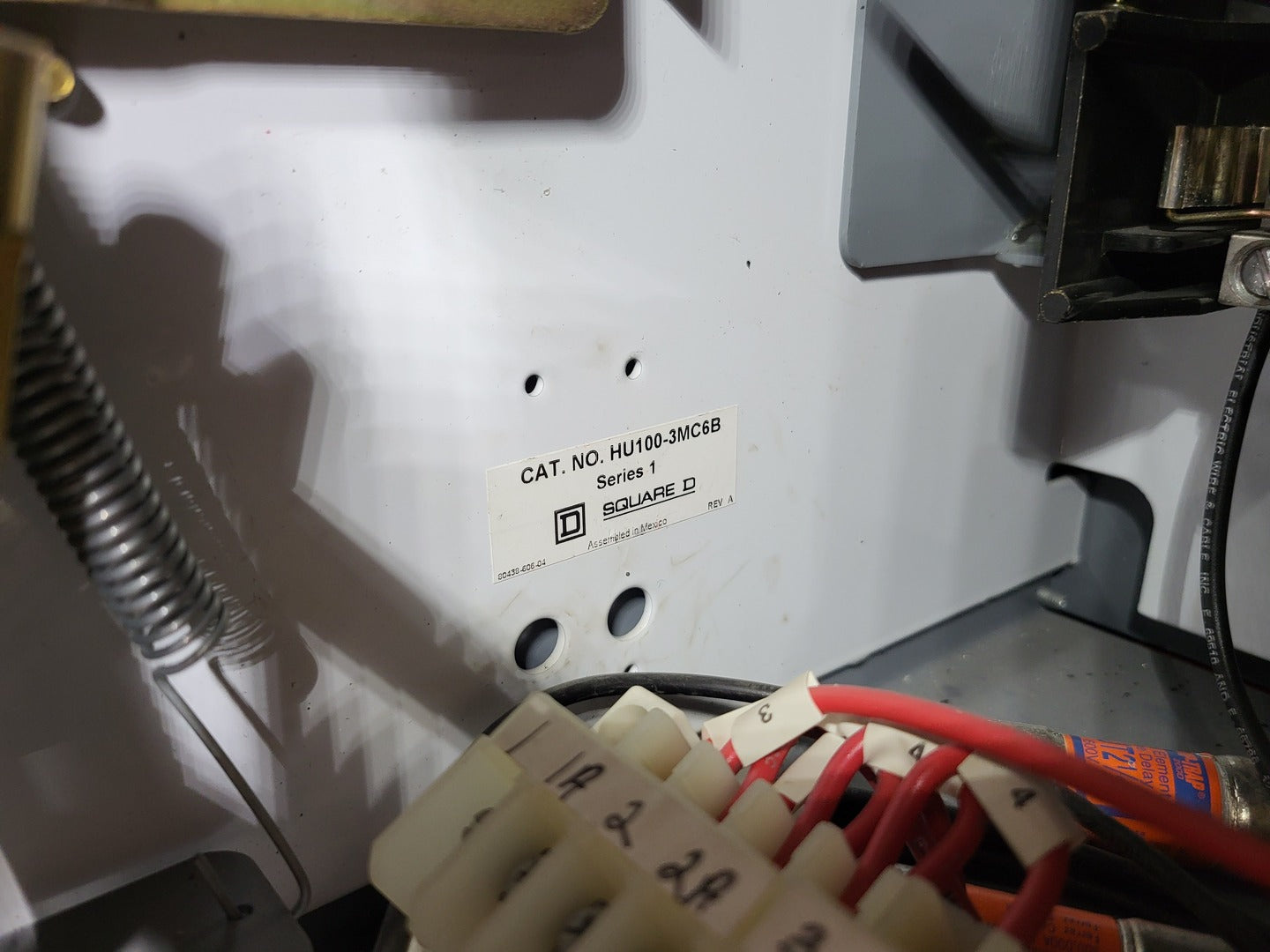

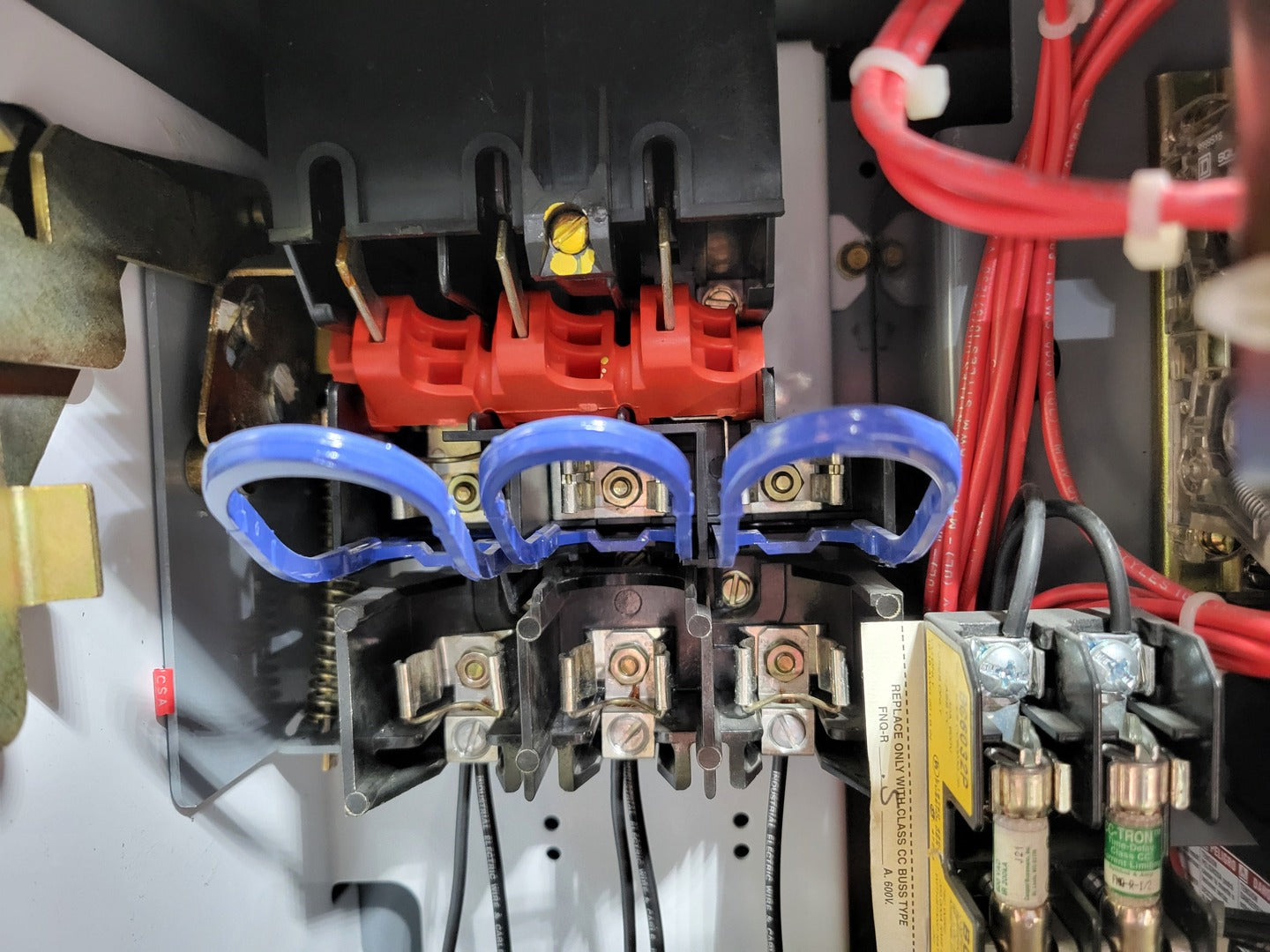

  3. Square D HU100-3MC6B, 100A MCC bucket disconnect unit

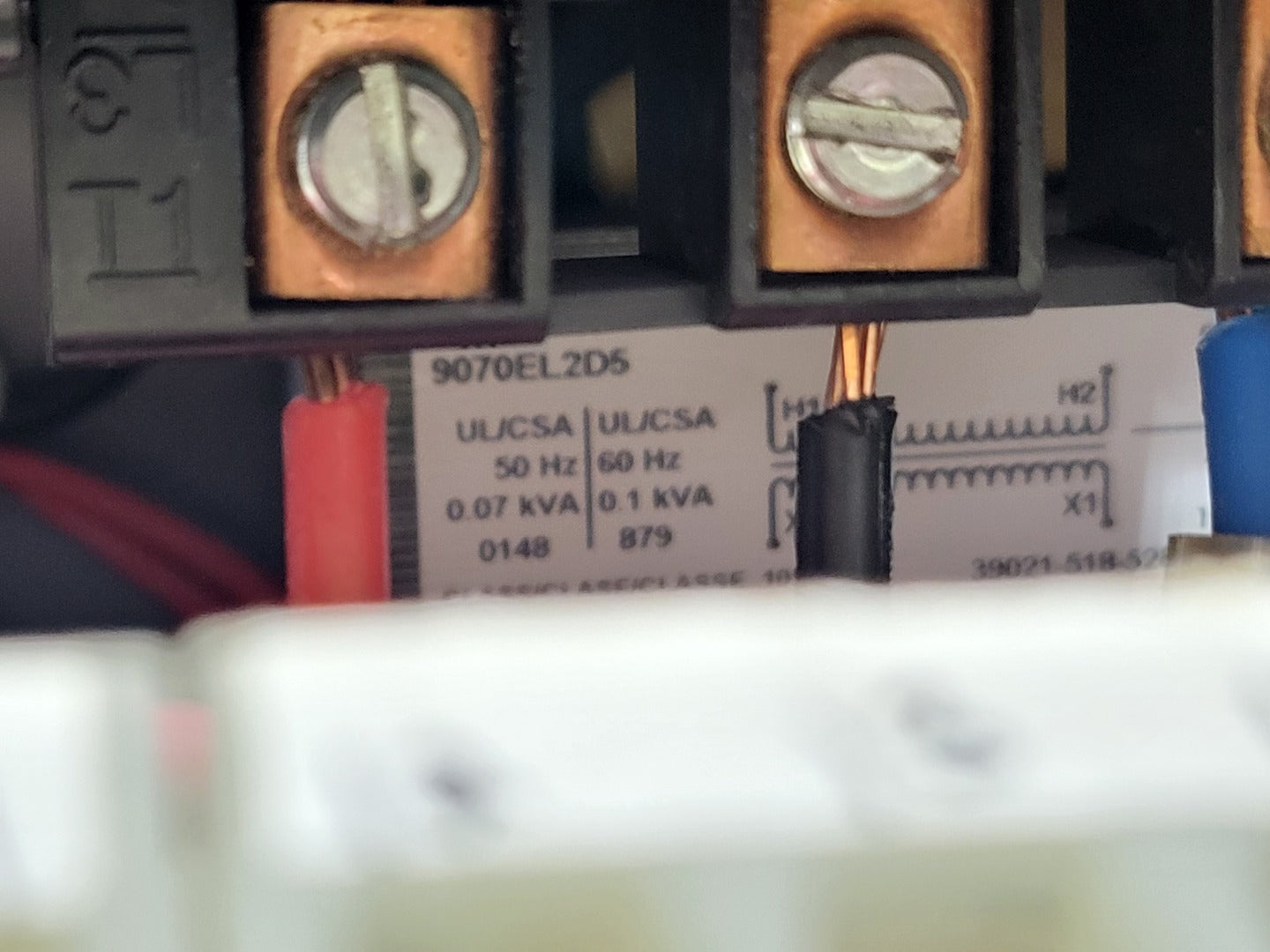

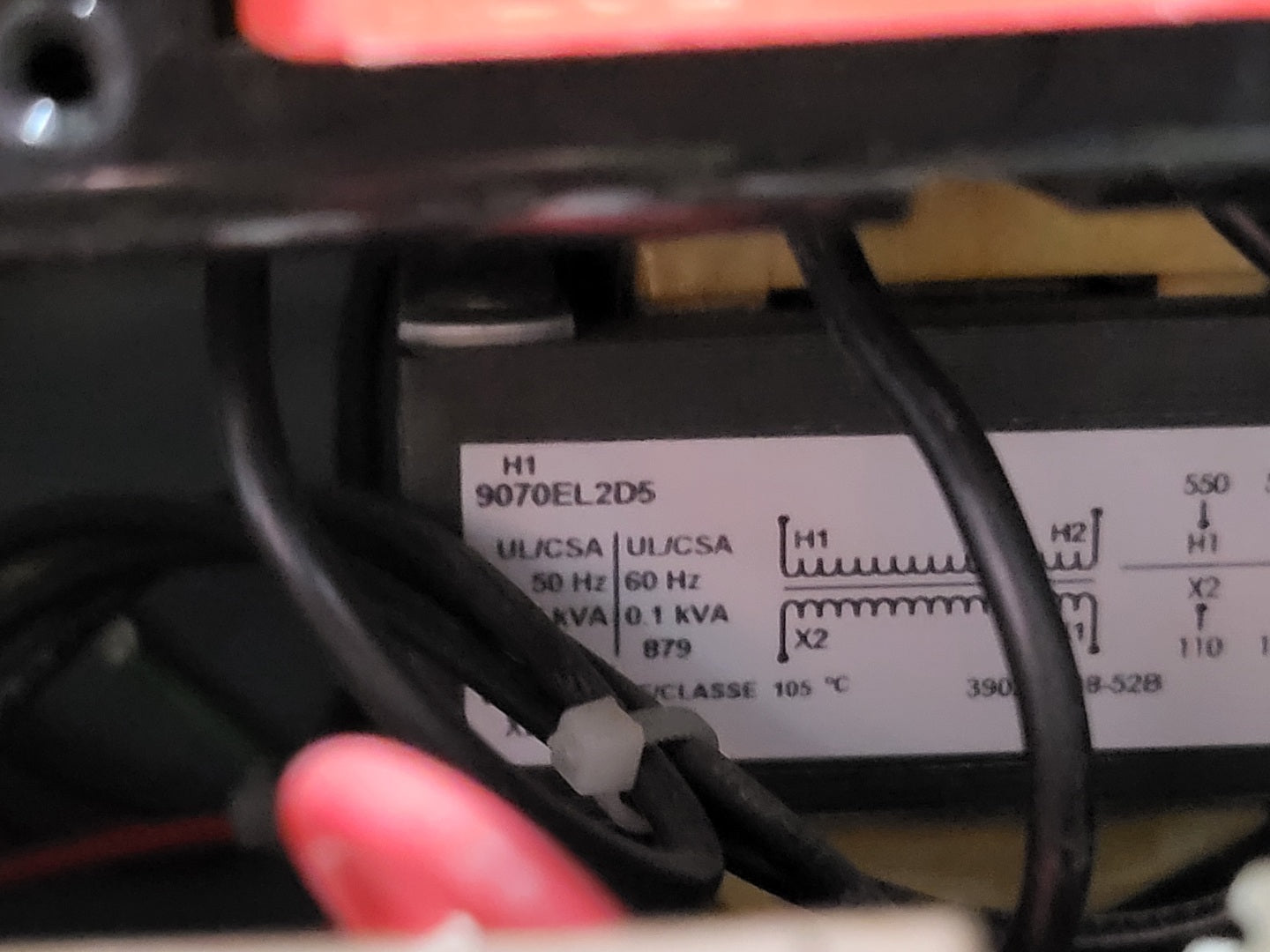

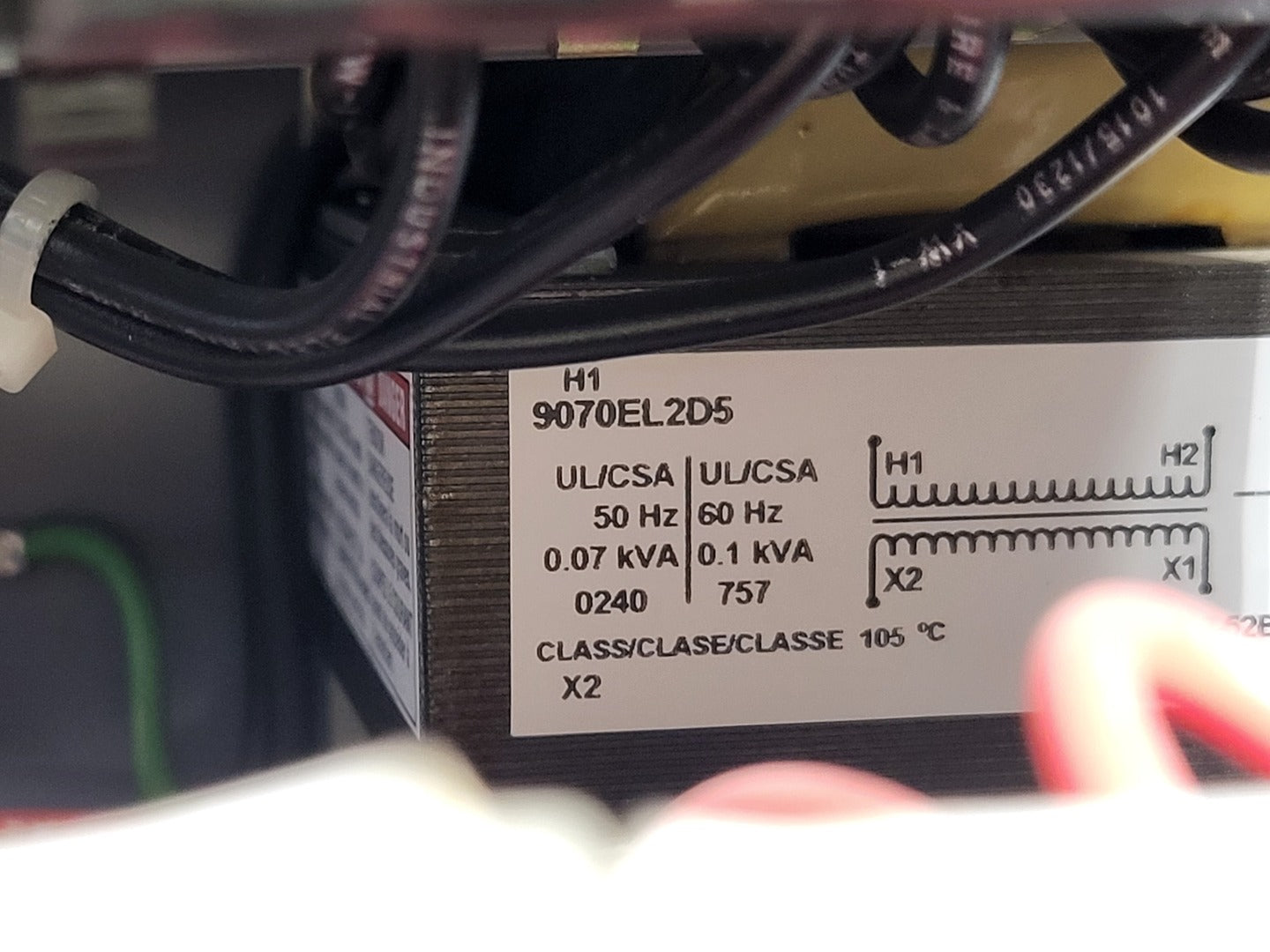

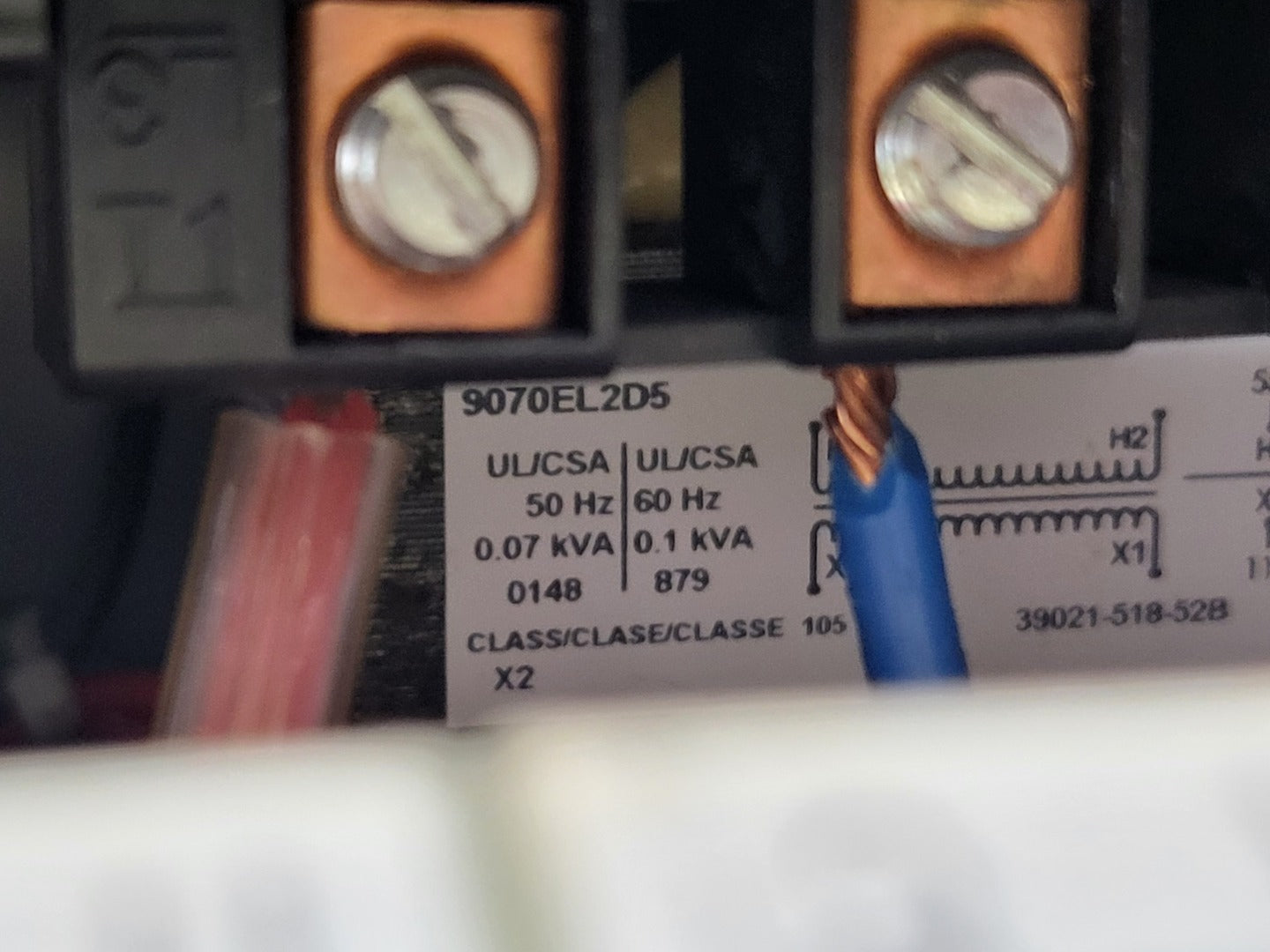

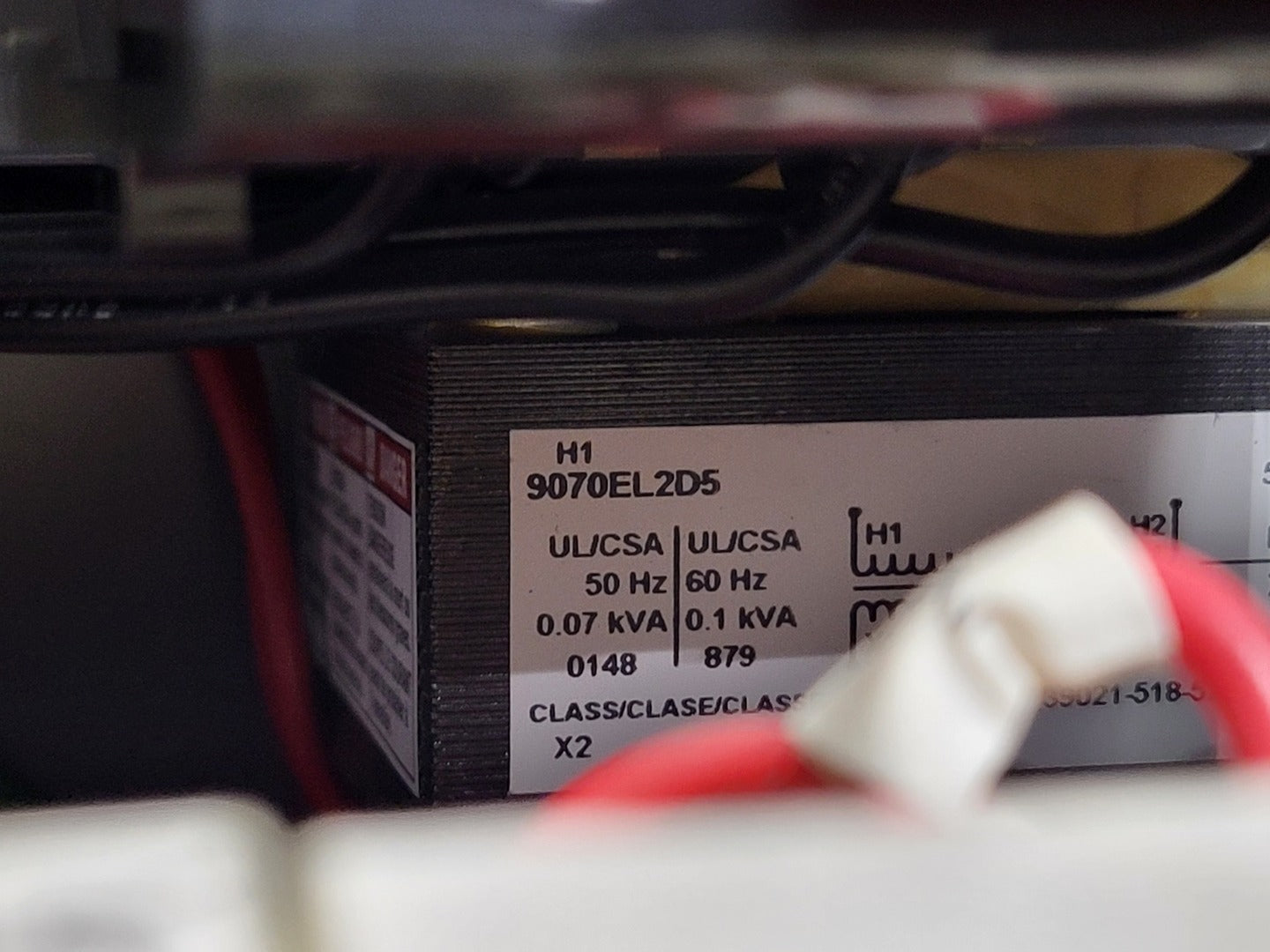

  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary

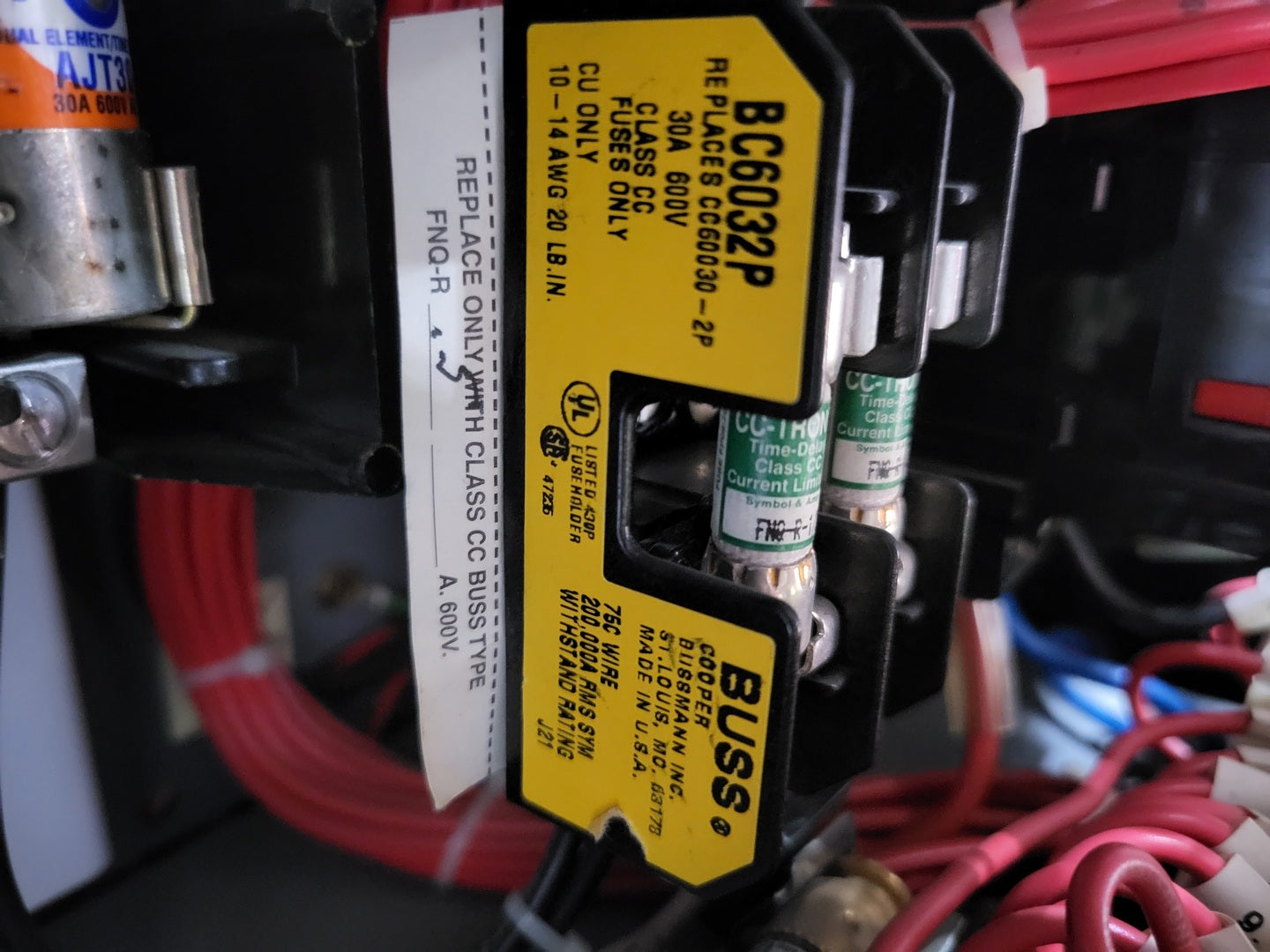

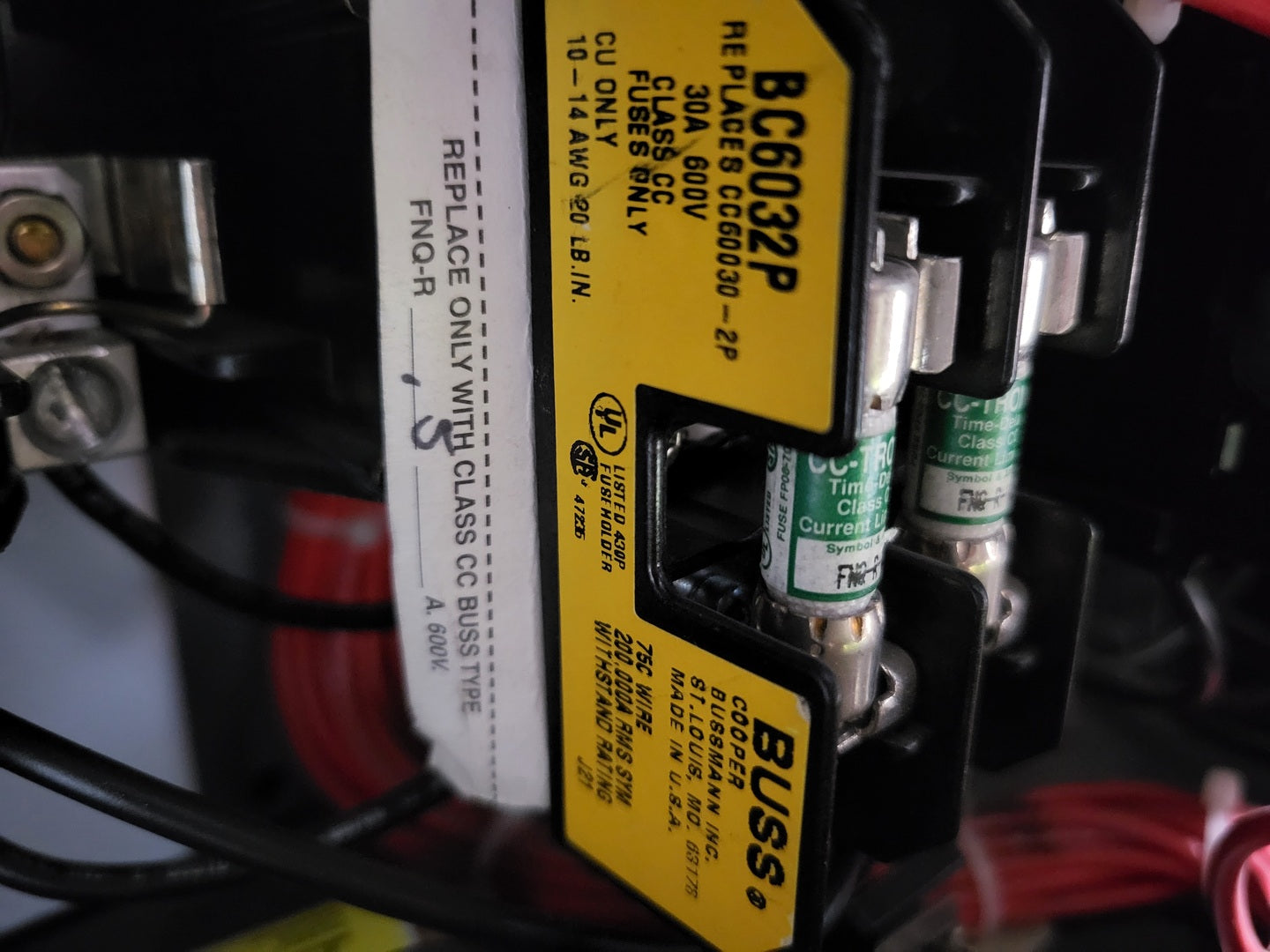

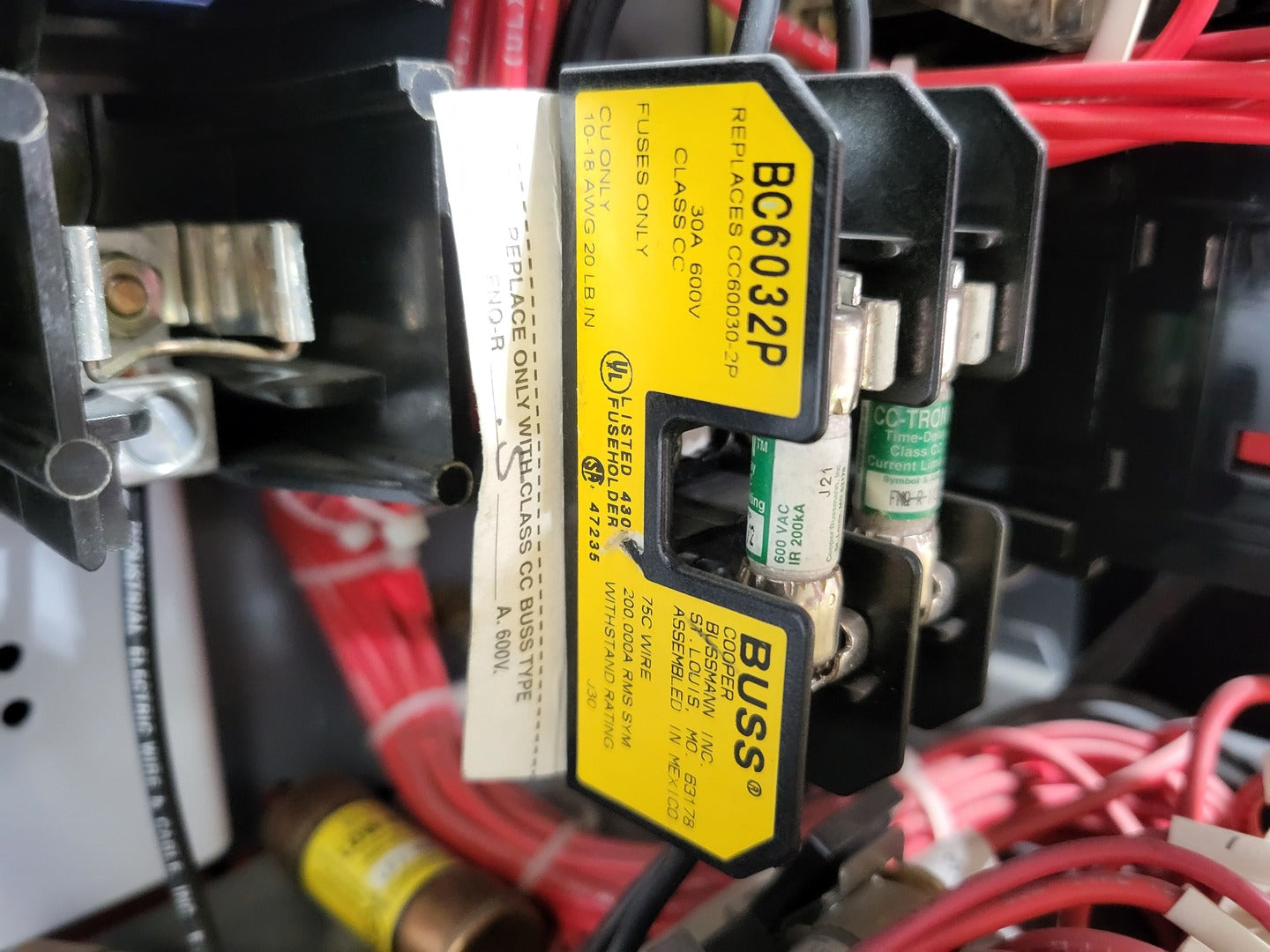

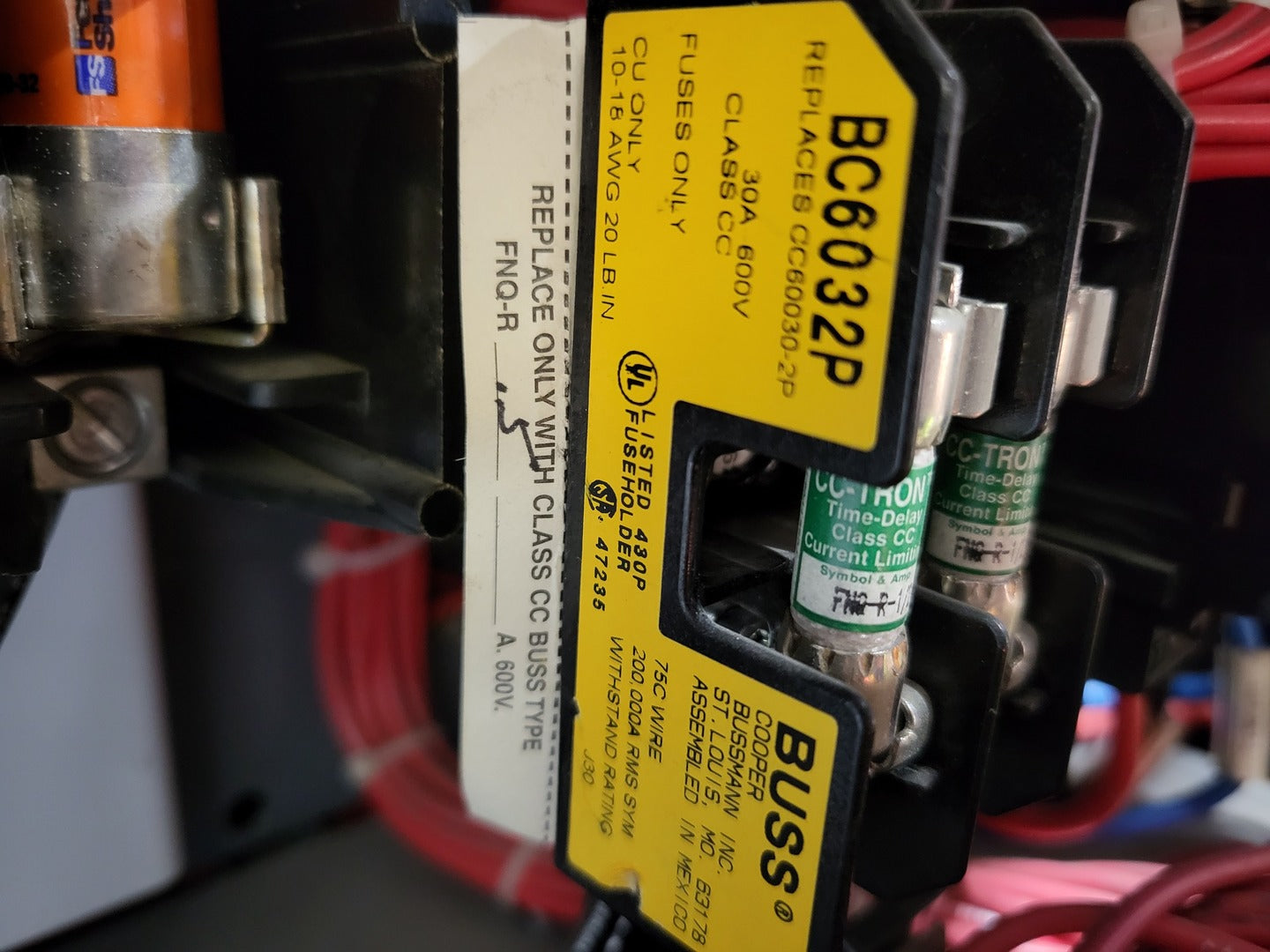

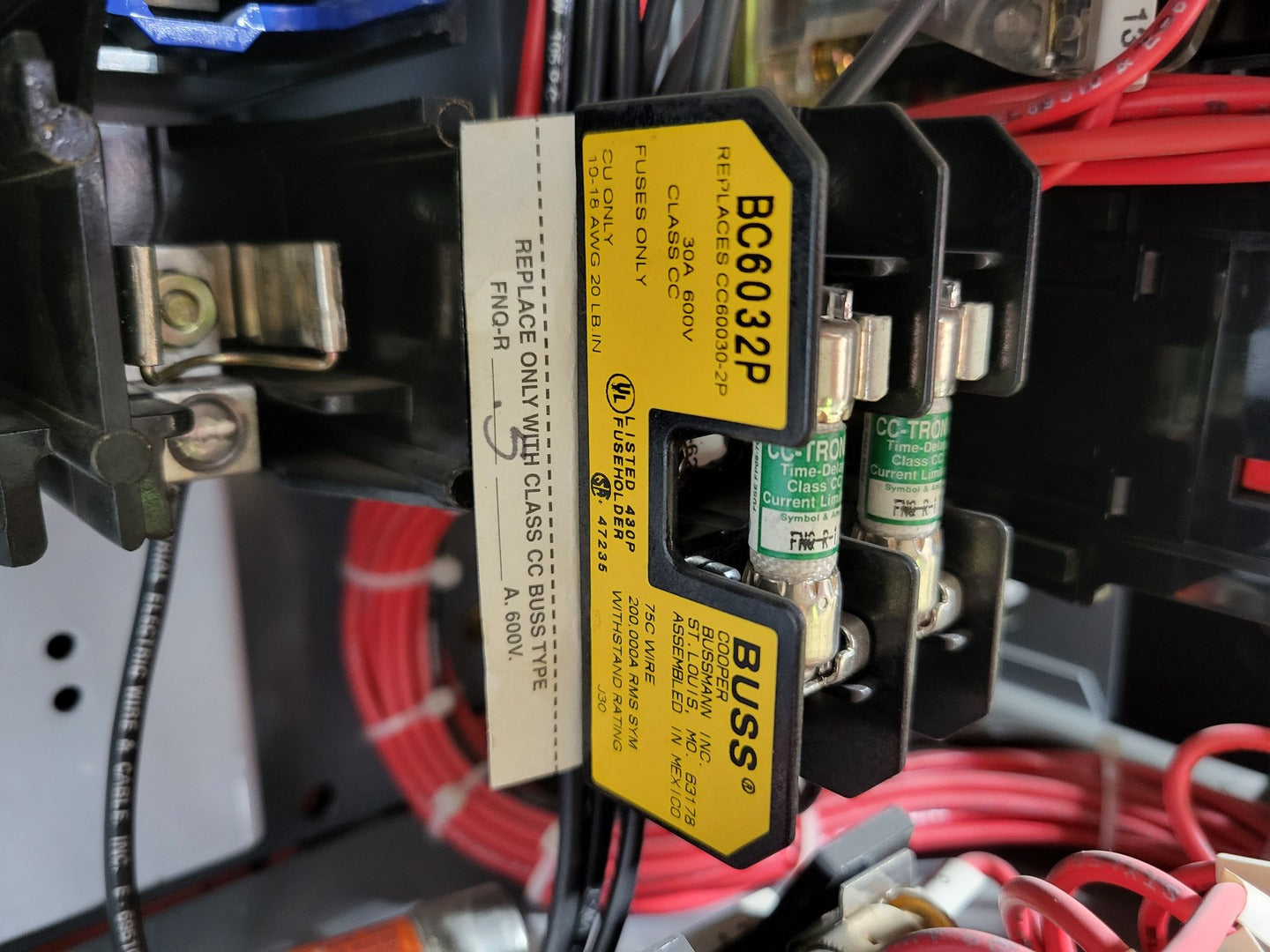

  5. 2 x Bussmann fuses FNQ-R-1/2

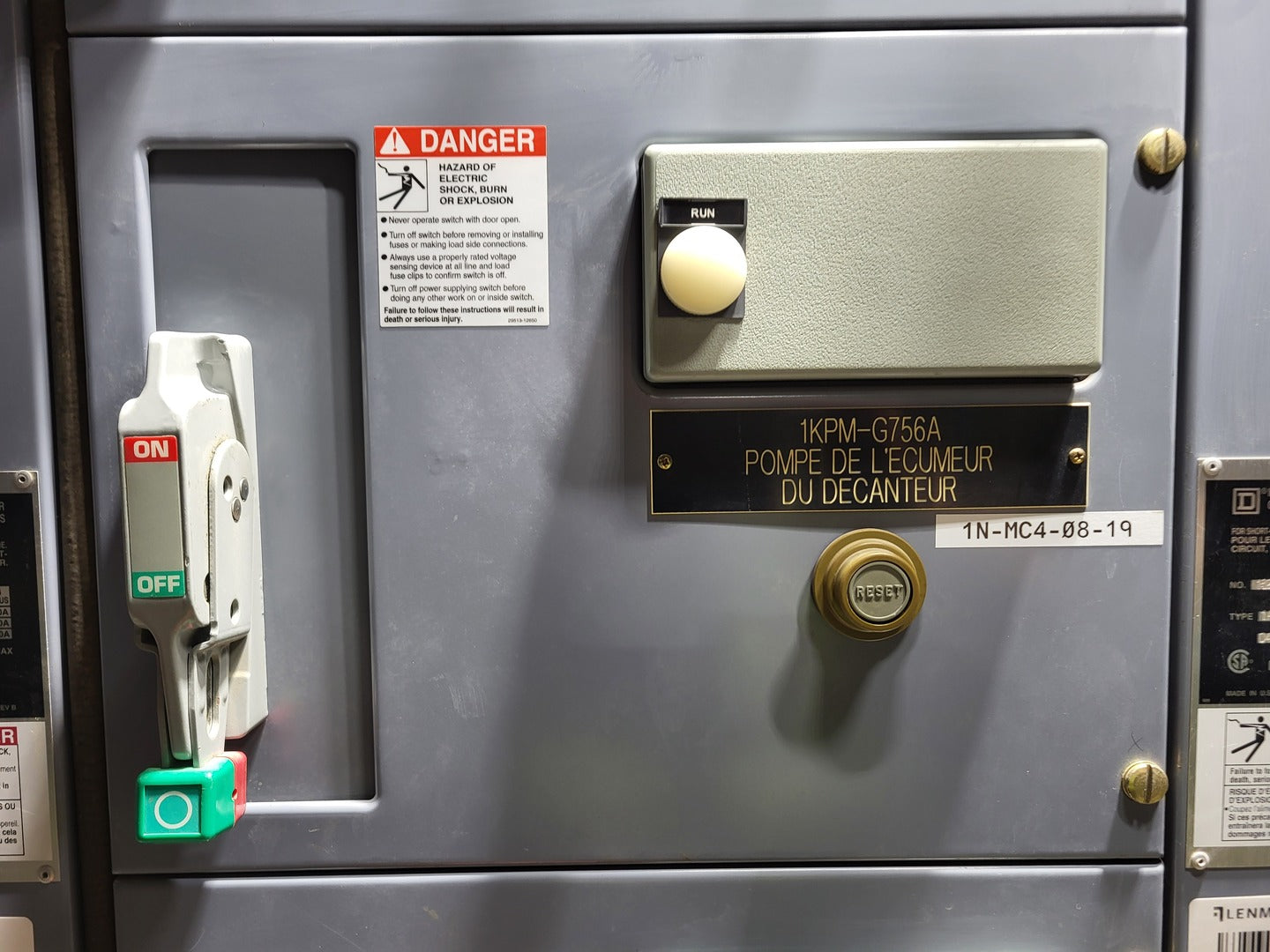

Bucket #2 1KPM-G756A

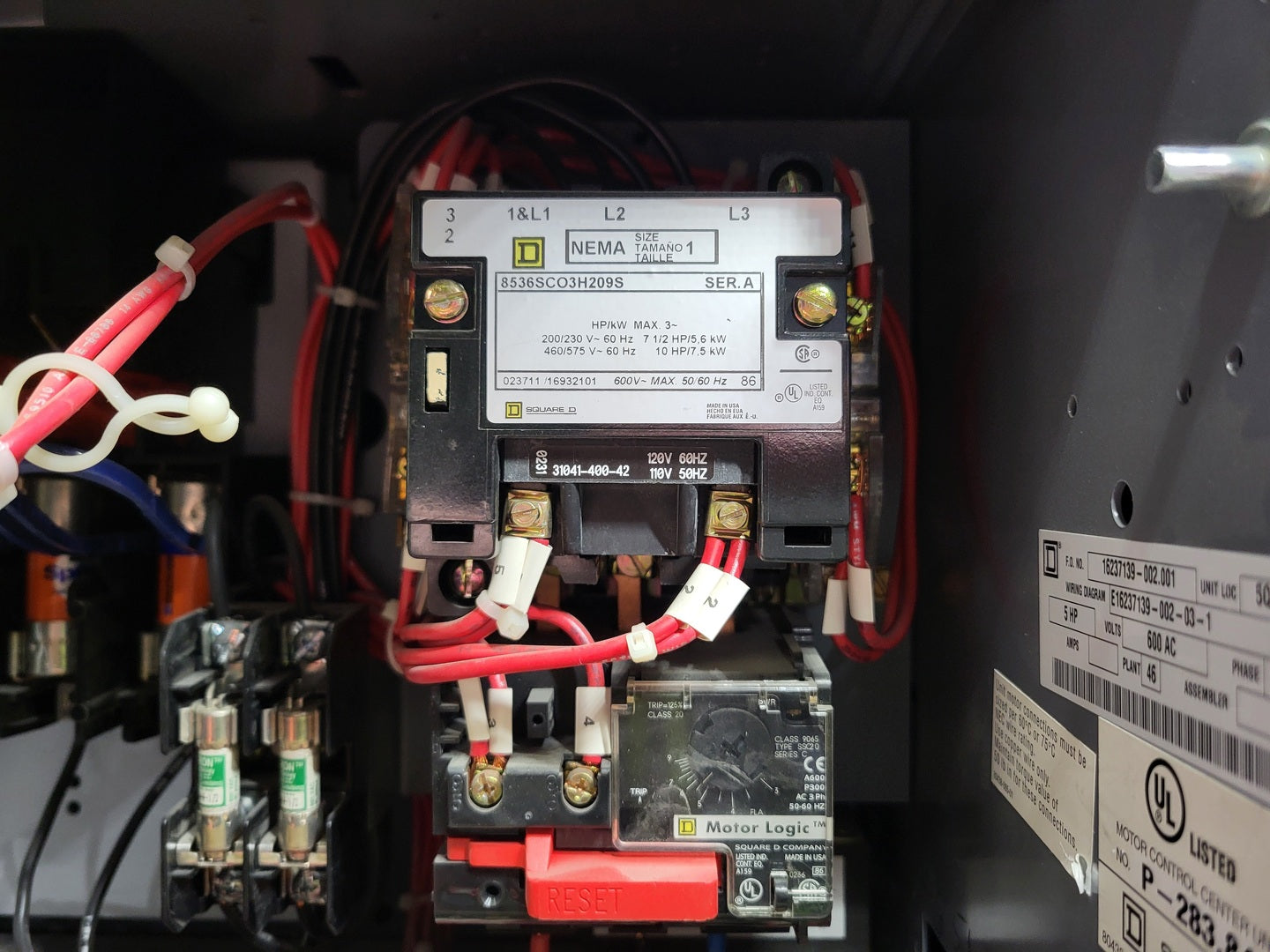

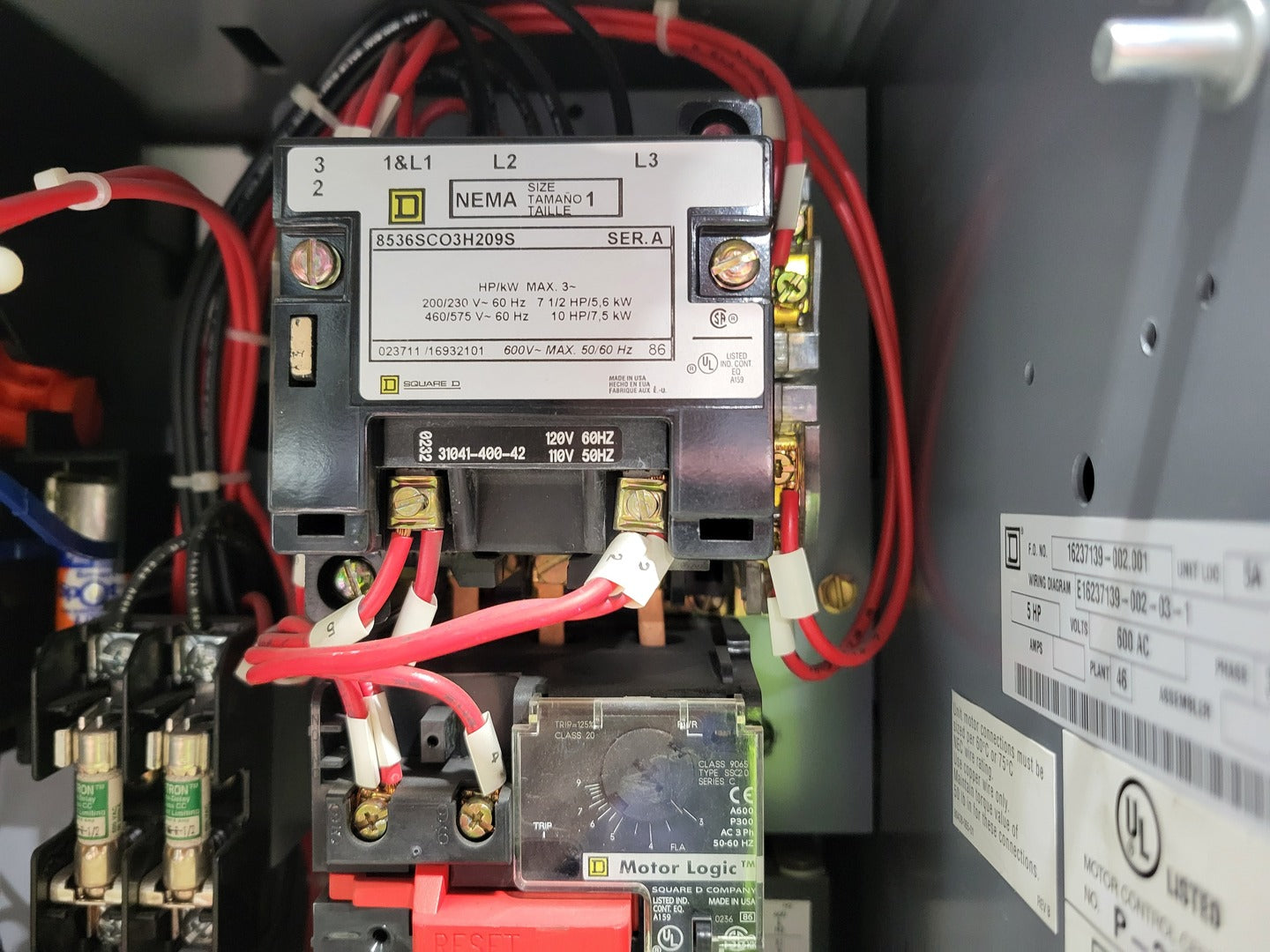

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V
  2. Square D Motor Logic 9065 SSC20, overload / motor protection relay
  3. Square D HU100-3MC6B, 100A MCC bucket disconnect unit
  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary

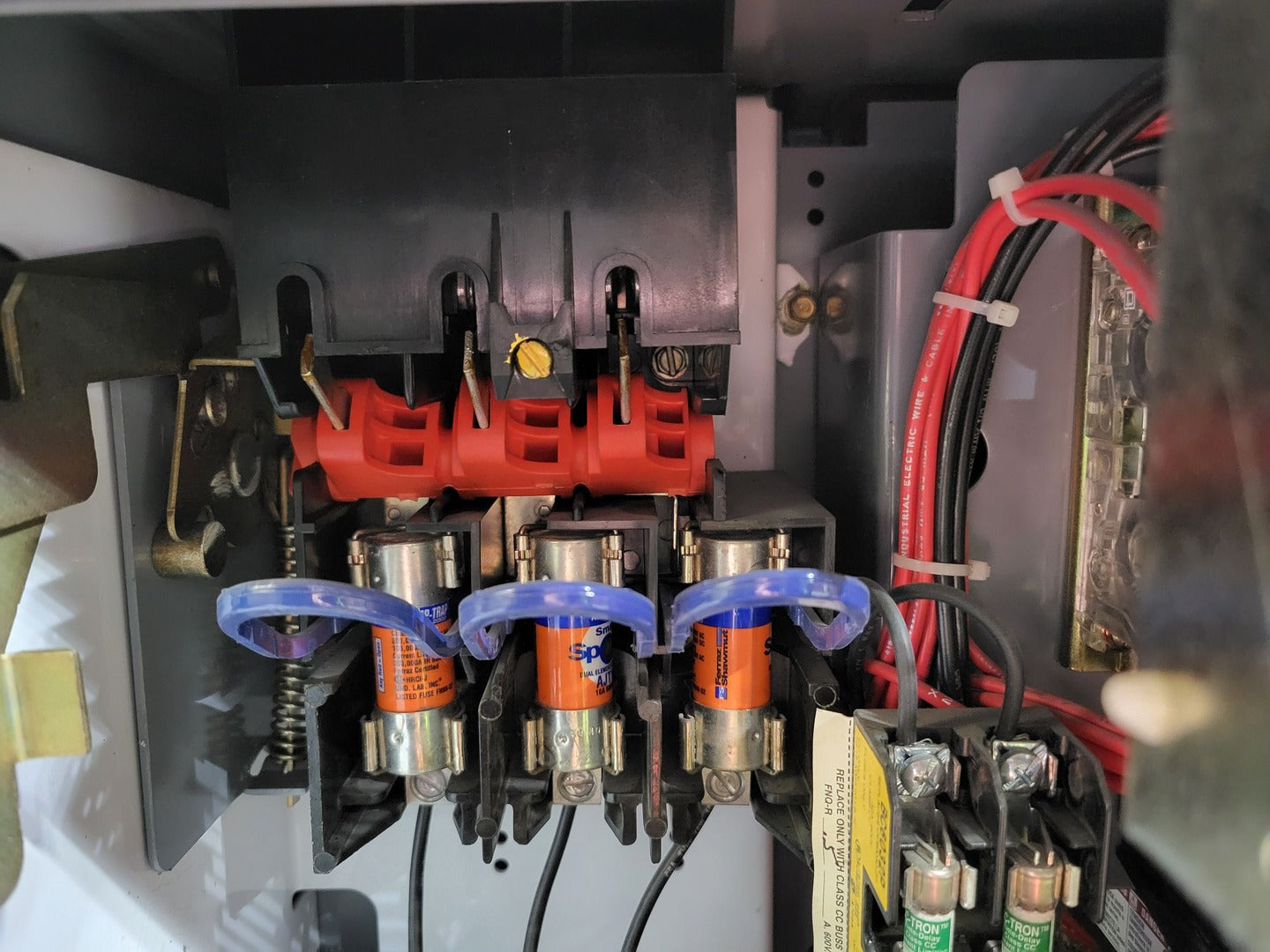

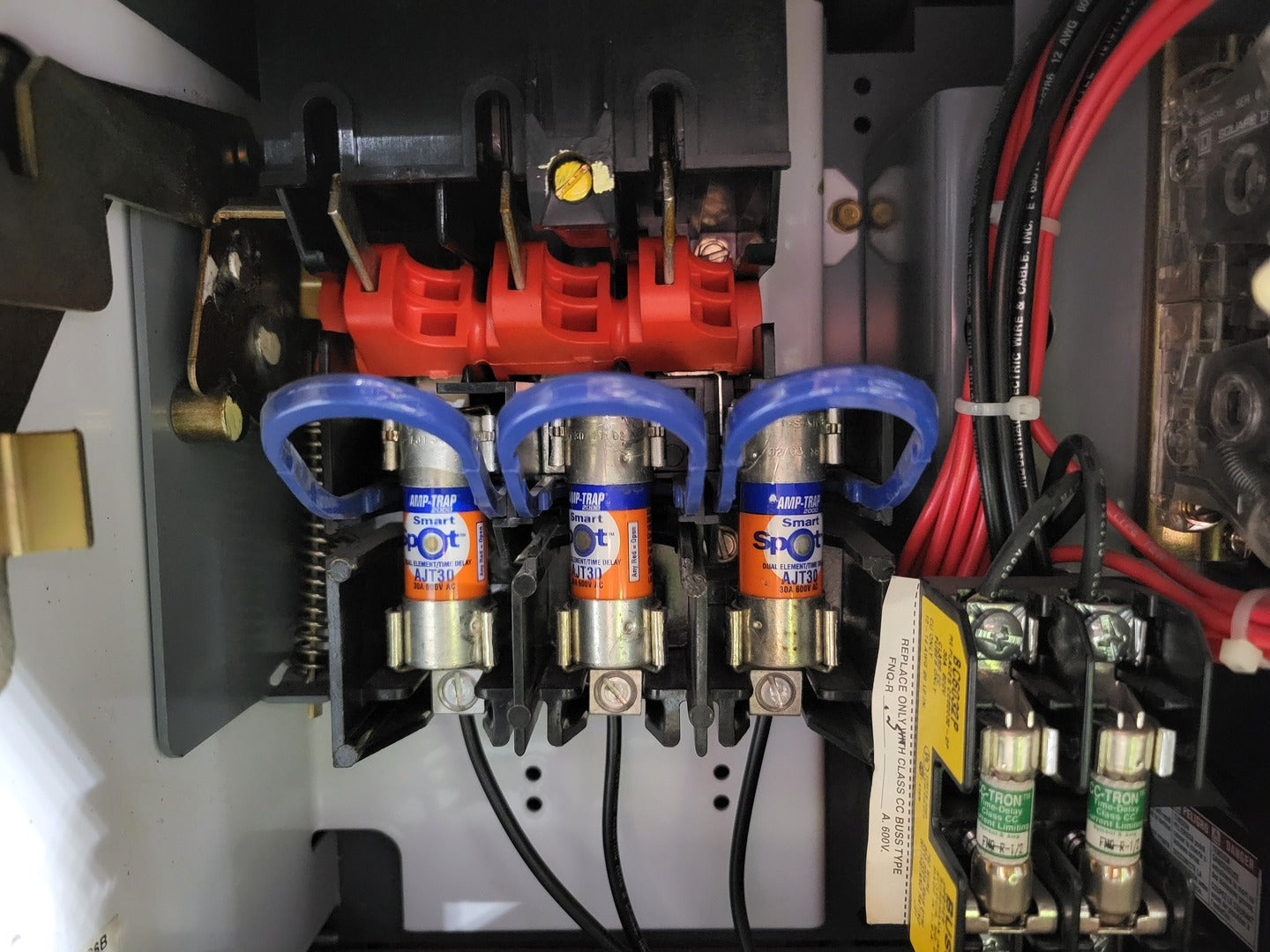

  5. 3 x Mersen Amp-Trap Smart Spot AJT30, Class J fuses, 30A, 600VAC
  6. 2 x Bussmann fuses FNQ-R-1/2

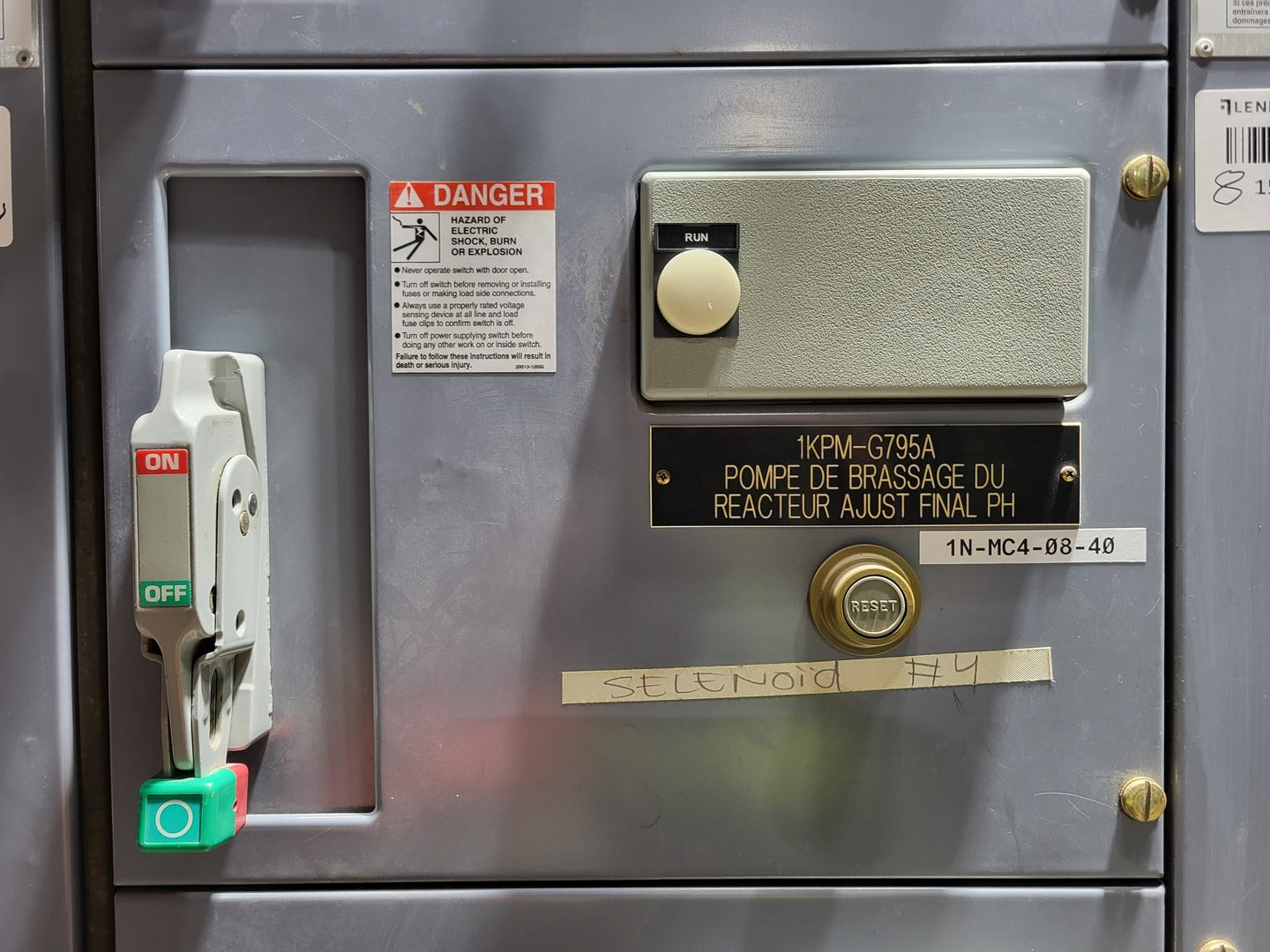

Bucket #3 1KPM-G795A

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V
  2. Square D Motor Logic 9065 SSC20, overload / motor protection relay
  3. Square D HU100-3MC6B, 100A MCC bucket disconnect unit
  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary
  5. 3 x Mersen Amp-Trap Smart Spot AJT30, Class J fuses, 30A, 600VAC
  6. 2 x Bussmann fuses FNQ-R-1/2

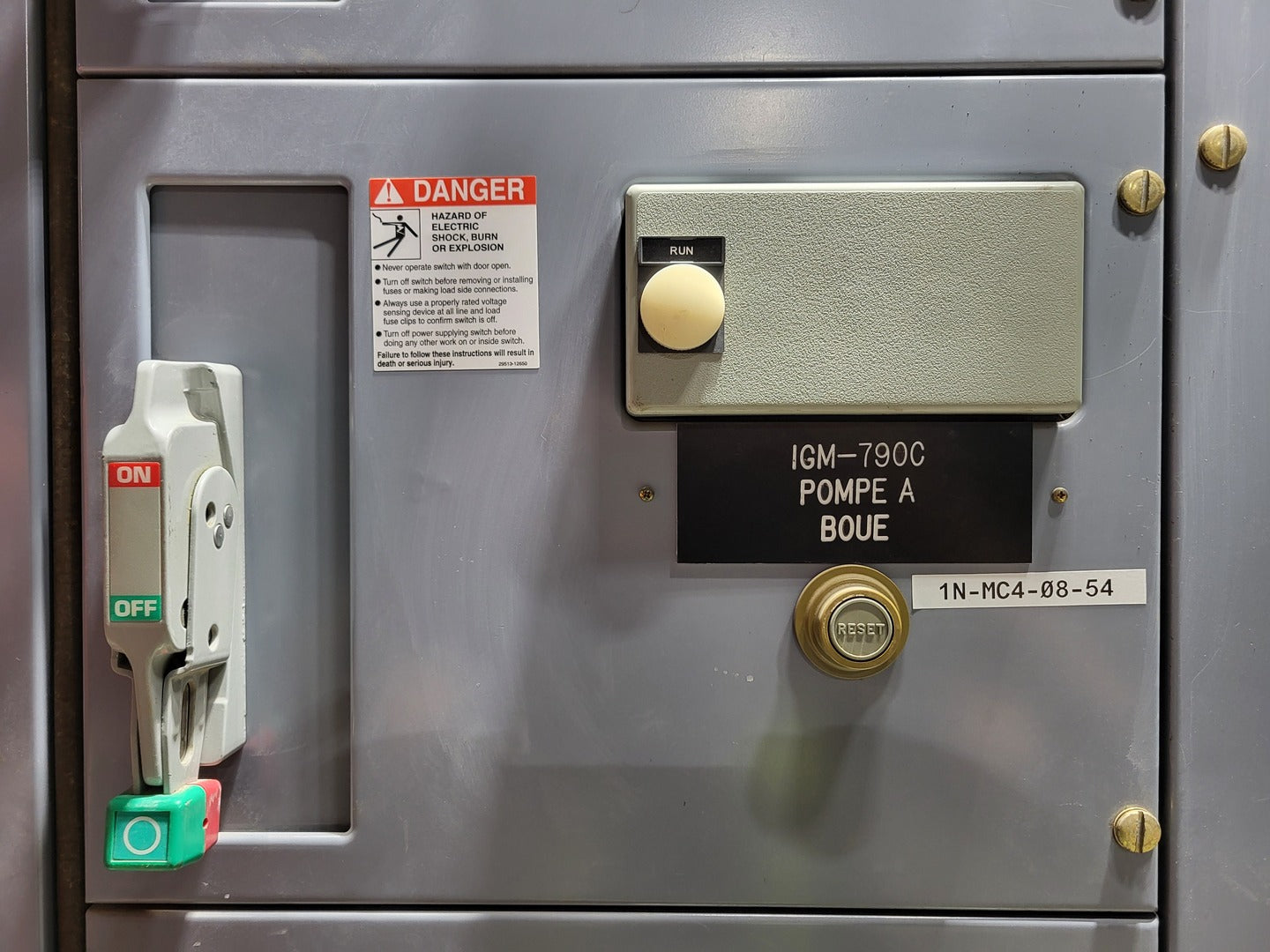

Bucket #4 IGM-790C

  1. Square D 8536SCO3H308S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V
  2. Square D Motor Logic 9065 SFB20, overload / motor protection relay
  3. Square D HU100-3MC6B, 100A MCC bucket disconnect unit
  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary
  5. 2 x Bussmann fuses FNQ-R-1/2

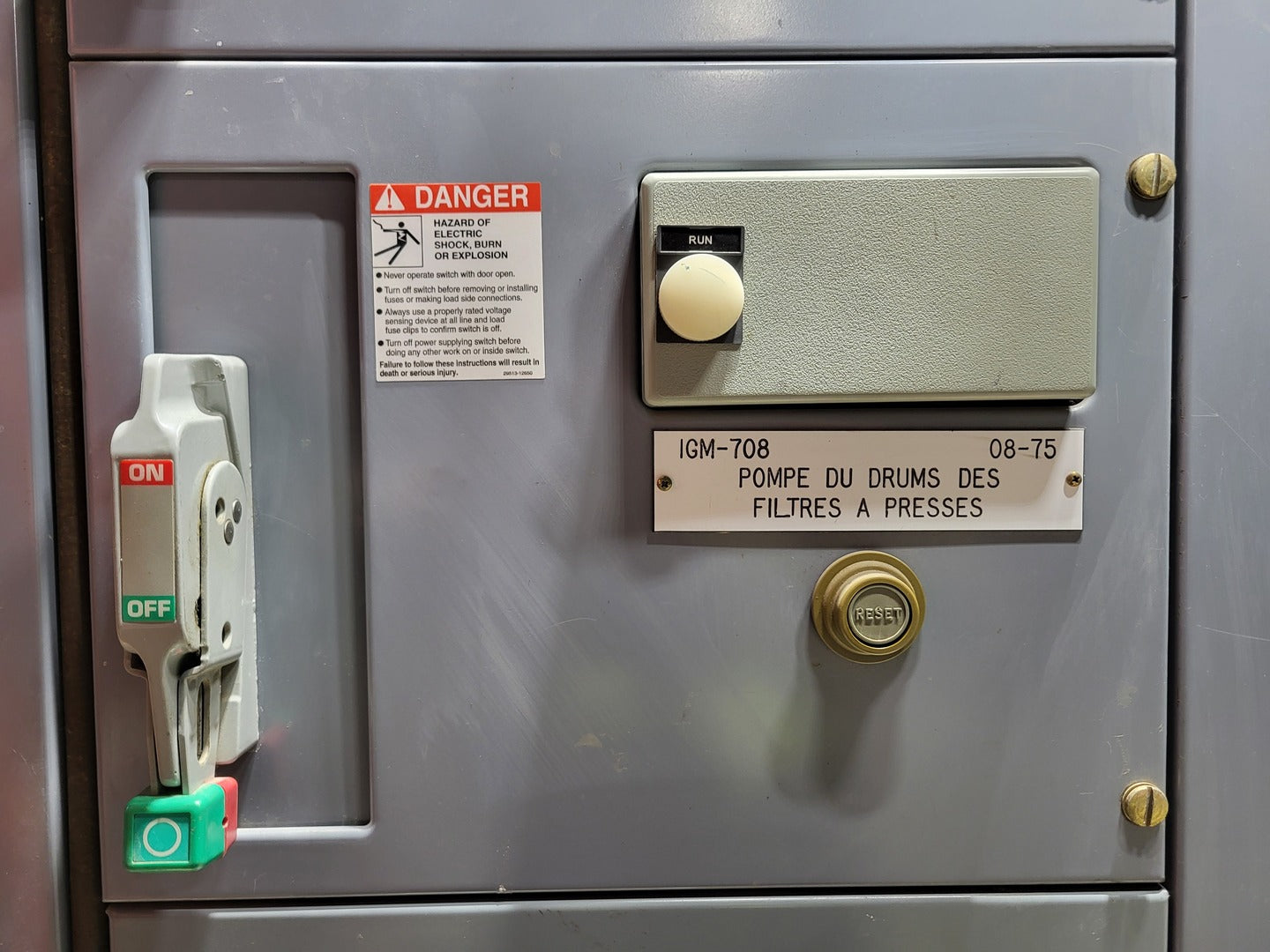

Bucket #5 IGM-708

  1. Square D 8536SCO3H308S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V
  2. Square D Motor Logic 9065 SFB20, overload / motor protection relay
  3. Square D HU100-3MC6B, 100A MCC bucket disconnect unit
  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary
  5. 2 x Bussmann fuses FNQ-R-1/2

Bucket #6 I-KPC-G711

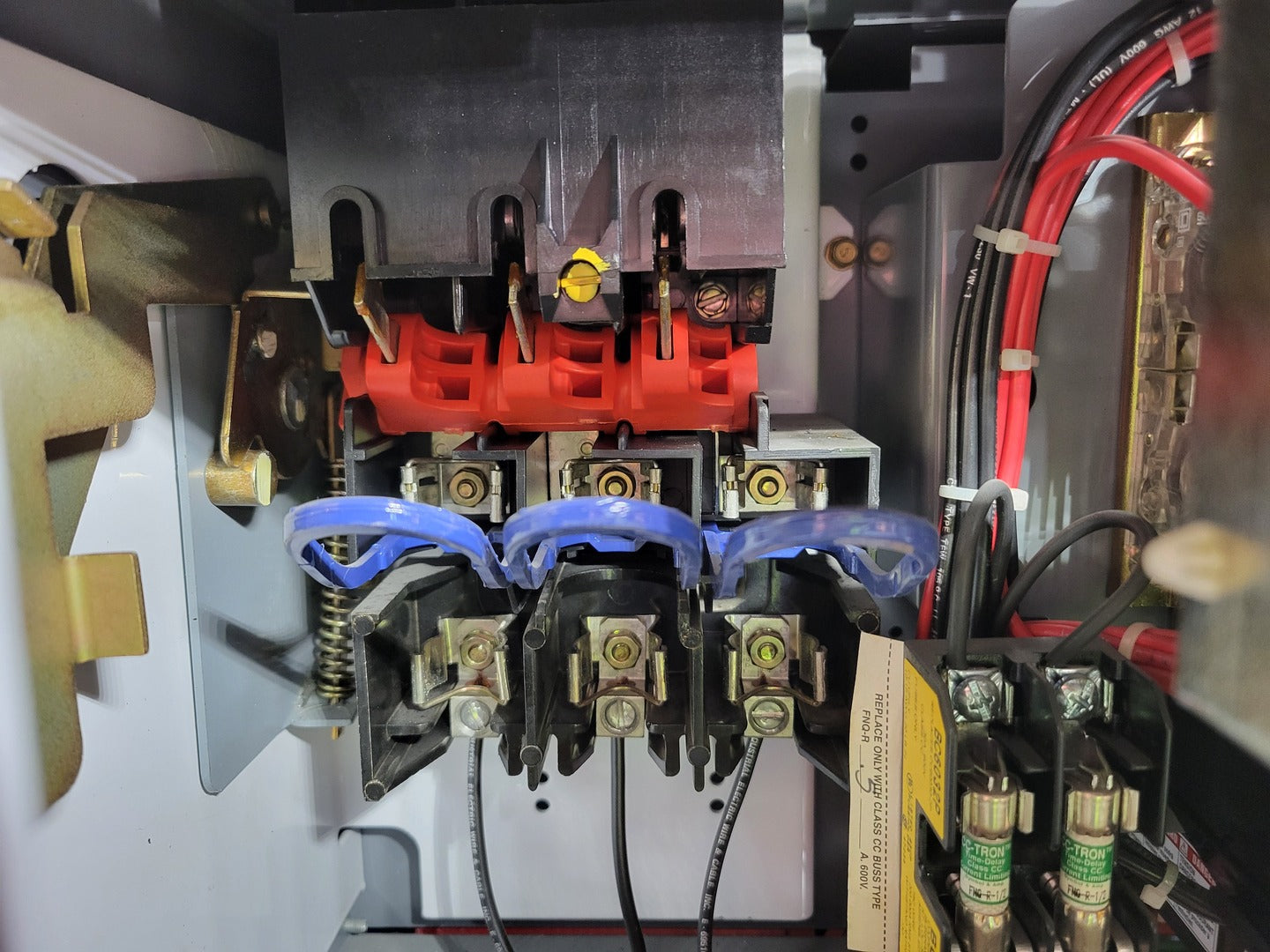

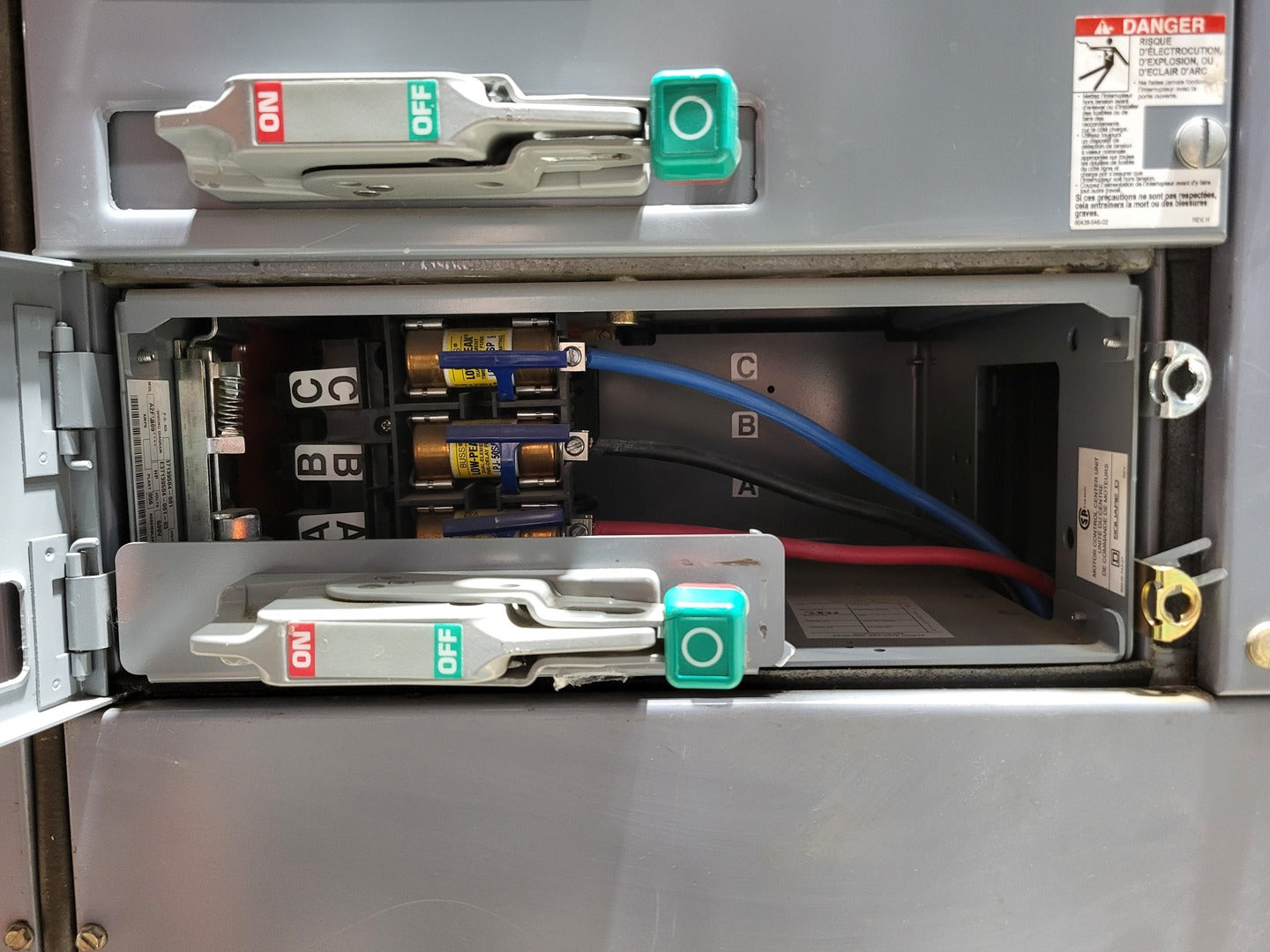

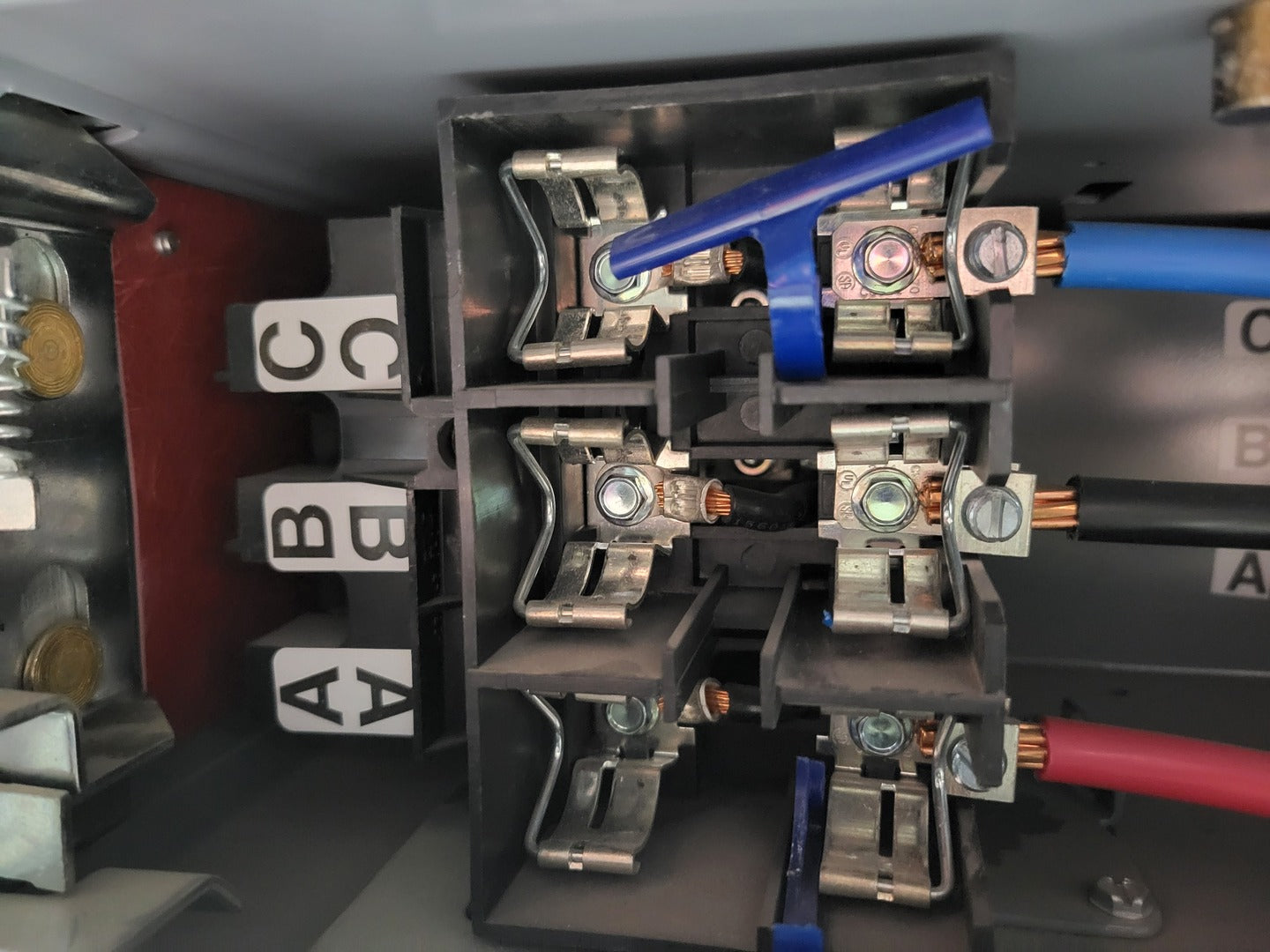

  1. 3-pole disconnect / stab assembly

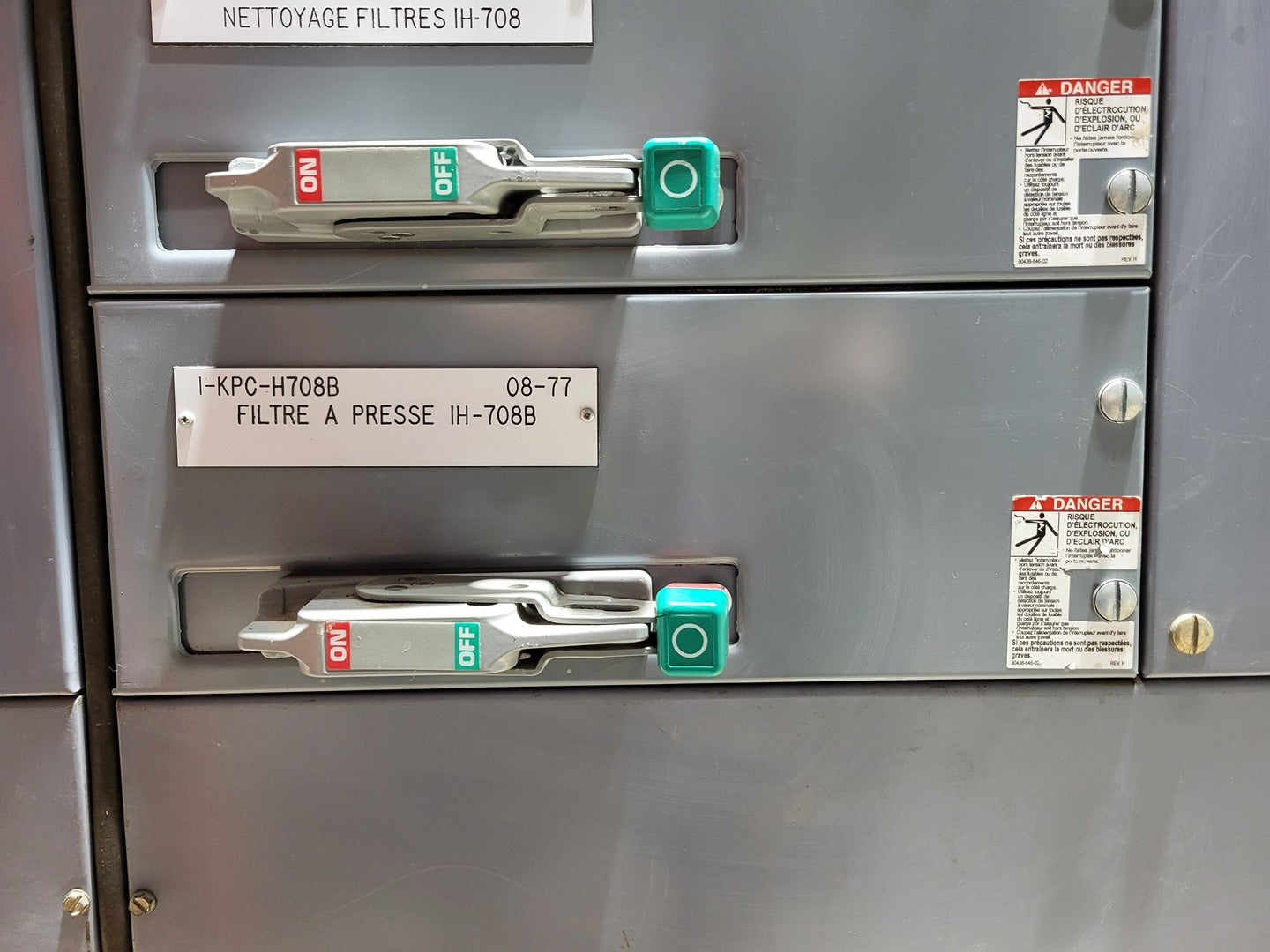

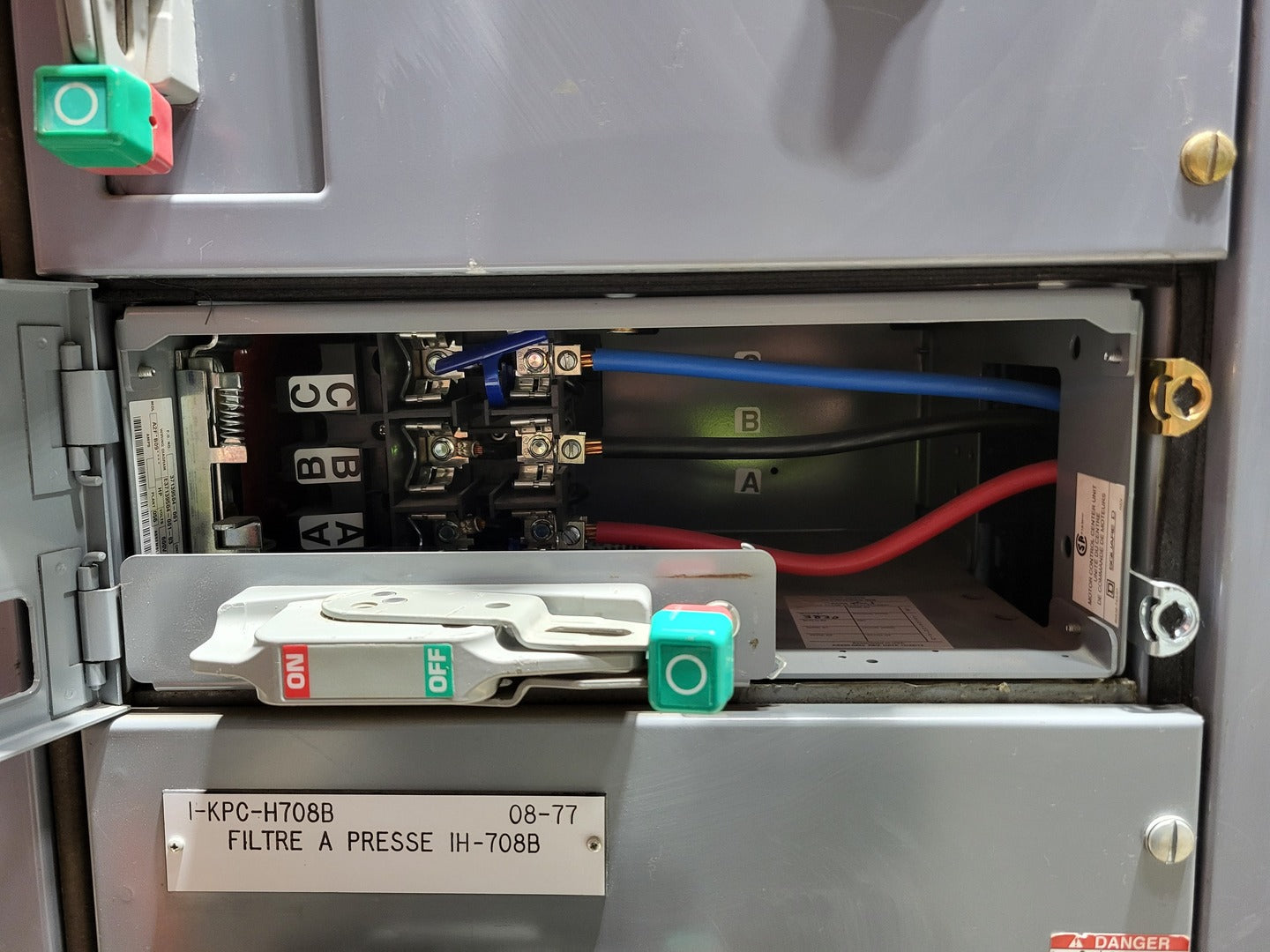

Bucket #7 I-KPC-H708B

  1. 3-pole disconnect / stab assembly

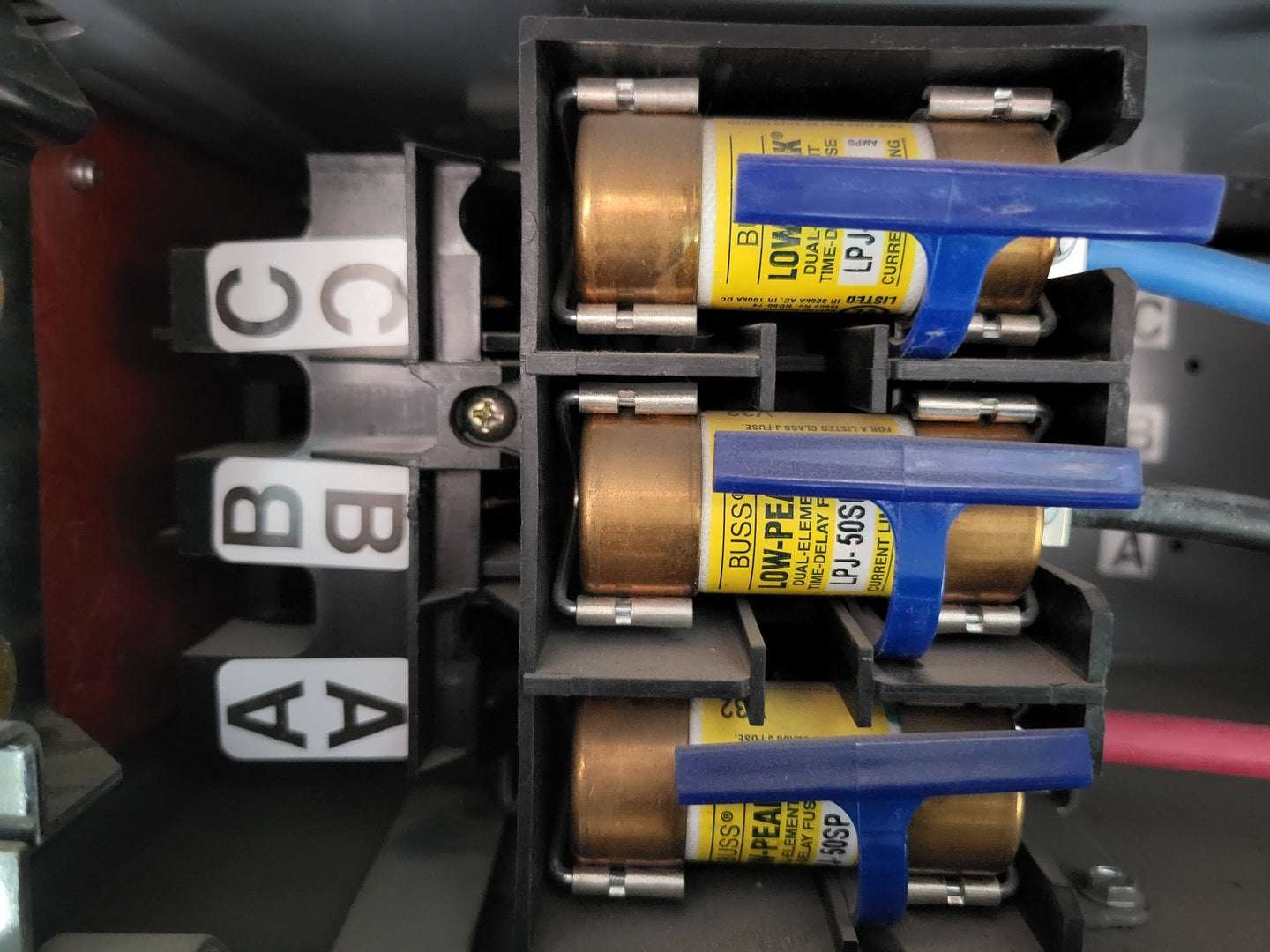

  2. 2 x Bussmann fuses LPJ-50SP
