SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151400
Price:
$5,700 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

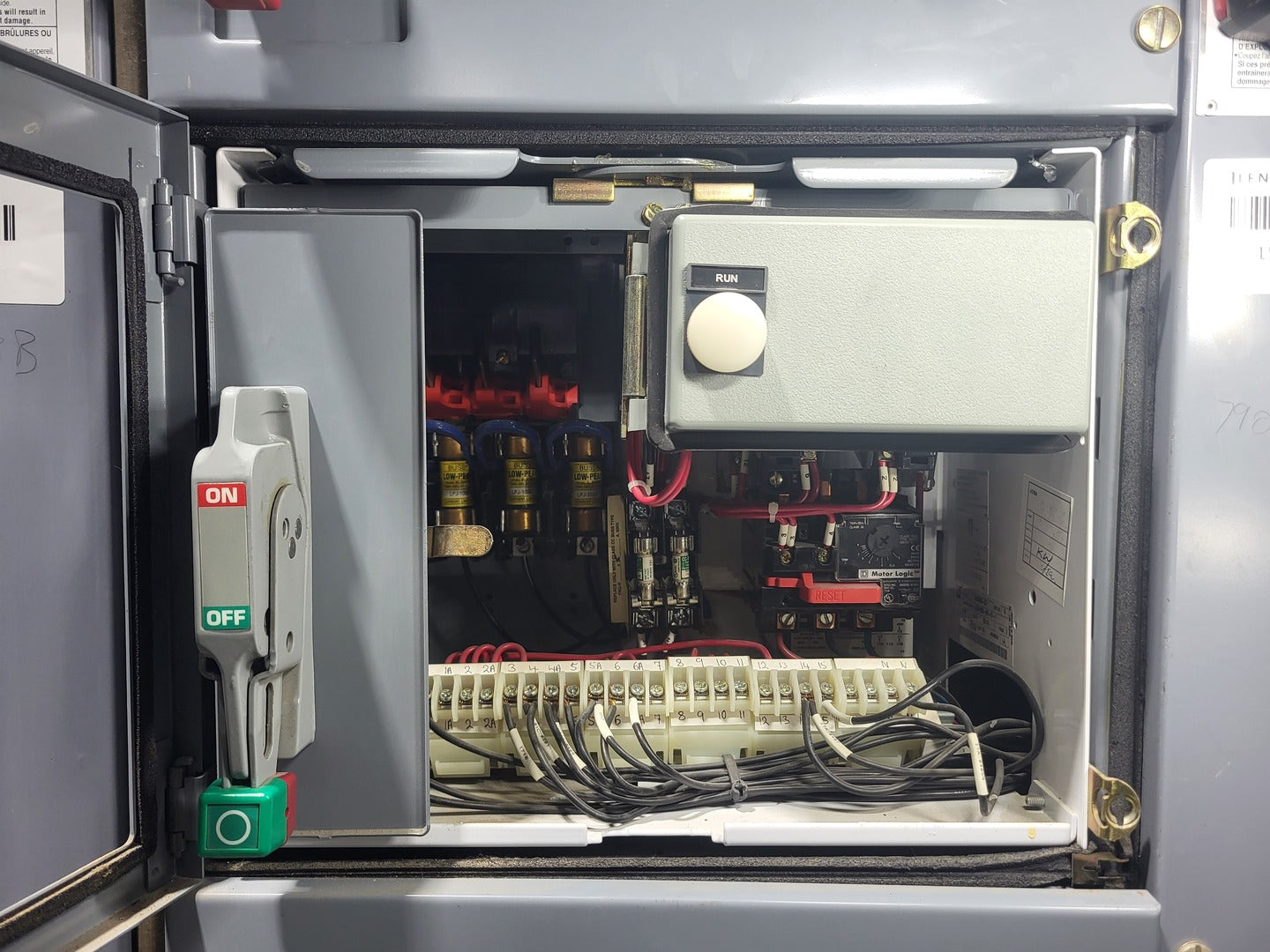

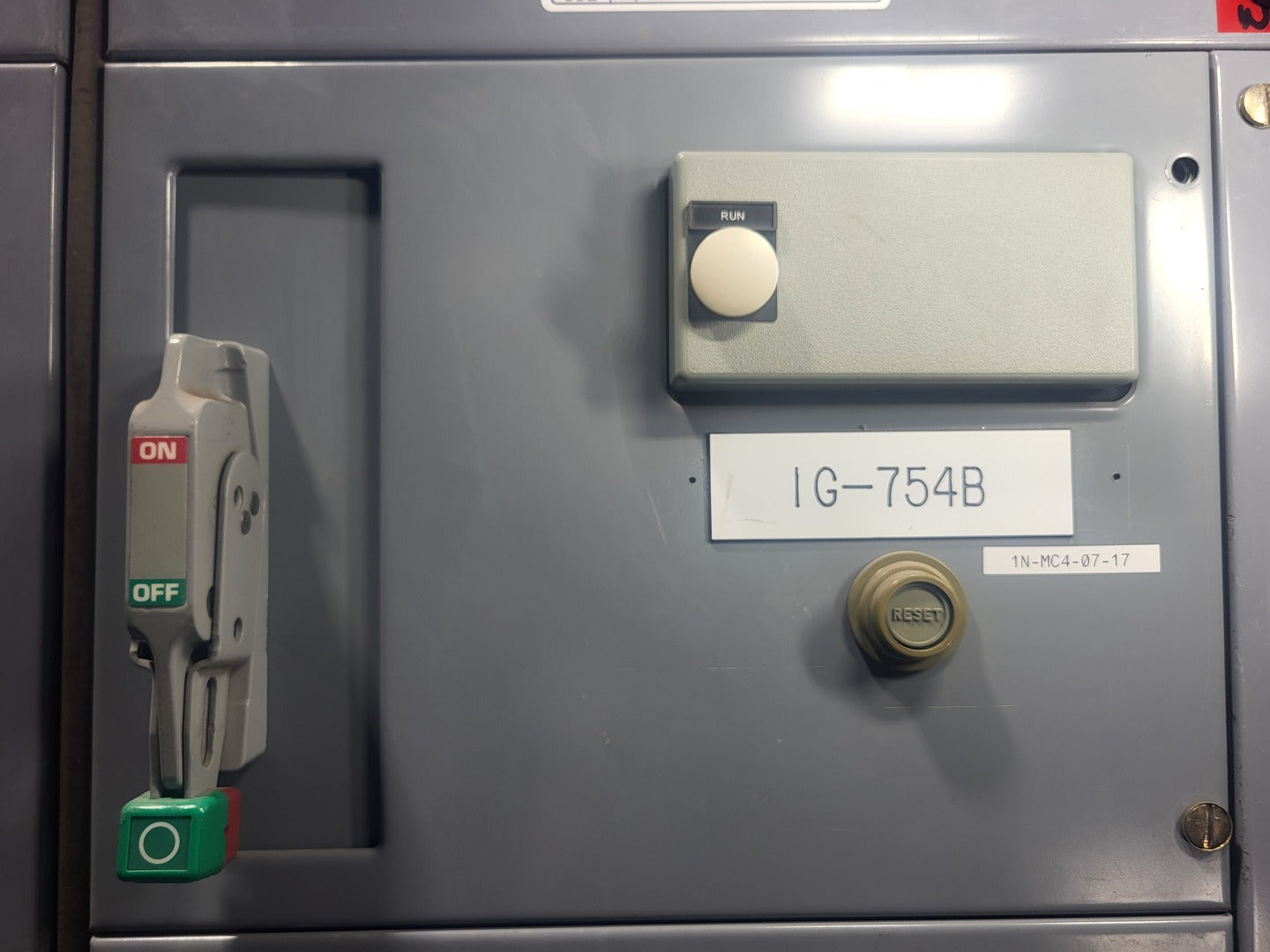

Bucket #1 IG-754B

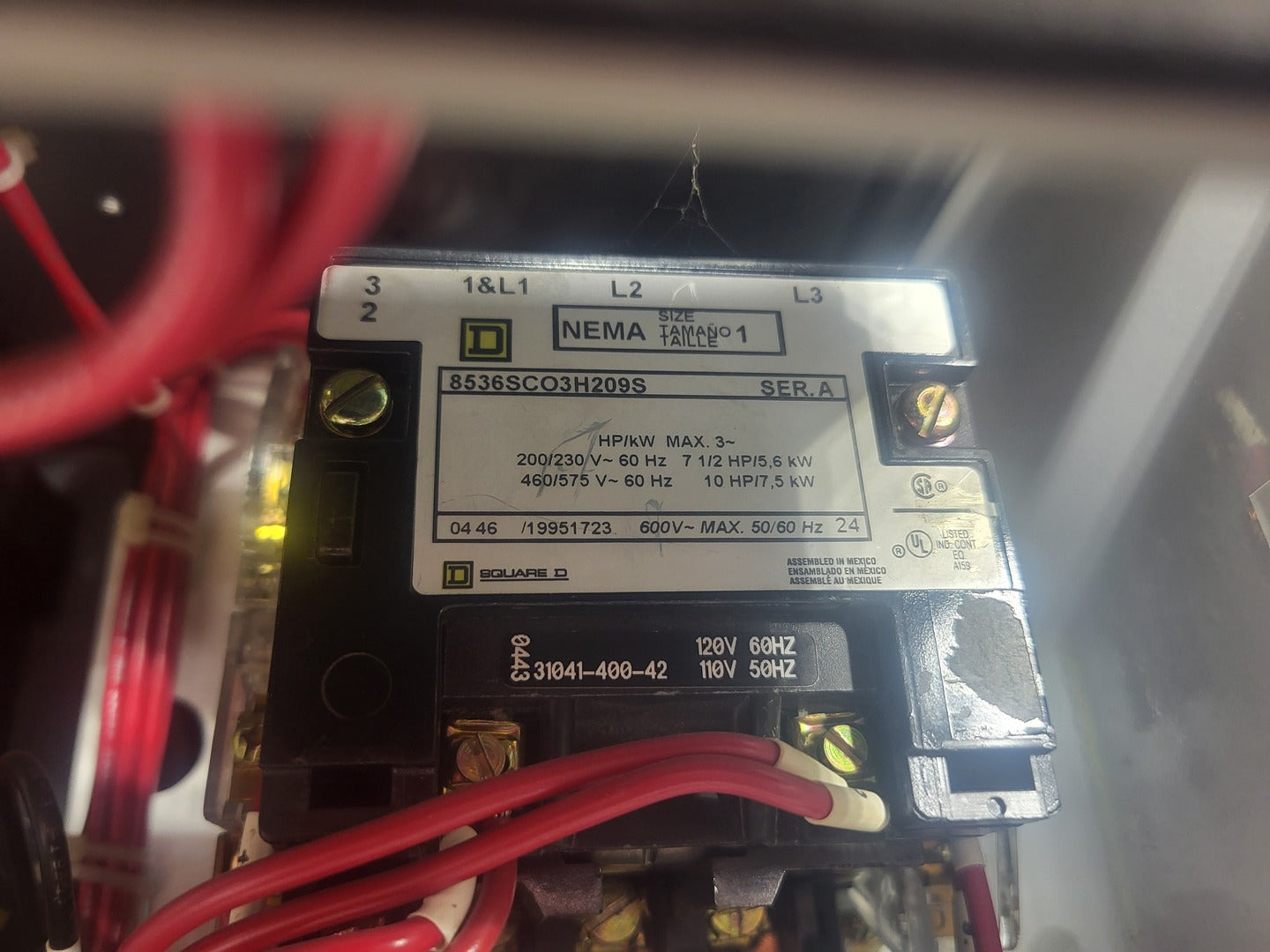

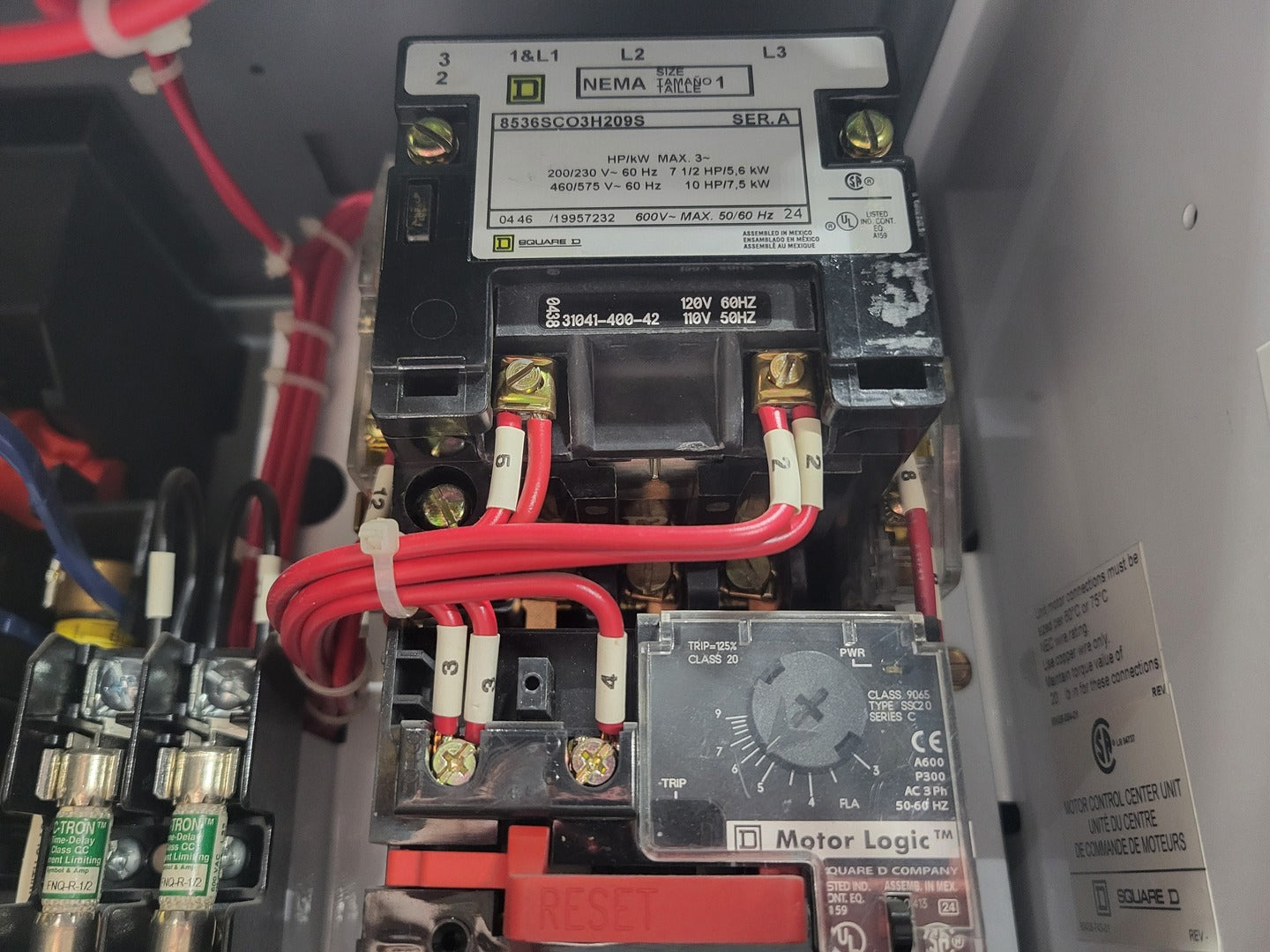

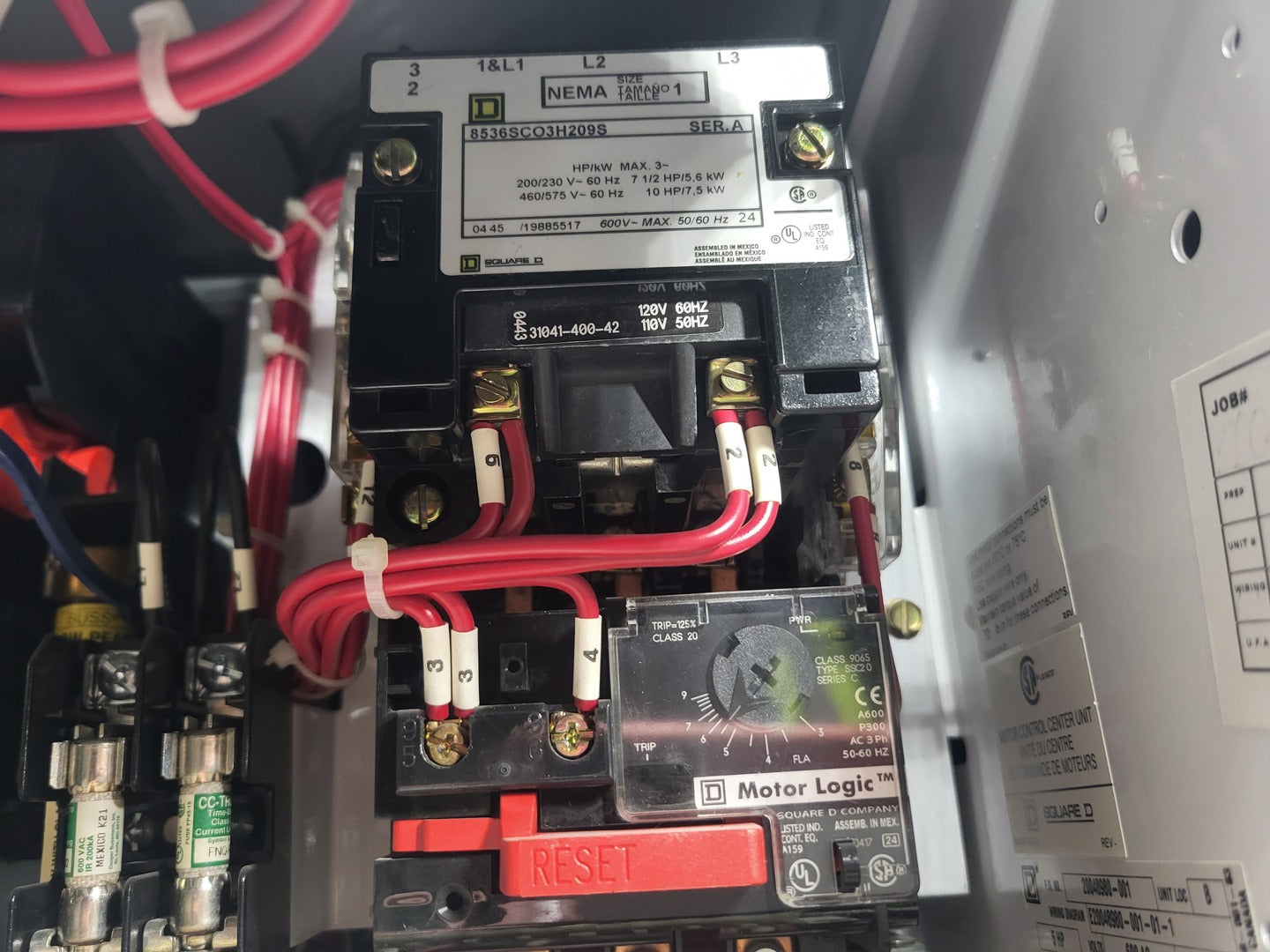

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120VAC coil
  2. Square D Motor Logic overload relay, Type SF02 Series F, Class 10/20 selectable, approx. 6-18A FLA range

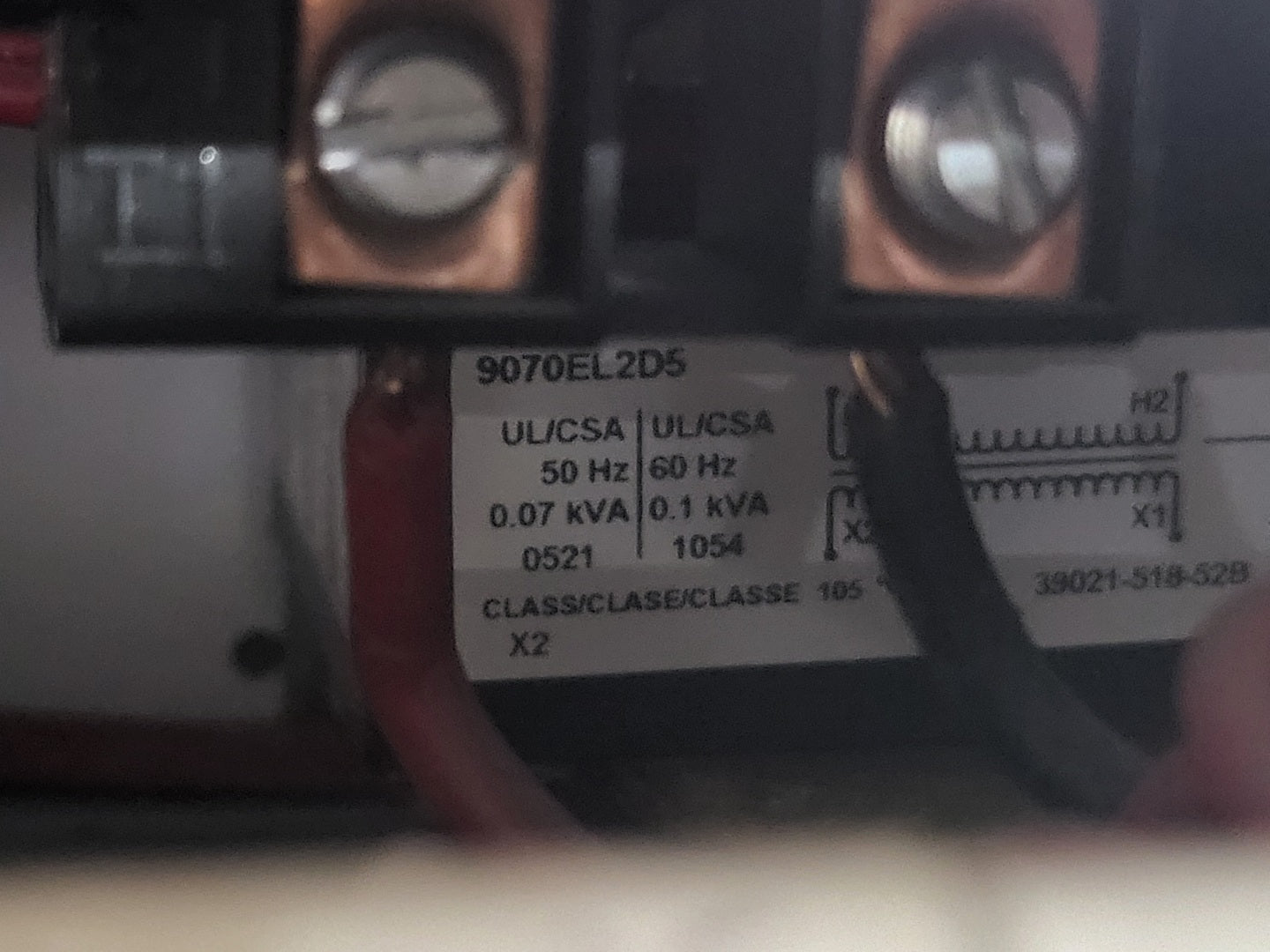

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

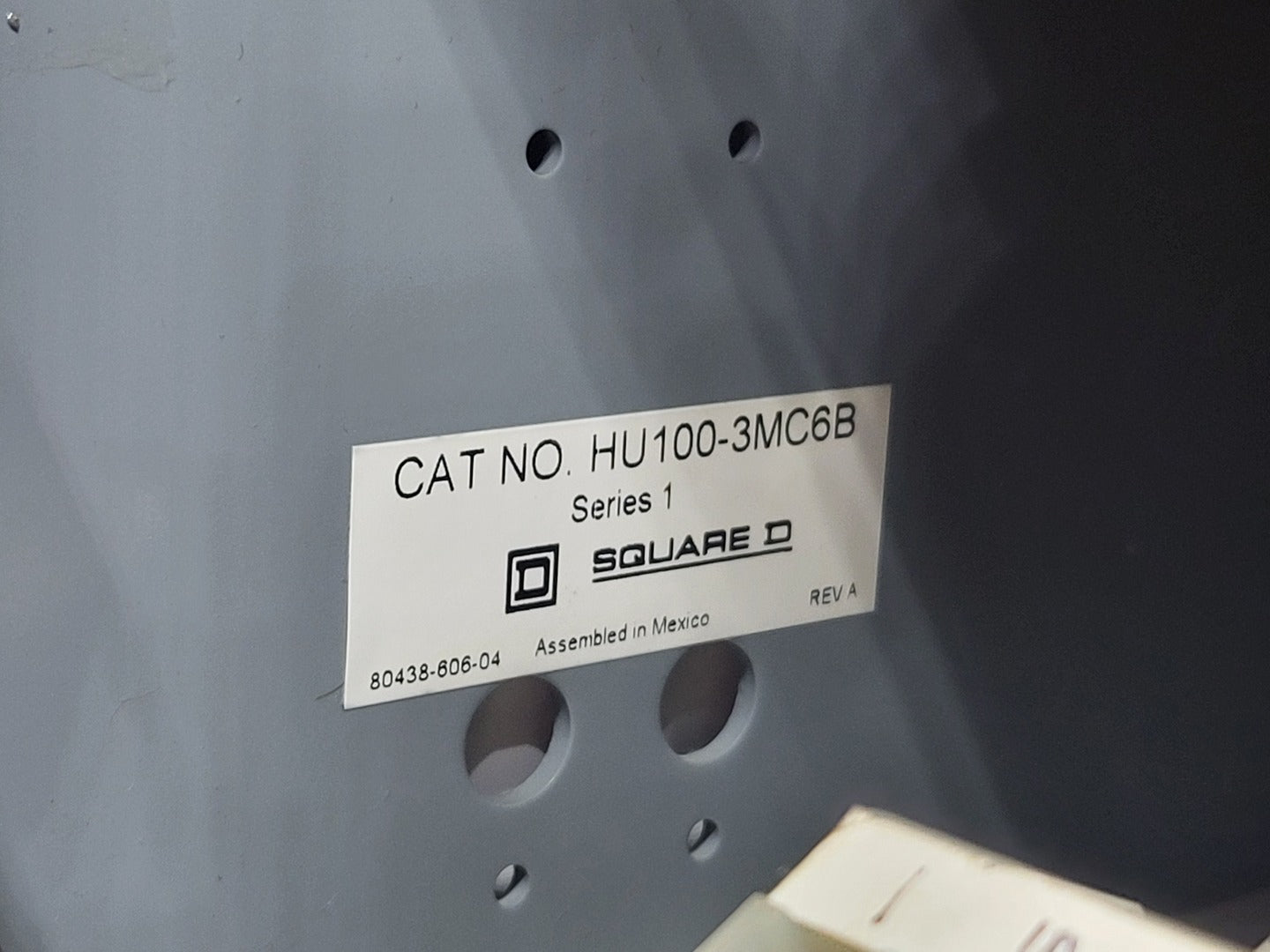

  4. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

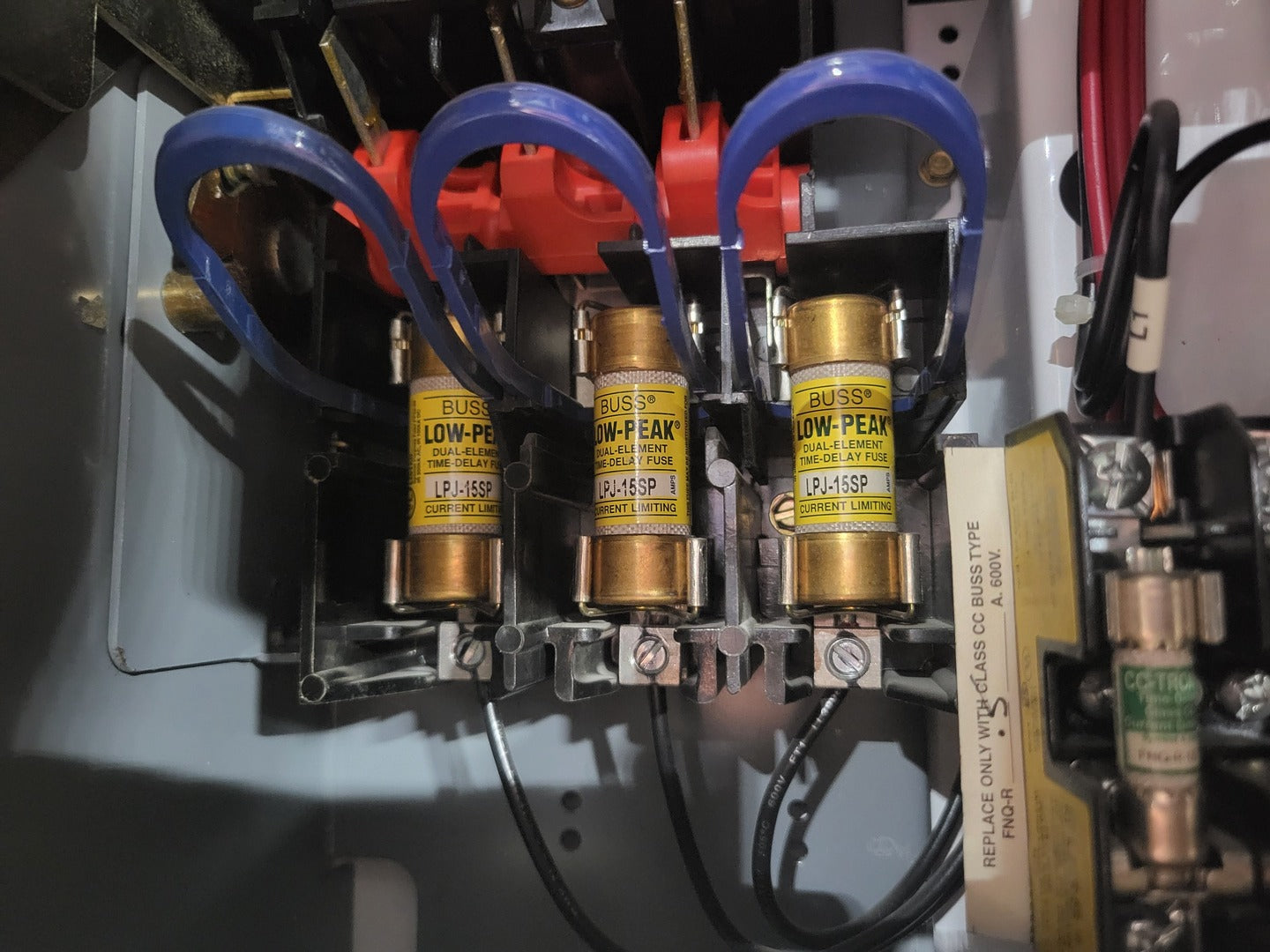

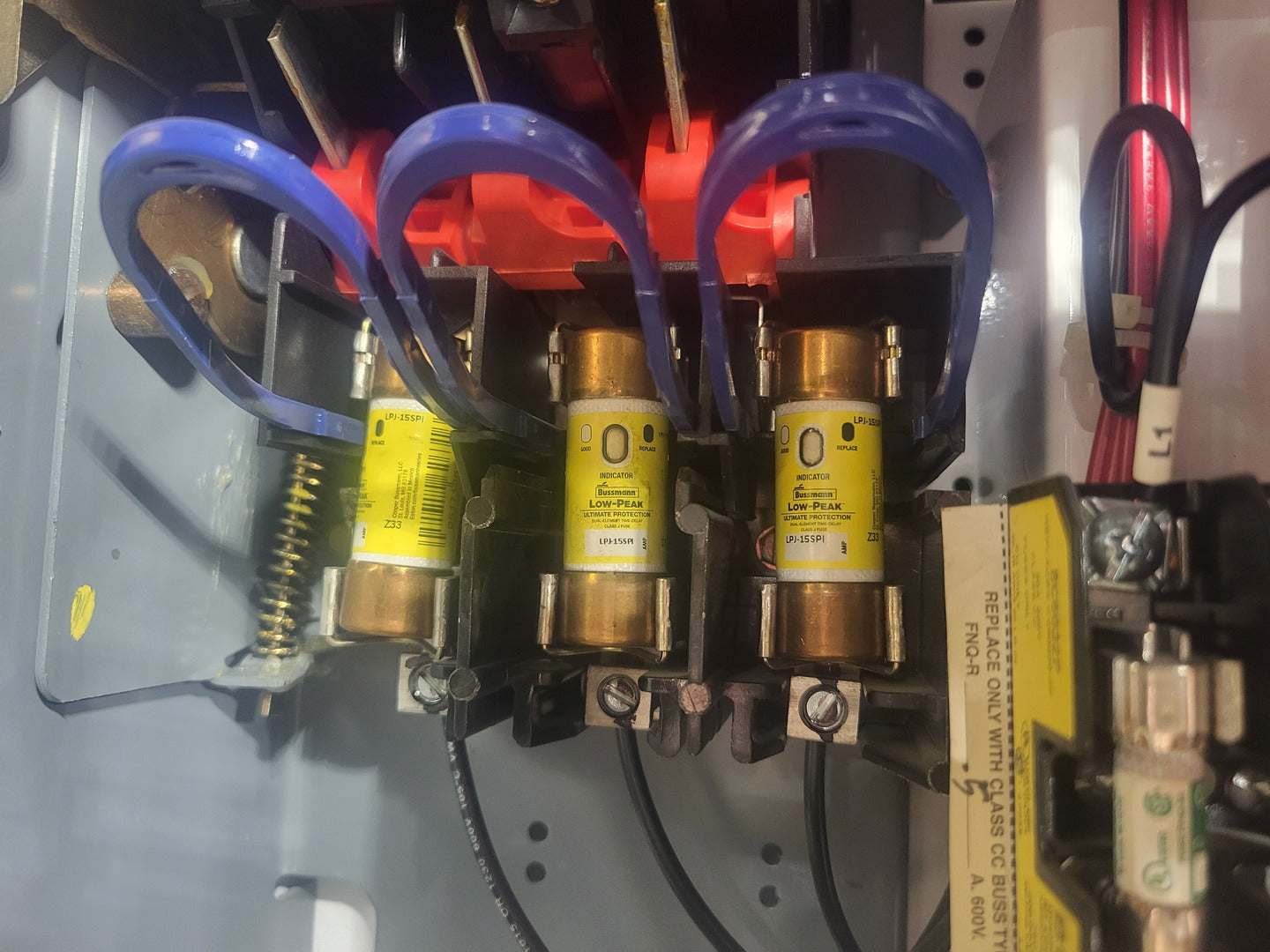

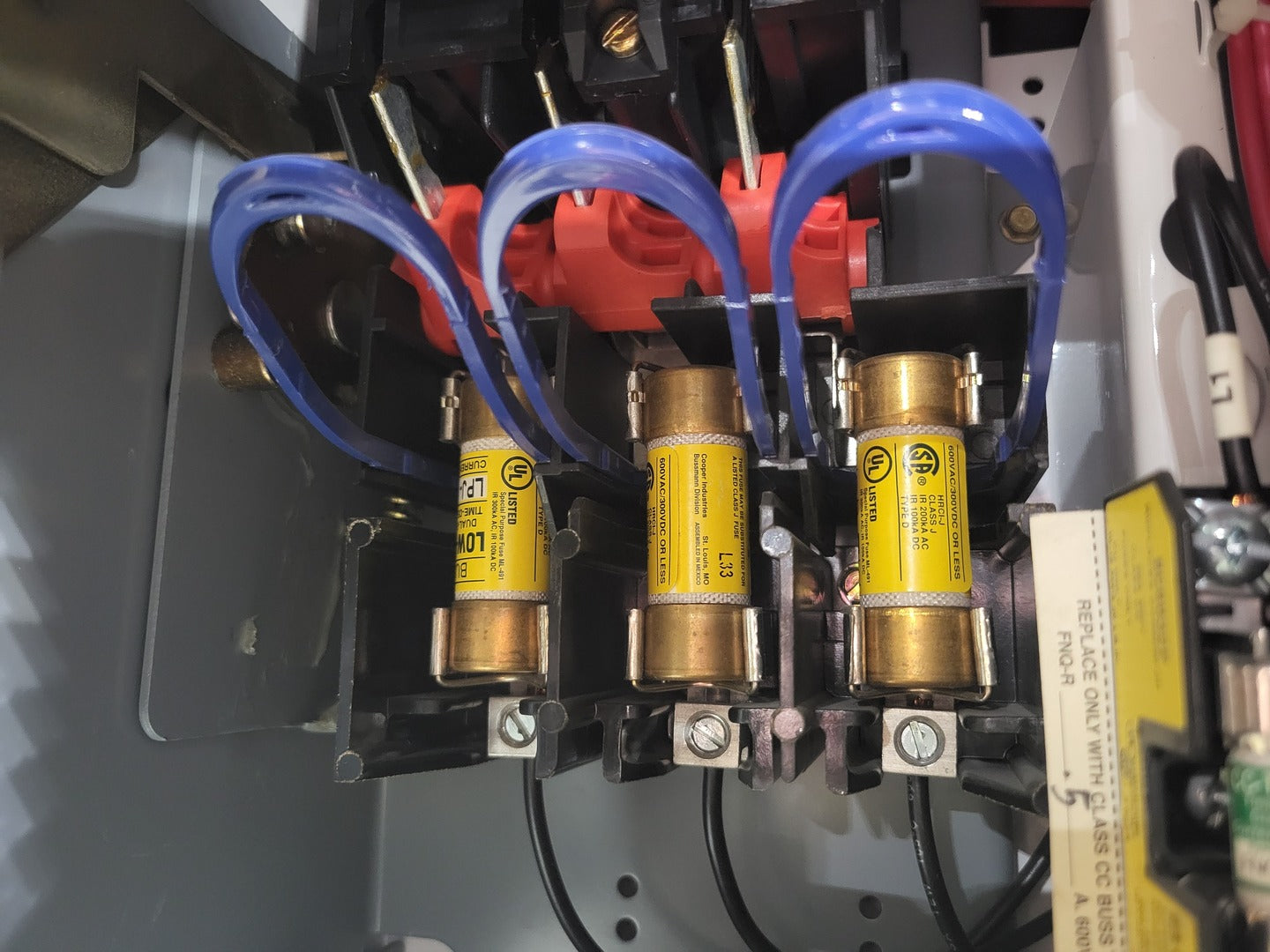

  5. 3 x Bussmann Low-Peak fuses LPJ-15SP

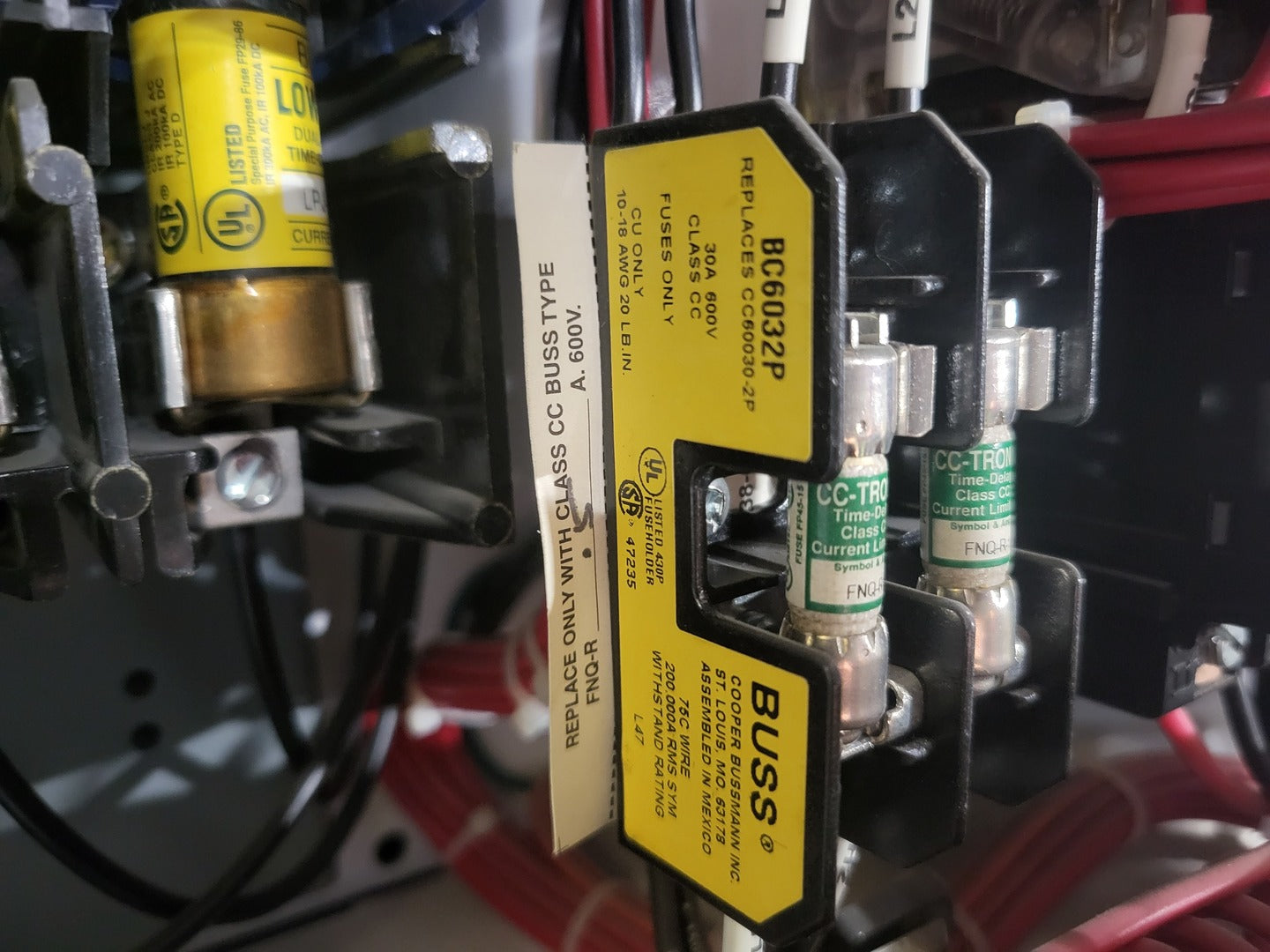

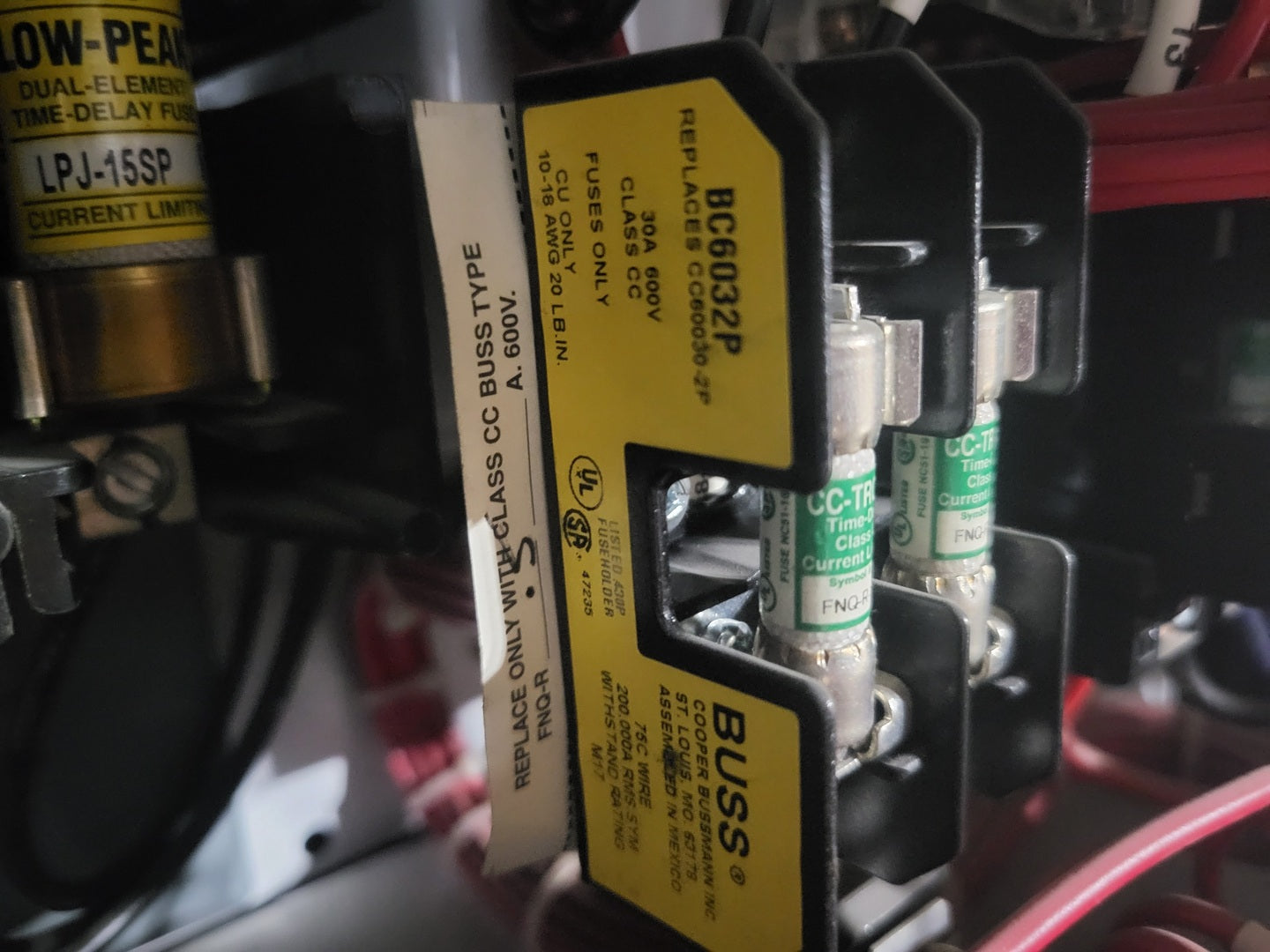

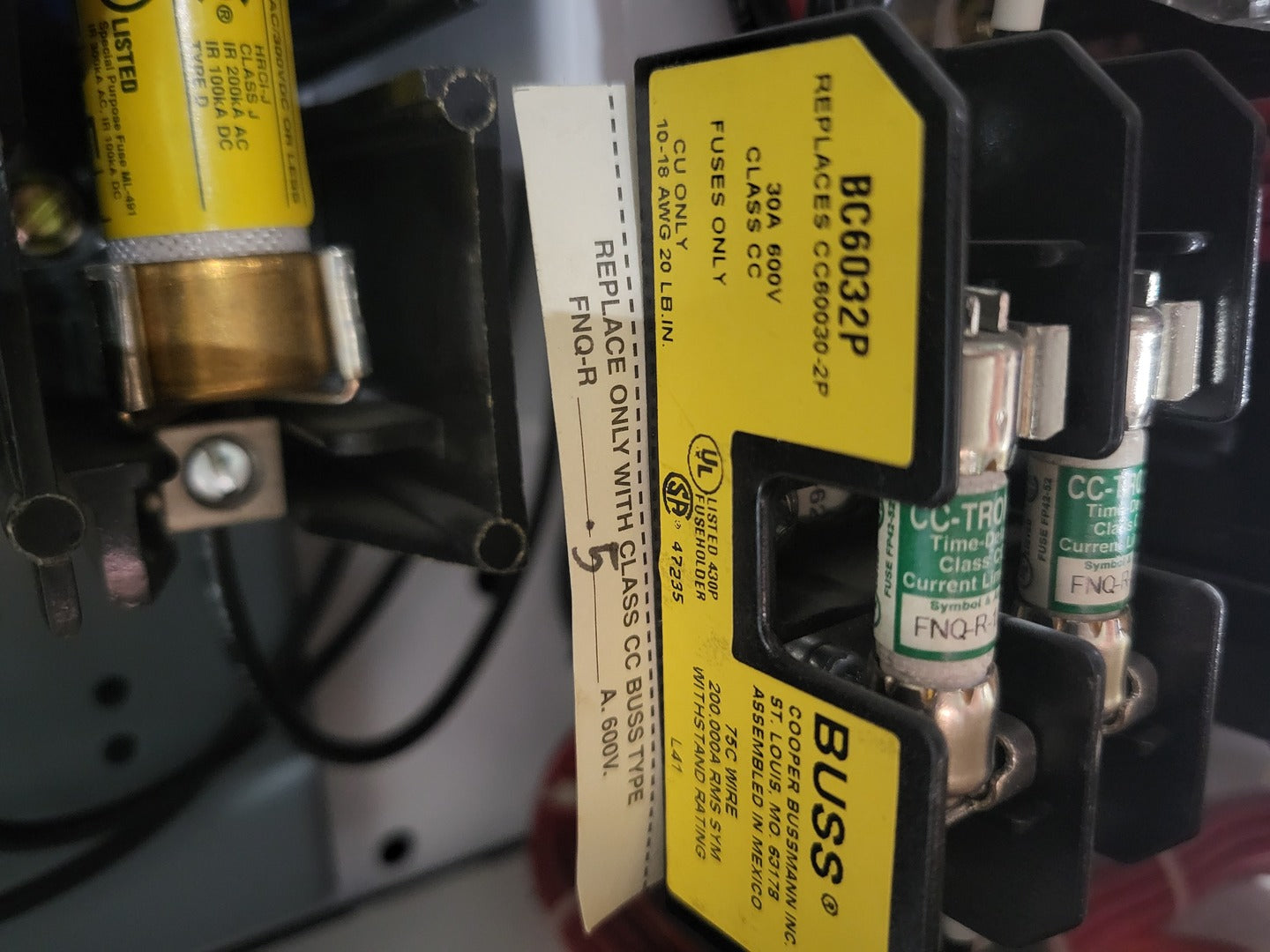

  6. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

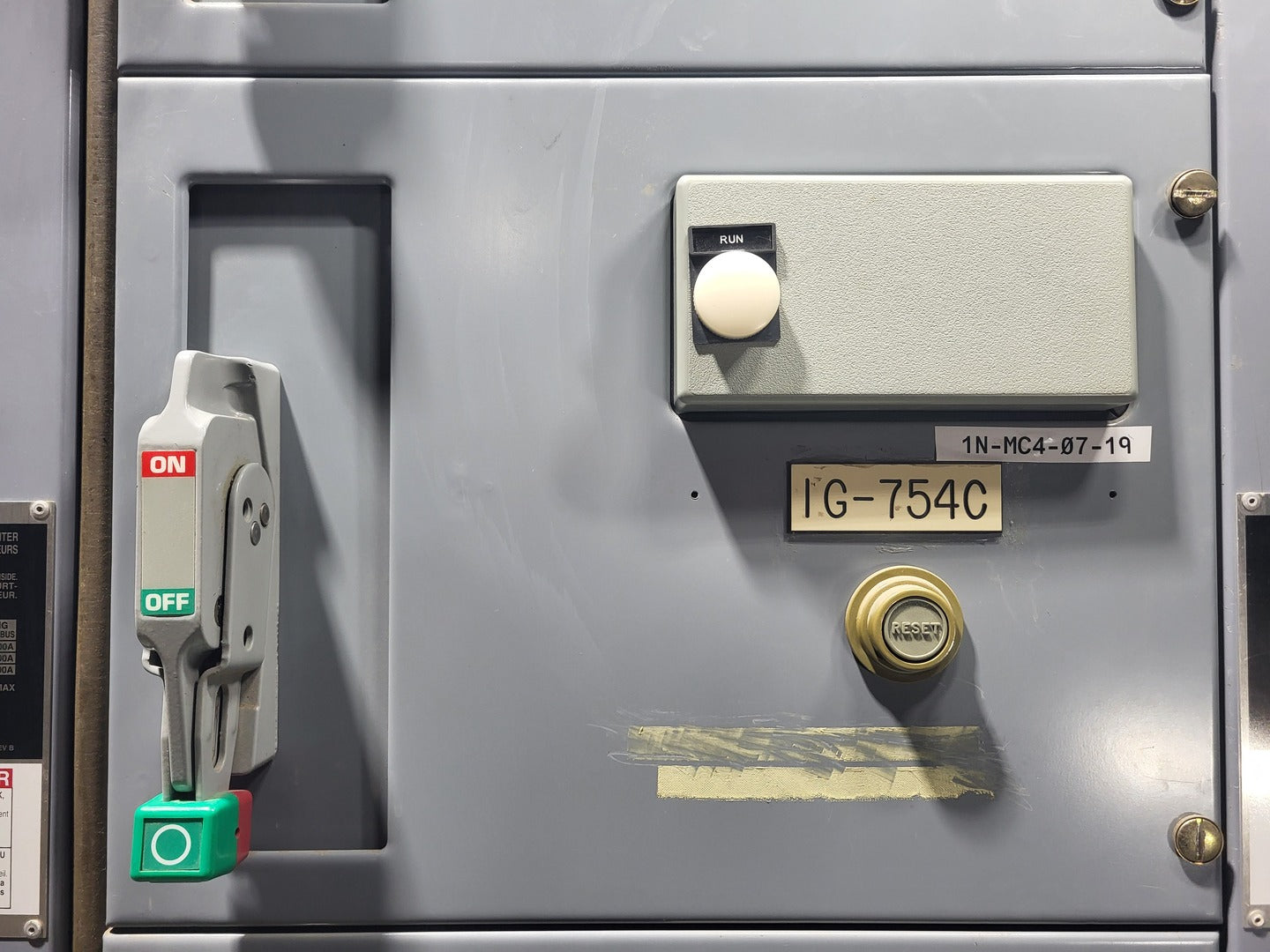

Bucket #2 IG-754C

  1. Square D 8536SCO3H200S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120VAC coil
  2. Square D Motor Logic overload relay, Class 9065 Type SS020 Series C, Class 10/20 selectable, approx. 6-18A FLA range
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  5. 3 x Bussmann Low-Peak fuses LPJ-15SP
  6. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

Bucket #3 1KPM-G790A

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120VAC coil
  2. Square D Motor Logic overload relay, Class 9065 Type SS020 Series C, Class 10/20 selectable, approx. 3-9A FLA range
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

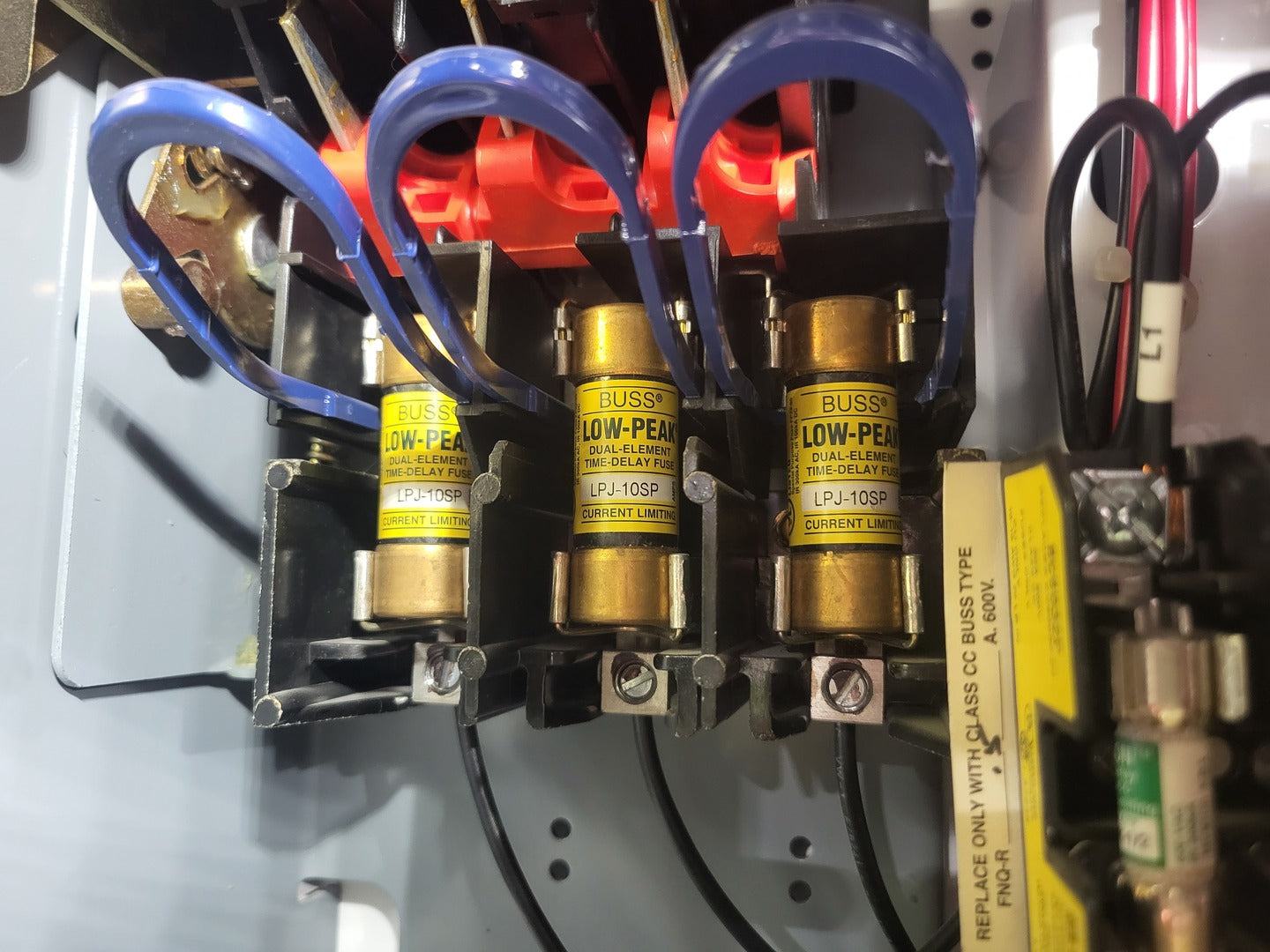

  5. 3 x Bussmann Low-Peak fuses LPJ-10SP
  6. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

Bucket #4 1KPM-G790B

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120VAC coil
  2. Square D Motor Logic overload relay, Class 9065 Type SS020 Series C, Class 10/20 selectable, approx. 3-9A FLA range
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  5. 3 x Bussmann Low-Peak fuses LPJ-10SP
  6. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

Bucket #5 IG-754A

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120VAC coil
  2. Square D Motor Logic overload relay, Class 9065 Type SS020 Series D, Class 10/20 selectable, approx. 3-9A FLA range
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  5. 3 x Bussmann Low-Peak fuses LPJ-15SP
  6. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

Bucket #6 1N-HTP-65

  1. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

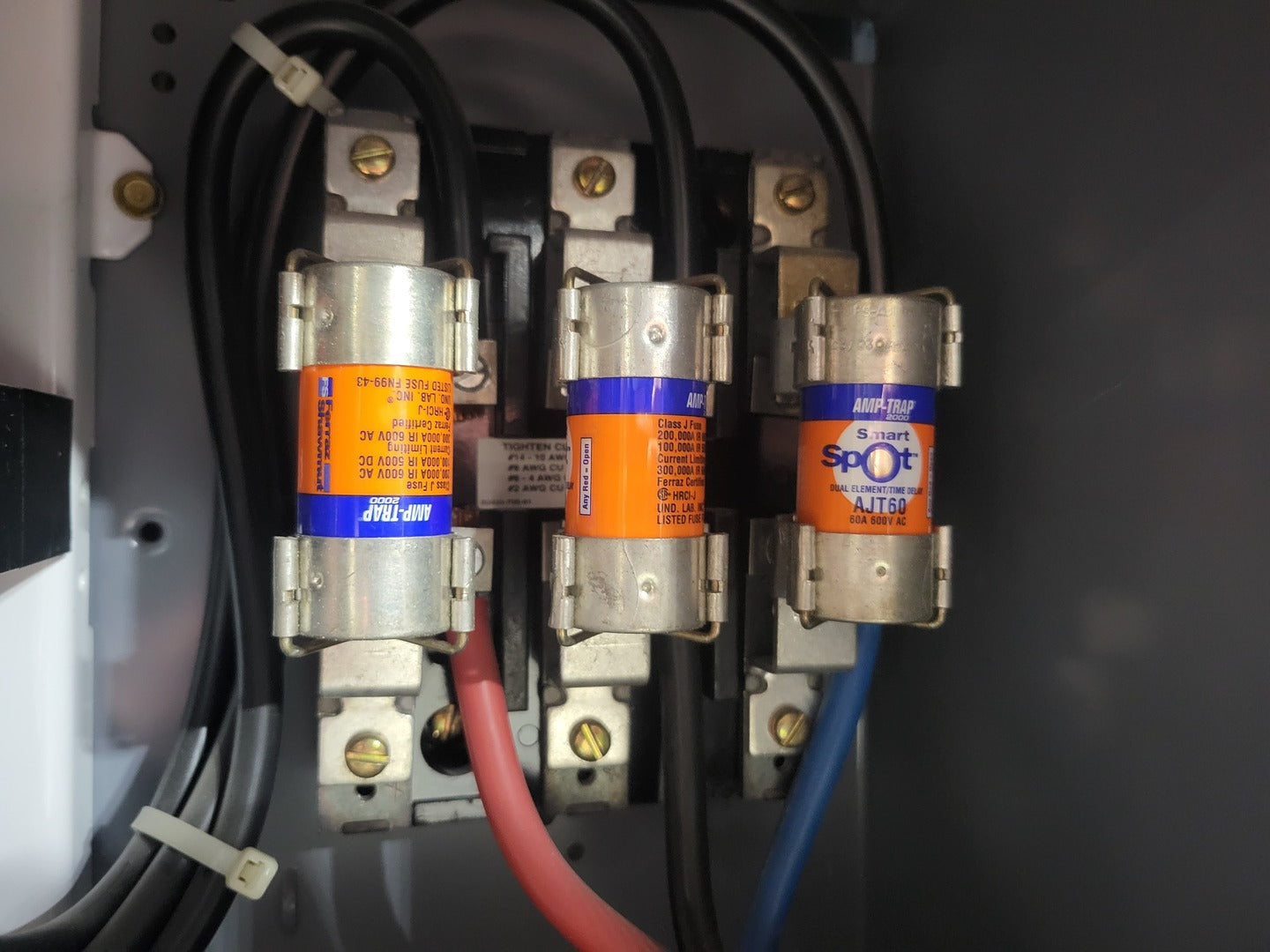

  2. 3 x Ferraz Shawmut Amp-Trap 2000 SmartSpot fuses AJT60
